1. Introduction to Apache NiFi 1.11.4
Timothy Spann
Principal DataFlow Field Engineer
Cloudera
@PaasDev

2. © 2020 Cloudera, Inc. All rights reserved. 2

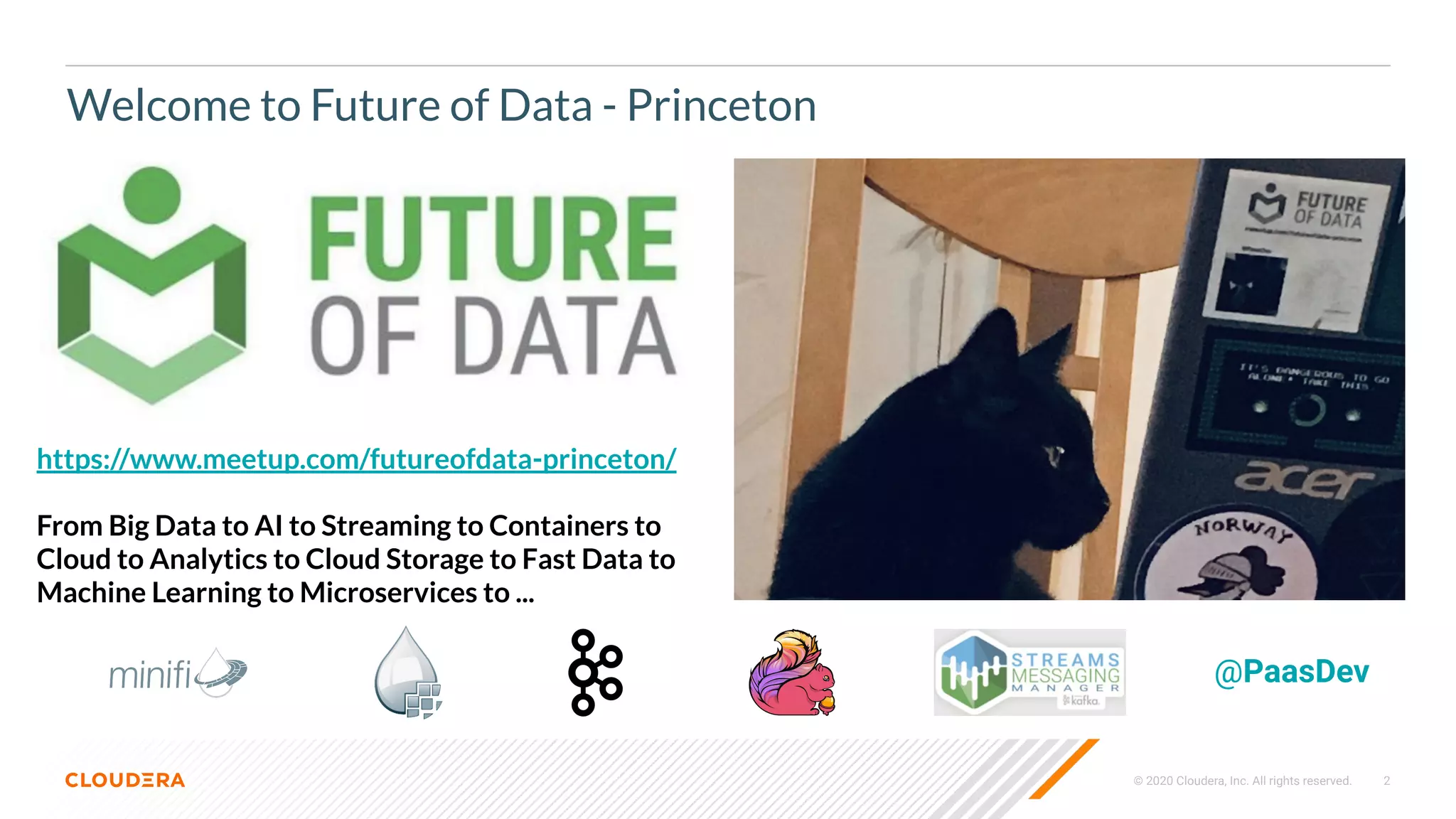

Welcome to Future of Data - Princeton
@PaasDev
https://www.meetup.com/futureofdata-princeton/
From Big Data to AI to Streaming to Containers to
Cloud to Analytics to Cloud Storage to Fast Data to
Machine Learning to Microservices to ...

3. © 2020 Cloudera, Inc. All rights reserved. 3
Meetup Presenter
Who am I?
Principal DataFlow Field Engineer
@PaasDev
DZone Zone Leader and Big Data MVB;
Princeton NJ Future of Data Meetup;
ex-Pivotal Field Engineer;
Apache Kafka, Tensorflow, Apache Spark RefCards
https://github.com/tspannhw https://www.datainmotion.dev/
https://dzone.com/users/297029/bunkertor.html

4. 4© 2020 Cloudera, Inc. All rights reserved.

5. © 2020 Cloudera, Inc. All rights reserved. 5
STORAGE LAYER
sensors
EXAMPLE REFERENCE ARCHITECTURE
Apache NiFi
Apache Kafka
DATA SYNDICATION
SERVICE BY KAFKA
Kafka Topic
iot
DATA FLOW APPS
POWERED BY NIFI
Apache Impala
Cloudera Machine
Learning
MODEL EXECUTION

6. © 2020 Cloudera, Inc. All rights reserved. 6
Cloudera Flow Management
Enable easy ingestion, routing, management and delivery of any data anywhere (Edge, cloud,
data center) to any downstream system with built in end-to-end security and provenance
ACQUIRE PROCESS DELIVER
• Over 300 Prebuilt Processors
• Easy to build your own
• Parse, Enrich & Apply Schema
• Filter, Split, Merger & Route
• Throttle & Backpressure
• Guaranteed Delivery
• Full data provenance from acquisition to
delivery
• Diverse, Non-Traditional Sources
• Eco-system integration
Advanced tooling to industrialize flow development
(Flow Development Life Cycle)

7. © 2020 Cloudera, Inc. All rights reserved. 7
NiFi 1.14

8. © 2020 Cloudera, Inc. All rights reserved. 8
Stateless Engine
• Granular containers per flow
• Flows From NiFi Registry
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html
bin/nifi.sh stateless RunFromRegistry Continuous --file kafka.json
https://github.com/apache/nifi/blob/ea1becac4fc519c54b8b4d21773e68f8da364755/nifi-nar-bundles/nifi-framework-bundle/nifi-
framework/nifi-stateless/README.md

9. © 2020 Cloudera, Inc. All rights reserved. 9
Stateless Engine
• See also Parameters
• Docker
• YARN
• Kubernetes (K8)
• Stateful NiFi clusters
• Apache OpenWhisk (FaaS)
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html
{"registryUrl": "http://tspann-mbp15-hw14277:18080",
"bucketId": "140b30f0-5a47-4747-9021-19d4fde7f993",
"flowId": "0540e1fd-c7ca-46fb-9296-e37632021945",
"ssl": {
"keystoreFile": "","keystorePass": "","keyPass": "","keystoreType": "",
"truststoreFile":
"/Library/Java/JavaVirtualMachines/amazon-corretto-11.jdk/Contents/Home/lib/sec
urity/cacerts",
"truststorePass": "changeit", "truststoreType": "JKS"
},
"parameters": {
"broker" : "4.317.852.100:9092",
"topic" : "iot",
"group_id" : "nifi-stateless-kafka-consumer",
"DestinationDirectory" : "/tmp/nifistateless/output2/",
"output_dir": "/Users/tspann/Documents/nifi-1.10.0-SNAPSHOT/logs/output"
}
}
https://github.com/tspannhw/stateless-examples

10. © 2020 Cloudera, Inc. All rights reserved. 10
Parameters
• Parameters
• Parameter Context
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

11. © 2020 Cloudera, Inc. All rights reserved. 11
Parameters
• Advanced Editors
• Easy to Use
• PARAM
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

12. © 2020 Cloudera, Inc. All rights reserved. 12
Parameters
• Configure Externally with JSON
Files to Execute Stateless Flows
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

13. © 2020 Cloudera, Inc. All rights reserved. 13
Parameters
• Create / Edit Parameters from
NiFi or in JSON Files
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

14. © 2020 Cloudera, Inc. All rights reserved. 14
Parameter Context
• Sensitive or Normal
• Connect to Multiple Process
Groups
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

15. © 2020 Cloudera, Inc. All rights reserved. 15
RetryFlowFile
• Configurable Retries
• Maximum #
• Penalties
• When to Fail
• Reuse Mode
https://medium.com/@abdelkrim.hadjidj/apache-nifi-1-10-series-simplifying-error-handling-7de86f130acd

16. © 2020 Cloudera, Inc. All rights reserved. 16
BackPressure
Prediction
• OrdinaryLeastSquares
• SimpleRegression
• Enable analytics feature
http://lonnifi.blogspot.com/2019/11/back-pressure-prediction-deep-dive.html?es_id=5233333939
https://youtu.be/Tt8TSlHu7PE

17. © 2020 Cloudera, Inc. All rights reserved. 17
ParquetReader /
ParquetWriter
Records
• Native Record Processors for
Apache Parquet Files!
• CSV <-> Parquet
• XML <-> Parquet
• AVRO <-> Parquet
• JSON <-> Parquet
• More...
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html
https://www.datainmotion.dev/2019/10/migrating-apache-flume-flows-to-apac
he_7.html

18. © 2020 Cloudera, Inc. All rights reserved. 18
PostSlack
• Post Images to Slack
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html
https://www.datainmotion.dev/2019/11/nifi-110-postslack-easy-image-upload.html

19. © 2020 Cloudera, Inc. All rights reserved. 19
Remote Input Port
in a Process Group
• Put Remote Connections for
Site-To-Site (S2S) Anywhere!
• Not only top level
• Drop down simplicity
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html

20. © 2020 Cloudera, Inc. All rights reserved. 20
Many New
Features
• Prometheus Reporting Task
• Experimental Encrypted content repository
• PublishKafka Partition Support
• Toolkit module to generate and build Swagger
• GeoEnrichIPRecord Processor
• Command Line Diagnostics
• RocksDB FlowFile Repository
• PutBigQueryStreaming Processor
• Enhanced DevOps and CD/CI
https://www.datainmotion.dev/2019/11/exploring-apache-nifi-110-parameters.html
ELT/ETL Lookup Services
• DatabaseRecordLookupService
• KuduLookupService
• HBase_2_ListLookupService
https://cwiki.apache.org/confluence/display/NIFI/Release+Notes#ReleaseNotes-Version1.10.0

21. © 2020 Cloudera, Inc. All rights reserved. 21
NiFI 1.11 Features
• Improved handling and support for partitions when sending data to Azure Event Hubs.
• All repositories (Content, FlowFile, Provenance) can now be encrypted on disk controlled at an application level.
• Class loader isolation now includes isolating native libraries within the Nars! Huge help for interacting with many Hadoop
vendors or other systems from the same NiFi cluster.
• Keytab Credential Service now supported to ensure easily configured secure communications with the Hortonworks
Schema Registry.
• IBM MQ now easier to integrate with for existing NiFi JMS processors.
• Metrics Events Reporting Task
• Rules Action Handler Lookup Service
https://issues.apache.org/jira/secure/ReleaseNote.jspa?projectId=12316020&version=12
346451

22. © 2019 Cloudera, Inc. All rights reserved. 22
Apache NiFi 1.11.4 Features
Reporting Tasks
Total number of reporting tasks.
Examples of new components:
- Prometheus Reporting Task
- Azure Log Analytics RT
- Azure Provenance RT
- Query NiFi Reporting Task
- Metrics Event Reporting Task
Controller Services
Total number of controller services.
Examples of new components:
- Rules Engine Controller Service
- Kudu Lookup Service
- Azure Storage Credentials
- Amazon S3 Encryption Service
- HBase List Lookup Service
- Parquet Reader/Writer
Processors
Total number of processors.
Examples of new components:
- Accumulo processors
- Put Elasticsearch Record
- Put BigQuery Streaming
- RetryFlowFile

23. © 2019 Cloudera, Inc. All rights reserved. 23
Other Features of Apache NiFi 1.11.4
JDK 11 Support
Improvements:
- Class loading isolation with
native libraries
Security
- Encrypted content repository &
flow file repository (tech
preview)
Operations
Improvements:
- Monitoring analytics and rule
based monitoring
- Parameters to improve CI/CD
and support sensitive
properties
https://www.youtube.com/watch?v=IUjz-rhA3xs

24. © 2019 Cloudera, Inc. All rights reserved. 24
Cloud, VMs, Containers and Pods
https://hub.docker.com/r/apache/nifi/
https://hub.helm.sh/charts/cetic/nifi

25. © 2020 Cloudera, Inc. All rights reserved. 25
Example

31. © 2019 Cloudera, Inc. All rights reserved. 31
Useful Links
https://www.datainmotion.dev/2020/02/connecting-apache-nifi-to-apache-atlas.html
https://dev.to/tspannhw/quicktip-ingesting-google-analytics-api-with-apache-nifi-mg1
https://dev.to/tspannhw/analyzing-wood-burning-stoves-with-flank-stack-minifi-flink-ni
fi-kafka-kudu-36on
https://dev.to/tspannhw/cloudera-edge2ai-minifi-java-agent-with-raspberry-pi-and-ther
mal-camera-and-air-quality-sensor-part-1-3oo9
https://dev.to/tspannhw/iot-series-minifi-agent-on-raspberry-pi-4-with-enviro-hat-for-en
vironmental-monitoring-and-analytics-l8d
https://dev.to/tspannhw/introducing-mm-flank-an-apache-flink-stack-for-rapid-streami
ng-development-from-edge-2-ai-5c12
https://dev.to/tspannhw/nifi-1-10-postslack-easy-image-upload-22mh
https://dev.to/tspannhw/nifi-toolkit-cli-for-nifi-1-10-213h
