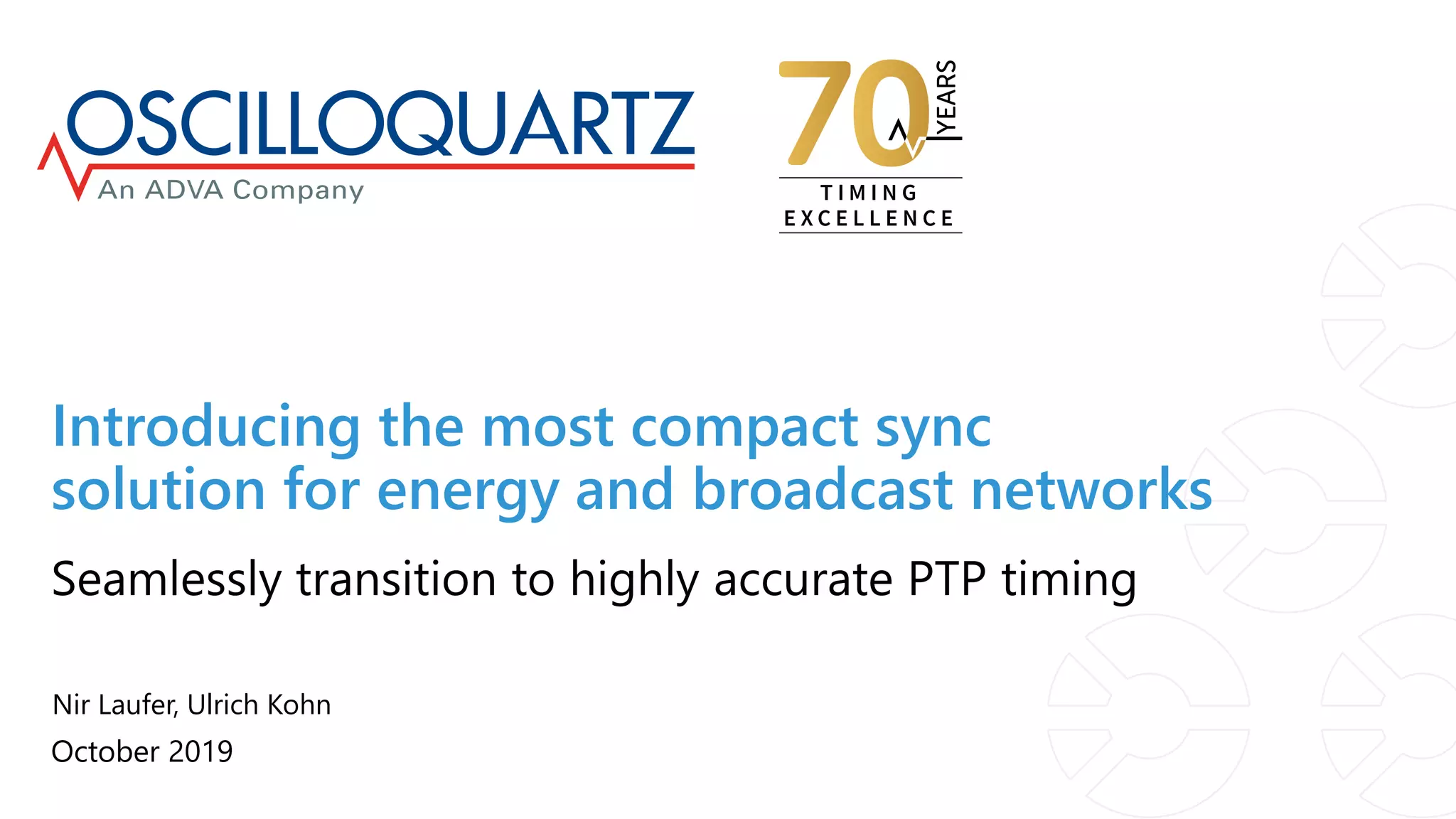

Introducing the most compact sync
solution for energy and broadcast networks
Nir Laufer, Ulrich Kohn
October 2019
Seamlessly transition to highly accurate PTP timing
© 2019 ADVA Optical Networking. All rights reserved.22

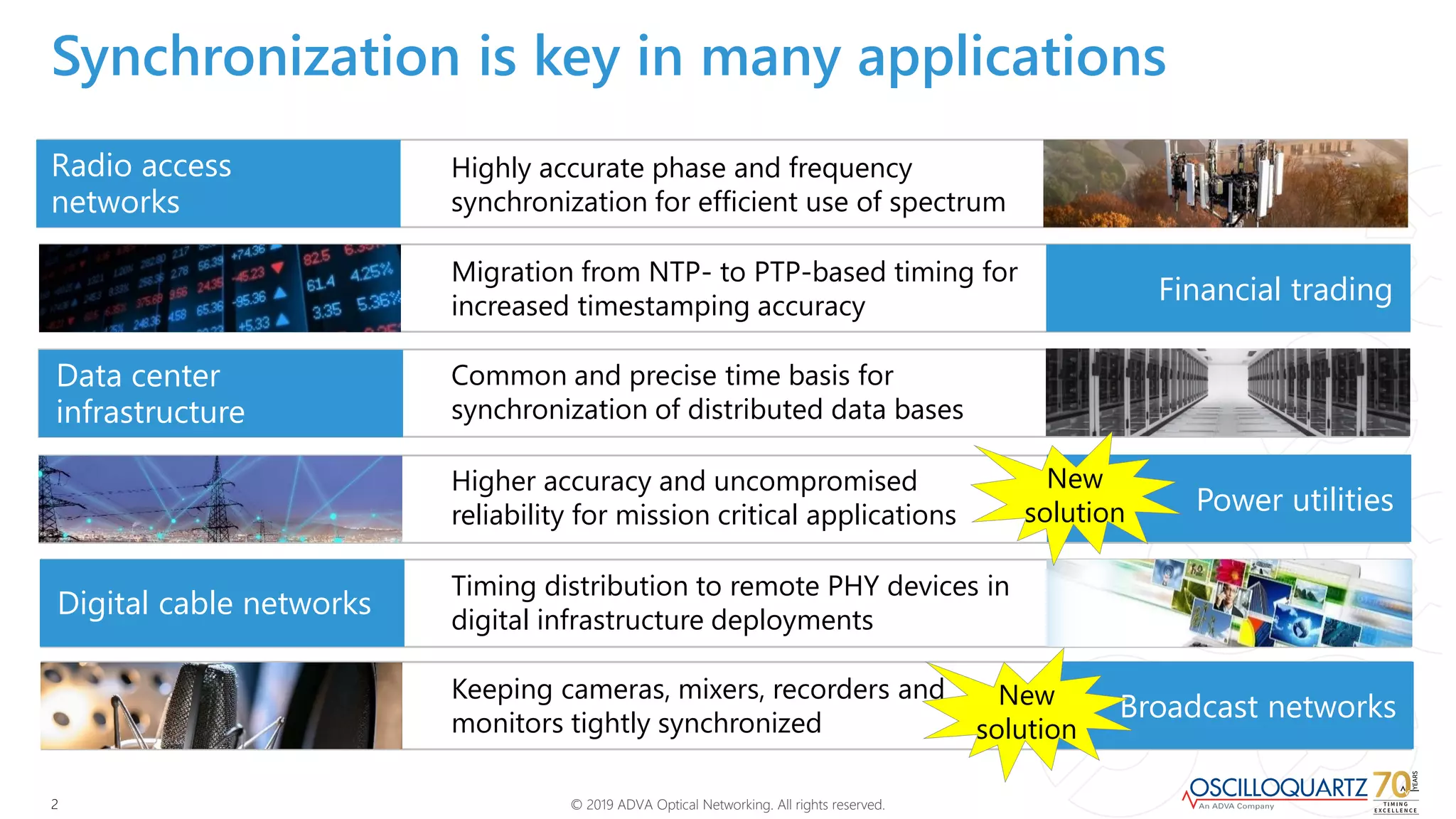

Synchronization is key in many applications
Radio access
networks
Highly accurate phase and frequency
synchronization for efficient use of spectrum
Migration from NTP- to PTP-based timing for
increased timestamping accuracy
Financial trading
Digital cable networks
Timing distribution to remote PHY devices in
digital infrastructure deployments
Higher accuracy and uncompromised
reliability for mission critical applications Power utilities
Data center
infrastructure
Common and precise time basis for
synchronization of distributed data bases
Keeping cameras, mixers, recorders and
monitors tightly synchronized
Broadcast networks
New
solution
New
solution
© 2019 ADVA Optical Networking. All rights reserved.33 © 2019 ADVA Optical Networking. All rights reserved. Confidential.3
Synchronizing professional broadcast
services
© 2019 ADVA Optical Networking. All rights reserved.44
SDI is a synchronous, broadcast-
specific transport technology
SDI monolithically integrates
video signals, framing and timing
into hardware, creating
complexity and inflexibility
challenges with synchronizing
audio and video
Evolve towards IP network with
flexible processing of video and
audio and ancillary data
Towards standard IP transport of video, audio, ancillary data as well as time
Drivers for IP in broadcasting networks
Mobile studio
Production
studio
Local TV
station
Legacy
SDI transport
IP transport
Ethernet/IP at appliances
SDI at appliances
Mobile studio
Local TV
station
© 2019 ADVA Optical Networking. All rights reserved.5555 © 2019 ADVA Optical Networking. All rights reserved. Confidential.
SMPTE 2059 uses PTP IP packets to do the job traditional SPGs do
PTP (SMPTE 2059) replaces SPG
Sync pulse
generator (SPG)
SDI
Frame
synchronizer
Remote
Onsite
Video
router
SDI
Video
processing
Video
server
Sync pulses
SDI
Simplification
with IP
PTP
Grandmaster
Frame
synchronizer
Remote
Onsite
Video
processing
Video
server
Video
router
Packet network
Media, control and timing
SMPTE: Society of Motion Picture and Television Engineers; pronounced “simp-tee”
© 2019 ADVA Optical Networking. All rights reserved.66
What synchronization problems need to be solved?
Avoid frame losses caused by
faster sending than receiving;
make: f1 = f2
Asynchronous
IP transport
Asynchronous
IP transport
HDR proc.
Video Audio
Dolby surround
(16 video, 5 audio).Subtitles
Production
f1
f2 < f1
Enable distributed processing
of audio and video;
make: t1 = t2 = t3 = t4 = t5 = t6
Deliver precise time over
packet networks despite jitter
and (asymmetric) delay
t1
t2
t3
t4
t5
t6
Asynchronous
IP transport
time Time
Drop
© 2019 ADVA Optical Networking. All rights reserved.77
Step 1: Synchronizing broadcasting devices Step 2: Backup with network-based delivery
Combining GNSS-based and network-based timing for best performance
Seamlessly introducing PTP in broadcasting networks
• Installing very compact grandmasters
• Satellite-based timing at any site
• Backed up by network-based PTP
• Use SMPTE ST 2059-2 /AES67 PTP profiles
• Central, redundant high-performance
grandmasters
• Sync-aware network devices (TC, BC)
• Potential use of telecom profiles (G.8275.1/2)
OSA 5405
OSA 5401
© 2019 ADVA Optical Networking. All rights reserved.88 © 2019 ADVA Optical Networking. All rights reserved. Confidential.8
Power utilities
© 2019 ADVA Optical Networking. All rights reserved.99
Synchronization accuracy requirements
Bulk metering
Customer premises metering
SCADA: supervisory control and data acquisition
Frequency measurement
Event recorder
Fault localization
Synchrophasor: voltage/current with accurate phase
1s
1ms
1µs
IRIG
NTP
PTP
Inter-range instrumentation group (IRIG) time codes; Oct
1960: ASCII coded date/time information on sub-carrier
© 2019 ADVA Optical Networking. All rights reserved.1010
GNSS outages need to be mitigated with
network-based synchronization delivery
IEEE 1588 necessary for IEC 61850 substation
automation and IEEE C37.118 synchrophasor
PTP profiles:
IEC/IEEE 61850-9-3
IEEE C37.238-2011
IEEE C37.238-2017
As synchronization is mission-critical, real-time
information about sync quality is vital
Moving from 1ms to 1µs time accuracy requires
NTP to be replaced by PTP
Challenges
Increasing accuracy GNSS vulnerability
Lack of visibility Standardization
© 2019 ADVA Optical Networking. All rights reserved.1111
IRIG and PPS provide time
information
GNSS as highly accurate local
time reference
Network Time Protocol (NTP)
provides ms precision to
appliances
GNSS time reference
Currently applied solutions meet neither accuracy nor availability requirements
Substation synchronization - today
Migration to
Ethernet
Protection
relay
RTU/
SCADA
IEDEvent
recorder
HMI
Substation
switch
IRIG-B,
PPS
NTP
server
GPS
clock
NTP
IRIG time codes; Oct 1960: ASCII
coded date/time information on
sub-carrier
© 2019 ADVA Optical Networking. All rights reserved.1212
Precision time protocol for
sub-µs timing accuracy
Converging PTP, NTP and
IRIG-B into single solution
Mitigating GNSS outages with
network-based backup for
highest availability
Assuring business continuity
by monitoring sync quality
SFP-based OSA 5401 or
integrated receiver OSA 5405
Highest accuracy and best availability with satellite- and network-based timing
Substation synchronization – tomorrow
Protection
relay
RTU/
SCADA
IEDEvent
recorder
HMI
Substation
switch
IRIG-B,
PPS
PTP grandmaster
PTP,
NTP
ePRTCWAN
OSA 5405
OSA 5401
© 2019 ADVA Optical Networking. All rights reserved.1313
Highly-accurate timing delivery and assurance with the
smallest footprint on the market
Multiple fallback options for extended holdover
Syncjack™ technology for in-service sync monitoring
Small form-factor pluggable (SFP) with integrated PTP grandmaster, NTP server and GNSS
receiver
Configurable to operate in PTP grandmaster, boundary clock, slave clock and APTS modes
Supporting power, broadcast and telecom PTP profiles
Product description
Key benefits
Enabling PTP synchronization in the most space-restrictive environments
SFP-based PTP/NTP server with built-in GNSS receiver
OSA 5401 – product overview
Smallest
PTP/NTP server in
the world !
© 2019 ADVA Optical Networking. All rights reserved.1414
Unique indoor dual GNSS antenna
No clear sky view needed
Simple installation and maintenance without RF cable feeds
(powered over Ethernet)
Dual GNSS antenna with receiver and PTP grandmaster
Ruggedized outdoor variant for wall, pole and cabinet mount on the roof or at street level
Small footprint variant for indoor window or wall mounting
Supporting power, broadcast and telecom PTP profiles
Product description
Key benefits
Enabling precise synchronization everywhere
In-/outdoor smart GNSS antenna with integrated receiver and PTP grandmaster
OSA 5405 Series – product overview
© 2019 ADVA Optical Networking. All rights reserved.1515
Precise timing is essential for an increasing number of
markets, now including power and broadcast
Oscilloquartz has added power and broadcast profile to its
most compact grandmasters
Easy upgrade of existing broadcast and energy networks
with SFP-based solution OSA 5401
OSA 5405 grandmaster with integrated GNSS receiver and
antenna for even the most challenging environments with
limited sky view
Unique jamming and spoofing prevention
Unique synchronization portfolio supports broadcasting and energy networks
Summary
Thank you
IMPORTANT NOTICE
The content of this presentation is strictly confidential. ADVA Optical Networking is the exclusive owner or licensee of the content, material, and information in this presentation.
Any reproduction, publication or reprint, in whole or in part, is strictly prohibited.
The information in this presentation may not be accurate, complete or up to date, and is provided without warranties or representations of any kind, either express or implied. ADVA
Optical Networking shall not be responsible for and disclaims any liability for any loss or damages, including without limitation, direct, indirect, incidental, consequential and special
damages, alleged to have been caused by or in connection with using and/or relying on the information contained in this presentation.
Copyright © for the entire content of this presentation: ADVA Optical Networking.

More Related Content

What's hot

ADVA aPNT+™ security enhancements
ADVA aPNT+™ security enhancementsADVA aPNT+™ security enhancements
ADVA aPNT+™ security enhancementsADVA

Recent growth in timing
Recent growth in timingRecent growth in timing
Recent growth in timingADVA

Introducing the FSP 150-XG118Pro
Introducing the FSP 150-XG118ProIntroducing the FSP 150-XG118Pro
Introducing the FSP 150-XG118ProADVA

Introducing the FSP 3000 OpenFabric1200™
Introducing the FSP 3000 OpenFabric1200™Introducing the FSP 3000 OpenFabric1200™
Introducing the FSP 3000 OpenFabric1200™ADVA

Best sync practices and architecture strategies for secure, resilient PNT in ...
Best sync practices and architecture strategies for secure, resilient PNT in ...Best sync practices and architecture strategies for secure, resilient PNT in ...
Best sync practices and architecture strategies for secure, resilient PNT in ...ADVA

OSA 5405-MB – precise edge timing for 5G and smart cities
OSA 5405-MB – precise edge timing for 5G and smart citiesOSA 5405-MB – precise edge timing for 5G and smart cities
OSA 5405-MB – precise edge timing for 5G and smart citiesADVA

Introducing G.metro
Introducing G.metroIntroducing G.metro
Introducing G.metroADVA

OSA 5440 for scalable and fully redunandant multi-technology synchronization
OSA 5440 for scalable and fully redunandant multi-technology synchronizationOSA 5440 for scalable and fully redunandant multi-technology synchronization
OSA 5440 for scalable and fully redunandant multi-technology synchronizationADVA

Synchronizing 5G networks
Synchronizing 5G networksSynchronizing 5G networks
Synchronizing 5G networksADVA

Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...
Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...
Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...ADVA

GNSS Optimization for Urban Canyon and Indoor Synchronization
GNSS Optimization for Urban Canyon and Indoor SynchronizationGNSS Optimization for Urban Canyon and Indoor Synchronization
GNSS Optimization for Urban Canyon and Indoor SynchronizationADVA

Introducing the CrossLink Programmable ASSP
Introducing the CrossLink Programmable ASSPIntroducing the CrossLink Programmable ASSP
Introducing the CrossLink Programmable ASSPLatticeSemiconductor

Introducing the OSA 5335 PTP Grandmaster
Introducing the OSA 5335 PTP GrandmasterIntroducing the OSA 5335 PTP Grandmaster
Introducing the OSA 5335 PTP GrandmasterADVA

Submarine line termination equipment (SLTE) for open cables
Submarine line termination equipment (SLTE) for open cablesSubmarine line termination equipment (SLTE) for open cables
Submarine line termination equipment (SLTE) for open cablesADVA

A new benchmark for timing success - OSA 5412 and 5422 access grandmasters
A new benchmark for timing success - OSA 5412 and 5422 access grandmasters A new benchmark for timing success - OSA 5412 and 5422 access grandmasters
A new benchmark for timing success - OSA 5412 and 5422 access grandmasters ADVA

GNSS for autonomous inland shipping
GNSS for autonomous inland shippingGNSS for autonomous inland shipping
GNSS for autonomous inland shippingSeptentrio

Introducing the OSA 5405-P substation grandmaster for smart grid timing
Introducing the OSA 5405-P substation grandmaster for smart grid timingIntroducing the OSA 5405-P substation grandmaster for smart grid timing
Introducing the OSA 5405-P substation grandmaster for smart grid timingADVA

Introducing the OSA 5430
Introducing the OSA 5430Introducing the OSA 5430
Introducing the OSA 5430ADVA

Case Study: Small Macro Cell Sync Solution
Case Study: Small Macro Cell Sync SolutionCase Study: Small Macro Cell Sync Solution
Case Study: Small Macro Cell Sync SolutionADVA

FSP 3000 open line system – Ultimate DCI flexibility
FSP 3000 open line system – Ultimate DCI flexibilityFSP 3000 open line system – Ultimate DCI flexibility
FSP 3000 open line system – Ultimate DCI flexibilityADVA


What's hot (20)

ADVA aPNT+™ security enhancements
ADVA aPNT+™ security enhancementsADVA aPNT+™ security enhancements
ADVA aPNT+™ security enhancements

Recent growth in timing
Recent growth in timingRecent growth in timing
Recent growth in timing

Introducing the FSP 150-XG118Pro
Introducing the FSP 150-XG118ProIntroducing the FSP 150-XG118Pro
Introducing the FSP 150-XG118Pro

Introducing the FSP 3000 OpenFabric1200™
Introducing the FSP 3000 OpenFabric1200™Introducing the FSP 3000 OpenFabric1200™
Introducing the FSP 3000 OpenFabric1200™

Best sync practices and architecture strategies for secure, resilient PNT in ...
Best sync practices and architecture strategies for secure, resilient PNT in ...Best sync practices and architecture strategies for secure, resilient PNT in ...
Best sync practices and architecture strategies for secure, resilient PNT in ...

OSA 5405-MB – precise edge timing for 5G and smart cities
OSA 5405-MB – precise edge timing for 5G and smart citiesOSA 5405-MB – precise edge timing for 5G and smart cities
OSA 5405-MB – precise edge timing for 5G and smart cities

Introducing G.metro
Introducing G.metroIntroducing G.metro
Introducing G.metro

OSA 5440 for scalable and fully redunandant multi-technology synchronization
OSA 5440 for scalable and fully redunandant multi-technology synchronizationOSA 5440 for scalable and fully redunandant multi-technology synchronization
OSA 5440 for scalable and fully redunandant multi-technology synchronization

Synchronizing 5G networks
Synchronizing 5G networksSynchronizing 5G networks
Synchronizing 5G networks

Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...
Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...
Live demo of low-latency and timing-accurate mobile x-haul based on SDN-enabl...

GNSS Optimization for Urban Canyon and Indoor Synchronization
GNSS Optimization for Urban Canyon and Indoor SynchronizationGNSS Optimization for Urban Canyon and Indoor Synchronization
GNSS Optimization for Urban Canyon and Indoor Synchronization

Introducing the CrossLink Programmable ASSP
Introducing the CrossLink Programmable ASSPIntroducing the CrossLink Programmable ASSP
Introducing the CrossLink Programmable ASSP

Introducing the OSA 5335 PTP Grandmaster
Introducing the OSA 5335 PTP GrandmasterIntroducing the OSA 5335 PTP Grandmaster
Introducing the OSA 5335 PTP Grandmaster

Submarine line termination equipment (SLTE) for open cables
Submarine line termination equipment (SLTE) for open cablesSubmarine line termination equipment (SLTE) for open cables
Submarine line termination equipment (SLTE) for open cables

A new benchmark for timing success - OSA 5412 and 5422 access grandmasters
A new benchmark for timing success - OSA 5412 and 5422 access grandmasters A new benchmark for timing success - OSA 5412 and 5422 access grandmasters
A new benchmark for timing success - OSA 5412 and 5422 access grandmasters

GNSS for autonomous inland shipping
GNSS for autonomous inland shippingGNSS for autonomous inland shipping
GNSS for autonomous inland shipping

Introducing the OSA 5405-P substation grandmaster for smart grid timing
Introducing the OSA 5405-P substation grandmaster for smart grid timingIntroducing the OSA 5405-P substation grandmaster for smart grid timing
Introducing the OSA 5405-P substation grandmaster for smart grid timing

Introducing the OSA 5430
Introducing the OSA 5430Introducing the OSA 5430
Introducing the OSA 5430

Case Study: Small Macro Cell Sync Solution
Case Study: Small Macro Cell Sync SolutionCase Study: Small Macro Cell Sync Solution
Case Study: Small Macro Cell Sync Solution

FSP 3000 open line system – Ultimate DCI flexibility
FSP 3000 open line system – Ultimate DCI flexibilityFSP 3000 open line system – Ultimate DCI flexibility
FSP 3000 open line system – Ultimate DCI flexibility


Similar to Introducing the most compact sync solution for energy and broadcast networks

Get your timing right for 5G OpenRAN!
Get your timing right for 5G OpenRAN!Get your timing right for 5G OpenRAN!
Get your timing right for 5G OpenRAN!ADVA

What is the future of traditional SSUs and TSGs?
What is the future of traditional SSUs and TSGs?What is the future of traditional SSUs and TSGs?
What is the future of traditional SSUs and TSGs?ADVA

Best practices in synchronizing IP-based packet broadcasting networks
Best practices in synchronizing IP-based packet broadcasting networksBest practices in synchronizing IP-based packet broadcasting networks
Best practices in synchronizing IP-based packet broadcasting networksADVA

Synchronizing power networks
Synchronizing power networksSynchronizing power networks
Synchronizing power networksADVA

Protecting TV broadcast networks against timing problems
Protecting TV broadcast networks against timing problemsProtecting TV broadcast networks against timing problems
Protecting TV broadcast networks against timing problemsADVA

Best practices in synchronizing IP-based packet broadcast networks
Best practices in synchronizing IP-based packet broadcast networksBest practices in synchronizing IP-based packet broadcast networks
Best practices in synchronizing IP-based packet broadcast networksADVA

New connectivity in 5G: Avoiding dead-ends in the road to mobile growth
New connectivity in 5G: Avoiding dead-ends in the road to mobile growthNew connectivity in 5G: Avoiding dead-ends in the road to mobile growth
New connectivity in 5G: Avoiding dead-ends in the road to mobile growthADVA

Reducing time errors for GNSS: Time for multiband?
Reducing time errors for GNSS: Time for multiband?Reducing time errors for GNSS: Time for multiband?
Reducing time errors for GNSS: Time for multiband?ADVA

Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...
Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...
Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...ADVA

Introducing OSA 5405 - Highly Precise On-Site Synchronization
Introducing OSA 5405 - Highly Precise On-Site SynchronizationIntroducing OSA 5405 - Highly Precise On-Site Synchronization
Introducing OSA 5405 - Highly Precise On-Site SynchronizationADVA

AnyCell Connectivity Supporting Any Mobile Radio Technology
AnyCell Connectivity   Supporting Any Mobile Radio TechnologyAnyCell Connectivity   Supporting Any Mobile Radio Technology
AnyCell Connectivity Supporting Any Mobile Radio TechnologyADVA

Oscilloquartz's Acquisition of Time4 Systems
Oscilloquartz's Acquisition of Time4 SystemsOscilloquartz's Acquisition of Time4 Systems
Oscilloquartz's Acquisition of Time4 SystemsADVA

Time as a service for the IoT world of tomorrow
Time as a service for the IoT world of tomorrowTime as a service for the IoT world of tomorrow
Time as a service for the IoT world of tomorrowADVA

Synchronization for 5G: the requirements and the solutions
Synchronization for 5G: the requirements and the solutionsSynchronization for 5G: the requirements and the solutions
Synchronization for 5G: the requirements and the solutionsADVA

Introducing GNSS/GPS backup as a service (GBaaS)
Introducing GNSS/GPS backup as a service (GBaaS)Introducing GNSS/GPS backup as a service (GBaaS)
Introducing GNSS/GPS backup as a service (GBaaS)ADVA

Phase Delivery in Brownfield World at ITSF 2014
Phase Delivery in Brownfield World at ITSF 2014Phase Delivery in Brownfield World at ITSF 2014
Phase Delivery in Brownfield World at ITSF 2014ADVA

Synchronization in Cable Networks
Synchronization in Cable NetworksSynchronization in Cable Networks
Synchronization in Cable NetworksADVA

Syncing the cloud - from T1 to TAP
 Syncing the cloud - from T1 to TAP Syncing the cloud - from T1 to TAP
Syncing the cloud - from T1 to TAPADVA

Optical and mobile networks: friends or foes?
Optical and mobile networks: friends or foes?Optical and mobile networks: friends or foes?
Optical and mobile networks: friends or foes?ADVA

Timing and sync requirements in railway networks
Timing and sync requirements in railway networksTiming and sync requirements in railway networks
Timing and sync requirements in railway networksAdtran


Similar to Introducing the most compact sync solution for energy and broadcast networks (20)

Get your timing right for 5G OpenRAN!
Get your timing right for 5G OpenRAN!Get your timing right for 5G OpenRAN!
Get your timing right for 5G OpenRAN!

What is the future of traditional SSUs and TSGs?
What is the future of traditional SSUs and TSGs?What is the future of traditional SSUs and TSGs?
What is the future of traditional SSUs and TSGs?

Best practices in synchronizing IP-based packet broadcasting networks
Best practices in synchronizing IP-based packet broadcasting networksBest practices in synchronizing IP-based packet broadcasting networks
Best practices in synchronizing IP-based packet broadcasting networks

Synchronizing power networks
Synchronizing power networksSynchronizing power networks
Synchronizing power networks

Protecting TV broadcast networks against timing problems
Protecting TV broadcast networks against timing problemsProtecting TV broadcast networks against timing problems
Protecting TV broadcast networks against timing problems

Best practices in synchronizing IP-based packet broadcast networks
Best practices in synchronizing IP-based packet broadcast networksBest practices in synchronizing IP-based packet broadcast networks
Best practices in synchronizing IP-based packet broadcast networks

New connectivity in 5G: Avoiding dead-ends in the road to mobile growth
New connectivity in 5G: Avoiding dead-ends in the road to mobile growthNew connectivity in 5G: Avoiding dead-ends in the road to mobile growth
New connectivity in 5G: Avoiding dead-ends in the road to mobile growth

Reducing time errors for GNSS: Time for multiband?
Reducing time errors for GNSS: Time for multiband?Reducing time errors for GNSS: Time for multiband?
Reducing time errors for GNSS: Time for multiband?

Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...
Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...
Time sync: Existing mobile networks need to be ready for 5G and time-sensitiv...

Introducing OSA 5405 - Highly Precise On-Site Synchronization
Introducing OSA 5405 - Highly Precise On-Site SynchronizationIntroducing OSA 5405 - Highly Precise On-Site Synchronization
Introducing OSA 5405 - Highly Precise On-Site Synchronization

AnyCell Connectivity Supporting Any Mobile Radio Technology
AnyCell Connectivity   Supporting Any Mobile Radio TechnologyAnyCell Connectivity   Supporting Any Mobile Radio Technology
AnyCell Connectivity Supporting Any Mobile Radio Technology

Oscilloquartz's Acquisition of Time4 Systems
Oscilloquartz's Acquisition of Time4 SystemsOscilloquartz's Acquisition of Time4 Systems
Oscilloquartz's Acquisition of Time4 Systems

Time as a service for the IoT world of tomorrow
Time as a service for the IoT world of tomorrowTime as a service for the IoT world of tomorrow
Time as a service for the IoT world of tomorrow

Synchronization for 5G: the requirements and the solutions
Synchronization for 5G: the requirements and the solutionsSynchronization for 5G: the requirements and the solutions
Synchronization for 5G: the requirements and the solutions

Introducing GNSS/GPS backup as a service (GBaaS)
Introducing GNSS/GPS backup as a service (GBaaS)Introducing GNSS/GPS backup as a service (GBaaS)
Introducing GNSS/GPS backup as a service (GBaaS)

Phase Delivery in Brownfield World at ITSF 2014
Phase Delivery in Brownfield World at ITSF 2014Phase Delivery in Brownfield World at ITSF 2014
Phase Delivery in Brownfield World at ITSF 2014

Synchronization in Cable Networks
Synchronization in Cable NetworksSynchronization in Cable Networks
Synchronization in Cable Networks

Syncing the cloud - from T1 to TAP
 Syncing the cloud - from T1 to TAP Syncing the cloud - from T1 to TAP
Syncing the cloud - from T1 to TAP

Optical and mobile networks: friends or foes?
Optical and mobile networks: friends or foes?Optical and mobile networks: friends or foes?
Optical and mobile networks: friends or foes?

Timing and sync requirements in railway networks
Timing and sync requirements in railway networksTiming and sync requirements in railway networks
Timing and sync requirements in railway networks


More from ADVA

Industrial optically pumped cesium beam clock
Industrial optically pumped cesium beam clockIndustrial optically pumped cesium beam clock
Industrial optically pumped cesium beam clockADVA

The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...
The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...
The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...ADVA

Industry's longest holdover with the OSA 3350 SePRC™ optical cesium clock
Industry's longest holdover with the OSA 3350  SePRC™ optical cesium clockIndustry's longest holdover with the OSA 3350  SePRC™ optical cesium clock
Industry's longest holdover with the OSA 3350 SePRC™ optical cesium clockADVA

Addressing PNT threats in critical defense infrastructure
Addressing PNT threats in critical defense infrastructureAddressing PNT threats in critical defense infrastructure
Addressing PNT threats in critical defense infrastructureADVA

Precise and assured timing for enterprise networks
Precise and assured timing for enterprise networksPrecise and assured timing for enterprise networks
Precise and assured timing for enterprise networksADVA

Introducing Ensemble Cloudlet for on-premises cloud demand
Introducing Ensemble Cloudlet for on-premises cloud demandIntroducing Ensemble Cloudlet for on-premises cloud demand
Introducing Ensemble Cloudlet for on-premises cloud demandADVA

ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)
ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)
ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)ADVA

Sync on TAP - Syncing infrastructure with software
Sync on TAP - Syncing infrastructure with softwareSync on TAP - Syncing infrastructure with software
Sync on TAP - Syncing infrastructure with softwareADVA

Meet stringent latency demands with time-sensitive networking
Meet stringent latency demands with time-sensitive networkingMeet stringent latency demands with time-sensitive networking
Meet stringent latency demands with time-sensitive networkingADVA

Making networks secure with multi-layer encryption
Making networks secure with multi-layer encryptionMaking networks secure with multi-layer encryption
Making networks secure with multi-layer encryptionADVA

Quantum threat: How to protect your optical network
Quantum threat: How to protect your optical networkQuantum threat: How to protect your optical network
Quantum threat: How to protect your optical networkADVA

Optical networks and the ecodesign tradeoff between climate change mitigation...
Optical networks and the ecodesign tradeoff between climate change mitigation...Optical networks and the ecodesign tradeoff between climate change mitigation...
Optical networks and the ecodesign tradeoff between climate change mitigation...ADVA

Trends in next-generation data center interconnects (DCI)
Trends in next-generation data center interconnects (DCI)Trends in next-generation data center interconnects (DCI)
Trends in next-generation data center interconnects (DCI)ADVA

Open optical edge connecting mobile access networks
Open optical edge connecting mobile access networksOpen optical edge connecting mobile access networks
Open optical edge connecting mobile access networksADVA

Introducing Adva Network Security – a trusted German anchor
Introducing Adva Network Security – a trusted German anchorIntroducing Adva Network Security – a trusted German anchor
Introducing Adva Network Security – a trusted German anchorADVA

Meet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceMeet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceADVA

Introducing ADVA AccessWave25™
Introducing ADVA AccessWave25™Introducing ADVA AccessWave25™
Introducing ADVA AccessWave25™ADVA

10G edge technology for outdoor environments
10G edge technology for outdoor environments10G edge technology for outdoor environments
10G edge technology for outdoor environmentsADVA

The quantum age - secure transport networks
The quantum age - secure transport networksThe quantum age - secure transport networks
The quantum age - secure transport networksADVA

From leased lines to optical spectrum services
From leased lines to optical spectrum servicesFrom leased lines to optical spectrum services
From leased lines to optical spectrum servicesADVA


More from ADVA (20)

Industrial optically pumped cesium beam clock
Industrial optically pumped cesium beam clockIndustrial optically pumped cesium beam clock
Industrial optically pumped cesium beam clock

The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...
The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...
The need for GBaaS as GPS/GNSS is no longer a reliable source for critical PN...

Industry's longest holdover with the OSA 3350 SePRC™ optical cesium clock
Industry's longest holdover with the OSA 3350  SePRC™ optical cesium clockIndustry's longest holdover with the OSA 3350  SePRC™ optical cesium clock
Industry's longest holdover with the OSA 3350 SePRC™ optical cesium clock

Addressing PNT threats in critical defense infrastructure
Addressing PNT threats in critical defense infrastructureAddressing PNT threats in critical defense infrastructure
Addressing PNT threats in critical defense infrastructure

Precise and assured timing for enterprise networks
Precise and assured timing for enterprise networksPrecise and assured timing for enterprise networks
Precise and assured timing for enterprise networks

Introducing Ensemble Cloudlet for on-premises cloud demand
Introducing Ensemble Cloudlet for on-premises cloud demandIntroducing Ensemble Cloudlet for on-premises cloud demand
Introducing Ensemble Cloudlet for on-premises cloud demand

ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)
ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)
ePRTC in data centers - GNSS-backup-as-a-service (GBaaS)

Sync on TAP - Syncing infrastructure with software
Sync on TAP - Syncing infrastructure with softwareSync on TAP - Syncing infrastructure with software
Sync on TAP - Syncing infrastructure with software

Meet stringent latency demands with time-sensitive networking
Meet stringent latency demands with time-sensitive networkingMeet stringent latency demands with time-sensitive networking
Meet stringent latency demands with time-sensitive networking

Making networks secure with multi-layer encryption
Making networks secure with multi-layer encryptionMaking networks secure with multi-layer encryption
Making networks secure with multi-layer encryption

Quantum threat: How to protect your optical network
Quantum threat: How to protect your optical networkQuantum threat: How to protect your optical network
Quantum threat: How to protect your optical network

Optical networks and the ecodesign tradeoff between climate change mitigation...
Optical networks and the ecodesign tradeoff between climate change mitigation...Optical networks and the ecodesign tradeoff between climate change mitigation...
Optical networks and the ecodesign tradeoff between climate change mitigation...

Trends in next-generation data center interconnects (DCI)
Trends in next-generation data center interconnects (DCI)Trends in next-generation data center interconnects (DCI)
Trends in next-generation data center interconnects (DCI)

Open optical edge connecting mobile access networks
Open optical edge connecting mobile access networksOpen optical edge connecting mobile access networks
Open optical edge connecting mobile access networks

Introducing Adva Network Security – a trusted German anchor
Introducing Adva Network Security – a trusted German anchorIntroducing Adva Network Security – a trusted German anchor
Introducing Adva Network Security – a trusted German anchor

Meet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation deviceMeet the industry's first pluggable 10G demarcation device
Meet the industry's first pluggable 10G demarcation device

Introducing ADVA AccessWave25™
Introducing ADVA AccessWave25™Introducing ADVA AccessWave25™
Introducing ADVA AccessWave25™

10G edge technology for outdoor environments
10G edge technology for outdoor environments10G edge technology for outdoor environments
10G edge technology for outdoor environments

The quantum age - secure transport networks
The quantum age - secure transport networksThe quantum age - secure transport networks
The quantum age - secure transport networks

From leased lines to optical spectrum services
From leased lines to optical spectrum servicesFrom leased lines to optical spectrum services
From leased lines to optical spectrum services


Recently uploaded

How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.Curtis Poe

Vertex AI Gemini Prompt Engineering Tips
Vertex AI Gemini Prompt Engineering TipsVertex AI Gemini Prompt Engineering Tips
Vertex AI Gemini Prompt Engineering TipsMiki Katsuragi

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsMark Billinghurst

Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)
Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)
Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)Mark Simos

New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024BookNet Canada

CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):comworks

"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...
"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks..."LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...
"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...Fwdays

Dev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebDev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebUiPathCommunity

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024Lorenzo Miniero

Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage Cost
Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage CostLeverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage Cost
Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage CostZilliz

DevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsDevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsSergiu Bodiu

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024Lonnie McRorey

Commit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyCommit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyAlfredo García Lavilla

Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Commit University

Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Manik S Magar

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionDilum Bandara

Developer Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLDeveloper Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLScyllaDB

The Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsThe Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsPixlogix Infotech

Are Multi-Cloud and Serverless Good or Bad?
Are Multi-Cloud and Serverless Good or Bad?Are Multi-Cloud and Serverless Good or Bad?
Are Multi-Cloud and Serverless Good or Bad?Mattias Andersson

"ML in Production",Oleksandr Bagan
"ML in Production",Oleksandr Bagan"ML in Production",Oleksandr Bagan
"ML in Production",Oleksandr BaganFwdays


Recently uploaded (20)

How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.How AI, OpenAI, and ChatGPT impact business and software.
How AI, OpenAI, and ChatGPT impact business and software.

Vertex AI Gemini Prompt Engineering Tips
Vertex AI Gemini Prompt Engineering TipsVertex AI Gemini Prompt Engineering Tips
Vertex AI Gemini Prompt Engineering Tips

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems

Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)
Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)
Tampa BSides - Chef's Tour of Microsoft Security Adoption Framework (SAF)

New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024
New from BookNet Canada for 2024: BNC CataList - Tech Forum 2024

CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):CloudStudio User manual (basic edition):
CloudStudio User manual (basic edition):

"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...
"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks..."LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...
"LLMs for Python Engineers: Advanced Data Analysis and Semantic Kernel",Oleks...

Dev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio WebDev Dives: Streamline document processing with UiPath Studio Web
Dev Dives: Streamline document processing with UiPath Studio Web

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024

Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage Cost
Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage CostLeverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage Cost
Leverage Zilliz Serverless - Up to 50X Saving for Your Vector Storage Cost

DevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsDevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platforms

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024

Commit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyCommit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easy

Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!

Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!Anypoint Exchange: It’s Not Just a Repo!
Anypoint Exchange: It’s Not Just a Repo!

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An Introduction

Developer Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQLDeveloper Data Modeling Mistakes: From Postgres to NoSQL
Developer Data Modeling Mistakes: From Postgres to NoSQL

The Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsThe Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and Cons

Are Multi-Cloud and Serverless Good or Bad?
Are Multi-Cloud and Serverless Good or Bad?Are Multi-Cloud and Serverless Good or Bad?
Are Multi-Cloud and Serverless Good or Bad?

"ML in Production",Oleksandr Bagan
"ML in Production",Oleksandr Bagan"ML in Production",Oleksandr Bagan
"ML in Production",Oleksandr Bagan


Introducing the most compact sync solution for energy and broadcast networks

  • 1. Introducing the most compact sync solution for energy and broadcast networks Nir Laufer, Ulrich Kohn October 2019 Seamlessly transition to highly accurate PTP timing
  • 2. © 2019 ADVA Optical Networking. All rights reserved.22 Synchronization is key in many applications Radio access networks Highly accurate phase and frequency synchronization for efficient use of spectrum Migration from NTP- to PTP-based timing for increased timestamping accuracy Financial trading Digital cable networks Timing distribution to remote PHY devices in digital infrastructure deployments Higher accuracy and uncompromised reliability for mission critical applications Power utilities Data center infrastructure Common and precise time basis for synchronization of distributed data bases Keeping cameras, mixers, recorders and monitors tightly synchronized Broadcast networks New solution New solution
  • 3. © 2019 ADVA Optical Networking. All rights reserved.33 © 2019 ADVA Optical Networking. All rights reserved. Confidential.3 Synchronizing professional broadcast services
  • 4. © 2019 ADVA Optical Networking. All rights reserved.44 SDI is a synchronous, broadcast- specific transport technology SDI monolithically integrates video signals, framing and timing into hardware, creating complexity and inflexibility challenges with synchronizing audio and video Evolve towards IP network with flexible processing of video and audio and ancillary data Towards standard IP transport of video, audio, ancillary data as well as time Drivers for IP in broadcasting networks Mobile studio Production studio Local TV station Legacy SDI transport IP transport Ethernet/IP at appliances SDI at appliances Mobile studio Local TV station
  • 5. © 2019 ADVA Optical Networking. All rights reserved.5555 © 2019 ADVA Optical Networking. All rights reserved. Confidential. SMPTE 2059 uses PTP IP packets to do the job traditional SPGs do PTP (SMPTE 2059) replaces SPG Sync pulse generator (SPG) SDI Frame synchronizer Remote Onsite Video router SDI Video processing Video server Sync pulses SDI Simplification with IP PTP Grandmaster Frame synchronizer Remote Onsite Video processing Video server Video router Packet network Media, control and timing SMPTE: Society of Motion Picture and Television Engineers; pronounced “simp-tee”
  • 6. © 2019 ADVA Optical Networking. All rights reserved.66 What synchronization problems need to be solved? Avoid frame losses caused by faster sending than receiving; make: f1 = f2 Asynchronous IP transport Asynchronous IP transport HDR proc. Video Audio Dolby surround (16 video, 5 audio).Subtitles Production f1 f2 < f1 Enable distributed processing of audio and video; make: t1 = t2 = t3 = t4 = t5 = t6 Deliver precise time over packet networks despite jitter and (asymmetric) delay t1 t2 t3 t4 t5 t6 Asynchronous IP transport time Time Drop
  • 7. © 2019 ADVA Optical Networking. All rights reserved.77 Step 1: Synchronizing broadcasting devices Step 2: Backup with network-based delivery Combining GNSS-based and network-based timing for best performance Seamlessly introducing PTP in broadcasting networks • Installing very compact grandmasters • Satellite-based timing at any site • Backed up by network-based PTP • Use SMPTE ST 2059-2 /AES67 PTP profiles • Central, redundant high-performance grandmasters • Sync-aware network devices (TC, BC) • Potential use of telecom profiles (G.8275.1/2) OSA 5405 OSA 5401
  • 8. © 2019 ADVA Optical Networking. All rights reserved.88 © 2019 ADVA Optical Networking. All rights reserved. Confidential.8 Power utilities
  • 9. © 2019 ADVA Optical Networking. All rights reserved.99 Synchronization accuracy requirements Bulk metering Customer premises metering SCADA: supervisory control and data acquisition Frequency measurement Event recorder Fault localization Synchrophasor: voltage/current with accurate phase 1s 1ms 1µs IRIG NTP PTP Inter-range instrumentation group (IRIG) time codes; Oct 1960: ASCII coded date/time information on sub-carrier
  • 10. © 2019 ADVA Optical Networking. All rights reserved.1010 GNSS outages need to be mitigated with network-based synchronization delivery IEEE 1588 necessary for IEC 61850 substation automation and IEEE C37.118 synchrophasor PTP profiles: IEC/IEEE 61850-9-3 IEEE C37.238-2011 IEEE C37.238-2017 As synchronization is mission-critical, real-time information about sync quality is vital Moving from 1ms to 1µs time accuracy requires NTP to be replaced by PTP Challenges Increasing accuracy GNSS vulnerability Lack of visibility Standardization
  • 11. © 2019 ADVA Optical Networking. All rights reserved.1111 IRIG and PPS provide time information GNSS as highly accurate local time reference Network Time Protocol (NTP) provides ms precision to appliances GNSS time reference Currently applied solutions meet neither accuracy nor availability requirements Substation synchronization - today Migration to Ethernet Protection relay RTU/ SCADA IEDEvent recorder HMI Substation switch IRIG-B, PPS NTP server GPS clock NTP IRIG time codes; Oct 1960: ASCII coded date/time information on sub-carrier
  • 12. © 2019 ADVA Optical Networking. All rights reserved.1212 Precision time protocol for sub-µs timing accuracy Converging PTP, NTP and IRIG-B into single solution Mitigating GNSS outages with network-based backup for highest availability Assuring business continuity by monitoring sync quality SFP-based OSA 5401 or integrated receiver OSA 5405 Highest accuracy and best availability with satellite- and network-based timing Substation synchronization – tomorrow Protection relay RTU/ SCADA IEDEvent recorder HMI Substation switch IRIG-B, PPS PTP grandmaster PTP, NTP ePRTCWAN OSA 5405 OSA 5401
  • 13. © 2019 ADVA Optical Networking. All rights reserved.1313 Highly-accurate timing delivery and assurance with the smallest footprint on the market Multiple fallback options for extended holdover Syncjack™ technology for in-service sync monitoring Small form-factor pluggable (SFP) with integrated PTP grandmaster, NTP server and GNSS receiver Configurable to operate in PTP grandmaster, boundary clock, slave clock and APTS modes Supporting power, broadcast and telecom PTP profiles Product description Key benefits Enabling PTP synchronization in the most space-restrictive environments SFP-based PTP/NTP server with built-in GNSS receiver OSA 5401 – product overview Smallest PTP/NTP server in the world !
  • 14. © 2019 ADVA Optical Networking. All rights reserved.1414 Unique indoor dual GNSS antenna No clear sky view needed Simple installation and maintenance without RF cable feeds (powered over Ethernet) Dual GNSS antenna with receiver and PTP grandmaster Ruggedized outdoor variant for wall, pole and cabinet mount on the roof or at street level Small footprint variant for indoor window or wall mounting Supporting power, broadcast and telecom PTP profiles Product description Key benefits Enabling precise synchronization everywhere In-/outdoor smart GNSS antenna with integrated receiver and PTP grandmaster OSA 5405 Series – product overview
  • 15. © 2019 ADVA Optical Networking. All rights reserved.1515 Precise timing is essential for an increasing number of markets, now including power and broadcast Oscilloquartz has added power and broadcast profile to its most compact grandmasters Easy upgrade of existing broadcast and energy networks with SFP-based solution OSA 5401 OSA 5405 grandmaster with integrated GNSS receiver and antenna for even the most challenging environments with limited sky view Unique jamming and spoofing prevention Unique synchronization portfolio supports broadcasting and energy networks Summary
  • 16. Thank you IMPORTANT NOTICE The content of this presentation is strictly confidential. ADVA Optical Networking is the exclusive owner or licensee of the content, material, and information in this presentation. Any reproduction, publication or reprint, in whole or in part, is strictly prohibited. The information in this presentation may not be accurate, complete or up to date, and is provided without warranties or representations of any kind, either express or implied. ADVA Optical Networking shall not be responsible for and disclaims any liability for any loss or damages, including without limitation, direct, indirect, incidental, consequential and special damages, alleged to have been caused by or in connection with using and/or relying on the information contained in this presentation. Copyright © for the entire content of this presentation: ADVA Optical Networking.
