1. Puppet Configuration Management
Afroz Hussain

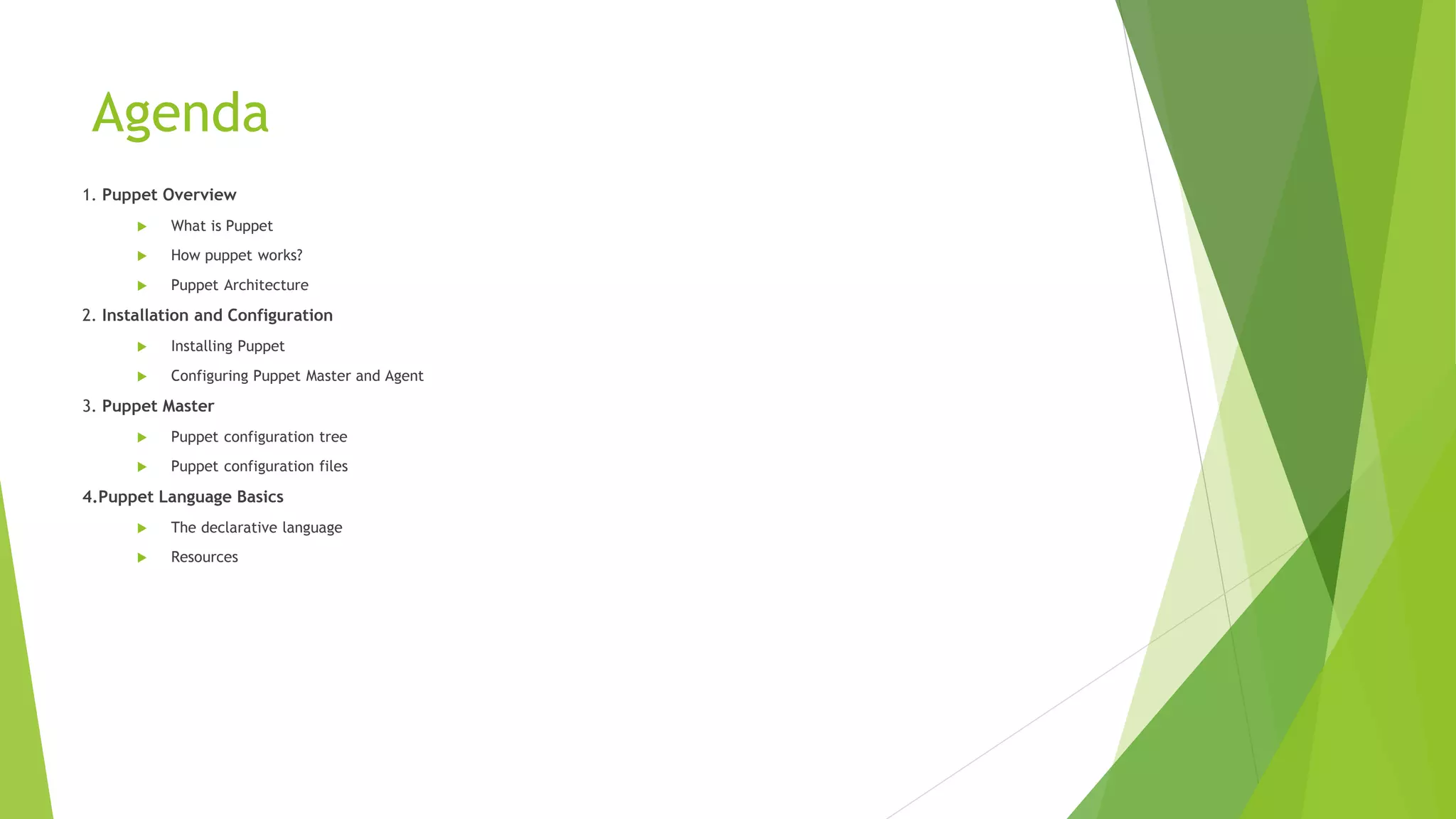

2. Agenda
1. Puppet Overview
 What is Puppet
 How puppet works?
 Puppet Architecture
2. Installation and Configuration
 Installing Puppet
 Configuring Puppet Master and Agent
3. Puppet Master
 Puppet configuration tree
 Puppet configuration files
4.Puppet Language Basics
 The declarative language
 Resources

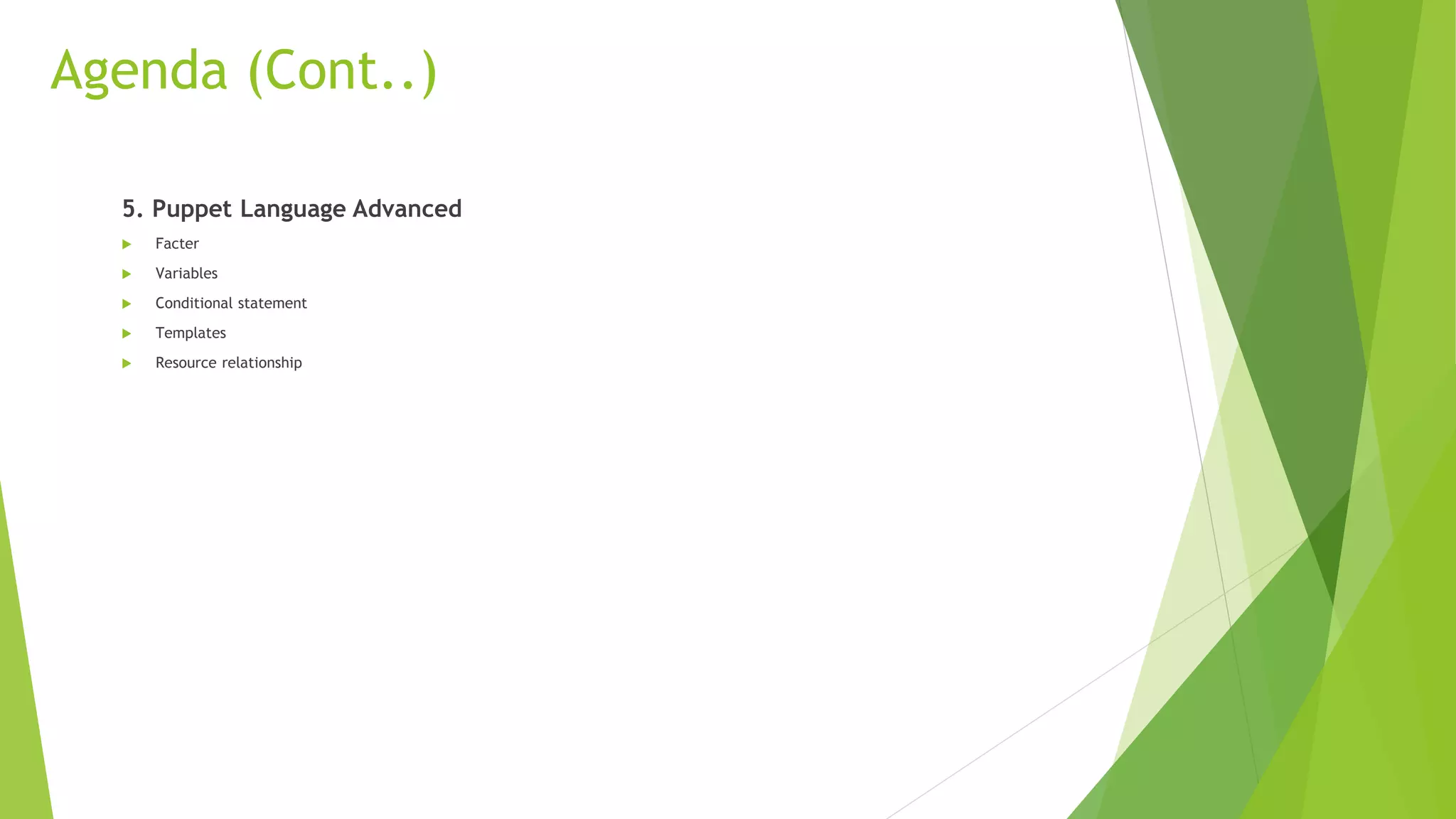

3. Agenda (Cont..)
5. Puppet Language Advanced
 Facter
 Variables
 Conditional statement
 Templates
 Resource relationship

4. Agenda (Cont..)
3. Provisioning Hosts with Puppet
 Configuring Nodes
 Versioning Modules
 Creating Modules for NTP
 Puppet Forge
 Extending puppet with custom facts, types and providers
 Mcollective
 Troubleshooting and Best Practices.

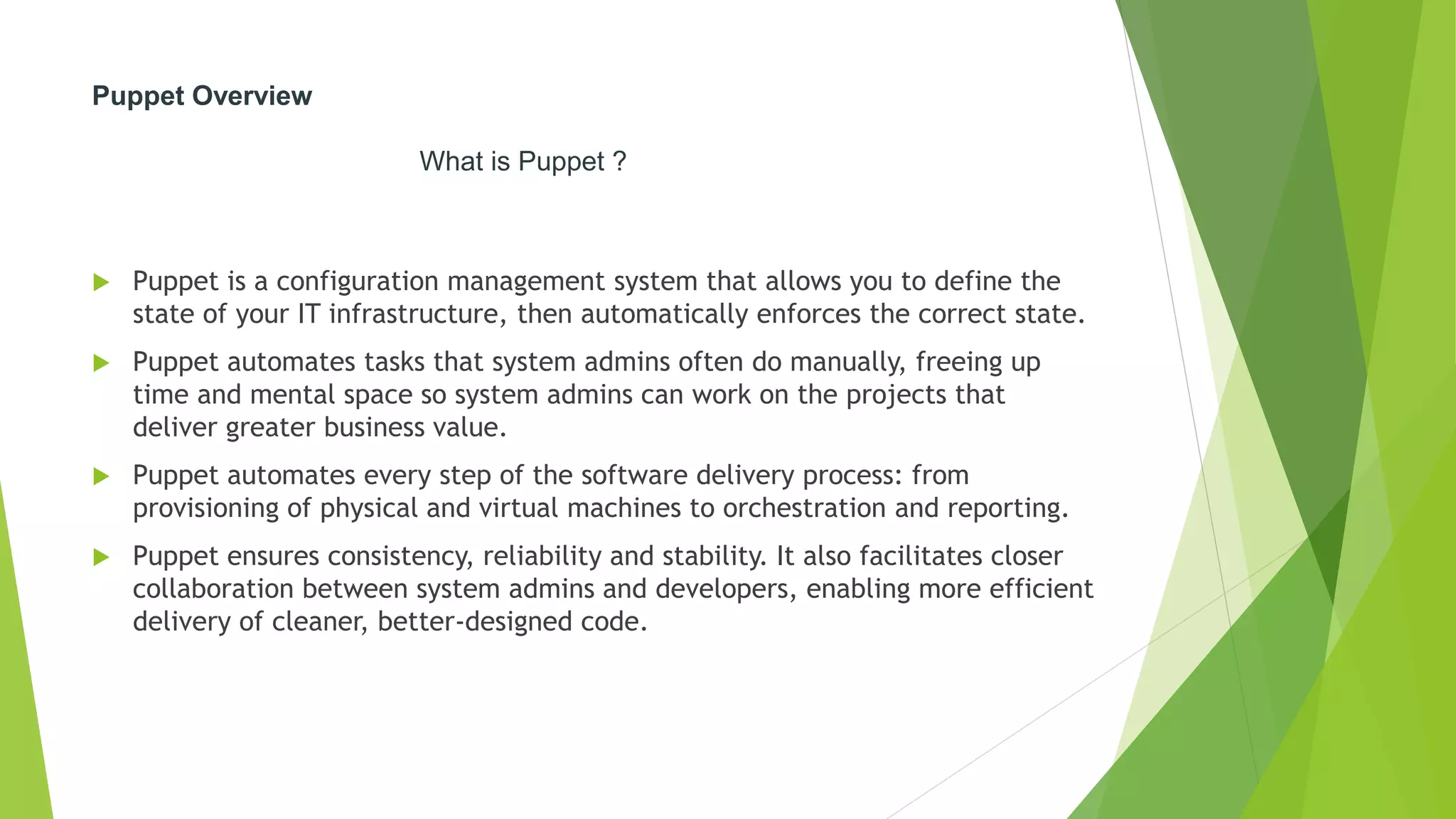

5. Puppet Overview
What is Puppet ?
 Puppet is a configuration management system that allows you to define the
state of your IT infrastructure, then automatically enforces the correct state.
 Puppet automates tasks that system admins often do manually, freeing up
time and mental space so system admins can work on the projects that
deliver greater business value.
 Puppet automates every step of the software delivery process: from
provisioning of physical and virtual machines to orchestration and reporting.
 Puppet ensures consistency, reliability and stability. It also facilitates closer
collaboration between system admins and developers, enabling more efficient
delivery of cleaner, better-designed code.

6. Puppet Overview
How puppet works?
 Once you install Puppet, every node (physical server, device or virtual machine) in
your infrastructure has a Puppet agent installed on it. You'll also have a server
designated as the Puppet master.
 Enforcement takes place during regular Puppet runs, which follow these steps:
 Fact collection. The Puppet agent on each node sends facts about the node's
configuration — detailing the hardware, operating system, package versions and other
information — to the Puppet master.
 Catalog compilation. The Puppet master uses facts provided by the agents to compile
detailed data about how each node should be configured — called the catalog — and
sends it back to the Puppet agent.
 Enforcement. The agent makes any needed changes to enforce the node's desired state.
 Report. Each Puppet agent sends a report back to the Puppet master, indicating any
changes that have been made to its node's configuration.
 Report sharing. Puppet's open API can send data to third-party tools, so you can share
infrastructure information with other teams.

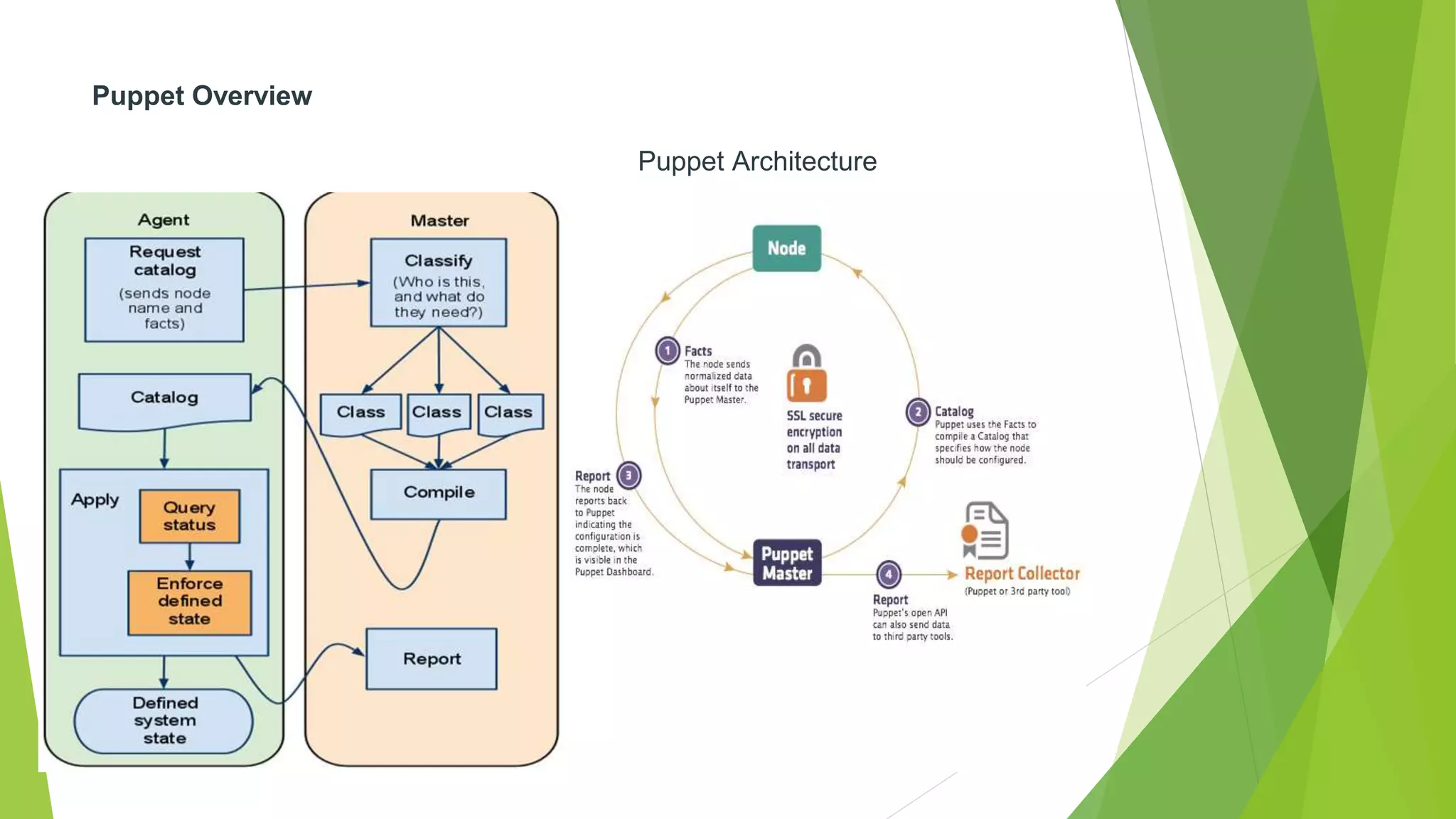

7. Puppet Overview
Puppet Architecture

8. Puppet Overview
Puppet Architecture
 Configuration Language:
 “Puppet’s configuration language has always been focused on the best combination of simplicity and power, and my
goal was always to have it be more like a configuration file than a programming language,” wrote Luke Kanies, founder
and CEO of Puppet Lab.
 It supports DSL (domain specific language).
 Transaction
 Once the catalog is entirely constructed, it is passed on to the Transaction
 Transaction runs on the client, which pulls the Catalog down via HTTP
 The transaction performs a relatively straightforward task: walk the graph
the order specified by the various relationships, and make sure each resource is in sync.
 Resource Abstraction Layer
 the work is actually done by the Resource Abstraction Layer (RAL),
 The RAL was the first component created in Puppet, it most clearly
defines what the user can do.
 The job of the RAL is to define what it means to be a resource and how
resources can get work done on the system

9. Installation and Configuration
Installation
 Step 1: Enable the Puppet Labs Package Repository
 $ sudo rpm -ivh http://yum.puppetlabs.com/el/6.4/products/x86_64/puppetlabs-release-6-7.noarch.rpm
 After installing the repos, open your /etc/yum.repos.d/puppetlabs.repo file for editing. Locate the
[puppetlabs-devel] stanza, and change the value of the enabled key from 0 to 1:
 Step 2: Install Puppet on the Puppet Master Server
 On your puppet master node, run sudo yum install puppet-server
 $ sudo puppet resource package puppet-server ensure=latest
 You’ll need to restart the puppet master web server after upgrading.
 Step 3: Install Puppet on Agent Nodes
 On your other nodes, run sudo yum install puppet
 $ sudo puppet resource package puppet ensure=latest
 You’ll need to restart the puppet service after upgrading.

10. Installation and Configuration
Configure Puppet Master Server

11. Installation and Configuration
Configure Puppet Agent

12. Puppetmaster
Puppet Configuration tree
 Puppet.conf
 General puppet master settings
 Auth.conf
 General ACL which control http access
 Filesever.conf
 it isn’t necessary- Puppet automatically serves files from the files directory of
modules, and most users find this sufficient.
 Manifests directory
 Site.pp: global default conf
 Nodes.pp: manage nodes
 Modules: contains all modules

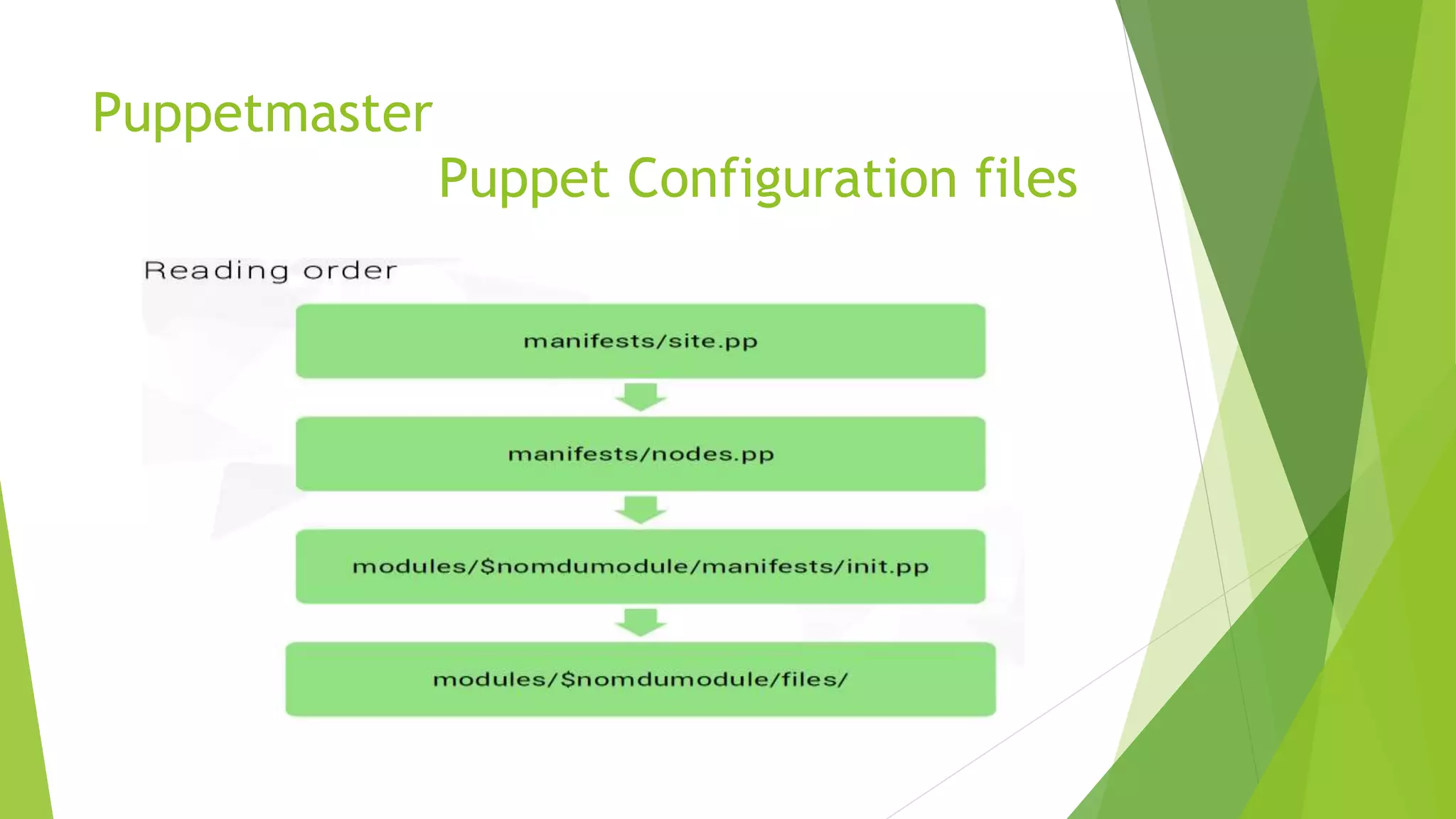

13. Puppetmaster
Puppet Configuration files

14. Puppet language basics
The declarative language
 About the language:
 With Puppet, we declare how the node must be.
 Everything you want to manage have to be explicitly declared.
 A Puppet program is called a manifest
 Central manifest : site.pp
 Puppet load modules manifests
 into manifests, we define classes.
 We write resources inside these classes

15. Puppet language basics
The declarative language
 The declarative language
 The fundamental unit of modeling
 Like a “function”
 Inside, a series of attributes and their values
 Resources types and attributes are predefined by Puppet
 List of available resources
 http://docs.puppetlabs.com/references/stable/type.html
 Skeleton
 Ressource-name { ‘title’ : attribute = value }

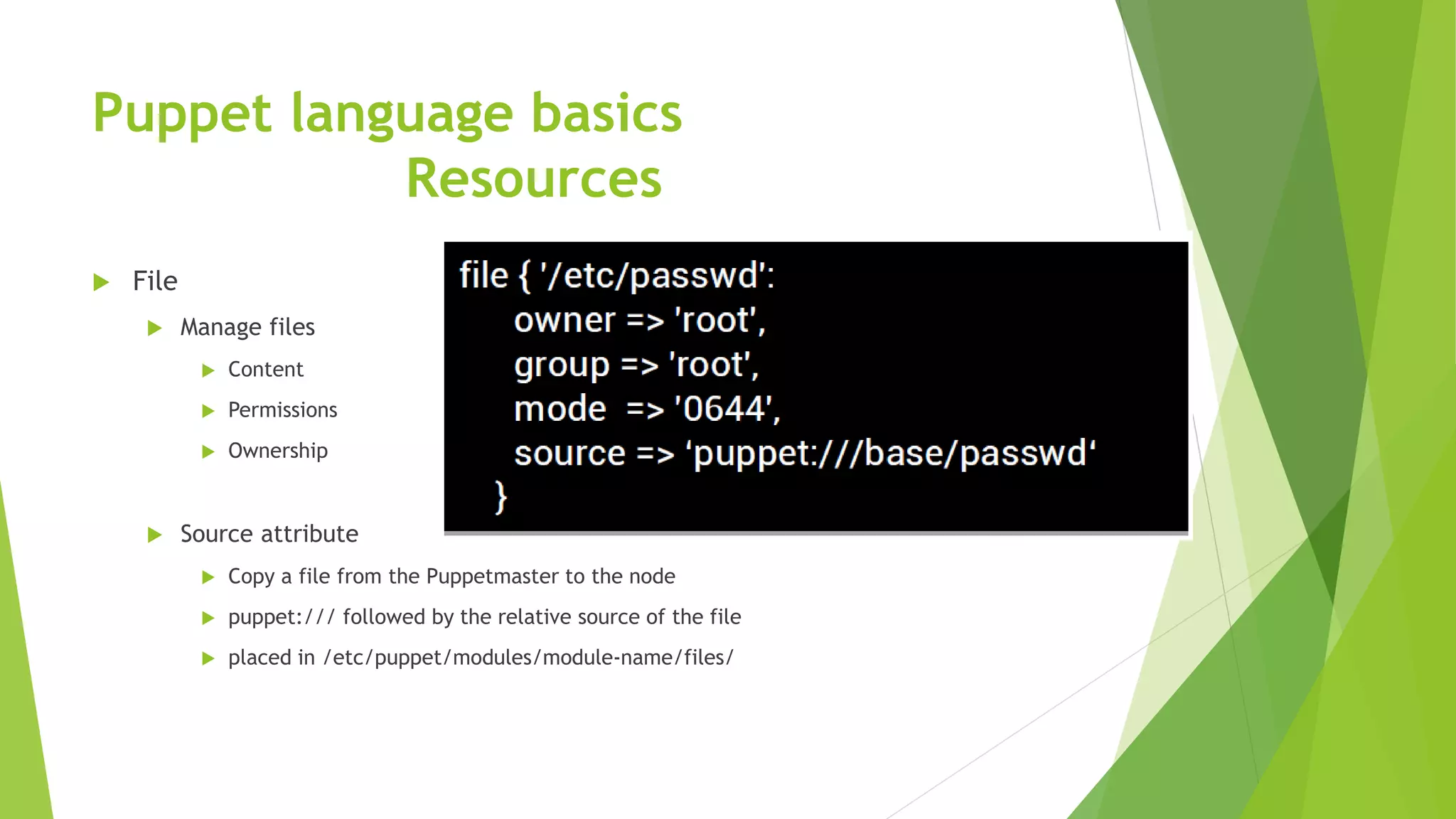

16. Puppet language basics
Resources
 File
 Manage files
 Content
 Permissions
 Ownership
 Source attribute
 Copy a file from the Puppetmaster to the node
 puppet:/// followed by the relative source of the file
 placed in /etc/puppet/modules/module-name/files/

17. Puppet language basics
Resources
 Package
 Manage packages
 Wide provider support
 APT
 Aptitude
 YUM
 And more..
 Install, upgrade, uninstall packages
 The last or defined package version

18. Puppet language basics
Resources
 Service
 Manage services
 Start, stop, restart, start on boot (enable) services

19. Puppet language advanced
Facter
 The system profiler
 Software used by Puppet
 Installed on nodes
 Collect various data, "facts",on node
 Many facts already defined by Facter
 Possibility to create your own facts

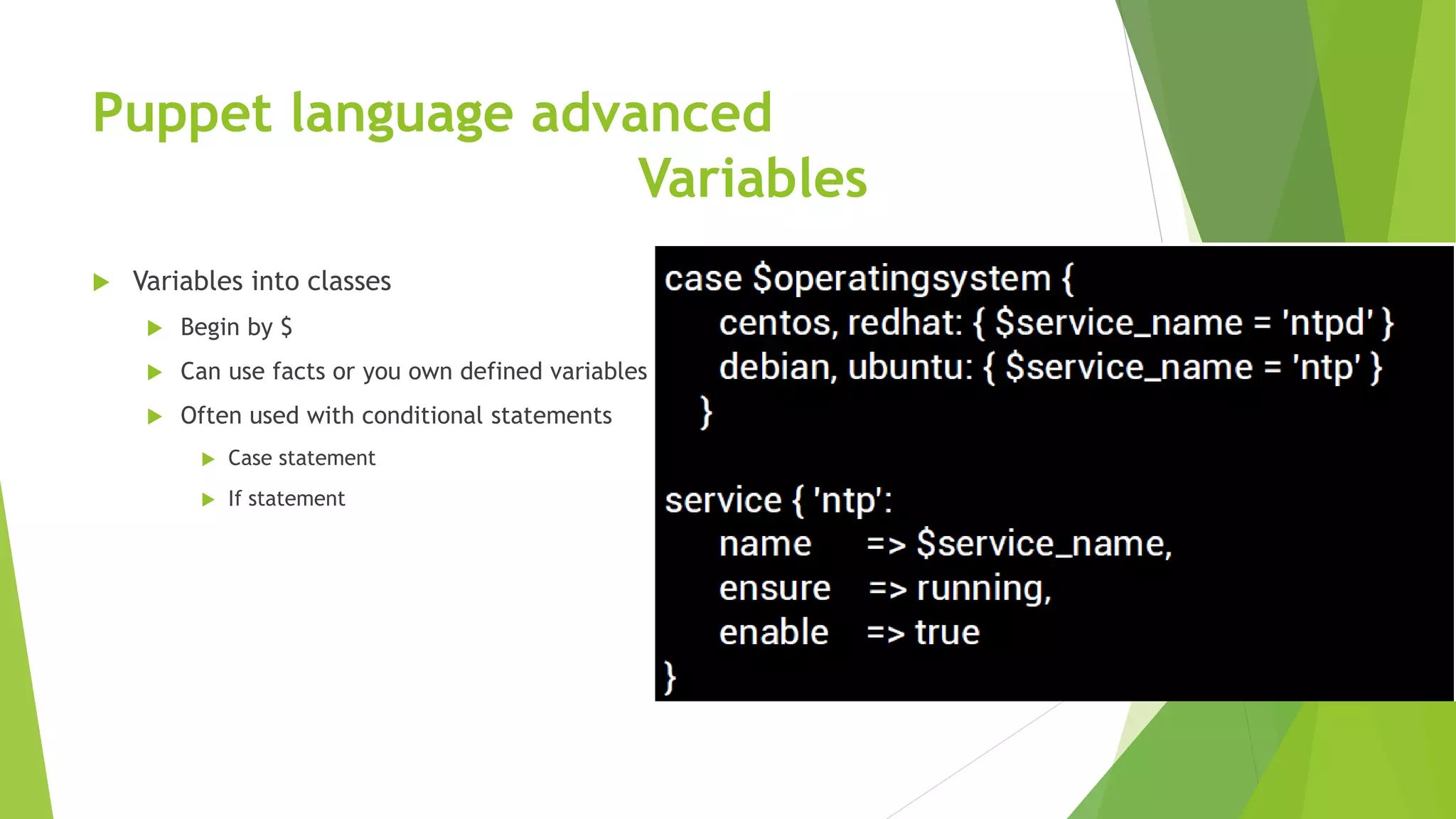

20. Puppet language advanced
Variables
 Variables into classes
 Begin by $
 Can use facts or you own defined variables
 Often used with conditional statements
 Case statement
 If statement

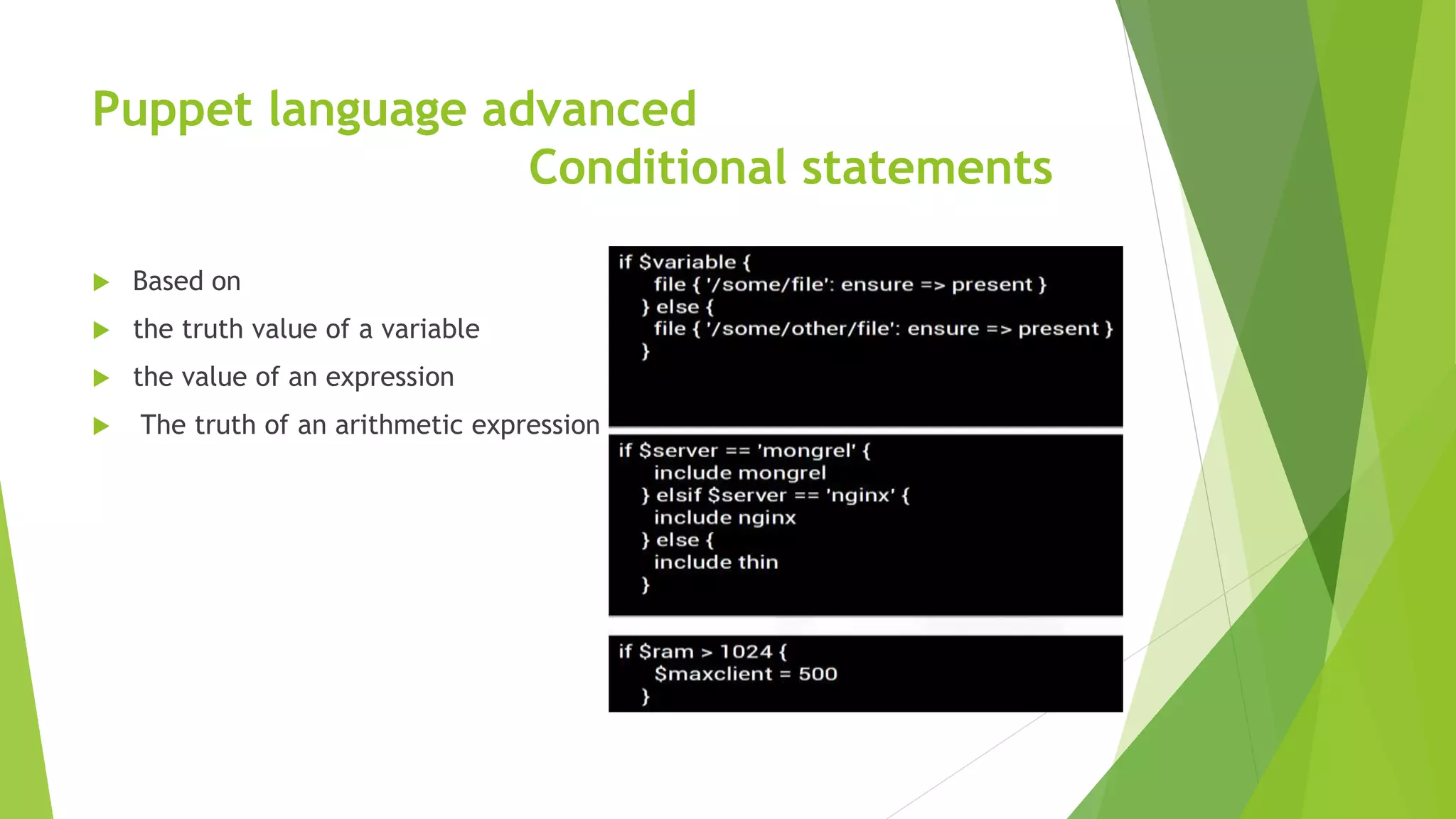

21. Puppet language advanced
Conditional statements
 Based on
 the truth value of a variable
 the value of an expression
 The truth of an arithmetic expression

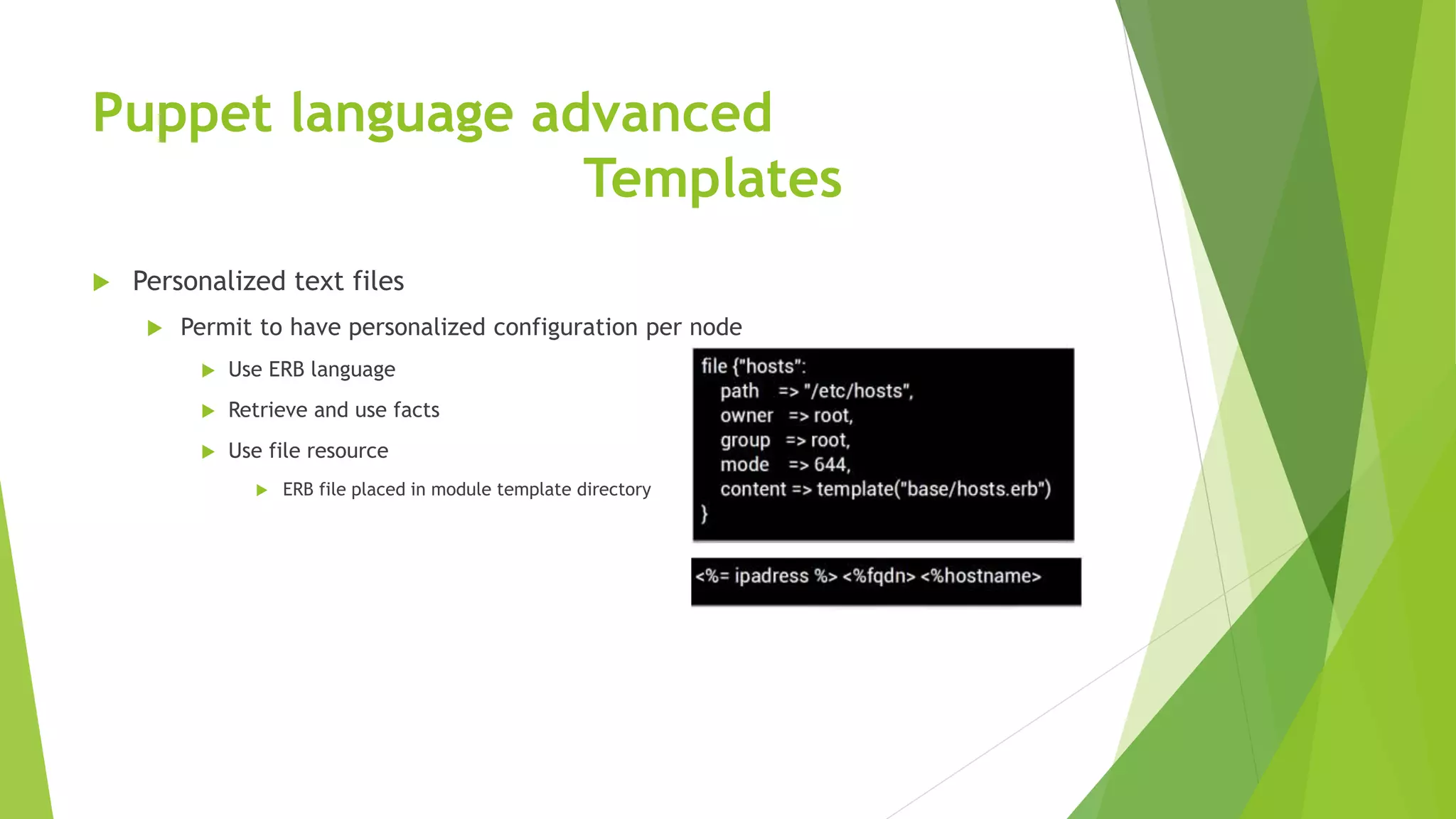

22. Puppet language advanced
Templates
 Personalized text files
 Permit to have personalized configuration per node
 Use ERB language
 Retrieve and use facts
 Use file resource
 ERB file placed in module template directory

23. Puppet language advanced
Resources relationship
 Relationship meta-parameters
 Before
 Resource is applied before the target resource
 require
 Resource is applied after the target resource
 notify
 Like before + The target resource will refresh if the notifying resource changes
 subscribe
 Like require + The subscribing resource will refresh if thetarget resource changes.

24. Puppet language advanced
Resources relationship
 Ordering relationship
 These two examples are mutually-exclusive

25. Puppet language advanced
Resources relationship
 Notification relationship
 These two examples are mutually-exclusive

26. Puppet language advanced
Resources relationship
 Chaining and refreshing
 Ordering resources
 The resource on the left is applied before the resource on the right.
 ->
 Refreshing
 Kind of trigger
 Restart a service after a file update
 ~>

27. Modules
ssh
 class sshd {
package { 'openssh-server':
ensure => latest
}
service { 'ssh':
subscribe => File[sshdconfig],
require => Package['openssh-server'],
}
file { 'sshdconfig':
name => '/etc/ssh/sshd_config',
owner => root,
group => root,
mode => 644,
source => 'puppet:///sshd/sshd_config',
require => Package['openssh-server'],
}
}

28. Modules
ssh using templates
 class sshd {
port = "22",
keyregenerationinterval = "3600",
syslogfacility = "AUTHPRIV",
loglevel = "info",
package { 'openssh-server':
ensure => latest
}
service { 'ssh':
subscribe => File[sshdconfig],
require => Package['openssh-server'],
}
file { 'sshdconfig':
name => '/etc/ssh/sshd_config',
owner => root,
group => root,
mode => 644,
content => template("sshd/sshd_config.erb"),
require => Package['openssh-server'],
}
}

29. Modules
template for ssh
 sshd_config.erb
 Port <%= port %>
Protocol 2
HostKey /etc/ssh/ssh_host_rsa_key
HostKey /etc/ssh/ssh_host_dsa_key
UsePrivilegeSeparation yes
KeyRegenerationInterval <%= keyregenerationinterval %>
ServerKeyBits 768
SyslogFacility <%= syslogfacility %>
LogLevel <%= loglevel %>
………

30. Module
NTPClass ntp {
$ntp1=“1.2.3.4”
package { "ntp":
ensure => latest,
}
file { '/etc/ntp.conf':
owner => root,
group => root,
mode => 644,
content => template("ntp/ntp.conf.erb"),
require => Package["ntp"],
}
service { "ntpd":
name => $operatingsystem ? {
/OracleLinux|RedHat|OEL|CentOS/ => "ntpd",
"SLES" => "ntp“
},
enable => true,
ensure => $ntpd,
require => Package["ntp"],
subscribe => File["/etc/ntp.conf"],

31. Modules:
template for NTP
ntp.conf.erb
server <%= ntp1 %>
<% if ntp2 != nil %>
server <%= ntp2 %>
<% end %>
