1. Introduction To SQL Unit 11 Modern Business Technology Introduction To TSQL Unit 11 Developed by Michael Hotek

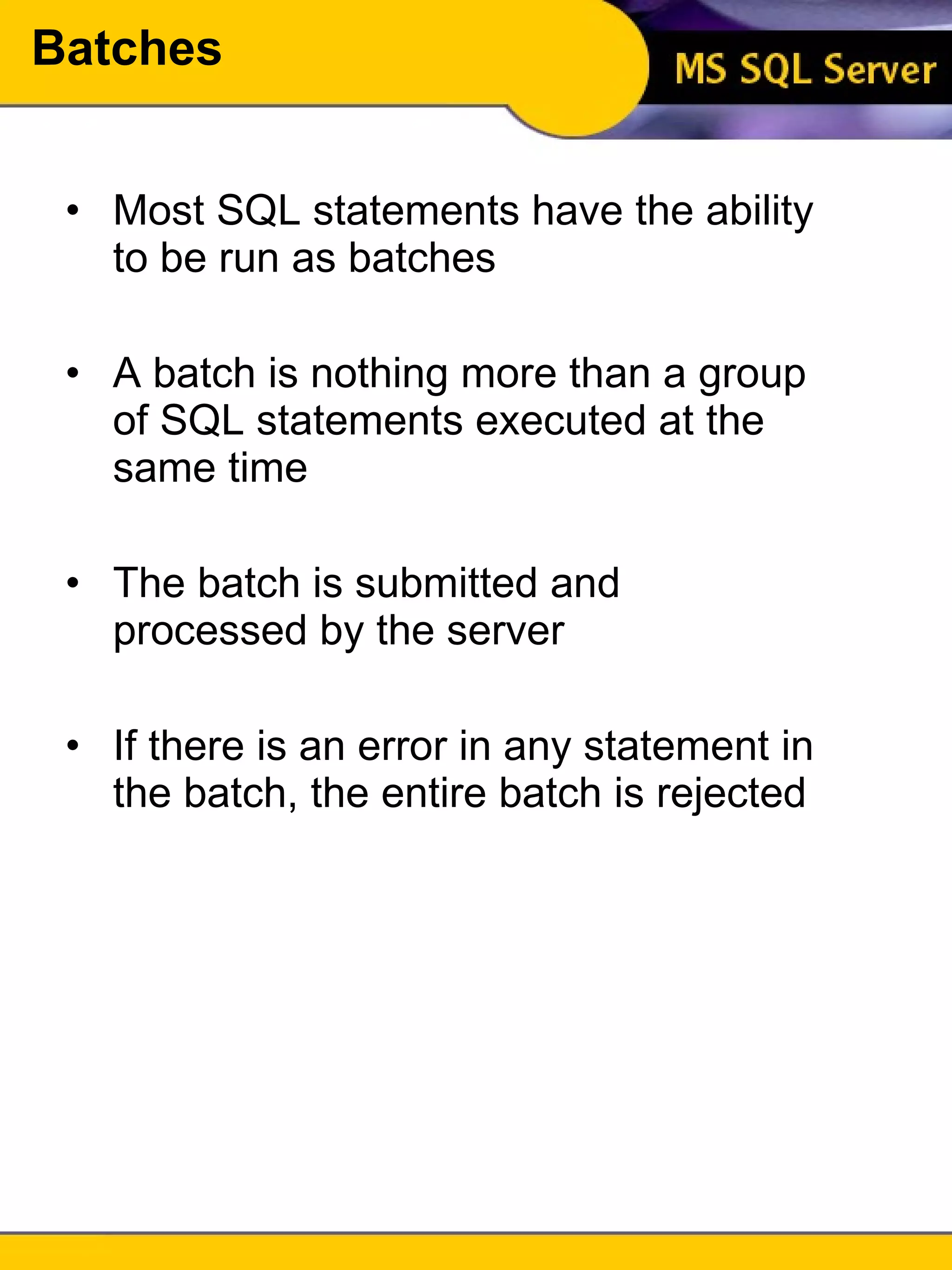

2. Batches Most SQL statements have the ability to be run as batches A batch is nothing more than a group of SQL statements executed at the same time The batch is submitted and processed by the server If there is an error in any statement in the batch, the entire batch is rejected

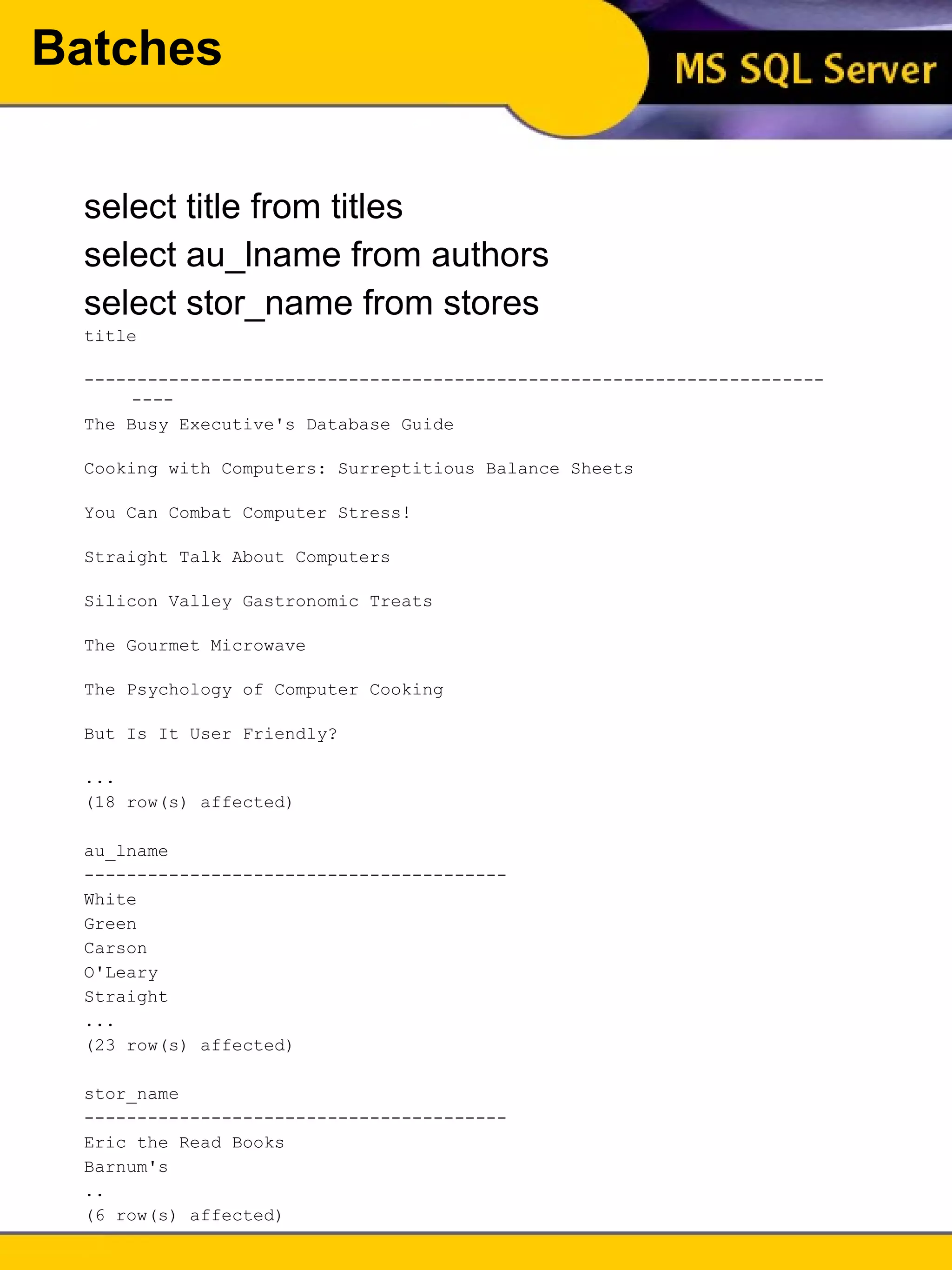

3. Batches select title from titles select au_lname from authors select stor_name from stores title -------------------------------------------------------------------------- The Busy Executive's Database Guide Cooking with Computers: Surreptitious Balance Sheets You Can Combat Computer Stress! Straight Talk About Computers Silicon Valley Gastronomic Treats The Gourmet Microwave The Psychology of Computer Cooking But Is It User Friendly? ... (18 row(s) affected) au_lname ---------------------------------------- White Green Carson O'Leary Straight ... (23 row(s) affected) stor_name ---------------------------------------- Eric the Read Books Barnum's .. (6 row(s) affected)

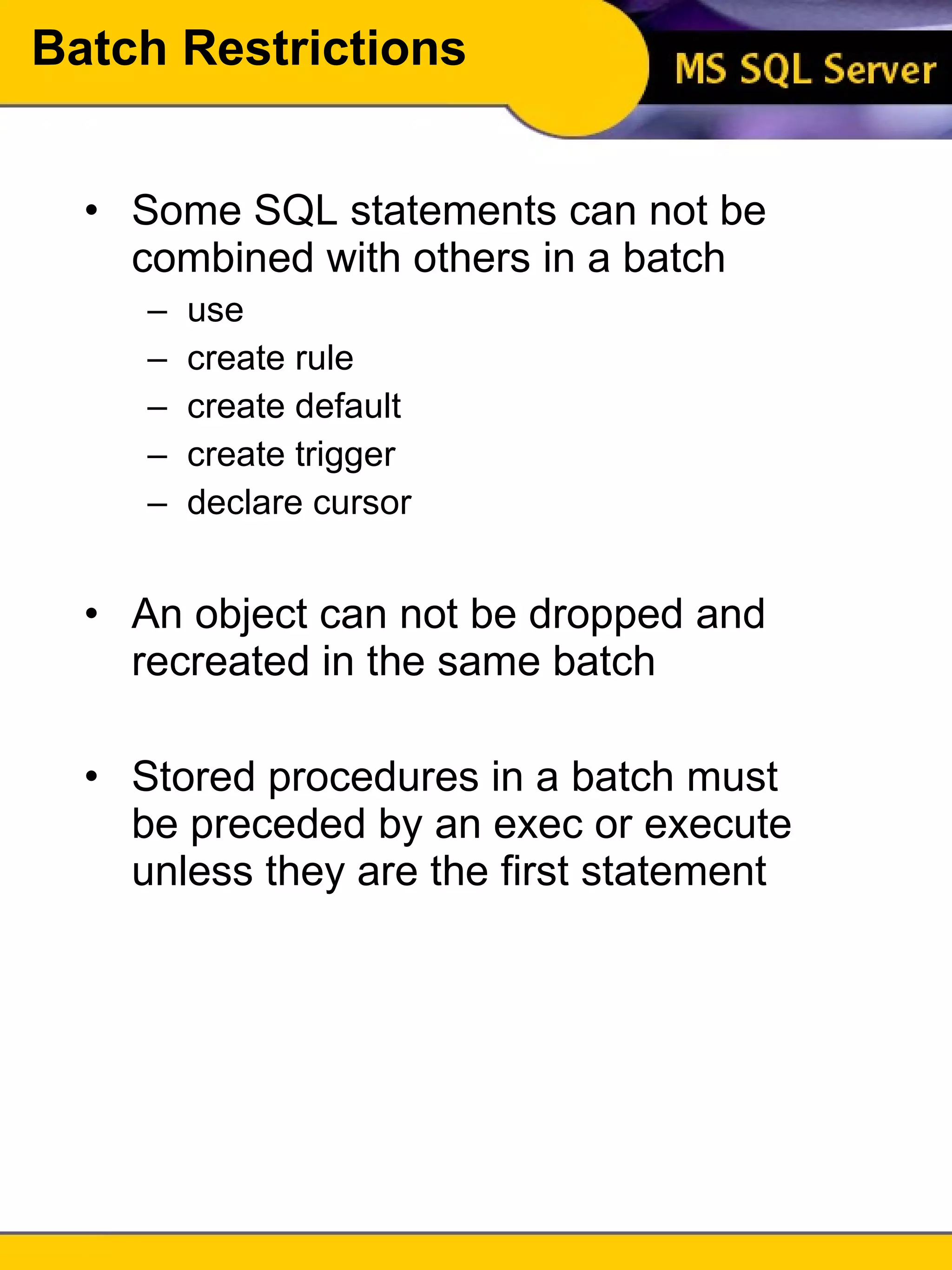

4. Batch Restrictions Some SQL statements can not be combined with others in a batch use create rule create default create trigger declare cursor An object can not be dropped and recreated in the same batch Stored procedures in a batch must be preceded by an exec or execute unless they are the first statement

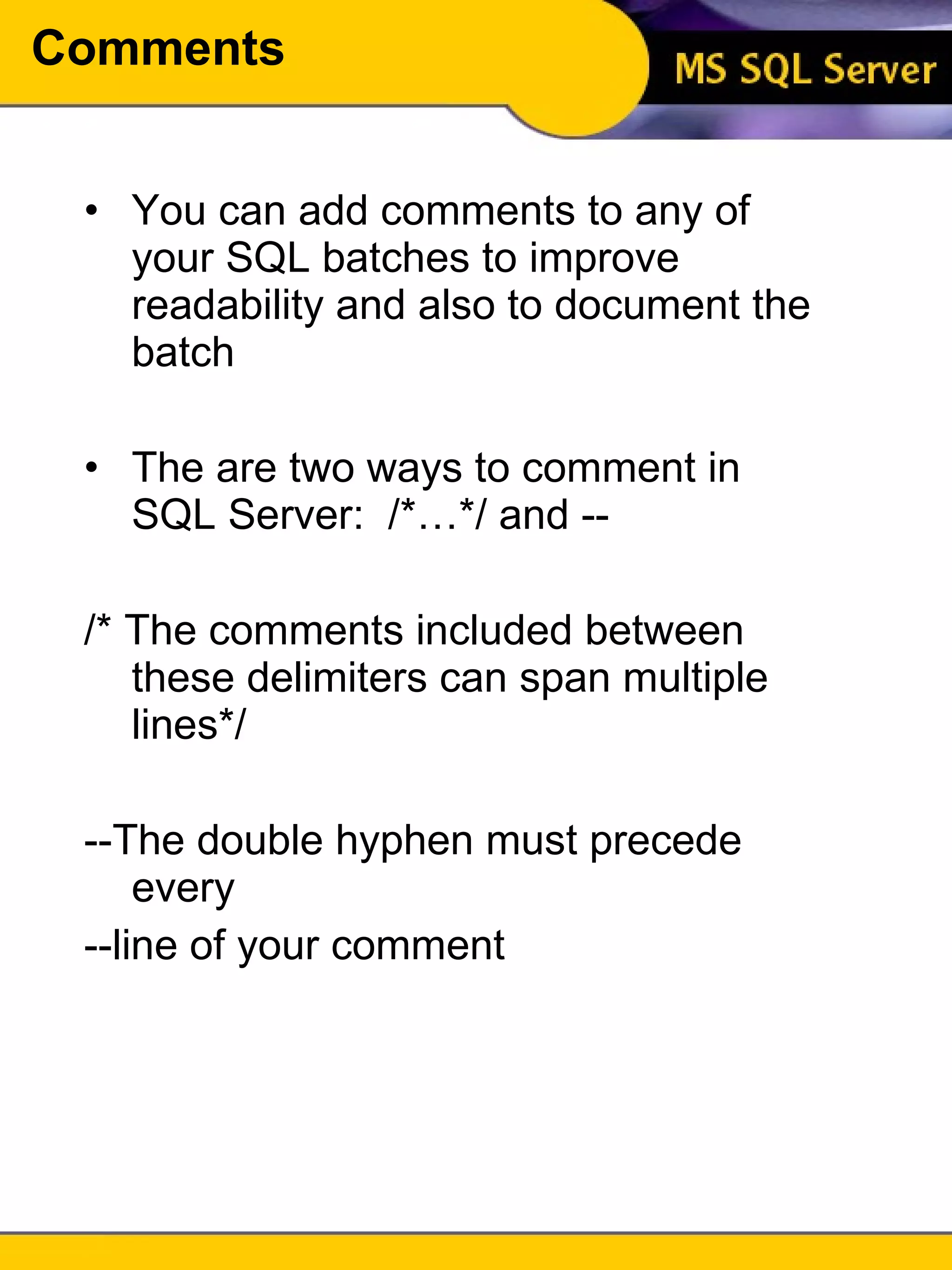

5. Comments You can add comments to any of your SQL batches to improve readability and also to document the batch The are two ways to comment in SQL Server: /*…*/ and -- /* The comments included between these delimiters can span multiple lines*/ --The double hyphen must precede every --line of your comment

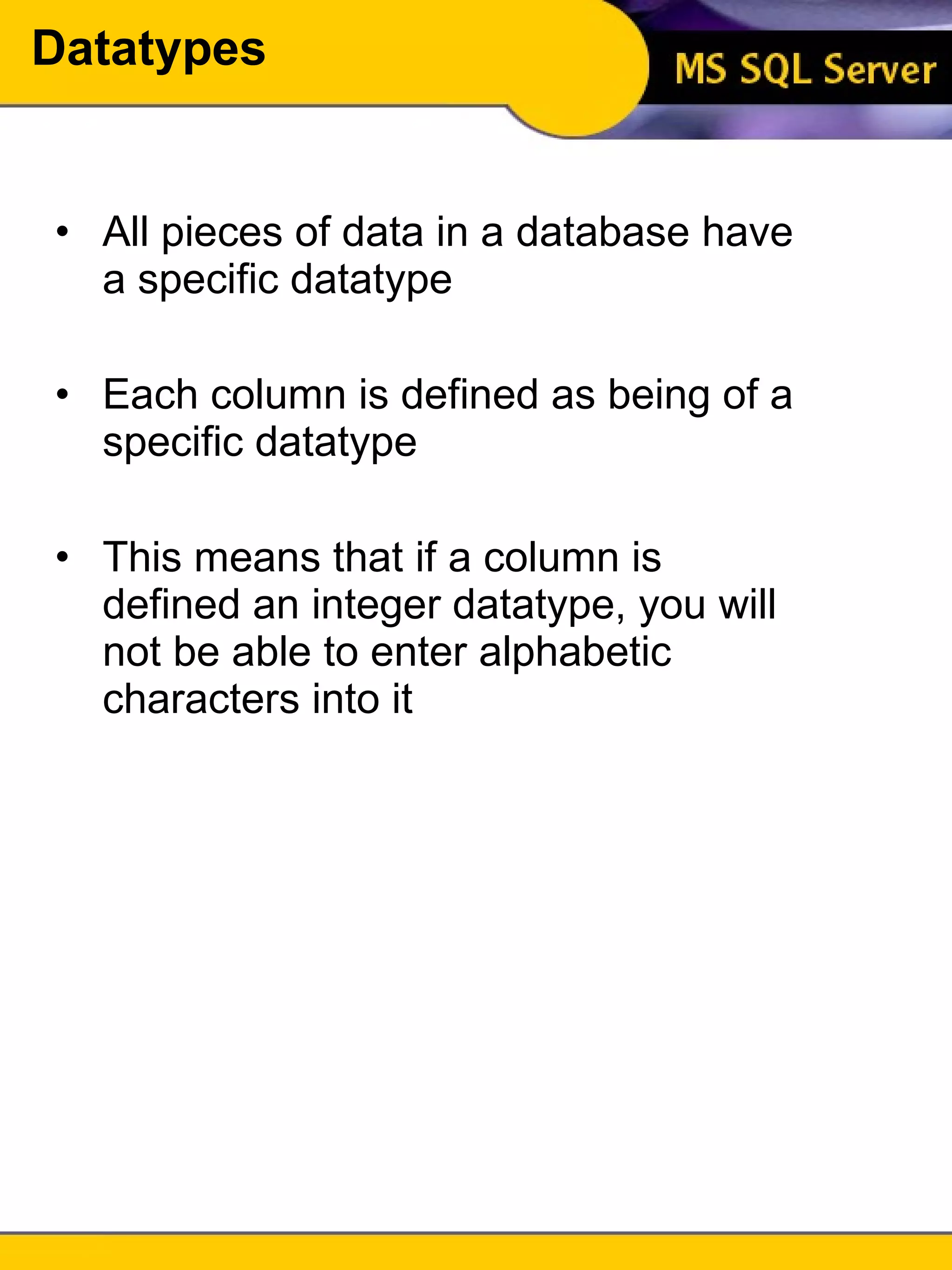

6. Datatypes All pieces of data in a database have a specific datatype Each column is defined as being of a specific datatype This means that if a column is defined an integer datatype, you will not be able to enter alphabetic characters into it

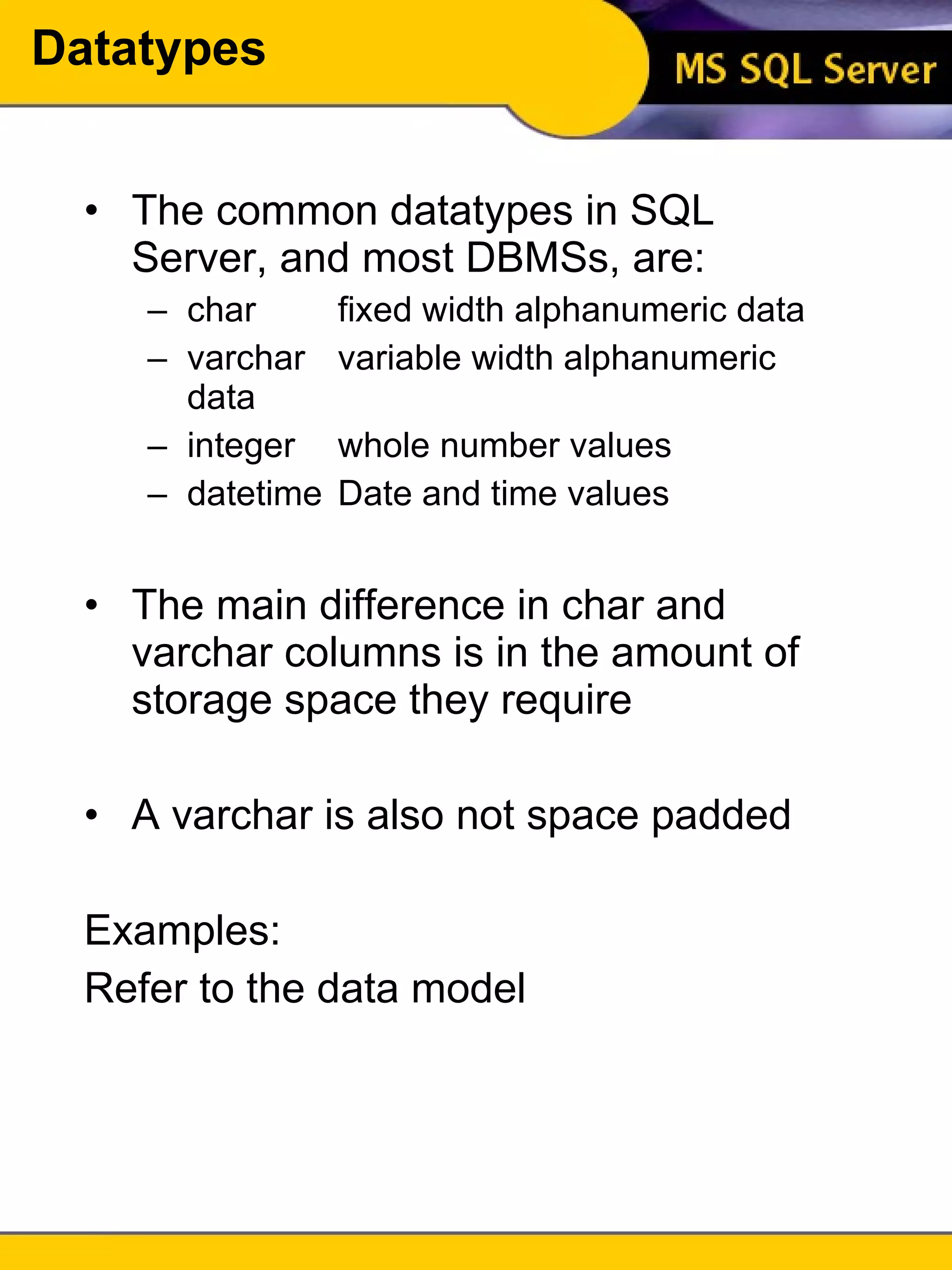

7. Datatypes The common datatypes in SQL Server, and most DBMSs, are: char fixed width alphanumeric data varchar variable width alphanumeric data integer whole number values datetime Date and time values The main difference in char and varchar columns is in the amount of storage space they require A varchar is also not space padded Examples: Refer to the data model

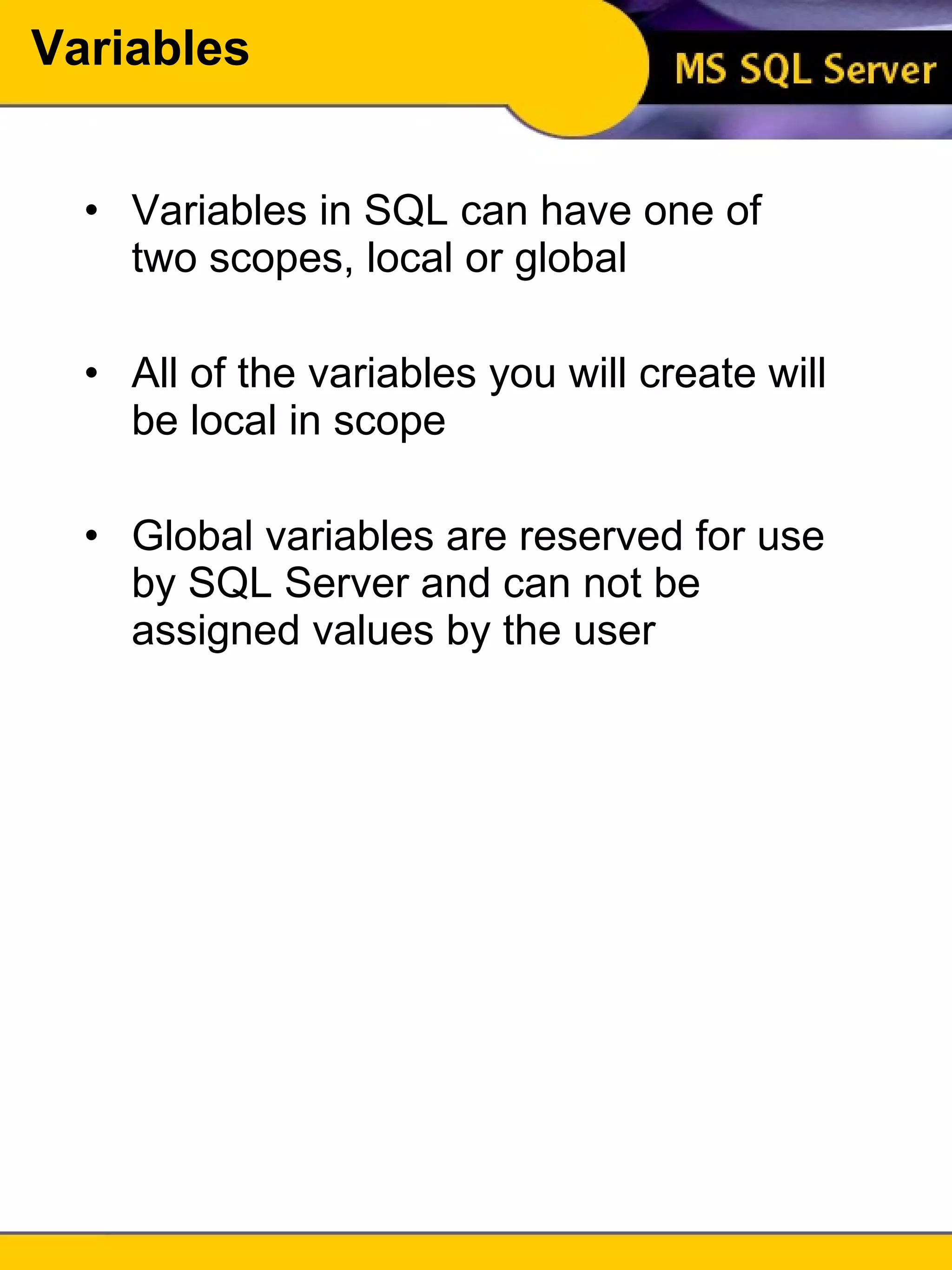

8. Variables Variables in SQL can have one of two scopes, local or global All of the variables you will create will be local in scope Global variables are reserved for use by SQL Server and can not be assigned values by the user

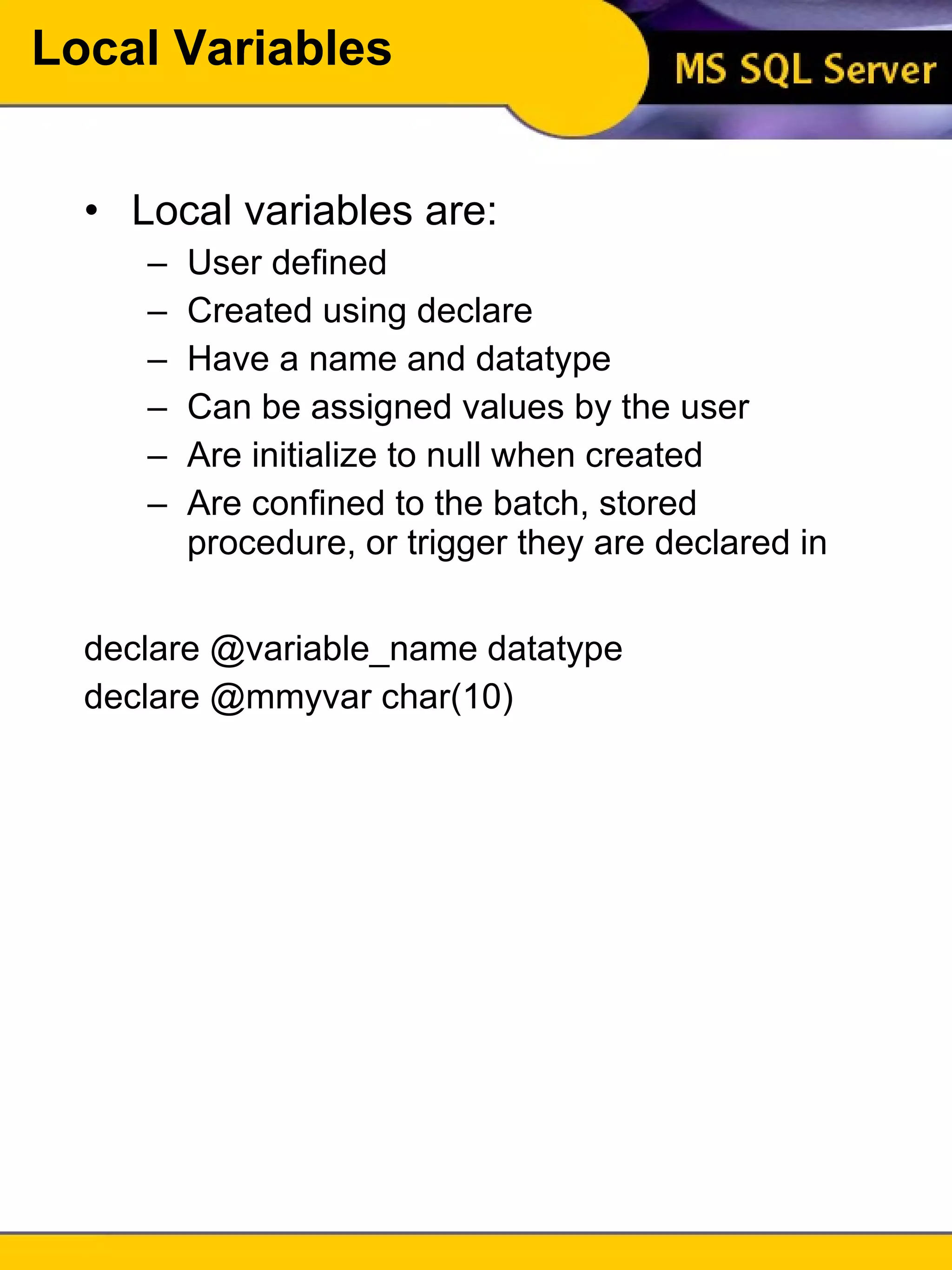

9. Local Variables Local variables are: User defined Created using declare Have a name and datatype Can be assigned values by the user Are initialize to null when created Are confined to the batch, stored procedure, or trigger they are declared in declare @variable_name datatype declare @mmyvar char(10)

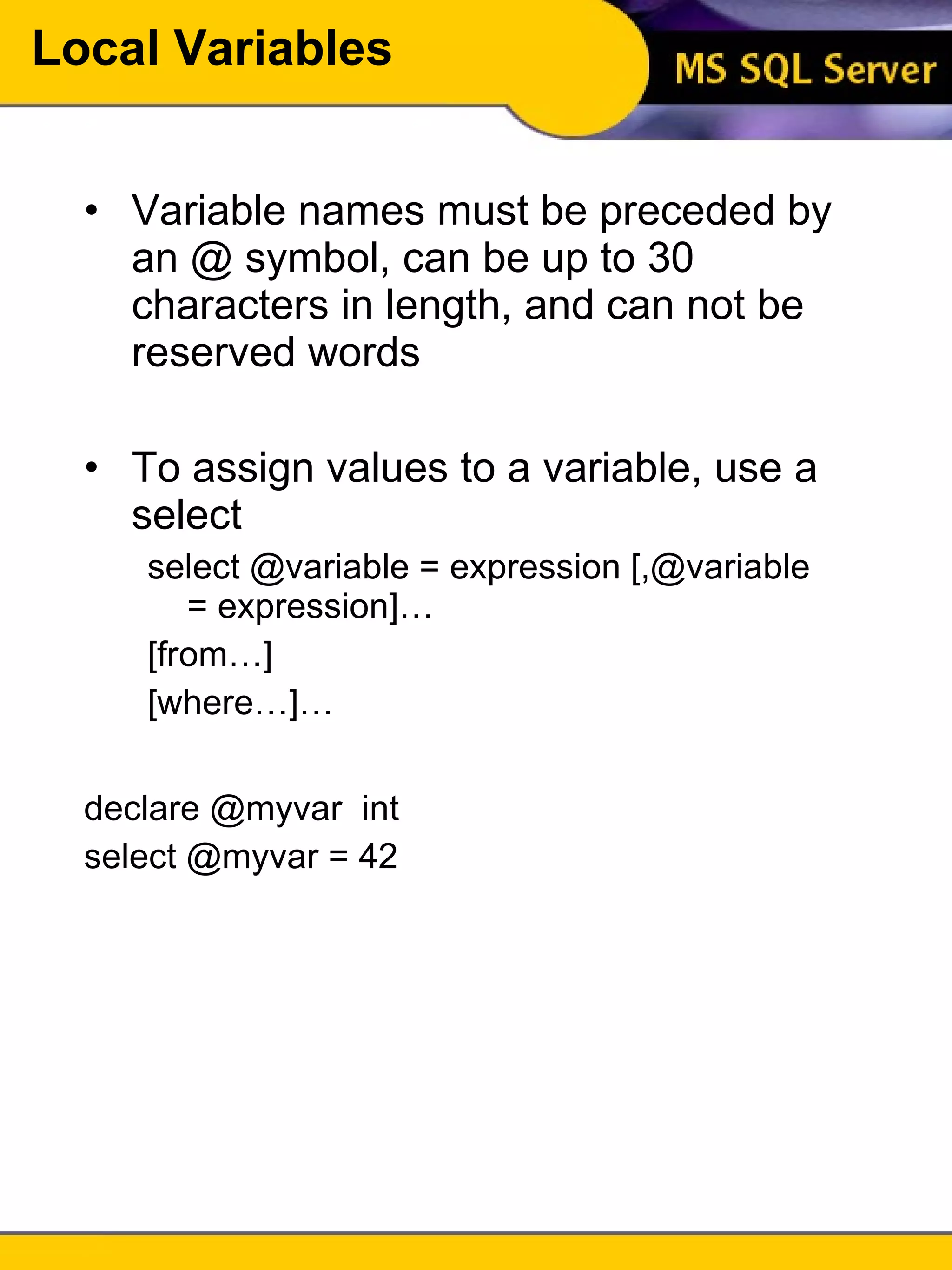

10. Local Variables Variable names must be preceded by an @ symbol, can be up to 30 characters in length, and can not be reserved words To assign values to a variable, use a select select @variable = expression [,@variable = expression]… [from…] [where…]… declare @myvar int select @myvar = 42

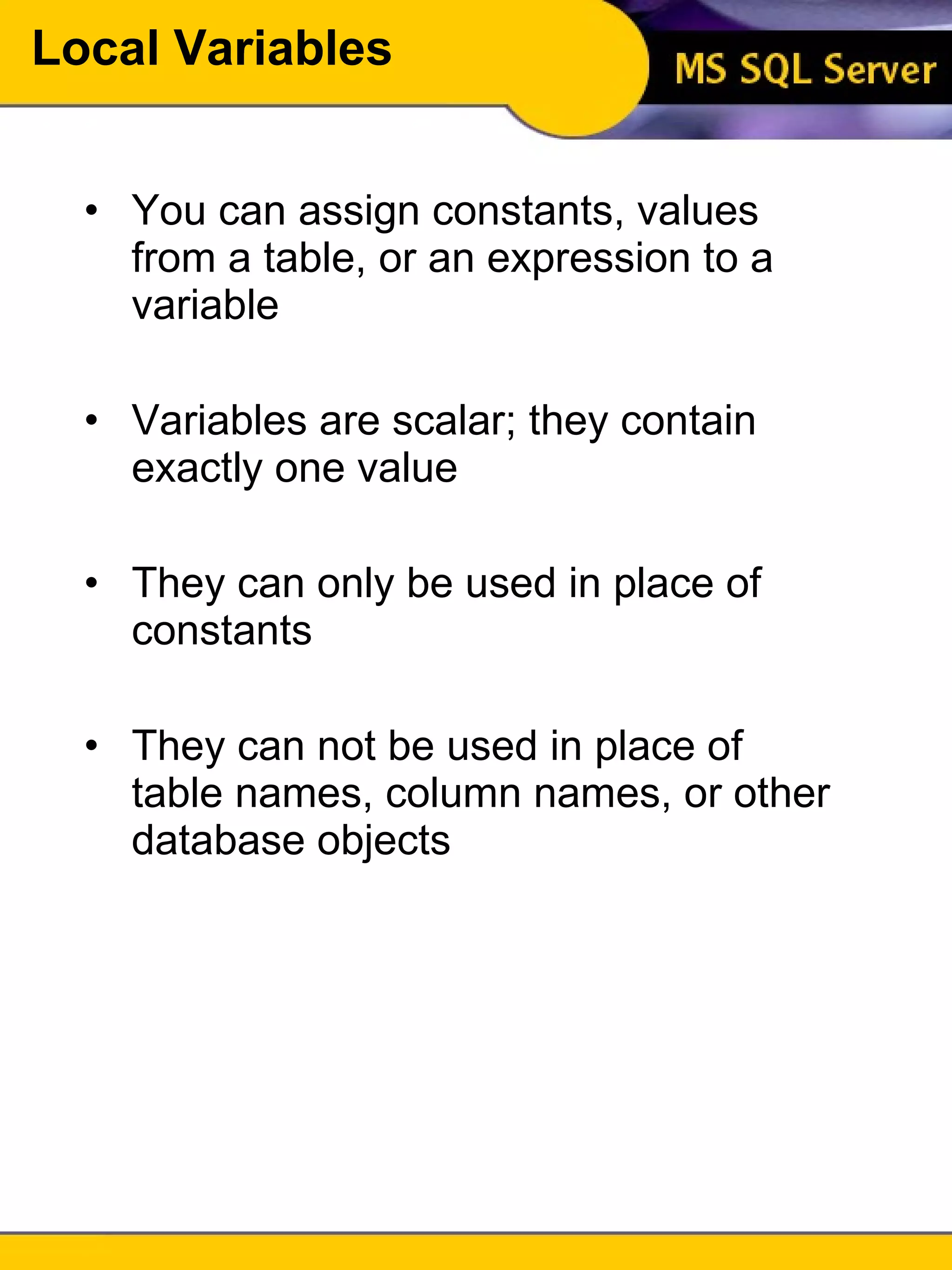

11. Local Variables You can assign constants, values from a table, or an expression to a variable Variables are scalar; they contain exactly one value They can only be used in place of constants They can not be used in place of table names, column names, or other database objects

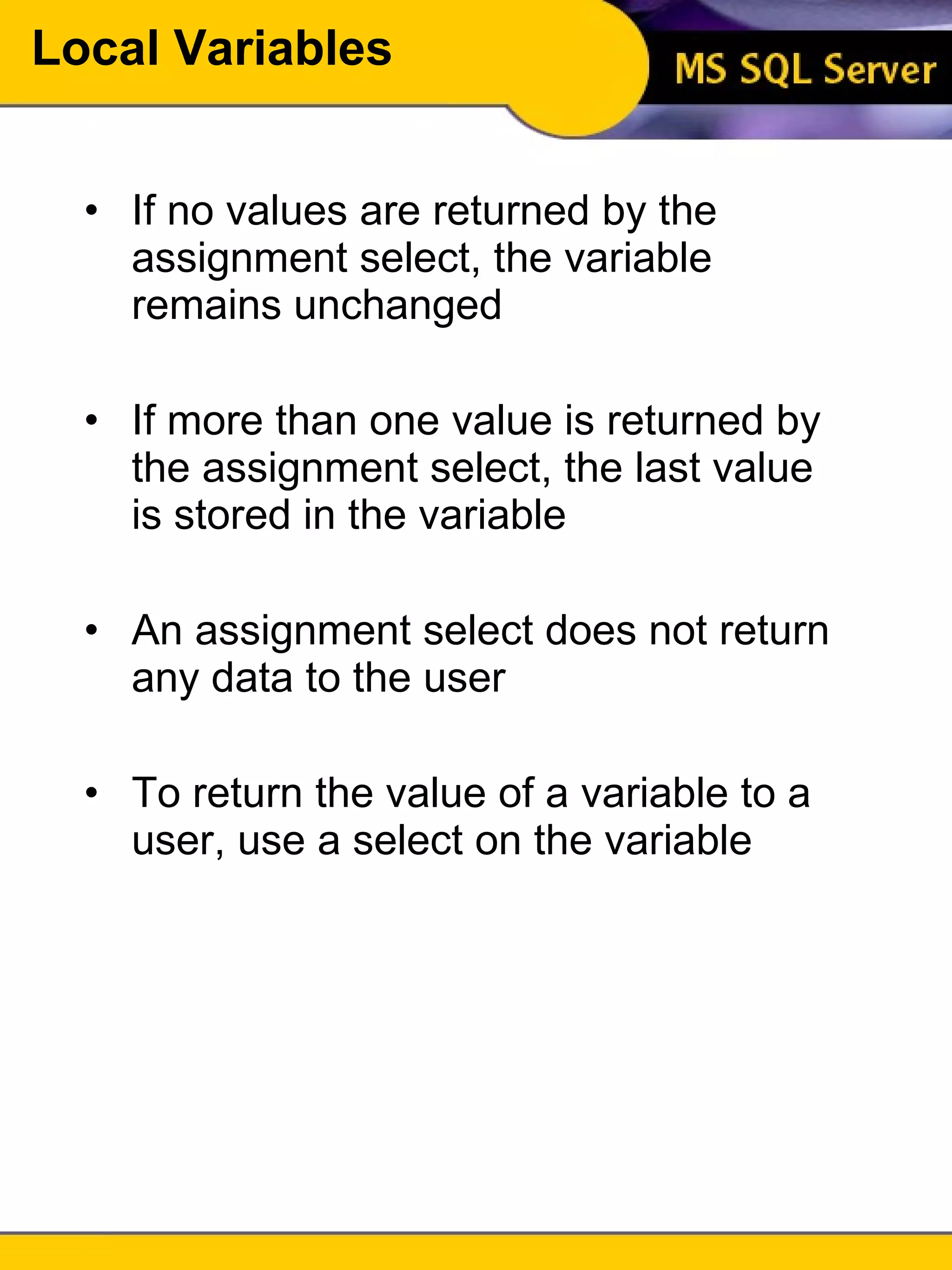

12. Local Variables If no values are returned by the assignment select, the variable remains unchanged If more than one value is returned by the assignment select, the last value is stored in the variable An assignment select does not return any data to the user To return the value of a variable to a user, use a select on the variable

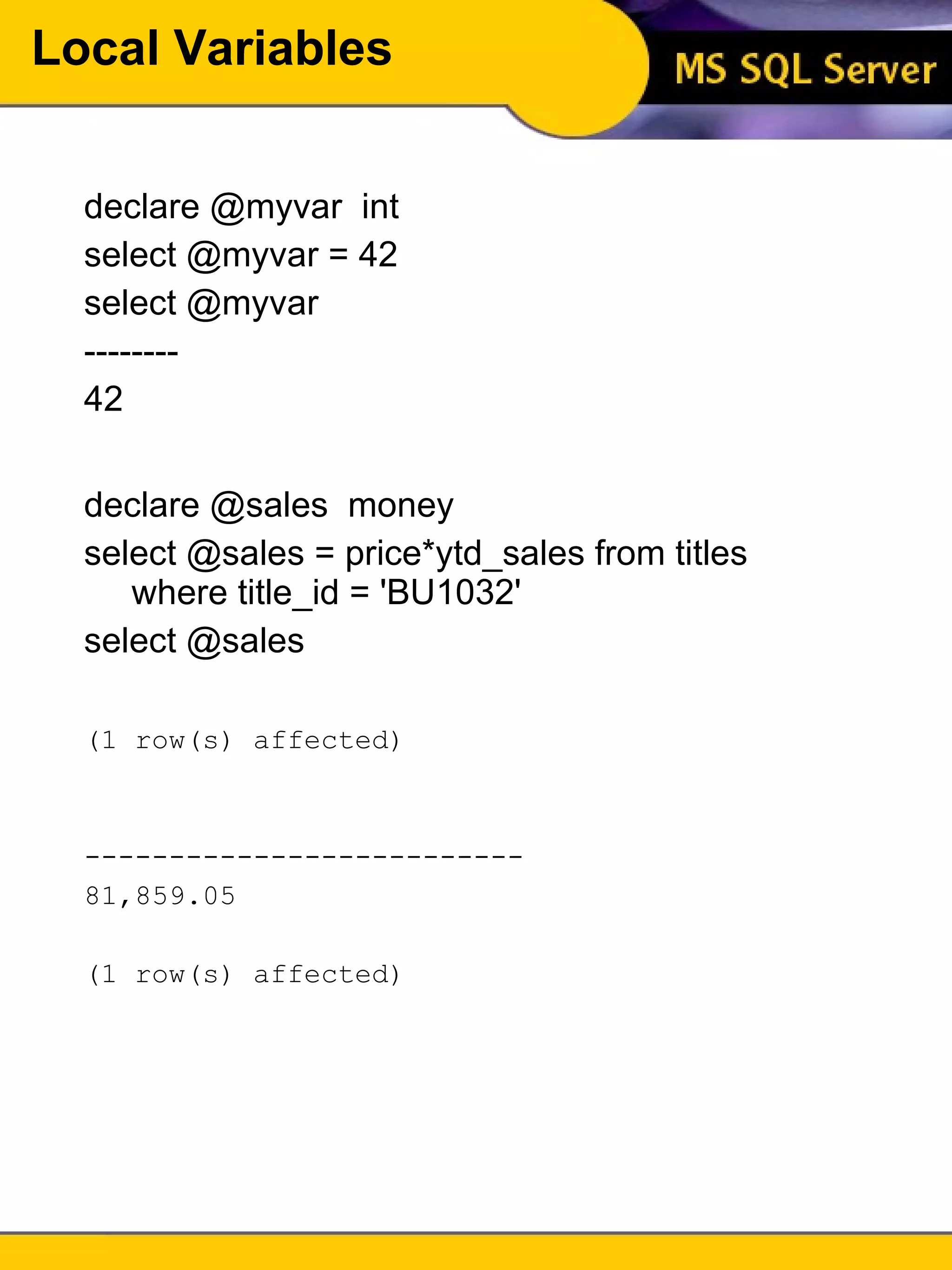

13. Local Variables declare @myvar int select @myvar = 42 select @myvar -------- 42 declare @sales money select @sales = price*ytd_sales from titles where title_id = 'BU1032' select @sales (1 row(s) affected) -------------------------- 81,859.05 (1 row(s) affected)

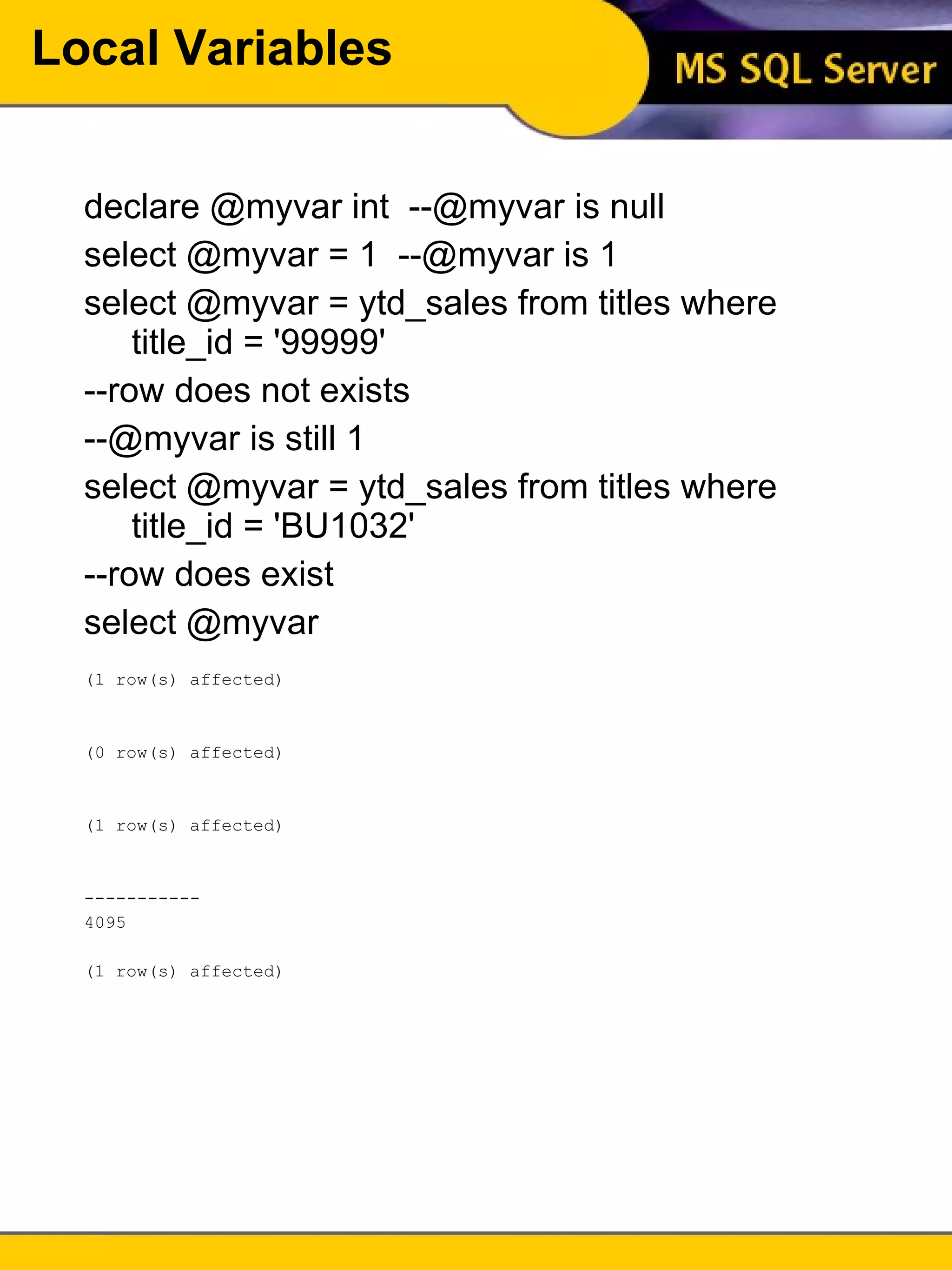

14. Local Variables declare @myvar int --@myvar is null select @myvar = 1 --@myvar is 1 select @myvar = ytd_sales from titles where title_id = '99999' --row does not exists --@myvar is still 1 select @myvar = ytd_sales from titles where title_id = 'BU1032' --row does exist select @myvar (1 row(s) affected) (0 row(s) affected) (1 row(s) affected) ----------- 4095 (1 row(s) affected)

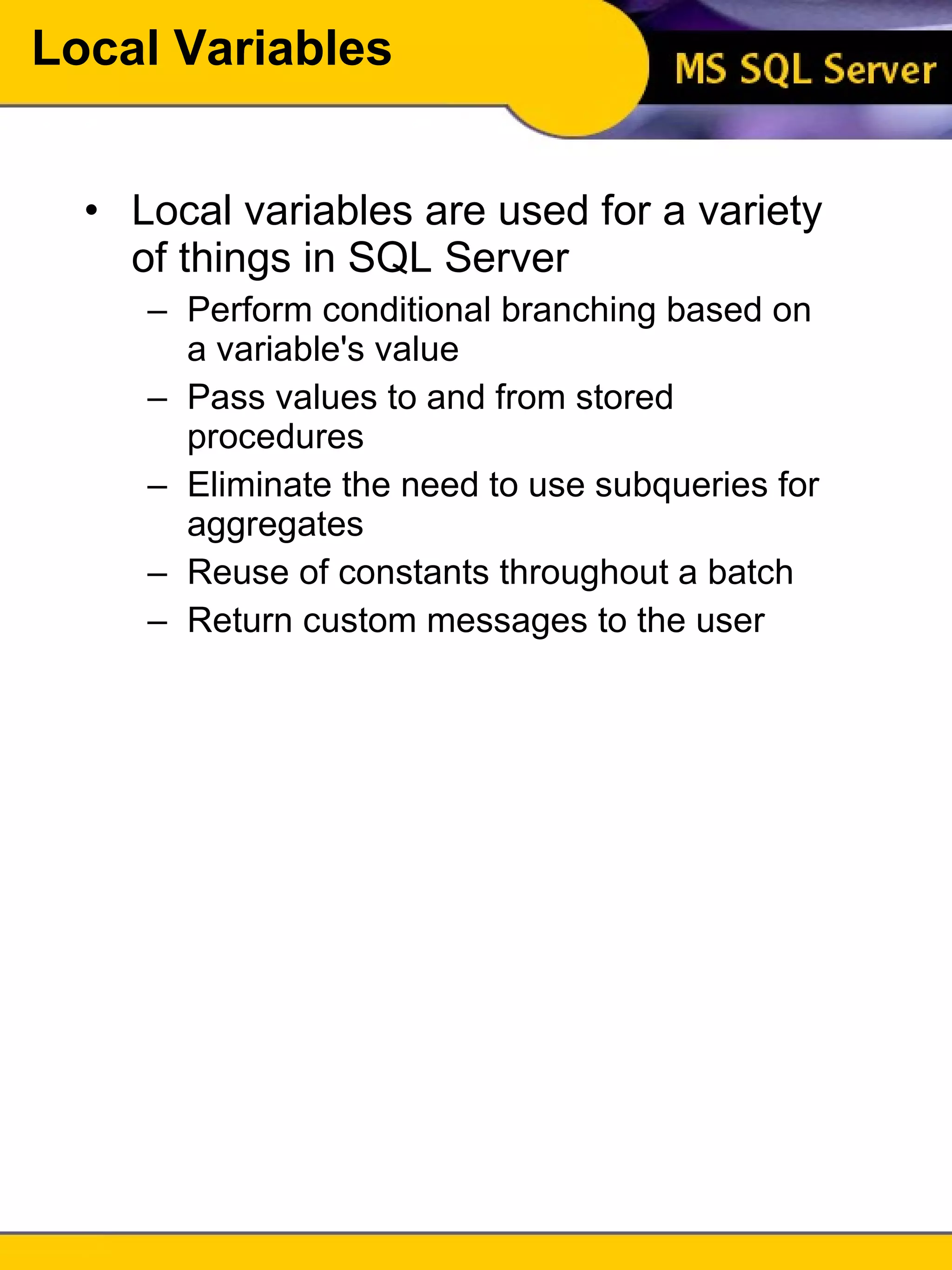

15. Local Variables Local variables are used for a variety of things in SQL Server Perform conditional branching based on a variable's value Pass values to and from stored procedures Eliminate the need to use subqueries for aggregates Reuse of constants throughout a batch Return custom messages to the user

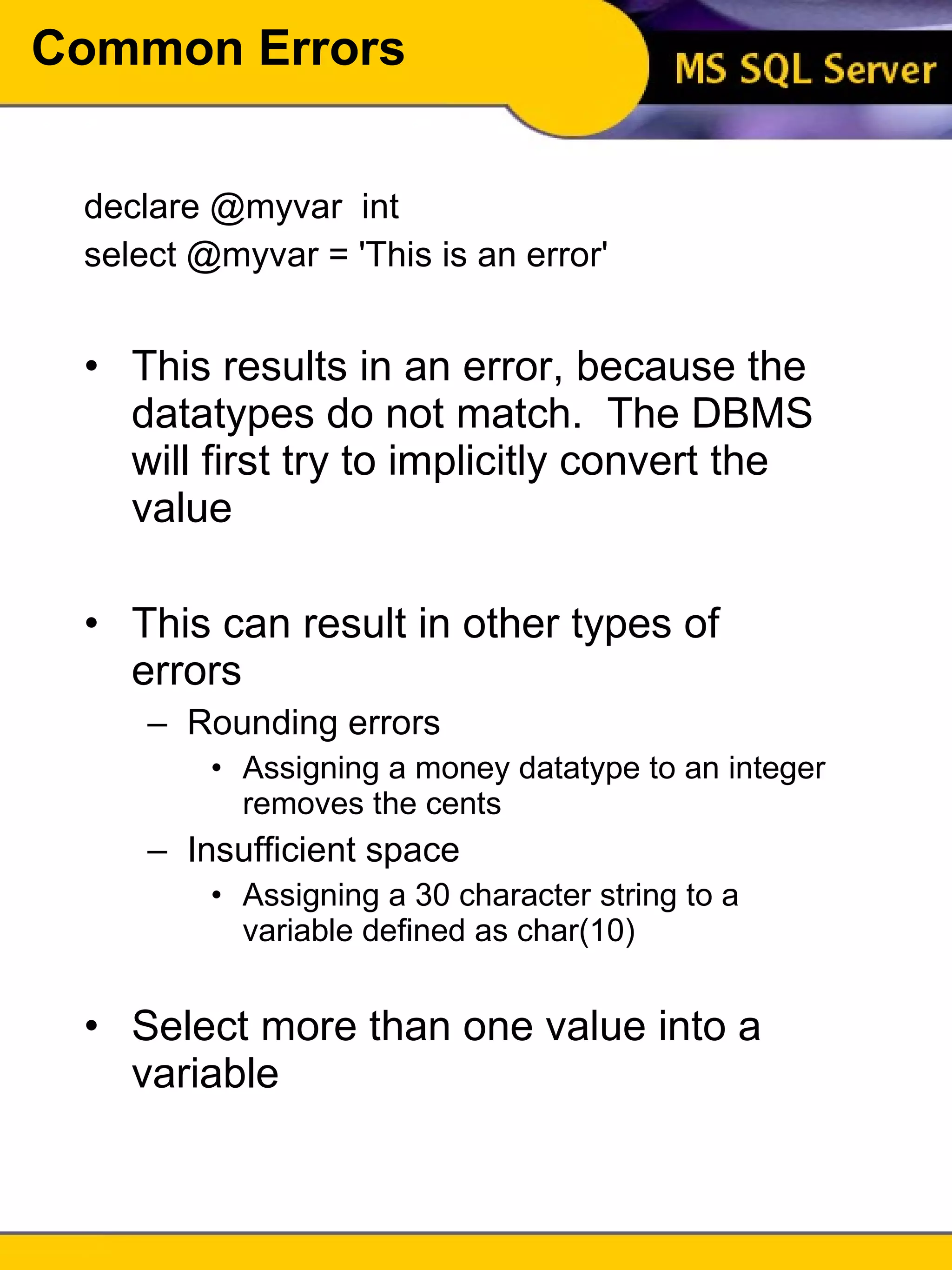

16. Common Errors declare @myvar int select @myvar = 'This is an error' This results in an error, because the datatypes do not match. The DBMS will first try to implicitly convert the value This can result in other types of errors Rounding errors Assigning a money datatype to an integer removes the cents Insufficient space Assigning a 30 character string to a variable defined as char(10) Select more than one value into a variable

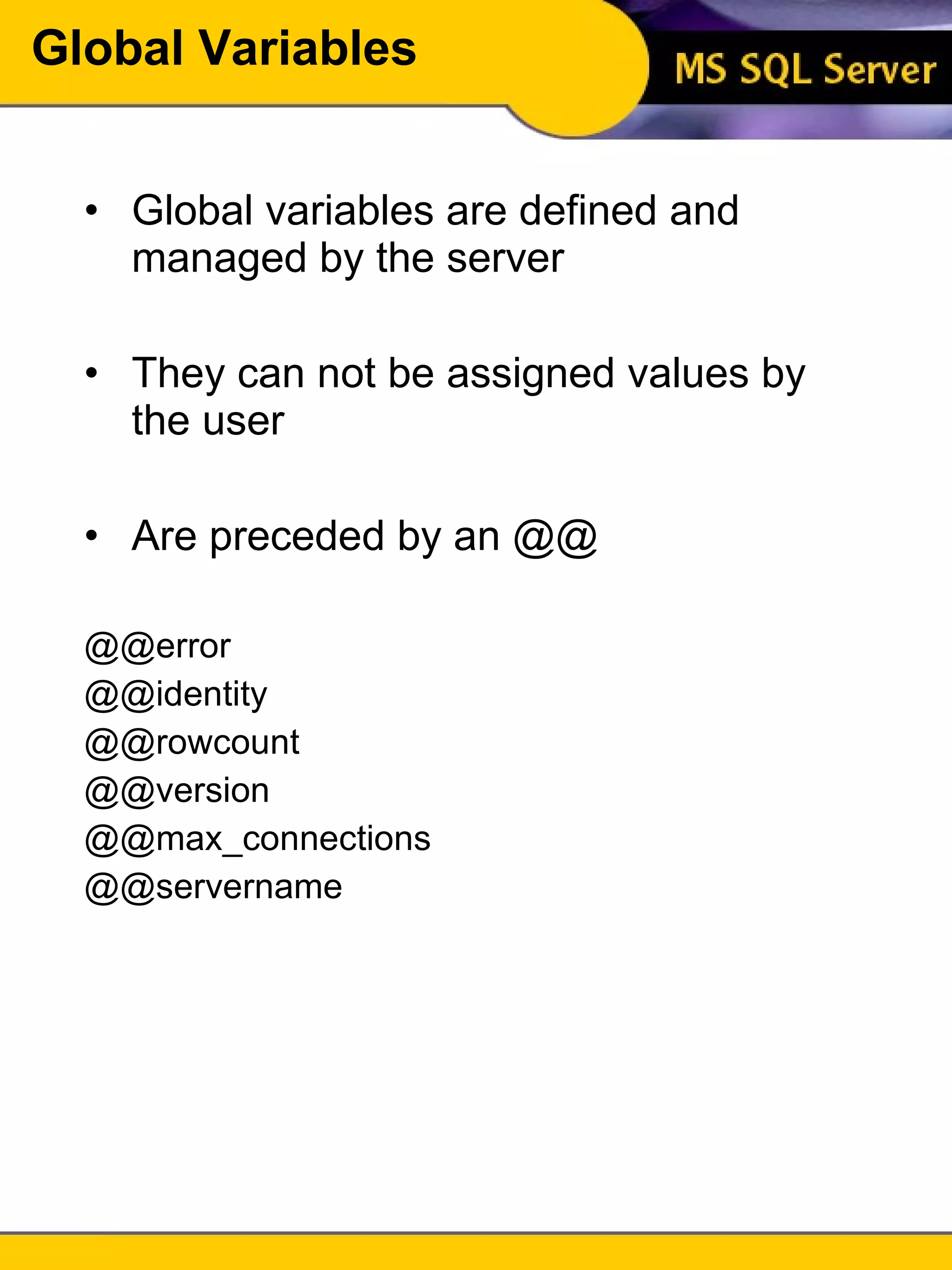

17. Global Variables Global variables are defined and managed by the server They can not be assigned values by the user Are preceded by an @@ @@error @@identity @@rowcount @@version @@max_connections @@servername

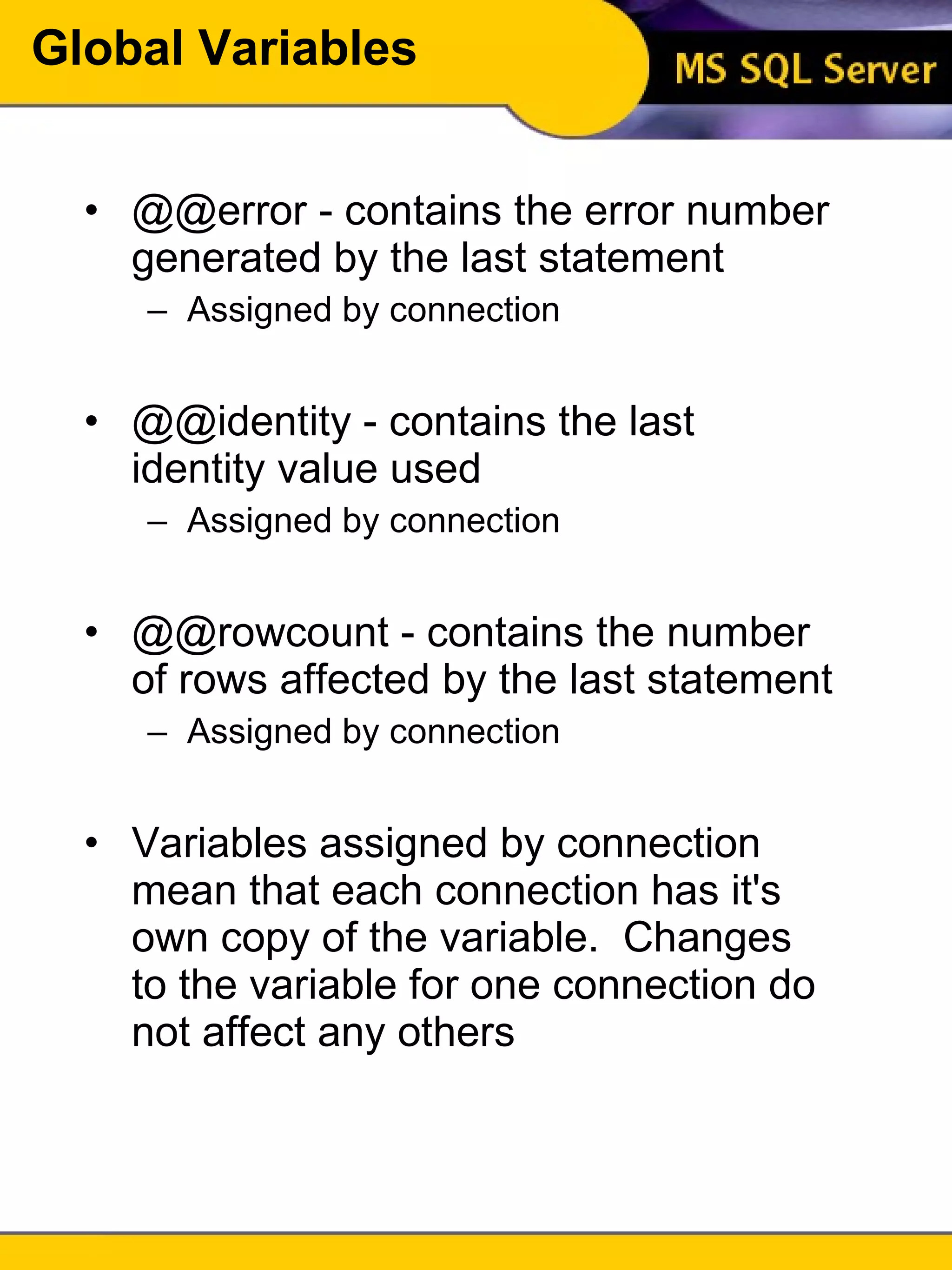

18. Global Variables @@error - contains the error number generated by the last statement Assigned by connection @@identity - contains the last identity value used Assigned by connection @@rowcount - contains the number of rows affected by the last statement Assigned by connection Variables assigned by connection mean that each connection has it's own copy of the variable. Changes to the variable for one connection do not affect any others

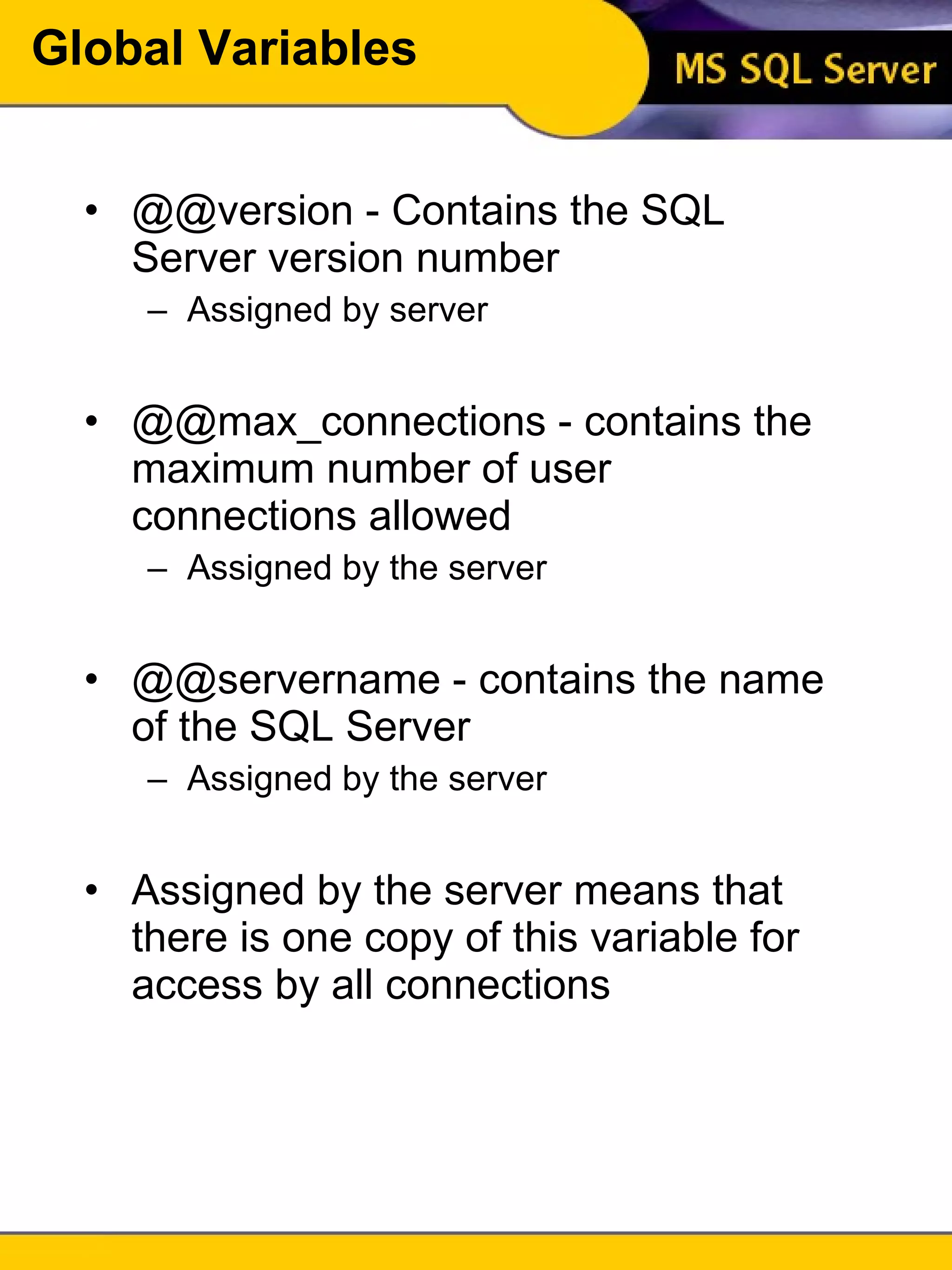

19. Global Variables @@version - Contains the SQL Server version number Assigned by server @@max_connections - contains the maximum number of user connections allowed Assigned by the server @@servername - contains the name of the SQL Server Assigned by the server Assigned by the server means that there is one copy of this variable for access by all connections

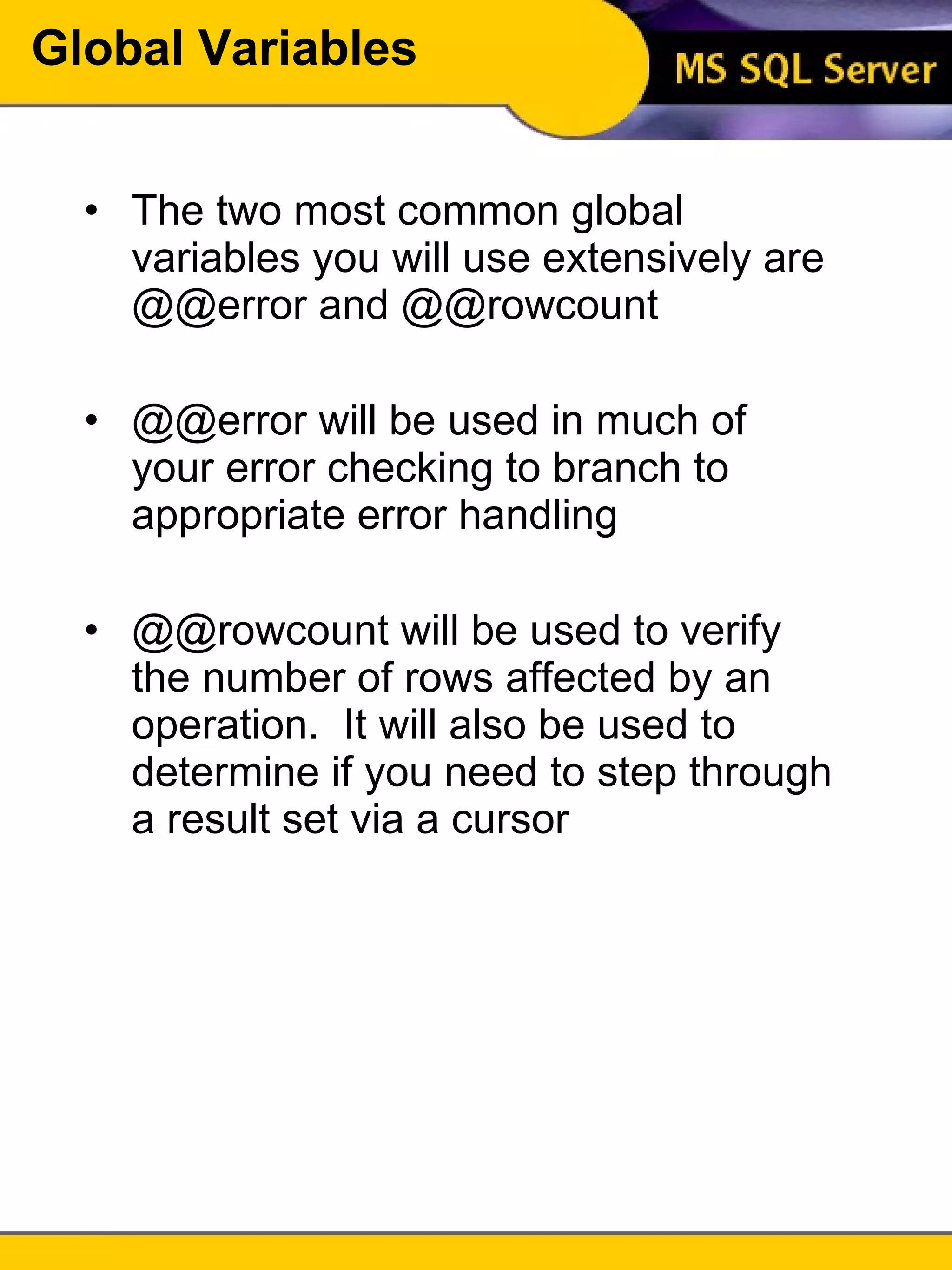

20. Global Variables The two most common global variables you will use extensively are @@error and @@rowcount @@error will be used in much of your error checking to branch to appropriate error handling @@rowcount will be used to verify the number of rows affected by an operation. It will also be used to determine if you need to step through a result set via a cursor

21. Control Of Flow No language would be complete without the ability to branch to other parts of code or perform many iterations of a task SQL accomplishes this through a small set of constructs if…else begin…end while… return waitfor goto case

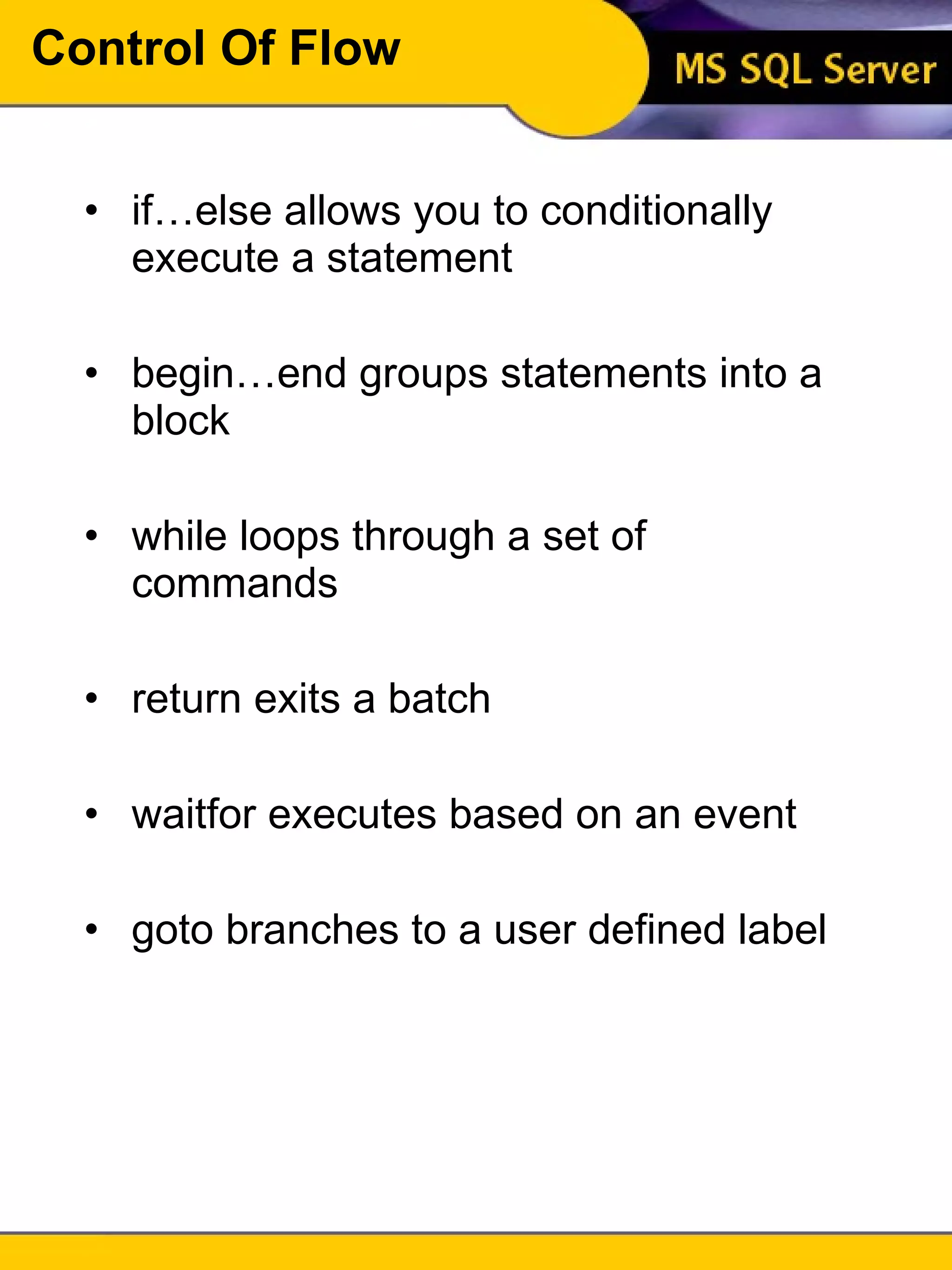

22. Control Of Flow if…else allows you to conditionally execute a statement begin…end groups statements into a block while loops through a set of commands return exits a batch waitfor executes based on an event goto branches to a user defined label

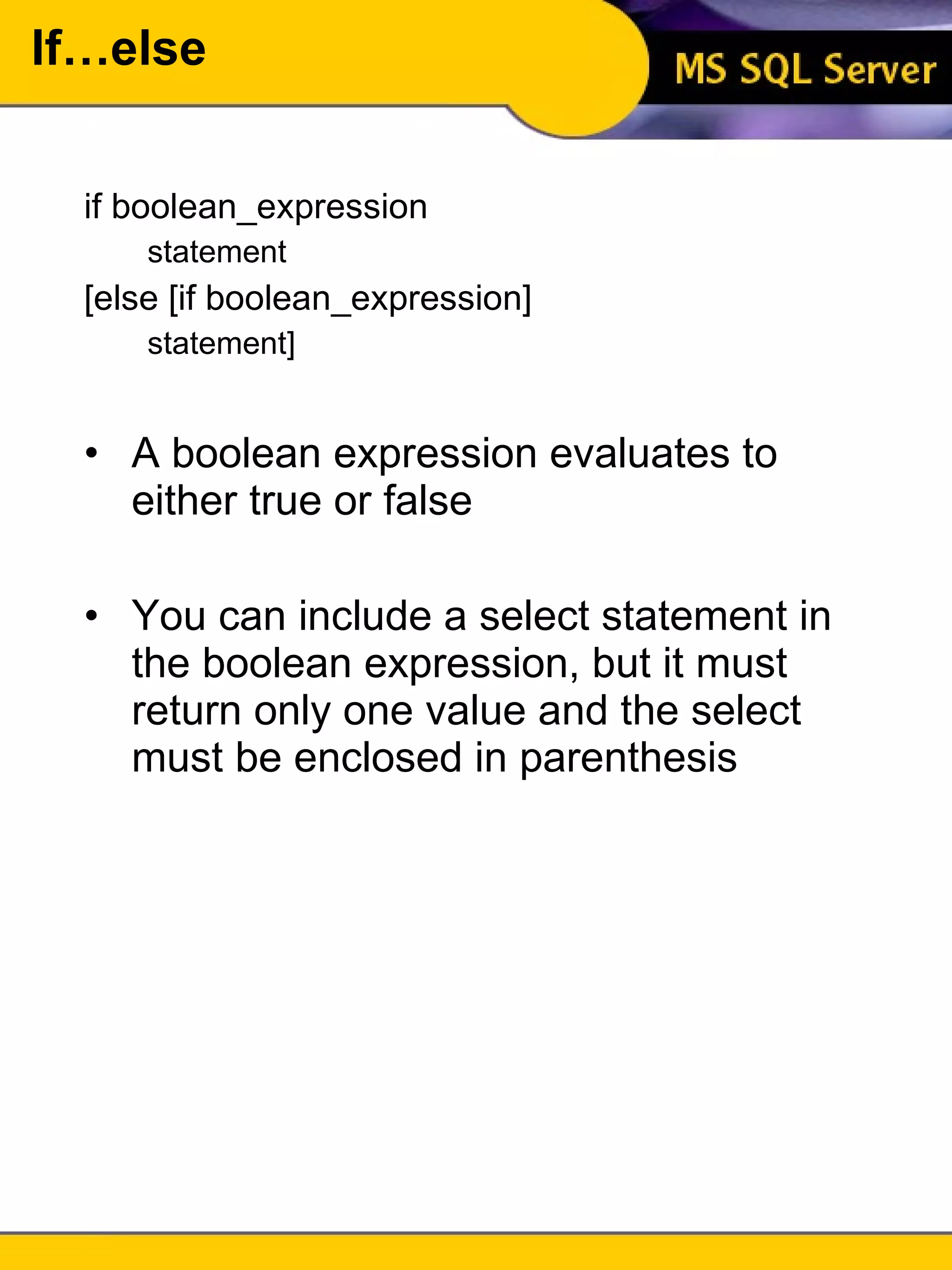

23. If…else if boolean_expression statement [else [if boolean_expression] statement] A boolean expression evaluates to either true or false You can include a select statement in the boolean expression, but it must return only one value and the select must be enclosed in parenthesis

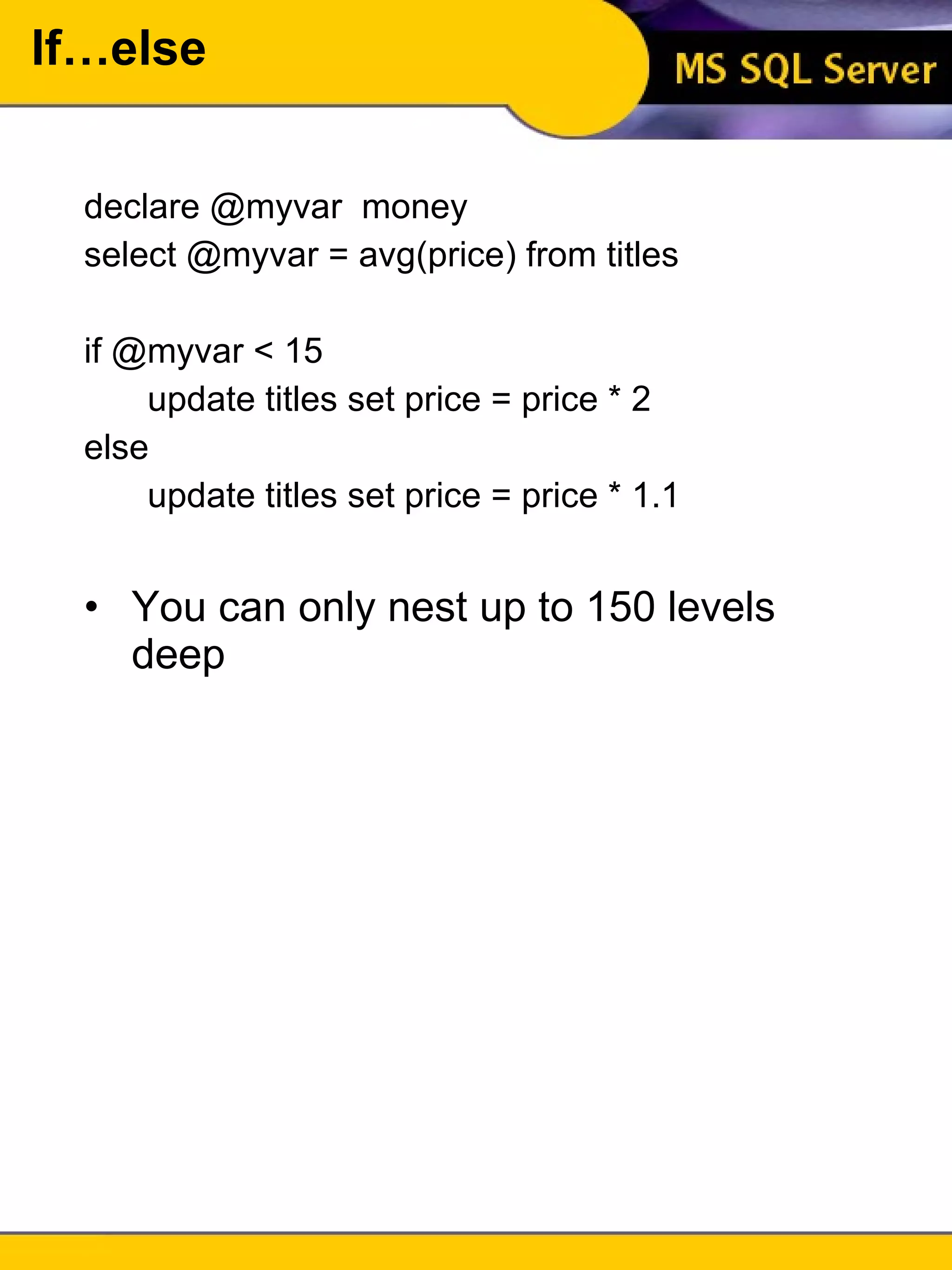

24. If…else declare @myvar money select @myvar = avg(price) from titles if @myvar < 15 update titles set price = price * 2 else update titles set price = price * 1.1 You can only nest up to 150 levels deep

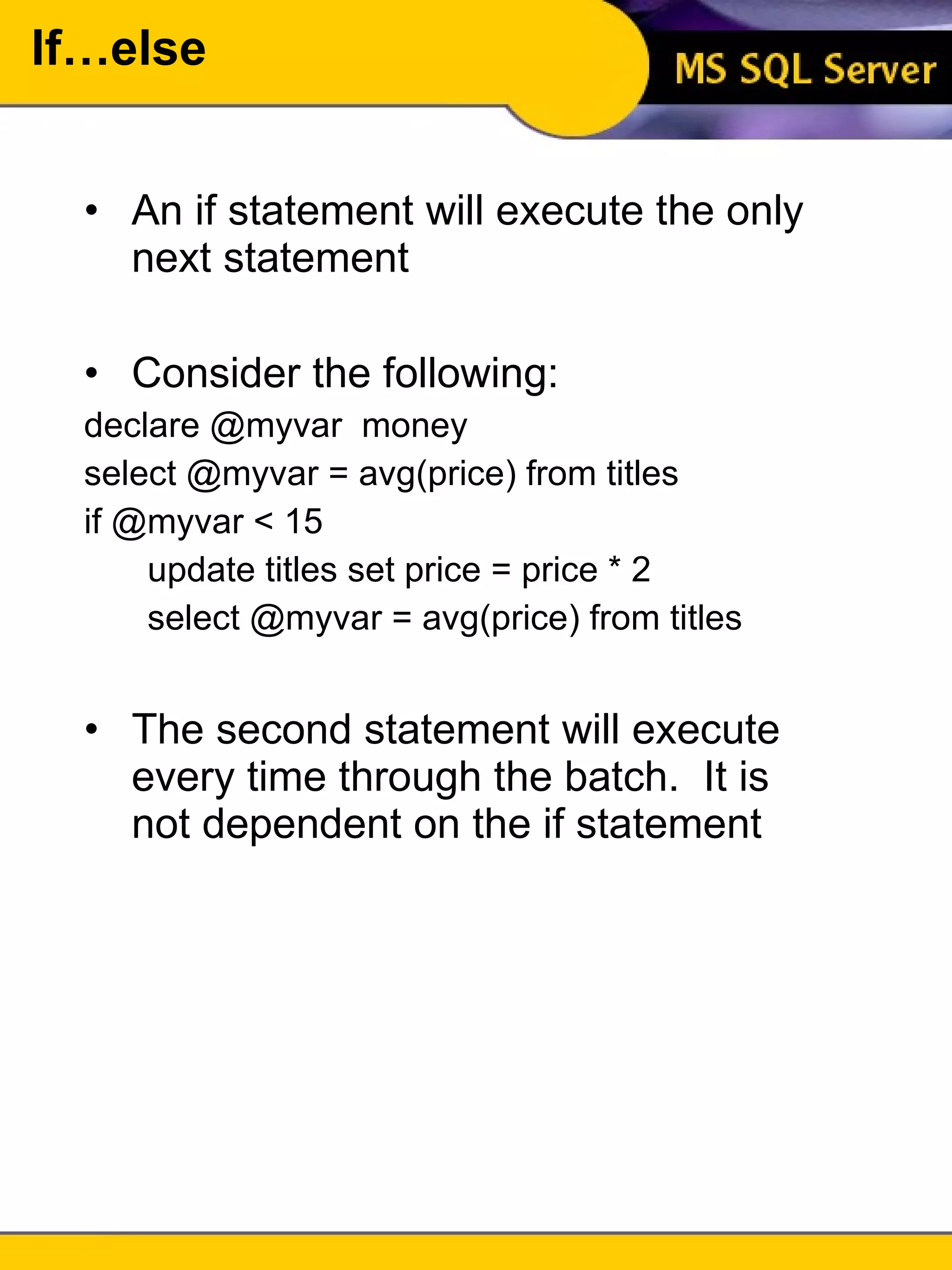

25. If…else An if statement will execute the only next statement Consider the following: declare @myvar money select @myvar = avg(price) from titles if @myvar < 15 update titles set price = price * 2 select @myvar = avg(price) from titles The second statement will execute every time through the batch. It is not dependent on the if statement

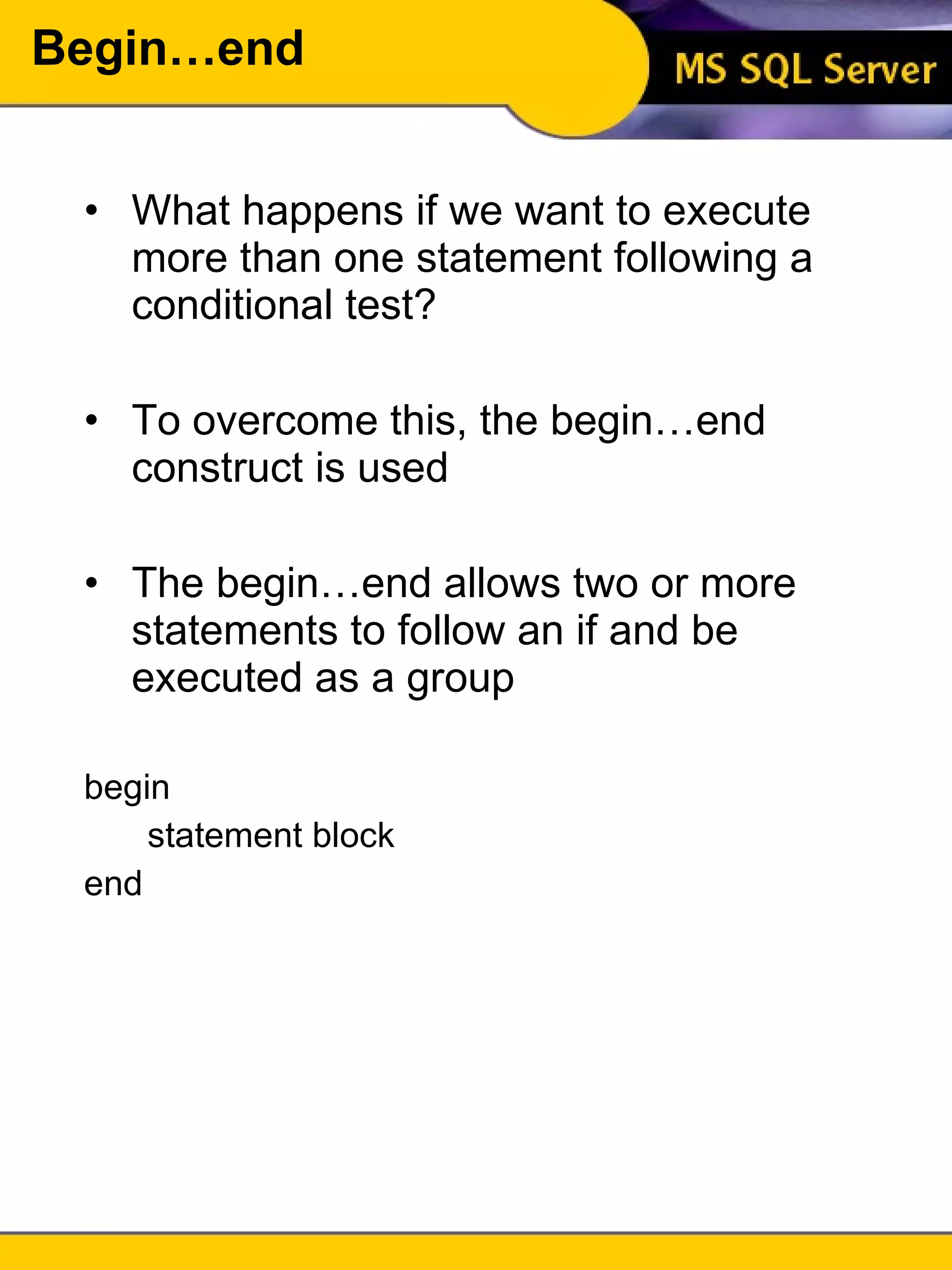

26. Begin…end What happens if we want to execute more than one statement following a conditional test? To overcome this, the begin…end construct is used The begin…end allows two or more statements to follow an if and be executed as a group begin statement block end

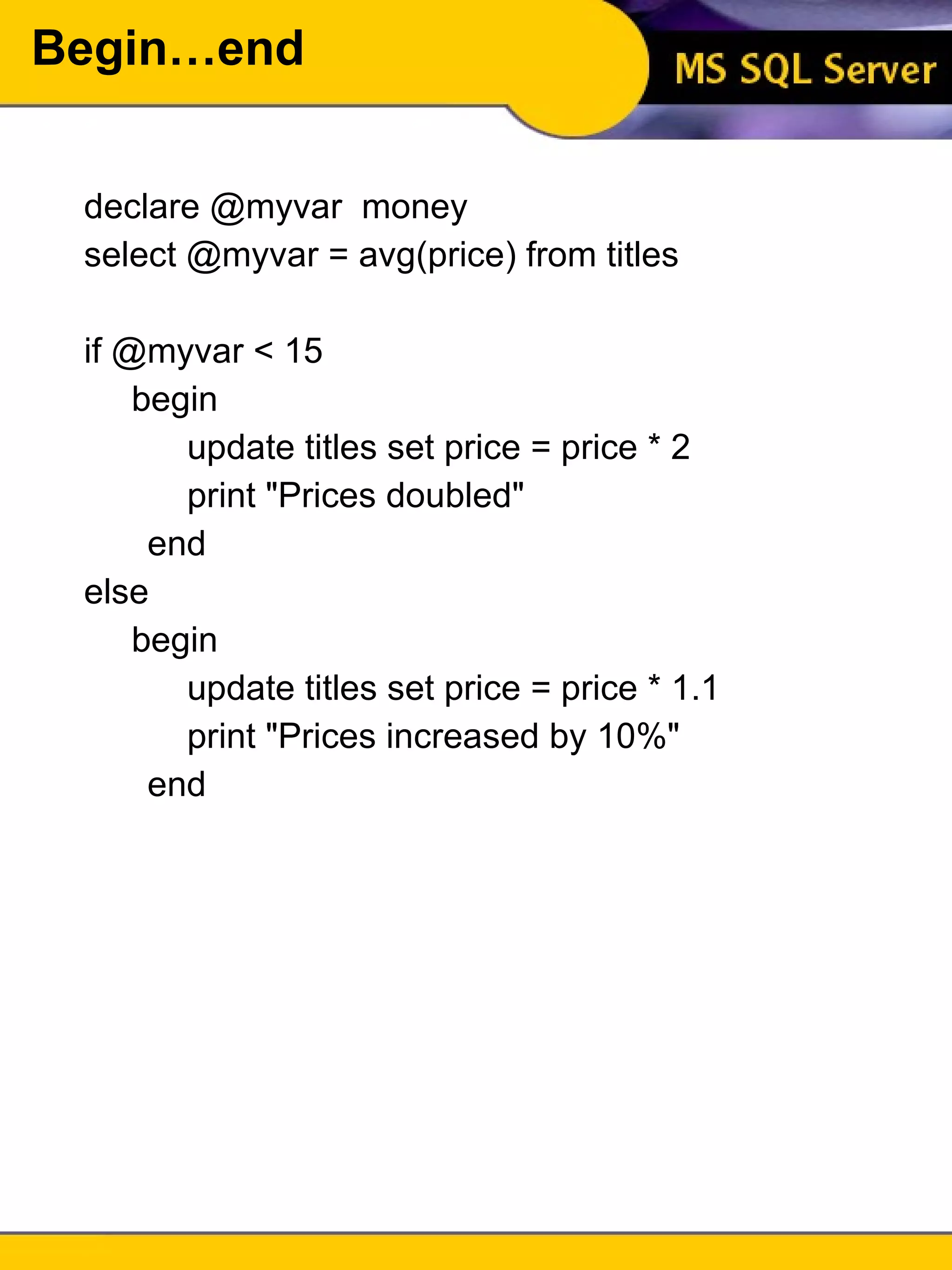

27. Begin…end declare @myvar money select @myvar = avg(price) from titles if @myvar < 15 begin update titles set price = price * 2 print &quot;Prices doubled&quot; end else begin update titles set price = price * 1.1 print &quot;Prices increased by 10%&quot; end

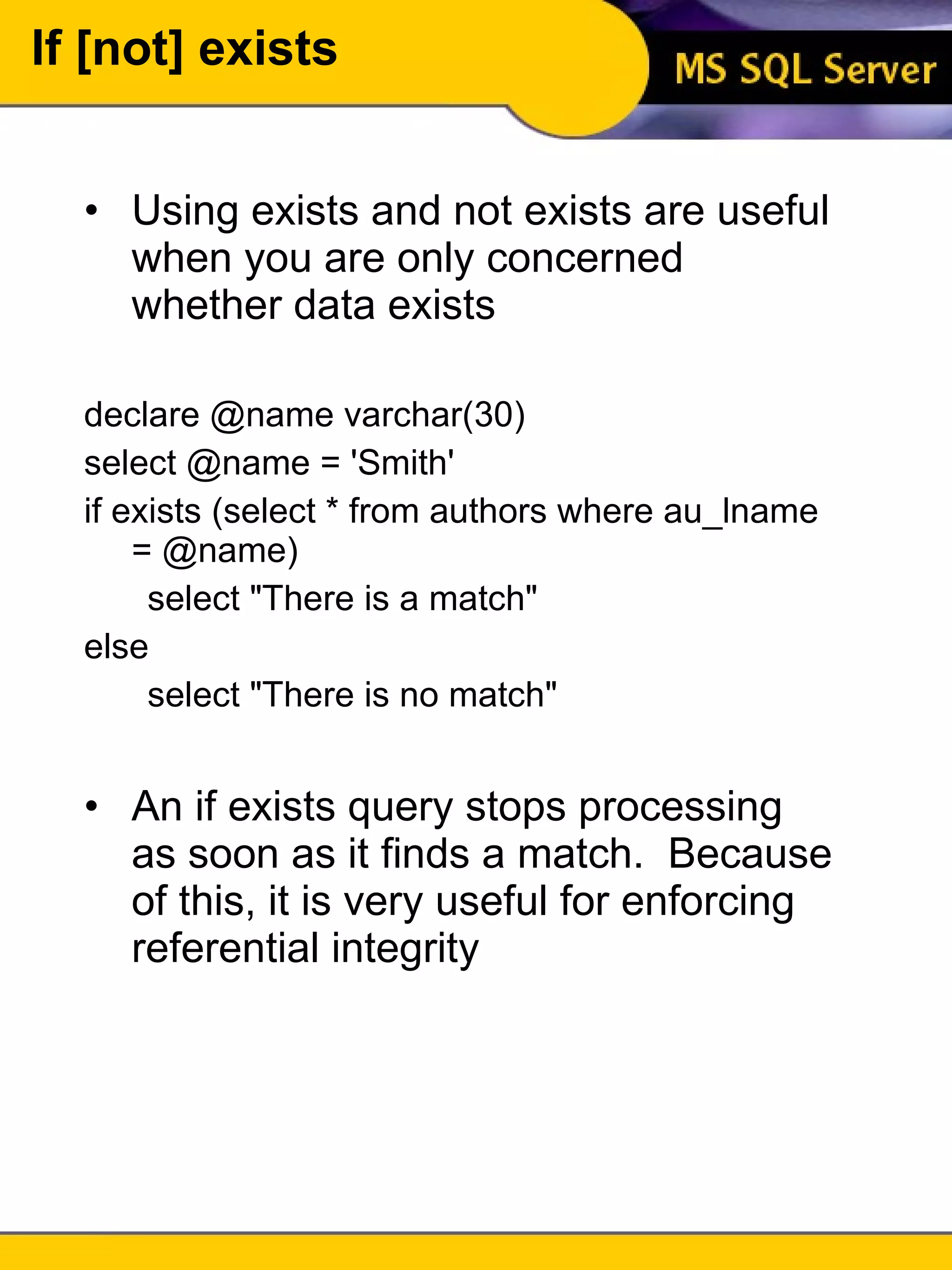

28. If [not] exists Using exists and not exists are useful when you are only concerned whether data exists declare @name varchar(30) select @name = 'Smith' if exists (select * from authors where au_lname = @name) select &quot;There is a match&quot; else select &quot;There is no match&quot; An if exists query stops processing as soon as it finds a match. Because of this, it is very useful for enforcing referential integrity

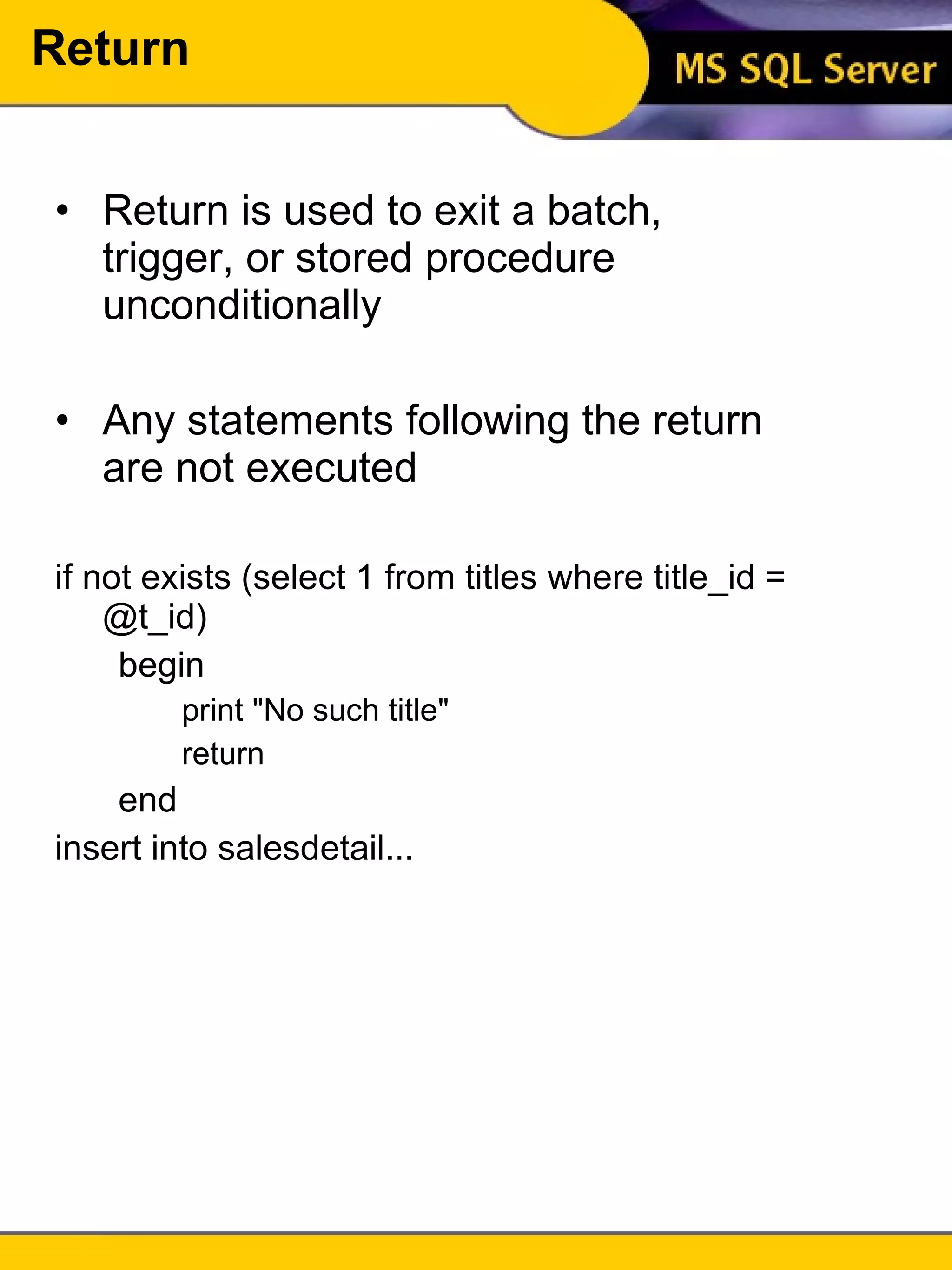

29. Return Return is used to exit a batch, trigger, or stored procedure unconditionally Any statements following the return are not executed if not exists (select 1 from titles where title_id = @t_id) begin print &quot;No such title&quot; return end insert into salesdetail...

30. While While is used to execute a statement(s) repeatedly while boolean_expression statement block to execute as long as the condition is true while (select avg(price) from titles) < 40 begin update titles set price = price + 2 select avg(price) from titles end

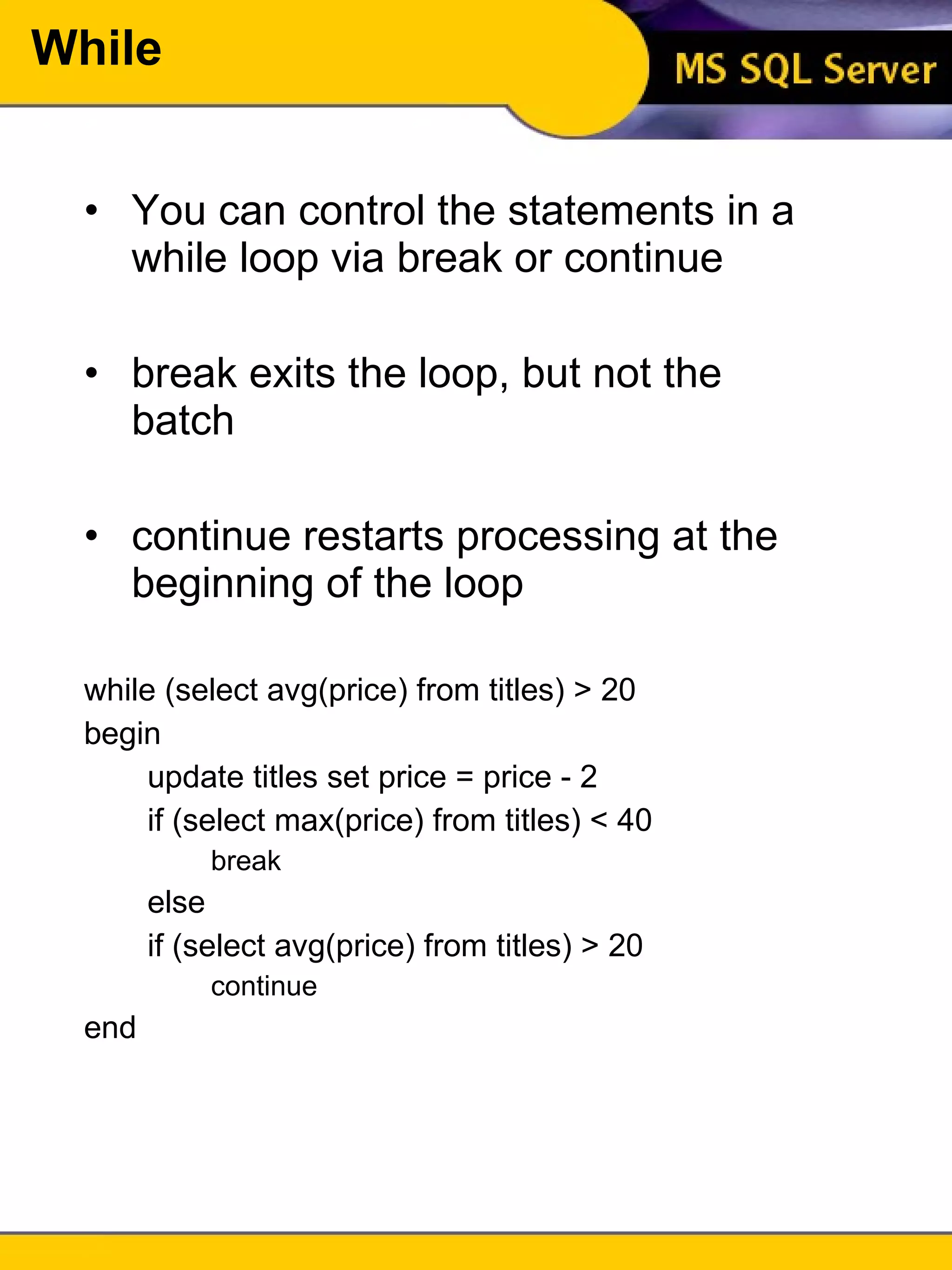

31. While You can control the statements in a while loop via break or continue break exits the loop, but not the batch continue restarts processing at the beginning of the loop while (select avg(price) from titles) > 20 begin update titles set price = price - 2 if (select max(price) from titles) < 40 break else if (select avg(price) from titles) > 20 continue end

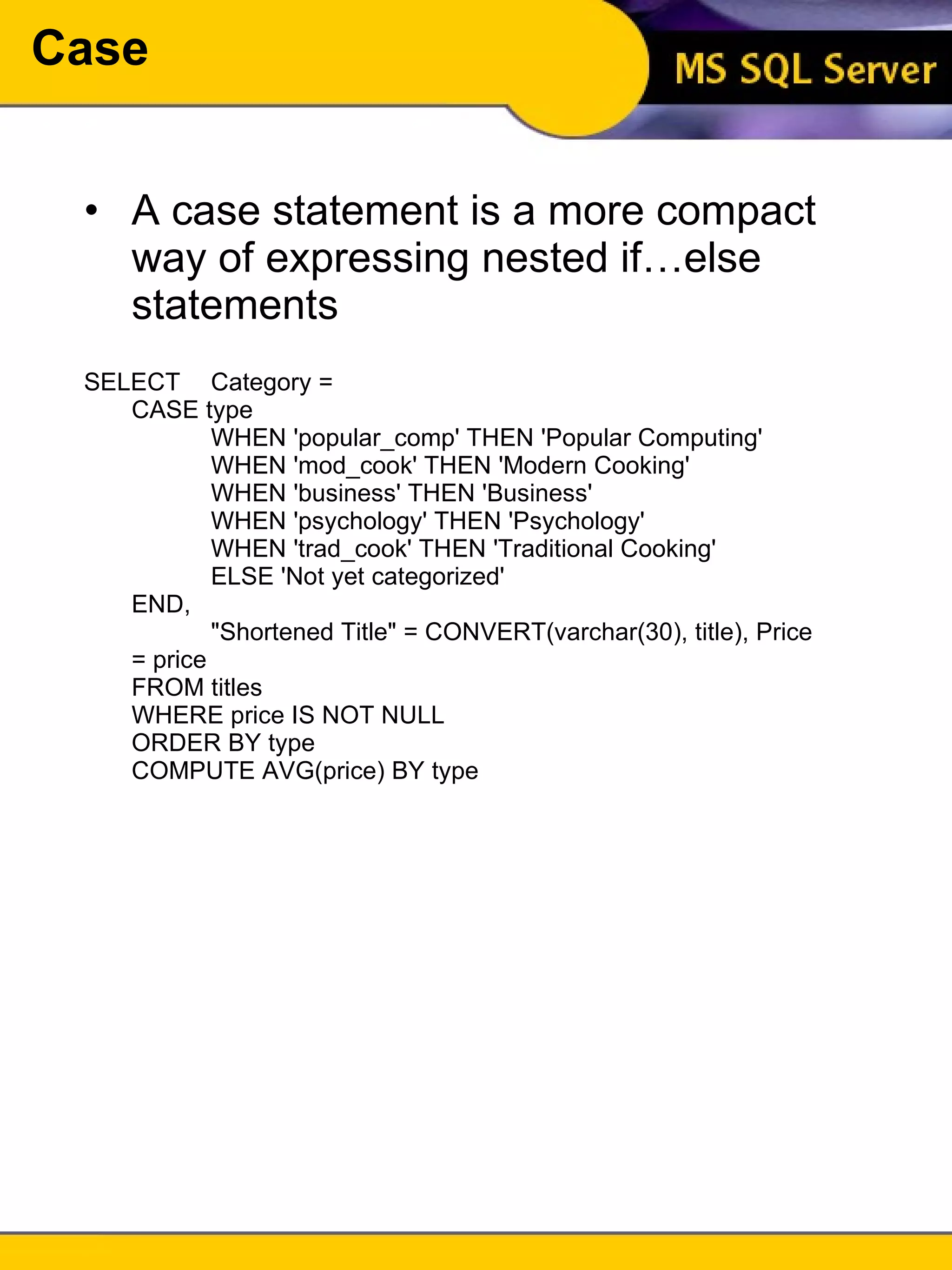

32. Case A case statement is a more compact way of expressing nested if…else statements SELECT Category = CASE type WHEN 'popular_comp' THEN 'Popular Computing' WHEN 'mod_cook' THEN 'Modern Cooking' WHEN 'business' THEN 'Business' WHEN 'psychology' THEN 'Psychology' WHEN 'trad_cook' THEN 'Traditional Cooking' ELSE 'Not yet categorized' END, &quot;Shortened Title&quot; = CONVERT(varchar(30), title), Price = price FROM titles WHERE price IS NOT NULL ORDER BY type COMPUTE AVG(price) BY type

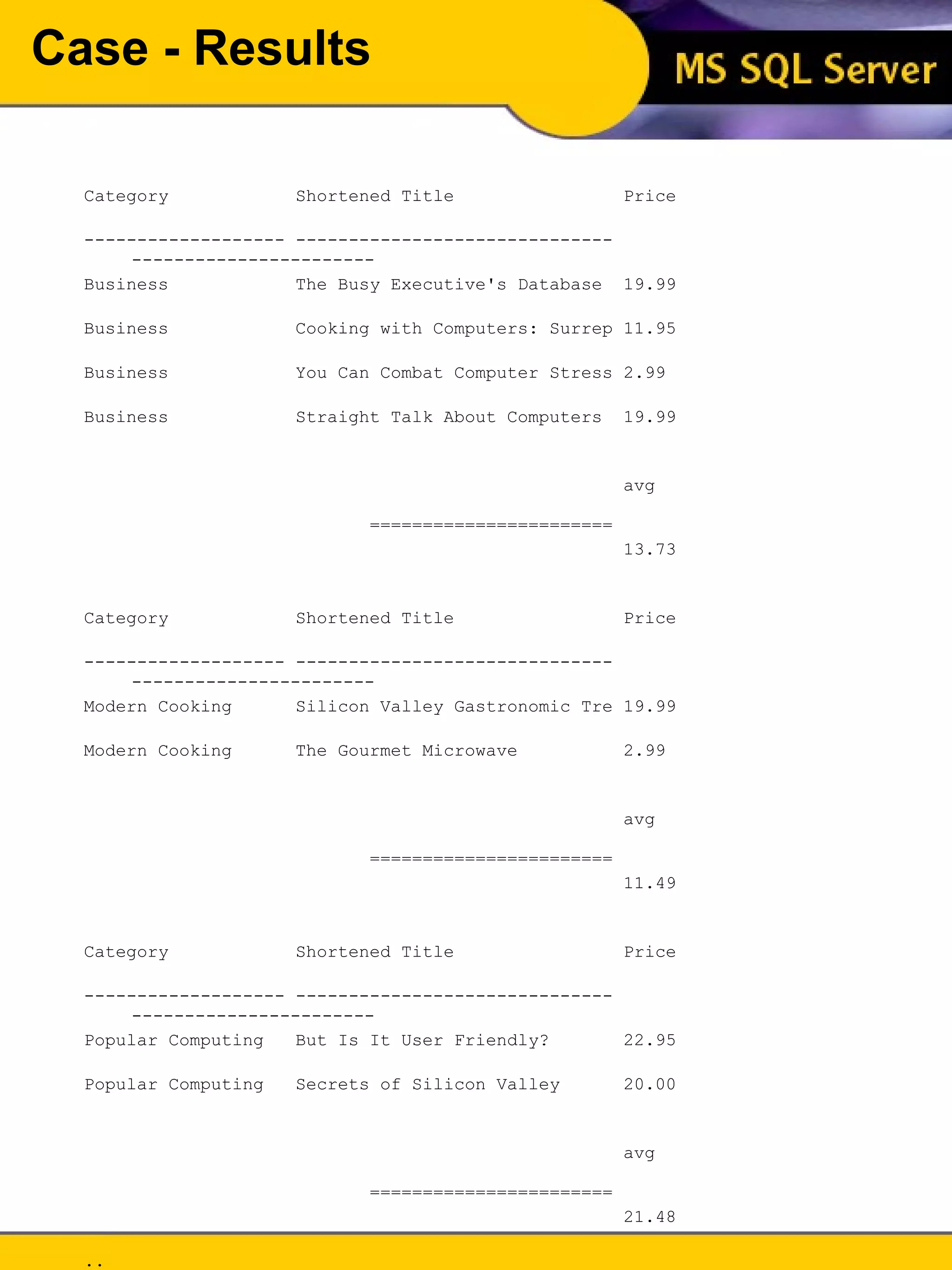

33. Case - Results Category Shortened Title Price ------------------- ------------------------------ ----------------------- Business The Busy Executive's Database 19.99 Business Cooking with Computers: Surrep 11.95 Business You Can Combat Computer Stress 2.99 Business Straight Talk About Computers 19.99 avg ======================= 13.73 Category Shortened Title Price ------------------- ------------------------------ ----------------------- Modern Cooking Silicon Valley Gastronomic Tre 19.99 Modern Cooking The Gourmet Microwave 2.99 avg ======================= 11.49 Category Shortened Title Price ------------------- ------------------------------ ----------------------- Popular Computing But Is It User Friendly? 22.95 Popular Computing Secrets of Silicon Valley 20.00 avg ======================= 21.48 .. (21 row(s) affected)

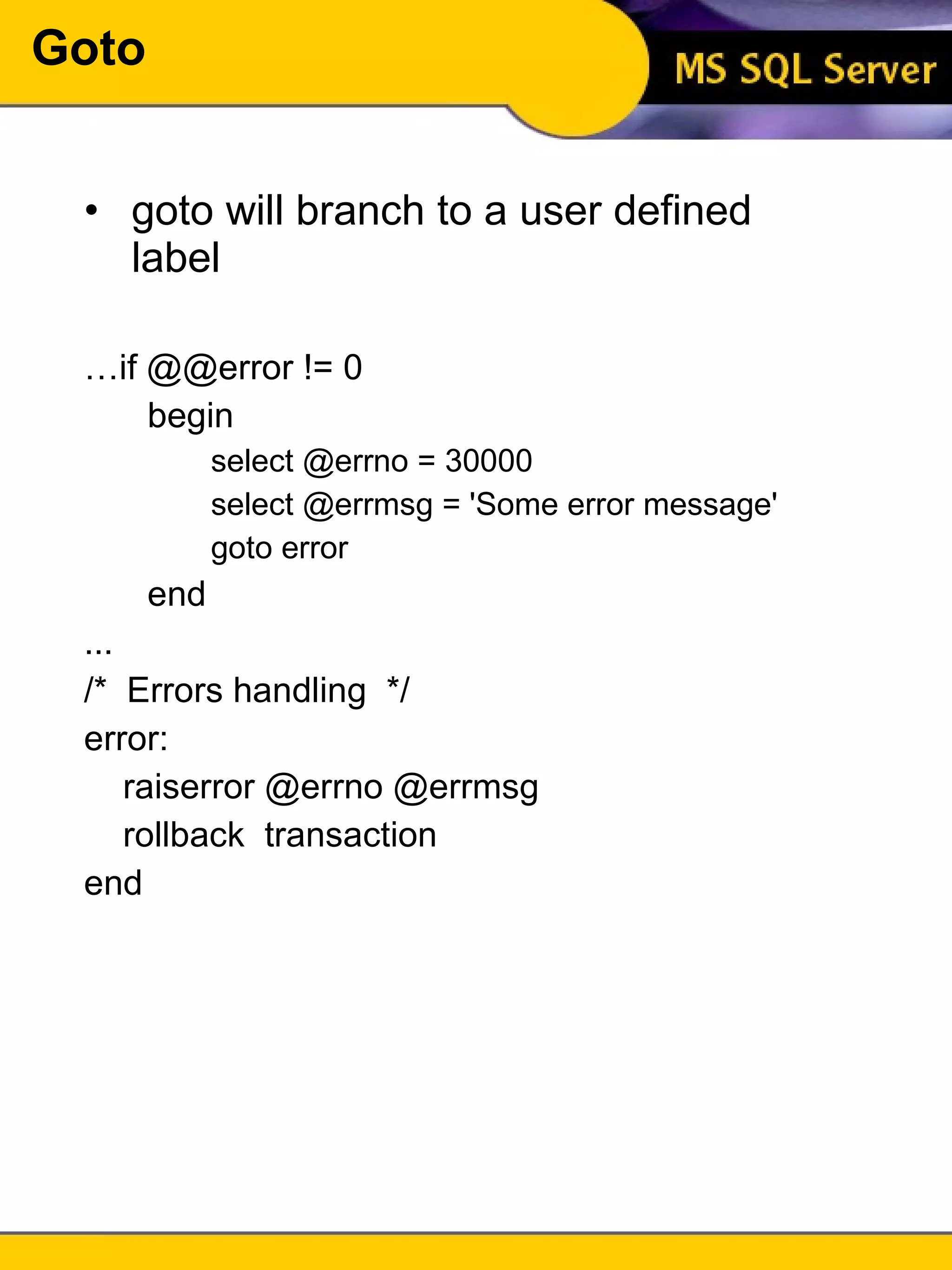

34. Goto goto will branch to a user defined label … if @@error != 0 begin select @errno = 30000 select @errmsg = 'Some error message' goto error end ... /* Errors handling */ error: raiserror @errno @errmsg rollback transaction end

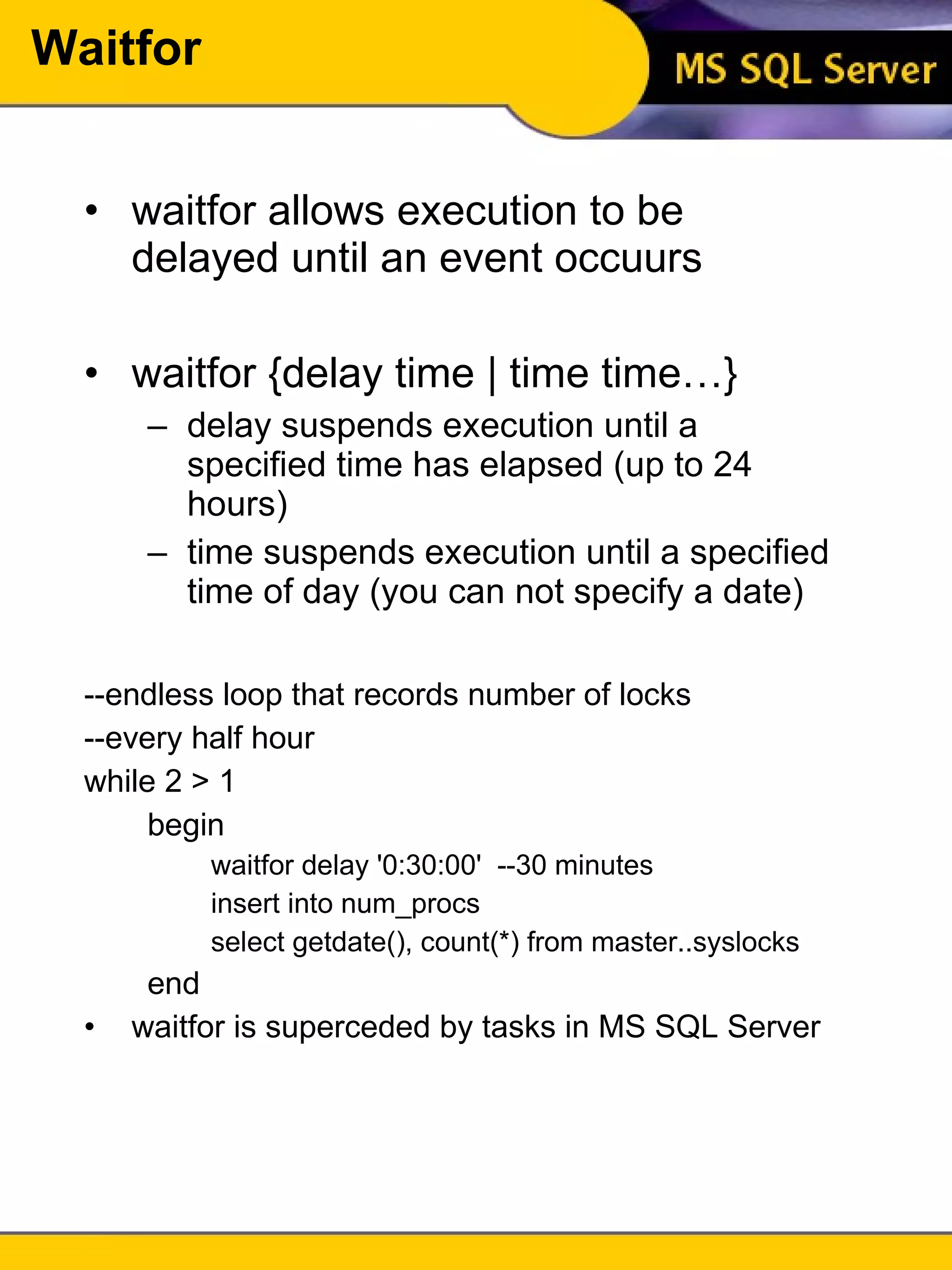

35. Waitfor waitfor allows execution to be delayed until an event occuurs waitfor {delay time | time time…} delay suspends execution until a specified time has elapsed (up to 24 hours) time suspends execution until a specified time of day (you can not specify a date) --endless loop that records number of locks --every half hour while 2 > 1 begin waitfor delay '0:30:00' --30 minutes insert into num_procs select getdate(), count(*) from master..syslocks end waitfor is superceded by tasks in MS SQL Server

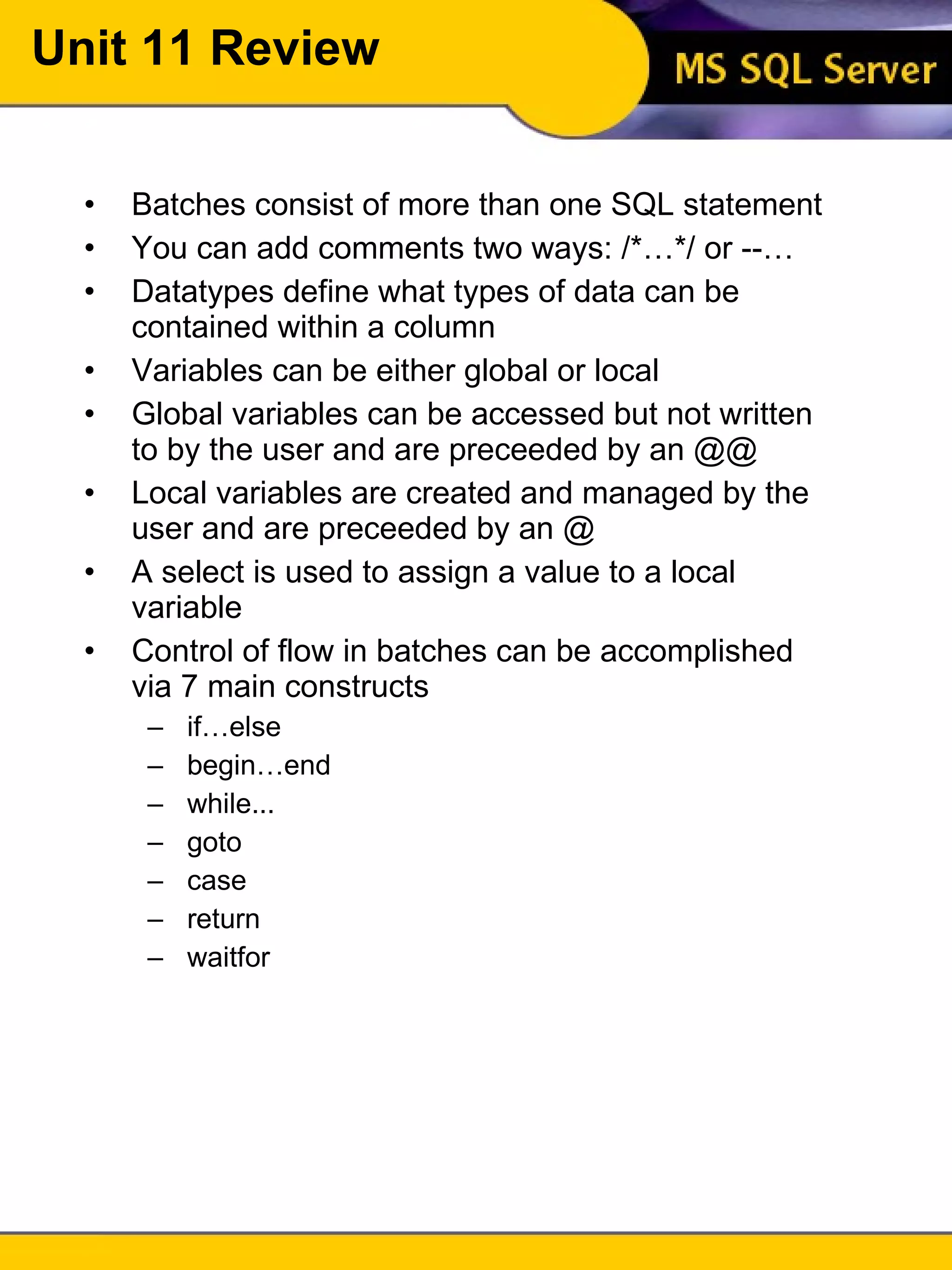

36. Unit 11 Review Batches consist of more than one SQL statement You can add comments two ways: /*…*/ or --… Datatypes define what types of data can be contained within a column Variables can be either global or local Global variables can be accessed but not written to by the user and are preceeded by an @@ Local variables are created and managed by the user and are preceeded by an @ A select is used to assign a value to a local variable Control of flow in batches can be accomplished via 7 main constructs if…else begin…end while... goto case return waitfor

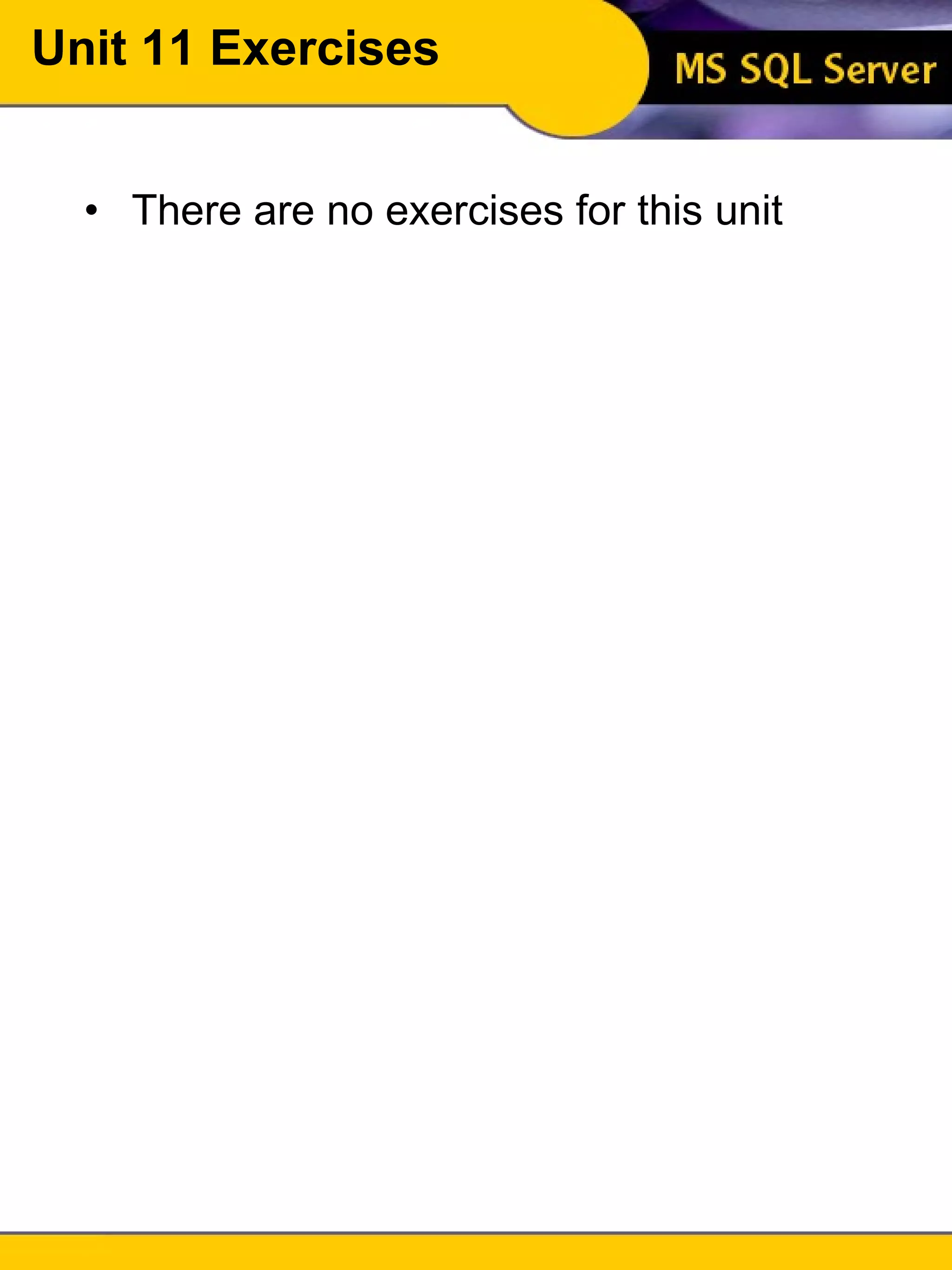

37. Unit 11 Exercises There are no exercises for this unit
