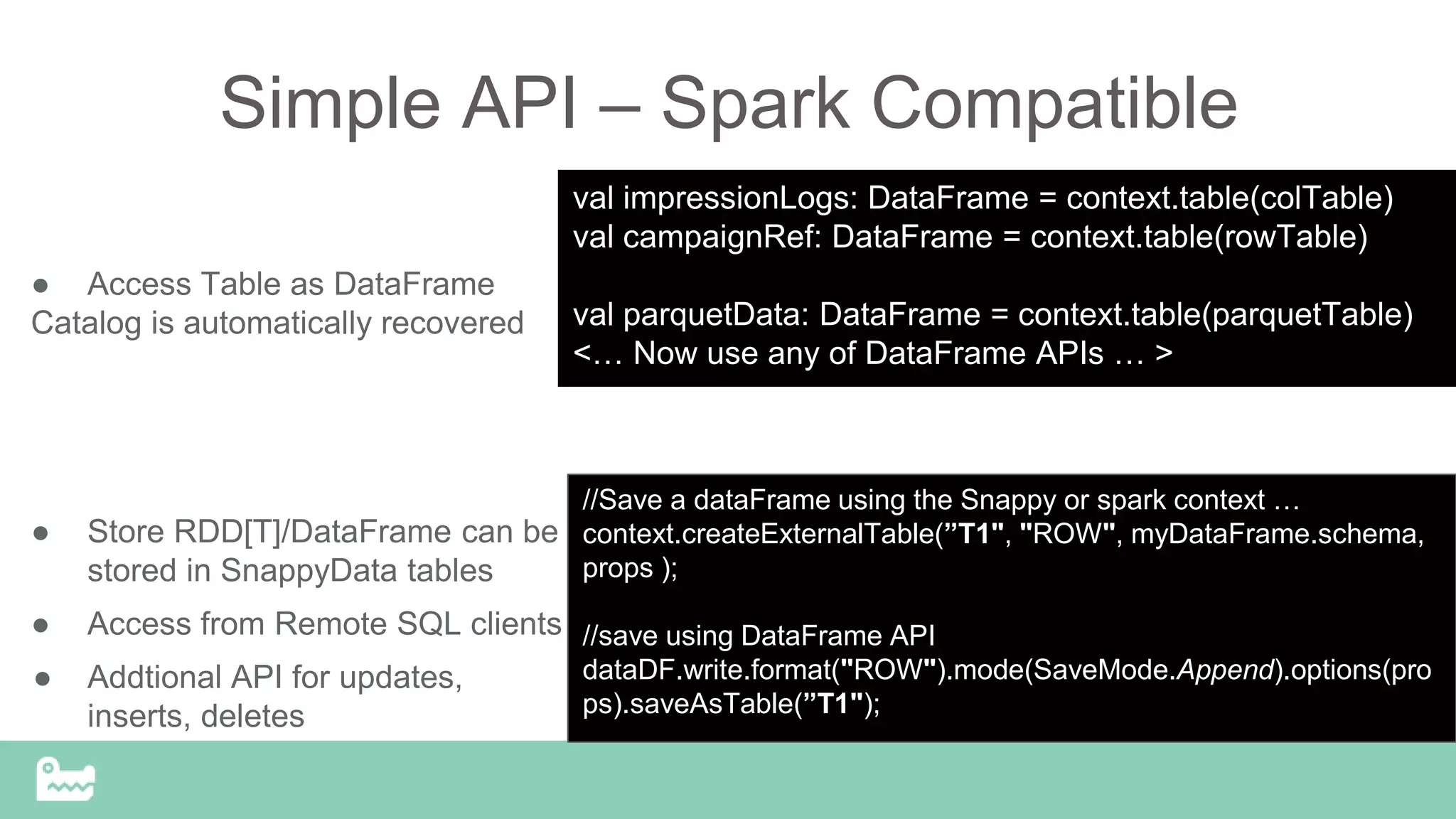

![Simple API – Spark Compatible
● Access Table as DataFrame
Catalog is automatically recovered
● Store RDD[T]/DataFrame can be
stored in SnappyData tables
● Access from Remote SQL clients
● Addtional API for updates,
inserts, deletes
//Save a dataFrame using the Snappy or spark context …
context.createExternalTable(”T1", "ROW", myDataFrame.schema,
props );
//save using DataFrame API
dataDF.write.format("ROW").mode(SaveMode.Append).options(pro
ps).saveAsTable(”T1");
val impressionLogs: DataFrame = context.table(colTable)
val campaignRef: DataFrame = context.table(rowTable)
val parquetData: DataFrame = context.table(parquetTable)
<… Now use any of DataFrame APIs … >](https://image.slidesharecdn.com/snappydata-intro-webinar-160322183343/75/Intro-to-SnappyData-Webinar-23-2048.jpg)

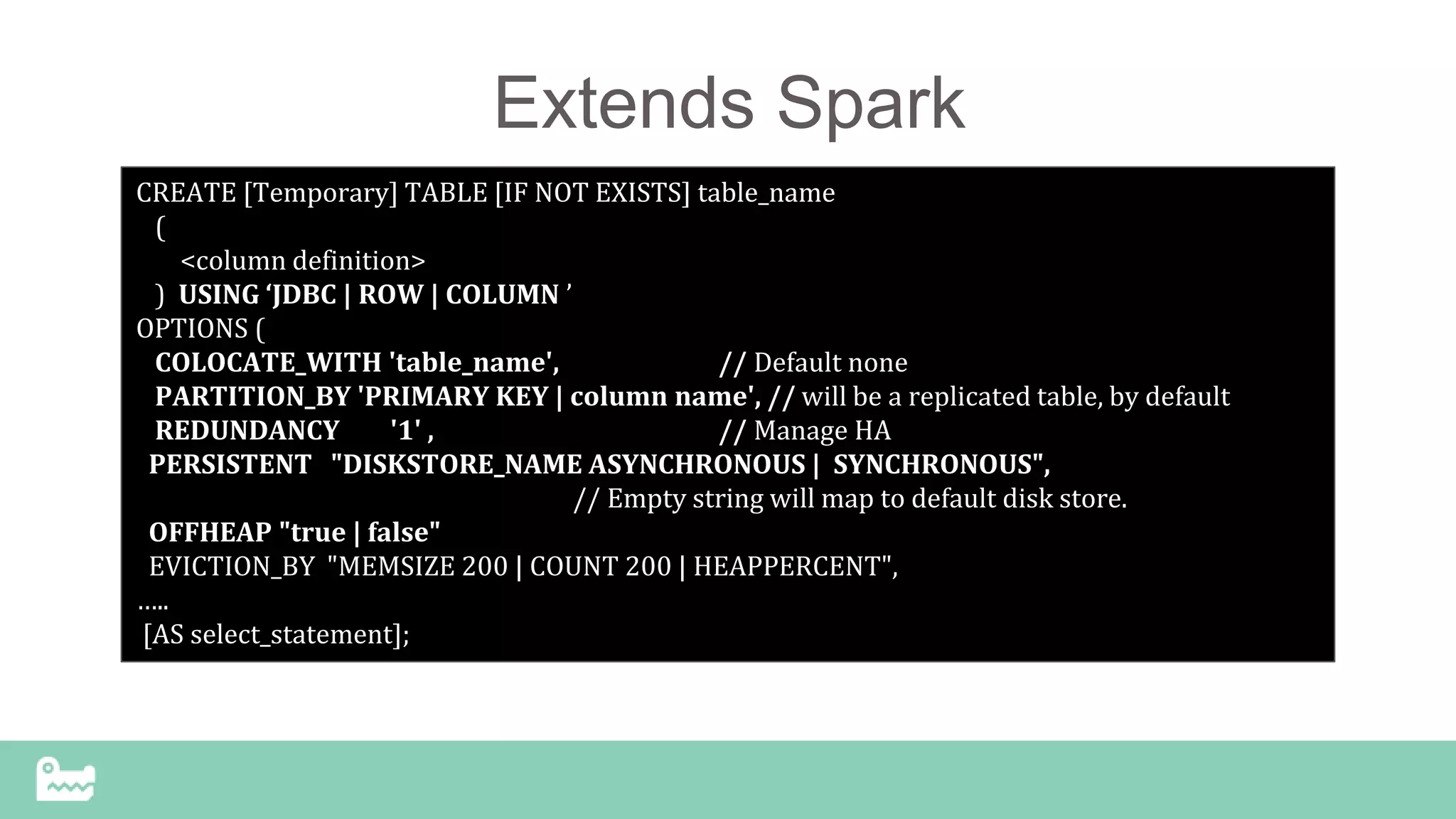

![Extends Spark
CREATE [Temporary] TABLE [IF NOT EXISTS] table_name
(
<column definition>
) USING ‘JDBC | ROW | COLUMN ’
OPTIONS (
COLOCATE_WITH 'table_name', // Default none
PARTITION_BY 'PRIMARY KEY | column name', // will be a replicated table, by default
REDUNDANCY '1' , // Manage HA
PERSISTENT "DISKSTORE_NAME ASYNCHRONOUS | SYNCHRONOUS",
// Empty string will map to default disk store.
OFFHEAP "true | false"
EVICTION_BY "MEMSIZE 200 | COUNT 200 | HEAPPERCENT",
…..
[AS select_statement];](https://image.slidesharecdn.com/snappydata-intro-webinar-160322183343/75/Intro-to-SnappyData-Webinar-24-2048.jpg)

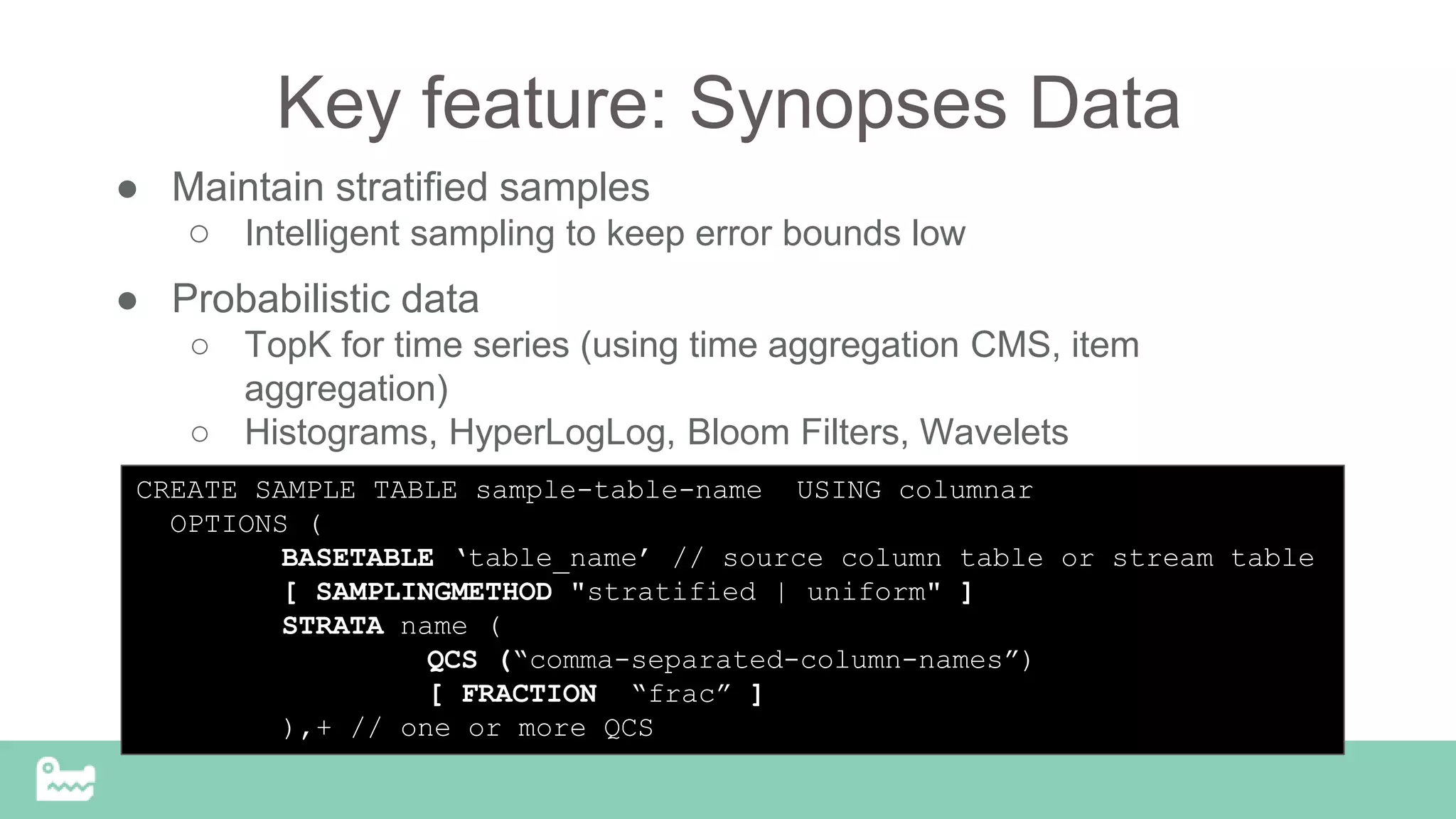

![Key feature: Synopses Data
● Maintain stratified samples
○ Intelligent sampling to keep error bounds low
● Probabilistic data
○ TopK for time series (using time aggregation CMS, item
aggregation)
○ Histograms, HyperLogLog, Bloom Filters, Wavelets
CREATE SAMPLE TABLE sample-table-name USING columnar
OPTIONS (
BASETABLE ‘table_name’ // source column table or stream table
[ SAMPLINGMETHOD "stratified | uniform" ]
STRATA name (
QCS (“comma-separated-column-names”)
[ FRACTION “frac” ]
),+ // one or more QCS](https://image.slidesharecdn.com/snappydata-intro-webinar-160322183343/75/Intro-to-SnappyData-Webinar-33-2048.jpg)
Uploaded bySnappyData
Intro to SnappyData Webinar
SnappyData integrates OLTP, OLAP, and stream processing into a single in-memory cluster using Spark, aiming to simplify real-time analytics and reduce complexity in big data environments. The architecture supports high concurrency and low-latency querying, optimizing data ingestion and processing through advanced partitioning strategies and unique sampling techniques. SnappyData is open source and offers a powerful, unified solution designed to enhance both operational and analytical capabilities in real-time applications.
More Related Content
Similar to Intro to SnappyData Webinar
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Intro to SnappyData Webinar
- 1. SnappyData Unified Stream, interactiveanalytics in a single in-memory cluster with Spark www.snappydata.io Jags Ramnarayan CTO, Co-founder SnappyData Feb 2016
- 2. SnappyData - anEMC/Pivotal spin out ● New Spark-based open source project started by Pivotal GemFire founders+engineers ● Decades of in-memory data management experience ● Focus on real-time, operational analytics: Spark inside an OLTP+OLAP database www.snappydata.io

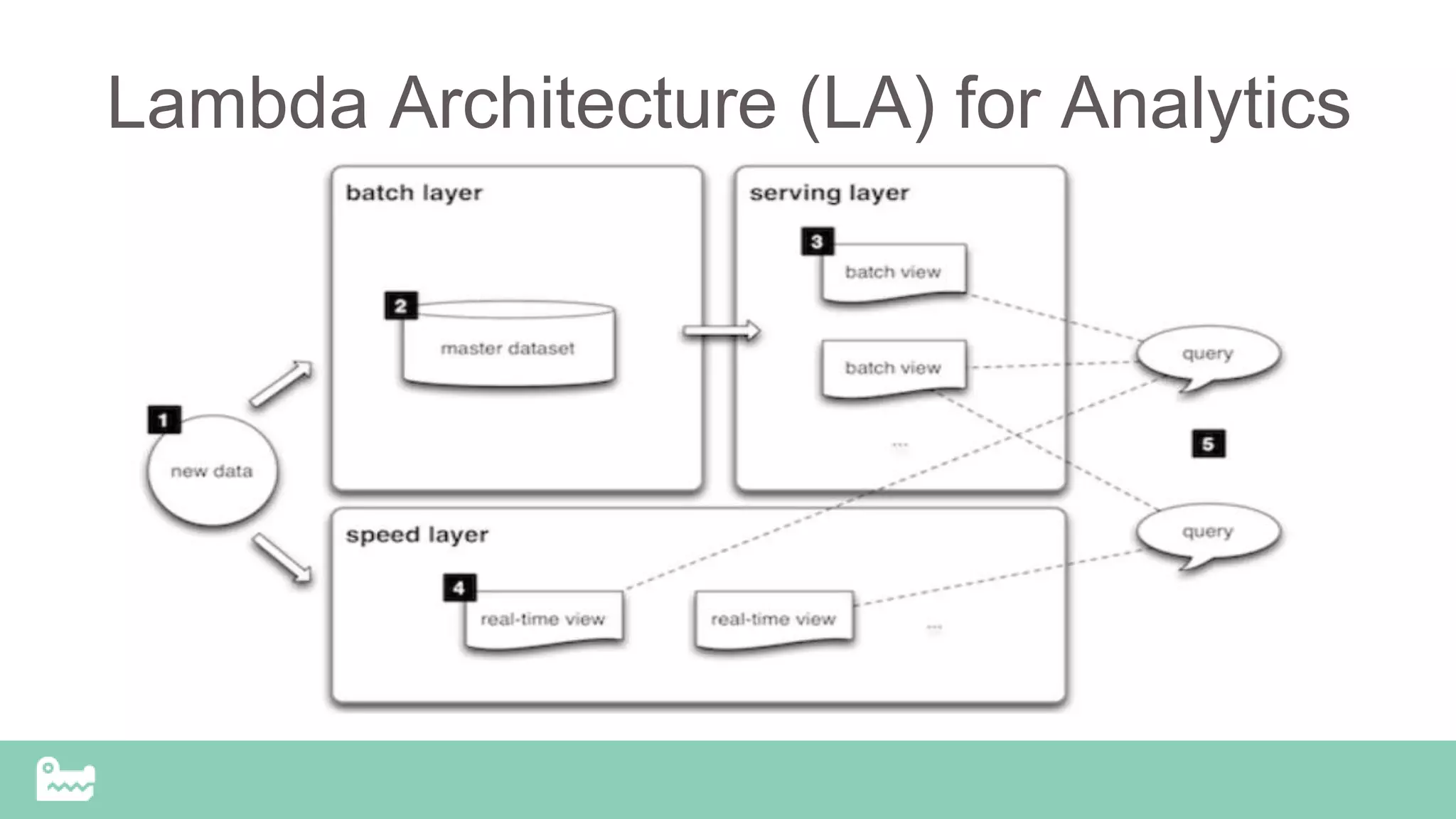

- 3. Lambda Architecture (LA)for Analytics

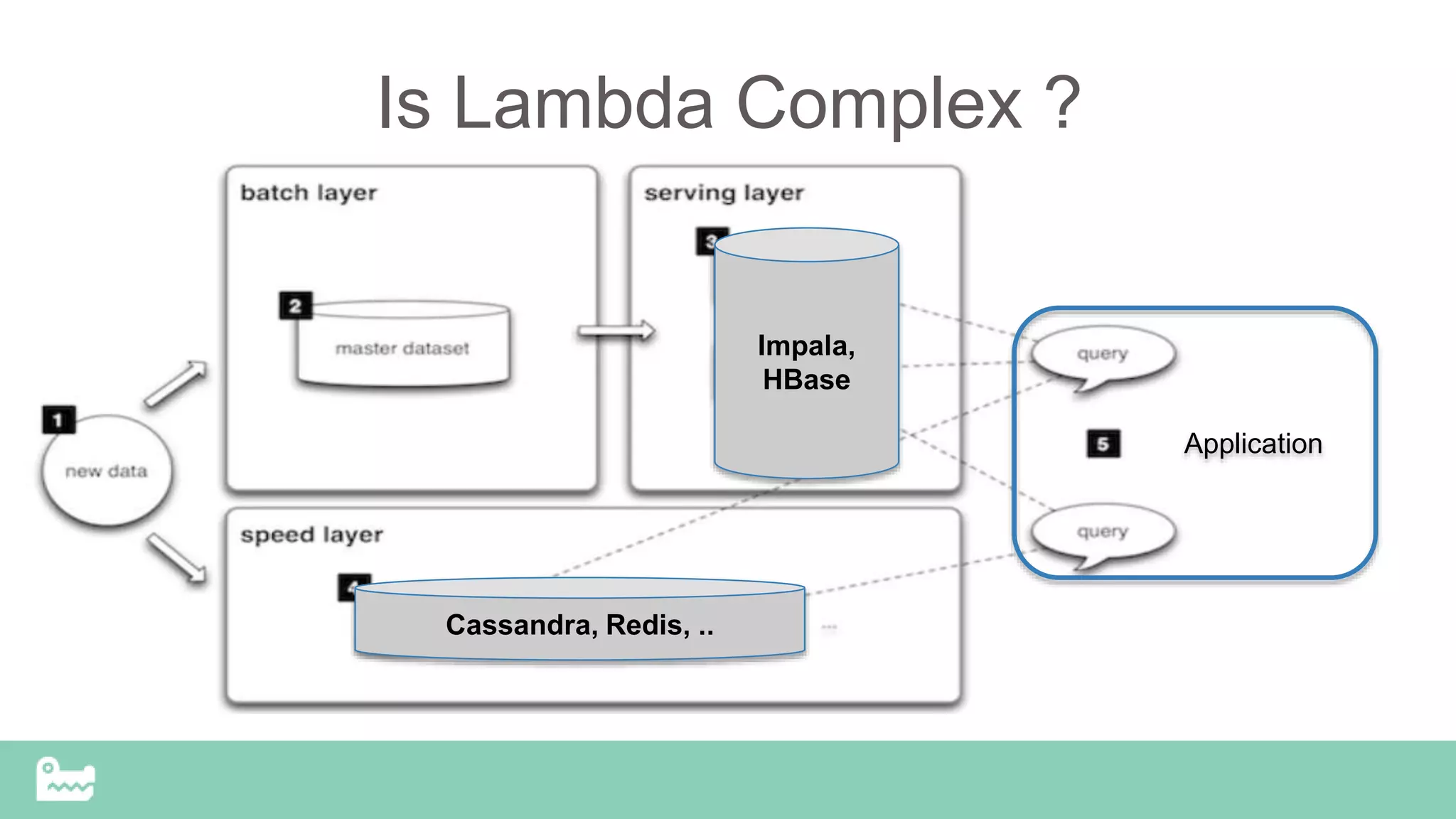

- 4. Is Lambda Complex? Impala, HBase Cassandra, Redis, .. Application

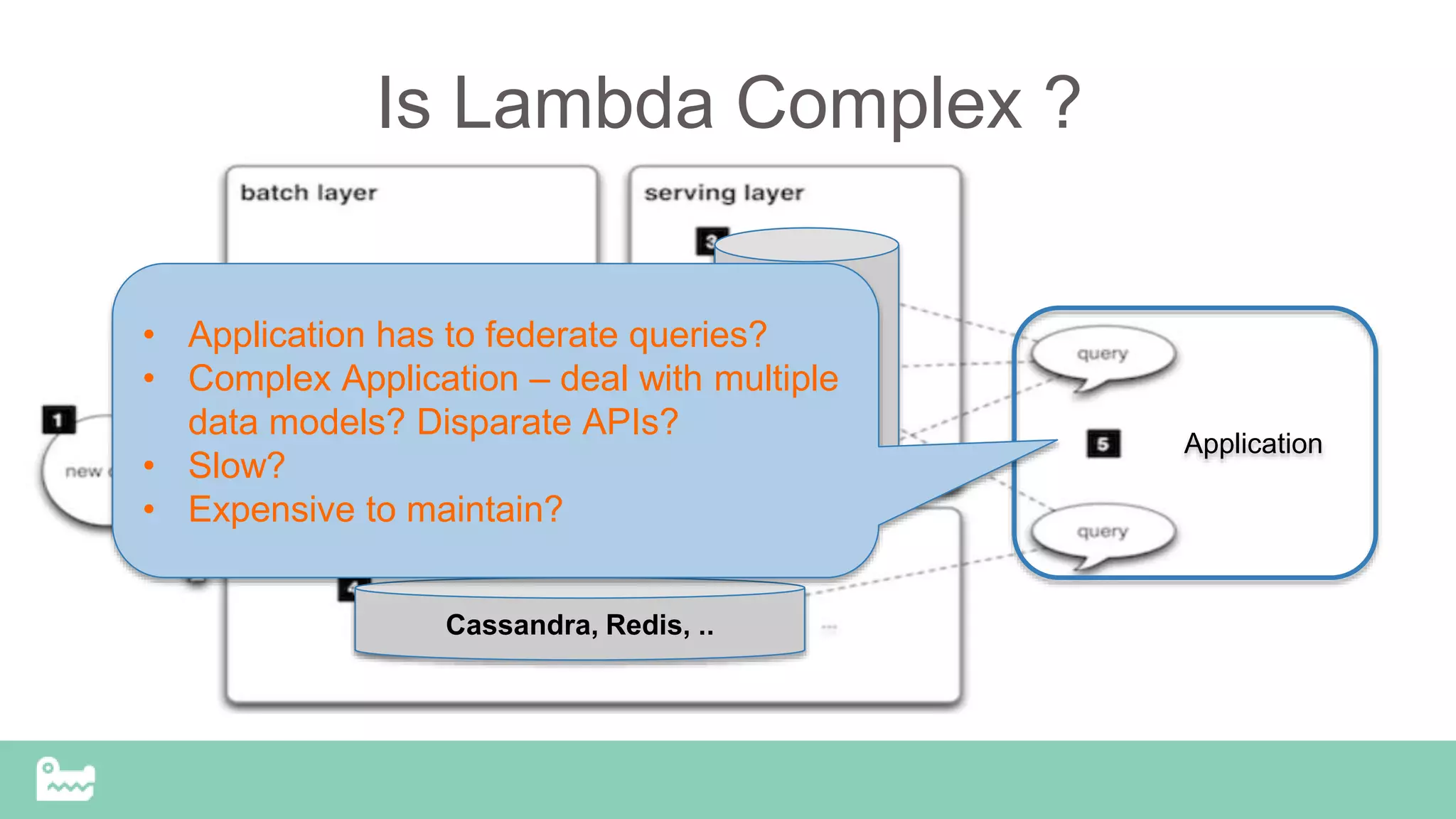

- 5. Is Lambda Complex? Impala, HBase Cassandra, Redis, .. Application • Application has to federate queries? • Complex Application – deal with multiple data models? Disparate APIs? • Slow? • Expensive to maintain?

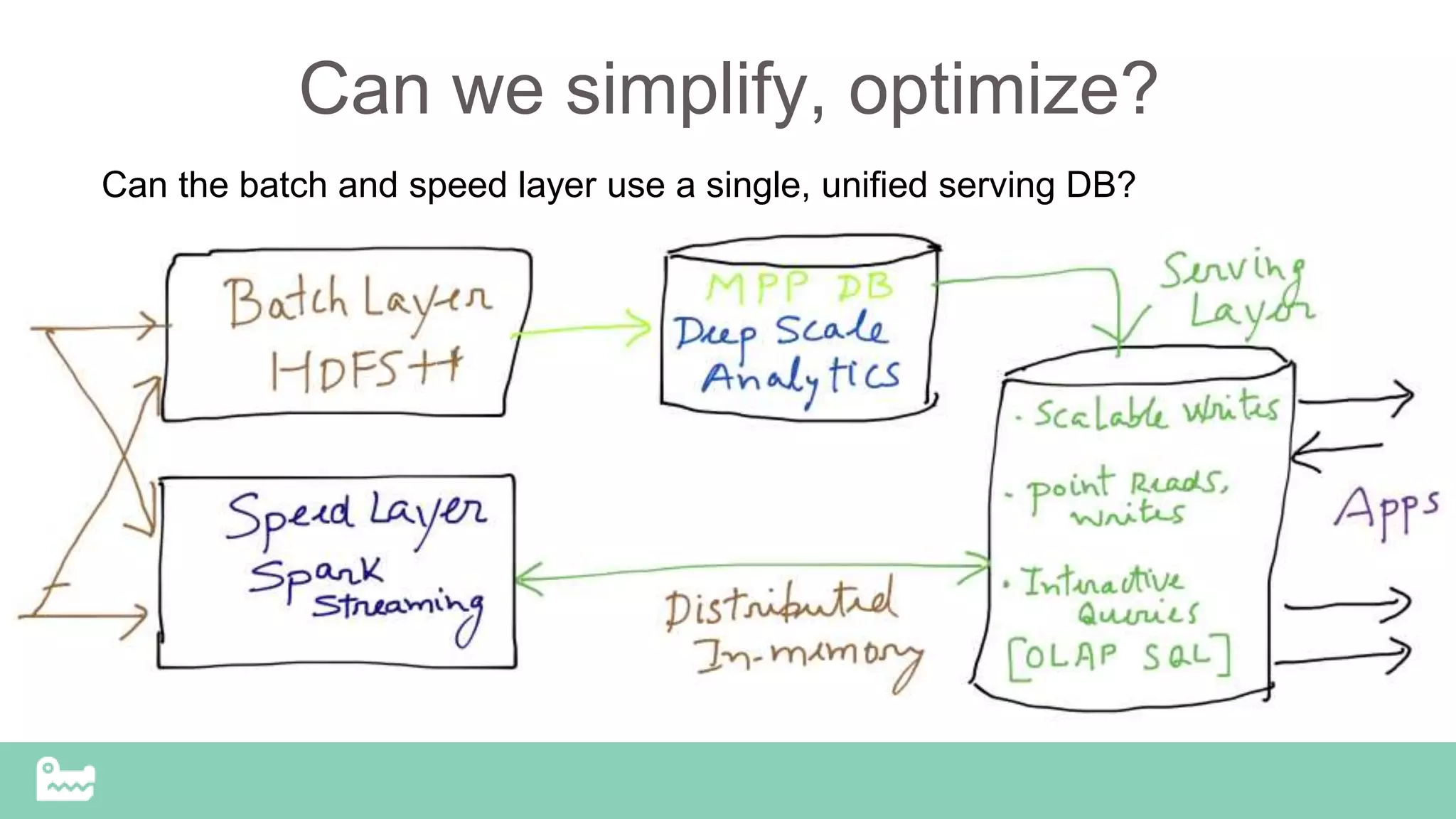

- 6. Can we simplify,optimize? Can the batch and speed layer use a single, unified serving DB?

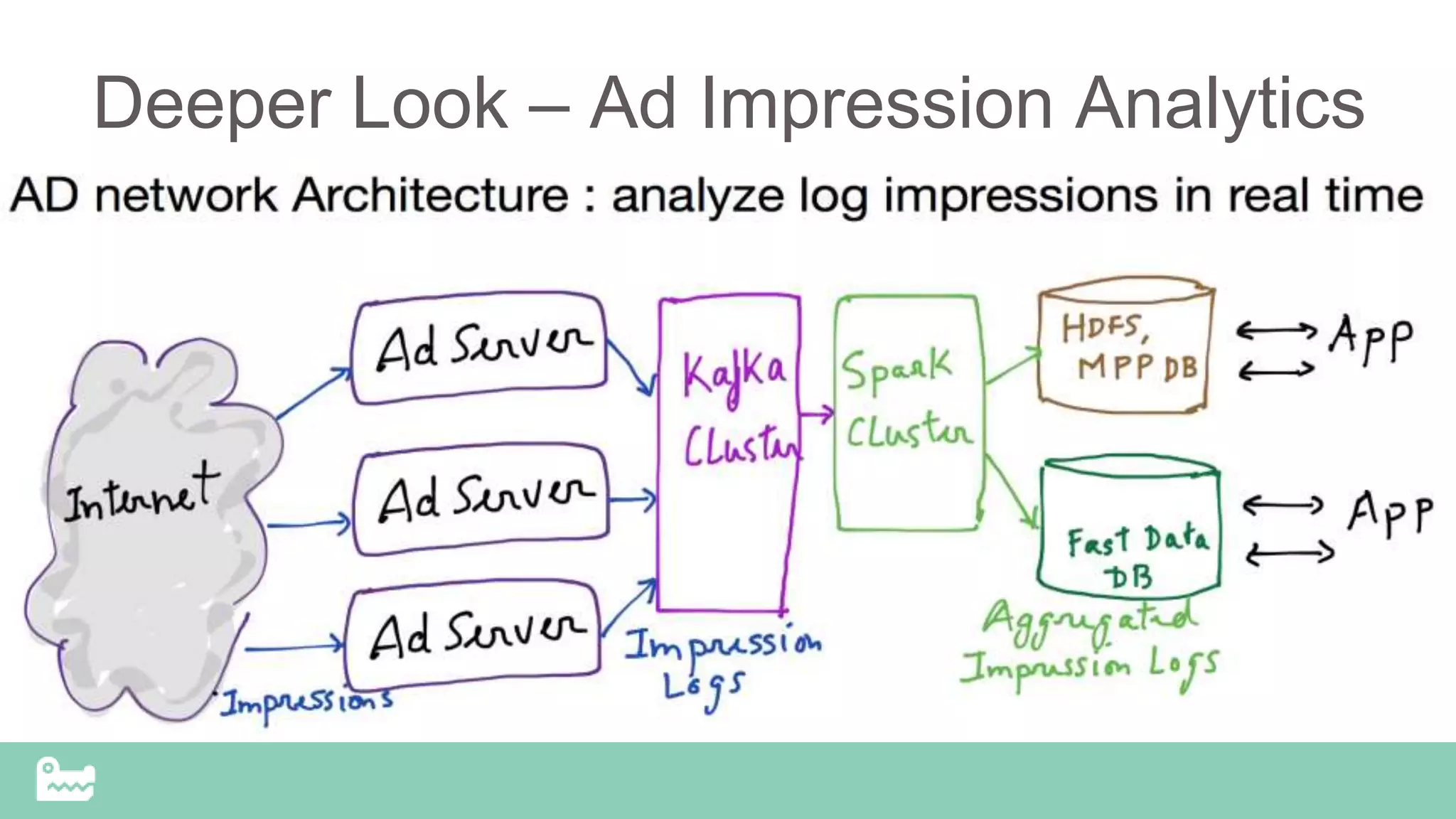

- 7. Deeper Look –Ad Impression Analytics
- 8. Ad Impression Analytics Ref- https://chimpler.wordpress.com/2014/07/01/implementing-a-real-time-data-pipeline-with-spark-streaming/

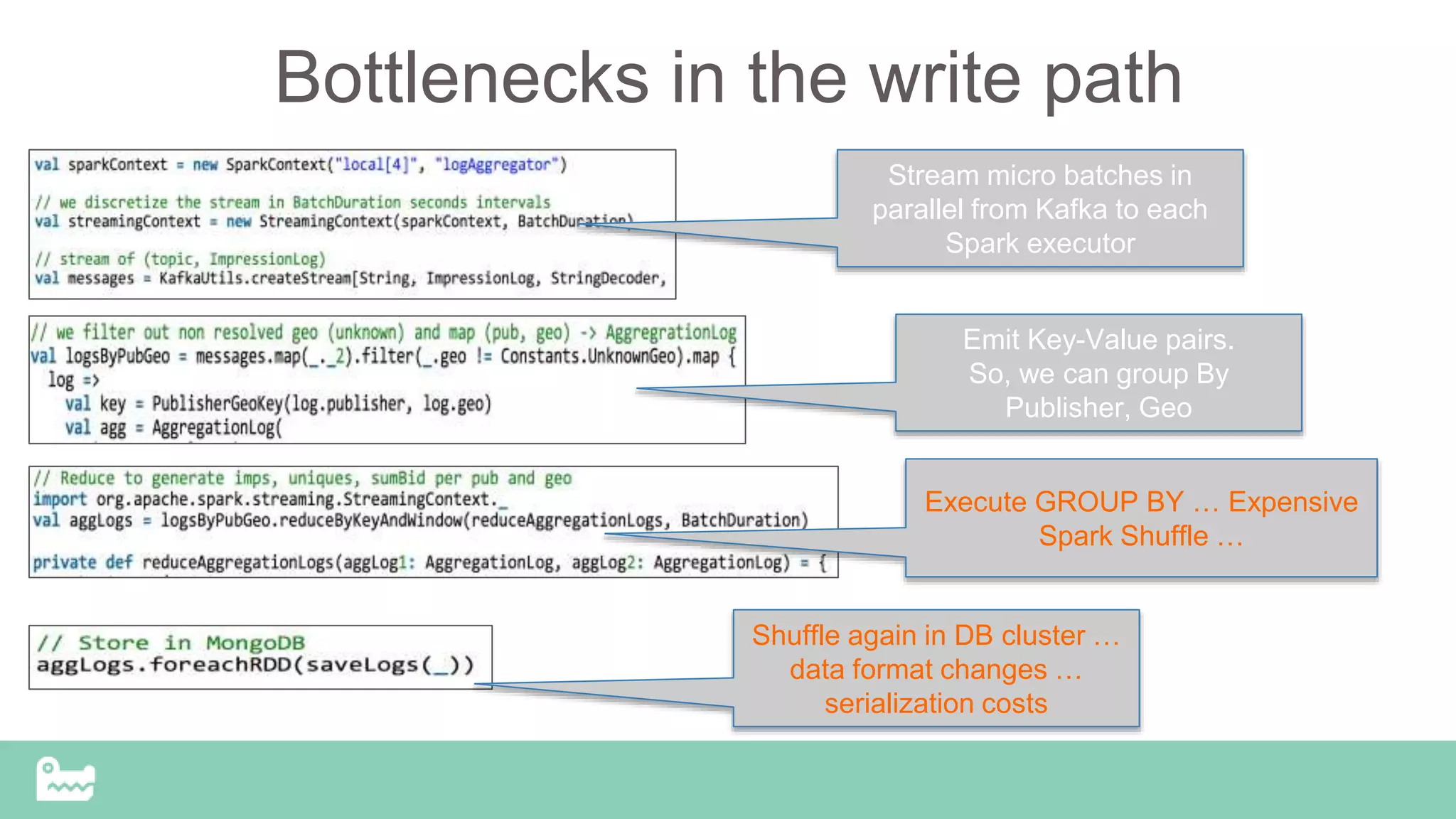

- 9. Bottlenecks in thewrite path Stream micro batches in parallel from Kafka to each Spark executor Emit Key-Value pairs. So, we can group By Publisher, Geo Execute GROUP BY … Expensive Spark Shuffle … Shuffle again in DB cluster … data format changes … serialization costs

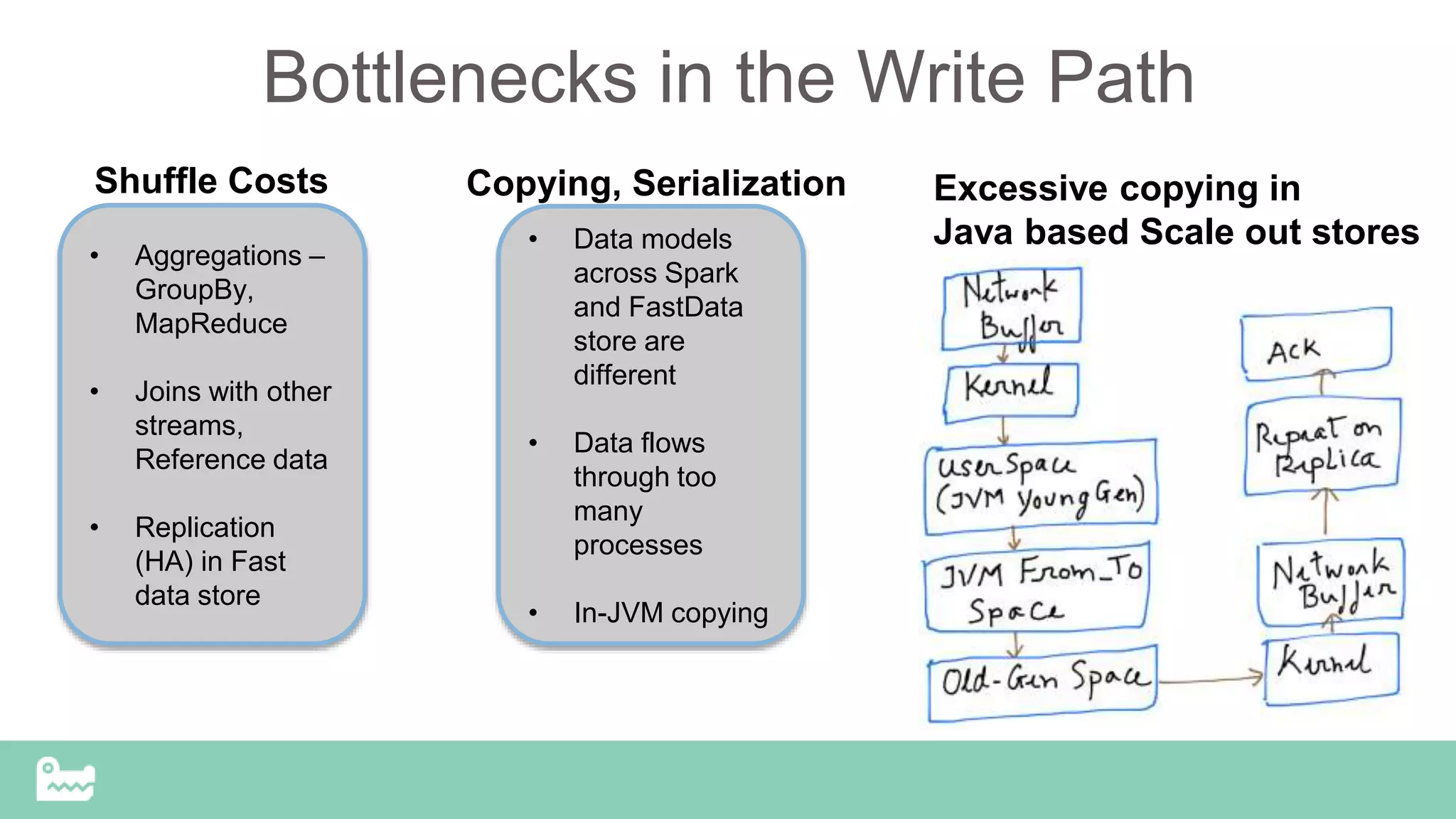

- 10. Bottlenecks in theWrite Path • Aggregations – GroupBy, MapReduce • Joins with other streams, Reference data • Replication (HA) in Fast data store Shuffle Costs • Data models across Spark and FastData store are different • Data flows through too many processes • In-JVM copying Copying, Serialization Excessive copying in Java based Scale out stores

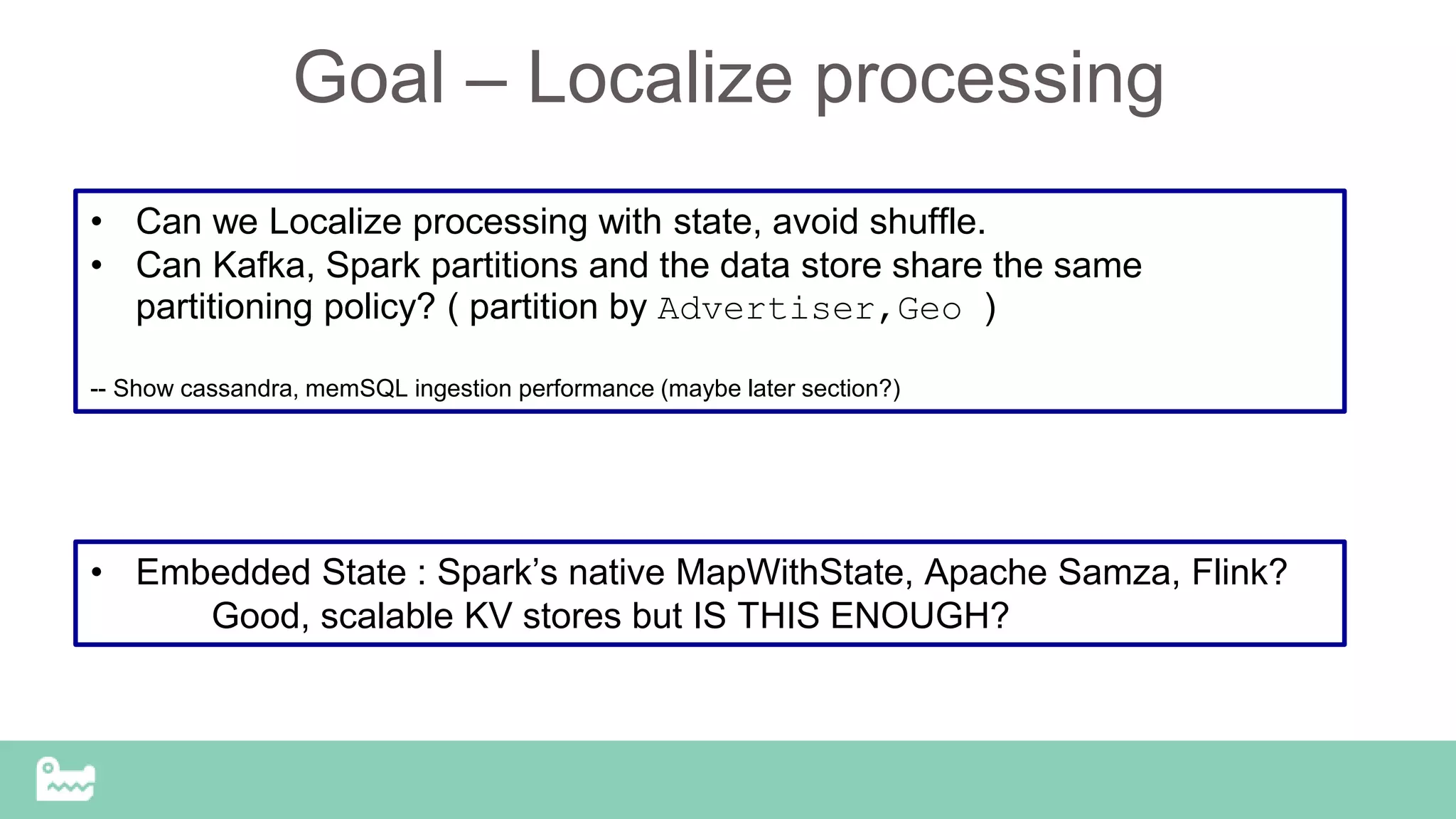

- 11. Goal – Localizeprocessing • Can we Localize processing with state, avoid shuffle. • Can Kafka, Spark partitions and the data store share the same partitioning policy? ( partition by Advertiser,Geo ) -- Show cassandra, memSQL ingestion performance (maybe later section?) • Embedded State : Spark’s native MapWithState, Apache Samza, Flink? Good, scalable KV stores but IS THIS ENOUGH?

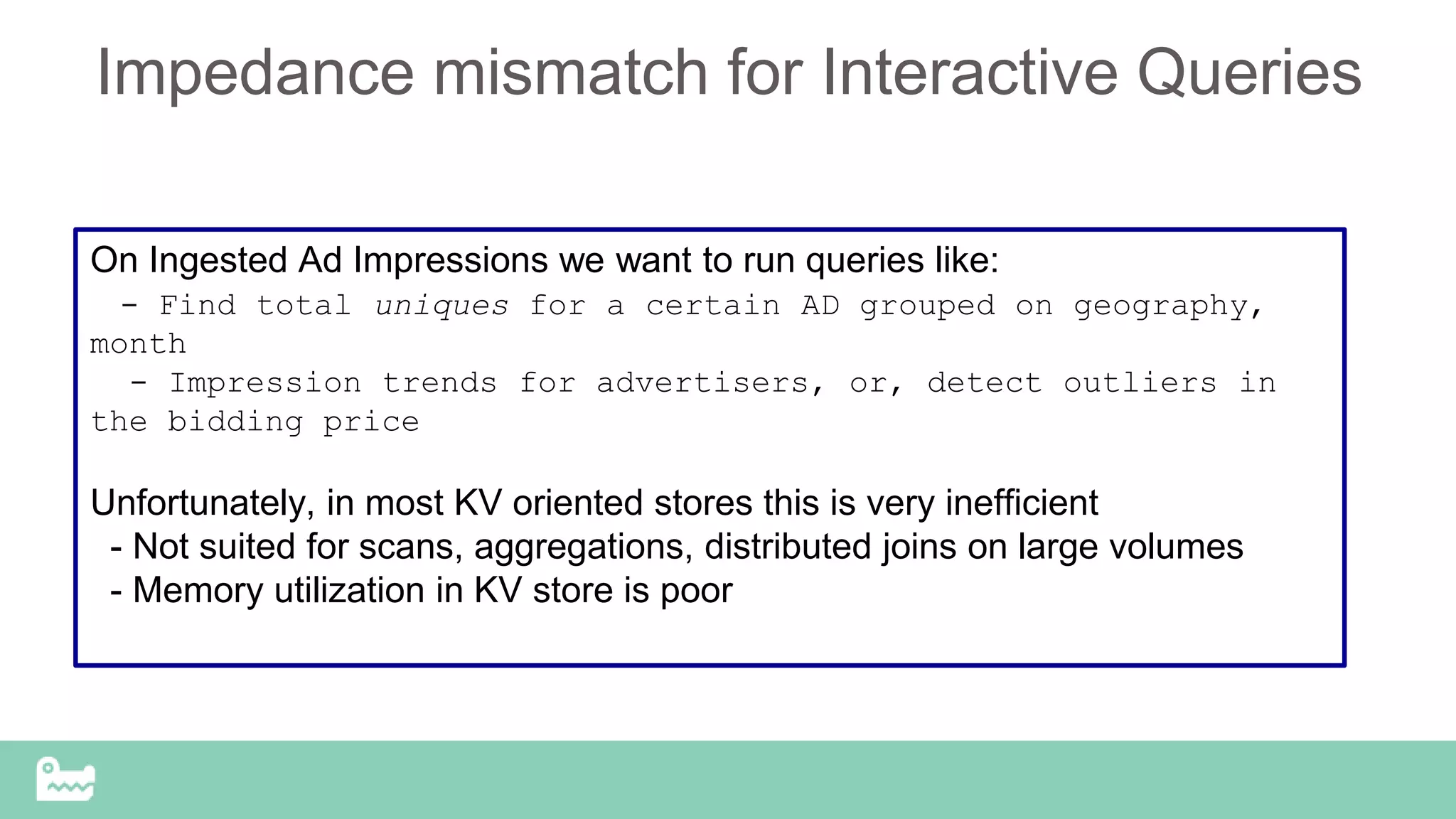

- 12. Impedance mismatch forInteractive Queries On Ingested Ad Impressions we want to run queries like: - Find total uniques for a certain AD grouped on geography, month - Impression trends for advertisers, or, detect outliers in the bidding price Unfortunately, in most KV oriented stores this is very inefficient - Not suited for scans, aggregations, distributed joins on large volumes - Memory utilization in KV store is poor
- 13.

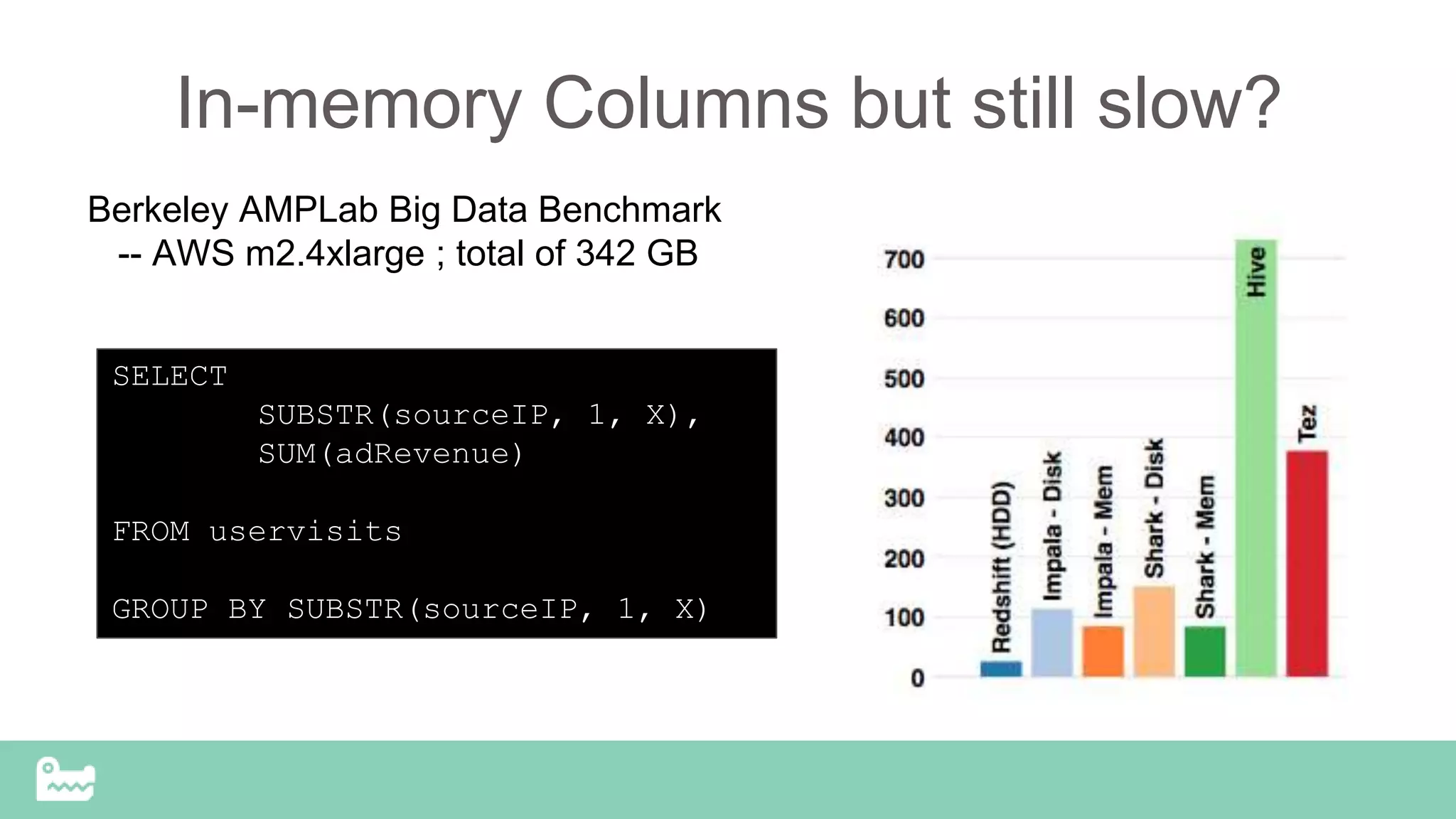

- 14. In-memory Columns butstill slow? SELECT SUBSTR(sourceIP, 1, X), SUM(adRevenue) FROM uservisits GROUP BY SUBSTR(sourceIP, 1, X) Berkeley AMPLab Big Data Benchmark -- AWS m2.4xlarge ; total of 342 GB
- 15. Can we useStatistical methods to shrink data? • It is not always possible to store the data in full Many applications (telecoms, ISPs, search engines) can’t keep everything • It is inconvenient to work with data in full Just because we can, doesn’t mean we should • It is faster to work with a compact summary Better to explore data on a laptop than a cluster Ref: Graham Cormode - Sampling for Big Data Can we use statistical techniques to understand data, synthesize something very small but still answer Analytical queries?

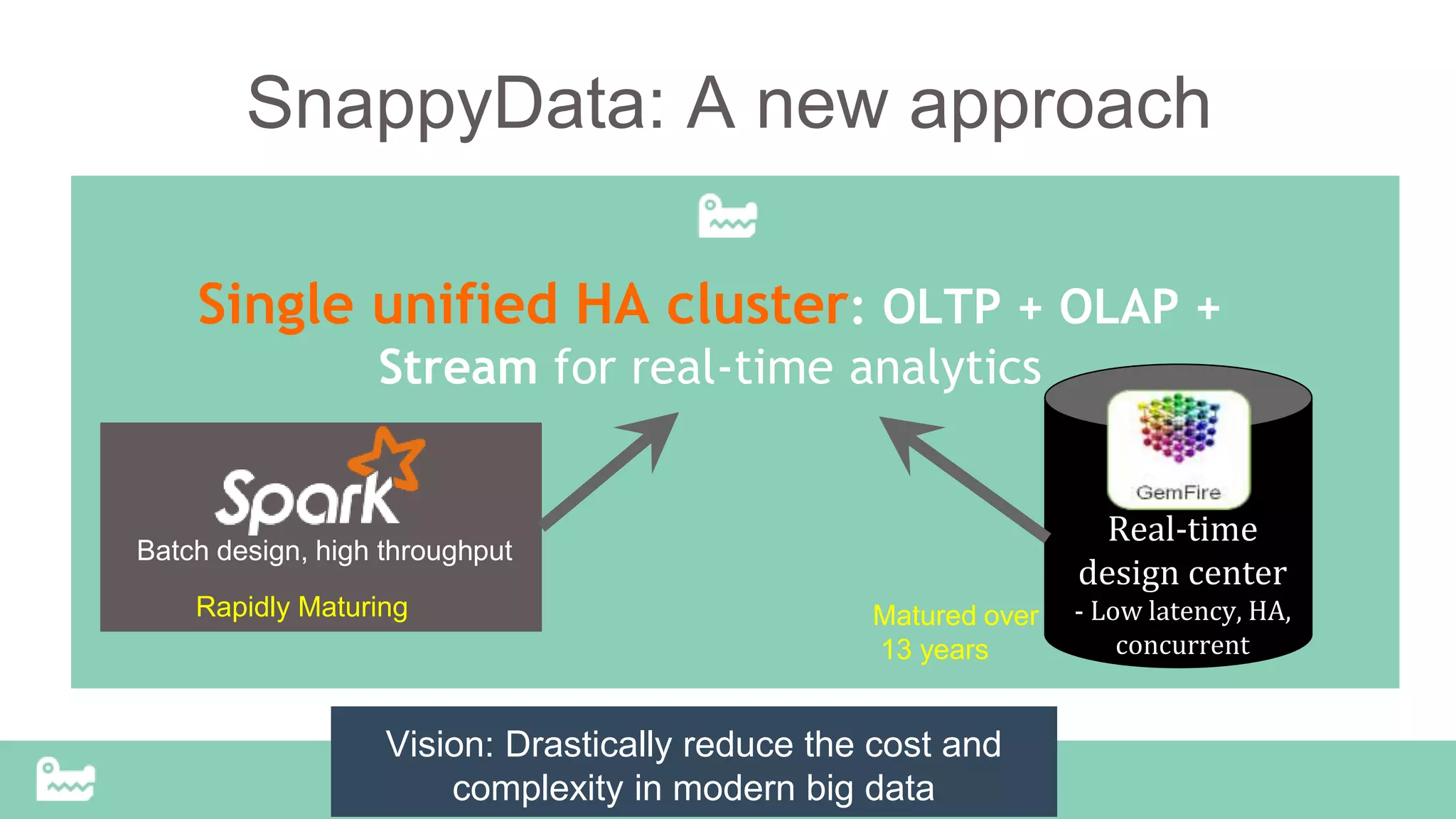

- 16. SnappyData: A newapproach Single unified HA cluster: OLTP + OLAP + Stream for real-time analytics Batch design, high throughput Real-time design center - Low latency, HA, concurrent Vision: Drastically reduce the cost and complexity in modern big data Rapidly Maturing Matured over 13 years

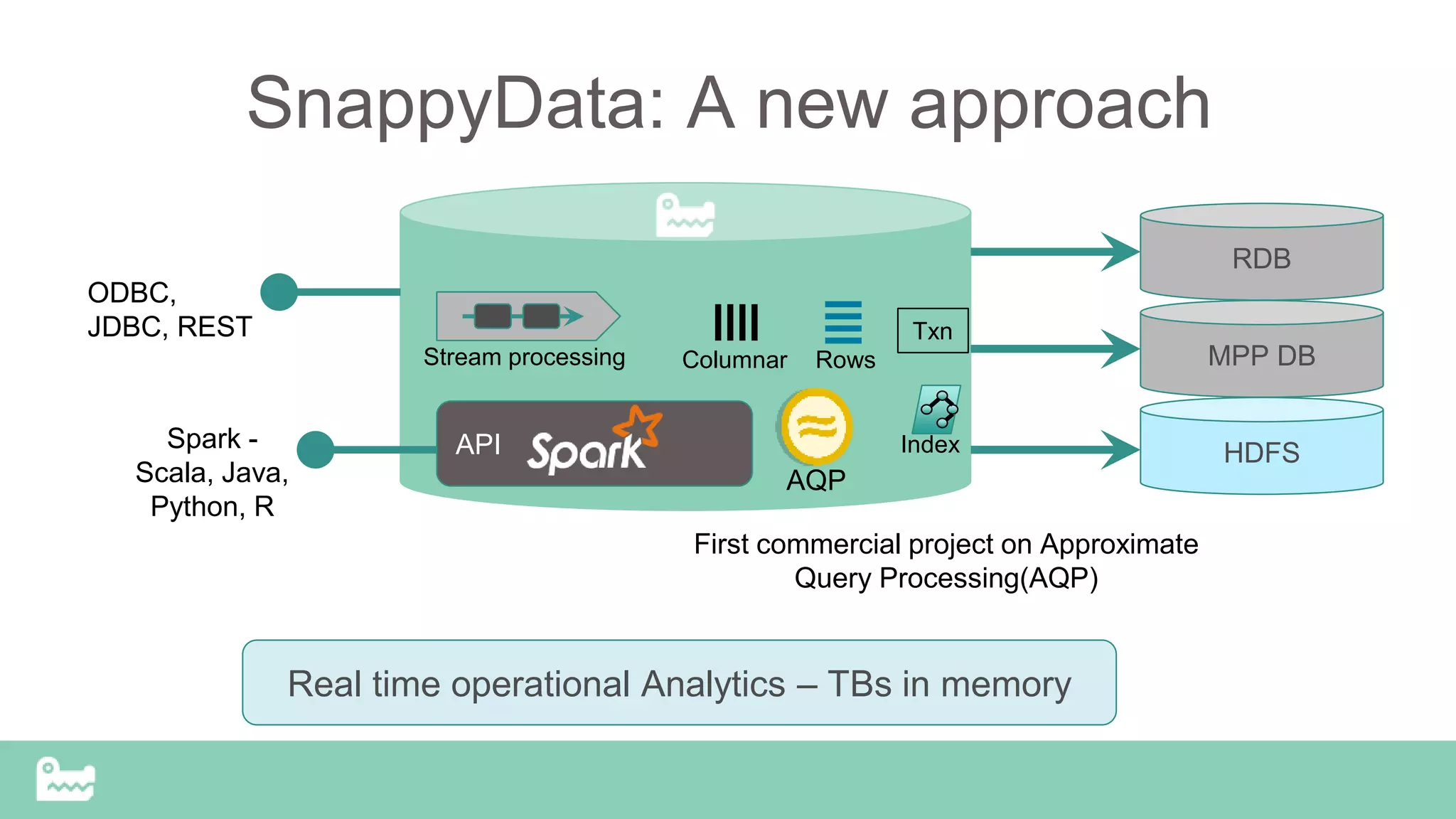

- 17. SnappyData: A newapproach Single unified HA cluster: OLTP + OLAP + Stream for real-time analytics Batch design, high throughput Real time operational Analytics – TBs in memory RDB Rows Txn Columnar API Stream processing ODBC, JDBC, REST Spark - Scala, Java, Python, R HDFS AQP First commercial project on Approximate Query Processing(AQP) MPP DB Index

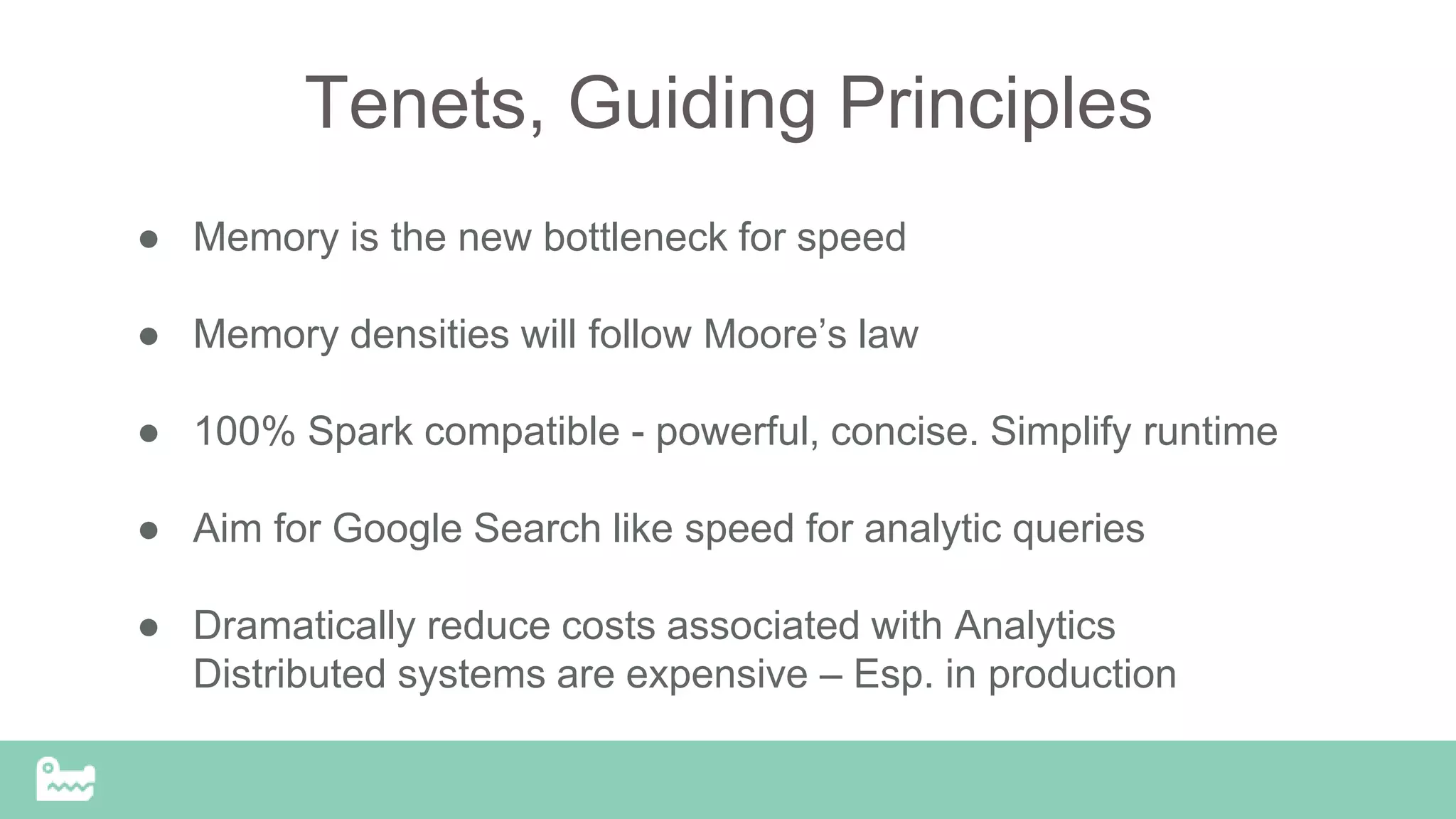

- 18. Tenets, Guiding Principles ●Memory is the new bottleneck for speed ● Memory densities will follow Moore’s law ● 100% Spark compatible - powerful, concise. Simplify runtime ● Aim for Google Search like speed for analytic queries ● Dramatically reduce costs associated with Analytics Distributed systems are expensive – Esp. in production

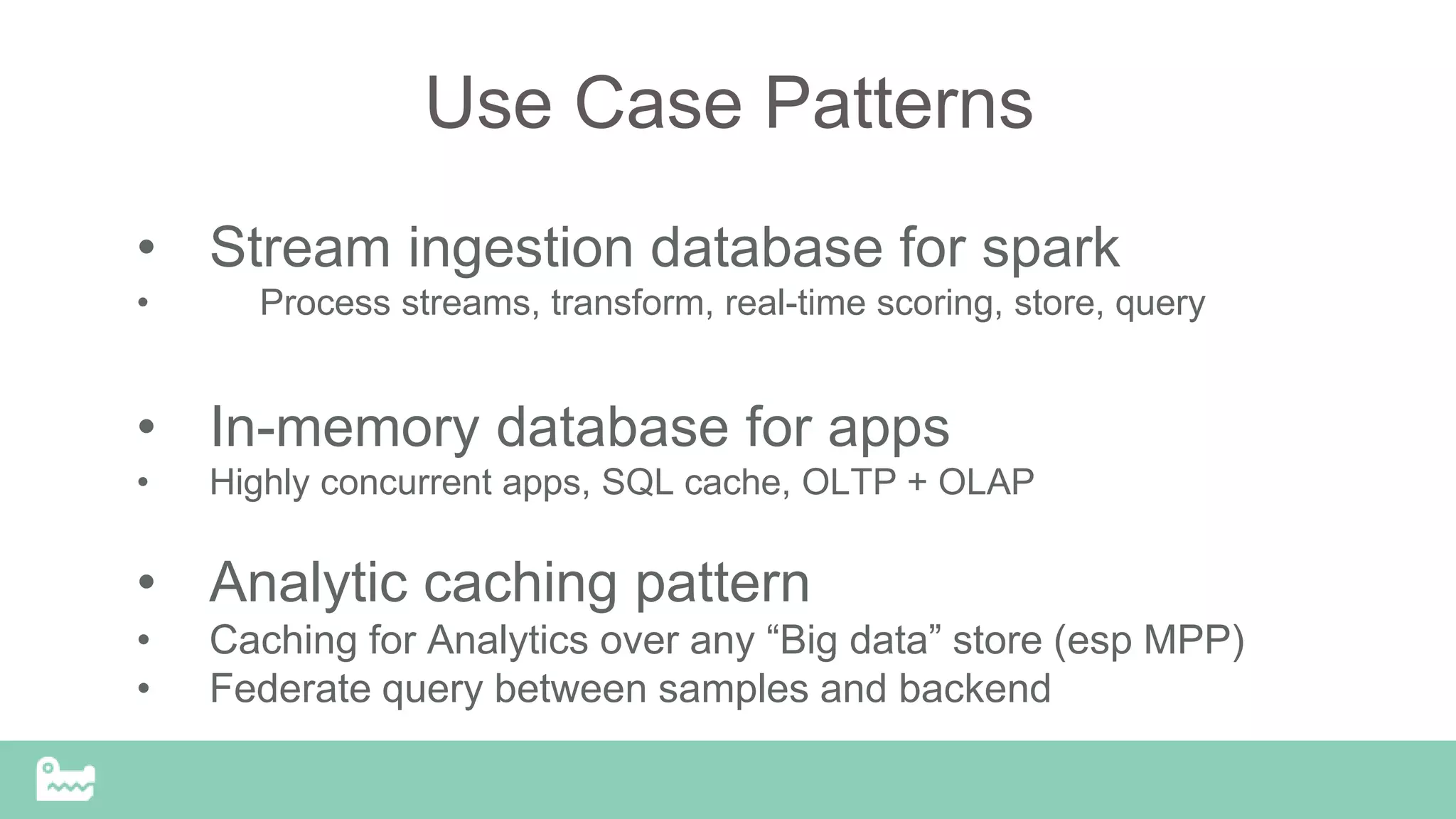

- 19. Use Case Patterns •Stream ingestion database for spark • Process streams, transform, real-time scoring, store, query • In-memory database for apps • Highly concurrent apps, SQL cache, OLTP + OLAP • Analytic caching pattern • Caching for Analytics over any “Big data” store (esp MPP) • Federate query between samples and backend

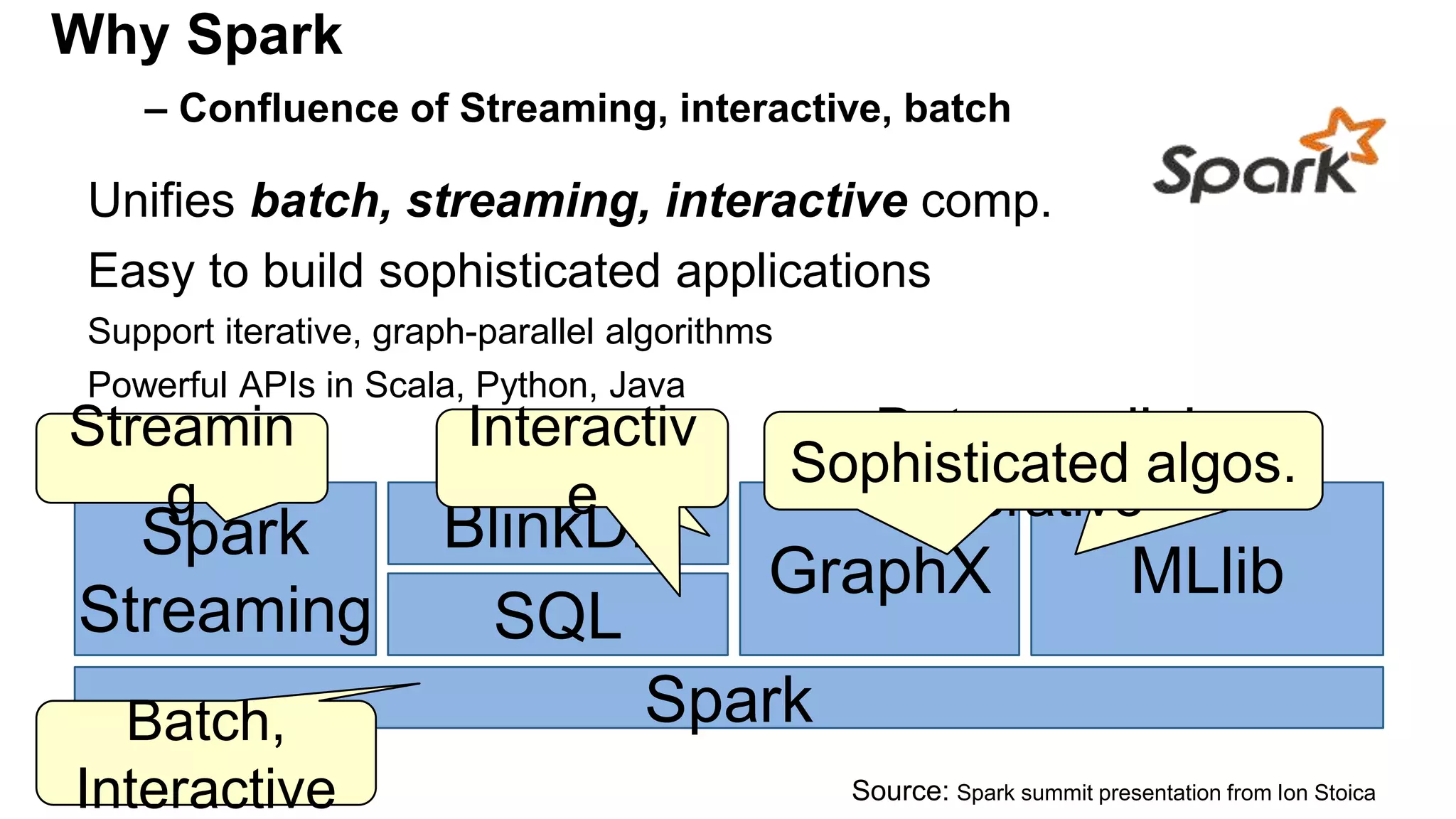

- 20. Why Spark – Confluenceof Streaming, interactive, batch Unifies batch, streaming, interactive comp. Easy to build sophisticated applications Support iterative, graph-parallel algorithms Powerful APIs in Scala, Python, Java Spark Spark Streaming SQL BlinkDB GraphX MLlib Streamin g Batch, Interactive Batch, Interactive Interactiv e Data-parallel, Iterative Sophisticated algos. Source: Spark summit presentation from Ion Stoica

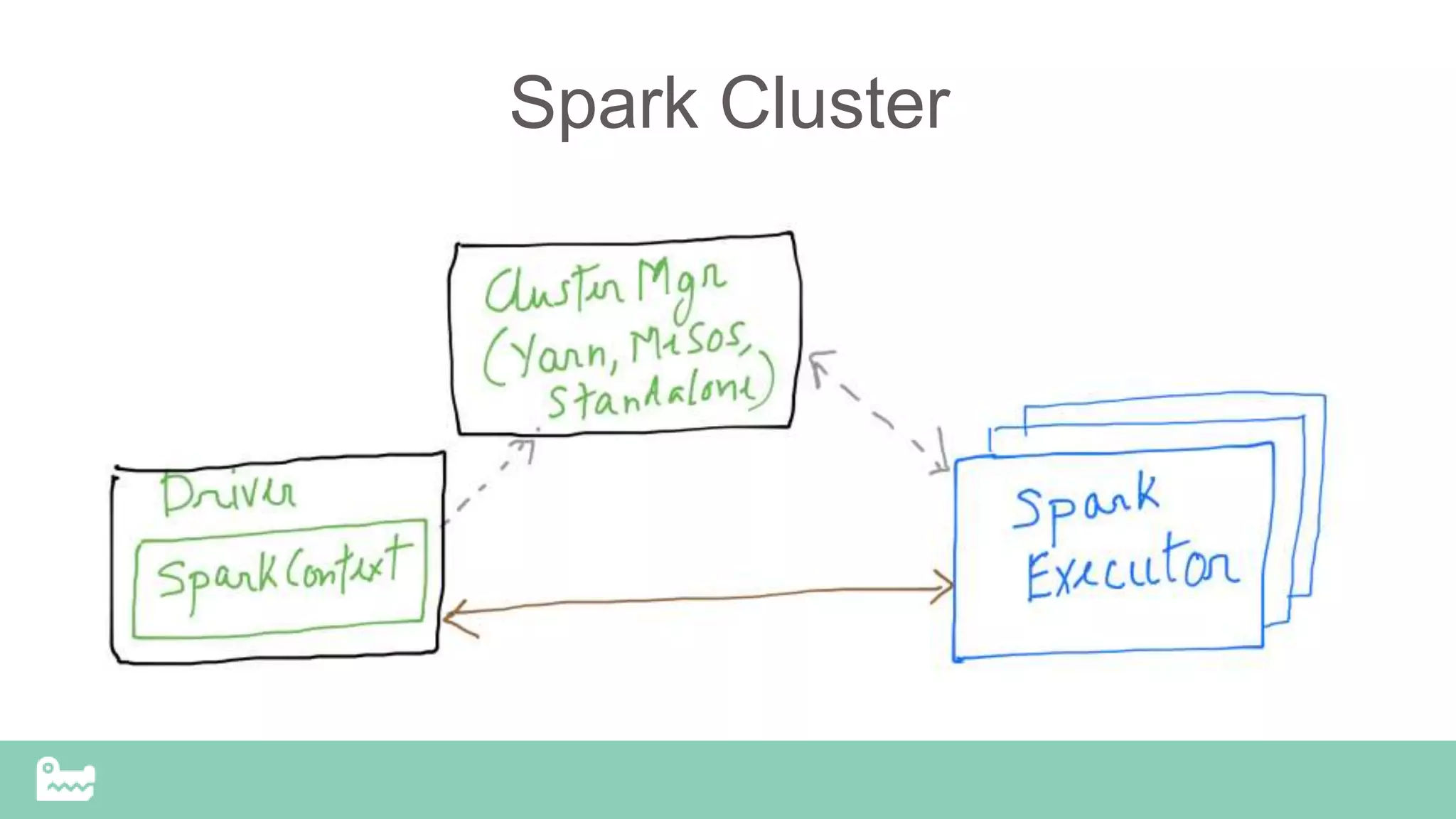

- 21.

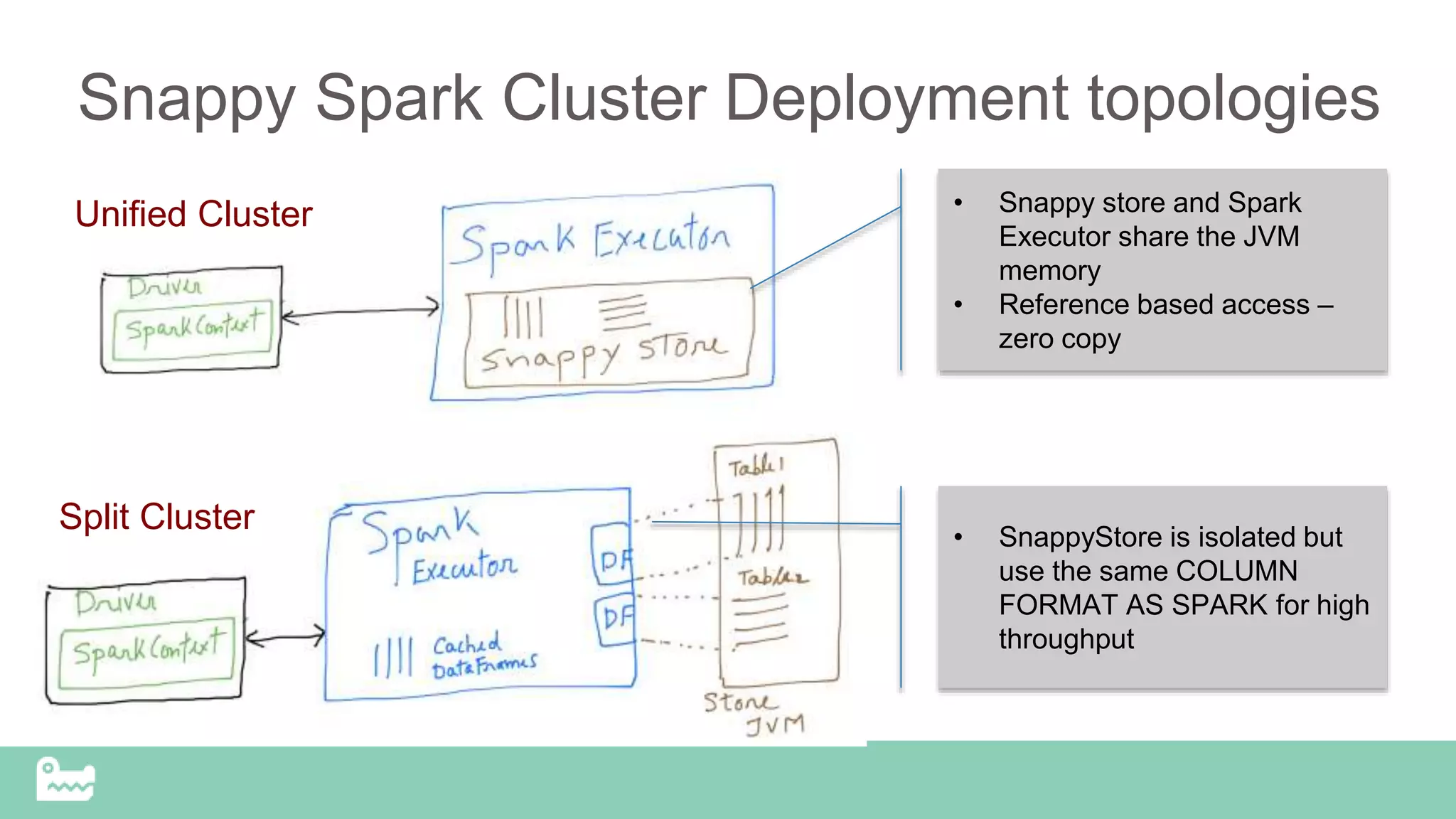

- 22. Snappy Spark ClusterDeployment topologies • Snappy store and Spark Executor share the JVM memory • Reference based access – zero copy • SnappyStore is isolated but use the same COLUMN FORMAT AS SPARK for high throughput Unified Cluster Split Cluster
- 23. Simple API –Spark Compatible ● Access Table as DataFrame Catalog is automatically recovered ● Store RDD[T]/DataFrame can be stored in SnappyData tables ● Access from Remote SQL clients ● Addtional API for updates, inserts, deletes //Save a dataFrame using the Snappy or spark context … context.createExternalTable(”T1", "ROW", myDataFrame.schema, props ); //save using DataFrame API dataDF.write.format("ROW").mode(SaveMode.Append).options(pro ps).saveAsTable(”T1"); val impressionLogs: DataFrame = context.table(colTable) val campaignRef: DataFrame = context.table(rowTable) val parquetData: DataFrame = context.table(parquetTable) <… Now use any of DataFrame APIs … >
- 24. Extends Spark CREATE [Temporary]TABLE [IF NOT EXISTS] table_name ( <column definition> ) USING ‘JDBC | ROW | COLUMN ’ OPTIONS ( COLOCATE_WITH 'table_name', // Default none PARTITION_BY 'PRIMARY KEY | column name', // will be a replicated table, by default REDUNDANCY '1' , // Manage HA PERSISTENT "DISKSTORE_NAME ASYNCHRONOUS | SYNCHRONOUS", // Empty string will map to default disk store. OFFHEAP "true | false" EVICTION_BY "MEMSIZE 200 | COUNT 200 | HEAPPERCENT", ….. [AS select_statement];

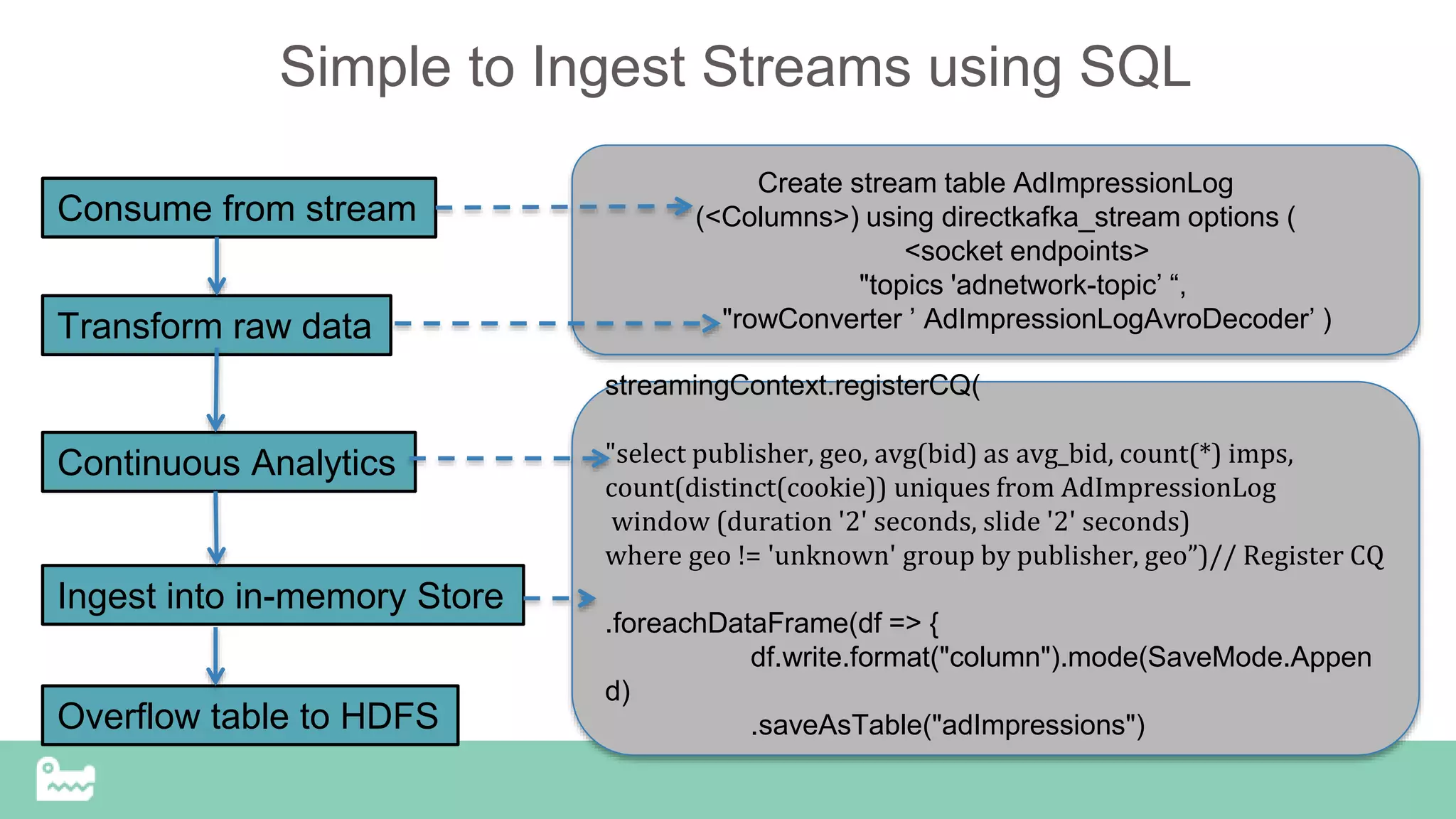

- 25. Simple to IngestStreams using SQL Consume from stream Transform raw data Continuous Analytics Ingest into in-memory Store Overflow table to HDFS Create stream table AdImpressionLog (<Columns>) using directkafka_stream options ( <socket endpoints> "topics 'adnetwork-topic’ “, "rowConverter ’ AdImpressionLogAvroDecoder’ ) streamingContext.registerCQ( "select publisher, geo, avg(bid) as avg_bid, count(*) imps, count(distinct(cookie)) uniques from AdImpressionLog window (duration '2' seconds, slide '2' seconds) where geo != 'unknown' group by publisher, geo”)// Register CQ .foreachDataFrame(df => { df.write.format("column").mode(SaveMode.Appen d) .saveAsTable("adImpressions")
- 26. AdImpression Demo Spark, SQLCode Walkthrough, interactive SQL
- 27. AdImpression Demo Performance comparisonto Cassandra, MemSQL - TBD

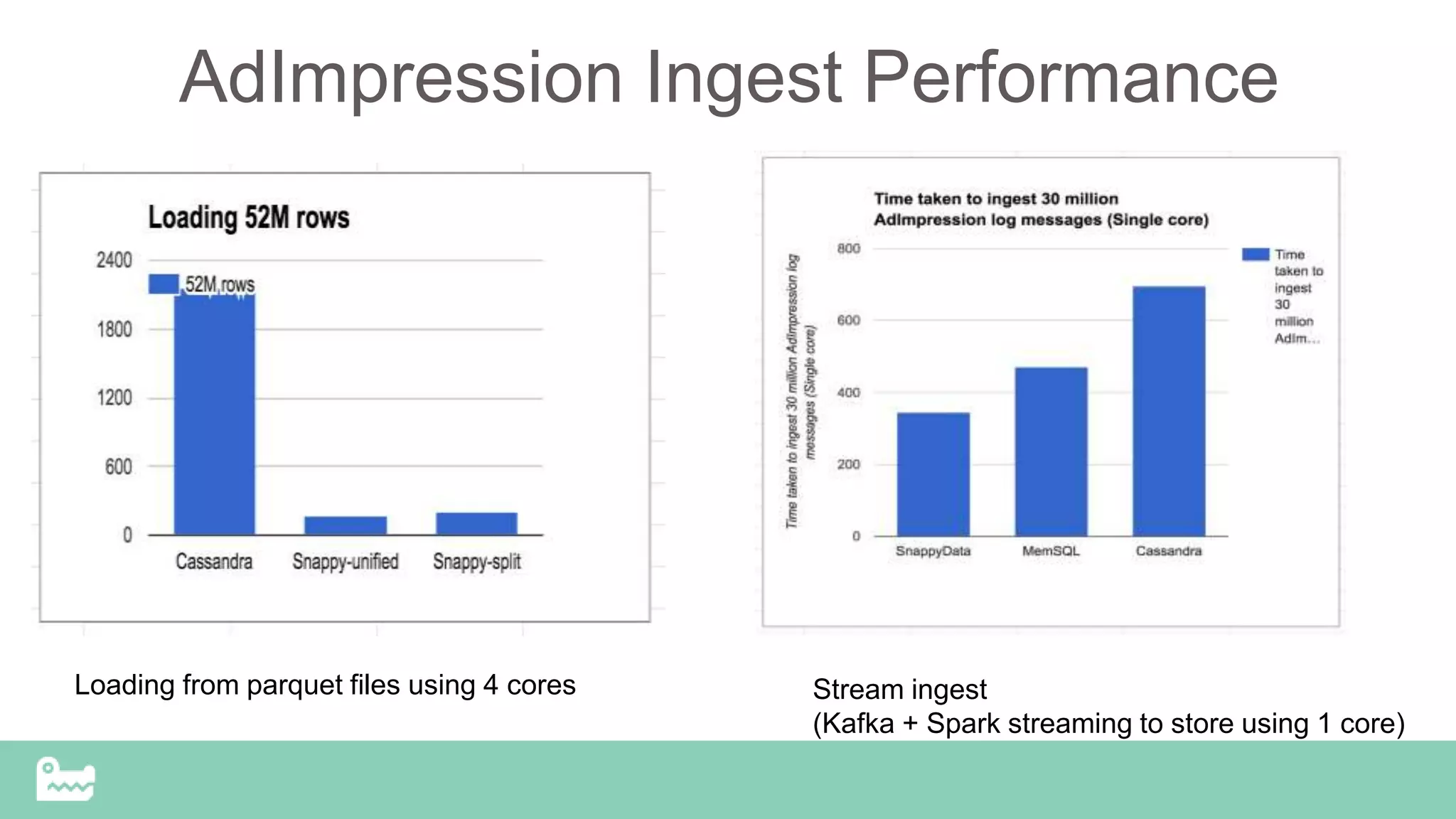

- 28. AdImpression Ingest Performance Loadingfrom parquet files using 4 cores Stream ingest (Kafka + Spark streaming to store using 1 core)

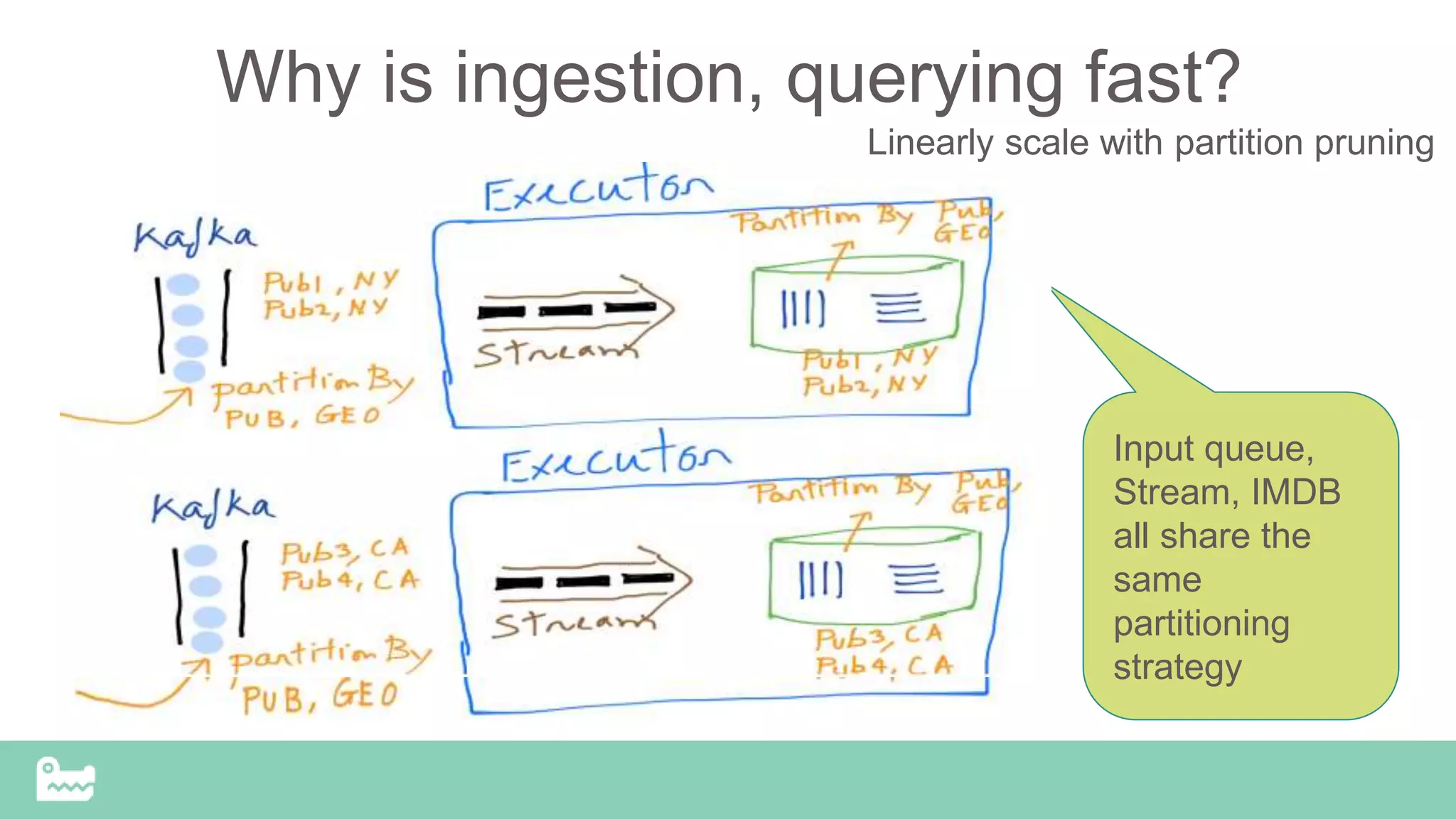

- 29. Why is ingestion,querying fast? Linearly scale with partition pruning Input queue, Stream, IMDB all share the same partitioning strategy

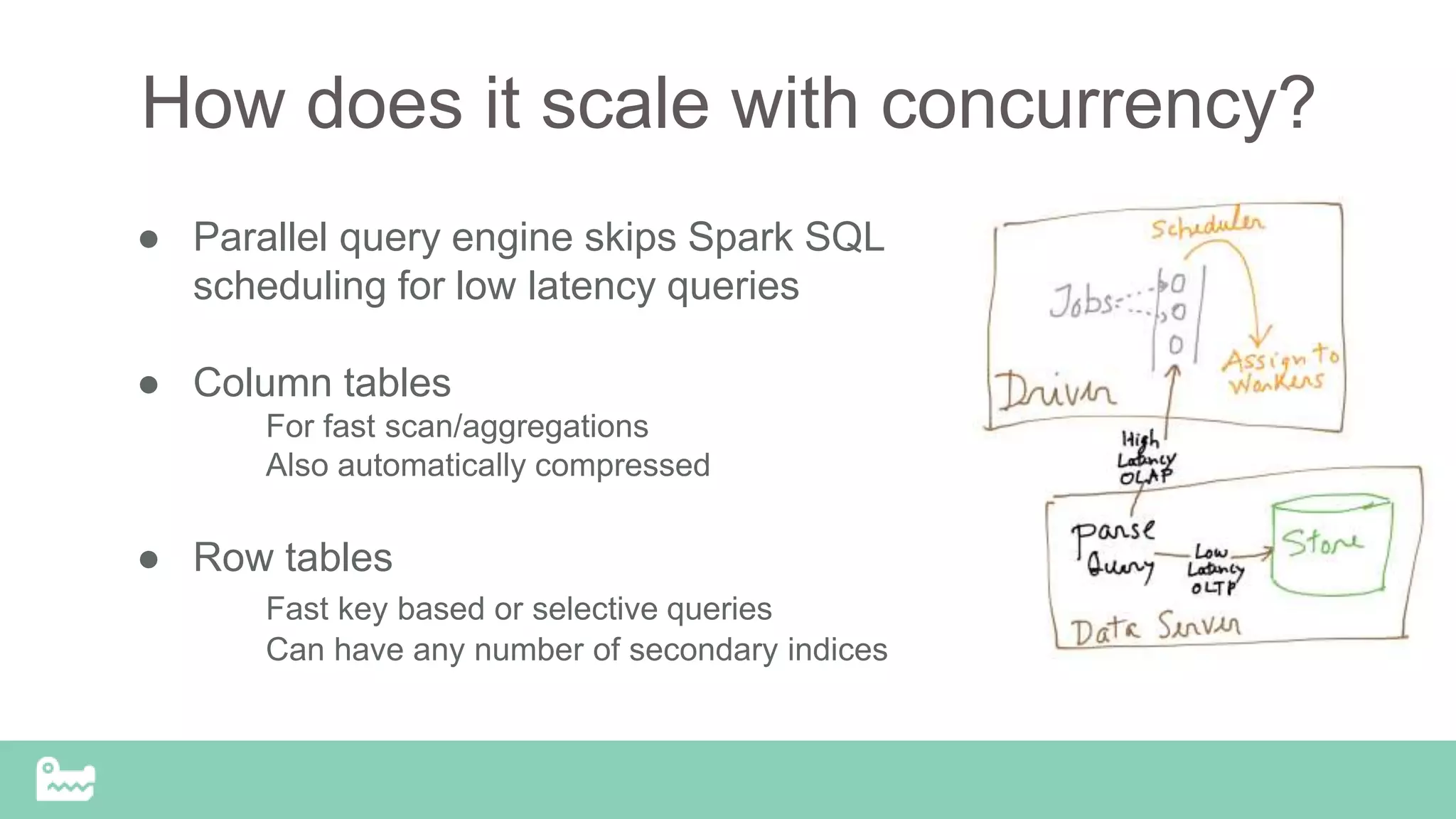

- 30. How does itscale with concurrency? ● Parallel query engine skips Spark SQL scheduling for low latency queries ● Column tables For fast scan/aggregations Also automatically compressed ● Row tables Fast key based or selective queries Can have any number of secondary indices

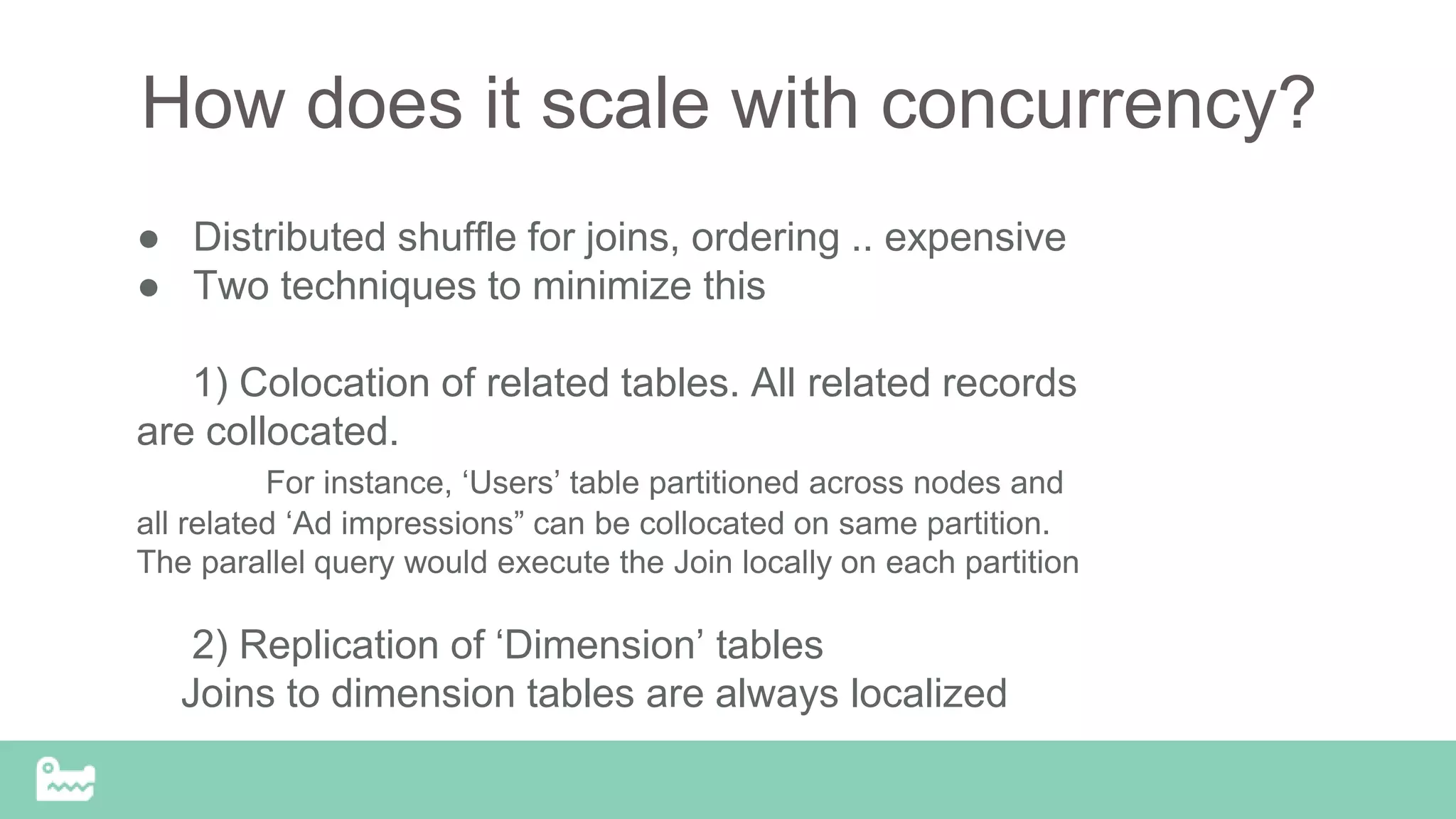

- 31. How does itscale with concurrency? ● Distributed shuffle for joins, ordering .. expensive ● Two techniques to minimize this 1) Colocation of related tables. All related records are collocated. For instance, ‘Users’ table partitioned across nodes and all related ‘Ad impressions” can be collocated on same partition. The parallel query would execute the Join locally on each partition 2) Replication of ‘Dimension’ tables Joins to dimension tables are always localized

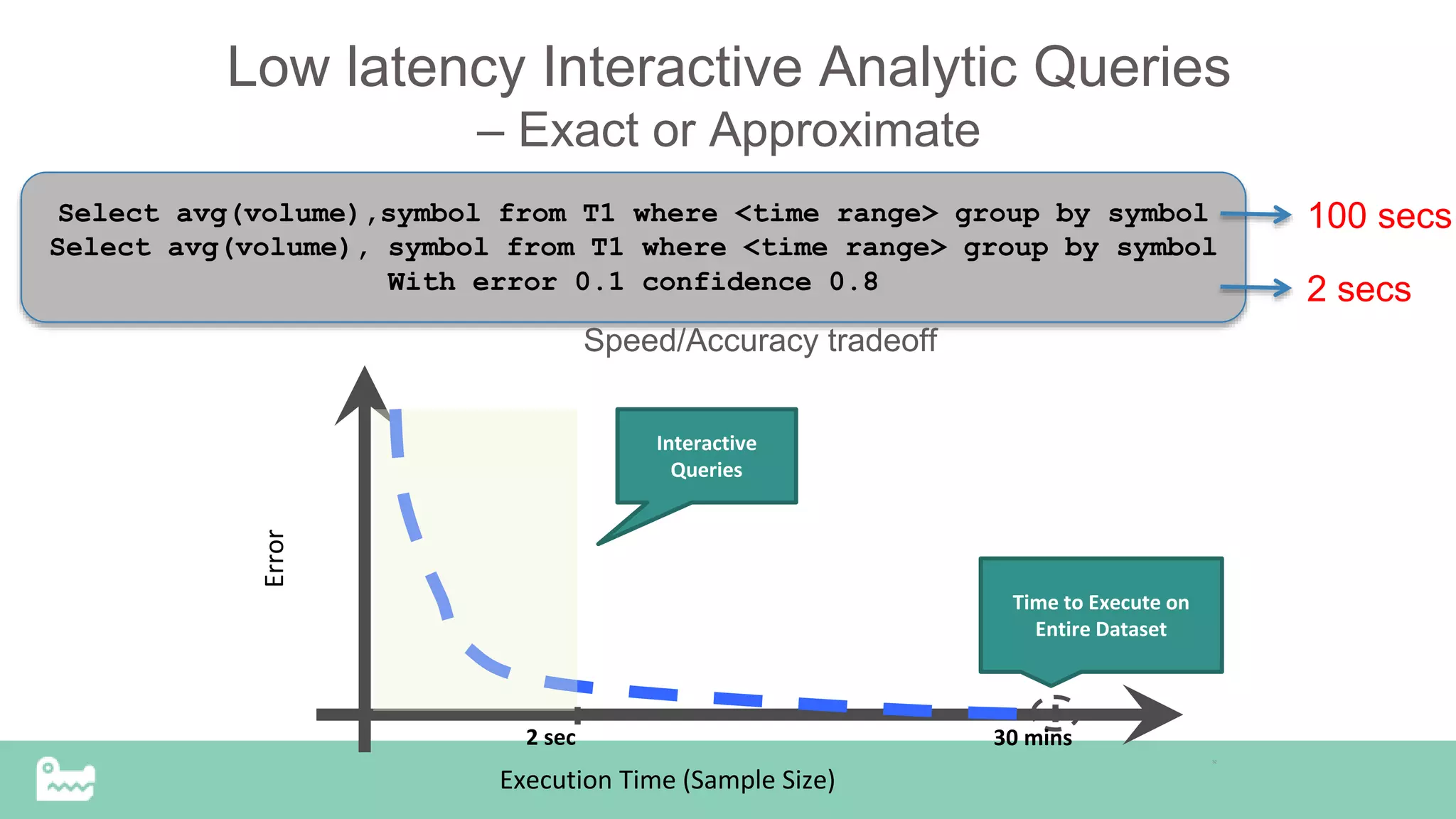

- 32. Low latency InteractiveAnalytic Queries – Exact or Approximate Select avg(volume),symbol from T1 where <time range> group by symbol Select avg(volume), symbol from T1 where <time range> group by symbol With error 0.1 confidence 0.8 Speed/Accuracy tradeoff Error 30 mins Time to Execute on Entire Dataset Interactive Queries 2 sec Execution Time (Sample Size) 32 100 secs 2 secs
- 33. Key feature: SynopsesData ● Maintain stratified samples ○ Intelligent sampling to keep error bounds low ● Probabilistic data ○ TopK for time series (using time aggregation CMS, item aggregation) ○ Histograms, HyperLogLog, Bloom Filters, Wavelets CREATE SAMPLE TABLE sample-table-name USING columnar OPTIONS ( BASETABLE ‘table_name’ // source column table or stream table [ SAMPLINGMETHOD "stratified | uniform" ] STRATA name ( QCS (“comma-separated-column-names”) [ FRACTION “frac” ] ),+ // one or more QCS

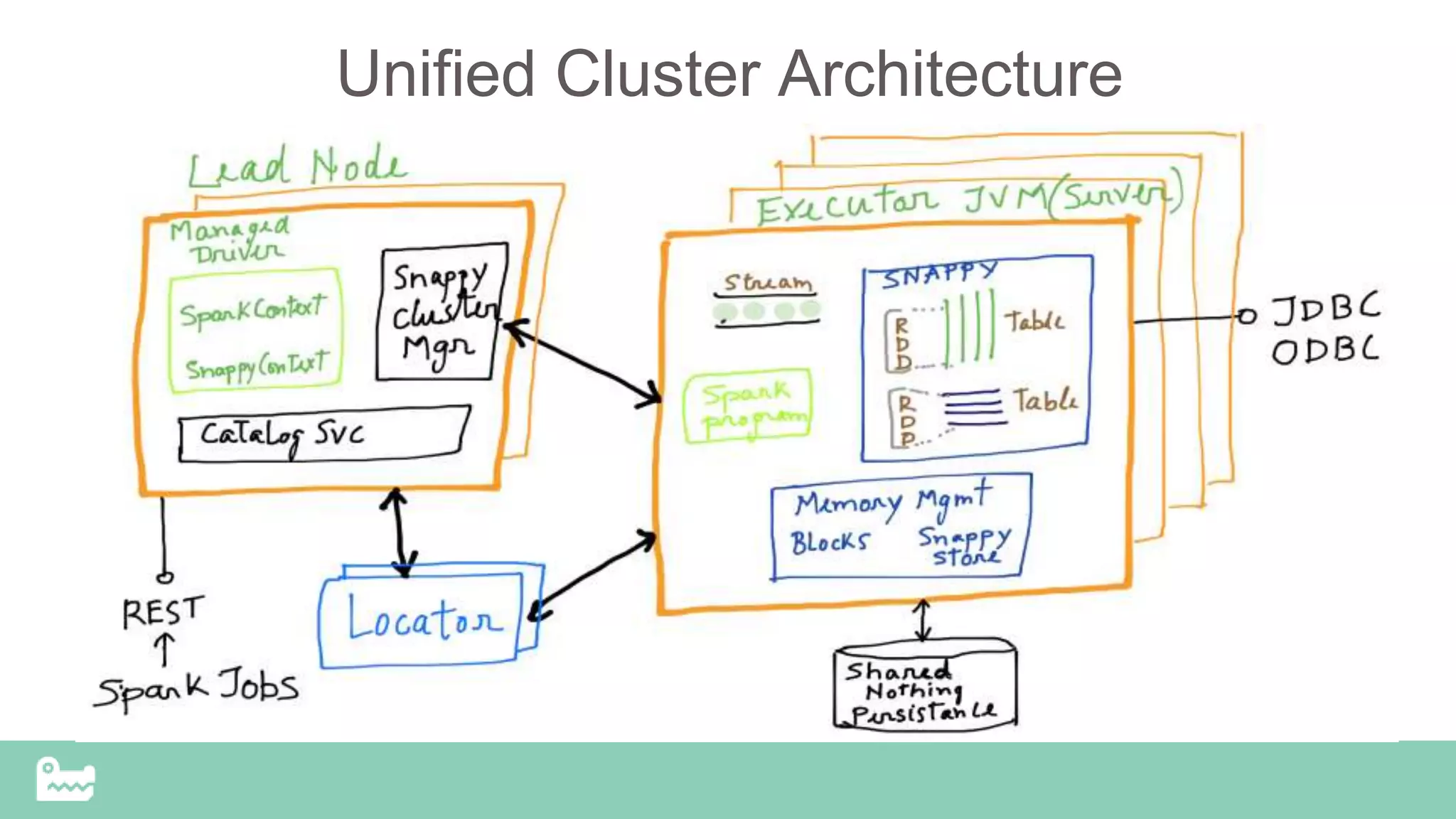

- 34.

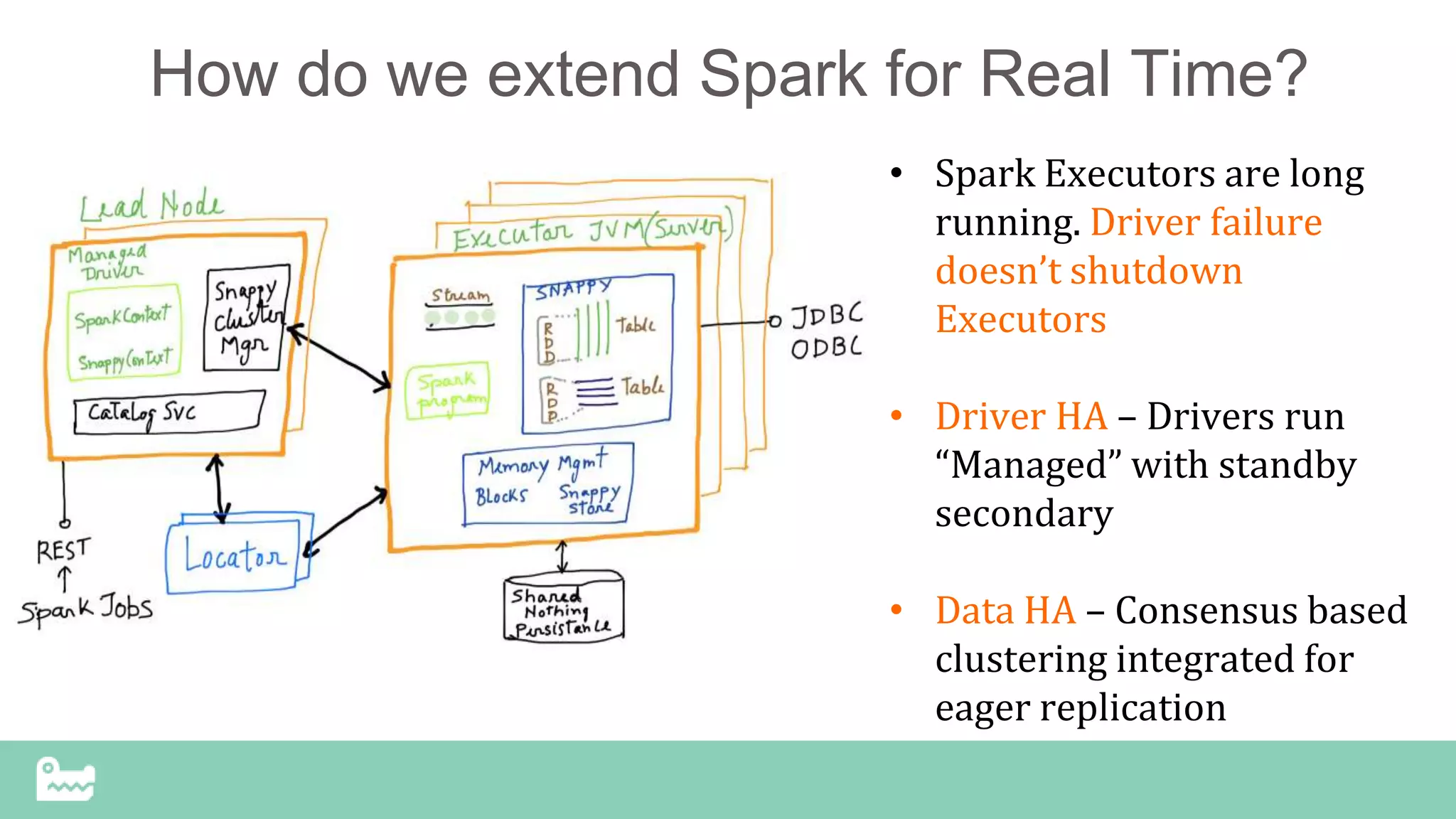

- 35. How do weextend Spark for Real Time? • Spark Executors are long running. Driver failure doesn’t shutdown Executors • Driver HA – Drivers run “Managed” with standby secondary • Data HA – Consensus based clustering integrated for eager replication

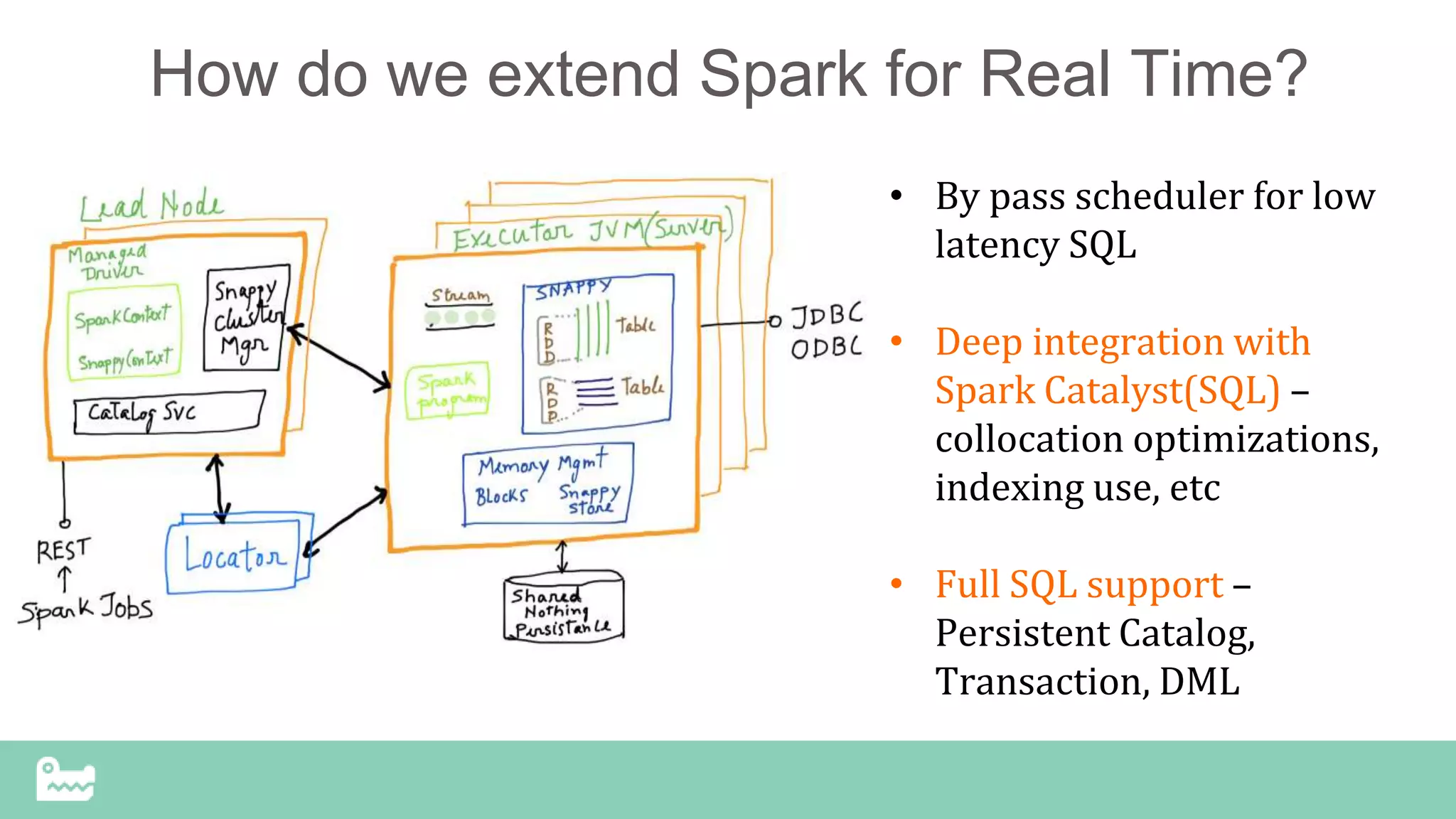

- 36. How do weextend Spark for Real Time? • By pass scheduler for low latency SQL • Deep integration with Spark Catalyst(SQL) – collocation optimizations, indexing use, etc • Full SQL support – Persistent Catalog, Transaction, DML

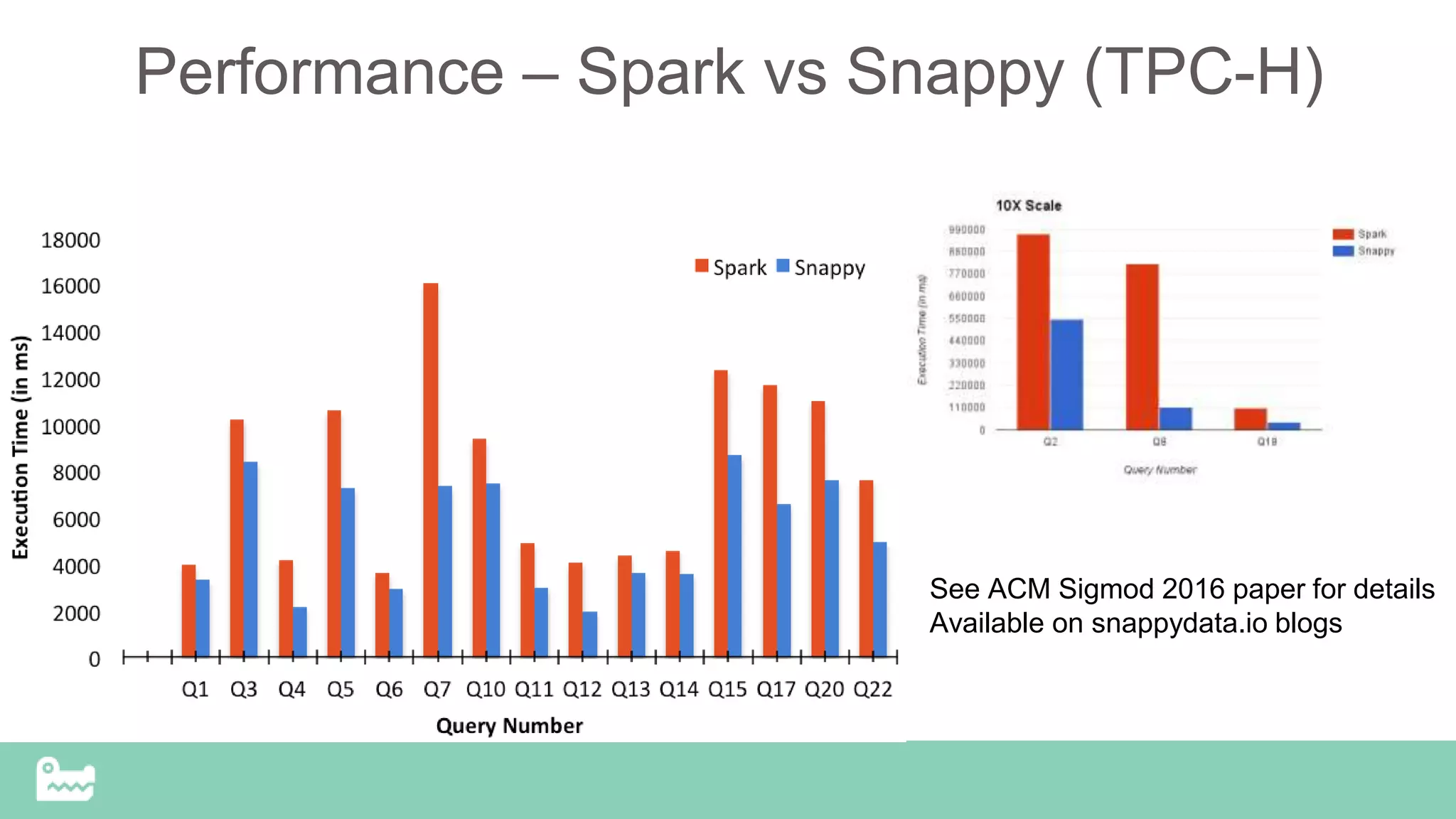

- 37. Performance – Sparkvs Snappy (TPC-H) See ACM Sigmod 2016 paper for details Available on snappydata.io blogs

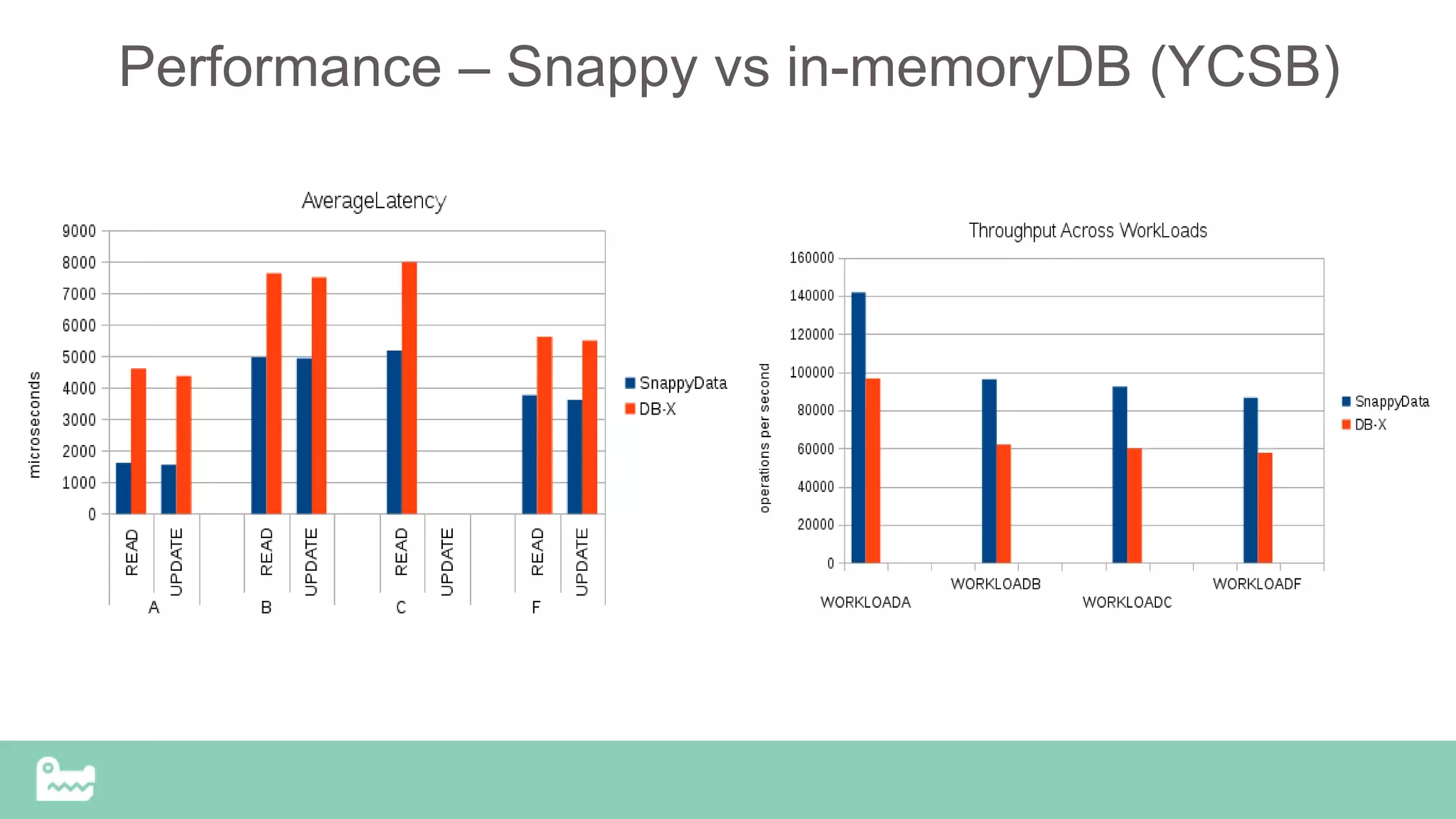

- 38. Performance – Snappyvs in-memoryDB (YCSB)

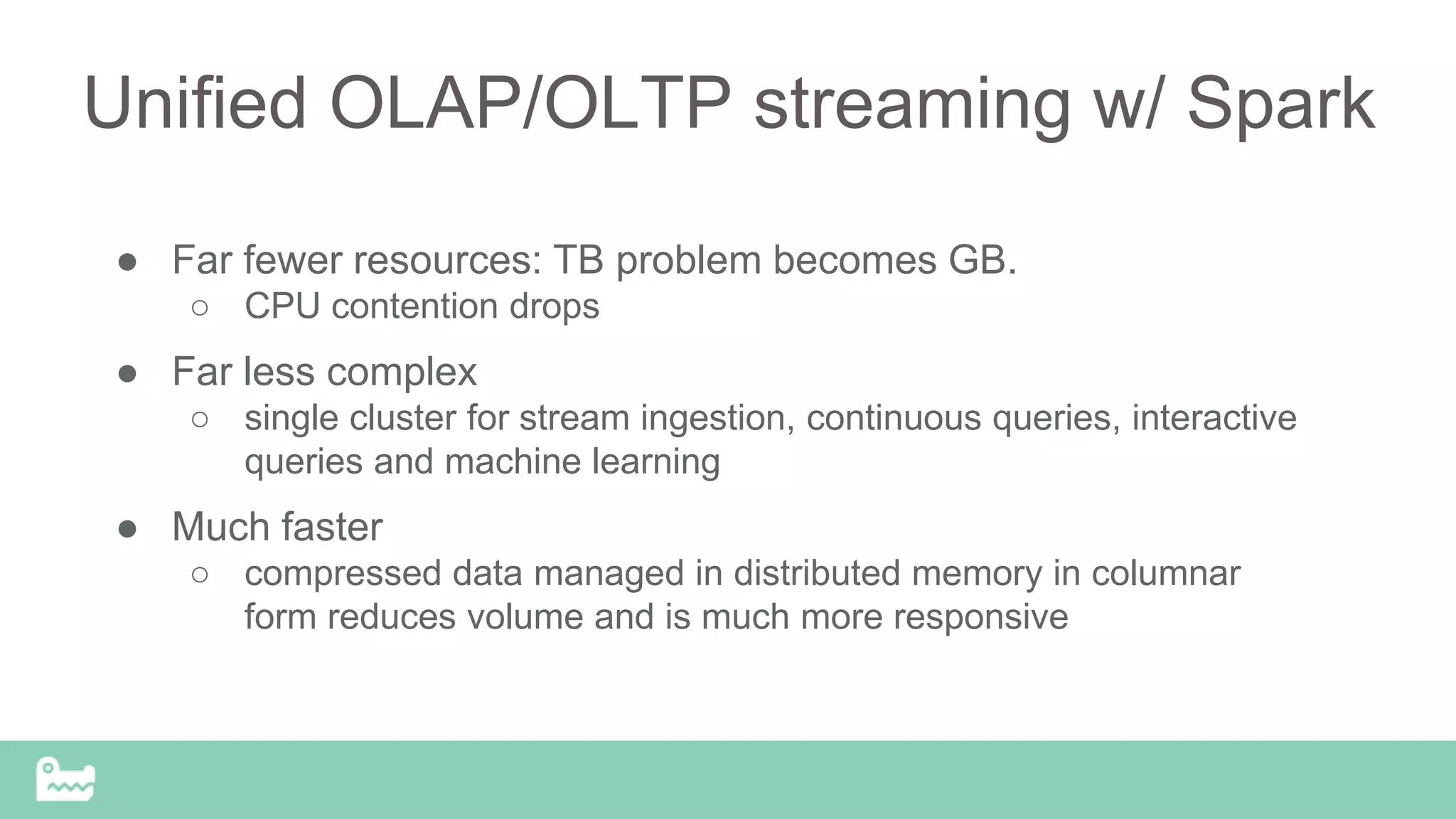

- 39. Unified OLAP/OLTP streamingw/ Spark ● Far fewer resources: TB problem becomes GB. ○ CPU contention drops ● Far less complex ○ single cluster for stream ingestion, continuous queries, interactive queries and machine learning ● Much faster ○ compressed data managed in distributed memory in columnar form reduces volume and is much more responsive
- 40. www.snappydata.io SnappyData is OpenSource ● Available for download on Github today ● https://github.com/SnappyDataInc/snappydata ● Learn more www.snappydata.io/blog ● Connect: ○ twitter: www.twitter.com/snappydata ○ facebook: www.facebook.com/snappydata ○ linkedin: www.linkedin.com/snappydata ○ slack: http://snappydata-slackin.herokuapp.com
- 41.

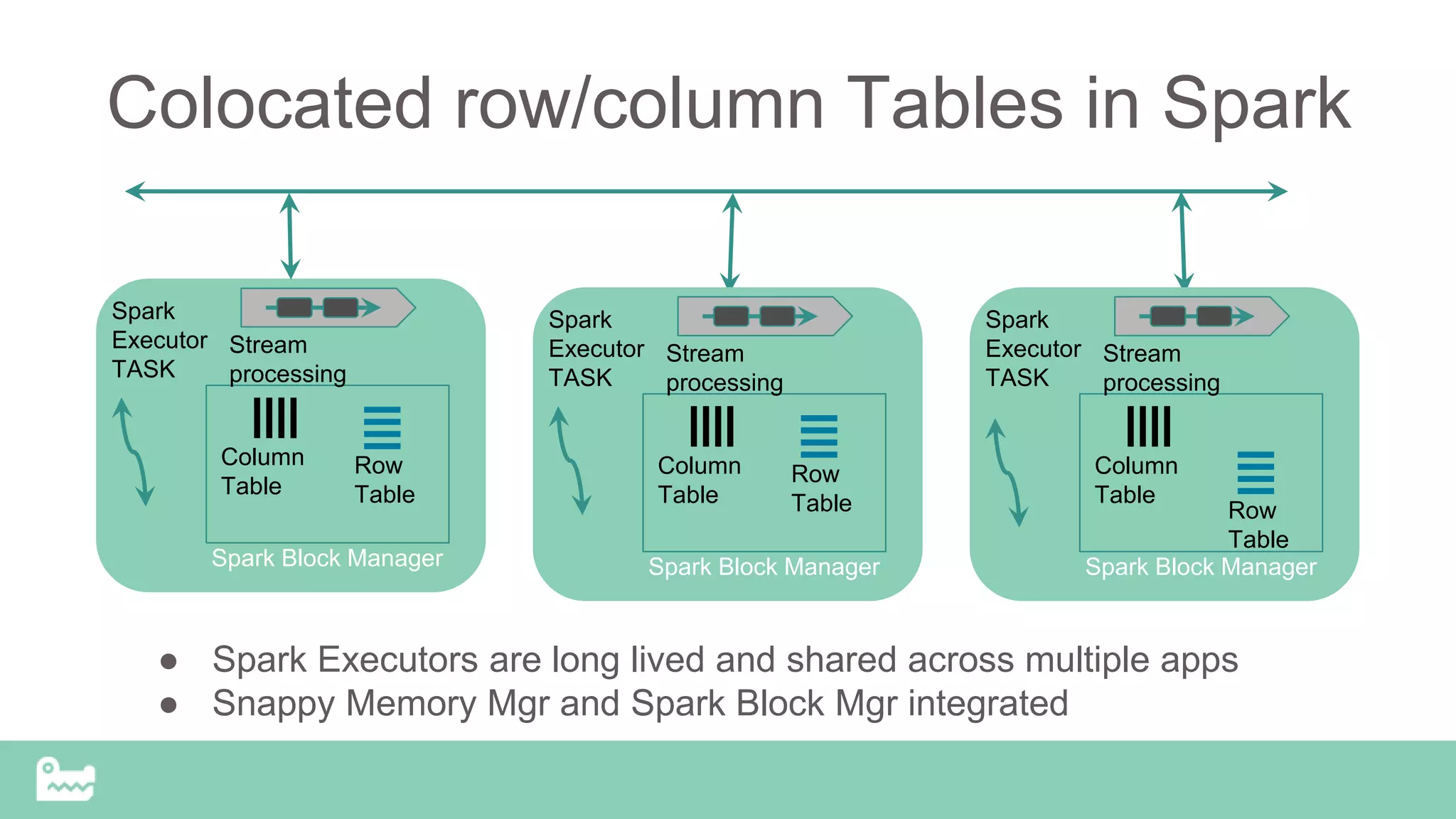

- 42. Colocated row/column Tablesin Spark Row Table Column Table Spark Executor TASK Spark Block Manager Stream processing Row Table Column Table Spark Executor TASK Spark Block Manager Stream processing Row Table Column Table Spark Executor TASK Spark Block Manager Stream processing ● Spark Executors are long lived and shared across multiple apps ● Snappy Memory Mgr and Spark Block Mgr integrated

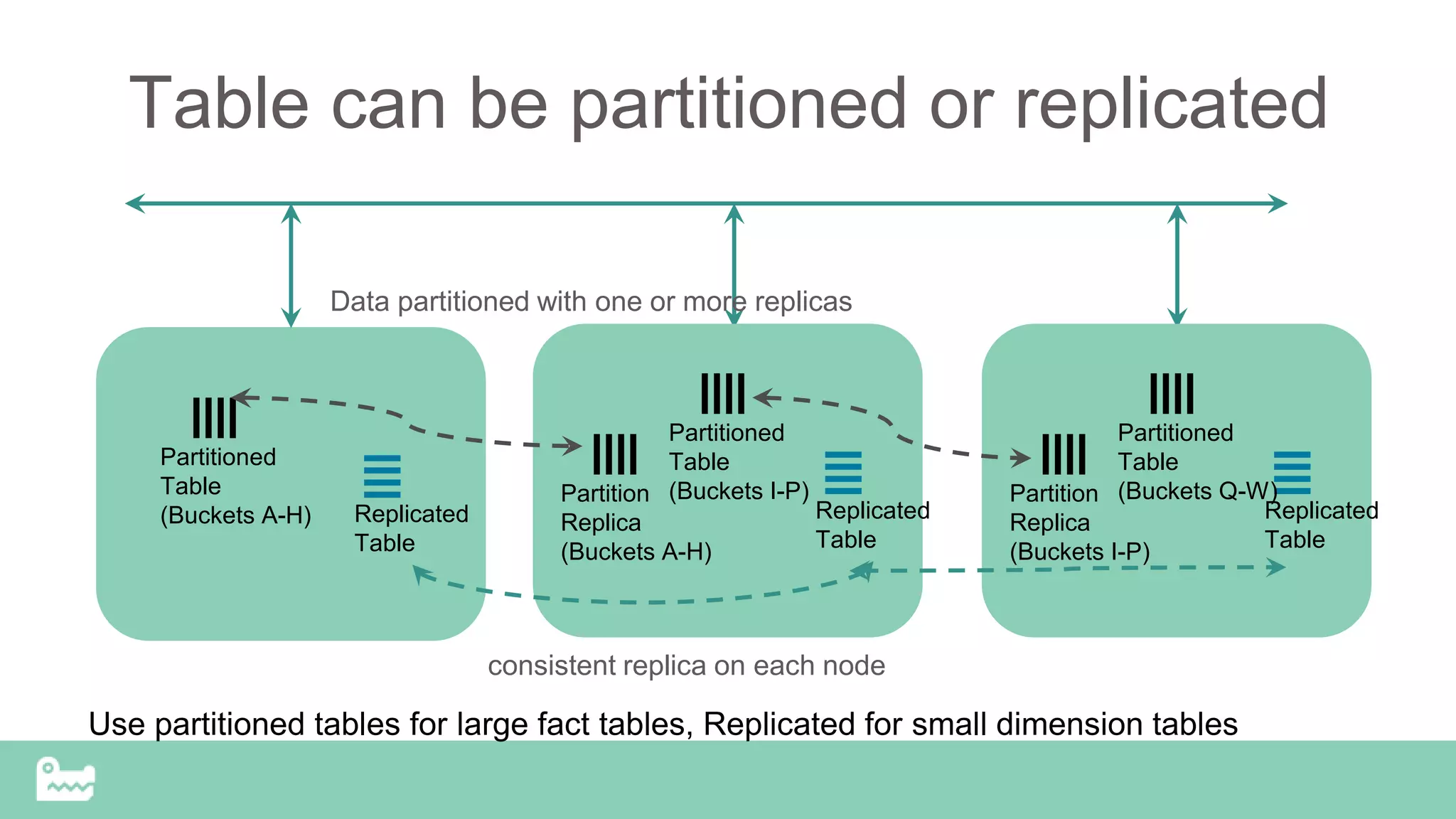

- 43. Table can bepartitioned or replicated Replicated Table Partitioned Table (Buckets A-H) Replicated Table Partitioned Table (Buckets I-P) consistent replica on each node Partition Replica (Buckets A-H) Replicated Table Partitioned Table (Buckets Q-W)Partition Replica (Buckets I-P) Data partitioned with one or more replicas Use partitioned tables for large fact tables, Replicated for small dimension tables

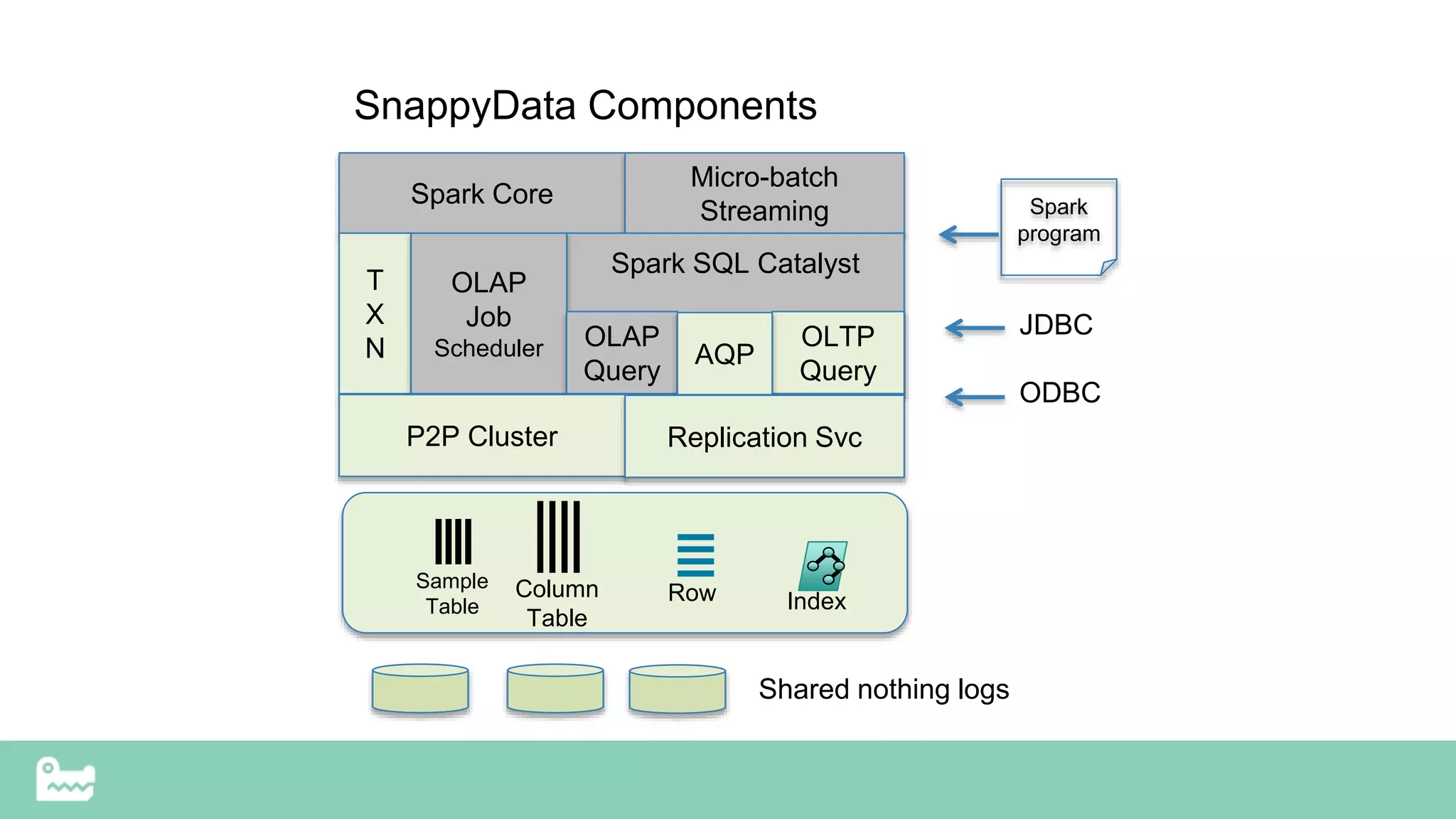

- 44. Spark Core Micro-batch Streaming Spark SQLCatalyst T X N OLAP Job Scheduler OLAP Query OLTP Query AQP P2P Cluster Replication Svc RowColumn Table Index Sample Table Shared nothing logs Spark program JDBC ODBC SnappyData Components
Editor's Notes
- #24 There is a reciprocal relationship with Spark RDDs/DataFrames. any table is visible as a DataFrame and vice versa. Hence, all the spark APIs, tranformations can also be applied to snappy managed tables. For instance, you can use the DataFrame data source API to save any arbitrary DataFrame into a snappy table like shown in the example. One cool aspect of Spark is its ability to take an RDD of objects (say with nested structure) and implicitly infer its schema. i.e. turn into into a DataFrame and store it.
- #25 The SQL dialect will be Spark SQL ++. i.e. we are extending SQL to be much more compliant with standard SQL. A number of the extensions that dictate things like HA, disk persistence, etc are all specified through OPTIONS in spark SQL.
- #26 CREATE HDFSSTORE streamingstore NameNode 'hdfs://gfxd1:8020' HomeDir 'stream-tables' BatchSize 10 BatchTimeInterval 2000 milliseconds QueuePersistent true MaxWriteOnlyFileSize 200 WriteOnlyFileRolloverInterval 1 minute;
- #30 And, of course, the whole point behind colocation is to linear scale with minimal or even no shuffling. So, for instance, when using Kafka, all three components - Kafka, native RDD in Spark and Table in Snappy can all share the same partitioning strategy. As an example, in our telco case, all records associated with a subscriber can be colocated onto the same node - the queue, spark procesing of partitions and related reference data in Snappy store.
- #34 When it comes to interactive analytics a lot is exploratory in nature. Folks are looking trends for different time periods, studying outlier patterns, etc. Unfortunately, like pointed out before, analytic queries can take a llong time even when in-memory. We want such exploratory analytics to ultimately happen at google like speeds. Don’t break the speed of thought. In many cases, do we really need a precise answer? like watching a trend on a visualization tool. We are thowing linear improvements to what seems like an exponential problem - like in some IoT scenarios. Stratified sampling allows the user to more intelligently sample so we can answer queries with a very small fraction of the data with good accuracy. What we do is allow the user to create one or more stratified samples on some “base” table data. The base table maybe all in-memory also or more often than not, could reside in HDFS.
- #36 Manage data(mutable) in spark executors (store memory mgr works with Block mgr) Make executors long lived Which means, spark drivers run de-coupled .. they can fail. - managed Drivers - Selective scheduling - Deeply integrate with query engine for optimizations - Full SQL support: including transactions, DML, catalog integration
- #37 Manage data(mutable) in spark executors (store memory mgr works with Block mgr) Make executors long lived Which means, spark drivers run de-coupled .. they can fail. - managed Drivers - Selective scheduling - Deeply integrate with query engine for optimizations - Full SQL support: including transactions, DML, catalog integration
- #43 By default, we start the Spark cluster in an “embedded” mode. i.e. the in-memory store is fully collocated and in the same process space. We had to change the spark Block manager so both Gem as well as spark shares the same space for tables, cached RDDs, shuffle space, sorting, etc. This space can extend from JVM heap to off-heap. GemFire proactively monitors the JVM “old gen” so never goes beyond a certain critical threshold. i.e. we do a number of things so you don’t run OOM. Hoping to contribute this back to Spark. And, when running in the embedded mode we also make sure the executors are long lived. i.e. life cycle for these nodes are no longer tied to the Driver availability. Everything Spark does it cleaned up as expected though.
- #44 Partitioning strategy, by default, is the same as Spark. We try to do uniform random distribution of the records across all the nodes designated to host a partitioned table. Any table can have one or more replicas. Replicas are always consistent with each other - sync writes. We parallely send the write to each replica and wait for ACKs. If a ACK is not received we start SUSPECT processing. Replicated tables, by default, are replicated to each node. Replicas are guaranteed to be consistent when failures occur i.e. the failed node rejoins. How do you recreate the state of the replica while thousands of other concurrent writes are in progress is a hard problem to solve.
