The document provides an overview of Hive architecture and workflow. It discusses how Hive converts HiveQL queries to MapReduce jobs through its compiler. The compiler includes components like the parser, semantic analyzer, logical and physical plan generators, and logical and physical optimizers. It analyzes sample HiveQL queries and shows the transformations done at each compiler stage to generate logical and physical execution plans consisting of operators and tasks.

1. Inside Hive (for beginners)1Takeshi NAKANO / Recruit Co. Ltd.

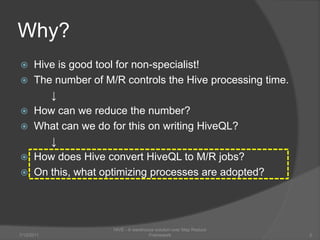

2. Why?Hive is good tool for non-specialist!The number of M/R controls the Hive processing time.↓How can we reduce the number?What can we do for this on writing HiveQL?↓How does Hive convert HiveQLto M/R jobs?On this, what optimizing processes are adopted?7/6/2011HIVE - A warehouse solution over Map Reduce Framework2

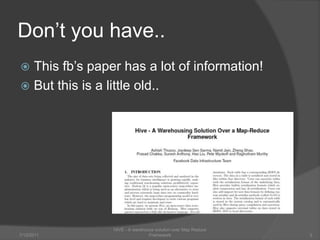

3. Don’t you have..This fb’s paper has a lot of information!But this is a little old..7/6/2011HIVE - A warehouse solution over Map Reduce Framework3

4. Component Level Analysis7/6/2011HIVE - A warehouse solution over Map Reduce Framework4

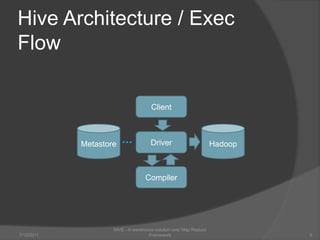

5. Hive Architecture / Exec Flow7/6/2011HIVE - A warehouse solution over Map Reduce Framework5ClientHadoopMetastoreDriverCompiler

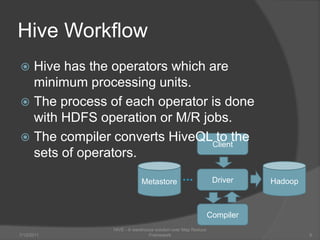

6. ClientHadoopDriverCompilerHive WorkflowHive has the operators which are minimum processing units.The process of each operator is done with HDFS operation or M/R jobs.The compiler converts HiveQL to the sets of operators.7/6/2011HIVE - A warehouse solution over Map Reduce Framework6Metastore

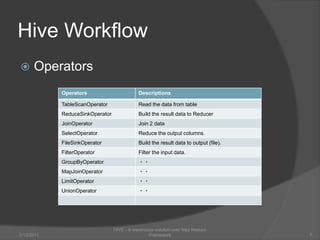

7. Hive WorkflowOperators7/6/2011HIVE - A warehouse solution over Map Reduce Framework7

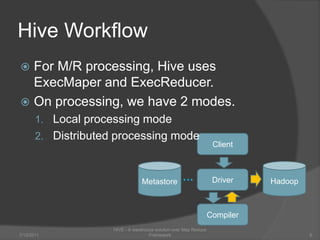

8. ClientHadoopMetastoreDriverCompilerHive WorkflowFor M/R processing, Hiveuses ExecMaper and ExecReducer.On processing, we have 2 modes.Local processing modeDistributed processing mode7/6/2011HIVE - A warehouse solution over Map Reduce Framework8

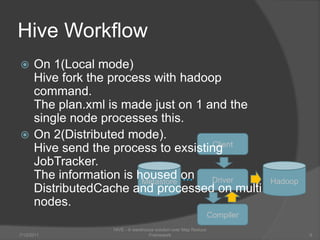

9. ClientHadoopMetastoreDriverCompilerHive WorkflowOn 1(Local mode)Hive fork the process with hadoop command.The plan.xml is made just on 1 and the single node processes this.On 2(Distributed mode).Hive send the process to exsistingJobTracker.The information is housed on DistributedCacheand processed on multi nodes.7/6/2011HIVE - A warehouse solution over Map Reduce Framework9

10. Compiler : How to Process HiveQL7/6/2011HIVE - A warehouse solution over Map Reduce Framework10ClientHadoopMetastoreDriverCompiler

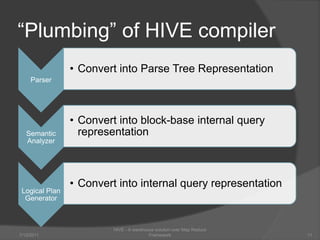

11. “Plumbing” of HIVE compiler7/6/201111HIVE - A warehouse solution over Map Reduce Framework

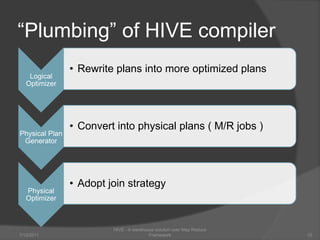

12. “Plumbing” of HIVE compiler7/6/201112HIVE - A warehouse solution over Map Reduce Framework

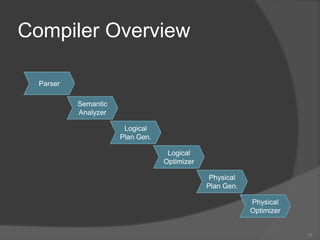

13. Compiler Overview13ParserSemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizer

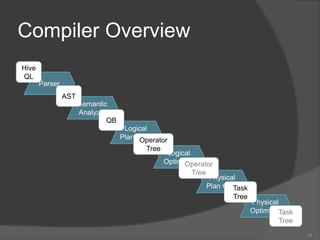

14. Compiler Overview14HiveQLParserASTSemanticAnalyzerQBLogicalPlan Gen.Operator TreeLogicalOptimizerOperator TreePhysicalPlan Gen.Task TreePhysicalOptimizerTask Tree

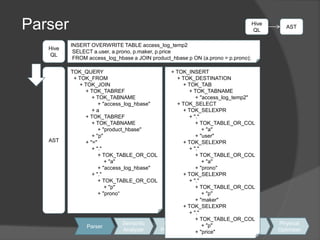

15. ParserHiveQLASTINSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);HiveQLTOK_QUERY + TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“AST + TOK_INSERT + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2" + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price"SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

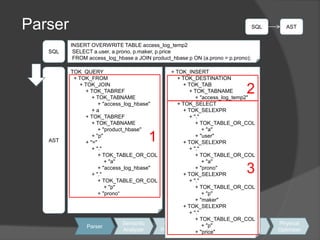

16. ParserSQLASTINSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);SQLTOK_QUERY + TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ + TOK_INSERT + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2" + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price"AST123SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

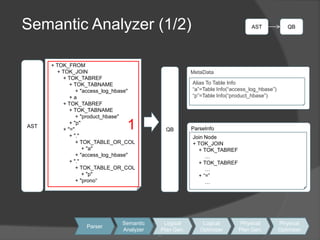

17. 17Semantic Analyzer (1/2)ASTQB+ TOK_FROM + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“AST1QBMetaDataAliasTo Table Info“a”=Table Info(“access_log_hbase”)“p”=Table Info(“product_hbase”)ParseInfoJoin Node+ TOK_JOIN + TOK_TABREF … + TOK_TABREF … + “=” …SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser17

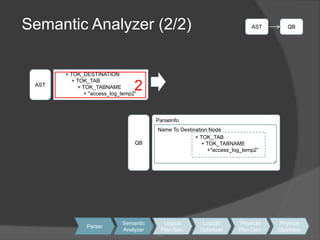

18. 18Semantic Analyzer (2/2)ASTQB + TOK_DESTINATION + TOK_TAB + TOK_TABNAME + "access_log_temp2”AST2QBParseInfoNameTo Destination Node+ TOK_TAB + TOK_TABNAME +"access_log_temp2”SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser1818

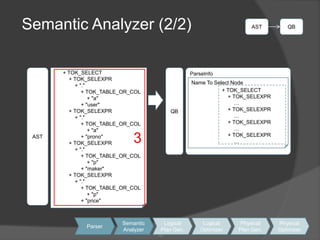

19. 19Semantic Analyzer (2/2)ASTQB + TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price"ASTQBParseInfo3Name To Select Node+ TOK_SELECT + TOK_SELEXPR … + TOK_SELEXPR … + TOK_SELEXPR … + TOK_SELEXPR …SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser1919

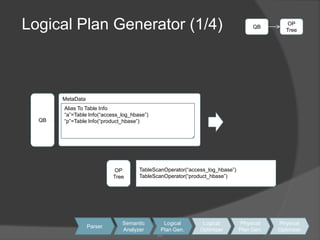

20. 20Logical Plan Generator (1/4)QBOPTreeQBMetaDataAliasTo Table Info“a”=Table Info(“access_log_hbase”)“p”=Table Info(“product_hbase”)OPTreeTableScanOperator(“access_log_hbase”)TableScanOperator(“product_hbase”)SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser2020

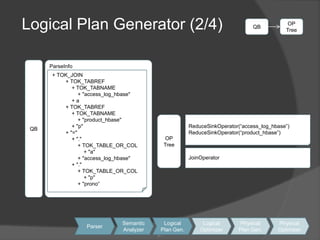

21. 21Logical Plan Generator (2/4)QBOPTreeQBParseInfo + TOK_JOIN + TOK_TABREF + TOK_TABNAME + "access_log_hbase" + a + TOK_TABREF + TOK_TABNAME + "product_hbase" + "p" + "=" + "." + TOK_TABLE_OR_COL + "a" + "access_log_hbase" + "." + TOK_TABLE_OR_COL + "p" + "prono“ReduceSinkOperator(“access_log_hbase”)ReduceSinkOperator(“product_hbase”)OPTreeJoinOperatorSemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

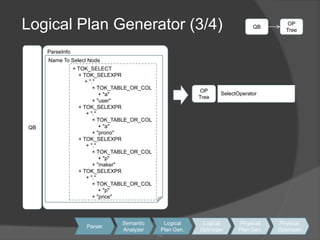

22. 22Logical Plan Generator (3/4)QBOPTreeQBParseInfoName To Select Node+ TOK_SELECT + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "user" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "a" + "prono" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "maker" + TOK_SELEXPR + "." + TOK_TABLE_OR_COL + "p" + "price"OPTreeSelectOperatorSemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

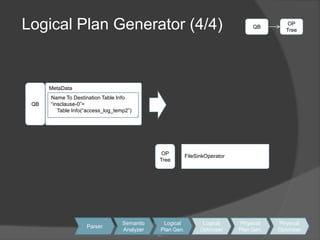

23. 23Logical Plan Generator (4/4)QBOPTreeQBMetaDataName To Destination Table Info“insclause-0”= Table Info(“access_log_temp2”)OPTreeFileSinkOperatorSemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

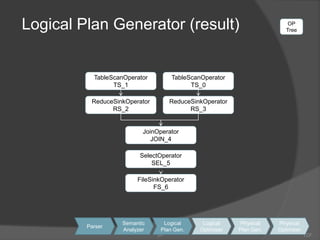

24. Logical Plan Generator (result)24LCF OPTreeTableScanOperatorTS_1TableScanOperatorTS_0ReduceSinkOperatorRS_2ReduceSinkOperatorRS_3JoinOperatorJOIN_4SelectOperatorSEL_5FileSinkOperatorFS_6SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

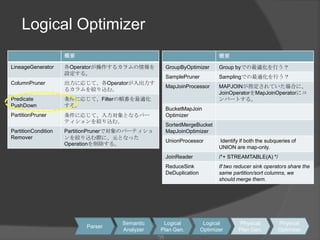

25. Logical OptimizerSemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser252525

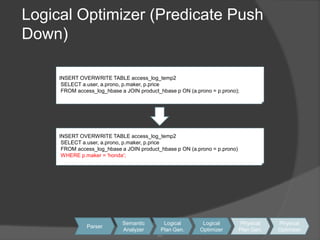

26. Logical Optimizer (Predicate Push Down)INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda';SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser2626

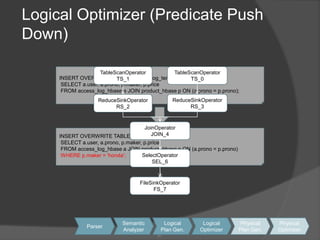

27. Logical Optimizer (Predicate Push Down)TableScanOperatorTS_1TableScanOperatorTS_0INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);ReduceSinkOperatorRS_3ReduceSinkOperatorRS_2JoinOperatorJOIN_4INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda';SelectOperatorSEL_6FileSinkOperatorFS_7SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser2727

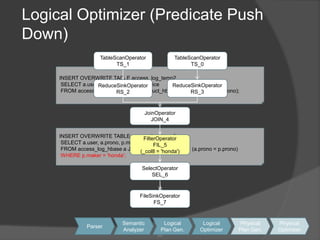

28. INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda';Logical Optimizer (Predicate Push Down)TableScanOperatorTS_1TableScanOperatorTS_0ReduceSinkOperatorRS_3ReduceSinkOperatorRS_2JoinOperatorJOIN_4FilterOperatorFIL_5(_col8 = 'honda')SelectOperatorSEL_6FileSinkOperatorFS_7SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser2828

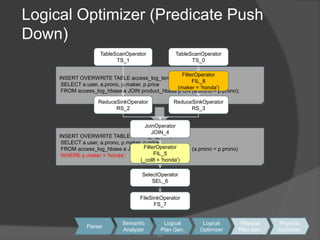

29. Logical Optimizer (Predicate Push Down)TableScanOperatorTS_1TableScanOperatorTS_0INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);FilterOperatorFIL_8(maker = 'honda')ReduceSinkOperatorRS_2ReduceSinkOperatorRS_3JoinOperatorJOIN_4INSERT OVERWRITE TABLE access_log_temp2 SELECT a.user, a.prono, p.maker, p.price FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono) WHERE p.maker = 'honda';FilterOperatorFIL_5(_col8 = 'honda')SelectOperatorSEL_6FileSinkOperatorFS_7SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser2929

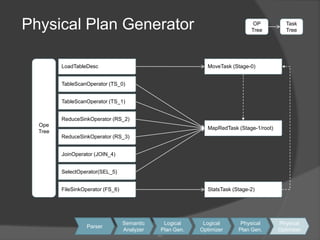

30. 30Physical Plan GeneratorOPTreeTaskTreeMoveTask(Stage-0)OpeTreeLoadTableDescTableScanOperator(TS_0)TableScanOperator(TS_1)ReduceSinkOperator(RS_2)MapRedTask(Stage-1/root)ReduceSinkOperator(RS_3)JoinOperator(JOIN_4)SelectOperator(SEL_5)FileSinkOperator(FS_6) StatsTask(Stage-2)SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser3030

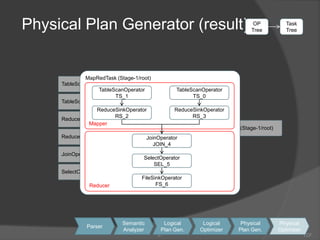

31. OPTreeTaskTreeMapRedTask (Stage-1/root)TableScanOperator(TS_0)Physical Plan Generator (result)31LCF MapperTableScanOperatorTS_1TableScanOperatorTS_0TableScanOperator(TS_1)ReduceSinkOperatorRS_2ReduceSinkOperatorRS_3ReduceSinkOperator(RS_2)MapRedTask(Stage-1/root)ReduceSinkOperator(RS_3)ReducerJoinOperatorJOIN_4JoinOperator(JOIN_4)SelectOperatorSEL_5SelectOperator(SEL_5)FileSinkOperatorFS_6SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser313131

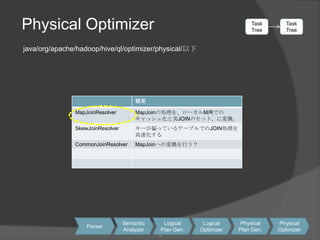

32. 32Physical OptimizerTaskTreeTaskTreejava/org/apache/hadoop/hive/ql/optimizer/physical/以下SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser

33. 33Physical Optimizer (MapJoinResolver)TaskTreeTaskTreeMapRedTask (Stage-1)MapperTableScanOperatorTS_1TableScanOperatorTS_0MapJoinOperatorMAPJOIN_7SelectOperatorSEL_8SelectOperatorSEL_5FileSinkOperatorFS_6SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser33

34. 34Physical Optimizer (MapJoinResolver)TaskTreeTaskTreeMapredLocalTask(Stage-7)MapRedTask (Stage-1)TableScanOperatorTS_0MapperTableScanOperatorTS_1TableScanOperatorTS_0HashTableSinkOperatorHASHTABLESINK_11MapJoinOperatorMAPJOIN_7MapRedTask (Stage-1)SelectOperatorSEL_8MapperTableScanOperatorTS_1SelectOperatorSEL_5MapJoinOperatorMAPJOIN_7FileSinkOperatorFS_6SelectOperatorSEL_8SelectOperatorSEL_5FileSinkOperatorFS_6SemanticAnalyzerLogicalPlan Gen.LogicalOptimizerPhysicalPlan Gen.PhysicalOptimizerParser34

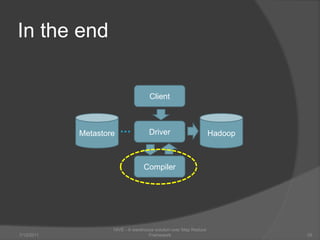

35. In the end7/6/2011HIVE - A warehouse solution over Map Reduce Framework35ClientHadoopMetastoreDriverCompiler

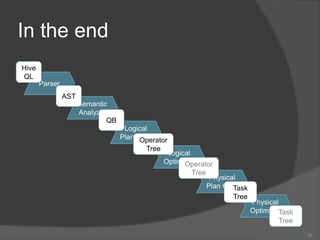

36. In the end36HiveQLParserASTSemanticAnalyzerQBLogicalPlan Gen.Operator TreeLogicalOptimizerOperator TreePhysicalPlan Gen.Task TreePhysicalOptimizerTask Tree

37. End7/6/201137

38. Appendix: What does Explain show?7/6/2011HIVE - A warehouse solution over Map Reduce Framework38

39. Appendix: What does Explain show?hive> explain INSERT OVERWRITE TABLE access_log_temp2 > SELECT a.user, a.prono, p.maker, p.price > FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);OKABSTRACT SYNTAX TREE: (TOK_QUERY (TOK_FROM (TOK_JOIN (TOK_TABREF (TOK_TABNAME access_log_hbase) a) (TOK_TABREF (TOK_TABNAME product_hbase) p) (= (. (TOK_TABLE_OR_COL a) prono) (. (TOK_TABLE_OR_COL p) prono)))) (TOK_INSERT (TOK_DESTINATION (TOK_TAB (TOK_TABNAME access_log_temp2))) (TOK_SELECT (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) user)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) prono)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) maker)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) price)))))STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0STAGE PLANS: Stage: Stage-1 Map Reduce Alias -> Map Operator Tree: aTableScan alias: a Reduce Output Operator key expressions:expr: prono type: int sort order: + Map-reduce partition columns:expr: prono type: int tag: 0 value expressions:expr: user type: stringexpr: prono type: int pTableScan alias: p Reduce Output Operator key expressions:expr: prono type: int sort order: + Map-reduce partition columns:expr: prono type: int tag: 1 value expressions:expr: maker type: stringexpr: price type: intReduce Operator Tree: Join Operator condition map: Inner Join 0 to 1 condition expressions: 0 {VALUE._col0} {VALUE._col2} 1 {VALUE._col1} {VALUE._col2}handleSkewJoin: falseoutputColumnNames: _col0, _col2, _col6, _col7 Select Operator expressions:expr: _col0 type: stringexpr: _col2 type: intexpr: _col6 type: stringexpr: _col7 type: intoutputColumnNames: _col0, _col1, _col2, _col3 File Output Operator compressed: falseGlobalTableId: 1 table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormatserde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-0 Move Operator tables: replace: true table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormatserde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-2 Stats-Aggr OperatorTime taken: 0.1 secondshive>

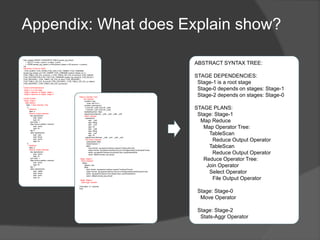

40. Appendix: What does Explain show?hive> explain INSERT OVERWRITE TABLE access_log_temp2 > SELECT a.user, a.prono, p.maker, p.price > FROM access_log_hbase a JOIN product_hbase p ON (a.prono = p.prono);OKABSTRACT SYNTAX TREE: (TOK_QUERY (TOK_FROM (TOK_JOIN (TOK_TABREF (TOK_TABNAME access_log_hbase) a) (TOK_TABREF (TOK_TABNAME product_hbase) p) (= (. (TOK_TABLE_OR_COL a) prono) (. (TOK_TABLE_OR_COL p) prono)))) (TOK_INSERT (TOK_DESTINATION (TOK_TAB (TOK_TABNAME access_log_temp2))) (TOK_SELECT (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) user)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL a) prono)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) maker)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL p) price)))))STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0STAGE PLANS: Stage: Stage-1 Map Reduce Alias -> Map Operator Tree: aTableScan alias: aReduce Output Operator key expressions:expr: prono type: int sort order: + Map-reduce partition columns:expr: prono type: int tag: 0 value expressions:expr: user type: stringexpr: prono type: int pTableScan alias: pReduce Output Operator key expressions:expr: prono type: int sort order: + Map-reduce partition columns:expr: prono type: int tag: 1 value expressions:expr: maker type: stringexpr: price type: intABSTRACT SYNTAX TREE:STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0STAGE PLANS: Stage: Stage-1 Map Reduce Map Operator Tree:TableScan Reduce Output OperatorTableScan Reduce Output Operator Reduce Operator Tree: Join Operator Select Operator File Output Operator Stage: Stage-0 Move Operator Stage: Stage-2 Stats-Aggr OperatorReduce Operator Tree: Join Operator condition map: Inner Join 0 to 1 condition expressions: 0 {VALUE._col0} {VALUE._col2} 1 {VALUE._col1} {VALUE._col2}handleSkewJoin: falseoutputColumnNames: _col0, _col2, _col6, _col7 Select Operator expressions:expr: _col0 type: stringexpr: _col2 type: intexpr: _col6 type: stringexpr: _col7 type: intoutputColumnNames: _col0, _col1, _col2, _col3File Output Operator compressed: falseGlobalTableId: 1 table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormatserde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-0 Move Operator tables: replace: true table: input format: org.apache.hadoop.mapred.TextInputFormat output format: org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormatserde: org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe name: default.access_log_temp2 Stage: Stage-2 Stats-Aggr OperatorTime taken: 0.1 secondshive>

41. Appendix: What does Explain show?ABSTRACT SYNTAX TREE:STAGE DEPENDENCIES: Stage-1 is a root stage Stage-0 depends on stages: Stage-1 Stage-2 depends on stages: Stage-0STAGE PLANS: Stage: Stage-1 Map Reduce Map Operator Tree:TableScan Reduce Output OperatorTableScan Reduce Output Operator Reduce Operator Tree: Join Operator Select Operator File Output Operator Stage: Stage-0 Move Operator Stage: Stage-2 Stats-Aggr OperatorMapRedTask (Stage-1/root)MapperTableScanOperatorTS_1TableScanOperatorTS_0ReduceSinkOperatorRS_2ReduceSinkOperatorRS_3ReducerJoinOperatorJOIN_4≒SelectOperatorSEL_5FileSinkOperatorFS_6MoveTask (Stage-0)Stats Task (Stage-2)
