This document provides an overview and demonstration of Unity's UI system and UGUI components. It begins with an introduction by Alessandro Pozone and outlines the topics to be covered, including the Canvas, Rect Transforms, pivots, slice scaling, the UIManager, and animating UI elements. Code examples and screenshots are provided to demonstrate working with buttons, images, and animations in Unity's UI system.

1. Template designed by
UNITY3D 4.6 UI TOOLS
Alessandro Pozone
Alessandro.pozone@hotmail.com
www.poz1.com
@TPoz1

2. Alessandro Pozone
Ingegneria Informatica @ PoliMi
Worldwide Finals finalist ImagineCup 2014
Microsoft Student Partner
Xamarin Student Ambassador
chi sono

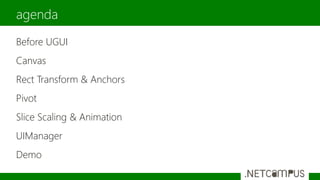

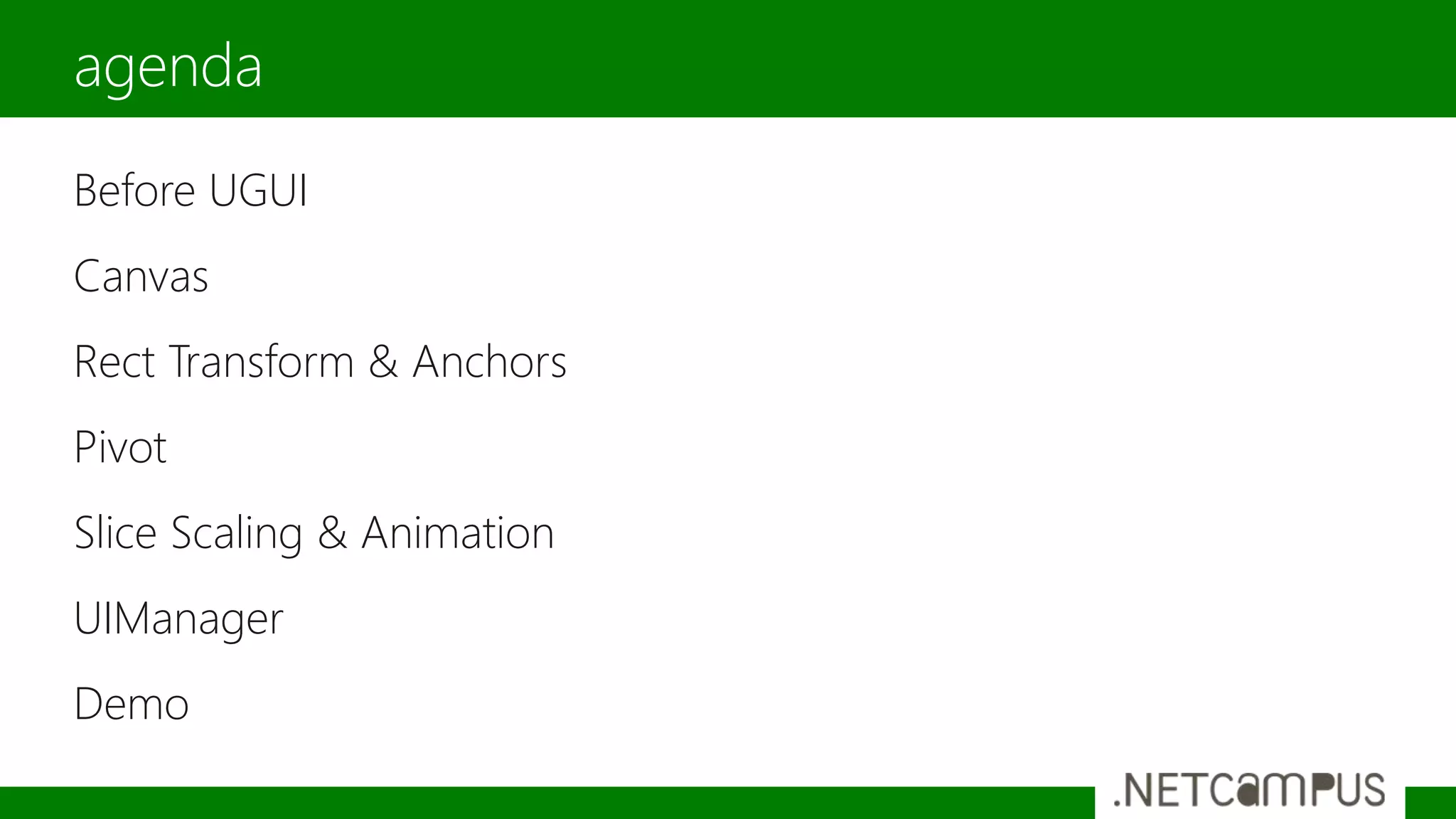

3. Before UGUI
Canvas
Rect Transform & Anchors
Pivot
Slice Scaling & Animation
UIManager
Demo
agenda

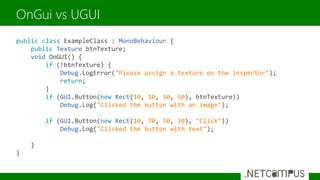

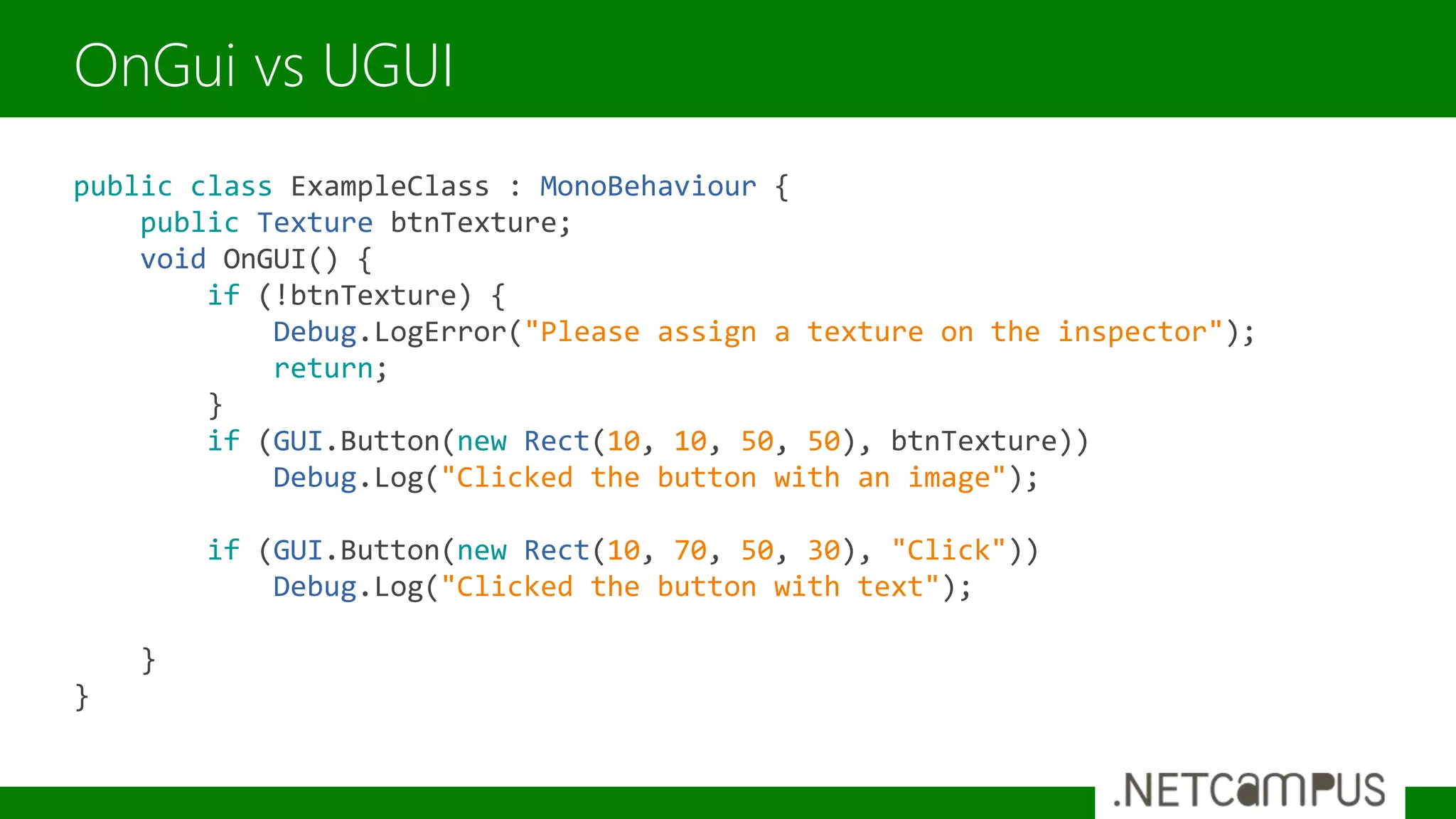

4. public class ExampleClass : MonoBehaviour {
public Texture btnTexture;
void OnGUI() {
if (!btnTexture) {
Debug.LogError("Please assign a texture on the inspector");
return;
}
if (GUI.Button(new Rect(10, 10, 50, 50), btnTexture))
Debug.Log("Clicked the button with an image");
if (GUI.Button(new Rect(10, 70, 50, 30), "Click"))
Debug.Log("Clicked the button with text");
}
}
OnGui vs UGUI

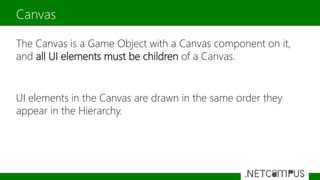

5. The Canvas is a Game Object with a Canvas component on it,
and all UI elements must be children of a Canvas.
UI elements in the Canvas are drawn in the same order they
appear in the Hierarchy.
Canvas

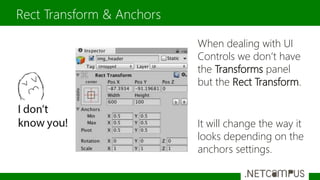

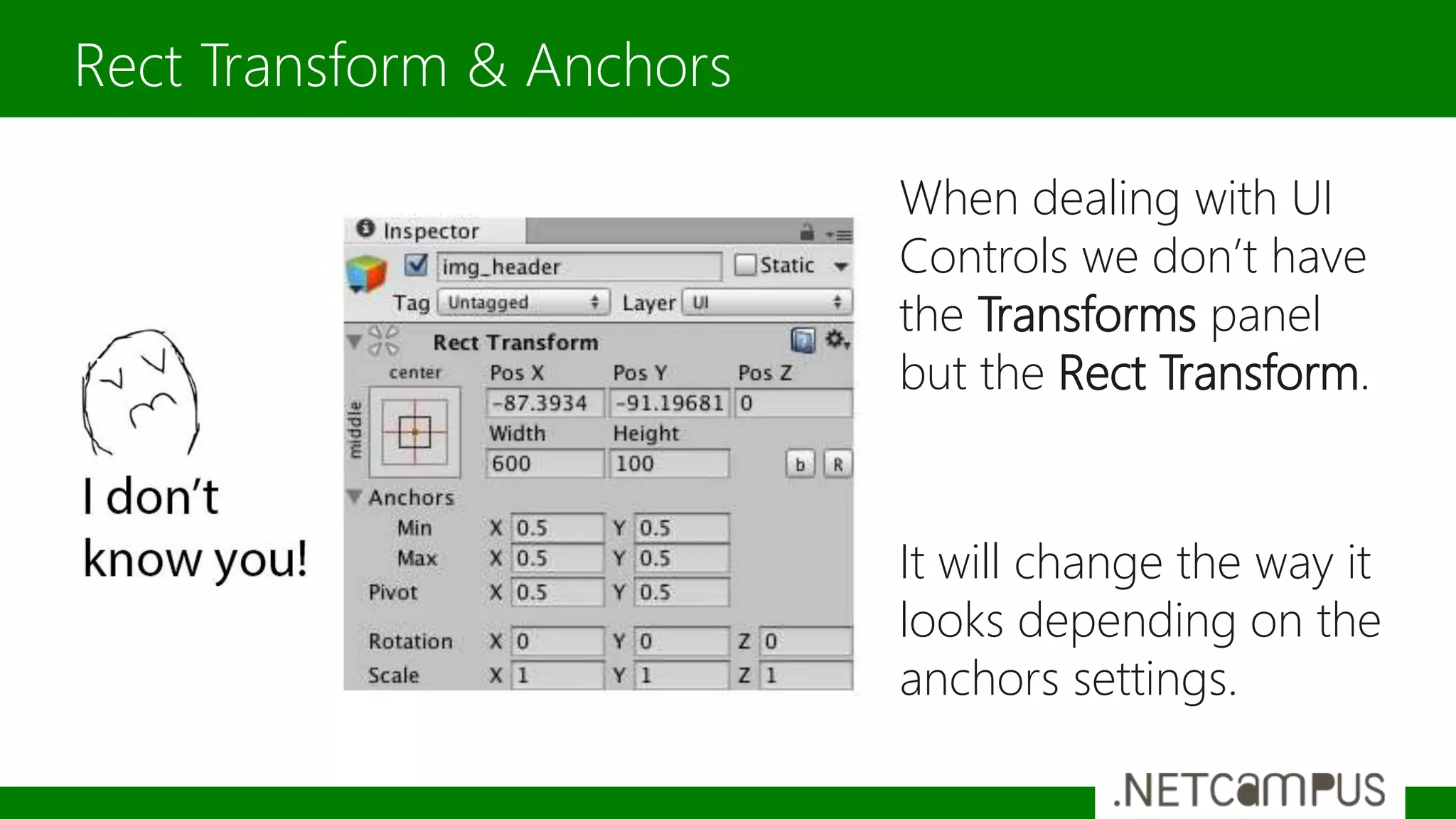

6. When dealing with UI
Controls we don’t have
the Transforms panel
but the Rect Transform.
It will change the way it
looks depending on the
anchors settings.
Rect Transform & Anchors

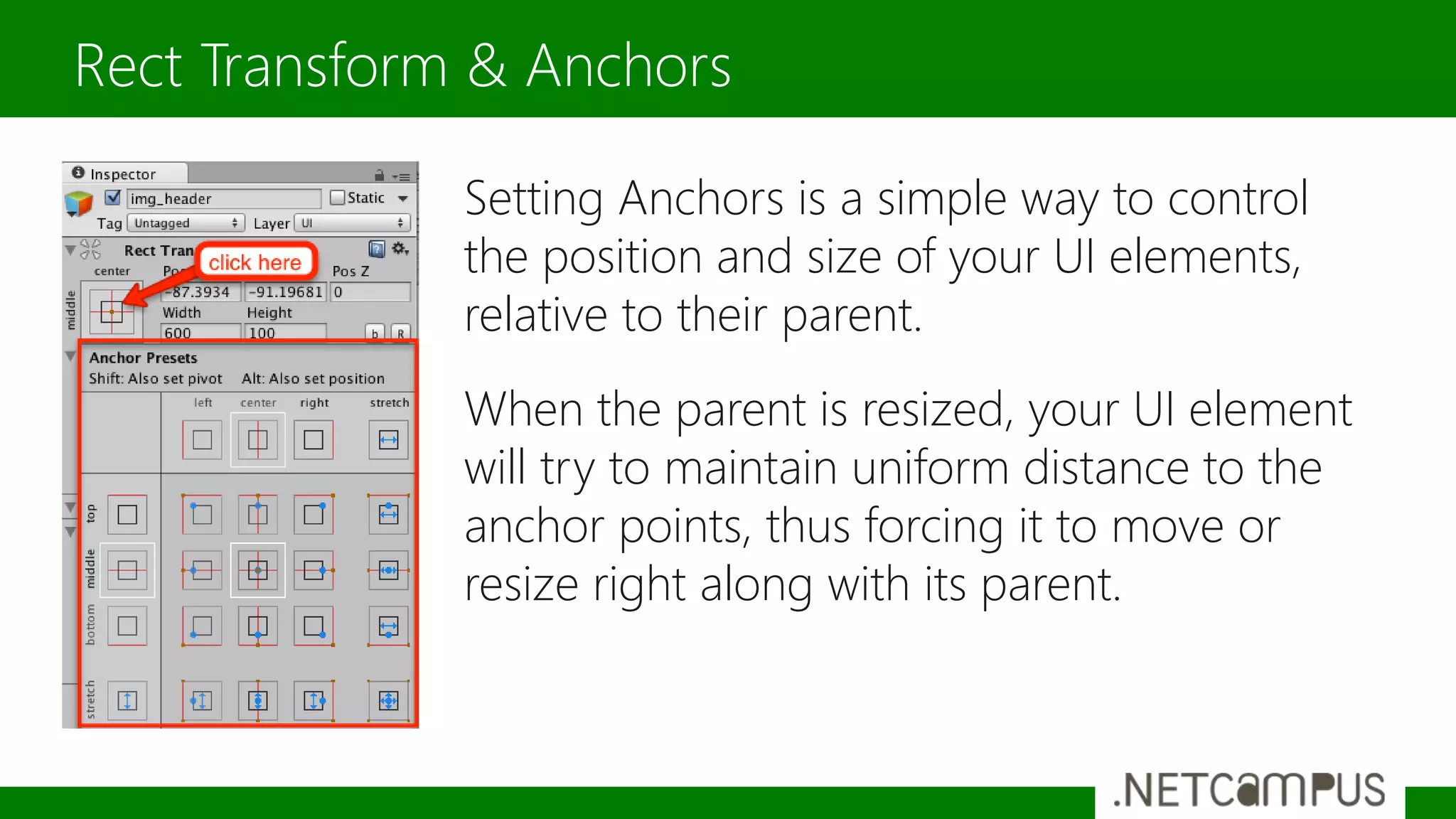

7. Setting Anchors is a simple way to control
the position and size of your UI elements,
relative to their parent.
When the parent is resized, your UI element
will try to maintain uniform distance to the
anchor points, thus forcing it to move or
resize right along with its parent.
Rect Transform & Anchors

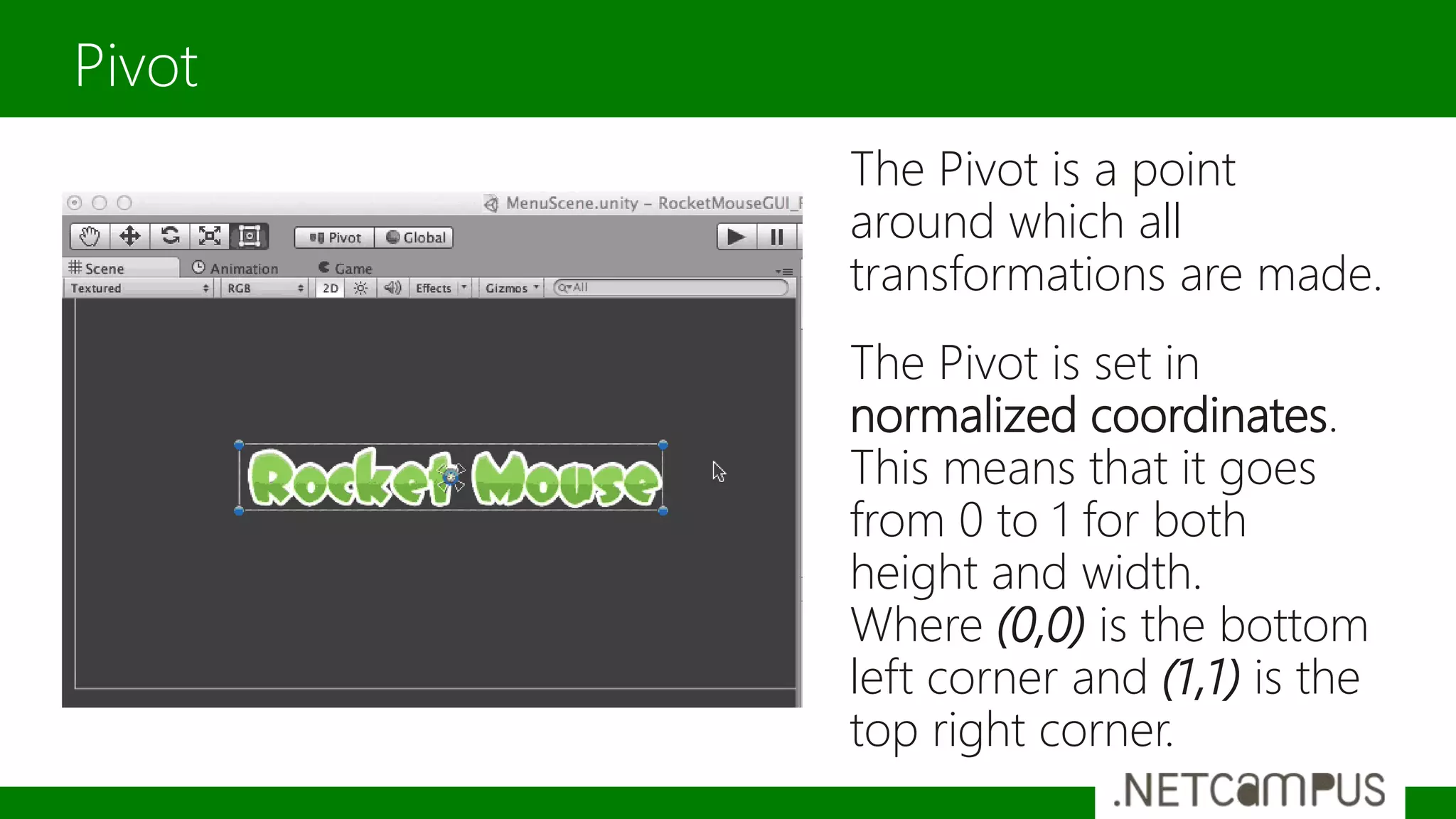

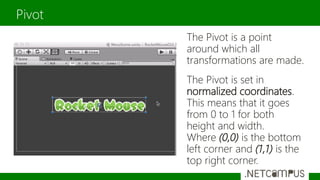

8. The Pivot is a point
around which all
transformations are made.
The Pivot is set in
normalized coordinates.
This means that it goes
from 0 to 1 for both
height and width.
Where (0,0) is the bottom
left corner and (1,1) is the
top right corner.
Pivot

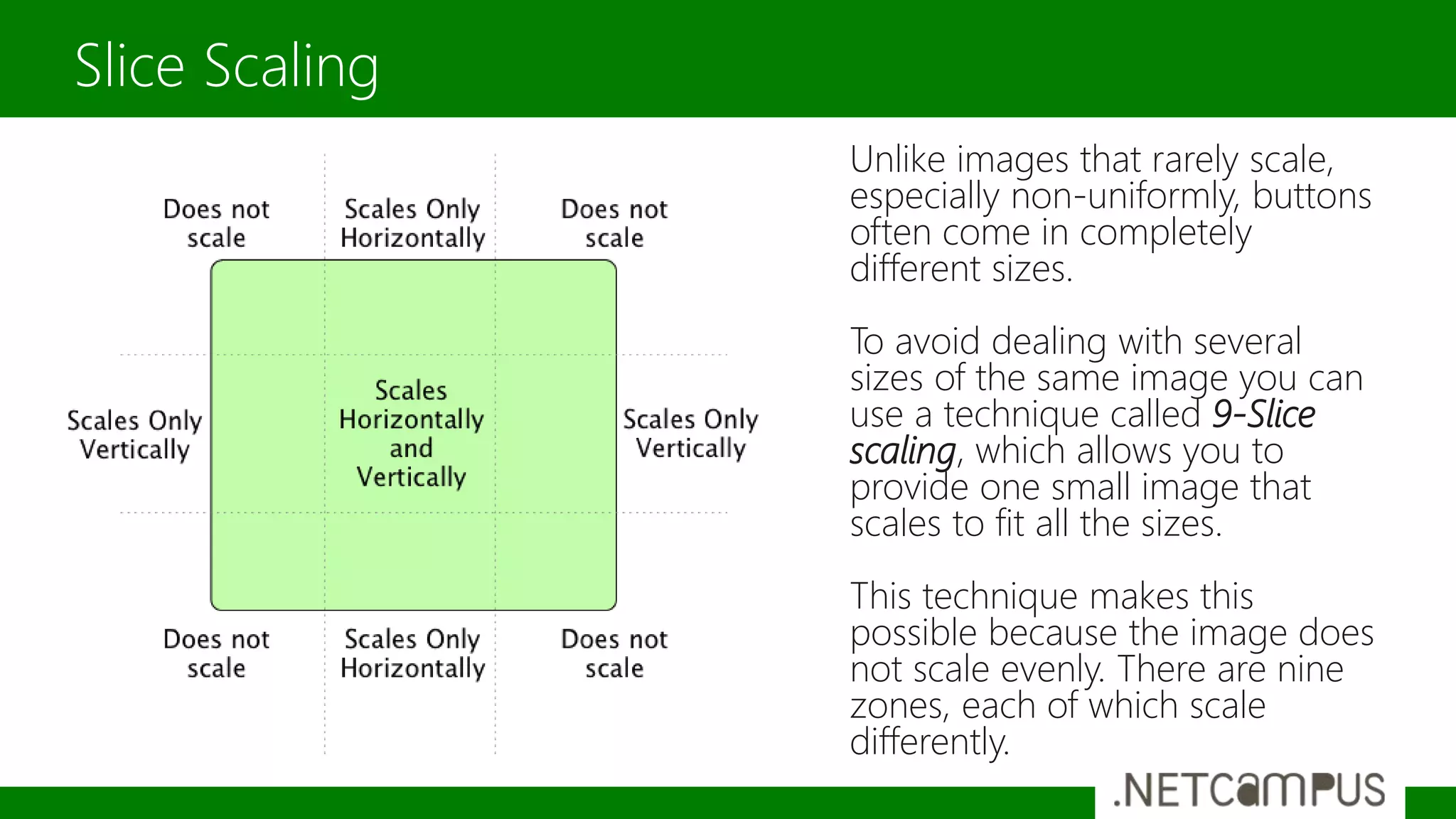

9. Unlike images that rarely scale,
especially non-uniformly, buttons
often come in completely
different sizes.
To avoid dealing with several
sizes of the same image you can
use a technique called 9-Slice
scaling, which allows you to
provide one small image that
scales to fit all the sizes.
This technique makes this
possible because the image does
not scale evenly. There are nine
zones, each of which scale
differently.
Slice Scaling

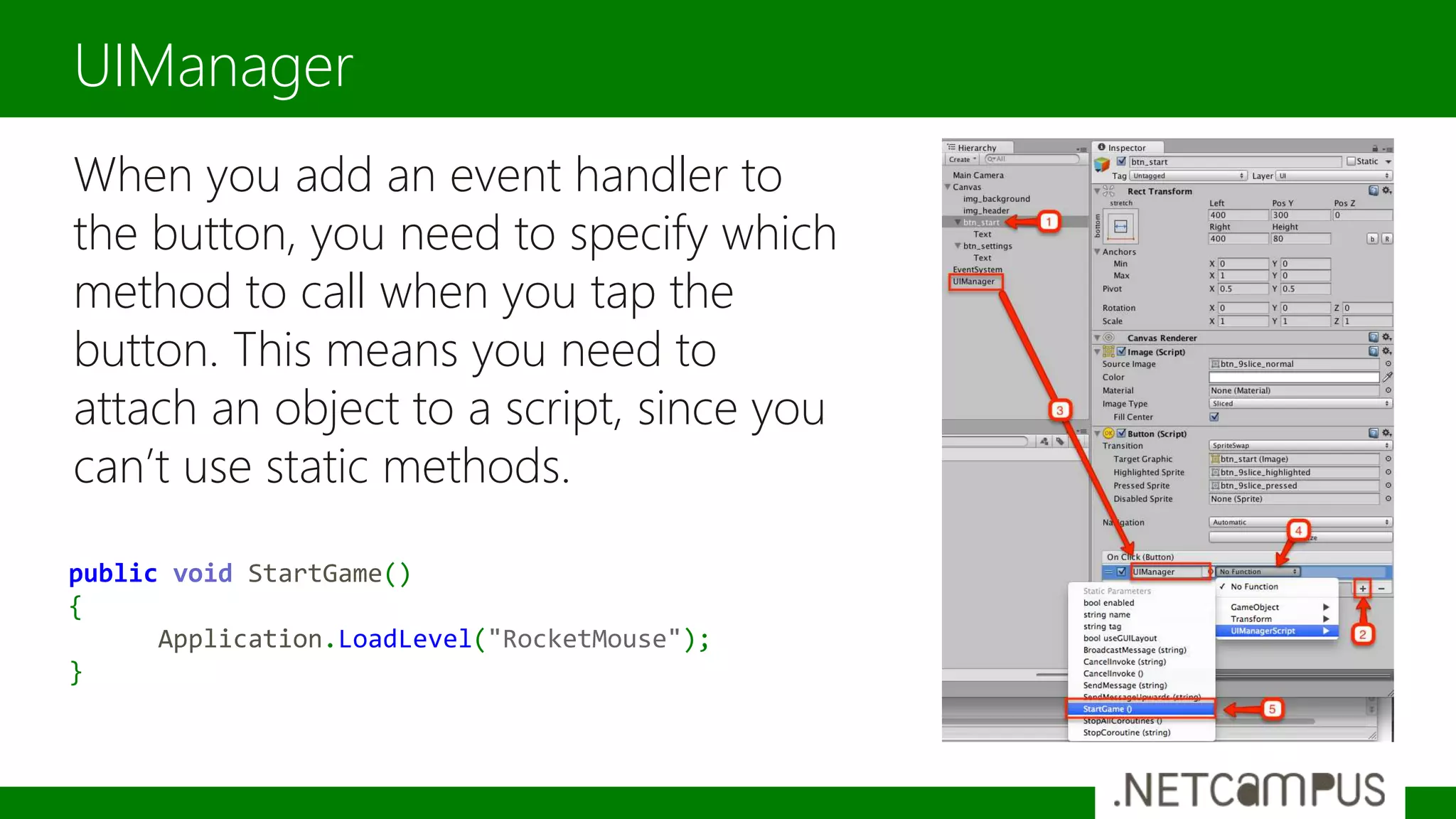

10. When you add an event handler to
the button, you need to specify which
method to call when you tap the
button. This means you need to
attach an object to a script, since you
can’t use static methods.
UIManager
public void StartGame()
{
Application.LoadLevel("RocketMouse");
}

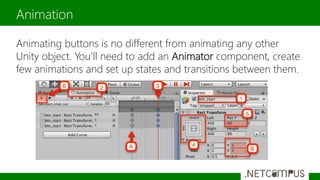

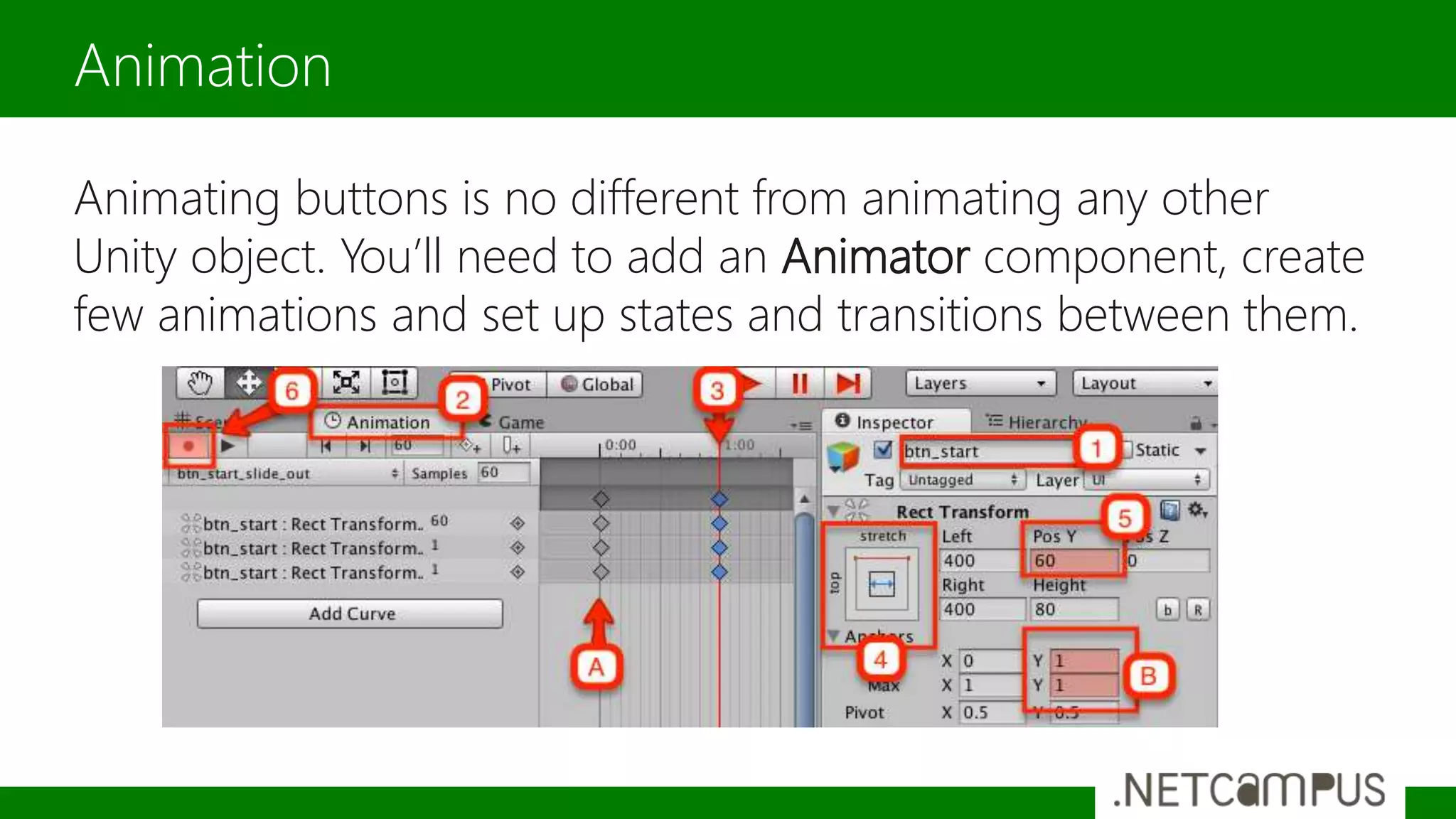

11. Animating buttons is no different from animating any other
Unity object. You’ll need to add an Animator component, create
few animations and set up states and transitions between them.
Animation

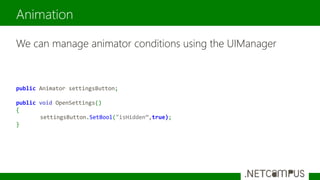

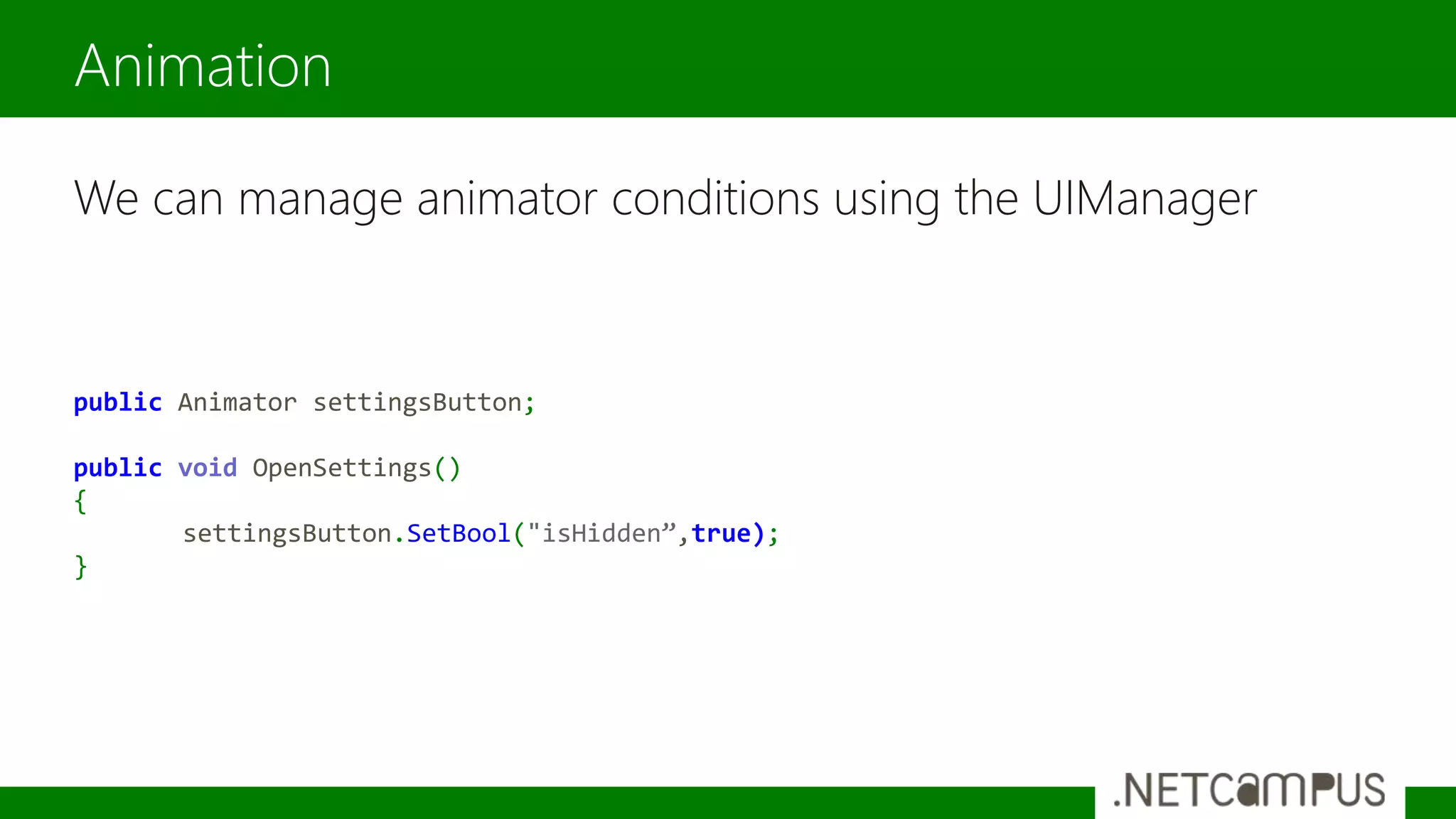

12. We can manage animator conditions using the UIManager
Animation
public Animator settingsButton;
public void OpenSettings()
{
settingsButton.SetBool("isHidden”,true);
}

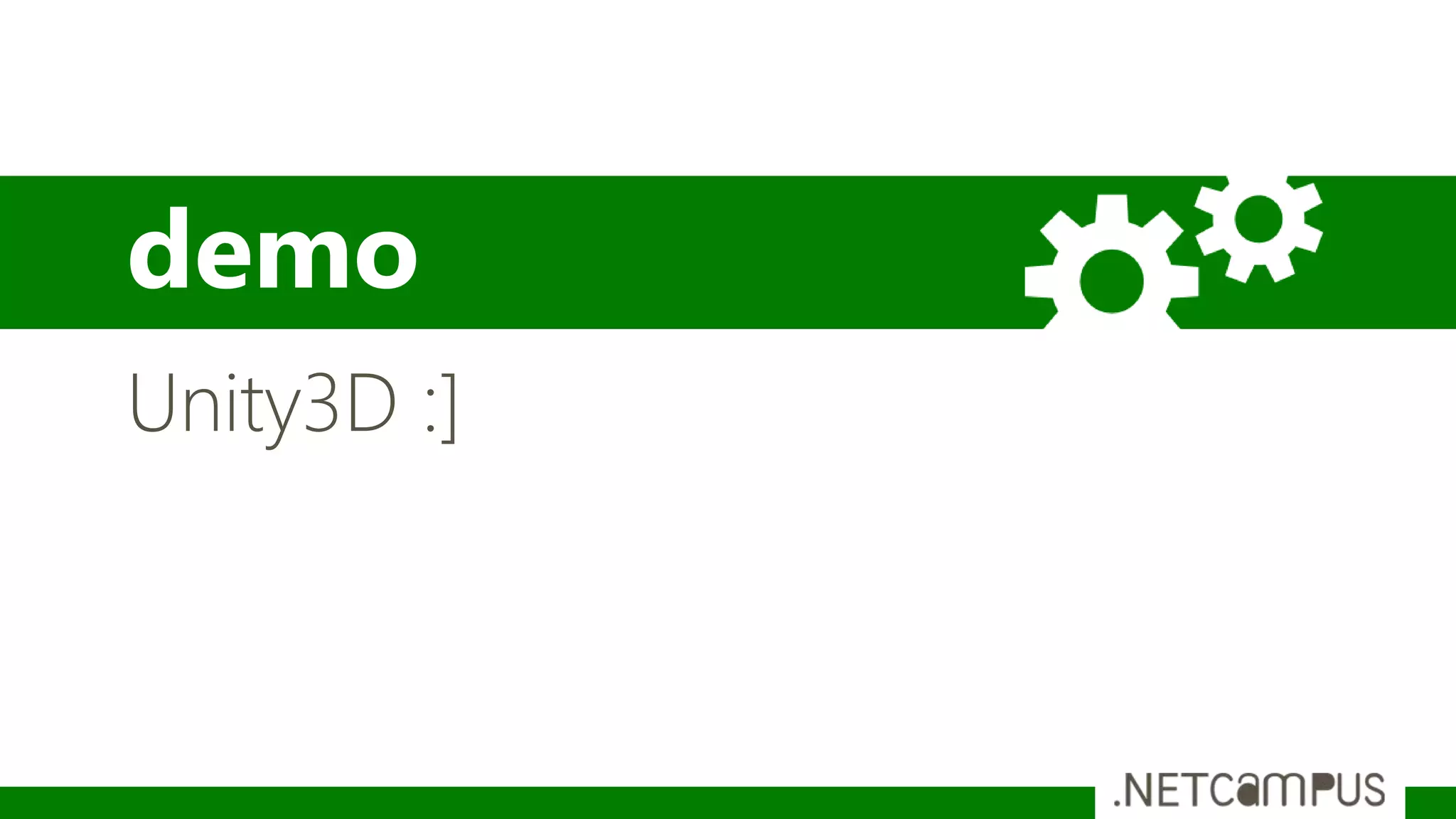

13. demo
Unity3D :]

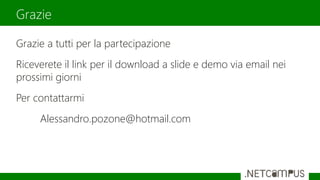

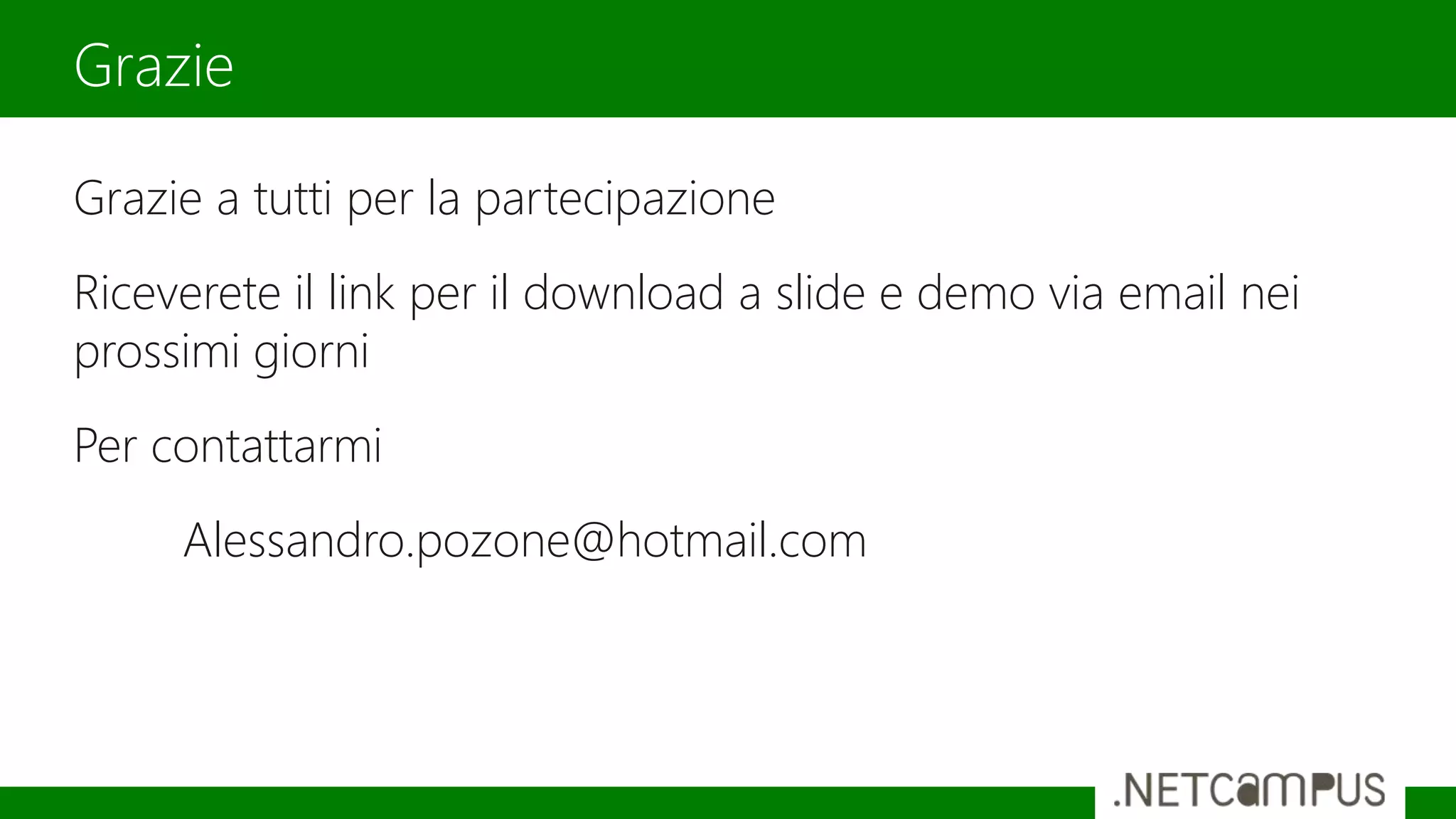

14. Grazie a tutti per la partecipazione
Riceverete il link per il download a slide e demo via email nei
prossimi giorni
Per contattarmi
Alessandro.pozone@hotmail.com
Grazie
