Interactive Simulation and Visualization
of Large-Scale Flooding Scenarios

2. 2Challenge the future
Introduction
Brisbane/ Queensland: Getty / Jonathan Wood Indonesia: NASA

3. 3Challenge the future
Introduction

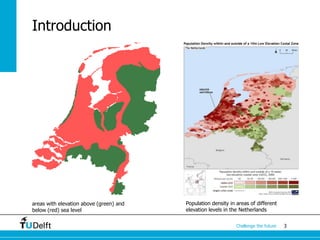

areas with elevation above (green) and
below (red) sea level
Population density in areas of different
elevation levels in the Netherlands

4. 4Challenge the future
Introduction

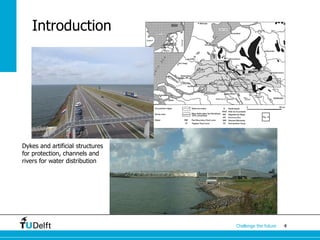

Dykes and artificial structures
for protection, channels and
rivers for water distribution

5. 5Challenge the future

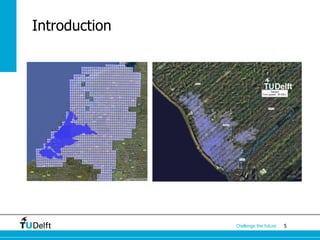

Introduction

6. 6Challenge the future
Topic Overview

7. 7Challenge the future

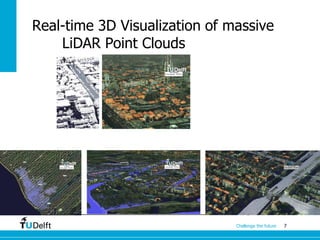

Real-time 3D Visualization of massive
LiDAR Point Clouds

8. 8Challenge the future
Real-time 3D Visualization of massive
LiDAR Point Clouds

9. 9Challenge the future
Real-time 3D Visualization of massive
LiDAR Point Clouds
Local Feature Size
Scale-Space [Perona1990]
Gradient Magnitude-based
Features [Zhou and Sun]

10. 10Challenge the future
Real-time 3D Visualization of massive
LiDAR Point Clouds

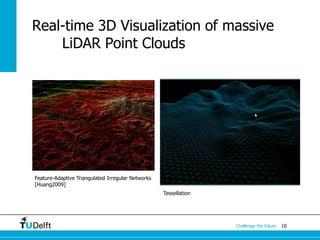

Feature-Adaptive Triangulated Irregular Networks
[Huang2009]
Tessellation

11. 11Challenge the future
Real-time 3D Visualization of massive
LiDAR Point Clouds
Labelling [Moosmann2009]
too coarse
too fine

12. 12Challenge the future
Real-time 3D Visualization of massive
LiDAR Point Clouds

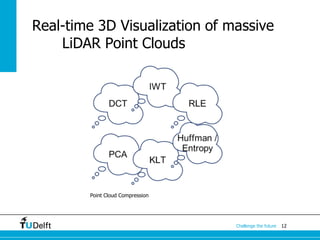

Point Cloud Compression

13. 13Challenge the future
Interactive, adaptive Simulation of
Flooding Scenarios

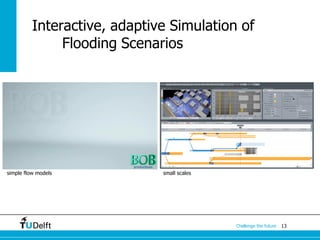

simple flow models small scales

14. 14Challenge the future
Interactive, adaptive Simulation of
Flooding Scenarios

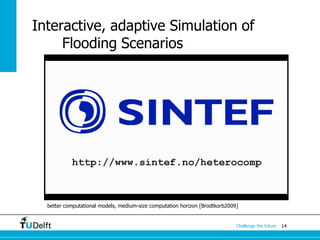

better computational models, medium-size computation horizon [Brodtkorb2009]

15. 15Challenge the future

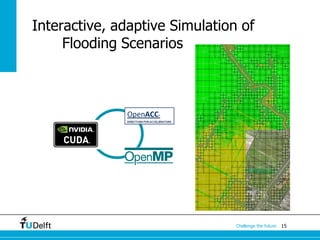

Interactive, adaptive Simulation of
Flooding Scenarios

16. 16Challenge the future
Interactive, adaptive Simulation of
Flooding Scenarios
general public
decision makers

17. 17Challenge the future

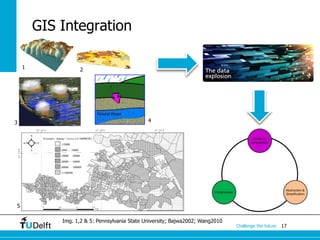

GIS Integration
Img. 1,2 & 5: Pennsylvania State University; Bajwa2002; Wang2010
1 2
3 4
5

18. 18Challenge the future
Multi-Scenario, Comparative
Simulation Visualization

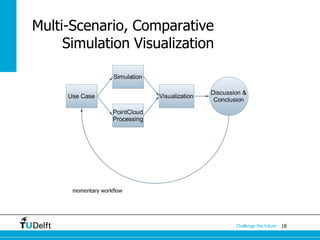

momentary workflow

19. 19Challenge the future
Multi-Scenario, Comparative
Simulation Visualization

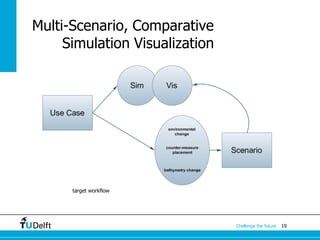

target workflow

20. 20Challenge the future
Multi-Scenario, Comparative
Simulation Visualization
Uncertainty Visualization [Hengl2004]
Computational Steering

21. 21Challenge the future

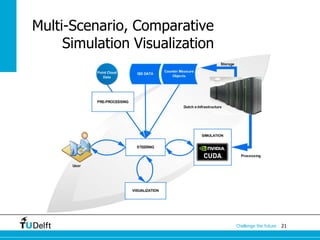

Multi-Scenario, Comparative
Simulation Visualization
