- 1. Service Oriented Architecture:An Integration Blueprint Guido Schmutz Oracle ACE Director Principal Consultant / Partner [email_address]
- 2. Agenda Integration ArchitectureBlueprint Road to the Integration Blueprint Scenarios Integration Platforms 29.07.2010 Data are always part of the game.

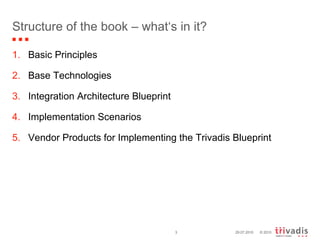

- 3. Structure of thebook – what‘s in it? Basic Principles Base Technologies Integration Architecture Blueprint Implementation Scenarios Vendor Products for Implementing the Trivadis Blueprint 29.07.2010
- 4. Why do weneed Integration? Why is integration necessary If everything would be build in a green field approach, we theoretically have no integration concerns at all Goal of SOA: Increased Intrinsic interoperability => Thomas Erl systems that are not interoperable need to be integrated Integration can be seen as the process that enables interoperability Integration on different levels Transport Protocol Message Protocol Different Vendor products/stacks/frameworks 29.07.2010
- 5. History of theIntegration Architecture Blueprint 2 1/2 years ago the Architecture Board started to document the „Integration Architecture Blueprint“ based On our knowledge and experience with lots of traddional as well as more modern integration projects Database based solutions ETL Solutions Enterprise Application Integration (EAI) Service-Oriented Integration We wanted to define and document an easy to use approach and methodology to structure, design and understand existing as well as new application landscapes from the perspective of integration Vendor neutral Product neutral Approach neutral (SOA, EAI, ETL), applicable to mixed use cases 29.07.2010
- 6. History of theIntegration Architecture Blueprint Lot‘s of discussions lead to the german version of the book, published almost 2 years ago Together with my co-authors Peter Welkenbach and Daniel Liebhard Good feedback from our colleagues, partners and customers lead us to the idea of publishing it in English Updated and actualized version of the german book Actual, up-to-date mapping of vendor platforms to the blueprint 29.07.2010
- 7. What is theIntegration Architecture Blueprint ? Integration Architecture Blueprint shows how to structure, describe and understand existing application landscapes from the perspective of integration Easy to use approach, with no or minimal tooling support (whiteboard or graphical tool like Visio are enough) Ideally show a given integration solution on one single page Architecture (an design) level, NOT implementation level Deviding the integration architecture into 4 layers Process Mediation Collection and Distribution Communication (graphical) Domain Specific Language (DSL) for describing integration concerns 29.07.2010

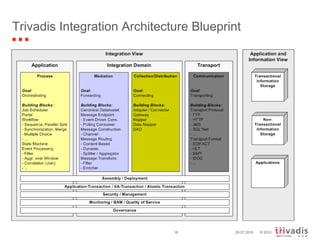

- 8. Trivadis Integration ArchitectureBlueprint 29.07.2010

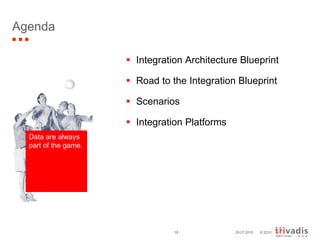

- 9. Agenda Integration ArchitectureBlueprint Road to the Integration Blueprint Scenarios Integration Platforms 29.07.2010 Data are always part of the game.

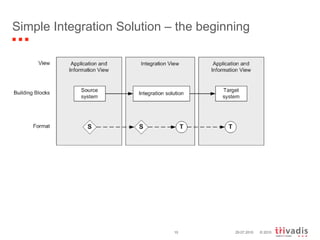

- 10. Simple Integration Solution– the beginning 29.07.2010

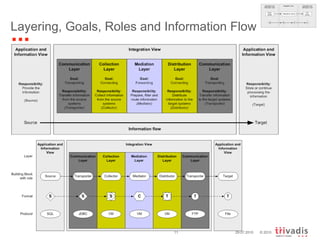

- 11. Layering, Goals, Rolesand Information Flow 29.07.2010
- 12. Building Blocks andRoles 29.07.2010

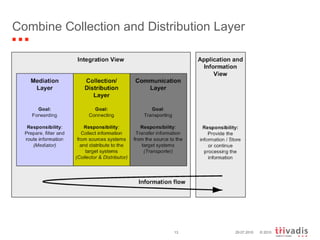

- 13. Combine Collection andDistribution Layer 29.07.2010

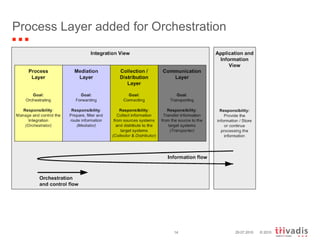

- 14. Process Layer addedfor Orchestration 29.07.2010

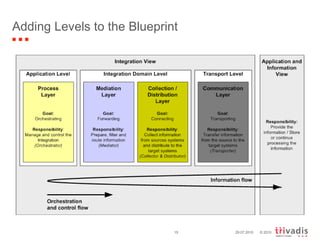

- 15. Adding Levels tothe Blueprint 29.07.2010
- 16. Trivadis Integration ArchitectureBlueprint 29.07.2010
- 17. Canonical Data Model:why ? 29.07.2010
- 18. Agenda Integration ArchitectureBlueprint Road to the Integration Blueprint Scenarios Integration Platforms 29.07.2010 Data are always part of the game.

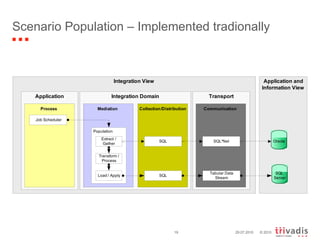

- 19. Scenario Population –Implemented tradionally 29.07.2010

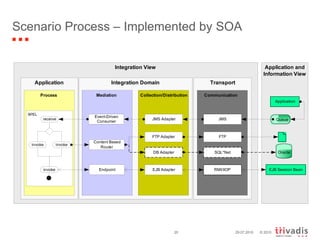

- 20. Scenario Process –Implemented by SOA 29.07.2010

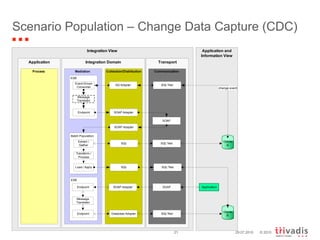

- 21. Scenario Population –Change Data Capture (CDC) 29.07.2010

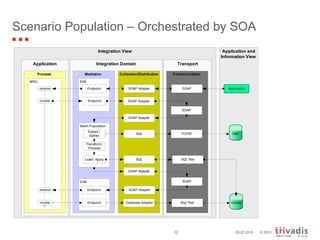

- 22. Scenario Population –Orchestrated by SOA 29.07.2010

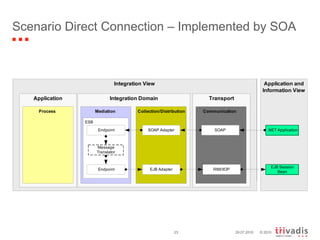

- 23. Scenario Direct Connection– Implemented by SOA 29.07.2010

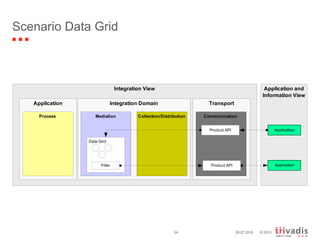

- 24. Scenario Data Grid29.07.2010

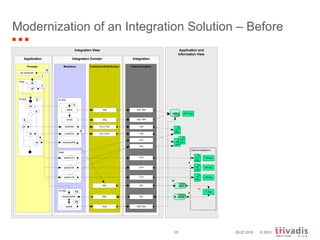

- 25. Modernization of anIntegration Solution – Before 29.07.2010
- 26. Modernization of anIntegration Solution – After 29.07.2010
- 27. Agenda Integration ArchitectureBlueprint Road to the Integration Blueprint Scenarios Integration Platforms 29.07.2010 Data are always part of the game.
- 28. Oracle Fusion Middleware29.07.2010

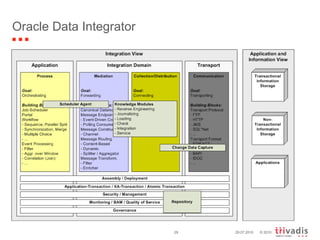

- 29. Oracle Data Integrator29.07.2010

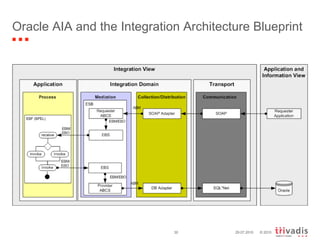

- 30. Oracle AIA andthe Integration Architecture Blueprint 29.07.2010

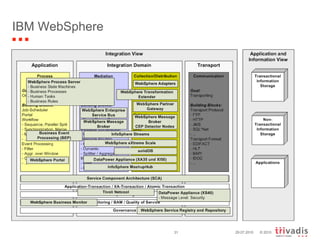

- 31.

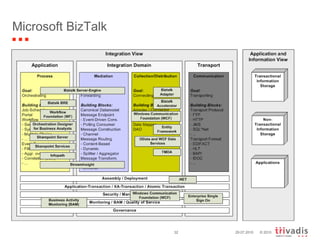

- 32.
- 33. Open Source andSpring 29.07.2010
- 34. Thank you! ?www.trivadis.com
