1. Visual C# .Net using
framework 4.5
Eng. Mahmoud Ouf
Lecture 12
mmouf@2018

2. Asynchronous
Programming
mmouf@2018

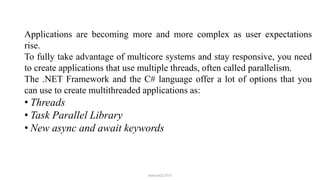

3. Applications are becoming more and more complex as user expectations
rise.
To fully take advantage of multicore systems and stay responsive, you need
to create applications that use multiple threads, often called parallelism.
The .NET Framework and the C# language offer a lot of options that you
can use to create multithreaded applications as:
• Threads
• Task Parallel Library
• New async and await keywords
mmouf@2018

4. Threads
mmouf@2018

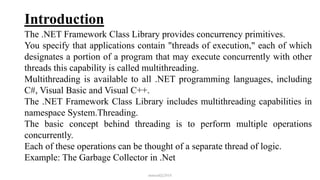

5. Introduction
The .NET Framework Class Library provides concurrency primitives.
You specify that applications contain "threads of execution," each of which
designates a portion of a program that may execute concurrently with other
threads this capability is called multithreading.
Multithreading is available to all .NET programming languages, including
C#, Visual Basic and Visual C++.
The .NET Framework Class Library includes multithreading capabilities in
namespace System.Threading.
The basic concept behind threading is to perform multiple operations
concurrently.
Each of these operations can be thought of a separate thread of logic.
Example: The Garbage Collector in .Net
mmouf@2018

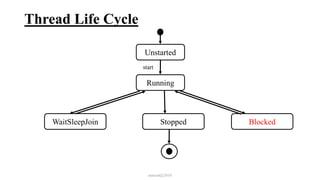

6. Thread Life Cycle
mmouf@2018
Unstarted
Running
Stopped
start
WaitSleepJoin Blocked

7. Creating and Executing Threads
To create a thread follow the following steps:
1) Create an object from class Thread. This class has only one constructor
takes an object from ThreadStart delegate
2) So, We must define an object from ThreadStart delegate to pass it to the
Thread class constructor
3) Before creating object from the delegate, we must define the function that
will be attached to that delegate and will execute when the Thread object
runs.
This function must : return void and didn’t take any parameter
Note: the Last sequence must be: 3, then 2, then 1
4) Call the Start method of the Thread class to begin execution of the thread.
mmouf@2018

8. Creating and Executing Threads
class Program
{
static void MyThreadMethod()
{
Console.WriteLine("Hello From My Custom Thread");
for (int i = 0; i < 10; i++)
{
Console.Write("{0} ", i);
}
Console.WriteLine();
Console.WriteLine("Bye From My Custom Thread");
}
mmouf@2018

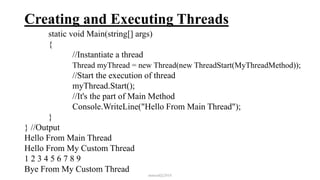

9. Creating and Executing Threads
static void Main(string[] args)
{
//Instantiate a thread
Thread myThread = new Thread(new ThreadStart(MyThreadMethod));
//Start the execution of thread
myThread.Start();
//It's the part of Main Method
Console.WriteLine("Hello From Main Thread");
}
} //Output
Hello From Main Thread
Hello From My Custom Thread
1 2 3 4 5 6 7 8 9
Bye From My Custom Thread
mmouf@2018

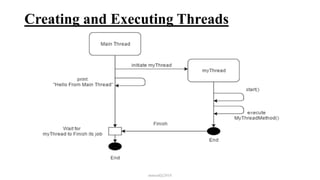

10. Creating and Executing Threads
mmouf@2018

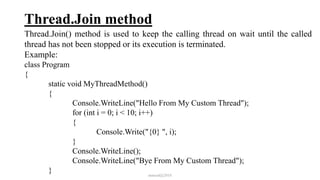

11. Thread.Join method
Thread.Join() method is used to keep the calling thread on wait until the called
thread has not been stopped or its execution is terminated.
Example:
class Program
{
static void MyThreadMethod()
{
Console.WriteLine("Hello From My Custom Thread");
for (int i = 0; i < 10; i++)
{
Console.Write("{0} ", i);
}
Console.WriteLine();
Console.WriteLine("Bye From My Custom Thread");
} mmouf@2018

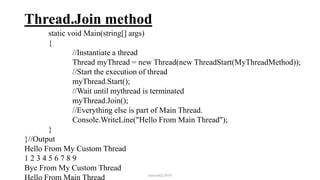

12. Thread.Join method
static void Main(string[] args)
{
//Instantiate a thread
Thread myThread = new Thread(new ThreadStart(MyThreadMethod));
//Start the execution of thread
myThread.Start();
//Wait until mythread is terminated
myThread.Join();
//Everything else is part of Main Thread.
Console.WriteLine("Hello From Main Thread");
}
}//Output
Hello From My Custom Thread
1 2 3 4 5 6 7 8 9
Bye From My Custom Thread
Hello From Main Thread mmouf@2018

13. Thread.Join method
mmouf@2018

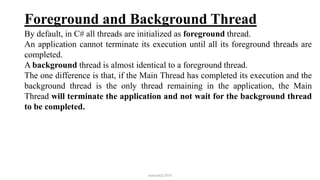

14. Foreground and Background Thread
By default, in C# all threads are initialized as foreground thread.
An application cannot terminate its execution until all its foreground threads are
completed.
A background thread is almost identical to a foreground thread.
The one difference is that, if the Main Thread has completed its execution and the
background thread is the only thread remaining in the application, the Main
Thread will terminate the application and not wait for the background thread
to be completed.
mmouf@2018

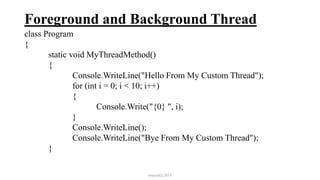

15. Foreground and Background Thread
class Program
{
static void MyThreadMethod()
{
Console.WriteLine("Hello From My Custom Thread");
for (int i = 0; i < 10; i++)
{
Console.Write("{0} ", i);
}
Console.WriteLine();
Console.WriteLine("Bye From My Custom Thread");
}
mmouf@2018

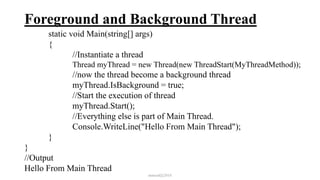

16. Foreground and Background Thread
static void Main(string[] args)
{
//Instantiate a thread
Thread myThread = new Thread(new ThreadStart(MyThreadMethod));
//now the thread become a background thread
myThread.IsBackground = true;
//Start the execution of thread
myThread.Start();
//Everything else is part of Main Thread.
Console.WriteLine("Hello From Main Thread");
}
}
//Output
Hello From Main Thread
mmouf@2018

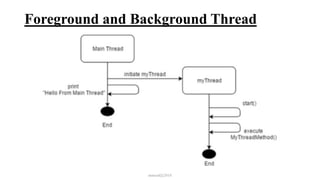

17. Foreground and Background Thread
mmouf@2018

18. Thread Priorities and Thread Scheduling
The Windows operating system supports a concept, called timeslicing, that
enables threads of equal priority to share a processor.
Without timeslicing, each thread in a set of equal-priority threads runs to
completion (unless the thread leaves the Running state and enters the
WaitSleepJoin, Suspended or Blocked state) before the thread's peers get a
chance to execute.
With timeslicing, each thread receives a brief burst of processor time, called
a quantum, during which the thread can execute.
At the completion of the quantum, even if the thread has not finished
executing, the processor is taken away from that thread and given to the next
thread of equal priority, if one is available.
On a single-core computer, the Windows operating system allocate “slices”
of time to each thread (typically 20 ms in Windows)
mmouf@2018

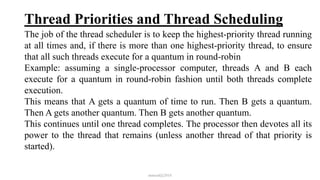

19. Thread Priorities and Thread Scheduling
The job of the thread scheduler is to keep the highest-priority thread running
at all times and, if there is more than one highest-priority thread, to ensure
that all such threads execute for a quantum in round-robin
Example: assuming a single-processor computer, threads A and B each
execute for a quantum in round-robin fashion until both threads complete
execution.
This means that A gets a quantum of time to run. Then B gets a quantum.
Then A gets another quantum. Then B gets another quantum.
This continues until one thread completes. The processor then devotes all its
power to the thread that remains (unless another thread of that priority is
started).
mmouf@2018

20. Thread Priorities and Thread Scheduling
A thread's priority can be adjusted with the Priority property, which accepts
values from the ThreadPriority enumeration
(Lowest, BelowNormal, Normal, AboveNormal and Highest. By default,
each thread has priority Normal).
mmouf@2018

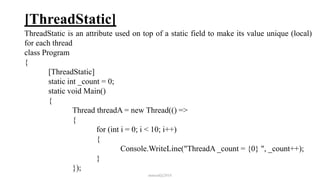

21. [ThreadStatic]
ThreadStatic is an attribute used on top of a static field to make its value unique (local)
for each thread
class Program
{
[ThreadStatic]
static int _count = 0;
static void Main()
{
Thread threadA = new Thread(() =>
{
for (int i = 0; i < 10; i++)
{
Console.WriteLine("ThreadA _count = {0} ", _count++);
}
});
mmouf@2018

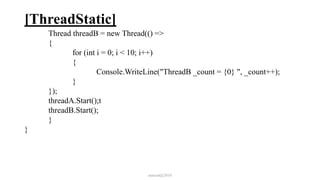

22. [ThreadStatic]
Thread threadB = new Thread(() =>
{
for (int i = 0; i < 10; i++)
{
Console.WriteLine("ThreadB _count = {0} ", _count++);
}
});
threadA.Start();t
threadB.Start();
}
}
mmouf@2018

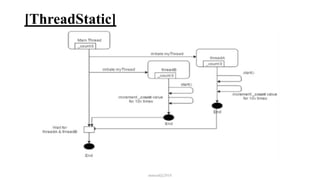

23. [ThreadStatic]
mmouf@2018

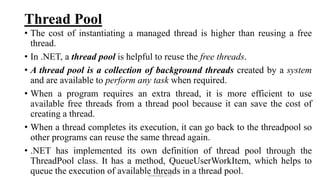

24. Thread Pool
• The cost of instantiating a managed thread is higher than reusing a free
thread.
• In .NET, a thread pool is helpful to reuse the free threads.
• A thread pool is a collection of background threads created by a system
and are available to perform any task when required.
• When a program requires an extra thread, it is more efficient to use
available free threads from a thread pool because it can save the cost of
creating a thread.
• When a thread completes its execution, it can go back to the threadpool so
other programs can reuse the same thread again.
• .NET has implemented its own definition of thread pool through the
ThreadPool class. It has a method, QueueUserWorkItem, which helps to
queue the execution of available threads in a thread pool.mmouf@2018

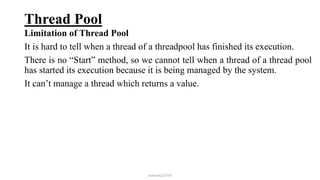

25. Thread Pool
Limitation of Thread Pool
It is hard to tell when a thread of a threadpool has finished its execution.
There is no “Start” method, so we cannot tell when a thread of a thread pool
has started its execution because it is being managed by the system.
It can’t manage a thread which returns a value.
mmouf@2018

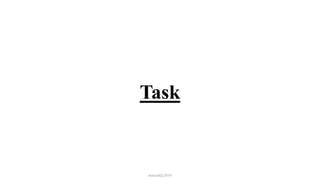

26. Task
mmouf@2018

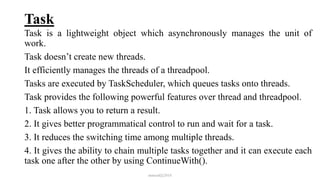

27. Task
Task is a lightweight object which asynchronously manages the unit of
work.
Task doesn’t create new threads.
It efficiently manages the threads of a threadpool.
Tasks are executed by TaskScheduler, which queues tasks onto threads.
Task provides the following powerful features over thread and threadpool.
1. Task allows you to return a result.
2. It gives better programmatical control to run and wait for a task.
3. It reduces the switching time among multiple threads.
4. It gives the ability to chain multiple tasks together and it can execute each
task one after the other by using ContinueWith().
mmouf@2018

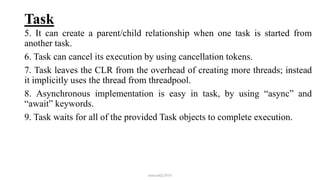

28. Task
5. It can create a parent/child relationship when one task is started from
another task.
6. Task can cancel its execution by using cancellation tokens.
7. Task leaves the CLR from the overhead of creating more threads; instead
it implicitly uses the thread from threadpool.
8. Asynchronous implementation is easy in task, by using “async” and
“await” keywords.
9. Task waits for all of the provided Task objects to complete execution.
mmouf@2018

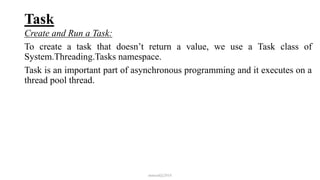

29. Task
Create and Run a Task:
To create a task that doesn’t return a value, we use a Task class of
System.Threading.Tasks namespace.
Task is an important part of asynchronous programming and it executes on a
thread pool thread.
mmouf@2018

30. Task
class Program
{
static void Main()
{
//initialize mytask and assign
//a unit of work in form of 'myMethod()'
Task myTask = new Task(myMethod);
myTask.Start();// Start the execution of mytask
myTask.Wait(); //Wait until mytask finish its job
//It's the part of Main Method
Console.WriteLine("Bye From Main Thread");
}
mmouf@2018

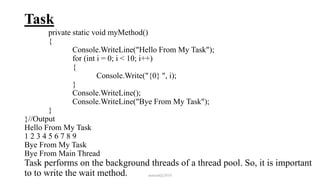

31. Task
private static void myMethod()
{
Console.WriteLine("Hello From My Task");
for (int i = 0; i < 10; i++)
{
Console.Write("{0} ", i);
}
Console.WriteLine();
Console.WriteLine("Bye From My Task");
}
}//Output
Hello From My Task
1 2 3 4 5 6 7 8 9
Bye From My Task
Bye From Main Thread
Task performs on the background threads of a thread pool. So, it is important
to to write the wait method. mmouf@2018

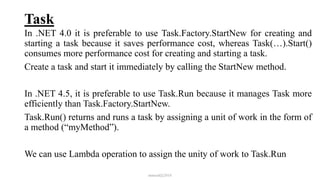

32. Task
In .NET 4.0 it is preferable to use Task.Factory.StartNew for creating and
starting a task because it saves performance cost, whereas Task(…).Start()
consumes more performance cost for creating and starting a task.
Create a task and start it immediately by calling the StartNew method.
In .NET 4.5, it is preferable to use Task.Run because it manages Task more
efficiently than Task.Factory.StartNew.
Task.Run() returns and runs a task by assigning a unit of work in the form of
a method (“myMethod”).
We can use Lambda operation to assign the unity of work to Task.Run
mmouf@2018

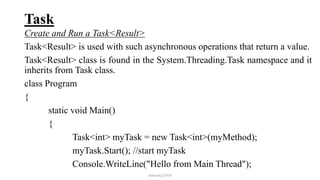

33. Task
Create and Run a Task<Result>
Task<Result> is used with such asynchronous operations that return a value.
Task<Result> class is found in the System.Threading.Task namespace and it
inherits from Task class.
class Program
{
static void Main()
{
Task<int> myTask = new Task<int>(myMethod);
myTask.Start(); //start myTask
Console.WriteLine("Hello from Main Thread");
mmouf@2018

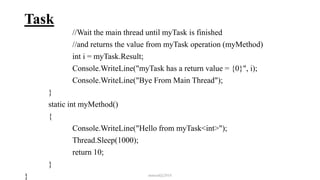

34. Task
//Wait the main thread until myTask is finished
//and returns the value from myTask operation (myMethod)
int i = myTask.Result;
Console.WriteLine("myTask has a return value = {0}", i);
Console.WriteLine("Bye From Main Thread");
}
static int myMethod()
{
Console.WriteLine("Hello from myTask<int>");
Thread.Sleep(1000);
return 10;
}
} mmouf@2018

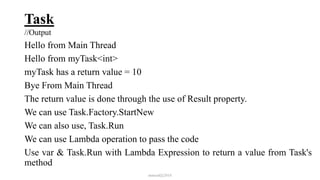

35. Task
//Output
Hello from Main Thread
Hello from myTask<int>
myTask has a return value = 10
Bye From Main Thread
The return value is done through the use of Result property.
We can use Task.Factory.StartNew
We can also use, Task.Run
We can use Lambda operation to pass the code
Use var & Task.Run with Lambda Expression to return a value from Task's
method
mmouf@2018

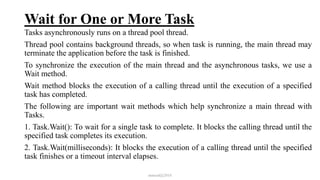

36. Wait for One or More Task
Tasks asynchronously runs on a thread pool thread.
Thread pool contains background threads, so when task is running, the main thread may
terminate the application before the task is finished.
To synchronize the execution of the main thread and the asynchronous tasks, we use a
Wait method.
Wait method blocks the execution of a calling thread until the execution of a specified
task has completed.
The following are important wait methods which help synchronize a main thread with
Tasks.
1. Task.Wait(): To wait for a single task to complete. It blocks the calling thread until the
specified task completes its execution.
2. Task.Wait(milliseconds): It blocks the execution of a calling thread until the specified
task finishes or a timeout interval elapses.
mmouf@2018

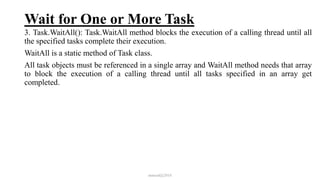

37. Wait for One or More Task
3. Task.WaitAll(): Task.WaitAll method blocks the execution of a calling thread until all
the specified tasks complete their execution.
WaitAll is a static method of Task class.
All task objects must be referenced in a single array and WaitAll method needs that array
to block the execution of a calling thread until all tasks specified in an array get
completed.
mmouf@2018

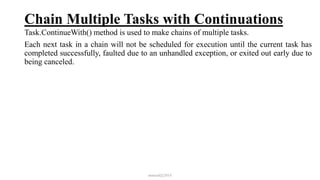

38. Chain Multiple Tasks with Continuations
Task.ContinueWith() method is used to make chains of multiple tasks.
Each next task in a chain will not be scheduled for execution until the current task has
completed successfully, faulted due to an unhandled exception, or exited out early due to
being canceled.
mmouf@2018

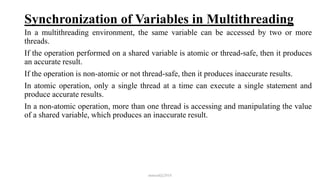

39. Synchronization of Variables in Multithreading
In a multithreading environment, the same variable can be accessed by two or more
threads.
If the operation performed on a shared variable is atomic or thread-safe, then it produces
an accurate result.
If the operation is non-atomic or not thread-safe, then it produces inaccurate results.
In atomic operation, only a single thread at a time can execute a single statement and
produce accurate results.
In a non-atomic operation, more than one thread is accessing and manipulating the value
of a shared variable, which produces an inaccurate result.
mmouf@2018

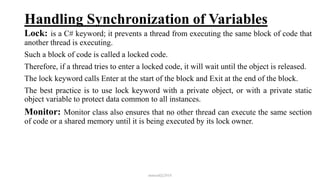

40. Handling Synchronization of Variables
Lock: is a C# keyword; it prevents a thread from executing the same block of code that
another thread is executing.
Such a block of code is called a locked code.
Therefore, if a thread tries to enter a locked code, it will wait until the object is released.
The lock keyword calls Enter at the start of the block and Exit at the end of the block.
The best practice is to use lock keyword with a private object, or with a private static
object variable to protect data common to all instances.
Monitor: Monitor class also ensures that no other thread can execute the same section
of code or a shared memory until it is being executed by its lock owner.
mmouf@2018

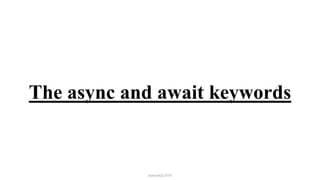

41. The async and await keywords
mmouf@2018

42. The async and await keywords
In .NET 4.5, Microsoft introduced the async and await keywords that made it very easy
for developers to implement asynchronous functionality in their methods.
Adding the async keyword to the method header tells .NET's CLR to run this method in a
separate thread in the threadpool.
An async method will either return void, Task, or Task<TResult>. Also, the naming
convention is to postfix any methods that use the async keyword with Async.
mmouf@2018
