threading, networking & permissions final version

1. pUp3EkaP

2. Yarkoni
IronSource
Android Academy
Women Techmakers

3. ~ 1500 members Largest Android Active Community

4. What Do We Do?
●Android Fundamentals
●Android UI / UX
●Community Hackathon
●Android Performance
●Mentors Program

5. Online Lessons
Important:
Watch online lesson
before the meetup!
- Our course:
“Developing Android
Apps”
goo.gl/u1pxZv
- Optional: Nano Degree
- Optional: “Android Basics” courses

7. The Course Plan
- Online lesson @ home
- Lecture @ Campus
- Hands-on @ Campus
- Questions @ Facebook

8. Yarkoni
Android Leader
Ironsource
Android Academy Staff
Yonatan Levin
Google Developer Expert &
Android @ Gett
Britt Barak
Android Leader
Figure8
Yossi Segev
Android Developer
Crave

9. Mentors program

10. Community Mentors
Refael “Hero” Ozeri

11. Lecture #2: Threads,
Networking & Permissions
Understanding the concept of
Multi Threading

12. What’s For Today?
● Logging
● Processes
● Threads
● Android Thread Abstractions
● Permissions

13. Logging
Definition:
A logfile is a file that records either events that occur in an
operating system or other software runs.

14. Logging
Definition:
A logfile is a file that records either events that occur in an
operating system or other software runs.

15. *.java
Log.d(“MY-APP’S-TAG”, "message");

16. Logging

17. Logging
Why is logging important?
Good Practice.
Constant monitoring.
Helps debug fast without the need for breakpoints.
In the context of this lesson: Thread awareness.
Don’t leave logs open in production.

18. Logging - Where can I see it?
HERE

19. Logging - levels
Log levels
verbose (all)
debug
info
warn
error

20. Great Log Wrapper

21. Great Log Wrapper

22. Code with filter !

23. What’s For Today?
● Logging
● Processes
● Threads
● Android Thread Abstractions
● Permissions

24. Reminder
Java.
Linux.

25. Processes
(The app)

26. Processes - Android Priority
If system is stressed and needs to clear memory - the process will
be killed together with its’ threads.
ProcessProcess

27. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

28. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

29. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

30. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

31. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

32. Processes - Android Priority
1.Foreground.
2.Visible.
3.Service.
4.Background.
5.Empty.

33. Processes - Android Priority
You’re most important if you are affecting the user’s experience.
You can never be lower than what you are serving.

34. Processes - CPU Time Split
Foreground & Visible -
90%
Service & Background & Empty -
10%

35. Threads

36. Threads
Like Linux a process is created with a single
Thread of execution.
Process
Thread A

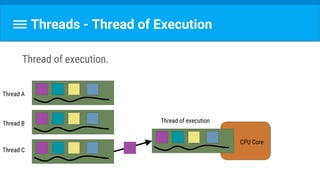

37. Threads - Thread of Execution
Thread of execution.
CPU Core
Thread of execution
Thread A
Thread B
Thread C

38. Threads - Thread of Execution
Thread of execution.
CPU Core
Thread of execution
Thread A
Thread B
Thread C

39. Threads - Thread of Execution
Thread of execution.
CPU Core
Thread of execution
Thread A
Thread B
Thread C

40. Threads
Java & Android Threads
Moderate to large operation.
Not tied to activity lifecycle.
Reusable.
Number 1 cause of memory leak.

41. Threads
Java & Android Threads
Moderate to large operation.
Not tied to activity lifecycle.
Reusable.
Number 1 cause of memory leak.

42. I’m
Collector,
Garbage Collector

43. Never have a Non-Static Inner Class

44. Always an Inner Class be Static

45. Processes vs. Threads
Processes
Separate address space.
Communicate via IPC.
Threads
Share address space.
Communicate using handlers.

46. Processes vs. Threads
Processes
Separate address space.
Communicate via IPC.
Threads
Share address space.
Communicate using handlers.

47. Threads - Memory
Threading isn’t memory safe.
Thread A
Thread B
Memory
Write
Write
???

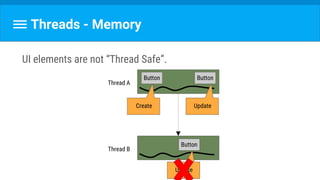

48. Threads - Memory
UI elements are not “Thread Safe”.
Thread A
Thread B
Button Button
Button
Create Update
Update

49. Start a new Thread and pass it a UI element

50. Manipulate UI element from off Thread

51. CRASH

52. CRASH

53. What is the Thread for UI elements?

54. Solution

55. Main Thread

56. Main Thread
UI thread responsibilities:
Dispatches events.
Draws on screen.
Handles user input.

57. Process
What’s On The Main Thread?
Main Thread (UI Thread)
System Event Input Event Service Application UI Drawing

58. Example: Action lifecycle on UI thread
User presses on a
button
UI Thread
dispatches touch
event to the
widget
Widget sets its
pressed state
Posts an
invalidate to the
request queue on
UI thread
The UI thread
dequeues the
request and
notifies widget to
redraw itself

59. Reminder - Blocking Action Definition
A Thread that is blocked is waiting for a completion of an operation.

60. Process
What’s On The Main Thread?
Main Thread (UI Thread)
System
Event
UI
Drawing
Your code!~!!!~!
16ms 16ms 16ms
UI
Drawing
UI
Drawing
16ms 16msDropped Frame

61. We Have A Winner!
Smooth
Motion
60
No
Difference
60+
Flip Book
12
Movies
Frames Per Second
Fluid Motion
24
+effects
Smooth
Motion
60

63. What happens if you delay the UI thread for
more than 16ms?

64. At 60Hz it takes 16.67ms to render a frame
therefore if you take up those 16.67 a frame
will be dropped.

65. Main Thread - 2 rules
Do not block the UI thread.
Do not access the UI toolkit from non UI thread.

66. Main Thread
What happens if you block the UI thread for more than 5 seconds?

67. Main Thread
What happens if the app is slow to respond?
Do you think users will say:
“Oh it’s my slow connection”
“I shouldn’t have scrolled so fast”
“Silly me wanting to see the whole image right when the screen opens”

69. We’ve established it’s the
developer’s job
to offload long operations from the
Main Thread
to an a Non UI Thread

70. Off Thread

71. Off Thread - Usages
Database operations.
Networking operations.
Long running operations.

72. Android has your back!

73. Framework Abstractions
AsyncTask
Helps get work off/on the UI thread.
HandlerThread
Dedicated thread for API callbacks.
ThreadPool
Running lots of parallel work.

74. AsyncTask

75. AsyncTask
Fit for short operations.
Fit for operations which require UI Manipulation at the end.
Unaware of activity life cycle.
Single time execution.
Serial vs. Concurrent for all AsyncTasks.
Has a state and can be cancelled.

76. AsyncTask
WorkerThread
doInBackground ()
onPreExecute ()
MainThread
onPostExecute ()

77. AsyncTask
WorkerThread
doInBackground ()
onPreExecute ()
MainThread
onProgressUpdate ()
onPostExecute ()
publishProgress()

80. How to Create and Start an AsyncTask

81. AsyncTask always returns on Main Thread

82. MainActivity.java

83. MainActivity.java

84. MainActivity.java

86. Before we go let’s see how to get back!
Activity.runOnUiThread(Runnable)
View.post(Runnable)
BroadcastReceiver
Main Thread (UI Thread)
Thread A
Thread B

87. HandlerThread

88. Reminder
Main Thread (UI Thread)
Process
System
Event
UI
Drawing
Your code!~!!!~!
16ms 16ms 16ms
UI
Drawing
UI
Drawing
16ms 16msDropped Frame

89. Worker Thread
We don’t want to block the main thread so we create a worker
thread.
Main Thread (UI Thread)
Thread ATask Task Complete

90. Worker Thread
Main Thread (UI Thread)
Thread ATask 0 Task Complete
Task 1
Task 2
Task 3

91. How can we create a thread capable of
handling multiple consecutive tasks?

92. Worker Thread - Recipe
Handler + Looper + Thread = HandlerThread

93. Worker Thread - Recipe
1.Create a Thread.
2.Attach a Looper to a Thread.
3.Get the Handler from the Looper.
4.Use Handler to send messages (tasks).

94. Handlers
Schedule task for the future.
Enqueue task for another thread.

95. Handlers - Methods
handler.post();
handler.postAtFrontOfQueue();
handler.postDelayed();
handler.postAtTime();

96. MainActivity.java

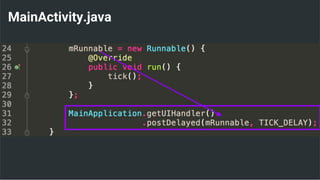

97. MainActivity.java

98. Looper
Class used to run a message loop for a thread. Threads by default do
not have a message loop associated with them; to create one, call
prepare() in the thread that is to run the loop, and then loop() to have
it process messages until the loop is stopped.

99. A Deeper Look
Main Thread (UI Thread)
Looper
Message queue
Handler
Handle
MSG
Send
MSG
Process

102. Sending a message to a Thread

103. Putting it all together

104. Threads Handlers and Looper

105. Handlers

106. Handlers

107. Handlers

108. Handlers

109. One more thing - Don’t forget to quit!
HandlerThread.quit();

111. Thread Priority

112. Thread Priority
THREAD_PRIORITY_LOWEST = 19
THREAD_PRIORITY_BACKGROUND = 10
THREAD_PRIORITY_LESS_FAVORABLE = +1
THREAD_PRIORITY_MORE_FAVORABLE = -1
THREAD_PRIORITY_URGENT_AUDIO = -19
Threads created on foreground inherit foreground priority = -2

113. Thread Priority - Higher means Lower

114. Why URGENT_AUDIO is the highest priority (-
19)?

115. Sound delay is even more noticeable than
frame skipping.

116. Does this mean I should handle all the
priorities of every Thread created?

117. Thread Pool Executor

118. Thread Pool executor
Handles Spinning.
Handles Load Balancing.
Handles killing Threads when they are idle.

119. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

120. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

121. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

122. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

123. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

124. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

125. Thread Pool executor
BlockingQueue
Thread A
Thread B
Thread C
ThreadPool

126. Thread Pool executor
BlockingQueue
Thread A
Thread C
ThreadPool

127. Thread Pool Executor
How many threads is a good number of threads?

128. So if I want to get more work done I should
create more threads.
By induction: Infinite Threads!

129. Thread Pool executor
Adjust to number of cores.
64kb per thread.

130. ThreadPool Implementation

131. Passing a Task to the ThreadPool

133. IntentService

134. Example
Intent
-?-
Hard work
Intent Hard work
Intent Hard work

135. IntentService
Extends Service.
Is killed by System when queue is empty.
Can’t be interrupted.

136. Systrace

137. What’s For Today?
● Logging
● Processes
● Threads
● Android Thread Abstractions
● Permissions

138. Content
It’s everything the user sees and interacts.
Where can we get content?
Static content.
Locally on the phone.
Remote server.

139. Content
It’s everything the user sees and interacts.
Where can we get content?
Static content.
Locally on the phone.
Remote server.

140. Top apps examples: FB, SnapChat, Instagram.

141. Reminder
Database operations.
Networking operations.
Long running operations.

142. Reminder
Database operations.
Networking operations.
Long running operations.

143. Networking requests
Require the following permission:
Cannot be done on the MainThread:

144. Permissions

145. Permissions
Android is a privilege-separated operating system, in which each
application runs with a distinct system identity (Linux user ID and
group ID). Parts of the system are also separated into distinct
identities. Linux thereby isolates applications from each other and
from the system.

146. Androidmanifest.xml
<uses-permission android:name="android.permission.INTERNET"/>
<!-- external storage for saving downloaded files -->
<uses-permission
android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<!-- for performing installing/uninstalling apps -->
<uses-permission
android:name="android.permission.INSTALL_PACKAGES"/>

147. Permissions - Level
Protection level
Normal - (flashlight, internet, NFC)
Dangerous - (Read / write external storage)
Signature - (defined per use case)
SigantureOrSystem - (Install 3rd party applications)
Application defined permission.

148. Permissions - Normal vs. Dangerous
Normal: Bluetooth, Internet, NFC.
Dangerous: read/write external storage, contacts, location.
What is the key difference?

149. Permissions - Android 6.0
TargetSDKVersion
If you wrote 24 you will crash if not handled.
If you wrote <24 you will be spared.

150. Permissions - Android 6.0
Still define permissions in AndroidManifest.xml
protectionLevel = normal are granted by default.
protectionLevel = Dangerous require you
ask at runtime.
Request 1 time without consequence.

151. Permissions - Android 6.0
Still define permissions in AndroidManifest.xml
protectionLevel = normal are granted by default.
protectionLevel = Dangerous require you
ask at runtime.
Request 1 time without consequence.

152. Permissions - Vertical & Horizontal views
Auditing vertically/Horizontally.

153. MainActivity.xml

154. MainActivity.xml

155. Network Requests
(Connecting to the Cloud)

156. Network requests
Android include many network programming classes.
java.net (socket, URL, etc.)
org.apache (HttpRequest, HttpResponse, etc.)
android.net (AndroidHTTPClient, URI, AudioStream, etc.)

157. Network requests
Under the hood Android’s HTTP libraries use java socket API.
Socket definition: a software endpoint that can create a bi-directional
communication link between software processes.
Socket SocketTCP/IP

158. Network requests - InputStream

159. Network requests - InputStreamReader

160. Network requests - BufferedStreamReader

161. Network requests - HttpURLConnection

162. What is the connection?

163. build.gradle

164. build.gradle

165. MainActivity.java

166. Homework:
1.Go over AsyncTask, IntentServices,
Handlers, Threads code.
2.Watch “Create New Activities and
Navigate Apps with Intents”
3.Start developing Sunshine.

167. 34th floor

168. Drive home safe
See you next Sunday!
