Insect-o-Cuter Range

P R E V E N T I O N O F F O O D C O N TA M I N AT I O N B Y F LY I N G I N S E C T S

FLYING INSECT
CONTROL PRODUCTS
FOR EVERY SITUATION

...kills wasps
too!

ELECTRIC FLY KILLERS • GLUEBOARDS • TRAPS • FLY SCREENS AND DOORS
all with five year guarantee

C O N T E N T S

Product Series name Models Market/Features Page

Our approach W I S E™ 3
to fly problems

The Electric Main features 4
Fly Killer

Electric Focus F1 Small retailers and 5
Fly Killers F2 kitchens for versatility 5

Electric Select SE22 Medium/large retailers and 5
Fly Killers SE44 kitchens for superb styling 5

Electric Industrial IND41 Factory/warehouse for 6
Fly Killers IND61 ultra performance 6

Glueboard Discreet HyGenie Hotel, dining room and 6
Fly Killers Uplighter other discreet areas 6

Glueboard Select SE30 Medium/large retailers and 7
Fly Killers kitchens for superb styling

Glueboard Industrial IND35 Factory/warehouse for 7
Fly Killers IND65 ultra performance 7

Lamps Synergetic™ UVA-Green light technology 8

Traps Smart Integrated defence measures 9

Maintenance Easy servicing and 9
advice on siting
©
Mounting System HI-SAFE Safe and easy servicing of 10
INSECT-O-CUTOR units

Fly Screens Barrier Customised installation 10
and doors and maintenance

CRYONITE ® Non-pesticide method Back
exterminates insects page
by rapid freezing

INSECT-O-CUTORs use Synergetic ™ UVA-Green lamps, scientifically proven to be 30% more effective
than traditional UVA lamps – see page 8 for details.

2

Flying insect control solutions
for every situation
INSECT-O-CUTOR has been the technological leader in the development of electric
fly killers since introducing the original UV light units in the UK in 1962.
Originality of design, quality of manufacture and outstanding performance are
just three of the reasons why more than a million units have now been installed
in 40 countries worldwide.
The new range combines improved styling with Also part of the programme is the unique
extra power – the most effective INSECT-O-CUTOR CRYONITE ® product – it exterminates insects using
units ever made. carbon dioxide, preserving a pesticide-free
You can select the INSECT-O-CUTOR you need directly environment (see back page).
from this brochure, or for an enhanced service you Our specialists will fully evaluate the situation,
can consult us and take the W I S E ™ approach. taking the W I S E ™ approach. Their report might
W I S E ™ is INSECT-O-CUTOR’s revolutionary new conclude that your problem could be solved by the
way of looking at a flying insect problem. It stands installation of one simple unit or, in complex
for Winged Insect Systematic Elimination – it situations, of a series of different products, each
describes how we analyse and solve the problem; serving a different purpose. An example of such a
it is not a specific situation is shown here.
Implementation of product. For instance, Whatever your needs, you can be confident the
INSECT-0-CUTOR W I S E ™ is
based on a comprehensive
it takes into account W I S E ™ approach will cost-effectively deliver the
risk assessment. the varying behaviour results you need.
patterns of different
sorts of flying insects.

INSECT-O-CUTOR W I S E ™ in a factory

3

THE ELECTRIC F LY KILLER: MAIN FEATURES

High
performance
High Tool-free
self-cleaning
performance killing grid maintenance for
Synergetic™ UVA (removable for easy ease of cleaning
Green lamps for cleaning of unit) and lamp
enhanced insect replacement –
attraction no loose fittings
to misplace

Safe Optional
electrical shatterproof
isolation lamps for
when guard ‘glass-free’
is removed areas

All metal
construction FIVE YEAR
with white GUARANTEE
polyester finish Approved to (excluding
for strength and EN60335-2-59 lamps)
durability (Insect Killers
Safety Standard)

4

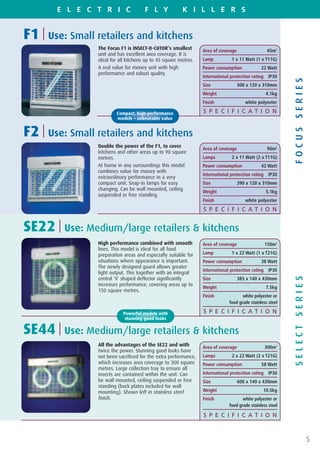

E L E C T R I C F L Y K I L L E R S

F1 | Use: Small retailers and kitchens
The Focus F1 is INSECT-O-CUTOR’s smallest Area of coverage 45m2
unit and has excellent area coverage. It is
ideal for all kitchens up to 45 square metres. Lamp 1 x 11 Watt (1 x T11G)
A real value for money unit with high Power consumption 22 Watt
performance and robust quality.
International protection rating IP30

FOCUS SERIES
Size 300 x 120 x 310mm
Weight 4.1kg
Finish white polyester

Compact, high-performance S P E C I F I C AT I O N
models – unbeatable value

F2 | Use: Small retailers and kitchens
Double the power of the F1, to cover Area of coverage 90m2
kitchens and other areas up to 90 square
metres. Lamps 2 x 11 Watt (2 x T11G)
At home in any surroundings this model Power consumption 42 Watt
combines value for money with
extraordinary performance in a very
compact unit. Snap-in lamps for easy Size 390 x 120 x 310mm
changing. Can be wall mounted, ceiling
Weight 5.1kg
suspended or free standing.
S P E C I F I C AT I O N

SE22 | Use: Medium/large retailers & kitchens
High performance combined with smooth Area of coverage 150m2
lines. This model is ideal for all food
preparation areas and especially suitable for Lamp 1 x 22 Watt (1 x T21G)
situations where appearance is important. Power consumption 38 Watt
The newly designed guard allows greater
light output. This together with an integral

SELECT SERIES
central ‘V’ shaped deflector significantly Size 385 x 140 x 430mm
increases performance, covering areas up to
Weight 7.5kg
150 square metres.
Finish white polyester or
food grade stainless steel

Powerful models with S P E C I F I C AT I O N
stunning good looks

SE44 | Use: Medium/large retailers & kitchens
All the advantages of the SE22 and with Area of coverage 300m2
twice the power. Stunning good looks have
not been sacrificed for the extra performance, Lamps 2 x 22 Watt (2 x T21G)
which increases area coverage to 300 square Power consumption 58 Watt
metres. Large collection tray to ensure all
insects are contained within the unit. Can International protection rating IP30
be wall mounted, ceiling suspended or free Size 600 x 140 x 430mm
standing (back plates included for wall
mounting). Shown left in stainless steel Weight 10.5kg
finish. Finish white polyester or


5

E L E C T R I C F L Y K I L L E R S

IND41 | Use: Factory/warehouse Area of coverage 350m2
Lamp 2 x 20 Watt shatterproof
Designed for ultimate performance in
food processing and warehousing premises, (2 xT20GS)
abattoirs, breweries, bottling and packing Power consumption 62 Watt
plants. Has a massive 350 square metres
INDUSTRIAL SERIES

coverage and comes with shatterproof
lamps as standard. Suitable for wall Size 690 x 240 x 490mm
mounting or ceiling suspension.
Weight 12.5kg

High performance and robust S P E C I F I C AT I O N
for demanding situations

IND61 | Use: Factory/warehouse
The more powerful IND61 has an increased Area of coverage 500m2
area coverage of 500 square metres. The Lamp 3 x 20 Watt shatterproof
newly designed guard for this series allows
(3 xT20GS)
greater light output. This together with an
integral central ‘V’ shaped deflector Power consumption 95 Watt
significantly increases performance. Suitable International protection rating IP44
for wall mounting or ceiling suspension.
Built to splash-proof standards. Shown left Size 690 x 240 x 490mm
in stainless steel finish, with optional extra Weight 12.7kg
large catch tray.


G L U E B O A R D F L Y K I L L E R S

High performance alternative to Electric Fly Killers
When an alternative to electric fly killing grids is required, INSECT-O-CUTOR has a complementary range of
glueboard fly killers. This includes units which are discreetly attractive, being particularly appropriate in sensitive
areas such as hotel lobbies and dining areas. They are silent in operation and exceptionally easy to maintain.

HyGenie Indistinguishable from a wall light, the
HyGenie is available in additional colours as
Area of coverage
Lamp
25m2
1 x 11 Watt (1 x T11G)
an option and is ideal for hotel lobbies and
DISCREET SERIES

dining areas. Power consumption 18 Watt
Size 300 x 100 x 150mm
Weight 1.5kg
Finish brushed stainless steel

Uplighter Covering an area of up to 40 square metres,
the Uplighter is ideal for large lobbies, bars
and dining areas. It is silent in operation and
Area of coverage 40m2
Lamp 1 x 15 Watt (1 x T15G)
caught insects are hidden from view.
Power consumption 21 Watt
Size 530 x 153 x 213mm
Weight 2.9kg
6

G L U E B O A R D F L Y K I L L E R S

SE30

SELECT SERIES
Combines an effective powerful glue board Area of coverage 80m2
fly killer with stylish looks.
Features a removable front cover for easy Lamp 2 x 15 Watt (2 x T15G)
servicing. Can be installed vertically or Power consumption 38 Watt
horizontally and be wall mounted or free-
standing.
Size 520 x 120 x 345mm
Weight 6.5kg
Finish two-tone black &
white polyester


IND35
Designed for commercial, factory and Area of coverage 120m2
warehouse situations, this unit has
shatterproof lamps as standard. Superior Lamp 2 x 15 Watt shatterproof
Glueboard performance and easy (2 xT15GS)

INDUSTRIAL SERIES
installation, suitable for wall mounting or Power consumption 38 Watt
free standing. Large capacity Glueboards
with long-life adhesive. International protection rating IP30
Size 510 x 150 x 235mm
Weight 6.5kg


IND65 Area of coverage 400m2
Lamp 4 x 20 Watt shatterproof
The ultimate in Glueboard power, this unit
(4 x T20GS)
is built to IP65 dustproof/waterproof
specifications and covers a massive area of Power consumption 104 Watt
400 square metres. Ceiling only mounting.
Available in food grade stainless steel. Large
capacity Glueboards with long-life adhesive. Size 690 x 205 x 400mm
Weight 12.0kg


G L U E B O A R D F E A T U R E S

l High performance Synergetic ™ UVA-Green lamps, l All metal construction from Zintec steel with
for enhanced insect attraction polyester powder coat finish. IND65 also available
in food grade stainless steel
l Tool-free maintenance for ease of cleaning and
l Approved to EN60335-2-59 (Insect Killers Safety
lamp replacement – no loose fittings to misplace
Standard)
l Shatterproof lamps standard on IND35 and IND65. l HyGenie available in brushed stainless steel as
Optional on other units standard. Other colours available to order
l Large capacity Glueboards with long-life adhesive l FIVE YEAR GUARANTEE (excluding lamps)

Glueboards specially formulated to last up to 3 months
7

T H E P O W E R B E H I N D I N S E C T - O - C U T O R

Synergetic ™ UVA-Green light
technology

All INSECT-O-CUTOR fly killers are fitted with the
patented Synergetic ™ UVA-Green lamp which
combines two attractant phosphors to provide
these important benefits:
l Catches common House flies, Blow flies and
Fruit flies 30% faster than traditional UVA
lamps (which appears blue to the human eye)
l Attracts a broader range of insects, including
stored product moths, where lamps with only response of stored product insects to light of
UVA light are less effective various wavelengths, with particular reference to
the design and use of light traps for population
l Keeps on working longer because the green monitoring’ by D P Rees, Trp.Sci.1985.25, 197-21.)
light phosphor hardly ever degrades, unlike
Common house flies, blow flies and fruit flies
UVA lamps which lose up to 40% of their
are more attracted to a combination of UVA and
power after 6 months. Green light. (Based on independent tests carried
Figure 1 shows the two wave length peaks for out by the Medical Entomology Centre at
UVA-Green light. Cambridge in 1994.)
Stored product beetles including tobacco beetle, Figure 2 shows the degradation of the UVA
lesser grain beetle, grain beetle, rice weevil, phosphor decreasing to output of 30% over 12
merchant grain beetle and confused flour beetle months and the green phosphor decreasing to
are attracted to the UVA spectral peak. output of 95% over the same period. (Based on
tests by INSECT-O-CUTOR and manufacturer’s
Stored product moths, including tropical warehouse
information.)
moth, warehouse moth, Mediterranean flour moth
and Indian meal moth are more attracted to the All INSECT-O-CUTOR units are fitted with Synergetic ™
Green spectral peak. (Based on ‘Review of the UVA-Green lamps as standard.

Figure 1 Figure 2

30% faster catchcatch of common flying insect species
30% faster of common flying insect species

7.5 7.5 Stored product
Stored product 7.5 7.5
100 100 Green light light
Green
beetles
beetles
Insect Relative Response (%)
Insect Relative Response (%)

Lamp Output (w/m 2 )



Stored product
Stored product
5 5 mothsmoths 5 5

UVA light light
UVA
2.5 2.5 2.5 2.5

0 0 0 0 0 0
300 300 400 400 500 500 600 600 0 0 4 4 8 8 12 12
Wavelength (nm) (nm)
Wavelength Months
Months

UVA-Green has two wavelength peaks attracting a Green light degrades much slower than UVA prolonging
broader range of flying insects. the lamp’s effectiveness.

8

T R A P S

INSECT-O-CUTOR Smart traps are unique to the W I S E ™ concept. They form part of an integrated defence
system further enhancing the speed of insect elimination by electric fly killers.

SMART SERIES
Window trap Interceptor door trap
This glueboard trap The Interceptor
works on the door trap works on
principle that once the principle that
flies have entered a flies normally fly
room they will often upwards when
fly to the nearest entering a room.
window (a source of The trap is ceiling
UV light). Window mounted with a
traps are easy to fix removable
and have a hinged glueboard and
design for easy maintenance with a removable pheromone/food lure, both hidden from view.
glueboard and pheromone/food lure.

M A I N T E N A N C E O F F L Y K I L L E R S

l All INSECT-O-CUTOR units feature TRANSFORMER INFORMA TION
tool-free maintenance
INSECT-O-CUTOR electric fly killers are
l Killing grids are self cleaning fitted with a custom-built transformer
l Glueboards should be changed at providing a constant 4,000 volts. This
prevents insects from sticking to the
least every 3 months
grid or exploding into the air and
l Lamps should be changed ensures a most efficient method
every 12 months of eliminating flies.

SERVICE SCHEDULE to cleaning and checking the
As a minimum, the fly killer should electrical system.
be serviced annually. We recommend l The body of the unit should only
twice yearly servicing: need occasional wiping over with
l One minor service to clean the a damp cloth and mild liquid
unit and check the electrical detergent. Food-safe detergent
system that has no odour must be used
l One major service to change in any food preparation or
the attractant lamps, in addition manufacturing area.

T I P S F O R I N S TA L L I N G E L E C T R I C F LY K I L L E R S

1 The ideal location for an electric fly killer is at right 6 Site between potential entry points and production
angles to the major light source in the room areas to intercept pests before they reach sensitive
2 Avoid siting too high – ideally the base of the unit areas – see W I S E ™ diagram on page 3
should be no more than 2 metres from the floor 7 In areas with a particularly aggressive or wet
3 Avoid siting the units where air currents can blow atmosphere, it is recommended that all stainless
insects away from the units steel units are used to prevent premature corrosion
4 Units must not be sited so that the light is obscured 8 For areas with a glass-free policy, use shatterproof
(if flying insects cannot see it the unit will not be lamps
very effective) 9 And finally don’t forget to change the lamp every 12
5 Avoid siting above food preparation areas months – preferably just before start of the fly season!

Area of coverage is given as a guide only and other factors including the use of the area and the number of entry points
should be taken into account when choosing a particular unit.
9

M O U N T I N G S Y S T E M

©
HI-SAFE flykiller mounting system FREE SURVEYS
AVAILABLE
The new work at Features
height regulations l Aluminium construction
2005 make it much
more difficult for l Suitable for all wall mounted flykillers
operatives to service l Factory manufactured to individual specifications. Installed
electric flykillers by our own factory-trained fitters. Free surveys available.
from a ladder.
Installation requirements
The INSECT-O-CUTOR
HI-SAFE© system is a Clear wall space from 15cm above the top of the
track mounted installed height of the flykiller to 15cm below the
installation system bottom of the
suitable for all wall service height of
mounted electric the flykiller
flykillers which (normally 115cm
means they can be from the floor).
safely serviced from Wall material
ground level. suitable for
mounting the
aluminium tracks.

F L Y S C R E E N S & D O O R S

Comprehensive Solutions and Service
INSECT-O-CUTOR offers a wide range of professional quality flyscreening services designed to solve your
entire flyscreening problems. Screens are individually tailored for any aperture and are of robust
construction made to withstand the conditions in commercial and industrial premises. They are simple to
remove to allow for regular cleaning. INSECT-O-CUTOR factory trained installers have many years’ experience
in screening windows and doors in the food industry.

Hinged screen Sliding screen
Screens are made Comprises two or three
using a polyester polyester coated
powder coated aluminium flyscreens,
aluminium frame each screen moving
BARRIER SERIES

covered with PVC independently in the
coated fibreglass sliding channel of the
mesh which is fire framework allowing
retardant. The mesh is easy movement and
held in place with a access to windows.
pliable rubber gasket
designed to keep the mesh taut and secure. Screens are
kept in place by retaining clips and can be easily
removed for cleaning.

Centre pivot screen Box screen
A centre pivot Where the design of
window screened in the window is complex
two sections, one (such as louvre
internal and one windows) a made to
external. A 45º angled measure aluminium box
brush-strip completes can be manufactured to
the fly proof seal. ensure that the window
can still open with the
screen in place.

10

F L Y S C R E E N S & D O O R S

Fly screen door Chain link screen
A powder coated, Provides an effective
heavy duty, barrier against flying
aluminium framed insects. Chain link
door. The PVC coated screens can be very
fibreglass mesh, effective in situations
together with the where rigid screen
aluminium doors cannot be used

BARRIER SERIES
amplimesh, gives e.g. fire doors. They
strength and are made of
protection. Push and aluminium giving a
kick plates fitted to the middle and base of the door clean, bright finish and non-rust durability. They are
add to durability and save money in the long term due quick to install and are designed for easy access and
to long life. are fully removable.

Mesh screen for domestic applications
INSECT-O-CUTOR is able to offer professional fly
screening services for the domestic market. The
screens supplied are of the same quality as those
produced for the demanding commercial and
industrial markets.

F L Y S C R E E N S & D O O R S F E A T U R E S

l Free surveys carried out by our own experienced l Clean lines. Minimal space for entrapment of dirt.
surveyors Easy to clean
l 5 year guarantee – our commitment to quality l Easily removable for cleaning which complies with
and service Food Safety regulations
l Nationwide coverage l Flyscreen mesh is held in place by gasket, not glued
l Factory made for absolute accuracy and no or welded, so can easily be replaced if damaged
on-site disruption l INSECT-O-CUTOR offers a life-long maintenance
l Factory trained installation engineers for a perfect guarantee for complete peace of mind
installation
l Widest range of options to solve all your fly LIFE LONG MAINTENANCE
screening needs GUARANTEE
l All metal frames for strength and durability All flyscreens and doors come with a maintenance
l Angled corner cleat for less stress on mesh giving guarantee. For a low annual service charge, the units
are inspected every six months. Units are removed on
the screen a longer life
site for cleaning and any faulty parts replaced at no
l PVC coated fibreglass mesh, strong and durable – will cost. Flyscreens and doors can be kept in tip top
not run or crease. Fire retardant and unobtrusive condition for a lifetime.

11

NE
W
® Fast, non-toxic extermination
CRYONITE
The new non-pesticidal CRYONITE
®
of insects by rapid freezing

method exterminates insects by rapid
freezing using carbon dioxide. This
method has several advantageous
features for pest control treatment:
l preserves a completely pesticide–free
environment
l enables production to be continued
during the whole sanitation and
treatment cycle, minimising
production downtime
l is a dry method – no liquid residuals

l allows for direct contact with food
stuffs and may be applied throughout
the whole facility
l is easy to operate

l exterminates not only adult insects
and larvae, but also eggs
l reduces costs

l uses carbon dioxide produced as a
by-product of other processes, so no
extra carbon dioxide is delivered to
the atmosphere.

Carbon dioxide leaves no residue, is easy to treatment. The CRYONITE ® device also requires
acquire and can be delivered in a variety of a minimum of personal protection by the operator.
packing sizes. A unique CRYONITE ® feature is
CRYONITE ® flexible connection tubes permit
that normal production at an industrial site may
good accessibility and outstanding results even in
continue during the entire sanitation cycle.
double curvature pipes and deep slots.
Restrictions related to traditional pesticidal
methods are completely avoided with the CRYONITE ® decreases the need for preparatory
CRYONITE ® method. Consequently there is no cleaning. The method is easily used with existing
need to evacuate staff during sanitation and hygiene routines.

Oakhurst Drive, Cheadle Heath, Stockport, Cheshire SK3 OXT, United Kingdom
Tel: +44 (0)161 4280622 Fax: +44 (0)161 4281239 email: info@riwa.co.uk
www.insect-o-cutor.co.uk

Insect-o-Cuter Range

More Related Content

What's hot

Similar to Insect-o-Cuter Range

Insect-o-Cuter Range
