1. ®

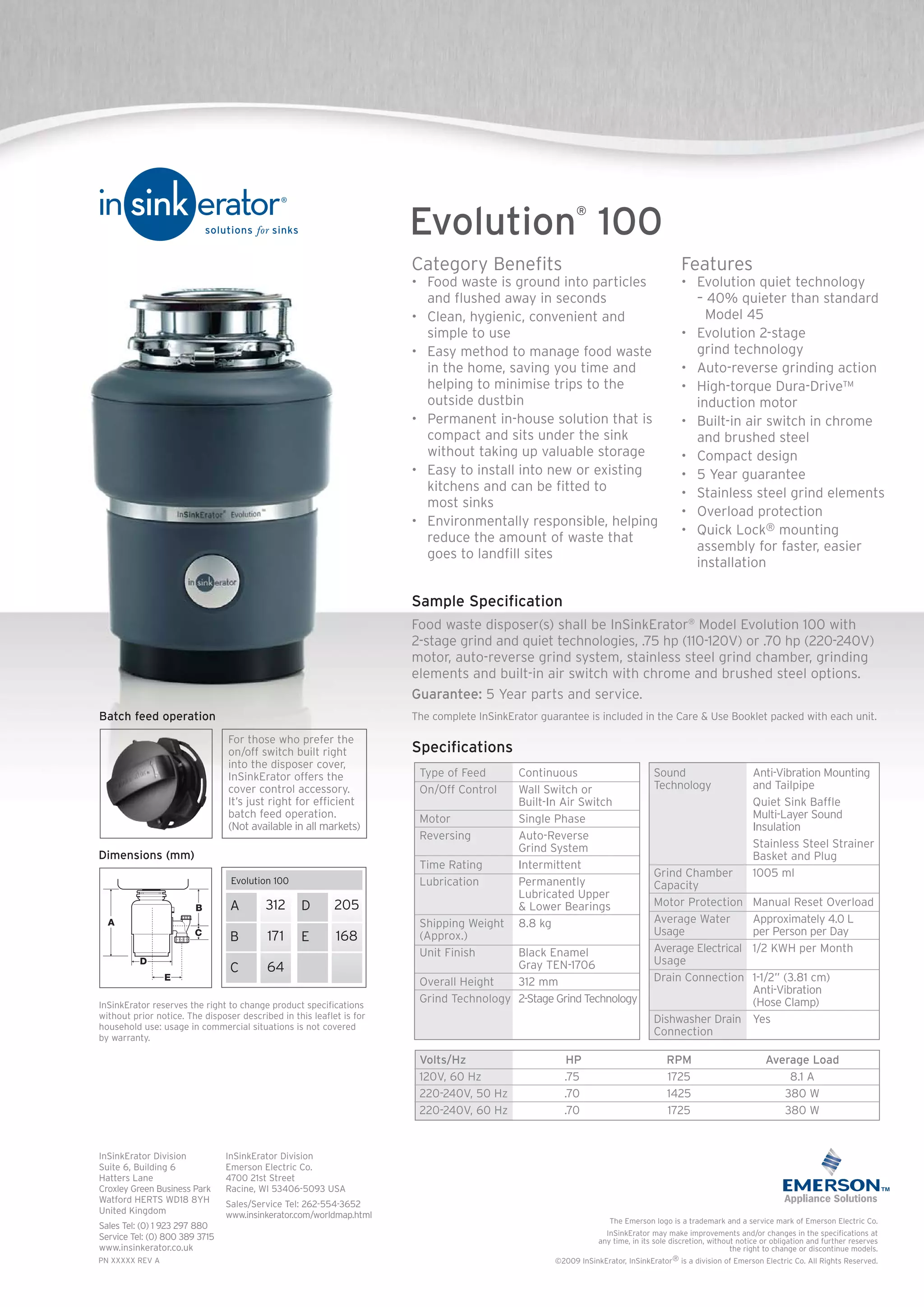

Evolution 100
Category Benefits Features
• Food waste is ground into particles • Evolution quiet technology
and flushed away in seconds – 40% quieter than standard
• Clean, hygienic, convenient and Model 45
simple to use • Evolution 2-stage
• Easy method to manage food waste grind technology
in the home, saving you time and • Auto-reverse grinding action
helping to minimise trips to the • High-torque Dura-Drive™
outside dustbin induction motor
• Permanent in-house solution that is • Built-in air switch in chrome
compact and sits under the sink and brushed steel
without taking up valuable storage • Compact design
• Easy to install into new or existing • 5 Year guarantee
kitchens and can be fitted to • Stainless steel grind elements
most sinks
• Overload protection
• Environmentally responsible, helping
• Quick Lock® mounting
reduce the amount of waste that
assembly for faster, easier
goes to landfill sites
installation
Sample Specification
Food waste disposer(s) shall be InSinkErator® Model Evolution 100 with
2-stage grind and quiet technologies, .75 hp (110-120V) or .70 hp (220-240V)
motor, auto-reverse grind system, stainless steel grind chamber, grinding
elements and built-in air switch with chrome and brushed steel options.
Guarantee: 5 Year parts and service.
Batch feed operation The complete InSinkErator guarantee is included in the Care & Use Booklet packed with each unit.
For those who prefer the
on/off switch built right Specifications
into the disposer cover,
InSinkErator offers the Type of Feed Continuous Sound Anti-Vibration Mounting
cover control accessory. On/Off Control Wall Switch or Technology and Tailpipe
It’s just right for efficient Built-In Air Switch Quiet Sink Baffle
batch feed operation. Motor Single Phase Multi-Layer Sound
(Not available in all markets) Insulation
Reversing Auto-Reverse
Grind System Stainless Steel Strainer
Dimensions (mm) Basket and Plug
Time Rating Intermittent
Grind Chamber 1005 ml
Evolution 100 Lubrication Permanently Capacity
Lubricated Upper
A 312 D 205 & Lower Bearings Motor Protection Manual Reset Overload
Shipping Weight 8.8 kg Average Water Approximately 4.0 L
171 168 Usage per Person per Day
B E (Approx.)
Unit Finish Black Enamel Average Electrical 1/2 KWH per Month
Gray TEN-1706 Usage
C 64
Overall Height 312 mm Drain Connection 1-1/2” (3.81 cm)
Anti-Vibration
InSinkErator reserves the right to change product specifications
Grind Technology 2-Stage Grind Technology (Hose Clamp)
without prior notice. The disposer described in this leaflet is for Dishwasher Drain Yes
household use: usage in commercial situations is not covered
by warranty.
Connection
Volts/Hz HP RPM Average Load
120V, 60 Hz .75 1725 8.1 A
220-240V, 50 Hz .70 1425 380 W
220-240V, 60 Hz .70 1725 380 W
InSinkErator Division InSinkErator Division
Suite 6, Building 6 Emerson Electric Co.
Hatters Lane 4700 21st Street
Croxley Green Business Park Racine, WI 53406-5093 USA
Watford HERTS WD18 8YH Sales/Service Tel: 262-554-3652
United Kingdom www.insinkerator.com/worldmap.html
The Emerson logo is a trademark and a service mark of Emerson Electric Co.
Sales Tel: (0) 1 923 297 880
Service Tel: (0) 800 389 3715 InSinkErator may make improvements and/or changes in the specifications at
any time, in its sole discretion, without notice or obligation and further reserves
www.insinkerator.co.uk the right to change or discontinue models.
PN XXXXX REV A ©2009 InSinkErator, InSinkErator® is a division of Emerson Electric Co. All Rights Reserved.
