The document discusses the internals of InfluxDB, focusing on its design as a time series database. It highlights the unique requirements of time series data, including high throughput ingestion, fast queries, and special storage needs. Key advancements in InfluxDB, such as TSI for cardinality management and IFQL for improved query execution, are also outlined.

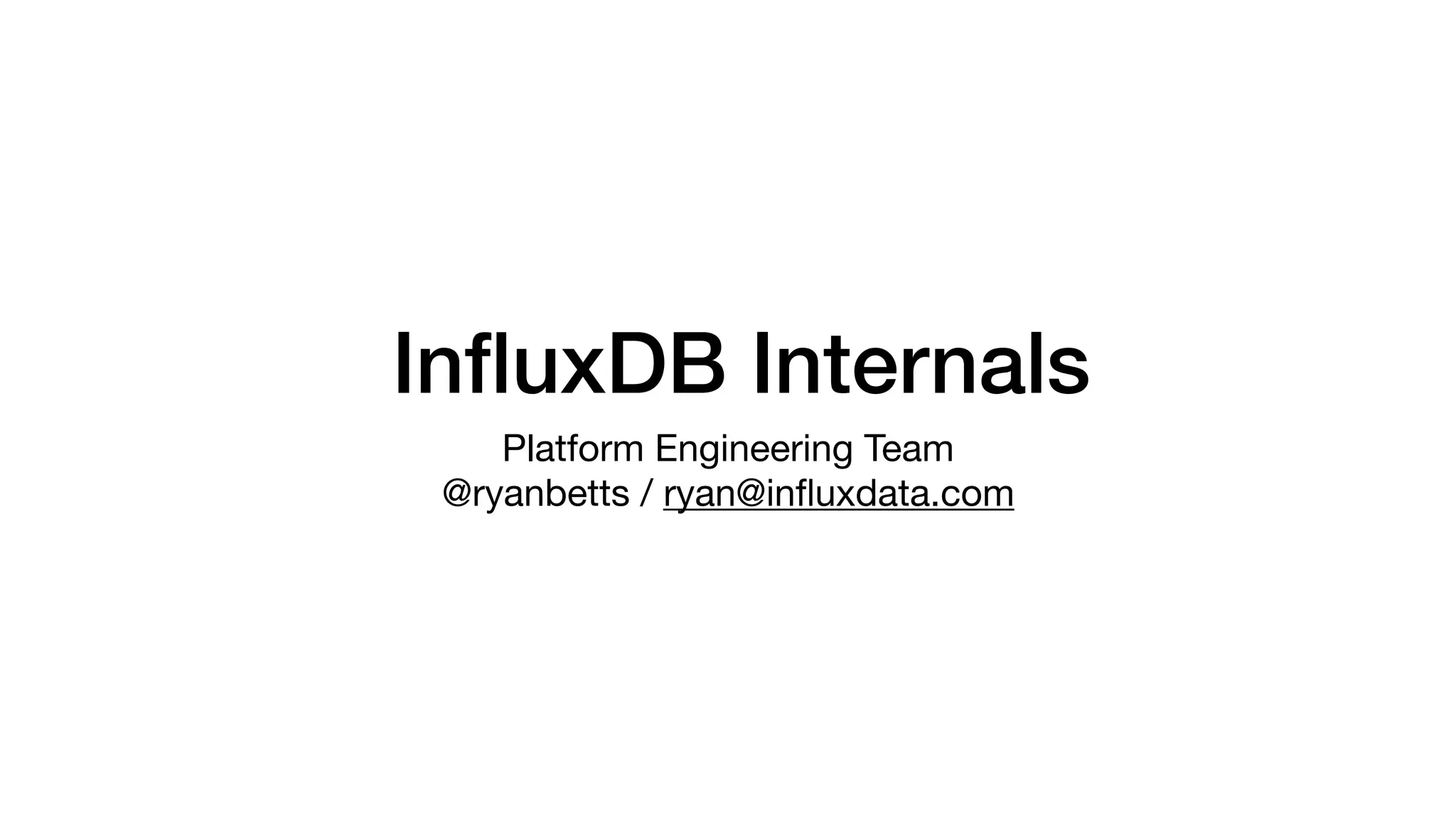

1. InfluxDB Internals
Platform Engineering Team
@ryanbetts / ryan@influxdata.com

2. How great are databases?
• I like making things with
smart, clever, kind
people.
• I’ve been working on
high-throughput, realtime
data for the last 10 years.

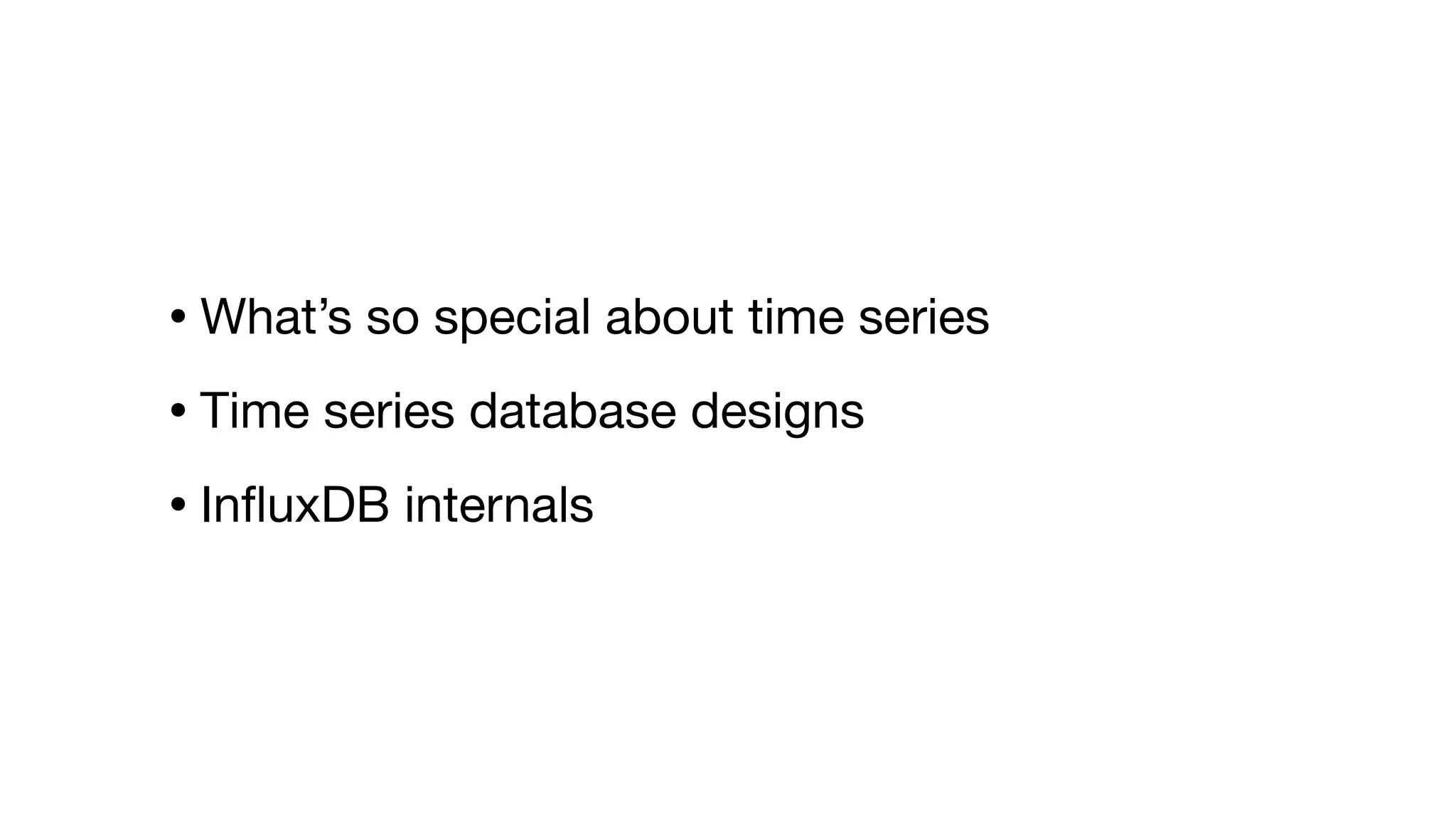

3. • What’s so special about time series
• Time series database designs
• InfluxDB internals

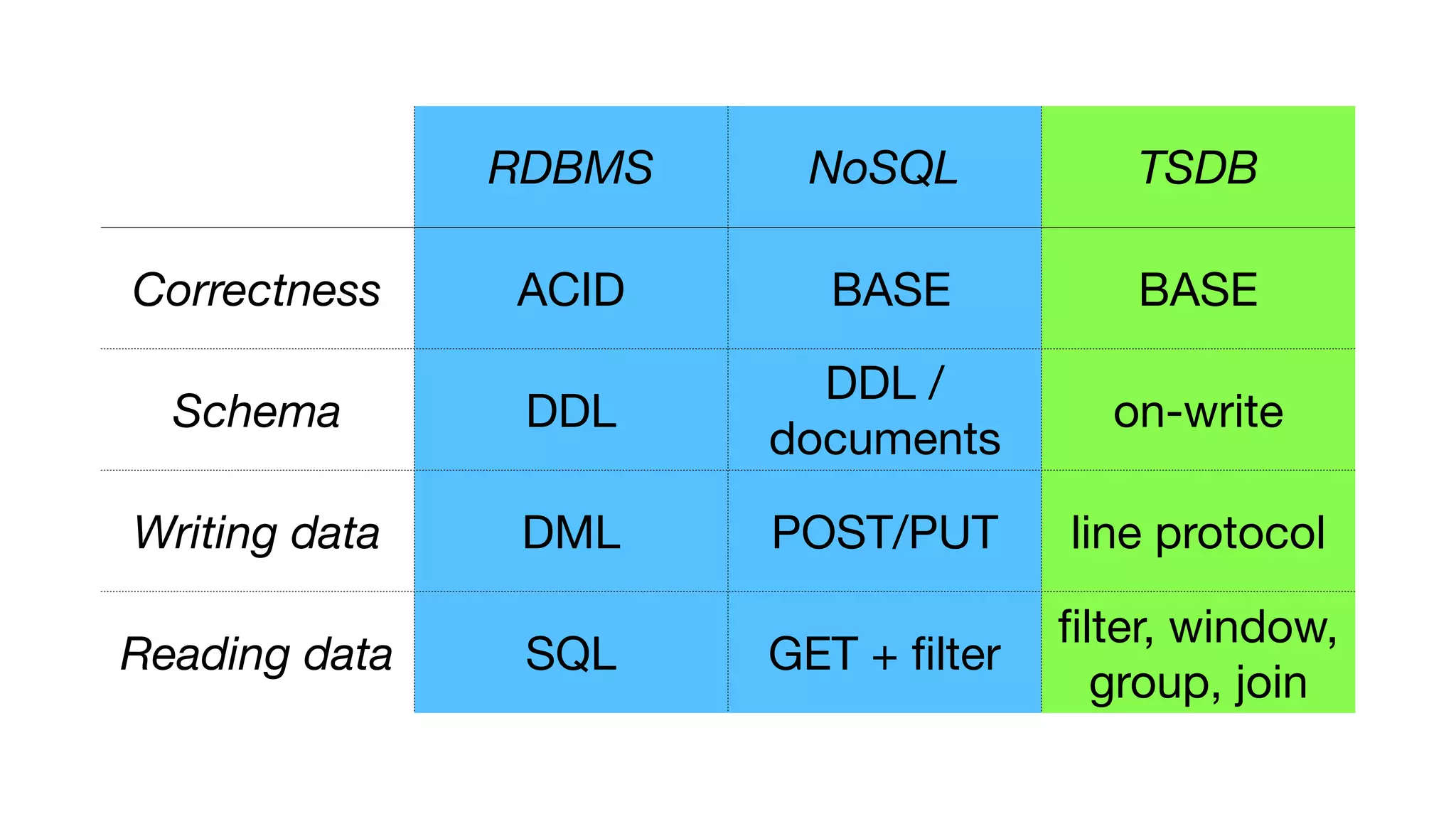

5. RDBMS NoSQL TSDB
Correctness ACID BASE BASE
Schema DDL
DDL /
documents
on-write
Writing data DML POST/PUT line protocol
Reading data SQL GET + filter
filter, window,
group, join

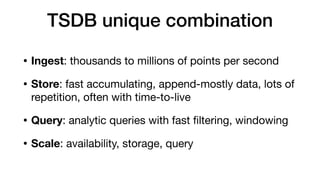

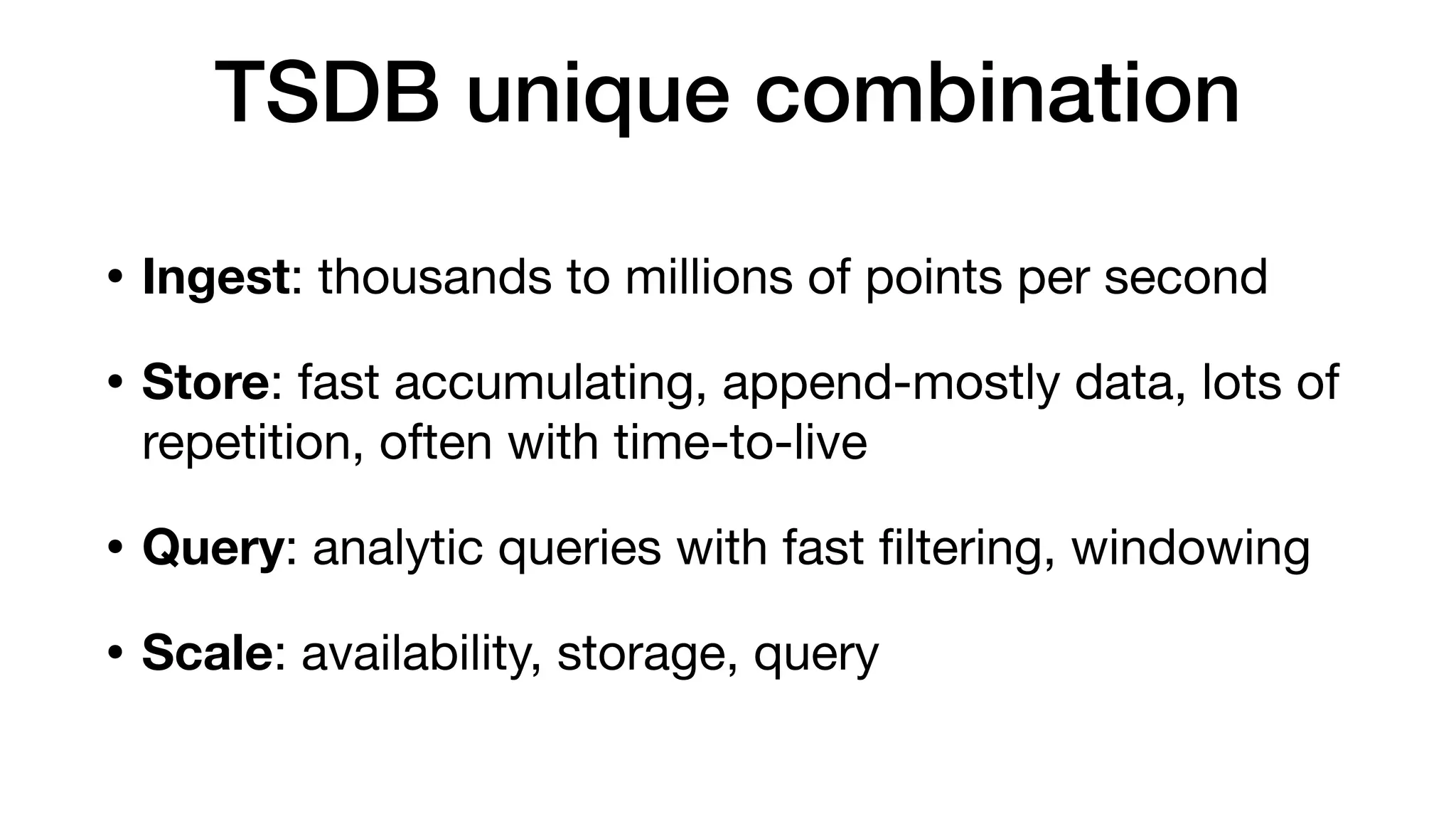

6. TSDB unique combination
• Ingest: thousands to millions of points per second
• Store: fast accumulating, append-mostly data, lots of
repetition, often with time-to-live
• Query: analytic queries with fast filtering, windowing
• Scale: availability, storage, query

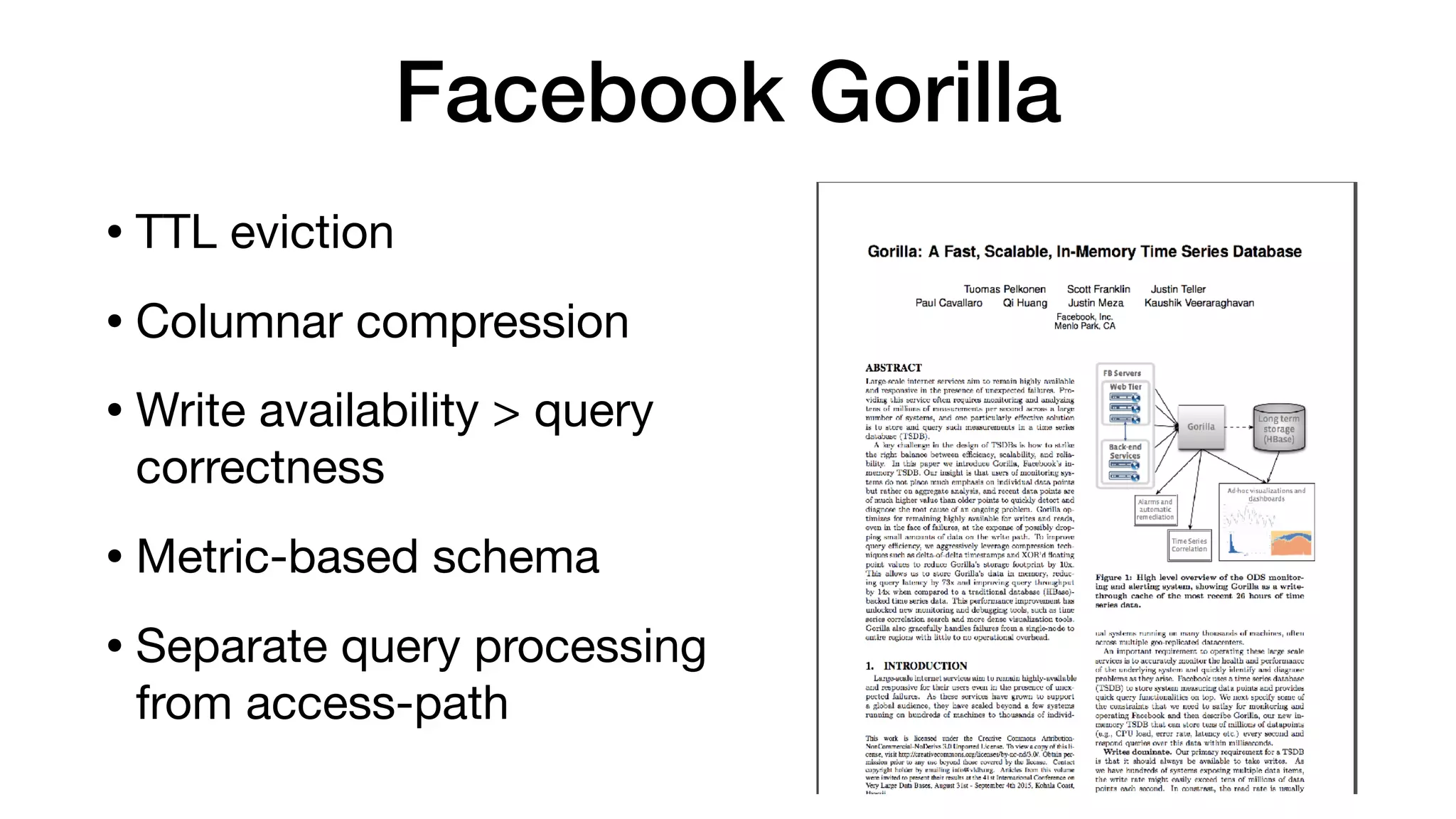

7. Facebook Gorilla
• TTL eviction
• Columnar compression
• Write availability > query
correctness
• Metric-based schema
• Separate query processing
from access-path

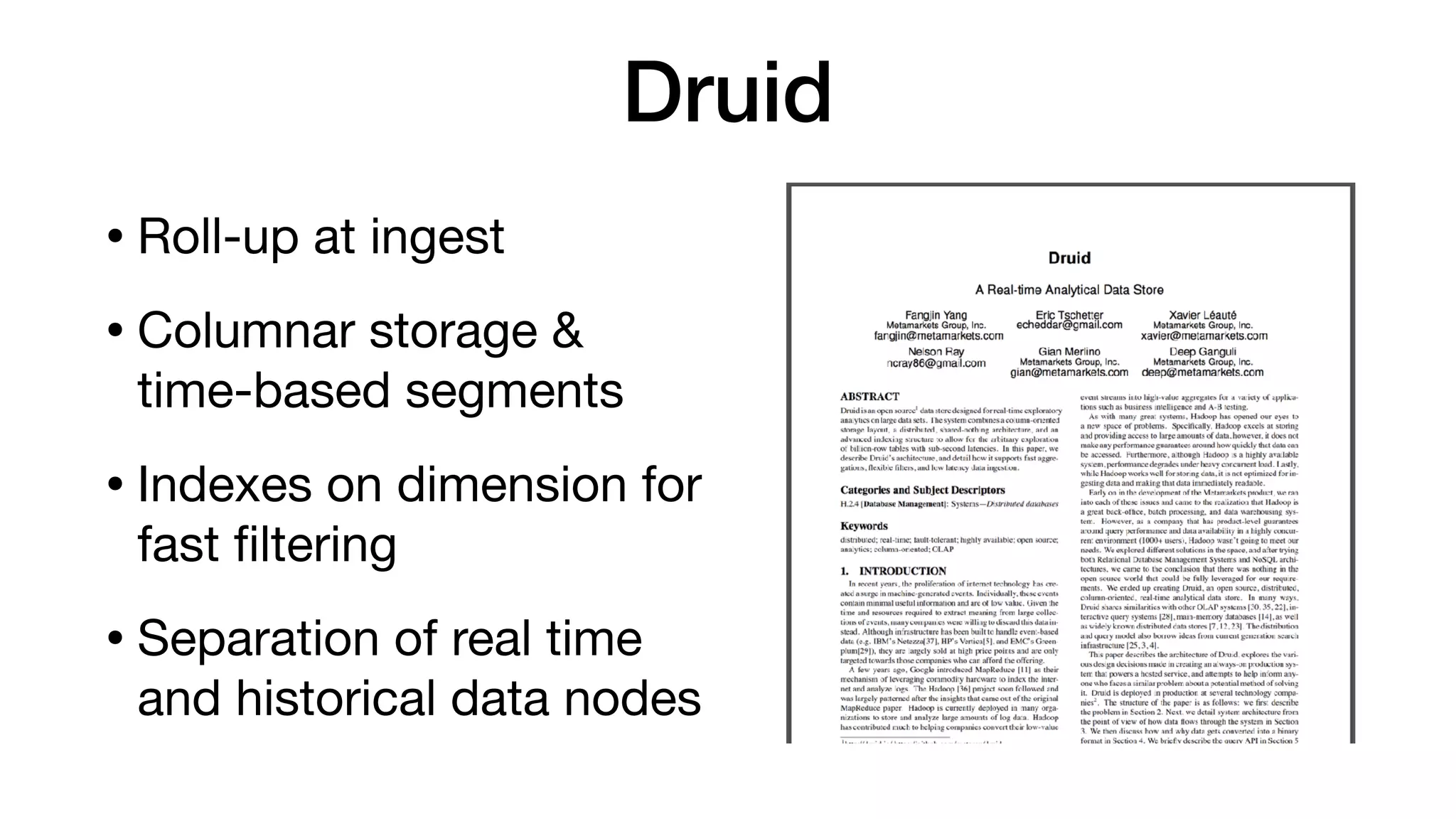

8. Druid
• Roll-up at ingest
• Columnar storage &
time-based segments
• Indexes on dimension for
fast filtering
• Separation of real time
and historical data nodes

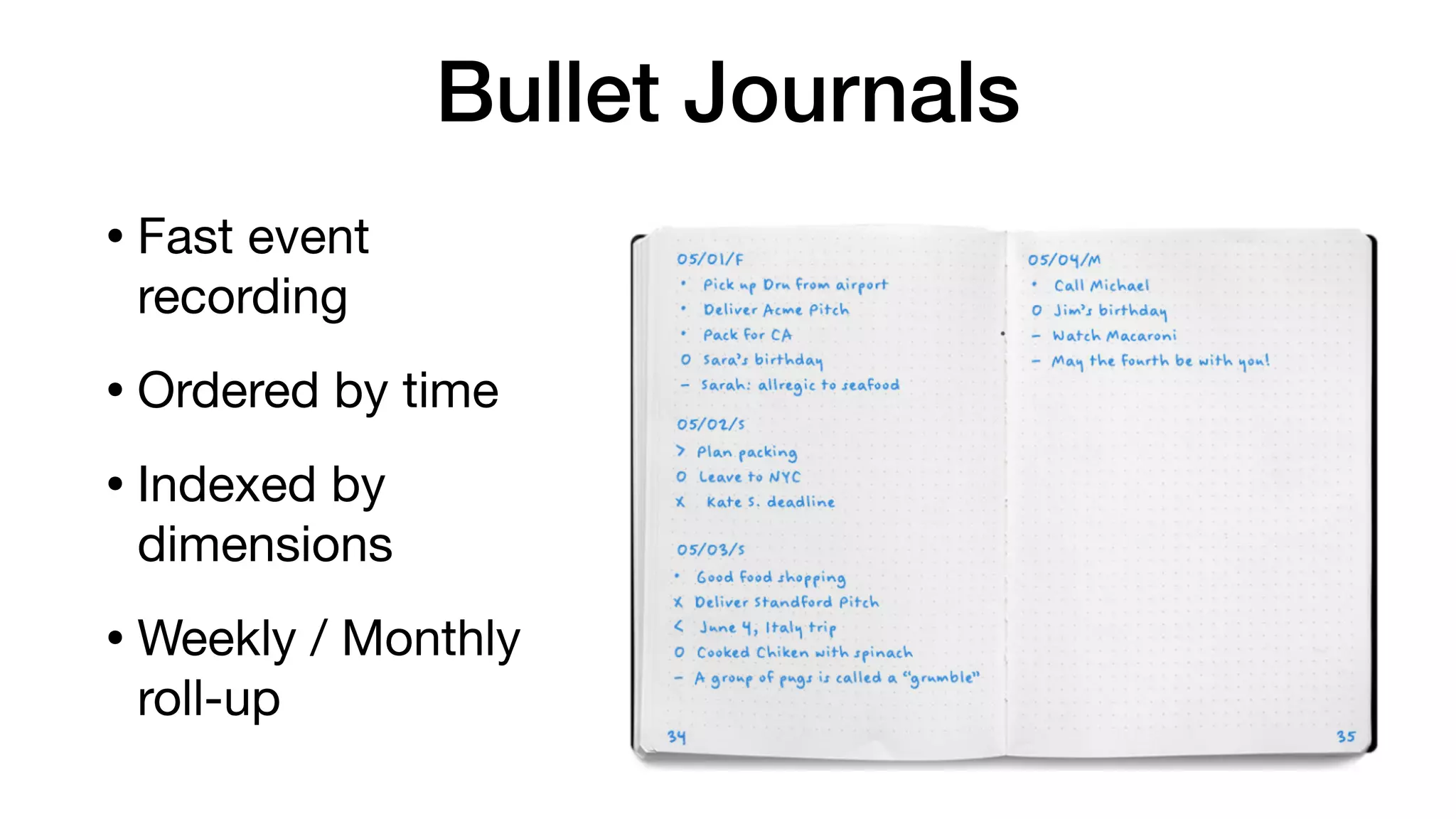

9. Bullet Journals
• Fast event
recording
• Ordered by time
• Indexed by
dimensions
• Weekly / Monthly
roll-up

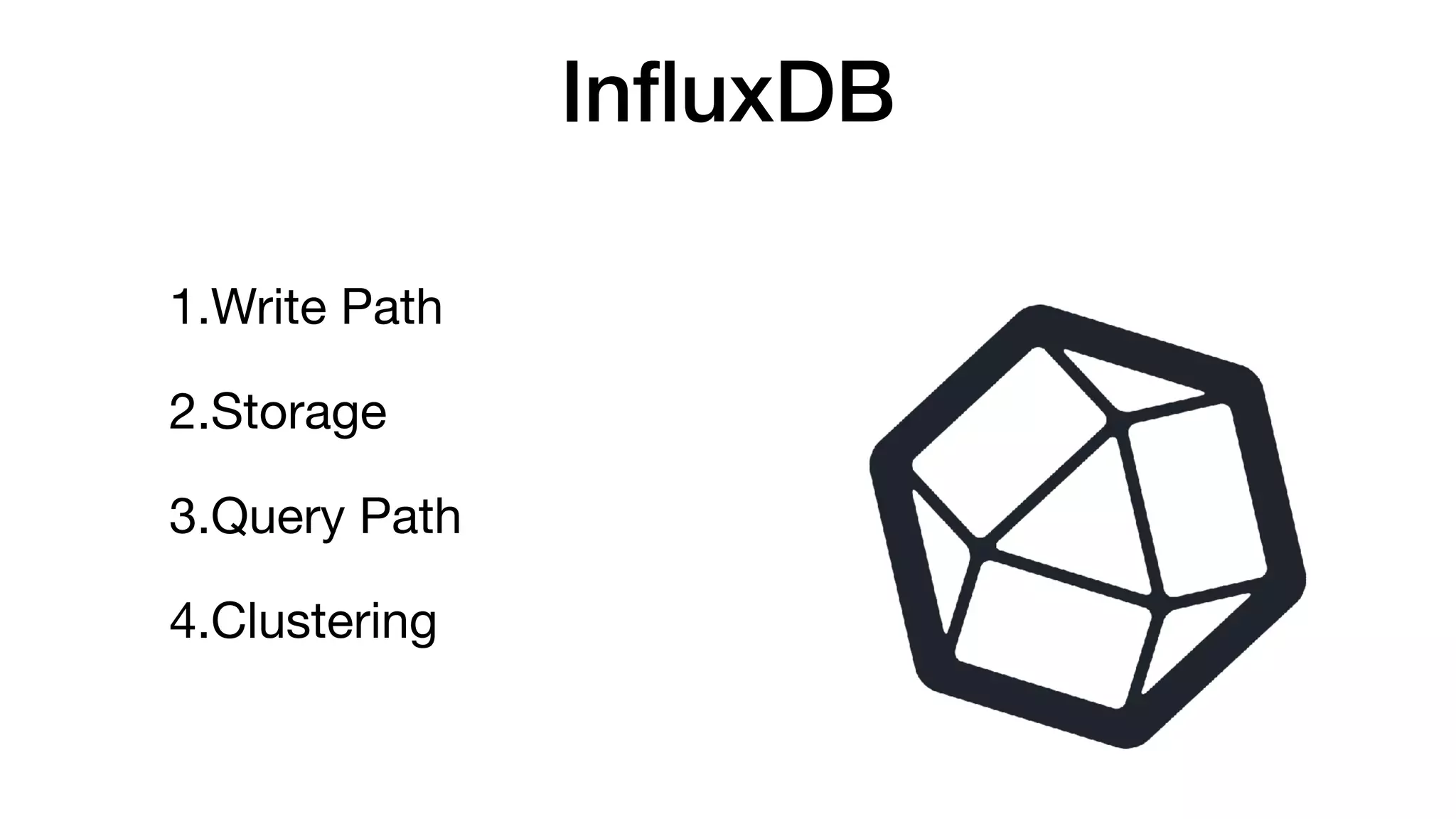

10. InfluxDB
1.Write Path
2.Storage
3.Query Path
4.Clustering

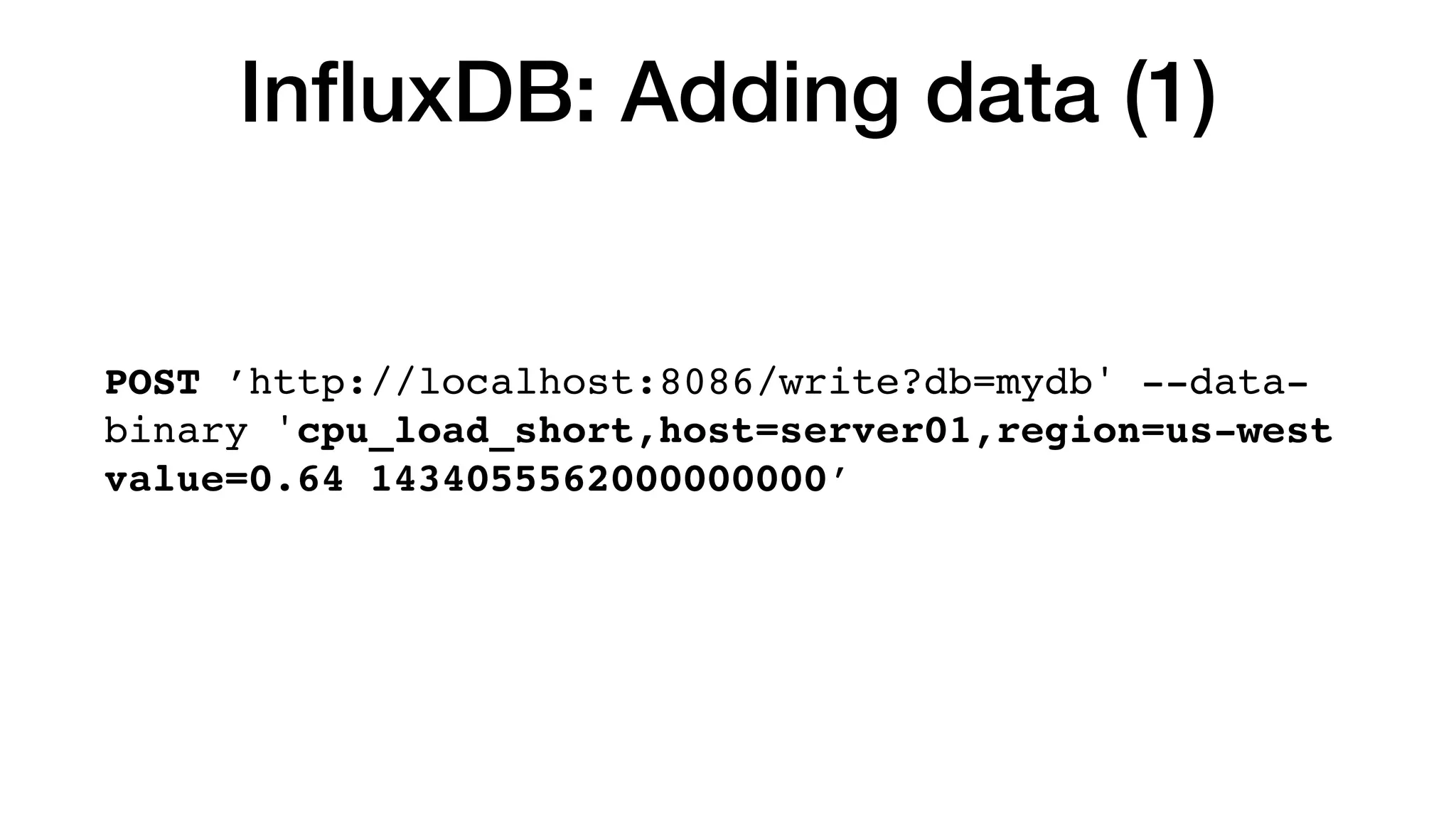

11. InfluxDB: Adding data (1)
POST ’http://localhost:8086/write?db=mydb' --data-
binary 'cpu_load_short,host=server01,region=us-west
value=0.64 1434055562000000000’

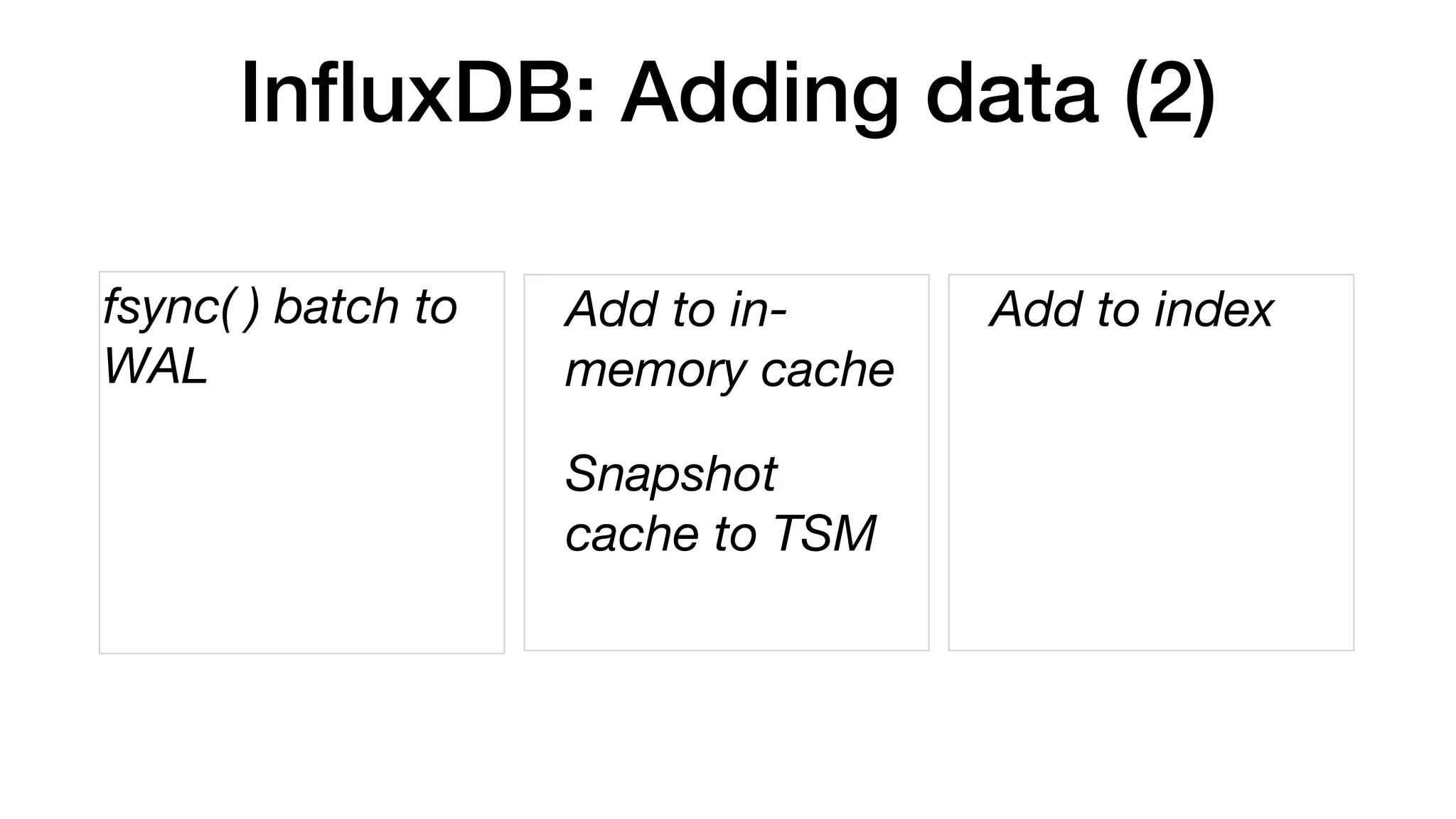

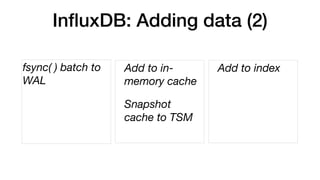

12. InfluxDB: Adding data (2)
fsync( ) batch to
WAL
Add to in-
memory cache
Snapshot
cache to TSM
Add to index

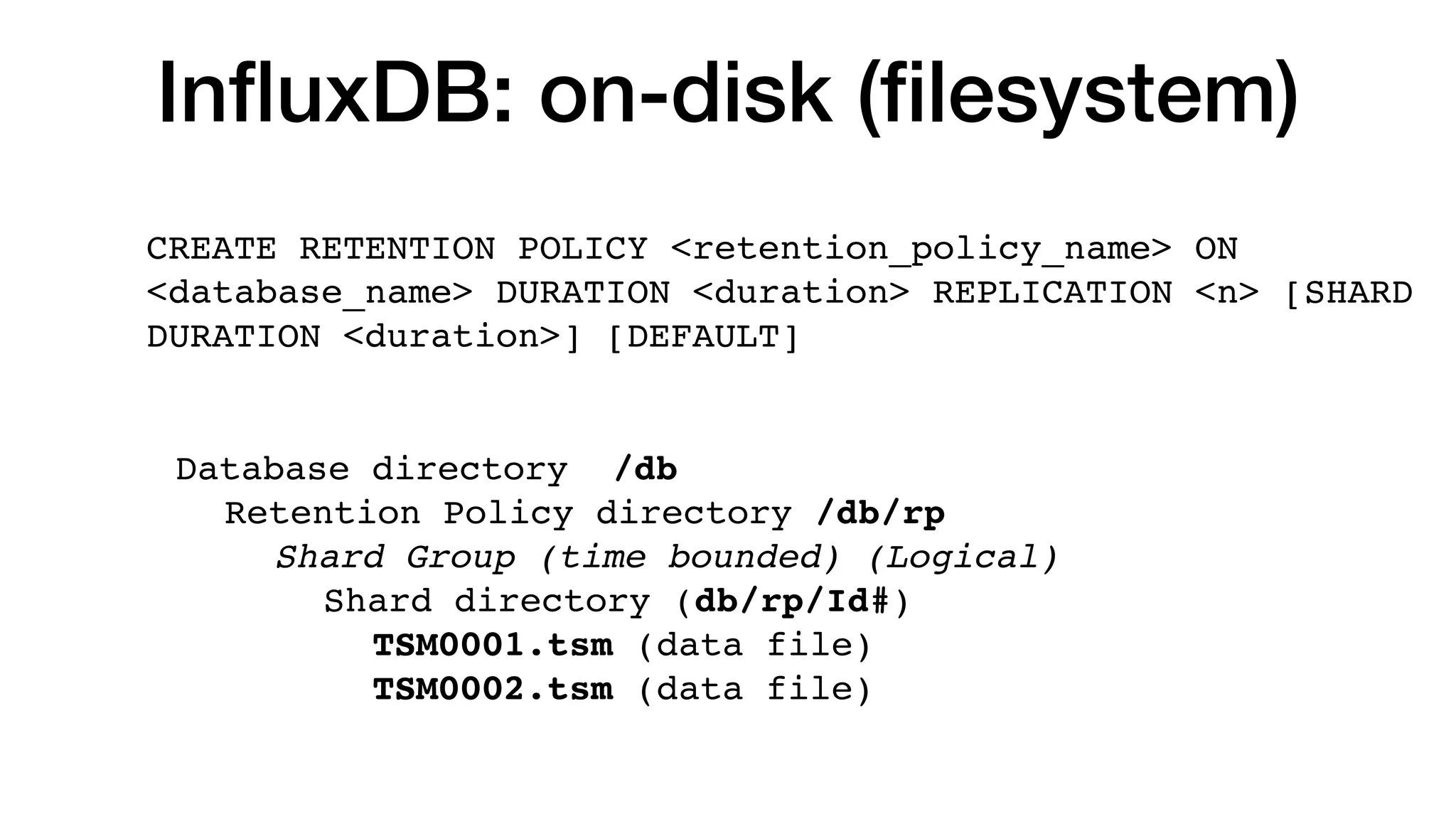

13. InfluxDB: on-disk (filesystem)
CREATE RETENTION POLICY <retention_policy_name> ON
<database_name> DURATION <duration> REPLICATION <n> [SHARD
DURATION <duration>] [DEFAULT]
Database directory /db
Retention Policy directory /db/rp
Shard Group (time bounded) (Logical)
Shard directory (db/rp/Id#)
TSM0001.tsm (data file)
TSM0002.tsm (data file)

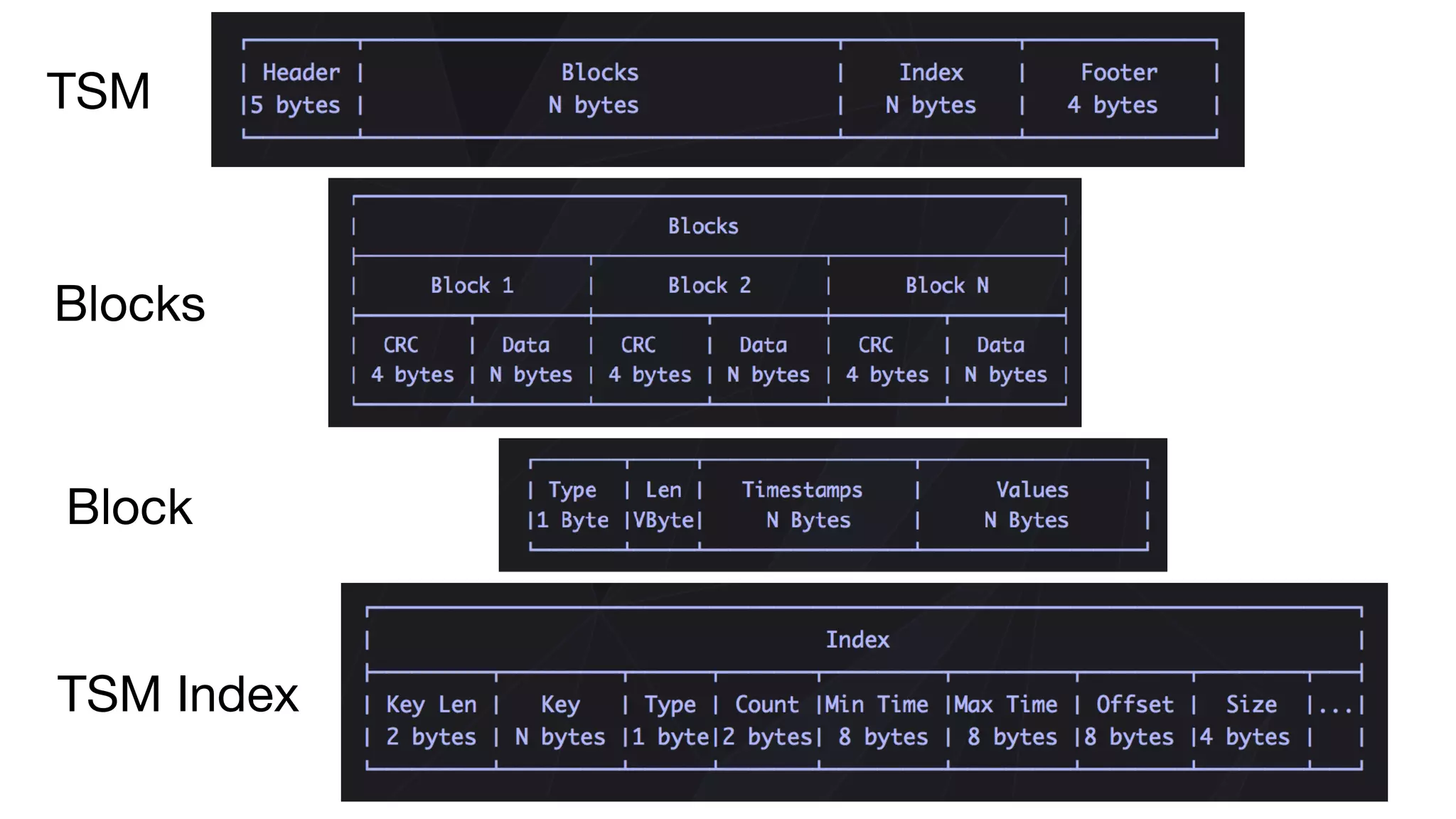

14. TSM
Blocks
Block
TSM Index

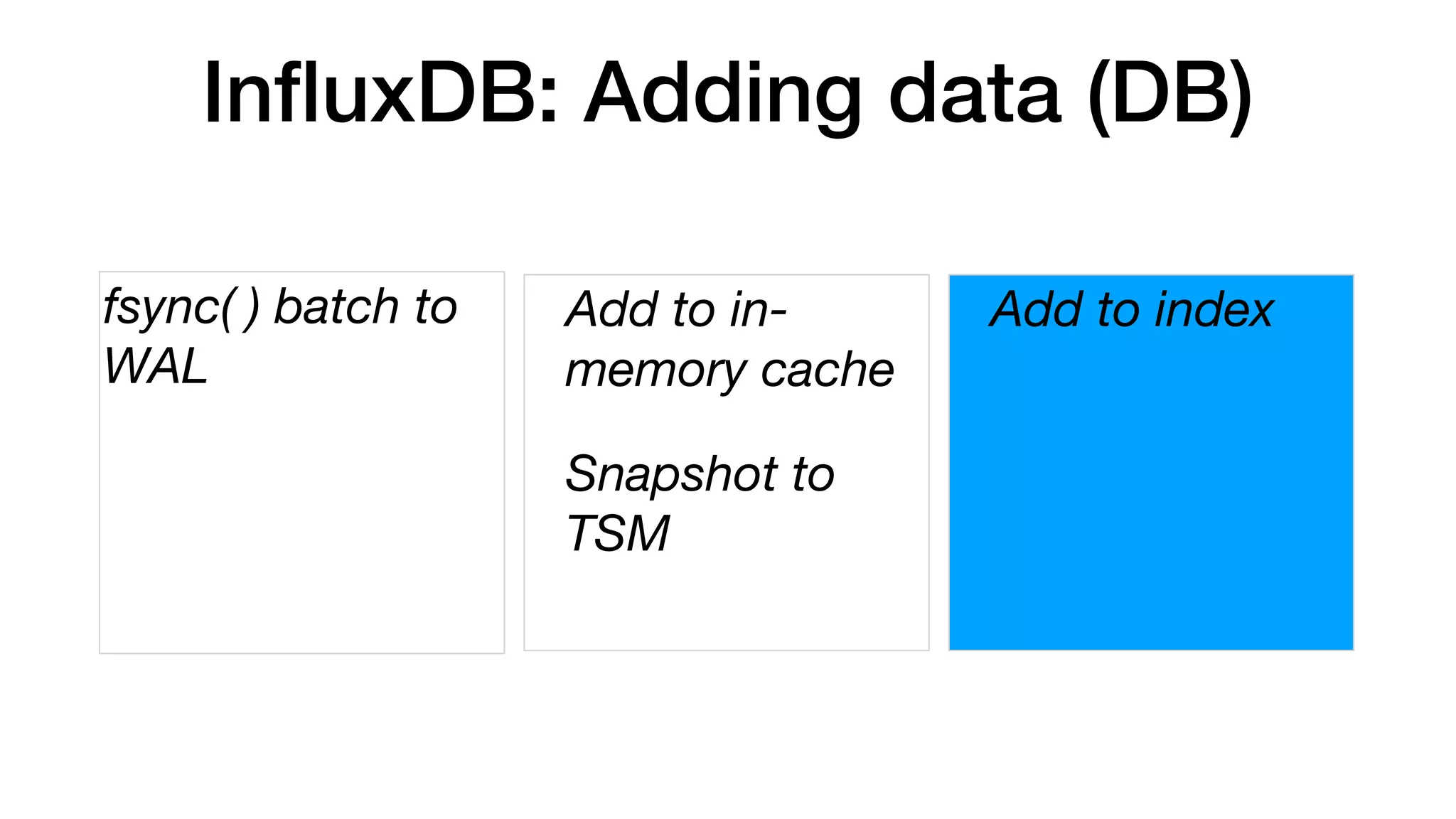

15. InfluxDB: Adding data (DB)
fsync( ) batch to
WAL
Add to in-
memory cache
Snapshot to
TSM
Add to index

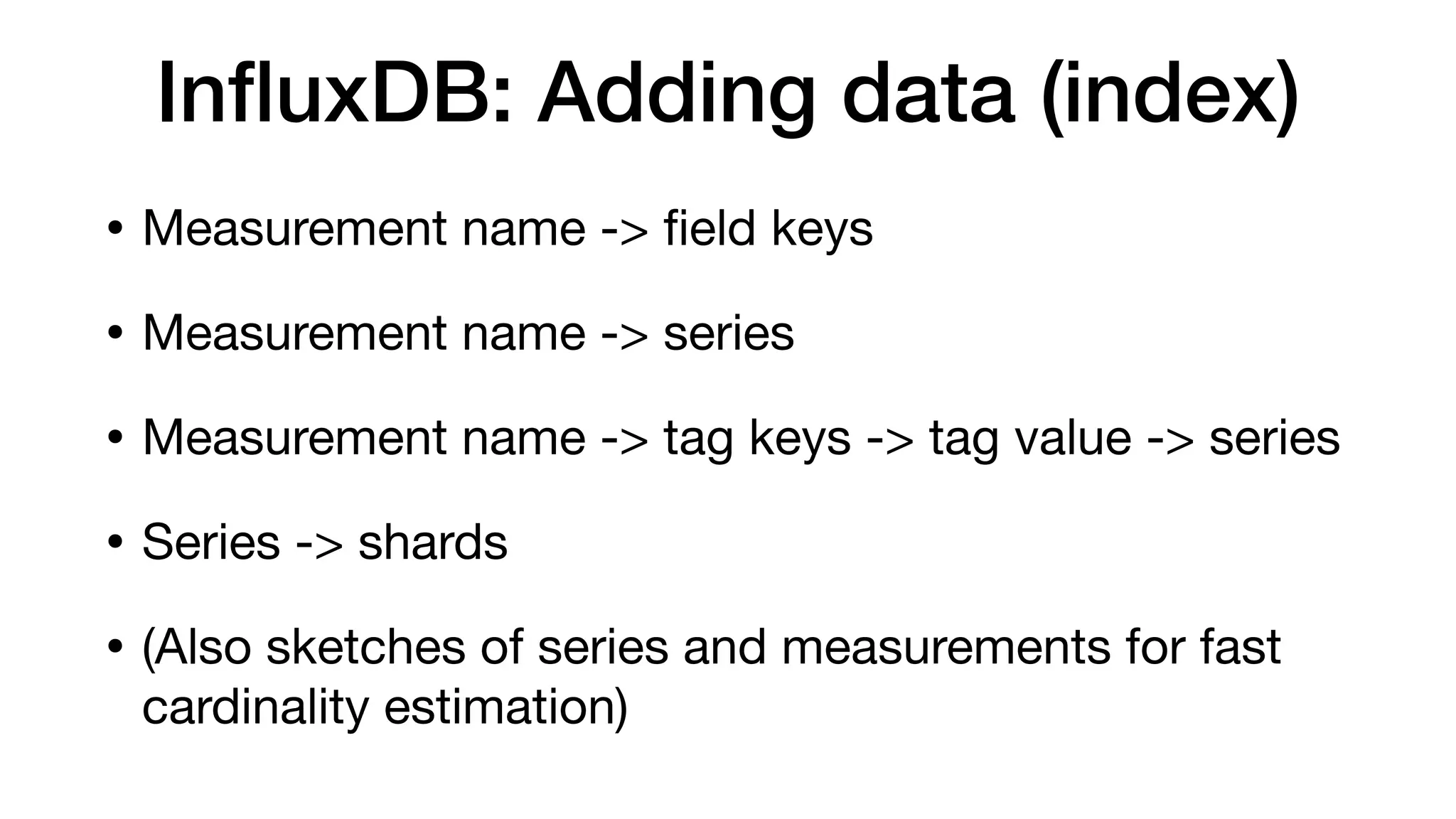

16. InfluxDB: Adding data (index)
• Measurement name -> field keys
• Measurement name -> series
• Measurement name -> tag keys -> tag value -> series
• Series -> shards
• (Also sketches of series and measurements for fast
cardinality estimation)

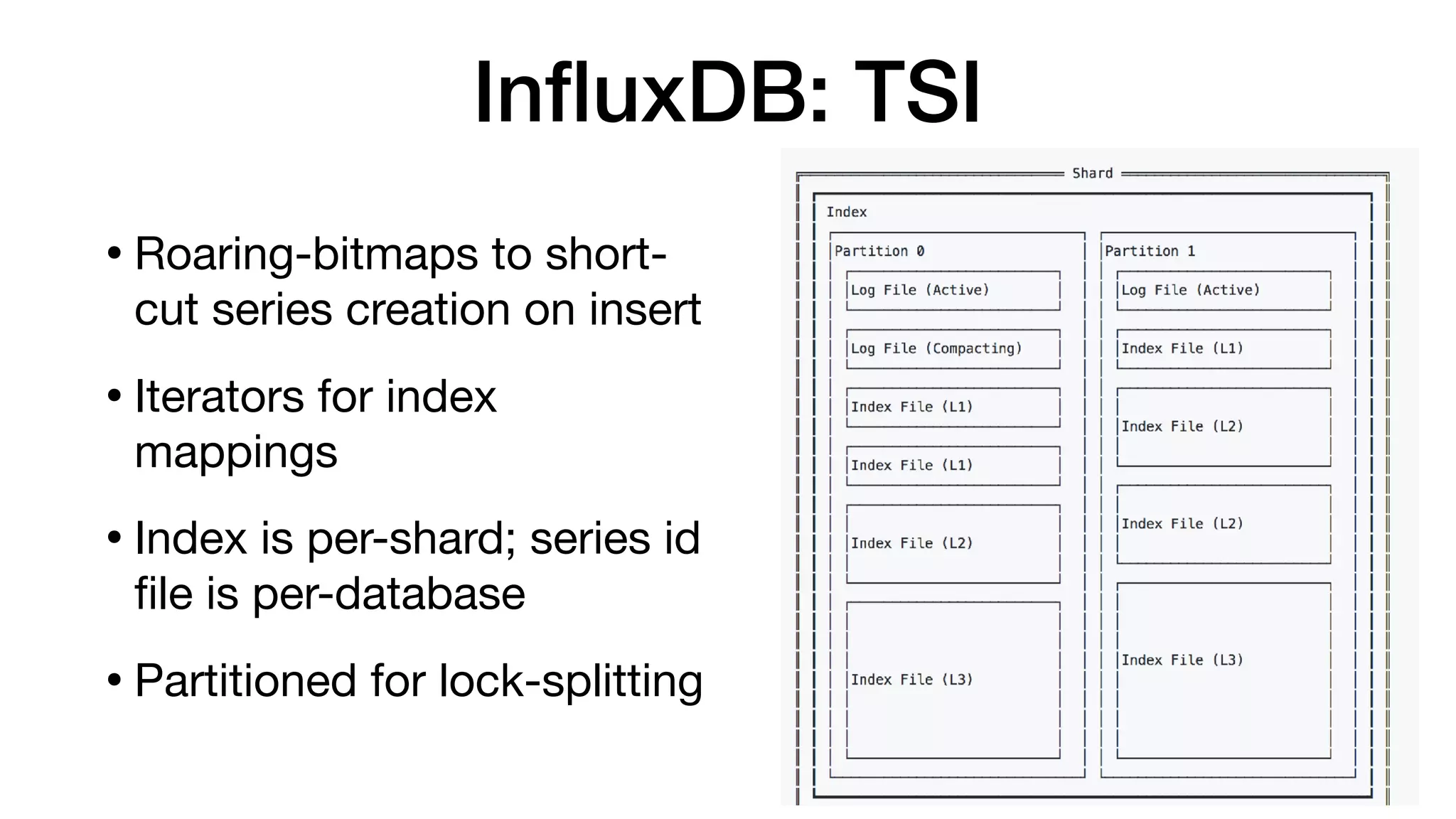

17. InfluxDB: TSI
• Roaring-bitmaps to short-
cut series creation on insert
• Iterators for index
mappings
• Index is per-shard; series id
file is per-database
• Partitioned for lock-splitting

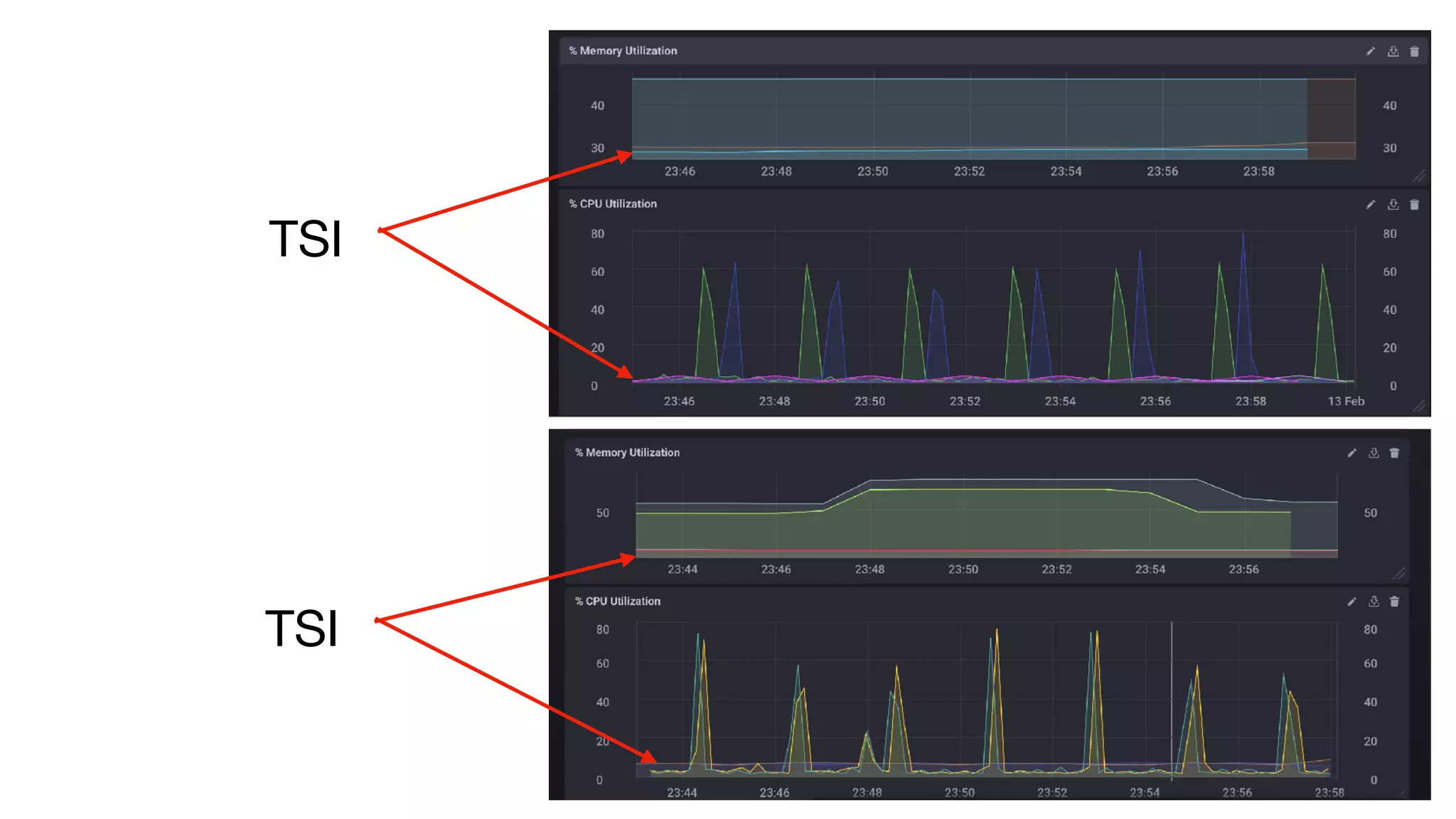

18. TSI
TSI

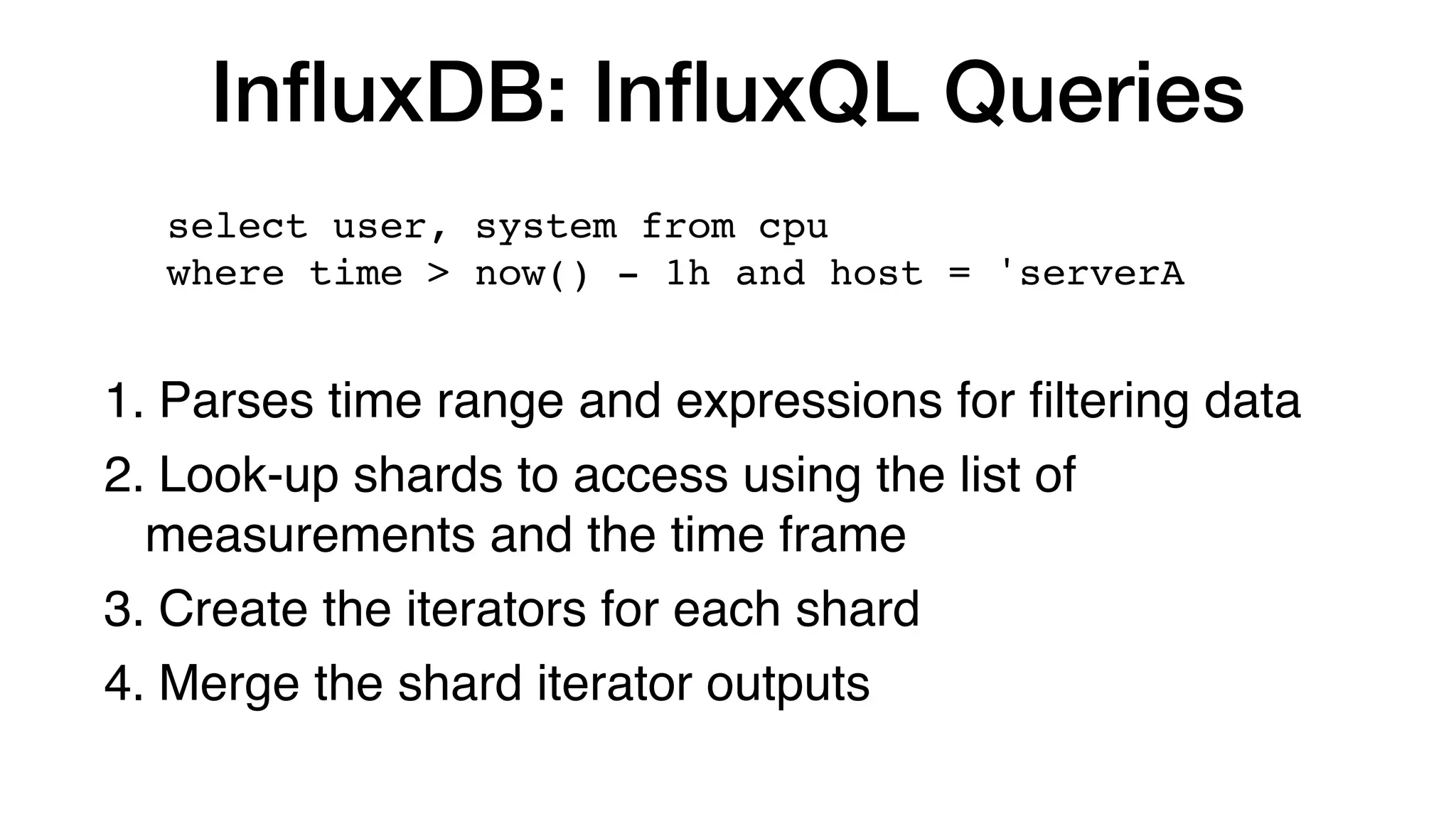

19. InfluxDB: InfluxQL Queries
1. Parses time range and expressions for filtering data
2. Look-up shards to access using the list of
measurements and the time frame
3. Create the iterators for each shard
4. Merge the shard iterator outputs
select user, system from cpu
where time > now() - 1h and host = 'serverA

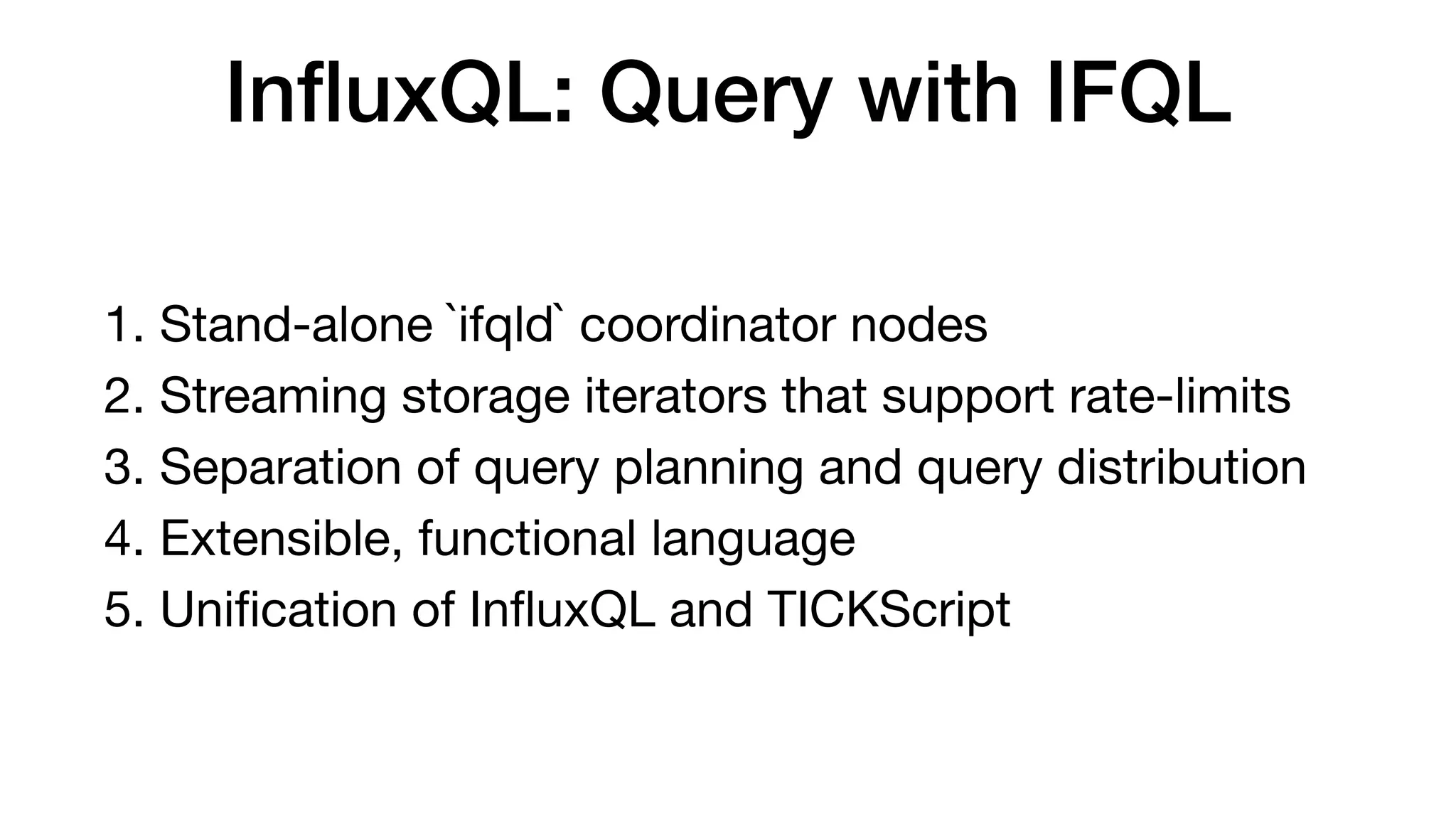

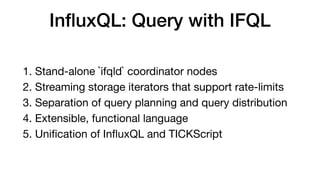

20. InfluxQL: Query with IFQL
1. Stand-alone `ifqld` coordinator nodes
2. Streaming storage iterators that support rate-limits
3. Separation of query planning and query distribution
4. Extensible, functional language
5. Unification of InfluxQL and TICKScript

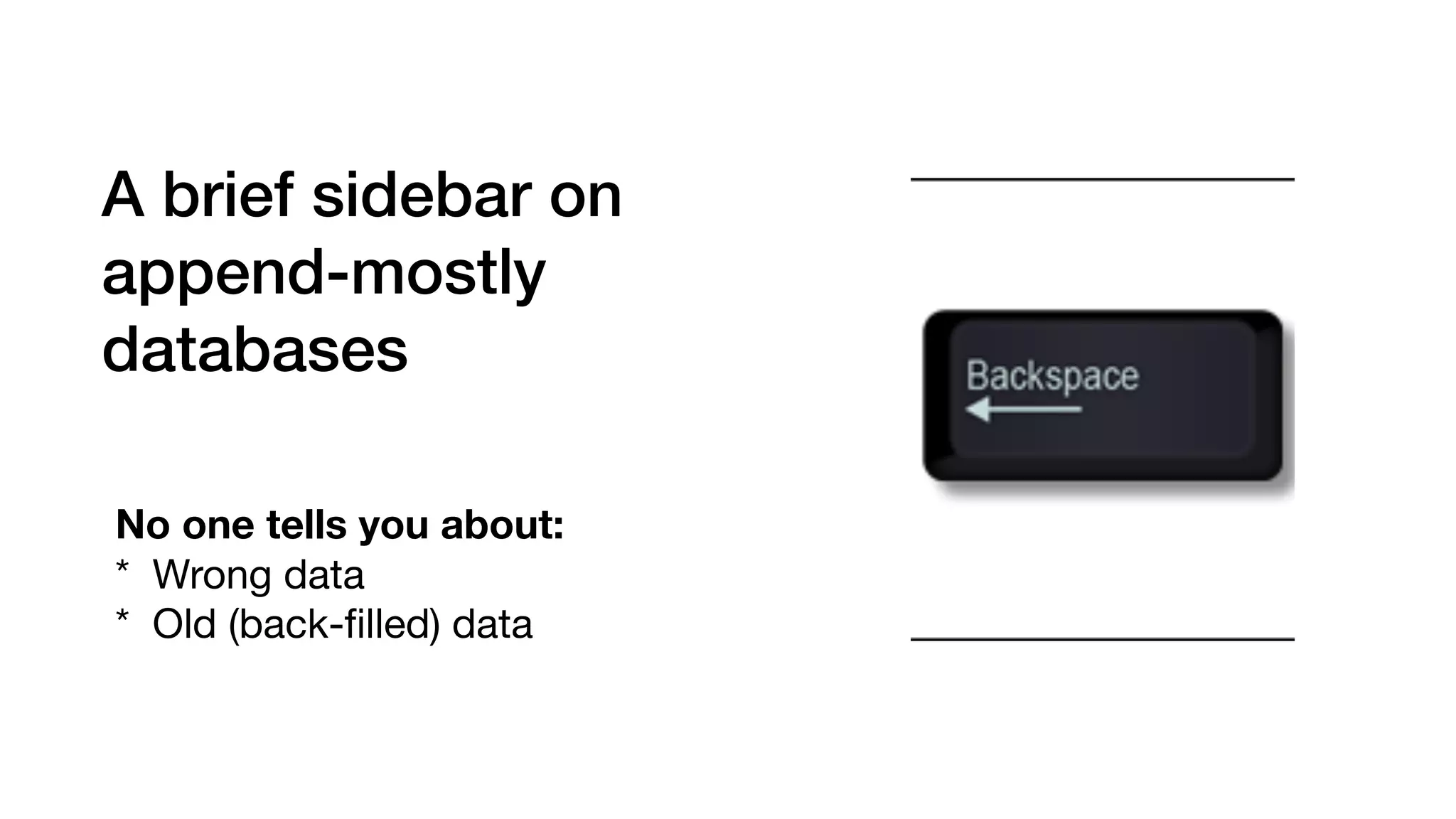

21. A brief sidebar on
append-mostly
databases
No one tells you about:
* Wrong data
* Old (back-filled) data

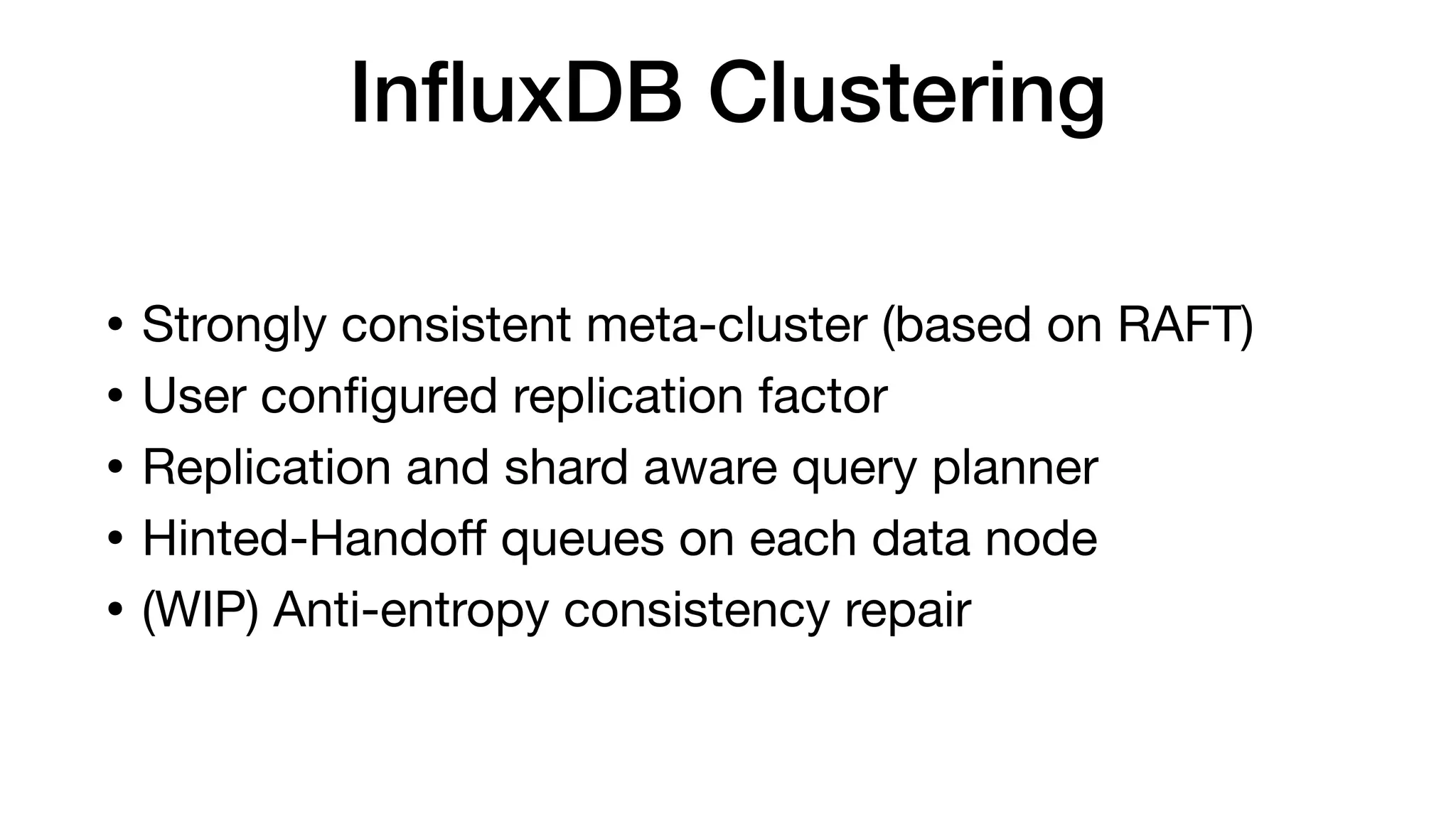

22. InfluxDB Clustering
• Strongly consistent meta-cluster (based on RAFT)
• User configured replication factor
• Replication and shard aware query planner
• Hinted-Handoff queues on each data node
• (WIP) Anti-entropy consistency repair

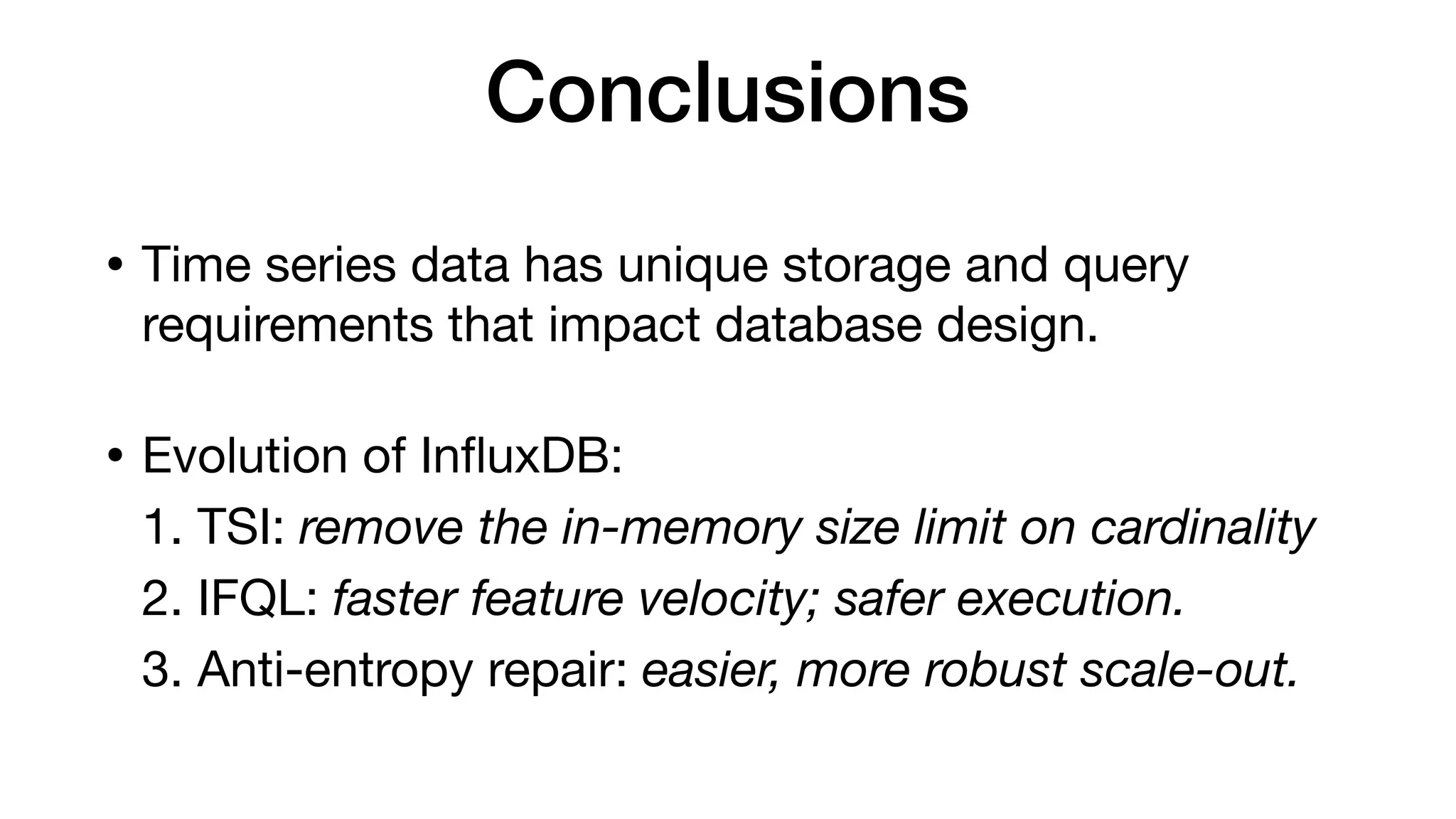

23. Conclusions
• Time series data has unique storage and query
requirements that impact database design.
• Evolution of InfluxDB:
1. TSI: remove the in-memory size limit on cardinality
2. IFQL: faster feature velocity; safer execution.
3. Anti-entropy repair: easier, more robust scale-out.
