Why Industrial
Ethernet

3. www.aditech.in
Why Industrial
Ethernet
Hardened enclosures, With aluminum heatsink,

4. www.aditech.in
Why Industrial
Ethernet

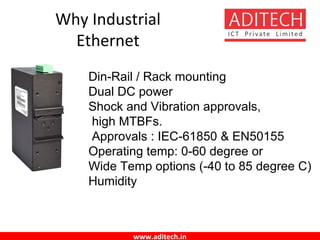

Din-Rail / Rack mounting
Dual DC power
Shock and Vibration approvals,
high MTBFs.
Approvals : IEC-61850 & EN50155
Operating temp: 0-60 degree or
Wide Temp options (-40 to 85 degree C)
Humidity

5. www.aditech.in

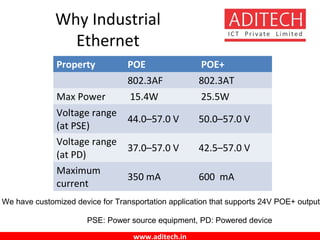

Property POE POE+
802.3AF 802.3AT
Max Power 15.4W 25.5W
Voltage range
(at PSE)
44.0–57.0 V 50.0–57.0 V
Voltage range
(at PD)
37.0–57.0 V 42.5–57.0 V
Maximum
current
350 mA 600 mA
Why Industrial
Ethernet
PSE: Power source equipment, PD: Powered device
We have customized device for Transportation application that supports 24V POE+ output

6. www.aditech.in
Why Industrial

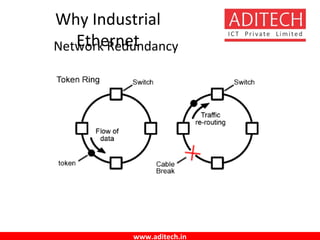

EthernetNetwork Redundancy

7. www.aditech.in

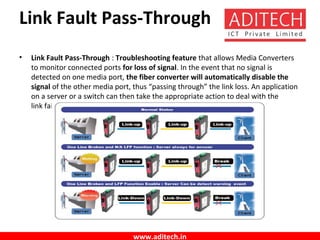

Link Fault Pass-Through
• Link Fault Pass-Through : Troubleshooting feature that allows Media Converters
to monitor connected ports for loss of signal. In the event that no signal is
detected on one media port, the fiber converter will automatically disable the
signal of the other media port, thus “passing through” the link loss. An application
on a server or a switch can then take the appropriate action to deal with the
link failure.

8. www.aditech.in

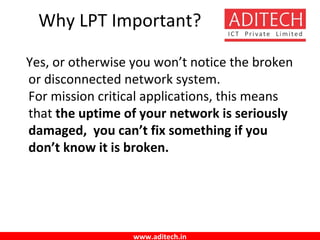

Why LPT Important?
Yes, or otherwise you won’t notice the broken
or disconnected network system.
For mission critical applications, this means
that the uptime of your network is seriously
damaged, you can’t fix something if you
don’t know it is broken.

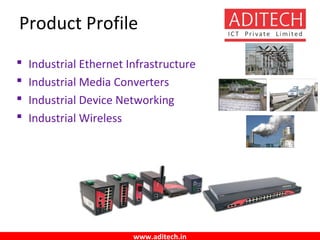

9. www.aditech.in
Product Profile
 Industrial Ethernet Infrastructure
 Industrial Media Converters
 Industrial Device Networking
 Industrial Wireless

10. www.aditech.in

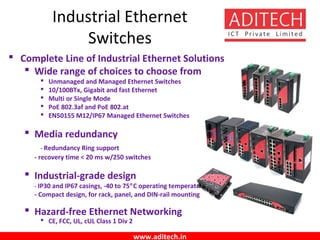

 Complete Line of Industrial Ethernet Solutions
 Wide range of choices to choose from
 Unmanaged and Managed Ethernet Switches
 10/100BTx, Gigabit and fast Ethernet
 Multi or Single Mode
 PoE 802.3af and PoE 802.at
 EN50155 M12/IP67 Managed Ethernet Switches
 Media redundancy
- Redundancy Ring support
- recovery time < 20 ms w/250 switches
 Industrial-grade design
- IP30 and IP67 casings, -40 to 75°C operating temperature
- Compact design, for rack, panel, and DIN-rail mounting
 Hazard-free Ethernet Networking
 CE, FCC, UL, cUL Class 1 Div 2
Industrial Ethernet
Switches

11. www.aditech.in
Class I Division II Products

12. www.aditech.in

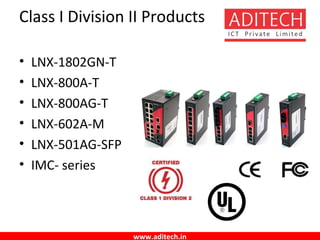

Class I Division II Products
• LNX-1802GN-T
• LNX-800A-T
• LNX-800AG-T
• LNX-602A-M
• LNX-501AG-SFP
• IMC- series

13. www.aditech.in

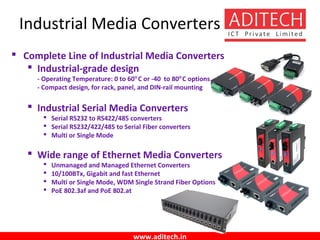

Industrial Media Converters
 Complete Line of Industrial Media Converters
 Industrial-grade design
- Operating Temperature: 0 to 60°C or -40 to 80°C options
- Compact design, for rack, panel, and DIN-rail mounting
 Industrial Serial Media Converters
 Serial RS232 to RS422/485 converters
 Serial RS232/422/485 to Serial Fiber converters
 Multi or Single Mode
 Wide range of Ethernet Media Converters
 Unmanaged and Managed Ethernet Converters
 10/100BTx, Gigabit and fast Ethernet
 Multi or Single Mode, WDM Single Strand Fiber Options
 PoE 802.3af and PoE 802.at

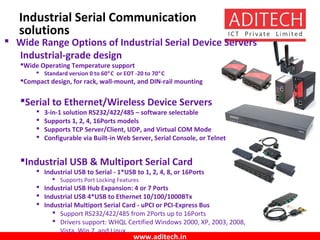

14. www.aditech.in
Industrial Serial Communication
solutions
 Wide Range Options of Industrial Serial Device Servers
Industrial-grade design
Wide Operating Temperature support
 Standard version 0 to 60°C or EOT -20 to 70°C
Compact design, for rack, wall-mount, and DIN-rail mounting
Serial to Ethernet/Wireless Device Servers
 3-in-1 solution RS232/422/485 – software selectable
 Supports 1, 2, 4, 16Ports models
 Supports TCP Server/Client, UDP, and Virtual COM Mode
 Configurable via Built-in Web Server, Serial Console, or Telnet
Industrial USB & Multiport Serial Card
 Industrial USB to Serial - 1*USB to 1, 2, 4, 8, or 16Ports
 Supports Port Locking Features
 Industrial USB Hub Expansion: 4 or 7 Ports
 Industrial USB 4*USB to Ethernet 10/100/1000BTx
 Industrial Multiport Serial Card - uPCI or PCI-Express Bus
 Support RS232/422/485 from 2Ports up to 16Ports
 Drivers support: WHQL Certified Windows 2000, XP, 2003, 2008,
Vista, Win 7, and Linux

15. www.aditech.in
Industrial Wireless Solutions
 Industrial 802.11a/b/g/n solutions
Industrial-grade design – Indoor Design
Supports 802.11a/b/g options,
Wide Operating Temperature support
 Standard version 0 to 60°C or EOT -35 to 75°C option
Supports AP / Bridge / Repeater AP-Client functions
Security WEP/WPA/WPA2
Compact design, for rack, wall-mount, and DIN-rail mounting
Industrial-grade design – Outdoor Design
IP67 casting, Supports 802.11a/b/g/n options,
Standard Temperature Range model: -20 to 70°C option
Supports AP / Bridge / Repeater AP-Client functions
Security WEP/WPA/WPA2
Support wall-mount, or Post mounting
 Industrial 802.11b/g AP/VPN/Router solutions
Industrial-grade design – Indoor Design
Supports 802.11b/g options,
Wide Operating Temperature support
 Standard version 0 to 60°C or EOT -35 to 75°C option
Supports WAN/VPN/NAT functions
Compact design, for rack, wall-mount, and DIN-rail mounting

16. www.aditech.in
Media Converter Series
FCU-100SC FCU-100WA FCU-100ST
100Mbp
s
1Gbp
s
FCU-3002A-SFP-
DR
FCU-3102A-SFP-SFP-
DR
NEW
10Gbp
s
FCU-5002-SFP+
NEW
FCU-2102SCSC-
S25
FCU-RACK-16
16 Slots Universal Media
Converter Rack
‧Hot-Swappable
Module
Power module x 2
Fan x 3
‧Power redundant
‧Power load share
‧2U / 19 inch rack mount

17. www.aditech.in
Applications

18. www.aditech.in

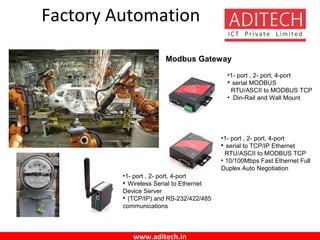

Factory Automation
Modbus Gateway
•1- port , 2- port, 4-port

serial MODBUS
RTU/ASCII to MODBUS TCP
• Din-Rail and Wall Mount
•1- port , 2- port, 4-port

serial to TCP/IP Ethernet
RTU/ASCII to MODBUS TCP
• 10/100Mbps Fast Ethernet Full
Duplex Auto Negotiation
•1- port , 2- port, 4-port

Wireless Serial to Ethernet
Device Server

(TCP/IP) and RS-232/422/485
communications

19. www.aditech.in

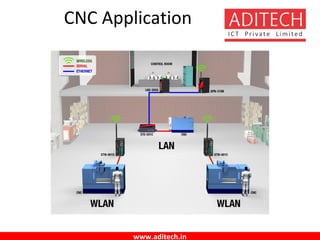

CNC Application

20. www.aditech.in

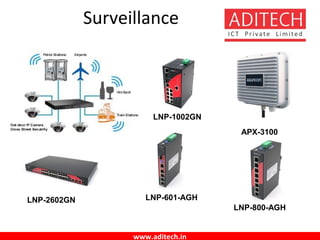

Surveillance
LNP-2602GN
APX-3100
LNP-601-AGH
LNP-1002GN
LNP-800-AGH

21. www.aditech.in
Intersection

22. www.aditech.in

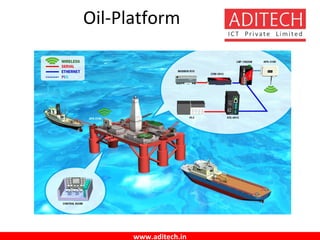

Oil-Platform

23. www.aditech.in

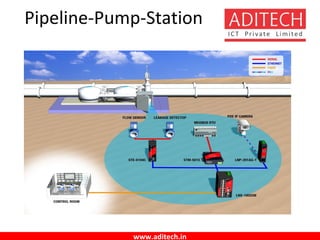

Pipeline-Pump-Station

24. www.aditech.in

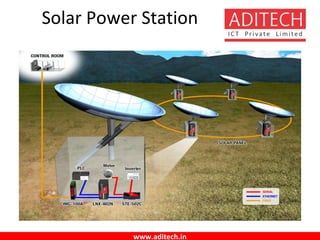

Solar Power Station

25. www.aditech.in

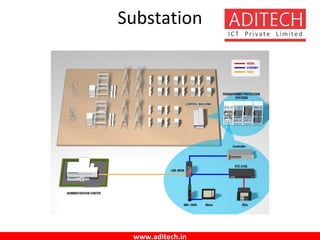

Substation

26. www.aditech.in

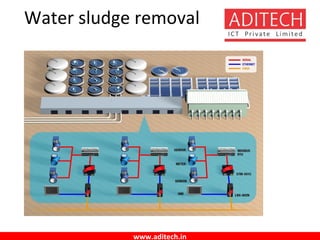

Water sludge removal

27. www.aditech.in

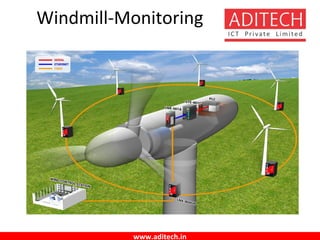

Windmill-Monitoring

28. www.aditech.in

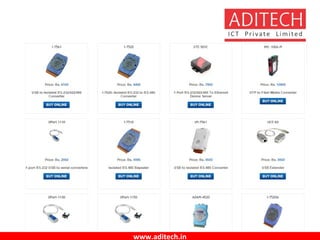

29. www.aditech.in

30. www.aditech.in

31. www.aditech.in

32. www.aditech.in
Transportation
Solutions

33. www.aditech.in

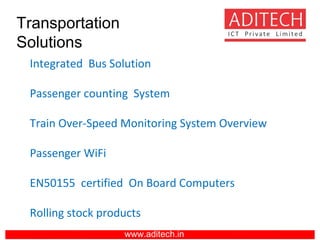

Transportation
Solutions
Integrated Bus Solution
Passenger counting System
Train Over-Speed Monitoring System Overview
Passenger WiFi
EN50155 certified On Board Computers
Rolling stock products

34. www.aditech.in

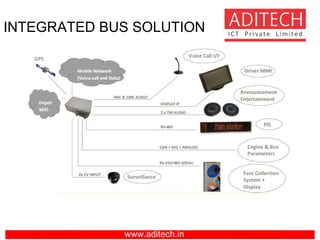

INTEGRATED BUS SOLUTION

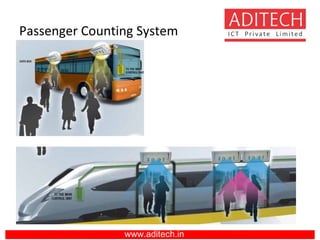

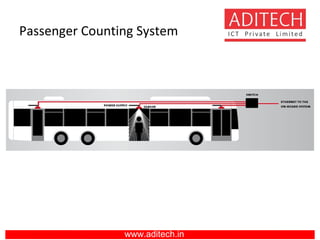

35. Passenger Counting System
www.aditech.in

36. Passenger Counting System
www.aditech.in

37. Passenger Counting System
www.aditech.in

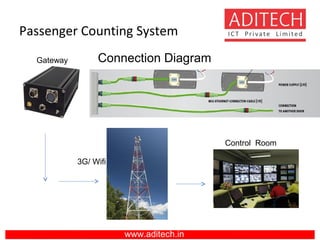

Connection DiagramGateway
3G/ Wifi
Control Room

38. Passenger Counting System
www.aditech.in

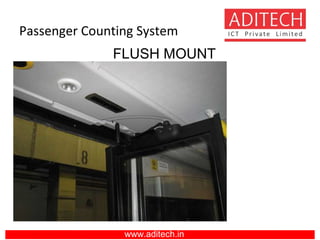

FLUSH MOUNT

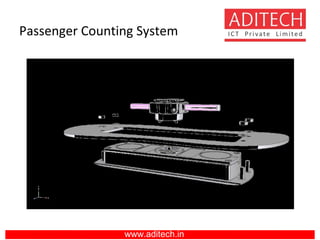

39. Passenger Counting System
www.aditech.in

40. Passenger Counting System
www.aditech.in

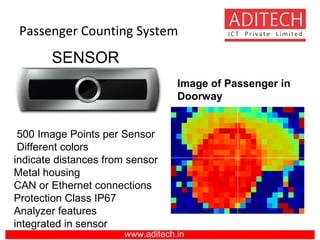

SENSOR
500 Image Points per Sensor
Different colors
indicate distances from sensor
Metal housing
CAN or Ethernet connections
Protection Class IP67
Analyzer features
integrated in sensor
Image of Passenger in
Doorway

41. Passenger Counting System
www.aditech.in

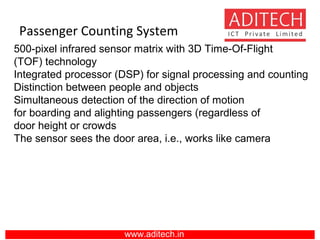

500-pixel infrared sensor matrix with 3D Time-Of-Flight
(TOF) technology
Integrated processor (DSP) for signal processing and counting
Distinction between people and objects
Simultaneous detection of the direction of motion
for boarding and alighting passengers (regardless of
door height or crowds
The sensor sees the door area, i.e., works like camera

42. Passenger Counting System
www.aditech.in

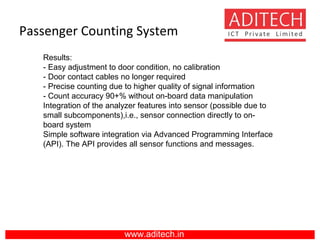

Results:
- Easy adjustment to door condition, no calibration
- Door contact cables no longer required
- Precise counting due to higher quality of signal information
- Count accuracy 90+% without on-board data manipulation
Integration of the analyzer features into sensor (possible due to
small subcomponents),i.e., sensor connection directly to on-
board system
Simple software integration via Advanced Programming Interface
(API). The API provides all sensor functions and messages.

43. www.aditech.in

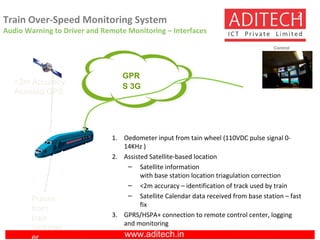

Train Over-Speed Monitoring System
Audio Warning to Driver and Remote Monitoring – Interfaces
2
<2m Accuracy
Assisted GPS
GPR
S 3G
1. Oedometer input from tain wheel (110VDC pulse signal 0-
14KHz )
2. Assisted Satellite-based location
– Satellite information
with base station location triagulation correction
– <2m accuracy – identification of track used by train
– Satellite Calendar data received from base station – fast
fix
3. GPRS/HSPA+ connection to remote control center, logging
and monitoring
Control
Center
Pulses
from
train
oedomet
er

44. www.aditech.in

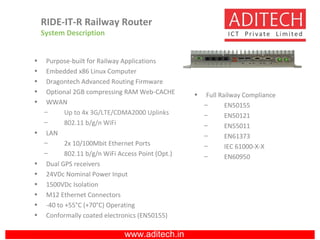

RIDE-IT-R Railway Router
System Description
• Purpose-built for Railway Applications
• Embedded x86 Linux Computer
• Dragontech Advanced Routing Firmware
• Optional 2GB compressing RAM Web-CACHE
• WWAN
– Up to 4x 3G/LTE/CDMA2000 Uplinks
– 802.11 b/g/n WiFi
• LAN
– 2x 10/100Mbit Ethernet Ports
– 802.11 b/g/n WiFi Access Point (Opt.)
• Dual GPS receivers
• 24VDc Nominal Power Input
• 1500VDc Isolation
• M12 Ethernet Connectors
• -40 to +55°C (+70°C) Operating
• Conformally coated electronics (EN50155)
• Full Railway Compliance
– EN50155
– EN50121
– EN55011
– EN61373
– IEC 61000-X-X
– EN60950

45. www.aditech.in
Durio
n
Durion 1300 Series Railway Communication Gateway
• High Rel 1.3GHz ATOM Z510 processor
• Solid State Storage and Onboard Soldered 1GB RAM
• Support for Linux and WES
• 2x Serial (RS232/485), USB, 10/100Mbit ETH
• Dual MVB (Duagon D144L)
• Optional GSM-R modem (Selex RGM 100)
• 24VDc Nominal Power supply (9-36VDc)
• EN50155, EN50121, EN61373 Qualified
• -25 to +55°C Operating (+70°C max)
Connectors
• Dual D-9 Connectors (MVB)
• SMA for Optional GSM-R
• D-Coded M-12 for Ethernet
• MIL-series connectors for Power and I/O
Railway and Rolling Stock
Computing, Control, Diagnostics and Data Acquisition

46. www.aditech.in

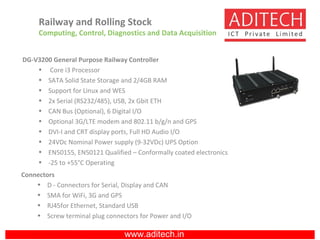

DG-V3200 General Purpose Railway Controller
• Core i3 Processor
• SATA Solid State Storage and 2/4GB RAM
• Support for Linux and WES
• 2x Serial (RS232/485), USB, 2x Gbit ETH
• CAN Bus (Optional), 6 Digital I/O
• Optional 3G/LTE modem and 802.11 b/g/n and GPS
• DVI-I and CRT display ports, Full HD Audio I/O
• 24VDc Nominal Power supply (9-32VDc) UPS Option
• EN50155, EN50121 Qualified – Conformally coated electronics
• -25 to +55°C Operating
Connectors
• D - Connectors for Serial, Display and CAN
• SMA for WiFi, 3G and GPS
• RJ45for Ethernet, Standard USB
• Screw terminal plug connectors for Power and I/O
Railway and Rolling Stock
Computing, Control, Diagnostics and Data Acquisition

47. www.aditech.in

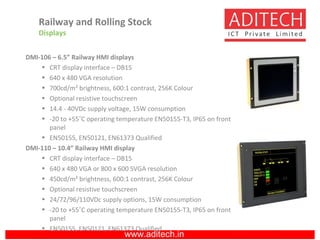

DMI-106 – 6.5” Railway HMI displays
• CRT display interface – DB15
• 640 x 480 VGA resolution
• 700cd/m² brightness, 600:1 contrast, 256K Colour
• Optional resistive touchscreen
• 14.4 - 40VDc supply voltage, 15W consumption
• -20 to +55˚C operating temperature EN50155-T3, IP65 on front
panel
• EN50155, EN50121, EN61373 Qualified
DMI-110 – 10.4” Railway HMI display
• CRT display interface – DB15
• 640 x 480 VGA or 800 x 600 SVGA resolution
• 450cd/m² brightness, 600:1 contrast, 256K Colour
• Optional resistive touchscreen
• 24/72/96/110VDc supply options, 15W consumption
• -20 to +55˚C operating temperature EN50155-T3, IP65 on front
panel
• EN50155, EN50121, EN61373 Qualified
Railway and Rolling Stock
Displays

48. www.aditech.in

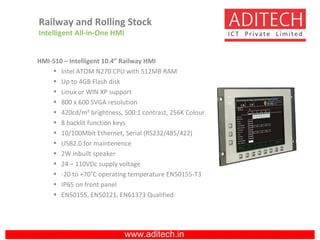

HMI-510 – Intelligent 10.4” Railway HMI
• Intel ATOM N270 CPU with 512MB RAM
• Up to 4GB Flash disk
• Linux or WIN XP support
• 800 x 600 SVGA resolution
• 420cd/m² brightness, 500:1 contrast, 256K Colour
• 8 backlit function keys
• 10/100Mbit Ethernet, Serial (RS232/485/422)
• USB2.0 for maintenence
• 2W inbuilt speaker
• 24 – 110VDc supply voltage
• -20 to +70˚C operating temperature EN50155-T3
• IP65 on front panel
• EN50155, EN50121, EN61373 Qualified
Railway and Rolling Stock
Intelligent All-in-One HMI

49. www.aditech.in
HMI-1020 – Intelligent 10.4” Railway HMI
• Dual Core CPU 2.1GHz, 1GB RAM, 2GB Flash
• 1024x 768 XGA resolution, touchscreen, LED Backlight
• Size: 310 x 214 x 83mm
HMI-1010 – Intelligent 10.4” Railway HMI
• 1.6GHz Intel ATOM CPU, 1GB RAM, 8GB Flash
• 800 x 600 SVGA resolution, touchscreen, LED Backlight
• Size: 310 x 227 x 80mm
Common features
• Linux or WIN XP support
• CF slot for Mass storage
• 700cd/m² brightness, ambient light sensor
• Interfaces: RS-232, RS-485 (HDLC/Async), MVB, DIO, LAN, USB, PC/104
• 110VDc Direct train supply voltage
• -25 to +70˚C Operating temperature
• IP65 on front panel, IP32 on back side
• EN50155, EN50121, EN61373 Qualified
Railway and Rolling Stock
Intelligent All-in-One HMI with Expansion

50. www.aditech.in
DG-SW3080 and DG-SW1080
• 8x 10/100Mbit Ethernet ports
• Managed (3080) and Unmanaged version (1080)
• Supports redundancy modes
• SNMP reporting and management
• 12 - 48VDc supply voltage, 5W consumption
• -40 to +70˚C operating temperature
• IP40 protection class
• EN50155, EN50121 Qualified
DG-SWP141
• 5x 10/100Mbit Ethernet ports
• 4x POE ports, 1x standard Ethernet port
• 30W output power per POE port
• M12 connectors for Ethernet and Power
• 50 - 57VDc supply, 3W consumption unloaded
• -40 to +70˚C operating temperature
• IP40 protection class
• EN50155, EN50121 Qualified
Railway and Rolling Stock
Networking and Ethernet

51. www.aditech.in

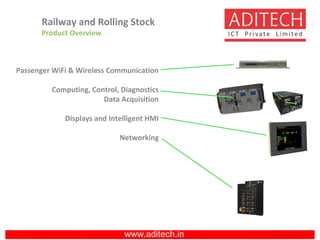

Passenger WiFi & Wireless Communication
Computing, Control, Diagnostics
Data Acquisition
Displays and Intelligent HMI
Networking
Railway and Rolling Stock
Product Overview

52. www.aditech.in

53. www.aditech.in
