A family of high performance
Industrial Ethernet switches ideal
for the end user and equipment
builder
Stratix Ethernet
Switch Family

Copyright © 2012 Rockwell Automation, Inc. All rights reserved. 2
Products that offer: Technology that offers:
 Layer 2 and Layer 3 switching for simple
to complex networks applications
 Advanced switching, routing and security features
 Advanced security services  Common tools for Controls & IT
 Plant-floor and Enterprise integration  Improved Maintainability
 “On-Machine” Connectivity  Flexible design
 Wireless integration in hard-to-wire and remote areas  Customization based on your plant’s needs
Stratix 8000/8300
Layer 2, Layer 3
ArmorStratix 5700 …as well as
Operations
and IT
Addressing
the needs of
Automation…
Stratix 5900
Services Router
Stratix 2000
Unmanaged Stratix 5100 Wireless Access
Point/Workgroup Bridge
Stratix 5700
Layer 2
Stratix 6000
Layer 2 Stratix ETAPs

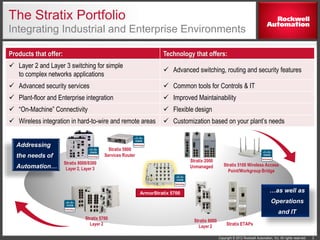

The Stratix Portfolio
Integrating Industrial and Enterprise Environments

Copyright © 2012 Rockwell Automation, Inc. All rights reserved.
Family of industrial Ethernet switches that are:
• Optimized for configuration, monitoring, security and maintenance
• Modular and scalable
• Designed for simple to complex Ethernet applications
• IT-ready and IT-friendly solutions
• Simplified integration of machine systems in infrastructure
• Integrated Architecture programming tools and features
• Secure remote access for improved productivity and OEE
• Connected or isolated machine and Process control applications
• Plant floor and enterprise integration
• Distributed network devices that need to be monitored and controlled
3
The Stratix Family Overview
Integrating your enterprise and manufacturing environments
Overview
Key Benefits
Applications

Copyright © 2013 Rockwell Automation, Inc. All Rights Reserved.Rev 5058-CO900E
PUBLIC INFORMATION

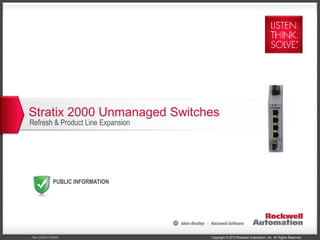

Stratix 2000 Unmanaged Switches
Refresh & Product Line Expansion

Copyright © 2013 Rockwell Automation, Inc. All Rights Reserved.PUBLIC INFORMATION
Stratix 2000 Unmanaged Switches
Overview
 Low cost solutions designed for isolated control
networks
 Recommended for Micro 850 & Micro 820
applications
 Unmanaged switches are not recommended for
safety or motion applications
 Simple “Plug & Play”
 Automatically negotiates speed and duplex settings
(no configuration required)
 Automatically detects cross-over cable
 Expanded operating temperature from -20ºC to
70ºC to meet a wider variety of application
needs for most catalog numbers
 Exception: 1783-US5T & 1783-US8T range 0 to
60ºC

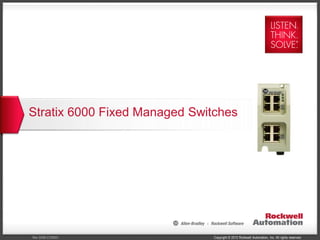

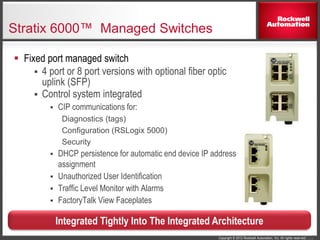

Stratix 6000 Fixed Managed Switches

Stratix 6000™ Managed Switches
 Fixed port managed switch
 4 port or 8 port versions with optional fiber optic
uplink (SFP)
 Control system integrated
 CIP communications for:
Diagnostics (tags)
Configuration (RSLogix 5000)
Security
 DHCP persistence for automatic end device IP address
assignment
 Unauthorized User Identification
 Traffic Level Monitor with Alarms
 FactoryTalk View Faceplates
Integrated Tightly Into The Integrated Architecture

Stratix 5700
Industrial Managed Switches

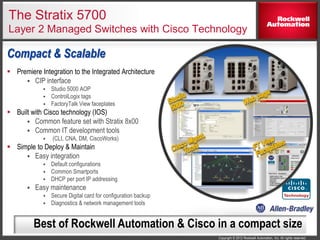

The Stratix 5700
Layer 2 Managed Switches with Cisco Technology
 Premiere Integration to the Integrated Architecture
 CIP interface
 Studio 5000 AOP
 ControlLogix tags
 FactoryTalk View faceplates
 Built with Cisco technology (IOS)
 Common feature set with Stratix 8x00
 Common IT development tools
 (CLI, CNA, DM, CiscoWorks)
 Simple to Deploy & Maintain
 Easy integration
 Default configurations
 Common Smartports
 DHCP per port IP addressing
 Easy maintenance
 Secure Digital card for configuration backup
 Diagnostics & network management tools
Compact & Scalable
Best of Rockwell Automation & Cisco in a compact size

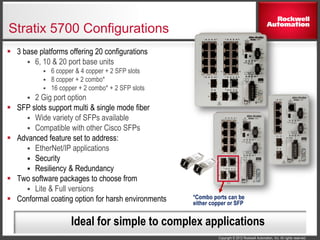

Stratix 5700 Configurations
 3 base platforms offering 20 configurations
 6, 10 & 20 port base units
 6 copper & 4 copper + 2 SFP slots
 8 copper + 2 combo*
 16 copper + 2 combo* + 2 SFP slots
 2 Gig port option
 SFP slots support multi & single mode fiber
 Wide variety of SFPs available
 Compatible with other Cisco SFPs
 Advanced feature set to address:
 EtherNet/IP applications
 Security
 Resiliency & Redundancy
 Two software packages to choose from
 Lite & Full versions
 Conformal coating option for harsh environments *Combo ports can be
either copper or SFP
Ideal for simple to complex applications

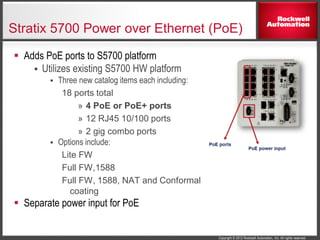

Stratix 5700 Power over Ethernet (PoE)
 Adds PoE ports to S5700 platform
 Utilizes existing S5700 HW platform
 Three new catalog items each including:
18 ports total
» 4 PoE or PoE+ ports
» 12 RJ45 10/100 ports
» 2 gig combo ports
 Options include:
Lite FW
Full FW,1588
Full FW, 1588, NAT and Conformal
coating
 Separate power input for PoE

Copyright © 2014 Rockwell Automation, Inc. All Rights Reserved.Rev 5058-CO900E
PUBLIC INFORMATION
ArmorStratix 5700
IP67 On-Machine Industrial Switch

The ArmorStratix 5700 Offering
13
 Part of an “On-Machine” system moving the industrial controls
and hardware closer to the application, or onto the machine
 Rugged, IP67-rated design for ideal integration into widely distributed
applications with extreme environment conditions
 Enables integration
with enterprise network using
Cisco Internet Operating
System (IOS)
 Provides Premier Integration
(CIP-enabled) to the
Rockwell Automation
Integrated Architecture®
system
Costs can be reduced due to minimized
cabinet components and wiring time

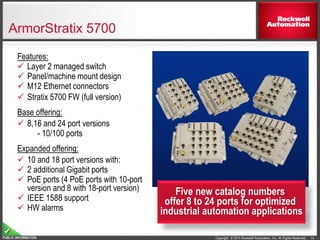

ArmorStratix 5700
Features:
 Layer 2 managed switch
 Panel/machine mount design
 M12 Ethernet connectors
 Stratix 5700 FW (full version)
Base offering:
 8,16 and 24 port versions
- 10/100 ports
Expanded offering:
 10 and 18 port versions with:
 2 additional Gigabit ports
 PoE ports (4 PoE ports with 10-port
version and 8 with 18-port version)
 IEEE 1588 support
 HW alarms
Five new catalog numbers
offer 8 to 24 ports for optimized
industrial automation applications
14

8-port 16-port
24-port
ArmorStratix 5700 Base Offering
15
 IP67-rated for dust and
washdown protection
 8,16 and 24 port versions
with rugged M12 (D-coded)
Ethernet Connectors
 Panel/machine mount design
for on-machine connectivity
outside of the cabinet
 Dual Power Input
 Console port
 SD card for simplified device
replacement

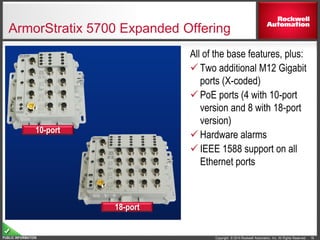

ArmorStratix 5700 Expanded Offering
16
All of the base features, plus:
 Two additional M12 Gigabit
ports (X-coded)
 PoE ports (4 with 10-port
version and 8 with 18-port
version)
 Hardware alarms
 IEEE 1588 support on all
Ethernet ports
10-port
18-port

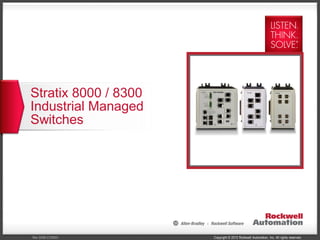

Stratix 8000 / 8300
Industrial Managed
Switches

Copyright © 2012 Rockwell Automation, Inc. All rights reserved.Copyright © 2011 Rockwell Automation, Inc. All rights reserved.

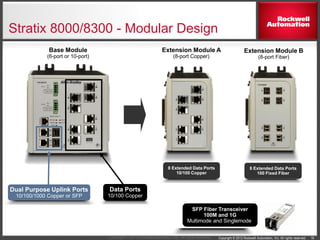

Stratix 8000/8300 - Modular Design
Base Module
(6-port or 10-port)
Extension Module A
(8-port Copper)
Extension Module B
(8-port Fiber)
Data Ports
10/100 Copper
Dual Purpose Uplink Ports
10/100/1000 Copper or SFP
8 Extended Data Ports
10/100 Copper
8 Extended Data Ports
100 Fixed Fiber
SFP Fiber Transceiver
100M and 1G
Multimode and Singlemode
18

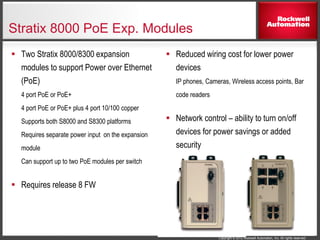

Stratix 8000 PoE Exp. Modules
 Reduced wiring cost for lower power
devices
IP phones, Cameras, Wireless access points, Bar
code readers
 Network control – ability to turn on/off
devices for power savings or added
security
 Two Stratix 8000/8300 expansion
modules to support Power over Ethernet
(PoE)
4 port PoE or PoE+
4 port PoE or PoE+ plus 4 port 10/100 copper
Supports both S8000 and S8300 platforms
Requires separate power input on the expansion
module
Can support up to two PoE modules per switch
 Requires release 8 FW

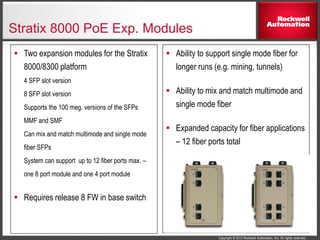

Stratix 8000 PoE Exp. Modules
 Ability to support single mode fiber for
longer runs (e.g. mining, tunnels)
 Ability to mix and match multimode and
single mode fiber
 Expanded capacity for fiber applications
– 12 fiber ports total
 Two expansion modules for the Stratix
8000/8300 platform
4 SFP slot version
8 SFP slot version
Supports the 100 meg. versions of the SFPs
MMF and SMF
Can mix and match multimode and single mode
fiber SFPs
System can support up to 12 fiber ports max. –
one 8 port module and one 4 port module
 Requires release 8 FW in base switch

Copyright © 2012 Rockwell Automation, Inc. All rights reserved.(Confi

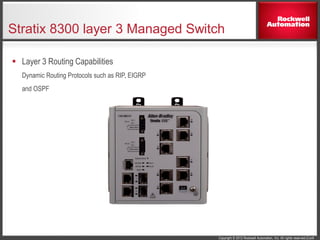

Stratix 8300 layer 3 Managed Switch
 Layer 3 Routing Capabilities
Dynamic Routing Protocols such as RIP, EIGRP
and OSPF

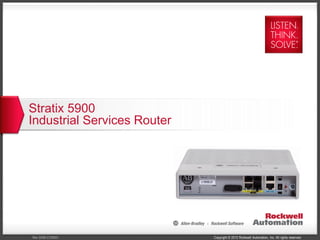

Stratix 5900
Industrial Services Router

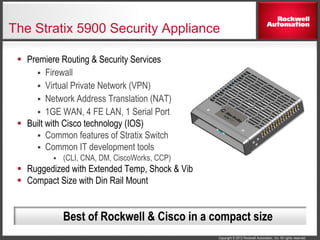

The Stratix 5900 Security Appliance
 Premiere Routing & Security Services
 Firewall
 Virtual Private Network (VPN)
 Network Address Translation (NAT)
 1GE WAN, 4 FE LAN, 1 Serial Port
 Built with Cisco technology (IOS)
 Common features of Stratix Switch
 Common IT development tools
 (CLI, CNA, DM, CiscoWorks, CCP)
 Ruggedized with Extended Temp, Shock & Vib
 Compact Size with Din Rail Mount
Best of Rockwell & Cisco in a compact size

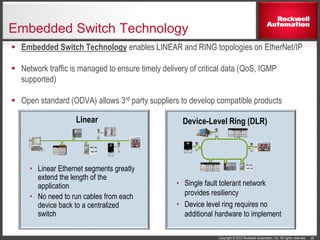

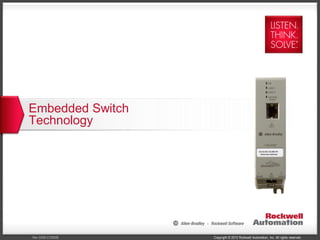

Embedded Switch Technology
 Embedded Switch Technology enables LINEAR and RING topologies on EtherNet/IP
 Network traffic is managed to ensure timely delivery of critical data (QoS, IGMP
supported)
 Open standard (ODVA) allows 3rd party suppliers to develop compatible products
Linear
• Linear Ethernet segments greatly
extend the length of the
application
• No need to run cables from each
device back to a centralized
switch
Device-Level Ring (DLR)
• Single fault tolerant network
provides resiliency
• Device level ring requires no
additional hardware to implement

Copyright © 2012 Rockwell Automation, Inc. All rights reserved. 26(Confidential – For Internal Use Only) Copyright © 2009 Rockwell Automation, Inc. All rights reserved. 26Copyright © 2008 Rockwell Automation, Inc. All rights reserved. 26

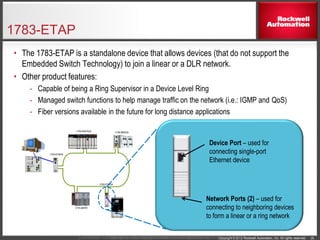

1783-ETAP
• The 1783-ETAP is a standalone device that allows devices (that do not support the
Embedded Switch Technology) to join a linear or a DLR network.
• Other product features:
- Capable of being a Ring Supervisor in a Device Level Ring
- Managed switch functions to help manage traffic on the network (i.e.: IGMP and QoS)
- Fiber versions available in the future for long distance applications
Device Port – used for
connecting single-port
Ethernet device
Network Ports (2) – used for
connecting to neighboring devices
to form a linear or a ring network

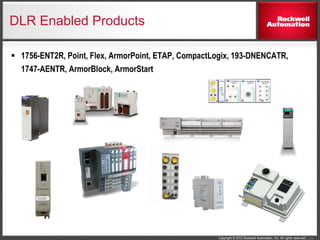

DLR Enabled Products
 1756-ENT2R, Point, Flex, ArmorPoint, ETAP, CompactLogix, 193-DNENCATR,
1747-AENTR, ArmorBlock, ArmorStart
27

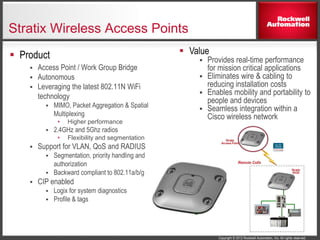

Stratix Wireless Access Points
 Product
 Access Point / Work Group Bridge
 Autonomous
 Leveraging the latest 802.11N WiFi
technology
 MIMO, Packet Aggregation & Spatial
Multiplexing
• Higher performance
 2.4GHz and 5Ghz radios
• Flexibility and segmentation
 Support for VLAN, QoS and RADIUS
 Segmentation, priority handling and
authorization
 Backward compliant to 802.11a/b/g
 CIP enabled
 Logix for system diagnostics
 Profile & tags
 Value
 Provides real-time performance
for mission critical applications
 Eliminates wire & cabling to
reducing installation costs
 Enables mobility and portability to
people and devices
 Seamless integration within a
Cisco wireless network

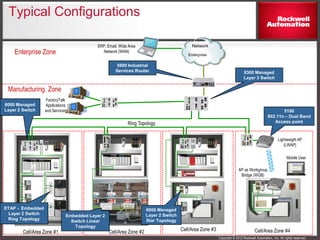

Typical Configurations
Cell/Area Zone #3 Cell/Area Zone #4
FactoryTalk
Applications
and Services
Ring Topology
Cell/Area Zone #1 Cell/Area Zone #2
Manufacturing Zone
8000 Managed
Layer 2 Switch
ETAP - Embedded
Layer 2 Switch
Ring Topology
Enterprise Zone Enterprise
Network
6000 Managed
Layer 2 Switch
Star Topology
Embedded Layer 2
Switch Linear
Topology
Mobile User
Lightweight AP
(LWAP)
AP as Workgroup
Bridge (WGB)
ERP, Email, Wide Area
Network (WAN)
5100
802.11n – Dual Band
Access point
8300 Managed
Layer 3 Switch
5900 Industrial
Services Router

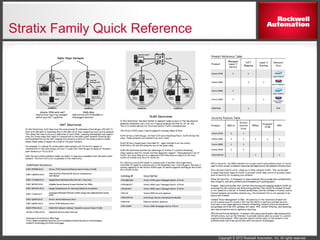

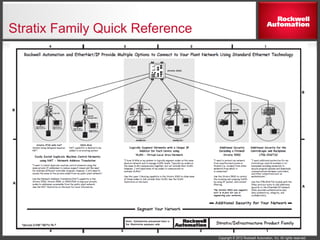

Stratix Family Quick Reference

Thank you!
To learn more visit:
www.ab.com/networks

Stratix 2015

More Related Content

Similar to Stratix 2015

More from RoutecoMarketing

Recently uploaded

Stratix 2015
