Moxa provides industrial networking solutions for the power market, including Ethernet switches that support IEC 61850 and IEEE 1588 standards. Their product portfolio includes managed and unmanaged Ethernet switches in various form factors to suit different application needs. Moxa's Turbo Chain technology allows easy extension of networks while providing fast recovery times of less than 20 milliseconds.

1. Moxa Solutions for Power Market
Prepared by: Eric Lo / Business Development Manager
Date: 03-30-2012

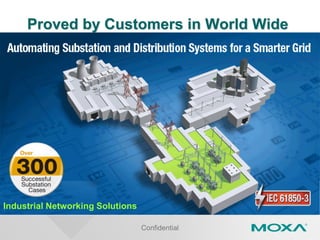

2. Proved by Customers in World Wide
Confidential
Industrial Networking Solutions

3. Confidential
Global Success References

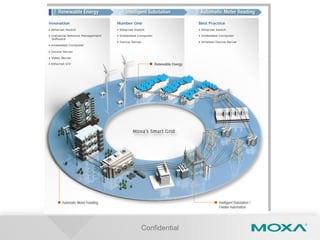

4. Confidential

5. Confidential
Process Level
IEC 61850-9-2
GOOSE
Bay Level
IEC 61850-8-1
Station Level
Station Bus
Process Bus
PT-7728
Ethernet Switch
Merging Unit
CT/VT
IED
PT-G7509
Ethernet Switch
Gigabit Turbo Ring
(recovery < 20 ms)

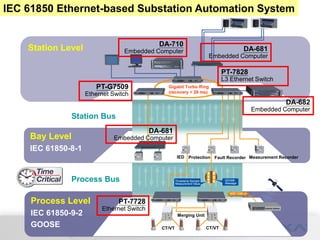

IEC 61850 Ethernet-based Substation Automation System
PT-7828
L3 Ethernet Switch
Protection Fault Recorder Measurement Recorder
CT/VT
DA-710
Embedded Computer DA-681
Embedded Computer
DA-682
Embedded Computer
DA-681
Embedded Computer

6. 24 Years of Experience in Industrial
Communication Solutions
Innovative Force for More Intelligent
Solutions
Expert at Developing Solutions for a
Diversity of Industrial Application
5-years Warranty and Proven Quality
Globally Available, Local Service
Confidential
Why Customer Choose MOXA?

7. Confidential
Embedded Computer for
Power Market
Rugged, Fanless, Rack-mount Computing
Solution with IEC 61850, IEEE 1588

8. Building Full Customer Solutions

9. Why Use Moxa Embedded
Computers?

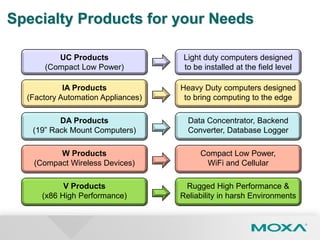

10. UC Products
(Compact Low Power)
IA Products
(Factory Automation Appliances)
DA Products
(19” Rack Mount Computers)
W Products
(Compact Wireless Devices)
V Products
(x86 High Performance)
Specialty Products for your Needs
Light duty computers designed
to be installed at the field level
Heavy Duty computers designed
to bring computing to the edge
Data Concentrator, Backend
Converter, Database Logger
Compact Low Power,
WiFi and Cellular
Rugged High Performance &
Reliability in harsh Environments

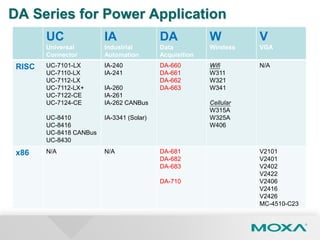

11. DA Series for Power Application
UC
Universal
Connector
IA
Industrial
Automation
DA
Data
Acquisition
W
Wireless
V
VGA
RISC UC-7101-LX
UC-7110-LX
UC-7112-LX
UC-7112-LX+
UC-7122-CE
UC-7124-CE
UC-8410
UC-8416
UC-8418 CANBus
UC-8430
IA-240
IA-241
IA-260
IA-261
IA-262 CANBus
IA-3341 (Solar)
DA-660
DA-661
DA-662
DA-663
Wifi
W311
W321
W341
Cellular
W315A
W325A
W406
N/A
x86 N/A N/A DA-681
DA-682
DA-683
DA-710
V2101
V2401
V2402
V2422
V2406
V2416
V2426
MC-4510-C23

12. ConfidentialConfidential

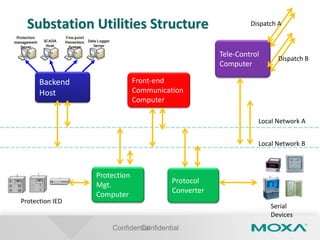

Substation Utilities Structure
Tele-Control
Computer
Front-end
Communication
Computer
Local Network B
Local Network A
Dispatch A
Dispatch B
Serial
Devices
Protection IED
Backend
Host
Protection
Mgt.
Computer
Protocol
Converter

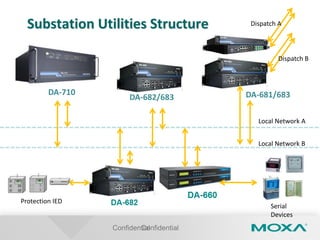

13. ConfidentialConfidential
Substation Utilities Structure
Local Network B
DA-682/683
Dispatch A
Dispatch B
Serial
Devices
Protection IED
DA-681/683DA-710
Local Network A

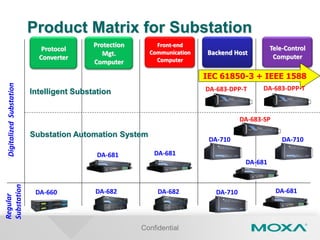

14. Confidential
Product Matrix for Substation
DA-710
Regular
Substation
Backend Host
DA-681
Tele-Control
Computer
DA-682
DA-681
Front-end
Communication
Computer
DA-682
DA-681
Protection
Mgt.
Computer
DA-660
Protocol
Converter
DigitalizedSubstation
IEC 61850-3 + IEEE 1588
DA-710
Intelligent Substation
Substation Automation System
DA-683-DPP-T
DA-683-SP
DA-683-DPP-T
DA-681
DA-710

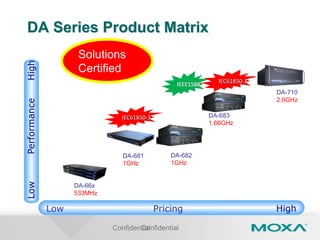

15. ConfidentialConfidential
Performance
Low High
IEC61850-3
DA-66x
533MHz
IEEE1588
DA Series Product MatrixHighLow
DA-681
1GHz
DA-682
1GHz
DA-683
1.66GHz
DA-710
2.0GHz
Pricing
IEC61850-3
Solutions
Certified

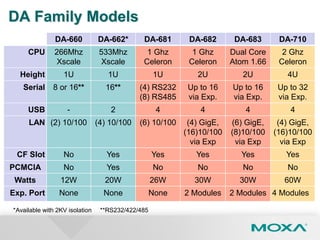

16. DA Family Models
DA-660 DA-662* DA-681 DA-682 DA-683 DA-710
CPU 266Mhz
Xscale
533Mhz
Xscale
1 Ghz
Celeron
1 Ghz
Celeron
Dual Core
Atom 1.66
2 Ghz
Celeron
Height 1U 1U 1U 2U 2U 4U
Serial 8 or 16** 16** (4) RS232
(8) RS485
Up to 16
via Exp.
Up to 16
via Exp.
Up to 32
via Exp.
USB - 2 4 4 4 4
LAN (2) 10/100 (4) 10/100 (6) 10/100 (4) GigE,
(16)10/100
via Exp
(6) GigE,
(8)10/100
via Exp
(4) GigE,
(16)10/100
via Exp
CF Slot No Yes Yes Yes Yes Yes
PCMCIA No Yes No No No No
Watts 12W 20W 26W 30W 30W 60W
Exp. Port None None None 2 Modules 2 Modules 4 Modules
*Available with 2KV isolation **RS232/422/485

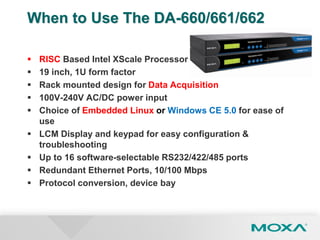

17. When to Use The DA-660/661/662
 RISC Based Intel XScale Processor
 19 inch, 1U form factor
 Rack mounted design for Data Acquisition
 100V-240V AC/DC power input
 Choice of Embedded Linux or Windows CE 5.0 for ease of
use
 LCM Display and keypad for easy configuration &
troubleshooting
 Up to 16 software-selectable RS232/422/485 ports
 Redundant Ethernet Ports, 10/100 Mbps
 Protocol conversion, device bay

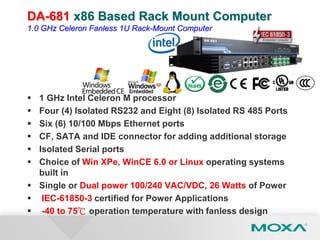

18. DA-681 x86 Based Rack Mount Computer
1.0 GHz Celeron Fanless 1U Rack-Mount Computer
 1 GHz Intel Celeron M processor
 Four (4) Isolated RS232 and Eight (8) Isolated RS 485 Ports
 Six (6) 10/100 Mbps Ethernet ports
 CF, SATA and IDE connector for adding additional storage
 Isolated Serial ports
 Choice of Win XPe, WinCE 6.0 or Linux operating systems
built in
 Single or Dual power 100/240 VAC/VDC, 26 Watts of Power
 IEC-61850-3 certified for Power Applications
 -40 to 75℃ operation temperature with fanless design

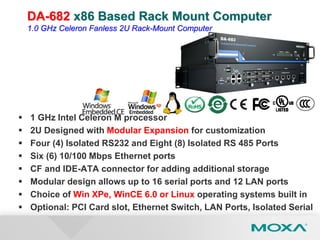

19.  1 GHz Intel Celeron M processor
 2U Designed with Modular Expansion for customization
 Four (4) Isolated RS232 and Eight (8) Isolated RS 485 Ports
 Six (6) 10/100 Mbps Ethernet ports
 CF and IDE-ATA connector for adding additional storage
 Modular design allows up to 16 serial ports and 12 LAN ports
 Choice of Win XPe, WinCE 6.0 or Linux operating systems built in
 Optional: PCI Card slot, Ethernet Switch, LAN Ports, Isolated Serial
DA-682 x86 Based Rack Mount Computer
1.0 GHz Celeron Fanless 2U Rack-Mount Computer

20. DA-683 x86 Based Rack Mount Computer
Dual Core Atom 1.66 GHz Fanless 2U Rack-Mount Computer
 Dual Core Atom D510 1.66 GHz
 Two (2) Isolated RS232 and Eight (8) Isolated RS 485 Ports
 Six (6) 10/100/1000 Mbps Ethernet ports
 CF, SATA-300, and IDE connector for adding additional storage
 IEEE 1588 Time Synchronization
 Choice of Win XPe, WinCE 6.0 or Linux operating systems built in
 Single or Dual power 100/240 VAC/VDC, 30 Watts of Power
 IEC-61850-3 certified for Power Applications
 -40 to 75℃ operation temperature with fanless design

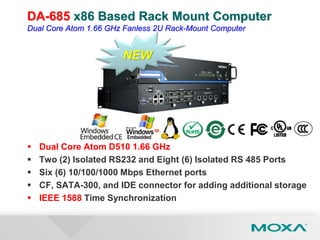

21. DA-685 x86 Based Rack Mount Computer
Dual Core Atom 1.66 GHz Fanless 2U Rack-Mount Computer
 Dual Core Atom D510 1.66 GHz
 Two (2) Isolated RS232 and Eight (6) Isolated RS 485 Ports
 Six (6) 10/100/1000 Mbps Ethernet ports
 CF, SATA-300, and IDE connector for adding additional storage
 IEEE 1588 Time Synchronization
NEW

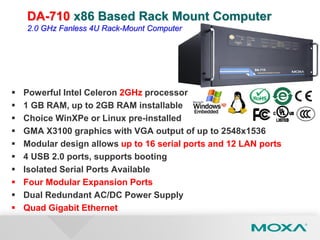

22.  Powerful Intel Celeron 2GHz processor
 1 GB RAM, up to 2GB RAM installable
 Choice WinXPe or Linux pre-installed
 GMA X3100 graphics with VGA output of up to 2548x1536
 Modular design allows up to 16 serial ports and 12 LAN ports
 4 USB 2.0 ports, supports booting
 Isolated Serial Ports Available
 Four Modular Expansion Ports
 Dual Redundant AC/DC Power Supply
 Quad Gigabit Ethernet
DA-710 x86 Based Rack Mount Computer
2.0 GHz Fanless 4U Rack-Mount Computer

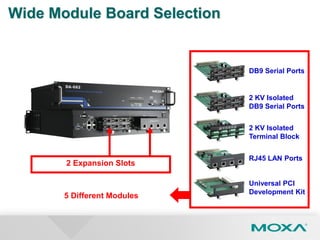

23. Wide Module Board Selection
2 Expansion Slots
DB9 Serial Ports
2 KV Isolated
DB9 Serial Ports
2 KV Isolated
Terminal Block
RJ45 LAN Ports
Universal PCI
Development Kit
5 Different Modules

24. Industrial Ethernet Switch for
Power Market
Industrial Grade Switch Solution with
IEC 61850 and IEEE 1588
Confidential

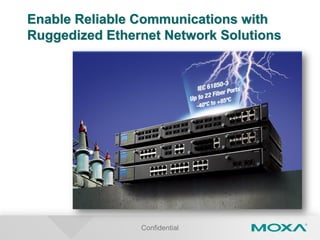

25. Enable Reliable Communications with
Ruggedized Ethernet Network Solutions
Confidential

26. Confidential
Communication Networks for Substation
 Requirement
• IEC 61850-3 or IEEE 1613
compliance
• Redundant Ethernet infrastructure
• Fiber cabling for long haul
transmission & EMI/RFI immunity
• Layer 3 routing capability
 Why Moxa
• IEC 61850-3 Ethernet switch
• Turbo Ring media redundancy
• Redundant Power input
• -40 - 85oC operating
• Up to 28 fiber ports
• L3 IP routing protocol support

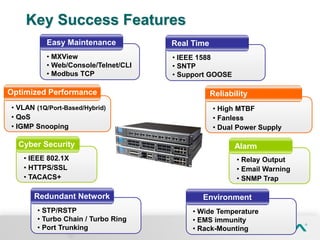

27. Redundant Network
• STP/RSTP
• Turbo Chain / Turbo Ring
• Port Trunking
Cyber Security
• IEEE 802.1X
• HTTPS/SSL
• TACACS+
Optimized Performance
• VLAN (1Q/Port-Based/Hybrid)
• QoS
• IGMP Snooping
Easy Maintenance
• MXView
• Web/Console/Telnet/CLI
• Modbus TCP
Environment
• Wide Temperature
• EMS immunity
• Rack-Mounting
Alarm
• Relay Output
• Email Warning
• SNMP Trap
Reliability
• High MTBF
• Fanless
• Dual Power Supply
Real Time
• IEEE 1588
• SNTP
• Support GOOSE
Key Success Features

28. Confidential
MOXA 3 Weapons in Smart Distribution
Full Managed
Small Form Factor

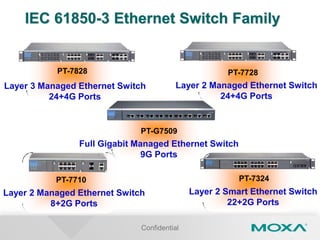

29. Confidential
PT-7324
Layer 2 Smart Ethernet Switch
22+2G Ports
PT-7728
Layer 2 Managed Ethernet Switch
24+4G Ports
PT-7710
Layer 2 Managed Ethernet Switch
8+2G Ports
PT-7828
Layer 3 Managed Ethernet Switch
24+4G Ports
IEC 61850-3 Ethernet Switch Family
PT-G7509
Full Gigabit Managed Ethernet Switch
9G Ports

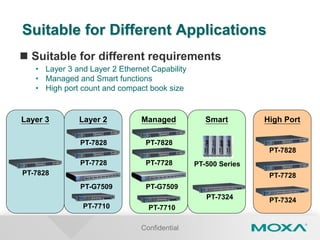

30. Confidential
SmartManagedLayer 3
Suitable for Different Applications
PT-7828
PT-7728
PT-7710
PT-7324
 Suitable for different requirements
• Layer 3 and Layer 2 Ethernet Capability
• Managed and Smart functions
• High port count and compact book size
PT-7828
High Port
PT-7728
PT-7324
PT-7828
Layer 2
PT-7728
PT-7710
PT-7828
PT-G7509 PT-G7509
PT-500 Series

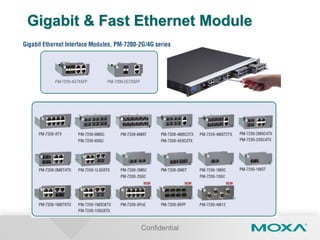

31. Confidential
Gigabit & Fast Ethernet Module

32. Confidential

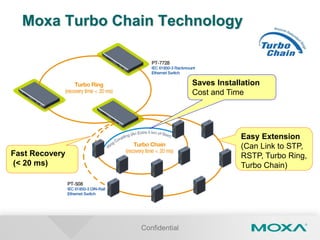

Moxa Turbo Chain Technology
Easy Extension
(Can Link to STP,
RSTP, Turbo Ring,
Turbo Chain)
Saves Installation
Cost and Time
Fast Recovery
(< 20 ms)
