2015 NEW Products
Introduction
Sep, 2015

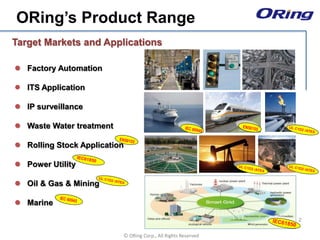

Target Markets and Applications
 Factory Automation
 ITS Application
 IP surveillance
 Waste Water treatment
 Rolling Stock Application
 Power Utility
 Oil & Gas & Mining
 Marine

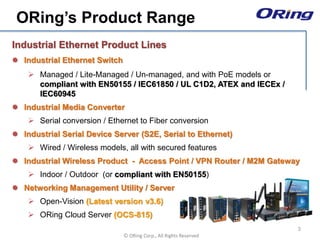

ORing’s Product Range
2

Industrial Ethernet Product Lines
 Industrial Ethernet Switch
 Managed / Lite-Managed / Un-managed, and with PoE models or
compliant with EN50155 / IEC61850 / UL C1D2, ATEX and IECEx /
IEC60945

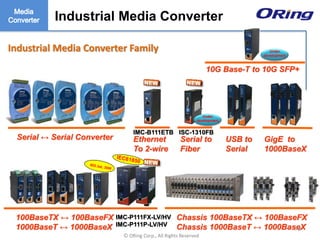

 Industrial Media Converter
 Serial conversion / Ethernet to Fiber conversion
 Industrial Serial Device Server (S2E, Serial to Ethernet)
 Wired / Wireless models, all with secured features
 Industrial Wireless Product - Access Point / VPN Router / M2M Gateway
 Indoor / Outdoor (or compliant with EN50155)
 Networking Management Utility / Server
 Open-Vision (Latest version v3.6)
 ORing Cloud Server (OCS-815)
ORing’s Product Range
3

Industrial Ethernet Switch
Technologies and New Products
4

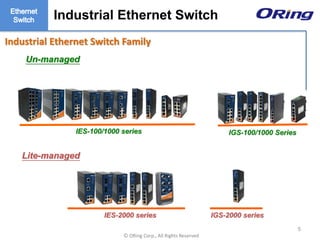

Industrial Ethernet Switch Family
IES-2000 series
Lite-managed
5
IGS-2000 series
IES-100/1000 series IGS-100/1000 Series
Un-managed

Industrial Ethernet Switch Family
IES-3000 series IGS-3000
series
RES-3242GC / -E
IGS-9000 series
RGS/IGS-7000 series RES-P3242GCL /
RES-P3242FXL
RGS-9000 series
DGS-7084GCP
-AIO
DES-3082GP-AIO
DGS-9812GP
-AIO
Managed
6

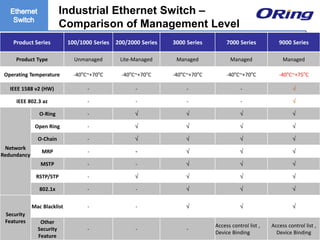

Industrial Ethernet Switch –
Comparison of Management Level
7
Product Series 100/1000 Series 200/2000 Series 3000 Series 7000 Series 9000 Series
Product Type Unmanaged Lite-Managed Managed Managed Managed
Operating Temperature -40o
C~+70o
C -40o
C~+70o
C -40o
C~+70o
C -40o
C~+70o
C -40o
C~+75o
C
IEEE 1588 v2 (HW) - - - - √
IEEE 802.3 az - - - - √
Network
Redundancy
O-Ring - √ √ √ √
Open Ring - √ √ √ √
O-Chain - √ √ √ √
MRP - - √ √ √
MSTP - - √ √ √
RSTP/STP - √ √ √ √
802.1x - - √ √ √
Security
Features
Mac Blacklist - - √ √ √
Other
Security
Feature
- - -
Access control list ,
Device Binding
Access control list ,
Device Binding7

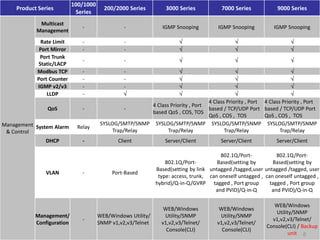

Comparison of management level
8
Product Series
100/1000
Series
200/2000 Series 3000 Series 7000 Series 9000 Series
Management
& Control
Multicast
Management
- - IGMP Snooping IGMP Snooping IGMP Snooping
Rate Limit - - √ √ √
Port Mirror - - √ √ √
Port Trunk
Static/LACP
- - √ √ √
Modbus TCP - - √ √ √
Port Counter - - √ √ √
IGMP v2/v3 - - √ √ √
LLDP - √ √ √ √
QoS - -
4 Class Priority , Port
based QoS , COS, TOS
based / TCP/UDP Port
QoS , COS , TOS
based / TCP/UDP Port
QoS , COS , TOS
System Alarm Relay
SYSLOG/SMTP/SNMP
Trap/Relay
SYSLOG/SMTP/SNMP
Trap/Relay
SYSLOG/SMTP/SNMP
Trap/Relay
SYSLOG/SMTP/SNMP
Trap/Relay
DHCP - Client Server/Client Server/Client Server/Client
VLAN - Port-Based
802.1Q/Port-
Based(setting by link
type: access, trunk,
hybrid)/Q-in-Q/GVRP
802.1Q/Port-
Based(setting by
untagged /tagged,user
can oneself untagged ,
tagged , Port group
and PVID)/Q-in-Q
802.1Q/Port-
Based(setting by
untagged /tagged, user
can oneself untagged ,
tagged , Port group
and PVID)/Q-in-Q
Management/
Configuration
-
WEB/Windows Utility/
SNMP v1,v2,v3/Telnet
WEB/Windows
Utility/SNMP
v1,v2,v3/Telnet/
Console(CLI)
WEB/Windows
Utility/SNMP
v1,v2,v3/Telnet/
Console(CLI)
WEB/Windows
Utility/SNMP
v1,v2,v3/Telnet/
Console(CLI) / Backup
unit 8

 Industrial Rack Mount Modular Managed Ethernet Switch – RGS-P(R)9000 series /
RGS-R9000-A series / RGS-P9160GCM series and Configuration Backup Unit
 Industrial Layer 2/3 Rack Mount Managed Ethernet Switch
 Industrial Layer 2/3 Din Rail Managed Ethernet Switch
 Industrial Compact Size Din Rail Managed Ethernet Switch

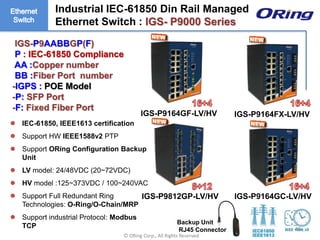

 Industrial IEC-61850 Din Rail Managed Ethernet Switch

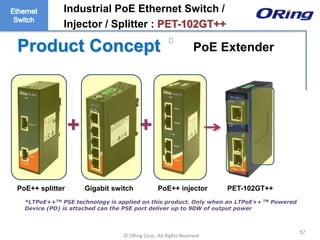

 Industrial PoE Ethernet Switch
ALL NEW 9000 Family Product Categories
9

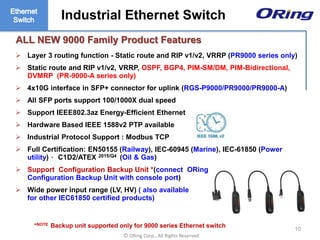

 Layer 3 routing function - Static route and RIP v1/v2, VRRP (PR9000 series only)
 Static route and RIP v1/v2, VRRP, OSPF, BGP4, PIM-SM/DM, PIM-Bidirectional,
DVMRP (PR-9000-A series only)
 4x10G interface in SFP+ connector for uplink (RGS-P9000/PR9000/PR9000-A)
 All SFP ports support 100/1000X dual speed
 Support IEEE802.3az Energy-Efficient Ethernet
 Hardware Based IEEE 1588v2 PTP available
 Industrial Protocol Support : Modbus TCP
 Full Certification: EN50155 (Railway), IEC-60945 (Marine), IEC-61850 (Power
utility)， C1D2/ATEX 2015/Q4 (Oil & Gas)
 Support Configuration Backup Unit *(connect ORing
Configuration Backup Unit with console port)
 Wide power input range (LV, HV) ( also available
for other IEC61850 certified products)
ALL NEW 9000 Family Product Features
*NOTE Backup unit supported only for 9000 series Ethernet switch
10

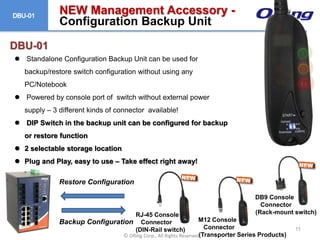

 Standalone Configuration Backup Unit can be used for
backup/restore switch configuration without using any
PC/Notebook
 Powered by console port of switch without external power
supply – 3 different kinds of connector available!
 DIP Switch in the backup unit can be configured for backup
or restore function
 2 selectable storage location
 Plug and Play, easy to use – Take effect right away!
Backup Configuration
Restore Configuration
RJ-45 Console
Connector
(DIN-Rail switch)
DB9 Console
Connector
(Rack-mount switch)
M12 Console
Connector
(Transporter Series Products)

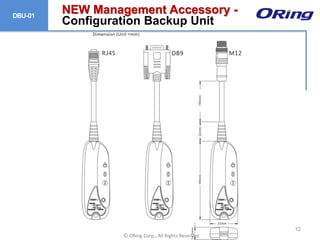

NEW Management Accessory -
Configuration Backup Unit
DBU-01
11

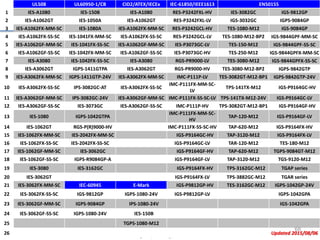

12

 Industrial Switch
• RGS/RGPS 9000 series
• IGS/IGPS 9000 series
 Industrial Access Point
• IGAP series
 Industrial Cellular Router
• IGAR series
 Industrial VPN Router
• IGR-20
 Industrial EN50155 Access Point
• TGAP series

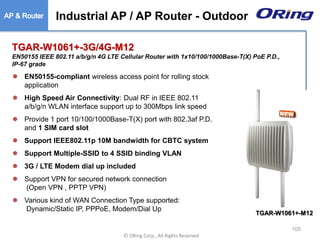

 Industrial EN50155 Cellular Router
• TGAR series
ORing product support list
13

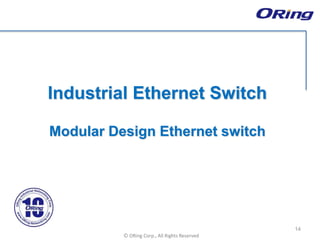

Modular Design Ethernet switch
14

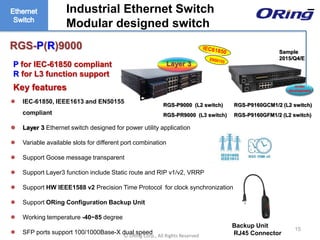

 IEC-61850, IEEE1613 and EN50155
compliant
 Layer 3 Ethernet switch designed for power utility application
 Variable available slots for different port combination
 Support Goose message transparent
 Support Layer3 function include Static route and RIP v1/v2, VRRP
 Support HW IEEE1588 v2 Precision Time Protocol for clock synchronization
 Support ORing Configuration Backup Unit
 Working temperature -40~85 degree
 SFP ports support 100/1000Base-X dual speed
15
Layer 3
RGS-P(R)9000
P for IEC-61850 compliant
R for L3 function support
RGS-P9000 (L2 switch)
RGS-PR9000 (L3 switch)
Backup Unit
RJ45 Connector
Key features
RGS-P9160GCM1/2 (L2 switch)
RGS-P9160GFM1/2 (L2 switch)
Under
development
Modular designed switch
Sample
2015/Q4/E

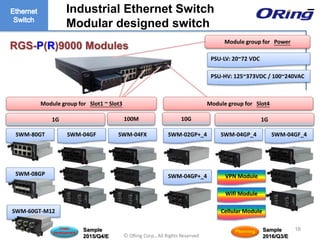

RGS-P(R)9000 Modules
SWM-02GP+_4
SWM-04GP+_4
SWM-04GP_4SWM-80GT
SWM-08GP
SWM-04GF SWM-04FX
Module group for Slot4
SWM-04GF_4
Module group for Slot1 ~ Slot3
1G 100M 1G10G
Module group for Power
PSU-LV: 20~72 VDC
PSU-HV: 125~373VDC / 100~240VAC
SWM-60GT-M12
VPN Module
Wifi Module
Cellular Module
16
Planning Sample
2016/Q3/E
Under
development
Sample
2015/Q4/E

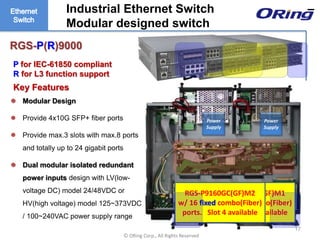

RGS-P(R)9000
 Modular Design
 Provide 4x10G SFP+ fiber ports
 Provide max.3 slots with max.8 ports
and totally up to 24 gigabit ports
 Dual modular isolated redundant
power inputs design with LV(low-
voltage DC) model 24/48VDC or
HV(high voltage) model 125~373VDC
/ 100~240VAC power supply range
Key Features
Power
Supply
Power
Supply
8 Port
fiber
SFP
8 Port
fiber SC
8 Port
10/100/
1000 TX
4 Port
10G
SFP+
RGS-P9160GC(GF)M1
w/ 16 fixed combo(Fiber)
ports. Slot 1 available
RGS-P9160GC(GF)M2
w/ 16 fixed combo(Fiber)
ports. Slot 4 available
17

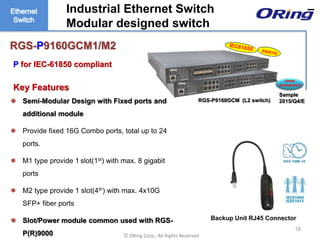

RGS-P9160GCM1/M2
Key Features
 Semi-Modular Design with Fixed ports and
additional module
 Provide fixed 16G Combo ports, total up to 24
ports.
 M1 type provide 1 slot(1st) with max. 8 gigabit
ports
 M2 type provide 1 slot(4th) with max. 4x10G
SFP+ fiber ports
 Slot/Power module common used with RGS-
P(R)9000
18
RGS-P9160GCM (L2 switch)
Under
development
Backup Unit RJ45 Connector
Sample
2015/Q4/E

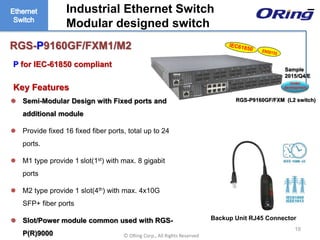

RGS-P9160GF/FXM1/M2
Key Features
19
RGS-P9160GF/FXM (L2 switch)
Backup Unit RJ45 Connector
Under
development
 Semi-Modular Design with Fixed ports and
additional module
 Provide fixed 16 fixed fiber ports, total up to 24
ports.
 M1 type provide 1 slot(1st) with max. 8 gigabit
ports
 M2 type provide 1 slot(4th) with max. 4x10G
SFP+ fiber ports
 Slot/Power module common used with RGS-
P(R)9000
Sample
2015/Q4/E

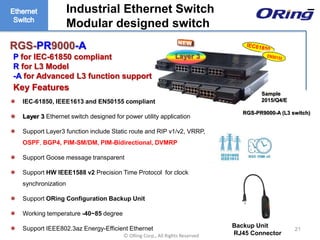

 IEC-61850, IEEE1613 and EN50155 compliant
 Layer 3 Ethernet switch designed for power utility application
 Support Layer3 function include Static route and RIP v1/v2, VRRP,
OSPF, BGP4, PIM-SM/DM, PIM-Bidirectional, DVMRP
 Support Goose message transparent
 Support HW IEEE1588 v2 Precision Time Protocol for clock
synchronization
 Working temperature -40~85 degree
 Support IEEE802.3az Energy-Efficient Ethernet 21
Layer 3
RGS-PR9000-A
R for L3 Model
-A for Advanced L3 function support
RGS-PR9000-A (L3 switch)
Backup Unit
RJ45 Connector
Key Features
Sample
2015/Q4/E

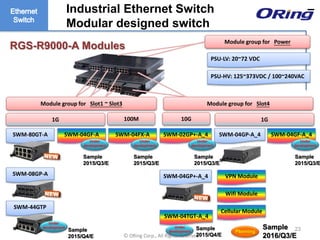

RGS-R9000-A Modules
SWM-02GP+-A_4
SWM-04GP+-A_4
SWM-04GP-A_4SWM-80GT-A
SWM-08GP-A
SWM-04GF-A SWM-04FX-A SWM-04GF-A_4
1G 100M 1G10G
Module group for Power
PSU-LV: 20~72 VDC
PSU-HV: 125~373VDC / 100~240VAC
VPN Module
Wifi Module
Cellular Module
SWM-04TGT-A_4
Under
development
SWM-44GTP
Under
development
Module group for Slot4Module group for Slot1 ~ Slot3
Under
development
Under
development
Under
development
23
Planning
Sample
2016/Q3/E
Sample
2015/Q4/E
Sample
2015/Q3/E
Sample
2015/Q3/E
Sample
2015/Q3/E
Sample
2015/Q3/E
Sample
2015/Q4/E
Under
development

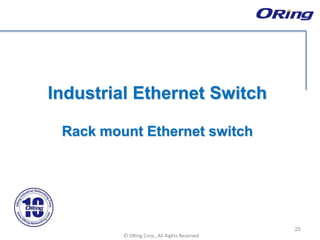

Rack mount Ethernet switch
25

26

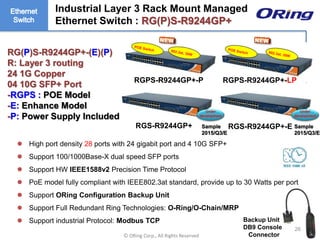

 High port density 28 ports with 24 gigabit port and 4 10G SFP+
 Support 100/1000Base-X dual speed SFP ports
 Support HW IEEE1588v2 Precision Time Protocol
 PoE model fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
 Support Full Redundant Ring Technologies: O-Ring/O-Chain/MRP
 Support industrial Protocol: Modbus TCP
RGS-R9244GP+ RGS-R9244GP+-E
RGPS-R9244GP+-LP
RG(P)S-R9244GP+-(E)(P)
R: Layer 3 routing
24 1G Copper
04 10G SFP+ Port
-RGPS : POE Model
-E: Enhance Model
-P: Power Supply Included
RGPS-R9244GP+-P
Industrial Layer 3 Rack Mount Managed
Ethernet Switch : RG(P)S-R9244GP+
Backup Unit
DB9 Console
Connector
Under
development
Under
development
Sample
2015/Q3/E
Sample
2015/Q3/E

27

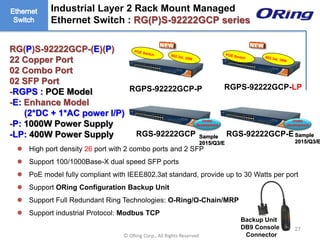

 High port density 26 port with 2 combo ports and 2 SFP
RGS-92222GCP RGS-92222GCP-E
RG(P)S-92222GCP-(E)(P)
22 Copper Port
02 Combo Port
02 SFP Port
-RGPS : POE Model
-E: Enhance Model
(2*DC + 1*AC power I/P)
-P: 1000W Power Supply
-LP: 400W Power Supply
Ethernet Switch : RG(P)S-92222GCP series
Backup Unit
DB9 Console
Connector
Under
development
Under
development
RGPS-92222GCP-P RGPS-92222GCP-LP
Sample
2015/Q3/E
Sample
2015/Q3/E

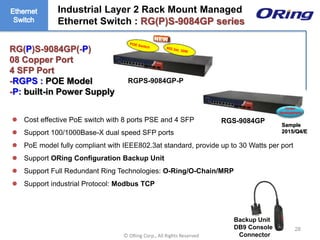

 Cost effective PoE switch with 8 ports PSE and 4 SFP
RGS-9084GP
RG(P)S-9084GP(-P)
08 Copper Port
4 SFP Port
-RGPS : POE Model
-P: built-in Power Supply
Ethernet Switch : RG(P)S-9084GP series
Backup Unit
DB9 Console
Connector
Under
development
RGPS-9084GP-P
28
Sample
2015/Q4/E

30

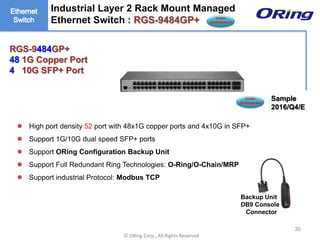

 High port density 52 port with 48x1G copper ports and 4x10G in SFP+
 Support 1G/10G dual speed SFP+ ports
RGS-9484GP+
48 1G Copper Port
4 10G SFP+ Port
Ethernet Switch : RGS-9484GP+
Backup Unit
DB9 Console
Connector
Sample
2016/Q4/E
Under
development
Under
development

Din-Rail Ethernet switch
31

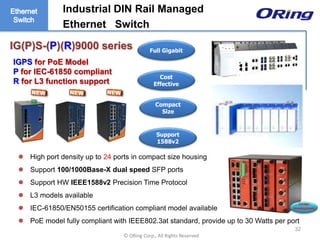

 High port density up to 24 ports in compact size housing
 L3 models available
 IEC-61850/EN50155 certification compliant model available
32
IG(P)S-(P)(R)9000 series
IGPS for PoE Model
Full Gigabit
Cost
Effective
Compact
Size
Support
1588v2
Industrial DIN Rail Managed
Ethernet Switch
Under
development

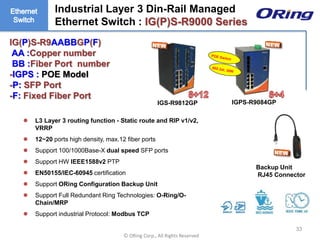

 L3 Layer 3 routing function - Static route and RIP v1/v2,
VRRP
 12~20 ports high density, max.12 fiber ports
 Support HW IEEE1588v2 PTP
 EN50155/IEC-60945 certification
 Support Full Redundant Ring Technologies: O-Ring/O-
Chain/MRP
33
IGS-R9812GP
IG(P)S-R9AABBGP(F)
AA :Copper number
BB :Fiber Port number
-IGPS : POE Model
-P: SFP Port
-F: Fixed Fiber Port
IGPS-R9084GP
Industrial Layer 3 Din-Rail Managed
Ethernet Switch : IG(P)S-R9000 Series
Backup Unit
RJ45 Connector

 12~24 ports , maximum 12 fiber ports
 Support 100/1000Base-X dual speed SFP
ports , SC/ST Fiber ports
 EN50155/IEC-60945 certification
 C1D2/ATEX/IECEX (2015/Q3/E)
 Support Full Redundant Ring Technologies:
O-Ring/O-Chain/MRP
 IGS-9084GP-FB2 support HW fiber bypass
35

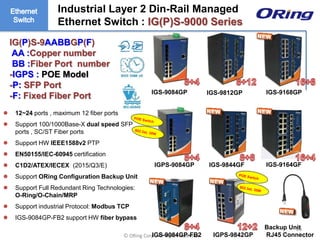

IGS-9812GP
IGS-9844GF
IGS-9168GP
IGS-9164GF
IG(P)S-9AABBGP(F)
AA :Copper number
-IGPS : POE Model
-P: SFP Port
-F: Fixed Fiber Port IGS-9084GP
IGPS-9084GP
Ethernet Switch : IG(P)S-9000 Series
Backup Unit
RJ45 ConnectorIGS-9084GP-FB2 IGPS-9842GP

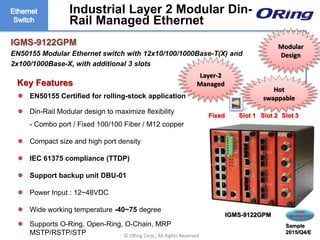

Industrial Layer 2 Modular Din-
Rail Managed Ethernet
 EN50155 Certified for rolling-stock application
 Din-Rail Modular design to maximize flexibility
- Combo port / Fixed 100/100 Fiber / M12 copper
 Compact size and high port density
 IEC 61375 compliance (TTDP)
 Support backup unit DBU-01
 Power Input : 12~48VDC
 Wide working temperature -40~75 degree
 Supports O-Ring, Open-Ring, O-Chain, MRP
MSTP/RSTP/STP
Key Features

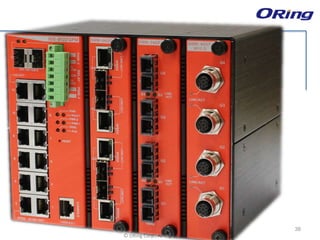

IGMS-9122GPM
EN50155 Modular Ethernet switch with 12x10/100/1000Base-T(X) and
2x100/1000Base-X, with additional 3 slots
IGMS-9122GPM
Layer-2
Managed
Hot
swappable
Under
development
Sample
2015/Q4/E
Fixed
Modular
Design
Slot 1 Slot 2 Slot 3

38

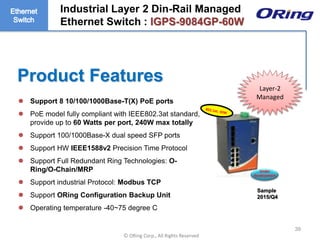

Product Features
39
Layer-2
Managed
 Support 8 10/100/1000Base-T(X) PoE ports
 PoE model fully compliant with IEEE802.3at standard,
provide up to 60 Watts per port, 240W max totally
 Support Full Redundant Ring Technologies: O-
Ring/O-Chain/MRP
 Operating temperature -40~75 degree C
Under
development
Ethernet Switch : IGPS-9084GP-60W
Sample
2015/Q4

Product Features
40
Layer-2
Managed
provide up to 30 Watts per port, 240W max totally
Ring/O-Chain/MRP
Under
development

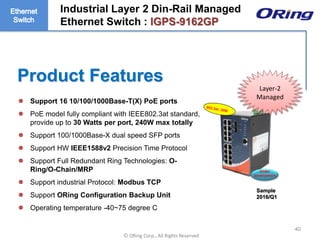

Ethernet Switch : IGPS-9162GP
Sample
2016/Q1

Product Features
41
Layer-2
Managed

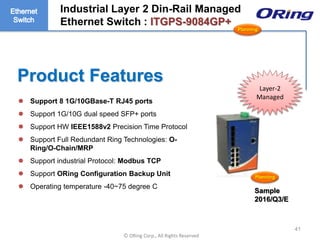

 Support 8 1G/10GBase-T RJ45 ports
 Support 1G/10G dual speed SFP+ ports
Ring/O-Chain/MRP
Ethernet Switch : ITGPS-9084GP+
Planning
Planning
Sample
2016/Q3/E

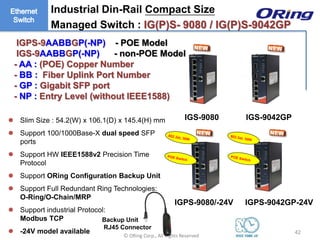

 Slim Size : 54.2(W) x 106.1(D) x 145.4(H) mm
 Support 100/1000Base-X dual speed SFP
ports
 Support HW IEEE1588v2 Precision Time
Protocol
 Support Full Redundant Ring Technologies:
O-Ring/O-Chain/MRP
 Support industrial Protocol:
Modbus TCP
 -24V model available 42
Industrial Din-Rail Compact Size
Managed Switch : IG(P)S- 9080 / IG(P)S-9042GP
IGS-9080 IGS-9042GP
IGPS-9080/-24V IGPS-9042GP-24V
IGPS-9AABBGP(-NP) - POE Model
IGS-9AABBGP(-NP) - non-POE Model
- AA : (POE) Copper Number
- BB : Fiber Uplink Port Number
- GP : Gigabit SFP port
- NP : Entry Level (without IEEE1588)
Backup Unit
RJ45 Connector

Product Features
44
 Full gigabit non-blocking switching fabric
 Support 8 10/100/1000Base-T(X) ports
 Supports IEEE 802.3az Energy-Efficient
Ethernet technology
 Support 9.6K jumbo frame
 Rigid IP-30 housing design
Under
development

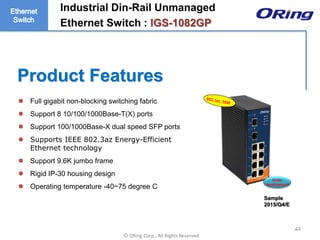

Industrial Din-Rail Unmanaged
Ethernet Switch : IGS-1082GP
Sample
2015/Q4/E

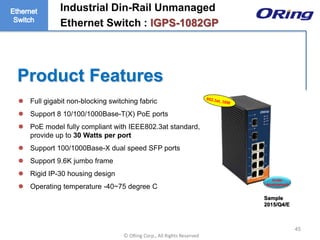

Product Features
45
 Full gigabit non-blocking switching fabric
provide up to 30 Watts per port
 Support 9.6K jumbo frame
Under
development
Industrial Din-Rail Unmanaged
Ethernet Switch : IGPS-1082GP
Sample
2015/Q4/E

 IEC-61850, IEEE1613 certification
 Support ORing Configuration Backup
Unit
 LV model: 24/48VDC (20~72VDC)
 HV model :125~373VDC / 100~240VAC
 Support Full Redundant Ring
Technologies: O-Ring/O-Chain/MRP
 Support industrial Protocol: Modbus
TCP
46
IGS-P9812GP-LV/HV
IGS-P9164GF-LV/HV
IGS-P9AABBGP(F)
P : IEC-61850 Compliance
AA :Copper number
-IGPS : POE Model
-P: SFP Port
-F: Fixed Fiber Port
Industrial IEC-61850 Din Rail Managed
Ethernet Switch : IGS- P9000 Series
Backup Unit
RJ45 Connector
IGS-P9164FX-LV/HV
IGS-P9164GC-LV/HV
46

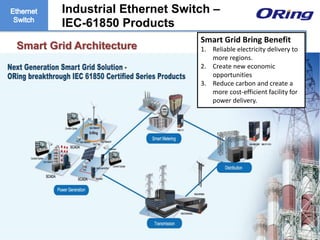

Smart Grid Architecture
IEC-61850 Products
Smart Grid Bring Benefit
1. Reliable electricity delivery to
more regions.
2. Create new economic
opportunities
3. Reduce carbon and create a
more cost-efficient facility for
power delivery.

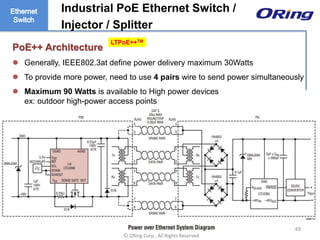

PoE++ Architecture
 Generally, IEEE802.3at define power delivery maximum 30Watts
 To provide more power, need to use 4 pairs wire to send power simultaneously
 Maximum 90 Watts is available to High power devices
ex: outdoor high-power access points
Industrial PoE Ethernet Switch /
Injector / Splitter
LTPoE++TM
49

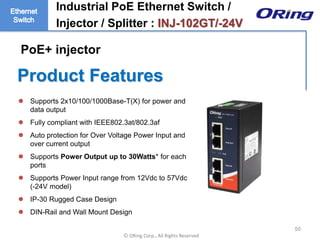

Product Features
50
 Supports 2x10/100/1000Base-T(X) for power and
data output
 Fully compliant with IEEE802.3at/802.3af
 Auto protection for Over Voltage Power Input and
over current output
 Supports Power Output up to 30Watts* for each
ports
 Supports Power Input range from 12Vdc to 57Vdc
(-24V model)
 IP-30 Rugged Case Design
 DIN-Rail and Wall Mount Design
Injector / Splitter : INJ-102GT/-24V
PoE+ injector

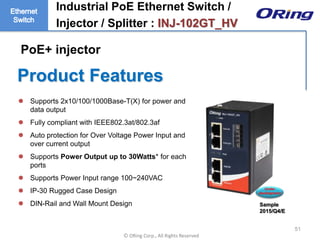

Product Features
51
data output
over current output
ports
 Supports Power Input range 100~240VAC
Under
development
Injector / Splitter : INJ-102GT_HV
Sample
2015/Q4/E
PoE+ injector

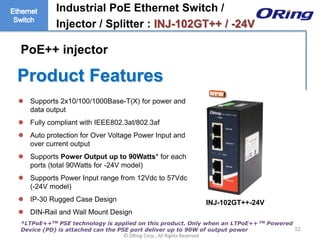

Product Features
52
data output
over current output
ports (total 90Watts for -24V model)
 Supports Power Input range from 12Vdc to 57Vdc
(-24V model)
Injector / Splitter : INJ-102GT++ / -24V
*LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered
Device (PD) is attached can the PSE port deliver up to 90W of output power
PoE++ injector
INJ-102GT++-24V

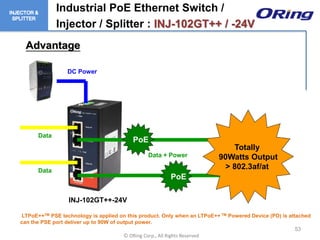

Advantage
INJ-102GT++-24V
DC Power
Data + Power
PoE
PoE
Totally
90Watts Output
> 802.3af/at
LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered Device (PD) is attached
can the PSE port deliver up to 90W of output power.
Data
Data
53
Injector / Splitter : INJ-102GT++ / -24V

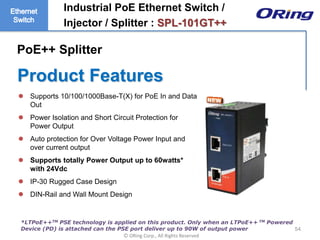

Product Features
54
 Supports 10/100/1000Base-T(X) for PoE In and Data
Out
 Power Isolation and Short Circuit Protection for
Power Output
over current output
 Supports totally Power Output up to 60watts*
with 24Vdc
Injector / Splitter : SPL-101GT++
PoE++ Splitter

Product Features

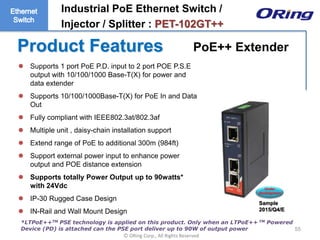

55
 Supports 1 port PoE P.D. input to 2 port POE P.S.E
output with 10/100/1000 Base-T(X) for power and
data extender
 Supports 10/100/1000Base-T(X) for PoE In and Data
Out
 Multiple unit , daisy-chain installation support
 Extend range of PoE to additional 300m (984ft)
 Support external power input to enhance power
output and POE distance extension
 Supports totally Power Output up to 90watts*
with 24Vdc
 IN-Rail and Wall Mount Design
Under
development
Injector / Splitter : PET-102GT++
PoE++ Extender
Sample
2015/Q4/E

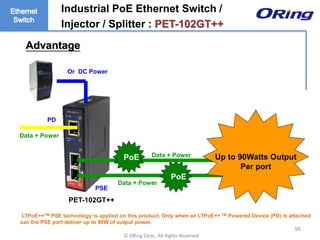

Advantage
PET-102GT++
Or DC Power
Data + Power
PoE
PoE Up to 90Watts Output
Per port
LTPoE++TM PSE technology is applied on this product. Only when an LTPoE++ TM Powered Device (PD) is attached
can the PSE port deliver up to 90W of output power.
Data + Power
56
PD
PSE
Data + Power

Product Concept
57
PoE Extender
+ +
Gigabit switch PoE++ injectorPoE++ splitter PET-102GT++

58

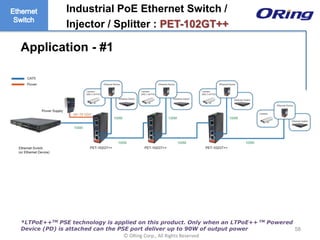

Application - #1

59

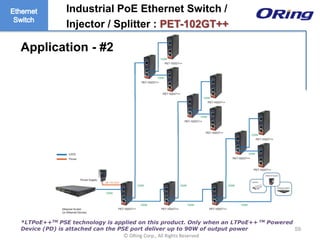

Application - #2

60

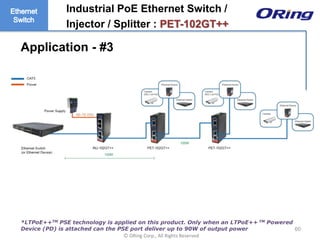

Application - #3

61

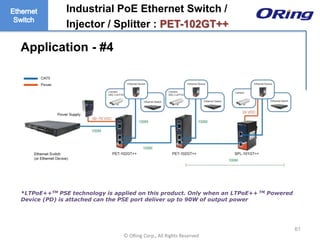

Application - #4

62

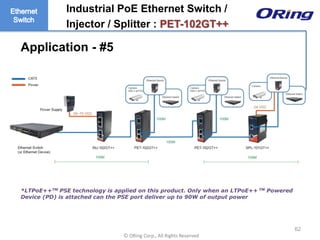

Application - #5

63

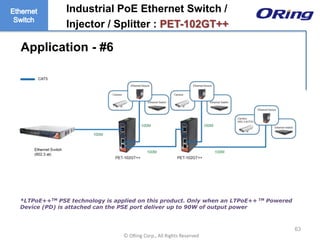

Application - #6

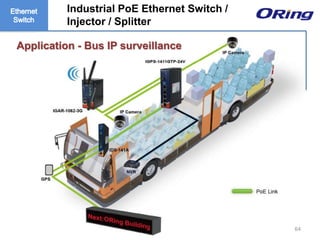

Application - Bus IP surveillance
Injector / Splitter
64

Application – Factory Automation / IP surveillance
Injector / Splitter
65

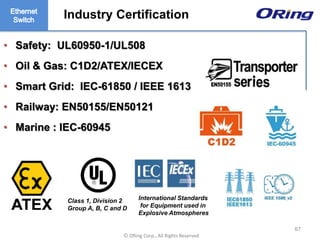

• Safety: UL60950-1/UL508
• Oil & Gas: C1D2/ATEX/IECEX
• Smart Grid: IEC-61850 / IEEE 1613
• Railway: EN50155/EN50121
• Marine : IEC-60945
Class 1, Division 2
Group A, B, C and D
International Standards
for Equipment used in
Explosive Atmospheres
Industry Certification
67

UL508 UL60950-1/CB CID2/ATEX/IECEx IEC-61850/IEEE1613 EN50155
1 IES-A1080 IES-150B IES-A1080 RES-P3242FXL-HV IES-3082GC IGS-9812GP
2 IES-A1062GT IES-1050A IES-A1062GT RES-P3242FXL-LV IGS-3032GC IGPS-9084GP
3 IES-A1062FX-MM-SC IES-1080A IES-A1062FX-MM-SC RES-P3242GCL-HV TES-1080-M12 IGS-9084GP
4 IES-A1062FX-SS-SC IES-1041FX-MM-SC IES-A1062FX-SS-SC RES-P3242GCL-LV TES-1080-M12-BP2 IGS-9844GPF-MM-SC
5 IES-A1062GF-MM-SC IES-1041FX-SS-SC IES-A1062GF-MM-SC IES-P3073GC-LV TES-150-M12 IGS-9844GPF-SS-SC
6 IES-A1062GF-SS-SC IES-1042FX-MM-SC IES-A1062GF-SS-SC IES-P3073GC-HV TES-250-M12 IGS-9844GPFX-MM-SC
7 IES-A3080 IES-1042FX-SS-SC IES-A3080 RGS-PR9000-LV TES-3080-M12 IGS-9844GPFX-SS-SC
8 IES-A3062GT IGPS-1411GTPA IES-A3062GT RGS-PR9000-HV TES-3080-M12-BP2 IGPS-9842GTP
9 IES-A3062FX-MM-SC IGPS-1411GTP-24V IES-A3062FX-MM-SC IMC-P111P-LV TES-3082GT-M12-BP1 IGPS-9842GTP-24V
10 IES-A3062FX-SS-SC IPS-3082GC-AT IES-A3062FX-SS-SC
IMC-P111FX-MM-SC-
LV
TPS-141TX-M12 IGS-P9164GC-HV
11 IES-A3062GF-MM-SC IPS-3082GC-24V IES-A3062GF-MM-SC IMC-P111FX-SS-SC-LV TPS-141TX-M12-24V IGS-P9164GC-LV
12 IES-A3062GF-SS-SC IES-3073GC IES-A3062GF-SS-SC IMC-P111P-HV TPS-3082GT-M12-BP1 IGS-P9164GF-HV
13 IES-1080 IGPS-1042GTPA
IMC-P111FX-MM-SC-
HV
TAP-120-M12 IGS-P9164GF-LV
14 IES-1062GT RGS-P(R)9000-HV IMC-P111FX-SS-SC-HV TAP-620-M12 IGS-P9164FX-HV
15 IES-1062FX-MM-SC IES-2042FX-MM-SC IGS-P9164GC-HV TAP-3120-M12 IGS-P9164FX-LV
16 IES-1062FX-SS-SC IES-2042FX-SS-SC IGS-P9164GC-LV TAR-120-M12 TES-180-M12
17 IES-1062GF-MM-SC IES-3062GC IGS-P9164GF-HV TAP-620-M12 TGPS-9084GT-M12
18 IES-1062GF-SS-SC IGPS-R9084GP-A IGS-P9164GF-LV TAP-3120-M12 TGS-9120-M12
19 IES-3080 IES-3162GC IGS-P9164FX-HV TPS-3162GC-M12 TGAP series
20 IES-3062GT IGS-P9164FX-LV TPS-3882GC-M12 TGAR series
21 IES-3062FX-MM-SC IEC-60945 E-Mark IGS-P9812GP-HV TES-3162GC-M12 IGPS-1042GP-24V
22 IES-3062FX-SS-SC IGS-9812GP IGPS-1080-24V IGS-P9812GP-LV IGPS-1042GPA
23 IES-3062GF-MM-SC IGPS-9084GP IPS-1080-24V IGS-1042GPA
24 IES-3062GF-SS-SC IGPS-1080-24V IES-150B
25 TGPS-1080-M12
26 Updated 2015/08/06
68

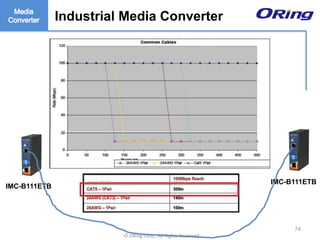

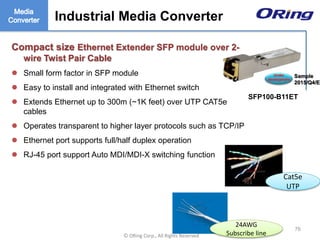

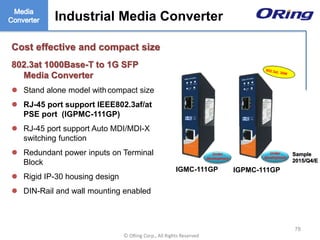

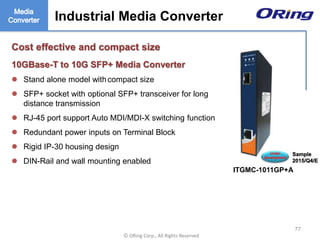

Industrial Media Converter
New Products
69

Industrial Media Converter Family
USB to
Serial
Serial ↔ Serial Converter
100BaseTX ↔ 100BaseFX
1000BaseT ↔ 1000BaseX
Chassis 100BaseTX ↔ 100BaseFX
Chassis 1000BaseT ↔ 1000BaseX
70
GigE to
1000BaseX
IMC-P111FX-LV/HV
IMC-P111P-LV/HV
Ethernet
To 2-wire
Serial to
Fiber
ISC-1310FBIMC-B111ETB
Under
development
10G Base-T to 10G SFP+
Under
development

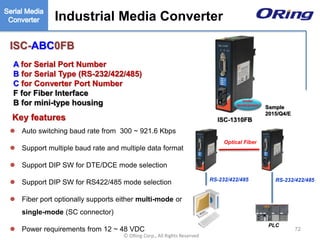

ISC-ABC0FB
 Auto switching baud rate from 300 ~ 921.6 Kbps
 Support multiple baud rate and multiple data format
 Support DIP SW for DTE/DCE mode selection
 Support DIP SW for RS422/485 mode selection
 Fiber port optionally supports either multi-mode or
single-mode (SC connector)
 Power requirements from 12 ~ 48 VDC
A for Serial Port Number
B for Serial Type (RS-232/422/485)
C for Converter Port Number
F for Fiber Interface
B for mini-type housing
Key features ISC-1310FB
RS-232/422/485 RS-232/422/485
Optical Fiber
PLC
Under
development
72
Sample
2015/Q4/E

Cost effective and compact size
Ethernet Extender over 2/8-wire Twist Pair Cable
 Stand alone model withcompact size
 Extends Ethernet up to 300m (~1K feet) over UTP CAT5e
cables
 Operates transparent to higher layer protocols such as TCP/IP
 Support DIP switch to select Auto/Master/Slave mode
 Ethernet port supports full/half duplex operation
 RJ-45 port support Auto MDI/MDI-X switching function
 Redundant power inputs with Terminal Block
 DIN-Rail and wall mounting enabled
73
IMC-B111ETB
Cat5e
UTP
24AWG
Subscribe line

74
IMC-B111ETB
IMC-B111ETB

75

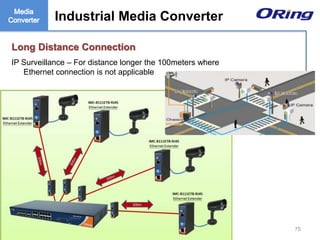

Long Distance Connection
IP Surveillance – For distance longer the 100meters where
Ethernet connection is not applicable

Compact size Ethernet Extender SFP module over 2-
wire Twist Pair Cable
 Small form factor in SFP module
 Easy to install and integrated with Ethernet switch
 Extends Ethernet up to 300m (~1K feet) over UTP CAT5e
cables
 Operates transparent to higher layer protocols such as TCP/IP
 Ethernet port supports full/half duplex operation
76
SFP100-B11ET
Cat5e
UTP
24AWG
Subscribe line
Under
development
Sample
2015/Q4/E

10GBase-T to 10G SFP+ Media Converter
 SFP+ socket with optional SFP+ transceiver for long
distance transmission
 Redundant power inputs on Terminal Block
77
ITGMC-1011GP+A
Under
development
Sample
2015/Q4/E

802.3at 1000Base-T to 1G SFP
Media Converter
 RJ-45 port support IEEE802.3af/at
PSE port (IGPMC-111GP)
 RJ-45 port support Auto MDI/MDI-X
switching function
 Redundant power inputs on Terminal
Block
78
IGPMC-111GP
Under
development
Sample
2015/Q4/E
IGMC-111GP
Under
development

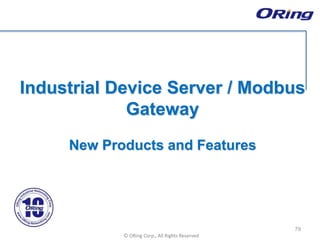

Industrial Device Server / Modbus
Gateway
New Products and Features
79

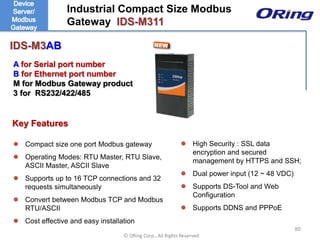

IDS-M3AB
 Compact size one port Modbus gateway
 Operating Modes: RTU Master, RTU Slave,
ASCII Master, ASCII Slave
 Supports up to 16 TCP connections and 32
requests simultaneously
 Convert between Modbus TCP and Modbus
RTU/ASCII
 Cost effective and easy installation
A for Serial port number
B for Ethernet port number
M for Modbus Gateway product
3 for RS232/422/485
Key Features
Industrial Compact Size Modbus
Gateway IDS-M311
 High Security : SSL data
encryption and secured
management by HTTPS and SSH;
 Dual power input (12 ~ 48 VDC)
 Supports DS-Tool and Web
Configuration
 Supports DDNS and PPPoE
80

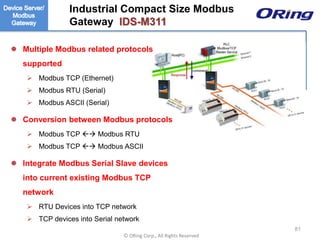

 Multiple Modbus related protocols
supported
 Modbus TCP (Ethernet)
 Modbus RTU (Serial)
 Modbus ASCII (Serial)
 Conversion between Modbus protocols
 Modbus TCP  Modbus RTU
 Modbus TCP  Modbus ASCII
 Integrate Modbus Serial Slave devices
into current existing Modbus TCP
network
 RTU Devices into TCP network
 TCP devices into Serial network
Gateway IDS-M311
81

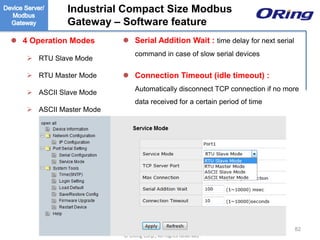

 4 Operation Modes
 RTU Slave Mode
 RTU Master Mode
 ASCII Slave Mode
 ASCII Master Mode
 Serial Addition Wait : time delay for next serial
command in case of slow serial devices
 Connection Timeout (idle timeout) :
Automatically disconnect TCP connection if no more
data received for a certain period of time
Gateway – Software feature
82

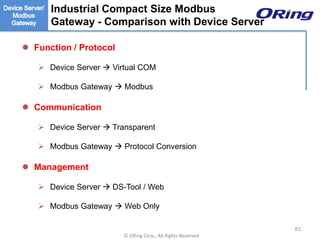

 Function / Protocol
 Device Server  Virtual COM
 Modbus Gateway  Modbus
 Communication
 Device Server  Transparent
 Modbus Gateway  Protocol Conversion
 Management
 Device Server  DS-Tool / Web
 Modbus Gateway  Web Only
Gateway - Comparison with Device Server
83

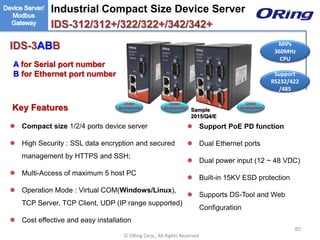

IDS-3ABB
 Compact size 1/2/4 ports device server
 High Security : SSL data encryption and secured
 Multi-Access of maximum 5 host PC
 Operation Mode : Virtual COM(Windows/Linux),
TCP Server, TCP Client, UDP (IP range supported)
 Cost effective and easy installation
A for Serial port number
B for Ethernet port number
Key Features
Industrial Compact Size Device Server
IDS-312/312+/322/322+/342/342+
 Support PoE PD function
 Dual Ethernet ports
 Dual power input (12 ~ 48 VDC)
 Built-in 15KV ESD protection
Configuration
MIPs
360MHz
CPU
Support
RS232/422
/485
Under
development
85
Sample
2015/Q4/E
Under
development
Under
development

 High port density up to 16 ports
 Cost effective and rack mount installation
 Multi-Access of maximum 5 host PC
 Operation Mode : Virtual COM(Windows/Linux),
TCP Server, TCP Client, UDP (IP range supported)
Key Features

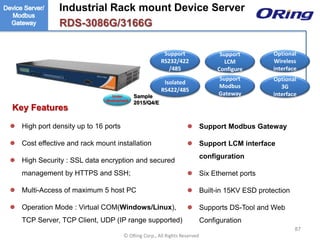

Industrial Rack mount Device Server
RDS-3086G/3166G
 Support Modbus Gateway
 Support LCM interface
configuration
 Six Ethernet ports
Configuration
Support
RS232/422
/485
Isolated
RS422/485
Optional
Wireless
interface
Optional
3G
interfaceUnder
development
Support
Modbus
Gateway
Support
LCM
Configure
87
Sample
2015/Q4/E

 IEC61850-3 compliant for power utility application
 Modular Design with high port density up to 16
ports
 Selectable serial interface
 -40 ~ +85 degree C operating temperature
Key Features

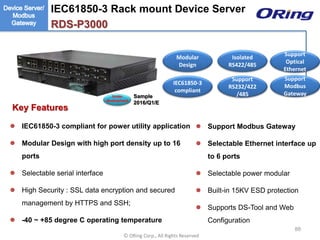

IEC61850-3 Rack mount Device Server
RDS-P3000
 Support Modbus Gateway
 Selectable Ethernet interface up
to 6 ports
 Selectable power modular
Configuration
IEC61850-3
compliant
Modular
Design
Support
RS232/422
/485
Isolated
RS422/485
Support
Modbus
GatewayUnder
development
Support
Optical
Ethernet
88
Sample
2016/Q1/E

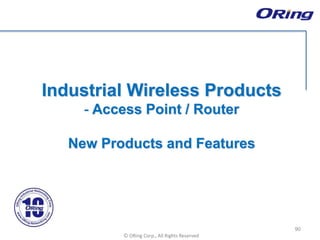

Industrial Wireless Products
- Access Point / Router
New Products and Features
90

1.6G
ARM CPU
1.6G
ARM CPU

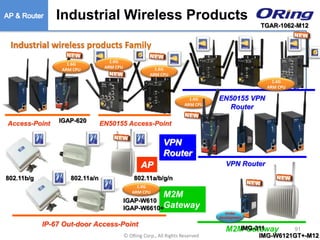

Industrial wireless products Family
VPN Router
EN50155 VPN
Router
IP-67 Out-door Access-Point
Access-Point EN50155 Access-Point
Industrial Wireless Products
91M2M Gateway
AP
VPN
Router
M2M
Gateway
1.6G
ARM CPU
1.6G
ARM CPU
802.11b/g 802.11a/n 802.11a/b/g/n
1.6G
ARM CPU
TGAR-1062-M12
IGAP-620
IGAP-W610
IMG-W6121GT+-M12
1.6G
ARM CPU
Under
development
IMG-311
IGAP-W6610+

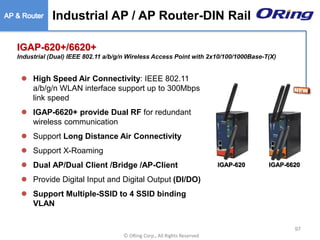

IGAP-620+/6620+
Industrial (Dual) IEEE 802.11 a/b/g/n Wireless Access Point with 2x10/100/1000Base-T(X)
 High Speed Air Connectivity: IEEE 802.11
a/b/g/n WLAN interface support up to 300Mbps
link speed
 IGAP-6620+ provide Dual RF for redundant
wireless communication
 Support Long Distance Air Connectivity
 Support X-Roaming
 Dual AP/Dual Client /Bridge /AP-Client
 Provide Digital Input and Digital Output (DI/DO)
 Support Multiple-SSID to 4 SSID binding
VLAN
IGAP-620 IGAP-6620
Industrial AP / AP Router-DIN Rail
97

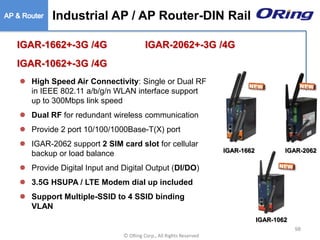

IGAR-1662+-3G /4G IGAR-2062+-3G /4G
IGAR-1062+-3G /4G
 High Speed Air Connectivity: Single or Dual RF
in IEEE 802.11 a/b/g/n WLAN interface support
up to 300Mbps link speed
 Dual RF for redundant wireless communication
 Provide 2 port 10/100/1000Base-T(X) port
 IGAR-2062 support 2 SIM card slot for cellular
backup or load balance
 Provide Digital Input and Digital Output (DI/DO)
 3.5G HSUPA / LTE Modem dial up included
VLAN
IGAR-1062
IGAR-1662 IGAR-2062
98

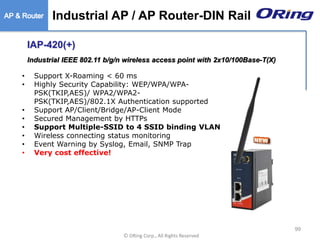

• Support X-Roaming < 60 ms
• Highly Security Capability: WEP/WPA/WPA-
PSK(TKIP,AES)/ WPA2/WPA2-
PSK(TKIP,AES)/802.1X Authentication supported
• Support AP/Client/Bridge/AP-Client Mode
• Secured Management by HTTPs
• Support Multiple-SSID to 4 SSID binding VLAN
• Wireless connecting status monitoring
• Event Warning by Syslog, Email, SNMP Trap
• Very cost effective!
IAP-420(+)
Industrial IEEE 802.11 b/g/n wireless access point with 2x10/100Base-T(X)
99

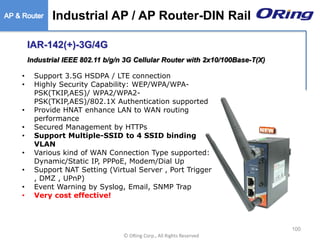

• Support 3.5G HSDPA / LTE connection
• Highly Security Capability: WEP/WPA/WPA-
PSK(TKIP,AES)/ WPA2/WPA2-
• Provide HNAT enhance LAN to WAN routing
performance
• Support Multiple-SSID to 4 SSID binding
VLAN
• Various kind of WAN Connection Type supported:
Dynamic/Static IP, PPPoE, Modem/Dial Up
• Support NAT Setting (Virtual Server , Port Trigger
, DMZ , UPnP)
• Very cost effective!
IAR-142(+)-3G/4G
Industrial IEEE 802.11 b/g/n 3G Cellular Router with 2x10/100Base-T(X)
100

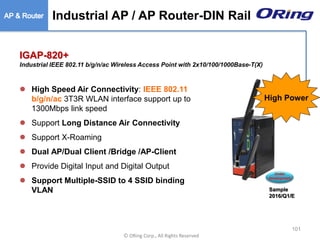

IGAP-820+
Industrial IEEE 802.11 b/g/n/ac Wireless Access Point with 2x10/100/1000Base-T(X)
 High Speed Air Connectivity: IEEE 802.11
b/g/n/ac 3T3R WLAN interface support up to
1300Mbps link speed
 Support X-Roaming
 Dual AP/Dual Client /Bridge /AP-Client
 Provide Digital Input and Digital Output
VLAN
Under
development
High Power
101
Sample
2016/Q1/E

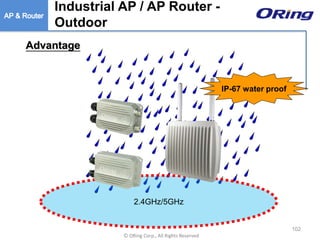

Advantage
2.4GHz/5GHz
IP-67 water proof
Industrial AP / AP Router -
Outdoor
102

Application
103
Industrial AP / AP Router -
Outdoor

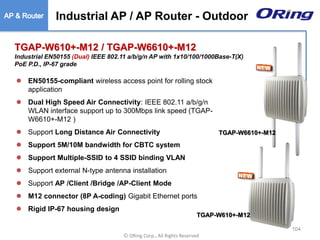

TGAP-W610+-M12 / TGAP-W6610+-M12
Industrial EN50155 (Dual) IEEE 802.11 a/b/g/n AP with 1x10/100/1000Base-T(X)
PoE P.D., IP-67 grade
 EN50155-compliant wireless access point for rolling stock
application
 Dual High Speed Air Connectivity: IEEE 802.11 a/b/g/n
WLAN interface support up to 300Mbps link speed (TGAP-
W6610+-M12 )
 Support 5M/10M bandwidth for CBTC system
 Support Multiple-SSID to 4 SSID binding VLAN
 Support external N-type antenna installation
 Support AP /Client /Bridge /AP-Client Mode
 M12 connector (8P A-coding) Gigabit Ethernet ports
TGAP-W610+-M12
TGAP-W6610+-M12
Industrial AP / AP Router - Outdoor
104

TGAR-W1061+-3G/4G-M12
EN50155 IEEE 802.11 a/b/g/n 4G LTE Cellular Router with 1x10/100/1000Base-T(X) PoE P.D.,
IP-67 grade
 EN50155-compliant wireless access point for rolling stock
application
 High Speed Air Connectivity: Dual RF in IEEE 802.11
a/b/g/n WLAN interface support up to 300Mbps link speed
 Provide 1 port 10/100/1000Base-T(X) port with 802.3af P.D.
and 1 SIM card slot
 Support IEEE802.11p 10M bandwidth for CBTC system
 Support Multiple-SSID to 4 SSID binding VLAN
 3G / LTE Modem dial up included
 Support VPN for secured network connection
(Open VPN , PPTP VPN)
 Various kind of WAN Connection Type supported:
Dynamic/Static IP, PPPoE, Modem/Dial Up
TGAR-W1061+-M12
105

• IEEE802.3 a/n or b/g/n connection up to 300Mbps
• Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-
• Supports AP /Client /Repeater /AP-Client Mode
• Build-in 15/10dBi panel antenna
• High RF power output 500/800mW Max.
• Far Distance Air Connectivity up to 7 KM
• Support Multiple-SSID to 4 SSID with VLAN
• Supports QoS

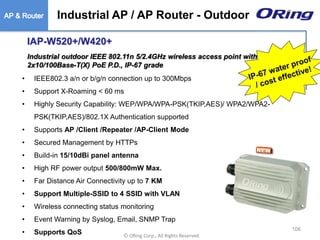

IAP-W520+/W420+
Industrial outdoor IEEE 802.11n 5/2.4GHz wireless access point with
2x10/100Base-T(X) PoE P.D., IP-67 grade
106

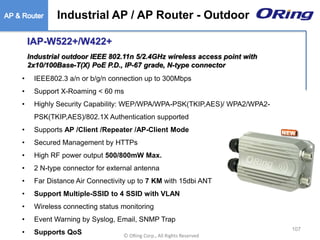

IAP-W522+/W422+
Industrial outdoor IEEE 802.11n 5/2.4GHz wireless access point with
2x10/100Base-T(X) PoE P.D., IP-67 grade, N-type connector
• IEEE802.3 a/n or b/g/n connection up to 300Mbps
• Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-
• Supports AP /Client /Repeater /AP-Client Mode
• High RF power output 500/800mW Max.
• 2 N-type connector for external antenna
• Far Distance Air Connectivity up to 7 KM with 15dbi ANT
• Support Multiple-SSID to 4 SSID with VLAN
• Supports QoS
107

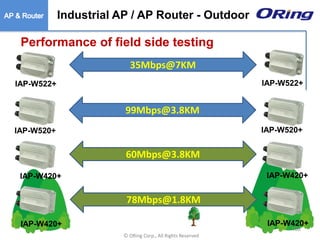

Performance of field side testing
35Mbps@7KM
60Mbps@3.8KM
IAP-W522+IAP-W522+
IAP-W420+IAP-W420+
78Mbps@1.8KM
99Mbps@3.8KM
IAP-W520+IAP-W520+
IAP-W420+IAP-W420+
108

Q & A
110

Thank You!
www.ORing-Networking.com
111

112

ORing 2015 new products

More Related Content

What's hot

Similar to ORing 2015 new products

ORing 2015 new products

Editor's Notes
