1. Industrial 4g router specification and application
4G router is a high-speed router for the industrial Internet of things. It is compatible
with 4G / 3.5g/3gnetworks. With flagship configuration, VPN link, industrial
protection and wide temperature design, it can easily establish a high-speed and
stable wireless transmission network and provide users with wireless long-distance
data transmission function by using public LTE network.
Industrial products have patented technology to maintain system stability to ensure
that the equipment is always online; The whole machine adopts metal shell,
anti-interference and anti-radiation, and the hardware adopts industrial design; The
system is equipped with Watchdog WDT protection and loaded with system
monitoring protection SWP (system watch protection); The whole product has
passed the European CE certification, the Central Inspection Institute test, the 3000V
electric shock test, and all wireless modules have passed the CGD certification or FCC
certification or CE certification; After strict design, testing and 10 years of practical
application, the product performance is stable and reliable.
Stable and reliable
WDT watchdog design ensures system stability
Complete anti drop mechanism is adopted to ensure that the data terminal is always
online
Built in 1.5kV electromagnetic isolation protection for Ethernet interface
RS232 interface has built-in 15kV ESD protection
The SIM / UIM card interface has built-in 15kV ESD protection
The power interface has built-in inverse phase protection and overvoltage protection
Antenna interface lightning protection (optional)
Standard ease of use
Provide standard RS232, Ethernet and WiFi interfaces, which can directly connect
serial port equipment, Ethernet equipment and WiFi equipment
Provide standard wired WAN port (support standard PPPoE protocol), which can be
directly connected to ADSL equipment
The intelligent data terminal can enter the data transmission state when powered on
Provide powerful central management software to facilitate equipment management
(optional)
Easy to use, flexible, multiple working modes
Convenient system configuration and maintenance interface (including local and
remote web mode or cli mode)
Support dual link intelligent switching backup function of wireless public network
and wired Wan (optional)
Support VPN client (PPTP, L2TP, IPSec and GRE) (Note: only VPN version supports)

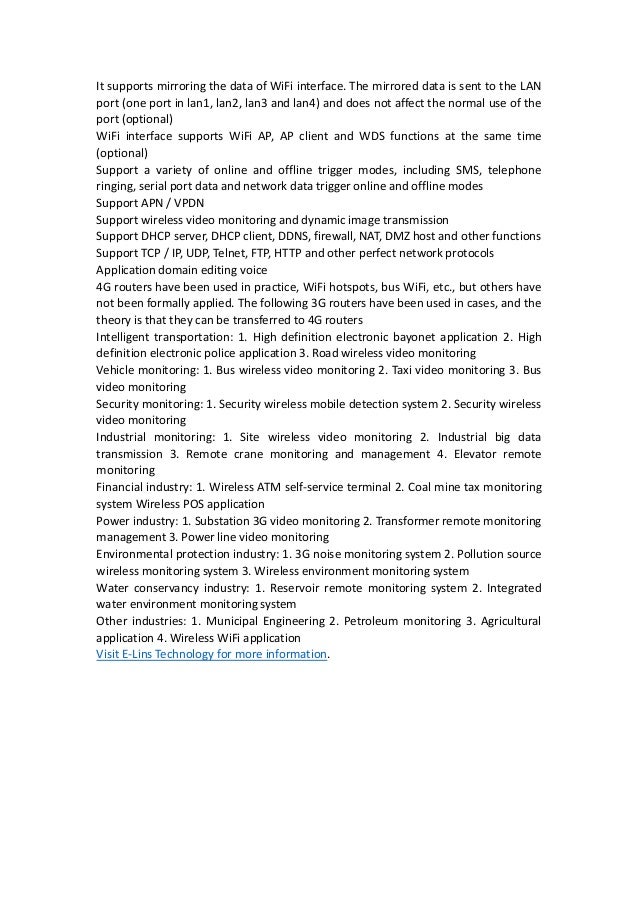

2. It supports mirroring the data of WiFi interface. The mirrored data is sent to the LAN
port (one port in lan1, lan2, lan3 and lan4) and does not affect the normal use of the
port (optional)
WiFi interface supports WiFi AP, AP client and WDS functions at the same time
(optional)
Support a variety of online and offline trigger modes, including SMS, telephone
ringing, serial port data and network data trigger online and offline modes
Support APN / VPDN
Support wireless video monitoring and dynamic image transmission
Support DHCP server, DHCP client, DDNS, firewall, NAT, DMZ host and other functions
Support TCP / IP, UDP, Telnet, FTP, HTTP and other perfect network protocols
Application domain editing voice
4G routers have been used in practice, WiFi hotspots, bus WiFi, etc., but others have
not been formally applied. The following 3G routers have been used in cases, and the
theory is that they can be transferred to 4G routers
Intelligent transportation: 1. High definition electronic bayonet application 2. High
definition electronic police application 3. Road wireless video monitoring
Vehicle monitoring: 1. Bus wireless video monitoring 2. Taxi video monitoring 3. Bus
video monitoring
Security monitoring: 1. Security wireless mobile detection system 2. Security wireless
video monitoring
Industrial monitoring: 1. Site wireless video monitoring 2. Industrial big data
transmission 3. Remote crane monitoring and management 4. Elevator remote
monitoring
Financial industry: 1. Wireless ATM self-service terminal 2. Coal mine tax monitoring
system Wireless POS application
Power industry: 1. Substation 3G video monitoring 2. Transformer remote monitoring
management 3. Power line video monitoring
Environmental protection industry: 1. 3G noise monitoring system 2. Pollution source
wireless monitoring system 3. Wireless environment monitoring system
Water conservancy industry: 1. Reservoir remote monitoring system 2. Integrated
water environment monitoring system
Other industries: 1. Municipal Engineering 2. Petroleum monitoring 3. Agricultural
application 4. Wireless WiFi application
Visit E-Lins Technology for more information.
