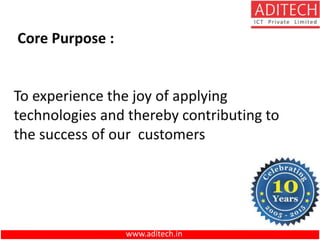

6. Core Values :
www.aditech.in

7. Excellence: We must strive to achieve Highest
possible standards in our day to day work
practice & quality of goods and services that
we offer.
Responsibility: We must be responsible to
customers, colleagues, vendors & suppliers.
Speed : In delivery and every function of
organization.
Innovation: In products, services,
Core Values :
www.aditech.in

8. Focus
Long life cycle support and extended
Temperature products
We work very closely with Intel Embedded
and Microsoft embedded Div.
Embedded technology and Industrial
Computing Platform solutions
Logo’s belongs to respective owners
www.aditech.in

9. Online Store
Aditech is first company in India
to sell Industrial products on line
WWW.ADITECH.IN
www.aditech.in

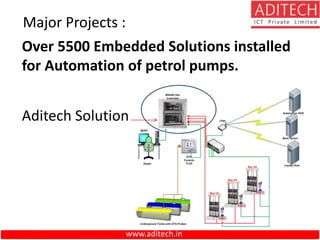

10. Major Projects :
Over 5500 Embedded Solutions installed
for Automation of petrol pumps.
Aditech Solution
www.aditech.in

11. Major Projects :

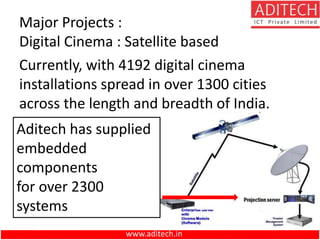

Digital Cinema : Satellite based
Currently, with 4192 digital cinema
installations spread in over 1300 cities
across the length and breadth of India.
Aditech has supplied
embedded
components
for over 2300
systems
www.aditech.in

12. Major Projects :

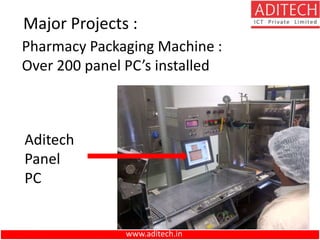

Pharmacy Packaging Machine :
Over 200 panel PC’s installed
Aditech
Panel
PC
www.aditech.in

13. Major Projects :

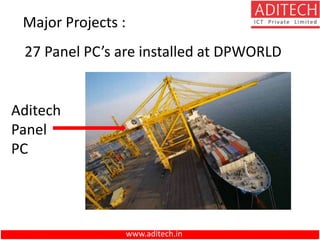

27 Panel PC’s are installed at DPWORLD
Aditech
Panel
PC
www.aditech.in

14. OVER 75000 products installed and working
across India, Middle East and Europe
www.aditech.in
Major Projects :

15. www.aditech.in

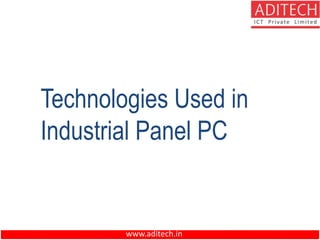

Technologies Used in
Industrial Panel PC

16. www.aditech.in

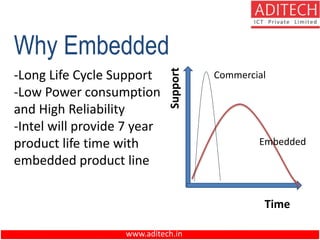

Why Embedded
-Long Life Cycle Support
-Low Power consumption
and High Reliability
-Intel will provide 7 year
product life time with
embedded product line
Time
Support
Embedded
Commercial

17. www.aditech.in
Why Embedded

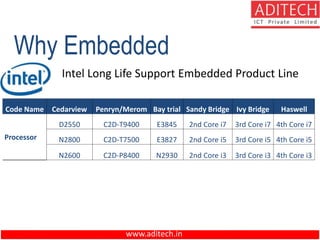

Intel Long Life Support Embedded Product Line
Code Name Cedarview Penryn/Merom Bay trial Sandy Bridge Ivy Bridge Haswell
Processor
D2550 C2D-T9400 E3845 2nd Core i7 3rd Core i7 4th Core i7
N2800 C2D-T7500 E3827 2nd Core i5 3rd Core i5 4th Core i5
N2600 C2D-P8400 N2930 2nd Core i3 3rd Core i3 4th Core i3

18. www.aditech.in

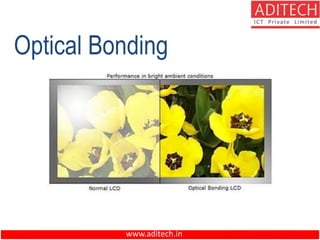

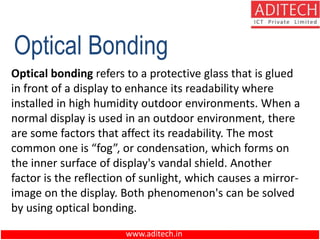

Optical Bonding

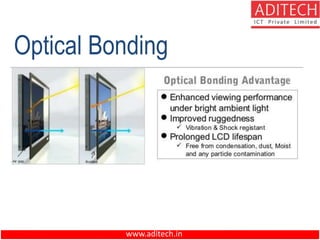

Optical bonding refers to a protective glass that is glued
in front of a display to enhance its readability where
installed in high humidity outdoor environments. When a
normal display is used in an outdoor environment, there
are some factors that affect its readability. The most
common one is “fog”, or condensation, which forms on
the inner surface of display's vandal shield. Another
factor is the reflection of sunlight, which causes a mirror-
image on the display. Both phenomenon's can be solved
by using optical bonding.

19. www.aditech.in
Optical Bonding

20. www.aditech.in
Optical Bonding

21. www.aditech.in

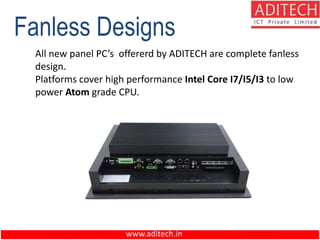

Fanless Designs
All new panel PC’s offererd by ADITECH are complete fanless
design.
Platforms cover high performance Intel Core I7/I5/I3 to low
power Atom grade CPU.

22. www.aditech.in

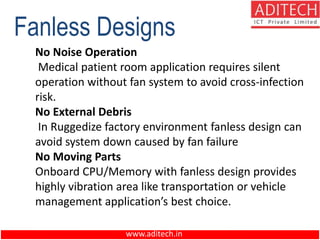

No Noise Operation
Medical patient room application requires silent
operation without fan system to avoid cross-infection
risk.
No External Debris
In Ruggedize factory environment fanless design can
avoid system down caused by fan failure
No Moving Parts
Onboard CPU/Memory with fanless design provides
highly vibration area like transportation or vehicle
management application’s best choice.
Fanless Designs

23. www.aditech.in

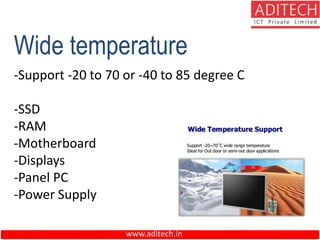

Wide temperature
-Support -20 to 70 or -40 to 85 degree C
-SSD
-RAM
-Motherboard
-Displays
-Panel PC
-Power Supply

24. www.aditech.in

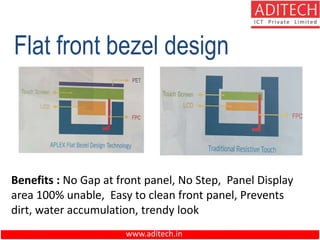

Flat front bezel design
Benefits : No Gap at front panel, No Step, Panel Display
area 100% unable, Easy to clean front panel, Prevents
dirt, water accumulation, trendy look

25. www.aditech.in

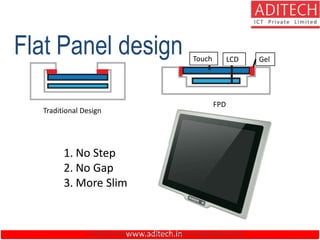

Flat Panel design
＊ APLEX Technology Inc. confidential, subject to change without notice.
Touch LCD Gel
1. No Step
2. No Gap
3. More Slim
Traditional Design
FPD

26. www.aditech.in

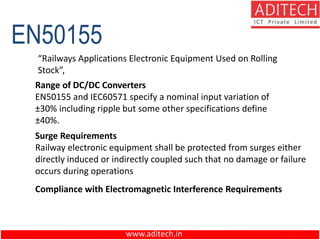

EN50155
“Railways Applications Electronic Equipment Used on Rolling
Stock”,
Range of DC/DC Converters
EN50155 and IEC60571 specify a nominal input variation of
±30% including ripple but some other specifications define
±40%.
Surge Requirements
Railway electronic equipment shall be protected from surges either
directly induced or indirectly coupled such that no damage or failure
occurs during operations
Compliance with Electromagnetic Interference Requirements

27. www.aditech.in
EN50155

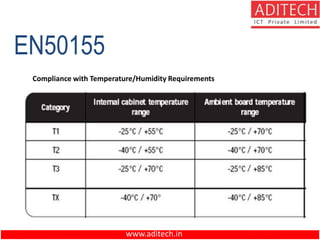

Compliance with Temperature/Humidity Requirements

28. www.aditech.in
EN50155

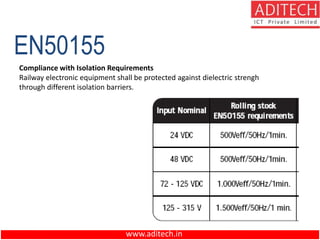

Compliance with Isolation Requirements
Railway electronic equipment shall be protected against dielectric strengh
through different isolation barriers.

29. www.aditech.in
Marine grade

30. www.aditech.in

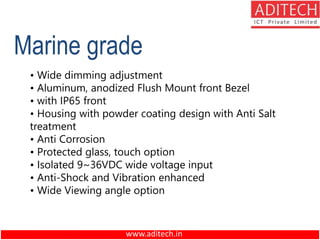

Marine grade
• Wide dimming adjustment
• Aluminum, anodized Flush Mount front Bezel
• with IP65 front
• Housing with powder coating design with Anti Salt
treatment
• Anti Corrosion
• Protected glass, touch option
• Isolated 9~36VDC wide voltage input
• Anti-Shock and Vibration enhanced
• Wide Viewing angle option

31. www.aditech.in

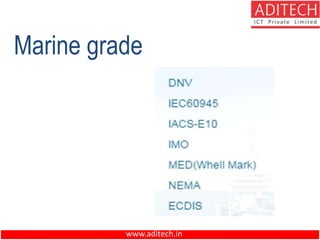

Marine grade

32. www.aditech.in
Industrial Panel PC’s

33. www.aditech.in

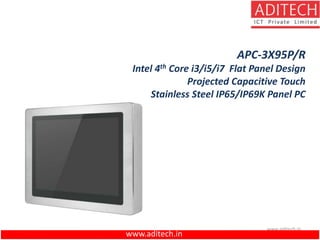

APC-3X95P/R
Intel 4th Core i3/i5/i7 Flat Panel Design
Projected Capacitive Touch
Stainless Steel IP65/IP69K Panel PC
www.aditech.in

34. www.aditech.in

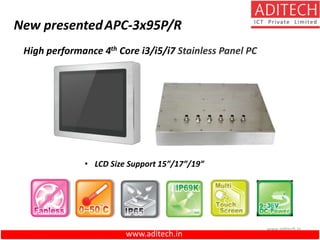

New presentedAPC-3x95P/R
High performance 4th Core i3/i5/i7 Stainless Panel PC
• LCD Size Support 15”/17”/19”
www.aditech.in

35. www.aditech.in

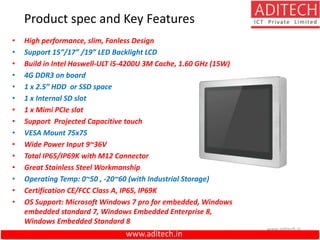

Product spec and Key Features
• High performance, slim, Fanless Design
• Support 15”/17” /19” LED Backlight LCD
• Build in Intel Haswell-ULT i5-4200U 3M Cache, 1.60 GHz (15W)
• 4G DDR3 on board
• 1 x 2.5” HDD or SSD space
• 1 x Internal SD slot
• 1 x Mimi PCIe slot
• Support Projected Capacitive touch
• VESA Mount 75x75
• Wide Power Input 9~36V
• Total IP65/IP69K with M12 Connector
• Great Stainless Steel Workmanship
• Operating Temp: 0~50 , -20~60 (with Industrial Storage)
• Certification CE/FCC Class A, IP65, IP69K
• OS Support: Microsoft Windows 7 pro for embedded, Windows
embedded standard 7, Windows Embedded Enterprise 8,
Windows Embedded Standard 8
www.aditech.in

36. www.aditech.in

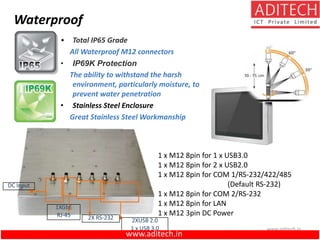

Waterproof
1XGbE
RJ-45
2XUSB 2.0
1 x USB 3.0
DC Input
2X RS-232
• Total IP65 Grade
All Waterproof M12 connectors
• IP69K Protection
The ability to withstand the harsh
environment, particularly moisture, to
prevent water penetration
• Stainless Steel Enclosure
Great Stainless Steel Workmanship
1 x M12 8pin for 1 x USB3.0
1 x M12 8pin for 2 x USB2.0
1 x M12 8pin for COM 1/RS-232/422/485
(Default RS-232)
1 x M12 8pin for COM 2/RS-232
1 x M12 8pin for LAN
1 x M12 3pin DC Power
www.aditech.in

37. www.aditech.in

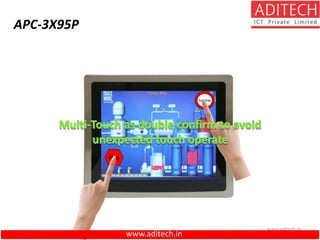

Multi-Touch as double confirm to avoid
unexpected touch operate
APC-3X95P
www.aditech.in

38. www.aditech.in

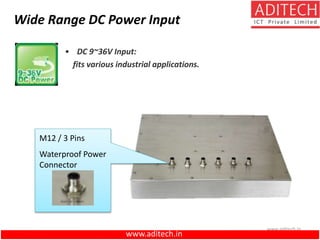

• DC 9~36V Input:
fits various industrial applications.
Wide Range DC Power Input
M12 / 3 Pins
Waterproof Power
Connector
www.aditech.in

39. www.aditech.in

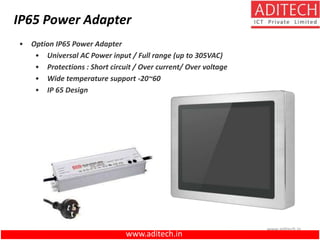

• Option IP65 Power Adapter
• Universal AC Power input / Full range (up to 305VAC)
• Protections : Short circuit / Over current/ Over voltage
• Wide temperature support -20~60
• IP 65 Design
IP65 Power Adapter
www.aditech.in

40. www.aditech.in

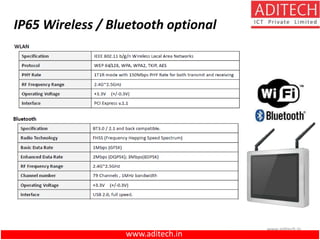

IP65 Wireless / Bluetooth optional
www.aditech.in

41. www.aditech.in

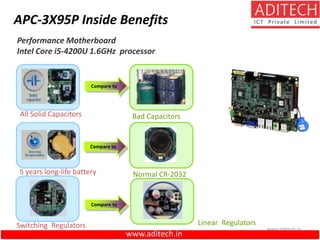

Bad CapacitorsAll Solid Capacitors
Compare to
5 years long-life battery Normal CR-2032
Switching Regulators Linear Regulators
Compare to
Compare to
APC-3X95P Inside Benefits
Performance Motherboard
Intel Core i5-4200U 1.6GHz processor
www.aditech.in

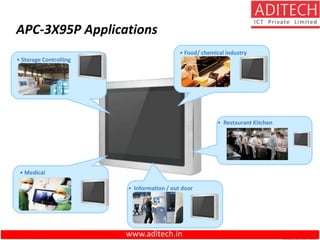

42. • Storage Controlling
• Food/ chemical industry
• Restaurant Kitchen
• Information / out door
APC-3X95P Applications
• Medical
www.aditech.in

43. www.aditech.in

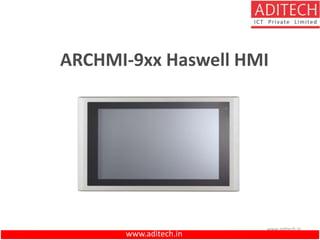

ARCHMI-9xx Haswell HMI
www.aditech.in

44. www.aditech.in

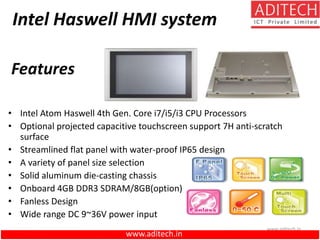

Intel Haswell HMI system
• Intel Atom Haswell 4th Gen. Core i7/i5/i3 CPU Processors
• Optional projected capacitive touchscreen support 7H anti-scratch
surface
• Streamlined flat panel with water-proof IP65 design
• A variety of panel size selection
• Solid aluminum die-casting chassis
• Onboard 4GB DDR3 SDRAM/8GB(option)
• Fanless Design
• Wide range DC 9~36V power input
Features
www.aditech.in

45. www.aditech.in

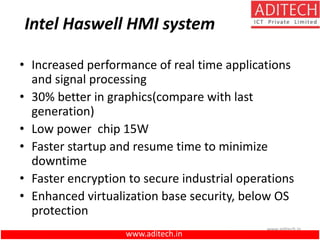

Intel Haswell HMI system
• Increased performance of real time applications
and signal processing
• 30% better in graphics(compare with last
generation)
• Low power chip 15W
• Faster startup and resume time to minimize
downtime
• Faster encryption to secure industrial operations
• Enhanced virtualization base security, below OS
protection
www.aditech.in

46. www.aditech.in
A variety of panel size selection
There are several selections for different size (12.1”,15”,
15.6”,17,18.5”and 21.5”)
15”
12.1”
21.5”
Intel Haswell HMI system
www.aditech.in

47. www.aditech.in
• Streamlined Flat Front Panel with
Water-Proof IP65 Design
• FPD (Flat Panel Design)
• 7H Anti-scratch Surface
• IP65 certificated
• Solid Aluminum
Die-casting
Chassis
Intel Haswell HMI system
www.aditech.in

48. www.aditech.in

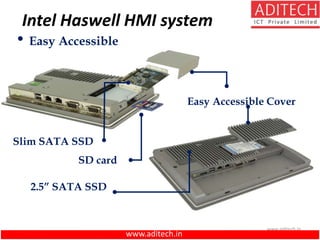

• Easy Accessible
Slim SATA SSD
SD card
2.5” SATA SSD
Easy Accessible Cover
Intel Haswell HMI system
www.aditech.in

49. www.aditech.in
Intel Haswell HMI system

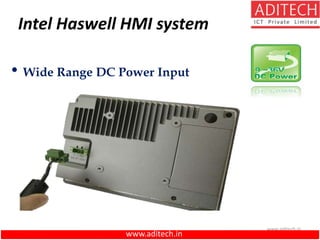

• Wide Range DC Power Input
www.aditech.in

50. www.aditech.in

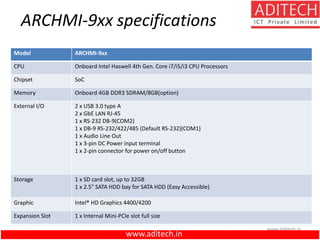

ARCHMI-9xx specifications
Model ARCHMI-9xx
CPU Onboard Intel Haswell 4th Gen. Core i7/i5/i3 CPU Processors
Chipset SoC
Memory Onboard 4GB DDR3 SDRAM/8GB(option)
External I/O 2 x USB 3.0 type A
2 x GbE LAN RJ-45
1 x RS-232 DB-9(COM2)
1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
1 x Audio Line Out
1 x 3-pin DC Power input terminal
1 x 2-pin connector for power on/off button
Storage 1 x SD card slot, up to 32GB
1 x 2.5" SATA HDD bay for SATA HDD (Easy Accessible)
Graphic Intel® HD Graphics 4400/4200
Expansion Slot 1 x Internal Mini-PCIe slot full size
www.aditech.in

51. www.aditech.in
ARCHMI-8xx Bay trial HMI
www.aditech.in

52. www.aditech.in

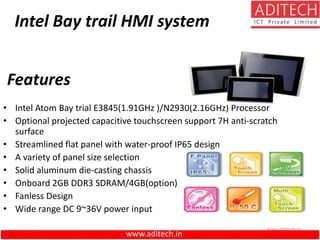

Intel Bay trail HMI system
• Intel Atom Bay trial E3845(1.91GHz )/N2930(2.16GHz) Processor
• Optional projected capacitive touchscreen support 7H anti-scratch
surface
• Streamlined flat panel with water-proof IP65 design
• A variety of panel size selection
• Solid aluminum die-casting chassis
• Onboard 2GB DDR3 SDRAM/4GB(option)
• Fanless Design
• Wide range DC 9~36V power input
Features
www.aditech.in

53. www.aditech.in
Intel Bay trail HMI system
A variety of panel size selection
There are 4 selections for standard
aspect ratio of 4:3 (8”,12.1”,15”and
17”)
5 selections for wide aspect ratio
(7”,10.1”,15.6”,18.5” and 21.5”)
7”
8” 15”
12.1”
21.5”
10.1”
17”
18.5”
15.6”
www.aditech.in

54. www.aditech.in

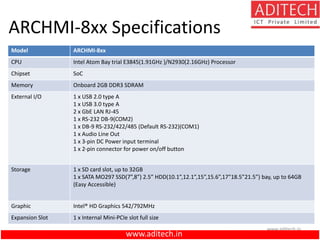

ARCHMI-8xx Specifications
Model ARCHMI-8xx
CPU Intel Atom Bay trial E3845(1.91GHz )/N2930(2.16GHz) Processor
Chipset SoC
Memory Onboard 2GB DDR3 SDRAM
External I/O 1 x USB 2.0 type A
1 x USB 3.0 type A
2 x GbE LAN RJ-45
1 x RS-232 DB-9(COM2)
1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
1 x Audio Line Out
1 x 3-pin DC Power input terminal
1 x 2-pin connector for power on/off button
Storage 1 x SD card slot, up to 32GB
1 x SATA MO297 SSD(7”,8”) 2.5” HDD(10.1”,12.1”,15”,15.6”,17”18.5”21.5”) bay, up to 64GB
(Easy Accessible)
Graphic Intel® HD Graphics 542/792MHz
Expansion Slot 1 x Internal Mini-PCIe slot full size
www.aditech.in

55. www.aditech.in
Reliability
Certifications
Materials Quality
Control
Long life time
of product
In house
performance report
Wide range
environment testing
burning test

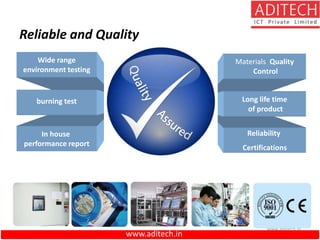

Reliable and Quality
www.aditech.in

56. www.aditech.in
www.aditech.in
Taiwan Factory

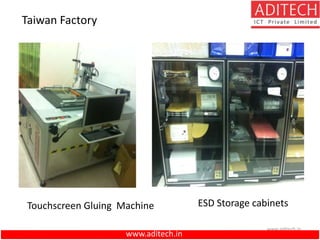

Touchscreen Gluing Machine ESD Storage cabinets

57. www.aditech.in
www.aditech.in
Taiwan Factory

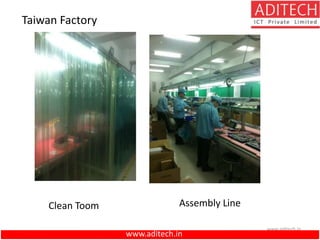

Clean Toom Assembly Line

58. www.aditech.in
www.aditech.in
Taiwan Factory

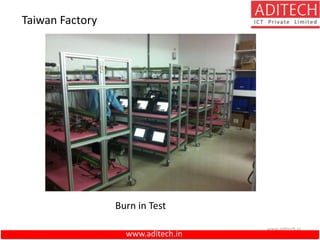

Burn in Test

59. www.aditech.in
Taiwan Factory
Heat Chamber

60. www.aditech.in
ADITECH broad spectrum of
applications
Factory automation Transportation KIOSK/TICKING
Warehousing Military Medical/Health Care Vehicle Management
Hazardous Oil & Gas
www.aditech.in

61. www.aditech.in
INDUSTRIAL GRADE MOTHERBOARDS

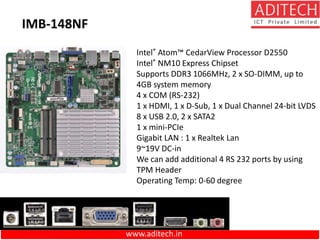

62. www.aditech.in
Intel® Atom™ CedarView Processor D2550
Intel® NM10 Express Chipset
Supports DDR3 1066MHz, 2 x SO-DIMM, up to
4GB system memory
4 x COM (RS-232)
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
8 x USB 2.0, 2 x SATA2
1 x mini-PCIe
Gigabit LAN : 1 x Realtek Lan
9~19V DC-in
We can add additional 4 RS 232 ports by using
TPM Header
Operating Temp: 0-60 degree
IMB-148NF

63. www.aditech.in
Intel® Atom™ CedarView Processor N2800
Intel® NM10 Express Chipset
Supports DDR3 1066MHz, 2 x SO-DIMM, up to
4GB system memory
2 x RS-232 COM
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit
LVDS
8 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1 x mSATA
Gigabit LAN : 1 x Intel® 82574L
9~19V DC-in
We can add additional 4 RS 232 ports by using
TPM Header
Operating Temp: 0-60 degree
DN2800MT

64. www.aditech.in

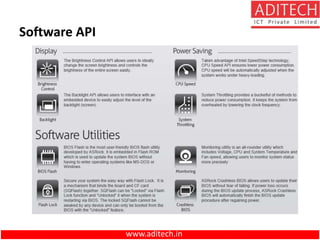

Software API

65. www.aditech.in

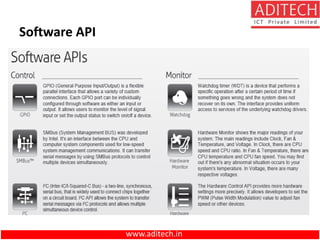

Software API

66. www.aditech.in

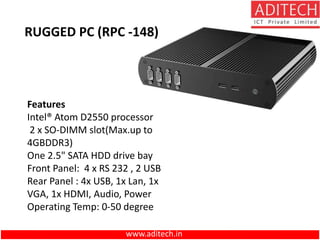

RUGGED PC (RPC -148)
Features
Intel® Atom D2550 processor
2 x SO-DIMM slot(Max.up to
4GBDDR3)
One 2.5" SATA HDD drive bay
Front Panel: 4 x RS 232 , 2 USB
Rear Panel : 4x USB, 1x Lan, 1x
VGA, 1x HDMI, Audio, Power
Operating Temp: 0-50 degree

67. www.aditech.in
RUGGED PC (RPC-2800)
Features
Intel® Atom N2800 processor
2 x SO-DIMM slot(Max.up to
4GBDDR3)
One 2.5" SATA HDD drive bay
Front Panel: 4x USB
Rear Panel : 4x USB, 1x Lan, 1x
VGA, 1x HDMI, Audio, Power,
2XRS232 ports, 1 x Parallel Port
Operating Temp: 0-50 degree

68. www.aditech.in

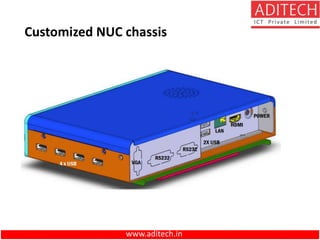

Customized NUC chassis

69. www.aditech.in

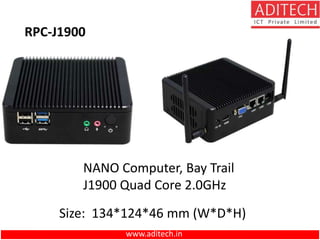

RPC-J1900
NANO Computer, Bay Trail
J1900 Quad Core 2.0GHz
Size: 134*124*46 mm (W*D*H)

70. www.aditech.in

71. www.aditech.in

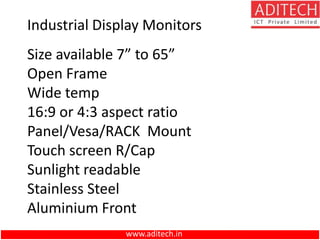

Size available 7” to 65”
Open Frame
Wide temp
16:9 or 4:3 aspect ratio
Panel/Vesa/RACK Mount
Touch screen R/Cap
Sunlight readable
Stainless Steel
Aluminium Front
Industrial Display Monitors

72. www.aditech.in

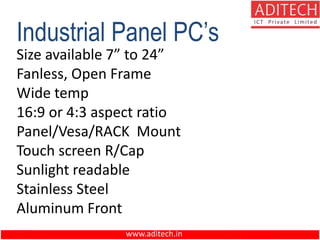

Industrial Panel PC’s
Size available 7” to 24”
Fanless, Open Frame
Wide temp
16:9 or 4:3 aspect ratio
Panel/Vesa/RACK Mount
Touch screen R/Cap
Sunlight readable
Stainless Steel
Aluminum Front

73. www.aditech.in
Industrial Panel PC’s
5 side IP65
Complete IP65
With 1 or 2 PCI/PCIE slots

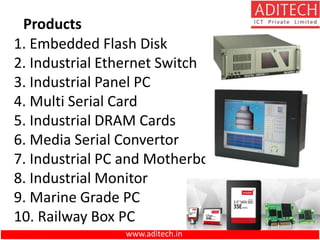

74. Products
1. Embedded Flash Disk
2. Industrial Ethernet Switch
3. Industrial Panel PC
4. Multi Serial Card
5. Industrial DRAM Cards
6. Media Serial Convertor
7. Industrial PC and Motherboard
8. Industrial Monitor
9. Marine Grade PC
10. Railway Box PC
www.aditech.in

75. Partners
Other Suppliers
Logo’s belongs to respective owners
www.aditech.in

76. www.aditech.in

77. www.aditech.in
