ADITECH CUSTOMER MEET-2015 was held at Hotel RAMADA, Millennium Business Park, Navi Mumbai. This event was sponsored by Intel and Innodisk Taiwan, Event was attended by 39 System Integrator partners from Mumbai, Pune, Delhi, Surat and Banglore. Intel has presented the IOT opportunities for SME. Innodisk has enlightened SI partners on latest technologies used in Industrial grade SSD. Aditech has demonstrated Industrial grade solutions and transportation solutions. Aditech's presentation was on Industrial grade Panel PC's and industrial communication. The event is ended with lucky draw and group photograph followed by networking dinner and ADITECH office visit

1. www.aditech.in

2. www.aditech.in
Why do customers need
peripherals ?
2
Application
CPU & Chipset
Form Factor
I/O port
OS
AtomTM

3. www.aditech.in
Managing High-Variety/Low-Volume by
Modularization !
Application
CPU & Chipset
Form Factor
Display
I/O port

4. www.aditech.in

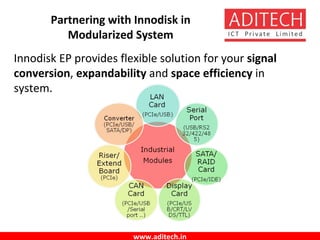

Partnering with Innodisk in
Modularized System
Innodisk EP provides flexible solution for your signal
conversion, expandability and space efficiency in
system.

5. www.aditech.in
Expand Storage
including SATA,
USB, PATA, SD
device.
Create Disk
Array (RAID) in
system.

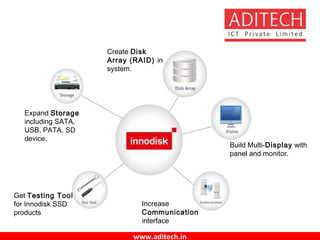

Build Multi-Display with
panel and monitor.
Increase
Communication
interface
Get Testing Tool
for Innodisk SSD
products

6. www.aditech.in

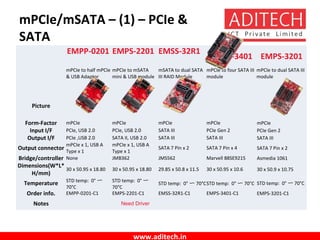

mPCIe/mSATA – (1) – PCIe &
SATA
EMPP-0201 EMPS-2201 EMSS-32R1
EMPS-3401 EMPS-3201
mPCIe to half mPCIe
& USB Adaptor
mPCIe to mSATA
mini & USB module
mSATA to dual SATA
III RAID Module
mPCIe to four SATA III
module
mPCIe to dual SATA III
module
Form-Factor mPCIe mPCIe mPCIe mPCIe mPCIe
Input I/F PCIe, USB 2.0 PCIe, USB 2.0 SATA III PCIe Gen 2 PCIe Gen 2
Output I/F PCIe ,USB 2.0 SATA II, USB 2.0 SATA III SATA III SATA III
Output connector
mPCIe x 1, USB A
Type x 1
mPCIe x 1, USB A
Type x 1
SATA 7 Pin x 2 SATA 7 Pin x 4 SATA 7 Pin x 2
Bridge/controller None JMB362 JMS562 Marvell 88SE9215 Asmedia 1061
Dimensions(W*L*
H/mm)
30 x 50.95 x 18.80 30 x 50.95 x 18.80 29.85 x 50.8 x 11.5 30 x 50.95 x 10.6 30 x 50.9 x 10.75
Temperature STD temp: 0° 〜
70°C
STD temp: 0° 〜
70°C
STD temp: 0° 〜 70°CSTD temp: 0° 〜 70°C STD temp: 0° 〜 70°C
Order info. EMPP-0201-C1 EMPS-2201-C1 EMSS-32R1-C1 EMPS-3401-C1 EMPS-3201-C1
Notes Need Driver

7. www.aditech.in

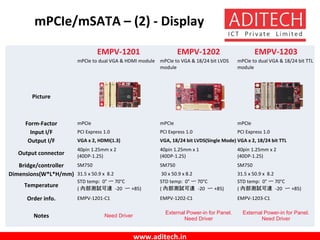

mPCIe/mSATA – (2) - Display
EMPV-1201 EMPV-1202 EMPV-1203
mPCIe to dual VGA & HDMI module mPCIe to VGA & 18/24 bit LVDS
module
mPCIe to dual VGA & 18/24 bit TTL
module
Form-Factor mPCIe mPCIe mPCIe
Input I/F PCI Express 1.0 PCI Express 1.0 PCI Express 1.0
Output I/F VGA x 2, HDMI(1.3) VGA, 18/24 bit LVDS(Single Mode) VGA x 2, 18/24 bit TTL
Output connector
40pin 1.25mm x 2
(40DP-1.25)
40pin 1.25mm x 1
(40DP-1.25)
40pin 1.25mm x 2
(40DP-1.25)
Bridge/controller SM750 SM750 SM750
Dimensions(W*L*H/mm) 31.5 x 50.9 x 8.2 30 x 50.9 x 8.2 31.5 x 50.9 x 8.2
Temperature
STD temp: 0° 〜 70°C
( 內部測試可達 -20 〜 +85)
STD temp: 0° 〜 70°C
( 內部測試可達 -20 〜 +85)
STD temp: 0° 〜 70°C
( 內部測試可達 -20 〜 +85)
Order info. EMPV-1201-C1 EMPV-1202-C1 EMPV-1203-C1
Notes Need Driver
External Power-in for Panel.
Need Driver
External Power-in for Panel.
Need Driver

8. www.aditech.in
EMUD-2201 EMP4-1101
USB to SD/uSD module mPCIe to PATA module
Form-Factor mPCIe mPCIe
Input I/F USB 2.0 PCI Express 1.0
Output I/F SD 2.0 PATA
Output connector
SD x 1
uSD x 1 (alternative)
44pin header x 1
Bridge/controller GL823U IDB368
Dimensions(W*L*H/mm) 30 x 50.9 x 5.6 30 x 50.9 x 9.5
Temperature
STD temp: 0° 〜 70°C Wide
temp: -40° 〜 85°C
STD temp: 0° 〜 70°C
Order info.
EMUD-2201-C1(Standard temp)
EMUD-2201-W1(Wide temp)
EMP4-1101-C1
Notes Supports Industrial temp.
mPCIe/mSATA – (3) – PATA & SD

9. www.aditech.in
M.2(NGFF)
EGSS-32R1 EGPS-3401
M.2 2242 to SATA RAID Module M.2 3042 to four SATA module
Form-Factor M.2 2242-B-M M.2 3042-B-M
Input I/F SATA III PCIe Gen 2
Output I/F SATA III SATA III
Output connector SATA 7 Pin x 2 SATA 7 Pin x 4
Bridge JMS562 Marvell 88SE9215
Dimensions(W*L*H/mm) 22 x 42 x 10.8 30 x 42 x 10.4mm
Temperature STD temp: 0° 〜 70°C STD temp: 0° 〜 70°C
Order info. EGSS-32R1-C1 EGPS-3401-C1
Notes

10. www.aditech.in
Standard PCIe
ESXS-2301 ESPS-3401
Multipurpose PCIe to mSATA & M.2 card PCIe to four SATA III card
Form-Factor Standard PCIe Standard PCIe
Input I/F PCI Express 1.0, SATA II, USB 2.0 PCI Express 2.0
Output I/F SATA II , USB 2.0 SATA III
Output connector mPCIe, mSATA, M.2 x 1 SATA 7 Pin x 4, mPCIe x 1
Bridge JMB362 Marvell 88SE9215
Dimensions(W*L*H/mm) 110.0 x 68.9 x 12.3 70.86 x 68.66 x 7.85mm
Temperature STD temp: 0° 〜 70°C STD temp: 0° 〜 70°C
Order info. ESXS-2301-C1 ESPS-3401-C1
Notes Need Driver for backside mSATA

11. www.aditech.in
2.5” SSD/SATADIMM3
E2SS-32R1 E3SS-32R1
2.5" SSD to dual mSATA RAID Module SATADIMM3 to M.2 RAID Module
Form-Factor 2.5" SSD DDR3 U-DIMM
Input I/F SATA III SATA III
Input connector SATA 7+15 Pin DDR3
Output I/F SATA III SATA III
Output connector mPCIe x 2 M.2 2280 x 2
Bridge JMS562 JMS562
Dimensions(W*L*H/mm) 69.85 x 100.1 x 11 30 x 133.35 x 9.3
Temperature STD temp: 0° 〜 70°C STD temp: 0° 〜 70°C
Order info. E2SS-32R1-C1 E3SS-32R1-C1
Notes

12. www.aditech.in
E2SS-32R2 EMPS-3201 E24S-2101
2.5" SSD to dual M.2 RAID Module mPCIe to dual SATA III module
IDE to mSATA & mSATA mini 2.5"
Module
Key Features
1. 2.5” SSD to dual M.2 2280 slots.
2. Supports SATA III to SATA III Port
Multiplier.
3. Supports H/W RAID 0/1 over
SATA.
4. Excellent data transfer speed.
5. 30µ golden finger, 3 years
warranty.
1. PCIe 2.0 to dual SATA III
ports.
2. Low power consumption.
3. Supports AHCI, Port-
Multiplier.
4. 30µ golden finger, 3 years
warranty.
1. Supports mSATA & mSATA mini card
to IDE in 2.5” F/F.
2. Compliance with Gen1i/Gen1m of
Serial ATA II Electrical Specification 2.6.
3. Supports wide temp.
4. 3 years warranty.
Form-Factor 2.5" SSD mPCIe 2.5" SSD
Input connector SATA 7+15 Pin mPCIe 44 pin header PATA
Output I/F SATA III SATA III SATA II, USB 2.0
Output connector M.2 2242/2260/2280 x 2 SATA 7 Pin x 2 mSATA x 1
Dimensions(W*L*H/mm) 69.85 x 100.1 x 11 30 x 50.9 x 10.75 65 x 82.4 x 4mm
Temperature STD temp: 0° 〜 70°C STD temp: 0° 〜 70°C
STD temp: 0° 〜 70°C
Wide temp: -40° 〜 85°C
Order info. E2SS-32R2-C1 EMPS-3201-C1
E24S-2101-C1(Standard temp)
E24S-2101-W1(Wide temp)
E2SS-32R2 & EMPS-3201 & E24S-2101

13. www.aditech.in

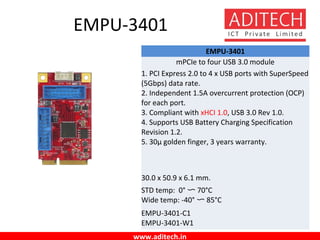

EMPU-3401
EMPU-3401
mPCIe to four USB 3.0 module
1. PCI Express 2.0 to 4 x USB ports with SuperSpeed
(5Gbps) data rate.
2. Independent 1.5A overcurrent protection (OCP)
for each port.
3. Compliant with xHCI 1.0, USB 3.0 Rev 1.0.
4. Supports USB Battery Charging Specification
Revision 1.2.
5. 30µ golden finger, 3 years warranty.
30.0 x 50.9 x 6.1 mm.
STD temp: 0° 〜 70°C
Wide temp: -40° 〜 85°C
EMPU-3401-C1
EMPU-3401-W1

14. www.aditech.in
EMPL-G201
EMPL-G201
mPCIe to dual GbE LAN module
1. Dual isolated GbE LAN ports.
2. Flexible daughter board with cable to fit
into different system.
3. 15KV ESD(Electro-Static Discharge) Surge
Protection.
4. Optional Industrial Temperature (-40°C to
+85°C) support.
5. 30µ ” golden finger, 3 years warranty.
30 x 50.9 x 6.1 mm
STD temp: 0° 〜 70°C
Wide temp: -40° 〜 85°C
EMPL-G201-C1
EMPL-G201-W1

15. www.aditech.in
EMP2-X401
EMP2-X401
mPCIe to four RS-232/422/485 Module
1. PCIe 2.0 compliant. RS-232/422/485 mode
configurable by software.
2. Up to 25 Mbps serial data rate. 16C550
compatible. 256-byte FIFOs
3. Industrial temperature(-40 ºC to 85 ºC) operation.
4. Flexible design with cable (GPIO cable, serial cable)
and GPIO board x 1, daughter board x 4 (with DB-9
connectors).
5. Termination Resistor and 5V/12V output by
jumper setting on daughterboard.
6. 15KV ESD(Electrostatic Discharge) protection
circuit to prevent system damage.
7. 30µ ” golden finger, 3 years warranty.
30 x 50.9 x 6.1 mm
Wide temp: -40° 〜 85°C
EMP2-X401-W1
GPIO Board/Cable (Optional Purchase)

16. www.aditech.in
Memory Display
VGA
eDP
DDR3 L
Mem Down/
SO-DIMM
Up to 2
Channels
2 ranks
DP/HDMI
4x PCIe*
4x USB2.0
1x USB3.0
HD
Audio
Code
c
2x SATAII
SIO
LP
Audio
I2S1x eMMC
1x SD card

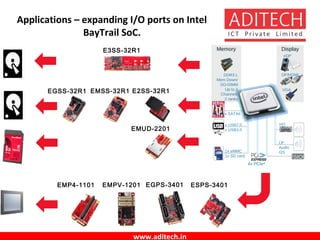

Applications – expanding I/O ports on Intel
BayTrail SoC.
EMPV-1201 ESPS-3401EGPS-3401EMP4-1101
EMUD-2201
E2SS-32R1EMSS-32R1EGSS-32R1
E3SS-32R1

17. www.aditech.in
EP Product Matrix
F/F
OutputOutput
PCIe SATA PATA USB SD
VGA
Display
LAN Touch
Serial
232/422..
mPCIe
(mSATA)
InputInput
PCIe
EMPP-
0201
EMPS-
3401
EMPS-
2201
EMPS-
3201
EMP4-
1101
EMPU-3401
EMPV-
1201
EMPV-
1202
EMPV-
1203
EMPL-G101
EMPL-G201
EMP2-X401
EMP2-X801
SATA
EMSS-
32R1
USB
EMUD-
2201
PCIe
Standard
InputInput
PCIe ESXX-XX01
ESPP-
2401
ESPS-3401
ESXX-
XX01
ESPV-
1201
ESPL-G201 ESP2-2401
SATA ESXS-2301
USB ESXS-2301
M.2(NGFF
)
InputInput
PCIe
EGPS-
3401
EGPU-3201
EGPV-
1201
EGPL-G101 EGP2-2401
SATA
EGSS-
32R1
2.5" InputInput
SATA
E2SS-
32R1
E2SS-
32R2
PATA E24S-2101
Development
Ready /
MP
Planning
ESXS-
2301
ESXX-
XX01
ESXS-
2301

18. www.aditech.in
Peripheral as a Service (PaaS)
• PaaS is a continuous innovation in
embedded peripheral.
• PaaS is a disciplined approach in order to
help customer’s portfolio success.
• PaaS is a process to share business
opportunity and technology achievement.
