Introduction to Wonderware InduSoft Web Studio 8.0+SP2
InduSoft Vision Systems Webinar
1.
2.
3. Established in US in 1997
Pioneer in industry:
First HMI/SCADA package for Microsoft Windows CE
Web solution and XML integration in HMI/SCADA
Patent for database connectivity
Certifications:
Awards:
4.
5. InduSoft Web Studio is an easy-to-use HMI
and SCADA software
Runs on any current Microsoft Operating
system (32 and 64 bits) including Windows
CE/Mobile, Embedded XP, Vista, Windows 7
and Server Editions
6. Seamless deployment across all
operating systems supported by
Microsoft
SCADA
OEE / MES
HMI
Hardware manufacturer
independency! Mobile
7. 2012
Windows CE 6.5
Windows 7
CEView v7.1
1997
Windows CE v1.0
Windows 95
CEView v1.0

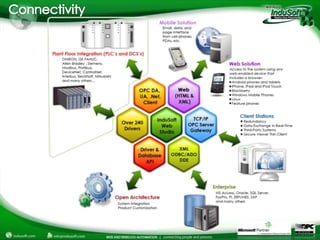

8.
9.
10. Vision systems take on
many forms
• Pass/Fail inspection
• Part Present (screw, caps, locking pin,
pills in blister pack)
• Tolerance detection
• Measurement (Gauging)
• Barcode, Data Matrix (2D barcode)
• Optical Character Recognition (OCR)
11. • Pass/Fail (Boolean) Pass Fail
• Software bit
• Graphic of Part
• Tolerance/Measurement
• Distance, radius, etc. (mm, inches)
• PLC protocol to request data
• OPC
• Barcode, 2D
• USB or PLC protocol

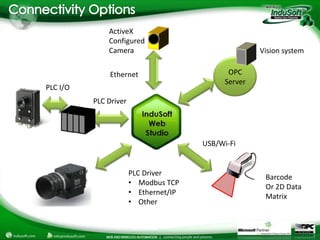

12. ActiveX
Configured
Camera Vision system
Ethernet OPC
Server
PLC I/O
PLC Driver
USB/Wi-Fi
PLC Driver
Barcode
• Modbus TCP
Or 2D Data
• Ethernet/IP
Matrix
• Other
13.
14.
15.
