This document summarizes a presentation about packaging solutions using InduSoft and CCS products. It introduces Scott Kortier of InduSoft and Hutch Gray of CCS, and discusses their companies' experience in industrial automation and packaging. InduSoft's software capabilities and applications for packaging are overviewed. CCS's Seppala-T line of industrial touchscreen panels designed for packaging automation applications is then presented.

1. Packaging Solutions
InduSoft and CCS

2. • InduSoft, Inc. (Scott A. Kortier)
– Resources
– Packaging Applications
– Functionality
– Demo
• CCS-Inc. (Hutch Gray)
– Seppala-T Panel PC

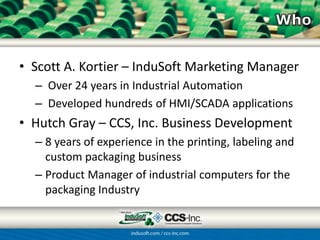

3. • Scott A. Kortier – InduSoft Marketing Manager
– Over 24 years in Industrial Automation
– Developed hundreds of HMI/SCADA applications
• Hutch Gray – CCS-Inc. Business Development
– 8 years of experience in the printing, labeling and
custom packaging business
– Product Manager of industrial computers for the
packaging Industry

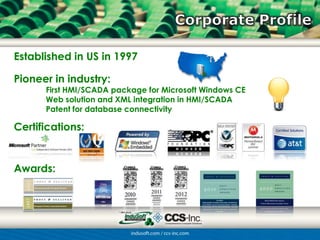

4. Established in US in 1997
Pioneer in industry:
First HMI/SCADA package for Microsoft Windows CE
Web solution and XML integration in HMI/SCADA
Patent for database connectivity
Certifications:
Awards:

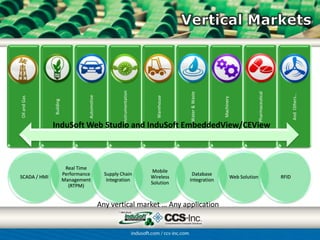

5. Instrumentation
Pharmaceutical
Water & Waste
And Others…
Automotive
Warehouse
Oil and Gas
Machinery
Building
InduSoft Web Studio and InduSoft EmbeddedView/CEView
Real Time
Mobile
Performance Supply Chain Database
SCADA / HMI Wireless Web Solution RFID
Management Integration Integration
Solution
(RTPM)
Any vertical market … Any application

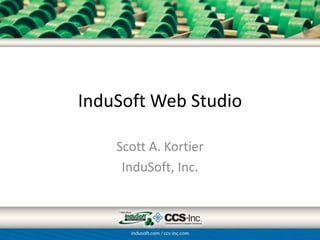

6. InduSoft Web Studio
Scott A. Kortier
InduSoft, Inc.

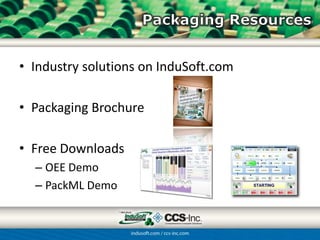

7. • Industry solutions on InduSoft.com
• Packaging Brochure
• Free Downloads
– OEE Demo
– PackML Demo

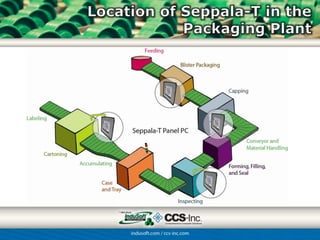

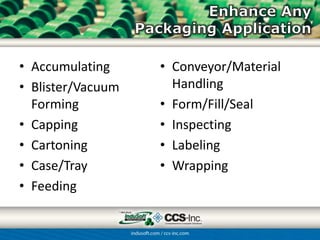

8. • Accumulating • Conveyor/Material
• Blister/Vacuum Handling
Forming • Form/Fill/Seal
• Capping • Inspecting
• Cartoning • Labeling
• Case/Tray • Wrapping
• Feeding

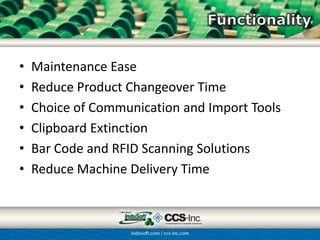

9. • Maintenance Ease
• Reduce Product Changeover Time
• Choice of Communication and Import Tools
• Clipboard Extinction
• Bar Code and RFID Scanning Solutions
• Reduce Machine Delivery Time

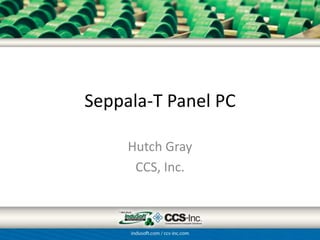

10. Seppala-T Panel PC
Hutch Gray
CCS, Inc.

11. CCS-Inc.
Comprehensive Computer Solutions
Hutch Gray
Business Development

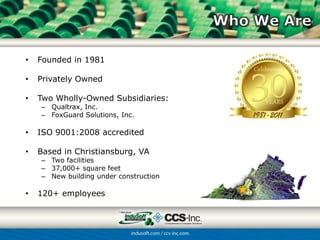

12. • Founded in 1981
• Privately Owned
• Two Wholly-Owned Subsidiaries:
– Qualtrax, Inc.
– FoxGuard Solutions, Inc.
• ISO 9001:2008 accredited
• Based in Christiansburg, VA
– Two facilities
– 37,000+ square feet
– New building under construction
• 120+ employees

13. • CCS-Inc. designs, manufactures,
and integrates computers,
enclosures, and networking
solutions for harsh environments
and mission-critical applications
• Industries Served:
Automation, Packaging,
Manufacturing, Energy, Food
Processing, Defense, and more…

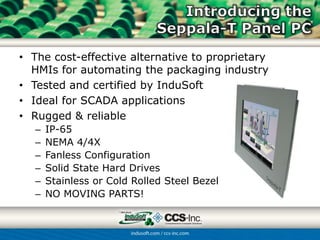

14. • The cost-effective alternative to proprietary
HMIs for automating the packaging industry
• Tested and certified by InduSoft
• Ideal for SCADA applications
• Rugged & reliable
– IP-65
– NEMA 4/4X
– Fanless Configuration
– Solid State Hard Drives
– Stainless or Cold Rolled Steel Bezel
– NO MOVING PARTS!

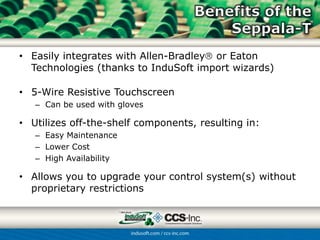

16. • Easily integrates with Allen-Bradley or Eaton
Technologies (thanks to InduSoft import wizards)
• 5-Wire Resistive Touchscreen
– Can be used with gloves
• Utilizes off-the-shelf components, resulting in:
– Easy Maintenance
– Lower Cost
– High Availability
• Allows you to upgrade your control system(s) without
proprietary restrictions

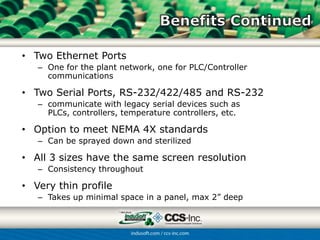

17. • Two Ethernet Ports
– One for the plant network, one for PLC/Controller
communications
• Two Serial Ports, RS-232/422/485 and RS-232
– communicate with legacy serial devices such as PLCs,
controllers, temperature controllers, etc.
• Option to meet NEMA 4X standards
– Can be sprayed down and sterilized
• All 3 sizes have the same screen resolution
– Consistency throughout
• Very thin profile
– Takes up minimal space in a panel, max 2” deep

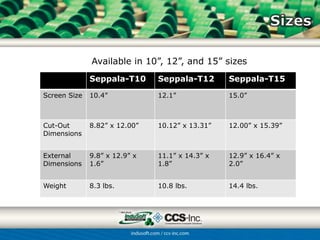

18. Available in 10”, 12”, and 15” sizes
Seppala-T10 Seppala-T12 Seppala-T15
Screen Size 10.4” 12.1” 15.0”
Cut-Out 8.82” x 12.00” 10.12” x 13.31” 12.00” x 15.39”
Dimensions
External 9.8” x 12.9” x 11.1” x 14.3” x 12.9” x 16.4” x
Dimensions 1.6” 1.8” 2.0”
Weight 8.3 lbs. 10.8 lbs. 14.4 lbs.

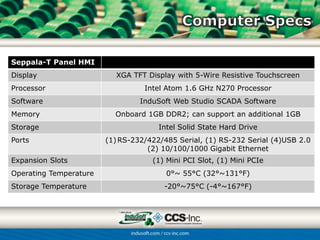

19. Seppala-T Panel HMI
Display XGA TFT Display with 5-Wire Resistive Touchscreen
Processor Intel Atom 1.6 GHz N270 Processor
Software InduSoft Web Studio SCADA Software
Memory Onboard 1GB DDR2; can support an additional 1GB
Storage Intel Solid State Hard Drive
Ports (1) RS-232/422/485 Serial, (1) RS-232 Serial (4)USB 2.0
(2) 10/100/1000 Gigabit Ethernet
Expansion Slots (1) Mini PCI Slot, (1) Mini PCIe
Operating Temperature 0°~ 55°C (32°~131°F)
Storage Temperature -20°~75°C (-4°~167°F)

20. • Arrives pre-loaded with InduSoft and
requested Operating System
• Hardware support offered by CCS
• Software support offered by InduSoft
• Integration support referred to InduSoft
partners

21. Contact CCS
• Have questions? Want to request a quote?
Ways to Reach Us
+1 800.277.3077
requestinfo@ccs-inc.com
http://www.ccs-inc.com/contact

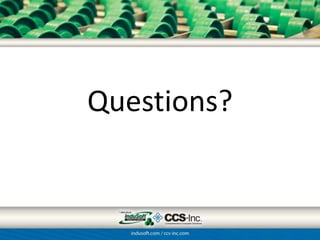

22. Questions?

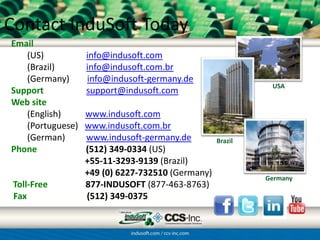

23. Contact InduSoft Today
Email
(US) info@indusoft.com
(Brazil) info@indusoft.com.br
(Germany) info@indusoft-germany.de
USA
Support support@indusoft.com
Web site
(English) www.indusoft.com
(Portuguese) www.indusoft.com.br
(German) www.indusoft-germany.de Brazil
Phone (512) 349-0334 (US)
+55-11-3293-9139 (Brazil)
+49 (0) 6227-732510 (Germany) Germany
Toll-Free 877-INDUSOFT (877-463-8763)
Fax (512) 349-0375
