Indusoft Web Studio is a versatile HMI/SCADA/MES/OEE solution compatible with various Microsoft operating systems, enabling seamless deployment and integration. It supports standard SQL relational databases and offers features like redundancy, alarm history, dashboards, and mobile access for key performance indicators. The platform allows customization and integration with different third-party systems for real-time data exchange and enterprise monitoring.

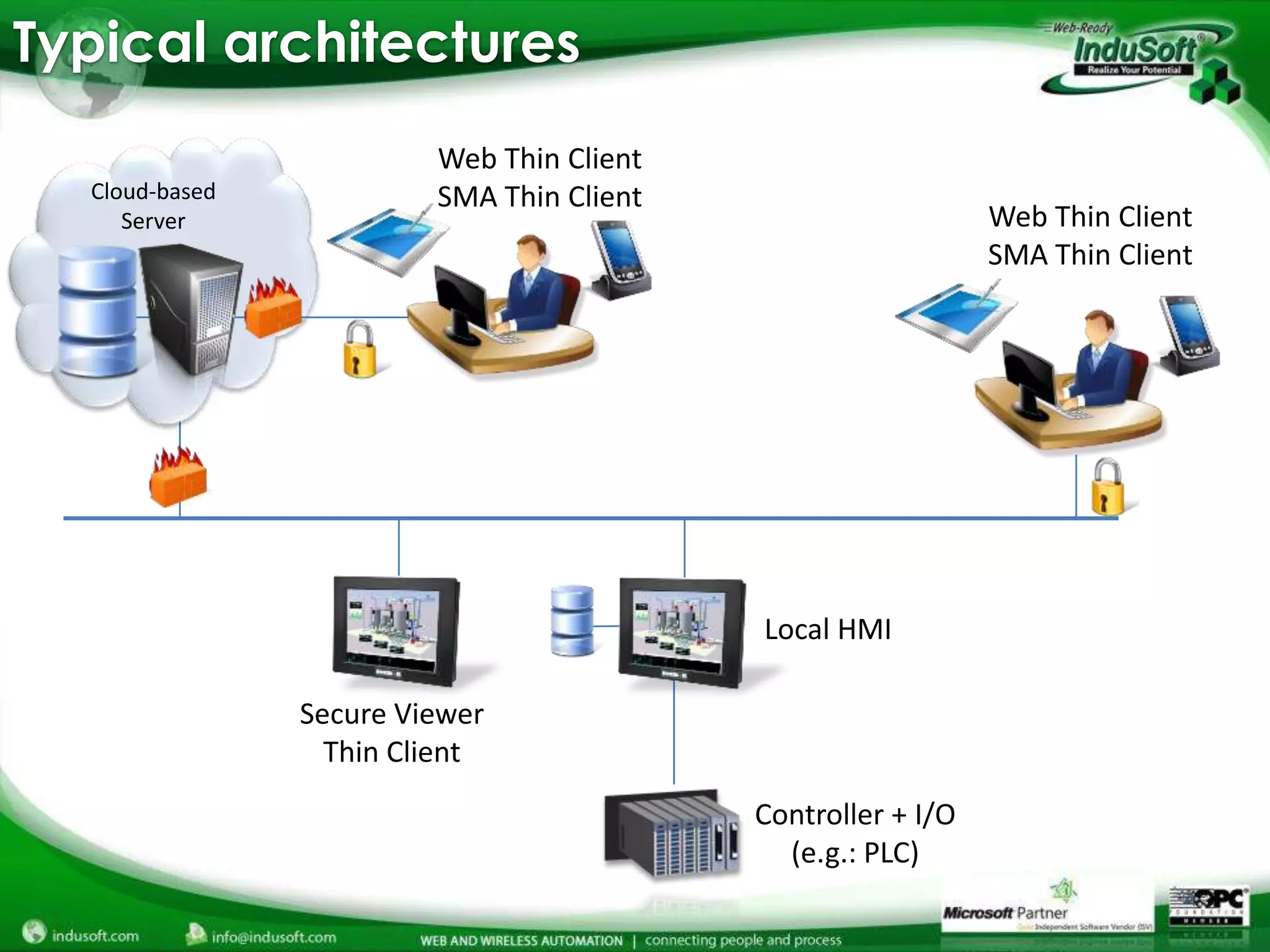

4. Typical architectures
Web Thin Client
Cloud-based SMA Thin Client
Server Web Thin Client
SMA Thin Client
Local HMI
Secure Viewer
Thin Client
Controller + I/O
(e.g.: PLC)

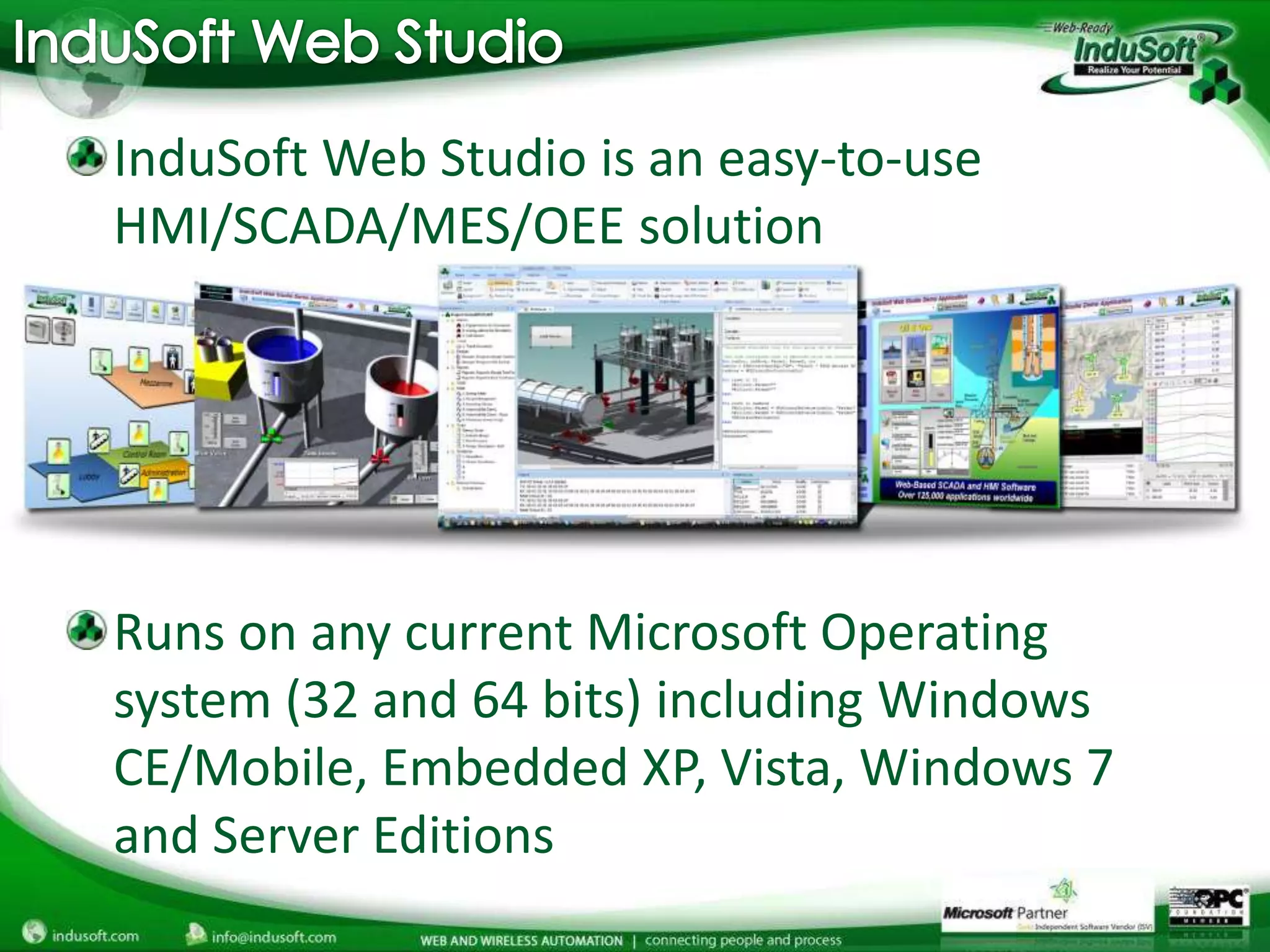

6. InduSoft Web Studio is an easy-to-use
HMI/SCADA/MES/OEE solution
Runs on any current Microsoft Operating
system (32 and 64 bits) including Windows
CE/Mobile, Embedded XP, Vista, Windows 7
and Server Editions

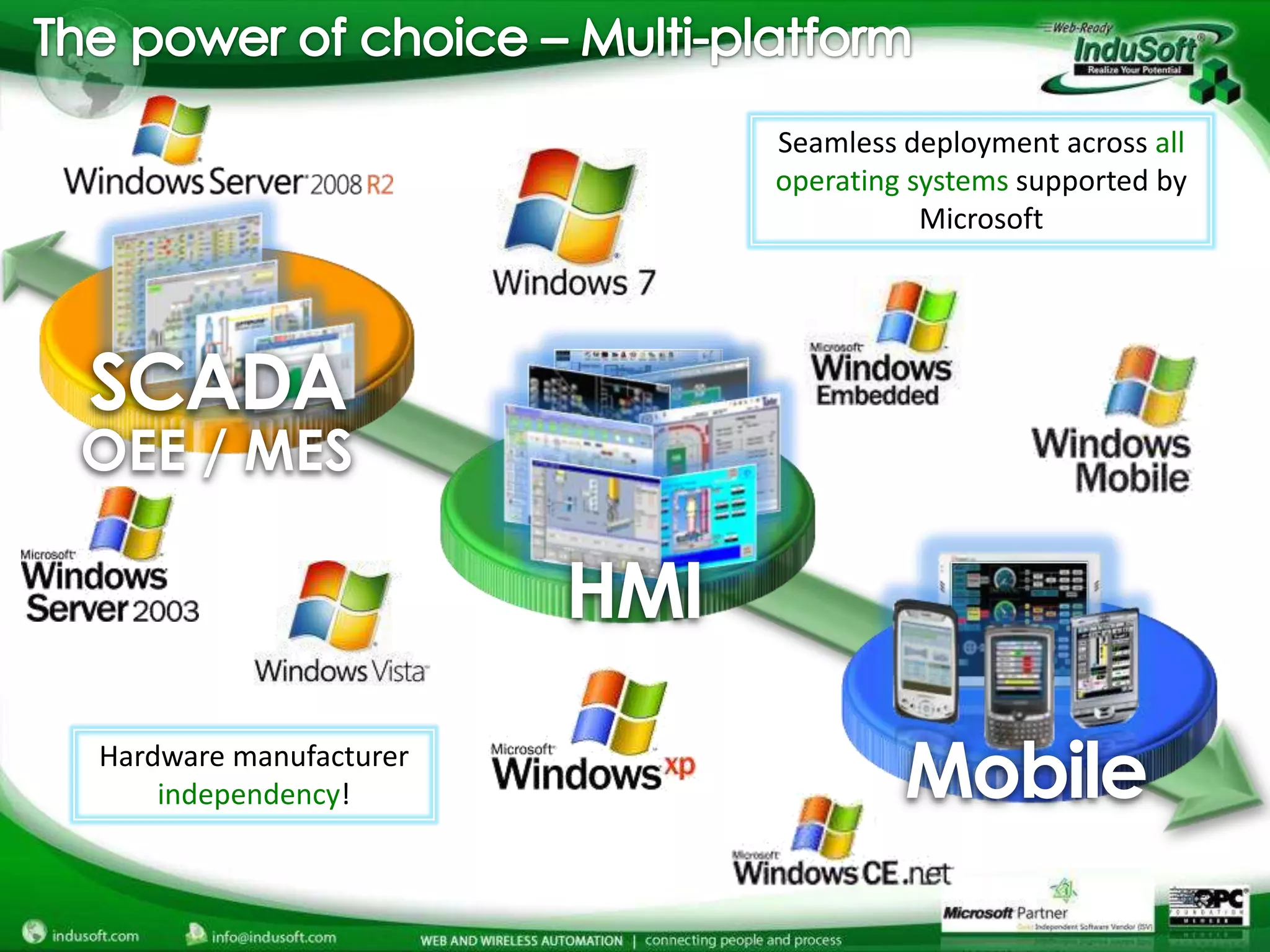

7. Seamless deployment across all
operating systems supported by
Microsoft
SCADA
OEE / MES
HMI
Hardware manufacturer
independency! Mobile

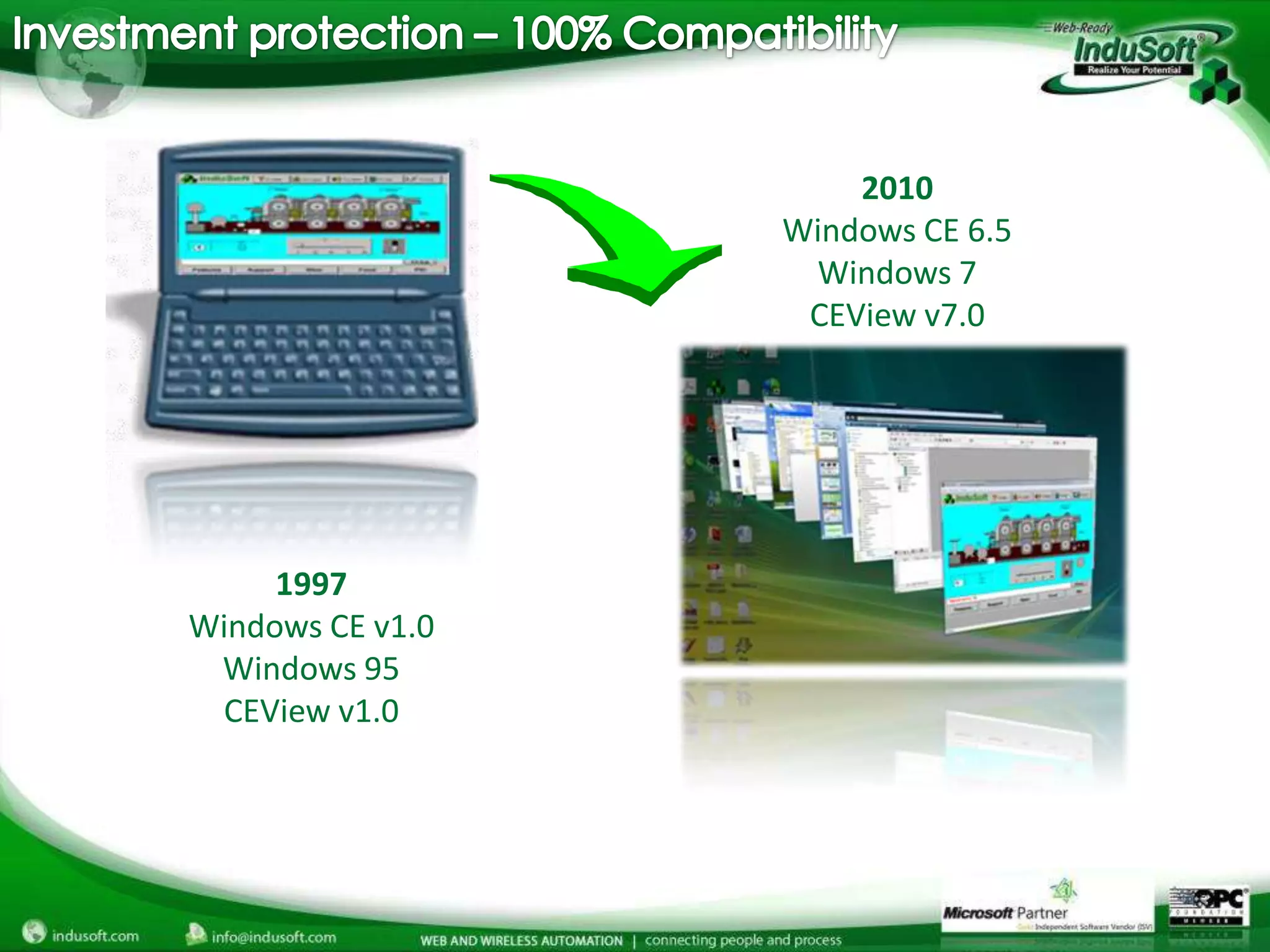

8. 2010
Windows CE 6.5
Windows 7
CEView v7.0
1997
Windows CE v1.0
Windows 95
CEView v1.0

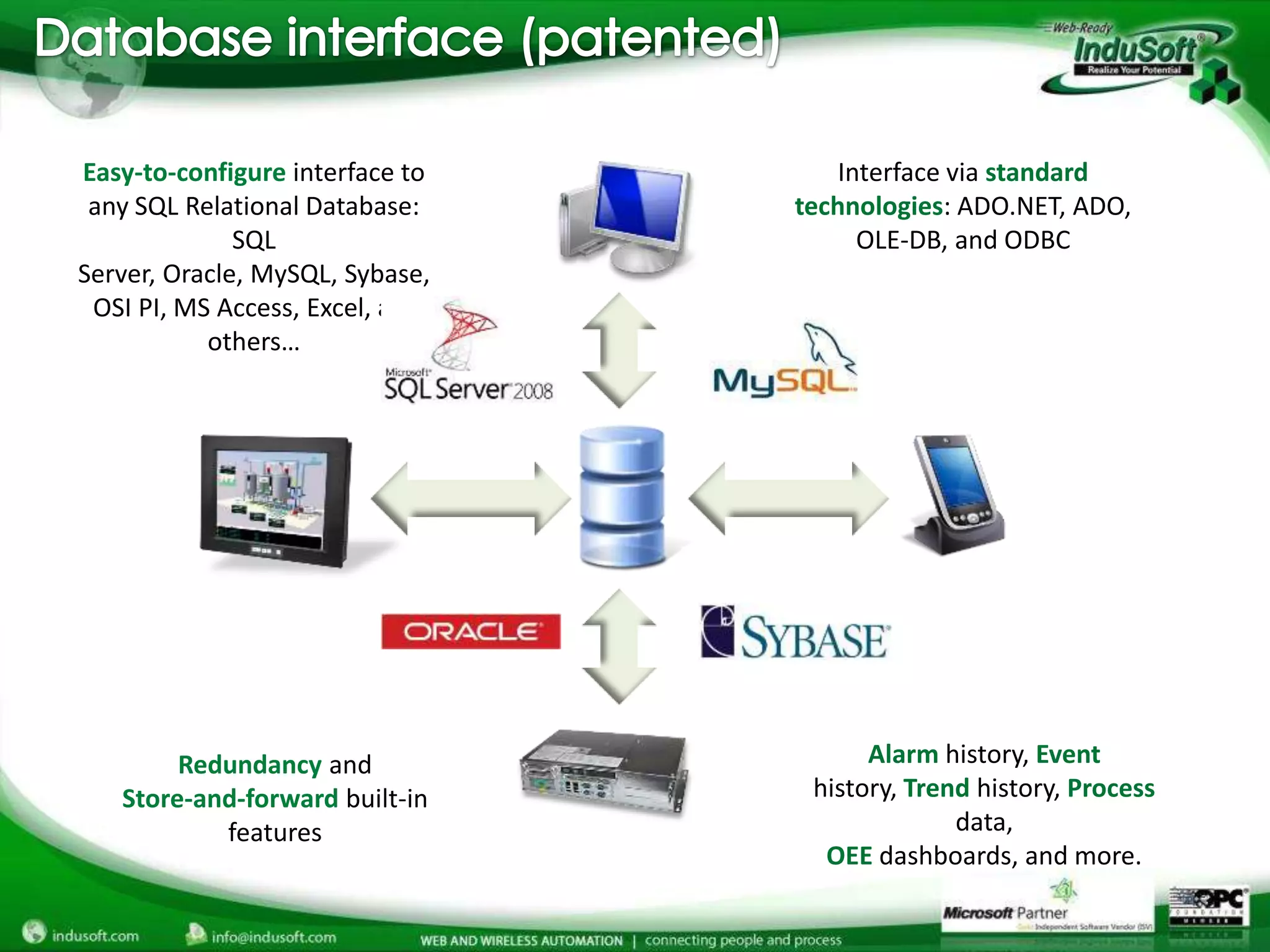

9. Easy-to-configure interface to Interface via standard
any SQL Relational Database: technologies: ADO.NET, ADO,
SQL OLE-DB, and ODBC
Server, Oracle, MySQL, Sybase,
OSI PI, MS Access, Excel, and
others…
Redundancy and Alarm history, Event
Store-and-forward built-in history, Trend history, Process
features data,
OEE dashboards, and more.

10. “HMI software is being increasingly used as a digital dashboard to show key
performance indicators (KPIs) such as overall equipment effectiveness (OEE)
for the entire enterprise, and to generate reports of actual performance versus targets.”
ARC Advisory Group

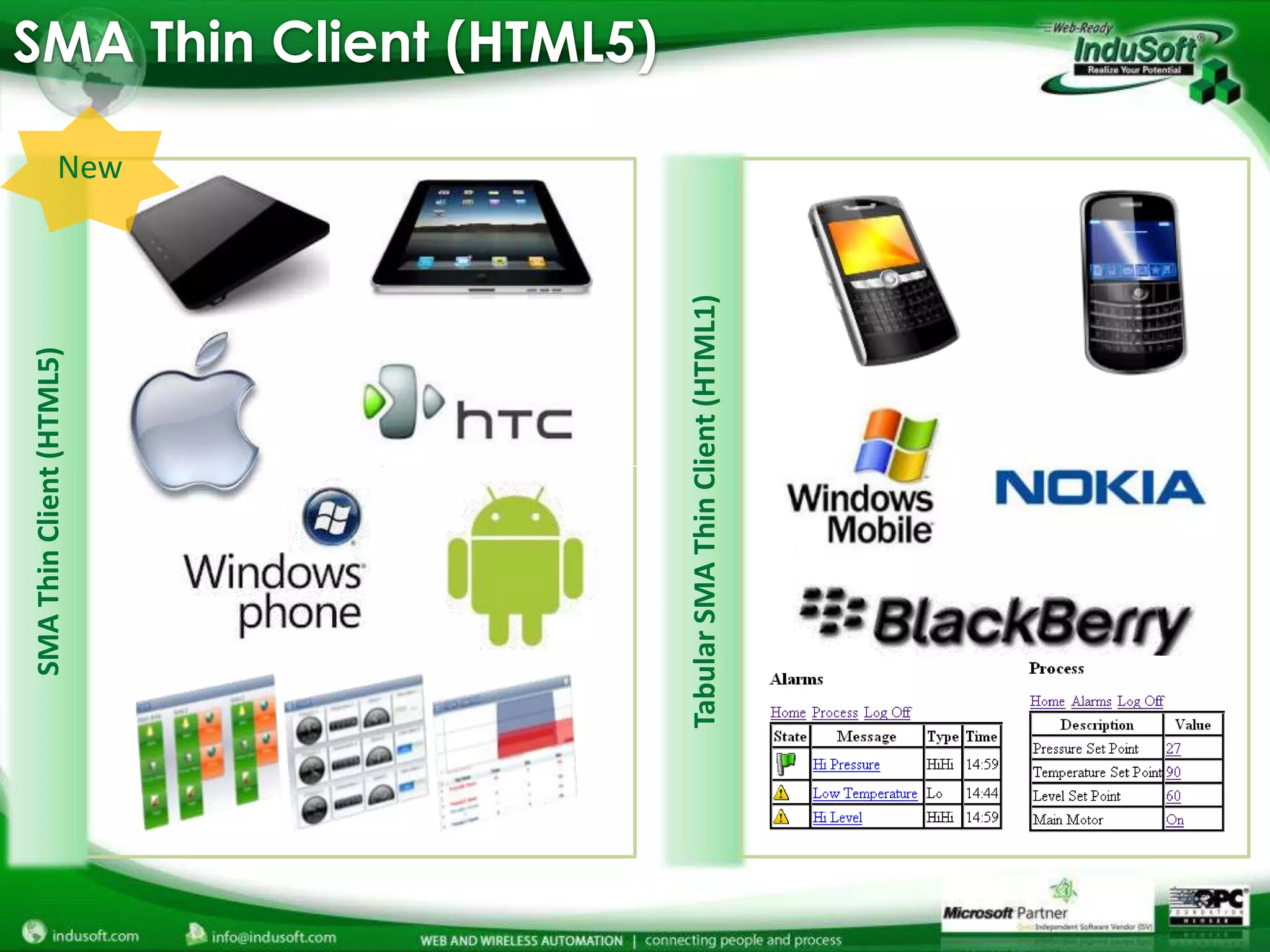

12. SMA Thin Client (HTML5)
New
SMA Thin Client (HTML5)
Tabular SMA Thin Client (HTML1)

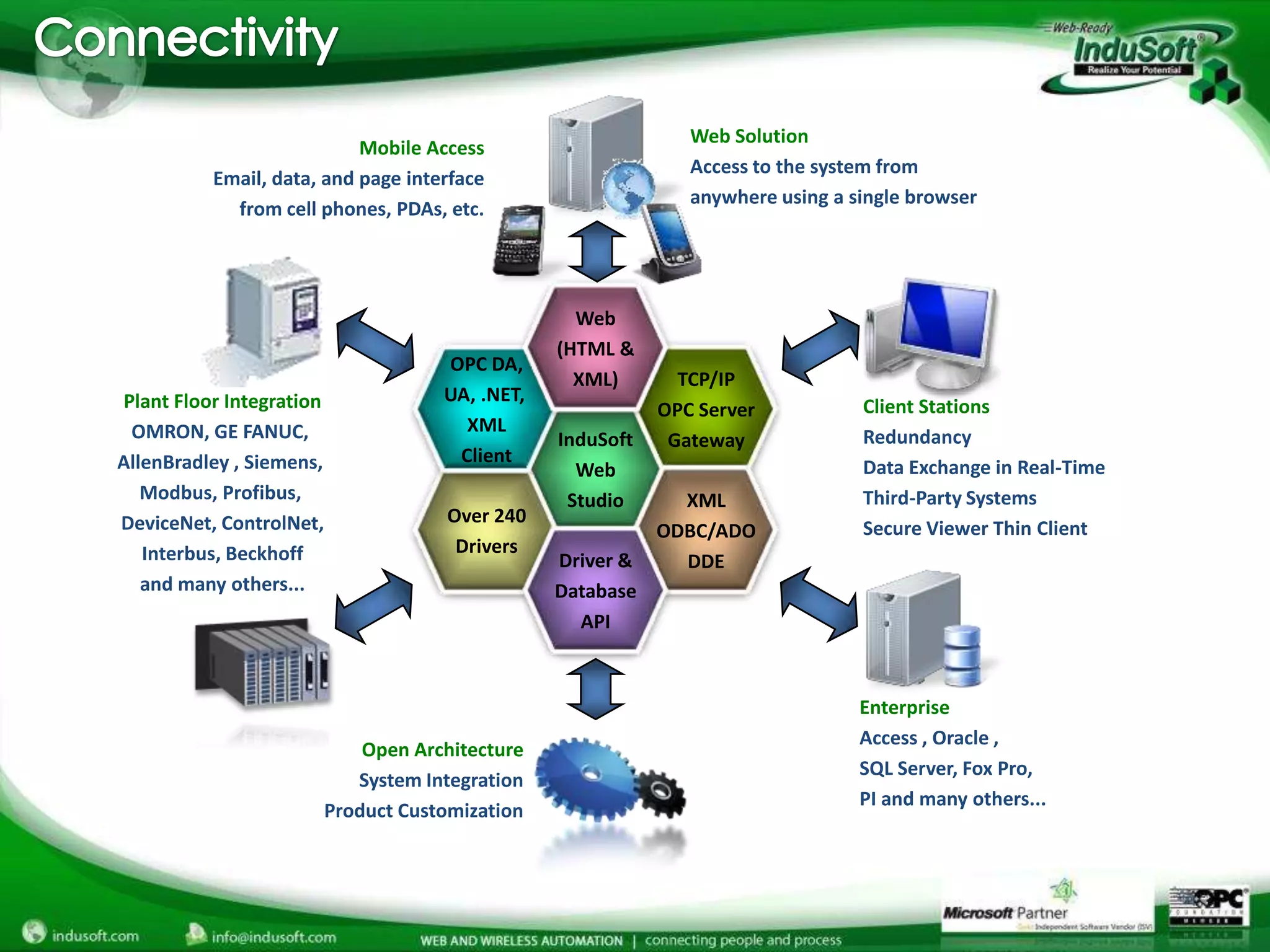

13. Web Solution
Mobile Access
Access to the system from
Email, data, and page interface
anywhere using a single browser
from cell phones, PDAs, etc.
Web
(HTML &
OPC DA,
XML) TCP/IP
Plant Floor Integration UA, .NET,
OPC Server Client Stations
OMRON, GE FANUC, XML
InduSoft Gateway Redundancy
AllenBradley , Siemens, Client
Web Data Exchange in Real-Time
Modbus, Profibus, Studio XML Third-Party Systems
DeviceNet, ControlNet, Over 240
ODBC/ADO Secure Viewer Thin Client
Interbus, Beckhoff Drivers
Driver & DDE
and many others... Database
API
Enterprise
Access , Oracle ,
Open Architecture
SQL Server, Fox Pro,
System Integration
PI and many others...
Product Customization

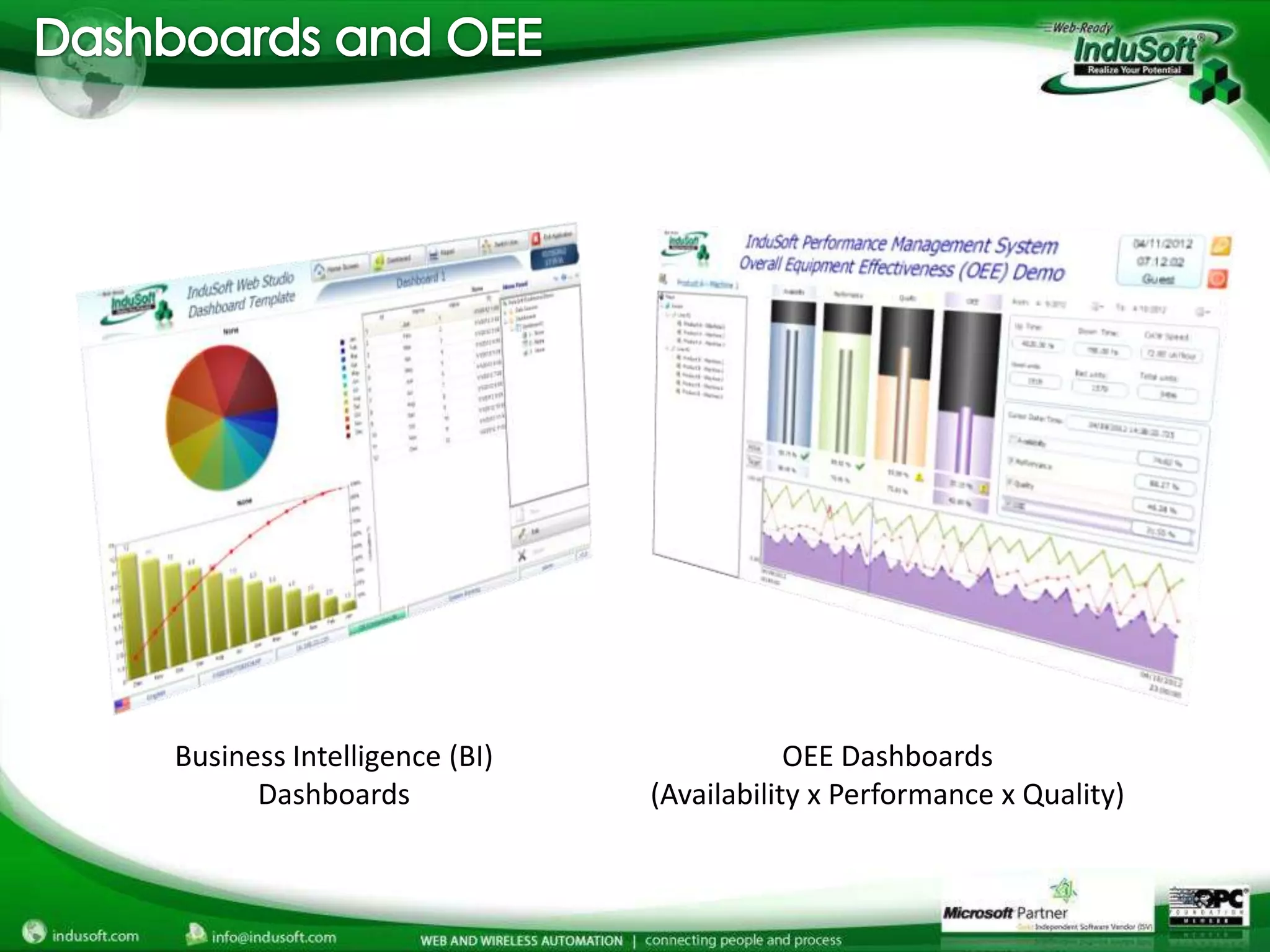

15. Business Intelligence (BI) OEE Dashboards
Dashboards (Availability x Performance x Quality)

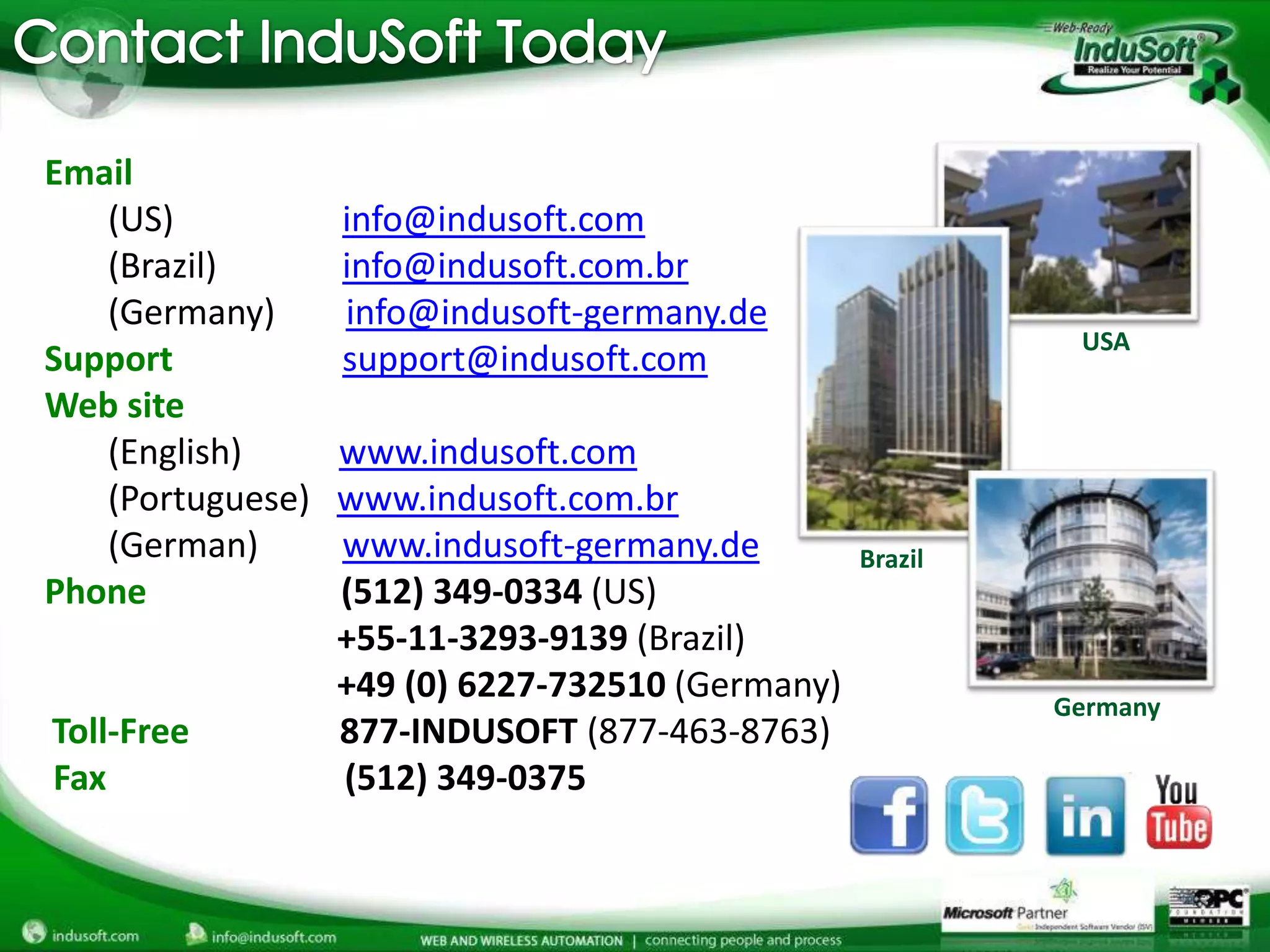

24. Email
