Structural Coatings Inc. coats steel plates for use in a wide range of industrial applications, such as US Navy ships, water towers, barges and bridges. Thanks to their innovative IoT enabled solutions, Structural Coatings can collect high quality data on each plate of steel and track where and how it has been used. Join us as our guest, Bill Mars, from Structural Coatings discusses how they developed the innovative solution that allows remote access to the HMI, and learn more about possible expansions for the IoT and Arduino project in the future.

1. IoT solutions with InduSoft Web Studio and
Arduino in Coating Processes

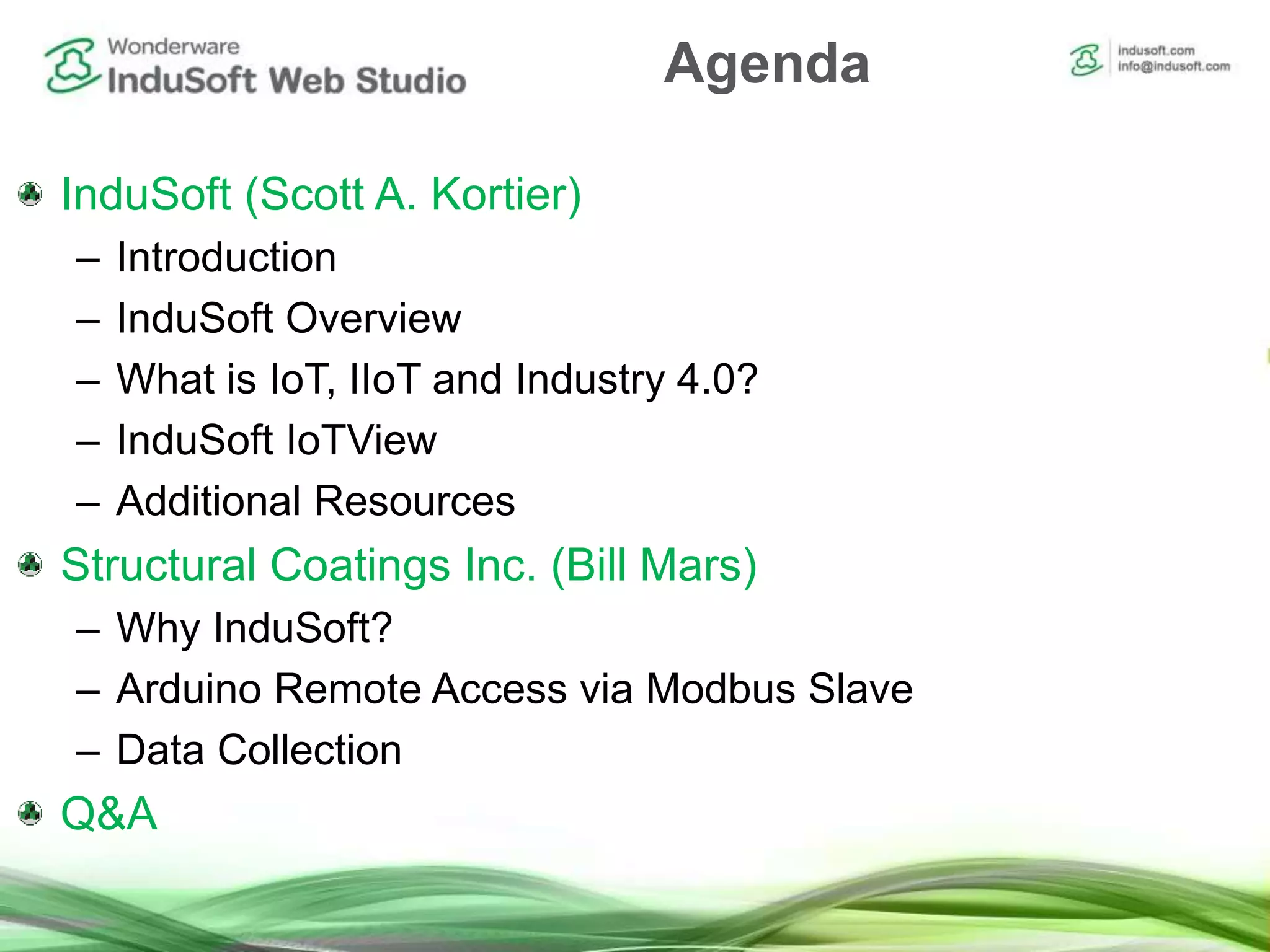

2. Agenda
InduSoft (Scott A. Kortier)
– Introduction
– InduSoft Overview
– What is IoT, IIoT and Industry 4.0?
– InduSoft IoTView
– Additional Resources
Structural Coatings Inc. (Bill Mars)
– Why InduSoft?
– Arduino Remote Access via Modbus Slave
– Data Collection
Q&A

3. InduSoft Overview
Related Features

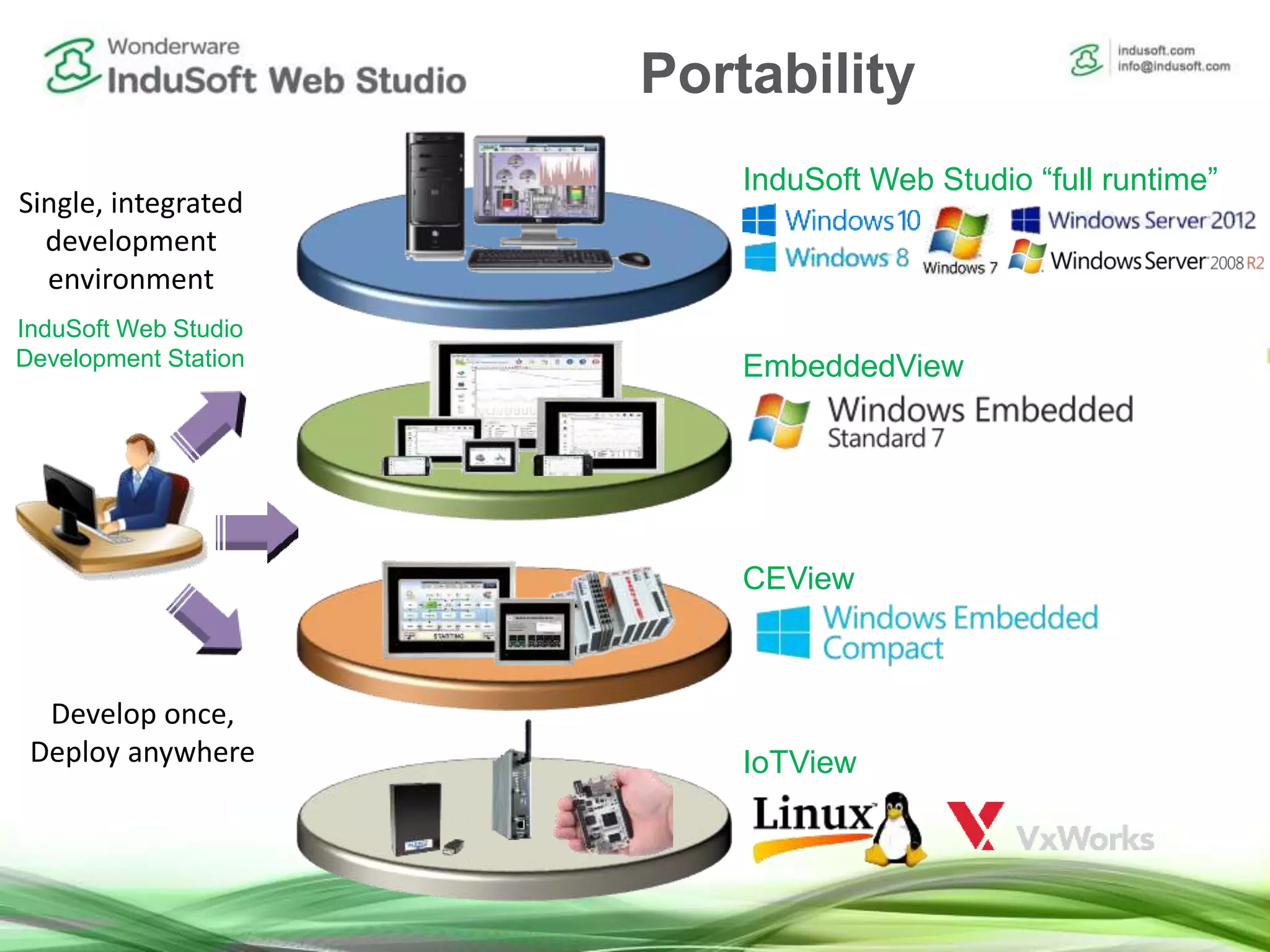

4. EmbeddedView
InduSoft Web Studio “full runtime”
CEView
InduSoft Web Studio
Development Station
Develop once,
Deploy anywhere
Single, integrated
development
environment
IoTView
Portability

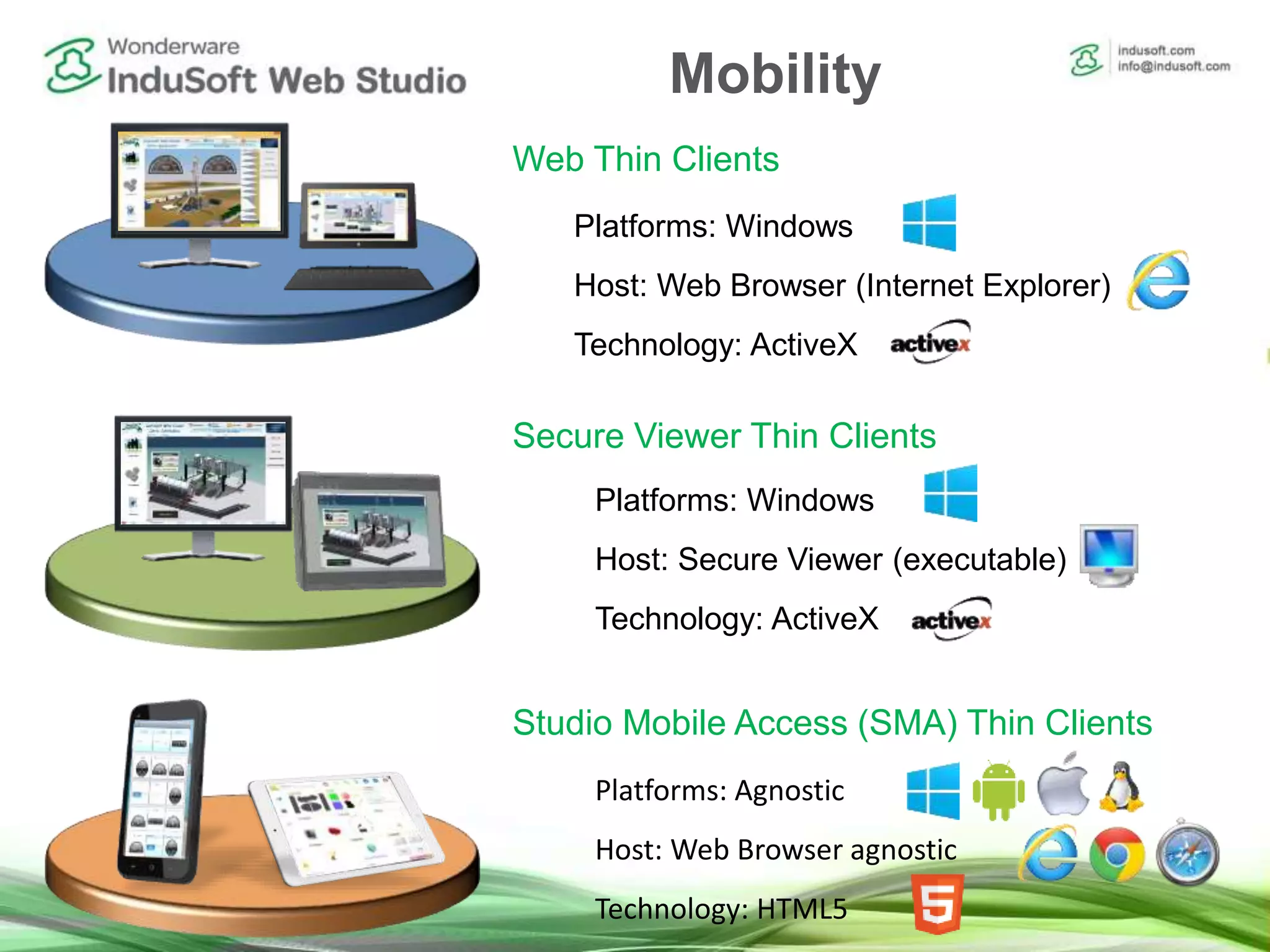

5. Mobility
Platforms: Agnostic
Host: Web Browser agnostic
Technology: HTML5
Platforms: Windows
Host: Secure Viewer (executable)
Technology: ActiveX
Platforms: Windows
Host: Web Browser (Internet Explorer)
Technology: ActiveX
Studio Mobile Access (SMA) Thin Clients
Web Thin Clients
Secure Viewer Thin Clients

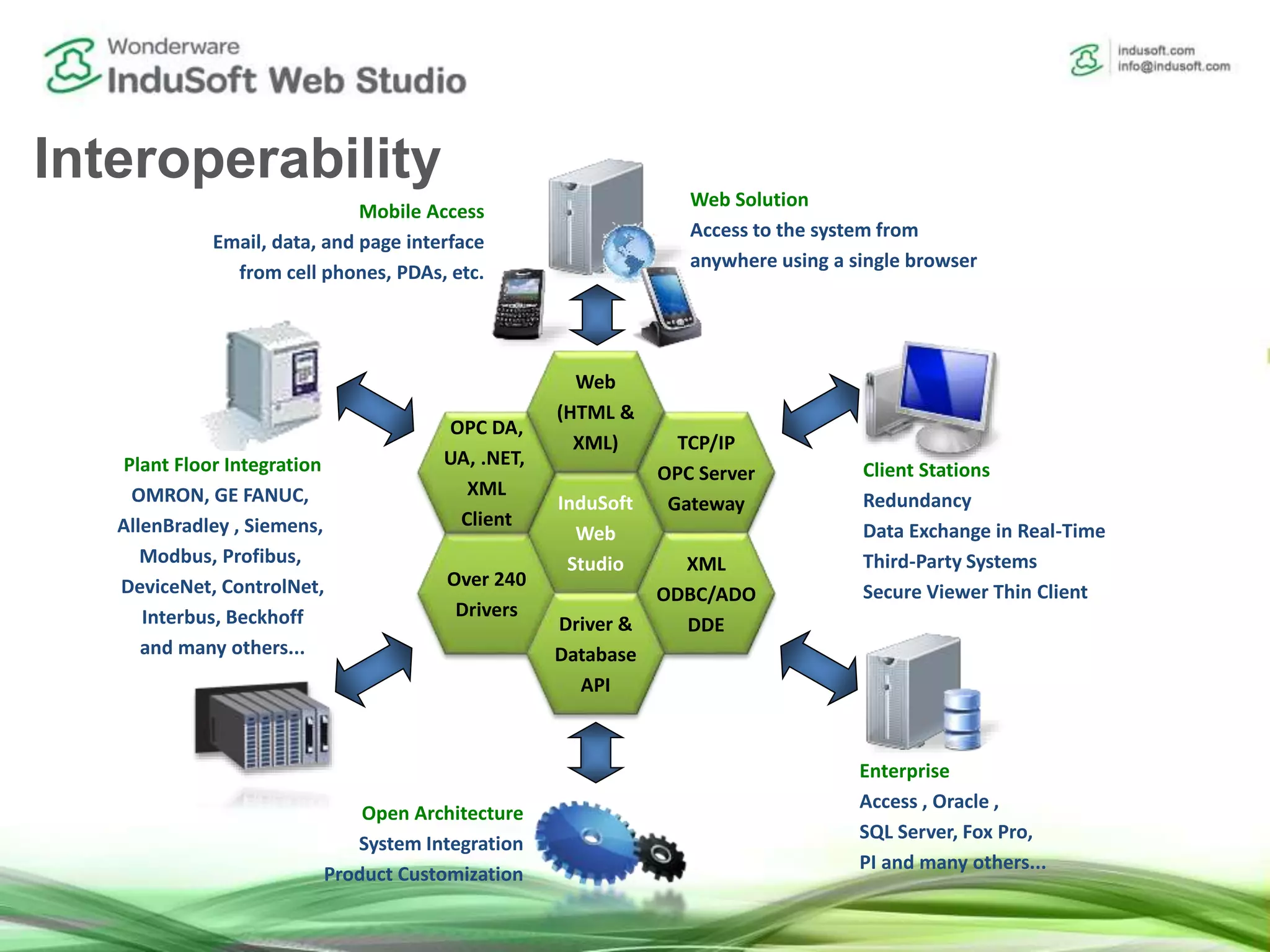

6. InduSoft
Web
Studio
Over 240
Drivers
TCP/IP
OPC Server
Gateway
XML
ODBC/ADO
DDE
OPC DA,
UA, .NET,
XML
Client
Web
(HTML &
XML)
Driver &
Database
API
Open Architecture
System Integration
Product Customization
Enterprise
Access , Oracle ,
SQL Server, Fox Pro,
PI and many others...
Client Stations
Redundancy
Data Exchange in Real-Time
Third-Party Systems
Secure Viewer Thin Client
Web Solution
Access to the system from
anywhere using a single browser
Mobile Access
Email, data, and page interface
from cell phones, PDAs, etc.
Plant Floor Integration
OMRON, GE FANUC,
AllenBradley , Siemens,
Modbus, Profibus,
DeviceNet, ControlNet,
Interbus, Beckhoff
and many others...
Interoperability

7. What is IIoT?

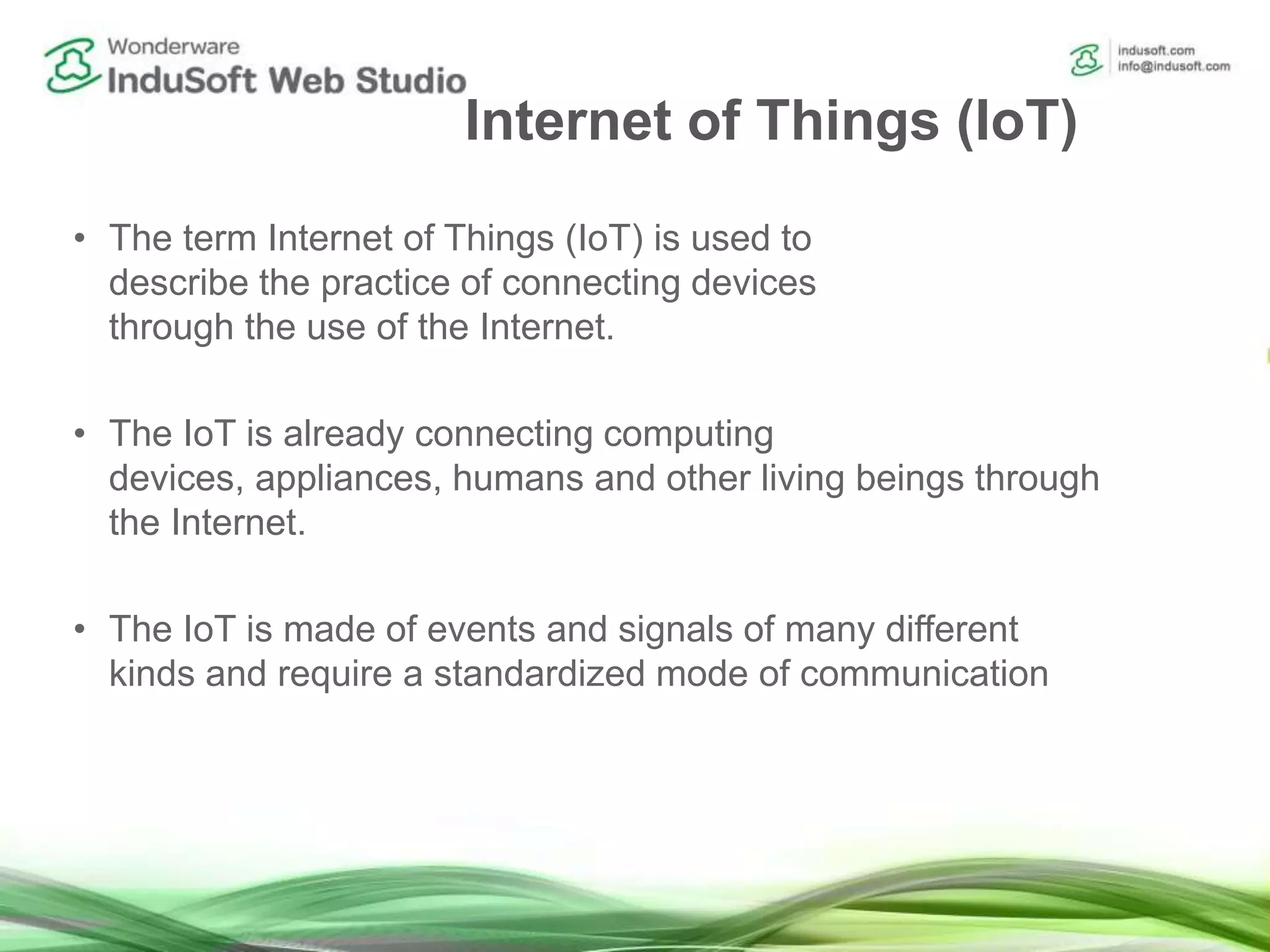

8. Internet of Things (IoT)
• The term Internet of Things (IoT) is used to
describe the practice of connecting devices
through the use of the Internet.
• The IoT is already connecting computing
devices, appliances, humans and other living beings through
the Internet.
• The IoT is made of events and signals of many different
kinds and require a standardized mode of communication

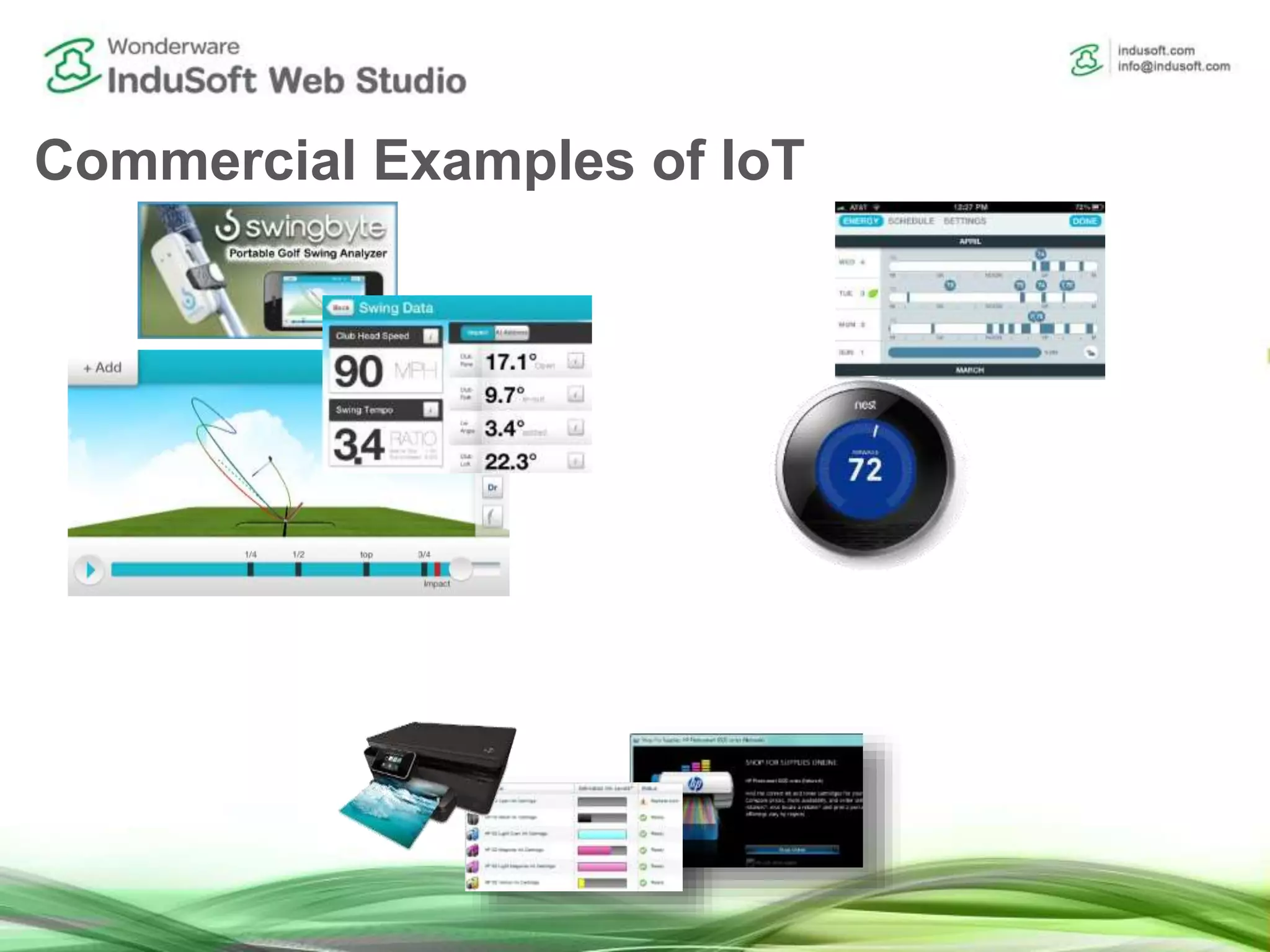

9. Commercial Examples of IoT

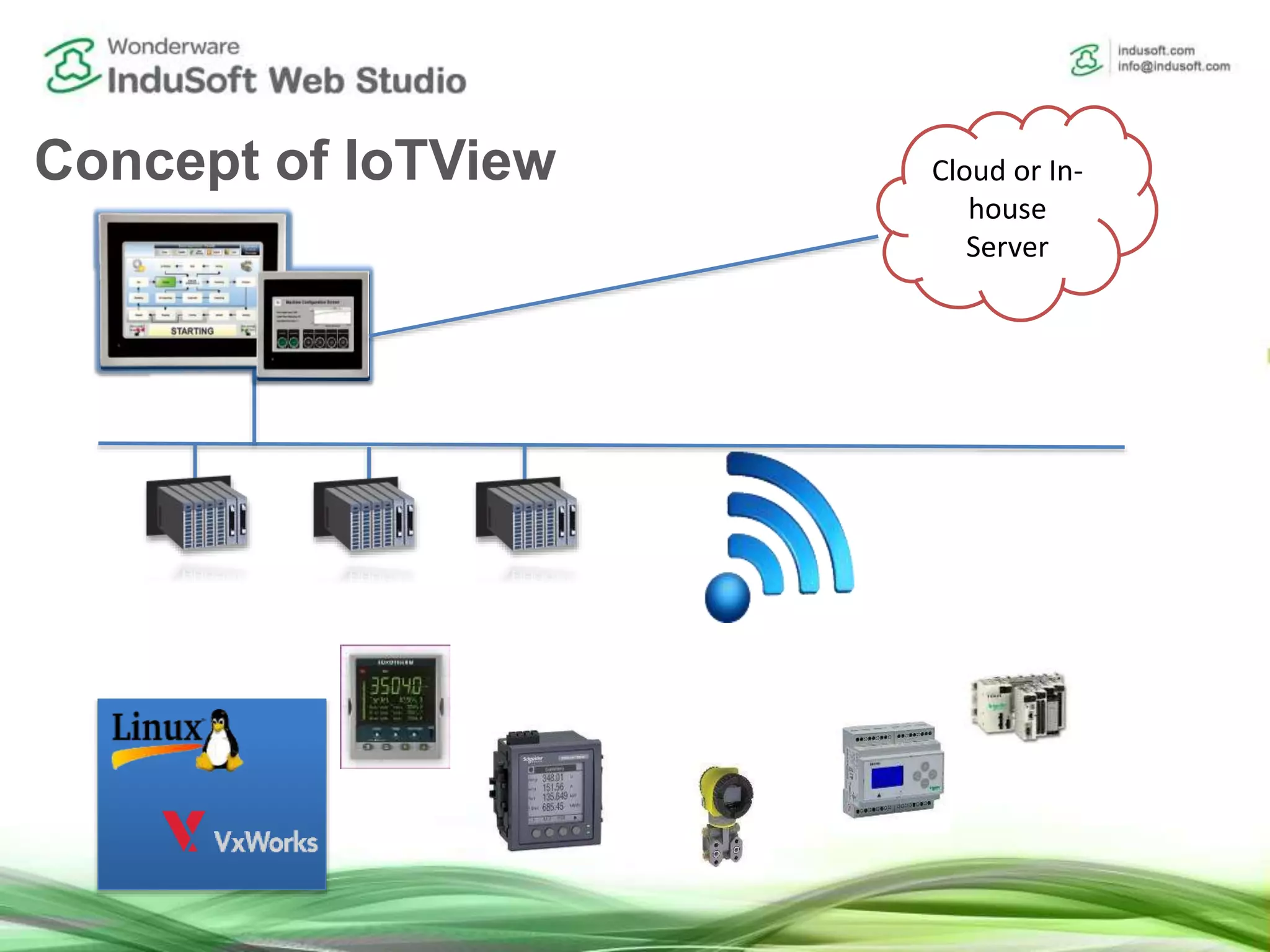

10. Concept of IoTView Cloud or In-
house
Server

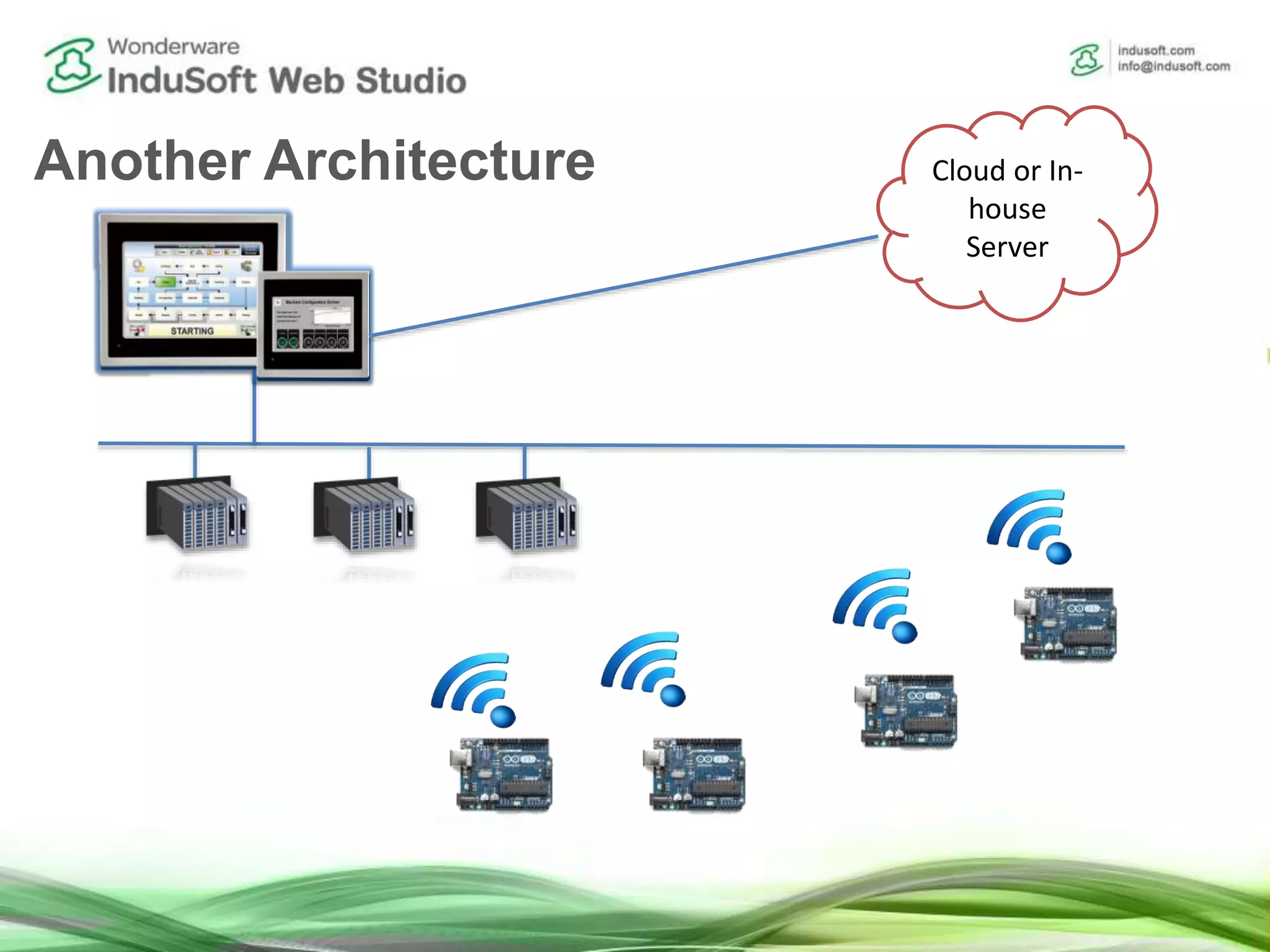

11. Another Architecture Cloud or In-
house
Server

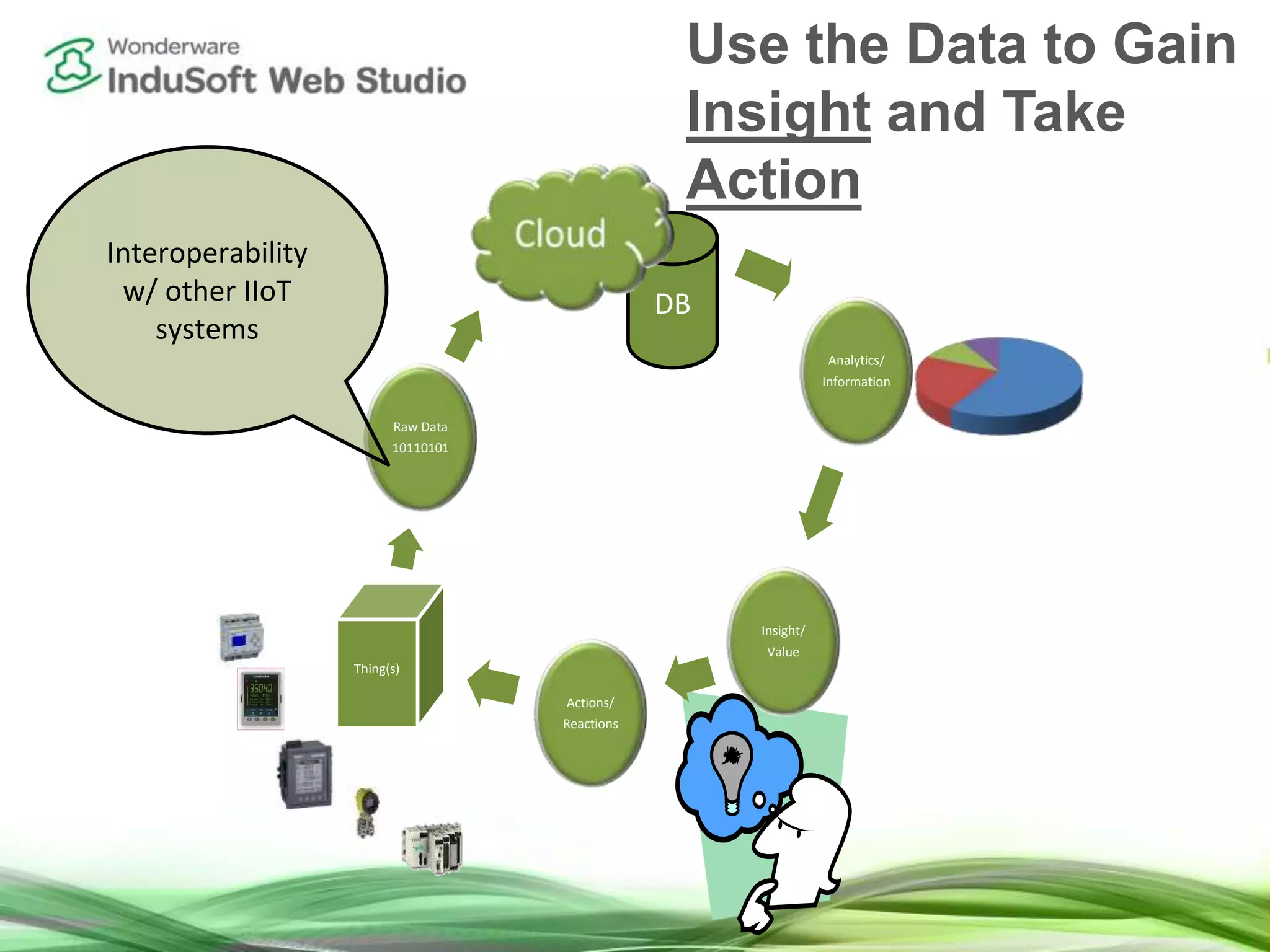

12. Use the Data to Gain
Insight and Take
Action
DB
Insight/
Value
Actions/
Reactions
Thing(s)
Raw Data
10110101
Analytics/
Information
Interoperability
w/ other IIoT
systems

13. IoTView

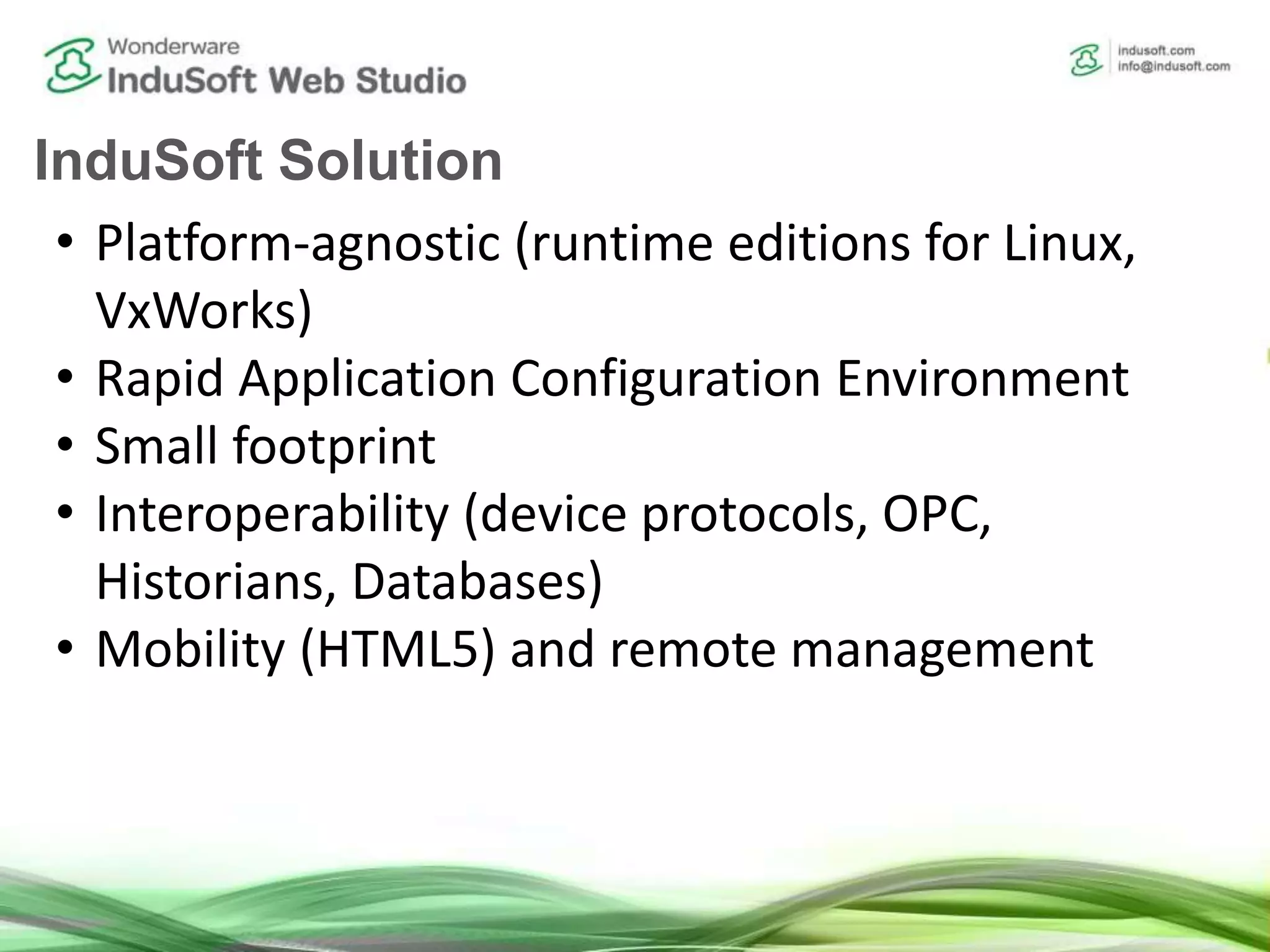

14. InduSoft Solution
• Platform-agnostic (runtime editions for Linux,
VxWorks)
• Rapid Application Configuration Environment
• Small footprint
• Interoperability (device protocols, OPC,
Historians, Databases)
• Mobility (HTML5) and remote management

15. Additional Resources

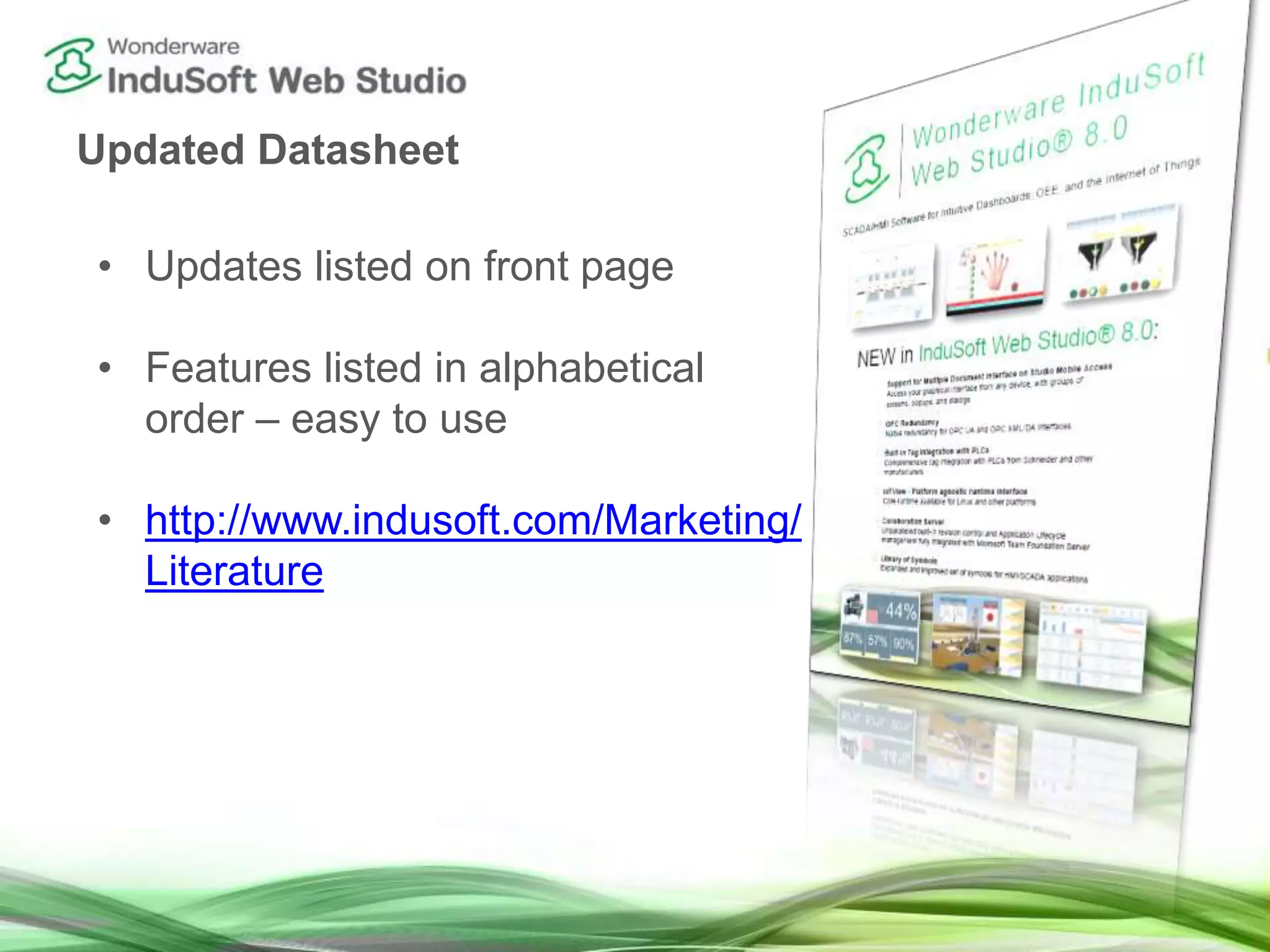

16. Updated Datasheet
• Updates listed on front page
• Features listed in alphabetical
order – easy to use
• http://www.indusoft.com/Marketing/
Literature

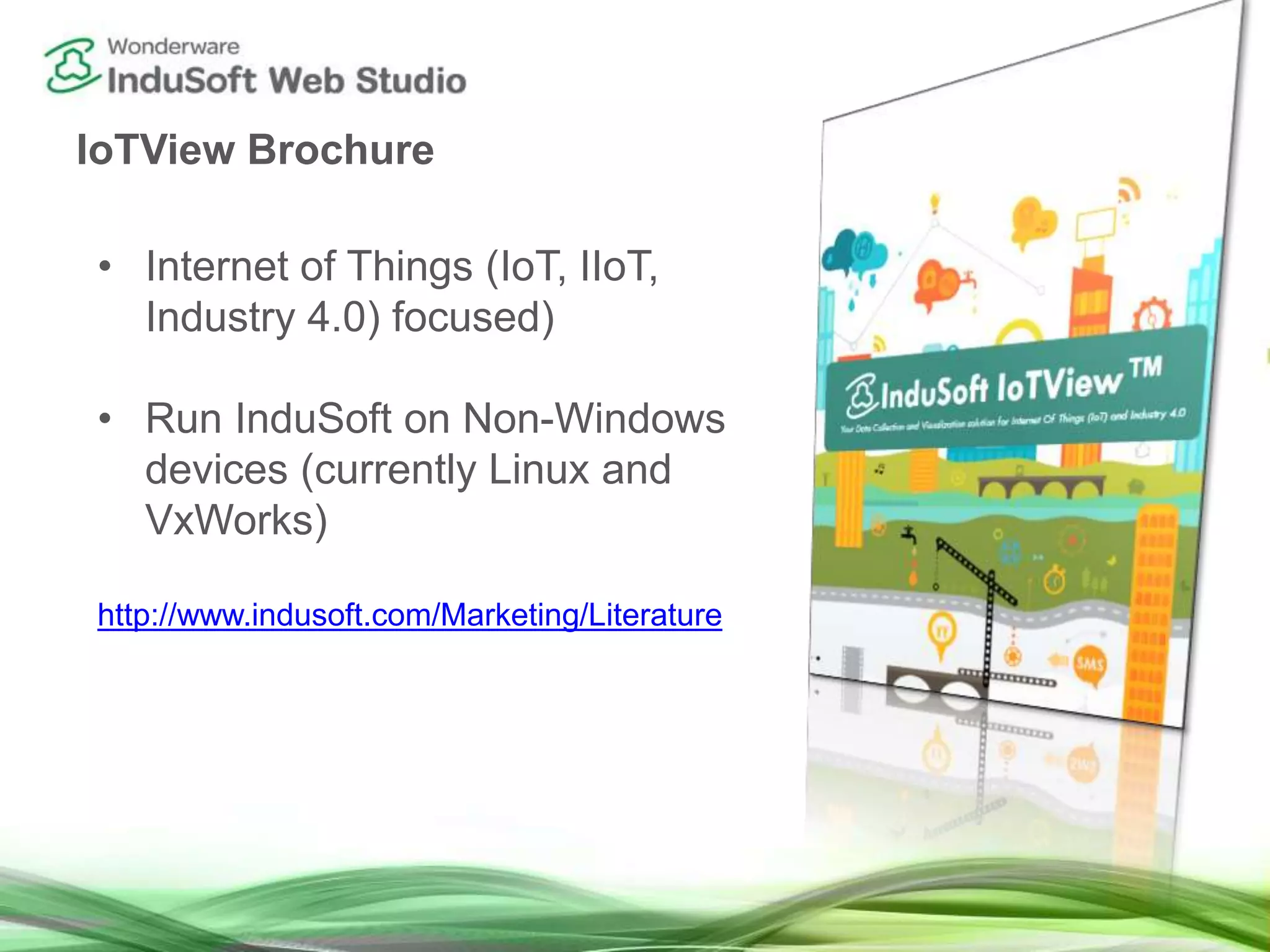

17. IoTView Brochure
• Internet of Things (IoT, IIoT,
Industry 4.0) focused)
• Run InduSoft on Non-Windows
devices (currently Linux and
VxWorks)
http://www.indusoft.com/Marketing/Literature

18. Structural Coatings
(Bill Mars)

19. Q & A

20. How to contact
InduSoft

21. Email
(US) info@indusoft.com
(Brazil) info@indusoft.com.br
(Germany) info@indusoft.com.de
Support support@indusoft.com
Web site
(English) www.indusoft.com
(Portuguese) www.indusoft.com.br
(German) www.indusoft.com.de
Phone +1 (512) 349-0334 (US)
+55 (11) 3293-9139 (Brazil)
+49 (0) 6227-732510 (Germany)
Toll-Free 877-INDUSOFT (877-463-8763)
Fax +1 (512) 349-0375
Contact InduSoft Today
Germany
USA
Brazil

22. Thank You
