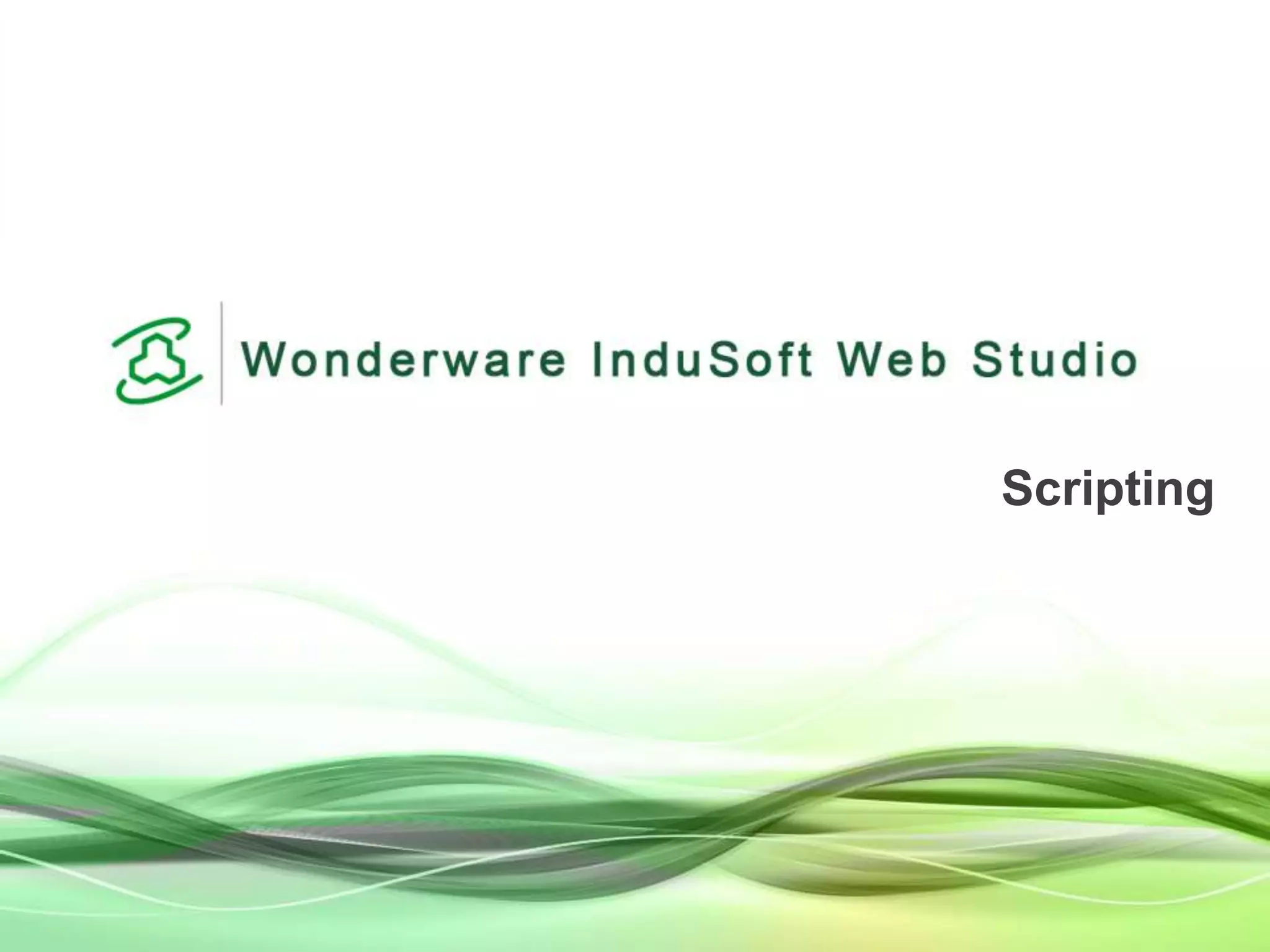

1. Scripting

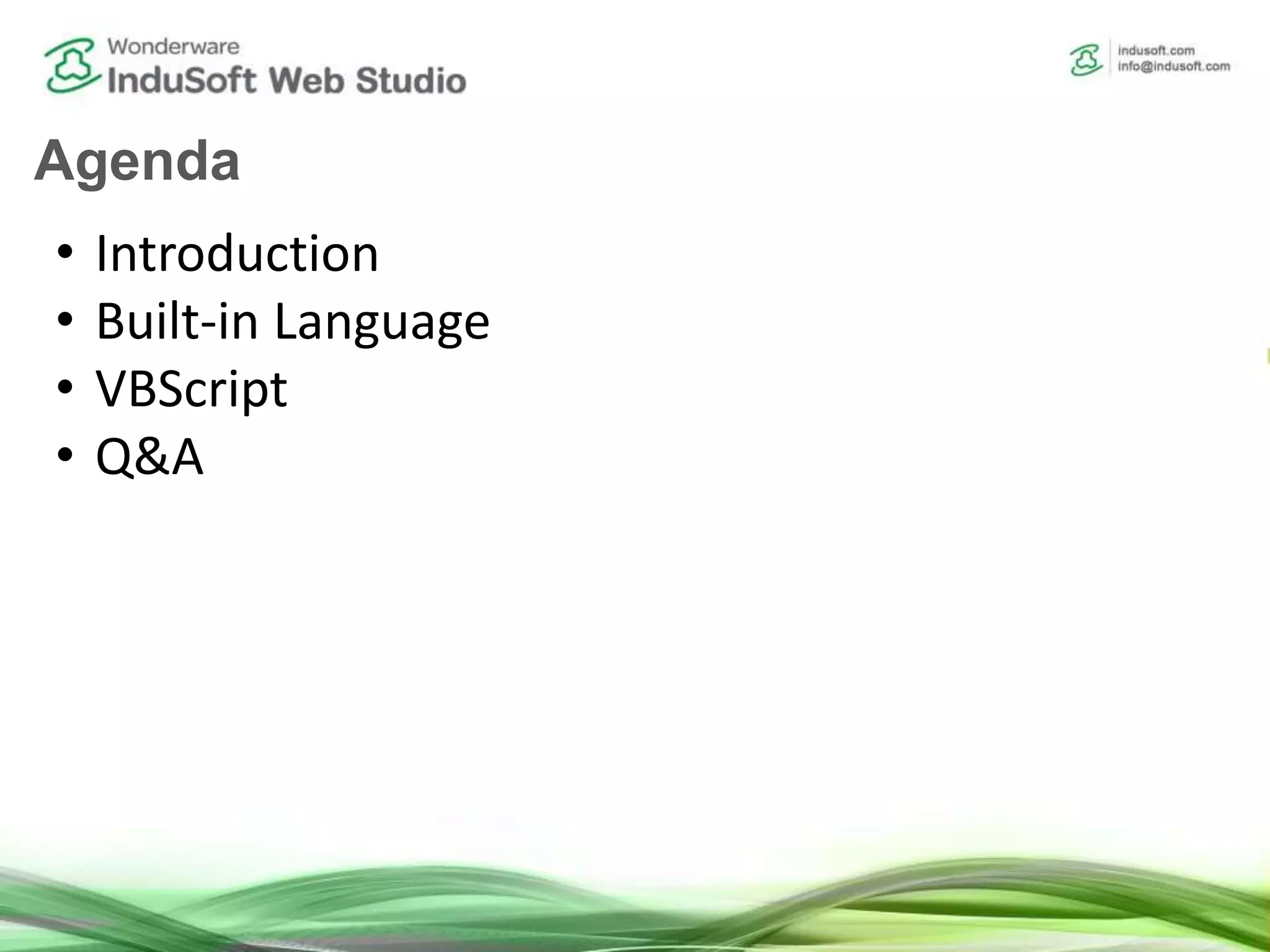

2. Agenda
• Introduction
• Built-in Language
• VBScript
• Q&A

3. Introduction

4. Introduction
InduSoft Web Studio (IWS) is an easy-to-use
configuration interface to designs projects for data
communication (interoperability), data manipulation
(portability), and data presentation (mobility).
Furthermore, when you need extra flexibility for
data manipulation, it offers a complete set of tools
for scripting, with full support for IntelliSense and
debugging tools to increase productivity.

5. Native Languages
Built-In Language
 Portability across all platforms,
including Linux/VxWorks (IoTView)
 Support for all tags, and built-in
functions
 Simplest syntax
 Graphic: Screen Attributes
 Graphic: All animations (including
command)
 Task: All tasks (including Math and
Scheduler)
VBScript Language
 Flexible standard, supported by
different platforms
 Wide range of documentation and
examples
 Support for all tags, built-in
functions, variables, VBScript
functions, and COM objects.
 Simple syntax
 Graphic: Graphic Scripts, Screen
Scripts
 Graphic: Command, ActiveX, .NET
Controls, Custom Widgets
 Task: Script

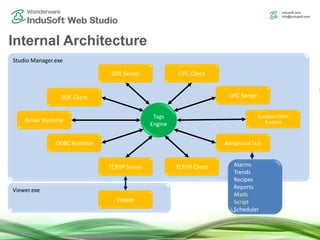

6. Internal Architecture
Viewer.exe
Studio Manager.exe
Tags
Engine
Driver Runtime
DDE Client
DDE Server OPC Client
OPC Server
Database Client
Runtime
ODBC Runtime Background Task
TCP/IP ClientTCP/IP Server
Viewer
Alarms
Trends
Recipes
Reports
Math
Script
Scheduler

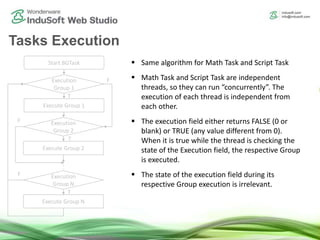

7. Tasks Execution
Start BGTask
Execution
Group 1
Execute Group 1
Execution
Group 2
Execute Group 2
Execution
Group N
Execute Group N
F
F
F
T
T
T
 Same algorithm for Math Task and Script Task
 Math Task and Script Task are independent
threads, so they can run “concurrently”. The
execution of each thread is independent from
each other.
 The execution field either returns FALSE (0 or
blank) or TRUE (any value different from 0).
When it is true while the thread is checking the
state of the Execution field, the respective Group
is executed.
 The state of the execution field during its
respective Group execution is irrelevant.

8. Built-In Language

9. Built-in Language Main Characteristics
 Support for all tags and 400+ built-n functions (Arithmetic, Statistical, String, File,
Loop, etc)
 Syntax for each field:
 Tag and/or Expression fields: Just write the expression. E.g.: Abs(TagA)
 Label, Caption, Hyperlink, Message, or File Name fields: Just write the expression
between curly brackets. E.g.: {Abs(TagA)}
 Value attribution: The equal sign (=) is NEVER used to assign a value. The equal sign
(=) is ALWAYS used for comparison. In order to assign a value, write the expression in
the EXPRESSION field and the tag that should receive the value in the TAG field (Math
and Scheduler groups).

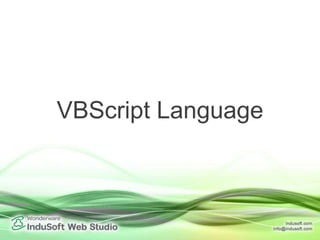

10. VBScript Language

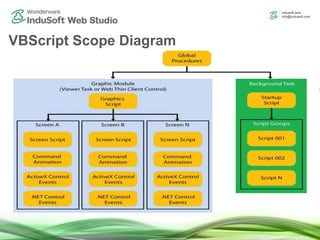

11. VBScript Scope Diagram

12. Interface
Library Execution Scope and Lifetime of
variables and
proceduresVariables Procedures
BGTask
(Server)
Viewer
(Local)
Global Procedures Yes Yes** Yes** Global
Graphic Scripts Yes Yes Yes
Graphic Script
*Screen Script
*Screen Controls
Screen Scripts Yes Yes Yes
Screen Script
Screen Controls
Screen Controls
(Command, ActiveX, .NET)
Yes Yes Screen Control itself
Startup Script Yes Yes Yes
Startup Script
Script Groups
Script Groups Yes Yes Script Group itself
* Using the Graphics.<Variable_or_Procedure_name> syntax.
** Global Procedures is a repository (library) of user-defined sub-routines and functions, which can be called
from any VBScript interface in the project. It is not an execution module (thread) by itself.
VBScript Scope Summary

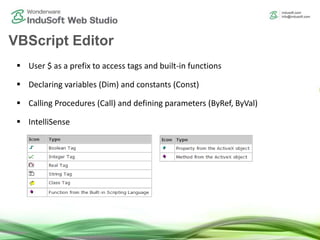

13.  User $ as a prefix to access tags and built-in functions
 Declaring variables (Dim) and constants (Const)
 Calling Procedures (Call) and defining parameters (ByRef, ByVal)
 IntelliSense
VBScript Editor

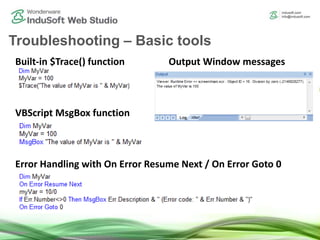

14. Built-in $Trace() function
VBScript MsgBox function
Error Handling with On Error Resume Next / On Error Goto 0
Output Window messages
Troubleshooting – Basic tools

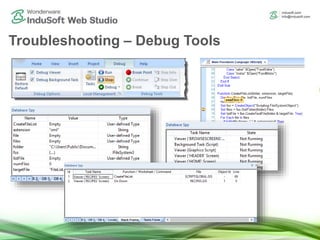

15. Troubleshooting – Debug Tools

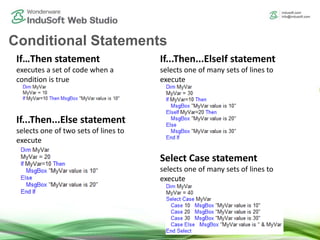

16. If…Then statement
executes a set of code when a
condition is true
If...Then...Else statement
selects one of two sets of lines to
execute
If...Then...ElseIf statement
selects one of many sets of lines to
execute
Select Case statement
selects one of many sets of lines to
execute
Conditional Statements

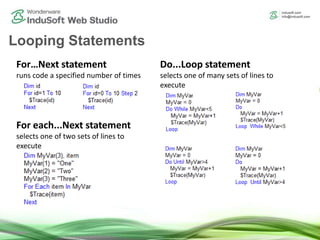

17. For…Next statement
runs code a specified number of times
For each...Next statement
selects one of two sets of lines to
execute
Do...Loop statement
selects one of many sets of lines to
execute
Looping Statements

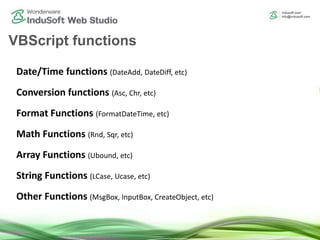

18. Date/Time functions (DateAdd, DateDiff, etc)
Conversion functions (Asc, Chr, etc)
Format Functions (FormatDateTime, etc)
Math Functions (Rnd, Sqr, etc)
Array Functions (Ubound, etc)
String Functions (LCase, Ucase, etc)
Other Functions (MsgBox, InputBox, CreateObject, etc)
VBScript functions

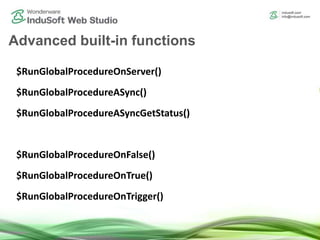

19. $RunGlobalProcedureOnServer()
$RunGlobalProcedureASync()
$RunGlobalProcedureASyncGetStatus()
$RunGlobalProcedureOnFalse()
$RunGlobalProcedureOnTrue()
$RunGlobalProcedureOnTrigger()
Advanced built-in functions

20. InduSoft Web Studio main Database/ERP built-in functions:
$DBExecute()
$DBCursorOpenSQL()
$DBCursorClose()
$DBCursorRowCount
$DBCursorGetValue()
$DBCursorNext()
Database Interface

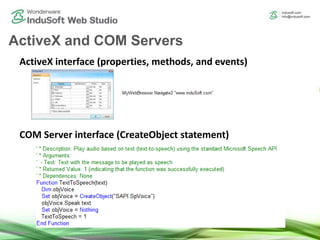

21. ActiveX interface (properties, methods, and events)
COM Server interface (CreateObject statement)
ActiveX and COM Servers

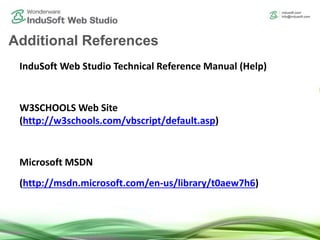

22. InduSoft Web Studio Technical Reference Manual (Help)
W3SCHOOLS Web Site
(http://w3schools.com/vbscript/default.asp)
Microsoft MSDN
(http://msdn.microsoft.com/en-us/library/t0aew7h6)
Additional References

23. Q & A
