Pairing InduSoft Web Studio with SoftPLC Corporation's TagWell cloud platform is an effective way to bring systems into the new frontier of the Internet of Things and Machine to Machine communication. With SoftPLC’s TagWell, InduSoft Web Studio users can take advantage of native driver communications to effortlessly connect systems that range from wireless interfaces, to a cellular/satellite connected office-based SCADA, or distributed remote units to cloud-based SCADA systems.

1. IoT implementation with InduSoft Web
Studio and TagWell from SoftPLC
May 27, 2015

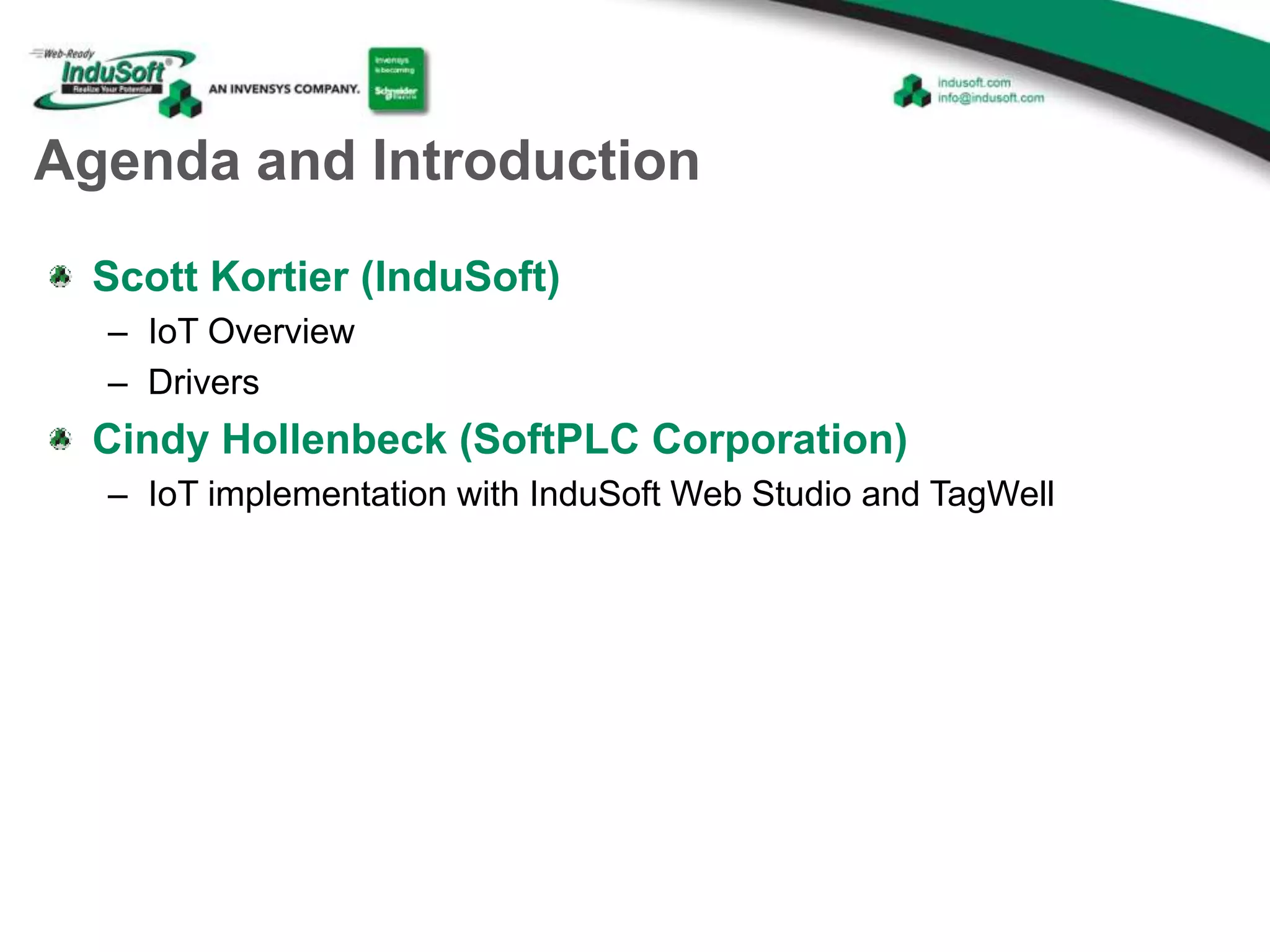

2. Agenda and Introduction
Scott Kortier (InduSoft)
– IoT Overview
– Drivers
Cindy Hollenbeck (SoftPLC Corporation)
– IoT implementation with InduSoft Web Studio and TagWell

3. IoT Concept
Analytics/
Information
Insight/
ValueActions/
Reactions
Thing(s)
Raw Data
10110101
Start Here
• Embedded OS
• Small Footprint
• Often No Display

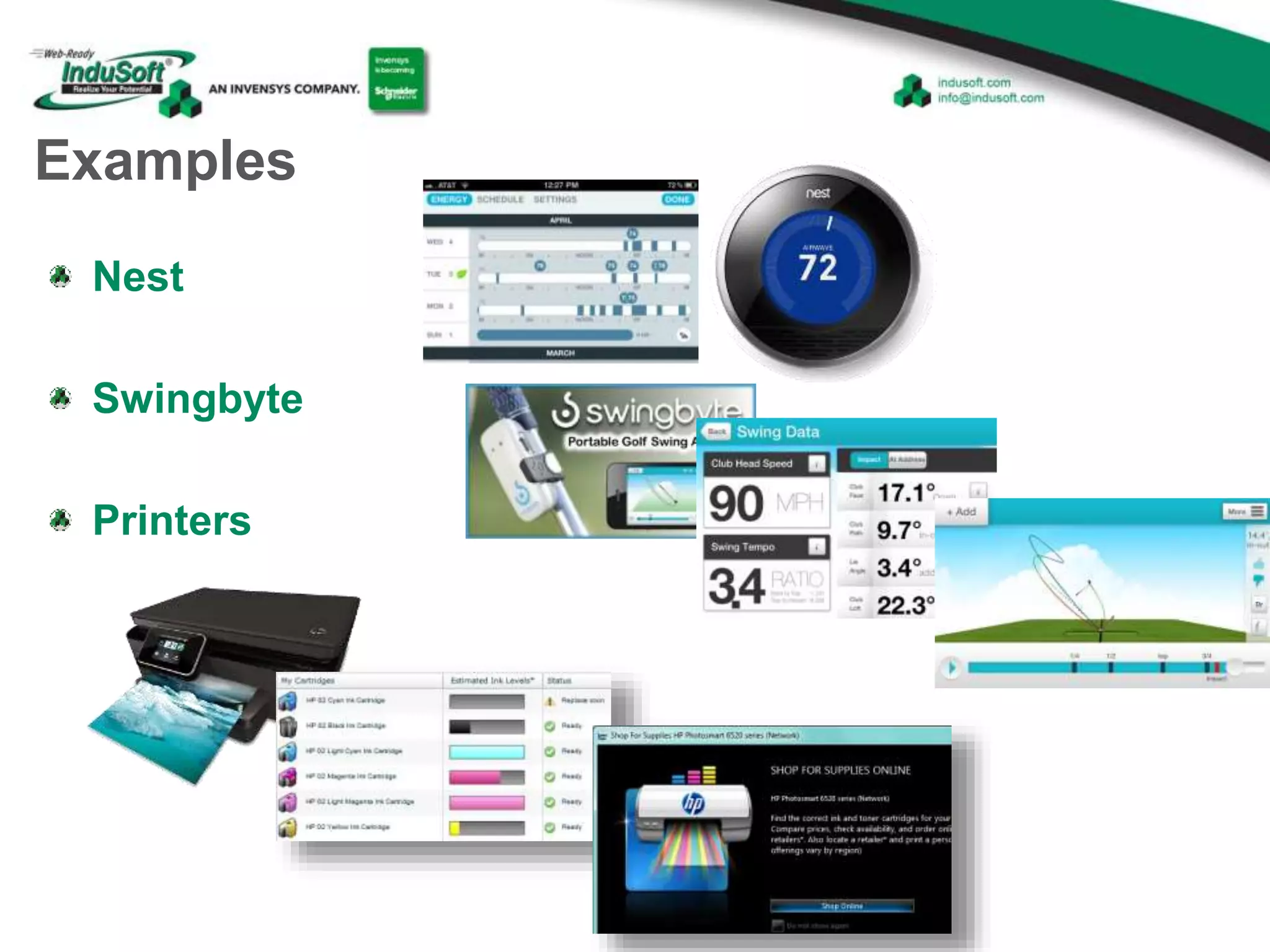

4. Examples
Nest
Swingbyte
Printers

5. InduSoft IoT
InduSoft has it NOW!
– CEVeiw and EmbededView
– Upcoming Version 8.0

6. Drivers
Over 240 built-in drivers
– No additional charge
– OPC not needed
– More efficient
Check online list for
updates
Main vs. Standard
Worksheets

7. Main vs. Standard Driver Worksheets
Feature Main Driver Sheet Standard Driver Sheet
Number allowed 1 1-999
Required to use No No
Maximum Size Not limited Determined by the driver
Enabling Can be enabled or disabled Can be enabled to read when
idle
Triggering
If enabled, always triggered
based on internal tag
BlinkSlow
Separate triggers for read & write
Status Read Status, Read Complete,
Write Status, Write Complete
Read Status, Read Complete,
Write Status, Write Complete
Header (file types) Any supported by the device Only one per Standard Driver
Sheet
Action Read, Write or R/W Read, Write or R/W
Station Can be fixed or a string tag Can be fixed or a string tag
Scan Always or Screen Always
Scaling Min/Max or Div/Add Min/Max or Div/Add

8. Main Driver Worksheet

9. Standard Driver Worksheet

10. Tagwell Driver
Driver Manual PDF
– I/O Addresses Case Sensitive

11. SoftPLC (IoT and Tagwell)
(Cindy)

12. Q & A

13. HOW TO CONTACT
INDUSOFT

14. Licensing
US and Canada Toll-Free: 855-274-8381
Direct dial from anywhere: 512-910-8044
Support
US and Canada Toll-Free: 855-269-4489
Direct dial from anywhere: 512-879-4107
Additional New InduSoft Numbers

15. Email
(US) info@indusoft.com
(Brazil) info@indusoft.com.br
(Germany) info@indusoft.com.de
Support support@indusoft.com
Web site
(English) www.indusoft.com
(Portuguese) www.indusoft.com.br
(German) www.indusoft.com.de
Phone (512) 349-0334 (US)
+55-11-3293-9139 (Brazil)
+49 (0) 6227-732510 (Germany)
Toll-Free 877-INDUSOFT (877-463-8763)
Fax (512) 349-0375
Germany
USA
Brazil
Contact InduSoft Today
