- 1. Changing application demands What developers needto know Arun Gupta, @arungupta Red Hat
- 2. Arun Gupta Director, DeveloperAdvocacy @arungupta blog.arungupta.me arungupta@redhat.com
- 3.
- 4. Monolith Application UI Database BusinessLogic HTMLHTMLHTML CSSCSS HTMLHTMLCDI HTMLHTMLREST HTMLHTMLJSF HTMLHTMLJPA Cache DB
- 5. Monolith Application UI Database BusinessLogic HTMLHTMLHTML CSSCSS HTMLHTMLCDI HTMLHTMLREST HTMLHTMLJSF HTMLHTMLJPA Cache DB

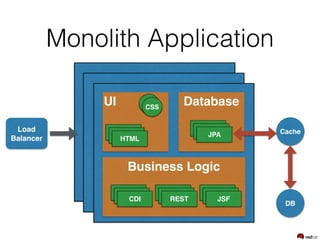

- 6. Monolith Application UI Database BusinessLogic HTMLHTMLHTML CSSCSS HTMLHTMLCDI HTMLHTMLREST HTMLHTMLJSF HTMLHTMLJPA Load Balancer Cache DB
- 7.
- 8.
- 9. Advantages of MonolithApplication
- 10. Advantages of MonolithApplication • Typically packaged in a single .ear
- 11. Advantages of MonolithApplication • Typically packaged in a single .ear • Easy to test (all required services are up)
- 12. Advantages of MonolithApplication • Typically packaged in a single .ear • Easy to test (all required services are up) • Simple to develop
- 13. Monolith Application UI Database BusinessLogic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 1

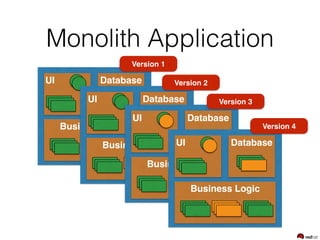

- 14. Monolith Application UI Database BusinessLogic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 1 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 2
- 15. Monolith Application UI Database BusinessLogic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 1 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 2 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 3
- 16. Monolith Application UI Database BusinessLogic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 1 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 2 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 3 UI Database Business Logic HTMLHTML HTMLHTML HTMLHTML HTMLHTML HTMLHTML Version 4
- 17. Disadvantages of MonolithApplication

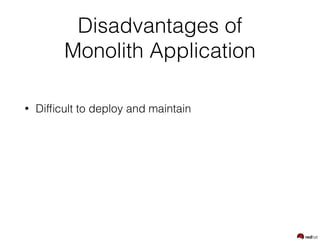

- 18. Disadvantages of MonolithApplication • Difficult to deploy and maintain
- 19. Disadvantages of MonolithApplication • Difficult to deploy and maintain • Obstacle to frequent deployments
- 20. Disadvantages of MonolithApplication • Difficult to deploy and maintain • Obstacle to frequent deployments • Makes it difficult to try out new technologies/ framework
- 21.
- 22. –Martin Fowler “building applicationsas suites of services. As well as the fact that services are independently deployable and scalable, each service also provides a firm module boundary, even allowing for different services to be written in different programming languages. They can also be managed by different teams” http://martinfowler.com/articles/microservices.html
- 23. UI Business Logic Persistence Characteristics ofmicroservices 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱

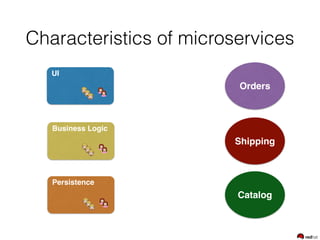

- 24. UI Business Logic Persistence Orders Shipping Catalog Characteristics ofmicroservices 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱
- 25. UI Business Logic Persistence Orders Shipping Catalog Characteristics ofmicroservices 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱
- 26. UI Business Logic Persistence Orders Shipping Catalog Characteristics ofmicroservices 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱
- 27. UI Business Logic Persistence Orders Shipping Catalog Characteristics ofmicroservices 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱 👱 🙍 🙍👱 👱
- 28. –Melvin Conway “Any organizationthat designs a system (defined more broadly here than just information systems) will inevitably produce a design whose structure is a copy of the organization's communication structure.” http://www.melconway.com/Home/Committees_Paper.html
- 29. Teams around business capability Orders 👱🙍 🙍👱 👱 Shipping 👱 🙍 🙍👱 👱 Catalog 👱 🙍 🙍👱 👱 Characteristics
- 30.
- 31.
- 32.
- 33. “you build it,you run it!” With great power, comes great responsibility Characteristics
- 34. Designed for failure Faulttolerance is a requirement, not a feature http://techblog.netflix.com/2012/02/fault-tolerance-in-high-volume.html Characteristics
- 36.
- 37.

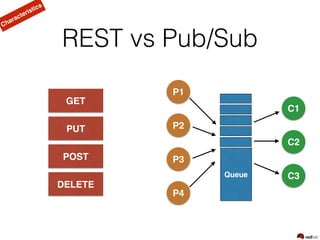

- 38. Sync or AsyncMessaging Characteristics
- 39.
- 40.
- 41.
- 42. Strategies for decomposing •Verb or usecase - e.g. Checkout UI
- 43. Strategies for decomposing •Verb or usecase - e.g. Checkout UI • Noun - e.g. Catalog product service
- 44. Strategies for decomposing •Verb or usecase - e.g. Checkout UI • Noun - e.g. Catalog product service • Single Responsible Principle - e.g. Unix utilities
- 45.

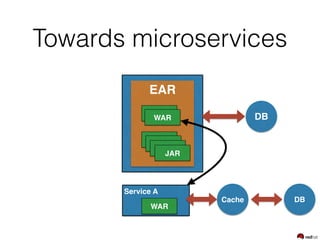

- 46. Service A Towards microservices EAR WARDBWAR WAR JAR JAR JAR JAR DBCache
- 47. Service A Towards microservices EAR WARDBWAR WAR JAR JAR JAR JAR DBCache
- 48. Service A Towards microservices EAR WARDB Load Balancer WAR WAR JAR JAR JAR JAR DBCache
- 49. Service C WAR Service B WAR AggregatorPattern #1 Service A WAR
- 50. Service C WAR Service B WAR AggregatorPattern #1 DBCache Service A WAR DBCache DBCache
- 51. Service C WAR Service B WAR AggregatorPattern #1 DBCache Service A WAR DBCache DBCache Aggregator Load Balancer
- 52. Service C WAR Service B WAR AggregatorPattern #1 DBCache Service A WAR DBCache DBCache Aggregator Load Balancer

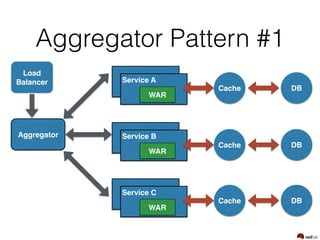

- 53. Service C WAR Service B WAR AggregatorPattern #1 DBCache Service A WAR DBCache DBCache Aggregator Load Balancer

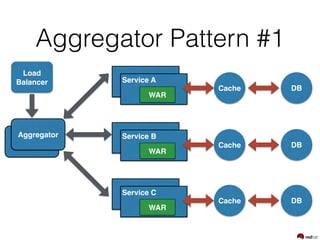

- 54. Aggregator Service C WAR Service B WAR AggregatorPattern #1 DBCache Service A WAR DBCache DBCache Aggregator Load Balancer
- 55. Service C WAR Service B WAR ProxyPattern #1.5 DBCache Service A WAR DBCache DBCache Proxy Load Balancer
- 56. Service C WAR Service B WAR ProxyPattern #1.5 DBCache Service A WAR DBCache DBCache Proxy Load Balancer

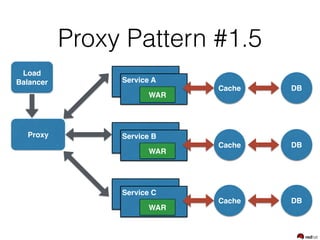

- 57. Service C WAR Service B WAR ProxyPattern #1.5 DBCache Service A WAR DBCache DBCache Proxy Load Balancer
- 58. Chained Pattern #2 ServiceA WAR DBCache Load Balancer
- 59. Chained Pattern #2 ServiceA WAR DBCache Load Balancer Service B WAR DBCache

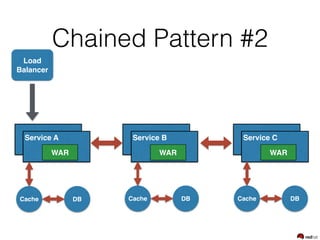

- 60. Chained Pattern #2 ServiceA WAR DBCache Load Balancer Service B WAR DBCache Service C WAR DBCache

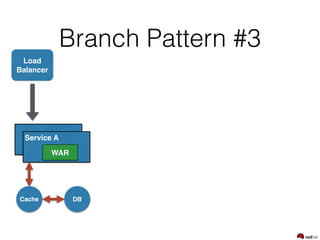

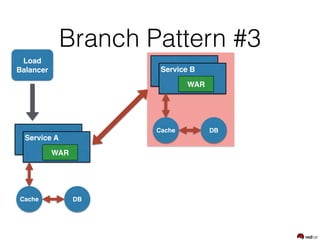

- 61. Branch Pattern #3 ServiceA WAR DBCache Load Balancer
- 62. Branch Pattern #3 ServiceA WAR DBCache Load Balancer Service B WAR DBCache
- 63. Branch Pattern #3 ServiceA WAR DBCache Load Balancer Service B WAR DBCache Service D WAR DBCache Service C WAR DBCache
- 64. Shared Resources #4 ServiceB WAR DBCache Service C WAR Service D WAR DBCache Service A WAR DBCache Load Balancer
- 65. Async Messaging #5 ServiceB WAR DBCache Service C WAR Service D WAR DBCache Queue DBCache Service A WAR DBCache Load Balancer
- 66.
- 67. Advantages of microservices • Easierto develop, understand, maintain
- 68. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments
- 69. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments • Local change can be easily deployed, great enabler of CD
- 70. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments • Local change can be easily deployed, great enabler of CD • Each service can scale on X- and Y-axis
- 71. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments • Local change can be easily deployed, great enabler of CD • Each service can scale on X- and Y-axis • Improves fault isolation
- 72. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments • Local change can be easily deployed, great enabler of CD • Each service can scale on X- and Y-axis • Improves fault isolation • Eliminates any long-term commitment to a technology stack
- 73. Advantages of microservices • Easierto develop, understand, maintain • Starts faster than a monolith, speeds up deployments • Local change can be easily deployed, great enabler of CD • Each service can scale on X- and Y-axis • Improves fault isolation • Eliminates any long-term commitment to a technology stack • Freedom of choice of technology, tools, frameworks
- 74. “If you can'tbuild a [well-structured] monolith, what makes you think microservices are the answer?” http://www.codingthearchitecture.com/2014/07/06/distributed_big_balls_of_mud.html
- 75.
- 76. Drawbacks of microservices •Additional complexity of distributed systems
- 77. Drawbacks of microservices •Additional complexity of distributed systems • Significant operational complexity, need high-level of automation
- 78. Drawbacks of microservices •Additional complexity of distributed systems • Significant operational complexity, need high-level of automation • Rollout plan to coordinate deployments
- 79. Drawbacks of microservices •Additional complexity of distributed systems • Significant operational complexity, need high-level of automation • Rollout plan to coordinate deployments • Slower ROI, to begin with
- 81. “Devs” job isto add new features “Ops” job is to keep the site stable and fast 35
- 82. “Ops” job isNOT to keep the site stable and fast 36
- 83. “Ops” job isNOT to keep the site stable and fast “Ops” job is to enable business 36
- 84. “Ops” job isNOT to keep the site stable and fast “Ops” job is to enable business And so is “devs” 36
- 85.

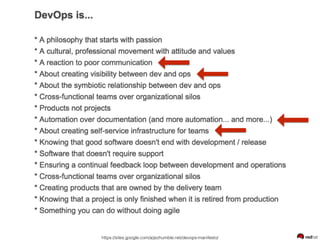

- 86. What is DevOps? It’s DevOps! It’s DevOps! It’s DevOps! It’s DevOps! It’s DevOps! It’s DevOps!
- 87.
- 88.
- 89.
- 90.
- 91.
- 92.

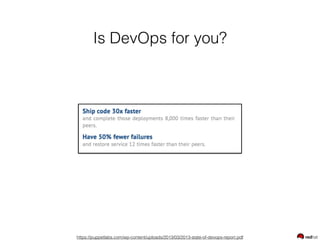

- 93. Is DevOps foryou? https://puppetlabs.com/wp-content/uploads/2013/03/2013-state-of-devops-report.pdf
- 94. Five “C”s ofDevOps
- 95. Five “C”s ofDevOps • Collaboration between “dev” and “ops”
- 96. Five “C”s ofDevOps • Collaboration between “dev” and “ops” • Culture
- 97. Five “C”s ofDevOps • Collaboration between “dev” and “ops” • Culture • Code everything - application and configuration
- 98. Five “C”s ofDevOps • Collaboration between “dev” and “ops” • Culture • Code everything - application and configuration • Consistency - automation over documentation
- 99. Five “C”s ofDevOps • Collaboration between “dev” and “ops” • Culture • Code everything - application and configuration • Consistency - automation over documentation • Continuous delivery
- 100. Collaboration • “Dev” • Engineering •Test • Product management • “Ops” • System administrators • Operations staff • DBAs • Network engineers • Security professionals
- 101. Collaboration • “Dev” • Engineering •Test • Product management • “Ops” • System administrators • Operations staff • DBAs • Network engineers • Security professionals
- 102.
- 103. Culture • Respect other’sexpertise, opinions, responsibilities
- 104. Culture • Respect other’sexpertise, opinions, responsibilities • Trust: Ops to think like devs, devs to think like ops
- 105. Culture • Respect other’sexpertise, opinions, responsibilities • Trust: Ops to think like devs, devs to think like ops • Leads to transparency
- 106. Culture • Respect other’sexpertise, opinions, responsibilities • Trust: Ops to think like devs, devs to think like ops • Leads to transparency • Don’t ignore failure, build joint recovery plans
- 107. Culture • Respect other’sexpertise, opinions, responsibilities • Trust: Ops to think like devs, devs to think like ops • Leads to transparency • Don’t ignore failure, build joint recovery plans • Amplify feedback loops
- 108.
- 109.
- 110.
- 111. Code everything • Applicationcode • Build scripts • Database schema • Configuration files • IDE configurations • Infrastructure • Deployment scripts • Test code and scripts • Provisioning scripts • Monitoring • Logging • …
- 112. “Never send ahuman to do a machine’s job”
- 113.
- 114. Consistency • Automation overdocumentation
- 115. Consistency • Automation overdocumentation • Repeatability Dev Test Prod
- 116. Consistency • Automation overdocumentation • Repeatability • Push-button deployments Dev Test Prod
- 117. Consistency • Automation overdocumentation • Repeatability • Push-button deployments • Managing environments Dev Test Prod
- 118. Consistency • Automation overdocumentation • Repeatability • Push-button deployments • Managing environments Dev Test Prod
- 119. Manage environments • Cloudcomputing: PaaS, OpenShift, … • Virtualization: Virtual Box, Vagrant, … • Containers: Docker, Rocket, … • App server: JBoss EAP, Tomcat, … • Configuration tools: Puppet, Chef, Ansible, Salt, ... • Orchestration: Kubernetes, Swarm, …
- 120.

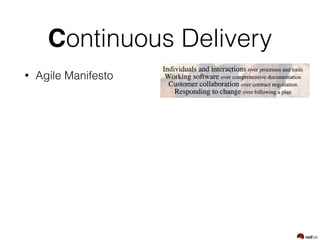

- 121. Continuous Delivery • AgileManifesto
- 122. Continuous Delivery • AgileManifesto • Continuous Integration
- 123. Continuous Delivery • AgileManifesto • Continuous Integration • Fail fast and recover

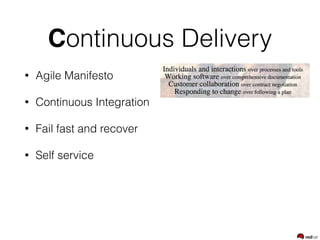

- 124. Continuous Delivery • AgileManifesto • Continuous Integration • Fail fast and recover • Self service
- 125. Continuous Delivery • AgileManifesto • Continuous Integration • Fail fast and recover • Self service • 100% Automation
- 126. Continuous Delivery • AgileManifesto • Continuous Integration • Fail fast and recover • Self service • 100% Automation • Proactive monitoring and metrics
- 127.
- 128.
- 129.
- 130. Initial Managed Defined Quantitatively Managed Optimizing Culture& Organization • Teams organized based on platform/ technology • Defined and documented processes • One backlog per team • Adopt agile methodologies • Remove team boundaries • Extended team collaboration • Remove boundary dev/ ops • Common process for all changes • Cross-team continuous improvement • Teams responsible all the way to production • Cross functional teams Build & Deploy • Centralized version control • Automated build scripts • No management of artifacts • Manual deployment • Environments are manually provisioned • Polling CI builds • Any build can be re-created from source control • Management of build artifacts • Automated deployment scripts • Automated provisioning of environments • Commit hook CI builds • Build fails if quality is not met (code analysis, performance, etc.) • Push button deployment and release of any releasable artifact to any environment • Standard deployment process for all environments • Team priorities keeping codebase deployable over doing new work • Builds are not left broken • Orchestrated deployments • Blue Green Deployments • Zero touch Continuous Deployments Release • Infrequent and unreliable releases • Manual process • Painful infrequent but reliable releases • Infrequent but fully automated and reliable releases in any environment • Frequent fully automated releases • Deployment disconnected from release • Canary releases • No rollbacks, always roll forward Data Management • Data migrations are performed manually, no scripts • Data migrations using versioned scripts, performed manually • Automated and versioned changes to datastores • Changes to datastores automatically performed as part of the deployment process • Automatic datastore changes and rollbacks tested with every deployment Test & Verification • Automated unit tests • Separate test environment • Automatic Integration Tests • Static code analysis • Test coverage analysis • Automatic functional tests • Manual performance/ security tests • Fully automatic acceptance tests • Automatic performance/security tests • Manual exploratory testing based on risk based testing analysis • Verify expected business value • Defects found and fixed immediately (roll forward) Information & Reporting • Baseline process metrics • Manual reporting • Visible to report runner • Measure the process • Automatic reporting • Visible to team • Automatic generation of release notes • Pipeline traceability • Reporting history • Visible to cross-silo • Report trend analysis • Real time graphs on deployment pipeline metrics • Dynamic self-service of information • Customizable dashboards • Cross-reference across organizational boundaries
- 131. Deployment Pipeline “End-to-end automation of build,deploy, test, and release process”
- 133.
