Hudson is an open-source continuous integration (CI) server that automates the build, test, and deployment of code. It monitors code repositories for changes, compiles code, runs tests, and notifies developers of failures. Hudson emphasizes ease of use and extensibility through plugins. It allows teams to spend less time on manual tasks and more time developing code through automation of the engineering process.

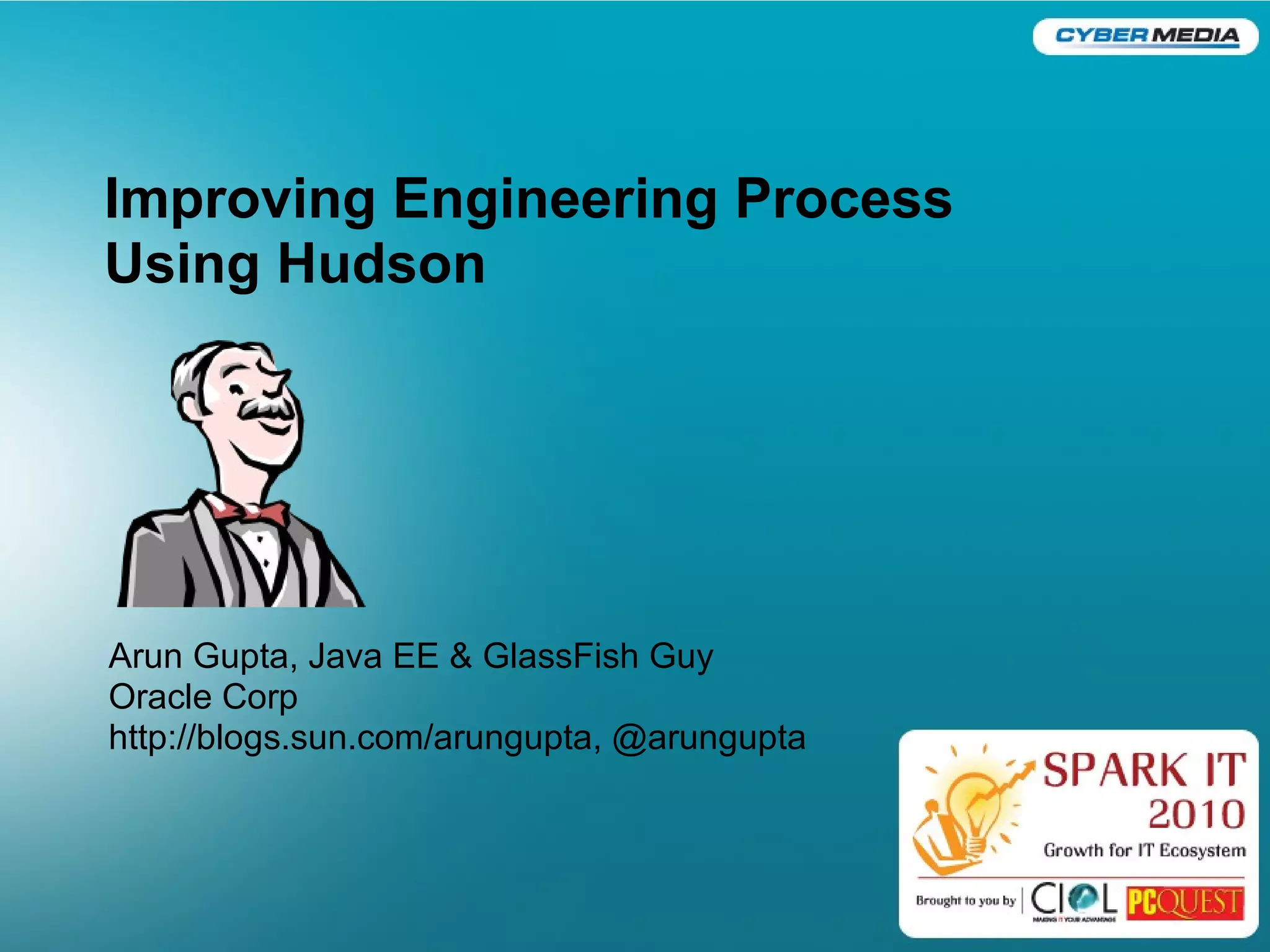

1. Improving Engineering Process
Using Hudson
<Insert Picture Here>
Arun Gupta, Java EE & GlassFish Guy
Oracle Corp
http://blogs.sun.com/arungupta, @arungupta

2. Never send a human to do a machine's job.

3. Throughout human history, we have been
dependent on machines to survive.

4. Rise of Continuous Integration
Offload from people, push to computers
$
computers
people
Time

5. Spend more CPU power to help you
First on your laptops and workstations
●
● IDEs are at the forefront
And then to the servers
●
● a.k.a. “Continuous Integration”
● More frequent build/test executions
● Static code analysis tools
● And more to come

6. Hudson (http://hudson-ci.org)
● Open-source CI server
● Emphasis on ease of installation and use
● “java -jar hudson.war” execution
● Or your OS-specific package
● Configure everything from browser
● Extensibility
● 230+ community-developed public plugins
● By 230+ contributors
● Estimated 13,000 installations

7. "D
as
hb
oa
rd
[H
ud
so
n]
"

8. Basic Feature Set
● Hudson notices that there is a code change
● Checks out the source code
● CVS, Subversion, ClearCase, Mercurial, Accurev,
Perforce, Git, StarTeam, …
● Builds Ant, Maven, shell script, NAnt, …
● Record and publish results
● Tool Integration
● Findbugs, Corbertura, ...

9. Provides Feedback
● RSS feeds
● Email/IM notification
● Tray application to notify developers
● Linux/Windows (Toolbar), Mac (Growl)
● ...

10. Demo

11. Why do I care?
Life before Hudson
●
● Dev forgets to commit a file
● Nightly build breaks, Testing blocked
● Resources not utilized efficiently
Life after Hudson
●
● Hudson will tell you in 5 mins if a build broke
● No one else notices that you forgot to commit a
file ;-)

12. Why do I care?
● Life before Hudson
● Dev makes a change Monday AM
● Test nightly finds a bug Monday night
● Dev fixes it Tuesday
● Again, under utilization of resources
Life after Hudson
●
● Dev makes a change Monday AM
● Hudson finds a regression few mins later
● Dev can fix it before lunch

13. Why do I care?
Life before Hudson
●
● Test runs every night, results in e-mail
● Excitement fades after 1 week
● Regressions go unnoticed until it’s too late
Life after Hudson
●
● Tests run Hudson after every commit
● E-mail sent out only when tests start failing
● So it manages to keep people’s attention

14. Matrix projects
Run the same thing on
●
different environments
● JDKs
● Databases
● OSes
● App servers
● XML parsers
● ...
Results aggregated
●

15. FindBugs integration

16. Tracking changes
16

17. … and more
Browse workspaces Build time trend report

18. Inter-Project Support
Host many projects on 1 Hudson
●
● 1+1 > 2
You can…
●
● Execute tests separately and correlate them
with builds
● Mark builds as “promoted” based on test
outcome
● Track which build of libraries are used where
● . . .

19. Test/Build Separation
●Tests often dominate the build time
●Multiple tests are run in parallel
● Improves turn-around time time
JAX-WS #10 JAX-WS #11 JAX-WS #12 …
Unit test with GF
Unit test with Tomcat
SQE test
Test w/o
3OS x 2JDK = 6 tests
container

20. Build Promotion
CI produces a lot of “successful” builds
●
● Often overwhelming to downstream
consumers
●Run tests as fast as you can
●If a build passes tests, promote it
20

21. Got the idea?
 Automation
 Reduce turn-around time
 Make things transparent
 Remove people from the loop
 Save people’s time
 Push jobs to servers, keep workstations
idle for you

22. Doing Distributed Builds
22

23. Distributed builds with Hudson
Master
●
● Serves HTTP requests slave
● Stores all important info 1
slave slave
Slaves
●
8 2
● 170KB single JAR
● Assumed to be
slave slave
unreliable 7 Master 3
● Scale to at least 100
Link
●
slave slave
6 4
● Single bi-di byte stream slave
● No other requirements 5

24. Automated System Installations
● Hudson + PXE plugin
● ISO images of OS
Your corporate IT guy
& his DHCP server
● Slaves
● Power on, hit F12
● PC boots from network (PXE)
● Choose OS from menu
● Installs non-interactively

25. Automated Tool Installation - JDK
JDK from http://java.sun.com/
●
● Automatically chooses the right bundle
● Always up to date with new releases
25

26. Automated Tool Installation - Apache
 Ant and Maven from Apache
26

27. Heterogeneous Cluster Challenge
 Builds/tests need to run in specific environment
 Dependency on individual nodes hurts utilization
jobs slaves
Wombat Windows
Windows test #1
GlassFish Windows
Windows test #2
Hudson Solaris
Windows test #1
Hudson
Solaris test

28. Labels to rescue
 Label is a group of slaves
 Tie jobs to labels
jobs slaves
Wombat Windows
Windows test #1
Windows
GlassFish Windows
Windows test #2
Hudson Solaris
Windows test #1
Solaris
Hudson Windows
Solaris test #3

29. Forecasting failures
Hudson monitors key health metrics of
●
slaves
● Low disk space, insufficient swap
● Clock out of sync
● Extensible
Slaves go offline automatically
●

30. Load Statistics Monitoring

31. When it’s time to add more slaves
31

32. Hudson EC2 plugin
Automatically provisions slaves on EC2 on
●
demand
● Based on the current load
●Picks the right AMI depending on demand
●Starts slave agent
●Shuts down unused instances
Can run Hudson master in the cloud too
●

33. And a lot more . . .
 IDE plugins
 iPhone/Android apps
 REST API and CLI
 Deployment Automation
 Hadoop, Selenium
 …

34. HUMANS: ALL YOUR COMPUTER ARE BELONG
TO US

35. Conclusions
CI is here to stay
●
● Using lots of PCs is a key
Hudson is very easy to get started
●
● Once started, there is a lot you can do
hudson-ci.org
●
