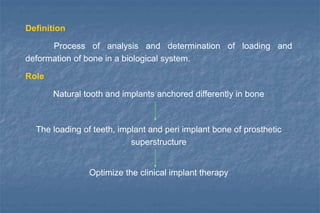

2. Definition
Process of analysis and determination of loading and
deformation of bone in a biological system.
Role
Natural tooth and implants anchored differently in bone
The loading of teeth, implant and peri implant bone of prosthetic
superstructure
Optimize the clinical implant therapy

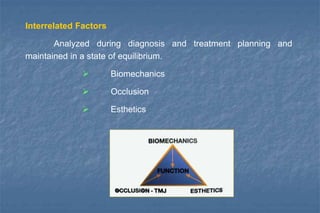

5. Interrelated Factors
Analyzed during diagnosis and treatment planning and
maintained in a state of equilibrium.
Biomechanics
Occlusion
Esthetics

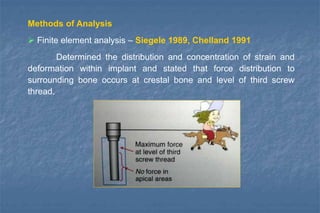

6. Methods of Analysis
Finite element analysis – Siegele 1989, Chelland 1991
Determined the distribution and concentration of strain and
deformation within implant and stated that force distribution to
surrounding bone occurs at crestal bone and level of third screw
thread.
7. Birefringence Analysis
Done on plastic model utilizing polarized monochromatic light.
Load Measurement : Lundreg 1989, Montag 1991
Precise data about forces exerted on Implant to supporting
bone.
Complicated - invivo Invitro- valuable
Bond strength between implant and bone : Schmitz 1991
Done it by test of shearing, expulsion and torsion.

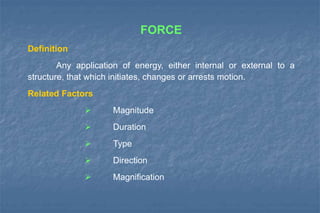

8. FORCE
Definition
Any application of energy, either internal or external to a
structure, that which initiates, changes or arrests motion.
Related Factors
Magnitude
Duration
Type
Direction
Magnification

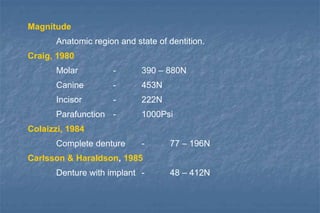

9. Magnitude
Anatomic region and state of dentition.
Craig, 1980
Molar - 390 – 880N
Canine - 453N
Incisor - 222N
Parafunction - 1000Psi
Colaizzi, 1984
Complete denture - 77 – 196N
Carlsson & Haraldson, 1985
Denture with implant - 48 – 412N

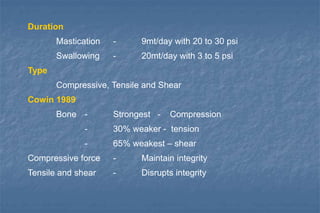

10. Duration
Mastication - 9mt/day with 20 to 30 psi
Swallowing - 20mt/day with 3 to 5 psi
Type
Compressive, Tensile and Shear
Cowin 1989
Bone - Strongest - Compression
- 30% weaker - tension
- 65% weakest – shear
Compressive force - Maintain integrity
Tensile and shear - Disrupts integrity

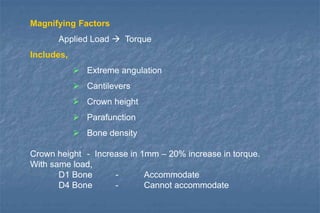

12. Magnifying Factors
Applied Load Torque
Includes,
Extreme angulation
Cantilevers
Crown height
Parafunction
Bone density
Crown height - Increase in 1mm – 20% increase in torque.
With same load,
D1 Bone - Accommodate
D4 Bone - Cannot accommodate

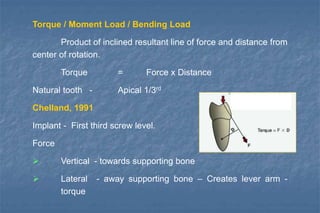

13. Torque / Moment Load / Bending Load
Product of inclined resultant line of force and distance from
center of rotation.
Torque = Force x Distance
Natural tooth - Apical 1/3rd
Chelland, 1991
Implant - First third screw level.
Force
Vertical - towards supporting bone
Lateral - away supporting bone – Creates lever arm -
torque

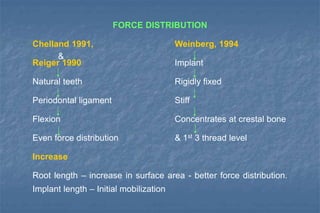

14. FORCE DISTRIBUTION
Chelland 1991, Weinberg, 1994
Reiger 1990 Implant
Natural teeth Rigidly fixed
Periodontal ligament Stiff
Flexion Concentrates at crestal bone
Even force distribution & 1st 3 thread level
Increase
Root length – increase in surface area - better force distribution.
Implant length – Initial mobilization
&

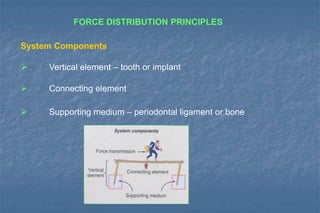

15. FORCE DISTRIBUTION PRINCIPLES
System Components
Vertical element – tooth or implant
Connecting element
Supporting medium – periodontal ligament or bone

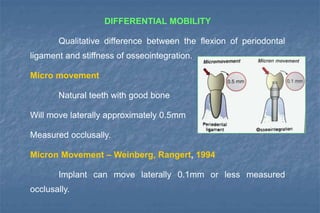

19. DIFFERENTIAL MOBILITY
Qualitative difference between the flexion of periodontal
ligament and stiffness of osseointegration.
Micro movement
Natural teeth with good bone
Will move laterally approximately 0.5mm
Measured occlusally.
Micron Movement – Weinberg, Rangert, 1994
Implant can move laterally 0.1mm or less measured
occlusally.

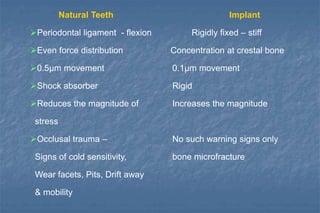

20. Natural Teeth Implant
Periodontal ligament - flexion Rigidly fixed – stiff
Even force distribution Concentration at crestal bone
0.5µm movement 0.1µm movement
Shock absorber Rigid
Reduces the magnitude of Increases the magnitude
stress
Occlusal trauma – No such warning signs only
Signs of cold sensitivity, bone microfracture
Wear facets, Pits, Drift away
& mobility

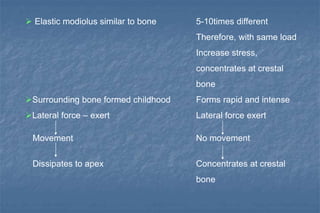

21. Elastic modiolus similar to bone 5-10times different
Therefore, with same load
Increase stress,
concentrates at crestal
bone
Surrounding bone formed childhood Forms rapid and intense
Lateral force – exert Lateral force exert
Movement No movement
Dissipates to apex Concentrates at crestal
bone

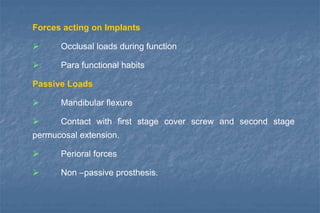

22. Forces acting on Implants
Occlusal loads during function
Para functional habits
Passive Loads
Mandibular flexure
Contact with first stage cover screw and second stage
permucosal extension.
Perioral forces
Non –passive prosthesis.
23. TRAUMATIC FORCES OR IMPLANT OVER LOADING
Non passive prosthesis
Parafunction
Initial contact during maximum intercuspation
Labial stresses generated during eccentric movements.
Therefore,
Eliminate posterior contact during protrusion and lateral
excursion.
Prosthesis come in contact only during intercuspation.

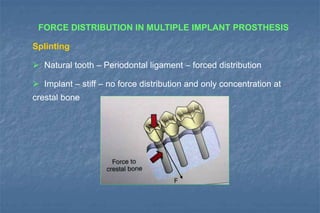

24. FORCE DISTRIBUTION IN MULTIPLE IMPLANT PROSTHESIS
Splinting
Natural tooth – Periodontal ligament – forced distribution
Implant – stiff – no force distribution and only concentration at
crestal bone

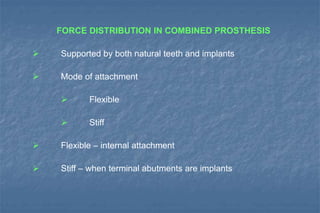

25. FORCE DISTRIBUTION IN COMBINED PROSTHESIS
Supported by both natural teeth and implants
Mode of attachment
Flexible
Stiff
Flexible – internal attachment
Stiff – when terminal abutments are implants

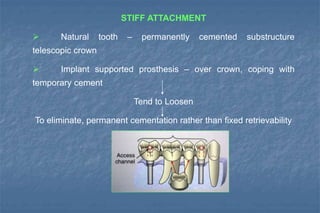

27. STIFF ATTACHMENT
Natural tooth – permanently cemented substructure
telescopic crown
Implant supported prosthesis – over crown, coping with
temporary cement
Tend to Loosen
To eliminate, permanent cementation rather than fixed retrievability

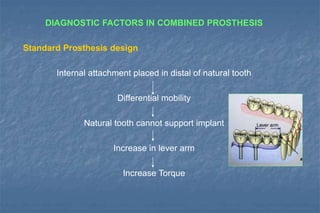

28. DIAGNOSTIC FACTORS IN COMBINED PROSTHESIS
Standard Prosthesis design
Internal attachment placed in distal of natural tooth
Differential mobility
Natural tooth cannot support implant
Increase in lever arm
Increase Torque

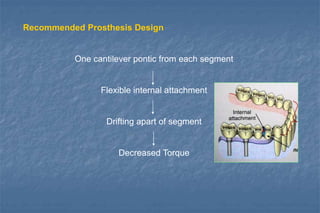

29. Recommended Prosthesis Design
One cantilever pontic from each segment
Flexible internal attachment
Drifting apart of segment
Decreased Torque

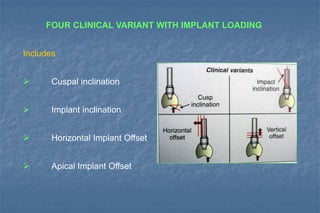

30. FOUR CLINICAL VARIANT WITH IMPLANT LOADING
Includes
Cuspal inclination
Implant inclination

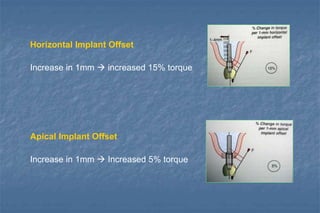

Horizontal Implant Offset
Apical Implant Offset
33. Staggered Implant Offset – Rangert 1993
Staggered buccal and lingual offset
Tripod Effect
Compensates torque
Implant placed 1.5mm bucal and lingual from centre line to
achieve Tripodism.
34. Weinberg 1996
In maxilla, lingual offset - increased 24% torque
Buccal offset - Decrease 24% torque
Maxilla - Tripod –increase in 24% torque
Mandibular - Tripodism
Maxilla - As far as bucally

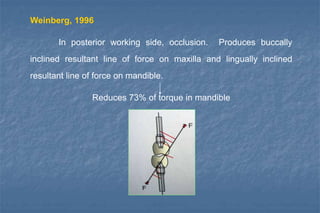

35. Weinberg, 1996
In posterior working side, occlusion. Produces buccally
inclined resultant line of force on maxilla and lingually inclined
resultant line of force on mandible.
Reduces 73% of torque in mandible

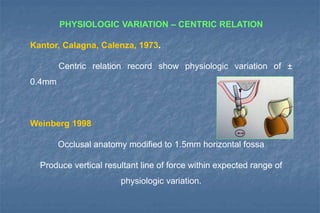

39. PHYSIOLOGIC VARIATION – CENTRIC RELATION
Kantor, Calagna, Calenza, 1973.
Centric relation record show physiologic variation of ±
0.4mm
Weinberg 1998
Occlusal anatomy modified to 1.5mm horizontal fossa
Produce vertical resultant line of force within expected range of
physiologic variation.

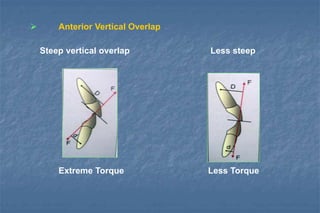

40. Anterior Vertical Overlap
Steep vertical overlap Less steep
Extreme Torque Less Torque

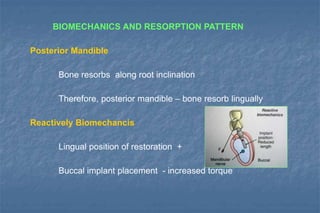

41. BIOMECHANICS AND RESORPTION PATTERN
Posterior Mandible
Bone resorbs along root inclination
Therefore, posterior mandible – bone resorb lingually
Reactively Biomechancis
Lingual position of restoration +
Buccal implant placement - increased torque
42. Therapeutically
Can be done by
Reduced cusp inclination
Implant head close to centre line of restoration
Angulated abutment - parallelism
44. Therapeutically
Cuspal inclination – reduce
Head of implant close to center of restoration
Angled / custom – reangulated abutment

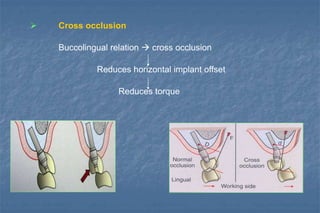

Cross occlusion
1.5mm horizontal fossa.

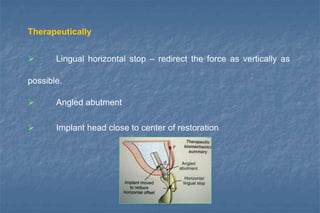

46. Therapeutically
Lingual horizontal stop – redirect the force as vertically as
possible.
Angled abutment
Implant head close to center of restoration

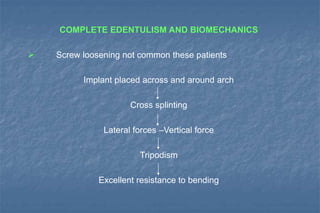

47. COMPLETE EDENTULISM AND BIOMECHANICS
Screw loosening not common these patients
Implant placed across and around arch
Cross splinting
Lateral forces –Vertical force
Tripodism
Excellent resistance to bending

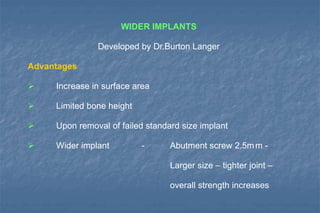

48. WIDER IMPLANTS
Developed by Dr.Burton Langer
Advantages
Increase in surface area
Limited bone height
Upon removal of failed standard size implant
Wider implant - Abutment screw 2.5mm -
Larger size – tighter joint –
overall strength increases

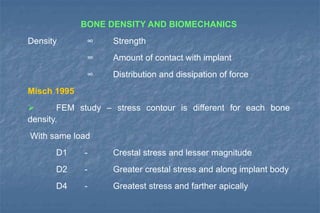

49. BONE DENSITY AND BIOMECHANICS
Density ∞ Strength
∞ Amount of contact with implant
∞ Distribution and dissipation of force
Misch 1995
FEM study – stress contour is different for each bone
density.
With same load
D1 - Crestal stress and lesser magnitude
D2 - Greater crestal stress and along implant body
D4 - Greatest stress and farther apically

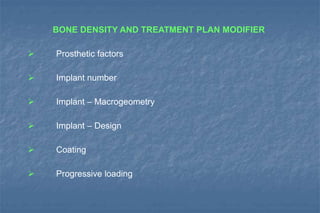

50. BONE DENSITY AND TREATMENT PLAN MODIFIER
Prosthetic factors
Implant number
Implant – Macrogeometry
Implant – Design
Coating
Progressive loading

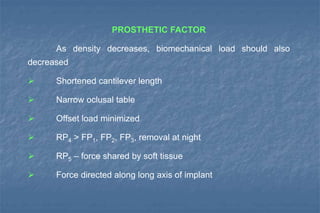

51. PROSTHETIC FACTOR
As density decreases, biomechanical load should also
decreased
Shortened cantilever length
Narrow oclusal table
Offset load minimized
RP4 > FP1, FP2, FP3, removal at night
RP5 – force shared by soft tissue
Force directed along long axis of implant

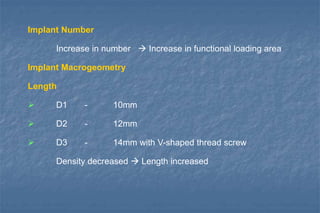

52. Implant Number
Increase in number Increase in functional loading area
Implant Macrogeometry
Length
D1 - 10mm
D2 - 12mm
D3 - 14mm with V-shaped thread screw
Density decreased Length increased

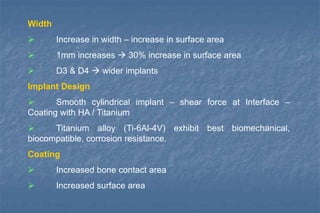

53. Width
Increase in width – increase in surface area
1mm increases 30% increase in surface area
D3 & D4 wider implants
Implant Design
Smooth cylindrical implant – shear force at Interface –
Coating with HA / Titanium
Titanium alloy (Ti-6Al-4V) exhibit best biomechanical,
biocompatible, corrosion resistance.
Coating
Increased bone contact area
Increased surface area
54. Progressive Loading
Misch 1990
Gradual increase in occlusal load separated by a time
interval to allow bone to accommodate.
Softer the bone increase in progressive loading period.
Protocol
Includes,
Time
Diet
Occlusal Contacts
Prosthesis Design

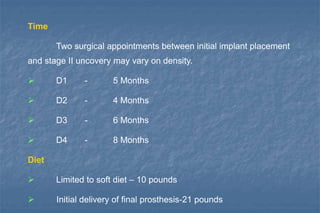

55. Time
Two surgical appointments between initial implant placement
and stage II uncovery may vary on density.
D1 - 5 Months
D2 - 4 Months
D3 - 6 Months
D4 - 8 Months
Diet
Limited to soft diet – 10 pounds
Initial delivery of final prosthesis-21 pounds

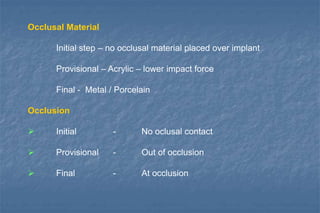

56. Occlusal Material
Initial step – no occlusal material placed over implant
Provisional – Acrylic – lower impact force
Final - Metal / Porcelain
Occlusion
Initial - No oclusal contact
Provisional - Out of occlusion
Final - At occlusion

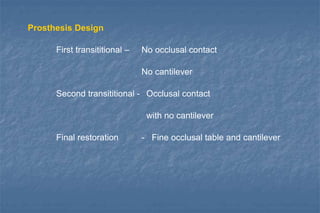

57. Prosthesis Design
First transititional – No occlusal contact
No cantilever
Second transititional - Occlusal contact
with no cantilever
Final restoration - Fine occlusal table and cantilever

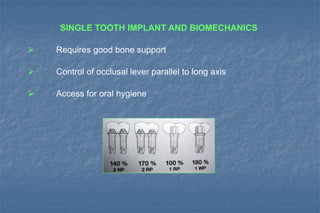

58. SINGLE TOOTH IMPLANT AND BIOMECHANICS
Requires good bone support
Control of occlusal lever parallel to long axis
Access for oral hygiene

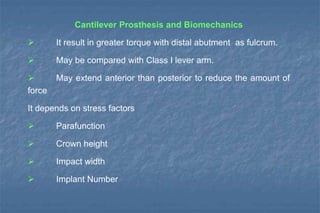

62. Cantilever Prosthesis and Biomechanics
It result in greater torque with distal abutment as fulcrum.
May be compared with Class I lever arm.
May extend anterior than posterior to reduce the amount of
force
It depends on stress factors
Parafunction
Crown height
Impact width
Implant Number
63. Arch form
English 1993 – AP Spread
Cantilever length = AP spread x 2.5
Tapering - canine and posterior implants with
anterior cantilever
Square - Anterior implant with posterior
cantilever
64. Tapering Ovoid Square
Less dense bone Anterior cantilever with prosthesis Distal
implants, placed to increase AP-spread.
Maxilla - more implants required than mandible
65. Sufficient bone height exist to place long implant,
Avoid contact on central incisors during protrusion, labial
excursion and maximum intercuspation
CANTILEVER FIXED PARTIAL DENTURE

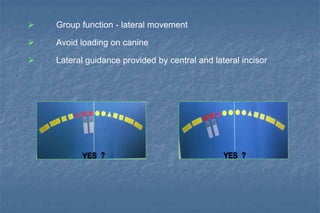

66. Group function - lateral movement
Avoid loading on canine
Lateral guidance provided by central and lateral incisor

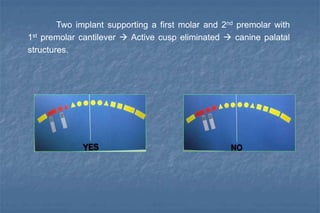

67. Two implant supporting a first molar and 2nd premolar with
1st premolar cantilever Active cusp eliminated canine palatal
structures.

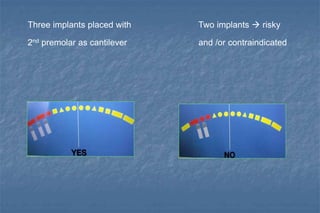

68. Three implants placed with Two implants risky
2nd premolar as cantilever and /or contraindicated
69. MANDIBULAR FLEXURE
Picton 1962
Stated that mandibular move towards midline on opening
Because of external pterygoid muscle on ramus of mandible
Medial movement occur distal to mental foramen and
increases as it approaches ramus.
James 1980 & Burch 1982
Movement - 0.8mm - 1st molar
1.5mm - Ramus area
70. FLEXION
Implant - Natural teeth - mandible
0.1mm 0.5mm 10 to 20 times
Complete cross arch splinting of posterior molar Mandible flexion
Lateral force
Bone loss around implant
Loss of implant fixation
Material fracture
Unretained restoration
Discomfort on openings
71.

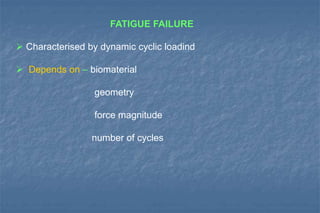

72. FATIGUE FAILURE
Characterised by dynamic cyclic loadind
Depends on – biomaterial
geometry
force magnitude
number of cycles

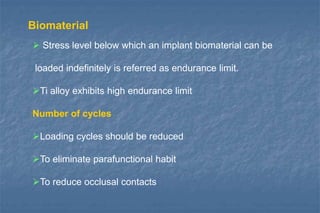

73. Biomaterial
Stress level below which an implant biomaterial can be
loaded indefinitely is referred as endurance limit.
Ti alloy exhibits high endurance limit
Number of cycles
Loading cycles should be reduced
To eliminate parafunctional habit
To reduce occlusal contacts

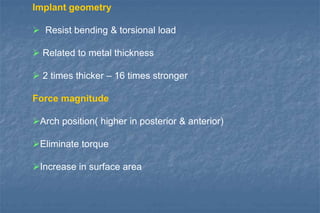

74. Implant geometry
Resist bending & torsional load
Related to metal thickness
2 times thicker – 16 times stronger
Force magnitude
Arch position( higher in posterior & anterior)
Eliminate torque
Increase in surface area

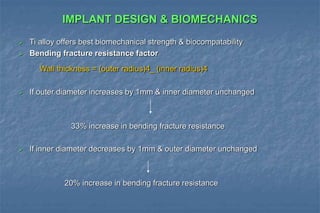

75. IMPLANT DESIGN & BIOMECHANICS
Ti alloy offers best biomechanical strength & biocompatability
Bending fracture resistance factor
Wall thickness = (outer radius)4_ (inner radius)4
If outer diameter increases by 1mm & inner diameter unchanged
33% increase in bending fracture resistance
If inner diameter decreases by 1mm & outer diameter unchanged
20% increase in bending fracture resistance

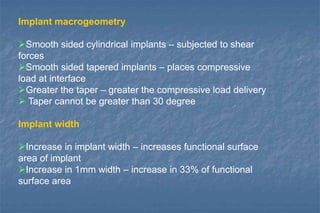

79. Implant macrogeometry
Smooth sided cylindrical implants – subjected to shear
forces
Smooth sided tapered implants – places compressive
load at interface
Greater the taper – greater the compressive load delivery
Taper cannot be greater than 30 degree
Implant width
Increase in implant width – increases functional surface
area of implant
Increase in 1mm width – increase in 33% of functional
surface area

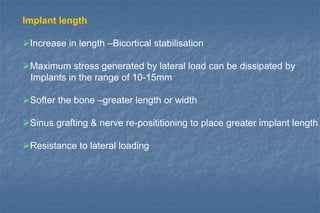

80. Implant length
Increase in length –Bicortical stabilisation
Maximum stress generated by lateral load can be dissipated by
Implants in the range of 10-15mm
Softer the bone –greater length or width
Sinus grafting & nerve re-posititioning to place greater implant length
Resistance to lateral loading

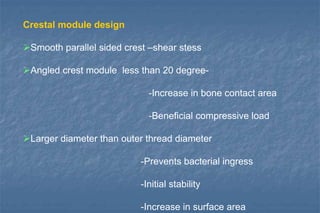

81. Crestal module design
Smooth parallel sided crest –shear stess
Angled crest module less than 20 degree-
-Increase in bone contact area
-Beneficial compressive load
Larger diameter than outer thread diameter
-Prevents bacterial ingress
-Initial stability
-Increase in surface area

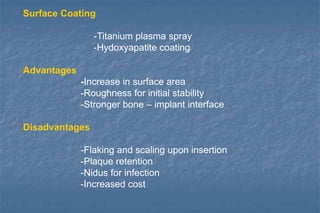

83. Surface Coating
-Titanium plasma spray
-Hydoxyapatite coating
Advantages
-Increase in surface area
-Roughness for initial stability
-Stronger bone – implant interface
Disadvantages
-Flaking and scaling upon insertion
-Plaque retention
-Nidus for infection
-Increased cost

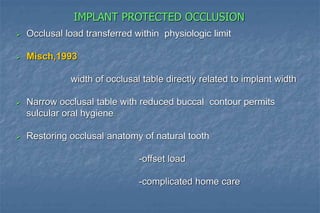

84. IMPLANT PROTECTED OCCLUSION
Occlusal load transferred within physiologic limit
Misch,1993
width of occlusal table directly related to implant width

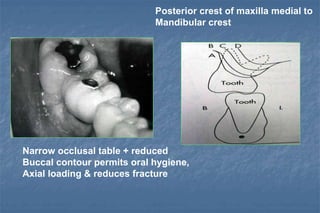

Narrow occlusal table with reduced buccal contour permits
sulcular oral hygiene
Restoring occlusal anatomy of natural tooth
-offset load
-complicated home care

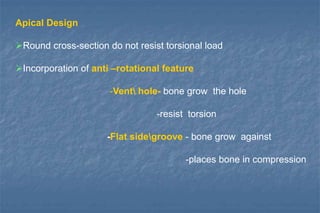

86. Apical Design
Round cross-section do not resist torsional load
Incorporation of anti –rotational feature
-Vent hole- bone grow the hole
-resist torsion
-Flat sidegroove - bone grow against
-places bone in compression

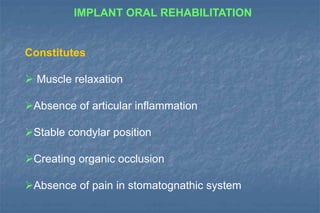

90. IMPLANT ORAL REHABILITATION
Constitutes
Muscle relaxation
Absence of articular inflammation
Stable condylar position
Creating organic occlusion
Absence of pain in stomatognathic system

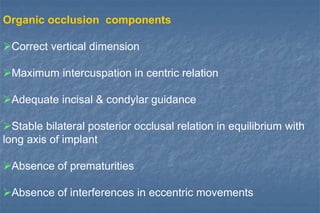

91. Organic occlusion components
Correct vertical dimension
Maximum intercuspation in centric relation
Adequate incisal & condylar guidance
Stable bilateral posterior occlusal relation in equilibrium with
long axis of implant
Absence of prematurities
Absence of interferences in eccentric movements

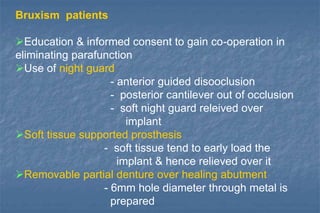

92. Bruxism patients
Education & informed consent to gain co-operation in
eliminating parafunction
Use of night guard
- anterior guided disooclusion
- posterior cantilever out of occlusion
- soft night guard releived over
implant
Soft tissue supported prosthesis
- soft tissue tend to early load the
implant & hence relieved over it
Removable partial denture over healing abutment
- 6mm hole diameter through metal is
prepared

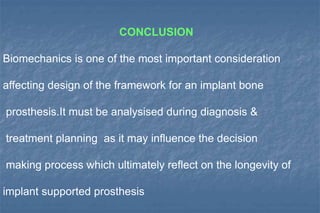

94. CONCLUSION
Biomechanics is one of the most important consideration
affecting design of the framework for an implant bone
prosthesis.It must be analysised during diagnosis &
treatment planning as it may influence the decision
making process which ultimately reflect on the longevity of
implant supported prosthesis

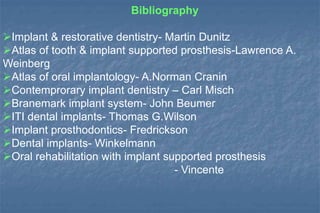

95. Bibliography
Implant & restorative dentistry- Martin Dunitz
Atlas of tooth & implant supported prosthesis-Lawrence A.
Weinberg
Atlas of oral implantology- A.Norman Cranin
Contemprorary implant dentistry – Carl Misch
Branemark implant system- John Beumer
ITI dental implants- Thomas G.Wilson
Implant prosthodontics- Fredrickson
Dental implants- Winkelmann
Oral rehabilitation with implant supported prosthesis
- Vincente
