1. IM2044 – Week 9: Lecture
Dr. Andres Baravalle
1

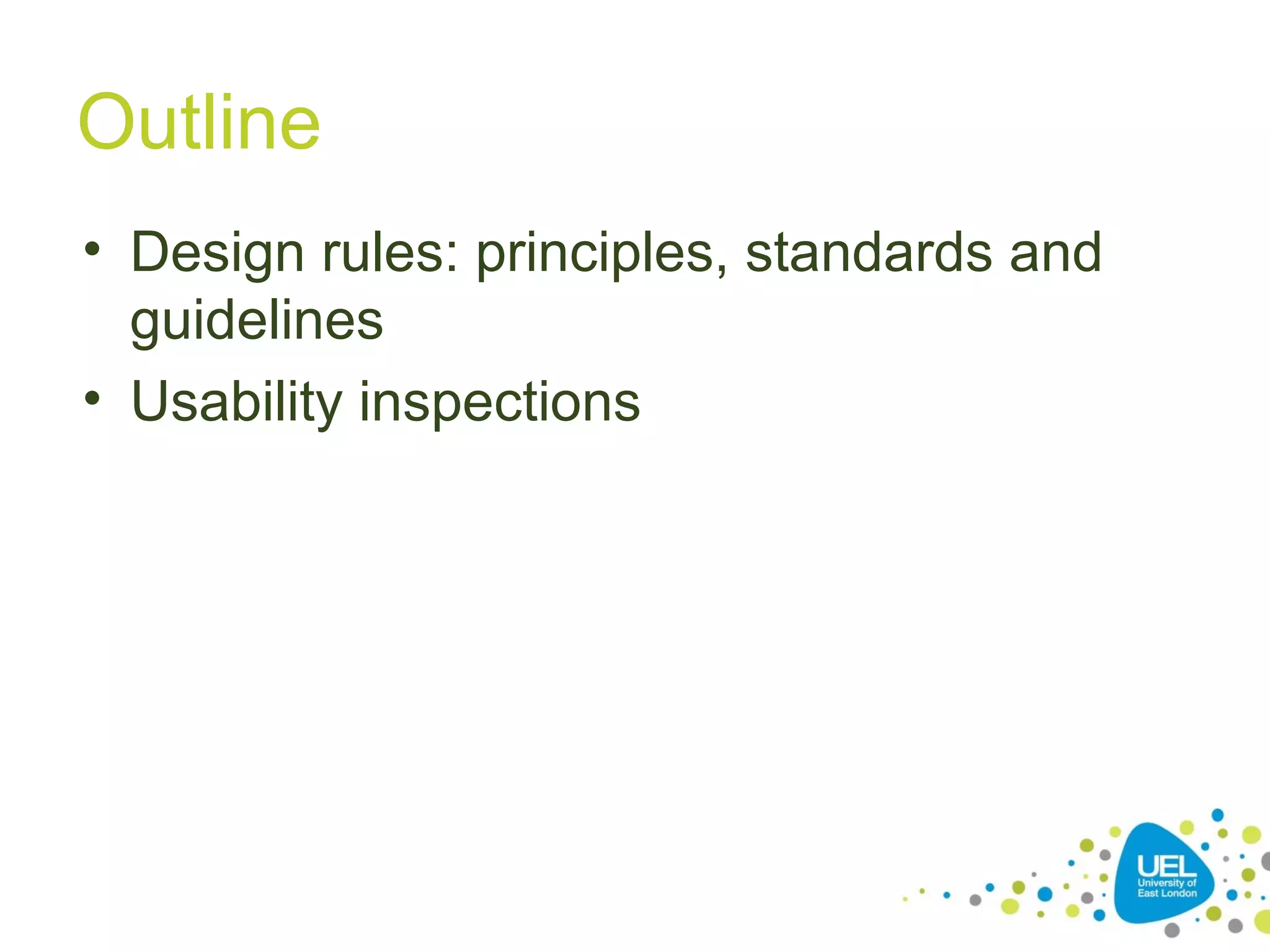

2. Outline
• Design rules: principles, standards and
guidelines
• Usability inspections

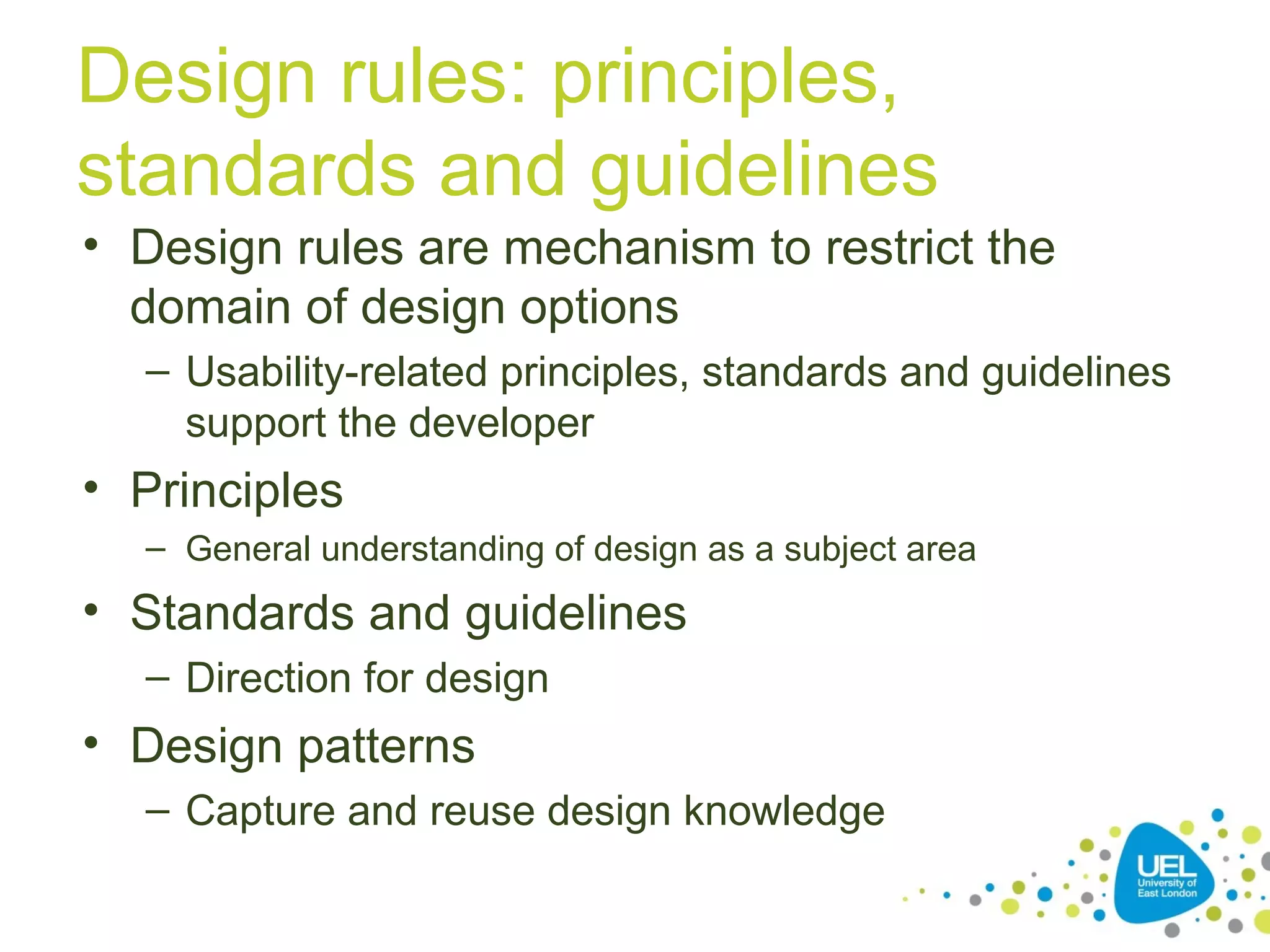

3. Design rules: principles,
standards and guidelines
• Design rules are mechanism to restrict the
domain of design options
– Usability-related principles, standards and guidelines
support the developer
• Principles
– General understanding of design as a subject area
• Standards and guidelines
– Direction for design
• Design patterns
– Capture and reuse design knowledge

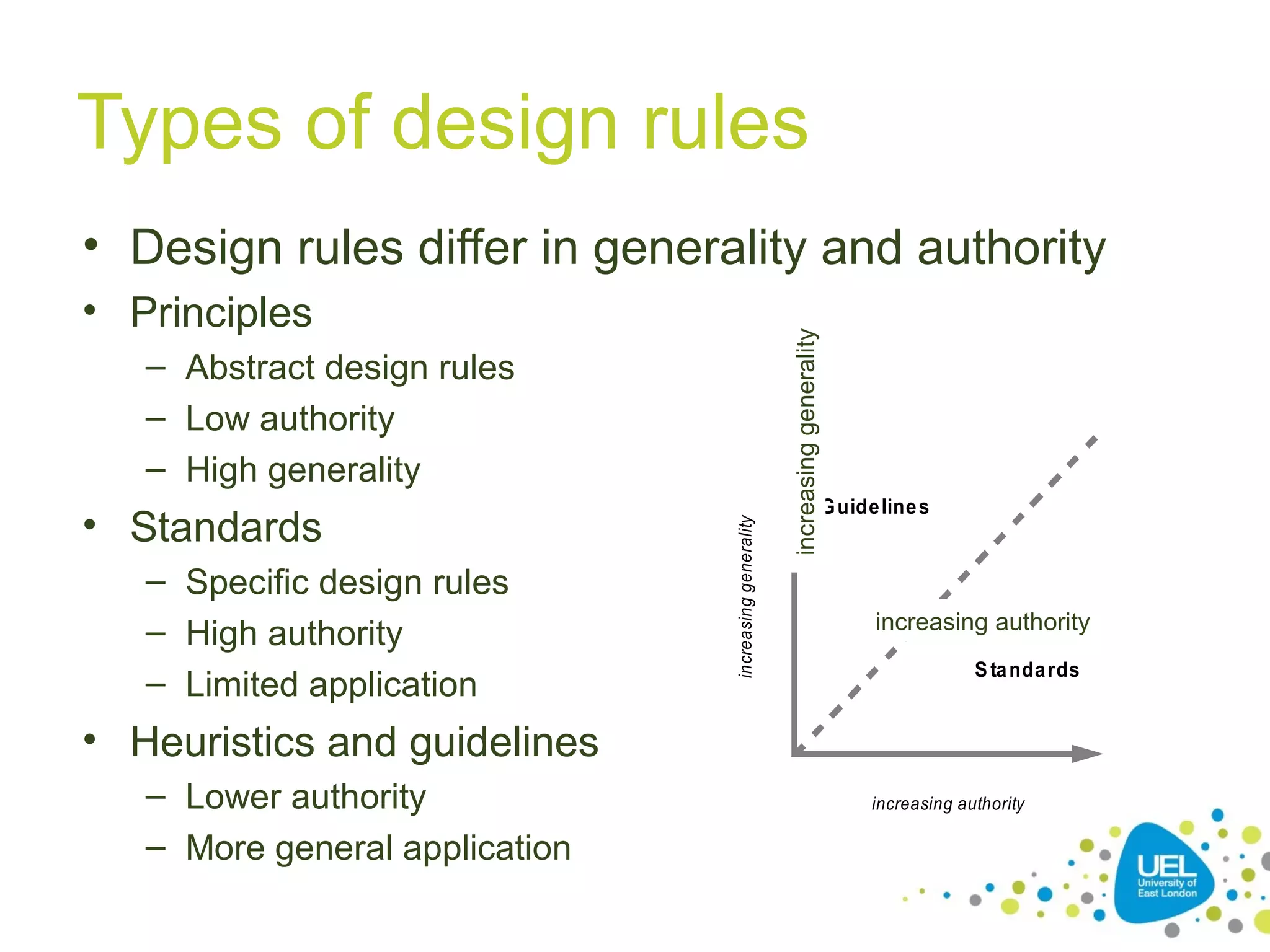

4. Types of design rules
• Principles
• Standards
– Specific design rules
– High authority
– Limited application
increasing generality
– Abstract design rules
– Low authority
– High generality
increasing generality
• Design rules differ in generality and authority
G uide line s
increasing authority
S ta nda rds
• Heuristics and guidelines
– Lower authority
– More general application
increasing authority

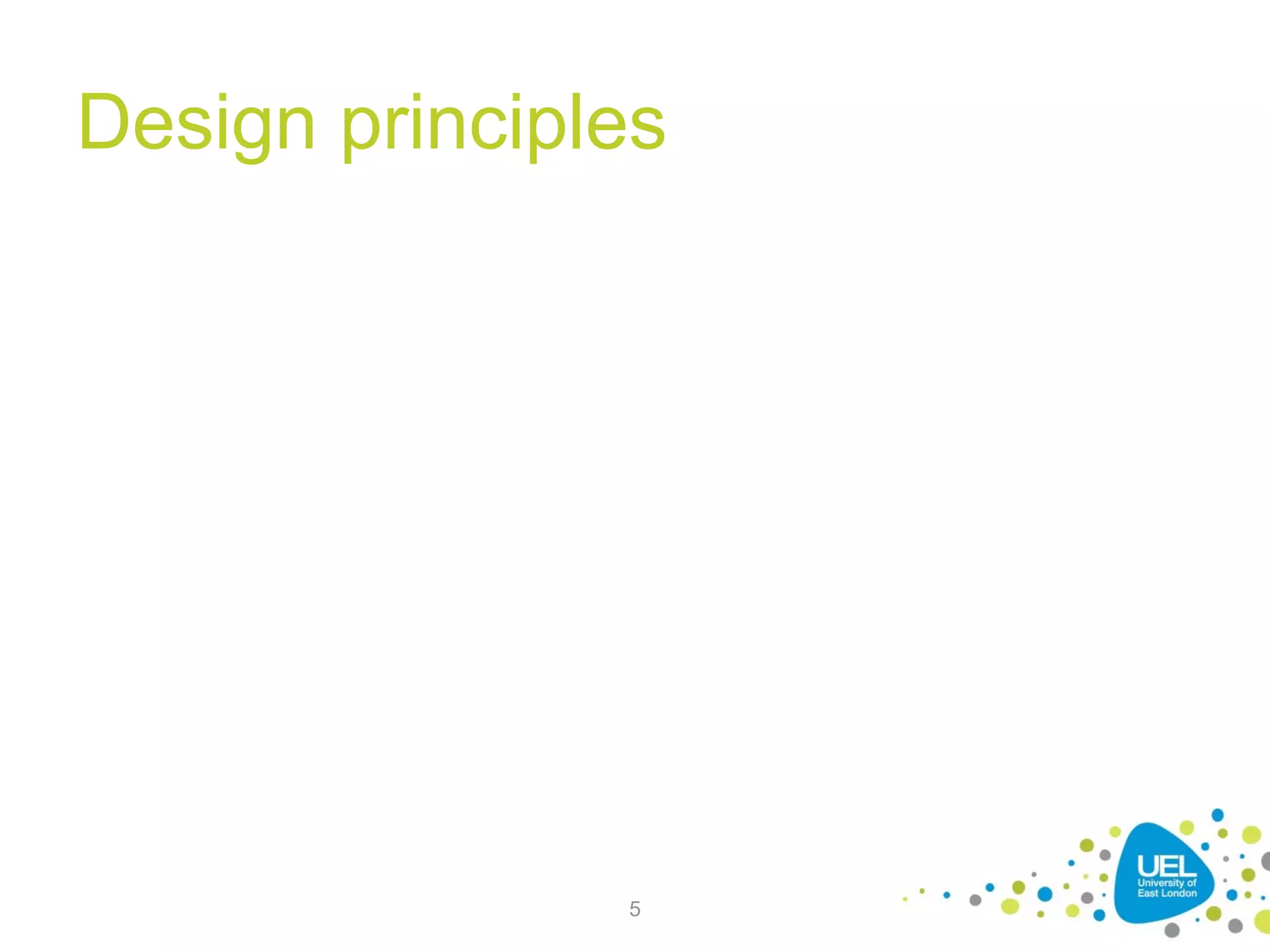

5. Design principles
5

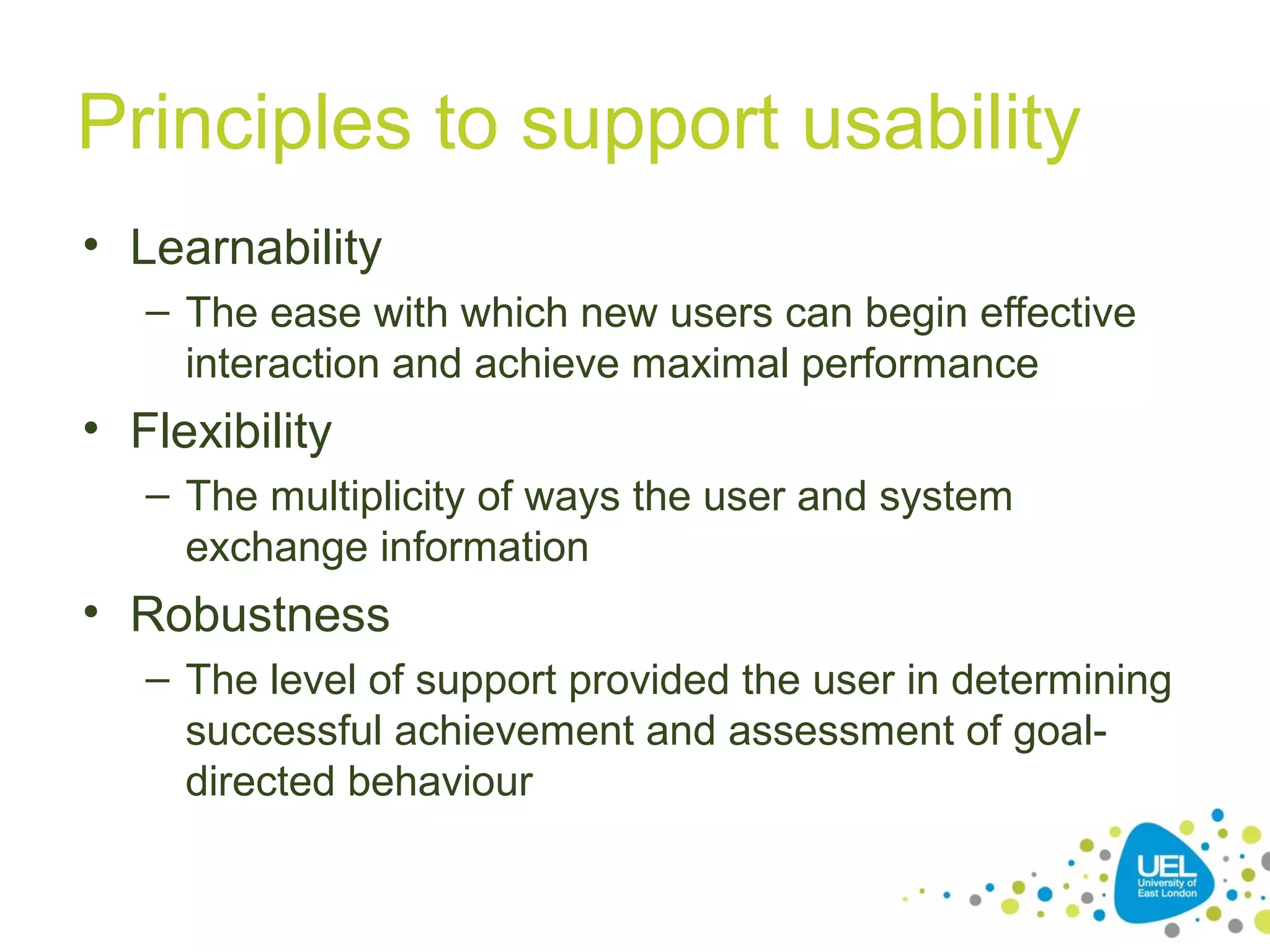

6. Principles to support usability
• Learnability
– The ease with which new users can begin effective
interaction and achieve maximal performance
• Flexibility
– The multiplicity of ways the user and system
exchange information
• Robustness
– The level of support provided the user in determining
successful achievement and assessment of goaldirected behaviour

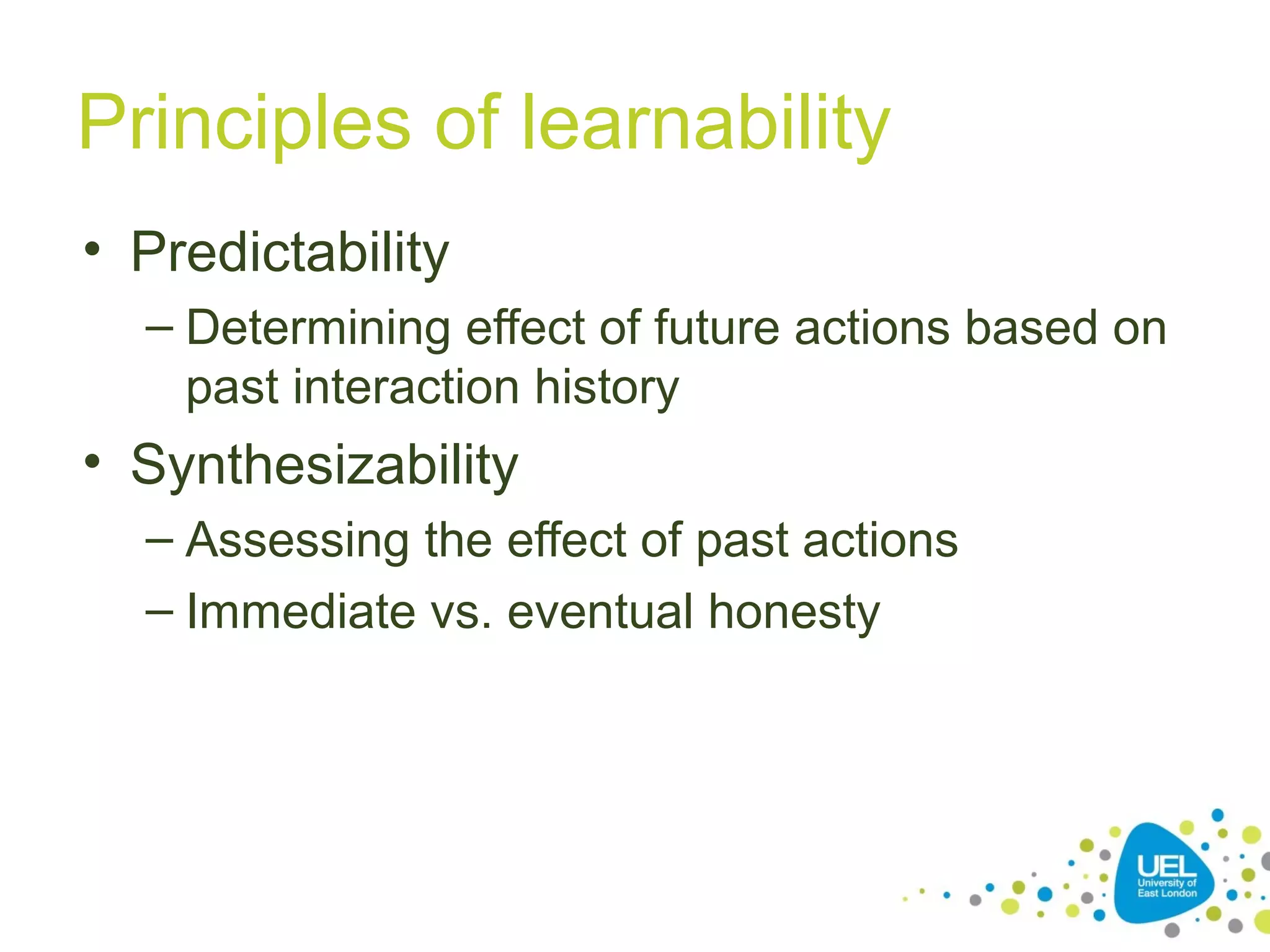

7. Principles of learnability
• Predictability
– Determining effect of future actions based on
past interaction history
• Synthesizability
– Assessing the effect of past actions
– Immediate vs. eventual honesty

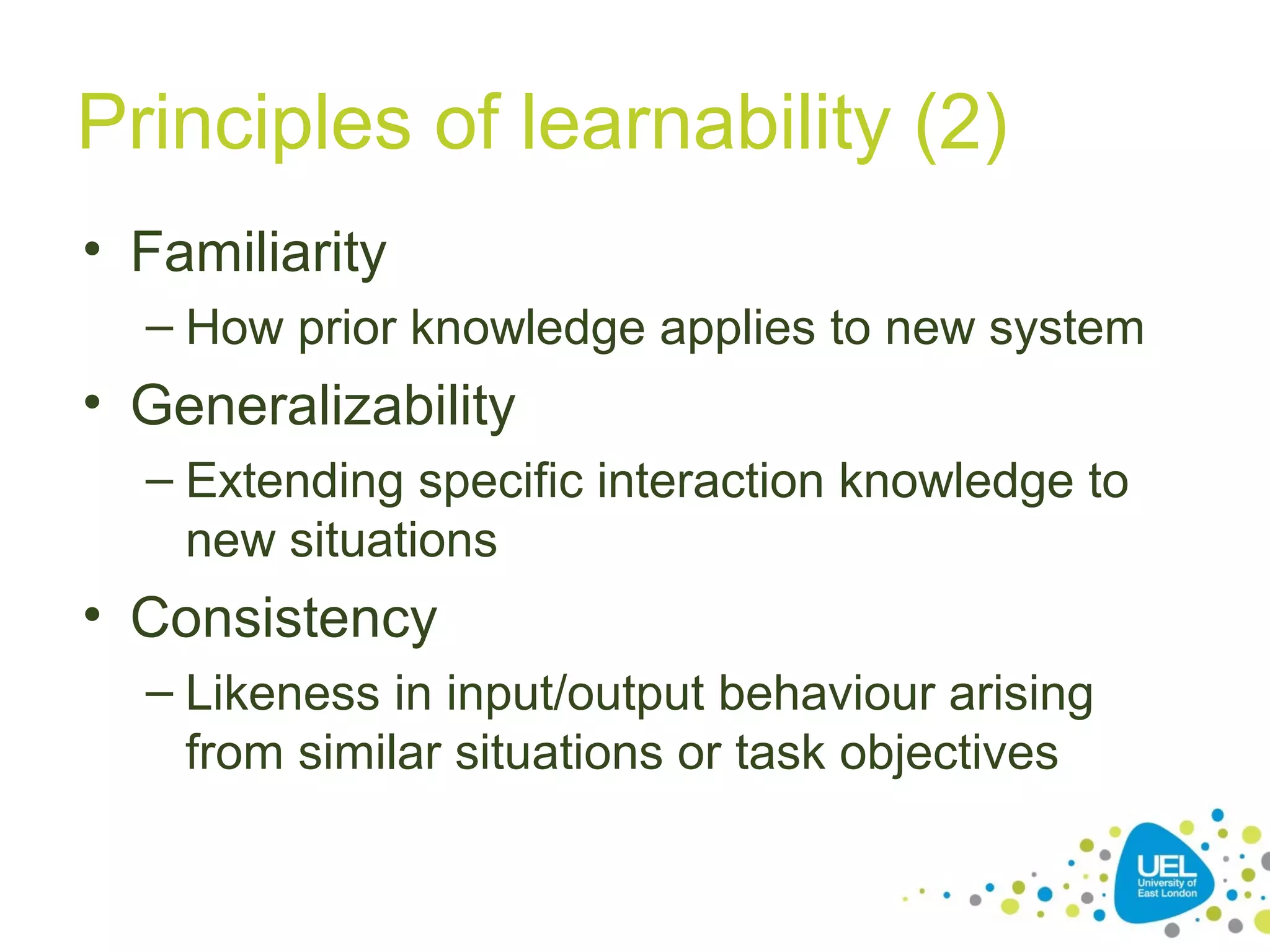

8. Principles of learnability (2)
• Familiarity
– How prior knowledge applies to new system
• Generalizability
– Extending specific interaction knowledge to
new situations
• Consistency
– Likeness in input/output behaviour arising
from similar situations or task objectives

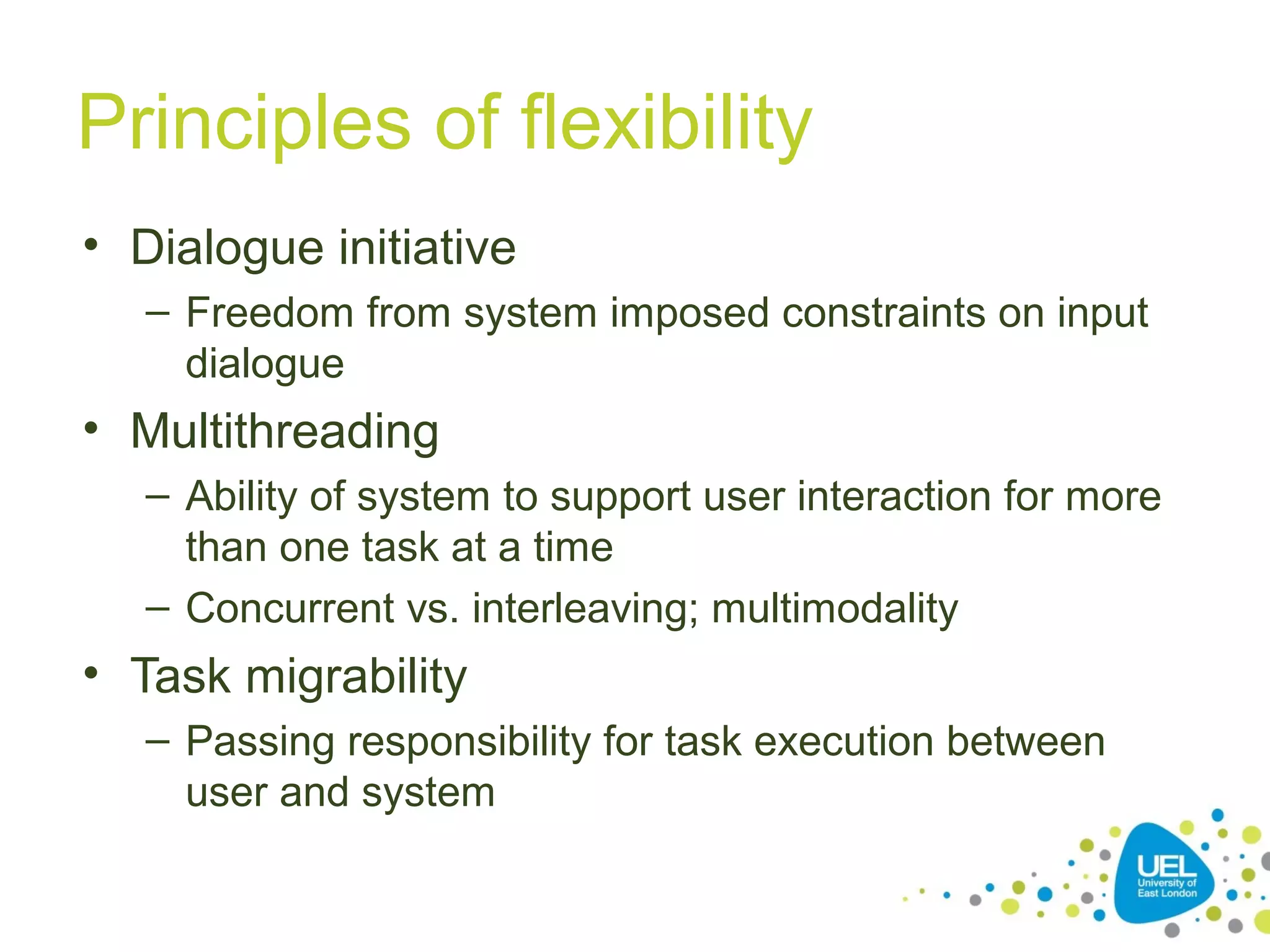

9. Principles of flexibility
• Dialogue initiative
– Freedom from system imposed constraints on input
dialogue
• Multithreading
– Ability of system to support user interaction for more
than one task at a time
– Concurrent vs. interleaving; multimodality
• Task migrability
– Passing responsibility for task execution between
user and system

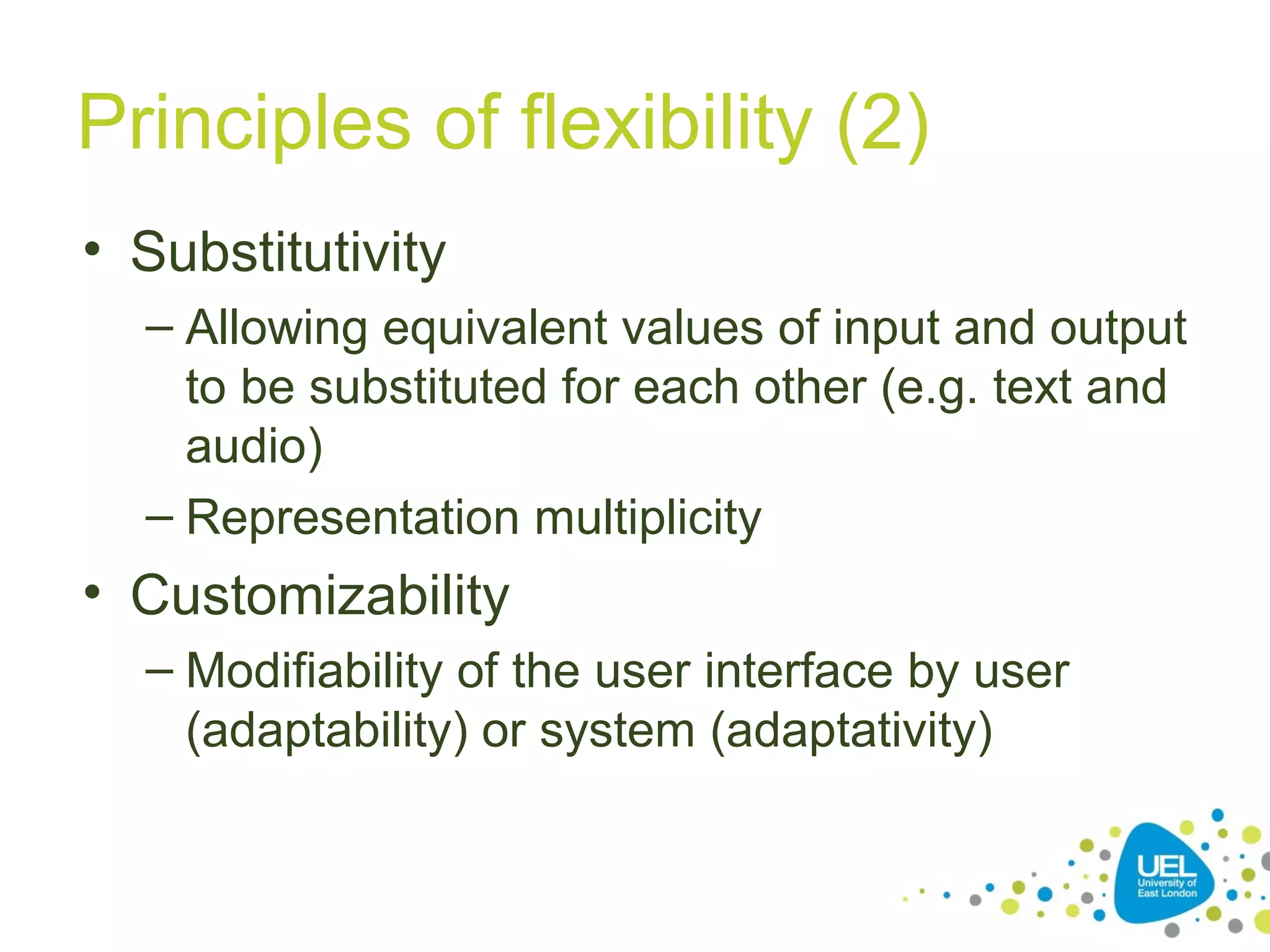

10. Principles of flexibility (2)
• Substitutivity
– Allowing equivalent values of input and output
to be substituted for each other (e.g. text and
audio)
– Representation multiplicity
• Customizability
– Modifiability of the user interface by user
(adaptability) or system (adaptativity)

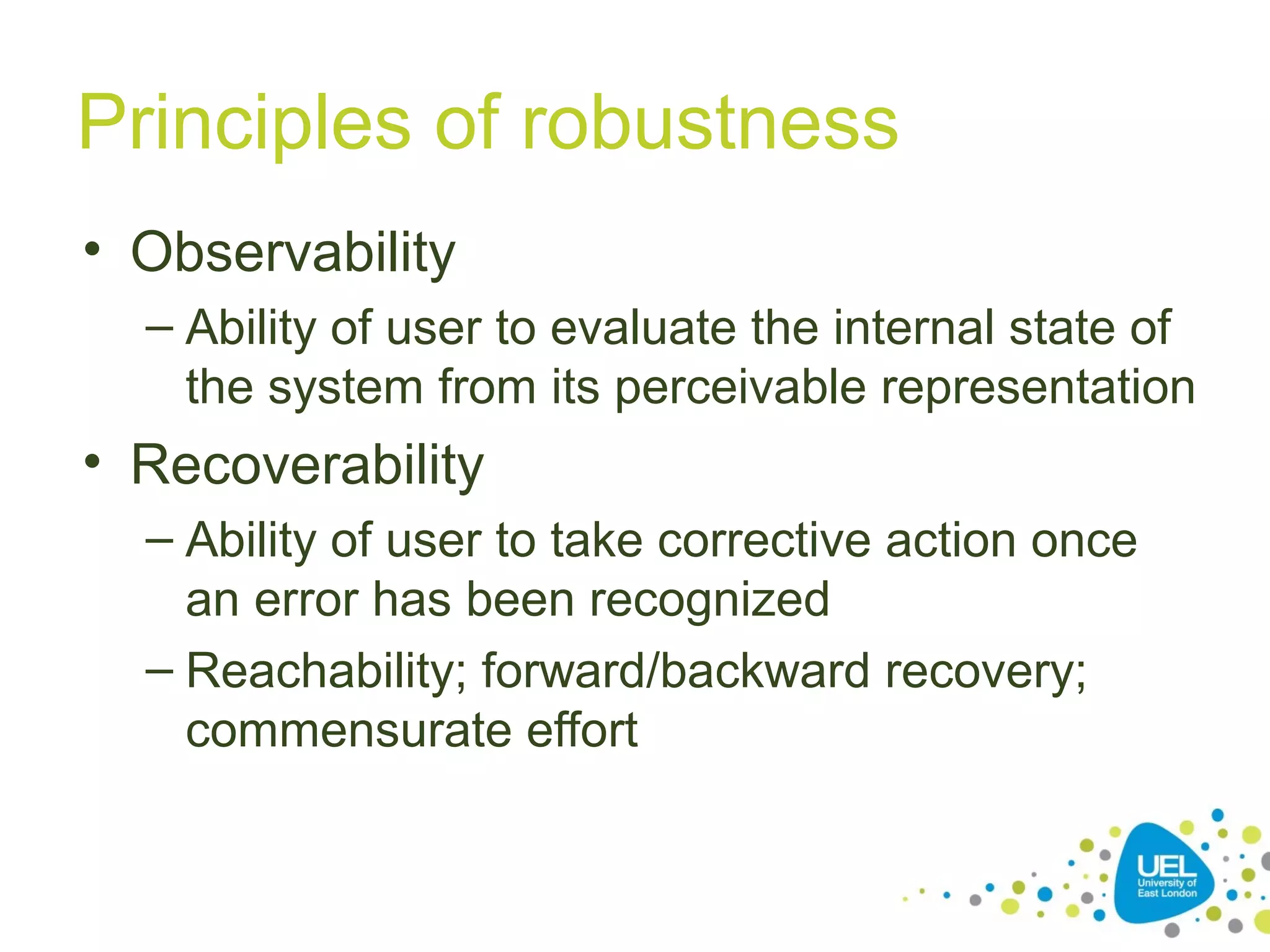

11. Principles of robustness
• Observability
– Ability of user to evaluate the internal state of
the system from its perceivable representation
• Recoverability
– Ability of user to take corrective action once
an error has been recognized
– Reachability; forward/backward recovery;
commensurate effort

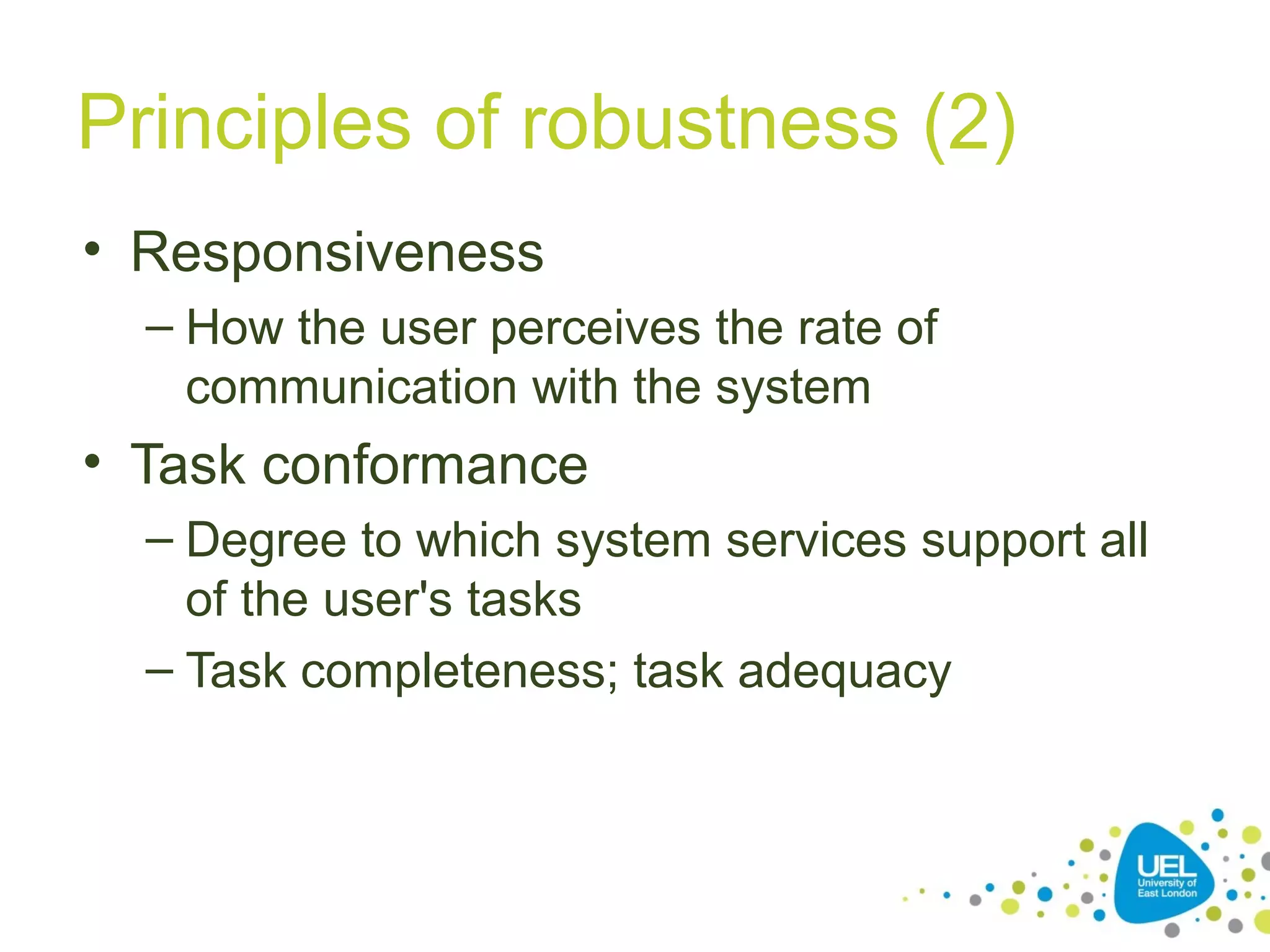

12. Principles of robustness (2)
• Responsiveness
– How the user perceives the rate of
communication with the system
• Task conformance
– Degree to which system services support all
of the user's tasks
– Task completeness; task adequacy

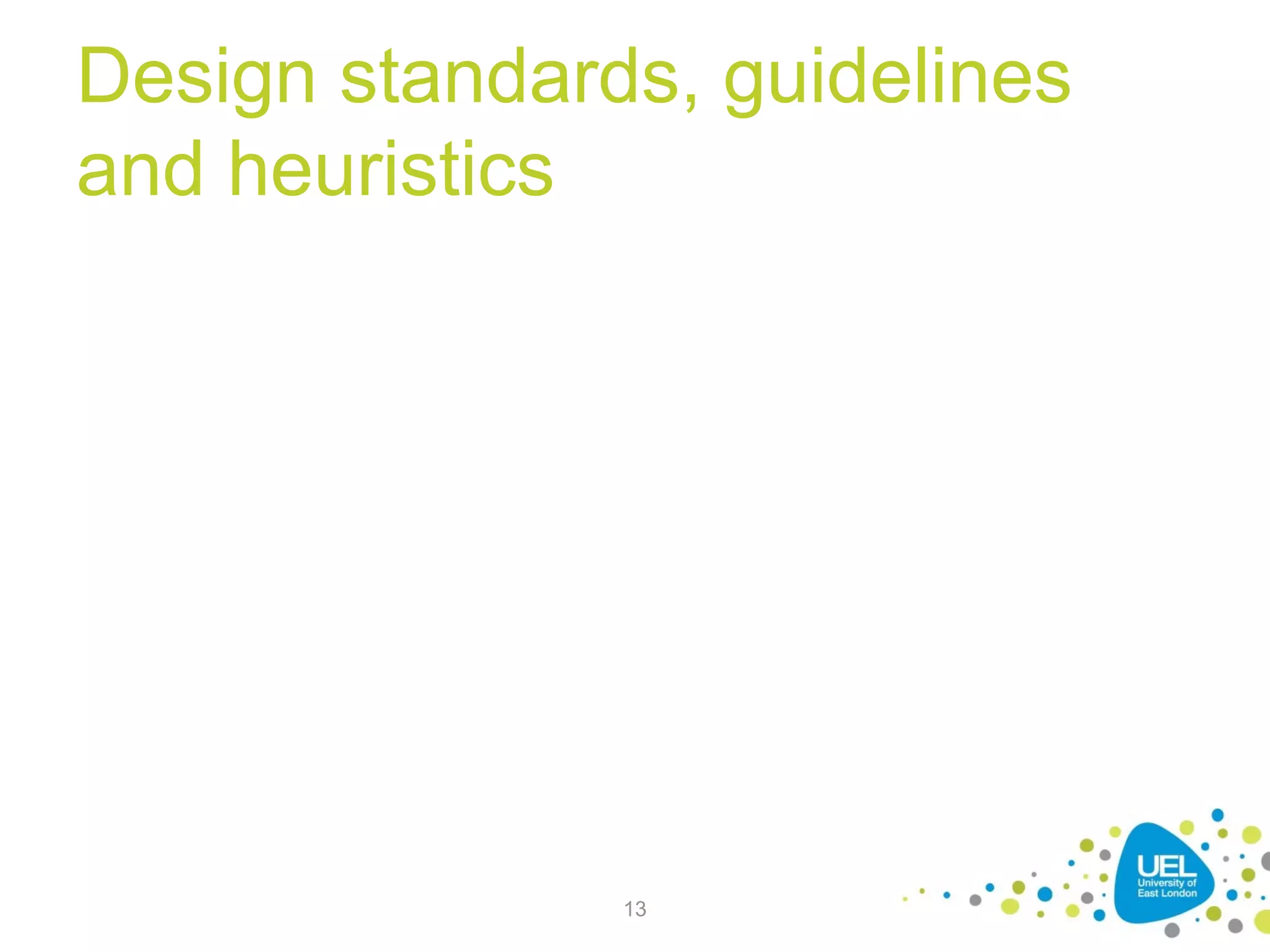

13. Design standards, guidelines
and heuristics
13

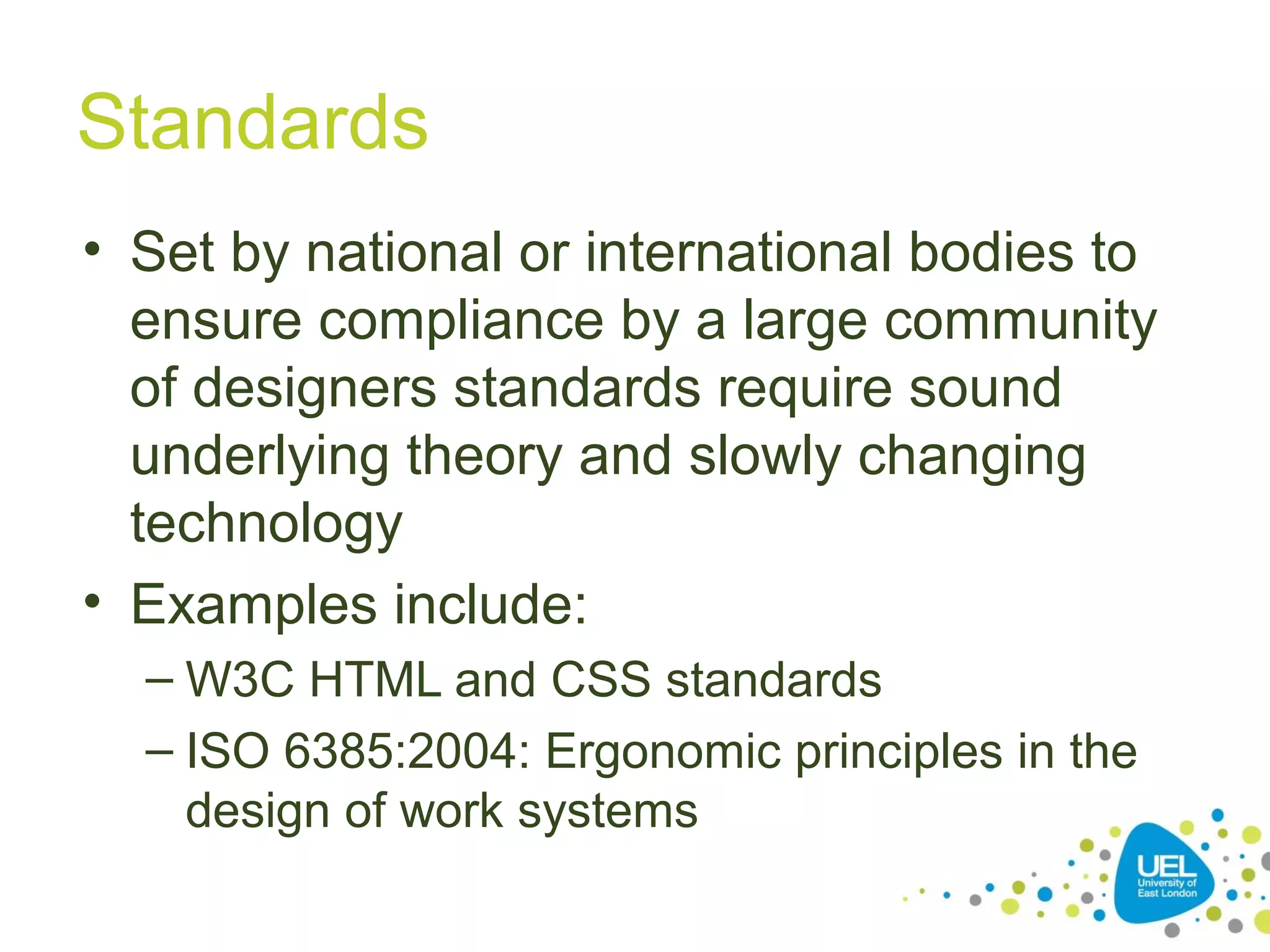

14. Standards
• Set by national or international bodies to
ensure compliance by a large community
of designers standards require sound
underlying theory and slowly changing
technology
• Examples include:
– W3C HTML and CSS standards
– ISO 6385:2004: Ergonomic principles in the
design of work systems

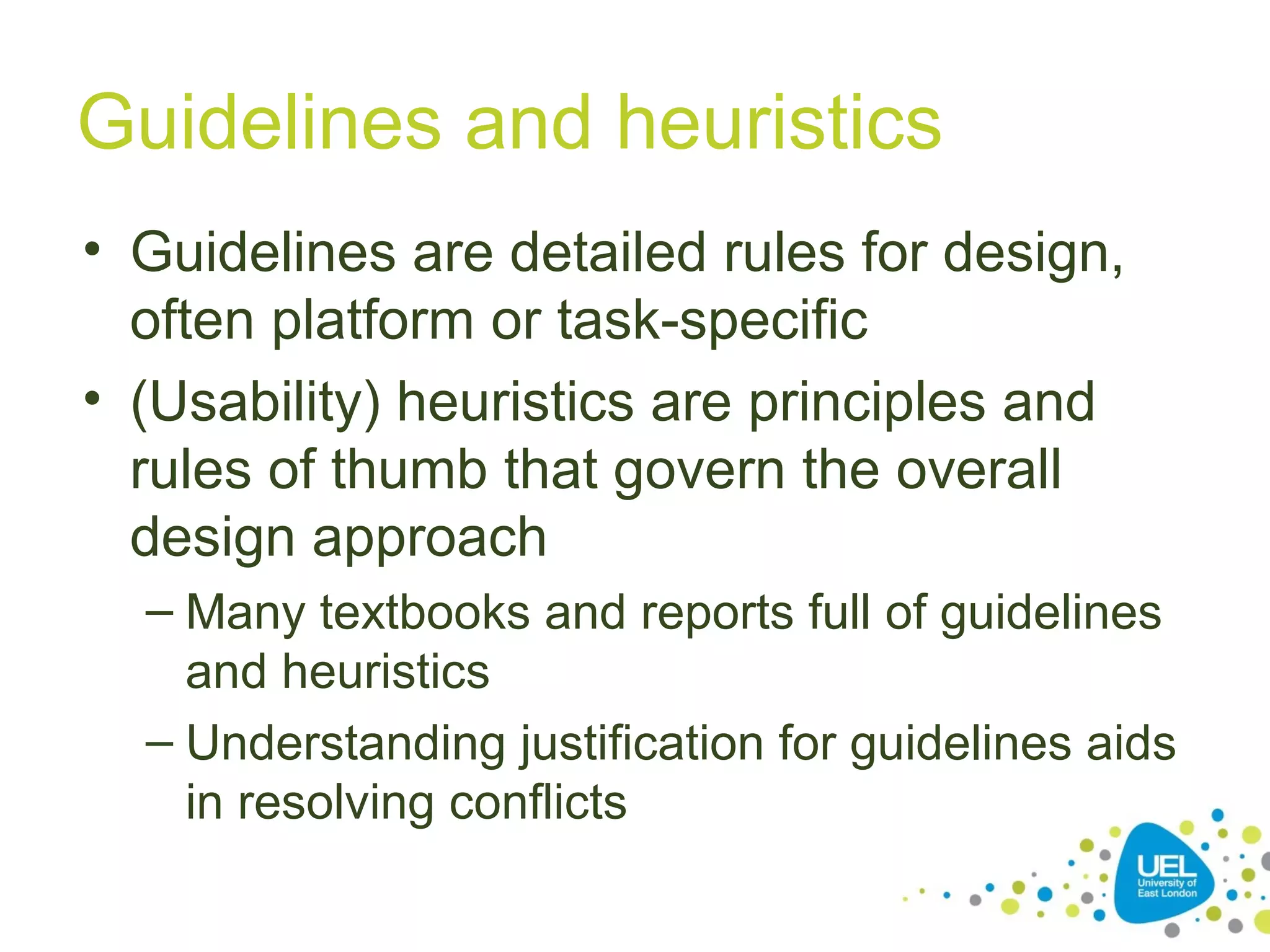

15. Guidelines and heuristics
• Guidelines are detailed rules for design,
often platform or task-specific
• (Usability) heuristics are principles and
rules of thumb that govern the overall
design approach
– Many textbooks and reports full of guidelines
and heuristics
– Understanding justification for guidelines aids
in resolving conflicts

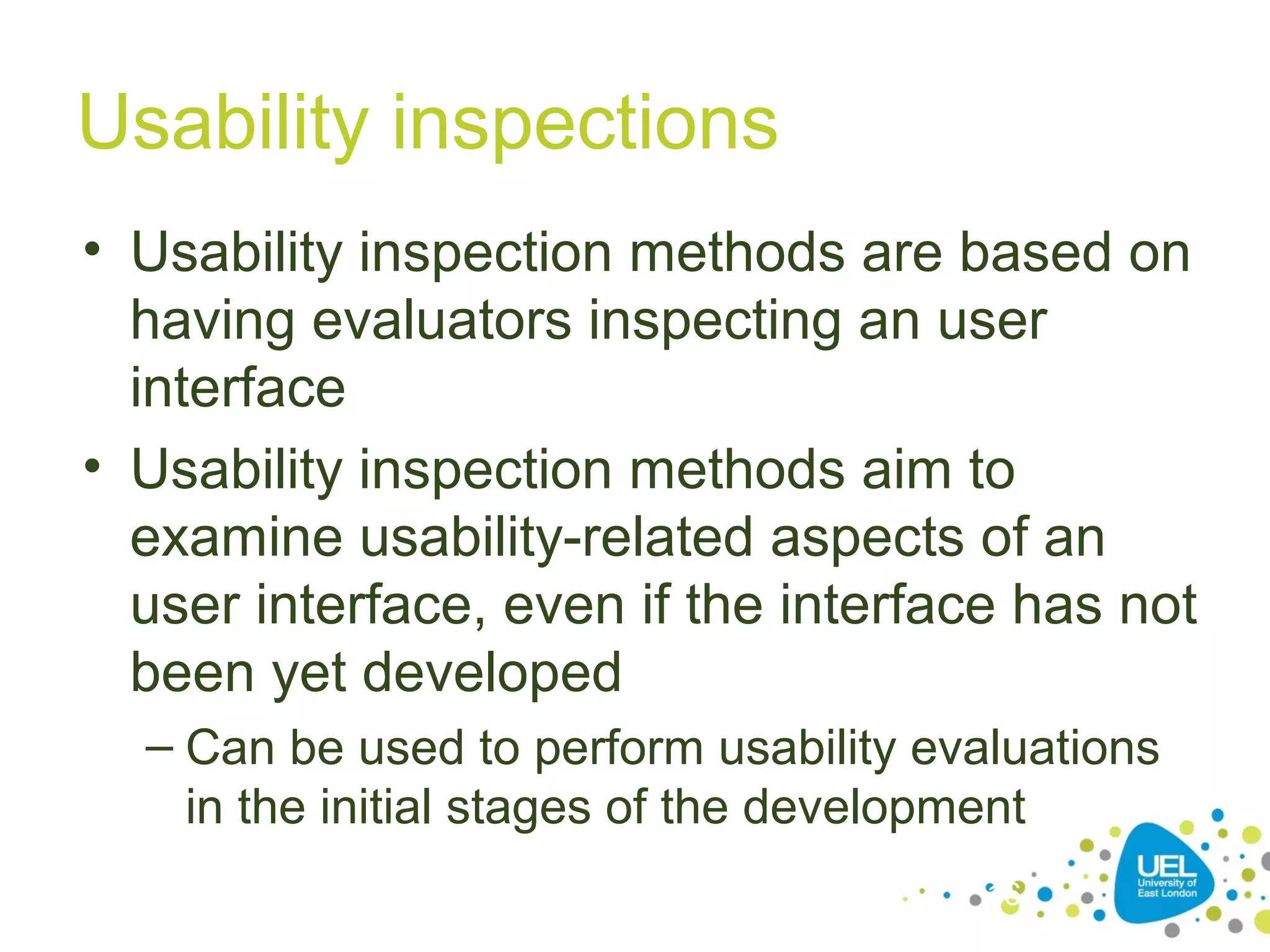

16. Usability inspections
• Usability inspection methods are based on
having evaluators inspecting an user
interface
• Usability inspection methods aim to
examine usability-related aspects of an
user interface, even if the interface has not
been yet developed
– Can be used to perform usability evaluations
in the initial stages of the development
16

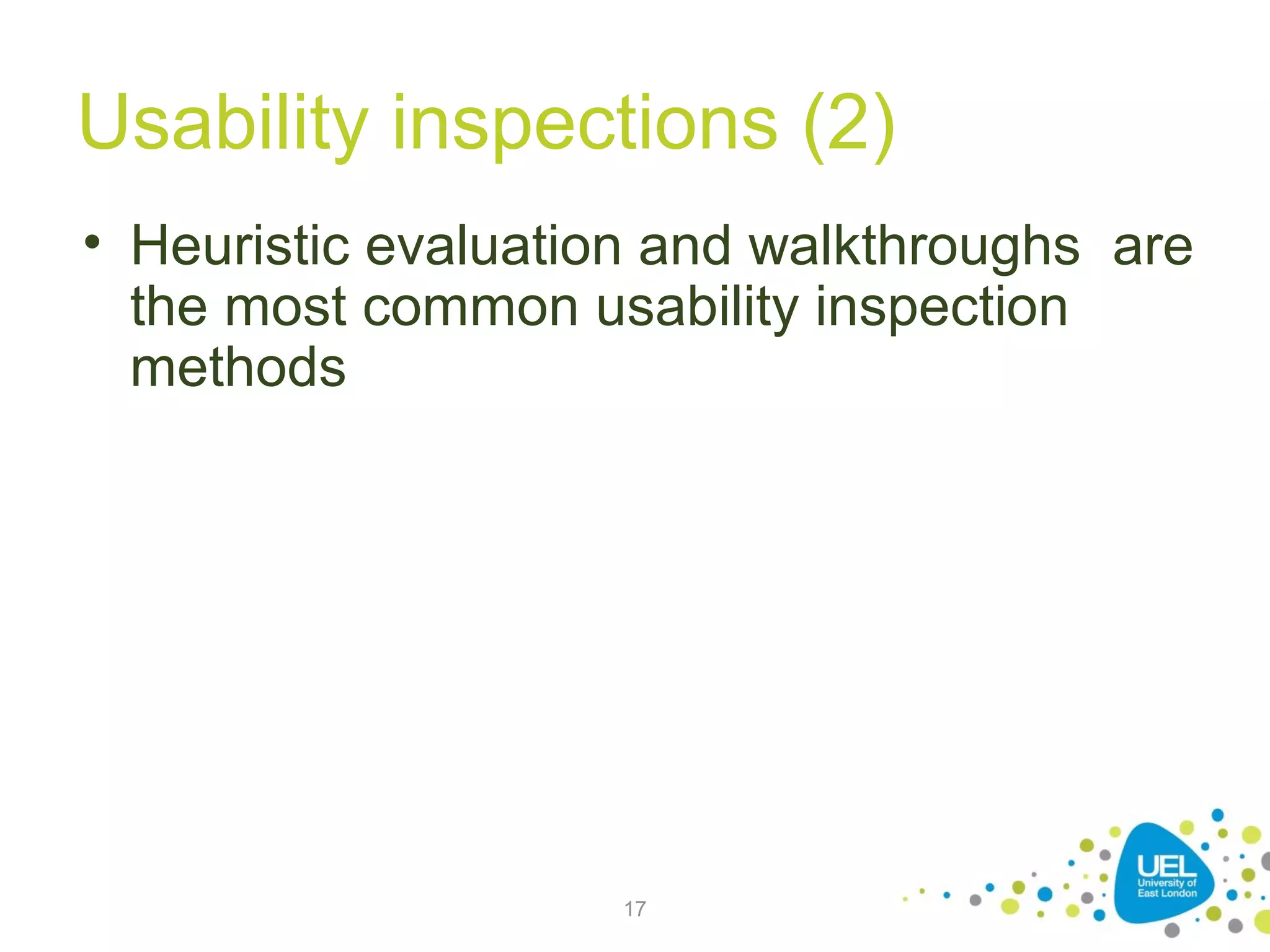

17. Usability inspections (2)
• Heuristic evaluation and walkthroughs are
the most common usability inspection
methods
17

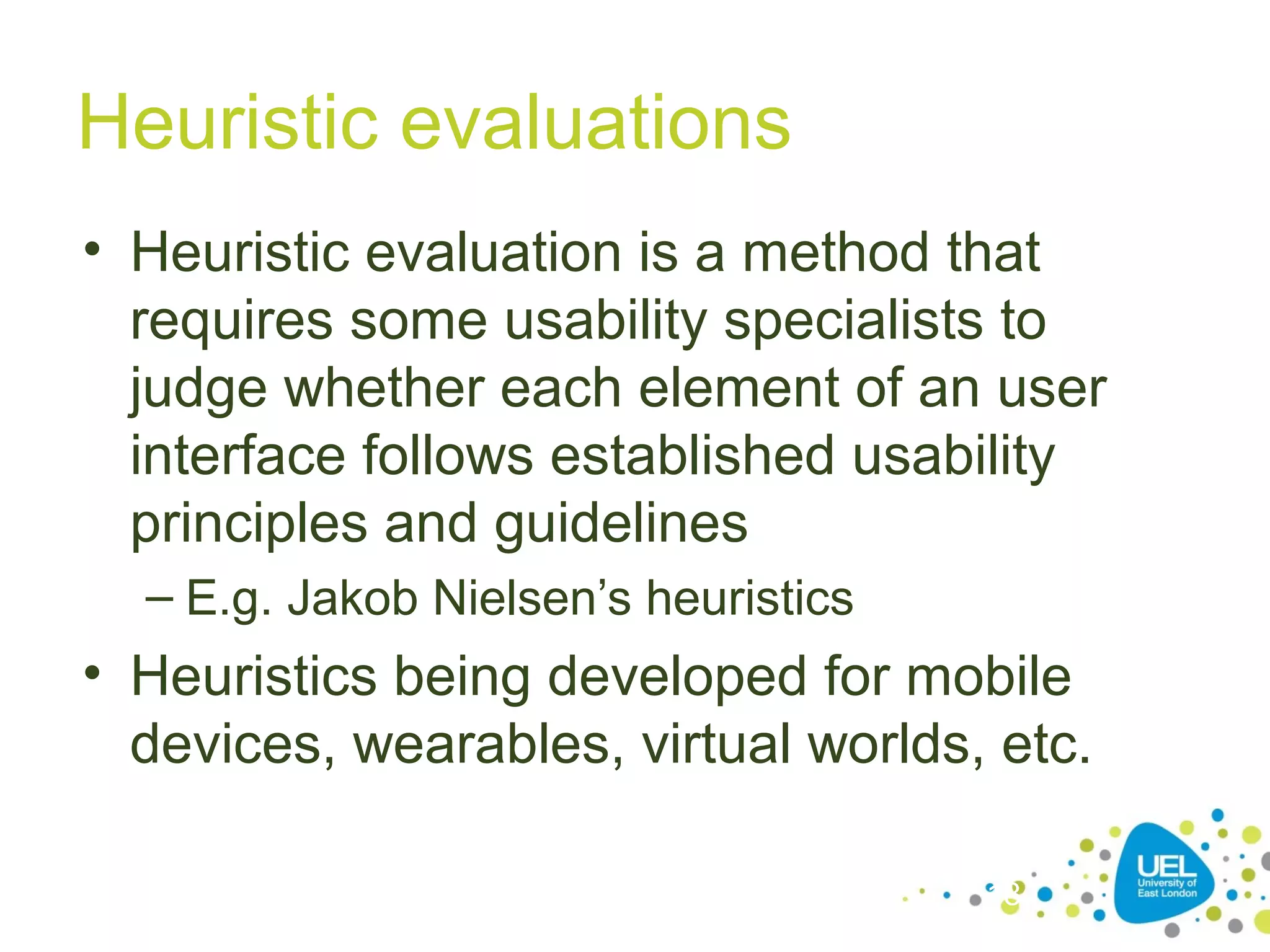

18. Heuristic evaluations
• Heuristic evaluation is a method that
requires some usability specialists to
judge whether each element of an user
interface follows established usability
principles and guidelines
– E.g. Jakob Nielsen’s heuristics
• Heuristics being developed for mobile
devices, wearables, virtual worlds, etc.
18

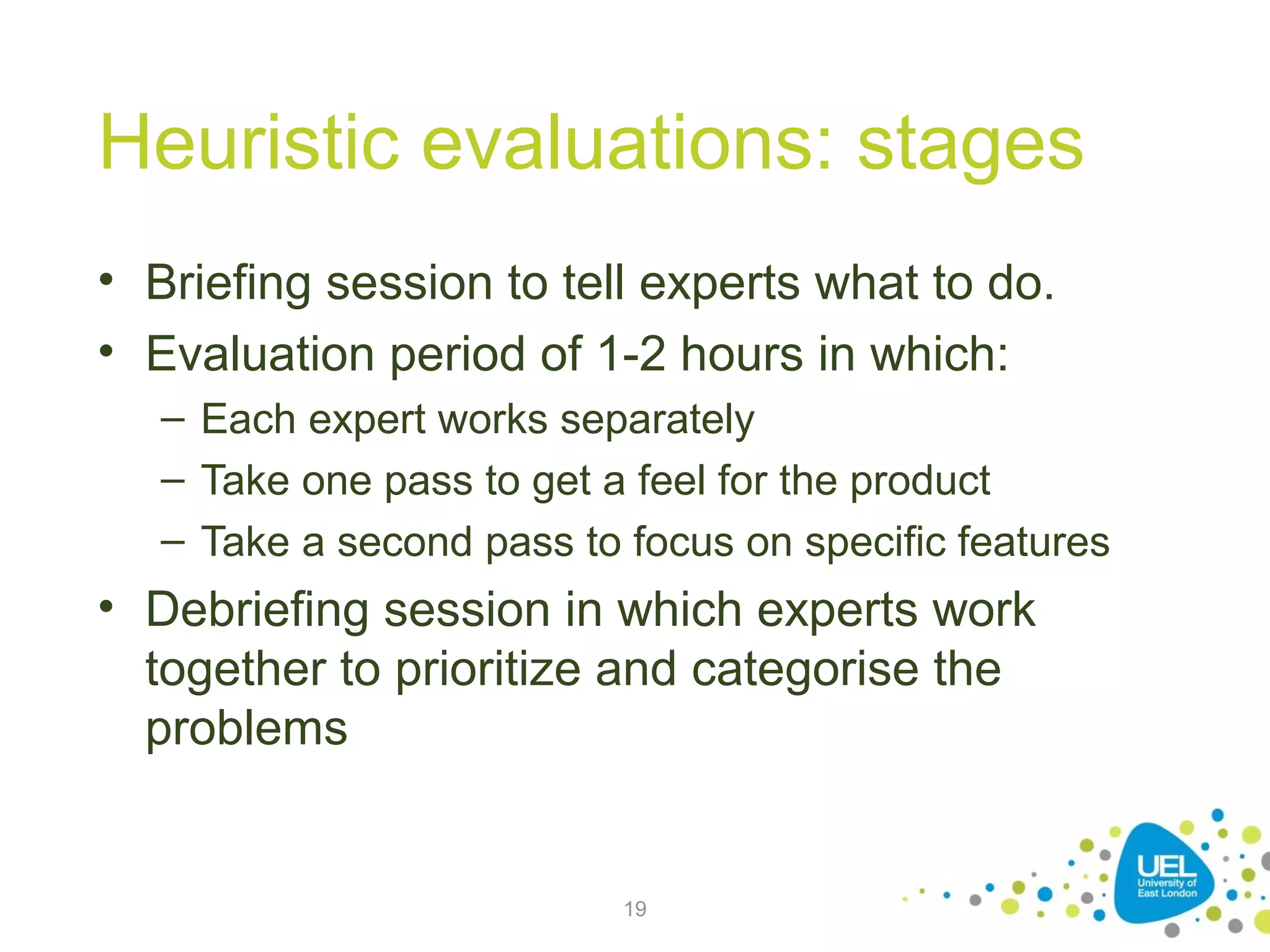

19. Heuristic evaluations: stages
• Briefing session to tell experts what to do.
• Evaluation period of 1-2 hours in which:
– Each expert works separately
– Take one pass to get a feel for the product
– Take a second pass to focus on specific features
• Debriefing session in which experts work
together to prioritize and categorise the
problems
19

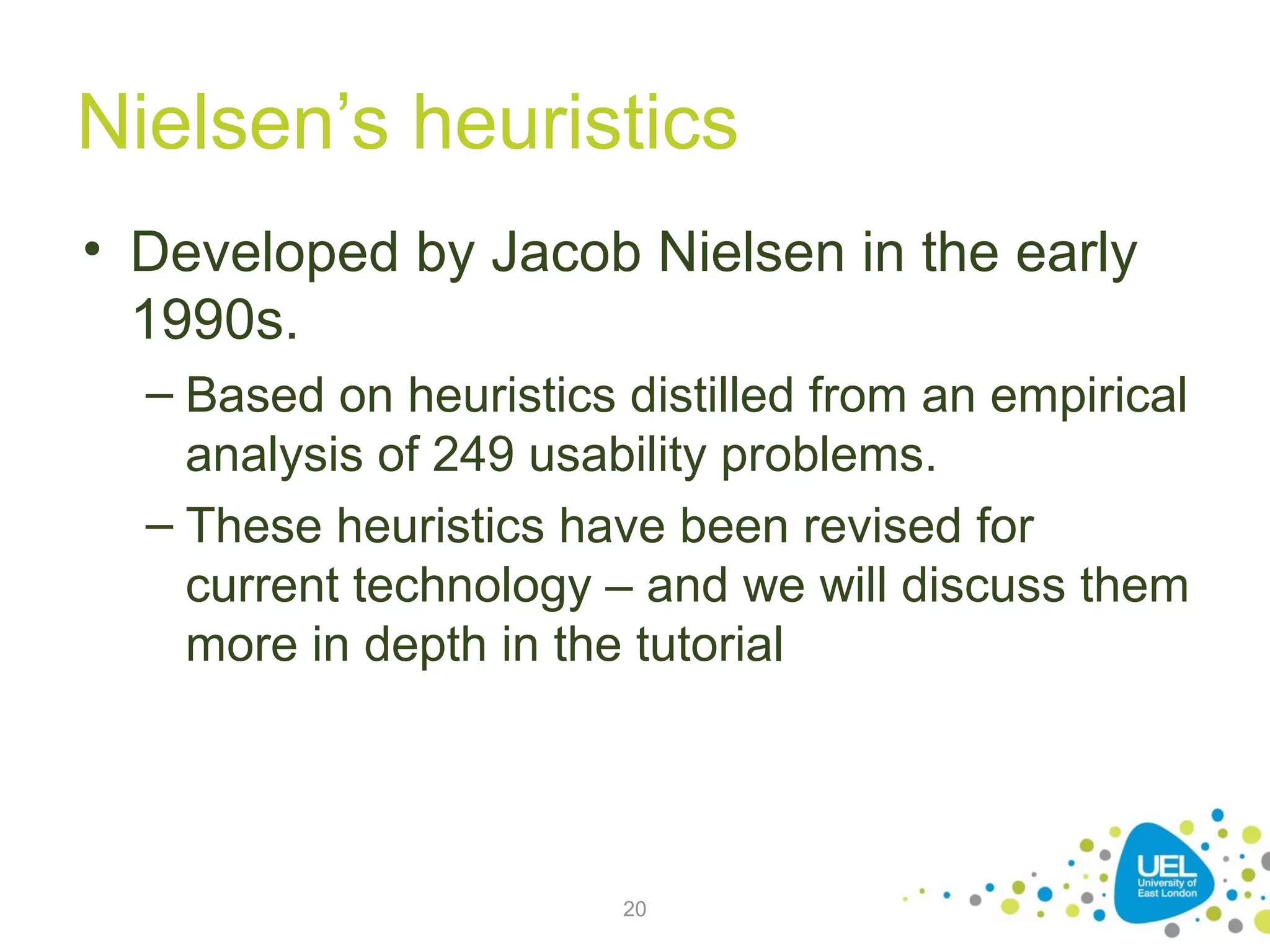

20. Nielsen’s heuristics
• Developed by Jacob Nielsen in the early
1990s.
– Based on heuristics distilled from an empirical
analysis of 249 usability problems.
– These heuristics have been revised for
current technology – and we will discuss them
more in depth in the tutorial
20

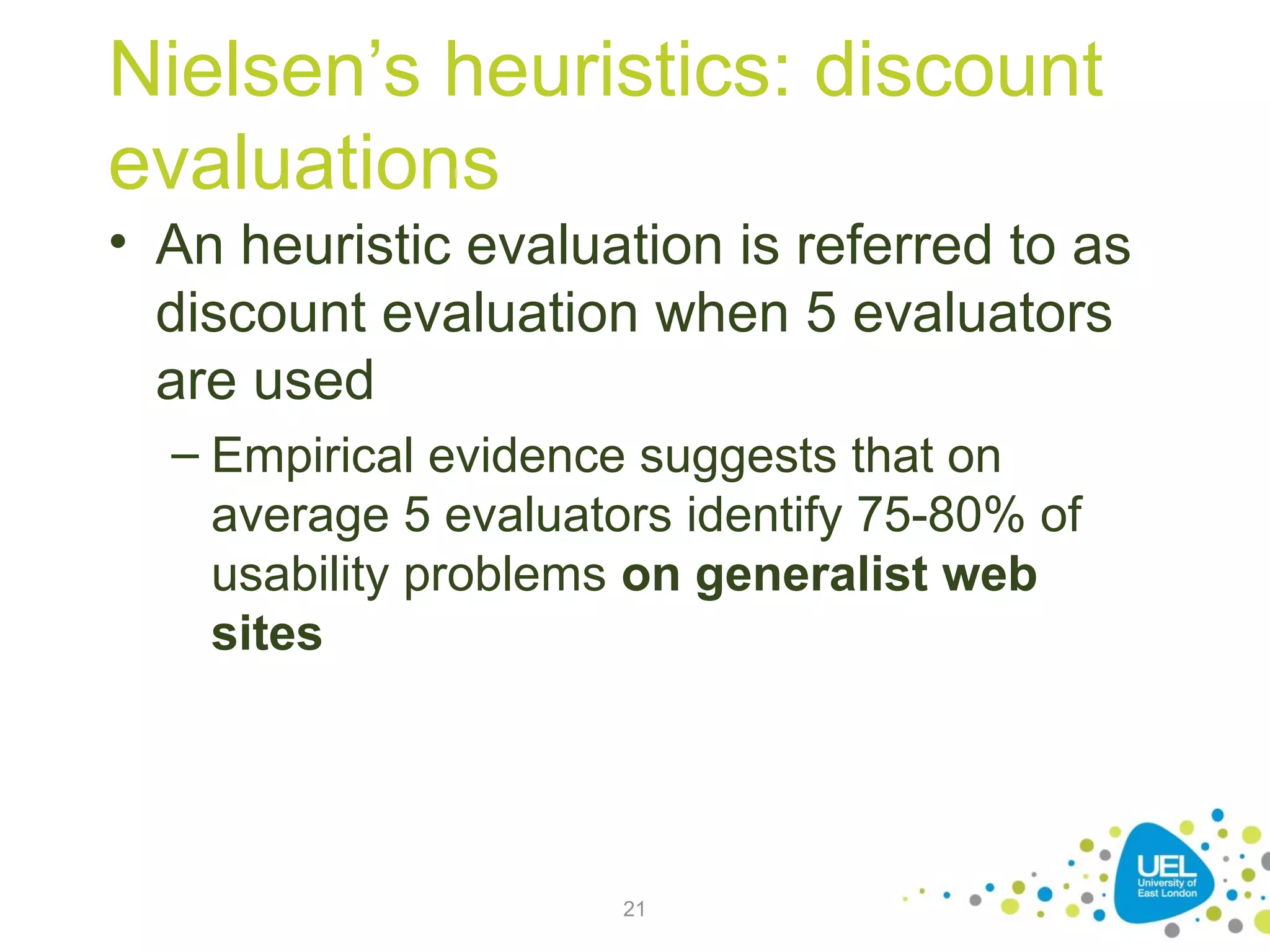

21. Nielsen’s heuristics: discount
evaluations
• An heuristic evaluation is referred to as
discount evaluation when 5 evaluators
are used
– Empirical evidence suggests that on
average 5 evaluators identify 75-80% of
usability problems on generalist web
sites
21

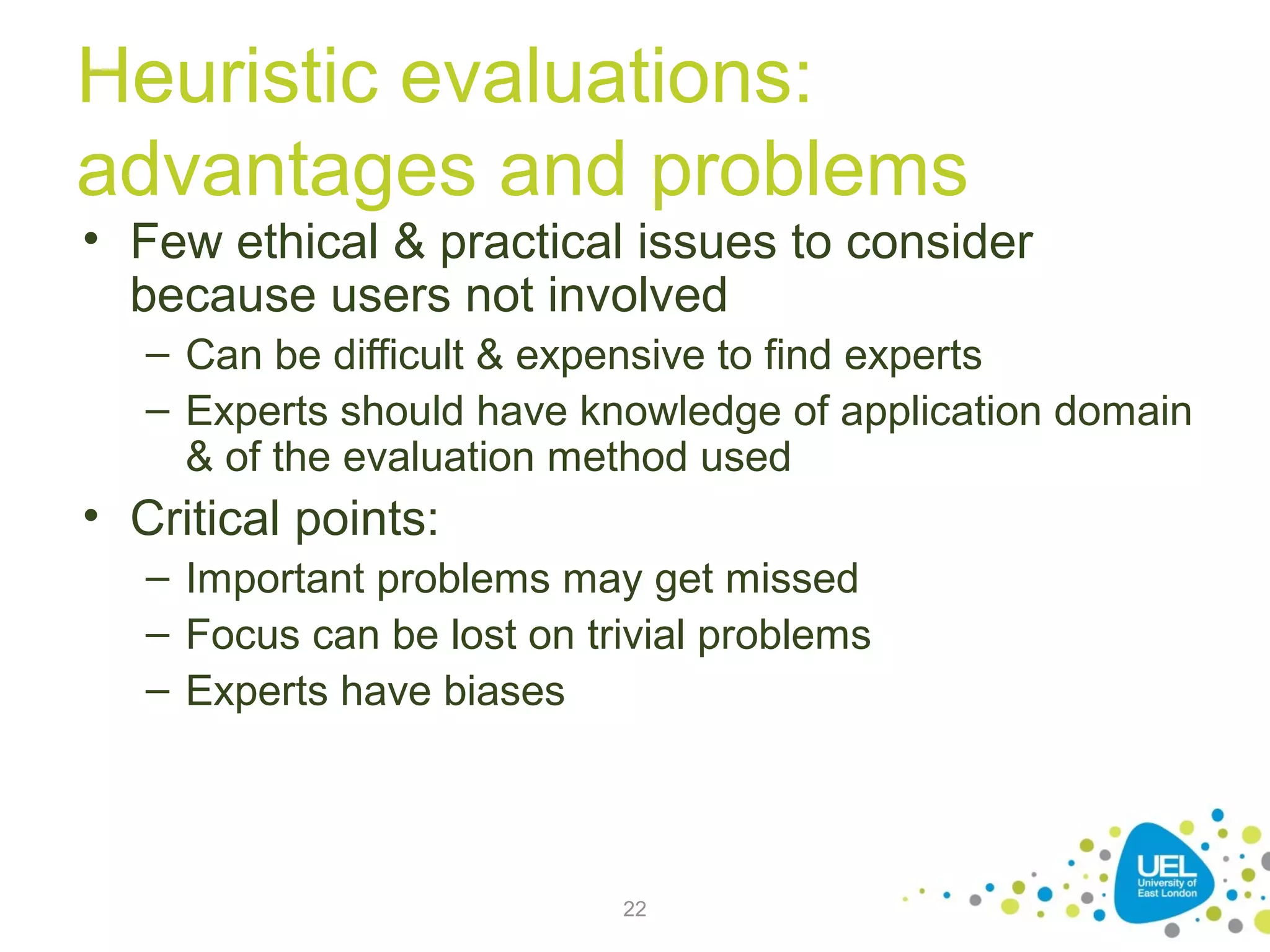

22. Heuristic evaluations:
advantages and problems
• Few ethical & practical issues to consider
because users not involved
– Can be difficult & expensive to find experts
– Experts should have knowledge of application domain
& of the evaluation method used
• Critical points:
– Important problems may get missed
– Focus can be lost on trivial problems
– Experts have biases
22

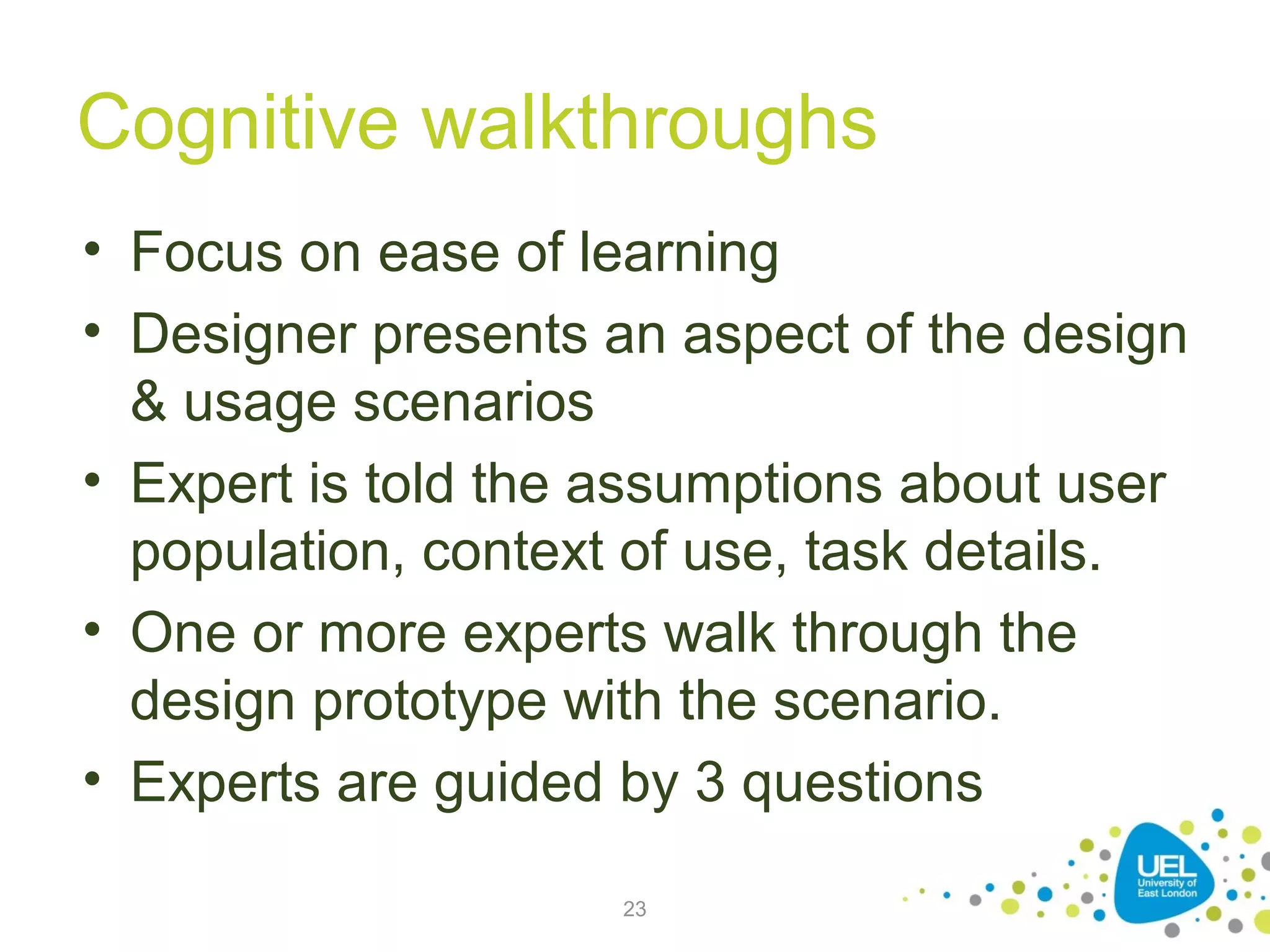

23. Cognitive walkthroughs
• Focus on ease of learning
• Designer presents an aspect of the design
& usage scenarios
• Expert is told the assumptions about user
population, context of use, task details.
• One or more experts walk through the
design prototype with the scenario.
• Experts are guided by 3 questions
23

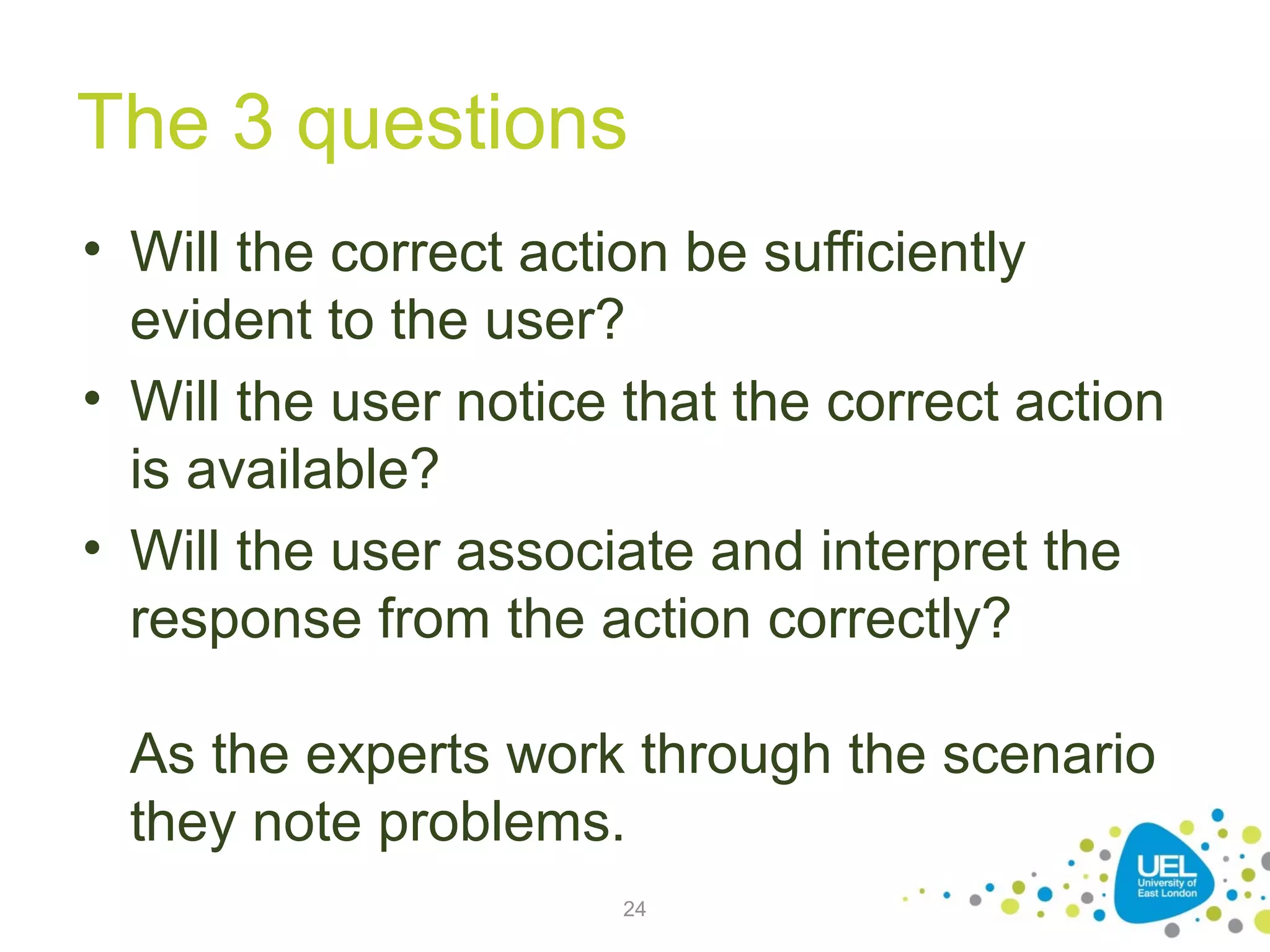

24. The 3 questions
• Will the correct action be sufficiently
evident to the user?
• Will the user notice that the correct action
is available?
• Will the user associate and interpret the
response from the action correctly?
As the experts work through the scenario
they note problems.
24

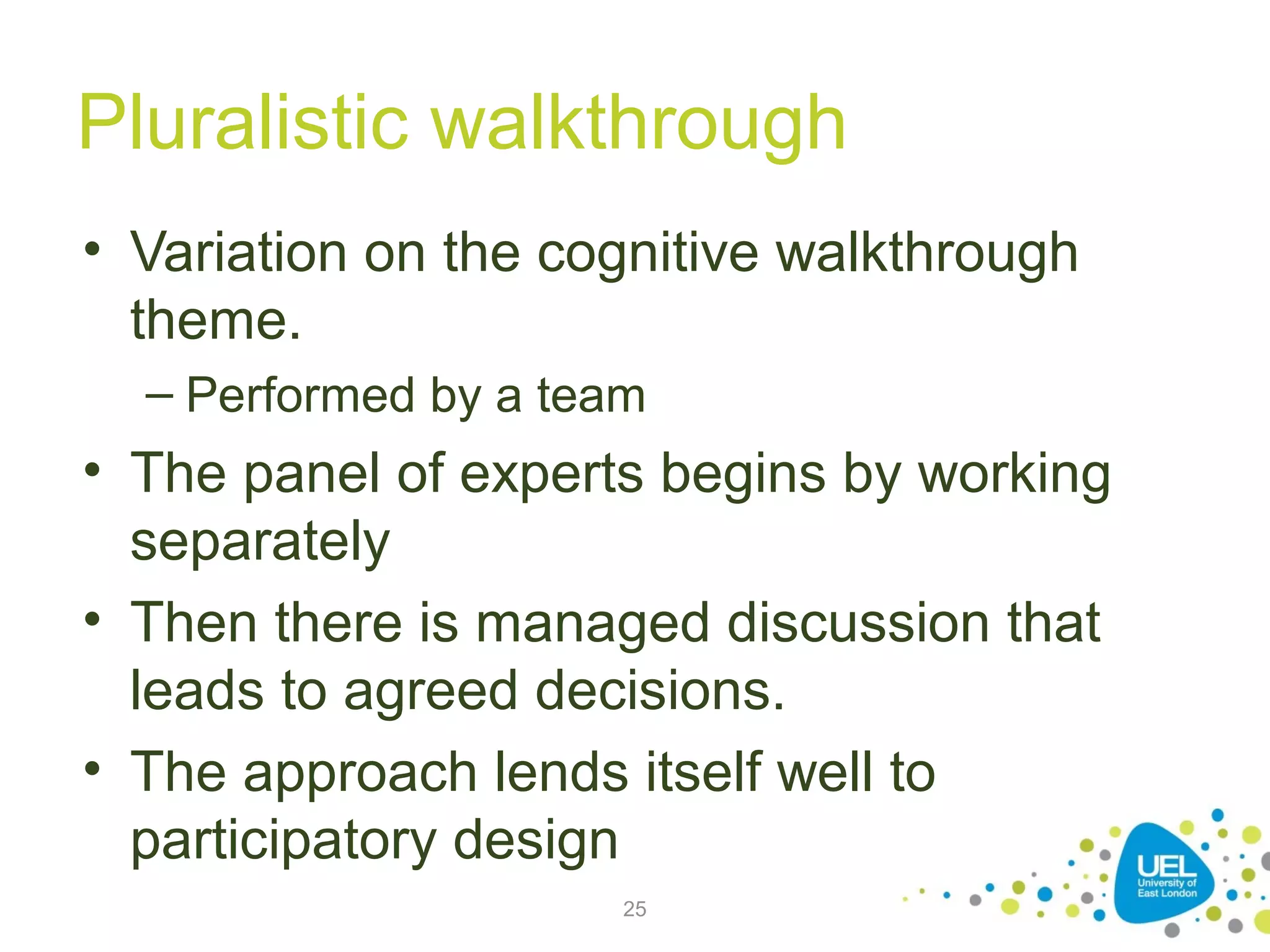

25. Pluralistic walkthrough
• Variation on the cognitive walkthrough
theme.
– Performed by a team
• The panel of experts begins by working
separately
• Then there is managed discussion that
leads to agreed decisions.
• The approach lends itself well to
participatory design
25

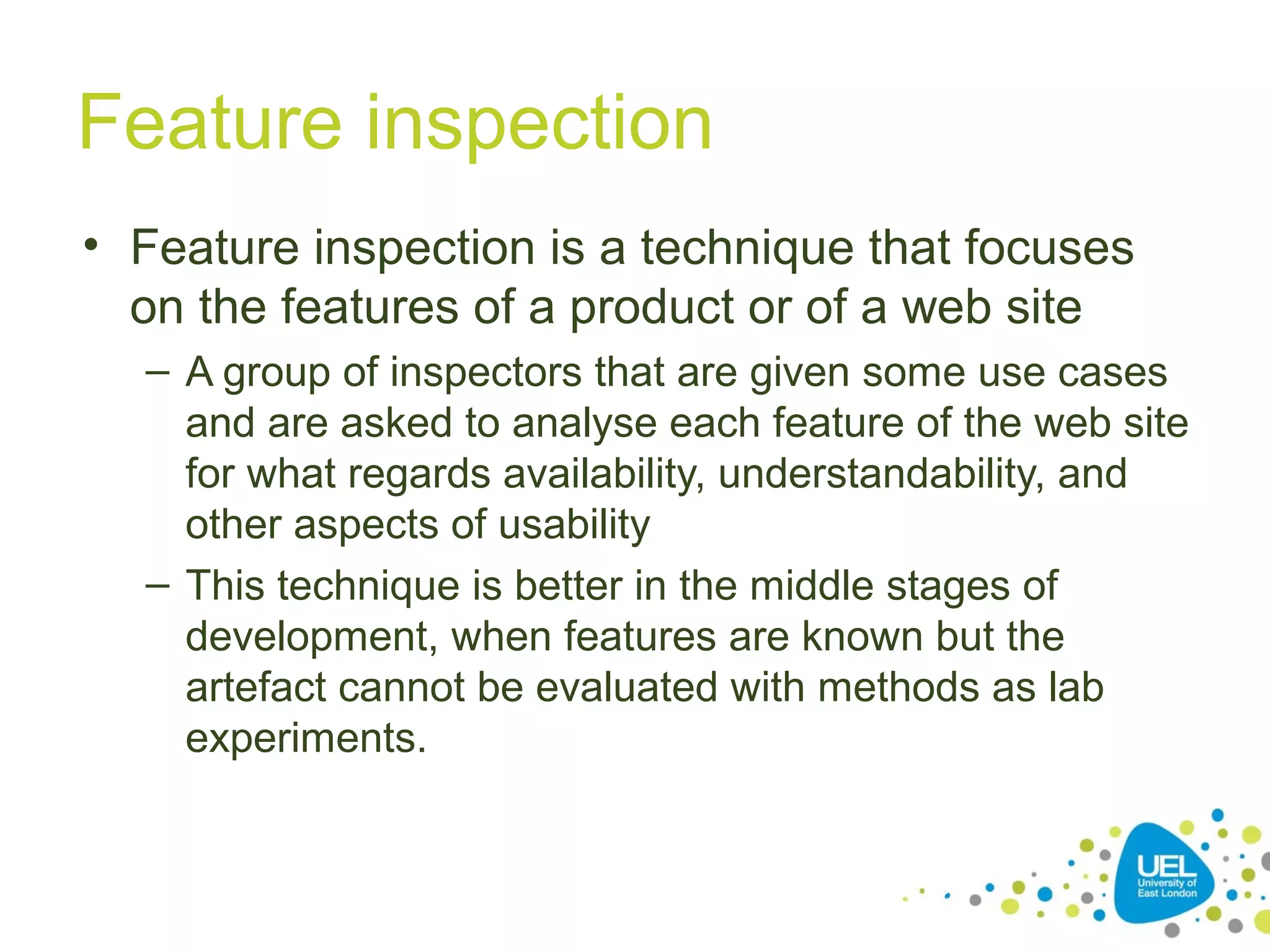

26. Feature inspection
• Feature inspection is a technique that focuses
on the features of a product or of a web site
– A group of inspectors that are given some use cases
and are asked to analyse each feature of the web site
for what regards availability, understandability, and
other aspects of usability
– This technique is better in the middle stages of
development, when features are known but the
artefact cannot be evaluated with methods as lab
experiments.
26

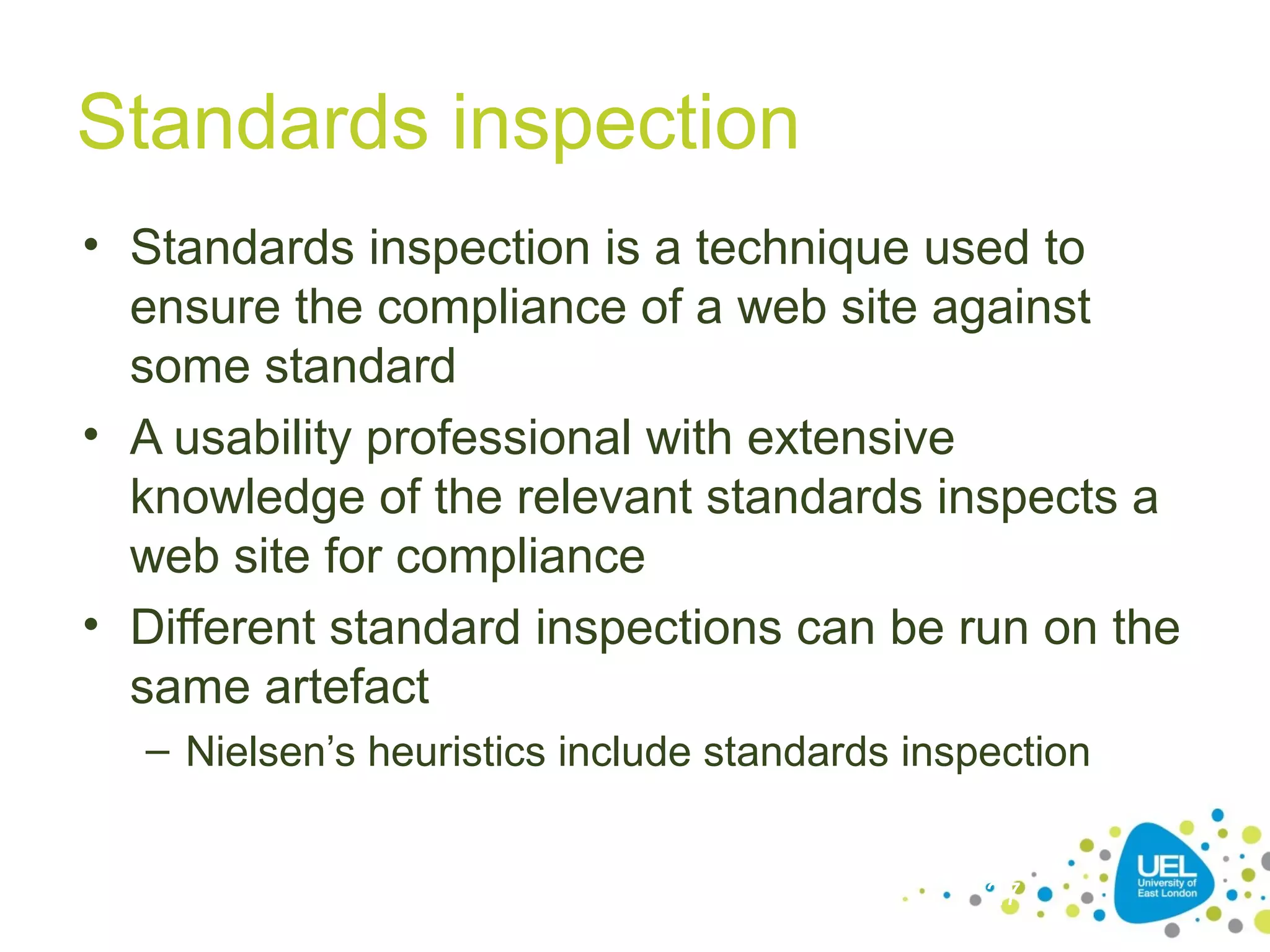

27. Standards inspection
• Standards inspection is a technique used to
ensure the compliance of a web site against
some standard
• A usability professional with extensive
knowledge of the relevant standards inspects a
web site for compliance
• Different standard inspections can be run on the
same artefact
– Nielsen’s heuristics include standards inspection
27

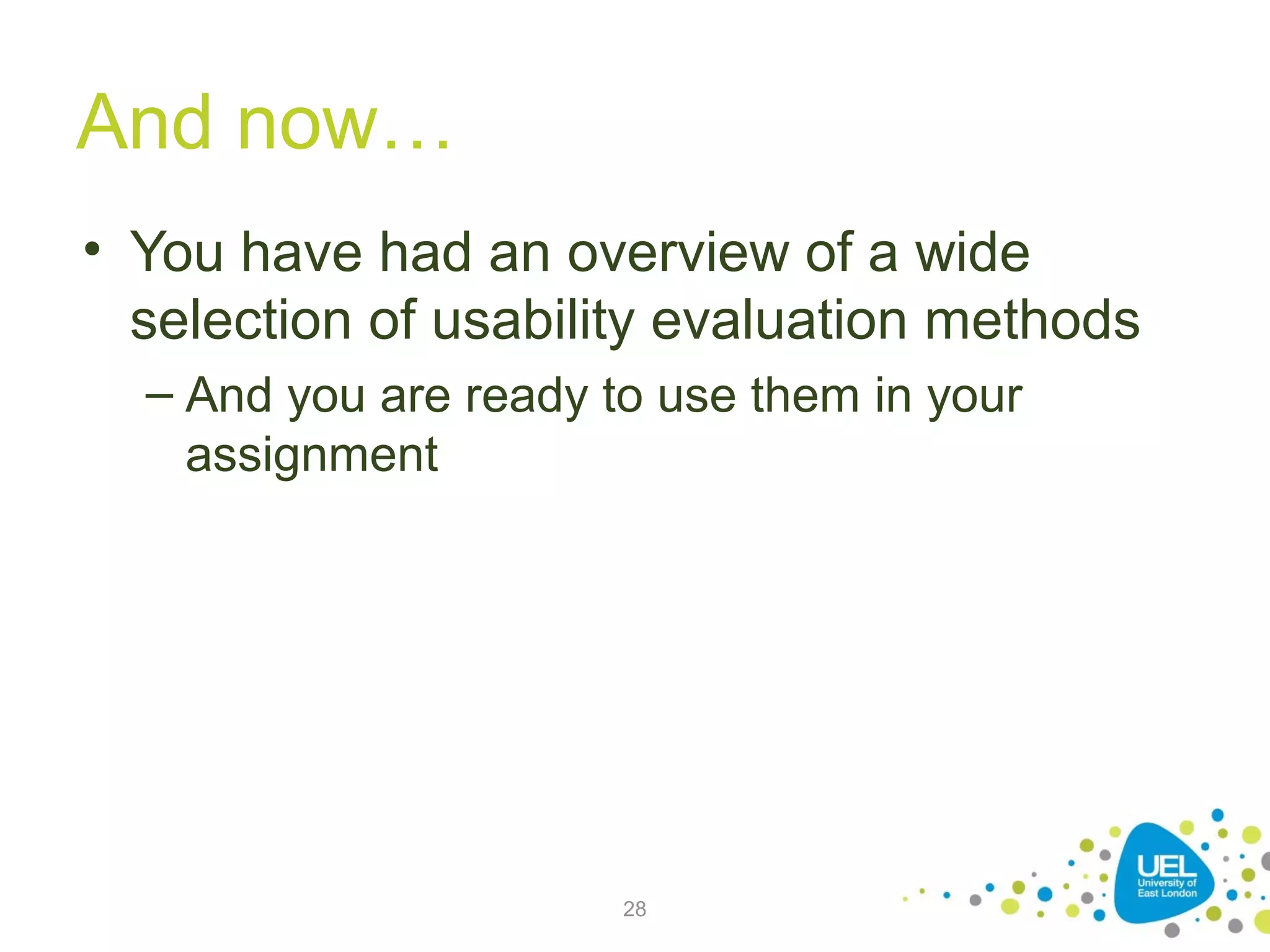

28. And now…
• You have had an overview of a wide
selection of usability evaluation methods
– And you are ready to use them in your
assignment
28
