Ilizarov ring fixator
- 1. ILIZAROV RING FIXATOR:BASICS DR. D. P. SWAMI AIIMS DPS

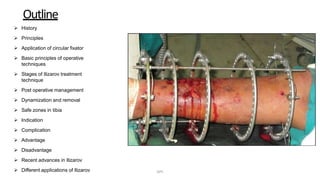

- 2. Outline History Principles Application of circular fixator Basic principles of operative techniques Stages of Ilizarov treatment technique Post operative management Dynamization and removal Safe zones in tibia Indication Complication Advantage Disadvantage Recent advances in Ilizarov Different applications of Ilizarov DPS
- 3. History • Born inSoviet Union. • In 1950, sent to Kurgan, Siberia to look after injured Russian soldier. • Inspiration- by shaft of bow harness on horse carriage. • Using spokes of bicycle from local bicycle shop, he devised ring external fixator. • Accidently he found new bone formation radiologically in a patient who turned compressing rods between rings in distraction rather than compression. • He revolutionized the treatment of difficult musculoskeletal problems. Professor Gavril Abramovich Ilizarov (1921-1992)DPS

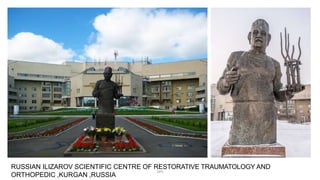

- 4. RUSSIAN ILIZAROV SCIENTIFICCENTRE OF RESTORATIVE TRAUMATOLOGY AND ORTHOPEDIC ,KURGAN ,RUSSIA DPS

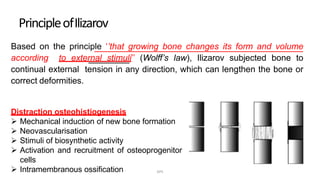

- 5. PrincipleofIlizarov Based on theprinciple ‘’that growing bone changes its form and volume according to external stimuli’’ (Wolff’s law), Ilizarov subjected bone to continual external tension in any direction, which can lengthen the bone or correct deformities. Distraction osteohistiogenesis Mechanical induction of new bone formation Neovascularisation Stimuli of biosynthetic activity Activation and recruitment of osteoprogenitor cells Intramembranous ossification DPS

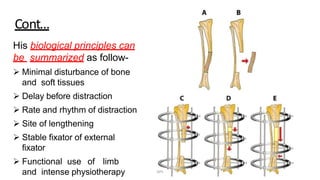

- 6. Cont… His biological principlescan be summarized as follow- Minimal disturbance of bone and soft tissues Delay before distraction Rate and rhythm of distraction Site of lengthening Stable fixator of external fixator Functional use of limb and intense physiotherapy DPS

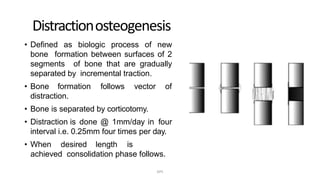

- 7. Distractionosteogenesis • Defined asbiologic process of new bone formation between surfaces of 2 segments of bone that are gradually separated by incremental traction. • Bone formation follows vector of distraction. • Bone is separated by corticotomy. • Distraction is done @ 1mm/day in four interval i.e. 0.25mm four times per day. • When desired length is achieved consolidation phase follows. DPS

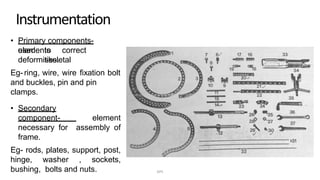

- 8. Instrumentation • Primary components- elementsusedto correct skeletaldeformities. Eg-ring, wire, wire fixation bolt and buckles, pin and pin clamps. • Secondary component- element necessary for assembly of frame. Eg- rods, plates, support, post, hinge, washer , sockets, bushing, bolts and nuts. DPS

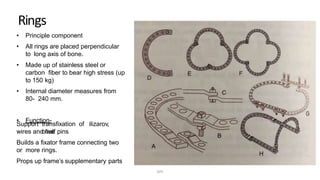

- 9. Rings • Principle component •All rings are placed perpendicular to long axis of bone. • Made up of stainless steel or carbon fiber to bear high stress (up to 150 kg) • Internal diameter measures from 80- 240 mm. • Function- Support transfixation of ilizarov, olivewires and half pins Builds a fixator frame connecting two or more rings. Props up frame’s supplementary parts DPS
- 10. Rings • Holes inthe ring used for introduction of threaded rod, a hinge or connector plate. • Two half ring can be connected to form full ring or oval ring. • Five-eight ring facilitate joint motion and is commonly deployed near knee and elbow joint. • It also facilitate introduction of cross wires, distinct advantage near these joint. • Omega rings is modified five-eight ring fits deltoid area of shoulder. • Five-eight ring and omega ring are weak so needed 3 point fixation to a full ring. DPS

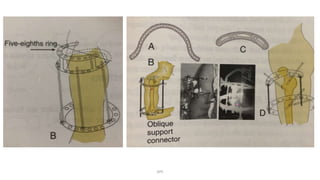

- 11.
- 12. Arches • Larger diameter thanhalfrings. • Extra holes for use at the level of proximal femur or humerus. • Does not limit joint motion. DPS

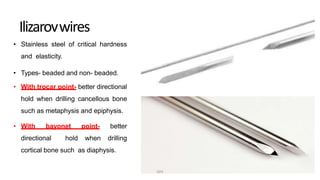

- 13. Ilizarovwires • Stainless steelof critical hardness and elasticity. • Types- beaded and non- beaded. • With trocar point- better directional hold when drilling cancellous bone such as metaphysis and epiphysis. • With bayonet point- better directional hold when drilling cortical bone such as diaphysis. DPS

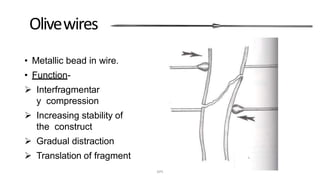

- 14. Olivewires • Metallic beadin wire. • Function- Interfragmentar y compression Increasing stability of the construct Gradual distraction Translation of fragment DPS

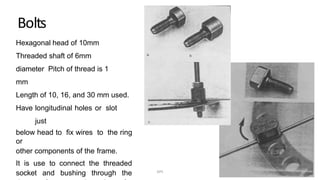

- 15. Bolts Hexagonal head of10mm Threaded shaft of 6mm diameter Pitch of thread is 1 mm Length of 10, 16, and 30 mm used. Have longitudinal holes or slot just below head to fix wires to the ring or other components of the frame. It is use to connect the threaded socket and bushing through the DPS

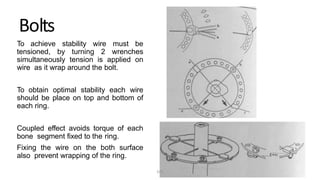

- 16. Bolts To achieve stabilitywire must be tensioned, by turning 2 wrenches simultaneously tension is applied on wire as it wrap around the bolt. To obtain optimal stability each wire should be place on top and bottom of each ring. Coupled effect avoids torque of each bone segment fixed to the ring. Fixing the wire on the both surface also prevent wrapping of the ring. DPS

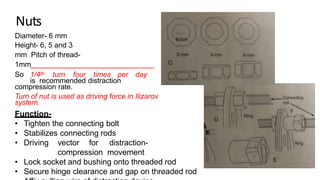

- 17. Nuts Diameter- 6 mm Height-6, 5 and 3 mm Pitch of thread- 1mm So 1/4th turn four times per day is recommended distraction compression rate. Turn of nut is used as driving force in Ilizarov system. Function- • Tighten the connecting bolt • Stabilizes connecting rods • Driving vector for distraction- compression movement • Lock socket and bushing onto threaded rod • Secure hinge clearance and gap on threaded rodDPS

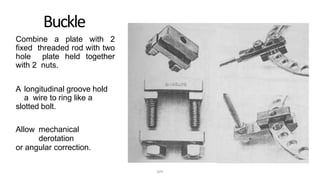

- 18. Buckle Combine a platewith 2 fixed threaded rod with two hole plate held together with 2 nuts. A longitudinal groove hold a wire to ring like a slotted bolt. Allow mechanical derotation or angular correction. DPS

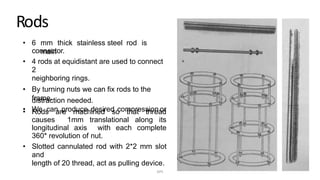

- 19. Rods • 6 mmthick stainless steel rod is mainconnector. • 4 rods at equidistant are used to connect 2 neighboring rings. • By turning nuts we can fix rods to the frame. • We can produce desired compression or distraction needed. • Rods are machined so that thread causes 1mm translational along its longitudinal axis with each complete 360* revolution of nut. • Slotted cannulated rod with 2*2 mm slot and length of 20 thread, act as pulling device. DPS

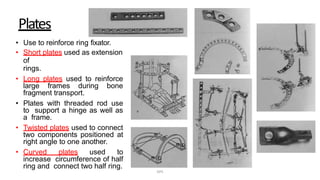

- 20. Plates • Use toreinforce ring fixator. • Short plates used as extension of rings. • Long plates used to reinforce large frames during bone fragment transport. • Plates with threaded rod use to support a hinge as well as a frame. • Twisted plates used to connect two components positioned at right angle to one another. • Curved plates used to increase circumference of half ring and connect two half ring. DPS

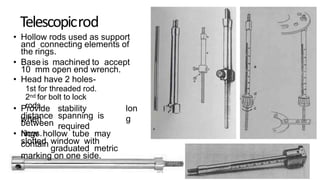

- 21. Telescopicrod • Hollow rodsused as support and connecting elements of the rings. • Base is machined to accept 10 mm open end wrench. • Head have 2 holes- 1st for threaded rod. 2nd for bolt to lock rods.• Provide stability when lon gdistance spanning is requiredbetween rings.• Now hollow tube may containslotted window with graduated metric marking on one side. DPS

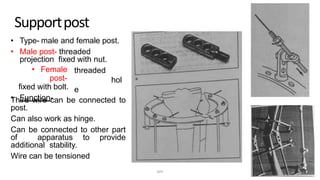

- 22. Supportpost • Type- maleand female post. • Male post- threaded projection fixed with nut. • Female post- fixed with bolt. • Function- threaded hol e Third wire can be connected to post. Can also work as hinge. Can be connected to other part of apparatus to provide additional stability. Wire can be tensioned DPS

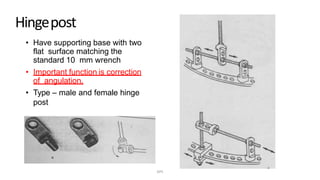

- 23. Hingepost • Have supportingbase with two flat surface matching the standard 10 mm wrench • Important function is correction of angulation. • Type – male and female hinge post DPS

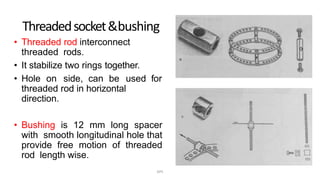

- 24. Threadedsocket&bushing • Threaded rodinterconnect threaded rods. • It stabilize two rings together. • Hole on side, can be used for threaded rod in horizontal direction. • Bushing is 12 mm long spacer with smooth longitudinal hole that provide free motion of threaded rod length wise. DPS
- 25. Washer • Washe r fixatio n use toraise a bolt to the wire wir e thatdoes not sit directly on ring.• Types - conic al • Slotte d simple, slotted and washer allow wirefixation on one side in special circumstances. • Conical washer act as swivel for connecting rings or plates which are not parallel. DPS
- 26. Tensioners • Used totension wire to an exact force, thus improvising stability for entire bone frame construct. wir e • Types- dynamometric and standard tensioner. • Wire should be tensioned from 50-130 kg. • Amount of tensioning depends upon- Weight of patient Local bone quality Treatment plan Local frame construct • Standard wire tensioner not calibrated and cumbersome to use. DPS

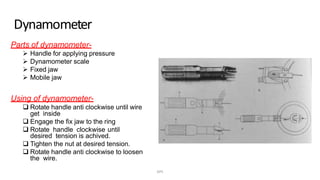

- 27. Dynamometer Parts of dynamometer- Handle for applying pressure Dynamometer scale Fixed jaw Mobile jaw Using of dynamometer- Rotate handle anti clockwise until wire get inside Engage the fix jaw to the ring Rotate handle clockwise until desired tension is achived. Tighten the nut at desired tension. Rotate handle anti clockwise to loosen the wire. DPS
- 28. Assemblyofcircularfixator Major considerations- • Stabilityof fixation of the frame to the bone. • The prevention of gross bone fragment motion.• Ability to manipulate bone and to perform necessary fragment movement such as of thes e straightening, bending, distraction, compression, rotation and combination movement. Construction of frame can be done in advance or during surgery. Important aspect of frame assembly- • Ring positioning • Ring inclination • Ring orientation • Ring level • Spacing between skin and ring DPS

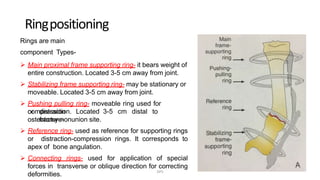

- 29. Ringpositioning Rings are main componentTypes- Main proximal frame supporting ring- it bears weight of entire construction. Located 3-5 cm away from joint. Stabilizing frame supporting ring- may be stationary or moveable. Located 3-5 cm away from joint. Pushing pulling ring- moveable ring used for compressionor distraction. Located 3-5 cm distal to fracture-osteotomy-nonunion site. Reference ring- used as reference for supporting rings or distraction-compression rings. It corresponds to apex of bone angulation. Connecting rings- used for application of special forces in transverse or oblique direction for correcting deformities. DPS

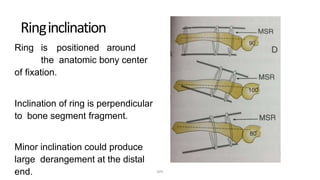

- 30. Ringinclination Ring is positionedaround the anatomic bony center of fixation. Inclination of ring is perpendicular to bone segment fragment. Minor inclination could produce large derangement at the distal end. DPS
- 31. Ringorientation Rings at differentlevel and in different inclination are oriented so that the connections of half rings must aligned on same straight line. After correction rings arrive in parallel position to each other and bone fragments in good alignment, however half rings connections are rotated location. DPS

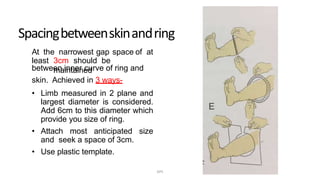

- 32. Spacingbetweenskinandring At the narrowestgap space of at least 3cm should be maintainedbetween inner curve of ring and skin. Achieved in 3 ways- • Limb measured in 2 plane and largest diameter is considered. Add 6cm to this diameter which provide you size of ring. • Attach most anticipated size and seek a space of 3cm. • Use plastic template. DPS

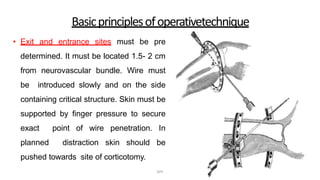

- 33. Basicprinciplesofoperativetechnique • Exit andentrance sites must be pre determined. It must be located 1.5- 2 cm from neurovascular bundle. Wire must be introduced slowly and on the side containing critical structure. Skin must be supported by finger pressure to secure exact point of wire penetration. In planned distraction skin should be pushed towards site of corticotomy. DPS

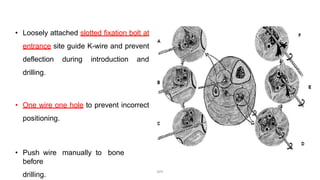

- 34. • Loosely attachedslotted fixation bolt at entrance site guide K-wire and prevent deflection during introduction and drilling. • One wire one hole to prevent incorrect positioning. • Push wire manually to bone before drilling. DPS

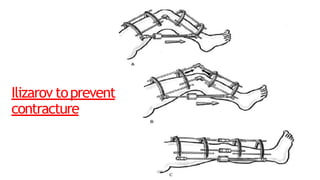

- 35. Prior to passingwire each muscle should be stretched maximally to its functional length to prevent contracture. DPS

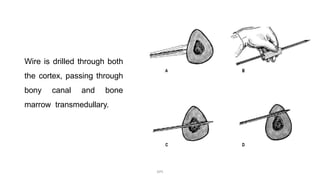

- 36. Wire is drilledthrough both the cortex, passing through bony canal and bone marrow transmedullary. DPS
- 37. For stability 2wire criss crossing at an angle as close to 90* are required. (if angle ⩽ 30*- chance of side to side ring displacement; If angle 30-45*- chance of ring sheering movement.) DPS

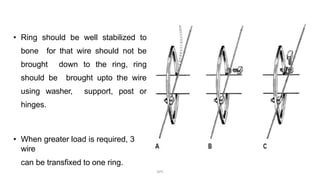

- 38. • Ring shouldbe well stabilized to bone for that wire should not be brought down to the ring, ring should be brought upto the wire using washer, support, post or hinges. • When greater load is required, 3 wire can be transfixed to one ring. DPS

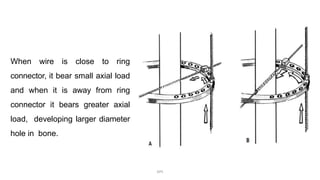

- 39. When wire isclose to ring connector, it bear small axial load and when it is away from ring connector it bears greater axial load, developing larger diameter hole in bone. DPS

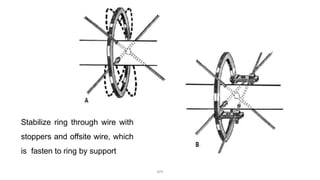

- 40. Stabilize ring throughwire with stoppers and offsite wire, which is fasten to ring by support DPS

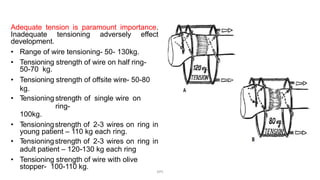

- 41. Adequate tension isparamount importance. Inadequate tensioning adversely effect development. • Range of wire tensioning- 50- 130kg. • Tensioning strength of wire on half ring- 50-70 kg. • Tensioning strength of offsite wire- 50-80 kg. • Tensioning strength of single wire on ring- 100kg. • Tensioningstrength of 2-3 wires on ring in young patient – 110 kg each ring. • Tensioningstrength of 2-3 wires on ring in adult patient – 120-130 kg each ring • Tensioning strength of wire with olive stopper- 100-110 kg. DPS

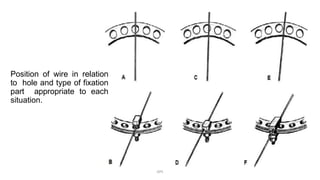

- 42. Position of wirein relation to hole and type of fixation part appropriate to each situation. DPS

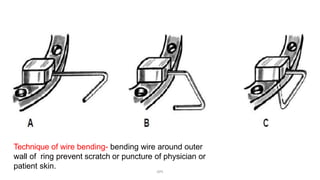

- 43. Technique of wirebending- bending wire around outer wall of ring prevent scratch or puncture of physician or patient skin. DPS

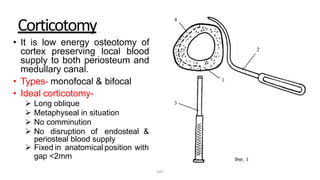

- 44. Corticotomy • It islow energy osteotomy of cortex preserving local blood supply to both periosteum and medullary canal. • Types- monofocal & bifocal • Ideal corticotomy- Long oblique Metaphyseal in situation No comminution No disruption of endosteal & periosteal blood supply Fixed in anatomical position with gap <2mm DPS

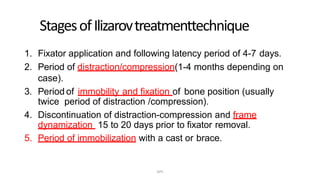

- 45. StagesofIlizarovtreatmenttechnique 1. Fixator applicationand following latency period of 4-7 days. 2. Period of distraction/compression(1-4 months depending on case). 3. Period of immobility and fixation of bone position (usually twice period of distraction /compression). 4. Discontinuation of distraction-compression and frame dynamization 15 to 20 days prior to fixator removal. 5. Period of immobilization with a cast or brace. DPS

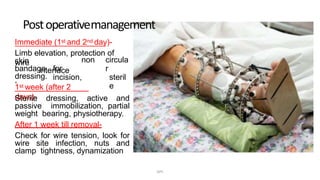

- 46. Immediate (1st and2nd day)- Limb elevation, protection of wireskin interface , non bandage for incision, circula r steril e dressing. 1st week (after 2 days)-Sterile dressing, active and passive immobilization, partial weight bearing, physiotherapy. After 1 week till removal- Check for wire tension, look for wire site infection, nuts and clamp tightness, dynamization Postoperativemanagement DPS
- 47. Dynamizationofapparatus When dynamization isdone? Satisfactory appearance of regenerate calcification, complete recanalization and formation of cortex is seen. What to do for dynamization? Loosen the nuts at sides of connecting rod. Purpose of dynamization? Allow static fixator to distribute weight across fracture site, as a result elasticity of callous decreases, bone stiffens and strength increases. Thus axial dynamization helps to restore cortical contact and produce stable fracture with inheren t mechanic al pattern support . DPS

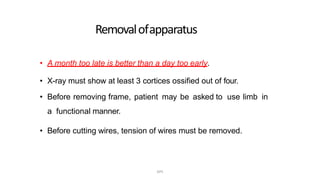

- 48. Removalofapparatus • A monthtoo late is better than a day too early. • X-ray must show at least 3 cortices ossified out of four. • Before removing frame, patient may be asked to use limb in a functional manner. • Before cutting wires, tension of wires must be removed. DPS
- 49. Safezonesintibia The diagram demonstratesthe wide medial and lateral access to the tibia that is available for pin insertion. Zone 1- 13-15 mm distal to the articular surface Zone 2- 7-8 cm distal to the knee joint Zone 3- 12 cm distal to the knee jointZone 4- Just inferior to the midpointbetween the knee and ankle joints Zone 5- 12 cm from the ankle joint Zone 6- 2 cm proximal to ankle joint DPS

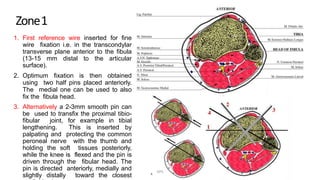

- 50. Zone1 1. First referencewire inserted for fine wire fixation i.e. in the transcondylar transverse plane anterior to the fibula (13-15 mm distal to the articular surface). 2. Optimum fixation is then obtained using two half pins placed anteriorly. The medial one can be used to also fix the fibula head. 3. Alternatively a 2-3mm smooth pin can be used to transfix the proximal tibio- fibular joint, for example in tibial lengthening. This is inserted by palpating and protecting the common peroneal nerve with the thumb and holding the soft tissues posteriorly, while the knee is flexed and the pin is driven through the fibular head. The pin is directed anteriorly, medially and slightly distally toward the closest DPS

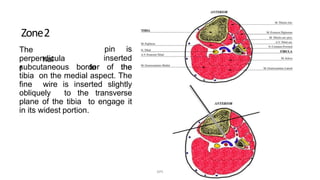

- 51. Zone2 The hal f perpendicula r pin is inserted to thesubcutaneousborder of the tibia on the medial aspect. The fine wire is inserted slightly obliquely to the transverse plane of the tibia to engage it in its widest portion. DPS
- 52. Zone3 Tibial fixatio n medial- oblique is with a wire and a halfpin inserted into the medial aspect of the tibia perpendicular to the medial aspect. DPS

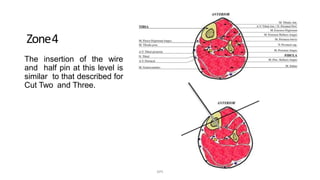

- 53. Zone4 The insertion ofthe wire and half pin at this level is similar to that described for Cut Two and Three. DPS

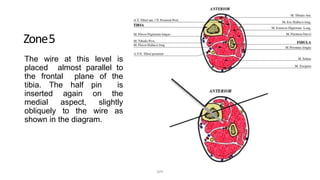

- 54. Zone5 The wire atthis level is placed almost parallel to the frontal plane of the tibia. The half pin is inserted again on the medial aspect, slightly obliquely to the wire as shown in the diagram. DPS
- 55. Zone6 A distal tibialreference wire is the initial fixation used, with a direct medial to lateral wire. The fibular stabilization takes place through a lateral oblique wire directed from posterolateral to anteromedial. Additional stabilisation can be achieved with a wire directed form anterolateral to posteromedial, anterior to the neurovascular bundle. Alternatively a stabilizing half pin can be inserted anteriorly, lateral to the tibialis anterior tendon. This should be done with care using a limited open technique through a small incision, which is dilated with an artery forceps. The forceps is used to displace the soft tissues and therefore protect the anterior neurovascular bundle, allowing safe pre- drilling and insertion of a 5 or 6mm half pin. DPS

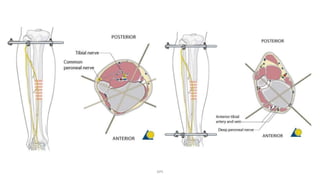

- 56.

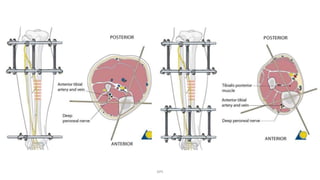

- 57.

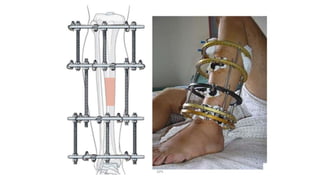

- 58.

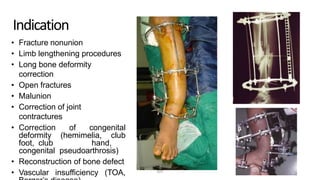

- 59. Indication • Fracture nonunion •Limb lengthening procedures • Long bone deformity correction • Open fractures • Malunion • Correction of joint contractures • Correction of congenital deformity (hemimelia, club foot, club hand, congenital pseudoarthrosis) • Reconstruction of bone defect • Vascular insufficiency (TOA, DPS
- 60. Complication • Late complication- •Pin site infection • Pain at corticotomy site and during lengthening • Soft tissue contractures and joint stiffness • Osteoporosis • Reflex sympathetic dystrophy • Progression of angular deformity or creation of new one after fixator removal. • Limb swelling • Early complication- • Vascular complications • Neurological complications • Comminuted fracture of osteotomized bone • Local skin tightness • Psychologic incompatibility consolidation at DPS
- 61. Advantage • Minimally invasive •Relatively easy application • Allows deformity to be corrected in 3 dimensions (axial, angular & translational) • Patient is mobile through out course of treatment • Early physiotherapy prevents joint stiffness and contractures. • Bone grafting in unnecessary • Simple hard ware removal DPS
- 62. Disadvantage • Mechanical • Distractionof fracture site • Pin bone interface failure • Bulky frame • Refracture • Longer duration of surgery • Instability of apparatus • Breaking or loosening of wires • Long learning curve • Biological • Pin tract infection • Neurovascular injury • Tethering of muscle • Soft tissue contracture • Pain • Oedema • Joint stiffness • Osteolysis around wi DPS

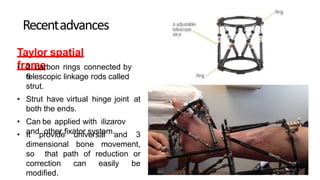

- 63. Recentadvances Taylor spatial frame• 2carbon rings connected by 6telescopic linkage rods called strut. • Strut have virtual hinge joint at both the ends. • Can be applied with ilizarov and other fixator system.• It provide universal and 3 dimensional bone movement, so that path of reduction or correction can easily be modified. DPS

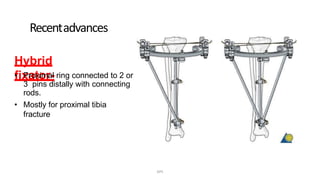

- 64. Recentadvances Hybrid fixator-• Proximal ringconnected to 2 or 3 pins distally with connecting rods. • Mostly for proximal tibia fracture DPS
- 65.

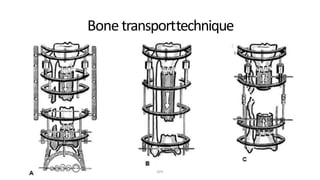

- 66.
- 67.

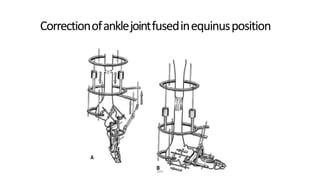

- 68.
- 69.

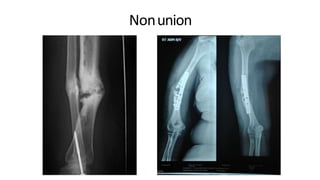

- 70.
- 71.

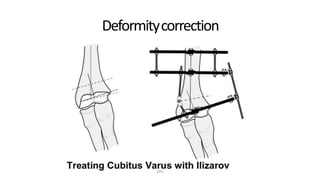

- 72.
- 73.

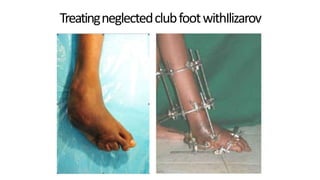

- 74.

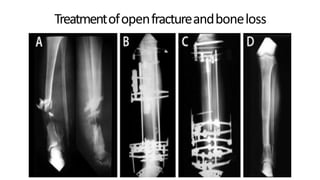

- 75.
- 76.
- 77.
- 78.

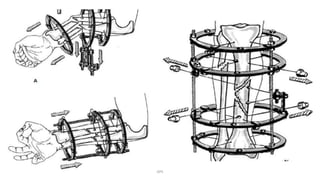

- 79.
