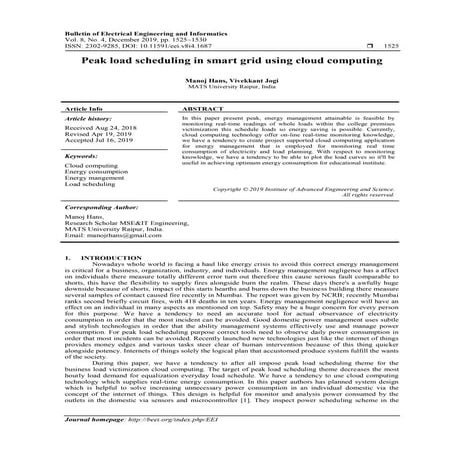

Peak load scheduling in smart grid using cloud computingjournalBEEI
In this paper present peak, energy management attainable is feasible by monitoring real-time readings of whole loads within the college premises victimization this schedule loads so energy saving is possible. Currently, cloud computing technology offer on-line real-time monitoring knowledge, we have a tendency to create project supported cloud computing application for energy management that is employed for monitoring real time consumption of electricity and load planning. With respect to monitoring knowledge, we have a tendency to be able to plot the load curves so it'll be useful in achieving optimum energy consumption for educational institute.
IOT-ENABLED GREEN CAMPUS ENERGY MANAGEMENT SYSTEM ijesajournal
Increasing cost and demand for energy is imposing us to find smart ways to save energy. To satisfy the energy requirement and at the same time to cut down the cost, consumption of energy must be monitored and controlled. Energy consumption can be well managed with the capabilities of the Internet of Things (IoT). This paper presents an architecture towards IoT-enabled Green campus Energy Management System. In the proposed system, the data acquisition module collects energy consumption information from each device and transmits it to the cloud platform for further processing and analysis. Since lighting and air conditioning appliances contribute to most of the electricity consumption in the campus environment, they have been taken as a prototype to validate the proposed architecture.
The International Journal of Engineering and Science (The IJES)theijes
The International Journal of Engineering & Science is aimed at providing a platform for researchers, engineers, scientists, or educators to publish their original research results, to exchange new ideas, to disseminate information in innovative designs, engineering experiences and technological skills. It is also the Journal's objective to promote engineering and technology education. All papers submitted to the Journal will be blind peer-reviewed. Only original articles will be published.
The IOT based energy meter is based on Arduino. This system eliminates the human involvement in electricity maintenance. The theft of electricity increases the costs paid by customers. Hence this system is used for the detection of theft. The energy meter is connected to the Arduino. The Arduino checks the main meter and sub meter reading. If the difference between the main meter and sub meter is occurred then the message that theft has occurred will be displayed on the LCD display as well as on the thingspeak. The comparison between the main meter and sub meter reading is used to check the theft status. Customer can be access the thingspeak from anywhere on the globe at the anytime using the consumer number. Hence the customer can be easily access their energy usage. Mrs Sandhya Shinde | Mr. Yogesh Yadav | Miss. Bharti Sontakke | Miss. Pratiksha Zapake"IoT Based Smart Energy Meter" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-1 | Issue-6 , October 2017, URL: http://www.ijtsrd.com/papers/ijtsrd5761.pdf http://www.ijtsrd.com/engineering/electronics-and-communication-engineering/5761/iot-based-smart-energy-meter/mrs-sandhya-shinde
Peak load scheduling in smart grid using cloud computingjournalBEEI
In this paper present peak, energy management attainable is feasible by monitoring real-time readings of whole loads within the college premises victimization this schedule loads so energy saving is possible. Currently, cloud computing technology offer on-line real-time monitoring knowledge, we have a tendency to create project supported cloud computing application for energy management that is employed for monitoring real time consumption of electricity and load planning. With respect to monitoring knowledge, we have a tendency to be able to plot the load curves so it'll be useful in achieving optimum energy consumption for educational institute.
It’s no wonder that smart meter rollouts have skyrocketed with supporting business case findings such as ComEd customers saving potentially $2.8 billion on their electric bills over the 20-year life of the smart meters. Largely due to the aggressive U.S. effort to modernize its electric grid pros and cons (for example PG&E will now offer ‘opt out option’) for smart meters are still aggressively being debated; nonetheless the number of smart meters installed in the U.S. has ballooned over the past several years – with just over fifty utilities deploying the bulk of the investment. Zpryme analyzed data from the EIA in an effort to not only breakdown smart meter deployments by utility but also to zero in on the drivers that will bridge the U.S. energy divide.
An advanced meters which performs smart functions to simplify the billing procedure and to modernize the grids which can be very helpful to the electricity providers and consumers in future. These meters simplifies the tampering and other non technical problems and also offers accurate electricity bills to consumers which avoids paying of high electricity bills.
DISTRIBUTED TRANSFORMER ENERGY METER USING GSM TECHNOLOGYecij
The Distributed transformer meter is located in all user building blocks and a server is preserved from the facility contributor. The electricity is major part for consuming the energy level with cost and obtaining the energy used by customers can be maintain in every sequence of manual process is very difficult to identify. There are some common techniques that are used by customers for theft and leakage of power in one particular transformer and these robberies are detected using GSM. These meters provide the automatic readings data with help of Apriori algorithm. It will reduce the labor task and financial expenditure by adopting the automatic meter reading is to provide the bill entry process. This is very useful and helps to
households consumers.
An IOT based smart metering development for energy management systemIJECEIAES
The worldwide energy demand is increasing and hence necessity measures need to be taken to reduce the energy wastage with proper metering infrastructure in the buildings. A Smart meter can be used to monitor electricity consumption of customers in the smart grid technology. For allocating the available resources proper energy demand management is required. During the past years, various methods are being utilized for energy demand management to precisely calculate the requirements of energy that is yet to come. A large system presents a potential esteem to execute energy conservation as well as additional services linked to energy services, extended as a competent with end user is executed. The supervising system at the utilities determines the interface of devices with significant advantages, while the communication with the household is frequently proposing particular structures for appropriate buyer-oriented implementation of a smart meter network. Also, this paper concentrates on the estimation of vitality utilization. In this paper energy is measured in units and also product arrangement is given to create bill for energy consumption and implementing in LabVIEW software. An IOT based platform is created for remote monitoring of the metering infrastructure in the real time. The data visualization is also carried out in webpage and the data packet loss is investigated in the remote monitoring of the parameters.
IRJET-A Novel Approach for Automatic Monitoring of Power Consumption using S...IRJET Journal
In Smart Grid, the smart meters are versatile role with intelligent capabilities in order to meet the consumer's demands and their each objective. Smart meter can measure and communicate detailed real time electricity usage, facilitate remote real time monitoring and control power consumptions and consumers are provided with real time pricing and analyzed usage information, which is a technical data to be transmitted to the grid, who are utility providers. More detailed feedback on each appliance to the user.This paper gives an overview of the security issues regarding power grids. It is targeted to use case scenarios, namely smart metering, and home gateway for applications like electric cars and home multimedia contents distribution over the power grid.
Design and Implementation of Wireless Sensor Node for WSN for Automatic Meter...paperpublications3
Abstract:Deploying an embedded technology, a wireless sensor node is designed and implemented for establishment of Wireless Sensor Network (WSN) for automatic meter reading. The amount of power consumed by the load is extracted by passing the respective current through 1Ohm resistor. The analog voltage observed across it is digitized by employing on chip ADC of AVR Atmega 8L microcontroller. The ADC of 10 bit resolution helps to enhance preciseness in the data. Using principle of energy meter, the power consumed is determined and depicted in the terms of watts and units as well. An embedded firmware is developed by employing CodeVisionAVR, the IDE, which is dedicated for AVR family of microcontrollers. Employing an ubiquitous technology, the Zigbee technology, RF communication is established at 2.4GHz of ISM band. The Zigbee RF module is interfaced to the system and programmed by using X-CTU. Each node (End Devices) is assigned with its own ID and disseminates the data to the co-ordinator node, which is interfaced to the base station. The present wireless sensor network is operating in star technology and following IEEE 802.15.4 standards, it is operating with great reliability. The WSN is suitable for electric power distribution and control boards.
Keyword:Automatic Meter Reading, AVR Microcontroller, Embedded technology, IEEE802.15.4, WSN, Zigbee technology.
Vision and Strategy for India’s Electricity Metering Infrastructure of the fu...IJERA Editor
In the country like India with over millions of kilometers of transmission lines and billions of consumers, task of
collecting information related to energy consumption of every consumer is a critical job. The meter reader has to
travel a long distance and take reading manually to collect the data. This reading is then feed in a central
database. Then the bill gets generated later with help of software. This project intends to reduce this tedious
work by automating the process of collecting data from consumer’s electricity meter. This would be done by
implementing Advanced Metering Infrastructure that unites all the various metering devices of a building in one
network and provides the metering data in real-time, locally and from remote. Here, AMI uses ZigBee to build
up high-rise building area network of connected metering devices.
It’s no wonder that smart meter rollouts have skyrocketed with supporting business case findings such as ComEd customers saving potentially $2.8 billion on their electric bills over the 20-year life of the smart meters. Largely due to the aggressive U.S. effort to modernize its electric grid pros and cons (for example PG&E will now offer ‘opt out option’) for smart meters are still aggressively being debated; nonetheless the number of smart meters installed in the U.S. has ballooned over the past several years – with just over fifty utilities deploying the bulk of the investment. Zpryme analyzed data from the EIA in an effort to not only breakdown smart meter deployments by utility but also to zero in on the drivers that will bridge the U.S. energy divide.
An advanced meters which performs smart functions to simplify the billing procedure and to modernize the grids which can be very helpful to the electricity providers and consumers in future. These meters simplifies the tampering and other non technical problems and also offers accurate electricity bills to consumers which avoids paying of high electricity bills.
DISTRIBUTED TRANSFORMER ENERGY METER USING GSM TECHNOLOGYecij
The Distributed transformer meter is located in all user building blocks and a server is preserved from the facility contributor. The electricity is major part for consuming the energy level with cost and obtaining the energy used by customers can be maintain in every sequence of manual process is very difficult to identify. There are some common techniques that are used by customers for theft and leakage of power in one particular transformer and these robberies are detected using GSM. These meters provide the automatic readings data with help of Apriori algorithm. It will reduce the labor task and financial expenditure by adopting the automatic meter reading is to provide the bill entry process. This is very useful and helps to
households consumers.
An IOT based smart metering development for energy management systemIJECEIAES
The worldwide energy demand is increasing and hence necessity measures need to be taken to reduce the energy wastage with proper metering infrastructure in the buildings. A Smart meter can be used to monitor electricity consumption of customers in the smart grid technology. For allocating the available resources proper energy demand management is required. During the past years, various methods are being utilized for energy demand management to precisely calculate the requirements of energy that is yet to come. A large system presents a potential esteem to execute energy conservation as well as additional services linked to energy services, extended as a competent with end user is executed. The supervising system at the utilities determines the interface of devices with significant advantages, while the communication with the household is frequently proposing particular structures for appropriate buyer-oriented implementation of a smart meter network. Also, this paper concentrates on the estimation of vitality utilization. In this paper energy is measured in units and also product arrangement is given to create bill for energy consumption and implementing in LabVIEW software. An IOT based platform is created for remote monitoring of the metering infrastructure in the real time. The data visualization is also carried out in webpage and the data packet loss is investigated in the remote monitoring of the parameters.
IRJET-A Novel Approach for Automatic Monitoring of Power Consumption using S...IRJET Journal
In Smart Grid, the smart meters are versatile role with intelligent capabilities in order to meet the consumer's demands and their each objective. Smart meter can measure and communicate detailed real time electricity usage, facilitate remote real time monitoring and control power consumptions and consumers are provided with real time pricing and analyzed usage information, which is a technical data to be transmitted to the grid, who are utility providers. More detailed feedback on each appliance to the user.This paper gives an overview of the security issues regarding power grids. It is targeted to use case scenarios, namely smart metering, and home gateway for applications like electric cars and home multimedia contents distribution over the power grid.
Design and Implementation of Wireless Sensor Node for WSN for Automatic Meter...paperpublications3
Abstract:Deploying an embedded technology, a wireless sensor node is designed and implemented for establishment of Wireless Sensor Network (WSN) for automatic meter reading. The amount of power consumed by the load is extracted by passing the respective current through 1Ohm resistor. The analog voltage observed across it is digitized by employing on chip ADC of AVR Atmega 8L microcontroller. The ADC of 10 bit resolution helps to enhance preciseness in the data. Using principle of energy meter, the power consumed is determined and depicted in the terms of watts and units as well. An embedded firmware is developed by employing CodeVisionAVR, the IDE, which is dedicated for AVR family of microcontrollers. Employing an ubiquitous technology, the Zigbee technology, RF communication is established at 2.4GHz of ISM band. The Zigbee RF module is interfaced to the system and programmed by using X-CTU. Each node (End Devices) is assigned with its own ID and disseminates the data to the co-ordinator node, which is interfaced to the base station. The present wireless sensor network is operating in star technology and following IEEE 802.15.4 standards, it is operating with great reliability. The WSN is suitable for electric power distribution and control boards.
Keyword:Automatic Meter Reading, AVR Microcontroller, Embedded technology, IEEE802.15.4, WSN, Zigbee technology.
Vision and Strategy for India’s Electricity Metering Infrastructure of the fu...IJERA Editor
In the country like India with over millions of kilometers of transmission lines and billions of consumers, task of
collecting information related to energy consumption of every consumer is a critical job. The meter reader has to
travel a long distance and take reading manually to collect the data. This reading is then feed in a central
database. Then the bill gets generated later with help of software. This project intends to reduce this tedious
work by automating the process of collecting data from consumer’s electricity meter. This would be done by
implementing Advanced Metering Infrastructure that unites all the various metering devices of a building in one
network and provides the metering data in real-time, locally and from remote. Here, AMI uses ZigBee to build
up high-rise building area network of connected metering devices.
A Comprehensive Review of Artificial Neural Network Techniques Used for Smart...ssuser793b4e
The recent developments in computational science and smart metering have led to a gradual replacement of the traditional load forecasting methods by artificial intelligent (AI) technology. The smart meters for residential buildings have become available on the market, and since then, various studies on load forecasting have been published. Contingency planning, load shedding, management strategies and commercialization strategies are all influenced by load forecasts. Predicting a lower load than the actual load results in utilities not committing the necessary generation units and therefore incurring higher costs due to the use of peak power plants; on the other hand, predicting a higher load than actual will result in higher costs because unnecessary baseline units are stated and not used . Artificial Neural Networks (ANNs) provide an accurate approach to the problem of energy forecasting and have the advantage of not requiring the user to have a clear, understanding of the underlying mathematical relationship between input and output. The aim of this work is to a carry-out Comprehensive Review of Artificial Neural Network Techniques Used for Smart Meter-Embedded forecasting System.
This is a complete automated solution for the existing energy distribution and monitoring system in
India,which can monitor the meter readings continuously and take necessary actions to maintain the power
grid stable. A Power Line Communication (PLC) based modem is integrated with each electronic energy
meter. Through PLC the meters communicate with the coordinator. Coordinator makes use of GPRS modem
to upload/download data to/from internet. A personal computer with an internet connection at the other end,
which contains the database acts as the billing point. Live meter reading sent back to this billing point
periodically and these details are updated in a central database. An interactive, user friendly graphical
interface is present at user end. All the energy logs, notices from the Government, billing details and average
statistics will be available here. The system splits the loads into critical loads and non critical loads. This
makes the distribution system more intelligent. More over prior information about the power cuts can be
done. We can easily implement many add-ons such as energy demand prediction, real time dynamic tariff as
a function of demand and supply and so on.
This is a complete automated solution for the existing energy distribution and monitoring system in
India,which can monitor the meter readings continuously and take necessary actions to maintain the power
grid stable. A Power Line Communication (PLC) based modem is integrated with each electronic energy
meter. Through PLC the meters communicate with the coordinator. Coordinator makes use of GPRS modem
to upload/download data to/from internet. A personal computer with an internet connection at the other end,
which contains the database acts as the billing point. Live meter reading sent back to this billing point
periodically and these details are updated in a central database. An interactive, user friendly graphical
interface is present at user end. All the energy logs, notices from the Government, billing details and average
statistics will be available here. The system splits the loads into critical loads and non critical loads. This
makes the distribution system more intelligent. More over prior information about the power cuts can be
done. We can easily implement many add-ons such as energy demand prediction, real time dynamic tariff as
a function of demand and supply and so on.
This is a complete automated solution for the existing energy distribution and monitoring system in
India,which can monitor the meter readings continuously and take necessary actions to maintain the power
grid stable. A Power Line Communication (PLC) based modem is integrated with each electronic energy
meter. Through PLC the meters communicate with the coordinator. Coordinator makes use of GPRS modem
to upload/download data to/from internet. A personal computer with an internet connection at the other end,
which contains the database acts as the billing point. Live meter reading sent back to this billing point
periodically and these details are updated in a central database. An interactive, user friendly graphical
interface is present at user end. All the energy logs, notices from the Government, billing details and average
statistics will be available here. The system splits the loads into critical loads and non critical loads. This
makes the distribution system more intelligent. More over prior information about the power cuts can be
done. We can easily implement many add-ons such as energy demand prediction, real time dynamic tariff as
a function of demand and supply and so on.
Building the smart grid means integration of advanced information, communication and networking
technologies in the traditional electric grid to make it smarter and faster in making decisions. IoT platform
provides very high redundancy, virtually unlimited data storage and worldwide data access. Through the IoT,
consumers, manufacturers and utility providers will uncover new ways to manage devices and ultimately conserve
resources and save money by using smart meters, home gateways and connected appliances. In this paper, we
propose an architecture for monitoring power in smart grid applications using wireless sensor network (WSN)
technology embedded in an Internet of Things platform (IoT). The advantages of the proposed architecture are: 1)
it ensures privacy and provides secure access to data; 2) it enables users, service providers and application
developers to interact with the platform through user interfaces.
One promising means of reducing the transmission and distribution losses is through the distributed generation of electricity closer to the end user such as net metering schemes. And the other approach is managing customer consumption of electricity in response to supply conditions, for example, stimulating electricity customers to reduce their consumption at critical times or in response to market prices, thereby reducing the peak demand for electricity. In order to assist consumers to make informed decisions on how to manage and control their electricity consumption, consumers should have a system to monitor their real-time electricity consumption as well as a communication network with the service provider. But traditional electricity meters only record energy consumption progressively over time, normally in monthly basis and provide no information of when the energy was consumed. Therefore the necessity of Advanced Metering Infrastructure (AMI) has been emerged to address the above matters. Nowadays most of the nations are looking to rollout into Smart Meters enabling faster automated communication of information to consumers on their real time electricity consumption, and to service providers.
a smart meter electronically measures how much energy is being used and how much it costs, and then communicates it to the energy supplier and the customer. Smart meters can also enable the provision of new services to consumers as it can record consumption of electric energy in intervals of an hour or less, and also gather data for remote reporting using two-way communication between the meter and central system.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Read| The latest issue of The Challenger is here! We are thrilled to announce that our school paper has qualified for the NATIONAL SCHOOLS PRESS CONFERENCE (NSPC) 2024. Thank you for your unwavering support and trust. Dive into the stories that made us stand out!
Francesca Gottschalk - How can education support child empowerment.pptxEduSkills OECD
Francesca Gottschalk from the OECD’s Centre for Educational Research and Innovation presents at the Ask an Expert Webinar: How can education support child empowerment?
Francesca Gottschalk - How can education support child empowerment.pptx
Ijariie1172
1. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 287
Development of Continuous Data Acquisition
Algorithm
1
Jay B. Gadhvi, 2
Prof. Kunjal Mehta
1,2
Department of Electronics and Communication Engineering,
L.J. Institute of Engineering & Technology, Ahmedabad, India- 382210
ABSTRACT
With the recent advances in the smart grid technology and the distribution of smart meters we can easily
determinethe usage of electricity of consumers at any moment. Data collection is the essential operation for
smart grid. In the smart grid the smart meter will generates the electricity usage and data collector unit will
collect the usage periodically from the meters. This paper actually focus on the data acquisition using cloud
based technology and also gives direction to smart meters, smart grid, and advance metering infrastructure
(AMI). Smart grid uses two way flows of electricity and information and for that deployment of smart meters in
large amount should be done. Nowadays development of E-energy takes place which allows customers to became
active participants and control their consumption using cloud based technology and this algorithm application
will show consumption with providing the recharge facility to customers. To achieve efficient status monitoring,
control and billing large amount of smart meters should be deployed and produce large amount of data. Than
that data will be sent to the cloud and stored as well so that customers will able to know the real time
consumption of electricity usage.
Key words: Smart grid, Cloud based technology, Smart meter
1. INTRODUCTION
Energy savings nowadays is very important aspect. This requires intelligent distribution, monitoring and
management of energy. A solution of this problem is advance meter reading (AMR) which means to collect data
from different kind of meter. In this way we can measure usage of water, gas and energy can be remotely
monitored. This is in differing with the manual meter reading which is actually based on people we have
employed to collect the data from the meters. That is having lots of disadvantage and error of prone thus the get
into modern buildings may be limited for security reasons; to collect data from meters from homes, different
apartments, buildings that require a lot of time and usual data is collected once a month or once in a two months
which may be a too small resolution. Automatic meter reading is the technology of automatically collecting
consumption, analysis, and status datafrom water meter or energy meter devices like gas devices, electric devices
and transferring that information to a server for billing process, problem solving, and examining it. This
technology mainly saves providers the cost of periodic trips to each physical location to read a meter data.
Another benefit is that billing made by the utility that would be from real time consumption so accuracy will be
maintained. This timely information coupled with analysis can help both utility providers and customers for
better control the use and production of electric energy, AMR technologies include mobile and network
technologies based on telephony platforms, radio frequency (RF), or power line, transmission. So we should have
particular infrastructure for such problems andthat would be advanced metering infrastructure (AMI).
[1]
2. REVIEW OF RESEARCH PAPERS
2.1 PAPER – 1 Cloud-based smart metering system (IEEE 2013, Authors: Peter Dukan, Attila Kovari)
This paper gives direction to the potential of smart meters and cloud based technology. Several developments has
been started in the field of energy efficiency and energy savings. These developments are user friendly
appearance and we can say real time data processing of smart meters which optimizing the consumption of

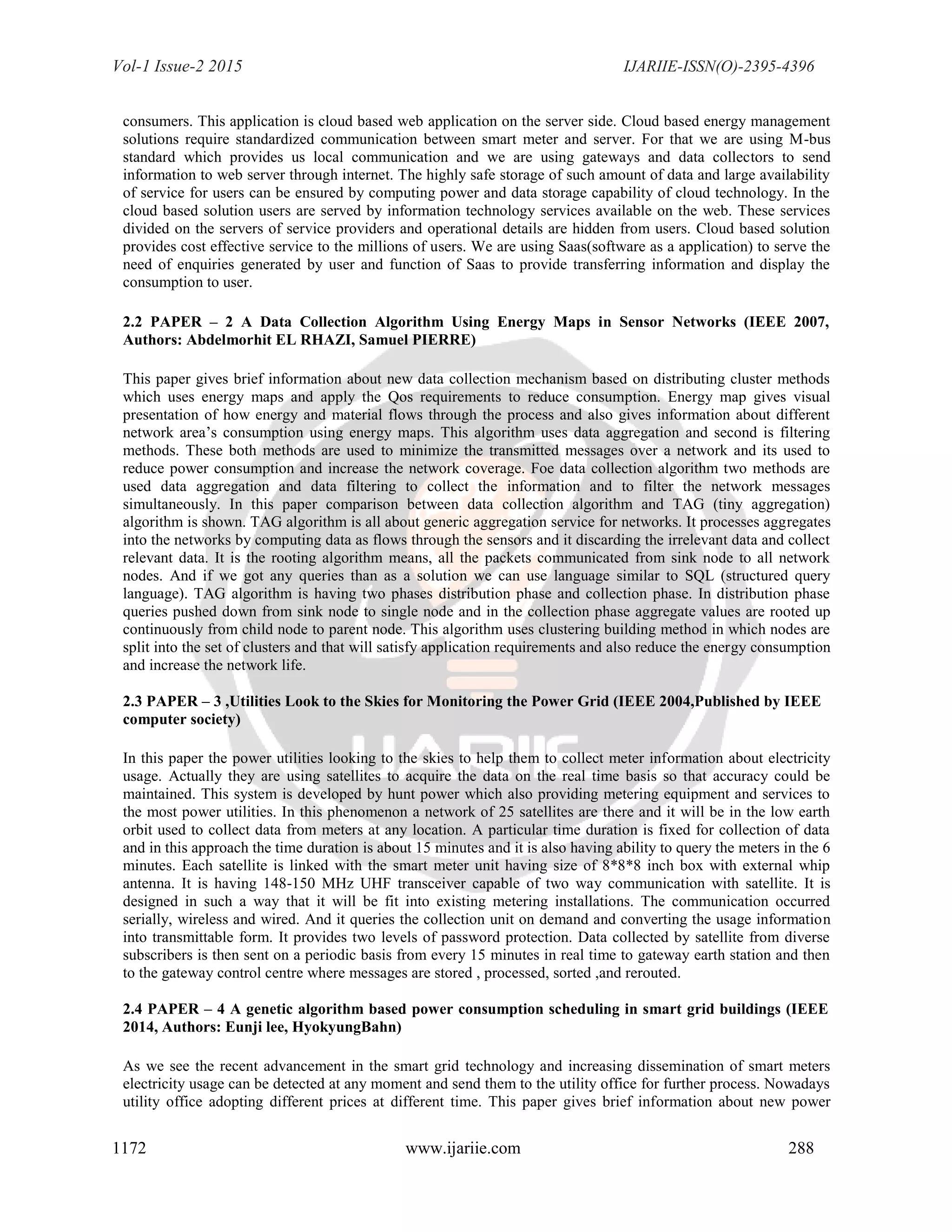

2. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 288
consumers. This application is cloud based web application on the server side. Cloud based energy management
solutions require standardized communication between smart meter and server. For that we are using M-bus
standard which provides us local communication and we are using gateways and data collectors to send
information to web server through internet. The highly safe storage of such amount of data and large availability
of service for users can be ensured by computing power and data storage capability of cloud technology. In the
cloud based solution users are served by information technology services available on the web. These services
divided on the servers of service providers and operational details are hidden from users. Cloud based solution
provides cost effective service to the millions of users. We are using Saas(software as a application) to serve the
need of enquiries generated by user and function of Saas to provide transferring information and display the
consumption to user.
2.2 PAPER – 2 A Data Collection Algorithm Using Energy Maps in Sensor Networks (IEEE 2007,
Authors: Abdelmorhit EL RHAZI, Samuel PIERRE)
This paper gives brief information about new data collection mechanism based on distributing cluster methods
which uses energy maps and apply the Qos requirements to reduce consumption. Energy map gives visual
presentation of how energy and material flows through the process and also gives information about different
network area‟s consumption using energy maps. This algorithm uses data aggregation and second is filtering
methods. These both methods are used to minimize the transmitted messages over a network and its used to
reduce power consumption and increase the network coverage. Foe data collection algorithm two methods are
used data aggregation and data filtering to collect the information and to filter the network messages
simultaneously. In this paper comparison between data collection algorithm and TAG (tiny aggregation)
algorithm is shown. TAG algorithm is all about generic aggregation service for networks. It processes aggregates
into the networks by computing data as flows through the sensors and it discarding the irrelevant data and collect
relevant data. It is the rooting algorithm means, all the packets communicated from sink node to all network
nodes. And if we got any queries than as a solution we can use language similar to SQL (structured query
language). TAG algorithm is having two phases distribution phase and collection phase. In distribution phase
queries pushed down from sink node to single node and in the collection phase aggregate values are rooted up
continuously from child node to parent node. This algorithm uses clustering building method in which nodes are
split into the set of clusters and that will satisfy application requirements and also reduce the energy consumption
and increase the network life.
2.3 PAPER – 3 ,Utilities Look to the Skies for Monitoring the Power Grid (IEEE 2004,Published by IEEE
computer society)
In this paper the power utilities looking to the skies to help them to collect meter information about electricity
usage. Actually they are using satellites to acquire the data on the real time basis so that accuracy could be
maintained. This system is developed by hunt power which also providing metering equipment and services to
the most power utilities. In this phenomenon a network of 25 satellites are there and it will be in the low earth
orbit used to collect data from meters at any location. A particular time duration is fixed for collection of data
and in this approach the time duration is about 15 minutes and it is also having ability to query the meters in the 6
minutes. Each satellite is linked with the smart meter unit having size of 8*8*8 inch box with external whip
antenna. It is having 148-150 MHz UHF transceiver capable of two way communication with satellite. It is
designed in such a way that it will be fit into existing metering installations. The communication occurred
serially, wireless and wired. And it queries the collection unit on demand and converting the usage information
into transmittable form. It provides two levels of password protection. Data collected by satellite from diverse
subscribers is then sent on a periodic basis from every 15 minutes in real time to gateway earth station and then
to the gateway control centre where messages are stored , processed, sorted ,and rerouted.
2.4 PAPER – 4 A genetic algorithm based power consumption scheduling in smart grid buildings (IEEE
2014, Authors: Eunji lee, HyokyungBahn)
As we see the recent advancement in the smart grid technology and increasing dissemination of smart meters
electricity usage can be detected at any moment and send them to the utility office for further process. Nowadays
utility office adopting different prices at different time. This paper gives brief information about new power
3. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 289
consumption scheduling algorithm for smart buildings which adopts smart meters and real time pricing of
electricity. Normally the prices are high at peak hours for example in the afternoon on hot days in the summer.
Consumer can detect the price change through smart meters and reduce electricity usage when the prices are low
and increase usage when prices are high. To achieve all economic benefit of dynamic pricing it is imperative that
electric devices equipped with automatic price aware scheduling mechanism requires so that minimum action
came from the consumers. For this smart socket have been developed and placed between appliance and
electricity outlet, and monitors electricity usage information of appliance and it is also having ability to
communicate with smart meters and control electrical state of appliance. In this algorithm standardized
communication protocols for smart appliance are developed and it also establishes HAN (home area network)
whose function is to perform communication with smart meters and controlling remotely.
2.5 PAPER – 5 Efficient Data Collection for Smart Grid Using Wireless Sensor Networks(IEEE
2013,Authors: Kwangsoo Kim, Hyochan Bang, Seong-il Jin)
The focus of this paper is on central data collection quickly and without collisions. As a solution we divide a tree
in which network constructs several branches and each meter having its own data collection path unit to leaf
meter. The novel method used to avoid the collisions between query and query responses and in between query
responses. Nowadays wireless sensor networks begun to use in the smart grids including advance meter reading
(AMR) and advance metering infrastructure (AMI), here AMI and AMR are used to achieve the load balancing.
It roughly consists of centralized server, smart meters and DCU (data collection unit). A server manages lots of
DCU‟s and a DCU manages hundreds of smart meters. In this system WSN (wireless sensor network) used in
between smart meter and DCU. A DCU in a smart meter is similar to sink node in a sensor network and smart
meter acts as a sensor node. DCU‟s periodically collect power consumption and status data from all meters in the
system within the time interval and transmit the data to server. After collecting metering values it will create
dynamic price for consumers than calculate cost according to the consumption of electricity usage than to settle
on the basic charge for exchanging power at power exchange and after that calculate total power consumption.
One drawback is that while collecting electricity usage if some data is lost than billing process will not
completed accurately and even if usage utility will show more consumption than complaint can be occurred. So
as a solution conventional DCU‟s are developed by electric utilities which will be collect data without collisions.
3. Data acquisition
It is the process of measuring electrical or physical phenomenon such as voltage, current, temperature, and pressure
with the computer. It consists of data acquisition measurement hardware current sensor, computer with
programmable software. The aim is to measure of quantity, the data and that will be stored in the cloud. The user
will be able to access his account also able to know his consumption.
Fig 1 Data acquisition flow
3.1 Current sensor
For the data acquisition we have to use acs712 current sensor of 5 ampere. Actually it is a device which detects
electric current (ac or dc) and generates signal proportional to it and this current sensor gives analogue output so we
have to use analogue to digital converter. And for that we need mcp3008 ic which is analogue to digital conversion
integrated chip to the raspberry pi. This enables raspberry pi to interpret analogue voltages that is emitted by
analogue based sensor and then reflect the measure of any physical characteristic.

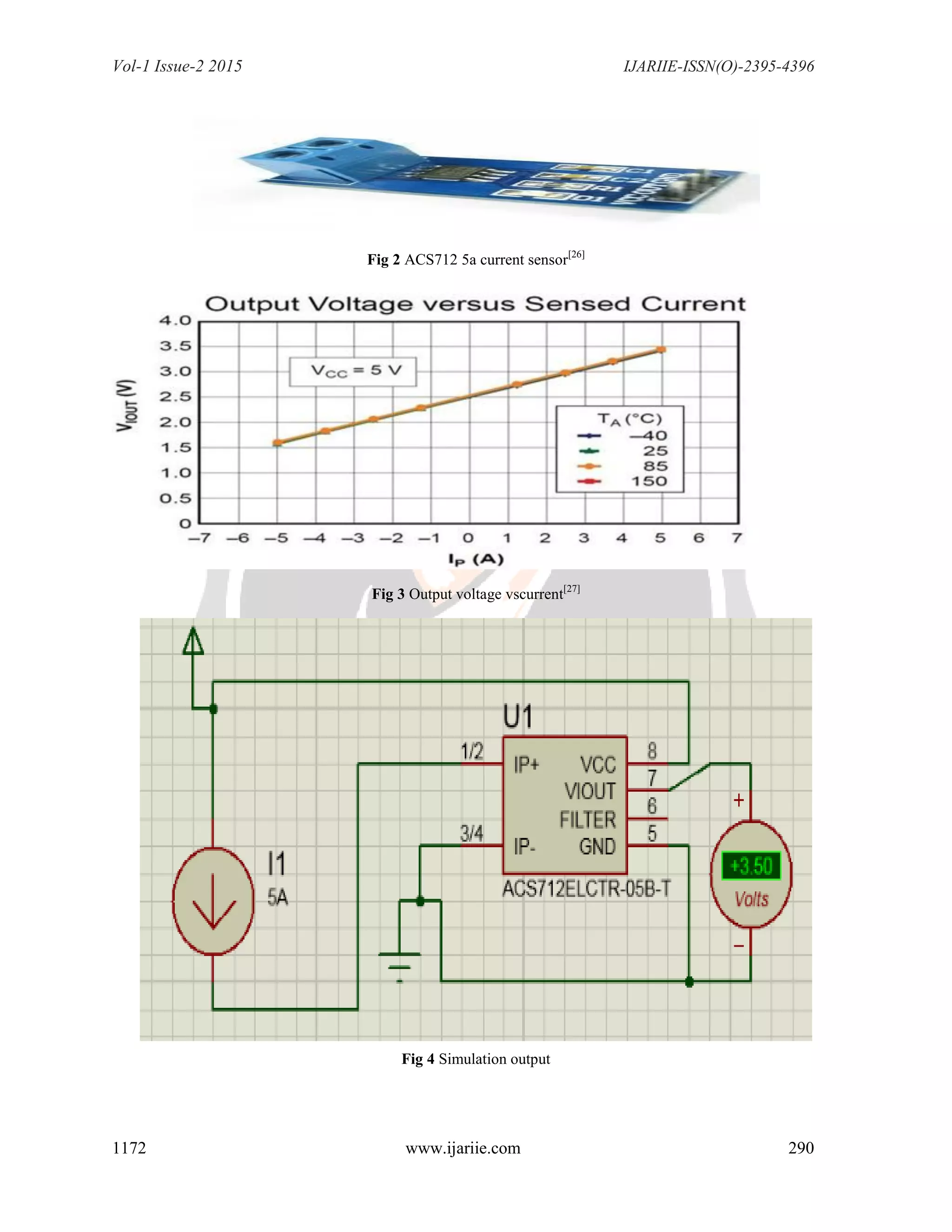

Current sensor Data acquisition device Computer to display data
5. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 291
4 Advance metering infrastructure (AMI)
Advanced metering infrastructure (AMI) is the integrated system of smart meters, communications networks,
data management systems which enables two way communications between utility and consumer. Advanced
Metering Infrastructure (AMI) are systems which measure data, collect data, analyse energy usage information,
and communicate with meters like as electricity meters, gas meters and water meters on request. These systems
include hardware, software, communications, energy displays and controllers, customer associated systems,
meter data management (MDMS) software. Government agencies and utilities are turning toward advanced
metering infrastructure (AMI) systems as they are part of larger Smart Grid initiatives. Advance metering
infrastructure extends current advanced meter reading technology with giving two ways meter communications,
and commands to be sent toward the home for multiple purposes, including time-of-use pricing, demand-
response actions. The network between the measurement devices and business systems allows collection of data
and distribution of information to customers, suppliers, utility companies. This allows these businesses to
findings contribute in demand response services. Customers can use information submitted by the system to
change their normal consumption patterns to take benefit of less prices. AMI differs from traditional advance
meter reading (AMR) in that it enables two-way communications with the meter.
Fig 5 Advance metering infrastructure (AMI)
[10]
5. Data sheet of Raspberry Pi B+ model
Fig 6 Raspberry pi B+ model
[14]
6. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 292
Product Name: Raspberry Pi Model B+
Product Description: The Raspberry Pi Model B+ incorporates a number of enhancements and new features.
Improved power consumption, increased connectivity and greater IO are among the improvements to this
powerful, small and lightweight ARM based computer.
Chip: It uses Broadcom BCM2835 SoC
Core architecture: It‟s having core architecture of ARM11
CPU: 700 MHz of Low Power and ARM1176JZFS Applications Processor
GPU: Dual Core Video Core IV® Multimedia Co-Processor Provides Open GL ES 2.0, hardware-accelerated
OpenVG, and 1080p30 H.264 high-profile decode Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture
filtering and DMA infrastructure
Memory: It‟s having RAM of 512MB SDRAM
Operating System: It Boots from Micro SD card and running a version of the Linux operating system
Dimensions: It‟s having dimensions of 85 x 56 x 17mm
Power: It‟s having Micro USB socket 5V, 2A
Ethernet: 10/100 Base T Ethernet socket
Video Output: HDMI (rev 1.3 & 1.4) Composite RCA (PAL and NTSC)
Audio Output: 3.5mm jack, HDMI
USB: 4 x USB 2.0 Connector
GPIO Connector: 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip Providing 27 GPIO pins as well as
+3.3 V, +5 V and GND supply lines
Camera Connector: It‟s having 15-pin MIPI Camera Serial Interface (CSI-2)
JTAG: Not populated
Display Connector: It consists of Display Serial Interface (DSI) 15 way flat flex cable connector with two
data lanes and a clock lane
Memory Card Slot: Its having SDIO
8. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 294
Fig 9 Recharge page
Output voltage and meter units in putty
Fig 10 Output voltage and meter units
9. Vol-1 Issue-2 2015 IJARIIE-ISSN(O)-2395-4396
1172 www.ijariie.com 295
7. Conclusion
As we know nowadays the meter data collection is done manually with the data logger equipment, this project
overcomes this problem and data collection will be done totally automatically by using AMI(advanced metering
infrastructure) ,data acquisition, IOT(internet of things) , cloud based technology and this will reduce human efforts
as well.
8. REFERENCES
[1] Smart Meters Reading Through Power Line Communications MirceaPopa Journal of Next Generation
Information Technology, August 2011
[2] Dukan, P.; Kovari, A., "Cloud-based smart metering system," Computational Intelligence and Informatics
(CINTI), 2013 IEEE 14th International Symposium on , vol., no., pp.499,502, 19-21 Nov. 2013
[3] R. A. F Mini, A.A.F Loureiro, B. Nath, „The Distinctive Design Characteristic of a Wireless Sensor
Network: The Energy Map‟, Computer Communications, v 27, n 10, Jun 20, 2004, pp. 935-945.
[4] El Rhazi, A.; Pierre, Samuel, "A Data Collection Algorithm Using Energy Maps in Sensor Networks,"
Wireless and Mobile Computing, Networking and Communications, 2007. WiMOB 2007. Third IEEE
International Conference on , vol., no., pp.64,64, 8-10 Oct. 2007
[5] J. Granderson, M. A. Piette, and G. Ghatikar, “Building energy information systems: user case
studies,” Energy Efficiency, vol.4, no.1, 2011, pp.17-30.
[6] X. Liu, L. Ivanescu, R. Kang, and M. Maier, “Real-time Household Load Priority Scheduling
Algorithm based on Prediction of Renewable Source Availability,” IEEE Trans. Consumer Electron.,
vol.58, no.2, 2012, pp.328-326
[7] M. Zeifman, “Disaggregation of Home Energy Display Data Using Probabilistic Approach,” IEEE Trans.
Consumer Electron., vol.58, no.1, 2012, pp.23-31.
[8] M. Aliberti, “Green Networking in Home and Building Automation Systems through Power State
Switching,” IEEE
Trans. Consumer Electron., vol.57, no.2, 2011, pp.445-452.
[9] Kwangsoo Kim; Hyochan Bang; Seong-Il Jin, "Efficient data collection for smart grid using wireless
sensor networks," Consumer Electronics (GCCE), 2013 IEEE 2nd Global Conference on , vol., no.,
pp.231,232, 1-4 Oct. 2013
[10] http://www.union power.com/lefthandnav/meterInformation.asp
[11] D. J. Hammerstrom et al. "Pacific Northwest GridWise™ Testbed Demonstration Projects, Part I. Olympic
Peninsula
Project".Retrieved 2014-01-15.
[12] U.S. Department of Energy. "Smart Grid / Department of Energy". Retrieved2012-06-18.
[13] https://www.adafruit.com/datasheets/pi-specs.
[14] http://kubii.es/nuevo-rpi-b/385-raspberry-pi-b-plus-noobs-3272496001169.html
[15] “Introduction to smart grid” Department of electrical and computer engineering Texas Tech University
Spring 2012
[16] Pingping Zhang ; Hao Wang; Yong Huang; Jie Wang; Xiao „long Shao, “Investigations of compacttri-
band antenna for CNSS application” 2013 Asia-Pacific ,PP.1100-1102, 5-8 Nov. 2013
[17] http://www.dx.com/p/acs712-5a-current-sensor-module-blue-206997#.VVV6qvmqqko
[18] https://www.bananarobotics.com/shop/ACS712-5A-Current-Sensor-Module
