Kafka Summit, Bangalore 2024
Superpower your Apache Kafka®
applications development
with complementary
open source technologies
Paul Brebner
Instaclustr Technology Evangelist
© 2024 NetApp, Inc. All rights reserved.

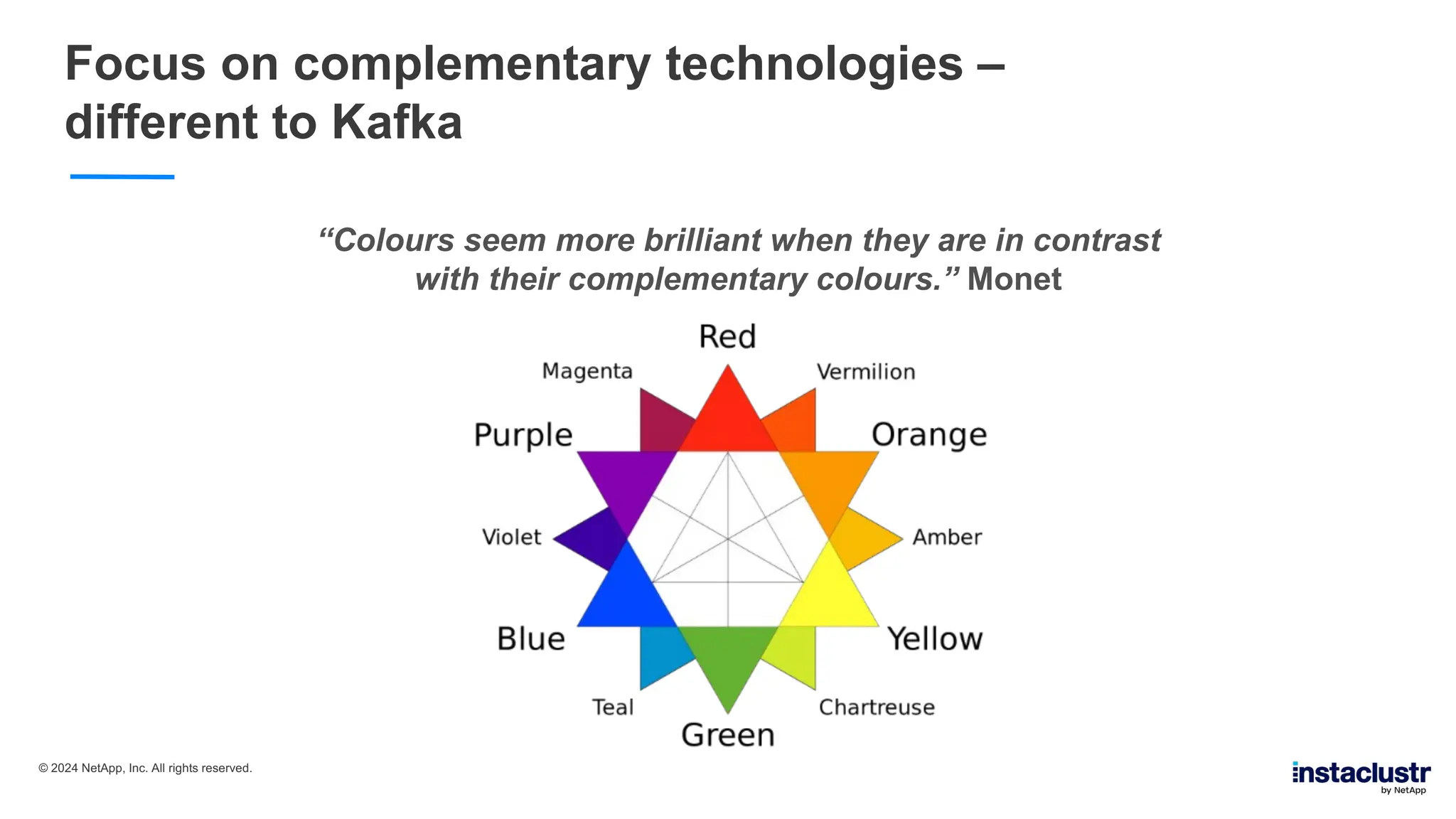

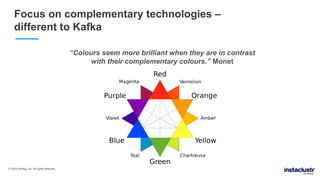

Focus on complementary technologies –
different to Kafka
“Colours seem more brilliant when they are in contrast
with their complementary colours.” Monet
© 2024 NetApp, Inc. All rights reserved.

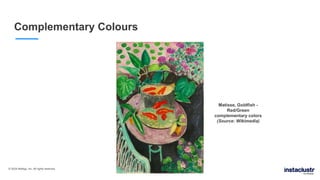

Complementary Colours
Matisse, Goldfish -
Red/Green
complementary colors
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.
Contrasting flowers from the Bengaluru market
Bengaluru market flowers (Paul Brebner)
© 2024 NetApp, Inc. All rights reserved.

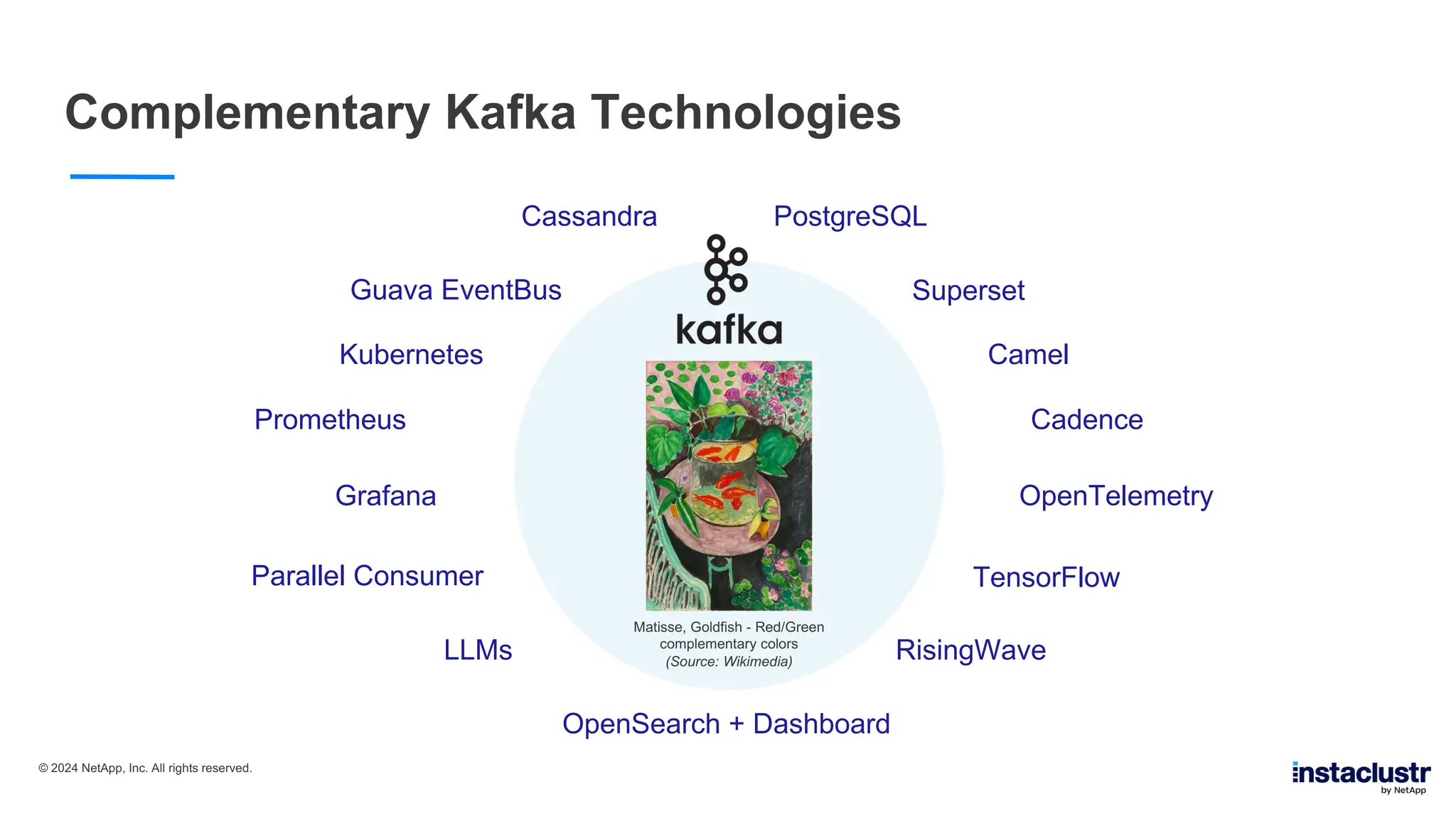

Complementary Kafka Technologies
Cassandra PostgreSQL
Superset
Camel
Cadence
OpenTelemetry
TensorFlow
RisingWave
LLMs
Guava EventBus
Kubernetes
Prometheus
Grafana
Parallel Consumer
OpenSearch + Dashboard
Matisse, Goldfish - Red/Green
complementary colors
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

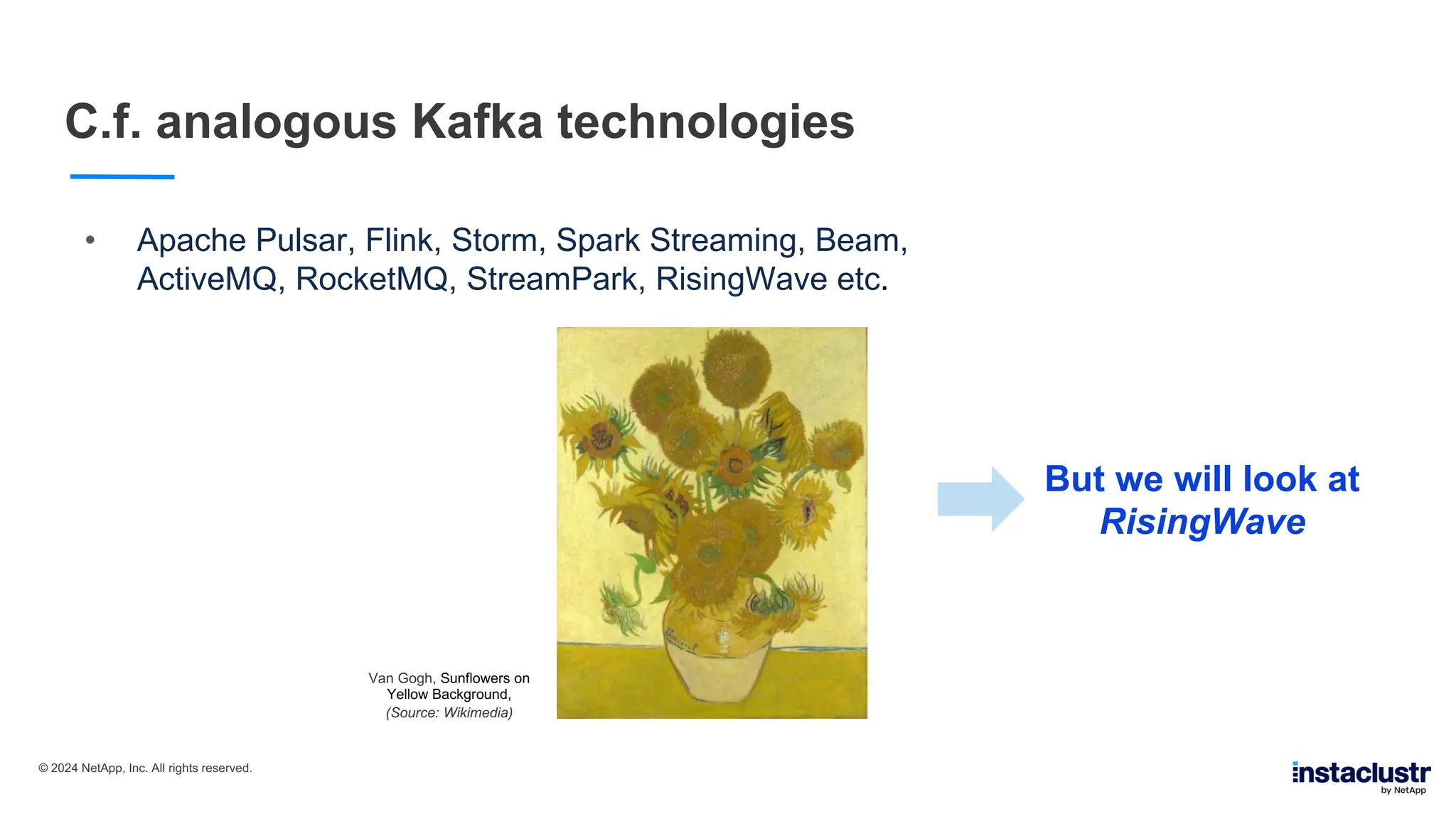

C.f. analogous Kafka technologies
• Apache Pulsar, Flink, Storm, Spark Streaming, Beam,
ActiveMQ, RocketMQ, StreamPark, RisingWave etc.
Van Gogh, Sunflowers on
Yellow Background,
(Source: Wikimedia)
But we will look at
RisingWave
© 2024 NetApp, Inc. All rights reserved.

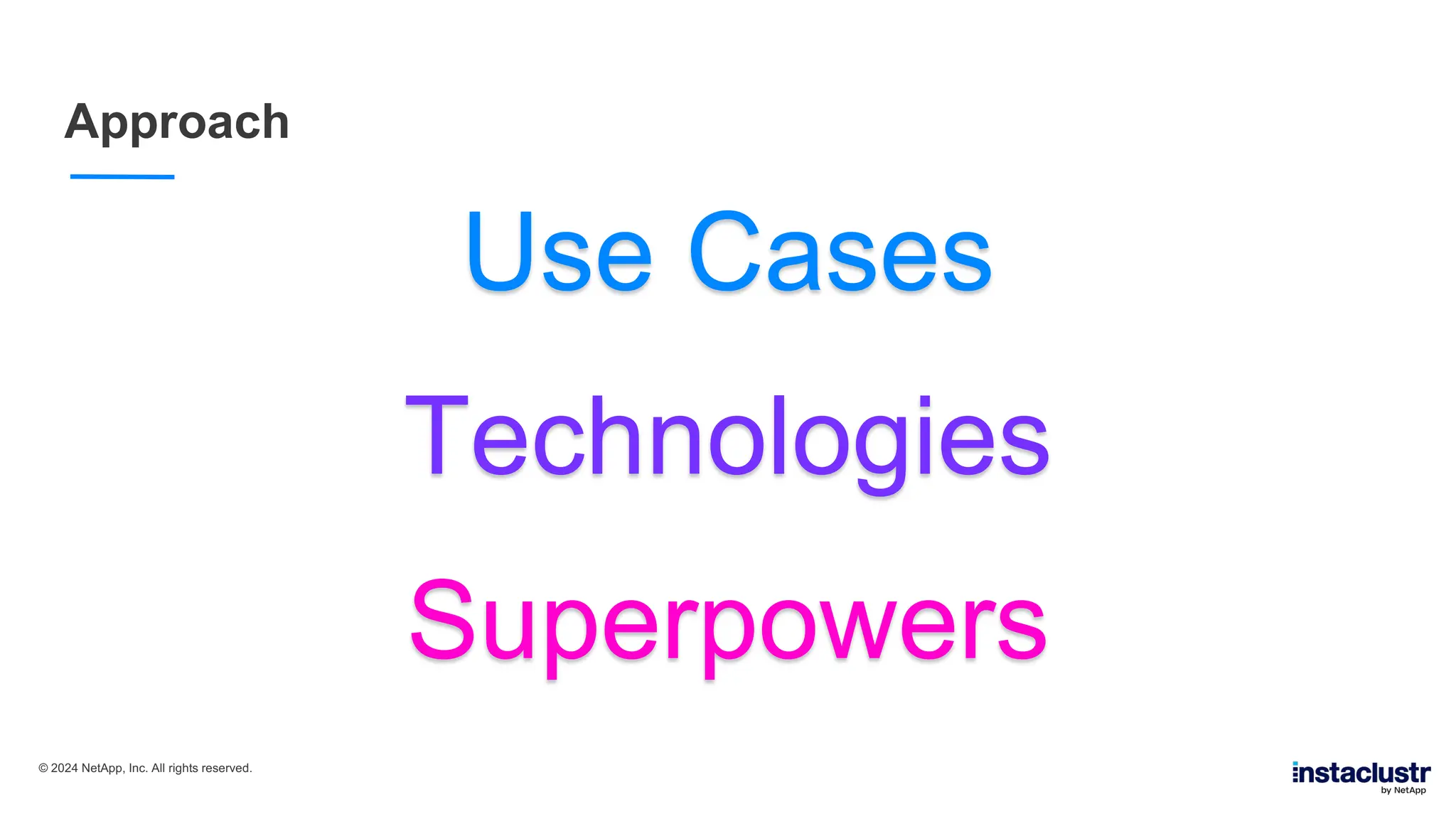

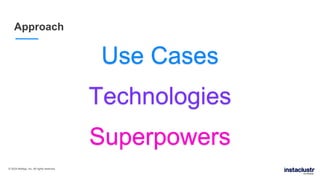

Approach
Use Cases
Technologies
Superpowers
© 2024 NetApp, Inc. All rights reserved.
0. Apache Kafka®
© 2024 NetApp, Inc. All rights reserved.
Apache Kafka®
Postal Delivery Service
Railway Post Office:
Mail bags snatched by speeding train
(Source: Wikimedia CCL)
© 2024 NetApp, Inc. All rights reserved.

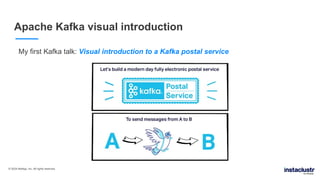

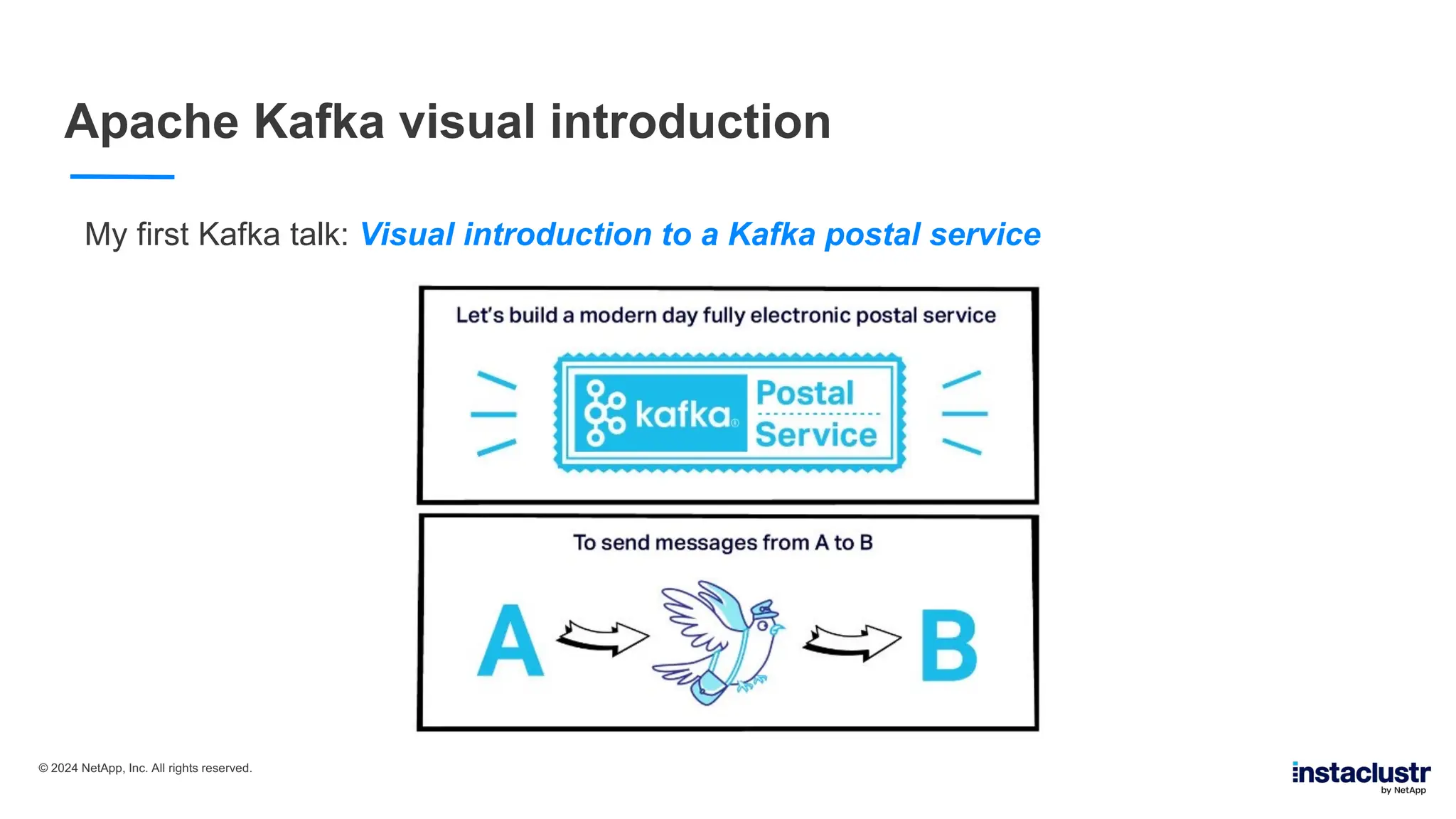

Apache Kafka visual introduction
My first Kafka talk: Visual introduction to a Kafka postal service
© 2024 NetApp, Inc. All rights reserved.

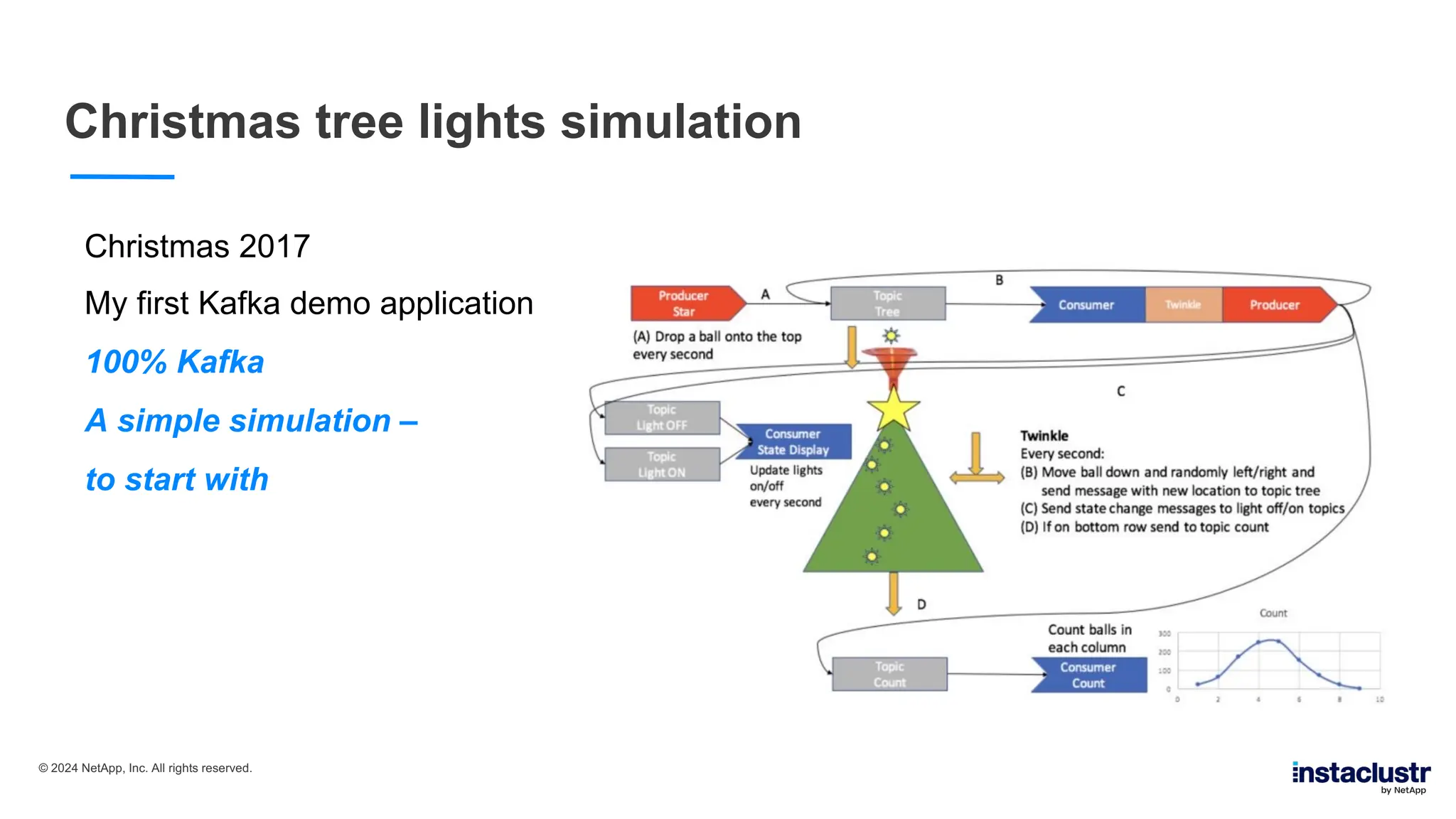

Christmas tree lights simulation
Christmas 2017
My first Kafka demo application
100% Kafka
A simple simulation –
to start with
© 2024 NetApp, Inc. All rights reserved.

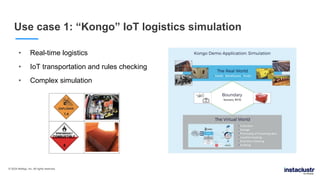

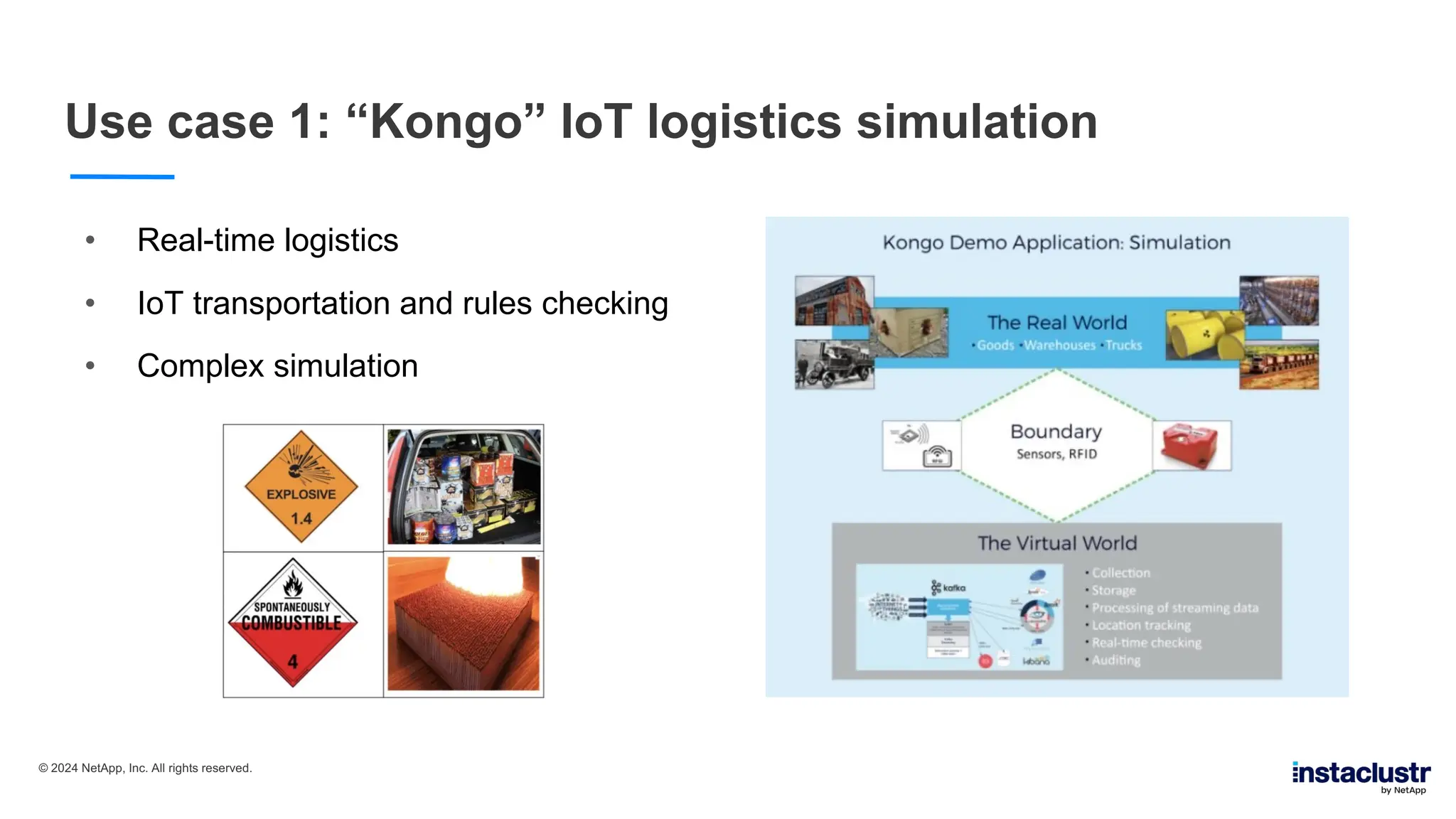

Use case 1: “Kongo” IoT logistics simulation
• Real-time logistics
• IoT transportation and rules checking
• Complex simulation
© 2024 NetApp, Inc. All rights reserved.

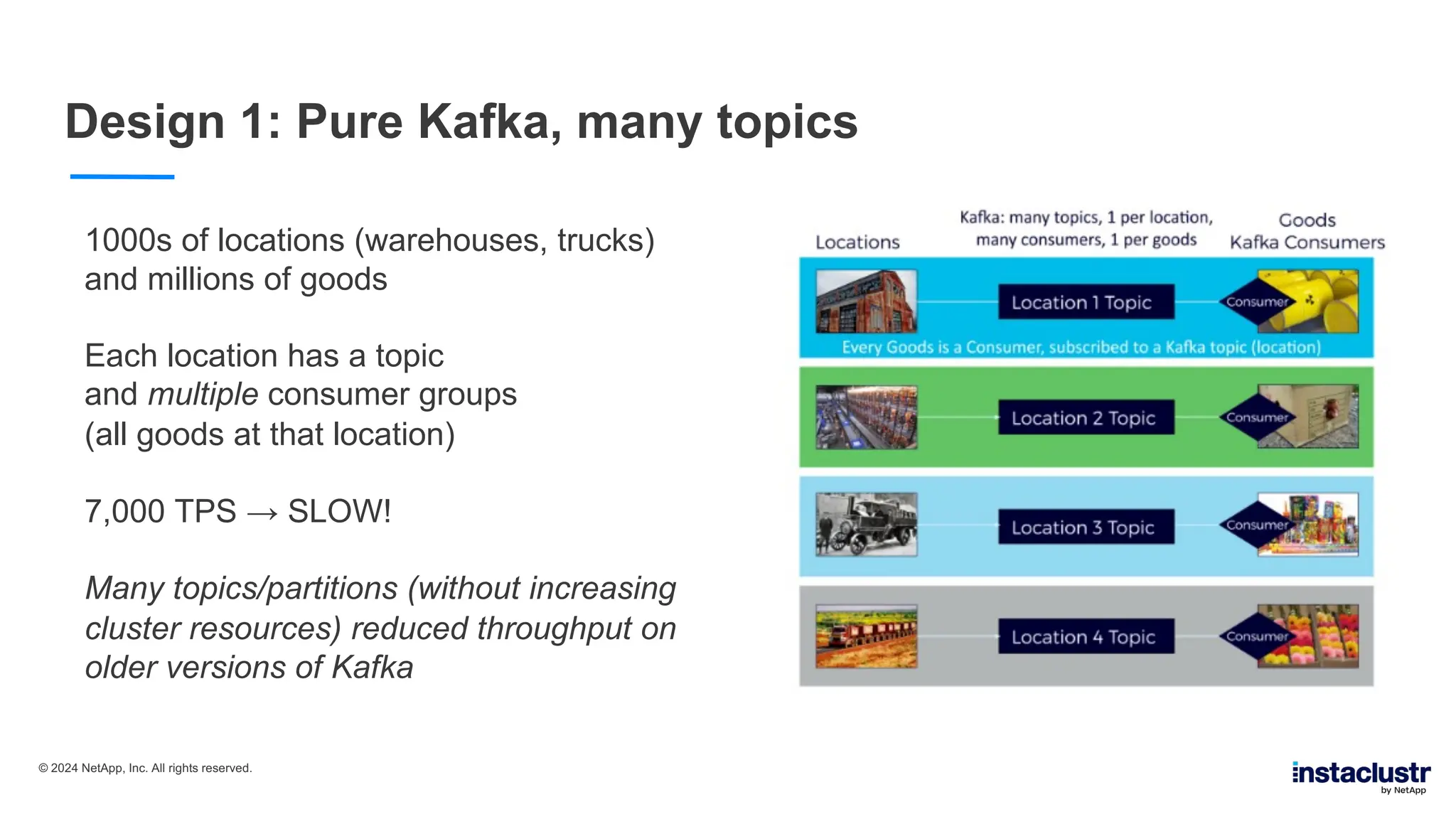

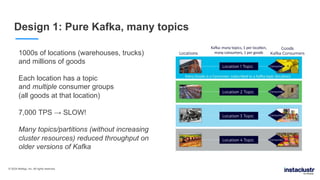

Design 1: Pure Kafka, many topics
1000s of locations (warehouses, trucks)
and millions of goods
Each location has a topic
and multiple consumer groups
(all goods at that location)
7,000 TPS → SLOW!
Many topics/partitions (without increasing
cluster resources) reduced throughput on
older versions of Kafka
© 2024 NetApp, Inc. All rights reserved.
1. Guava EventBus
© 2024 NetApp, Inc. All rights reserved.

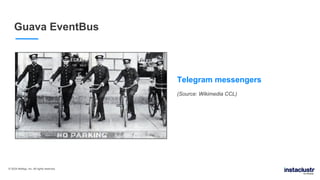

Guava EventBus
Telegram messengers
(Source: Wikimedia CCL)
© 2024 NetApp, Inc. All rights reserved.

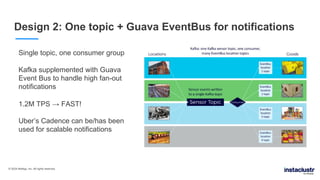

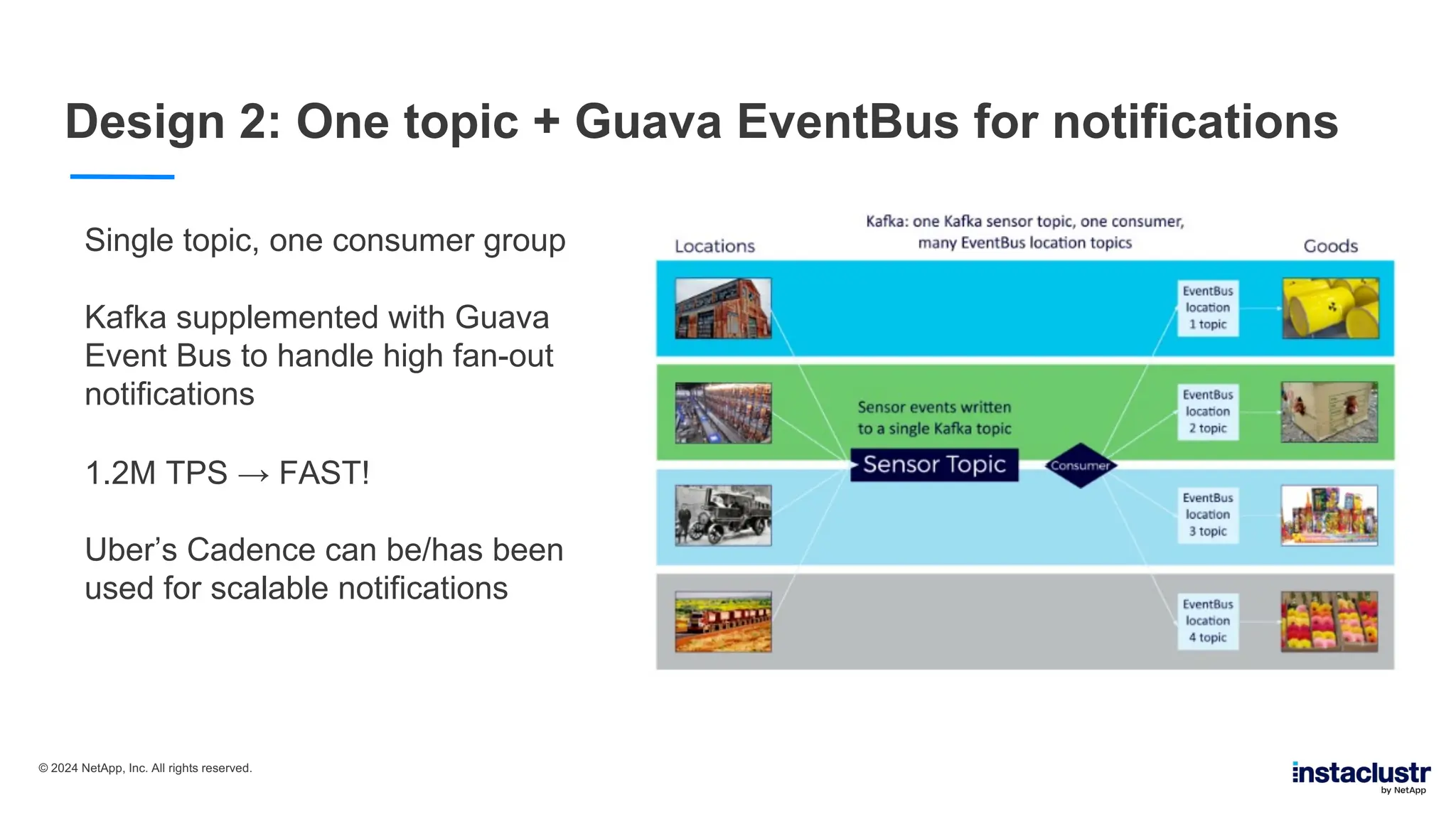

Design 2: One topic + Guava EventBus for notifications
Single topic, one consumer group
Kafka supplemented with Guava
Event Bus to handle high fan-out
notifications
1.2M TPS → FAST!
Uber’s Cadence can be/has been
used for scalable notifications
© 2024 NetApp, Inc. All rights reserved.
Use case 2: Anomaly detection at scale
One of these things is not like the others…
(Source: Shutterstock)
© 2024 NetApp, Inc. All rights reserved.

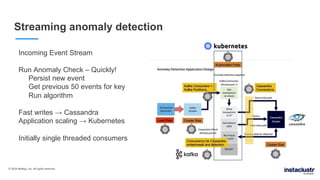

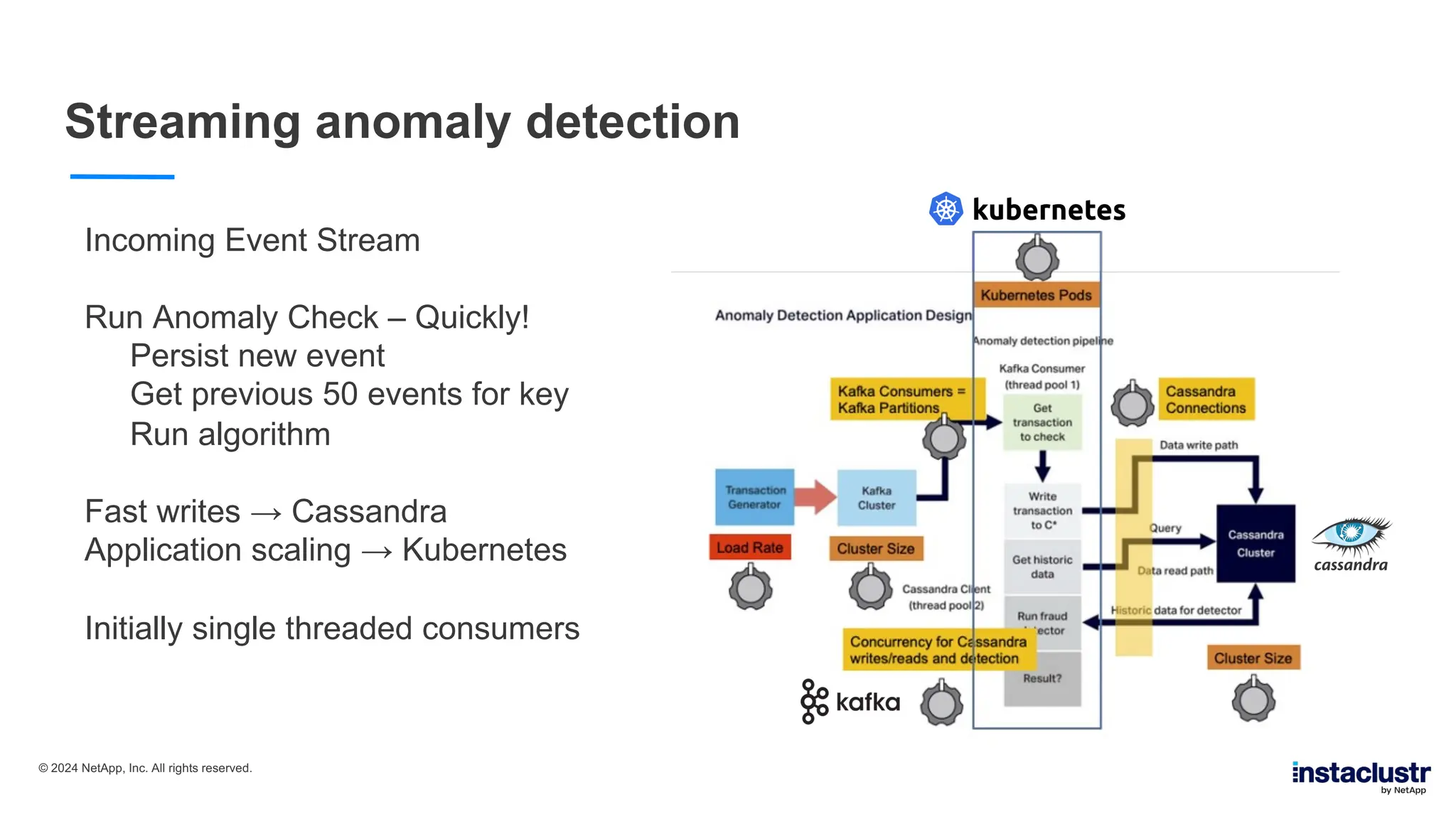

Streaming anomaly detection
Incoming Event Stream
Run Anomaly Check – Quickly!
Persist new event
Get previous 50 events for key
Run algorithm
Fast writes → Cassandra
Application scaling → Kubernetes
Initially single threaded consumers
© 2024 NetApp, Inc. All rights reserved.
2. Apache Cassandra®
© 2024 NetApp, Inc. All rights reserved.
Apache Cassandra®
Fast Writes
Office typing pool, 1918
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

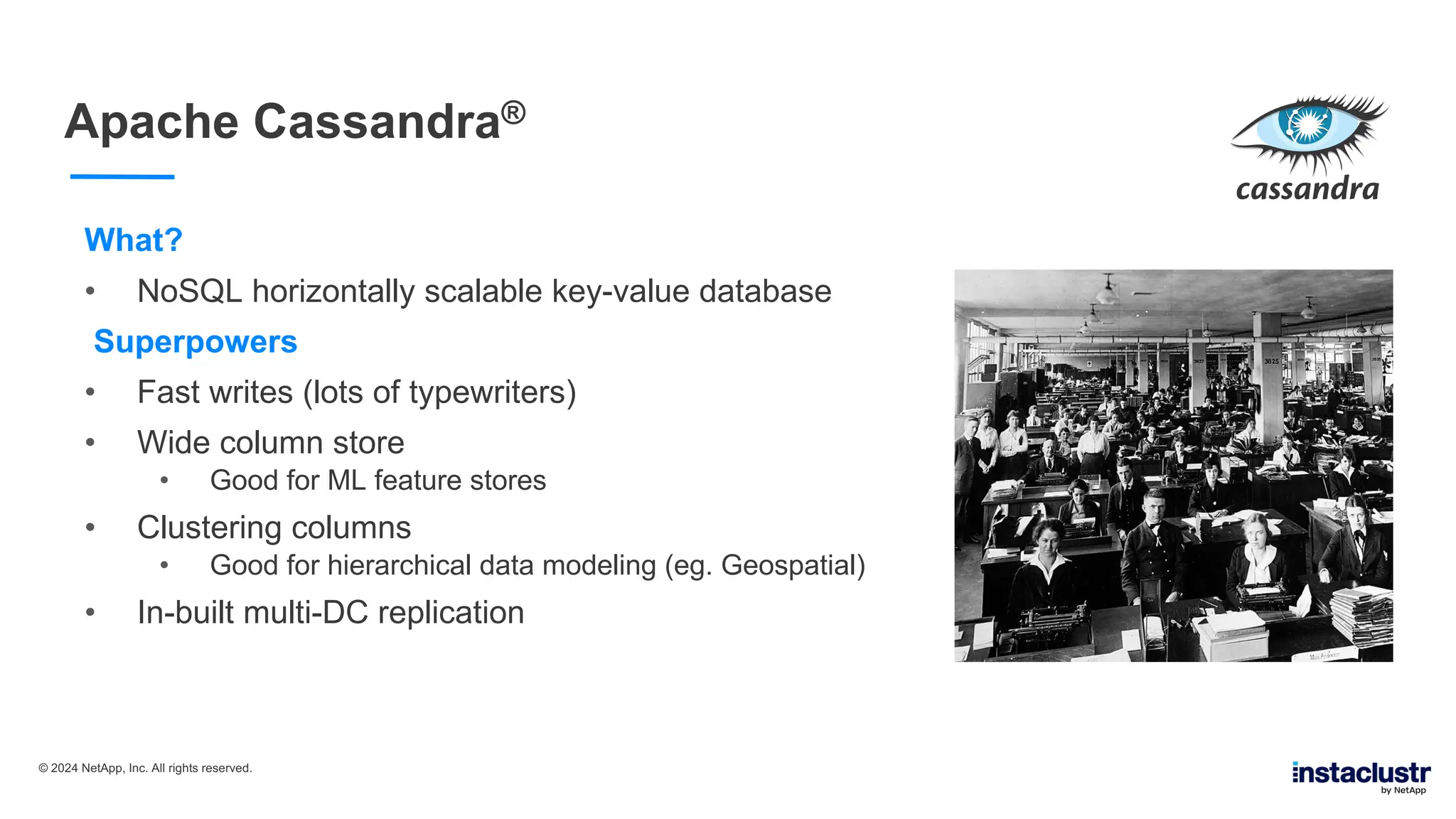

Apache Cassandra®
What?
• NoSQL horizontally scalable key-value database
Superpowers
• Fast writes (lots of typewriters)
• Wide column store
• Good for ML feature stores
• Clustering columns
• Good for hierarchical data modeling (eg. Geospatial)
• In-built multi-DC replication
© 2024 NetApp, Inc. All rights reserved.
3. Kubernetes
© 2024 NetApp, Inc. All rights reserved.
Kubernetes
Greek Triremes ruled the seas
Captained by Helmsmen (Kubernetes)
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

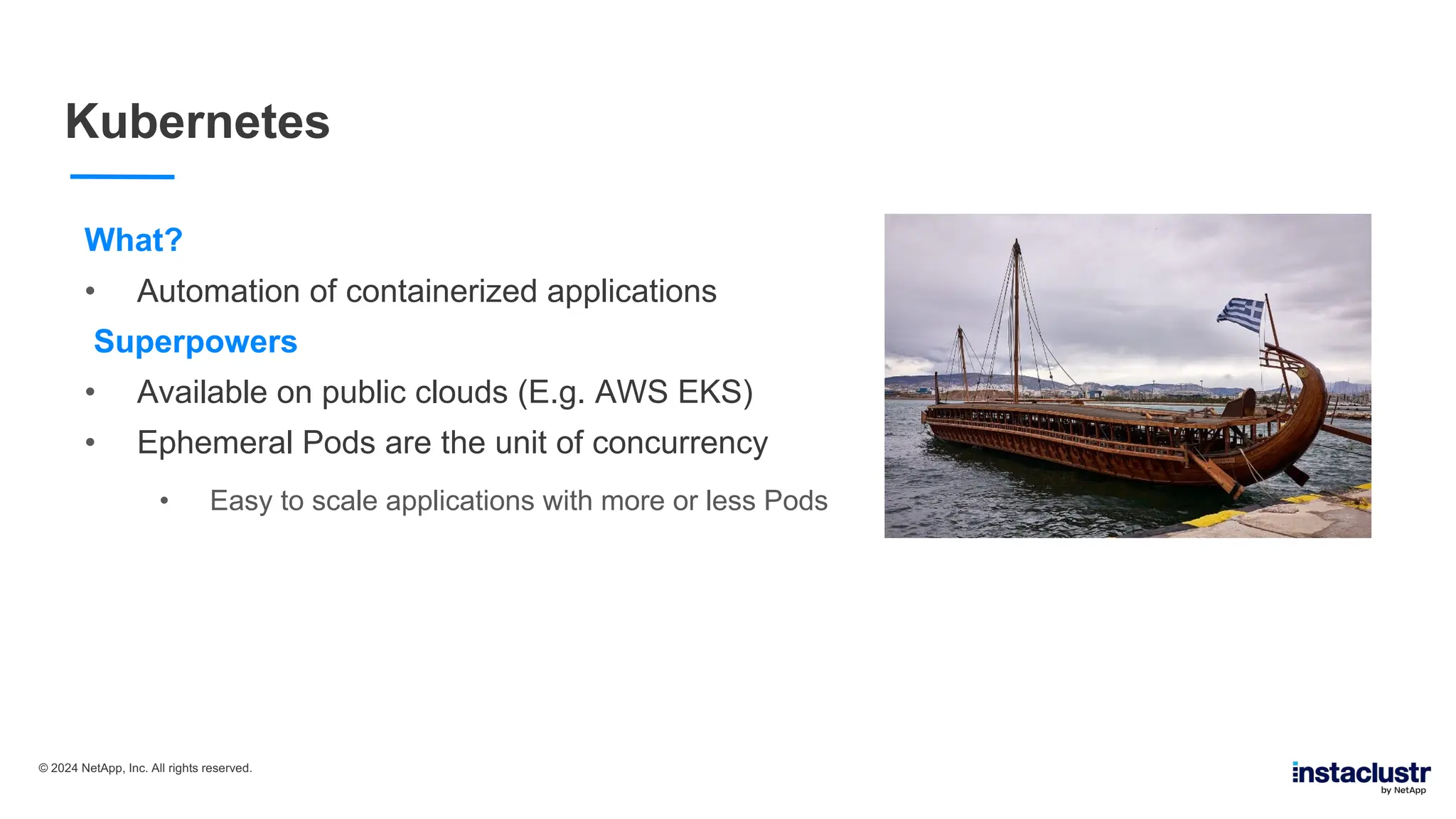

Kubernetes
What?
• Automation of containerized applications
Superpowers
• Available on public clouds (E.g. AWS EKS)
• Ephemeral Pods are the unit of concurrency
• Easy to scale applications with more or less Pods
© 2024 NetApp, Inc. All rights reserved.

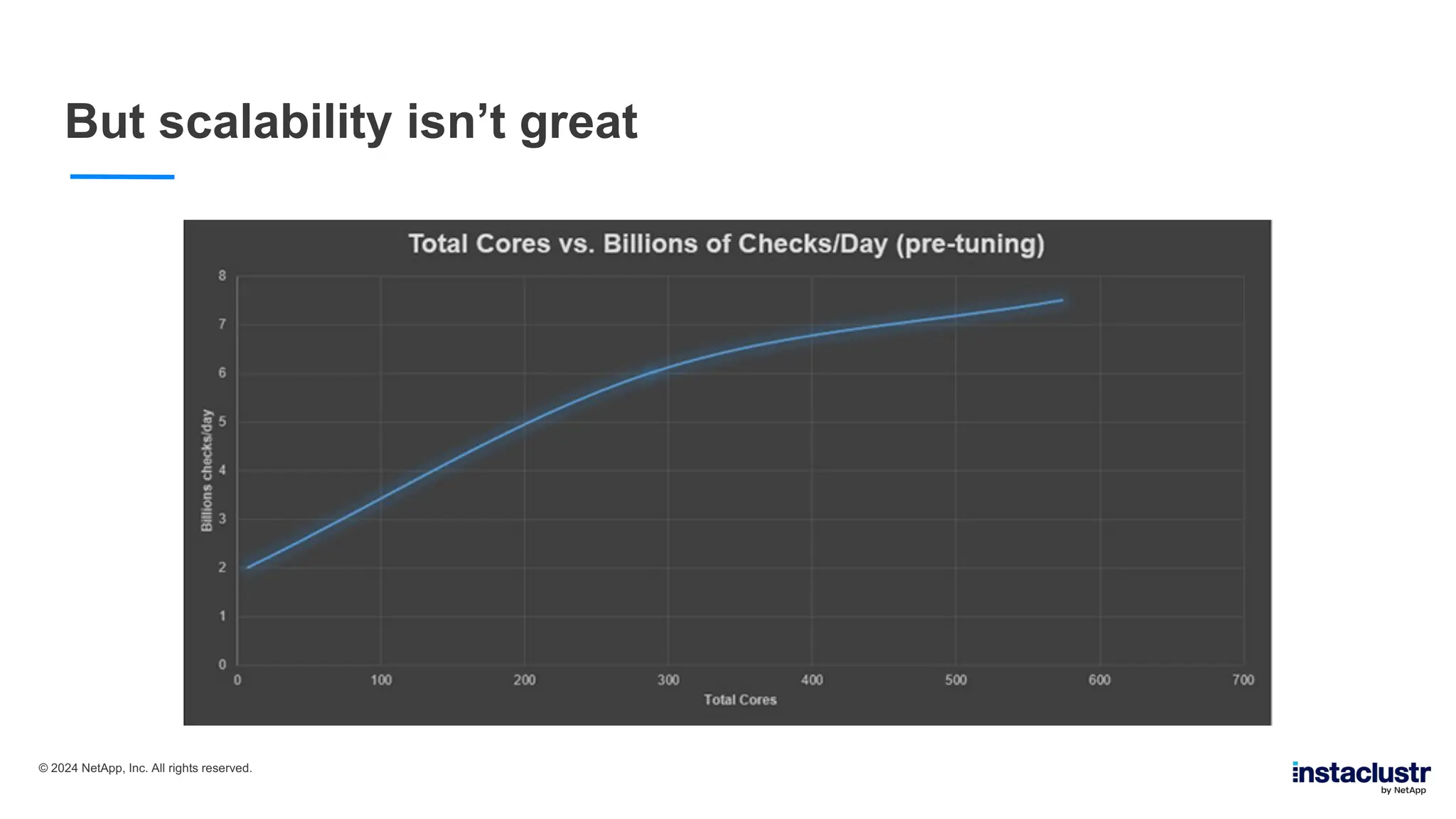

But scalability isn’t great
© 2024 NetApp, Inc. All rights reserved.
4. Prometheus
5. Grafana
© 2024 NetApp, Inc. All rights reserved.

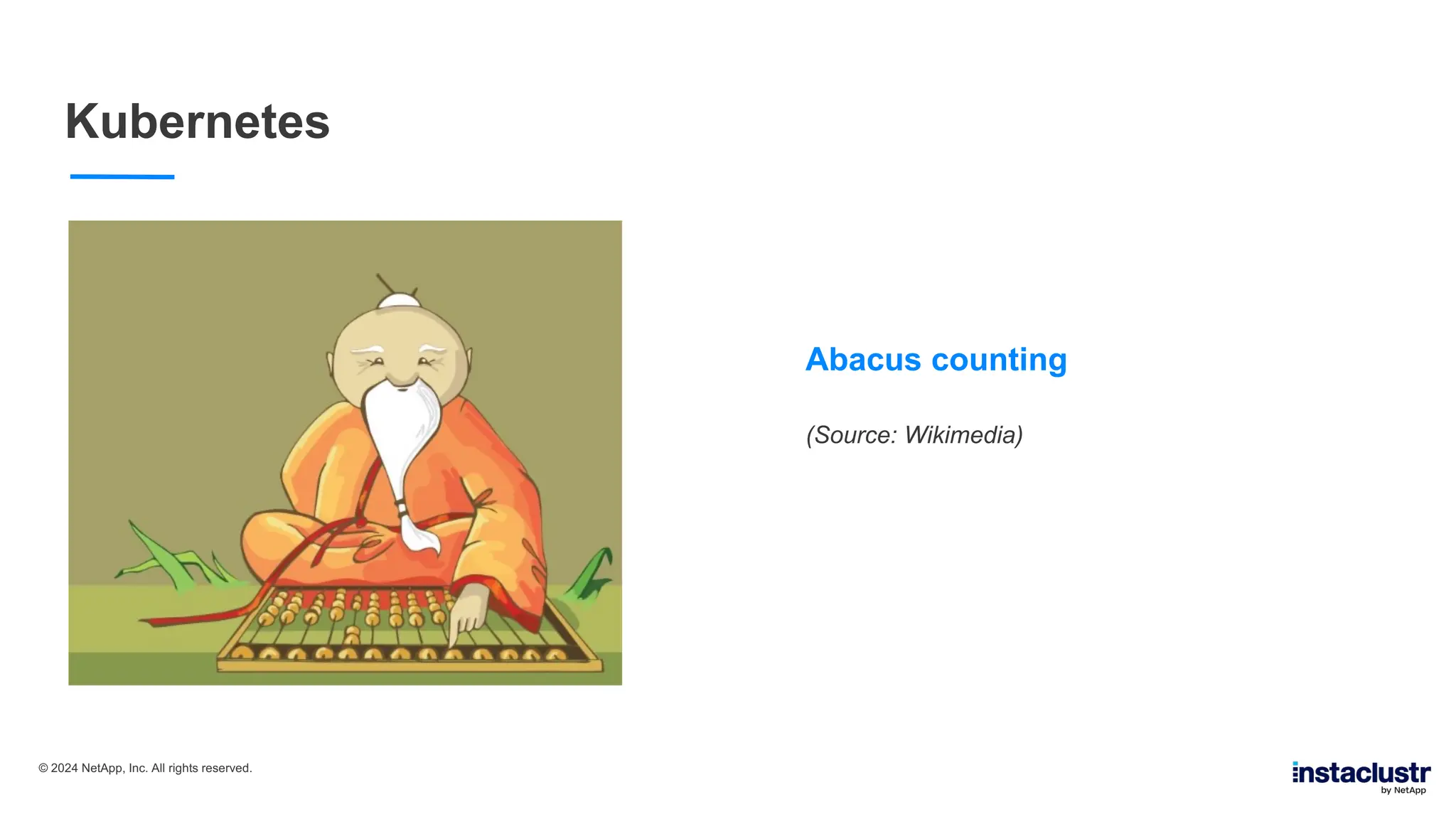

Kubernetes
Abacus counting
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

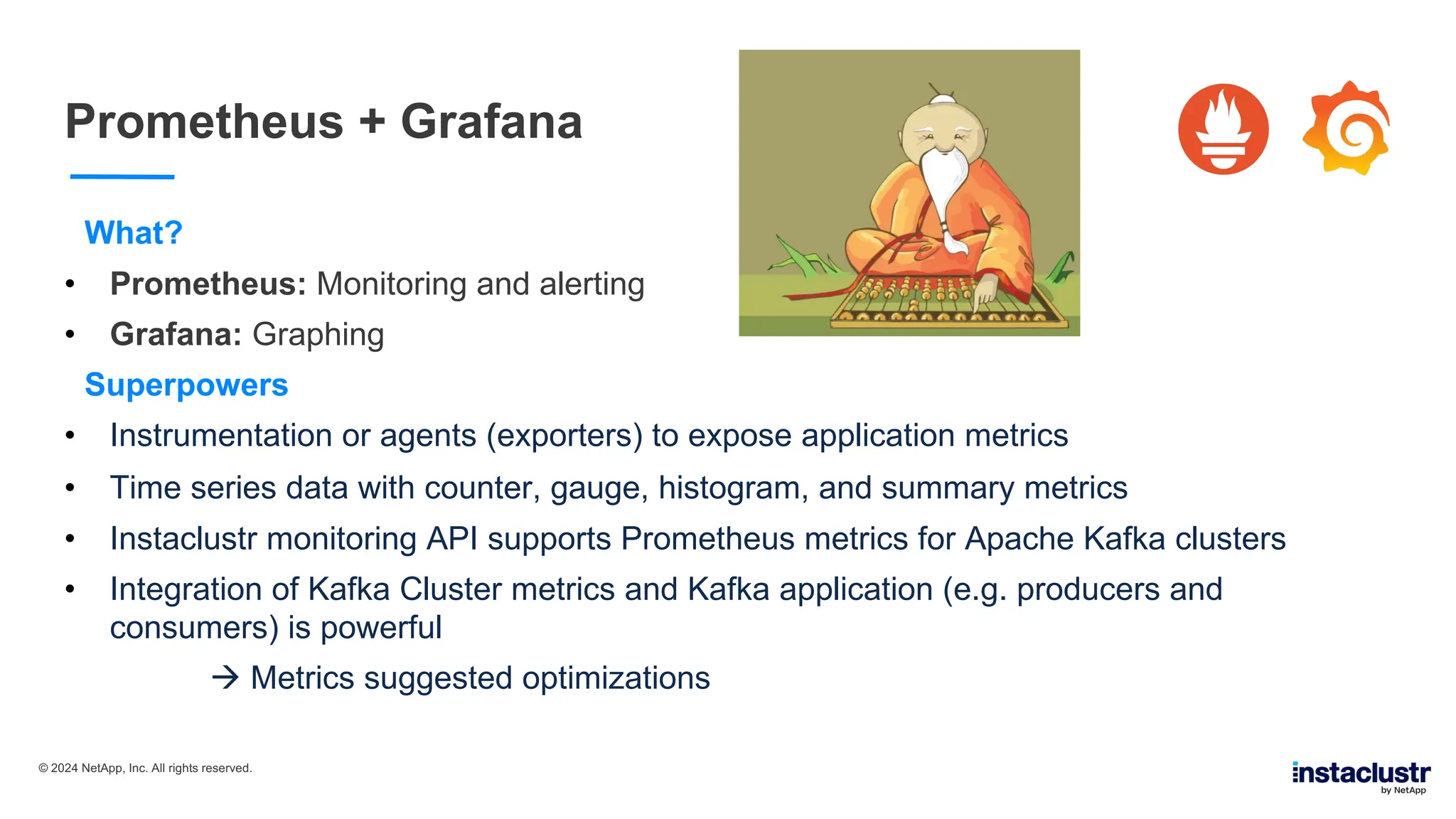

Prometheus + Grafana
What?
• Prometheus: Monitoring and alerting
• Grafana: Graphing
Superpowers
• Instrumentation or agents (exporters) to expose application metrics
• Time series data with counter, gauge, histogram, and summary metrics
• Instaclustr monitoring API supports Prometheus metrics for Apache Kafka clusters
• Integration of Kafka Cluster metrics and Kafka application (e.g. producers and
consumers) is powerful
à Metrics suggested optimizations
© 2024 NetApp, Inc. All rights reserved.

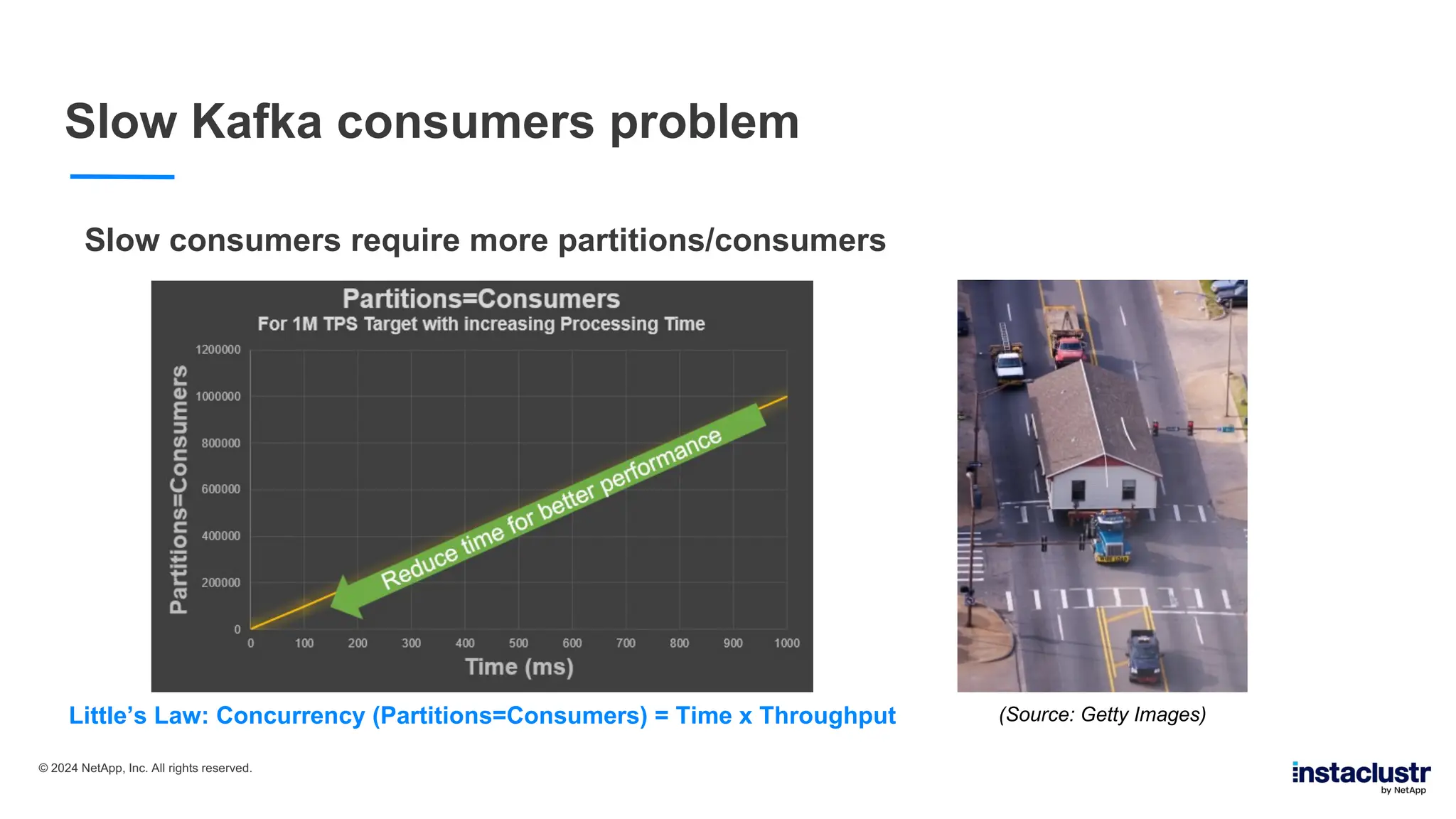

Slow Kafka consumers problem
Slow consumers require more partitions/consumers
(Source: Getty Images)
Little’s Law: Concurrency (Partitions=Consumers) = Time x Throughput
© 2024 NetApp, Inc. All rights reserved.
2 pool solution
The famous Bondi Ocean Pool in Sydney Australia has 2 pools
(Source: Shutterstock)
© 2024 NetApp, Inc. All rights reserved.

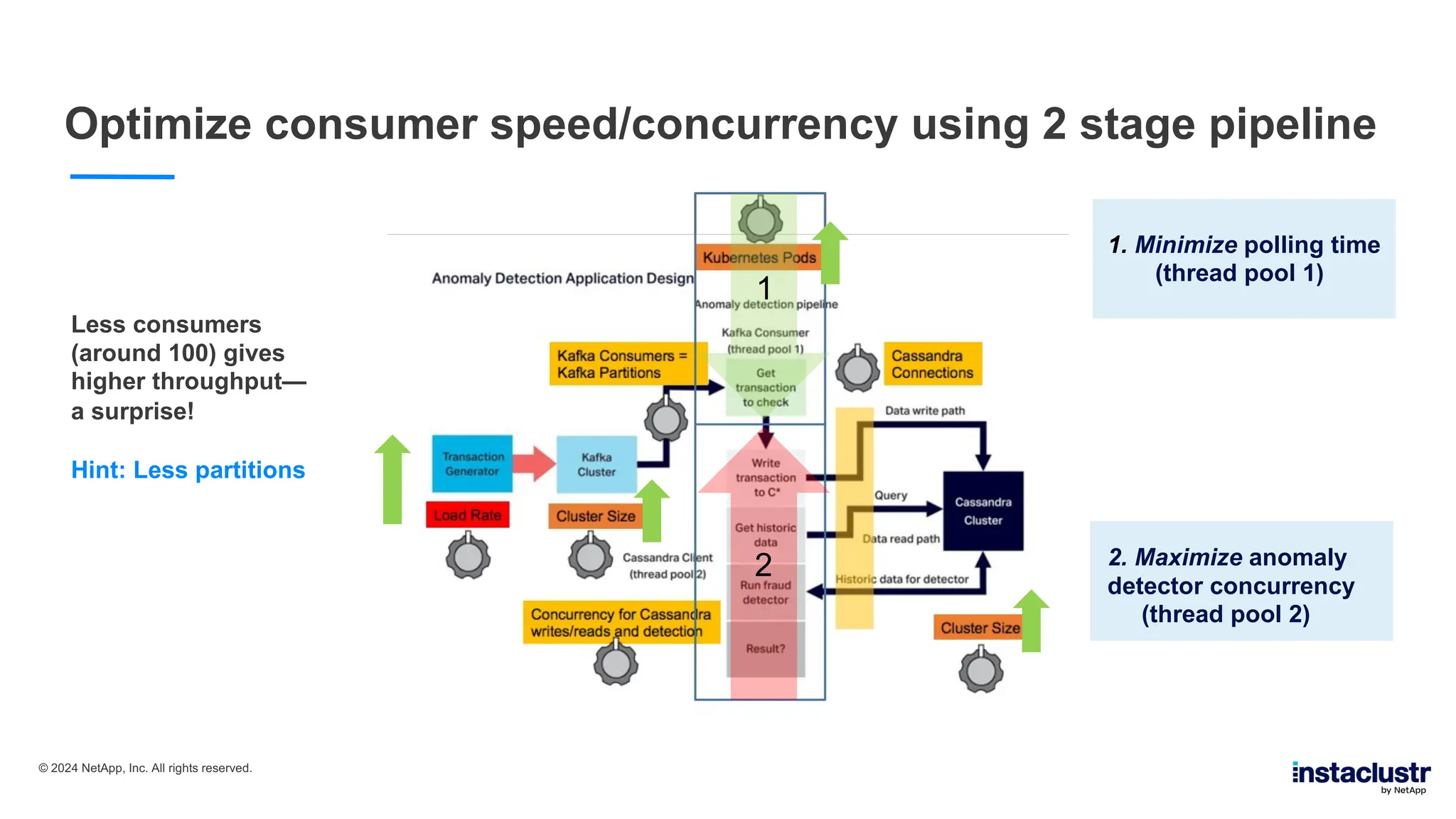

Optimize consumer speed/concurrency using 2 stage pipeline
Less consumers
(around 100) gives
higher throughput—
a surprise!
Hint: Less partitions
1. Minimize polling time
(thread pool 1)
2. Maximize anomaly
detector concurrency
(thread pool 2)
1
2
© 2024 NetApp, Inc. All rights reserved.

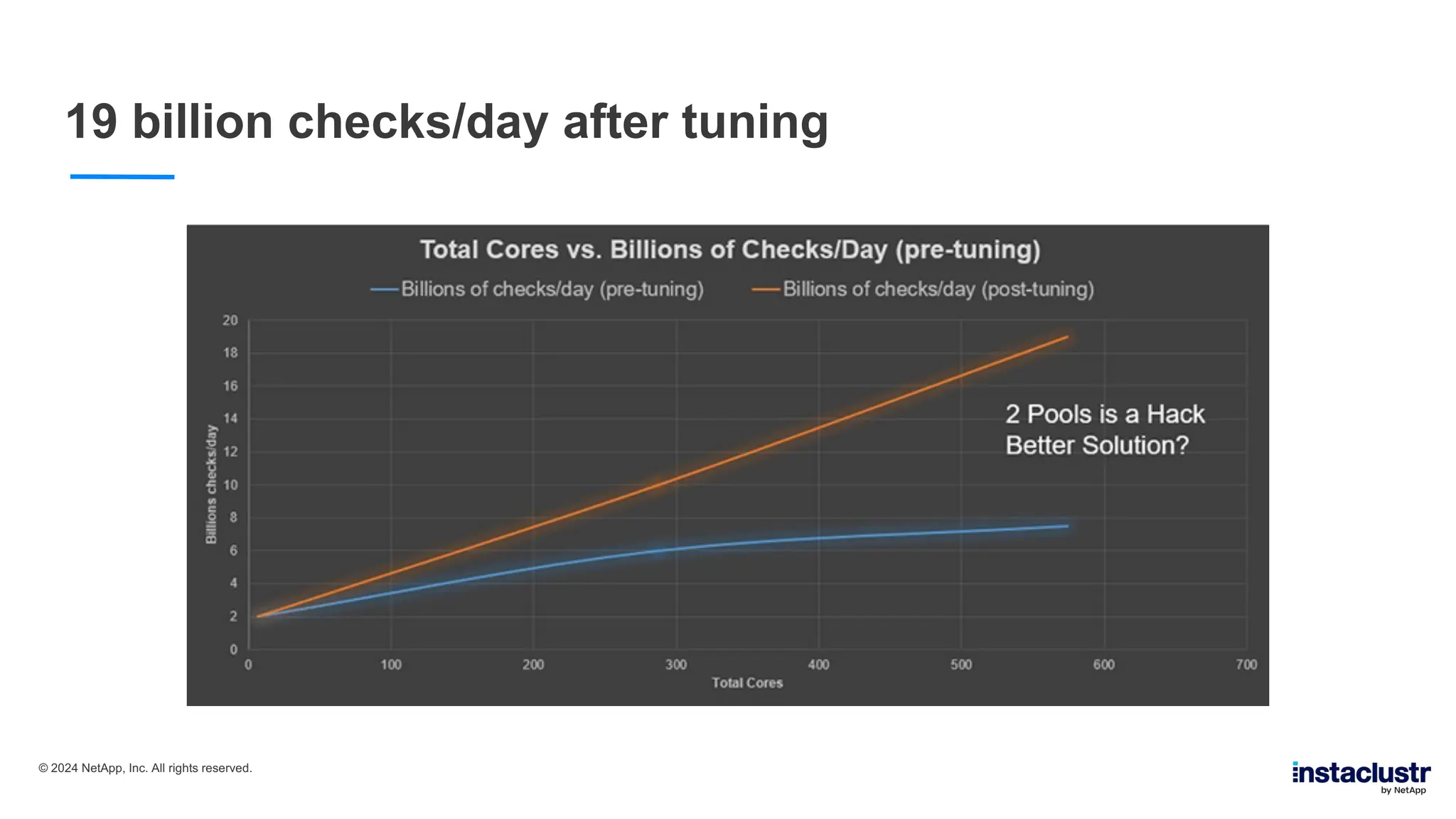

19 billion checks/day after tuning
© 2024 NetApp, Inc. All rights reserved.
6. Kafka Parallel
Consumer
© 2024 NetApp, Inc. All rights reserved.
Kafka Parallel Consumer
Jacquard Loom, Berlin
Makes multiple ribbons
concurrently
(Source: Paul Brebner)
© 2024 NetApp, Inc. All rights reserved.

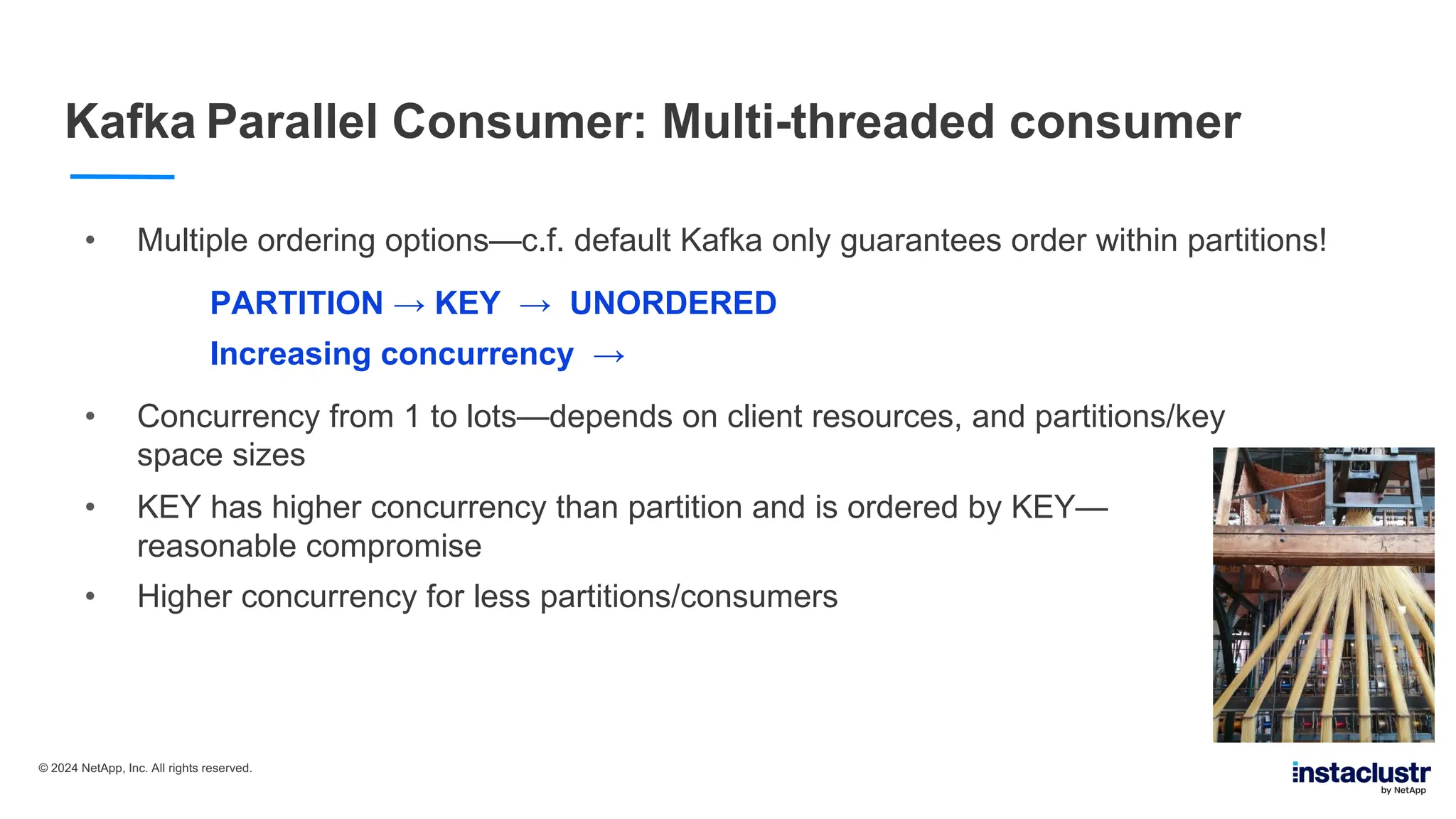

Kafka Parallel Consumer: Multi-threaded consumer
• Multiple ordering options—c.f. default Kafka only guarantees order within partitions!
PARTITION → KEY → UNORDERED
Increasing concurrency →
• Concurrency from 1 to lots—depends on client resources, and partitions/key
space sizes
• KEY has higher concurrency than partition and is ordered by KEY—
reasonable compromise
• Higher concurrency for less partitions/consumers
© 2024 NetApp, Inc. All rights reserved.

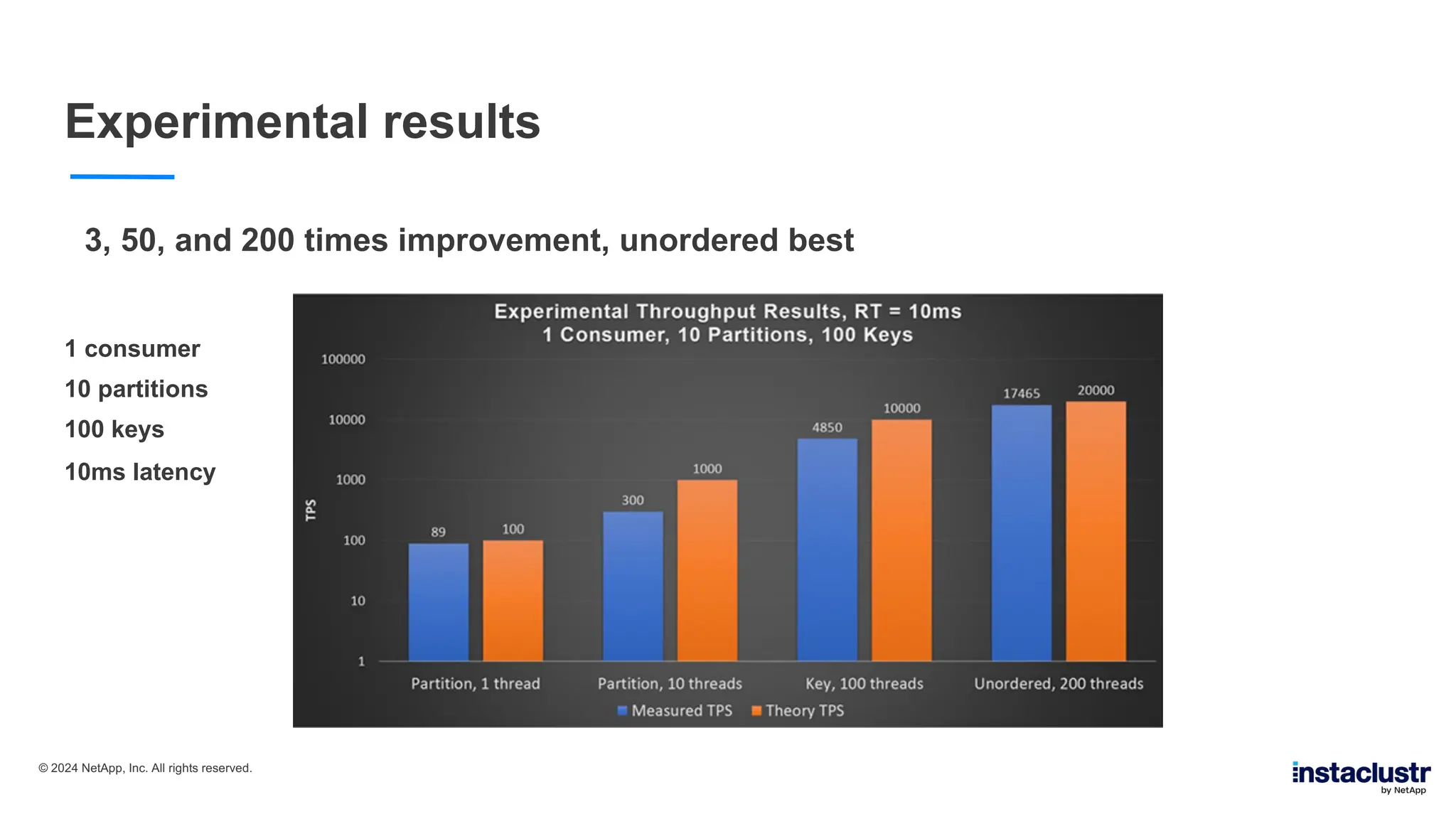

Experimental results
3, 50, and 200 times improvement, unordered best
1 consumer
10 partitions
100 keys
10ms latency
© 2024 NetApp, Inc. All rights reserved.
Use case 3: Pipelines
Berlin “Beer” (?) Pipeline
(Source: Paul Brebner)
© 2024 NetApp, Inc. All rights reserved.

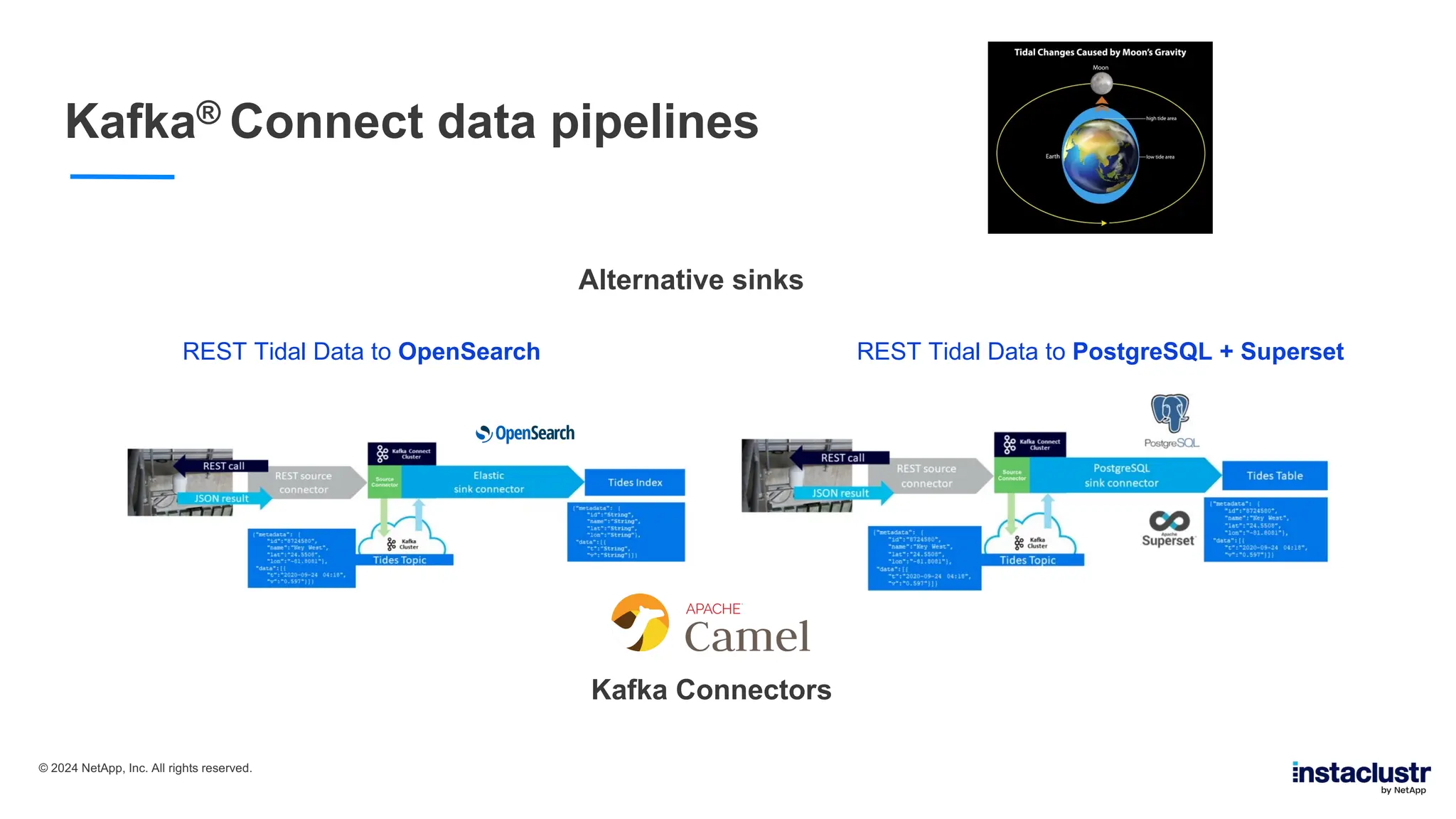

Kafka® Connect data pipelines
REST Tidal Data to OpenSearch REST Tidal Data to PostgreSQL + Superset
Alternative sinks
Kafka Connectors
© 2024 NetApp, Inc. All rights reserved.
7. OpenSearch
8. Dashboard
© 2024 NetApp, Inc. All rights reserved.
OpenSearch + Dashboard
Library of Congress
Card Division 1919
(city block long)
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

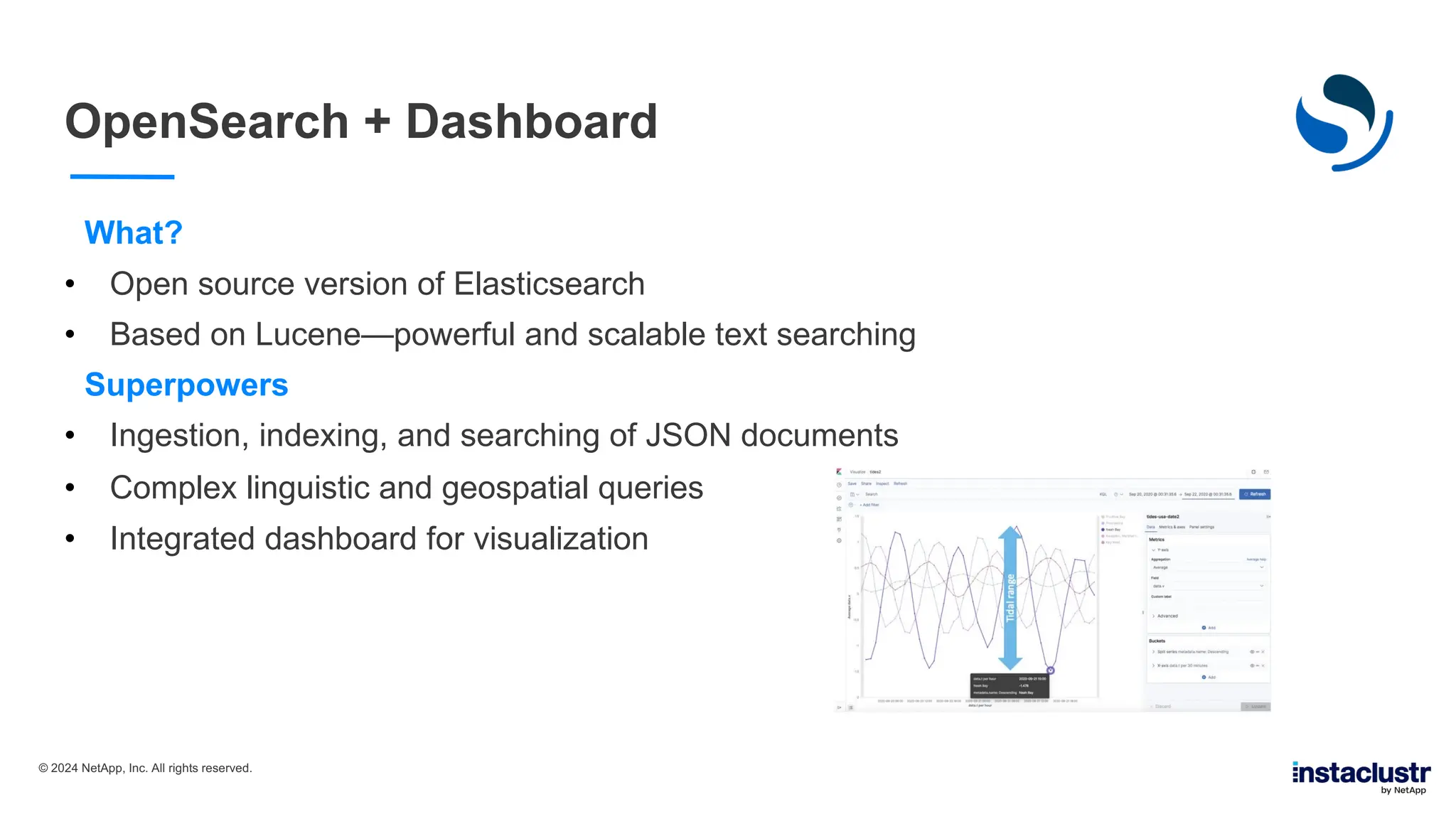

OpenSearch + Dashboard
What?
• Open source version of Elasticsearch
• Based on Lucene—powerful and scalable text searching
Superpowers
• Ingestion, indexing, and searching of JSON documents
• Complex linguistic and geospatial queries
• Integrated dashboard for visualization
© 2024 NetApp, Inc. All rights reserved.

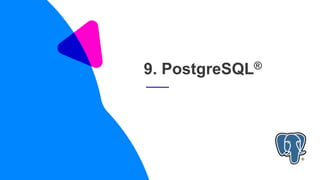

9. PostgreSQL®
®
© 2024 NetApp, Inc. All rights reserved.
PostgreSQL®
Elephant vs. tree
Elephants are powerful
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.

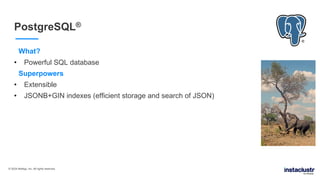

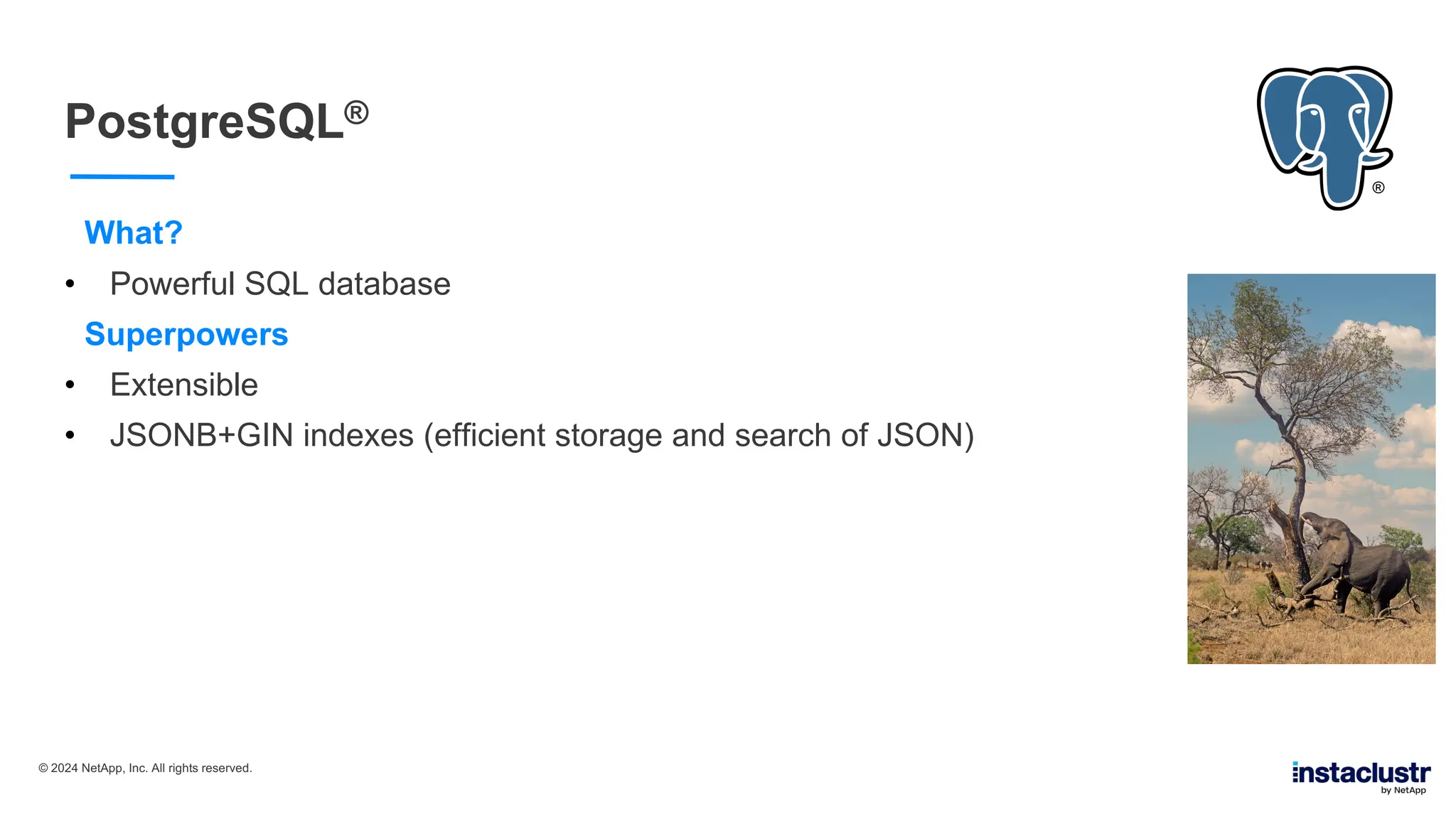

PostgreSQL®
What?
• Powerful SQL database
Superpowers
• Extensible
• JSONB+GIN indexes (efficient storage and search of JSON)
®
© 2024 NetApp, Inc. All rights reserved.
10. Apache Superset™
© 2024 NetApp, Inc. All rights reserved.
Apache Superset™
Superhero Supersets
All superheroes (B) are a
superset of those who
use weapons (A)
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.

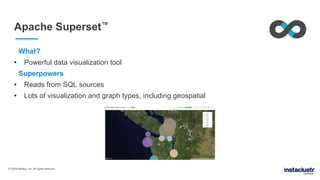

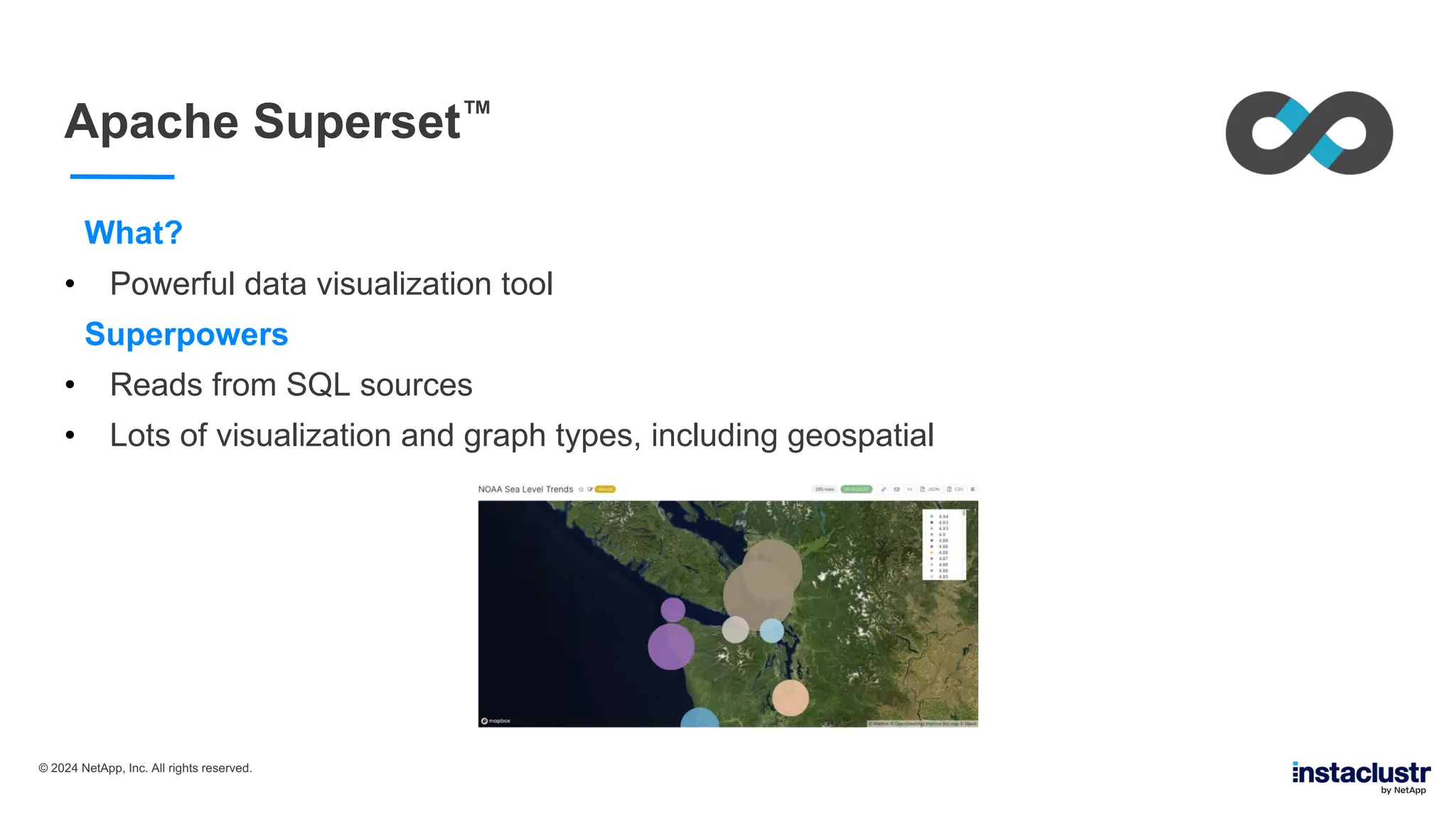

Apache Superset™
What?
• Powerful data visualization tool
Superpowers
• Reads from SQL sources
• Lots of visualization and graph types, including geospatial
© 2024 NetApp, Inc. All rights reserved.
11. Apache Camel™
© 2024 NetApp, Inc. All rights reserved.
Apache Camel™
Camel train
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.

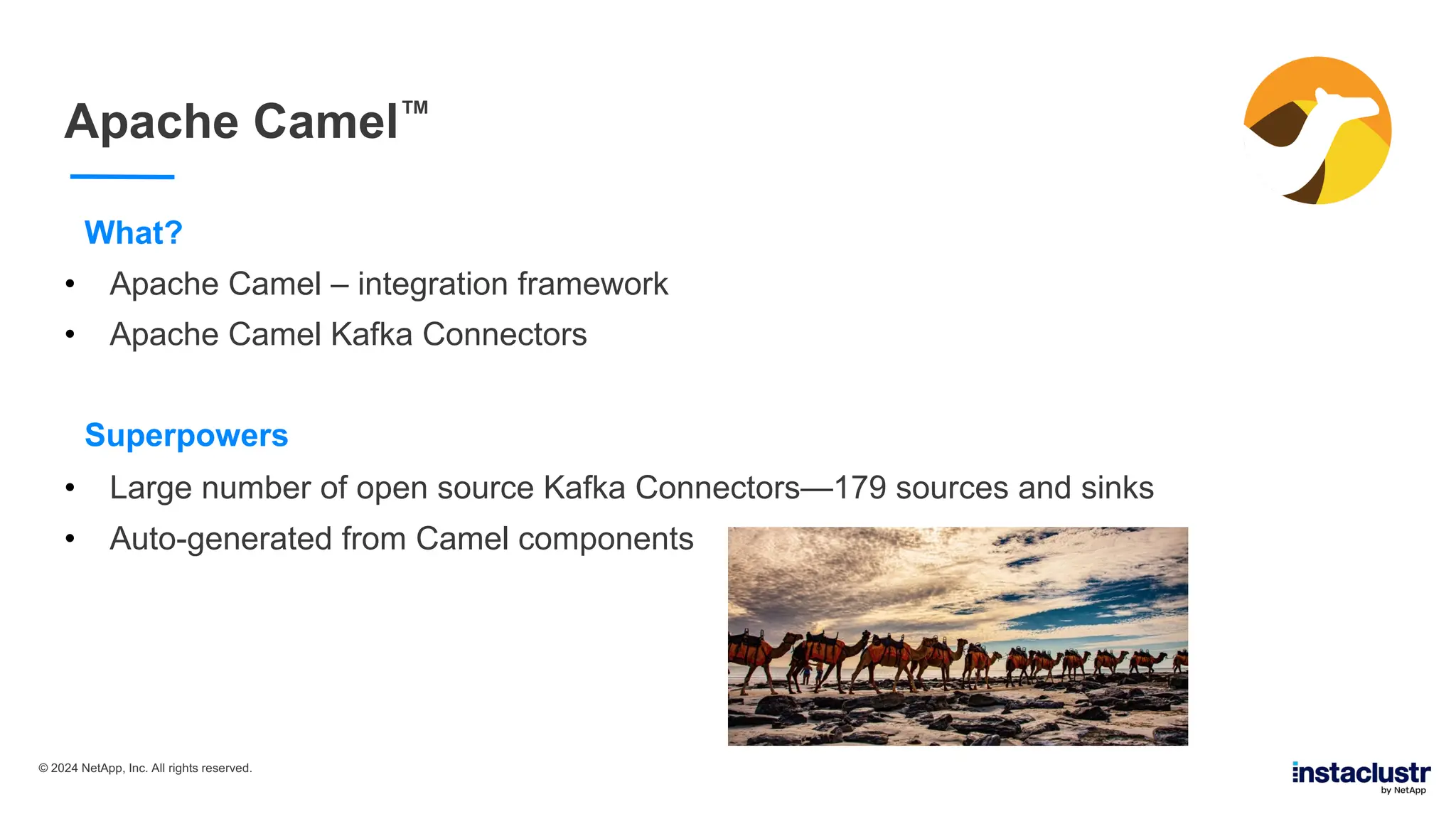

Apache Camel™
What?
• Apache Camel – integration framework
• Apache Camel Kafka Connectors
Superpowers
• Large number of open source Kafka Connectors—179 sources and sinks
• Auto-generated from Camel components
© 2024 NetApp, Inc. All rights reserved.
Use case 4: Drone delivery
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.
12. Uber’s Cadence®
© 2024 NetApp, Inc. All rights reserved.
Cadence®
Railway signal“man”
(signalwoman!)
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

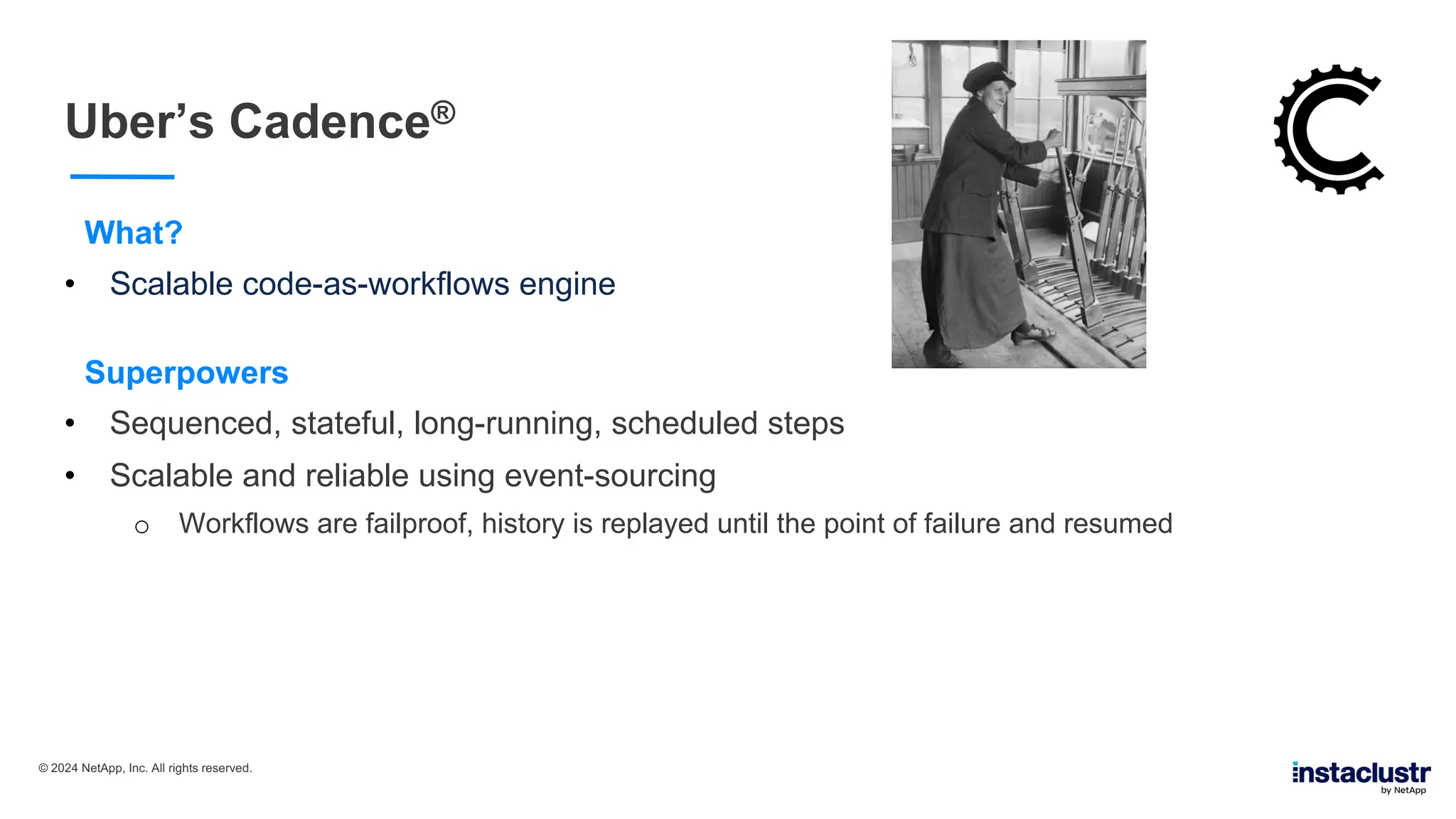

Uber’s Cadence®
What?
• Scalable code-as-workflows engine
Superpowers
• Sequenced, stateful, long-running, scheduled steps
• Scalable and reliable using event-sourcing
o Workflows are failproof, history is replayed until the point of failure and resumed
© 2024 NetApp, Inc. All rights reserved.

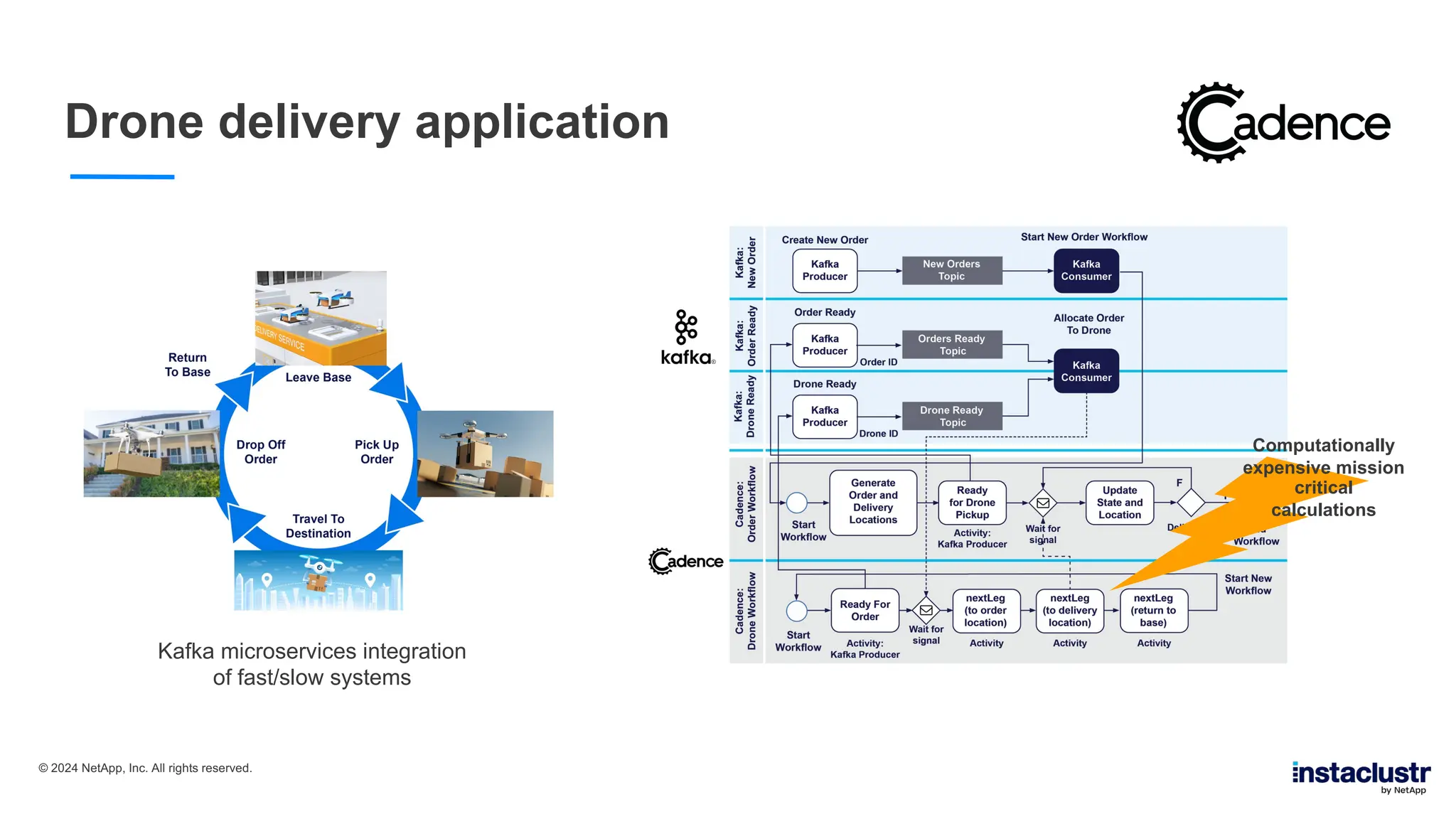

Drone delivery application
Computationally
expensive mission
critical
calculations
Kafka microservices integration
of fast/slow systems
© 2024 NetApp, Inc. All rights reserved.

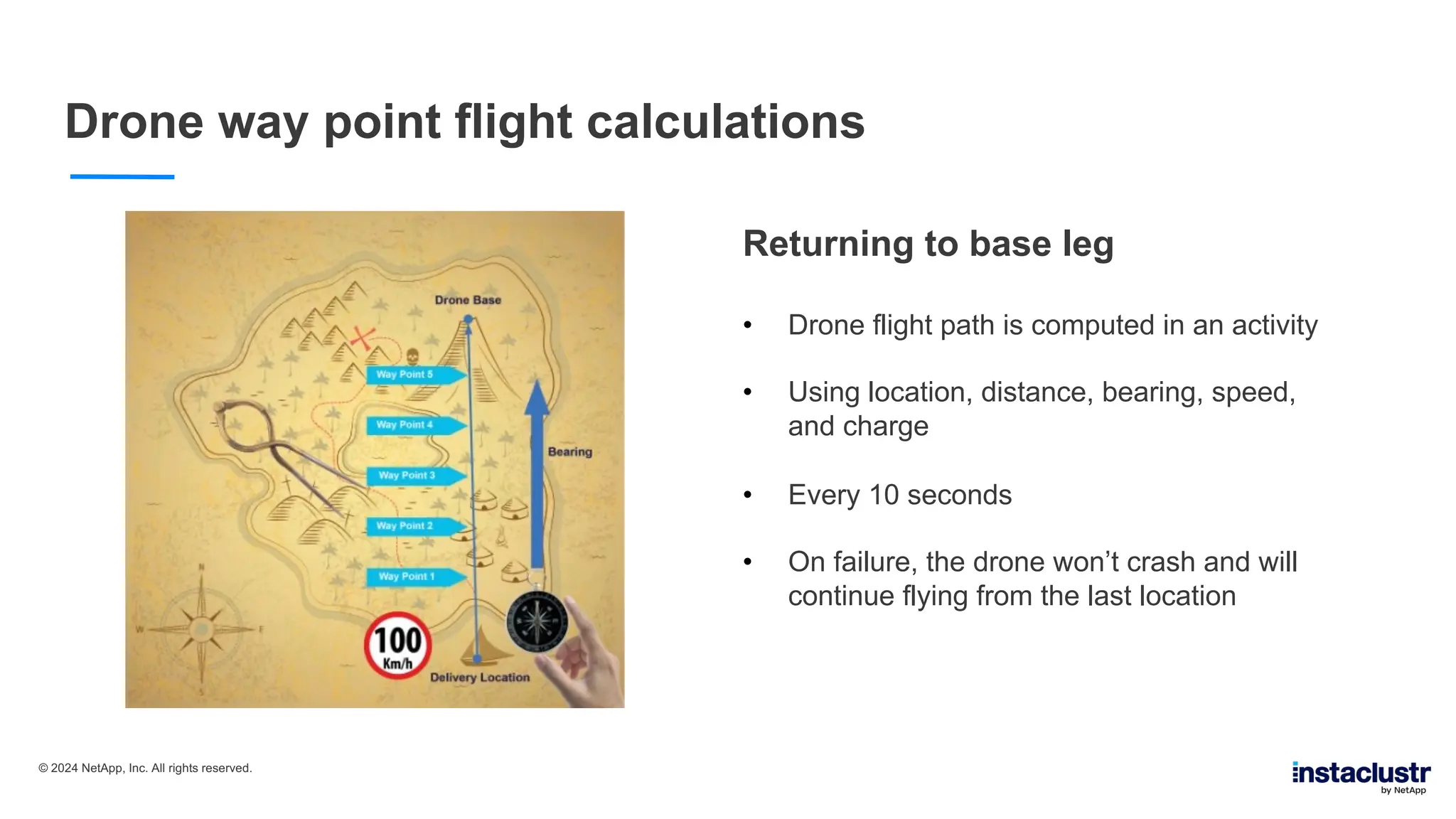

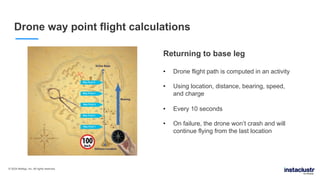

Drone way point flight calculations
Returning to base leg
• Drone flight path is computed in an activity
• Using location, distance, bearing, speed,
and charge
• Every 10 seconds
• On failure, the drone won’t crash and will
continue flying from the last location
© 2024 NetApp, Inc. All rights reserved.

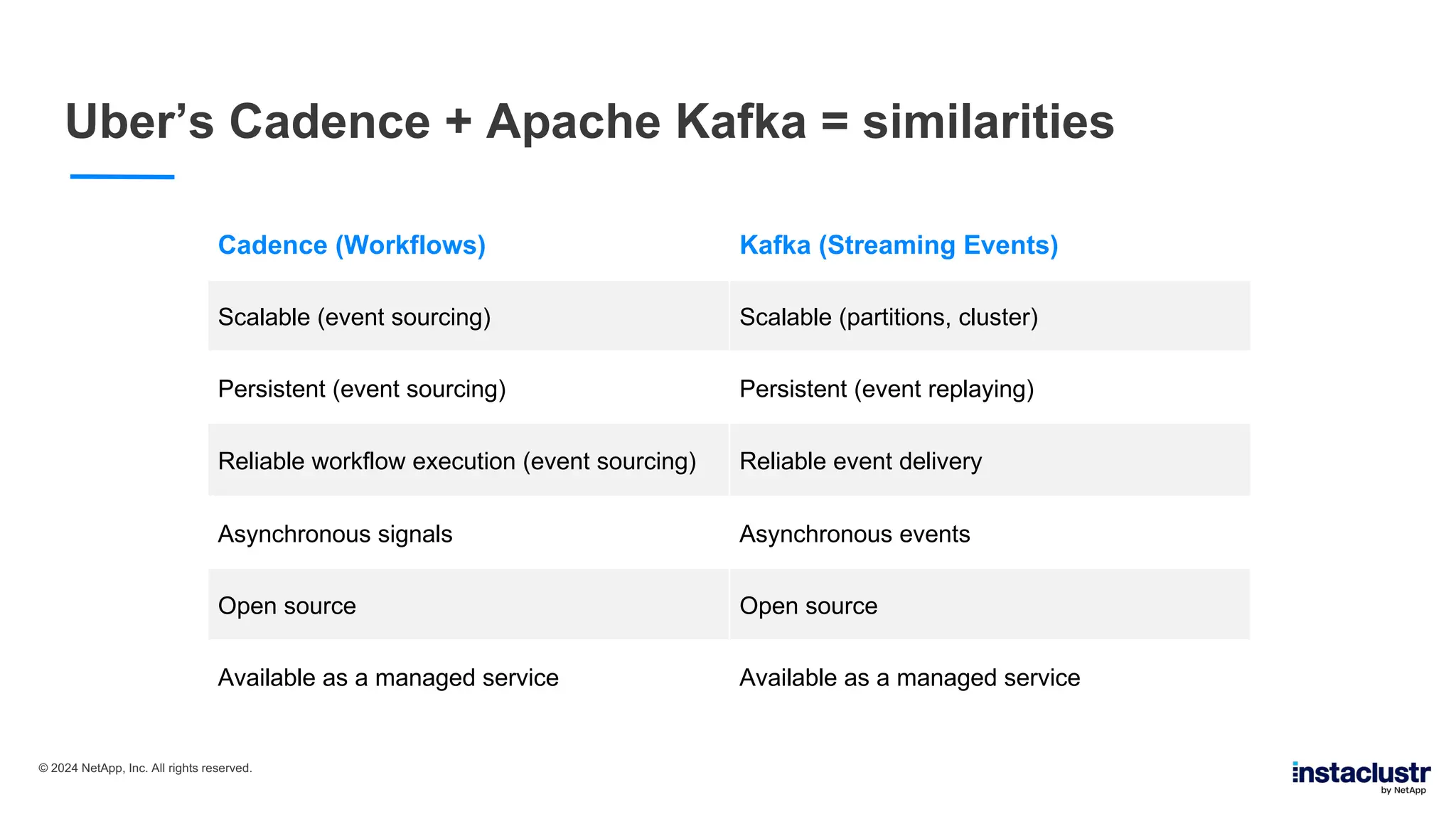

Uber’s Cadence + Apache Kafka = similarities
Cadence (Workflows) Kafka (Streaming Events)
Scalable (event sourcing) Scalable (partitions, cluster)
Persistent (event sourcing) Persistent (event replaying)
Reliable workflow execution (event sourcing) Reliable event delivery
Asynchronous signals Asynchronous events
Open source Open source
Available as a managed service Available as a managed service
© 2024 NetApp, Inc. All rights reserved.
Uber’s Cadence =
Orchestration (synchronous/timed sequences)
(Source: Getty Images)
Different architectural
(musical) styles
© 2024 NetApp, Inc. All rights reserved.
Apache Kafka =
Choreography (asynchronous)
Different architectural
(musical) styles
(Source: Getty Images)
© 2024 NetApp, Inc. All rights reserved.
Combined Cadence + Kafka = Ballet!
Integrated in a
new style
© 2024 NetApp, Inc. All rights reserved.
Cadence + Kafka = Complementary timescales
(Source: Getty Images)
© 2024 NetApp, Inc. All rights reserved.

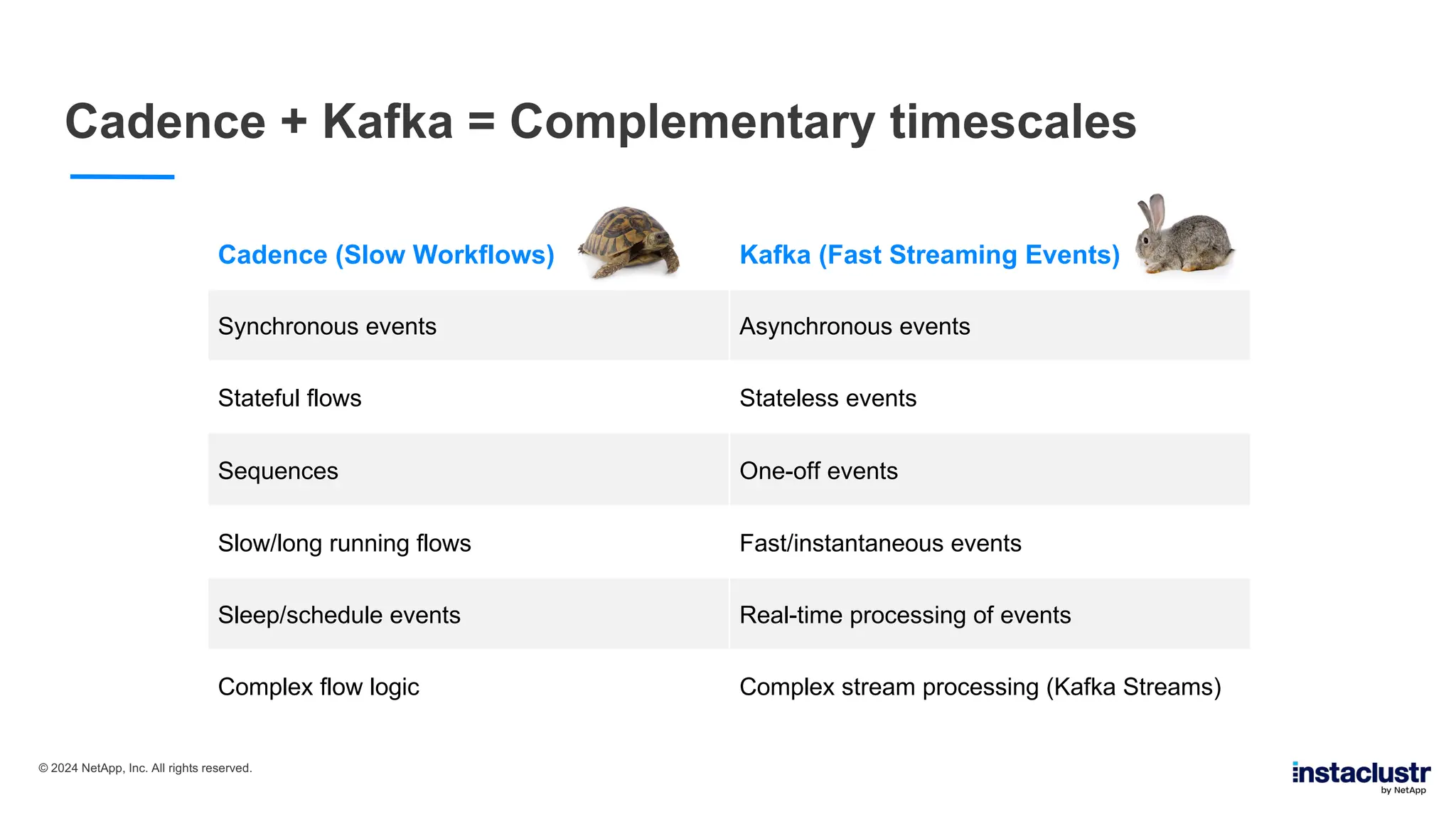

Cadence + Kafka = Complementary timescales
Cadence (Slow Workflows) Kafka (Fast Streaming Events)
Synchronous events Asynchronous events
Stateful flows Stateless events
Sequences One-off events
Slow/long running flows Fast/instantaneous events
Sleep/schedule events Real-time processing of events
Complex flow logic Complex stream processing (Kafka Streams)
© 2024 NetApp, Inc. All rights reserved.
Cadence + Kafka =
Integration → Drone Ballet
Drone show, Japan
(Source: Getty Images)
© 2024 NetApp, Inc. All rights reserved.
How many drones can we fly?
(Source: Shutterstock)
© 2024 NetApp, Inc. All rights reserved.

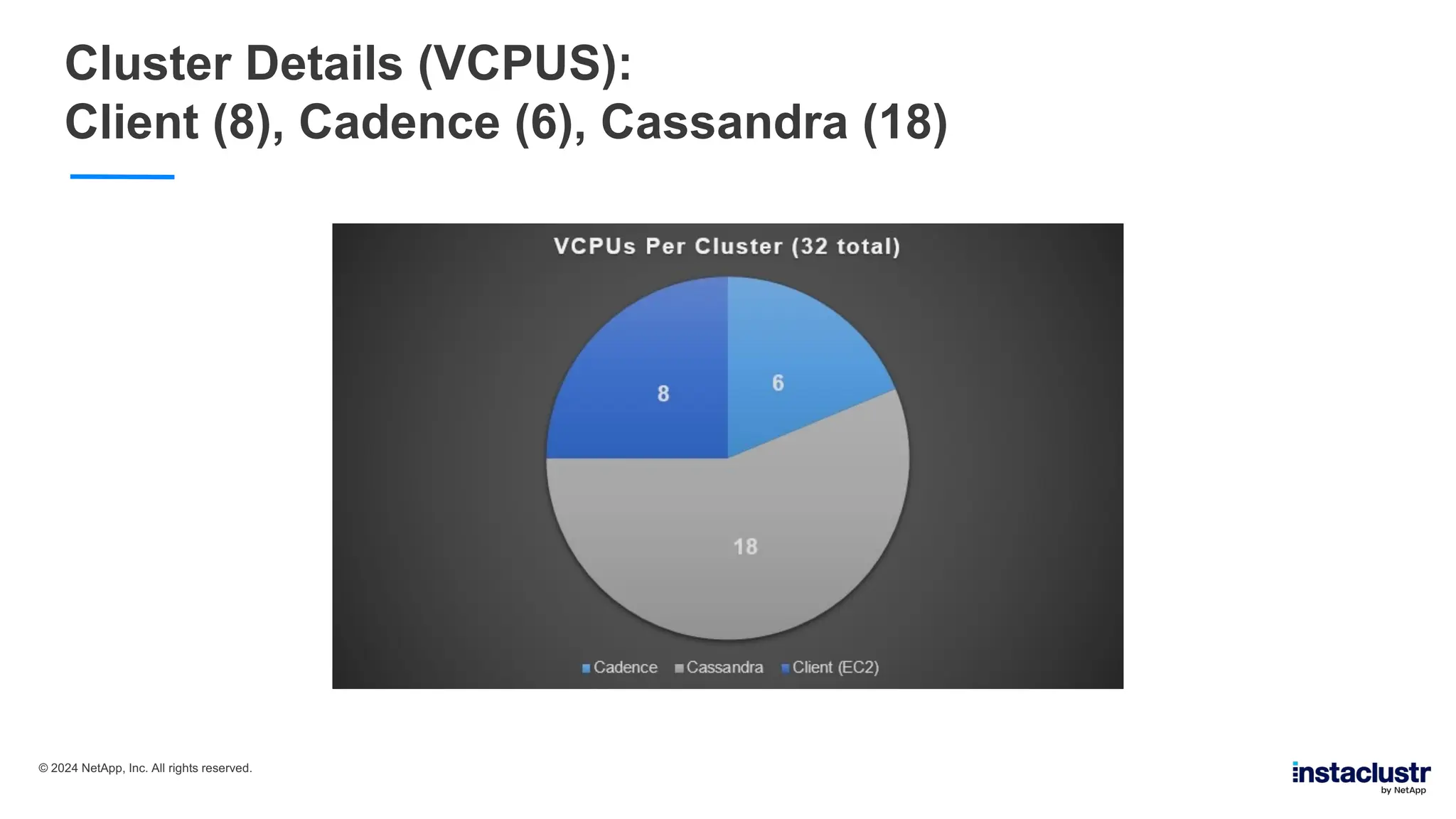

Cluster Details (VCPUS):
Client (8), Cadence (6), Cassandra (18)
© 2024 NetApp, Inc. All rights reserved.

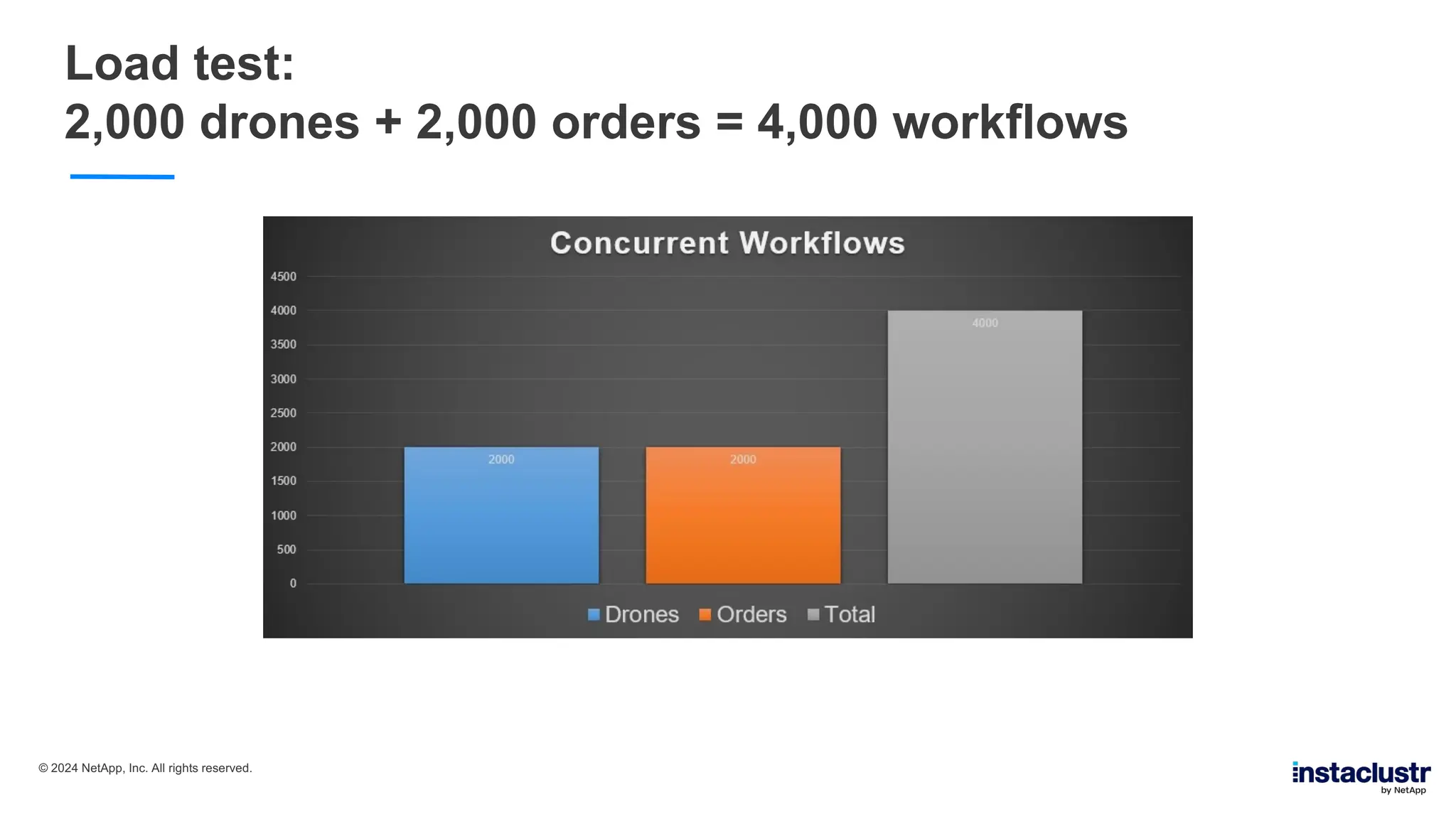

Load test:
2,000 drones + 2,000 orders = 4,000 workflows
© 2024 NetApp, Inc. All rights reserved.
20 Drones flying
Purple = base
Black = drone
Orange = shop
Red = delivery location
Green = successful delivery
© 2024 NetApp, Inc. All rights reserved.
Use case 5: Streaming ML
(Source: Getty Images) (Source: Getty Images)
Busy! Not Busy!
Shop busy/not busy prediction
© 2024 NetApp, Inc. All rights reserved.

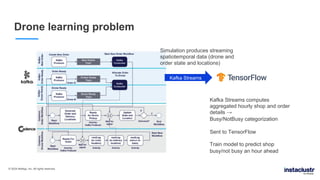

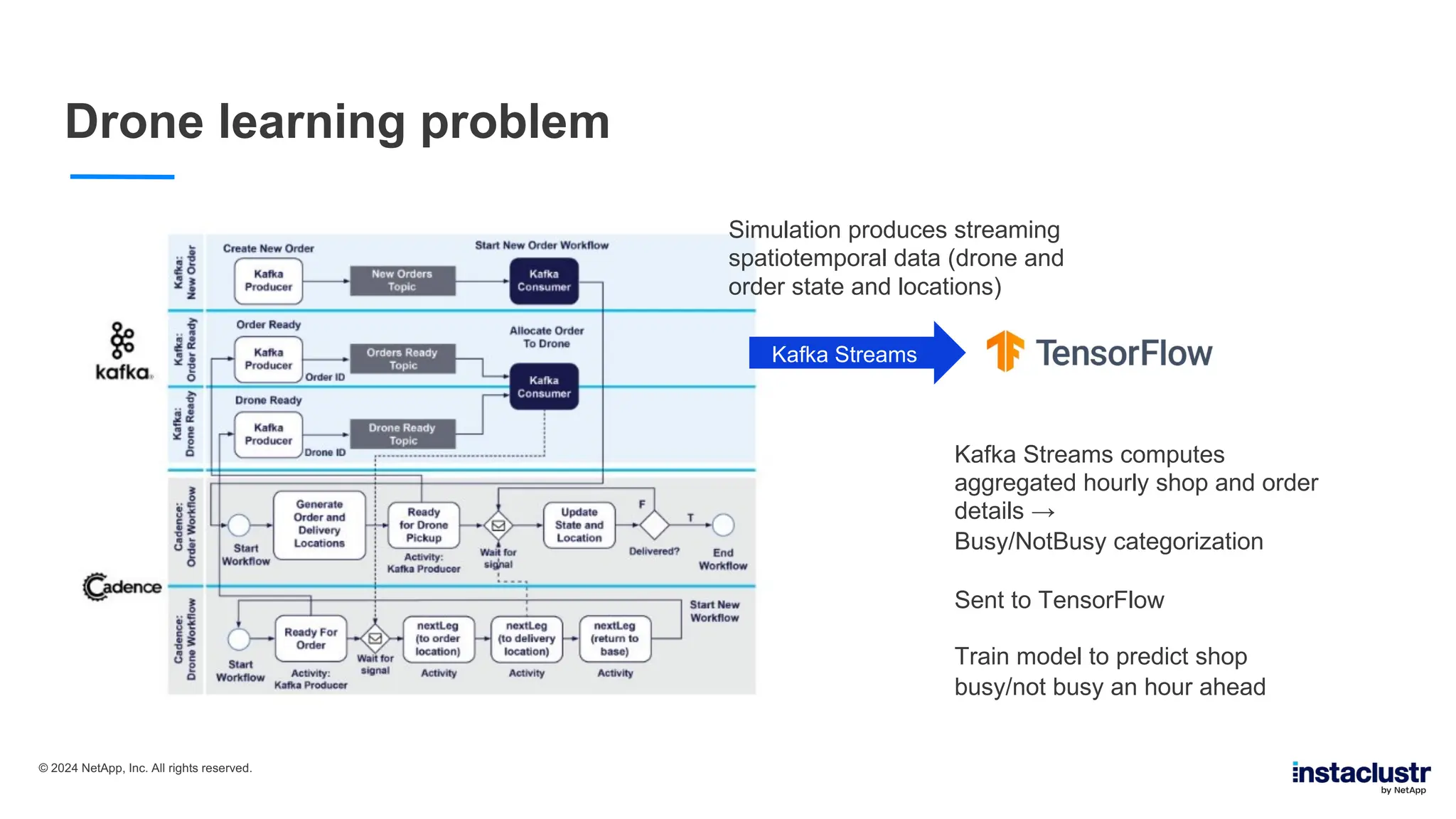

Drone learning problem
Kafka Streams
Kafka Streams computes
aggregated hourly shop and order
details →
Busy/NotBusy categorization
Sent to TensorFlow
Train model to predict shop
busy/not busy an hour ahead
Simulation produces streaming
spatiotemporal data (drone and
order state and locations)
© 2024 NetApp, Inc. All rights reserved.
13. TensorFlow
© 2024 NetApp, Inc. All rights reserved.
TensorFlow
What does the
future hold?
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.

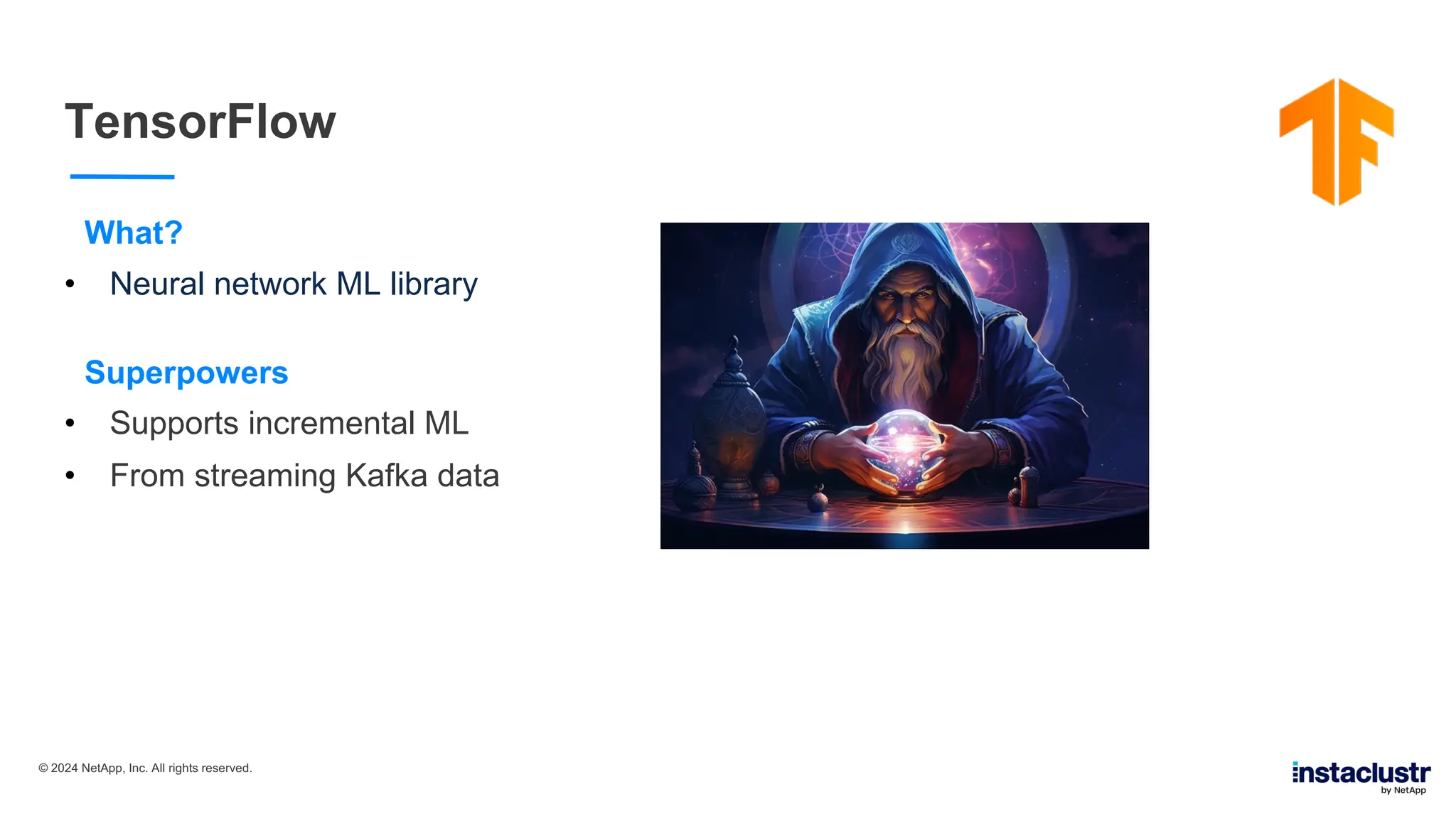

TensorFlow
What?
• Neural network ML library
Superpowers
• Supports incremental ML
• From streaming Kafka data
© 2024 NetApp, Inc. All rights reserved.

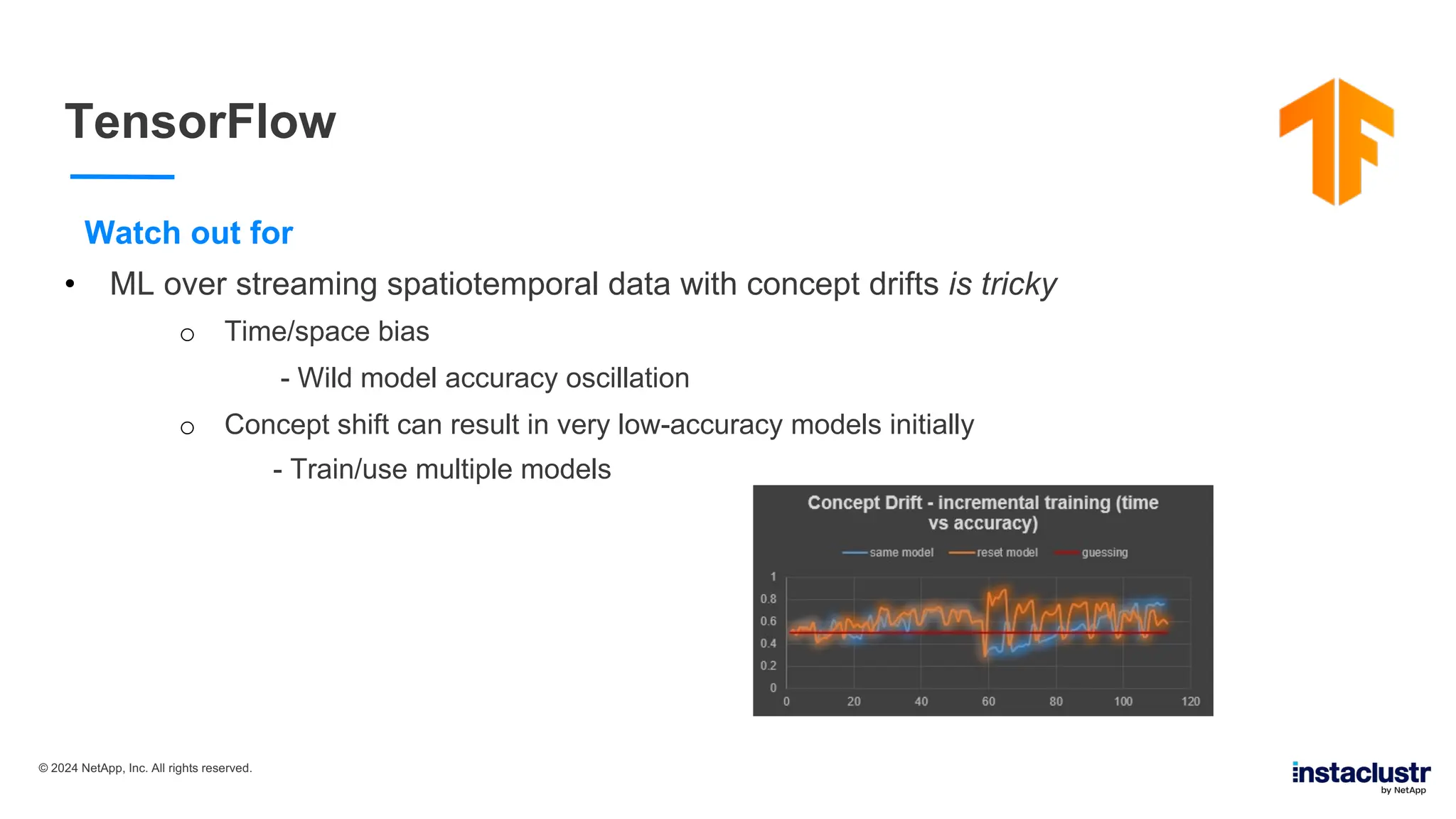

TensorFlow
Watch out for
• ML over streaming spatiotemporal data with concept drifts is tricky
o Time/space bias
- Wild model accuracy oscillation
o Concept shift can result in very low-accuracy models initially
- Train/use multiple models
© 2024 NetApp, Inc. All rights reserved.
Use case 6:
Santa’s elves' toy and box packing
KafkaStreams, ChatGPT, RisingWave, and OpenTelemetry
Streaming joins to match toys and boxes
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.
14. OpenTelemetry
© 2024 NetApp, Inc. All rights reserved.
OpenTelemetry
X-ray vision!
(Source: Wikimedia Public Domain)
© 2024 NetApp, Inc. All rights reserved.

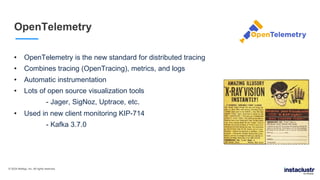

OpenTelemetry
• OpenTelemetry is the new standard for distributed tracing
• Combines tracing (OpenTracing), metrics, and logs
• Automatic instrumentation
• Lots of open source visualization tools
- Jager, SigNoz, Uptrace, etc.
• Used in new client monitoring KIP-714
- Kafka 3.7.0
© 2024 NetApp, Inc. All rights reserved.

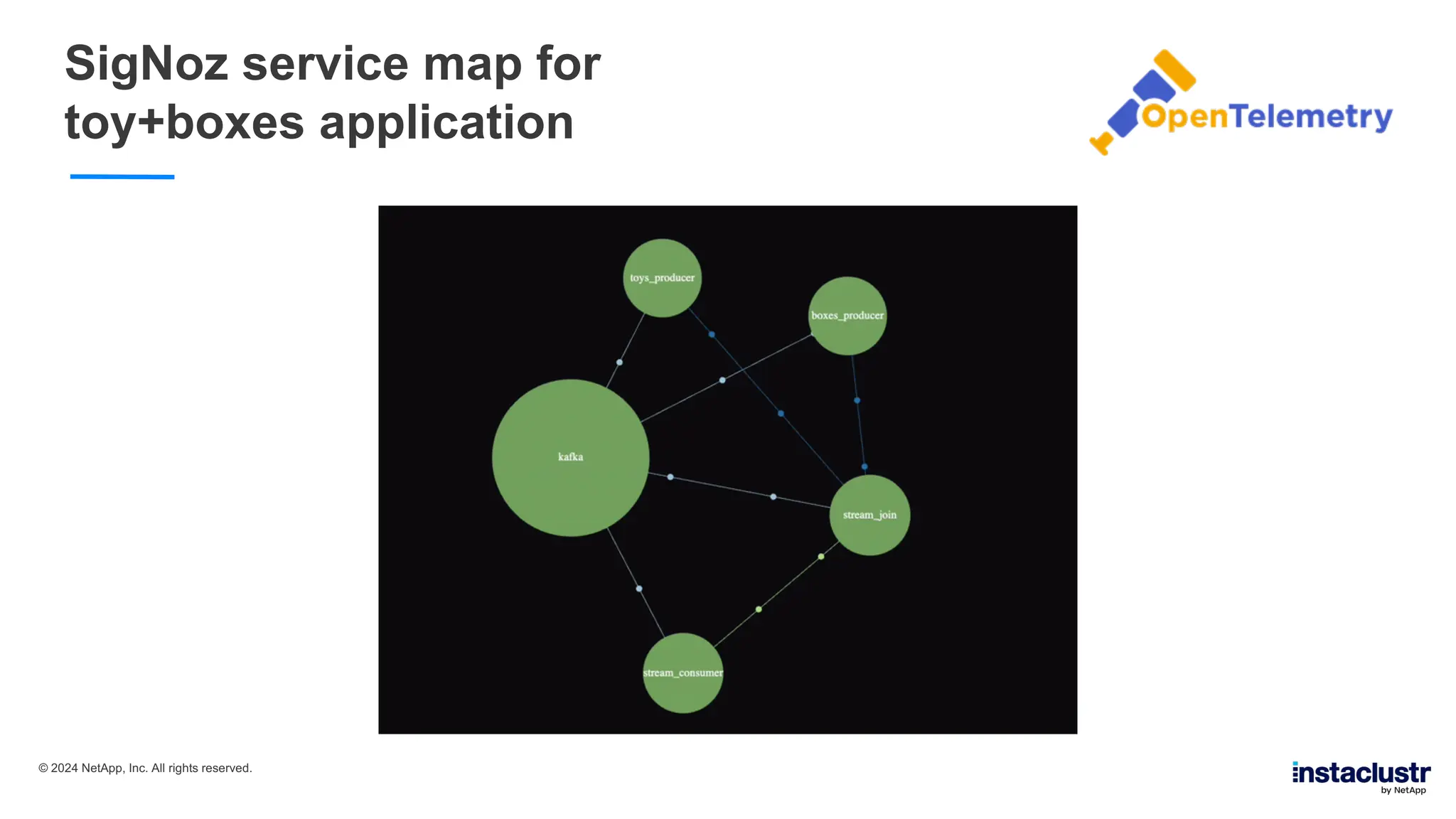

SigNoz service map for
toy+boxes application
© 2024 NetApp, Inc. All rights reserved.
15. RisingWave
© 2024 NetApp, Inc. All rights reserved.
RisingWave
Wave processing
(Source: Adobe Stock)
© 2024 NetApp, Inc. All rights reserved.

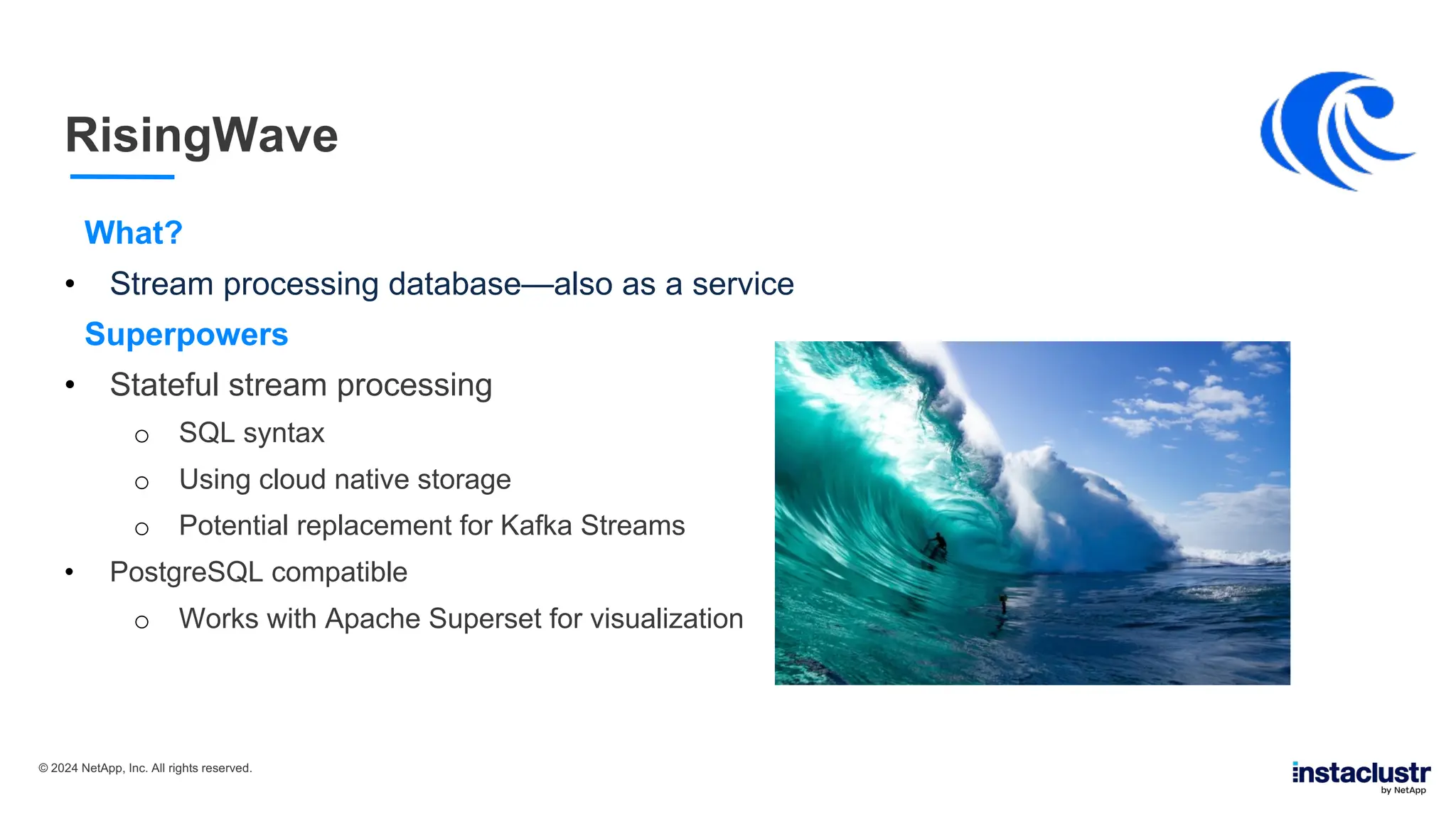

RisingWave
What?
• Stream processing database—also as a service
Superpowers
• Stateful stream processing
o SQL syntax
o Using cloud native storage
o Potential replacement for Kafka Streams
• PostgreSQL compatible
o Works with Apache Superset for visualization
© 2024 NetApp, Inc. All rights reserved.
16. LLMs
© 2024 NetApp, Inc. All rights reserved.
LLMs
The Answer?
(Source: Wikimedia)
© 2024 NetApp, Inc. All rights reserved.

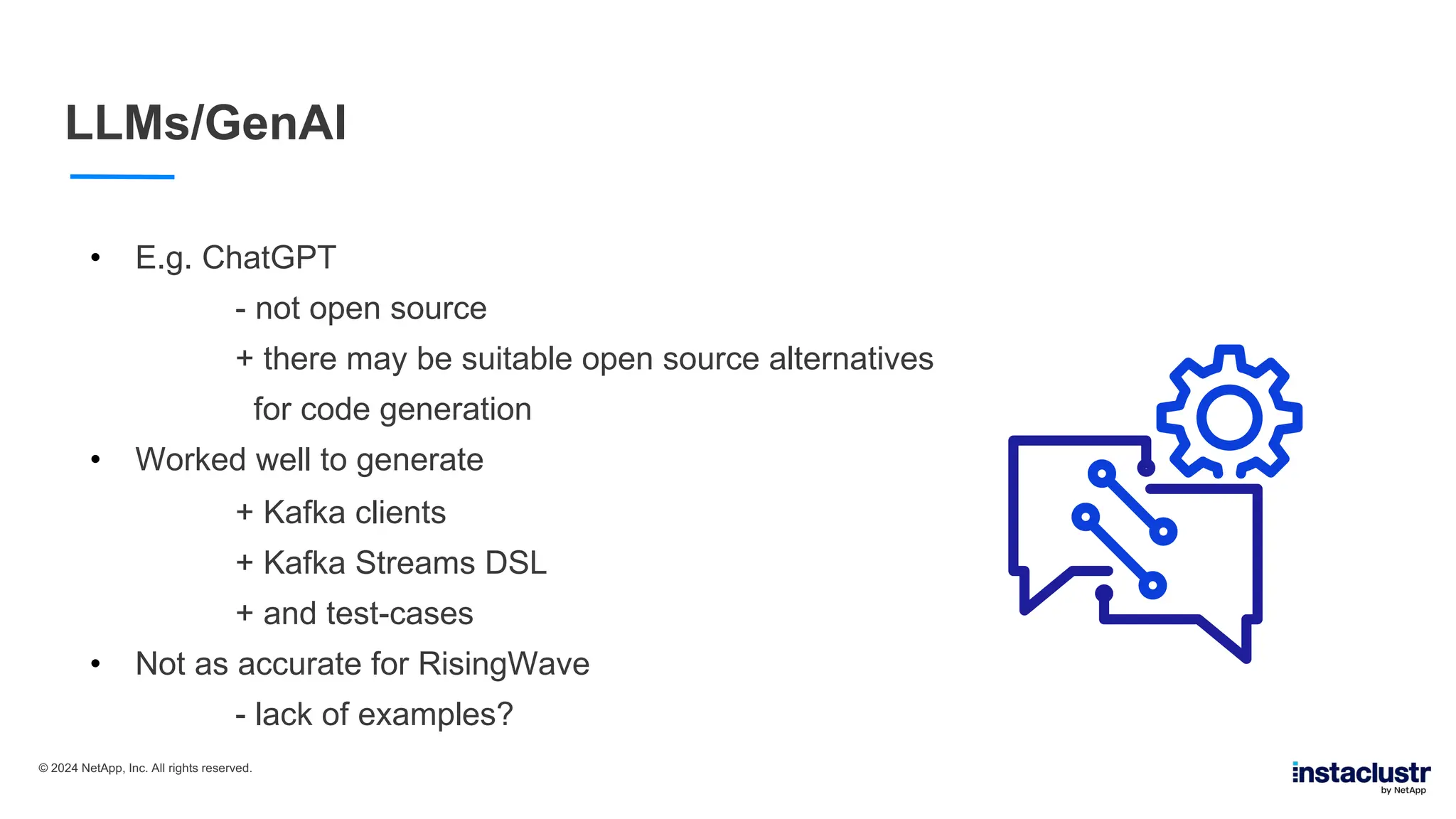

LLMs/GenAI
• E.g. ChatGPT
- not open source
+ there may be suitable open source alternatives
for code generation
• Worked well to generate
+ Kafka clients
+ Kafka Streams DSL
+ and test-cases
• Not as accurate for RisingWave
- lack of examples?
© 2024 NetApp, Inc. All rights reserved.

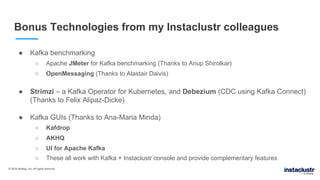

Bonus Technologies from my Instaclustr colleagues
● Kafka benchmarking
○ Apache JMeter for Kafka benchmarking (Thanks to Anup Shirolkar)
○ OpenMessaging (Thanks to Alastair Daivis)
● Strimzi – a Kafka Operator for Kubernetes, and Debezium (CDC using Kafka Connect)
(Thanks to Felix Alipaz-Dicke)
● Kafka GUIs (Thanks to Ana-Maria Minda)
○ Kafdrop
○ AKHQ
○ UI for Apache Kafka
○ These all work with Kafka + Instaclustr console and provide complementary features
© 2024 NetApp, Inc. All rights reserved.

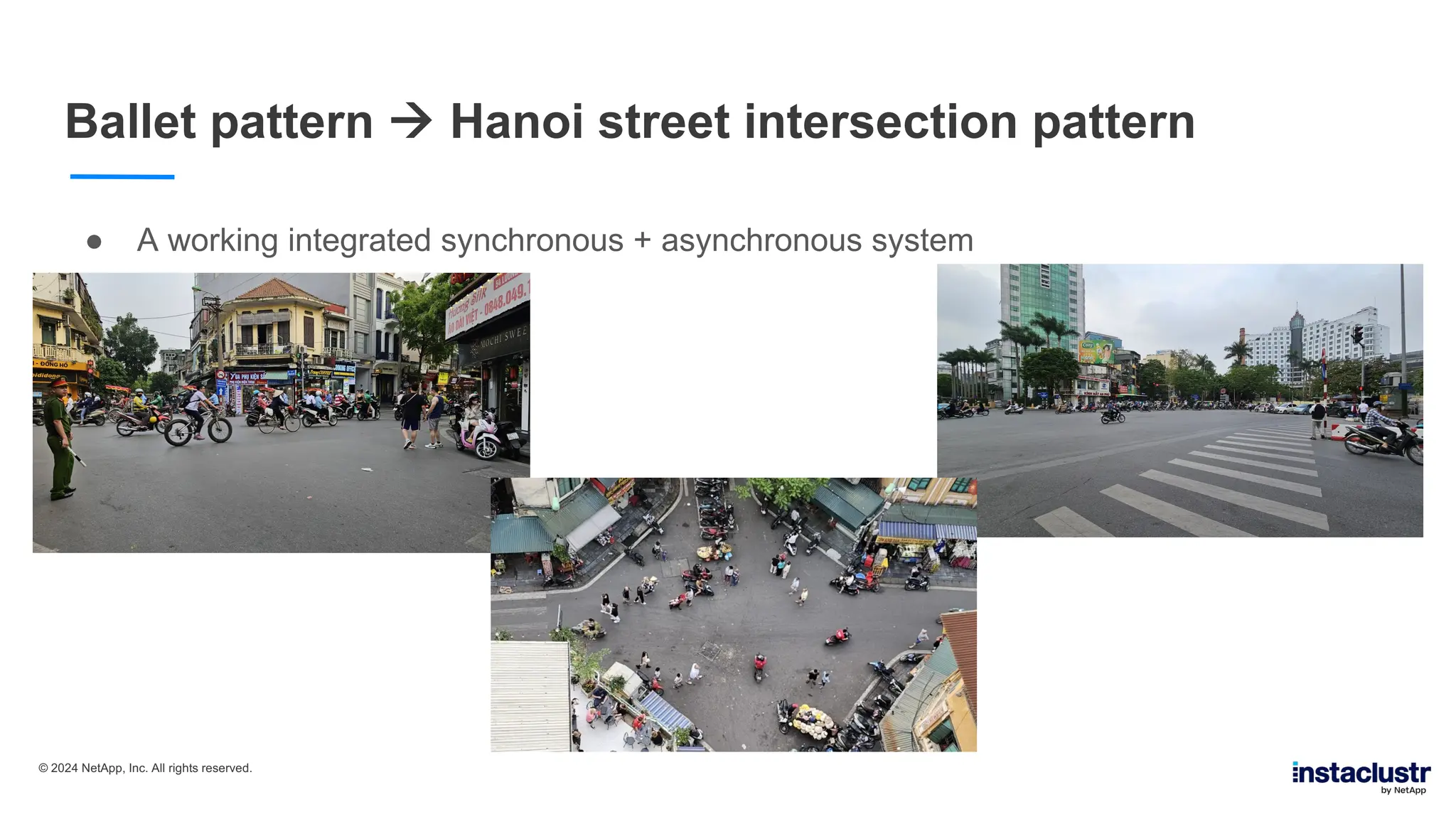

Ballet pattern à Hanoi street intersection pattern
● A working integrated synchronous + asynchronous system
© 2024 NetApp, Inc. All rights reserved.
I survived as a pedestrian!
© 2024 NetApp, Inc. All rights reserved.

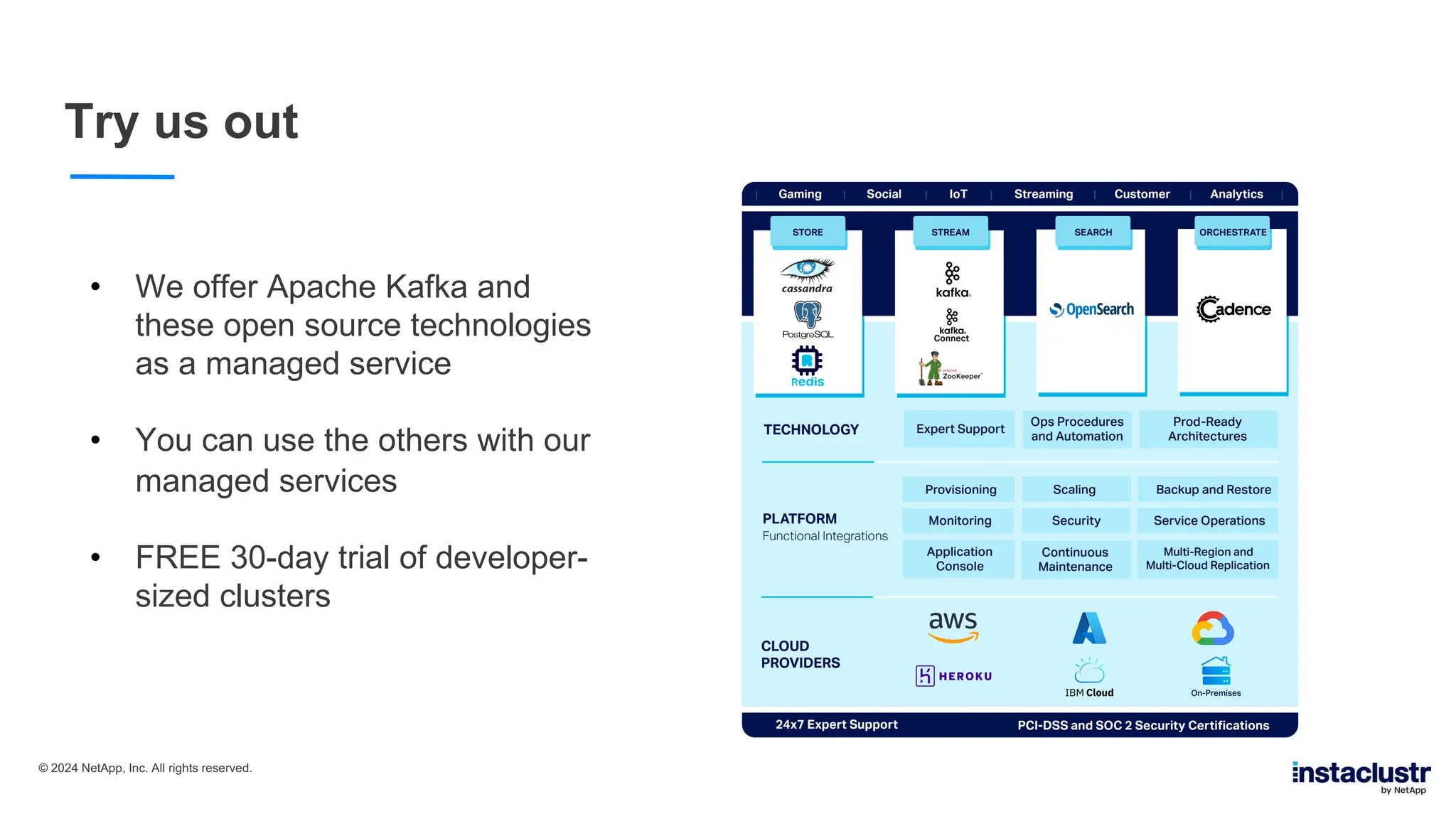

Try us out
• We offer Apache Kafka and
these open source technologies
as a managed service
• You can use the others with our
managed services
• FREE 30-day trial of developer-
sized clusters
© 2024 NetApp, Inc. All rights reserved.
Paul Brebner | Instaclustr Technology Evangelist
www.Instaclustr.com/paul-brebner à All my blogs
Thank You!

More Related Content

Similar to Superpower Your Apache Kafka Applications Development with Complementary Open Source Technologies

ApacheCon2019 Talk: Kafka, Cassandra and Kubernetes at Scale – Real-time Ano...
ApacheCon2019 Talk: Kafka, Cassandra and Kubernetesat Scale – Real-time Ano...ApacheCon2019 Talk: Kafka, Cassandra and Kubernetesat Scale – Real-time Ano...
ApacheCon2019 Talk: Kafka, Cassandra and Kubernetes at Scale – Real-time Ano...
Paul Brebner

Apache kafka
Apache kafkaApache kafka
Apache kafka
Janu Jahnavi

Apache kafka
Apache kafkaApache kafka
Apache kafka
Janu Jahnavi

30 Of My Favourite Open Source Technologies In 30 Minutes
30 Of My Favourite Open Source Technologies In 30 Minutes30 Of My Favourite Open Source Technologies In 30 Minutes
30 Of My Favourite Open Source Technologies In 30 Minutes
Paul Brebner

Being Ready for Apache Kafka - Apache: Big Data Europe 2015
Being Ready for Apache Kafka - Apache: Big Data Europe 2015Being Ready for Apache Kafka - Apache: Big Data Europe 2015
Being Ready for Apache Kafka - Apache: Big Data Europe 2015
Michael Noll

Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...
Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...
Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...
confluent

Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...
Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...
Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...
Kai Wähner

Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...
Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...
Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...
Red Hat Developers

GSJUG: Mastering Data Streaming Pipelines 09May2023
GSJUG: Mastering Data Streaming Pipelines 09May2023GSJUG: Mastering Data Streaming Pipelines 09May2023
GSJUG: Mastering Data Streaming Pipelines 09May2023
Timothy Spann

Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd
Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and LinkerdService Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd
Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd
Kai Wähner

Etl is Dead; Long Live Streams
Etl is Dead; Long Live StreamsEtl is Dead; Long Live Streams
Etl is Dead; Long Live Streams
confluent

Building Real-time Pipelines with FLaNK_ A Case Study with Transit Data
Building Real-time Pipelines with FLaNK_ A Case Study with Transit DataBuilding Real-time Pipelines with FLaNK_ A Case Study with Transit Data
Building Real-time Pipelines with FLaNK_ A Case Study with Transit Data
Timothy Spann

DevOps in Age of Kubernetes
DevOps in Age of KubernetesDevOps in Age of Kubernetes
DevOps in Age of Kubernetes
Mesosphere Inc.

Building Real-Time Travel Alerts
Building Real-Time Travel AlertsBuilding Real-Time Travel Alerts
Building Real-Time Travel Alerts
Timothy Spann

BigDataFest_ Building Modern Data Streaming Apps
BigDataFest_  Building Modern Data Streaming AppsBigDataFest_  Building Modern Data Streaming Apps
BigDataFest_ Building Modern Data Streaming Apps
ssuser73434e

big data fest building modern data streaming apps
big data fest building modern data streaming appsbig data fest building modern data streaming apps
big data fest building modern data streaming apps
Timothy Spann

[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...
[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...
[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...
Ludovic Piot

HBase Meetup @ Cask HQ 09/25
HBase Meetup @ Cask HQ 09/25HBase Meetup @ Cask HQ 09/25
HBase Meetup @ Cask HQ 09/25
Cask Data

Machine Learning Trends of 2018 combined with the Apache Kafka Ecosystem
Machine Learning Trends of 2018 combined with the Apache Kafka EcosystemMachine Learning Trends of 2018 combined with the Apache Kafka Ecosystem
Machine Learning Trends of 2018 combined with the Apache Kafka Ecosystem
Kai Wähner

CoC23_Utilizing Real-Time Transit Data for Travel Optimization
CoC23_Utilizing Real-Time Transit Data for Travel OptimizationCoC23_Utilizing Real-Time Transit Data for Travel Optimization
CoC23_Utilizing Real-Time Transit Data for Travel Optimization
Timothy Spann


Similar to Superpower Your Apache Kafka Applications Development with Complementary Open Source Technologies (20)

ApacheCon2019 Talk: Kafka, Cassandra and Kubernetes at Scale – Real-time Ano...
ApacheCon2019 Talk: Kafka, Cassandra and Kubernetesat Scale – Real-time Ano...ApacheCon2019 Talk: Kafka, Cassandra and Kubernetesat Scale – Real-time Ano...
ApacheCon2019 Talk: Kafka, Cassandra and Kubernetes at Scale – Real-time Ano...

Apache kafka
Apache kafkaApache kafka
Apache kafka

Apache kafka
Apache kafkaApache kafka
Apache kafka

30 Of My Favourite Open Source Technologies In 30 Minutes
30 Of My Favourite Open Source Technologies In 30 Minutes30 Of My Favourite Open Source Technologies In 30 Minutes
30 Of My Favourite Open Source Technologies In 30 Minutes

Being Ready for Apache Kafka - Apache: Big Data Europe 2015
Being Ready for Apache Kafka - Apache: Big Data Europe 2015Being Ready for Apache Kafka - Apache: Big Data Europe 2015
Being Ready for Apache Kafka - Apache: Big Data Europe 2015

Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...
Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...
Event-Driven Model Serving: Stream Processing vs. RPC with Kafka and TensorFl...

Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...
Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...
Event-Driven Stream Processing and Model Deployment with Apache Kafka, Kafka ...

Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...
Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...
Kafka at the Edge: an IoT scenario with OpenShift Streams for Apache Kafka | ...

GSJUG: Mastering Data Streaming Pipelines 09May2023
GSJUG: Mastering Data Streaming Pipelines 09May2023GSJUG: Mastering Data Streaming Pipelines 09May2023
GSJUG: Mastering Data Streaming Pipelines 09May2023

Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd
Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and LinkerdService Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd
Service Mesh with Apache Kafka, Kubernetes, Envoy, Istio and Linkerd

Etl is Dead; Long Live Streams
Etl is Dead; Long Live StreamsEtl is Dead; Long Live Streams
Etl is Dead; Long Live Streams

Building Real-time Pipelines with FLaNK_ A Case Study with Transit Data
Building Real-time Pipelines with FLaNK_ A Case Study with Transit DataBuilding Real-time Pipelines with FLaNK_ A Case Study with Transit Data
Building Real-time Pipelines with FLaNK_ A Case Study with Transit Data

DevOps in Age of Kubernetes
DevOps in Age of KubernetesDevOps in Age of Kubernetes
DevOps in Age of Kubernetes

Building Real-Time Travel Alerts
Building Real-Time Travel AlertsBuilding Real-Time Travel Alerts
Building Real-Time Travel Alerts

BigDataFest_ Building Modern Data Streaming Apps
BigDataFest_  Building Modern Data Streaming AppsBigDataFest_  Building Modern Data Streaming Apps
BigDataFest_ Building Modern Data Streaming Apps

big data fest building modern data streaming apps
big data fest building modern data streaming appsbig data fest building modern data streaming apps
big data fest building modern data streaming apps

[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...
[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...
[Capitole du Libre] #serverless -  mettez-le en oeuvre dans votre entreprise...

HBase Meetup @ Cask HQ 09/25
HBase Meetup @ Cask HQ 09/25HBase Meetup @ Cask HQ 09/25
HBase Meetup @ Cask HQ 09/25

Machine Learning Trends of 2018 combined with the Apache Kafka Ecosystem
Machine Learning Trends of 2018 combined with the Apache Kafka EcosystemMachine Learning Trends of 2018 combined with the Apache Kafka Ecosystem
Machine Learning Trends of 2018 combined with the Apache Kafka Ecosystem

CoC23_Utilizing Real-Time Transit Data for Travel Optimization
CoC23_Utilizing Real-Time Transit Data for Travel OptimizationCoC23_Utilizing Real-Time Transit Data for Travel Optimization
CoC23_Utilizing Real-Time Transit Data for Travel Optimization


More from Paul Brebner

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Paul Brebner

The Impact of Hardware and Software Version Changes on Apache Kafka Performan...
The Impact of Hardware and Software Version Changes on Apache Kafka Performan...The Impact of Hardware and Software Version Changes on Apache Kafka Performan...
The Impact of Hardware and Software Version Changes on Apache Kafka Performan...
Paul Brebner

Apache ZooKeeper and Apache Curator: Meet the Dining Philosophers
Apache ZooKeeper and Apache Curator: Meet the Dining PhilosophersApache ZooKeeper and Apache Curator: Meet the Dining Philosophers
Apache ZooKeeper and Apache Curator: Meet the Dining Philosophers
Paul Brebner

Spinning your Drones with Cadence Workflows and Apache Kafka
Spinning your Drones with Cadence Workflows and Apache KafkaSpinning your Drones with Cadence Workflows and Apache Kafka
Spinning your Drones with Cadence Workflows and Apache Kafka
Paul Brebner

Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...
Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...
Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...
Paul Brebner

Scaling Open Source Big Data Cloud Applications is Easy/Hard
Scaling Open Source Big Data Cloud Applications is Easy/HardScaling Open Source Big Data Cloud Applications is Easy/Hard
Scaling Open Source Big Data Cloud Applications is Easy/Hard
Paul Brebner

OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard
OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/HardOPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard
OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard
Paul Brebner

A Visual Introduction to Apache Kafka
A Visual Introduction to Apache KafkaA Visual Introduction to Apache Kafka
A Visual Introduction to Apache Kafka
Paul Brebner

Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...
Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...
Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...
Paul Brebner

Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...
Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...
Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...
Paul Brebner

Grid Middleware – Principles, Practice and Potential
Grid Middleware – Principles, Practice and PotentialGrid Middleware – Principles, Practice and Potential
Grid Middleware – Principles, Practice and Potential
Paul Brebner

Grid middleware is easy to install, configure, secure, debug and manage acros...
Grid middleware is easy to install, configure, secure, debug and manage acros...Grid middleware is easy to install, configure, secure, debug and manage acros...
Grid middleware is easy to install, configure, secure, debug and manage acros...
Paul Brebner

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Paul Brebner

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Paul Brebner

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Paul Brebner

0b101000 years of computing: a personal timeline - decade "0", the 1980's
0b101000 years of computing: a personal timeline - decade "0", the 1980's0b101000 years of computing: a personal timeline - decade "0", the 1980's
0b101000 years of computing: a personal timeline - decade "0", the 1980's
Paul Brebner

ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...
ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...
ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...
Paul Brebner

ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...
ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...
ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...
Paul Brebner

How to Improve the Observability of Apache Cassandra and Kafka applications...
How to Improve the Observability of Apache Cassandra and Kafka applications...How to Improve the Observability of Apache Cassandra and Kafka applications...
How to Improve the Observability of Apache Cassandra and Kafka applications...
Paul Brebner

A visual introduction to Apache Kafka
A visual introduction to Apache KafkaA visual introduction to Apache Kafka
A visual introduction to Apache Kafka
Paul Brebner


More from Paul Brebner (20)

Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...
Why Apache Kafka Clusters Are Like Galaxies (And Other Cosmic Kafka Quandarie...

The Impact of Hardware and Software Version Changes on Apache Kafka Performan...
The Impact of Hardware and Software Version Changes on Apache Kafka Performan...The Impact of Hardware and Software Version Changes on Apache Kafka Performan...
The Impact of Hardware and Software Version Changes on Apache Kafka Performan...

Apache ZooKeeper and Apache Curator: Meet the Dining Philosophers
Apache ZooKeeper and Apache Curator: Meet the Dining PhilosophersApache ZooKeeper and Apache Curator: Meet the Dining Philosophers
Apache ZooKeeper and Apache Curator: Meet the Dining Philosophers

Spinning your Drones with Cadence Workflows and Apache Kafka
Spinning your Drones with Cadence Workflows and Apache KafkaSpinning your Drones with Cadence Workflows and Apache Kafka
Spinning your Drones with Cadence Workflows and Apache Kafka

Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...
Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...
Change Data Capture (CDC) With Kafka Connect® and the Debezium PostgreSQL Sou...

Scaling Open Source Big Data Cloud Applications is Easy/Hard
Scaling Open Source Big Data Cloud Applications is Easy/HardScaling Open Source Big Data Cloud Applications is Easy/Hard
Scaling Open Source Big Data Cloud Applications is Easy/Hard

OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard
OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/HardOPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard
OPEN Talk: Scaling Open Source Big Data Cloud Applications is Easy/Hard

A Visual Introduction to Apache Kafka
A Visual Introduction to Apache KafkaA Visual Introduction to Apache Kafka
A Visual Introduction to Apache Kafka

Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...
Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...
Massively Scalable Real-time Geospatial Anomaly Detection with Apache Kafka a...

Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...
Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...
Building a real-time data processing pipeline using Apache Kafka, Kafka Conne...

Grid Middleware – Principles, Practice and Potential
Grid Middleware – Principles, Practice and PotentialGrid Middleware – Principles, Practice and Potential
Grid Middleware – Principles, Practice and Potential

Grid middleware is easy to install, configure, secure, debug and manage acros...
Grid middleware is easy to install, configure, secure, debug and manage acros...Grid middleware is easy to install, configure, secure, debug and manage acros...
Grid middleware is easy to install, configure, secure, debug and manage acros...

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...

Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...
Massively Scalable Real-time Geospatial Data Processing with Apache Kafka and...

0b101000 years of computing: a personal timeline - decade "0", the 1980's
0b101000 years of computing: a personal timeline - decade "0", the 1980's0b101000 years of computing: a personal timeline - decade "0", the 1980's
0b101000 years of computing: a personal timeline - decade "0", the 1980's

ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...
ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...
ApacheCon Berlin 2019: Kongo:Building a Scalable Streaming IoT Application us...

ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...
ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...
ApacheCon2019 Talk: Improving the Observability of Cassandra, Kafka and Kuber...

How to Improve the Observability of Apache Cassandra and Kafka applications...
How to Improve the Observability of Apache Cassandra and Kafka applications...How to Improve the Observability of Apache Cassandra and Kafka applications...
How to Improve the Observability of Apache Cassandra and Kafka applications...

A visual introduction to Apache Kafka
A visual introduction to Apache KafkaA visual introduction to Apache Kafka
A visual introduction to Apache Kafka


Recently uploaded

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移
Jersey (CHE-PING) Su

UMiami degree offer diploma Transcript
UMiami degree offer diploma TranscriptUMiami degree offer diploma Transcript
UMiami degree offer diploma Transcript
attueb

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
902basic

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …
908dutch

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
mohitd6

High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
singhlata50dh

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
aslasdfmkhan4750

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
confluent

HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
josephinedrea942

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
onemonitarsoftware

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
3610stuck

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Aardwolf Security

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Natsoft Corporation

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps
AsifKarimJim

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System
SSTech System

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript
attueb

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series
Philip Schwarz

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
rachitkumar09887


Recently uploaded (20)

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移

UMiami degree offer diploma Transcript
UMiami degree offer diploma TranscriptUMiami degree offer diploma Transcript
UMiami degree offer diploma Transcript

Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...
Private Girls Call Navi Mumbai 🛵🚡9820252231 💃 Choose Best And Top Girl Servic...

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf

High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...
High Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 ...

Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...
Independent Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class H...

Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...
Unleashing the Future: Building a Scalable and Up-to-Date GenAI Chatbot with ...

HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)HIRE A HACKER FOR CHEATING HUSBAND/WIFE)
HIRE A HACKER FOR CHEATING HUSBAND/WIFE)

The Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to KnowThe Ultimate Guide to Phone Spy Apps: Everything You Need to Know
The Ultimate Guide to Phone Spy Apps: Everything You Need to Know

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf

Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.Mobile App Development Company in Noida - Drona Infotech.
Mobile App Development Company in Noida - Drona Infotech.

welcome to presentation on Google Apps
welcome to   presentation on Google Appswelcome to   presentation on Google Apps
welcome to presentation on Google Apps

React Native vs Flutter - SSTech System
React Native vs Flutter  - SSTech SystemReact Native vs Flutter  - SSTech System
React Native vs Flutter - SSTech System

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript

Folding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a seriesFolding Cheat Sheet #7 - seventh in a series
Folding Cheat Sheet #7 - seventh in a series

Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...
Agra Girls Call Agra 0X0000000X Unlimited Short Providing Girls Service Avail...


Superpower Your Apache Kafka Applications Development with Complementary Open Source Technologies

  • 1. © 2024 NetApp, Inc. All rights reserved. © 2024 NetApp, Inc. All rights reserved. Kafka Summit, Bangalore 2024 Superpower your Apache Kafka® applications development with complementary open source technologies Paul Brebner Instaclustr Technology Evangelist
  • 2. © 2024 NetApp, Inc. All rights reserved. Focus on complementary technologies – different to Kafka “Colours seem more brilliant when they are in contrast with their complementary colours.” Monet
  • 3. © 2024 NetApp, Inc. All rights reserved. Complementary Colours Matisse, Goldfish - Red/Green complementary colors (Source: Wikimedia)
  • 4. © 2024 NetApp, Inc. All rights reserved. Contrasting flowers from the Bengaluru market Bengaluru market flowers (Paul Brebner)
  • 5. © 2024 NetApp, Inc. All rights reserved. Complementary Kafka Technologies Cassandra PostgreSQL Superset Camel Cadence OpenTelemetry TensorFlow RisingWave LLMs Guava EventBus Kubernetes Prometheus Grafana Parallel Consumer OpenSearch + Dashboard Matisse, Goldfish - Red/Green complementary colors (Source: Wikimedia)
  • 6. © 2024 NetApp, Inc. All rights reserved. C.f. analogous Kafka technologies • Apache Pulsar, Flink, Storm, Spark Streaming, Beam, ActiveMQ, RocketMQ, StreamPark, RisingWave etc. Van Gogh, Sunflowers on Yellow Background, (Source: Wikimedia) But we will look at RisingWave
  • 7. © 2024 NetApp, Inc. All rights reserved. Approach Use Cases Technologies Superpowers
  • 8. © 2024 NetApp, Inc. All rights reserved. 0. Apache Kafka®
  • 9. © 2024 NetApp, Inc. All rights reserved. Apache Kafka® Postal Delivery Service Railway Post Office: Mail bags snatched by speeding train (Source: Wikimedia CCL)
  • 10. © 2024 NetApp, Inc. All rights reserved. Apache Kafka visual introduction My first Kafka talk: Visual introduction to a Kafka postal service
  • 11. © 2024 NetApp, Inc. All rights reserved. Christmas tree lights simulation Christmas 2017 My first Kafka demo application 100% Kafka A simple simulation – to start with
  • 12. © 2024 NetApp, Inc. All rights reserved. Use case 1: “Kongo” IoT logistics simulation • Real-time logistics • IoT transportation and rules checking • Complex simulation
  • 13. © 2024 NetApp, Inc. All rights reserved. Design 1: Pure Kafka, many topics 1000s of locations (warehouses, trucks) and millions of goods Each location has a topic and multiple consumer groups (all goods at that location) 7,000 TPS → SLOW! Many topics/partitions (without increasing cluster resources) reduced throughput on older versions of Kafka
  • 14. © 2024 NetApp, Inc. All rights reserved. 1. Guava EventBus
  • 15. © 2024 NetApp, Inc. All rights reserved. Guava EventBus Telegram messengers (Source: Wikimedia CCL)
  • 16. © 2024 NetApp, Inc. All rights reserved. Design 2: One topic + Guava EventBus for notifications Single topic, one consumer group Kafka supplemented with Guava Event Bus to handle high fan-out notifications 1.2M TPS → FAST! Uber’s Cadence can be/has been used for scalable notifications
  • 17. © 2024 NetApp, Inc. All rights reserved. Use case 2: Anomaly detection at scale One of these things is not like the others… (Source: Shutterstock)
  • 18. © 2024 NetApp, Inc. All rights reserved. Streaming anomaly detection Incoming Event Stream Run Anomaly Check – Quickly! Persist new event Get previous 50 events for key Run algorithm Fast writes → Cassandra Application scaling → Kubernetes Initially single threaded consumers
  • 19. © 2024 NetApp, Inc. All rights reserved. 2. Apache Cassandra®
  • 20. © 2024 NetApp, Inc. All rights reserved. Apache Cassandra® Fast Writes Office typing pool, 1918 (Source: Wikimedia)
  • 21. © 2024 NetApp, Inc. All rights reserved. Apache Cassandra® What? • NoSQL horizontally scalable key-value database Superpowers • Fast writes (lots of typewriters) • Wide column store • Good for ML feature stores • Clustering columns • Good for hierarchical data modeling (eg. Geospatial) • In-built multi-DC replication
  • 22. © 2024 NetApp, Inc. All rights reserved. 3. Kubernetes
  • 23. © 2024 NetApp, Inc. All rights reserved. Kubernetes Greek Triremes ruled the seas Captained by Helmsmen (Kubernetes) (Source: Wikimedia)
  • 24. © 2024 NetApp, Inc. All rights reserved. Kubernetes What? • Automation of containerized applications Superpowers • Available on public clouds (E.g. AWS EKS) • Ephemeral Pods are the unit of concurrency • Easy to scale applications with more or less Pods
  • 25. © 2024 NetApp, Inc. All rights reserved. But scalability isn’t great
  • 26. © 2024 NetApp, Inc. All rights reserved. 4. Prometheus 5. Grafana
  • 27. © 2024 NetApp, Inc. All rights reserved. Kubernetes Abacus counting (Source: Wikimedia)
  • 28. © 2024 NetApp, Inc. All rights reserved. Prometheus + Grafana What? • Prometheus: Monitoring and alerting • Grafana: Graphing Superpowers • Instrumentation or agents (exporters) to expose application metrics • Time series data with counter, gauge, histogram, and summary metrics • Instaclustr monitoring API supports Prometheus metrics for Apache Kafka clusters • Integration of Kafka Cluster metrics and Kafka application (e.g. producers and consumers) is powerful à Metrics suggested optimizations
  • 29. © 2024 NetApp, Inc. All rights reserved. Slow Kafka consumers problem Slow consumers require more partitions/consumers (Source: Getty Images) Little’s Law: Concurrency (Partitions=Consumers) = Time x Throughput
  • 30. © 2024 NetApp, Inc. All rights reserved. 2 pool solution The famous Bondi Ocean Pool in Sydney Australia has 2 pools (Source: Shutterstock)
  • 31. © 2024 NetApp, Inc. All rights reserved. Optimize consumer speed/concurrency using 2 stage pipeline Less consumers (around 100) gives higher throughput— a surprise! Hint: Less partitions 1. Minimize polling time (thread pool 1) 2. Maximize anomaly detector concurrency (thread pool 2) 1 2
  • 32. © 2024 NetApp, Inc. All rights reserved. 19 billion checks/day after tuning
  • 33. © 2024 NetApp, Inc. All rights reserved. 6. Kafka Parallel Consumer
  • 34. © 2024 NetApp, Inc. All rights reserved. Kafka Parallel Consumer Jacquard Loom, Berlin Makes multiple ribbons concurrently (Source: Paul Brebner)
  • 35. © 2024 NetApp, Inc. All rights reserved. Kafka Parallel Consumer: Multi-threaded consumer • Multiple ordering options—c.f. default Kafka only guarantees order within partitions! PARTITION → KEY → UNORDERED Increasing concurrency → • Concurrency from 1 to lots—depends on client resources, and partitions/key space sizes • KEY has higher concurrency than partition and is ordered by KEY— reasonable compromise • Higher concurrency for less partitions/consumers
  • 36. © 2024 NetApp, Inc. All rights reserved. Experimental results 3, 50, and 200 times improvement, unordered best 1 consumer 10 partitions 100 keys 10ms latency
  • 37. © 2024 NetApp, Inc. All rights reserved. Use case 3: Pipelines Berlin “Beer” (?) Pipeline (Source: Paul Brebner)
  • 38. © 2024 NetApp, Inc. All rights reserved. Kafka® Connect data pipelines REST Tidal Data to OpenSearch REST Tidal Data to PostgreSQL + Superset Alternative sinks Kafka Connectors
  • 39. © 2024 NetApp, Inc. All rights reserved. 7. OpenSearch 8. Dashboard
  • 40. © 2024 NetApp, Inc. All rights reserved. OpenSearch + Dashboard Library of Congress Card Division 1919 (city block long) (Source: Wikimedia)
  • 41. © 2024 NetApp, Inc. All rights reserved. OpenSearch + Dashboard What? • Open source version of Elasticsearch • Based on Lucene—powerful and scalable text searching Superpowers • Ingestion, indexing, and searching of JSON documents • Complex linguistic and geospatial queries • Integrated dashboard for visualization
  • 42. © 2024 NetApp, Inc. All rights reserved. 9. PostgreSQL® ®
  • 43. © 2024 NetApp, Inc. All rights reserved. PostgreSQL® Elephant vs. tree Elephants are powerful (Source: Adobe Stock)
  • 44. © 2024 NetApp, Inc. All rights reserved. PostgreSQL® What? • Powerful SQL database Superpowers • Extensible • JSONB+GIN indexes (efficient storage and search of JSON) ®
  • 45. © 2024 NetApp, Inc. All rights reserved. 10. Apache Superset™
  • 46. © 2024 NetApp, Inc. All rights reserved. Apache Superset™ Superhero Supersets All superheroes (B) are a superset of those who use weapons (A) (Source: Adobe Stock)
  • 47. © 2024 NetApp, Inc. All rights reserved. Apache Superset™ What? • Powerful data visualization tool Superpowers • Reads from SQL sources • Lots of visualization and graph types, including geospatial
  • 48. © 2024 NetApp, Inc. All rights reserved. 11. Apache Camel™
  • 49. © 2024 NetApp, Inc. All rights reserved. Apache Camel™ Camel train (Source: Adobe Stock)
  • 50. © 2024 NetApp, Inc. All rights reserved. Apache Camel™ What? • Apache Camel – integration framework • Apache Camel Kafka Connectors Superpowers • Large number of open source Kafka Connectors—179 sources and sinks • Auto-generated from Camel components
  • 51. © 2024 NetApp, Inc. All rights reserved. Use case 4: Drone delivery (Source: Adobe Stock)
  • 52. © 2024 NetApp, Inc. All rights reserved. 12. Uber’s Cadence®
  • 53. © 2024 NetApp, Inc. All rights reserved. Cadence® Railway signal“man” (signalwoman!) (Source: Wikimedia)
  • 54. © 2024 NetApp, Inc. All rights reserved. Uber’s Cadence® What? • Scalable code-as-workflows engine Superpowers • Sequenced, stateful, long-running, scheduled steps • Scalable and reliable using event-sourcing o Workflows are failproof, history is replayed until the point of failure and resumed
  • 55. © 2024 NetApp, Inc. All rights reserved. Drone delivery application Computationally expensive mission critical calculations Kafka microservices integration of fast/slow systems
  • 56. © 2024 NetApp, Inc. All rights reserved. Drone way point flight calculations Returning to base leg • Drone flight path is computed in an activity • Using location, distance, bearing, speed, and charge • Every 10 seconds • On failure, the drone won’t crash and will continue flying from the last location
  • 57. © 2024 NetApp, Inc. All rights reserved. Uber’s Cadence + Apache Kafka = similarities Cadence (Workflows) Kafka (Streaming Events) Scalable (event sourcing) Scalable (partitions, cluster) Persistent (event sourcing) Persistent (event replaying) Reliable workflow execution (event sourcing) Reliable event delivery Asynchronous signals Asynchronous events Open source Open source Available as a managed service Available as a managed service
  • 58. © 2024 NetApp, Inc. All rights reserved. Uber’s Cadence = Orchestration (synchronous/timed sequences) (Source: Getty Images) Different architectural (musical) styles
  • 59. © 2024 NetApp, Inc. All rights reserved. Apache Kafka = Choreography (asynchronous) Different architectural (musical) styles (Source: Getty Images)
  • 60. © 2024 NetApp, Inc. All rights reserved. Combined Cadence + Kafka = Ballet! Integrated in a new style
  • 61. © 2024 NetApp, Inc. All rights reserved. Cadence + Kafka = Complementary timescales (Source: Getty Images)
  • 62. © 2024 NetApp, Inc. All rights reserved. Cadence + Kafka = Complementary timescales Cadence (Slow Workflows) Kafka (Fast Streaming Events) Synchronous events Asynchronous events Stateful flows Stateless events Sequences One-off events Slow/long running flows Fast/instantaneous events Sleep/schedule events Real-time processing of events Complex flow logic Complex stream processing (Kafka Streams)
  • 63. © 2024 NetApp, Inc. All rights reserved. Cadence + Kafka = Integration → Drone Ballet Drone show, Japan (Source: Getty Images)
  • 64. © 2024 NetApp, Inc. All rights reserved. How many drones can we fly? (Source: Shutterstock)
  • 65. © 2024 NetApp, Inc. All rights reserved. Cluster Details (VCPUS): Client (8), Cadence (6), Cassandra (18)
  • 66. © 2024 NetApp, Inc. All rights reserved. Load test: 2,000 drones + 2,000 orders = 4,000 workflows
  • 67. © 2024 NetApp, Inc. All rights reserved. 20 Drones flying Purple = base Black = drone Orange = shop Red = delivery location Green = successful delivery
  • 68. © 2024 NetApp, Inc. All rights reserved. Use case 5: Streaming ML (Source: Getty Images) (Source: Getty Images) Busy! Not Busy! Shop busy/not busy prediction
  • 69. © 2024 NetApp, Inc. All rights reserved. Drone learning problem Kafka Streams Kafka Streams computes aggregated hourly shop and order details → Busy/NotBusy categorization Sent to TensorFlow Train model to predict shop busy/not busy an hour ahead Simulation produces streaming spatiotemporal data (drone and order state and locations)
  • 70. © 2024 NetApp, Inc. All rights reserved. 13. TensorFlow
  • 71. © 2024 NetApp, Inc. All rights reserved. TensorFlow What does the future hold? (Source: Adobe Stock)
  • 72. © 2024 NetApp, Inc. All rights reserved. TensorFlow What? • Neural network ML library Superpowers • Supports incremental ML • From streaming Kafka data
  • 73. © 2024 NetApp, Inc. All rights reserved. TensorFlow Watch out for • ML over streaming spatiotemporal data with concept drifts is tricky o Time/space bias - Wild model accuracy oscillation o Concept shift can result in very low-accuracy models initially - Train/use multiple models
  • 74. © 2024 NetApp, Inc. All rights reserved. Use case 6: Santa’s elves' toy and box packing KafkaStreams, ChatGPT, RisingWave, and OpenTelemetry Streaming joins to match toys and boxes (Source: Adobe Stock)
  • 75. © 2024 NetApp, Inc. All rights reserved. 14. OpenTelemetry
  • 76. © 2024 NetApp, Inc. All rights reserved. OpenTelemetry X-ray vision! (Source: Wikimedia Public Domain)
  • 77. © 2024 NetApp, Inc. All rights reserved. OpenTelemetry • OpenTelemetry is the new standard for distributed tracing • Combines tracing (OpenTracing), metrics, and logs • Automatic instrumentation • Lots of open source visualization tools - Jager, SigNoz, Uptrace, etc. • Used in new client monitoring KIP-714 - Kafka 3.7.0
  • 78. © 2024 NetApp, Inc. All rights reserved. SigNoz service map for toy+boxes application
  • 79. © 2024 NetApp, Inc. All rights reserved. 15. RisingWave
  • 80. © 2024 NetApp, Inc. All rights reserved. RisingWave Wave processing (Source: Adobe Stock)
  • 81. © 2024 NetApp, Inc. All rights reserved. RisingWave What? • Stream processing database—also as a service Superpowers • Stateful stream processing o SQL syntax o Using cloud native storage o Potential replacement for Kafka Streams • PostgreSQL compatible o Works with Apache Superset for visualization
  • 82. © 2024 NetApp, Inc. All rights reserved. 16. LLMs
  • 83. © 2024 NetApp, Inc. All rights reserved. LLMs The Answer? (Source: Wikimedia)
  • 84. © 2024 NetApp, Inc. All rights reserved. LLMs/GenAI • E.g. ChatGPT - not open source + there may be suitable open source alternatives for code generation • Worked well to generate + Kafka clients + Kafka Streams DSL + and test-cases • Not as accurate for RisingWave - lack of examples?
  • 85. © 2024 NetApp, Inc. All rights reserved. Bonus Technologies from my Instaclustr colleagues ● Kafka benchmarking ○ Apache JMeter for Kafka benchmarking (Thanks to Anup Shirolkar) ○ OpenMessaging (Thanks to Alastair Daivis) ● Strimzi – a Kafka Operator for Kubernetes, and Debezium (CDC using Kafka Connect) (Thanks to Felix Alipaz-Dicke) ● Kafka GUIs (Thanks to Ana-Maria Minda) ○ Kafdrop ○ AKHQ ○ UI for Apache Kafka ○ These all work with Kafka + Instaclustr console and provide complementary features
  • 86. © 2024 NetApp, Inc. All rights reserved. Ballet pattern à Hanoi street intersection pattern ● A working integrated synchronous + asynchronous system
  • 87. © 2024 NetApp, Inc. All rights reserved. I survived as a pedestrian!
  • 88. © 2024 NetApp, Inc. All rights reserved. Try us out • We offer Apache Kafka and these open source technologies as a managed service • You can use the others with our managed services • FREE 30-day trial of developer- sized clusters
  • 89. © 2024 NetApp, Inc. All rights reserved. Paul Brebner | Instaclustr Technology Evangelist www.Instaclustr.com/paul-brebner à All my blogs Thank You!
