The document outlines the implementation of a Gradle plugin that integrates code quality checks with Checkstyle, FindBugs, and PMD. It details the creation of tasks for each static analysis tool, the plugin's structure, dependencies, and the process for publishing the plugin. Additionally, it includes information on testing the plugin using JUnit and Spock frameworks.

1. Gradle Plugin Goodness

2. @BRWNGRLDEV

3. @BRWNGRLDEV

4. apply plugin: 'checkstyle'
apply plugin: 'findbugs'
apply plugin: 'pmd'
task checkstyle(type: Checkstyle) {
description 'Checks if the code is somewhat acceptable'
group 'verification'
configFile file('./qa-check/checkstyle.xml')
source 'src'
include '**/*.java'
exclude '**/gen/**'
classpath = files()
ignoreFailures = false
}
task findbugs(type: FindBugs) {

5. apply plugin: 'checkstyle'
apply plugin: 'findbugs'
apply plugin: 'pmd'
task checkstyle(type: Checkstyle) {
description 'Checks if the code is somewhat acceptable'
group 'verification'
configFile file('./qa-check/checkstyle.xml')
source 'src'
include '**/*.java'
exclude '**/gen/**'
classpath = files()
ignoreFailures = false
}
task findbugs(type: FindBugs) {
description 'Run findbugs'
group 'verification'
classes = files("$project.buildDir/intermediates/classes")
source 'src'
classpath = files()
effort 'max'
excludeFilter file('./qa-check/findbugs-exclude.xml')
reports {
xml.enabled = true
html.enabled = false
}
ignoreFailures = true
}
task pmd(type: Pmd) {
description 'Run PMD'
group 'verification'
ruleSetFiles = files("./qa-check/pmd-ruleset.xml")
ruleSets = []
source 'src'
include '**/*.java'
exclude '**/gen/**'
reports {
xml.enabled = false
html.enabled = true
}
ignoreFailures = true
}
apply plugin: 'info.adavis.qualitychecks'

6. OVERVIEW
▸Plugin Skeleton
▸Dependencies
▸Plugin.groovy
▸CustomTask.groovy
▸Publishing
@BRWNGRLDEV

7. PLUGIN SKELETON
@BRWNGRLDEV

8. PLUGIN SKELETON
@BRWNGRLDEV

9. PLUGIN SKELETON
@BRWNGRLDEV

10. PLUGIN SKELETON
How Gradle finds the Plugin Implementation
@BRWNGRLDEV

11. PLUGIN SKELETON
implementation-class=info.adavis.qualitychecks.QualityChecksPlugin
@BRWNGRLDEV

12. DEPENDENCIES
@BRWNGRLDEV

13. DEPENDENCIES
apply plugin: ‘groovy'
dependencies {
compile gradleApi()
compile localGroovy()
}
@BRWNGRLDEV

14. DEPENDENCIES
dependencies {
…
testCompile 'junit:junit:4.12'
testCompile ('org.spockframework:spock-core:1.0-groovy-2.4') {
exclude module: 'groovy-all'
}
}
@BRWNGRLDEV

15. THE CODE
@BRWNGRLDEV

16. BUT FIRST…
@BRWNGRLDEV

17. GRADLE BUILD
@BRWNGRLDEV
PROJECT
TASK TASK TASK
BUILD

18. GRADLE BUILD
@BRWNGRLDEV
PROJECT
TASK TASK TASK
BUILD
PROJECT
TASK TASK TASK

19. PLUGIN.GROOVY
class CustomPlugin implements Plugin<Project> {
}
@BRWNGRLDEV

20. PLUGIN.GROOVY
class CustomPlugin implements Plugin<Project> {
@Override
void apply(Project project) {
}
}
@BRWNGRLDEV

21. QUALITYCHECKSPLUGIN.GROOVY
@BRWNGRLDEV

22. APPLY METHOD
@BRWNGRLDEV
void apply(Project project) {
this.project = project
}

23. APPLY METHOD
@BRWNGRLDEV
void apply(Project project) {
this.project = project
project.extensions.create('qualityChecks', QualityChecksExtension)
}

24. APPLY METHOD
@BRWNGRLDEV
void apply(Project project) {
this.project = project
project.extensions.create('qualityChecks', QualityChecksExtension)
createConfigFilesIfNeeded()
createConfigFileTasks()
createQualityChecksTasks()
}

25. PROJECT EXTENSION
@BRWNGRLDEV
class QualityChecksExtension {
String pmdConfigFile = 'quality-checks/pmd-ruleset.xml'
String checkstyleConfigFile = 'quality-checks/checkstyle.xml'
String findBugsExclusionFile = 'quality-checks/findbugs-exclude.xml'
}

26. PROJECT EXTENSION
@BRWNGRLDEV
class QualityChecksExtension {
String pmdConfigFile = 'quality-checks/pmd-ruleset.xml'
String checkstyleConfigFile = 'quality-checks/checkstyle.xml'
String findBugsExclusionFile = 'quality-checks/findbugs-exclude.xml'
}

27. PROJECT EXTENSION
Back in the application’s build.gradle file…
@BRWNGRLDEV
qualityChecks {
pmdConfigFile = ‘checks/pmd.xml’
checkstyleConfigFile = ‘checks/checkstyle.xml’
}

28. PROJECT EXTENSION
Back in the application’s build.gradle file…
@BRWNGRLDEV
qualityChecks {
pmdConfigFile = ‘checks/pmd.xml’
checkstyleConfigFile = ‘checks/checkstyle.xml’
}

29. TASKS
@BRWNGRLDEV

30. CREATING TASKS
Give it a name and a type
@BRWNGRLDEV

31. CREATING TASKS
@BRWNGRLDEV
▸Build on existing task
▸Extend the DefaultTask

32. BUILD ON EXISTING TASK
@BRWNGRLDEV

33. BUILD ON EXISTING
@BRWNGRLDEV

34. EXTEND DEFAULT TASK
@BRWNGRLDEV

35. CUSTOMTASK.GROOVY
class CustomTask extends DefaultTask {
CustomTask() {
group: ‘verification’
}
}
@BRWNGRLDEV

36. CUSTOMTASK.GROOVY
class CustomTask extends DefaultTask {
CustomTask() {
group: ‘verification’
}
}
@BRWNGRLDEV

37. CUSTOMTASK.GROOVY
CustomTask() {
group: ‘verification’
onlyIf {
// skip under certain conditions
}
}
@BRWNGRLDEV

38. CUSTOMTASK.GROOVY
@TaskAction
def defaultAction() {
description: ‘What my task does’
}
@BRWNGRLDEV

39. CUSTOMTASK.GROOVY
@BRWNGRLDEV
@TaskAction
def defaultAction() {
description: ‘What my task does’
<do your cool stuff here>
}

40. GRADLE TASK DOCUMENTATION
@BRWNGRLDEV

41. SO FAR…
▸Plugin Skeleton
▸Dependencies
▸Plugin.groovy
▸CustomTask.groovy
@BRWNGRLDEV

42. PUBLISHING
@BRWNGRLDEV

43. PUBLISHING
@BRWNGRLDEV

44. PUBLISHING
buildscript {
…
dependencies {
classpath "com.gradle.publish:plugin-publish-plugin:0.9.4"
}
}
apply plugin: 'com.gradle.plugin-publish'
@BRWNGRLDEV

45. PUBLISHING
version = "0.1.3"
group = "info.adavis"
@BRWNGRLDEV

46. PUBLISHING
pluginBundle {
website = 'https://github.com/adavis/quality-checks'
vcsUrl = 'https://github.com/adavis/quality-checks.git'
description = 'Gradle Plugin for…’
tags = ['Checkstyle', 'FindBugs', 'PMD']
}
@BRWNGRLDEV

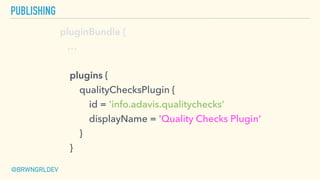

47. PUBLISHING
pluginBundle {
…
plugins {
qualityChecksPlugin {
id = 'info.adavis.qualitychecks'
displayName = 'Quality Checks Plugin'
}
}
@BRWNGRLDEV

48. @BRWNGRLDEV

49. @BRWNGRLDEV

50. WE’RE DONE…
WRONG!
@BRWNGRLDEV

51. WE’RE DONE…
TESTS
@BRWNGRLDEV

52. TESTING - WITH JUNIT
@Before
void setUp() {
projectDir = temporaryFolder.root
projectDir.mkdirs()
}
@BRWNGRLDEV

53. TESTING - WITH JUNIT
@Before
void setUp() {
projectDir = temporaryFolder.root
projectDir.mkdirs()
project = ProjectBuilder.builder().withProjectDir(projectDir).build()
task = project.tasks.create('writeConfigFile', WriteConfigFileTask)
}
@BRWNGRLDEV

54. TESTING - WITH JUNIT
@Test
void shouldBeAbleToCreateTask() {
assertTrue(task instanceof WriteConfigFileTask)
}
@BRWNGRLDEV

55. TESTING - WITH JUNIT
@Test
void pluginShouldBeApplied() {
project.apply(plugin: QualityChecksPlugin)
assertNotNull(project.tasks.findByName(‘mytask’))
}
@BRWNGRLDEV

56. SPOCK
@BRWNGRLDEV

57. TESTING - WITH SPOCK
def createCheckstyleTask() {
given: "we have a project"
def project = ProjectBuilder.builder().build()
}

58. TESTING - WITH SPOCK
def createCheckstyleTask() {
and: "we apply the extension"
project.extensions.create('qualityChecks', QualityChecksExtension)
and: "we supply an existing checkstyle config file"
project.qualityChecks.checkstyleConfigFile = File.createTempFile('temp', '.xml').path
}

59. TESTING - WITH SPOCK
def createCheckstyleTask() {
when: "we create a checkstyle task"
def checkstyleTask = project.tasks.create('checkstyle', CheckstyleTask)
}

60. TESTING - WITH SPOCK
def createCheckstyleTask() {
then: "it should not replace our previous file"
checkstyleTask.configFile.name.startsWith('temp')
}

61. TESTING - WITH SPOCK
@BRWNGRLDEV

62. TESTING - REPORT
@BRWNGRLDEV

63. TESTING - SPOCK-REPORT
dependencies {
…
testCompile( 'com.athaydes:spock-reports:1.2.12' ) {
transitive = false
}
}
@BRWNGRLDEV

64. TESTING - SPOCK-REPORT
@BRWNGRLDEV

65. @BRWNGRLDEV

66. BONUS: README
@BRWNGRLDEV

67. BONUS: README
@BRWNGRLDEV

68. BONUS: README
@BRWNGRLDEV

69. SUMMARY
▸Helps avoid copy/paste horror
▸Simple project structure
▸Extending DefaultTask
▸Testing techniques
▸Easy to publish
@BRWNGRLDEV

70. THANKS!
@brwngrldev
+AnnyceDavis
www.adavis.info
@BRWNGRLDEV
