Joseph Greene
Research Repository Librarian
University College Dublin
joseph.greene@ucd.ie
http://researchrepository.ucd.ie
#iCanHazRobot?
Improved robot detection for IR usage statistics
Open Repositories 2016
Dublin, 14 June

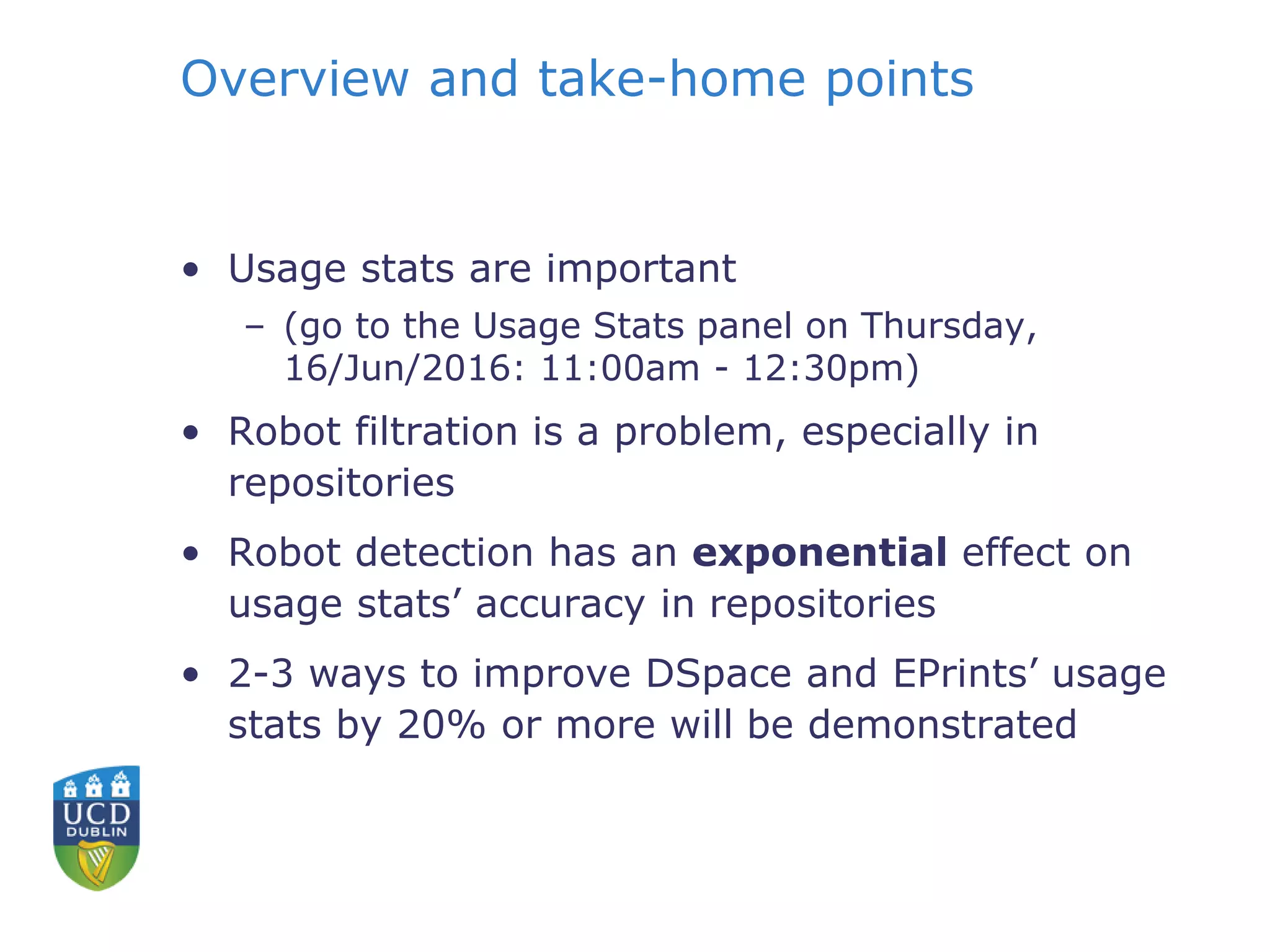

Overview and take-home points
• Usage stats are important
– (go to the Usage Stats panel on Thursday,
16/Jun/2016: 11:00am - 12:30pm)
• Robot filtration is a problem, especially in
repositories
• Robot detection has an exponential effect on
usage stats’ accuracy in repositories
• 2-3 ways to improve DSpace and EPrints’ usage
stats by 20% or more will be demonstrated

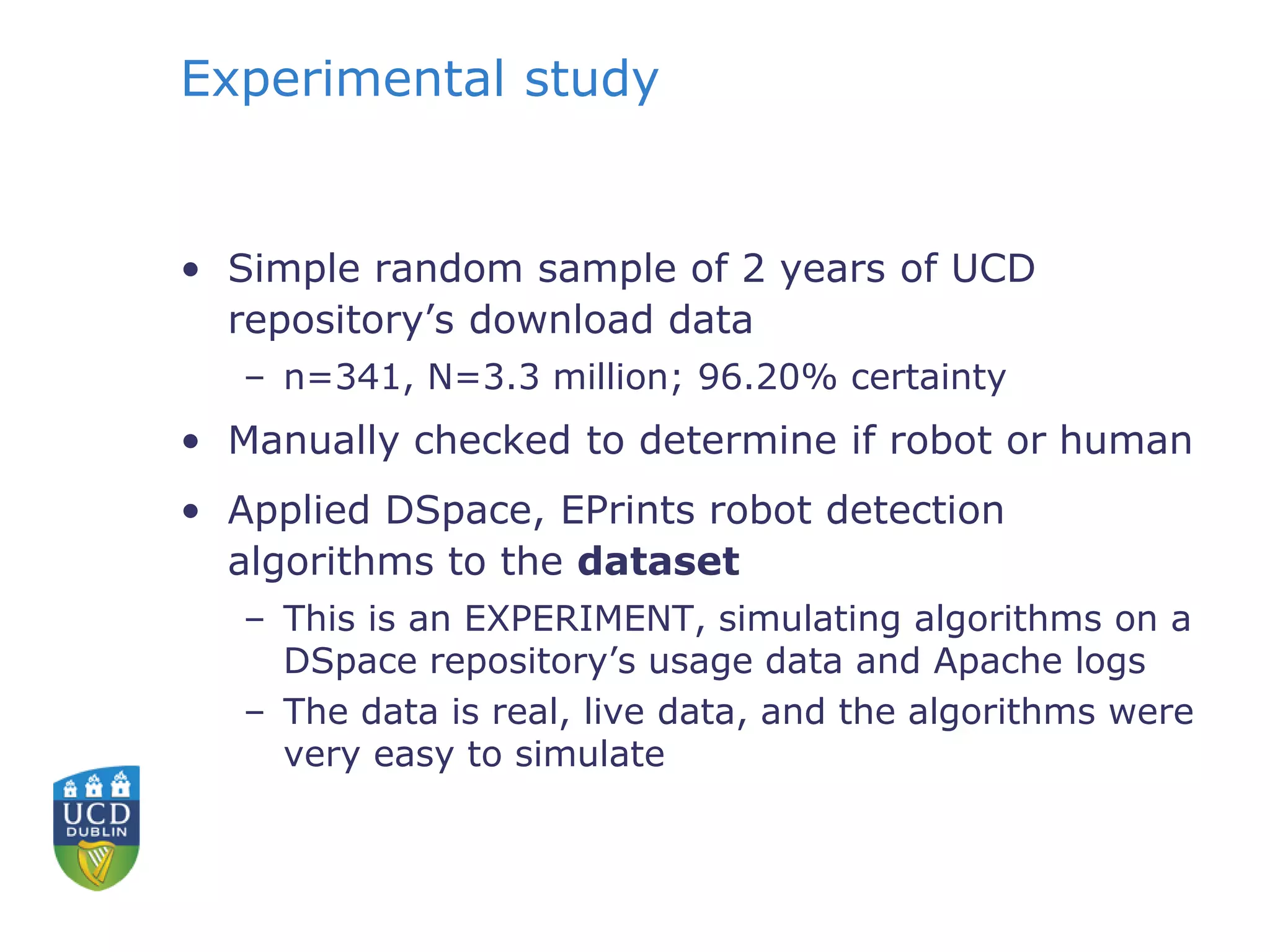

Experimental study
• Simple random sample of 2 years of UCD
repository’s download data
– n=341, N=3.3 million; 96.20% certainty
• Manually checked to determine if robot or human
• Applied DSpace, EPrints robot detection
algorithms to the dataset
– This is an EXPERIMENT, simulating algorithms on a
DSpace repository’s usage data and Apache logs
– The data is real, live data, and the algorithms were
very easy to simulate

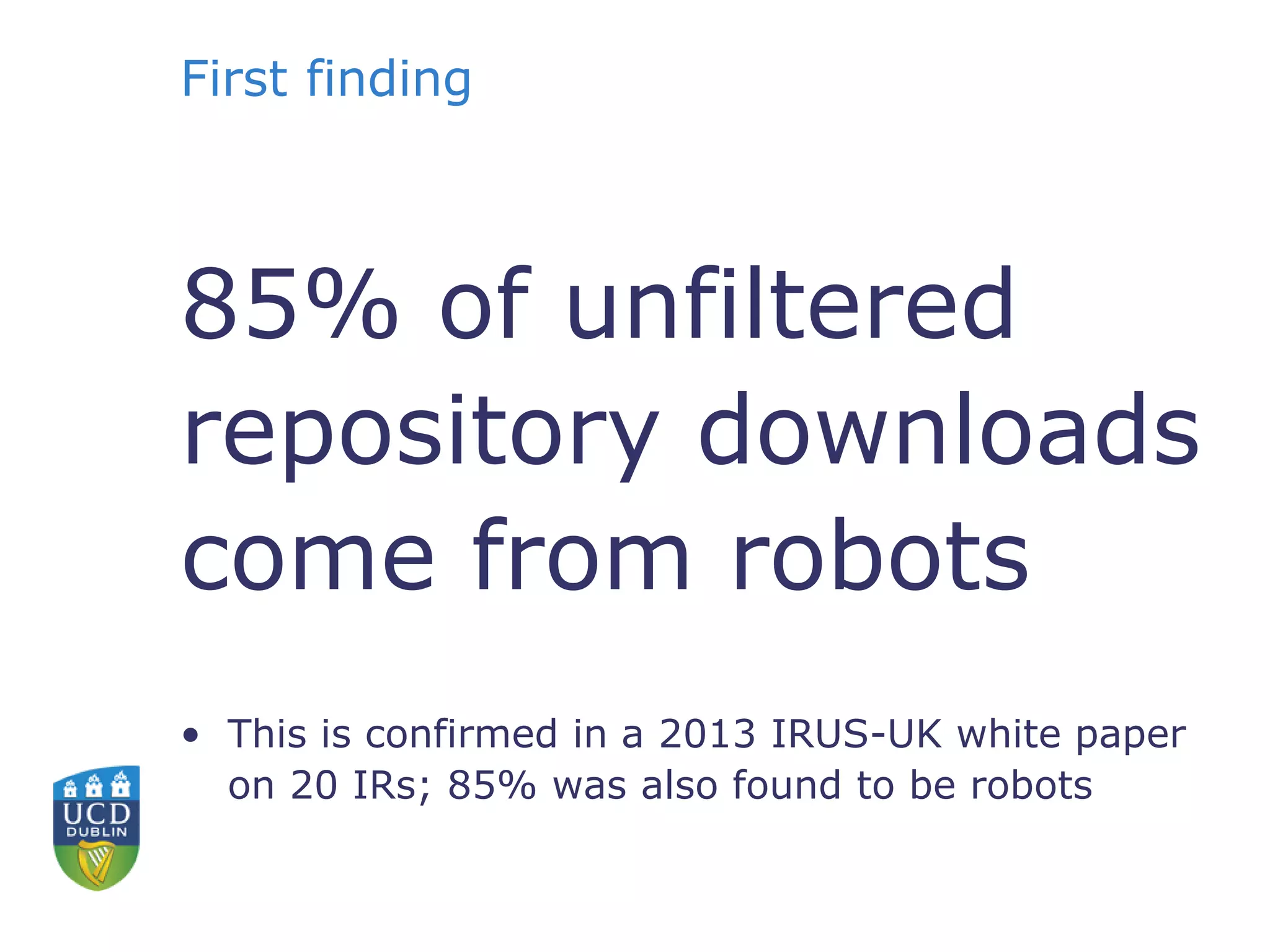

First finding
85% of unfiltered
repository downloads
come from robots
• This is confirmed in a 2013 IRUS-UK white paper
on 20 IRs; 85% was also found to be robots
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
Accuracyofdownloadstats(inverseprecition)
Recall (robots)

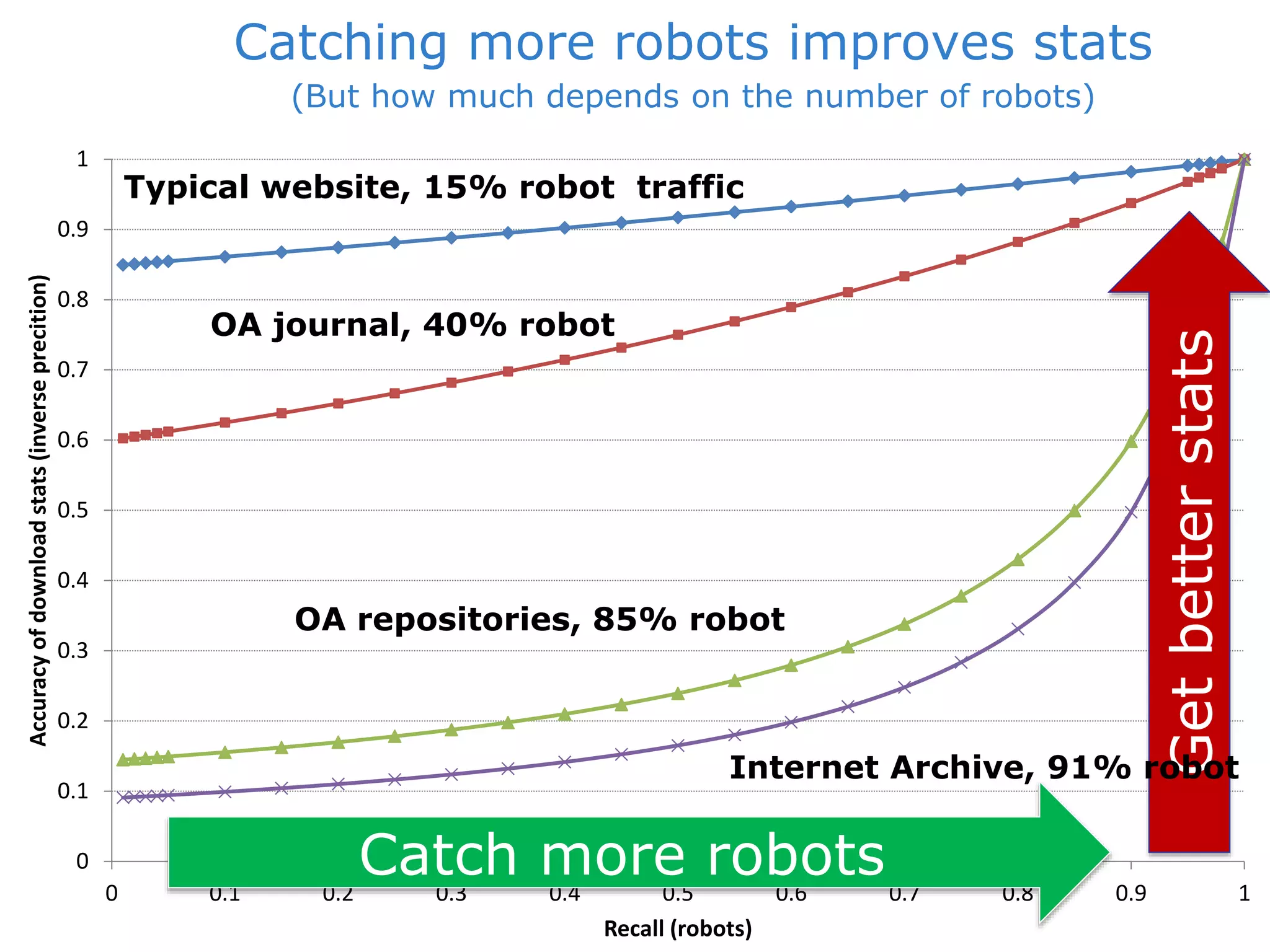

Catching more robots improves stats
(But how much depends on the number of robots)
Getbetterstats
Catch more robots
Typical website, 15% robot traffic
OA journal, 40% robot
Internet Archive, 91% robot
OA repositories, 85% robot

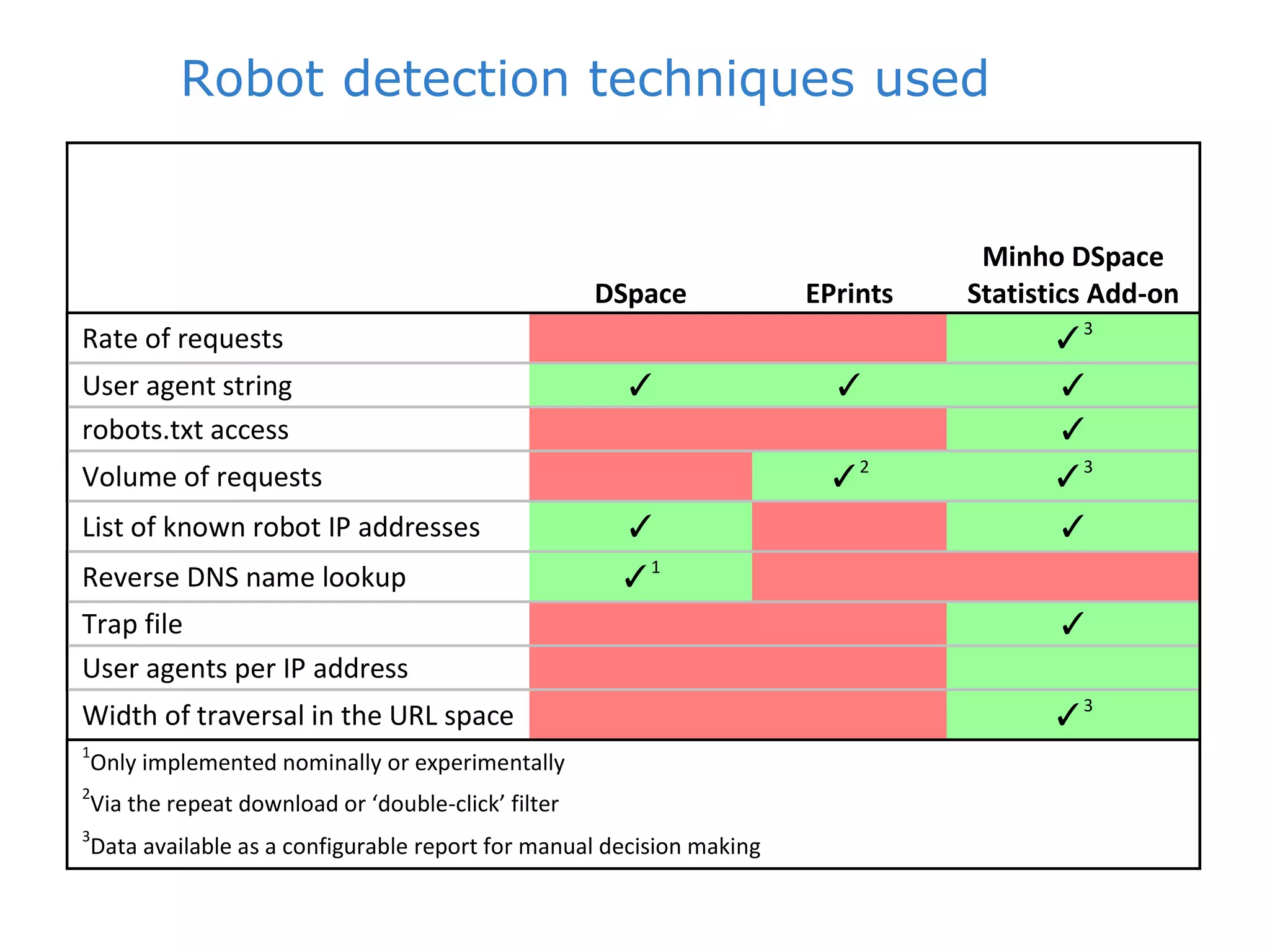

Robot detection techniques used
DSpace EPrints
Minho DSpace
Statistics Add-on
Rate of requests ✓3
User agent string ✓ ✓ ✓
robots.txt access ✓
Volume of requests ✓2
✓3
List of known robot IP addresses ✓ ✓
Reverse DNS name lookup ✓1
Trap file ✓
User agents per IP address
Width of traversal in the URL space ✓3
1
Only implemented nominally or experimentally
2
Via the repeat download or ‘double-click’ filter
3
Data available as a configurable report for manual decision making

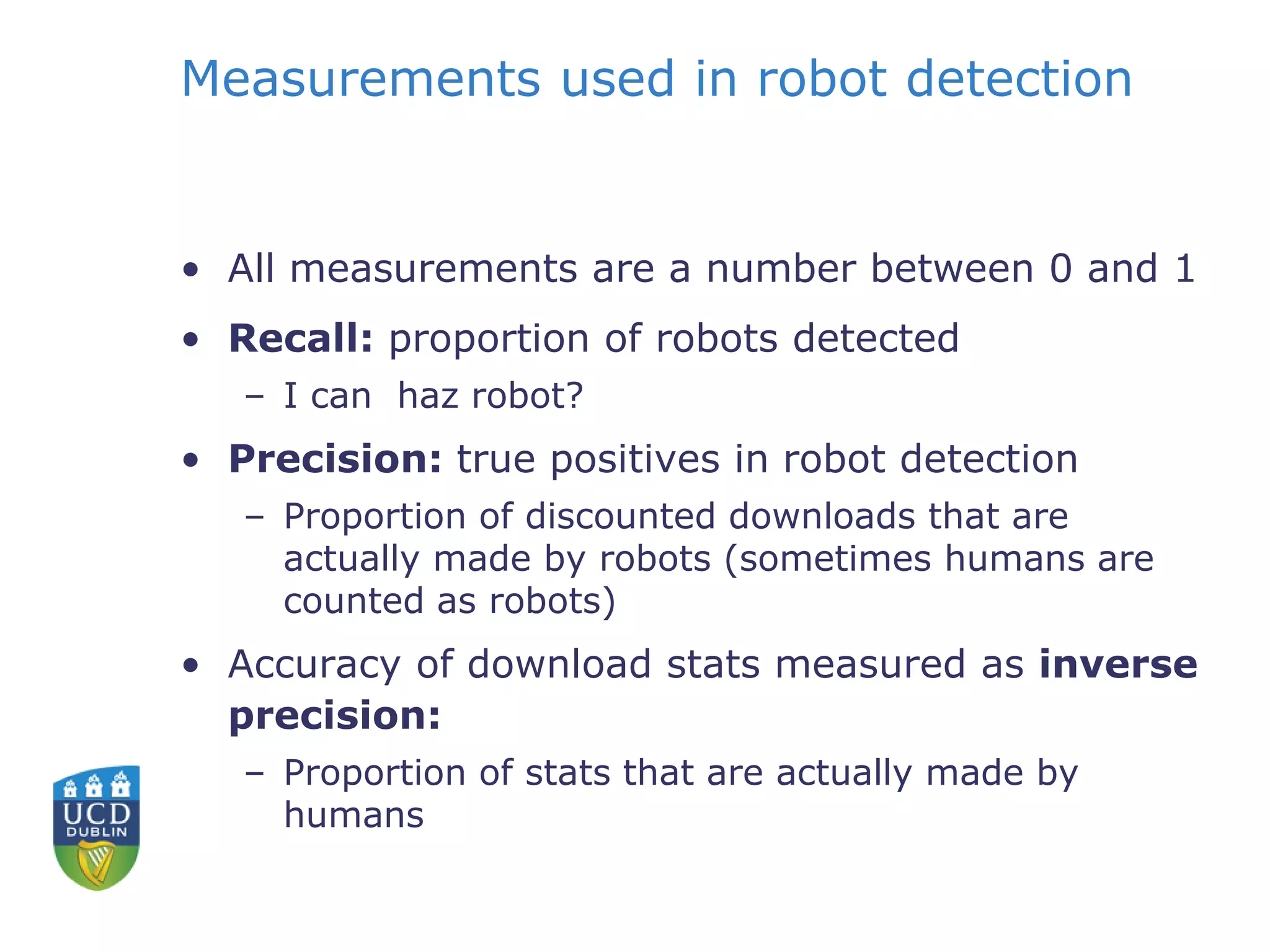

Measurements used in robot detection
• All measurements are a number between 0 and 1
• Recall: proportion of robots detected
– I can haz robot?
• Precision: true positives in robot detection
– Proportion of discounted downloads that are
actually made by robots (sometimes humans are
counted as robots)
• Accuracy of download stats measured as inverse
precision:
– Proportion of stats that are actually made by
humans

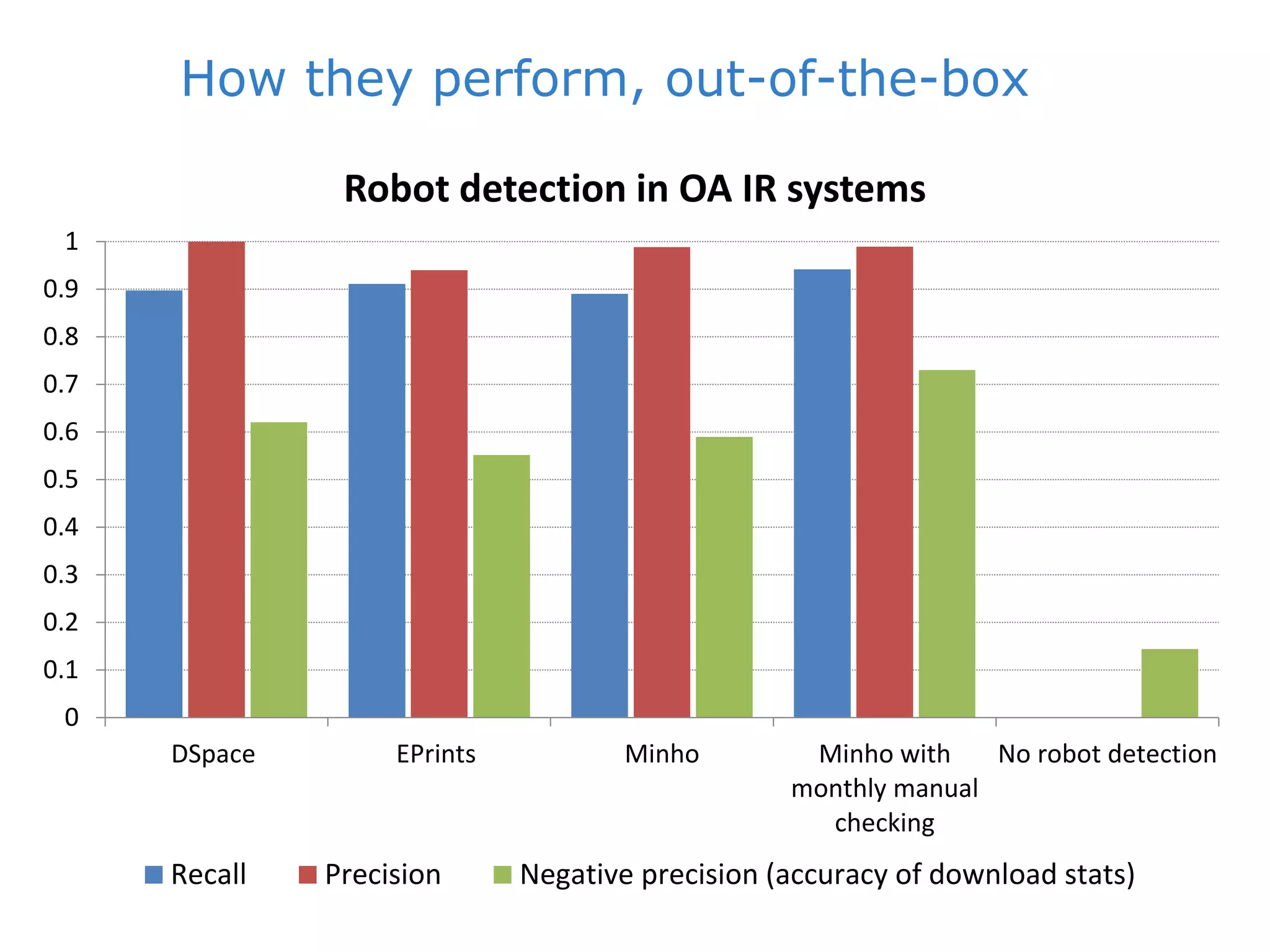

How they perform, out-of-the-box
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
DSpace EPrints Minho Minho with
monthly manual
checking
No robot detection
Robot detection in OA IR systems
Recall Precision Negative precision (accuracy of download stats)

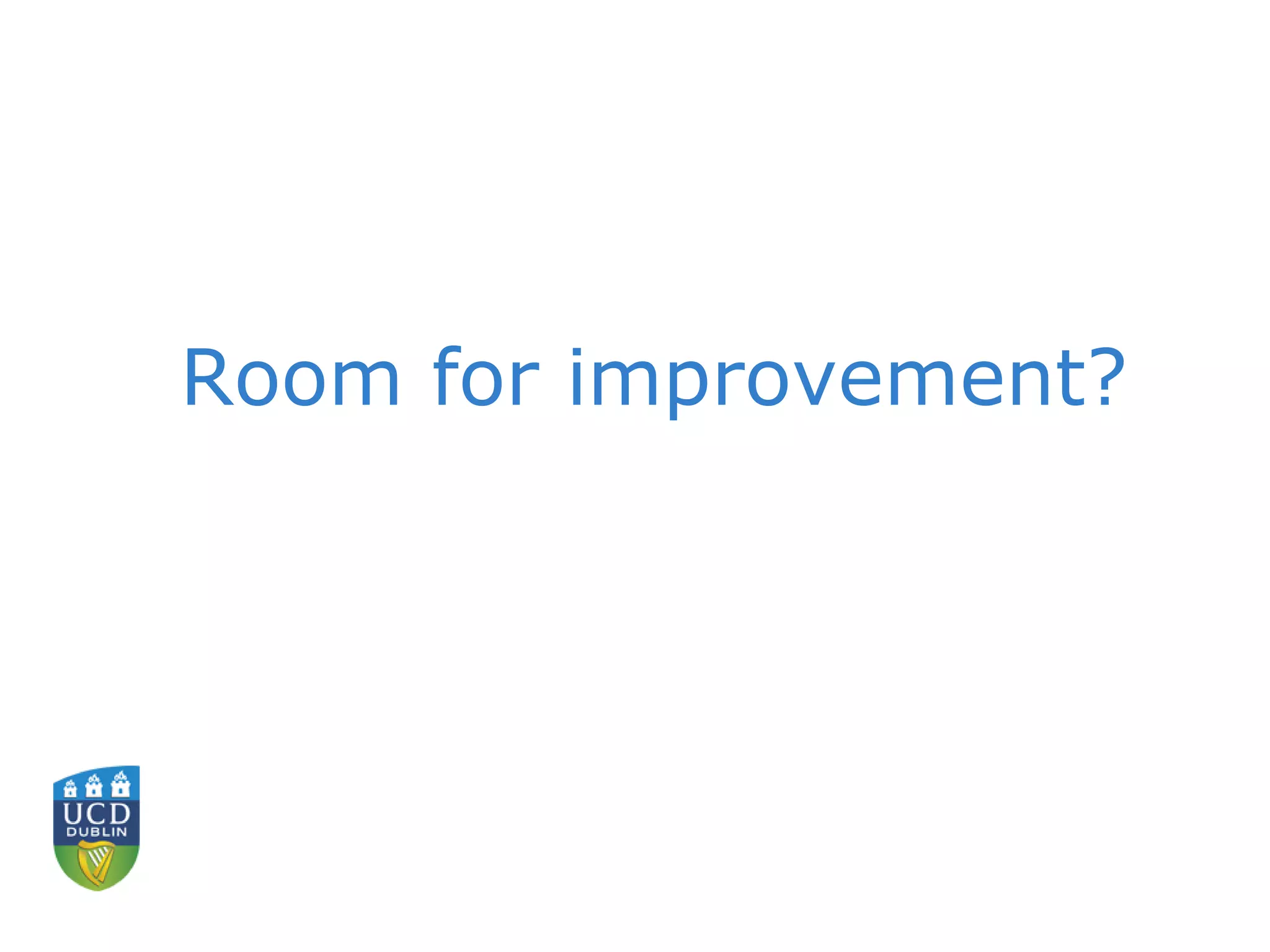

Room for improvement?

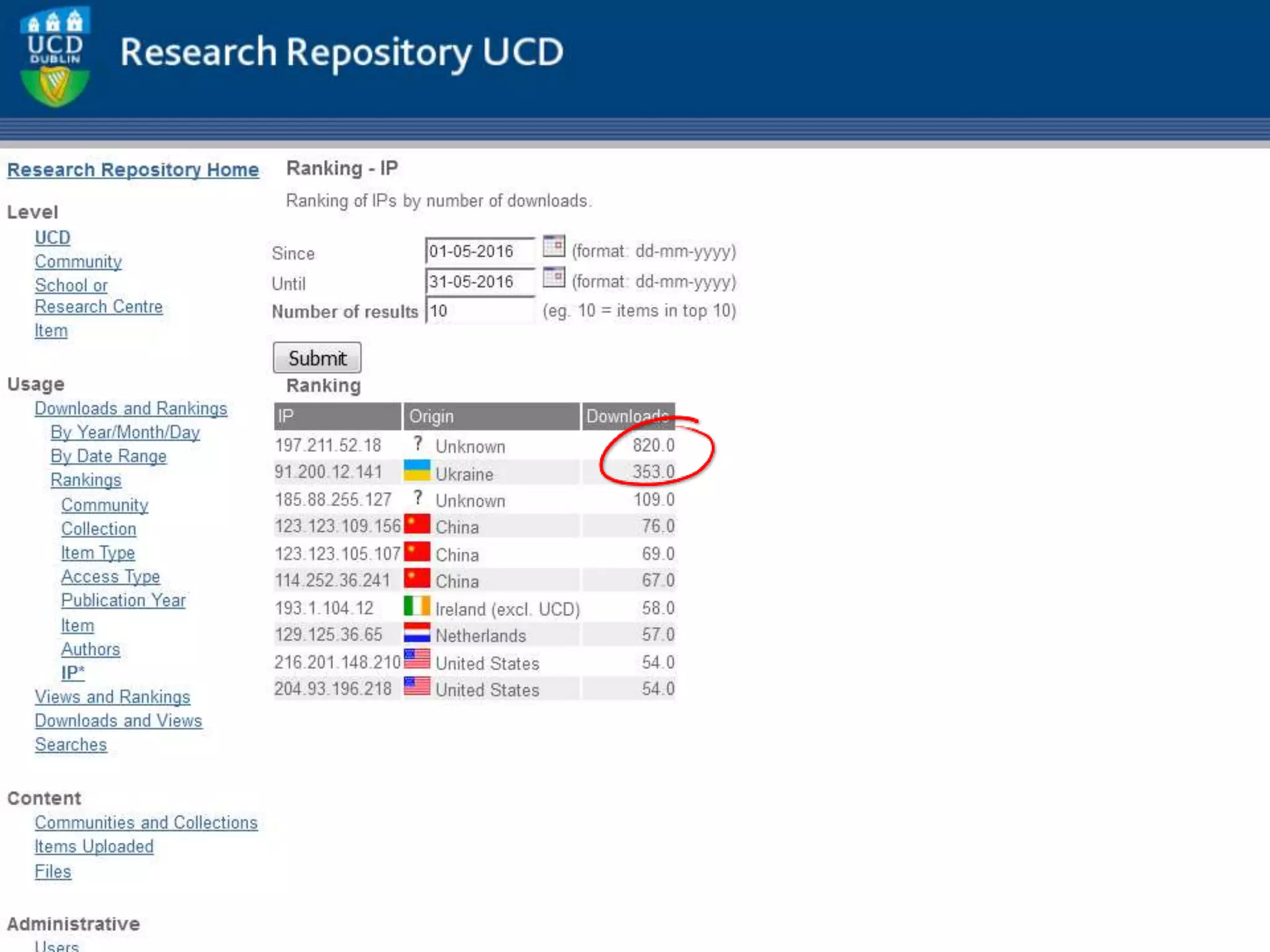

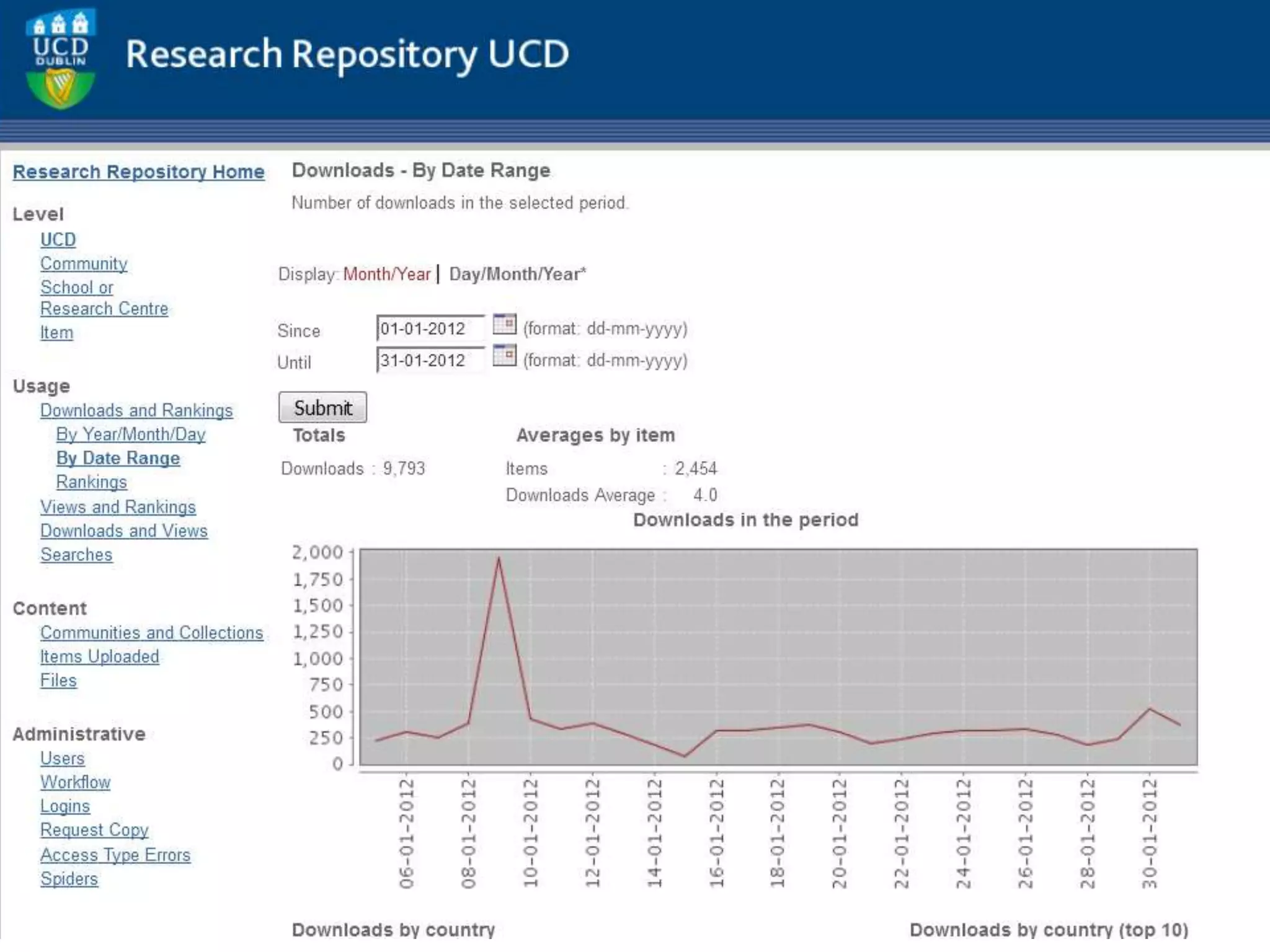

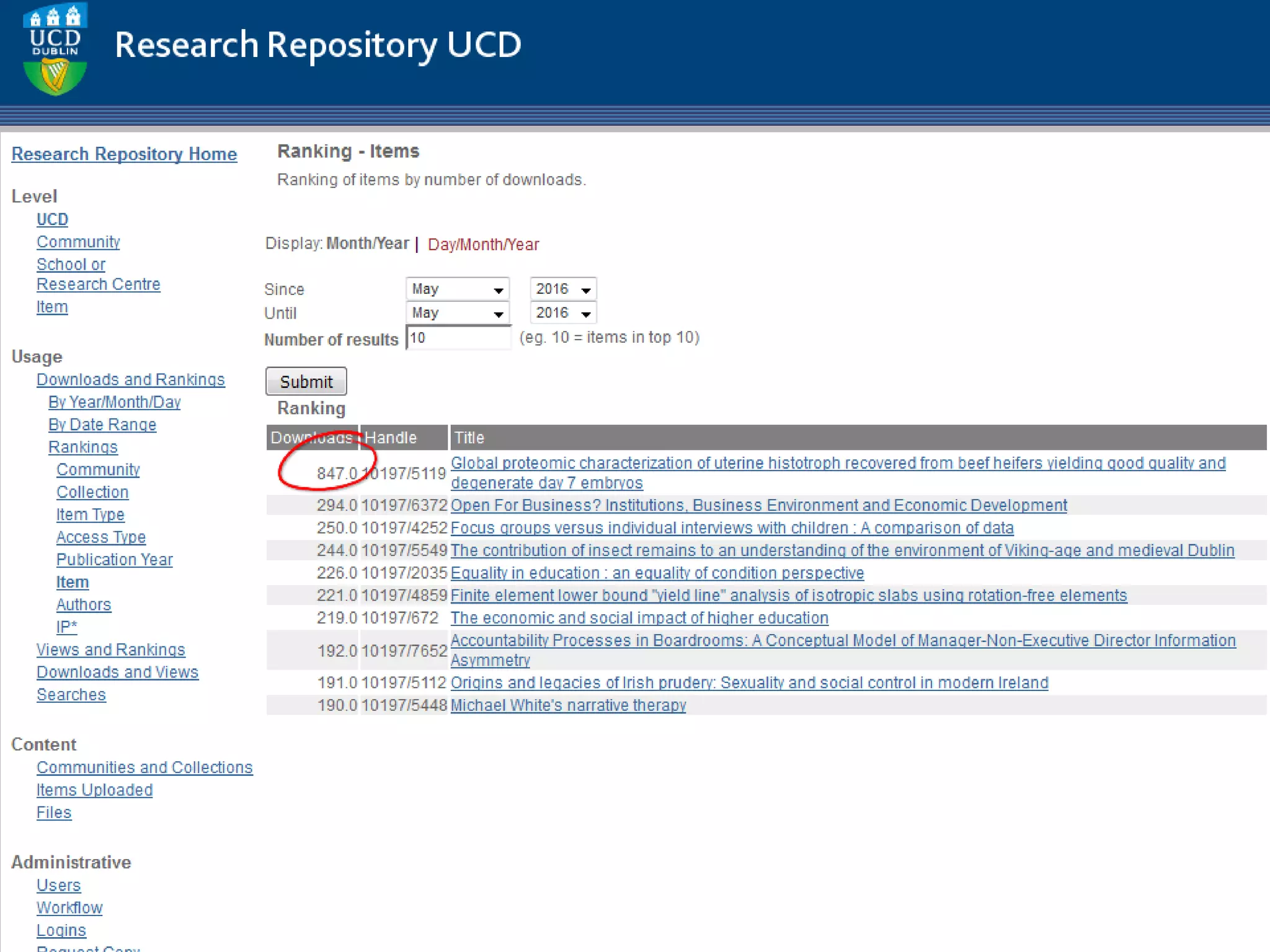

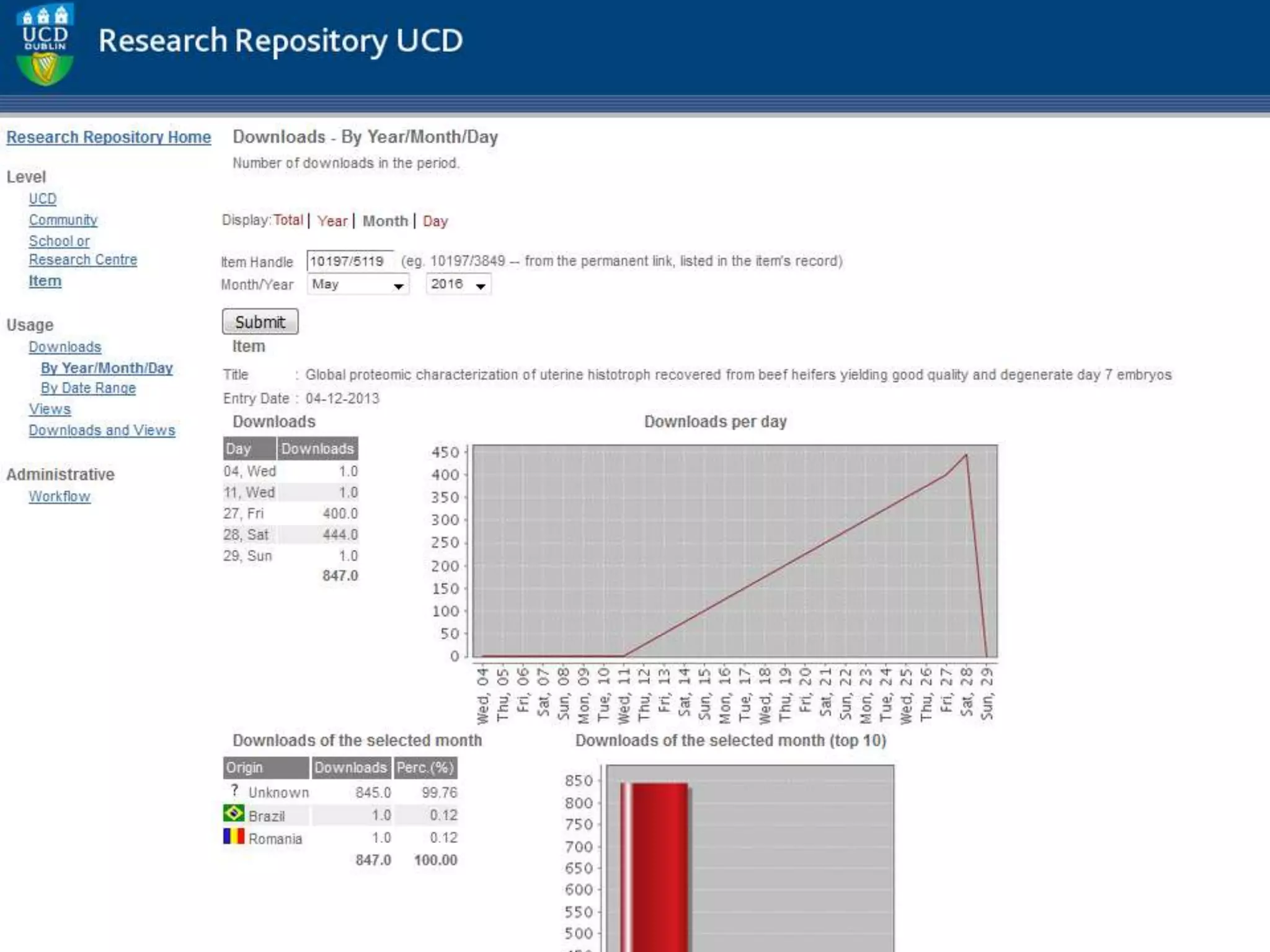

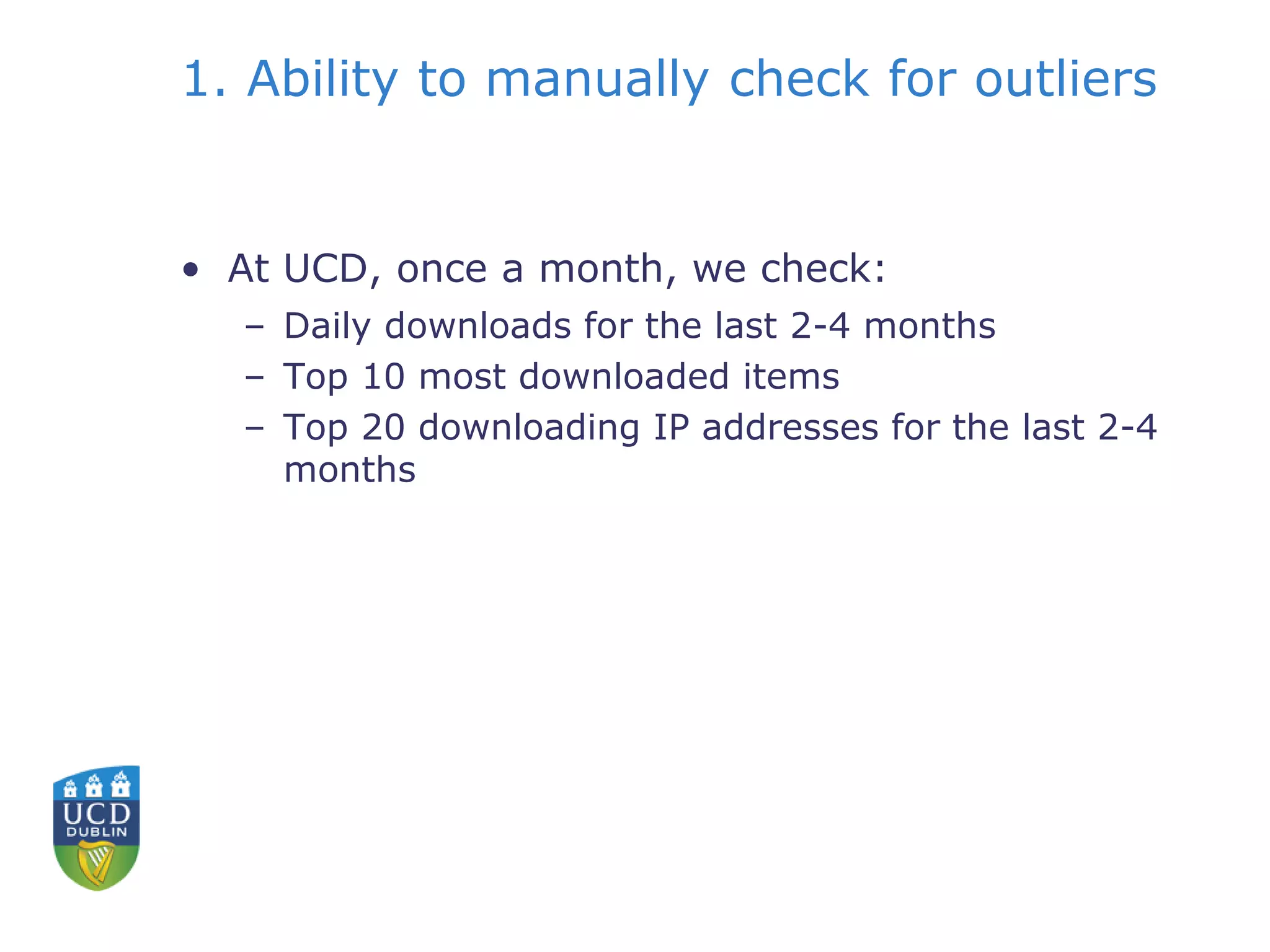

1. Ability to manually check for outliers
• At UCD, once a month, we check:
– Daily downloads for the last 2-4 months
– Top 10 most downloaded items
– Top 20 downloading IP addresses for the last 2-4
months
0
0.2
0.4
0.6
0.8
1
DSpace Eprints Minho

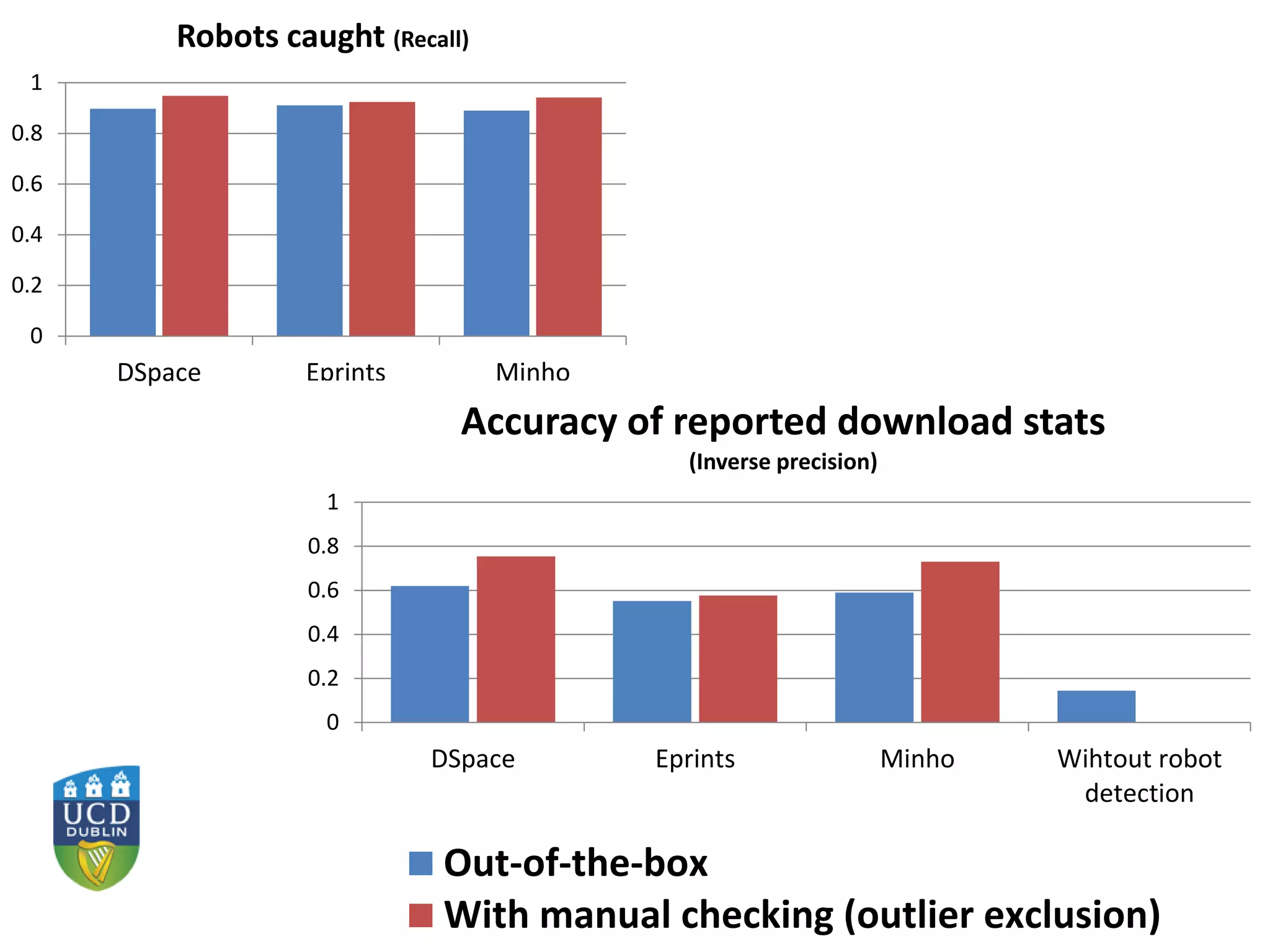

Robots caught (Recall)
Out-…
0
0.2
0.4
0.6
0.8
1
DSpace Eprints Minho Wihtout robot
detection
Accuracy of reported download stats
(Inverse precision)
Out-of-the-box
With manual checking (outlier exclusion)

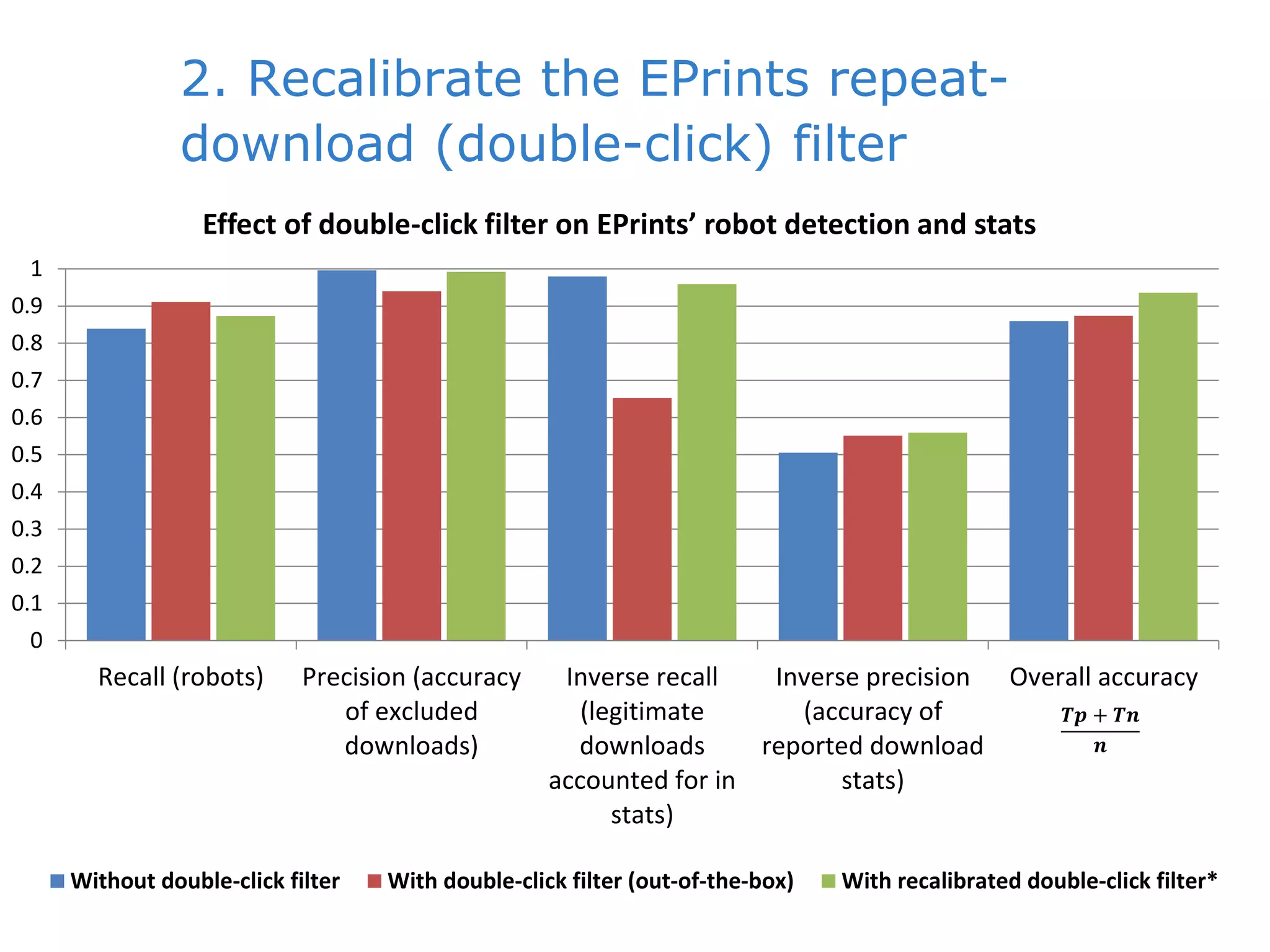

2. Recalibrate the EPrints repeat-
download (double-click) filter
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Recall (robots) Precision (accuracy
of excluded
downloads)
Inverse recall
(legitimate
downloads
accounted for in
stats)
Inverse precision
(accuracy of
reported download
stats)
Overall accuracy
Effect of double-click filter on EPrints’ robot detection and stats
Without double-click filter With double-click filter (out-of-the-box) With recalibrated double-click filter*
𝑻𝒑 + 𝑻𝒏
𝒏

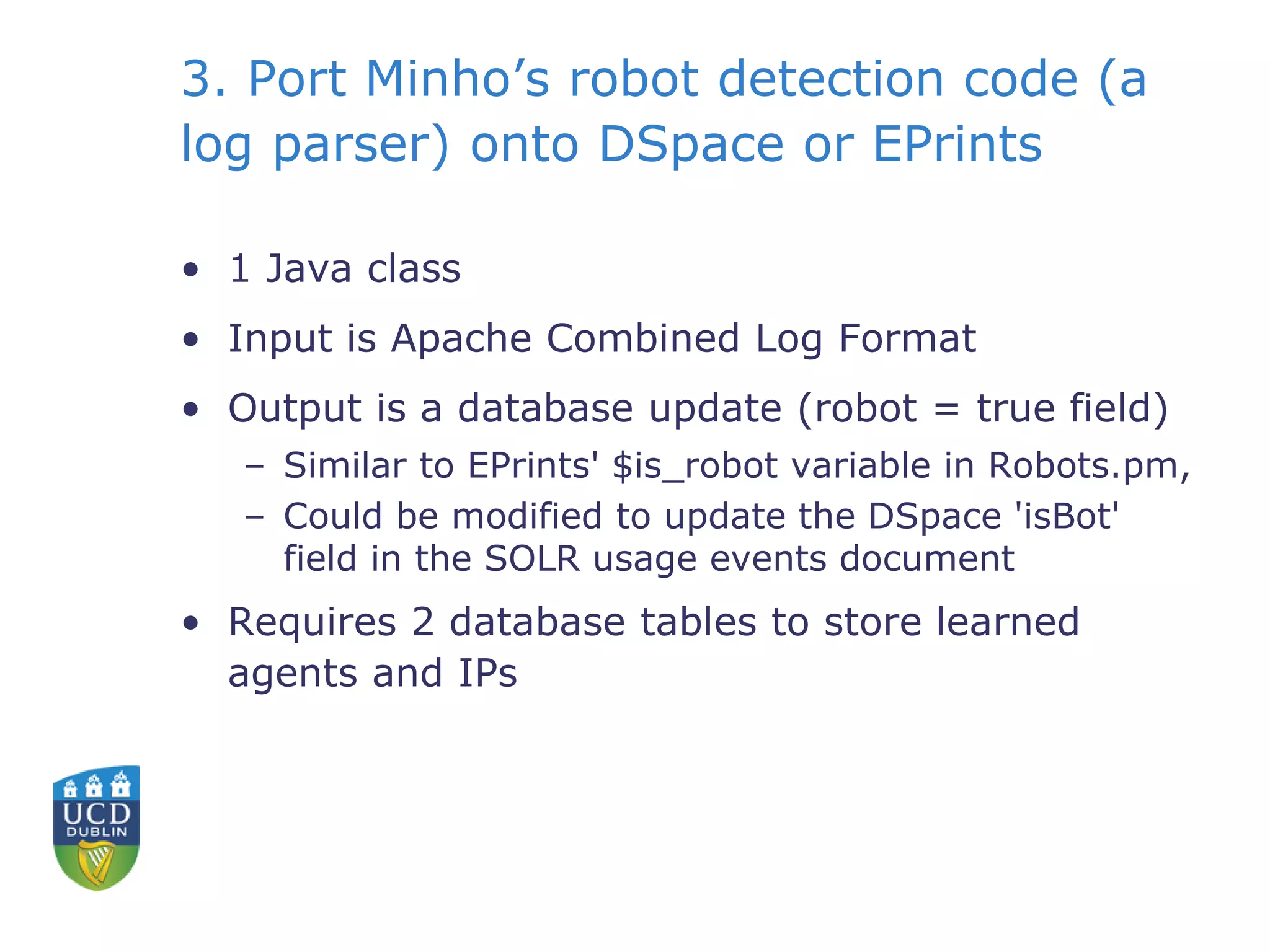

3. Port Minho’s robot detection code (a
log parser) onto DSpace or EPrints
• 1 Java class
• Input is Apache Combined Log Format
• Output is a database update (robot = true field)
– Similar to EPrints' $is_robot variable in Robots.pm,
– Could be modified to update the DSpace 'isBot'
field in the SOLR usage events document
• Requires 2 database tables to store learned
agents and IPs

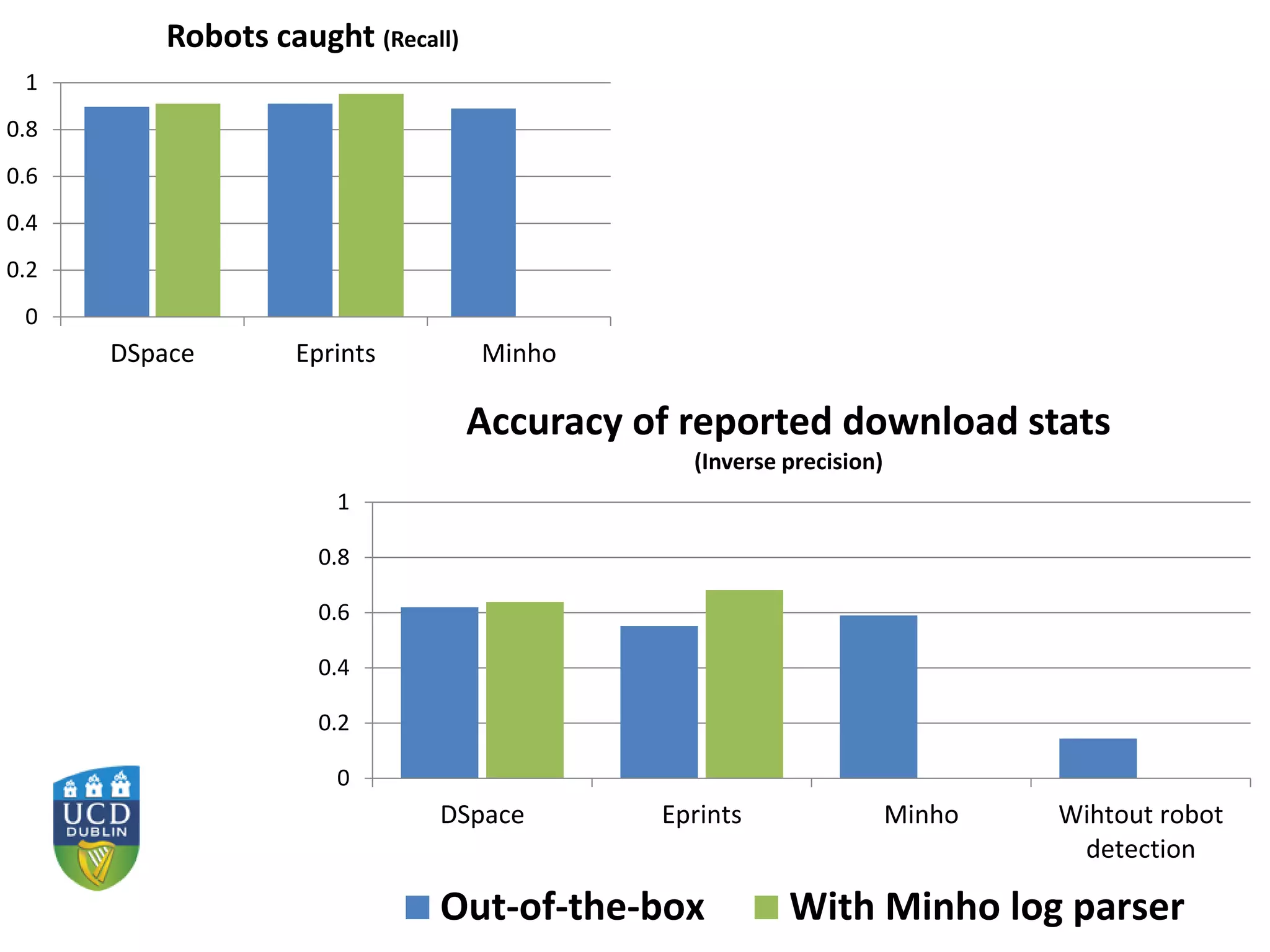

0
0.2
0.4
0.6
0.8
1
DSpace Eprints Minho
Robots caught (Recall)
0
0.2
0.4
0.6
0.8
1
DSpace Eprints Minho Wihtout robot
detection
Accuracy of reported download stats
(Inverse precision)
Out-of-the-box With Minho log parser

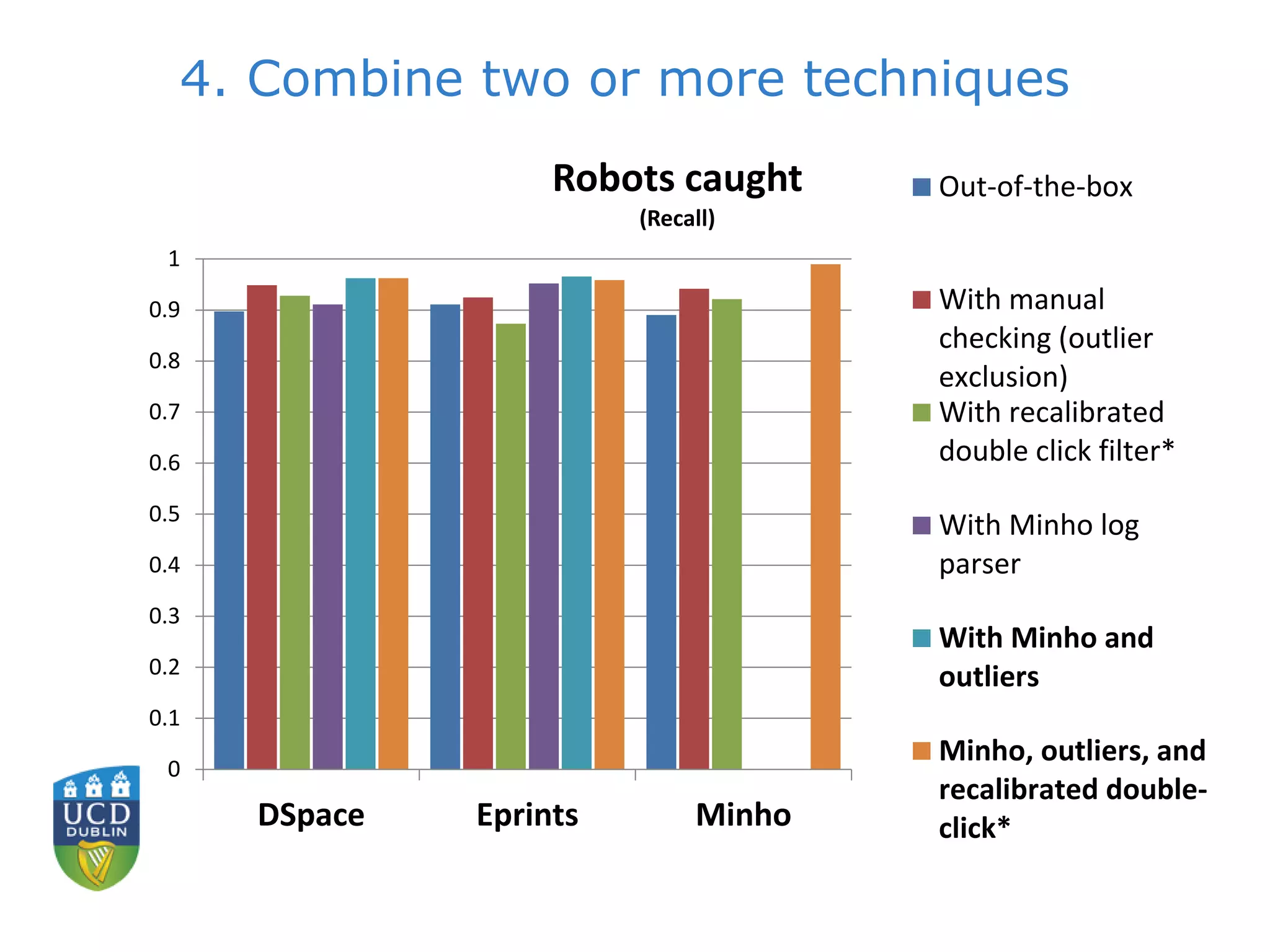

4. Combine two or more techniques
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
DSpace Eprints Minho
Robots caught
(Recall)
Out-of-the-box
With manual
checking (outlier
exclusion)
With recalibrated
double click filter*
With Minho log
parser
With Minho and
outliers
Minho, outliers, and
recalibrated double-
click*

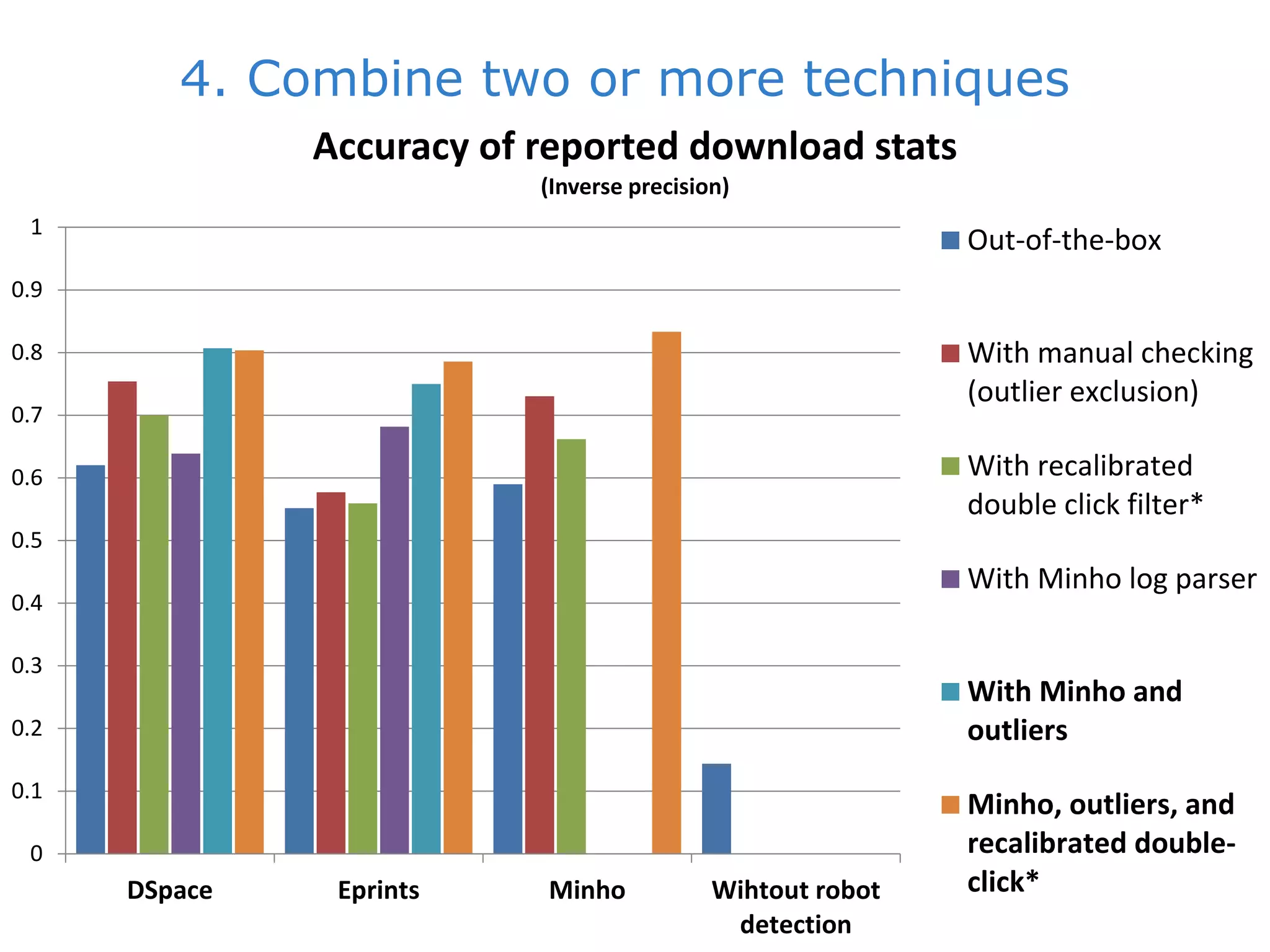

4. Combine two or more techniques
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
DSpace Eprints Minho Wihtout robot
detection
Accuracy of reported download stats
(Inverse precision)
Out-of-the-box
With manual checking
(outlier exclusion)
With recalibrated
double click filter*
With Minho log parser
With Minho and
outliers
Minho, outliers, and
recalibrated double-
click*

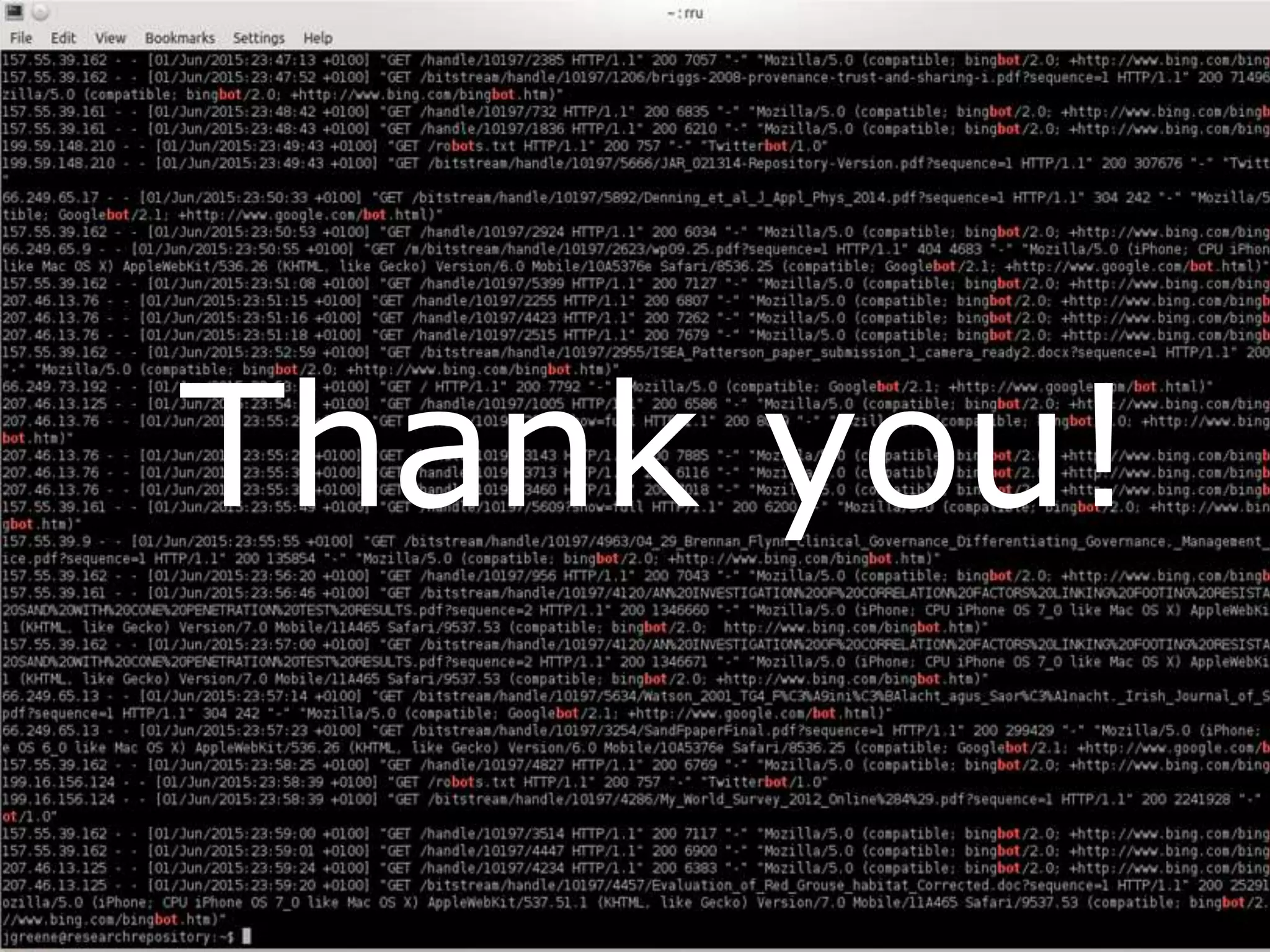

Thank you!
