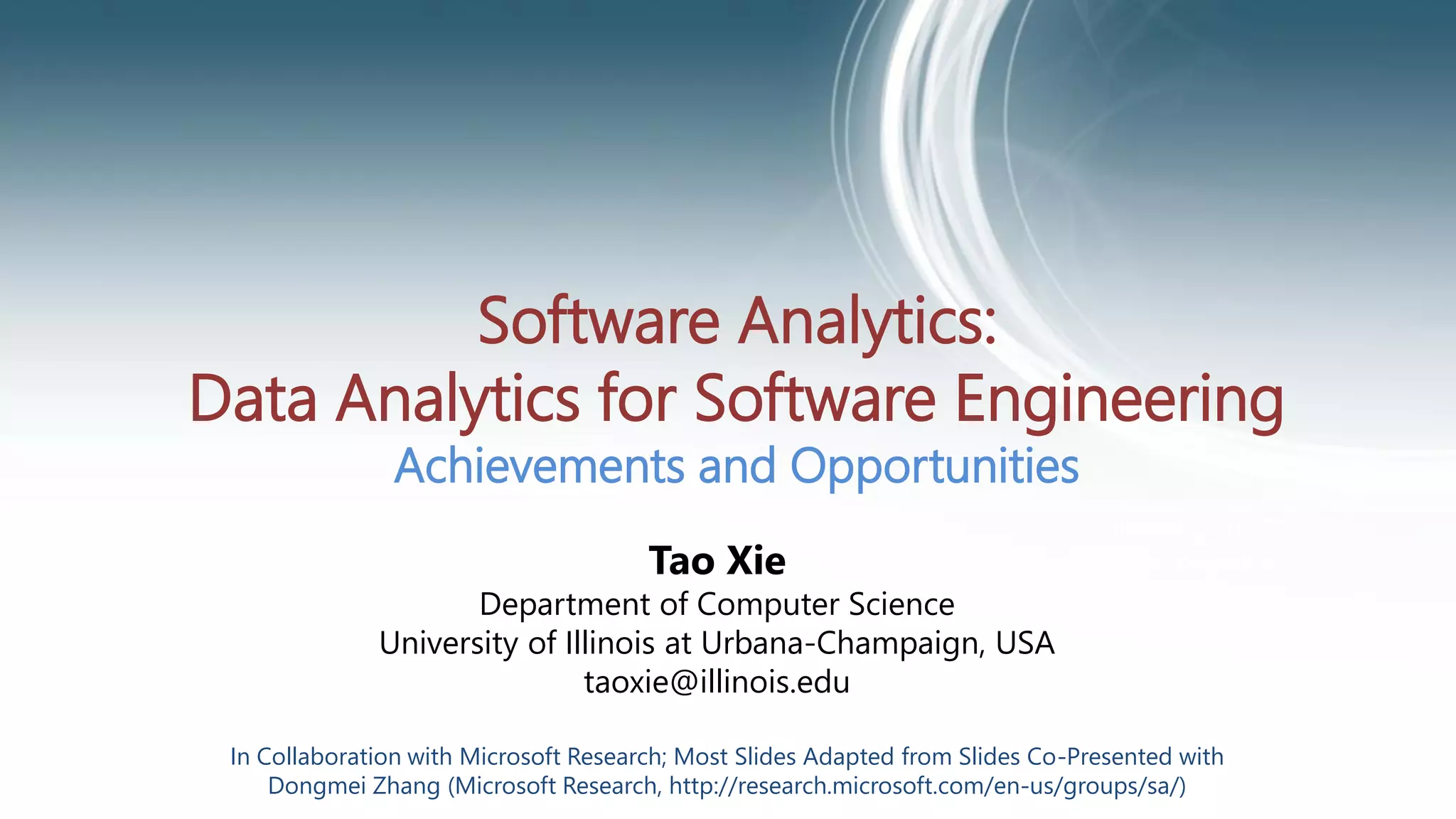

Software Analytics: Data Analytics for Software Engineering

Software Analytics:
Data Analytics for Software Engineering
Achievements and Opportunities
Tao Xie
Department of Computer Science
University of Illinois at Urbana-Champaign, USA
taoxie@illinois.edu
In Collaboration with Microsoft Research; Most Slides Adapted from Slides Co-Presented with
Dongmei Zhang (Microsoft Research, http://research.microsoft.com/en-us/groups/sa/)

New Era…Software itself is changing...
Software Services

How people use software is changing…

Individual Isolated
Not much data/content
generation

Individual Isolated
generation

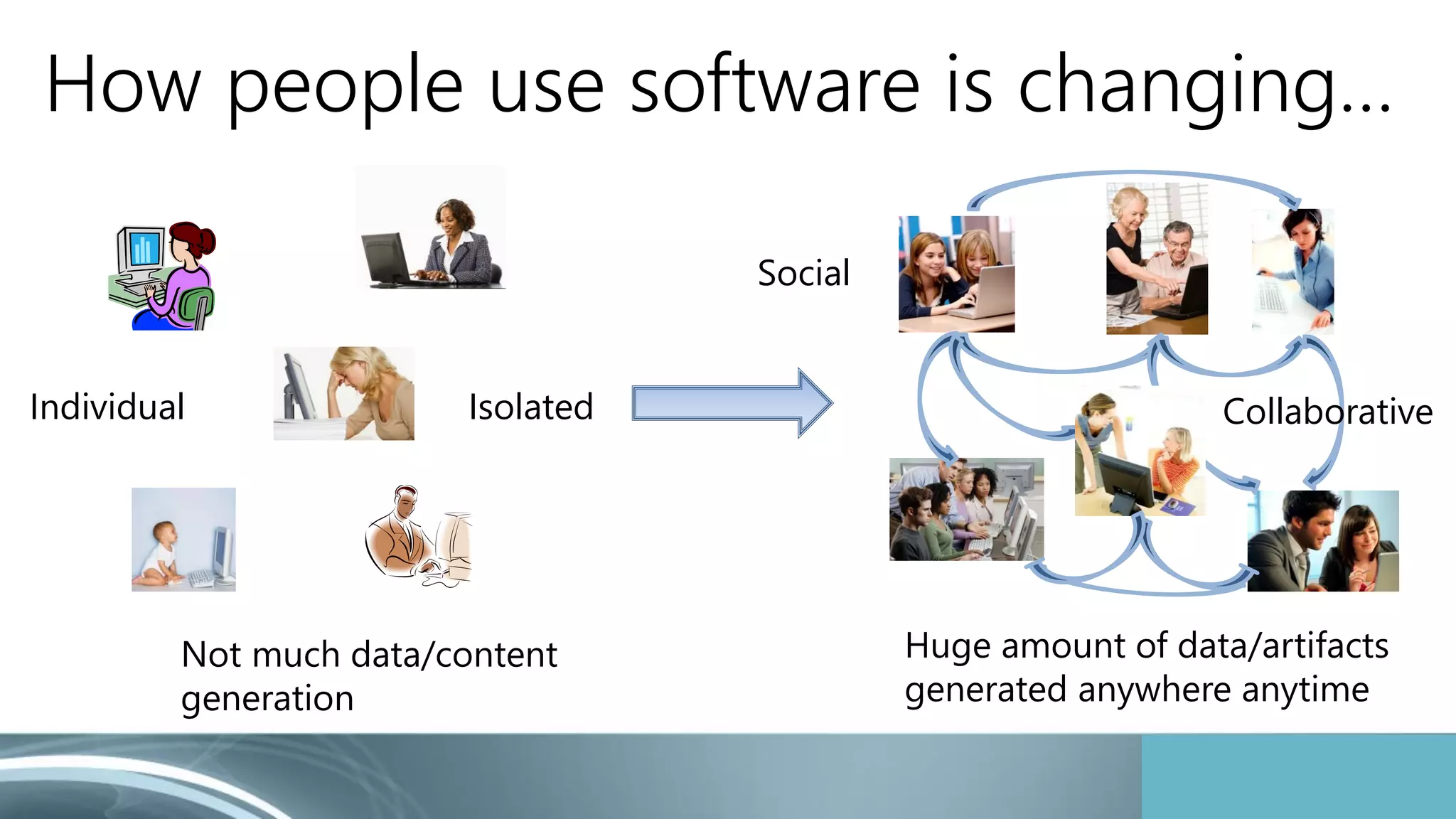

Individual
Social
Isolated
generation
Collaborative
Huge amount of data/artifacts
generated anywhere anytime

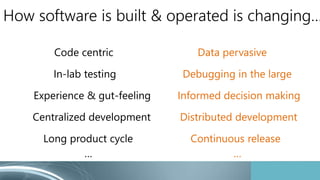

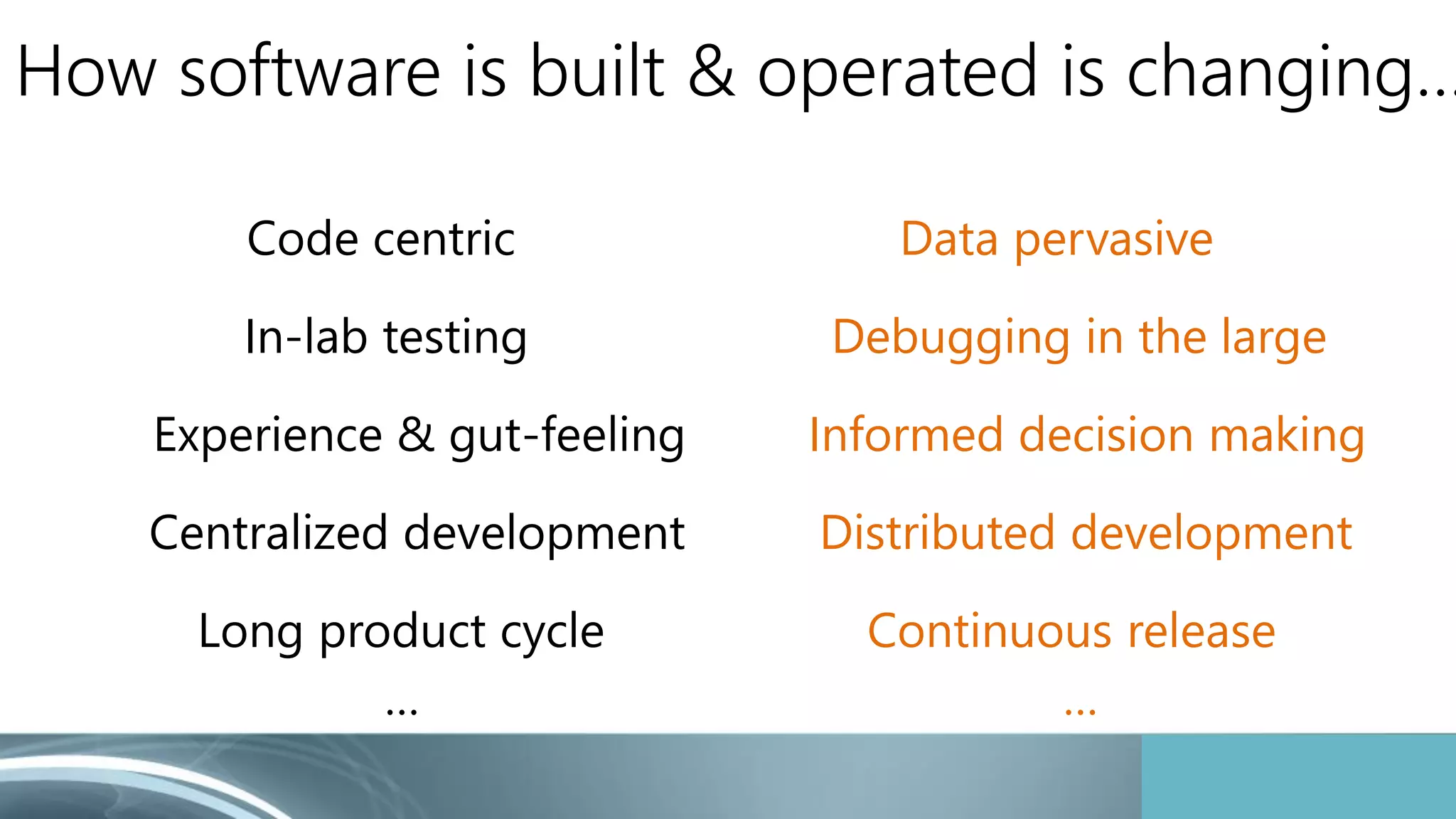

How software is built & operated is changing…

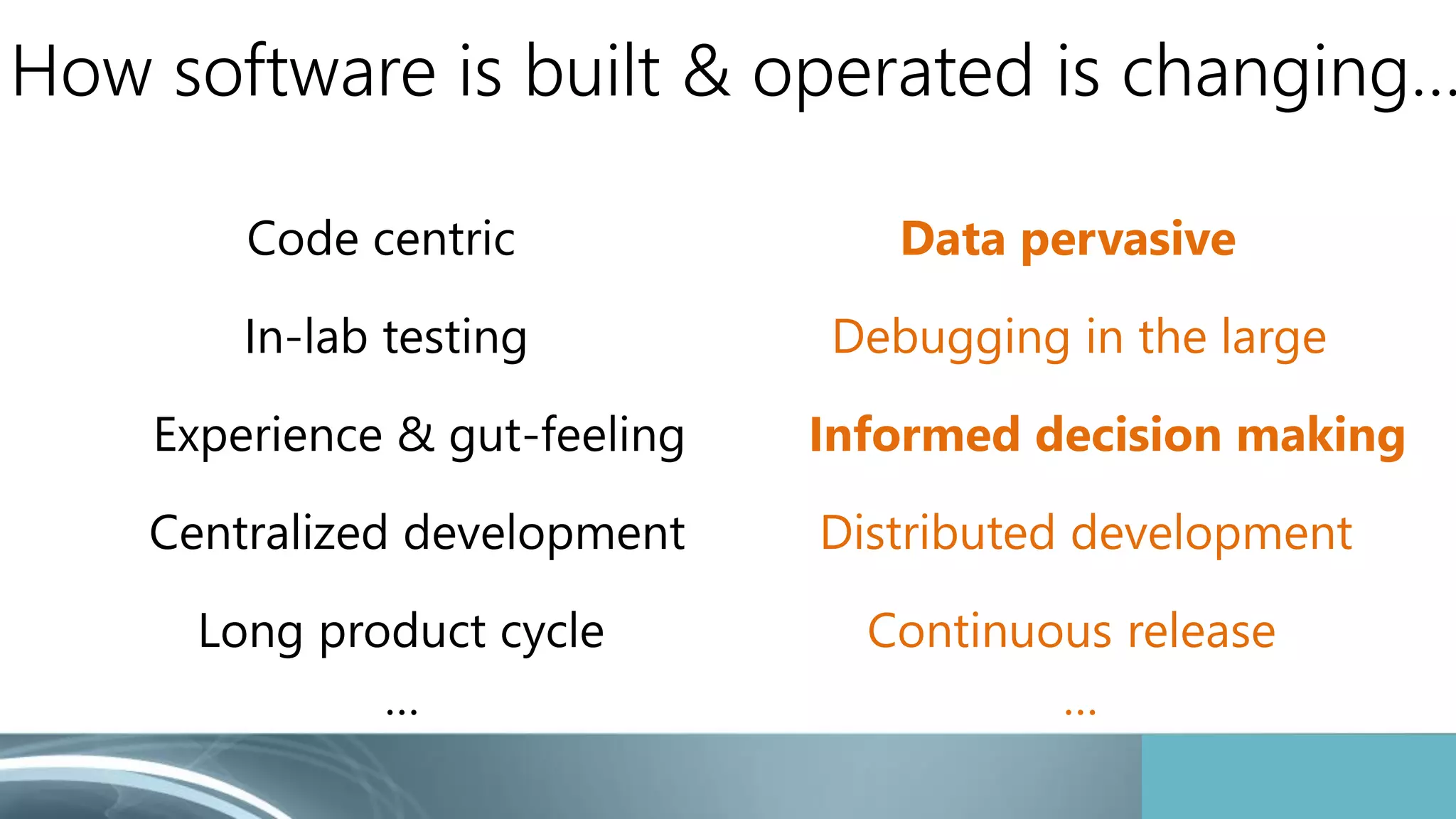

How software is built & operated is changing…
Data pervasive
Long product cycle
Experience & gut-feeling
In-lab testing
Informed decision making
Centralized development
Code centric
Debugging in the large
Distributed development
Continuous release
… …

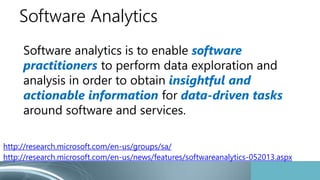

Software Analytics

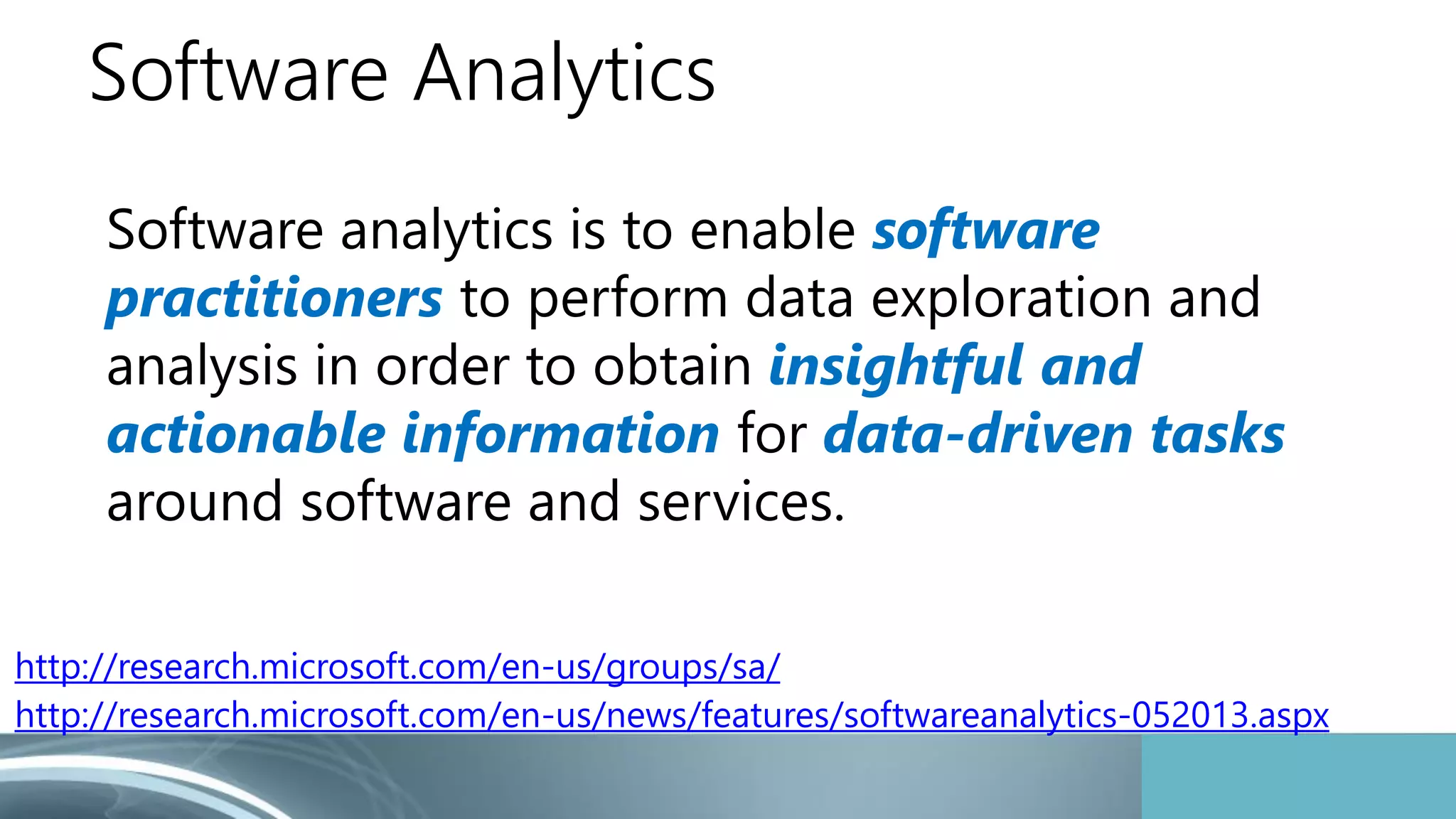

Software analytics is to enable software
practitioners to perform data exploration and
analysis in order to obtain insightful and
actionable information for data-driven tasks
around software and services.

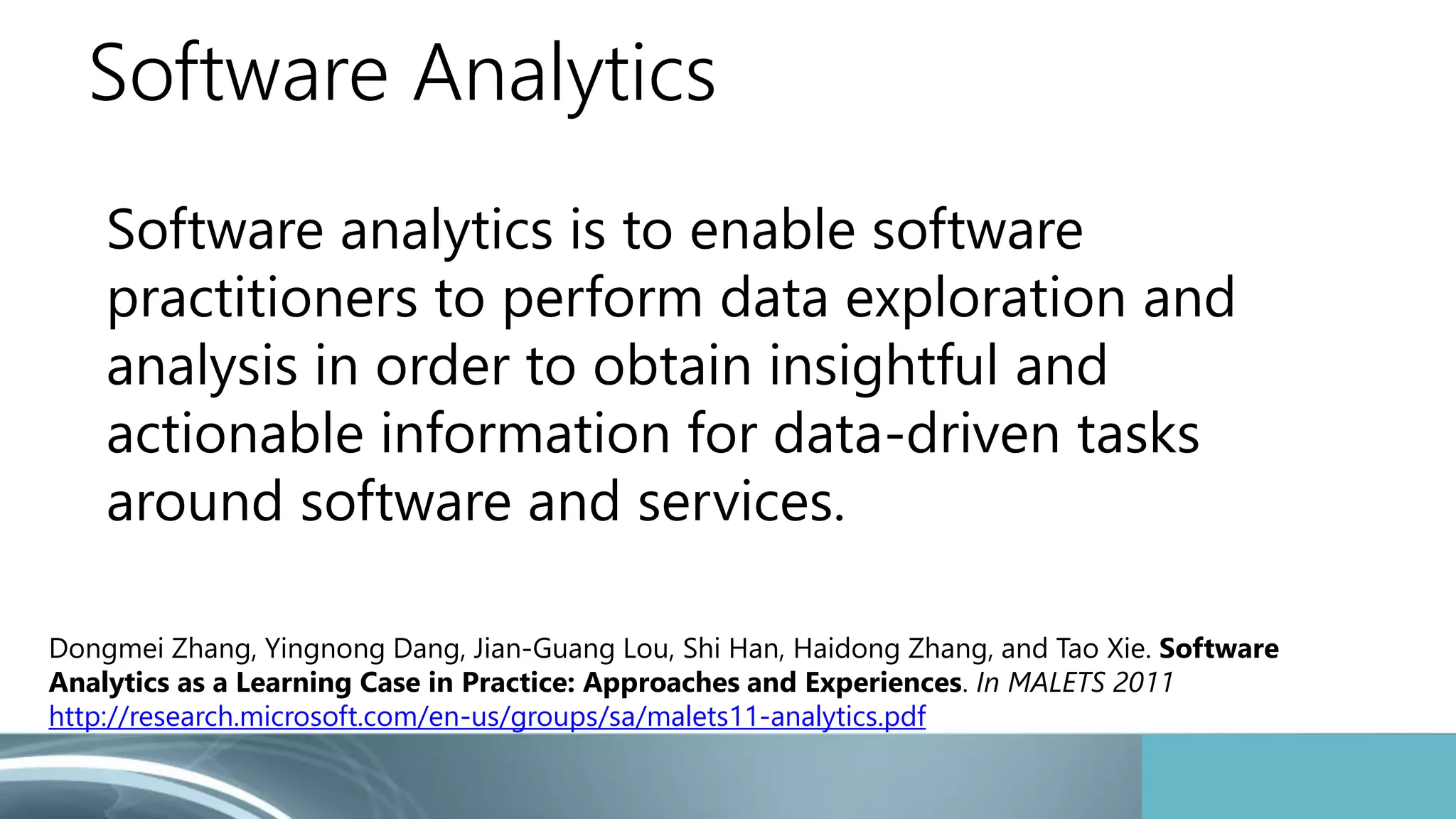

Dongmei Zhang, Yingnong Dang, Jian-Guang Lou, Shi Han, Haidong Zhang, and Tao Xie. Software
Analytics as a Learning Case in Practice: Approaches and Experiences. In MALETS 2011
http://research.microsoft.com/en-us/groups/sa/malets11-analytics.pdf

Software Analytics
Software analytics is to enable software
practitioners to perform data exploration and
analysis in order to obtain insightful and
actionable information for data-driven tasks
around software and services.
http://research.microsoft.com/en-us/groups/sa/
http://research.microsoft.com/en-us/news/features/softwareanalytics-052013.aspx

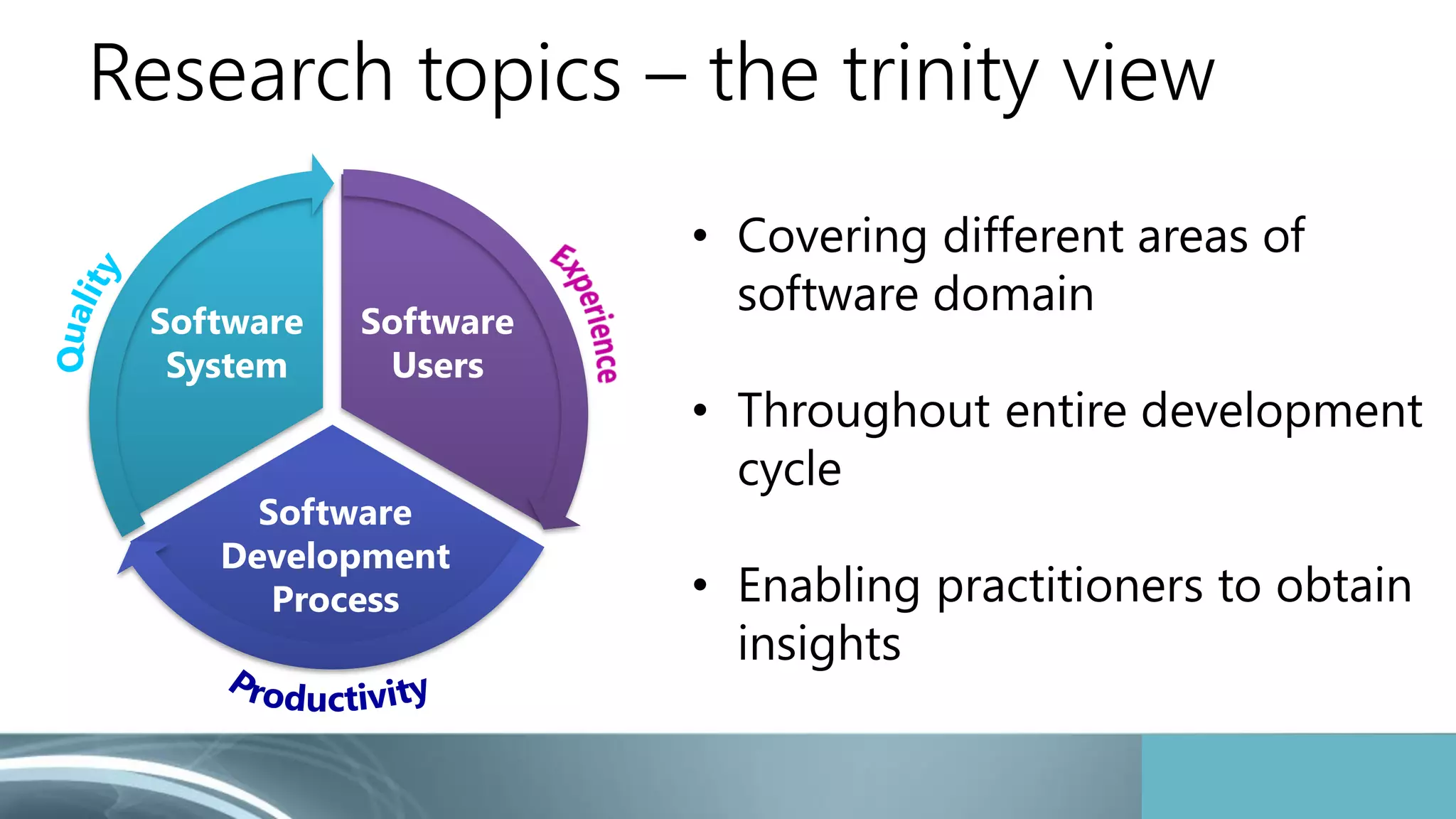

Research topics – the trinity view
Software
Users
Software
Development
Process
Software
System
• Covering different areas of
software domain
• Throughout entire development
cycle
• Enabling practitioners to obtain
insights

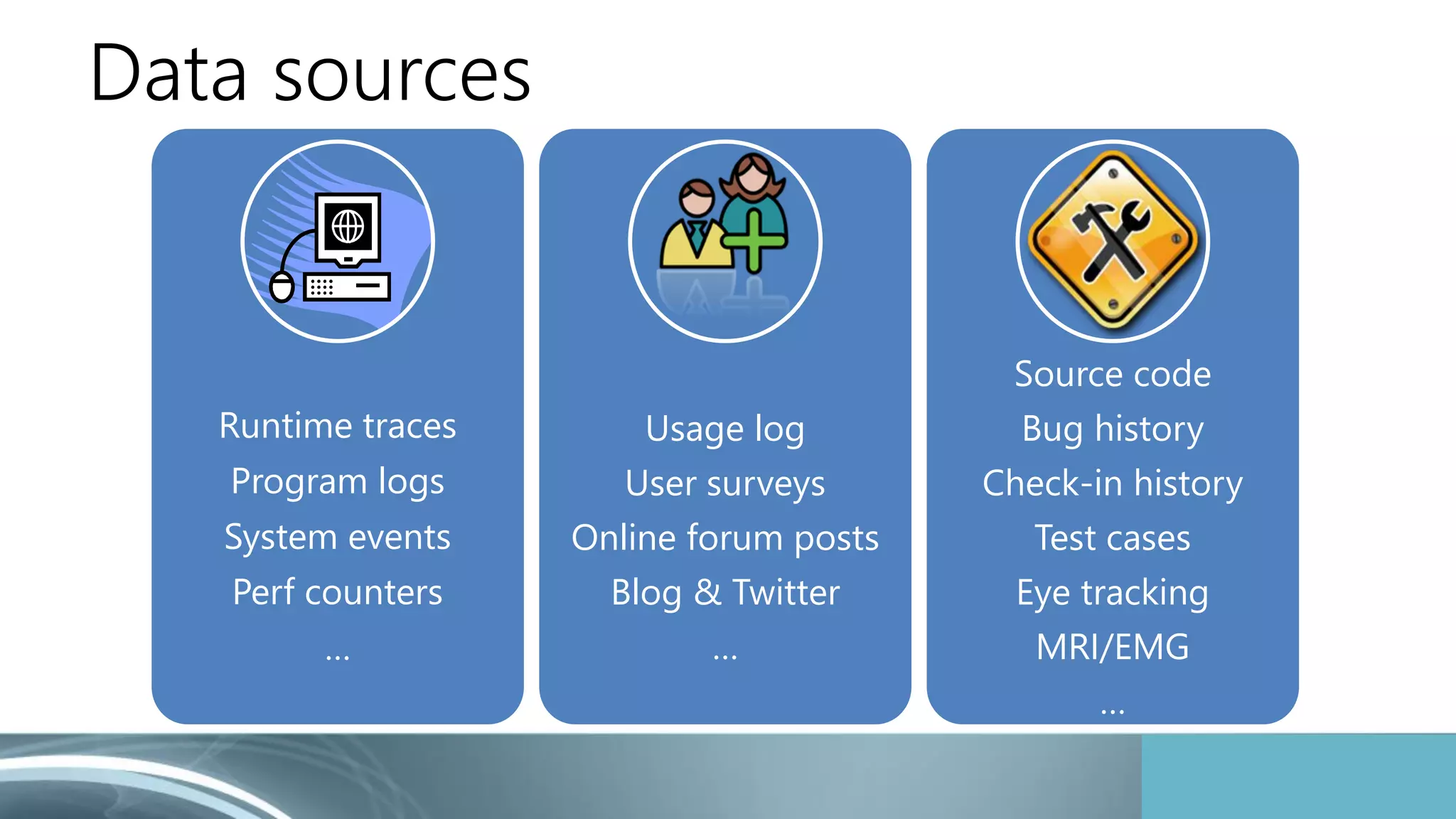

Data sources
Runtime traces
Program logs
System events
Perf counters
…
Usage log
User surveys
Online forum posts
Blog & Twitter
…
Source code
Bug history
Check-in history
Test cases
Eye tracking
MRI/EMG
…

Target audience – software practitioners

Developer
Tester

Developer
Tester
Program Manager
Usability engineer
Designer
Support engineer
Management personnel
Operation engineer

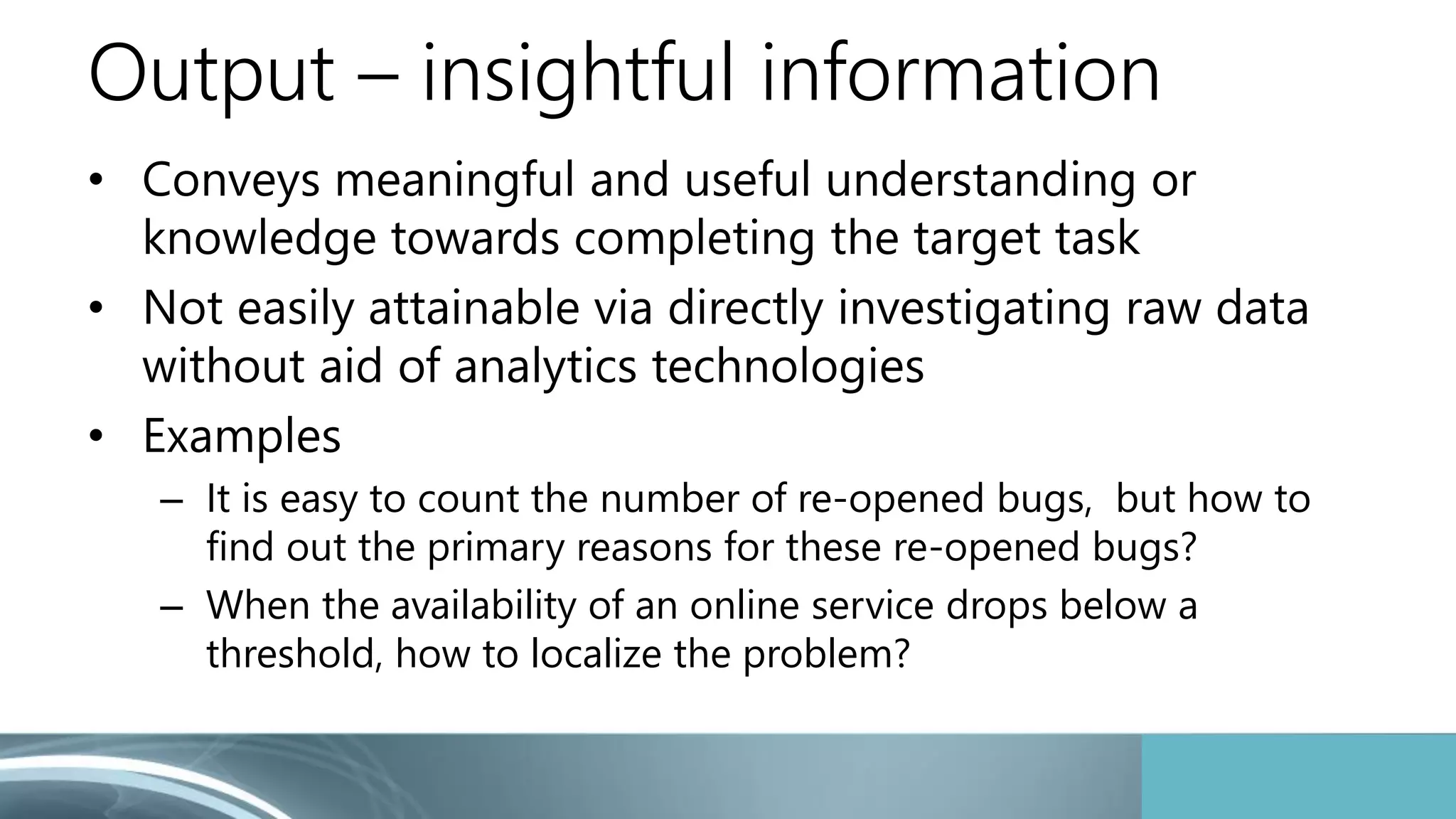

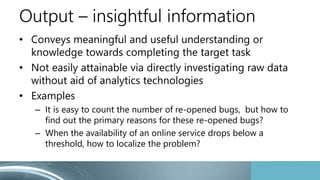

Output – insightful information
• Conveys meaningful and useful understanding or
knowledge towards completing the target task
• Not easily attainable via directly investigating raw data
without aid of analytics technologies
• Examples
– It is easy to count the number of re-opened bugs, but how to
find out the primary reasons for these re-opened bugs?
– When the availability of an online service drops below a
threshold, how to localize the problem?

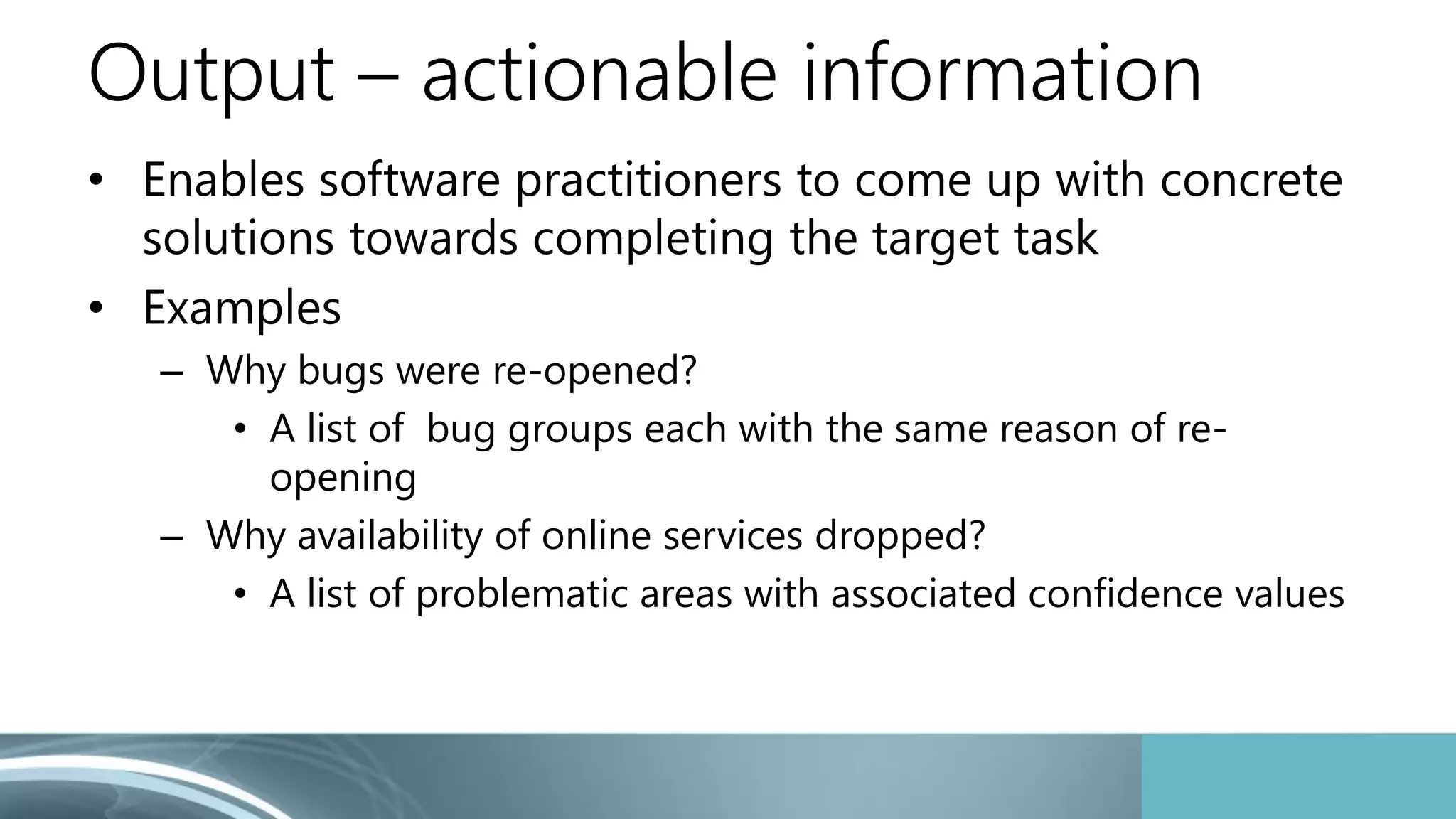

Output – actionable information
• Enables software practitioners to come up with concrete
solutions towards completing the target task
• Examples
– Why bugs were re-opened?
• A list of bug groups each with the same reason of re-
opening
– Why availability of online services dropped?
• A list of problematic areas with associated confidence values

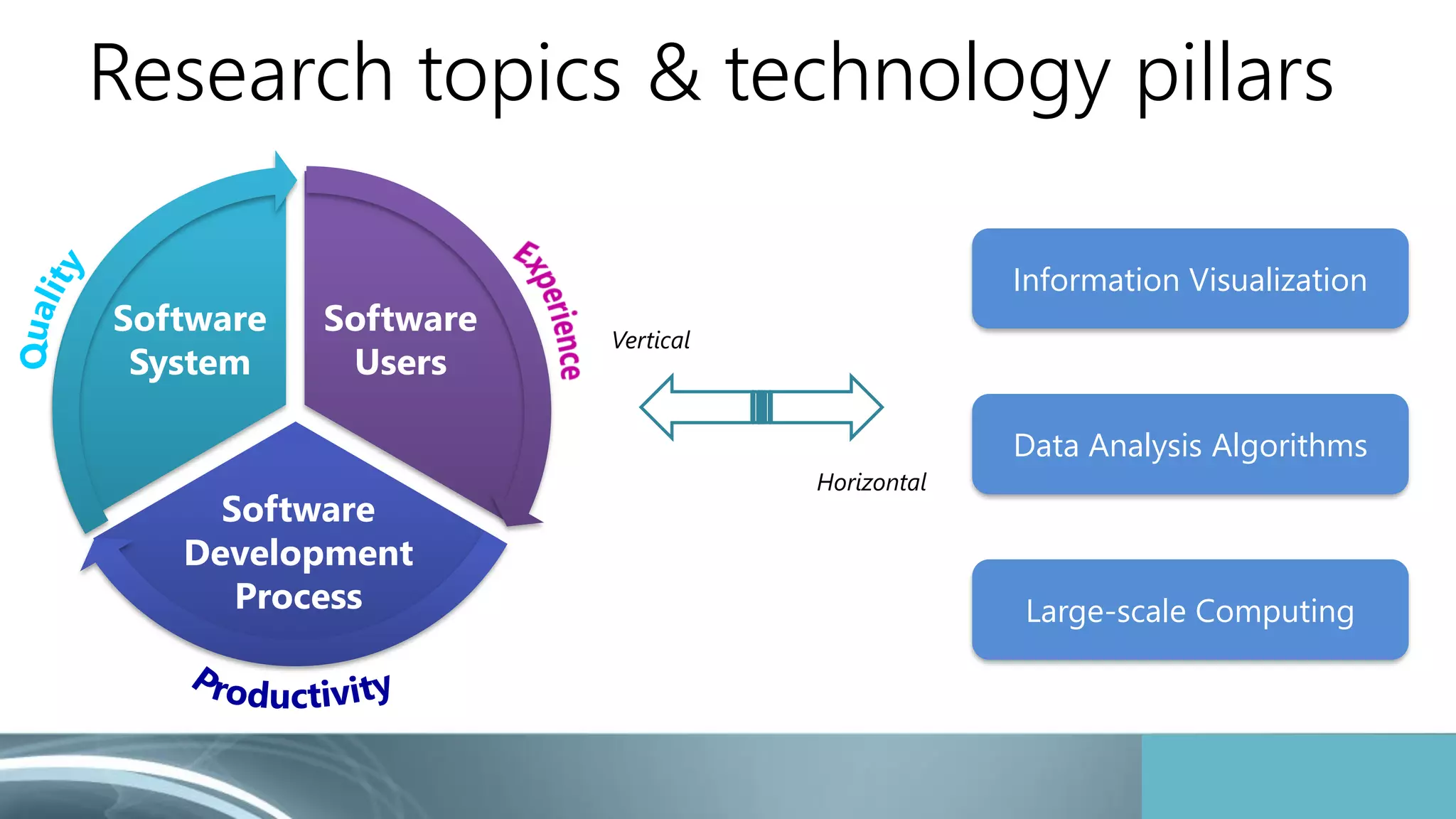

Research topics & technology pillars
Software
Users
Software
Development
Process
Software
System
Vertical
Horizontal
Information Visualization
Data Analysis Algorithms
Large-scale Computing

Connection to practice

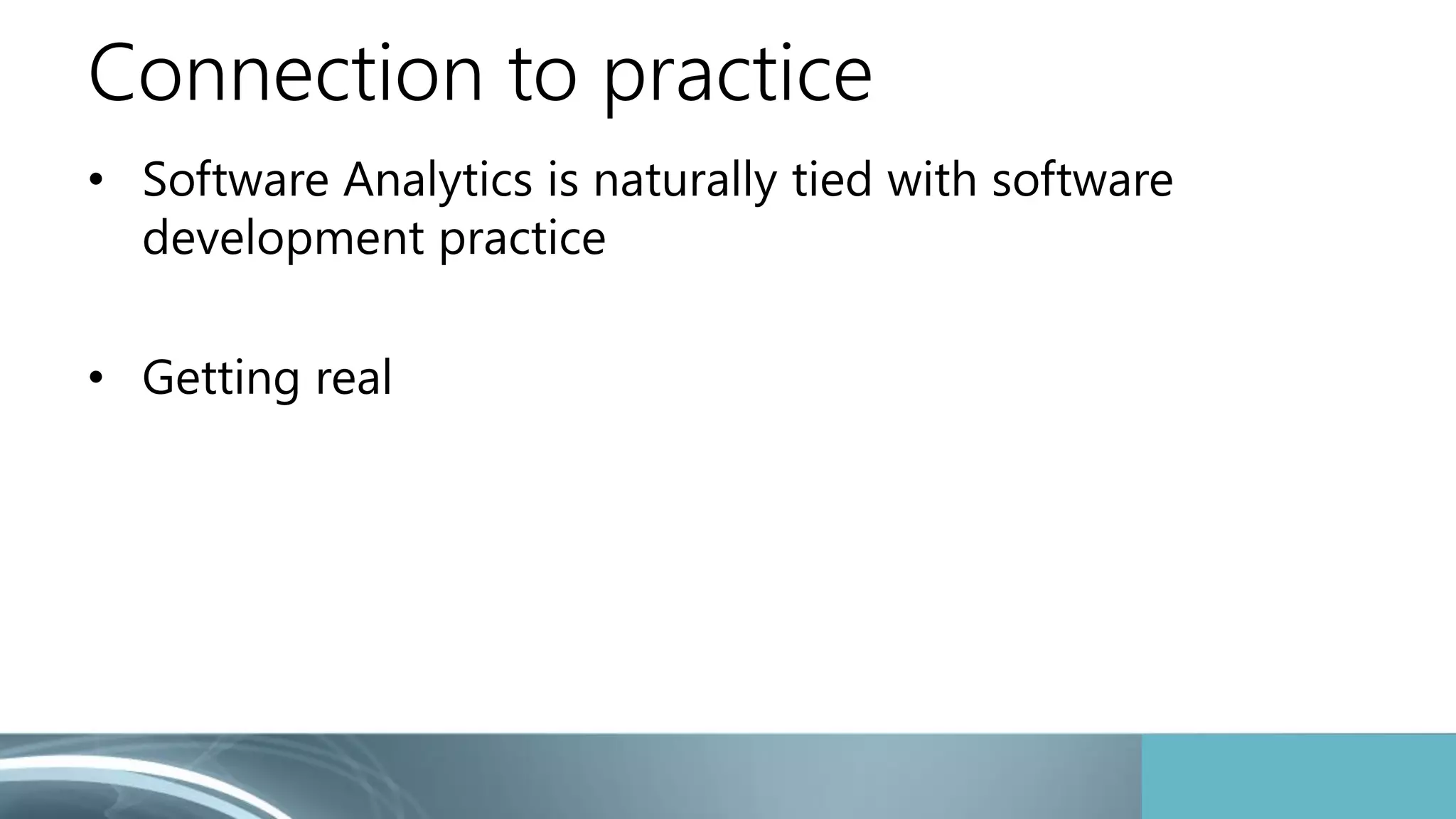

• Software Analytics is naturally tied with software
development practice
• Getting real

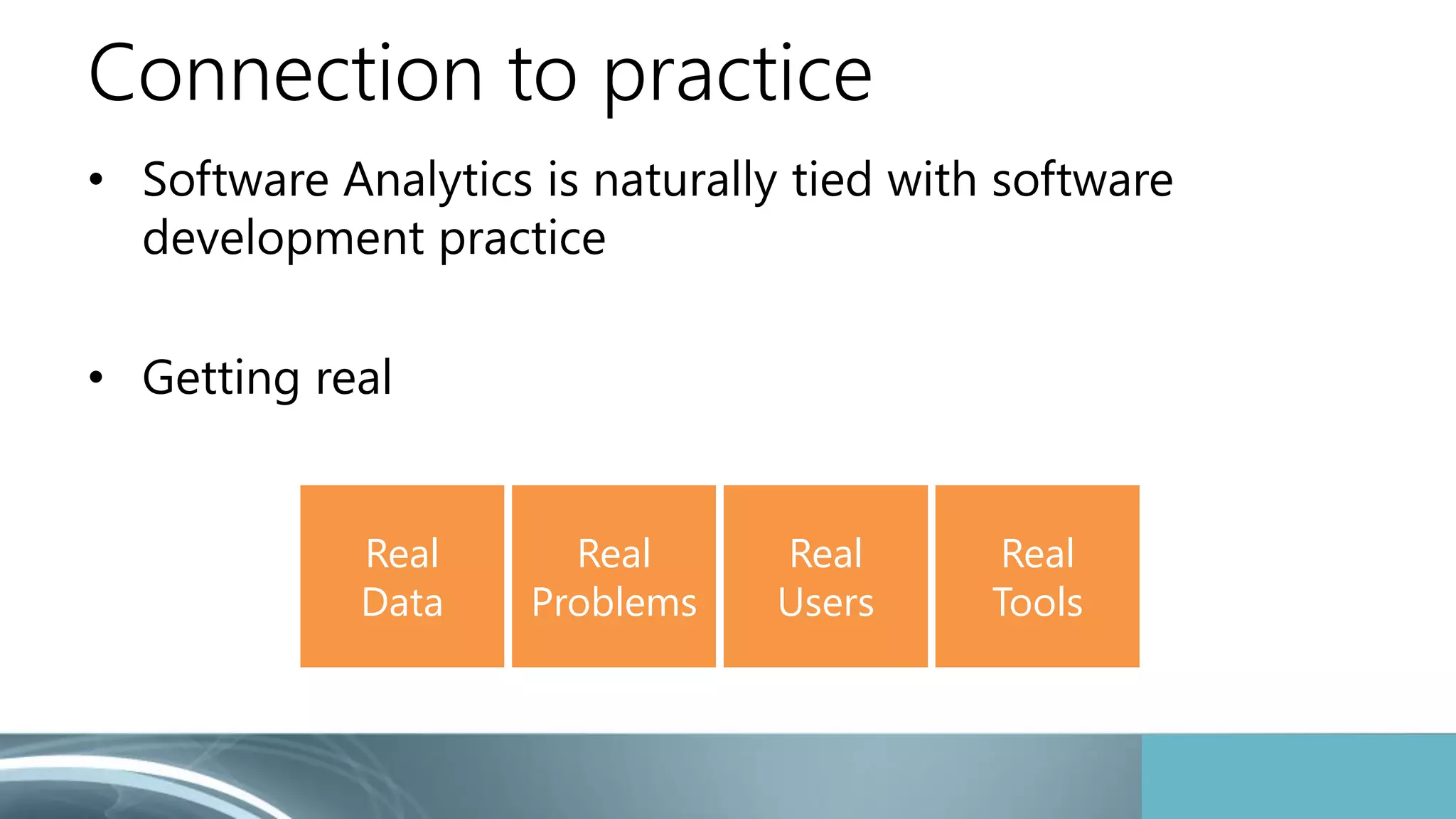

Connection to practice
• Software Analytics is naturally tied with software
development practice
• Getting real
Real
Data
Real
Problems
Real
Users
Real
Tools

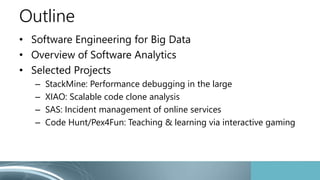

Outline
• Software Engineering for Big Data
• Overview of Software Analytics
• Selected Projects
– StackMine: Performance debugging in the large
– XIAO: Scalable code clone analysis
– SAS: Incident management of online services

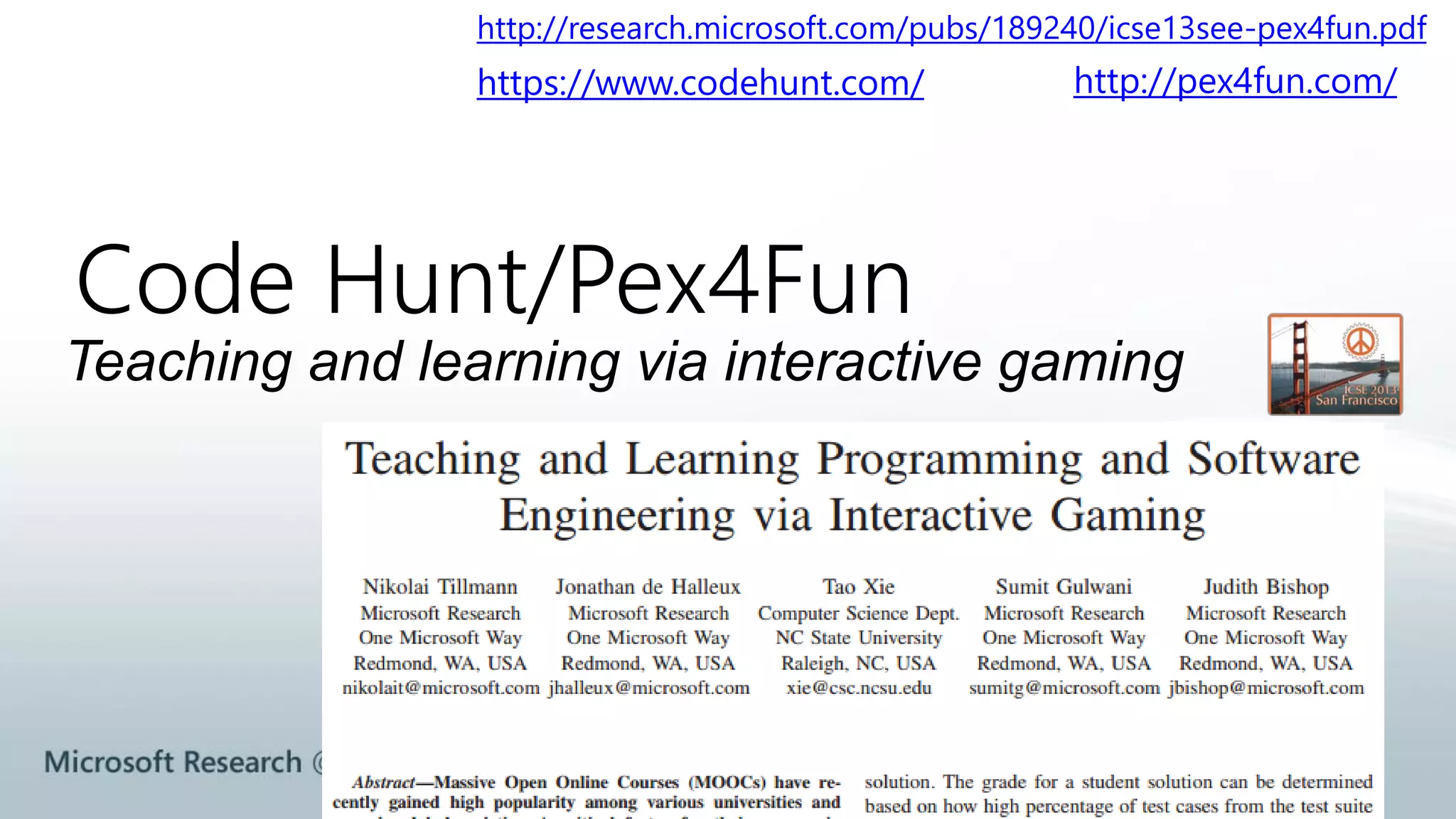

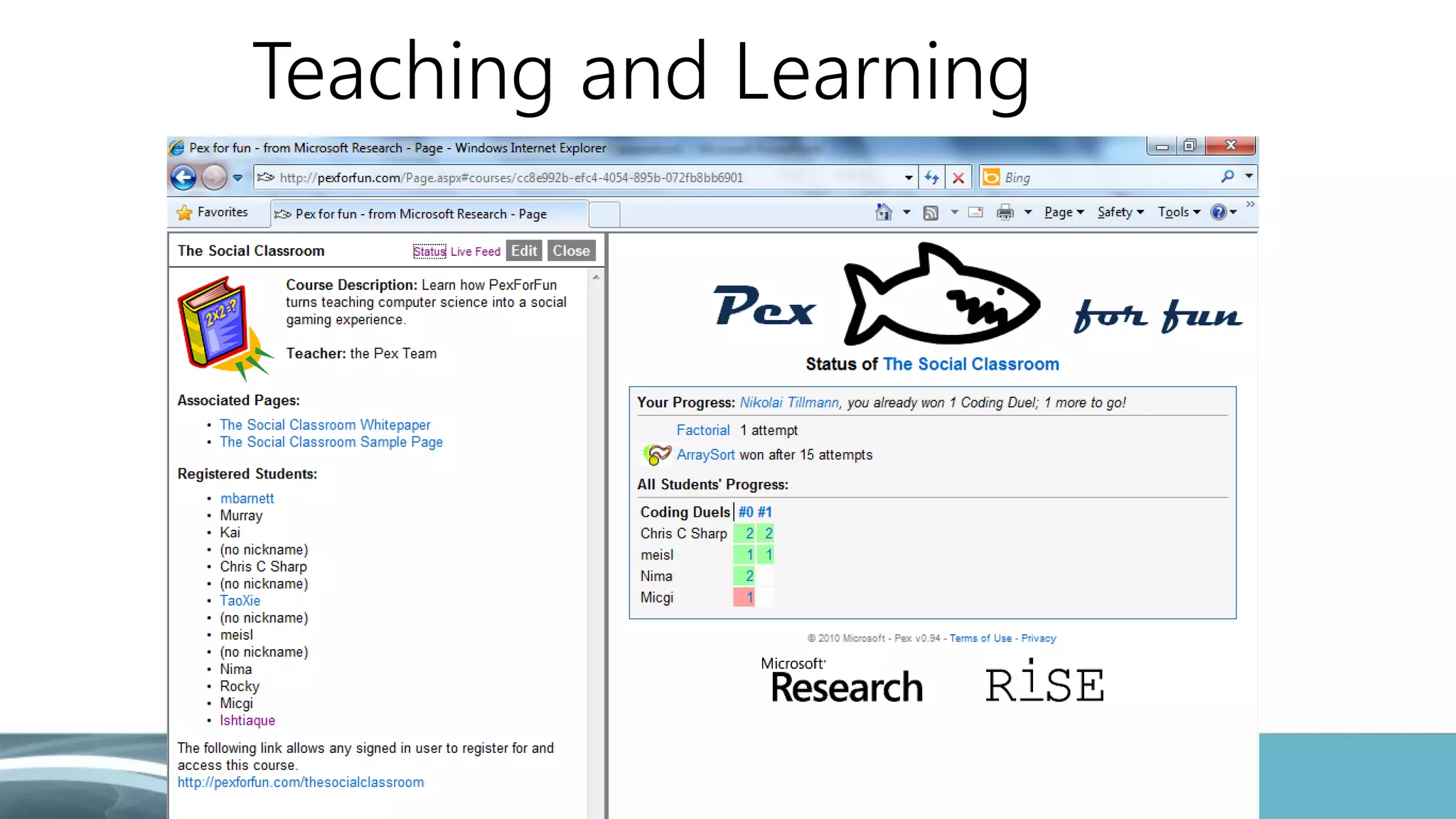

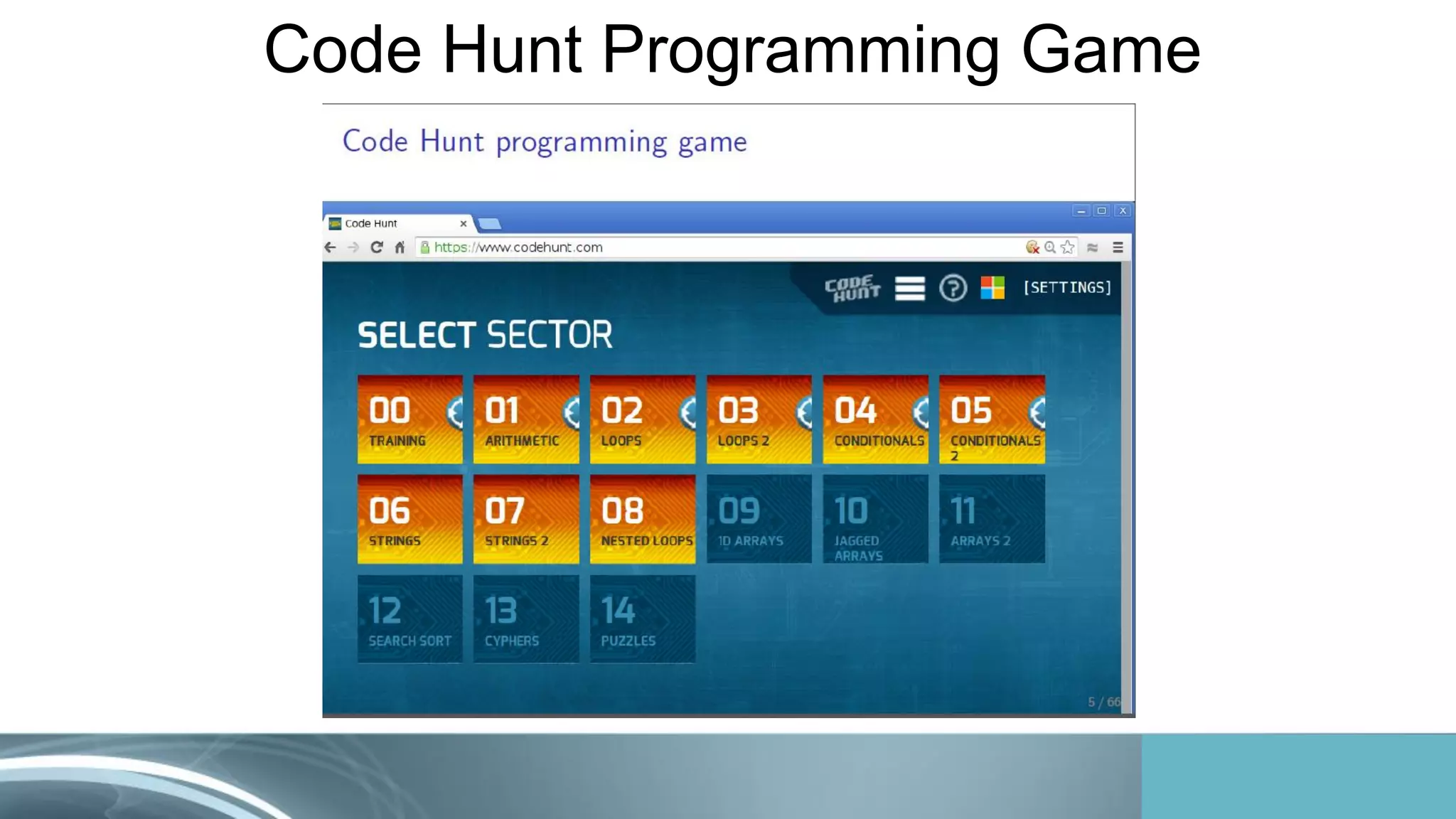

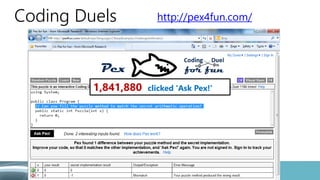

– Code Hunt/Pex4Fun: Teaching & learning via interactive gaming

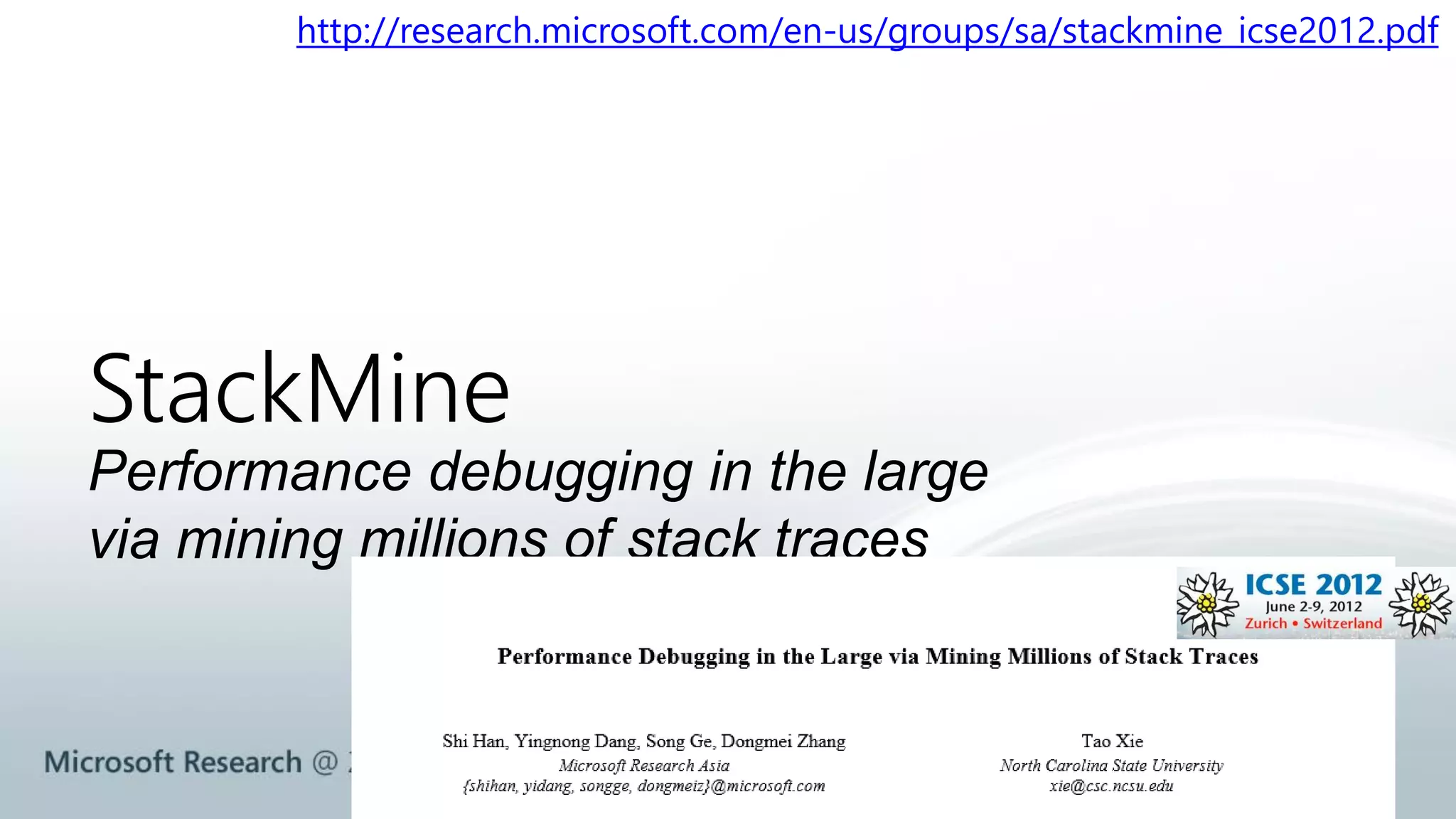

StackMine

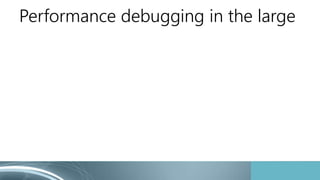

Performance debugging in the large
via mining millions of stack traces
http://research.microsoft.com/en-us/groups/sa/stackmine_icse2012.pdf

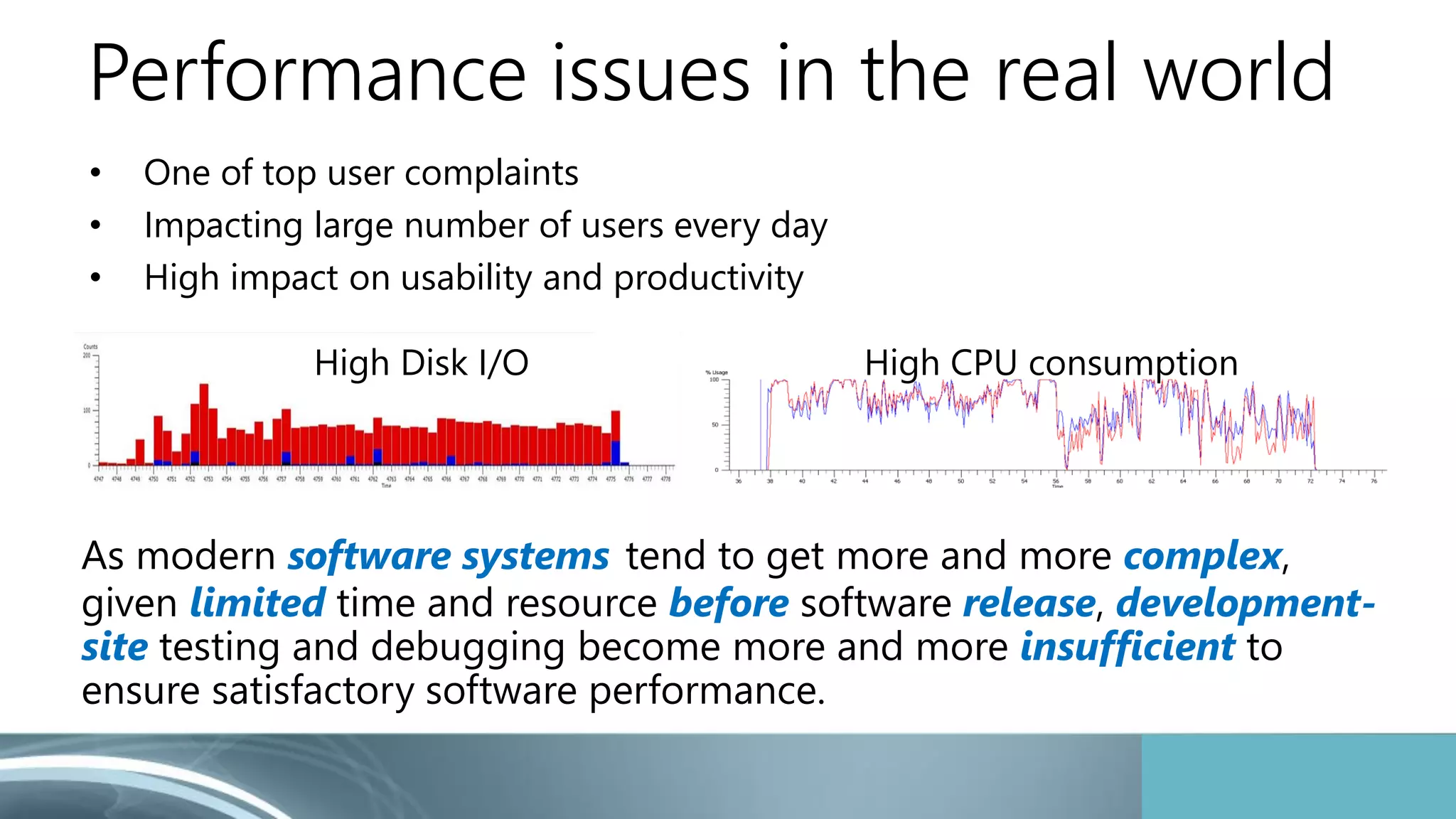

Performance issues in the real world
• One of top user complaints
• Impacting large number of users every day
• High impact on usability and productivity

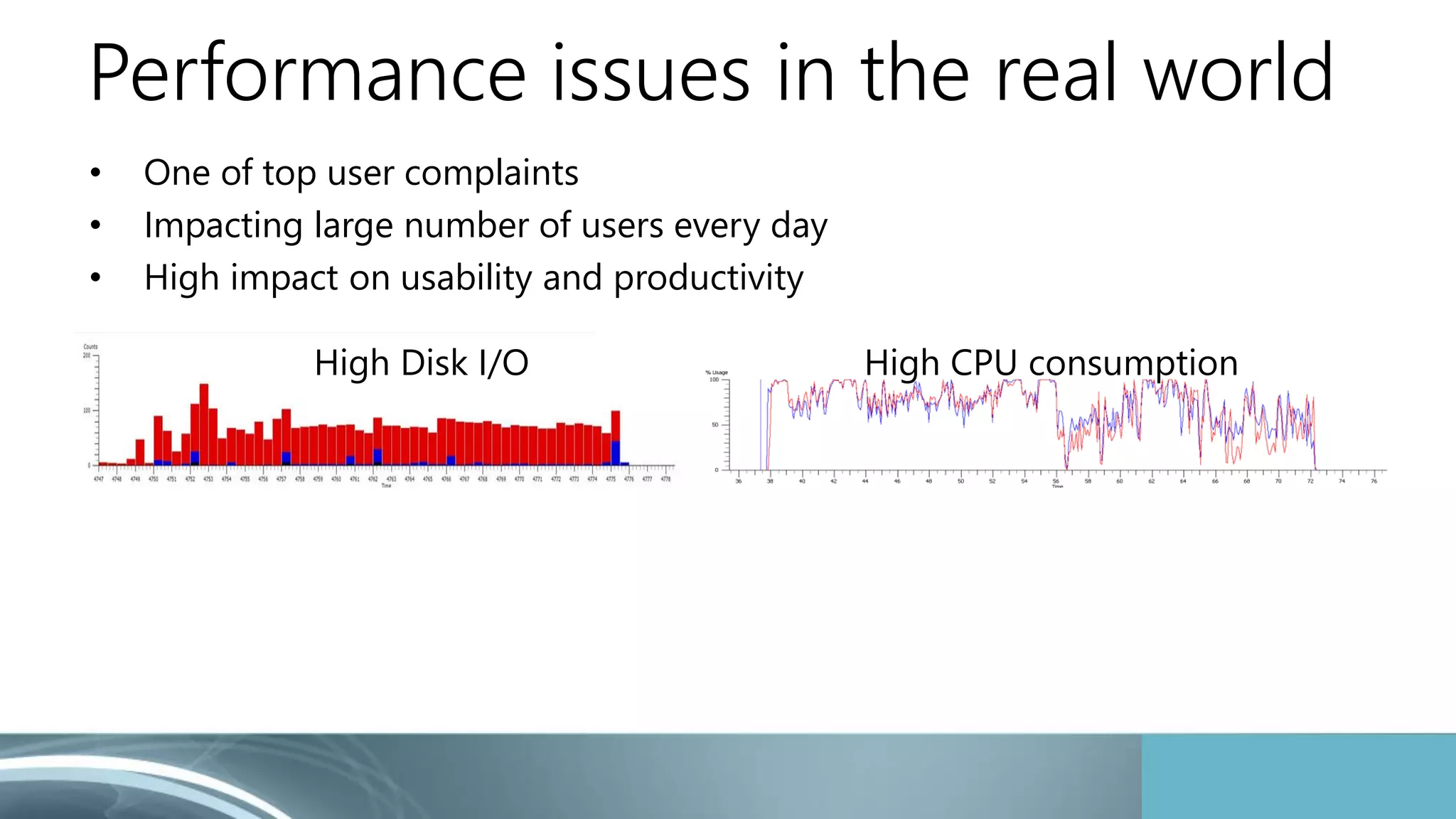

High Disk I/O High CPU consumption

Performance issues in the real world
• One of top user complaints
• Impacting large number of users every day
• High impact on usability and productivity
High Disk I/O High CPU consumption
As modern software systems tend to get more and more complex,
given limited time and resource before software release, development-
site testing and debugging become more and more insufficient to
ensure satisfactory software performance.

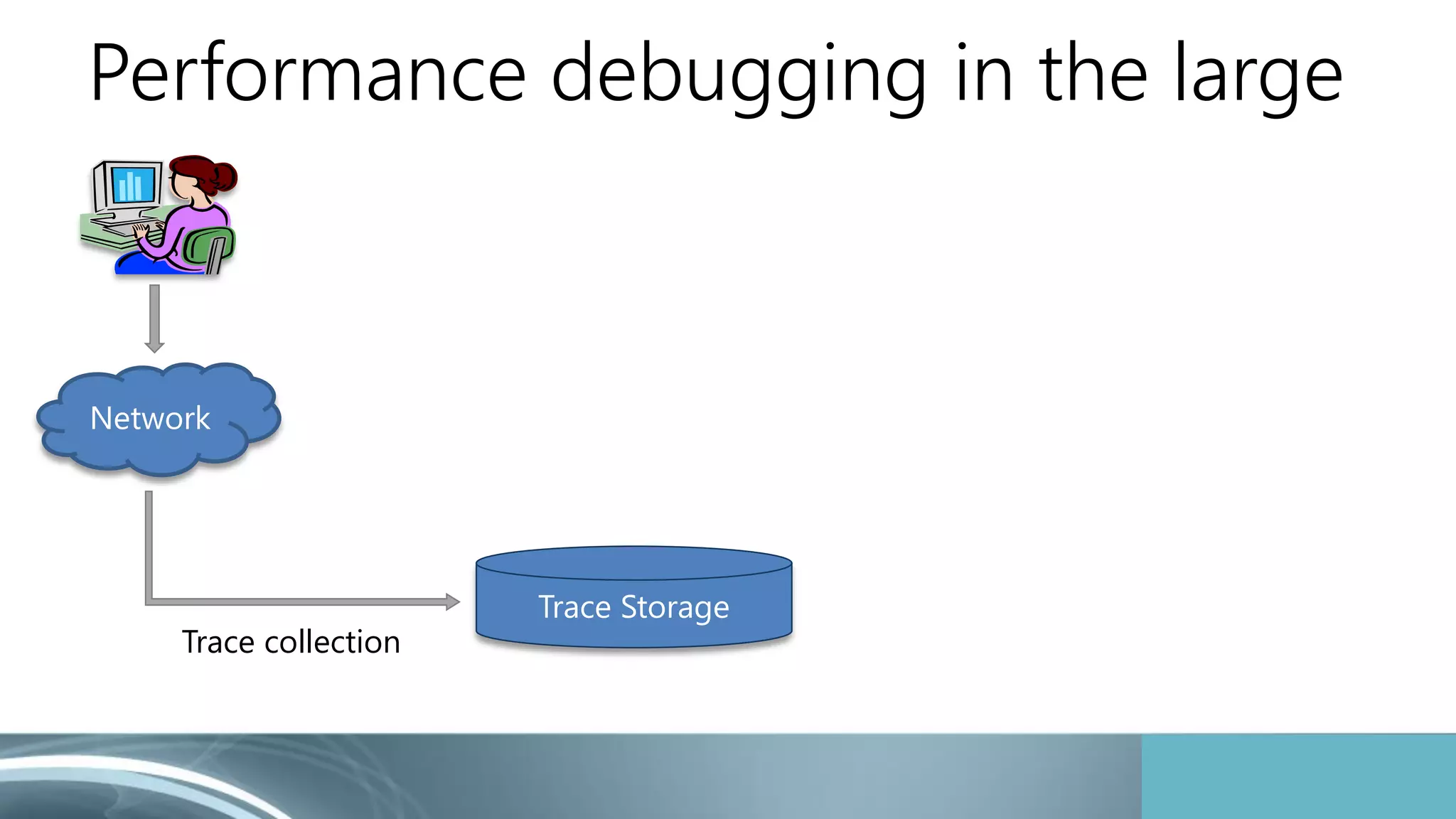

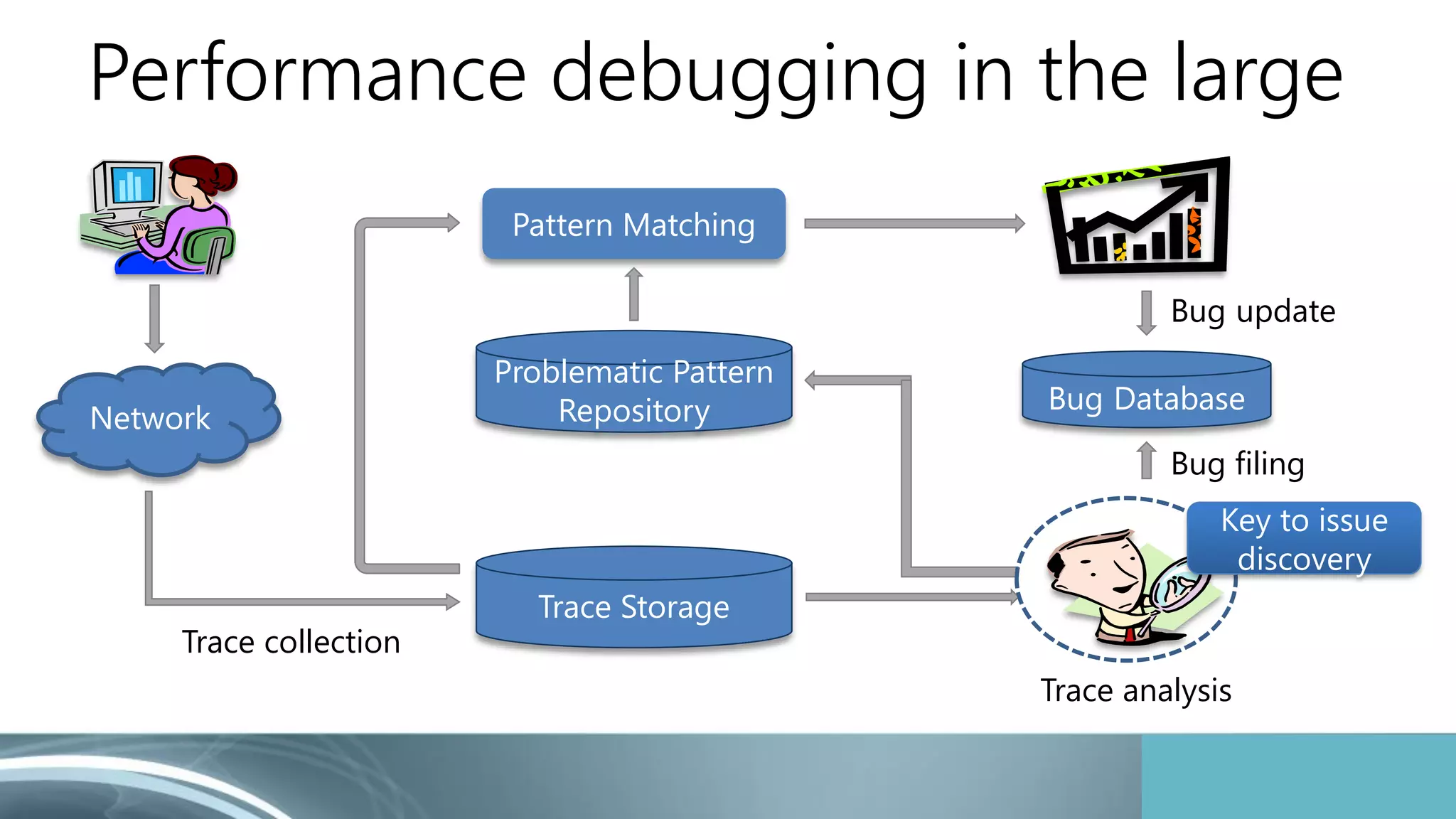

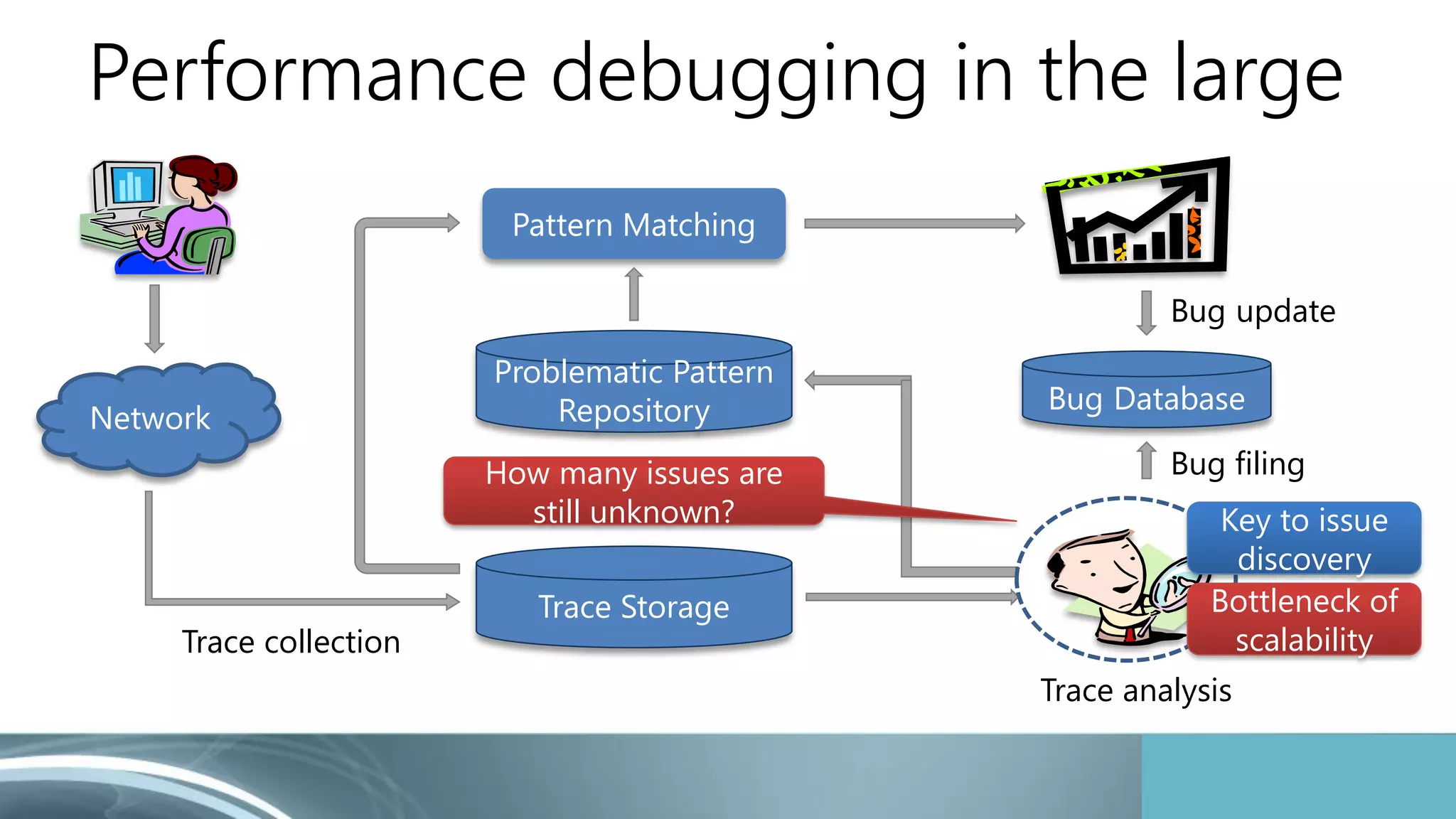

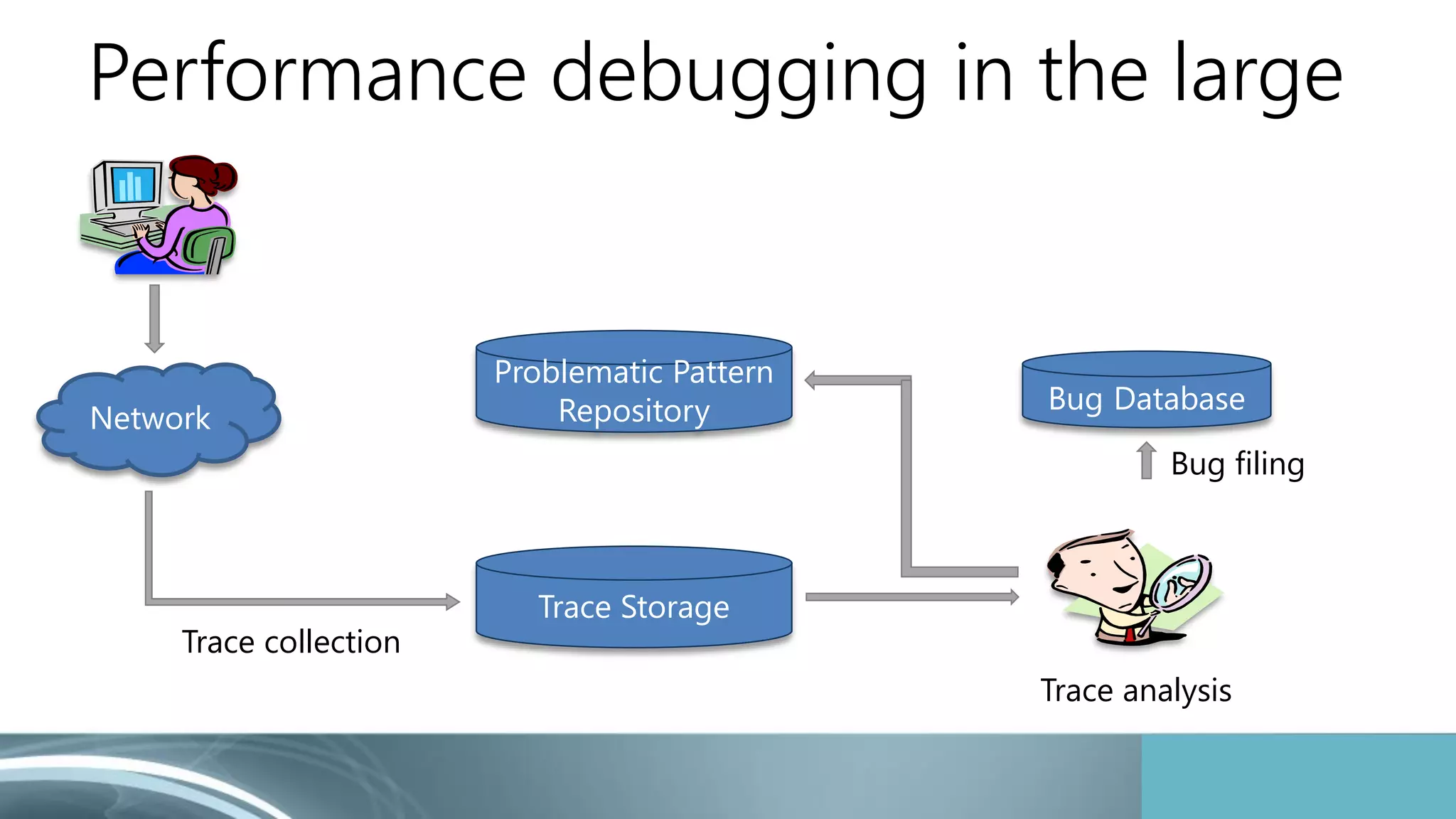

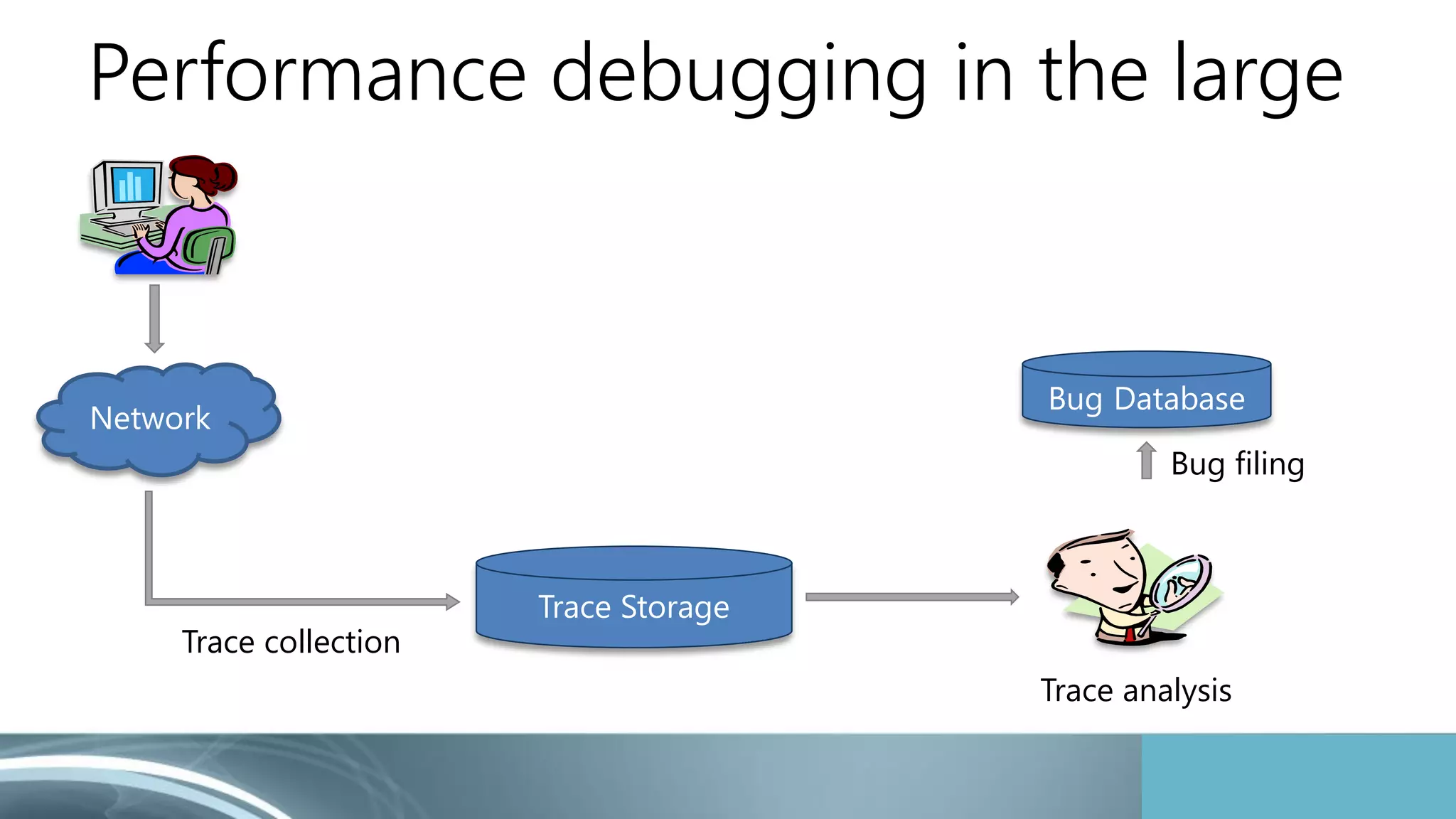

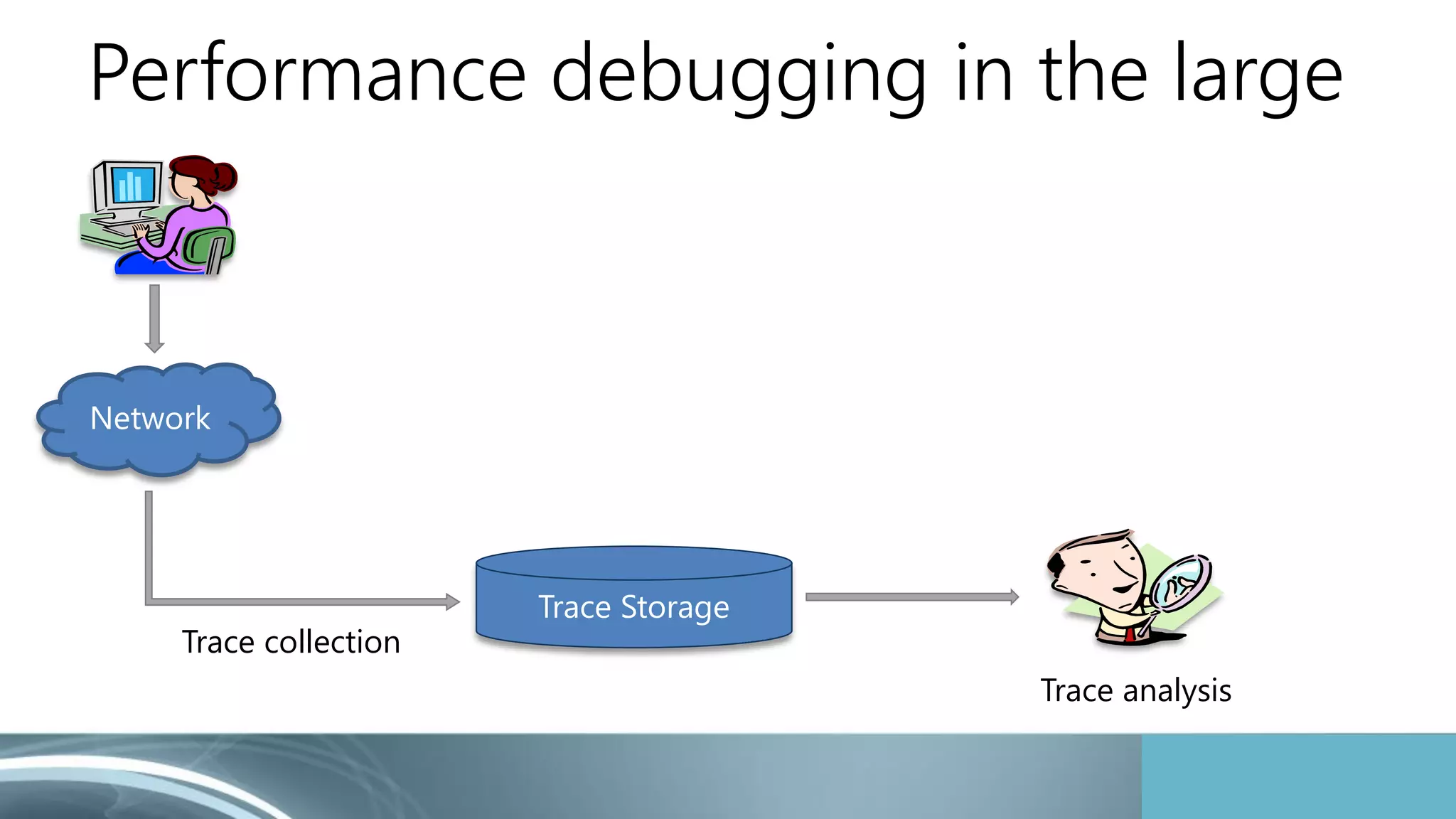

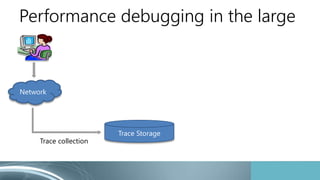

Trace Storage
Trace collection
Network

Trace Storage
Trace collection
Network
Trace analysis

Trace Storage
Trace collection
Bug Database
Network
Trace analysis
Bug filing

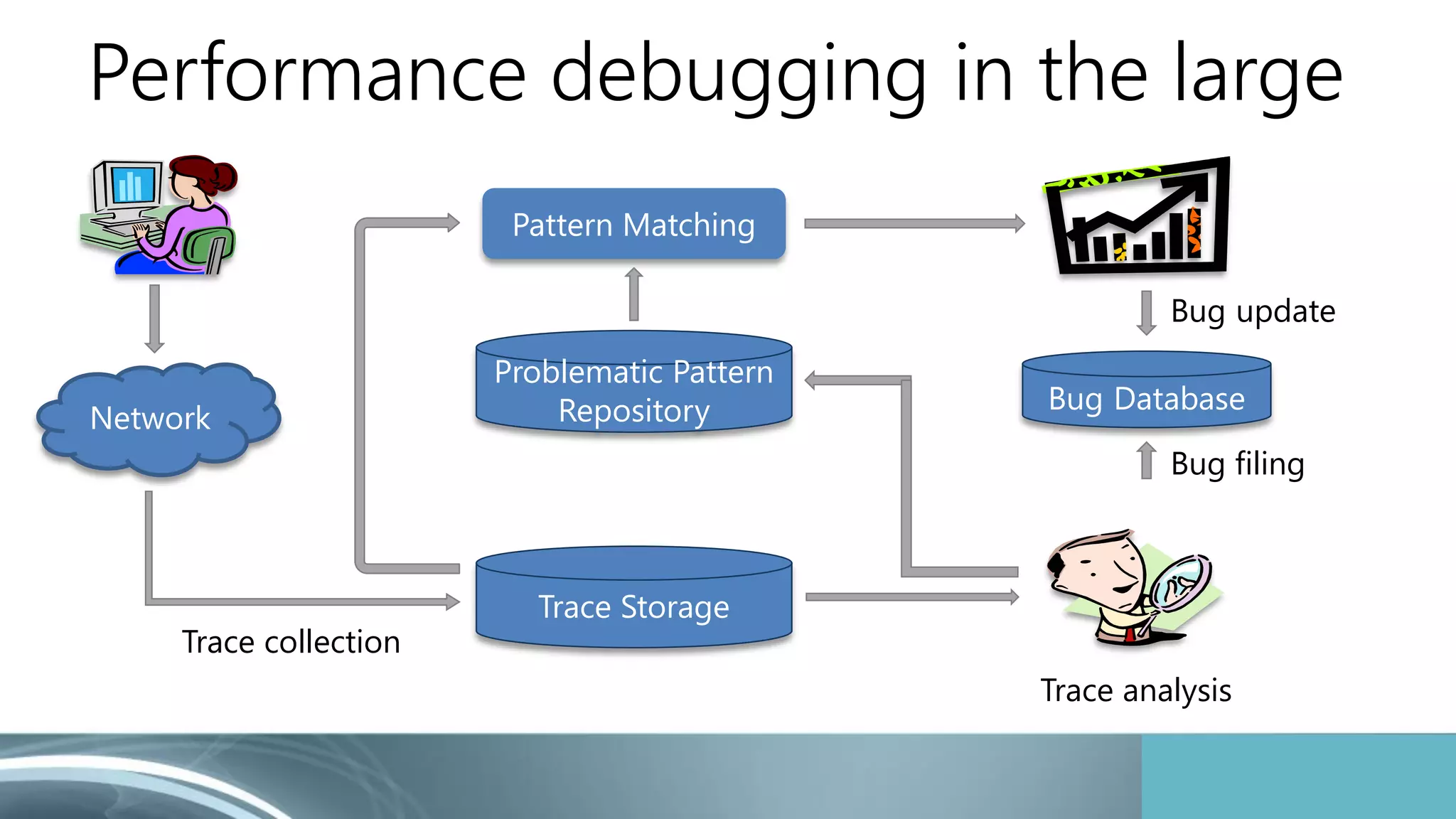

Trace Storage
Trace collection
Problematic Pattern
Repository Bug Database
Network
Trace analysis
Bug filing

Pattern Matching
Trace Storage
Trace collection
Bug update
Problematic Pattern
Network
Trace analysis
Bug filing

Pattern Matching
Trace Storage
Trace collection
Bug update
Problematic Pattern
Network
Trace analysis
Bug filing
Key to issue
discovery

Pattern Matching
Trace Storage
Trace collection
Bug update
Problematic Pattern
Network
Trace analysis
Bug filing
Key to issue
discovery

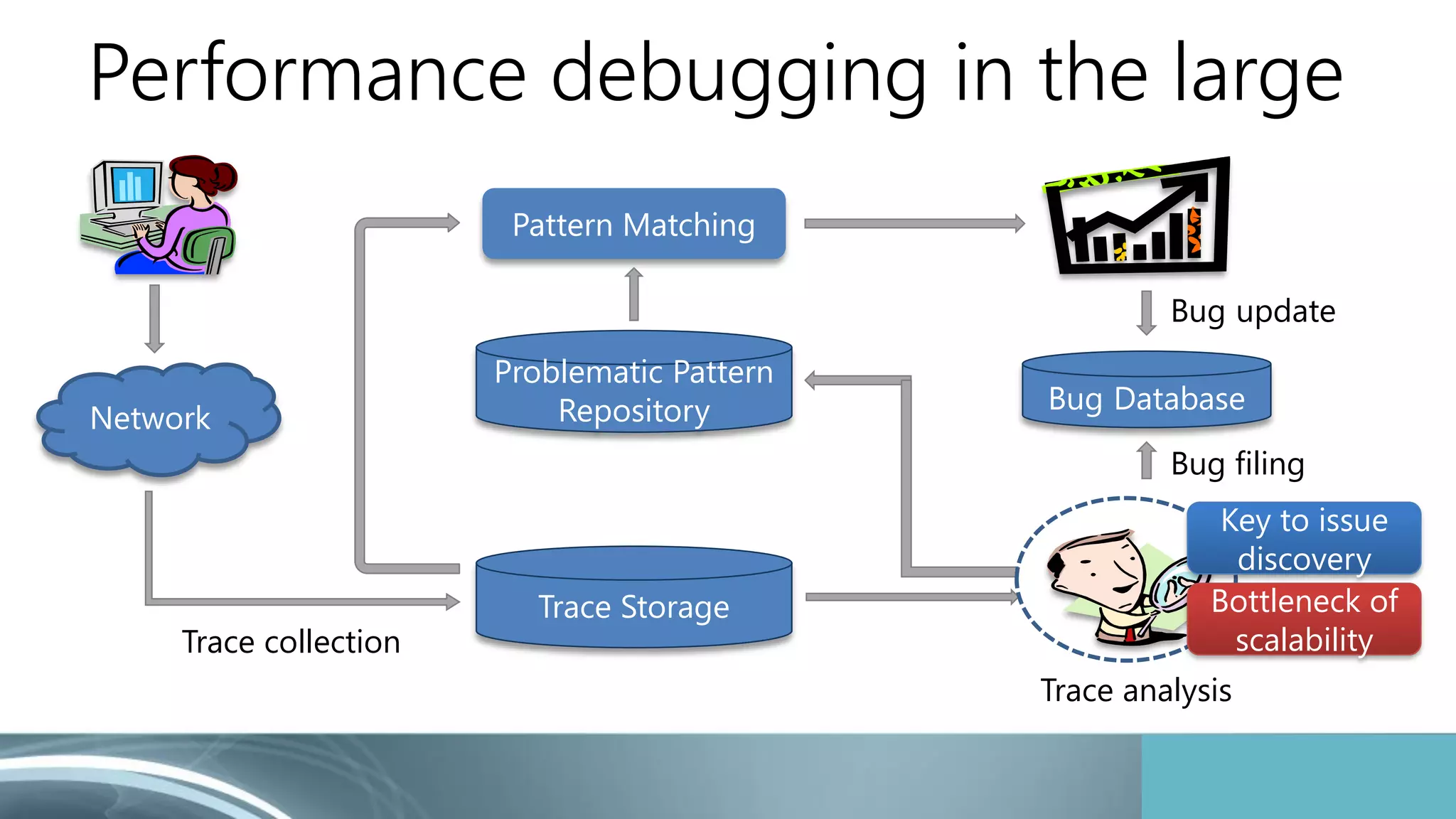

Bottleneck of
scalability

Pattern Matching
Trace Storage
Trace collection
Bug update
Problematic Pattern
Network
Trace analysis

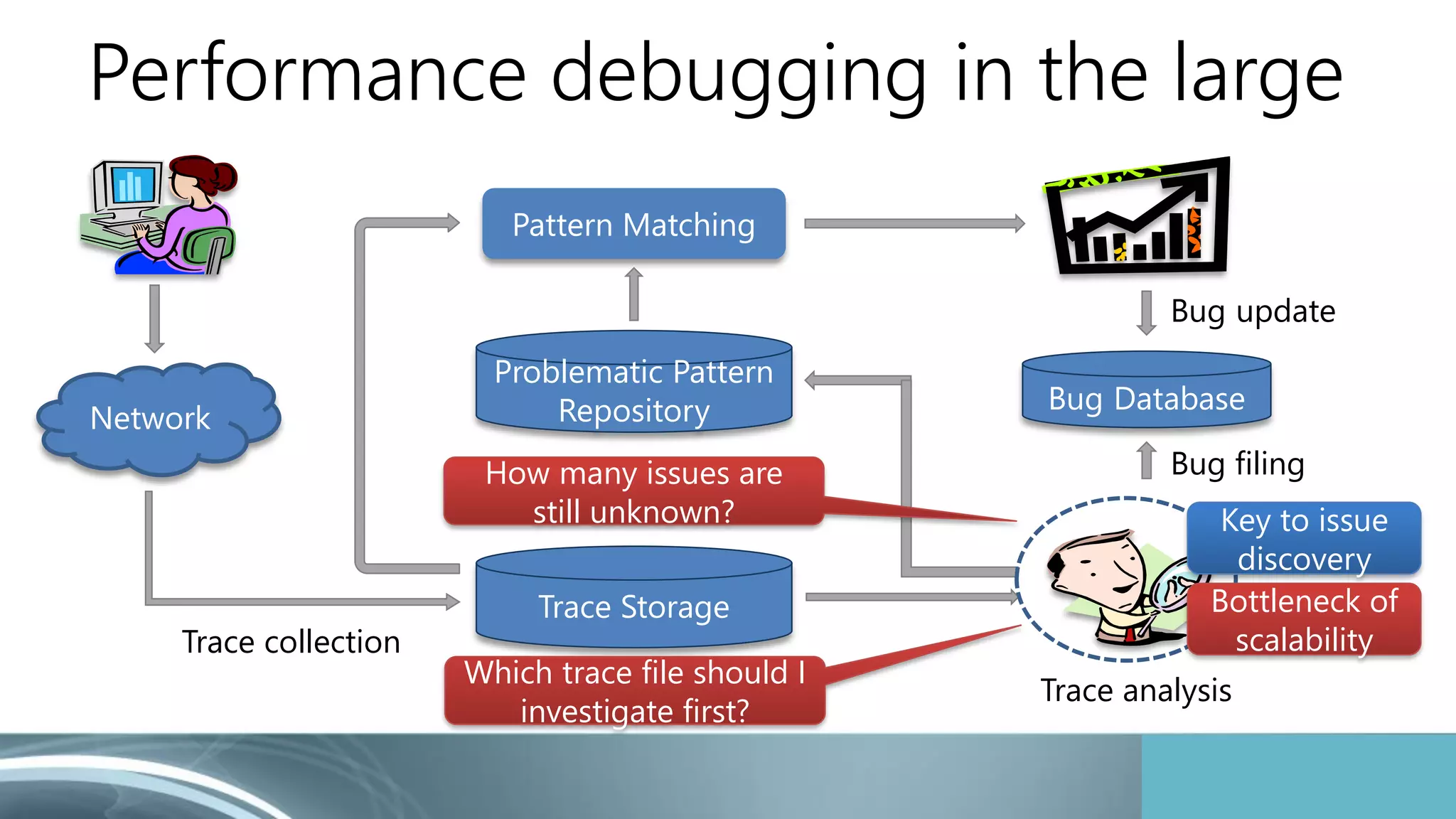

How many issues are
still unknown?
Bug filing
Key to issue
discovery
Bottleneck of
scalability

Pattern Matching
Trace Storage
Trace collection
Bug update
Problematic Pattern
Network
Trace analysis
How many issues are
still unknown?
Which trace file should I
investigate first?
Bug filing
Key to issue
discovery
Bottleneck of
scalability

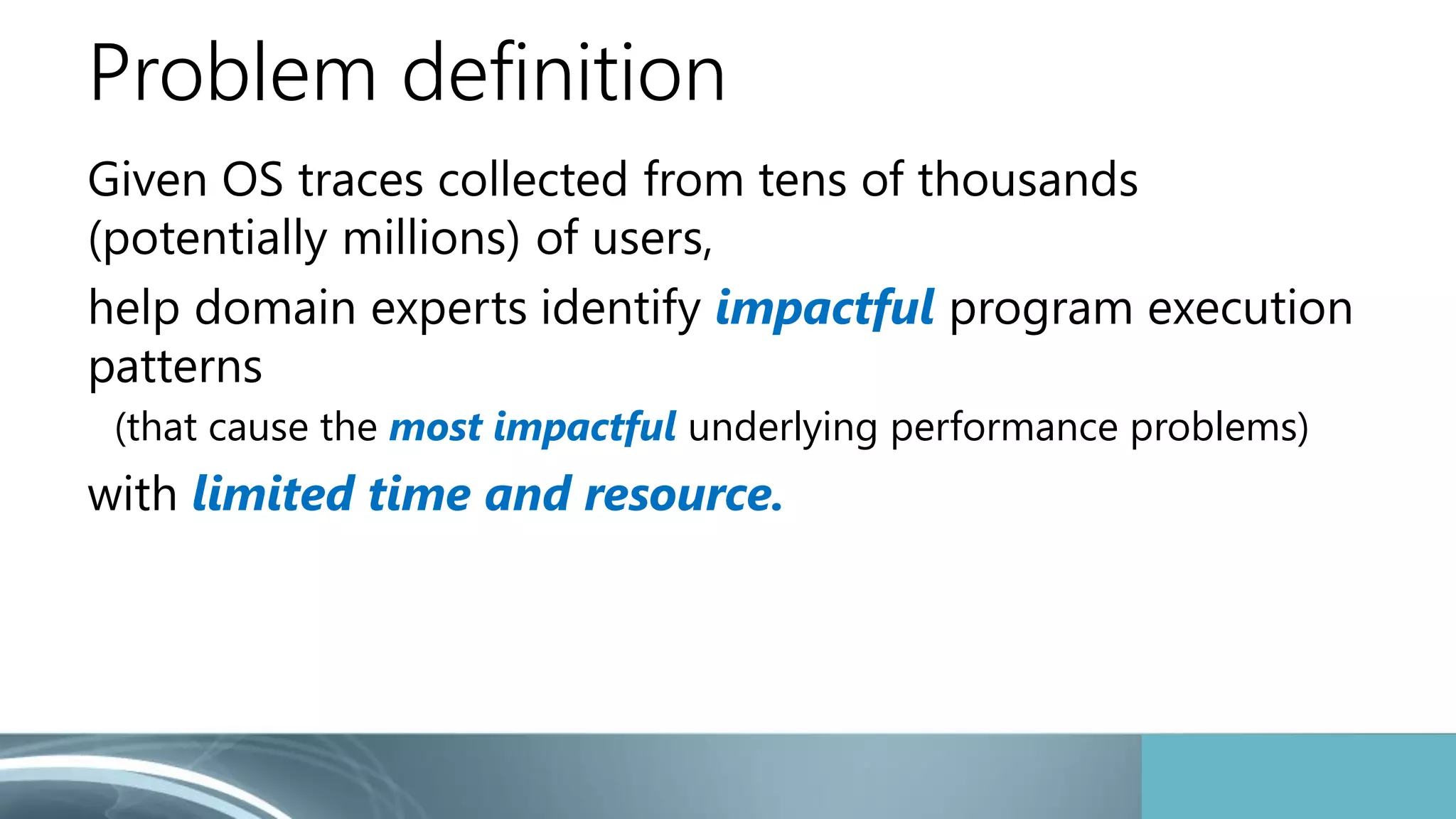

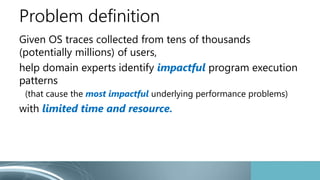

Problem definition
Given OS traces collected from tens of thousands
(potentially millions) of users,
help domain experts identify impactful program execution
patterns
(that cause the most impactful underlying performance problems)
with limited time and resource.

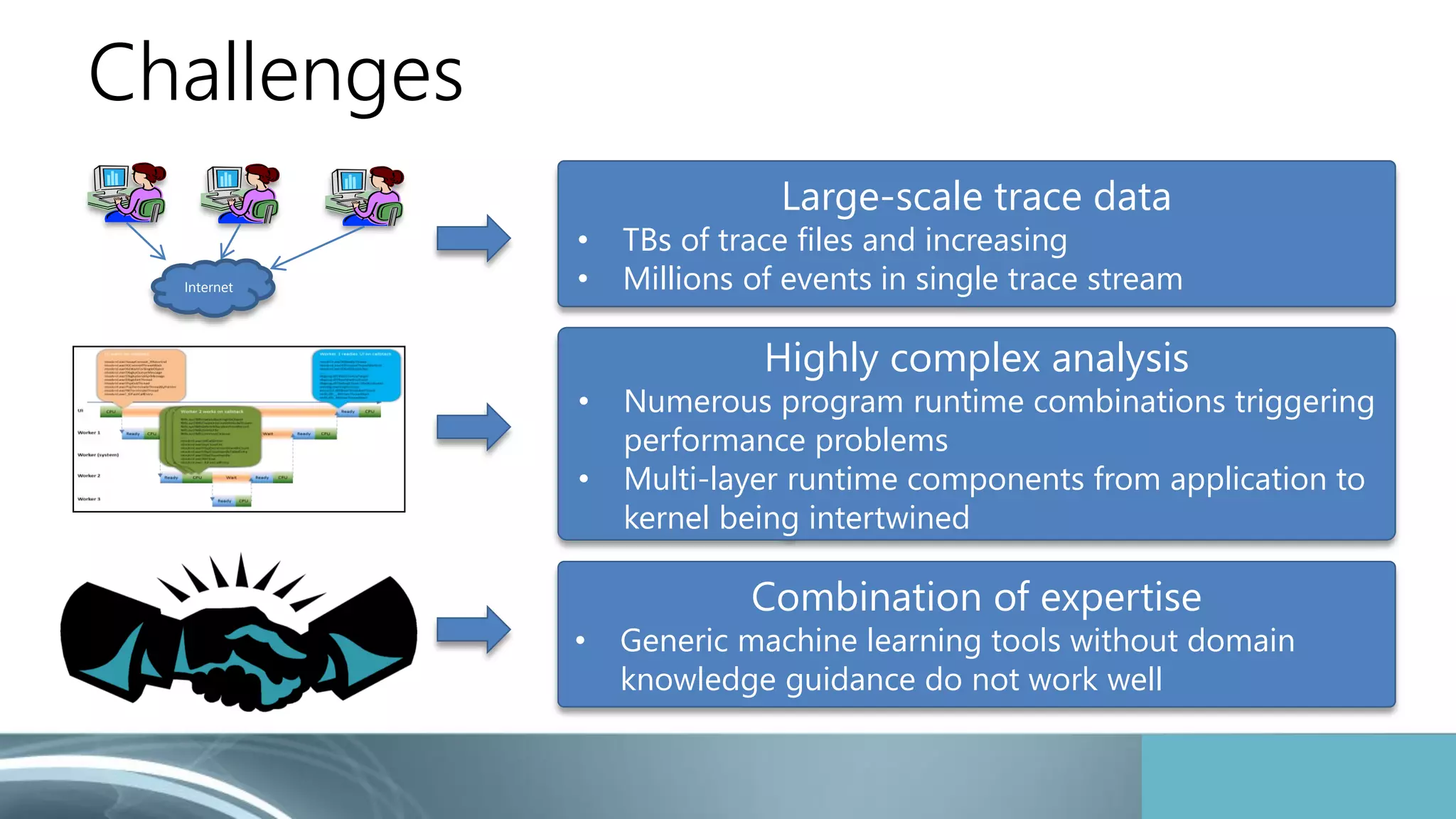

Challenges
Combination of expertise
• Generic machine learning tools without domain
knowledge guidance do not work well
Highly complex analysis
• Numerous program runtime combinations triggering
performance problems
• Multi-layer runtime components from application to
kernel being intertwined
Large-scale trace data
• TBs of trace files and increasing
• Millions of events in single trace streamInternet

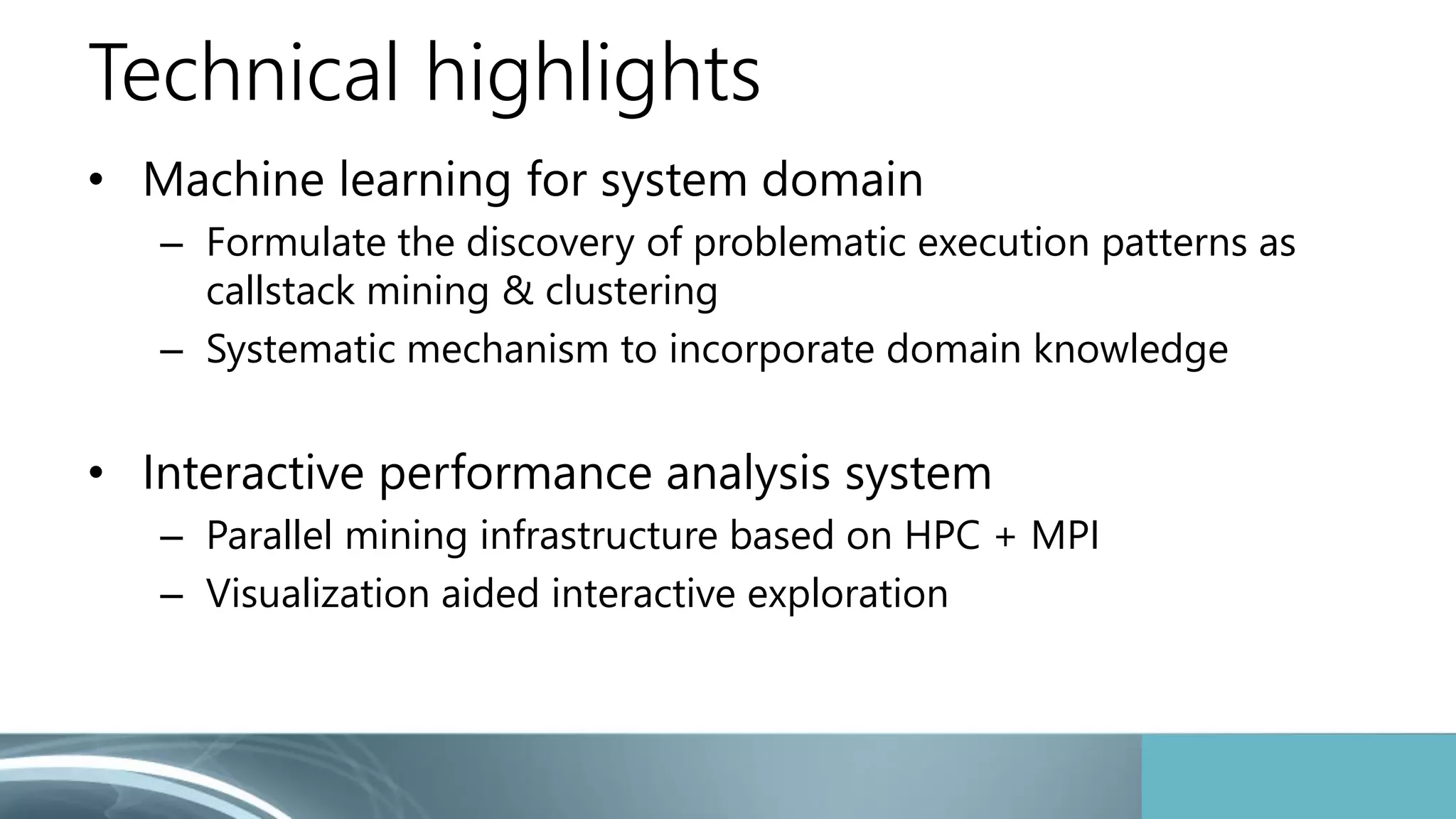

Technical highlights
• Machine learning for system domain
– Formulate the discovery of problematic execution patterns as
callstack mining & clustering
– Systematic mechanism to incorporate domain knowledge
• Interactive performance analysis system
– Parallel mining infrastructure based on HPC + MPI
– Visualization aided interactive exploration

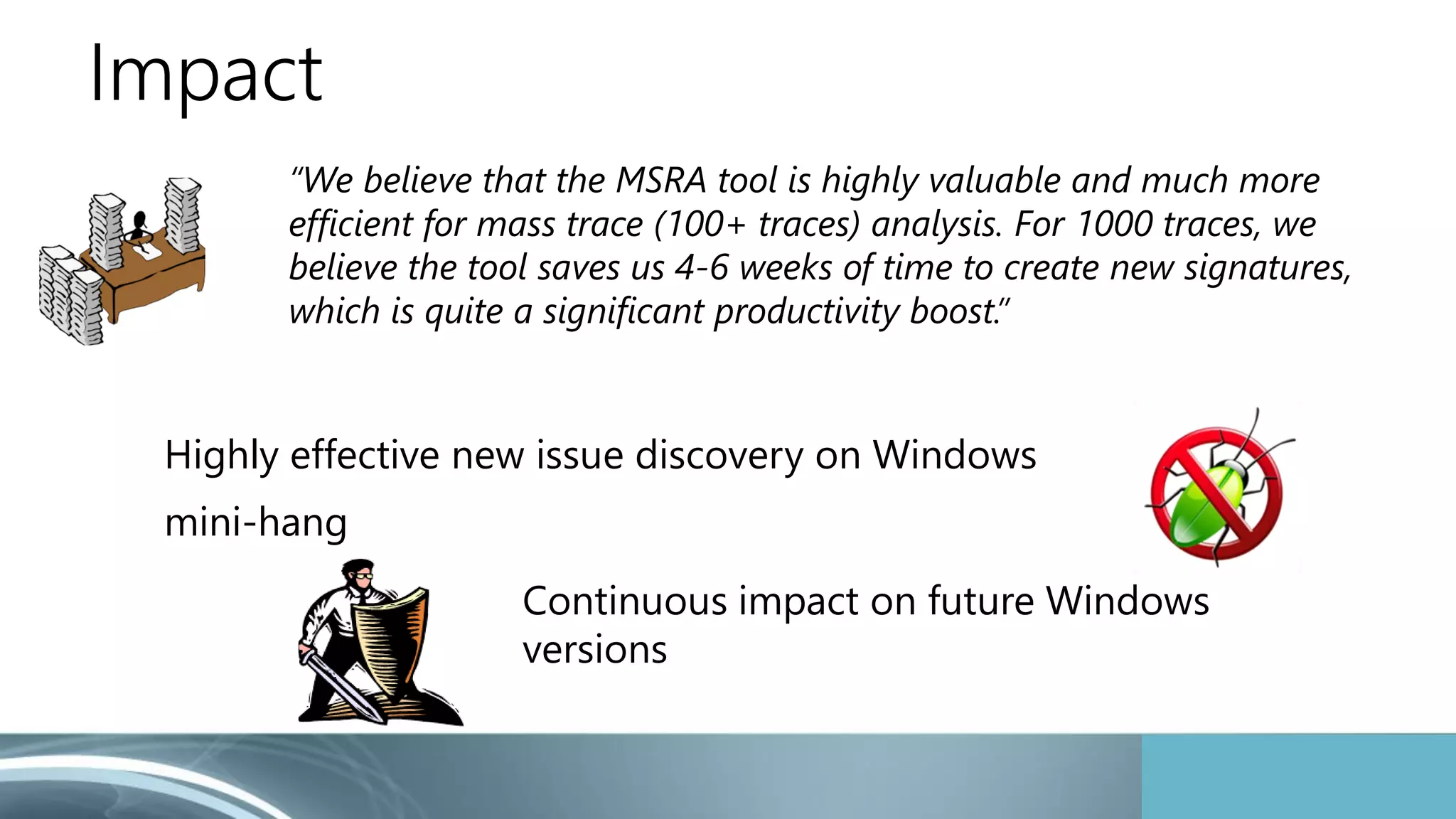

Impact
“We believe that the MSRA tool is highly valuable and much more
efficient for mass trace (100+ traces) analysis. For 1000 traces, we
believe the tool saves us 4-6 weeks of time to create new signatures,
which is quite a significant productivity boost.”
Highly effective new issue discovery on Windows
mini-hang
Continuous impact on future Windows
versions

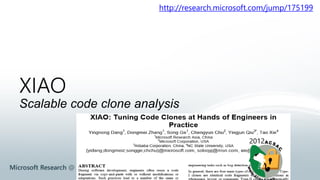

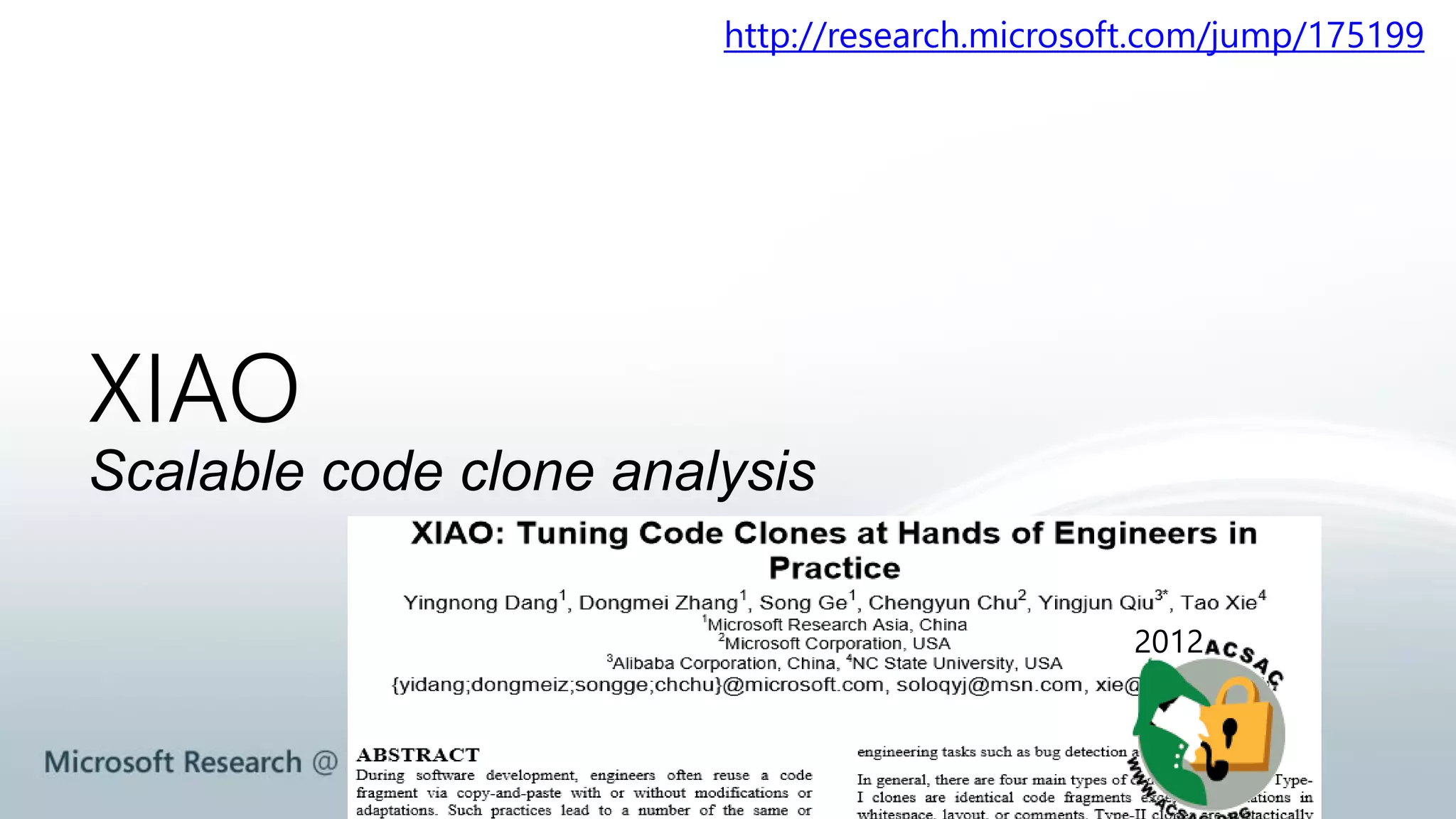

XIAO
Scalable code clone analysis
2012
http://research.microsoft.com/jump/175199

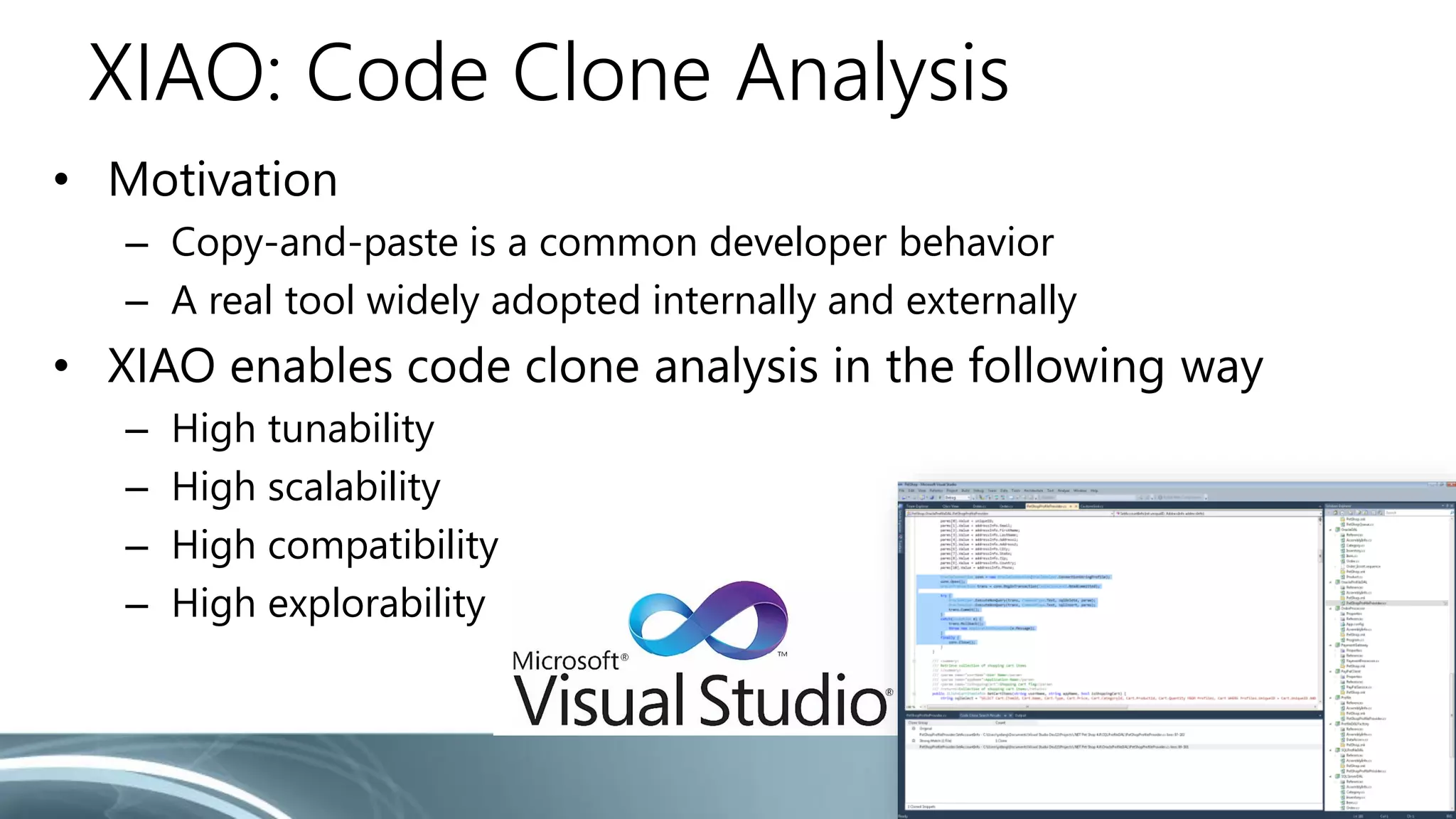

XIAO: Code Clone Analysis
• Motivation
– Copy-and-paste is a common developer behavior
– A real tool widely adopted internally and externally
• XIAO enables code clone analysis in the following way
– High tunability
– High scalability
– High compatibility
– High explorability

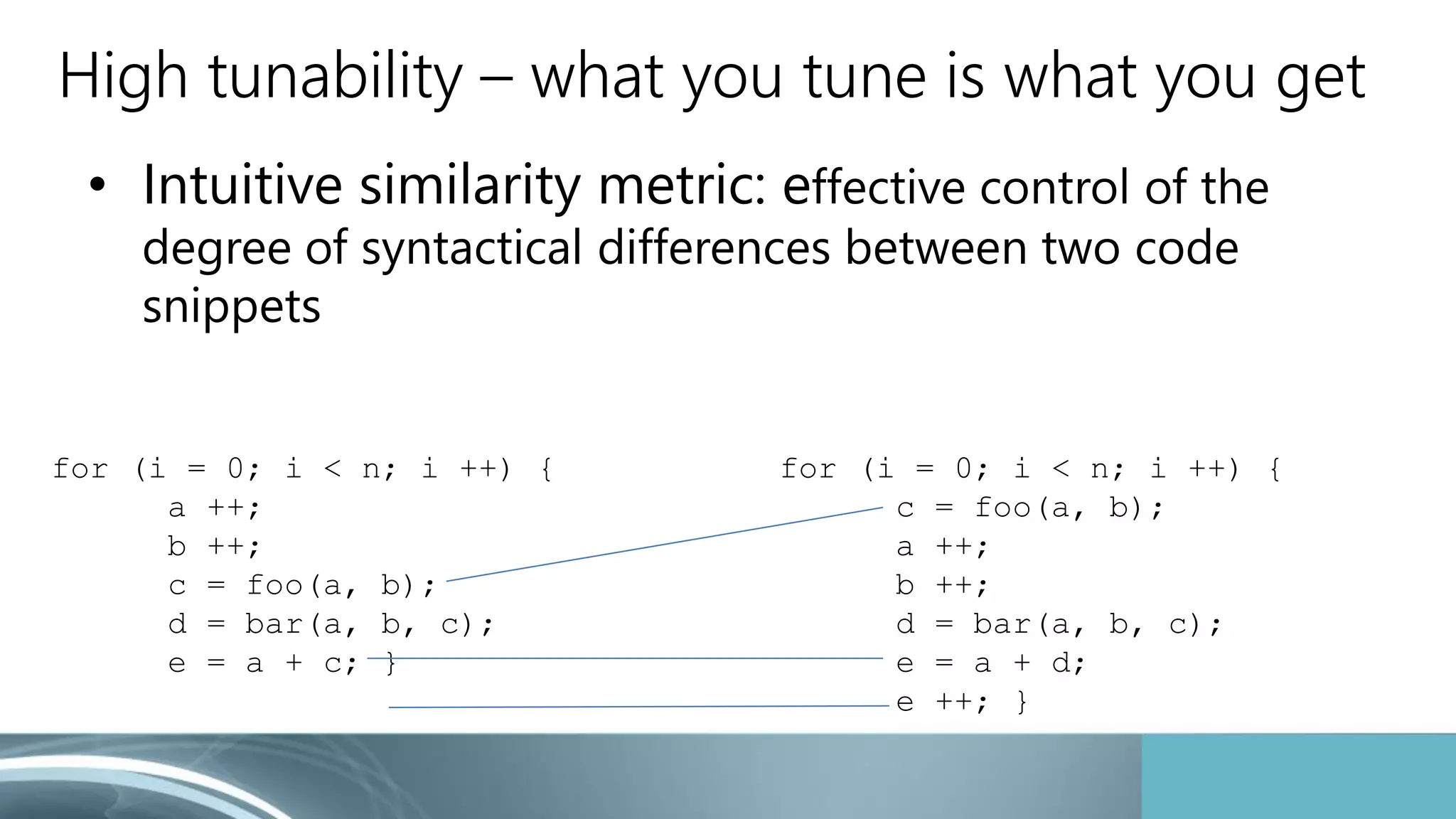

High tunability – what you tune is what you get
• Intuitive similarity metric: effective control of the
degree of syntactical differences between two code
snippets
for (i = 0; i < n; i ++) {
a ++;
b ++;
c = foo(a, b);
d = bar(a, b, c);
e = a + c; }
for (i = 0; i < n; i ++) {
c = foo(a, b);
a ++;
b ++;
d = bar(a, b, c);
e = a + d;
e ++; }

High scalability

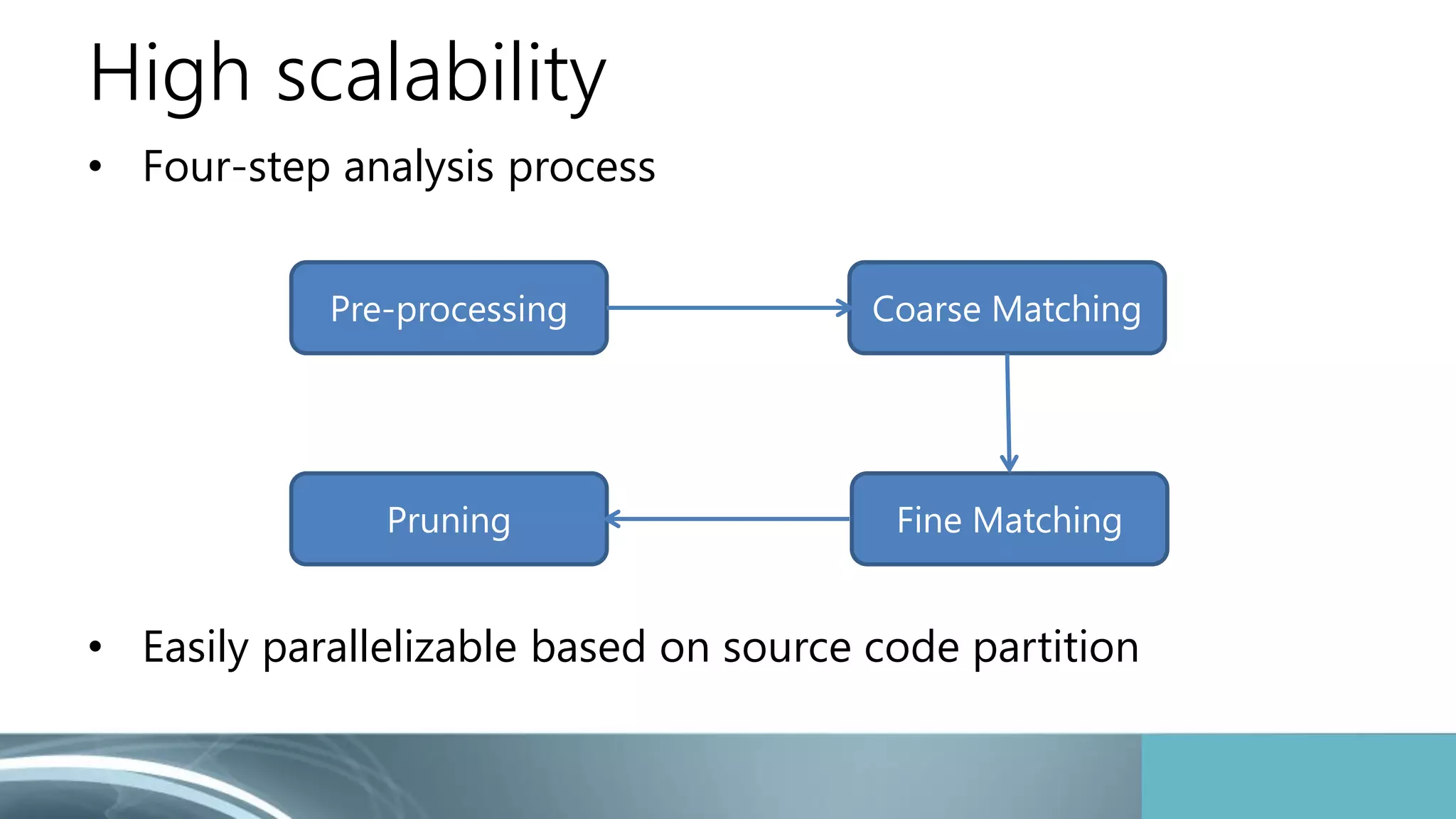

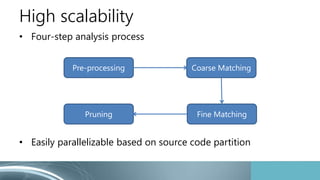

• Four-step analysis process
• Easily parallelizable based on source code partition
Pre-processing
Pruning Fine Matching
Coarse Matching

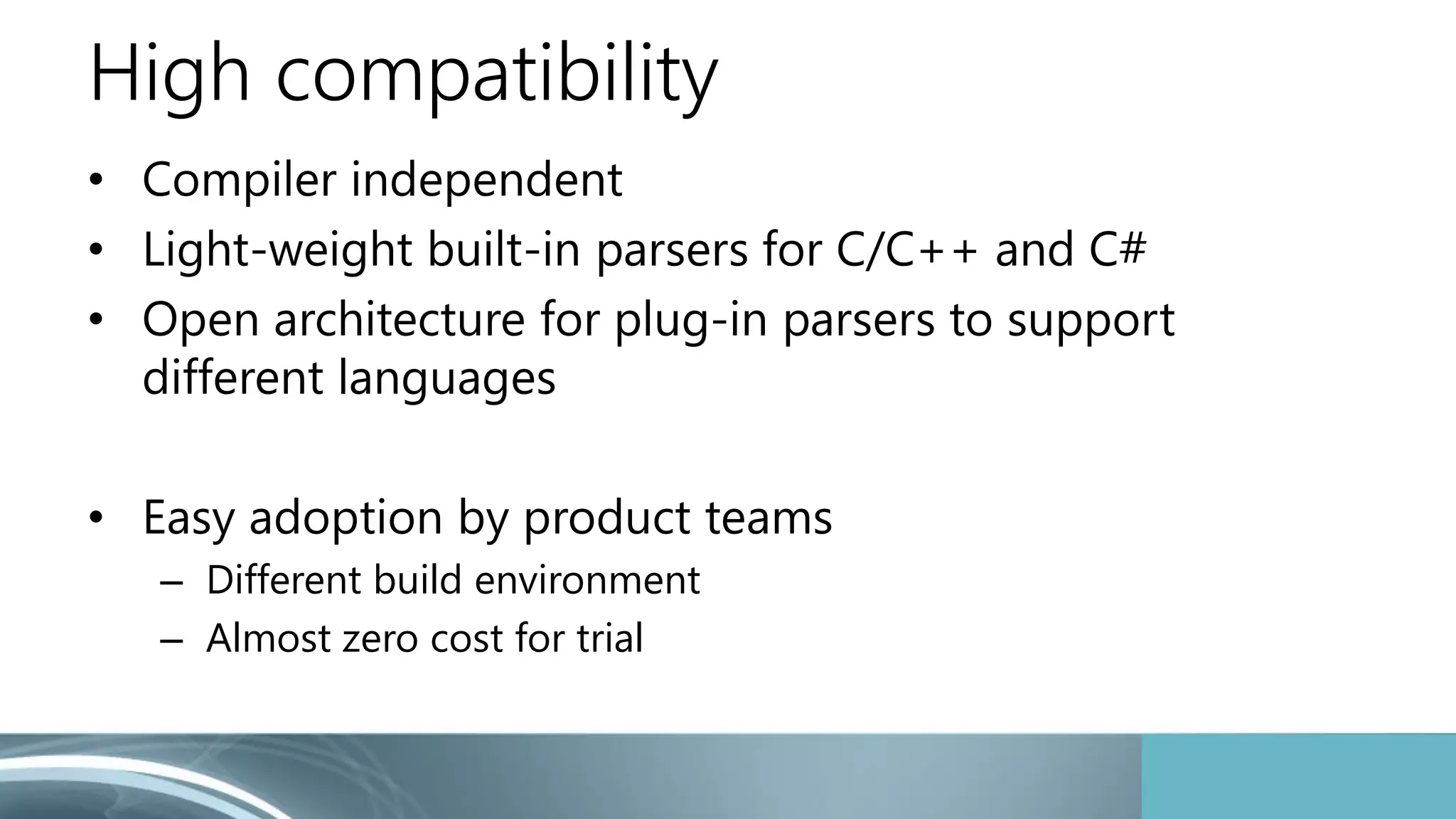

High compatibility
• Compiler independent
• Light-weight built-in parsers for C/C++ and C#
• Open architecture for plug-in parsers to support
different languages
• Easy adoption by product teams
– Different build environment
– Almost zero cost for trial

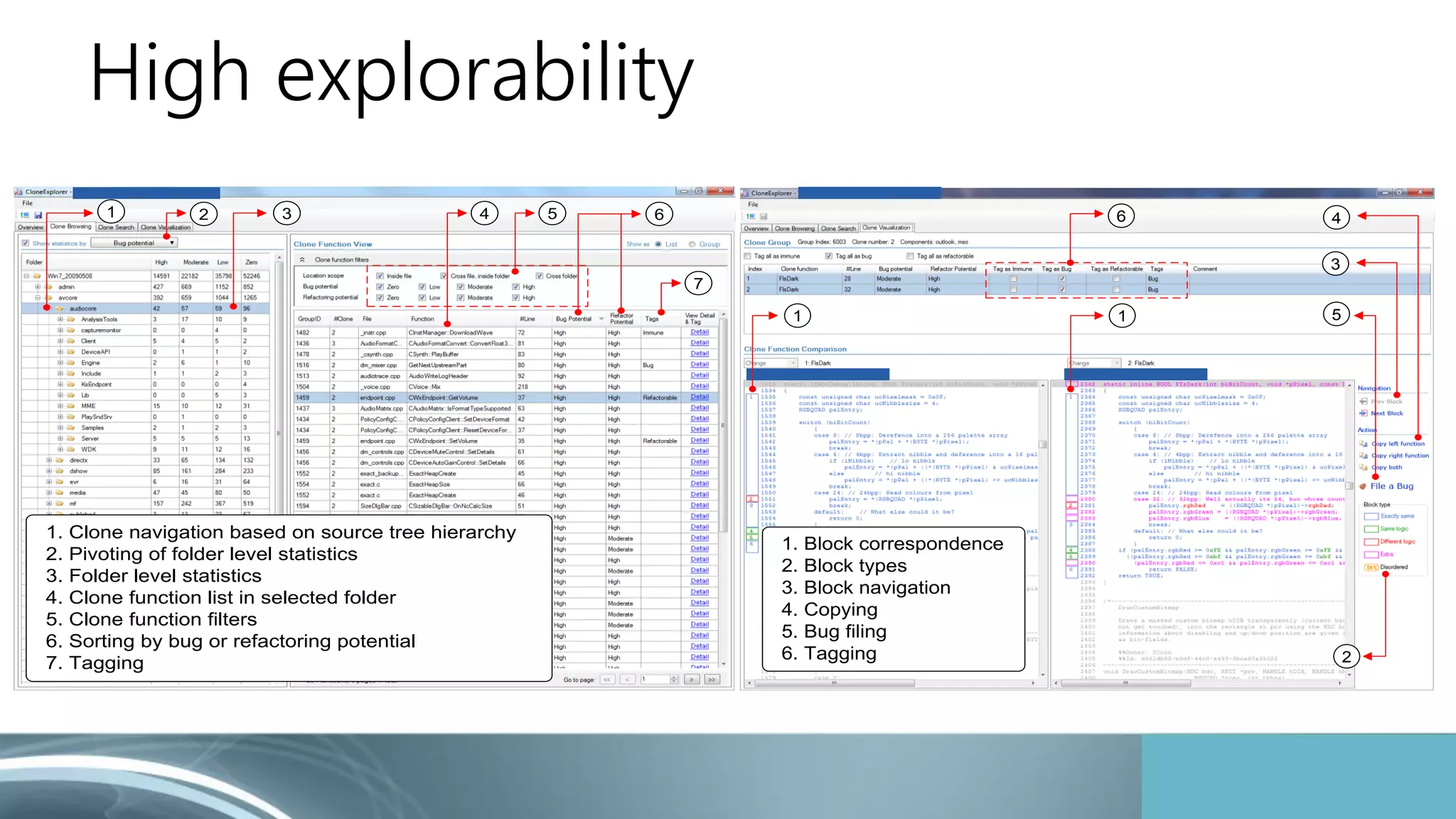

High explorability
1. Clone navigation based on source tree hierarchy
2. Pivoting of folder level statistics
3. Folder level statistics
4. Clone function list in selected folder
5. Clone function filters
6. Sorting by bug or refactoring potential
7. Tagging
1 2 3 4 5 6
7
1. Block correspondence
2. Block types
3. Block navigation
4. Copying
5. Bug filing
6. Tagging
1
2
3
4
1
6
5

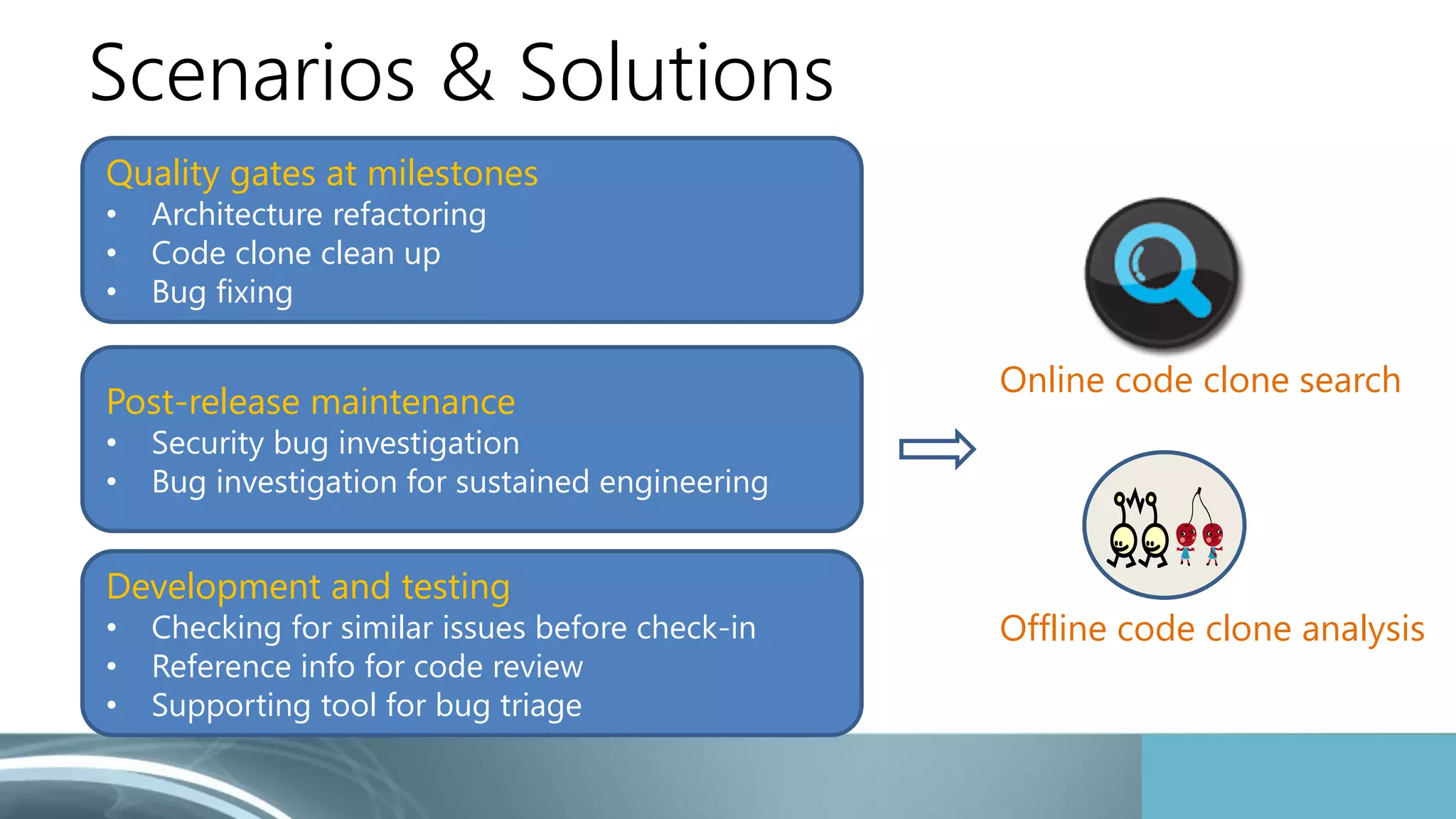

Scenarios & Solutions
Quality gates at milestones
• Architecture refactoring
• Code clone clean up
• Bug fixing
Post-release maintenance
• Security bug investigation
• Bug investigation for sustained engineering
Development and testing
• Checking for similar issues before check-in
• Reference info for code review
• Supporting tool for bug triage
Online code clone search
Offline code clone analysis

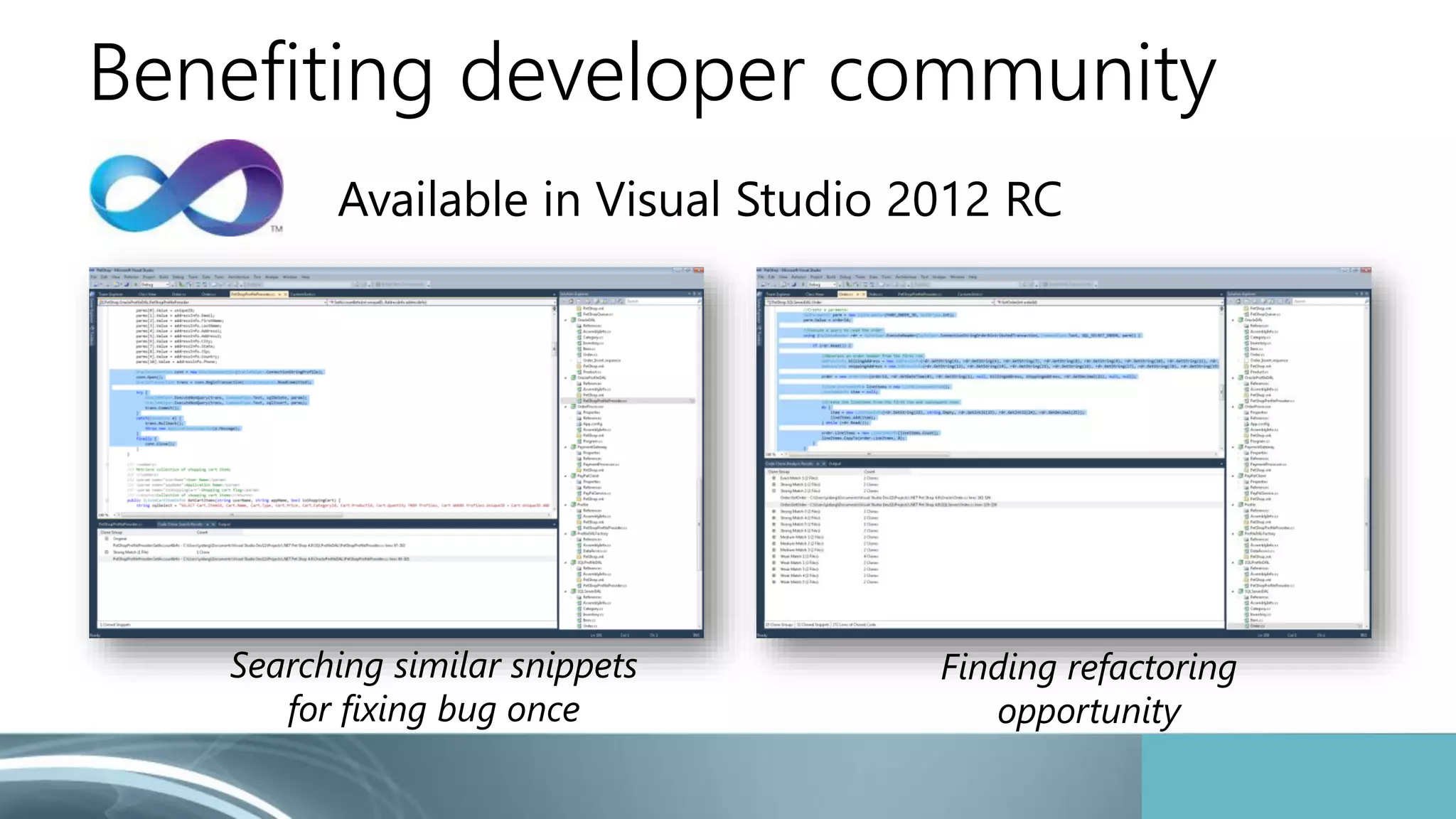

Benefiting developer community
Available in Visual Studio 2012 RC
Searching similar snippets
for fixing bug once
Finding refactoring
opportunity

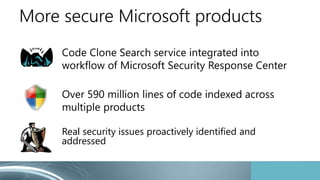

More secure Microsoft products
Code Clone Search service integrated into
workflow of Microsoft Security Response Center
Over 590 million lines of code indexed across
multiple products
Real security issues proactively identified and
addressed

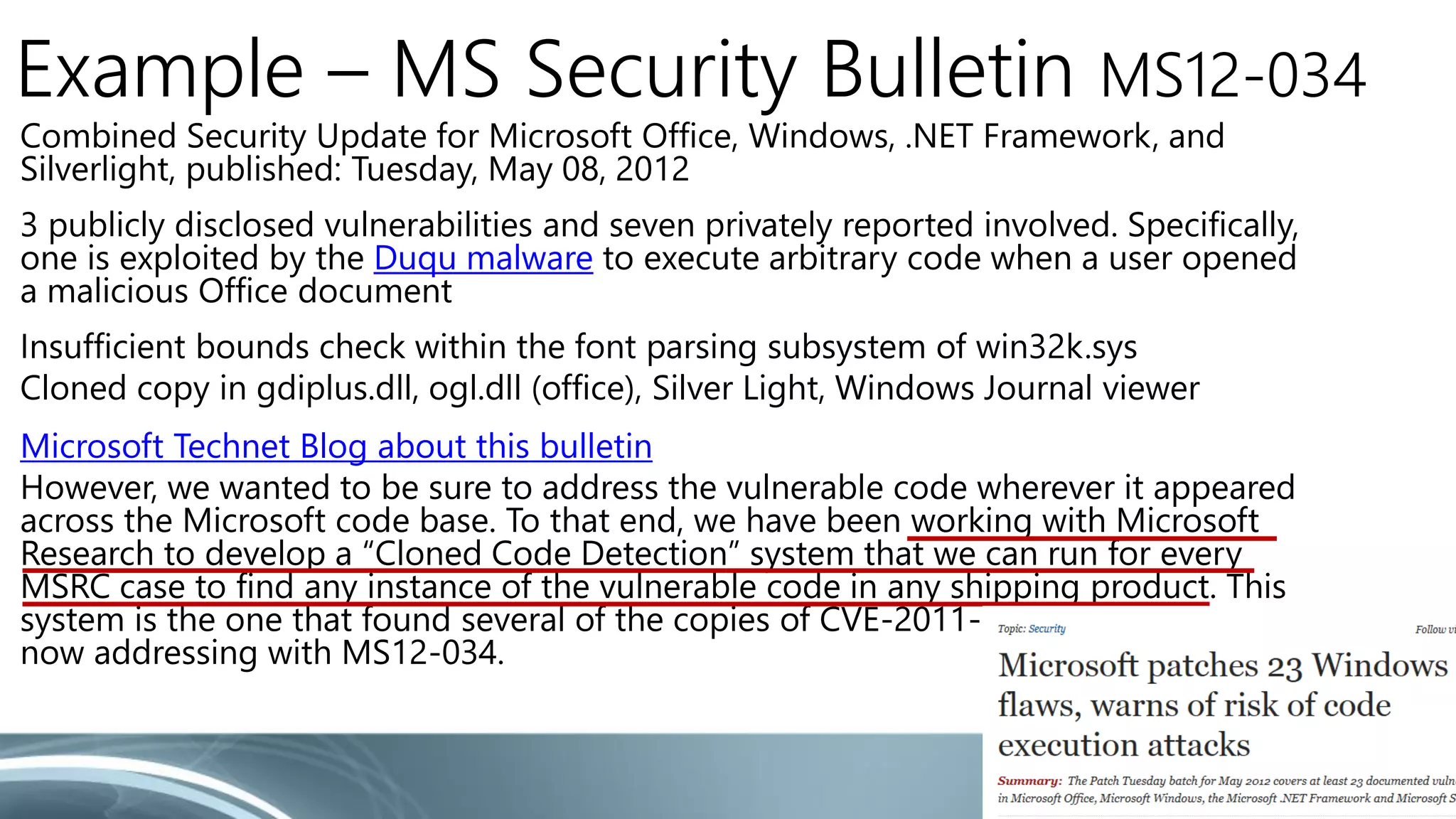

Example – MS Security Bulletin MS12-034
Combined Security Update for Microsoft Office, Windows, .NET Framework, and
Silverlight, published: Tuesday, May 08, 2012
3 publicly disclosed vulnerabilities and seven privately reported involved. Specifically,
one is exploited by the Duqu malware to execute arbitrary code when a user opened
a malicious Office document
Insufficient bounds check within the font parsing subsystem of win32k.sys
Cloned copy in gdiplus.dll, ogl.dll (office), Silver Light, Windows Journal viewer
Microsoft Technet Blog about this bulletin
However, we wanted to be sure to address the vulnerable code wherever it appeared
across the Microsoft code base. To that end, we have been working with Microsoft
Research to develop a “Cloned Code Detection” system that we can run for every
MSRC case to find any instance of the vulnerable code in any shipping product. This
system is the one that found several of the copies of CVE-2011-3402 that we are
now addressing with MS12-034.

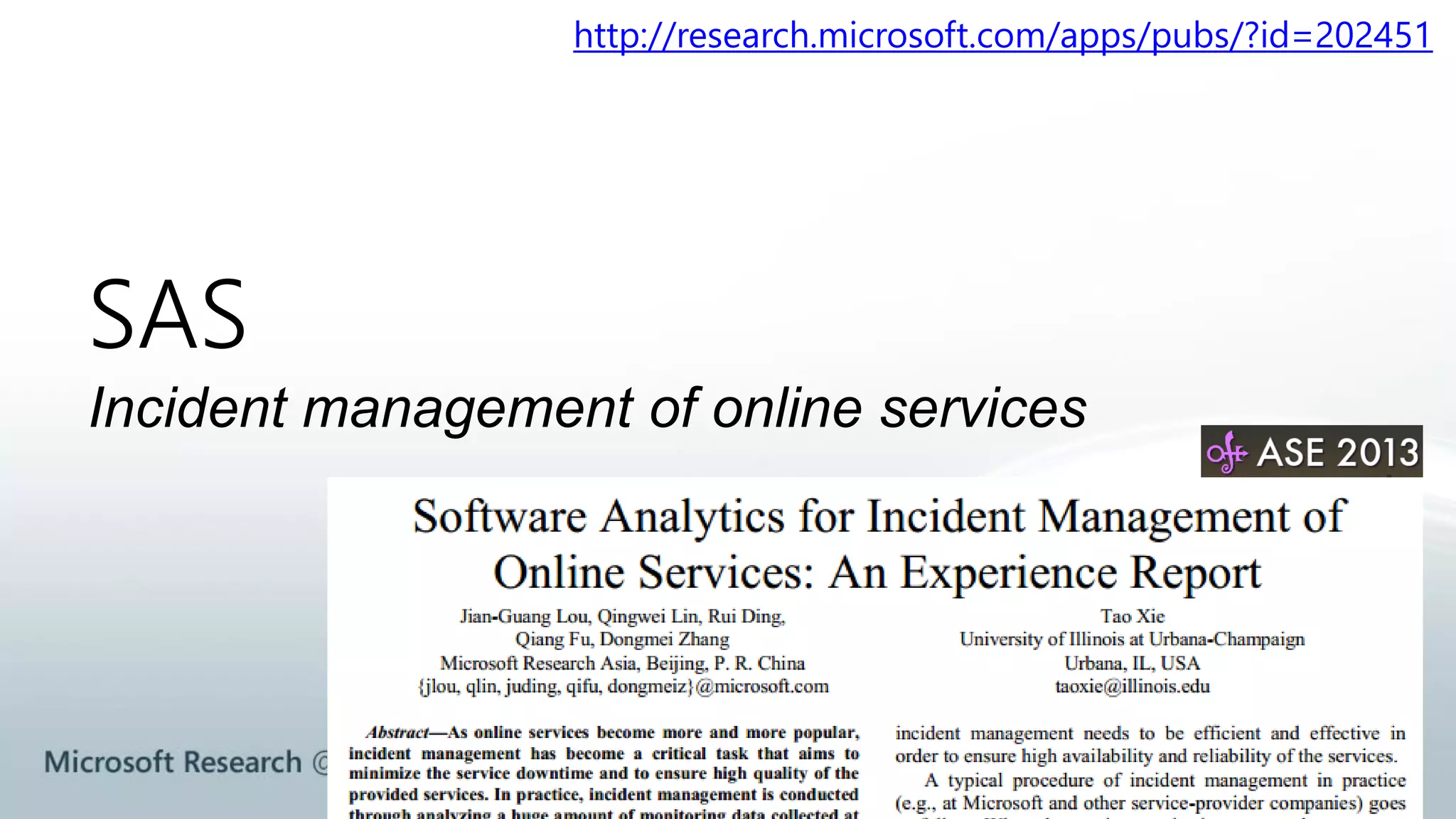

SAS
Incident management of online services
http://research.microsoft.com/apps/pubs/?id=202451

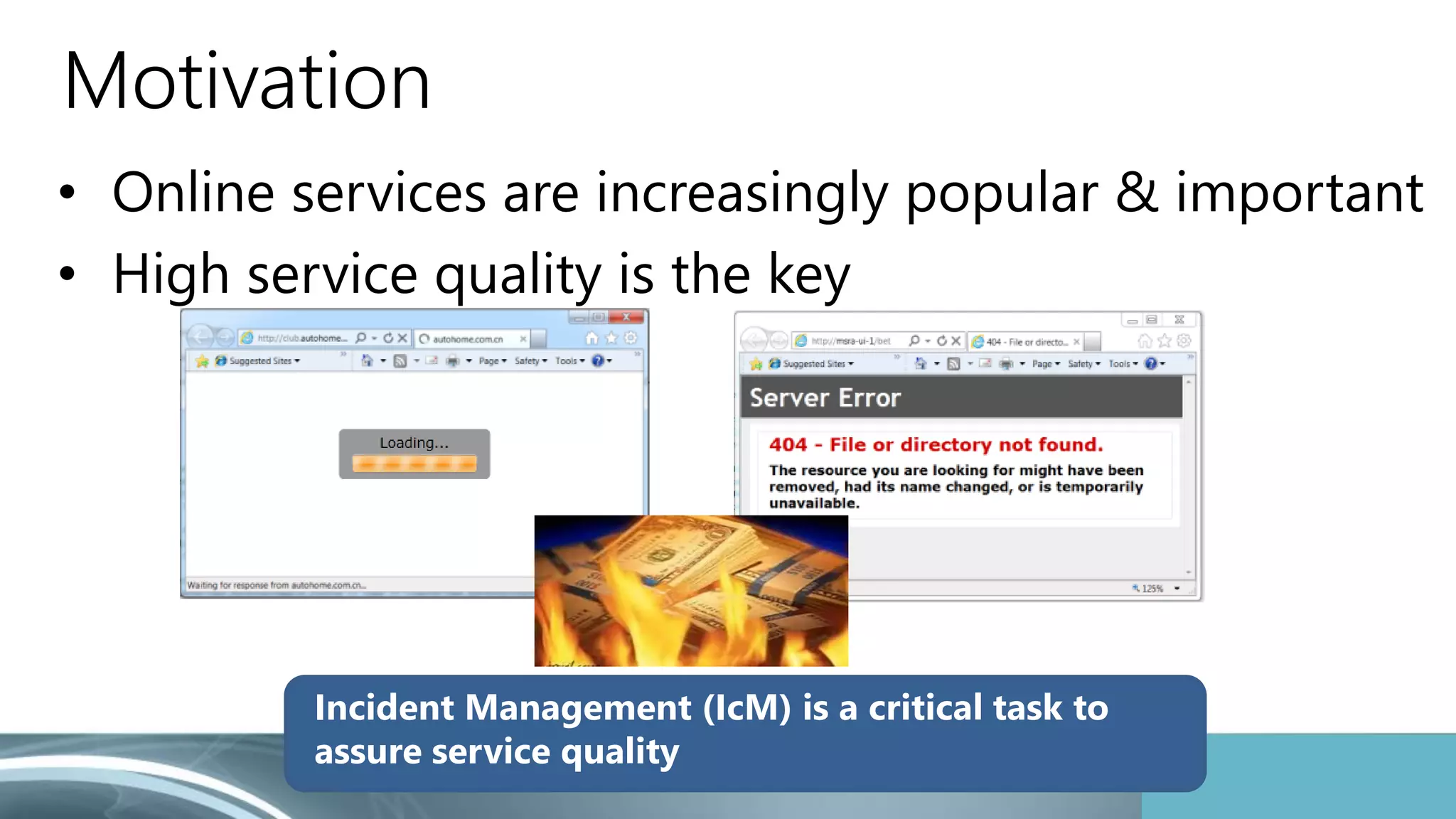

Motivation
Incident Management (IcM) is a critical task to
assure service quality
• Online services are increasingly popular & important
• High service quality is the key

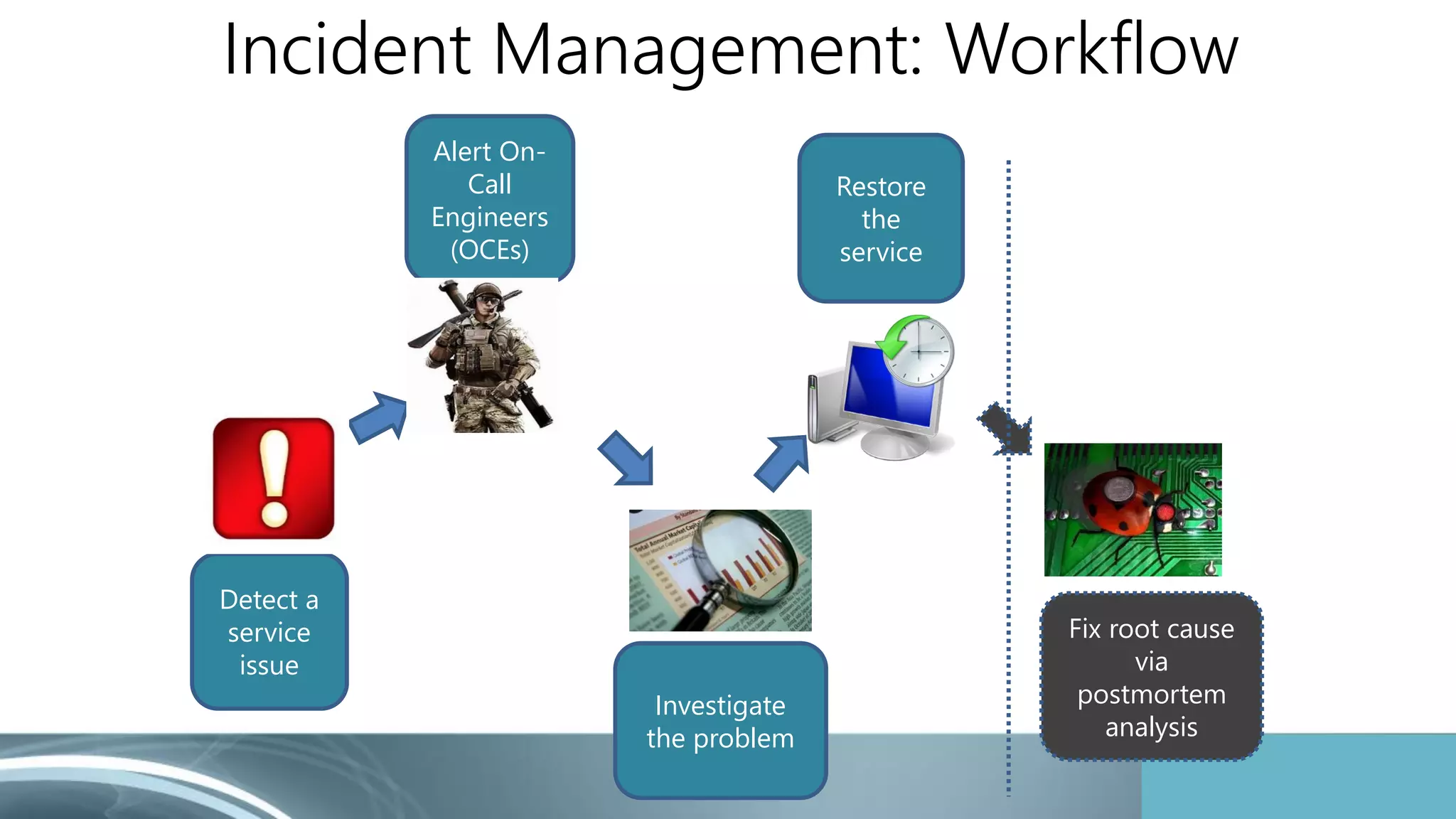

Incident Management: Workflow
Detect a
service
issue
Alert On-
Call
Engineers
(OCEs)
Investigate
the problem
Restore
the
service
Fix root cause
via
postmortem
analysis

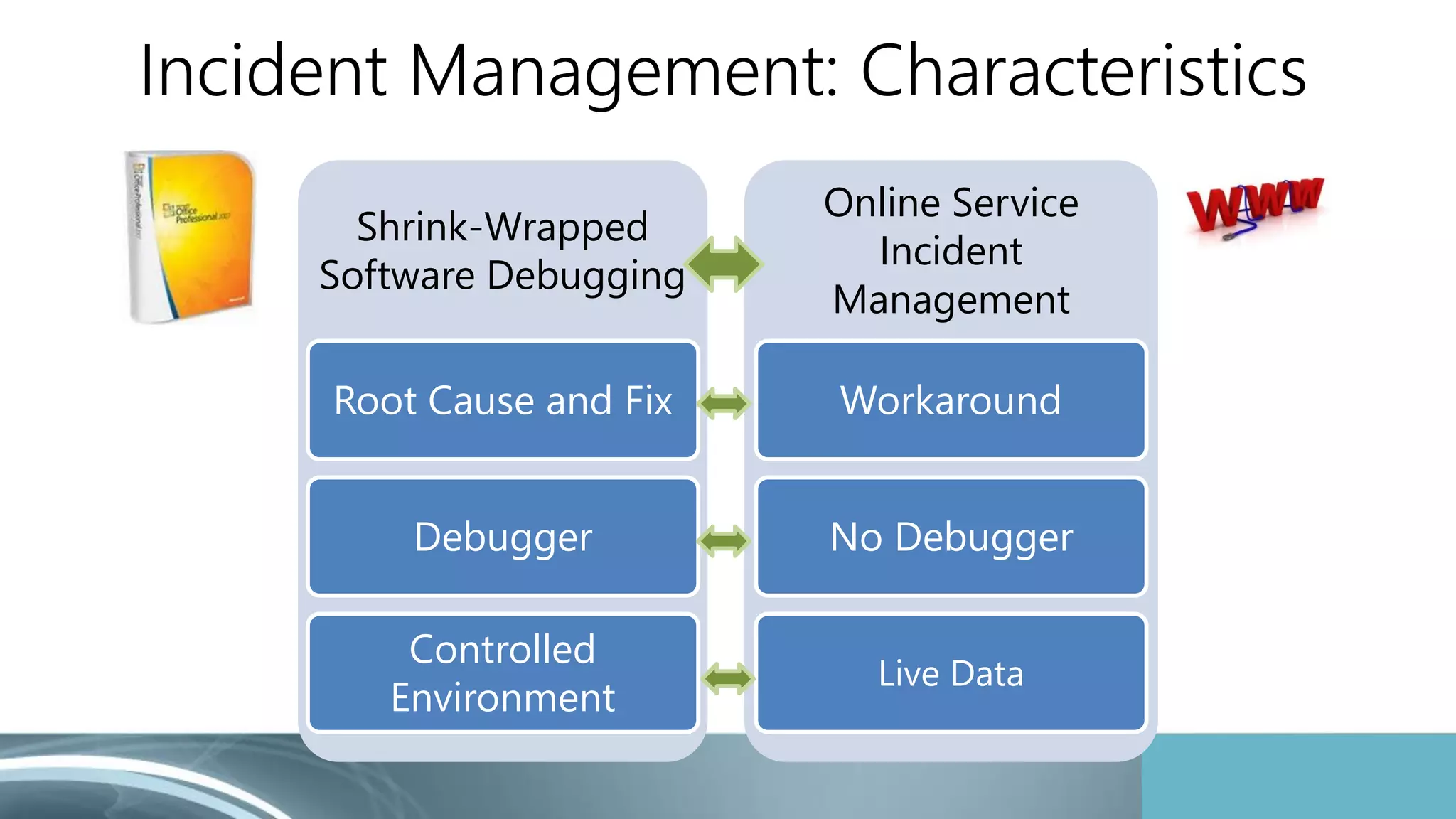

Incident Management: Characteristics
Shrink-Wrapped
Software Debugging
Root Cause and Fix
Debugger
Controlled
Environment
Online Service
Incident
Management
Workaround
No Debugger
Live Data

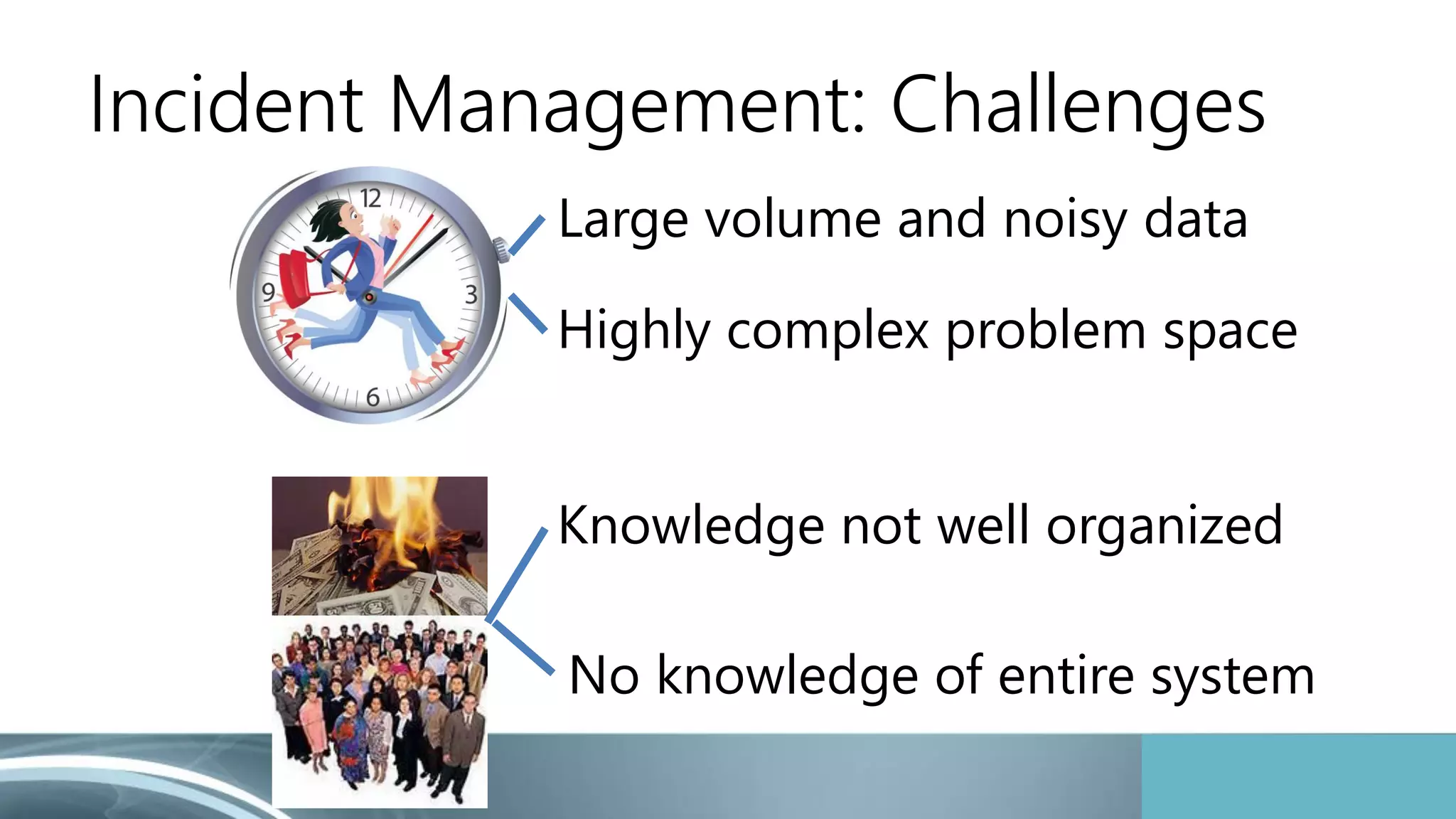

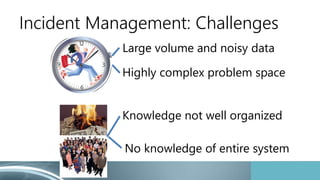

Incident Management: Challenges
Large volume and noisy data
Highly complex problem space
No knowledge of entire system
Knowledge not well organized

SAS: Incident management of online services
SAS, developed and deployed to effectively reduce MTTR
(Mean Time To Restore) via automatically analyzing
monitoring data
5
5
 Design Principle of SAS
 Automating Analysis
 Handling Heterogeneity
 Accumulating Knowledge
 Supporting human-in-the-loop (HITL)

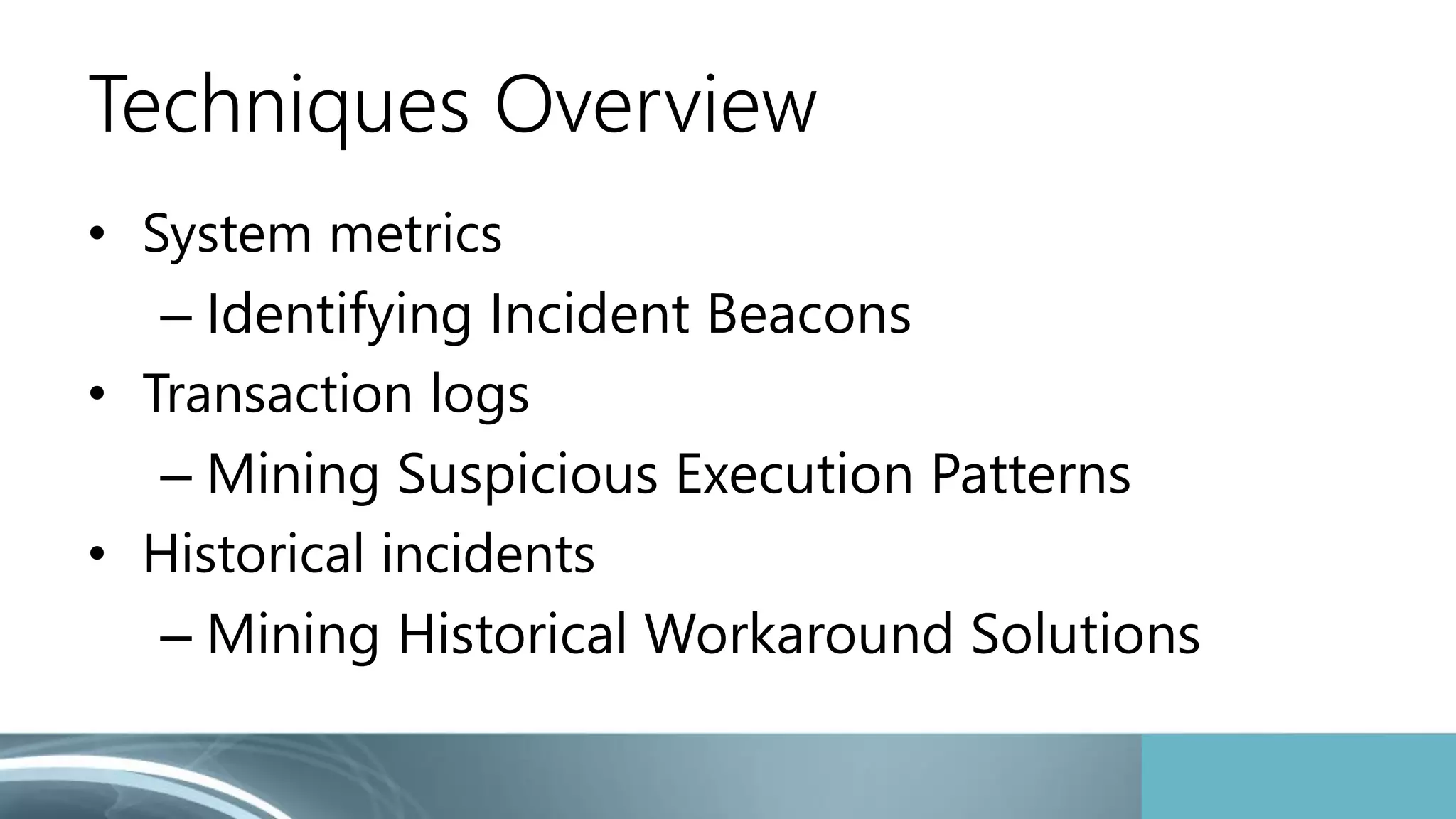

Techniques Overview
• System metrics
– Identifying Incident Beacons
• Transaction logs
– Mining Suspicious Execution Patterns
• Historical incidents
– Mining Historical Workaround Solutions

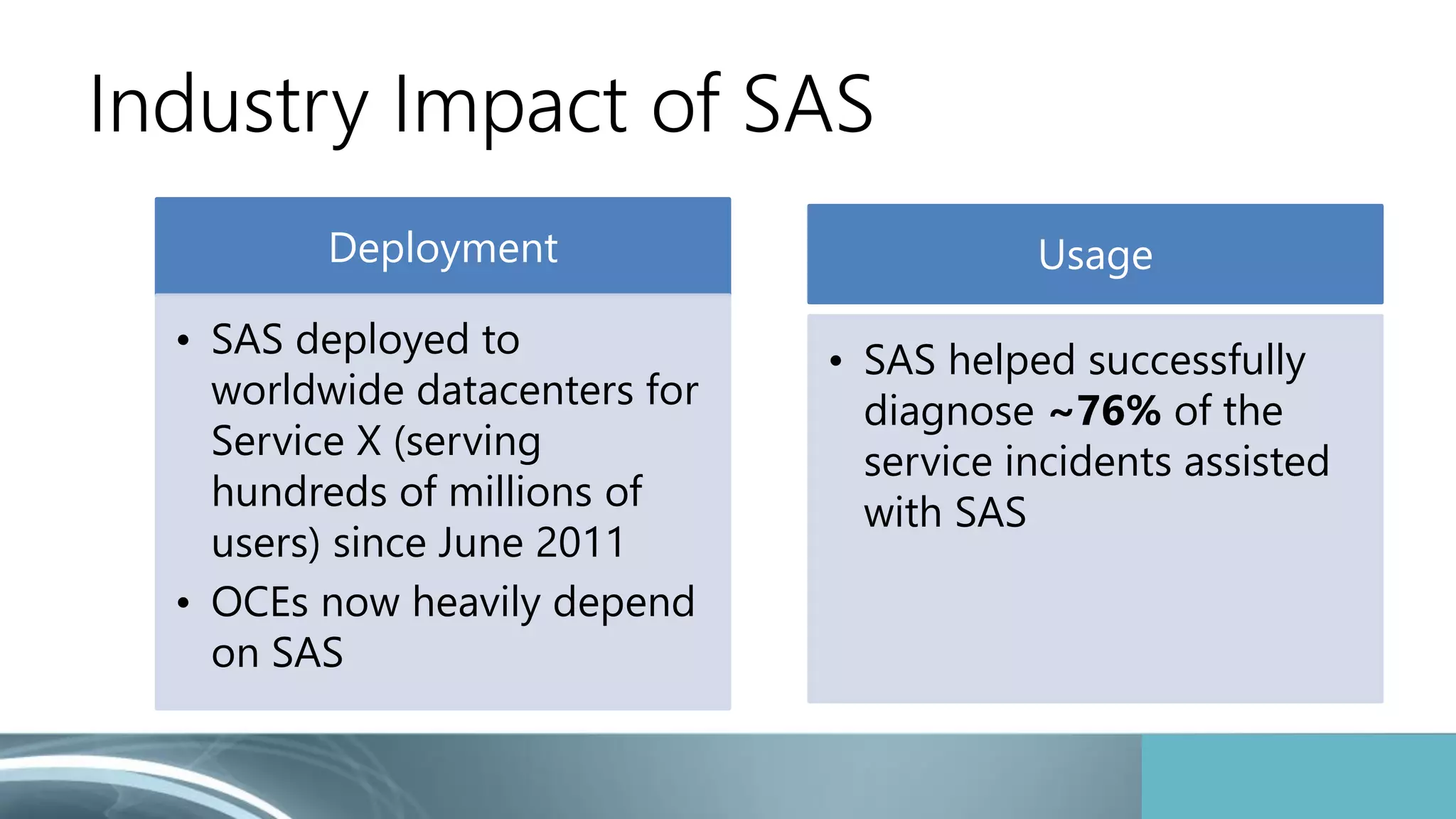

Industry Impact of SAS
Deployment
• SAS deployed to
worldwide datacenters for
Service X (serving
hundreds of millions of
users) since June 2011
• OCEs now heavily depend
on SAS
Usage
• SAS helped successfully
diagnose ~76% of the
service incidents assisted
with SAS

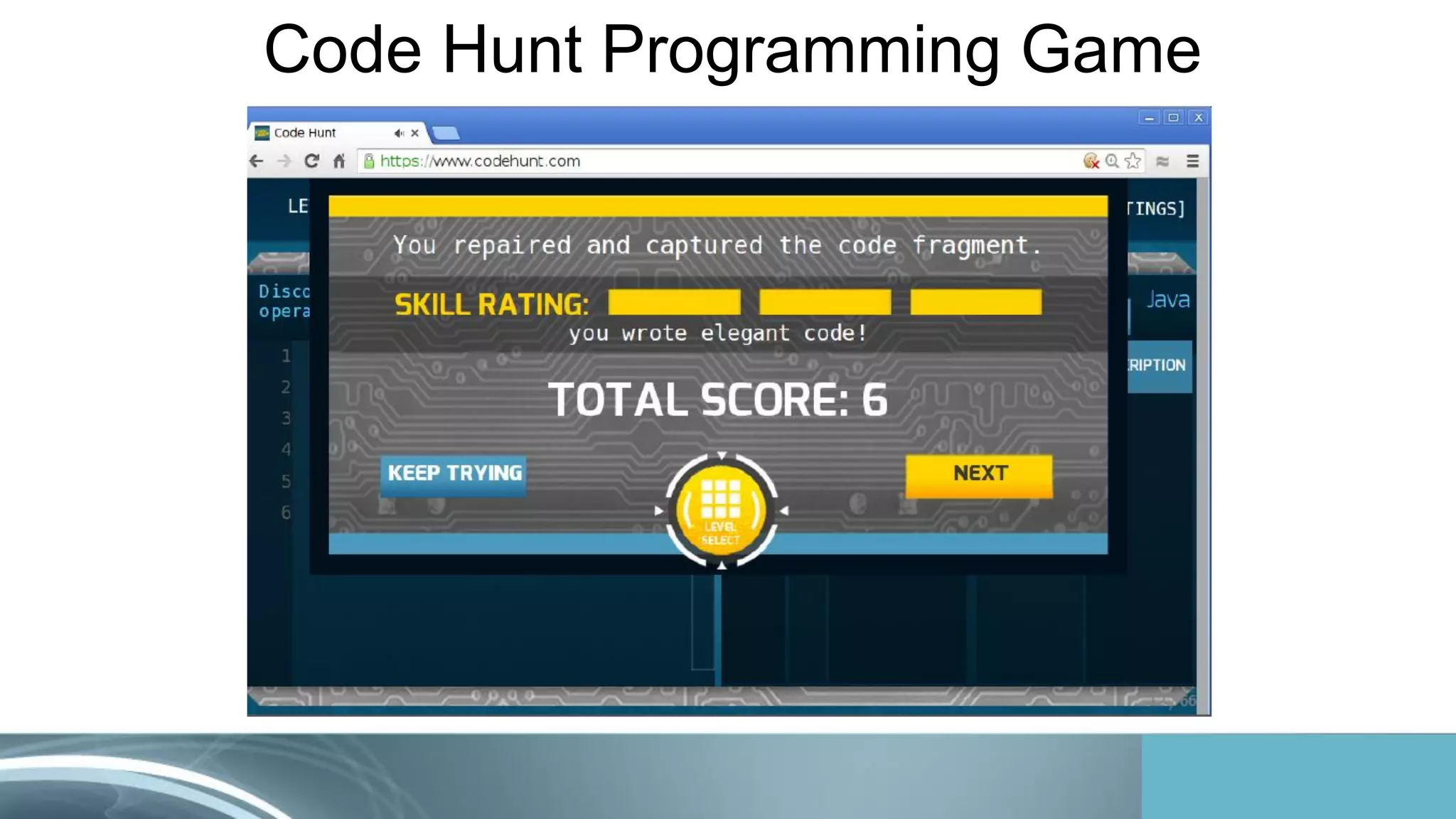

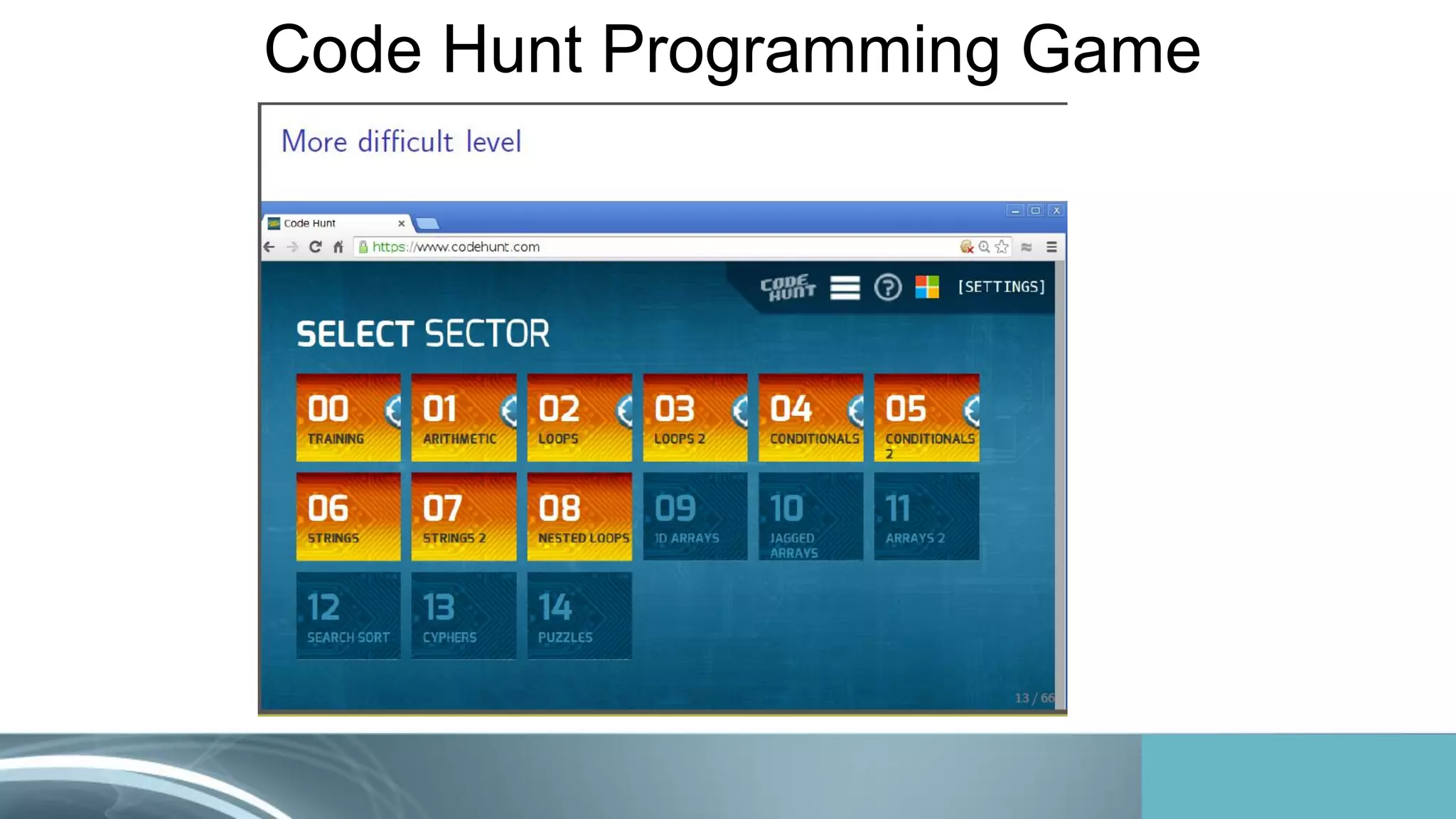

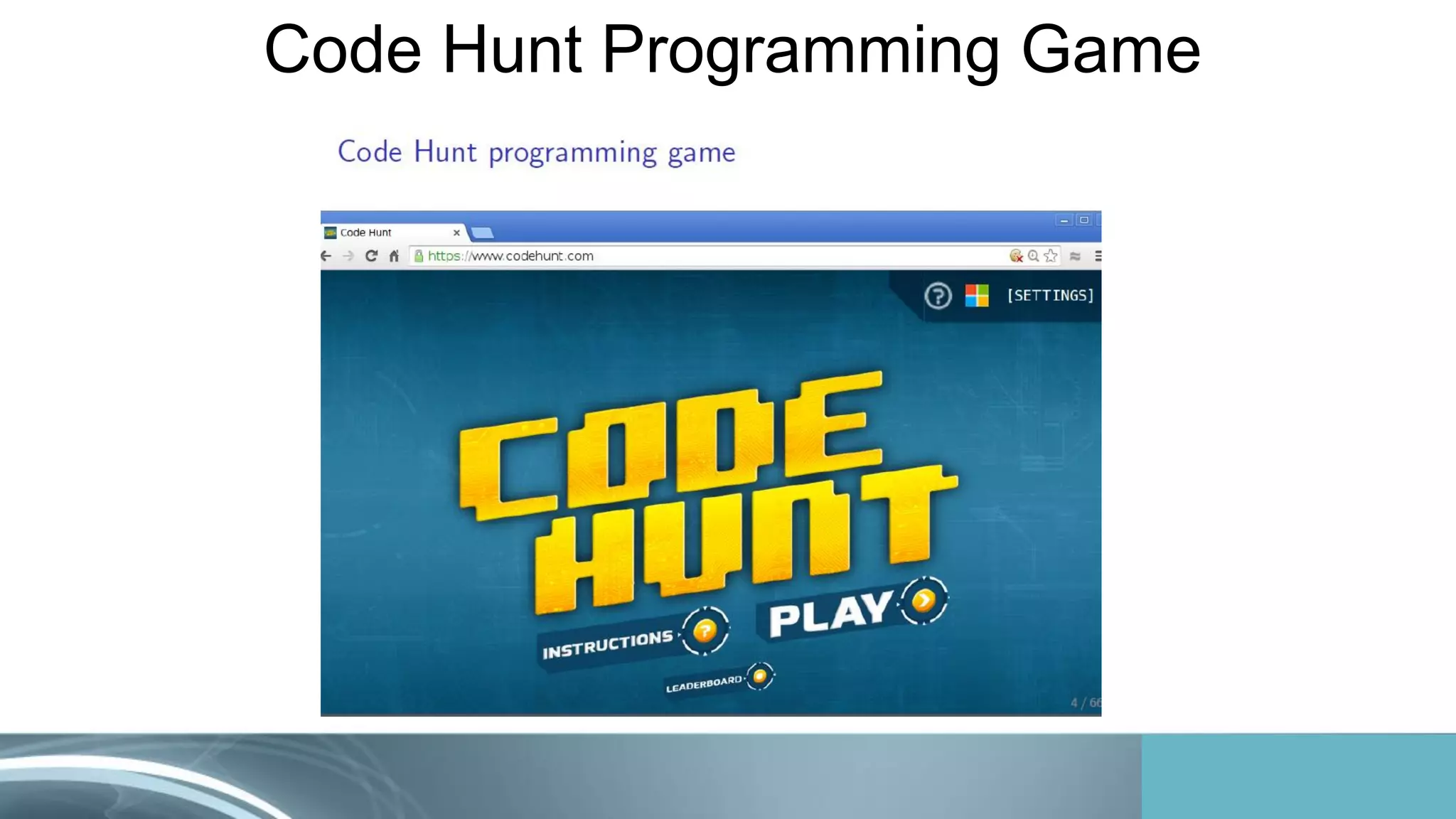

Code Hunt/Pex4Fun
Teaching and learning via interactive gaming
http://research.microsoft.com/pubs/189240/icse13see-pex4fun.pdf
http://pex4fun.com/https://www.codehunt.com/

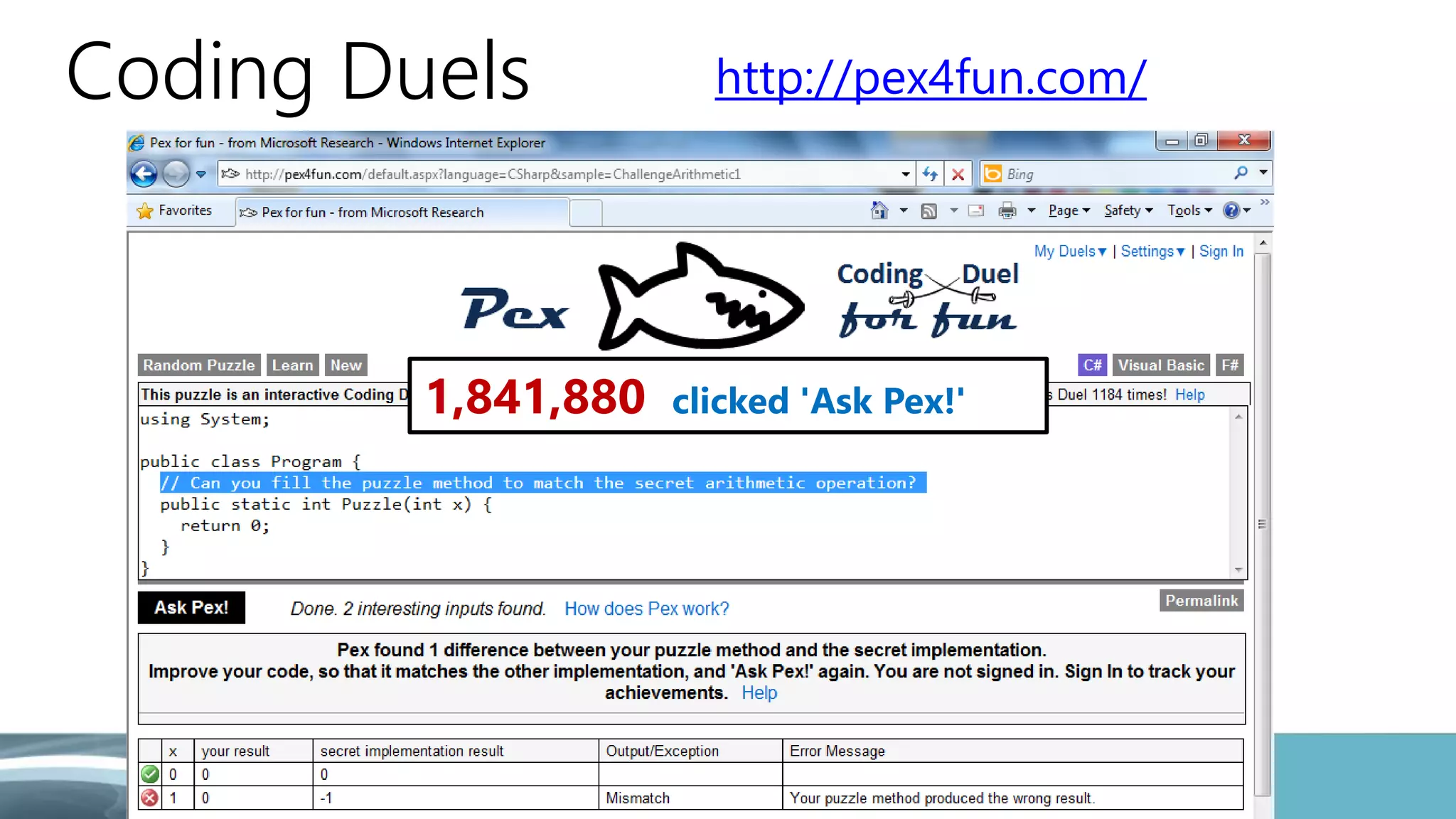

Coding Duels
1,841,880 clicked 'Ask Pex!'
http://pex4fun.com/

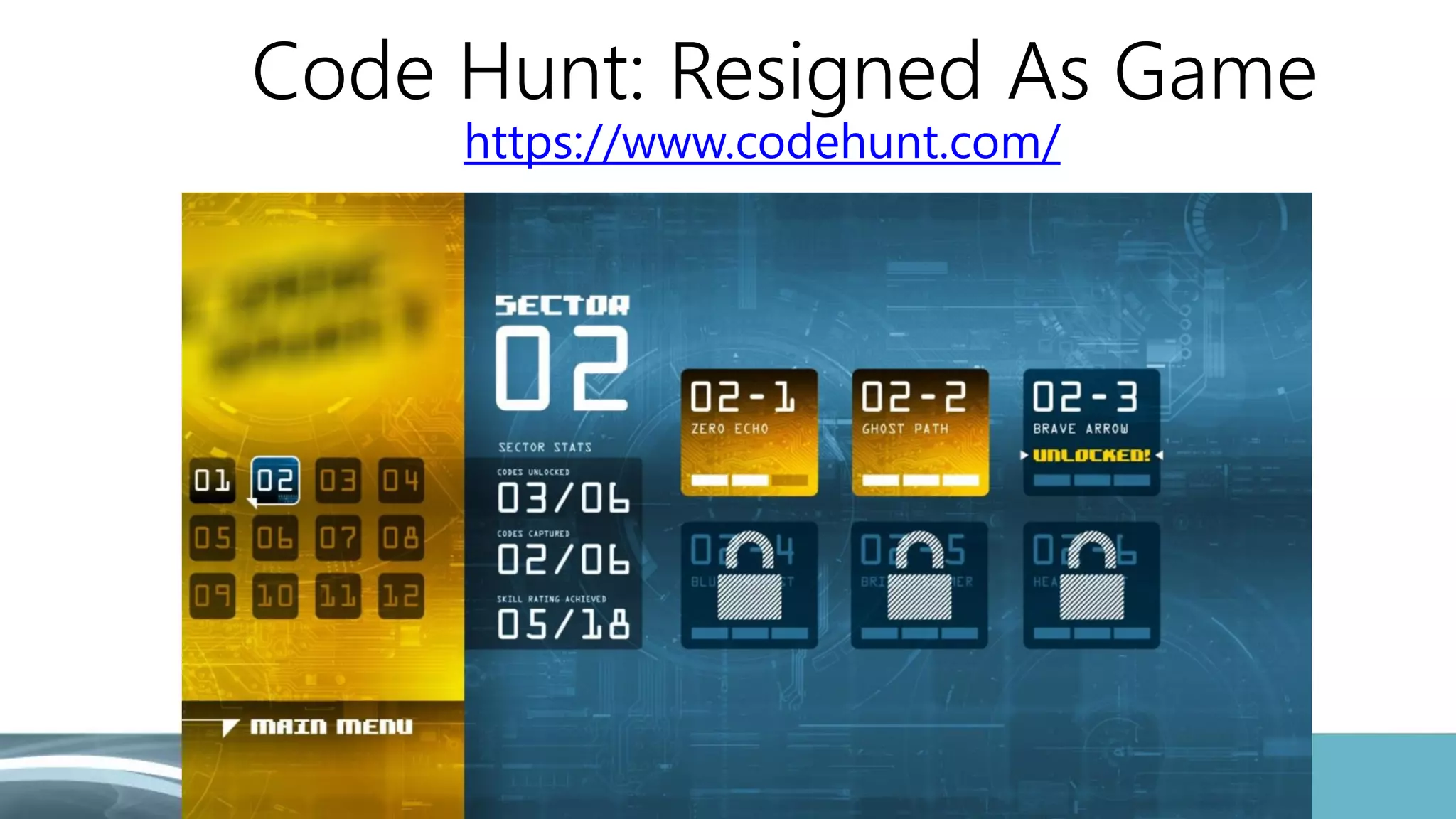

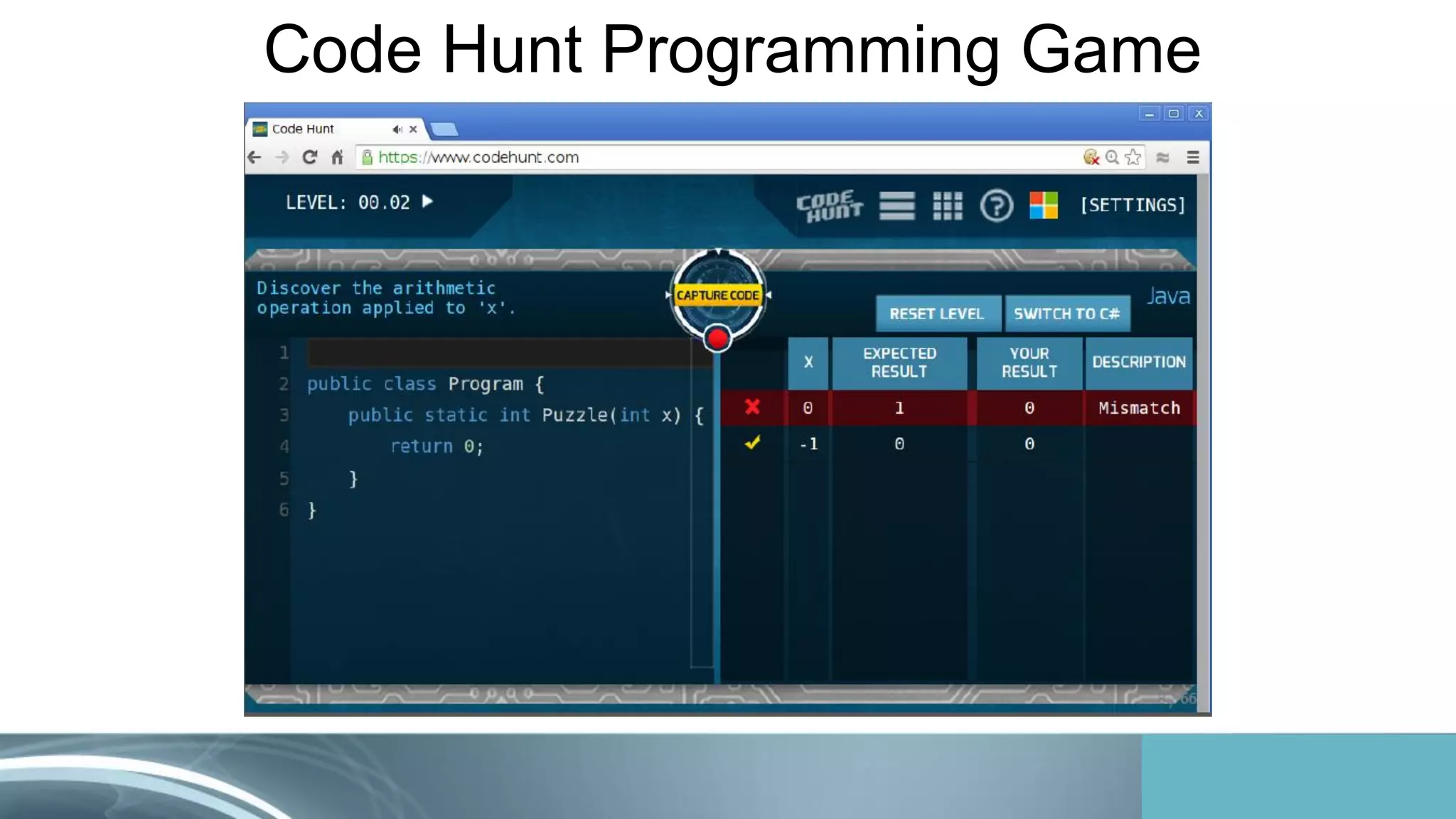

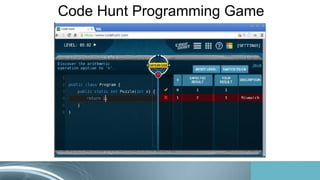

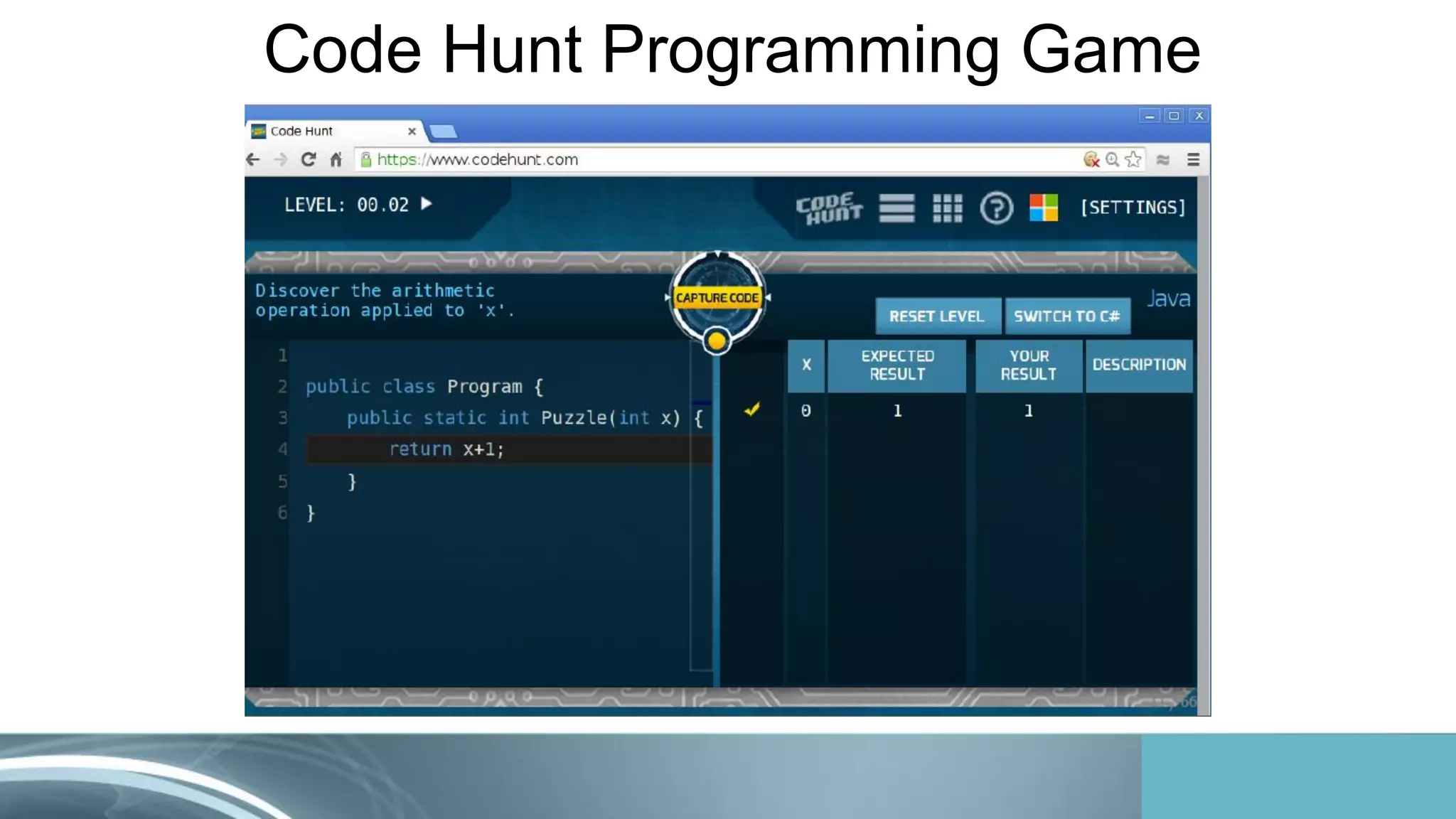

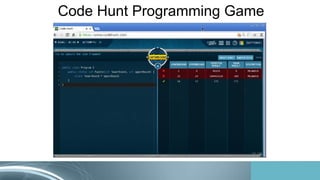

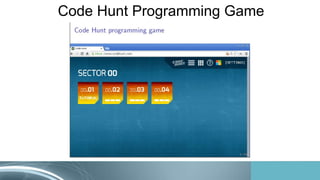

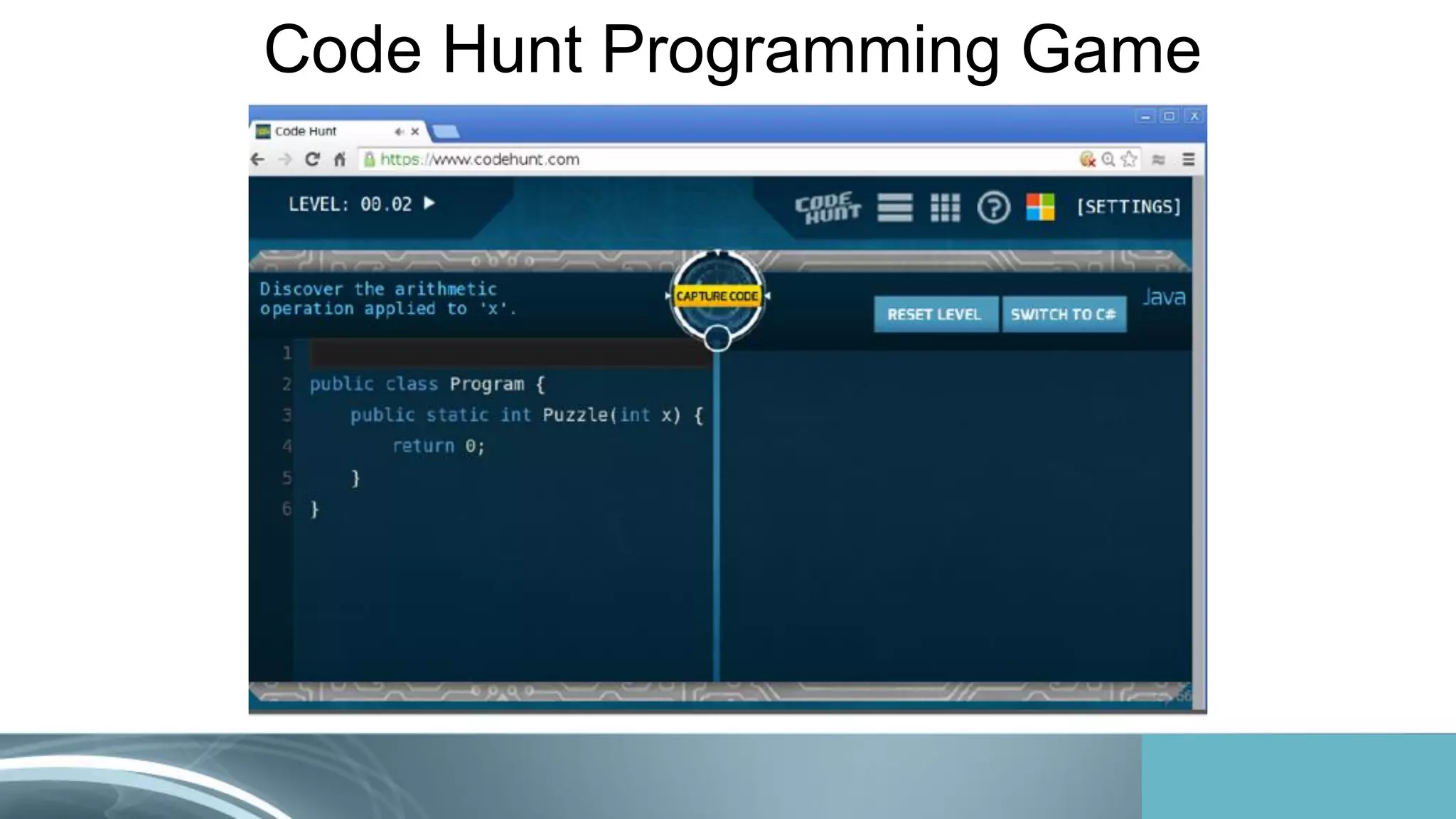

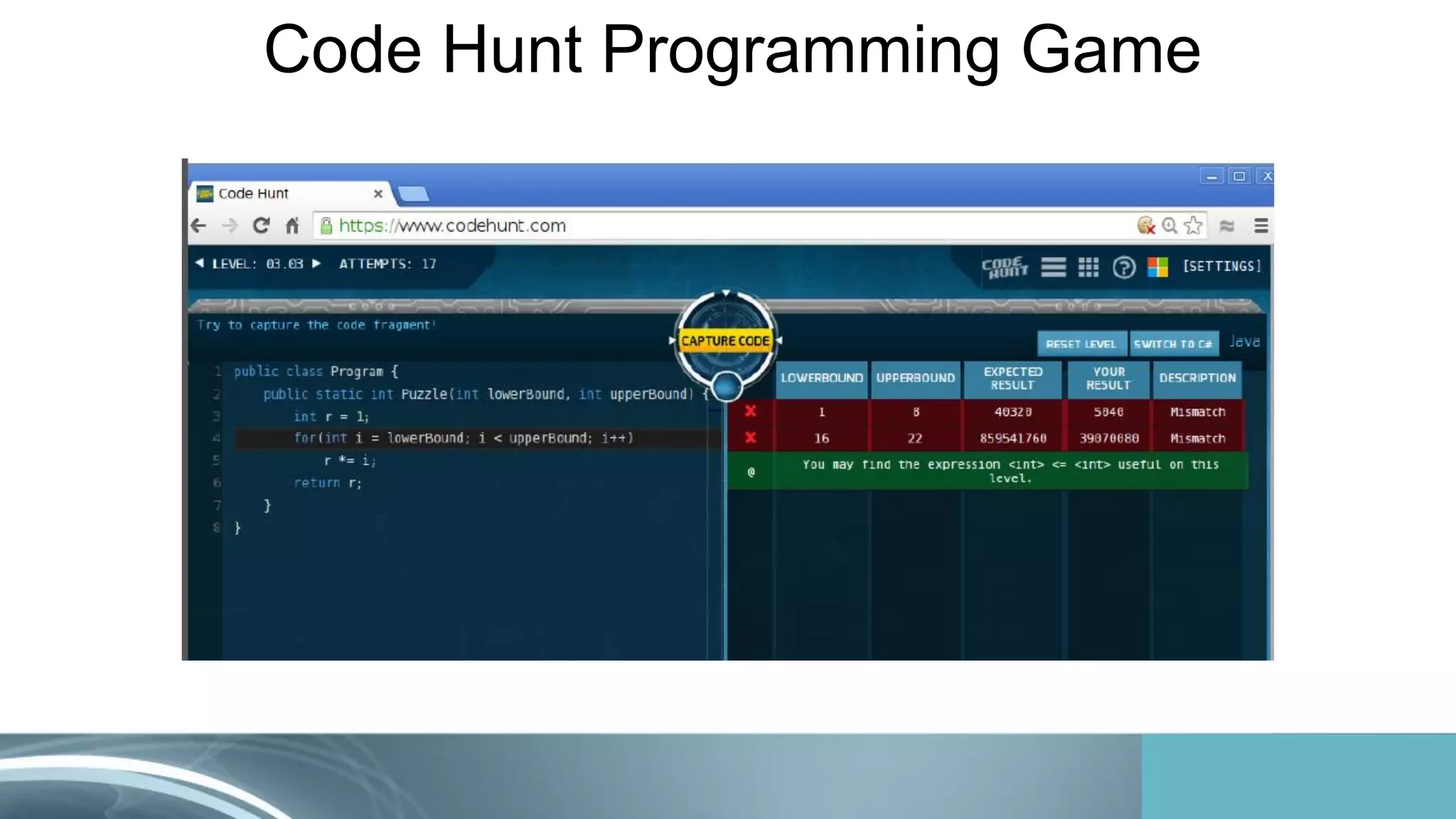

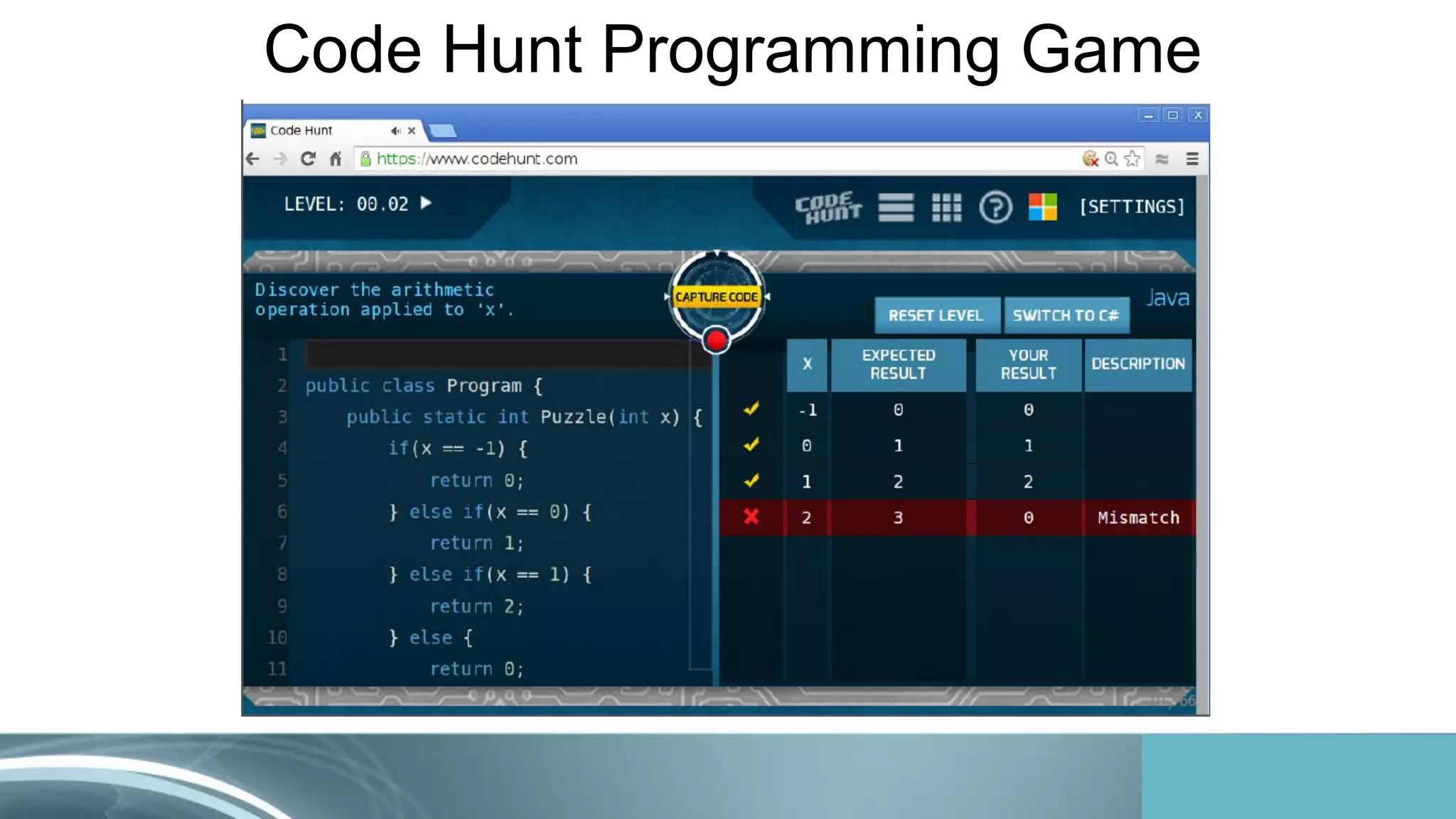

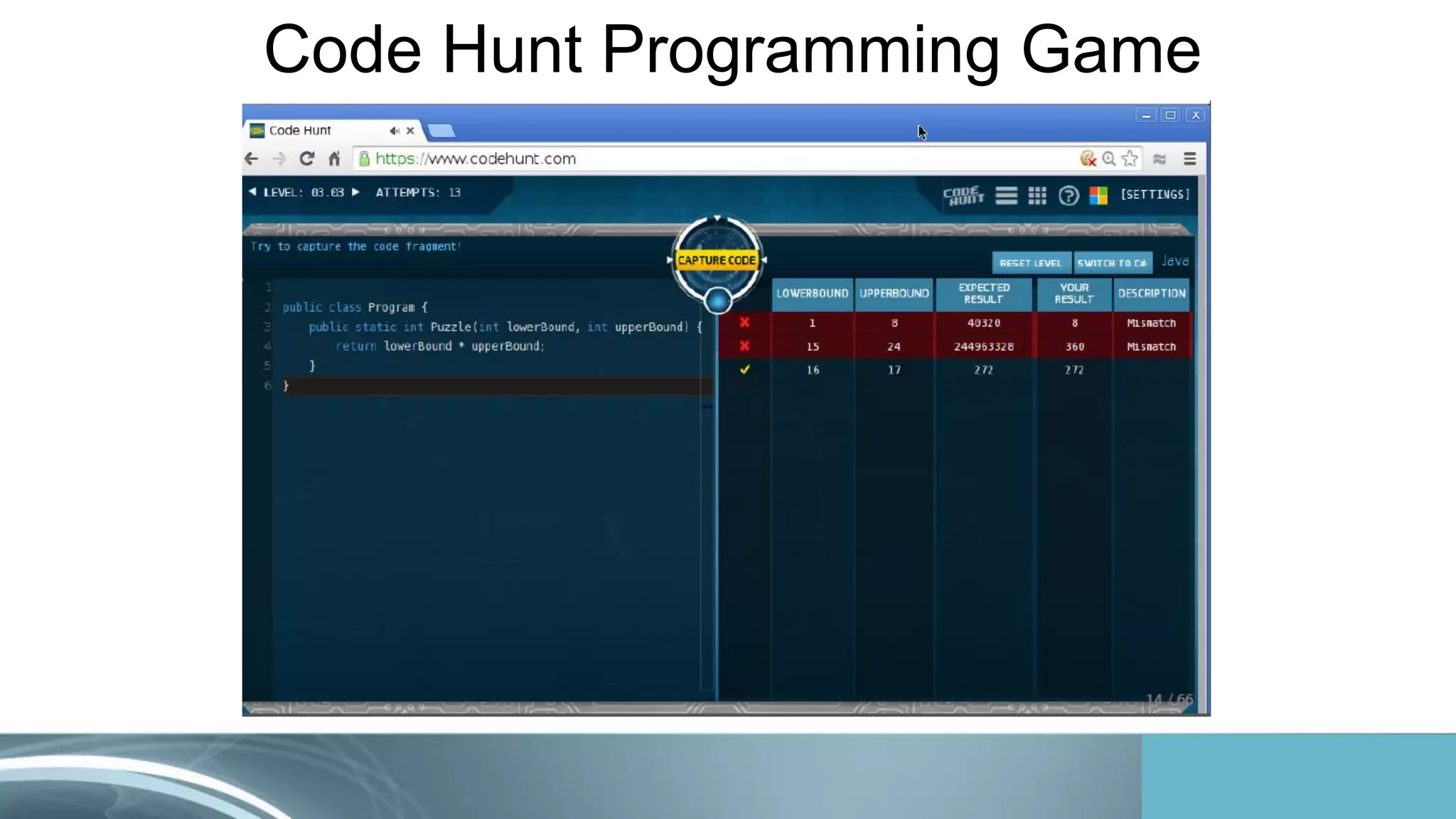

Code Hunt: Resigned As Game
https://www.codehunt.com/

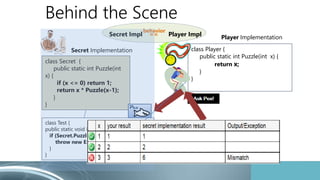

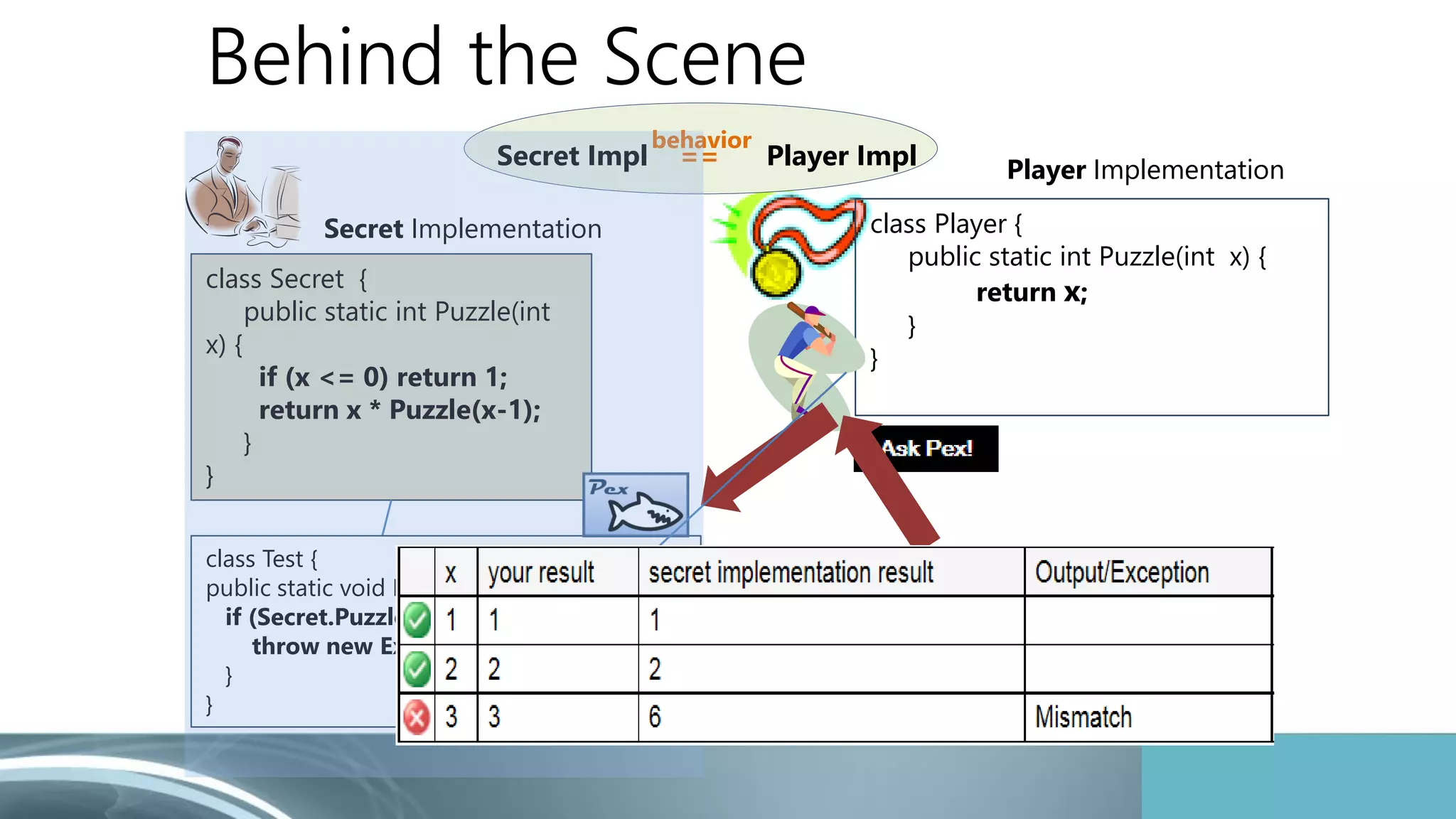

Behind the Scene
Secret Implementation
class Secret {
public static int Puzzle(int
x) {
if (x <= 0) return 1;
return x * Puzzle(x-1);
}
}
Player Implementation
class Player {
public static int Puzzle(int x) {
return x;
}
}
class Test {
public static void Driver(int x) {
if (Secret.Puzzle(x) != Player.Puzzle(x))
throw new Exception(“Mismatch”);
}
}
behavior
Secret Impl == Player Impl
62

Coding Duels: Fun and Engaging
Iterative gameplay
Adaptive
Personalized
No cheating
Clear winning criterion

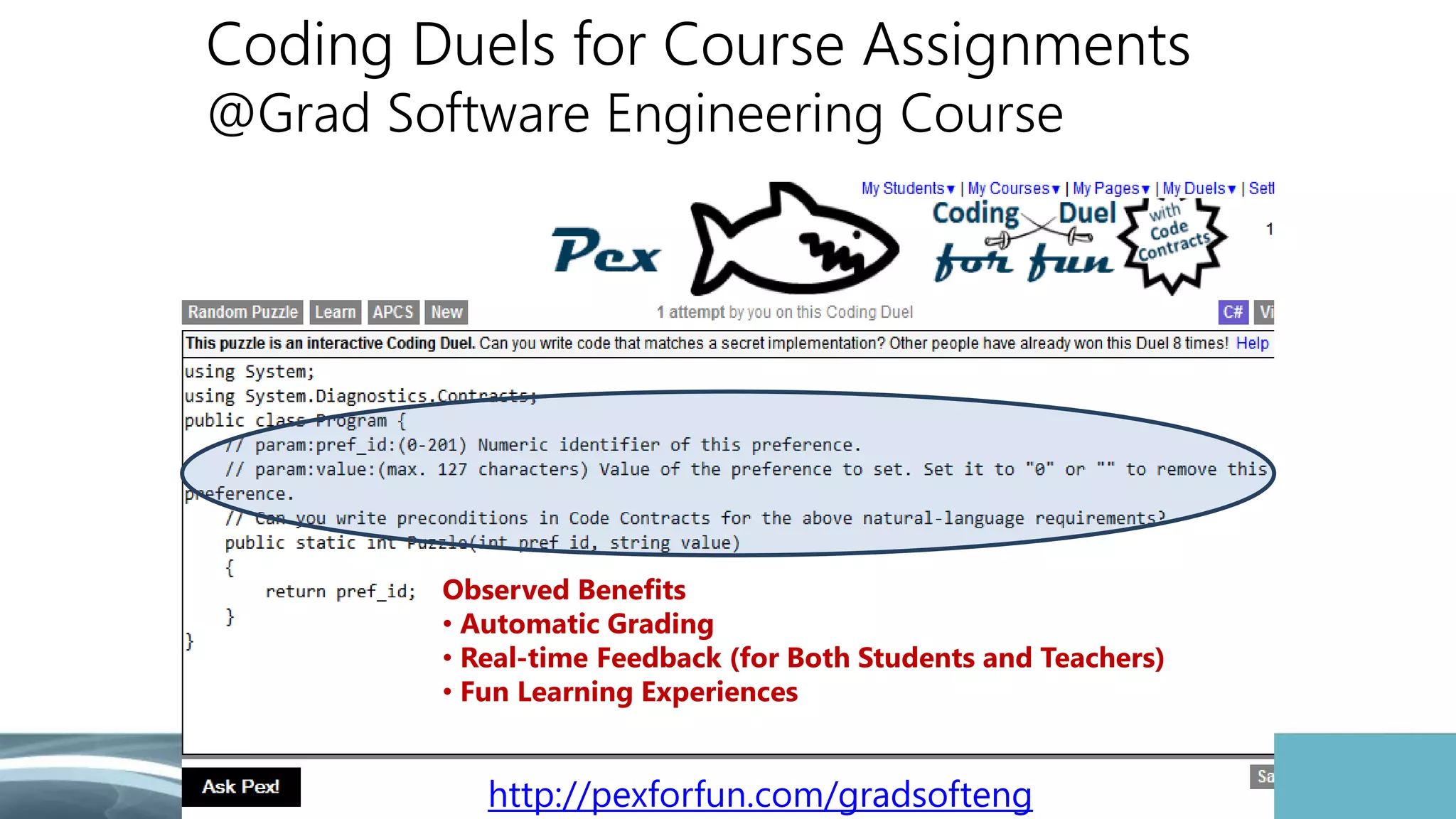

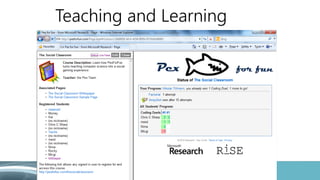

Coding Duels for Course Assignments
@Grad Software Engineering Course
http://pexforfun.com/gradsofteng
Observed Benefits
• Automatic Grading
• Real-time Feedback (for Both Students and Teachers)
• Fun Learning Experiences

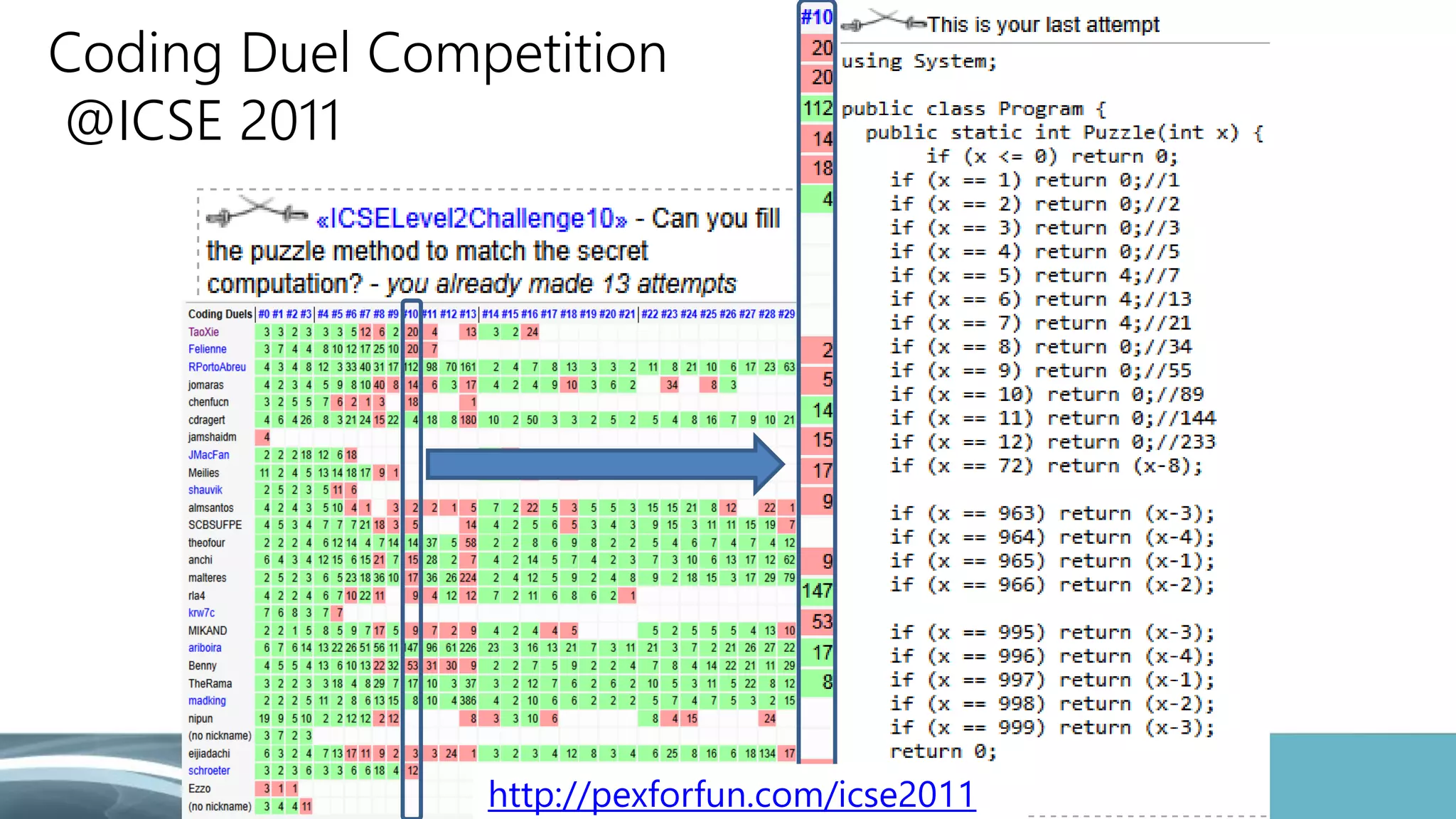

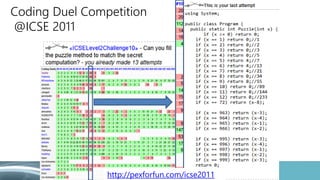

Coding Duel Competition
@ICSE 2011
http://pexforfun.com/icse2011

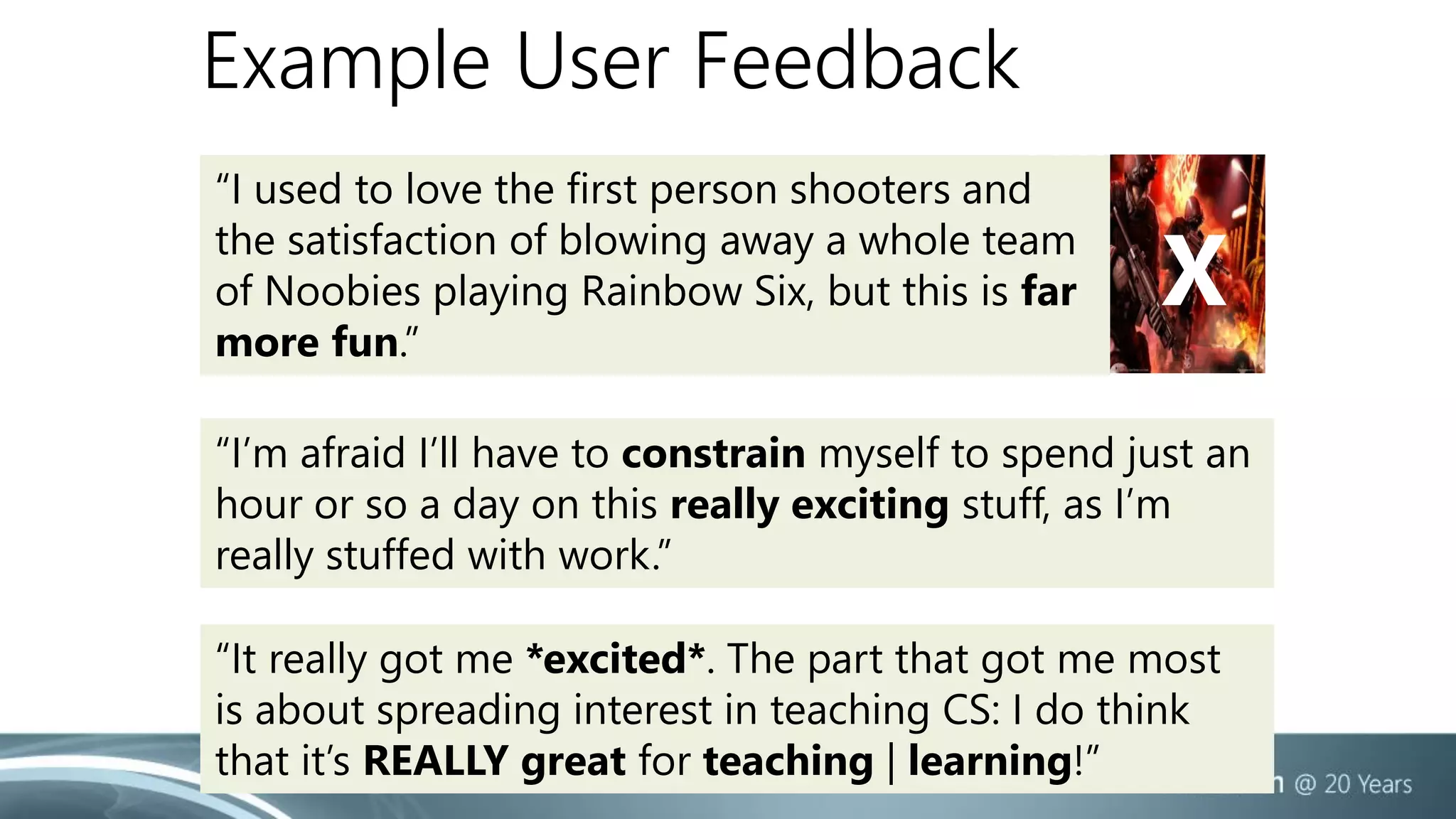

Example User Feedback
“It really got me *excited*. The part that got me most
is about spreading interest in teaching CS: I do think
that it’s REALLY great for teaching | learning!”
“I used to love the first person shooters and
the satisfaction of blowing away a whole team
of Noobies playing Rainbow Six, but this is far
more fun.”
“I’m afraid I’ll have to constrain myself to spend just an
hour or so a day on this really exciting stuff, as I’m
really stuffed with work.”
Released since 2010
X

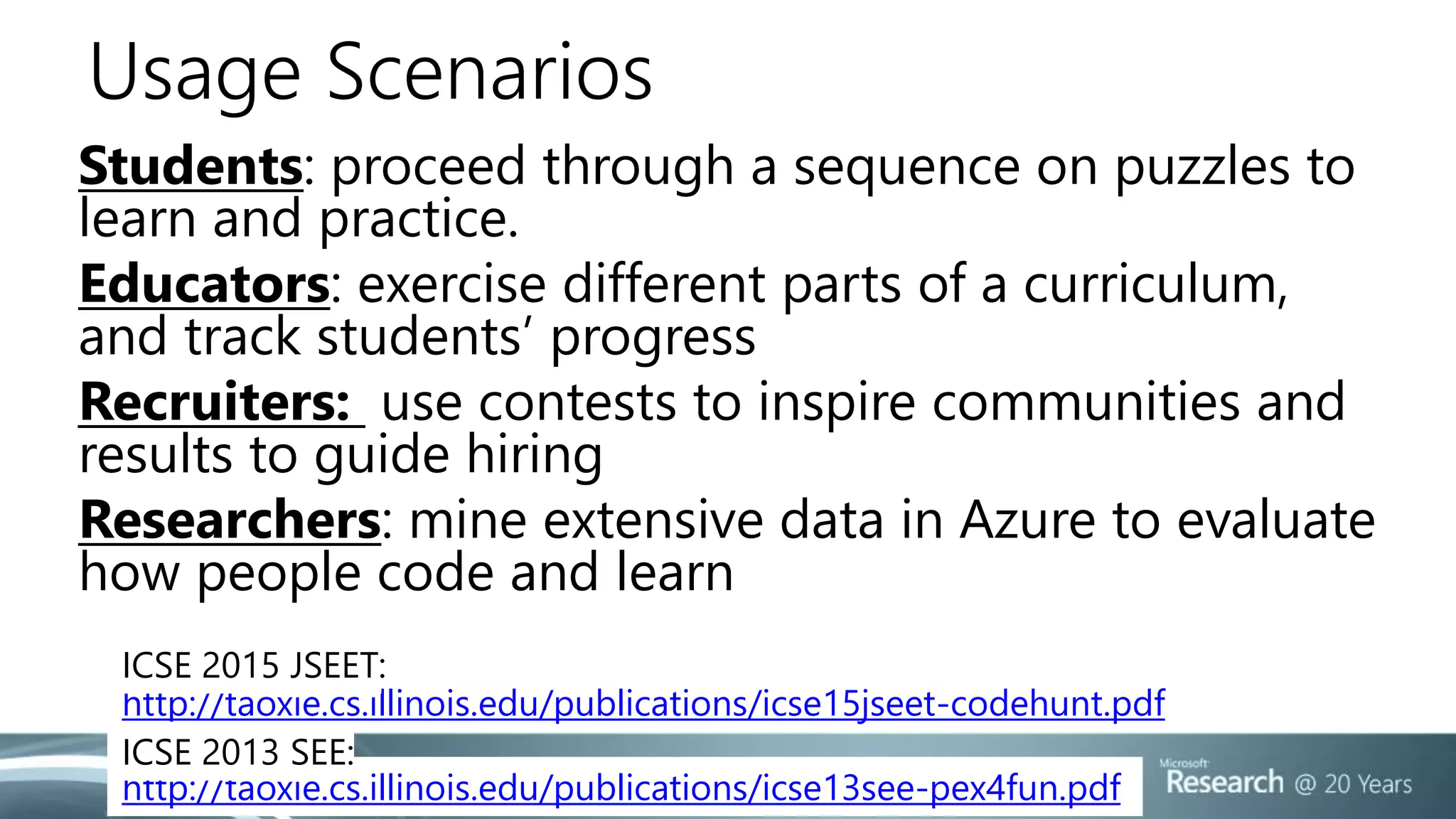

Usage Scenarios
Students: proceed through a sequence on puzzles to
learn and practice.
Educators: exercise different parts of a curriculum,
and track students’ progress
Recruiters: use contests to inspire communities and
results to guide hiring
Researchers: mine extensive data in Azure to evaluate
how people code and learn
http://taoxie.cs.illinois.edu/publications/icse15jseet-codehunt.pdf
ICSE 2015 JSEET:
http://taoxie.cs.illinois.edu/publications/icse13see-pex4fun.pdf
ICSE 2013 SEE:

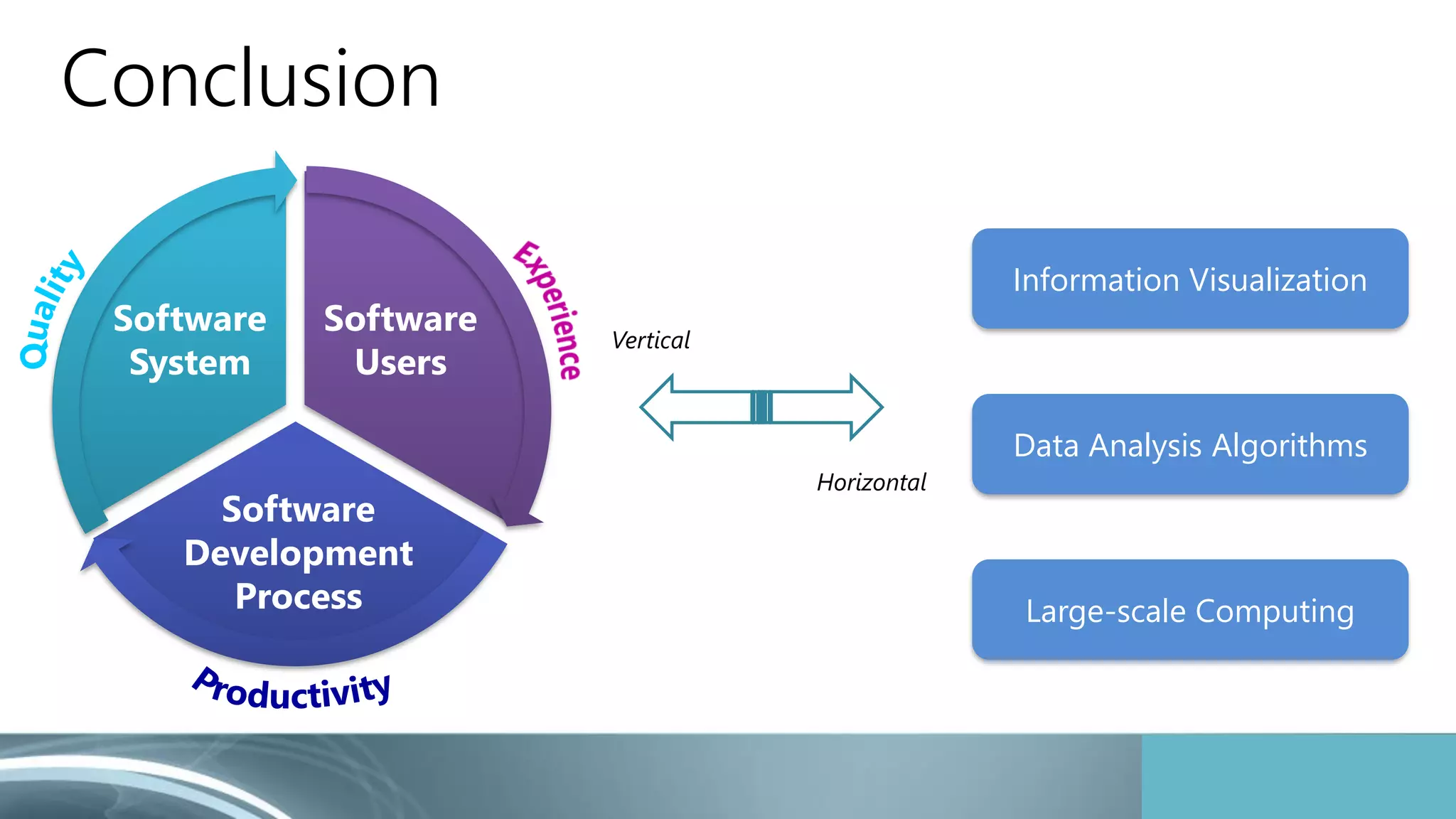

Conclusion
Software
Users
Software
Development
Process
Software
System
Vertical
Horizontal
Information Visualization
Data Analysis Algorithms
Large-scale Computing

Q & A
http://taoxie.cs.illinois.edu/
Contact: taoxie@illinois.edu

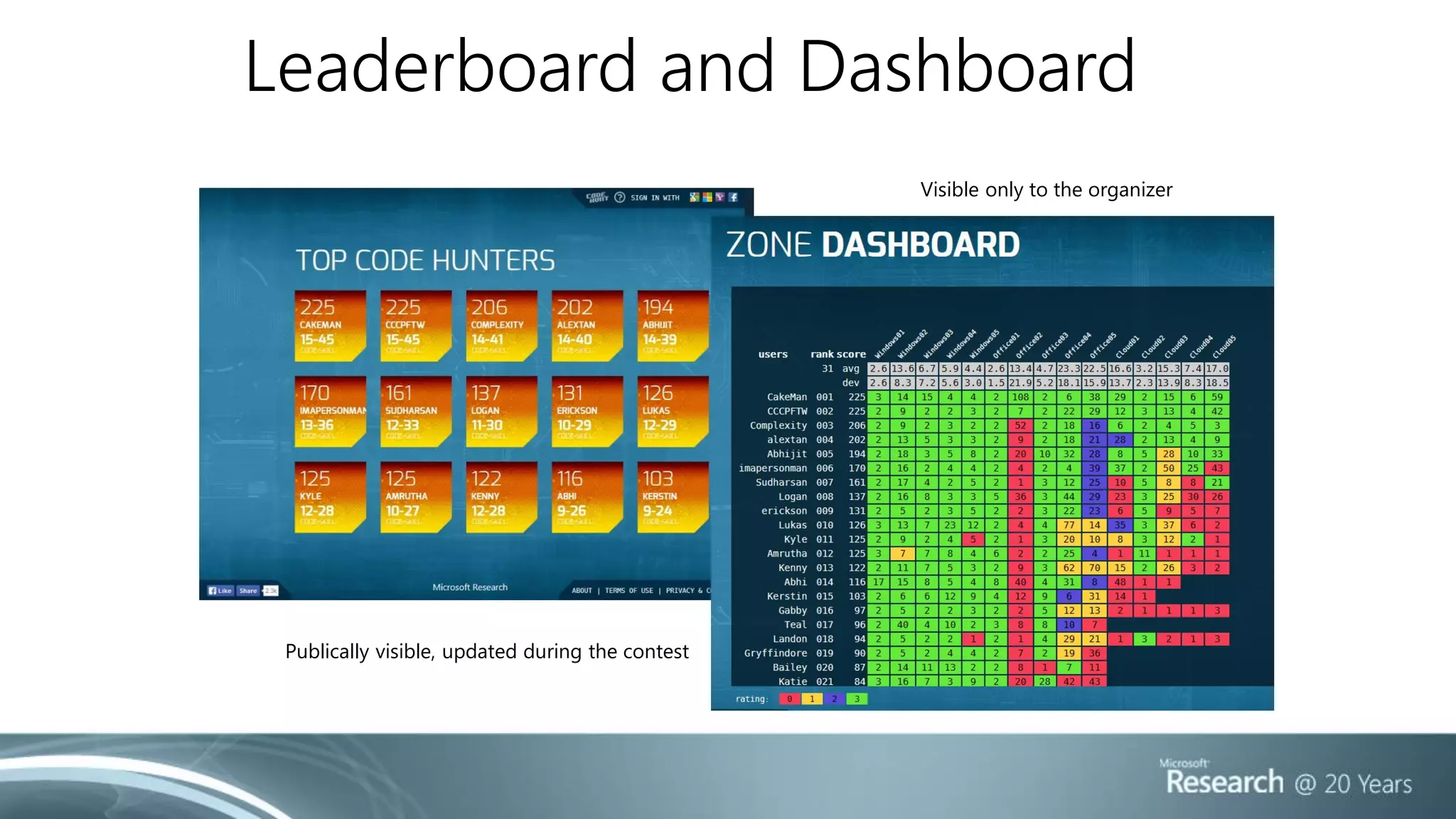

Leaderboard and Dashboard
Publically visible, updated during the contest
Visible only to the organizer

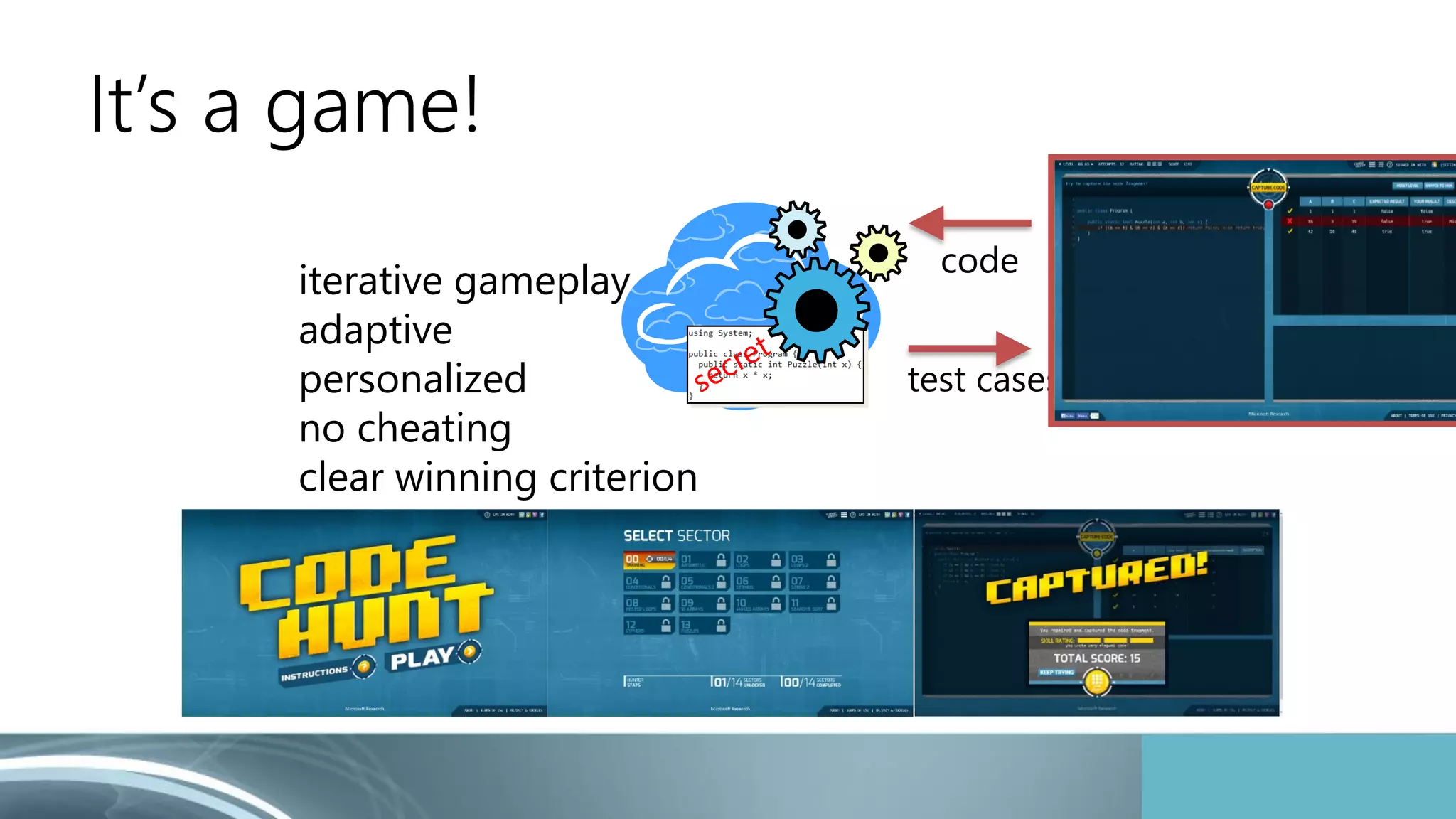

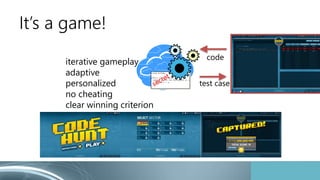

It’s a game!
iterative gameplay
adaptive
personalized
no cheating
clear winning criterion
code
test cases

Software Analytics: Data Analytics for Software Engineering

More Related Content

What's hot

Similar to Software Analytics: Data Analytics for Software Engineering

More from Tao Xie

Recently uploaded

Software Analytics: Data Analytics for Software Engineering
