- IBM Cloud Object Storage (ICOS) is a scalable object storage service that supports objects up to 10 TB and 100 buckets maximum. It provides S3 API compatibility and is IAM enabled. - ICOS offers four storage classes - Standard, Vault, Cold Vault, and Flex - with different access frequencies and retrieval fees. Resiliency can be achieved through cross-region, regional, or single datacenter replication. - Access to ICOS can be through public or private endpoints. Security features include firewalls, automatic server-side encryption, and optional customer-managed keys or Key Protect. Aspera provides high-speed transfer through desktop agents. - Lifecycle rules can automate object expiration

1. Nagesh Ramamoorthy

2. Agenda
• ICOS Overview
• Storage Classes
• Resiliency Options
• End points
• Access Policies
• Service credentials and HMAC credentials
• Firewalls & Encryption
• Aspera High Speed Transfer
• Lifecycle Rules: Expiration and Archival
• Immutable Object Storage
• IBM Cloud SQL Query

3. ICOS Overview
• Formerly known as Cleversafe.
• IBM COS supports objects up to 10 TB, and maximum of
100 buckets.
• S3 API support is available in order to provide
compatibility to standalone clients for AWS S3 storage.
• IBM COS is IAM enabled.
• We can enable Activity tracker based API logging for
Each bucket level management and data events

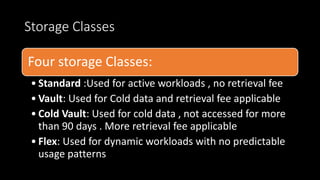

4. Storage Classes
Four storage Classes:
• Standard :Used for active workloads , no retrieval fee
• Vault: Used for Cold data and retrieval fee applicable
• Cold Vault: Used for cold data , not accessed for more
than 90 days . More retrieval fee applicable
• Flex: Used for dynamic workloads with no predictable
usage patterns

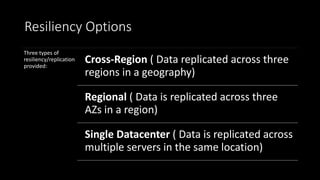

5. Resiliency Options
Three types of
resiliency/replication
provided:
Cross-Region ( Data replicated across three
regions in a geography)
Regional ( Data is replicated across three
AZs in a region)
Single Datacenter ( Data is replicated across
multiple servers in the same location)

6. End Points
• ICOS supports private and public end points.
• VPC endpoints can connect to ICOS using a separate direct end points privately .
• There are different end points for Regional , Cross-regional and datacenter
locations.
• Regional End Points for US-South Region example:
Public: s3.us-south.cloud-object-storage.appdomain.cloud
Private: s3.private.us-south.cloud-object-storage.appdomain.cloud
Direct: s3.direct.us-south.cloud-object-storage.appdomain.cloud

7. Access Policy
• Every user that accesses the IBM® Cloud Object Storage service in your account
must be assigned an access policy with an IAM user role pre-defined ( Platform
management and service access)
• There is no bucket resource level permission option other than through IAM
method.
• Using IAM access policies , permissions can be granted at individual bucket level.
• Public access can be granted by clicking on "access policy" inside bucket
configuration

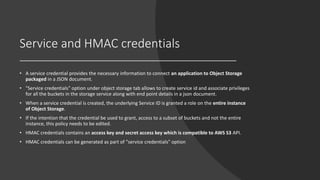

8. Service and HMAC credentials
• A service credential provides the necessary information to connect an application to Object Storage
packaged in a JSON document.
• "Service credentials" option under object storage tab allows to create service id and associate privileges
for all the buckets in the storage service along with end point details in a json document.
• When a service credential is created, the underlying Service ID is granted a role on the entire instance
of Object Storage.
• If the intention that the credential be used to grant, access to a subset of buckets and not the entire
instance, this policy needs to be edited.
• HMAC credentials contains an access key and secret access key which is compatible to AWS S3 API.
• HMAC credentials can be generated as part of "service credentials" option

9. Firewalls and Encryption
• We can set up firewall by allowing certain limited number of IPs to access the
bucket.
• Once the firewall is setup , other IBM coud services can't access the bucket
privately.
• The objects are encrypted by default at rest with automatic provider side Advanced
Encryption Standard (AES) 256-bit encryption and Secure Hash Algorithm (SHA)-
256 hash.
• IBM Cloud Object storage provides option to encrypt through customer provided
keys which is called server side encryption with customer provided keys (SSE-C)
and also through SSE-KP (Server side encryption with IBM Key protect)

10. Aspera High-Speed Transfer
• Aspera High Speed transfer allows transfers larger than 200 MB through console
using proprietary FASP ( Fast and secure Protocol)
• Aspera High Speed transfer requires either a browser plug-in or a desktop agent
• Aspera High Speed transfer supports Java and Python SDKs
• Aspera High Speed transfer supports windows, Ubuntu Linux and Mac OS agents

11. Lifecycle Rules: Expiration , Archival
• Expiration rule makes the objects deleted automatically after given number of days from object
creation.
• IBM Cloud object storage archive is a low cost option for data that is rarely accessed.
• You can transition data from any storage class ( Standard , Vault, Cold Vault ,Flex) to Archive.
• For immediate archival , the archival time should be set to 0 days.
• To access the data that is archived , it should be restored by specifying the period of which the
object should be kept in the original class.
• The restoration duration can be up to 12 hours
• Together Expiration and Archive policies , we can set up to 1000 life cycle policies

12. Immutable Object Storage
• Immutable Object Storage preserves electronic records and maintains data integrity.
• Retention policies ensure that data is stored in a WORM (Write-Once-Read-Many), non-
erasable and non-rewritable manner.
• Retention Policies allows prevention of deletion of object within specified time.
• Retention policies once enabled, can't be disabled
• Retention policy can be set while uploading an object as well but the specified value
should be within minimum and maximum value set at the bucket level.
• The default retention period can be set at the bucket configuration.
• Enabling "Permanent retention" at bucket level ,never allows objects deletion

13. IBM Cloud SQL
• IBM Cloud SQL is a fully managed service
which allows to run "SELECT" statements
on object storage files of ORC, CSV, JSON
format.
• The query results are stored in a CSV file in
the object storage.
• Actions with Cloud SQL such as CREATE,
DELETE, INSERT, and UPDATE are not
possible.
