Digiever standalone nvr_general_2017_technosystems_4_k_live

TECHNOSYSTEMS
3651 S Lindell Rd, Las Vegas, NV , USA
admin@technosystemsus.com
DIGIEVER
Linux Standalone NVR Server
Integrated IP Video Surveillance Solutions
March, 2017

Agenda
Q & A

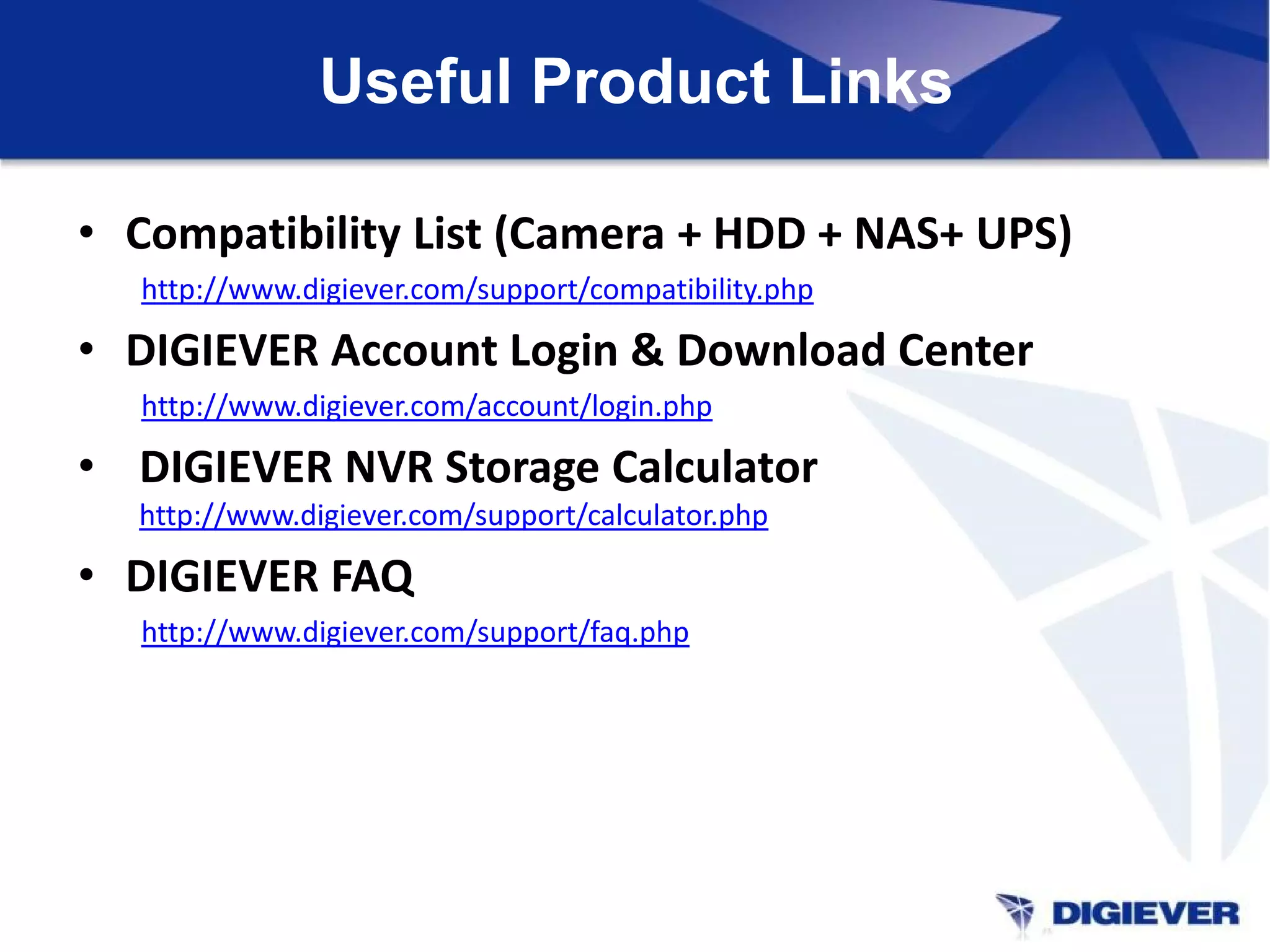

Useful Product Links

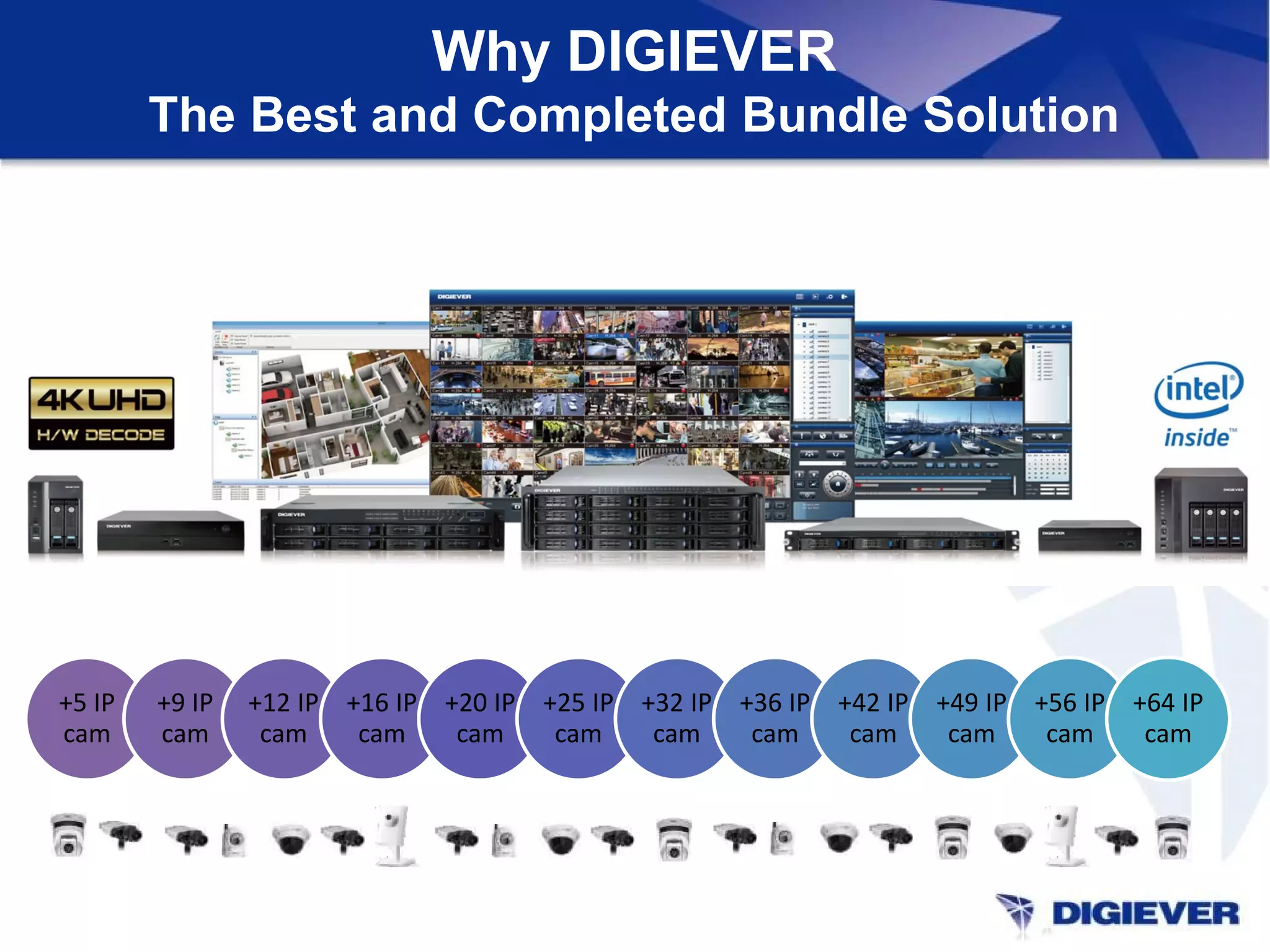

Why DIGIEVER
DIGIEVER NVR Extension Solutions
All-in-one Features of DIGIEVER NVR

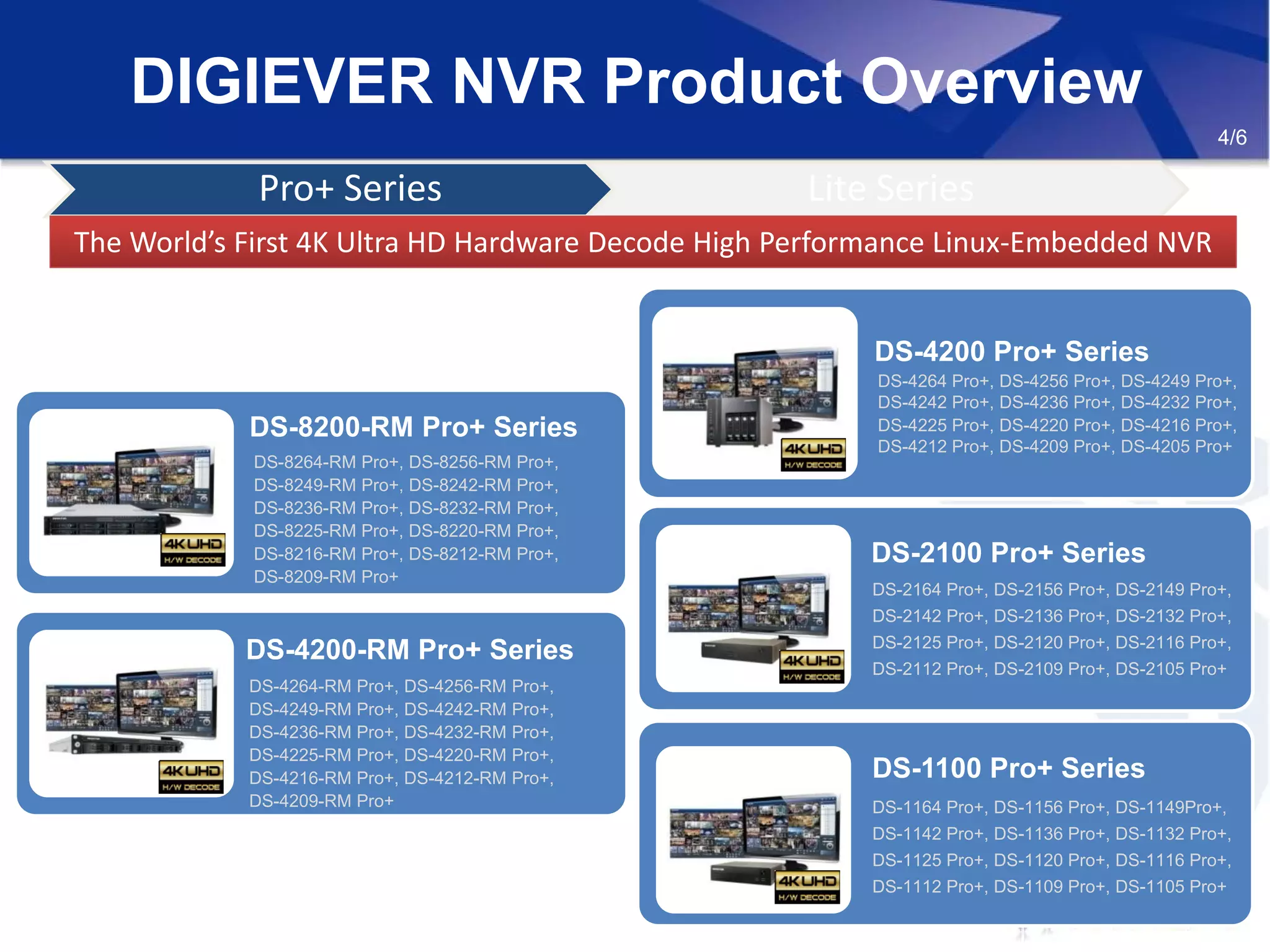

DIGIEVER NVR Product Overview
DIGIEVER NVR Model Naming Rule
Complete NVR Surveillance Solutions
Business Segment and Distribution Policy
Company Background

Business Segment and
Distribution Policy

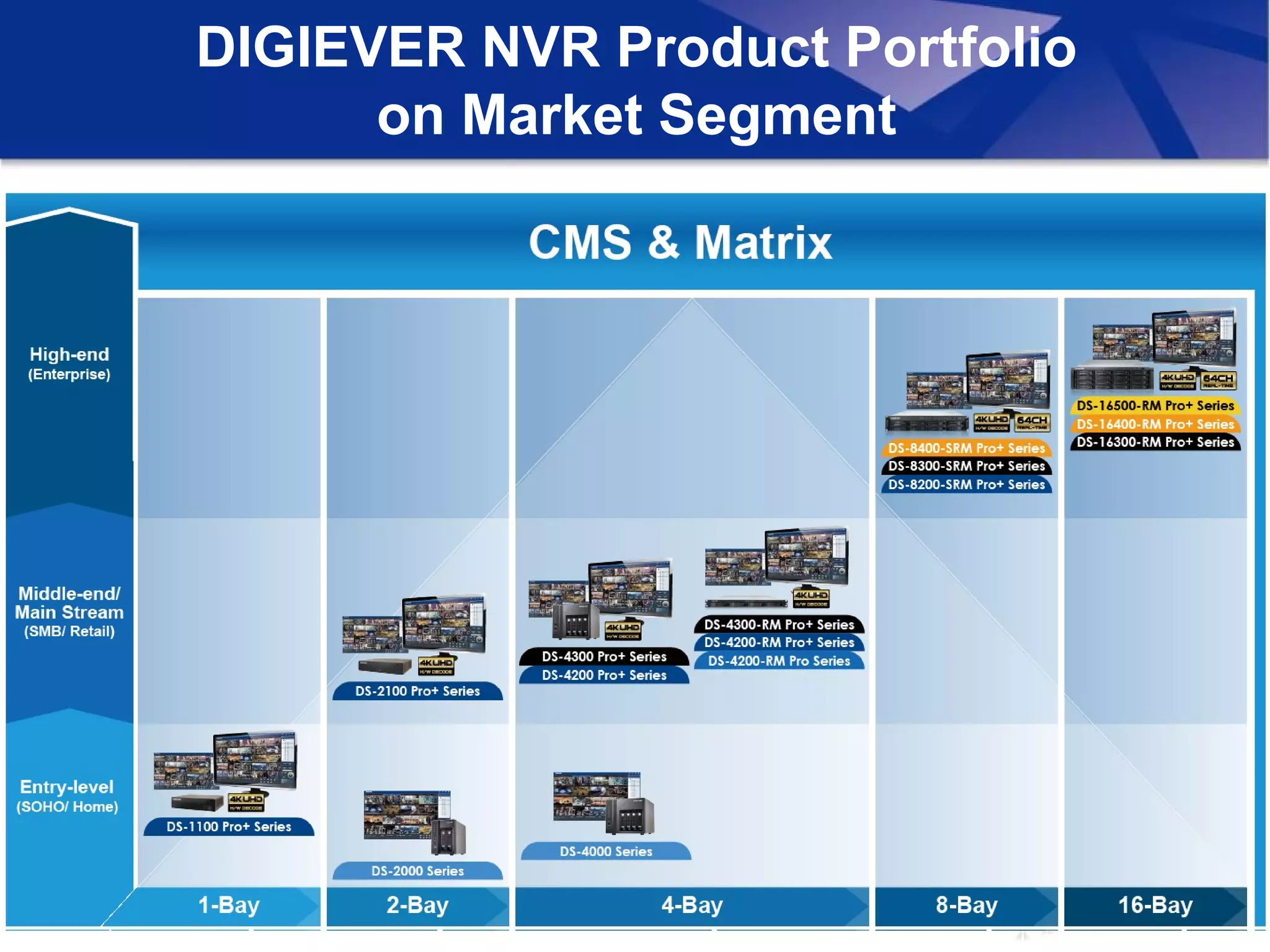

DIGIEVER NVR Product Portfolio
on Market Segment

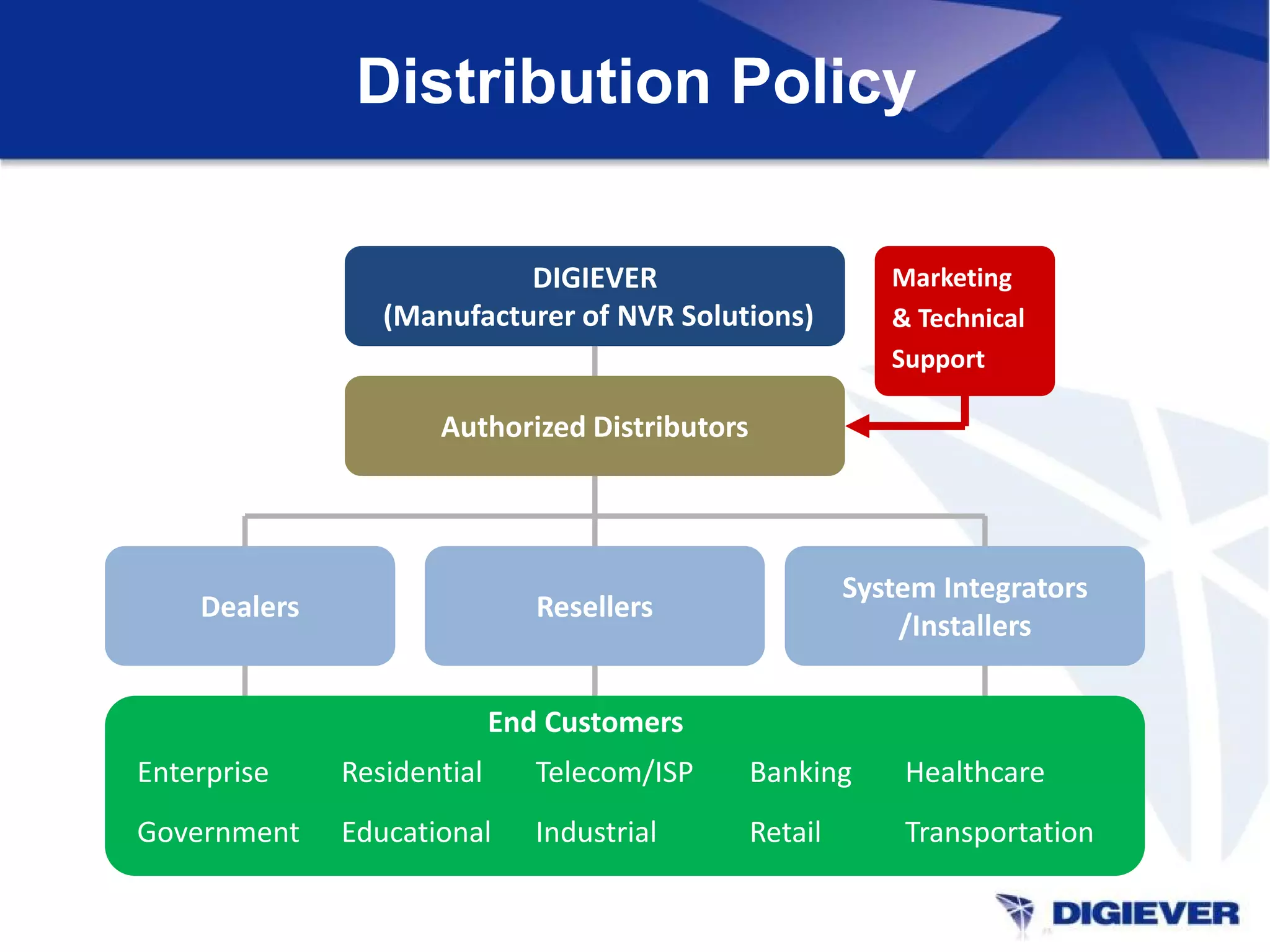

Distribution Policy
DIGIEVER
(Manufacturer of NVR Solutions)
Authorized Distributors
Dealers
System Integrators
/Installers
Resellers
Enterprise
Government
End Customers
Residential
Educational
Telecom/ISP
Industrial
Banking
Retail
Healthcare
Transportation
Marketing
& Technical
Support

Complete
NVR Surveillance Solutions

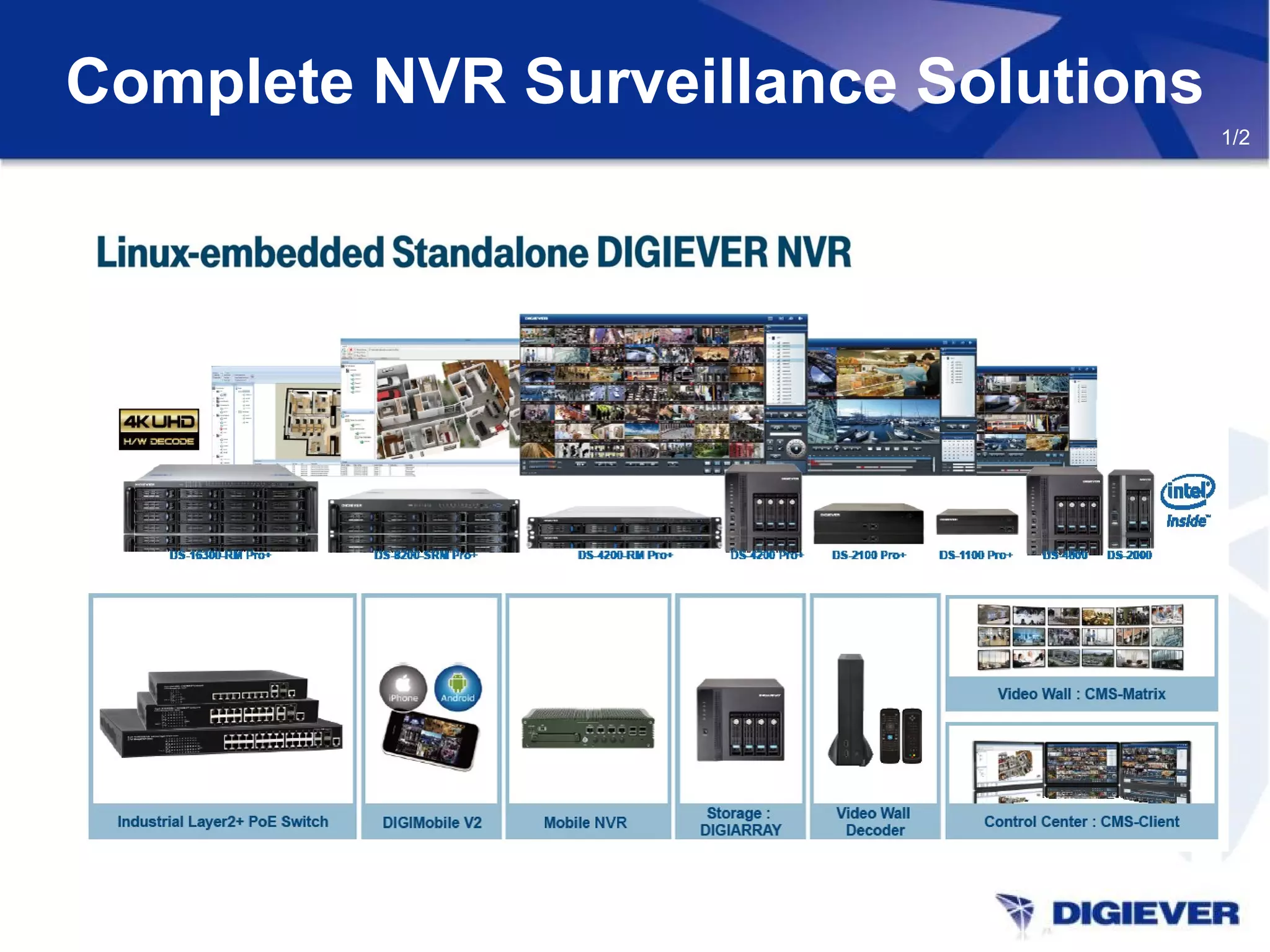

Complete NVR Surveillance Solutions
1/2

2/2

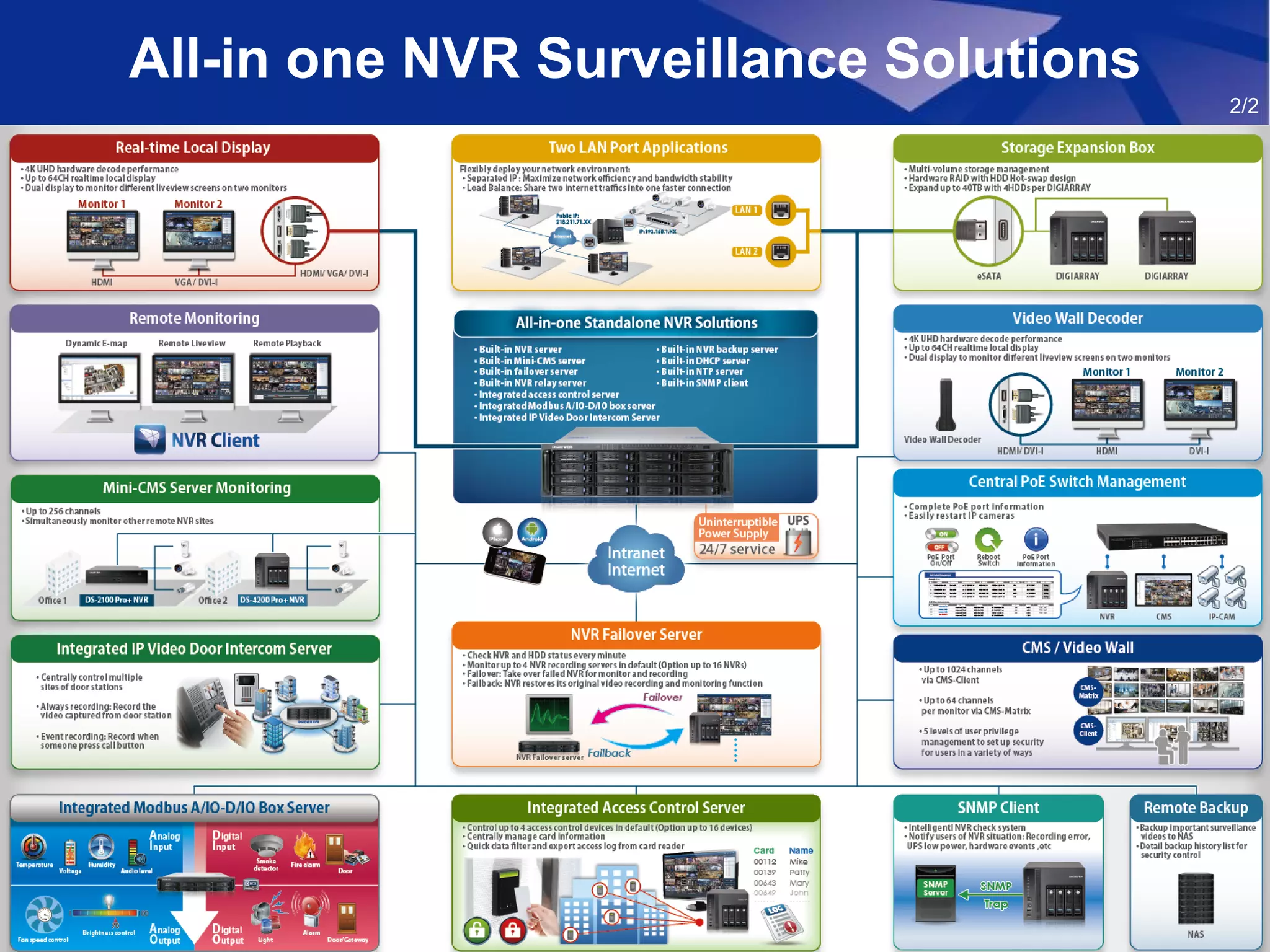

All-in one NVR Surveillance Solutions

DIGIEVER NVR Model
Naming Rule

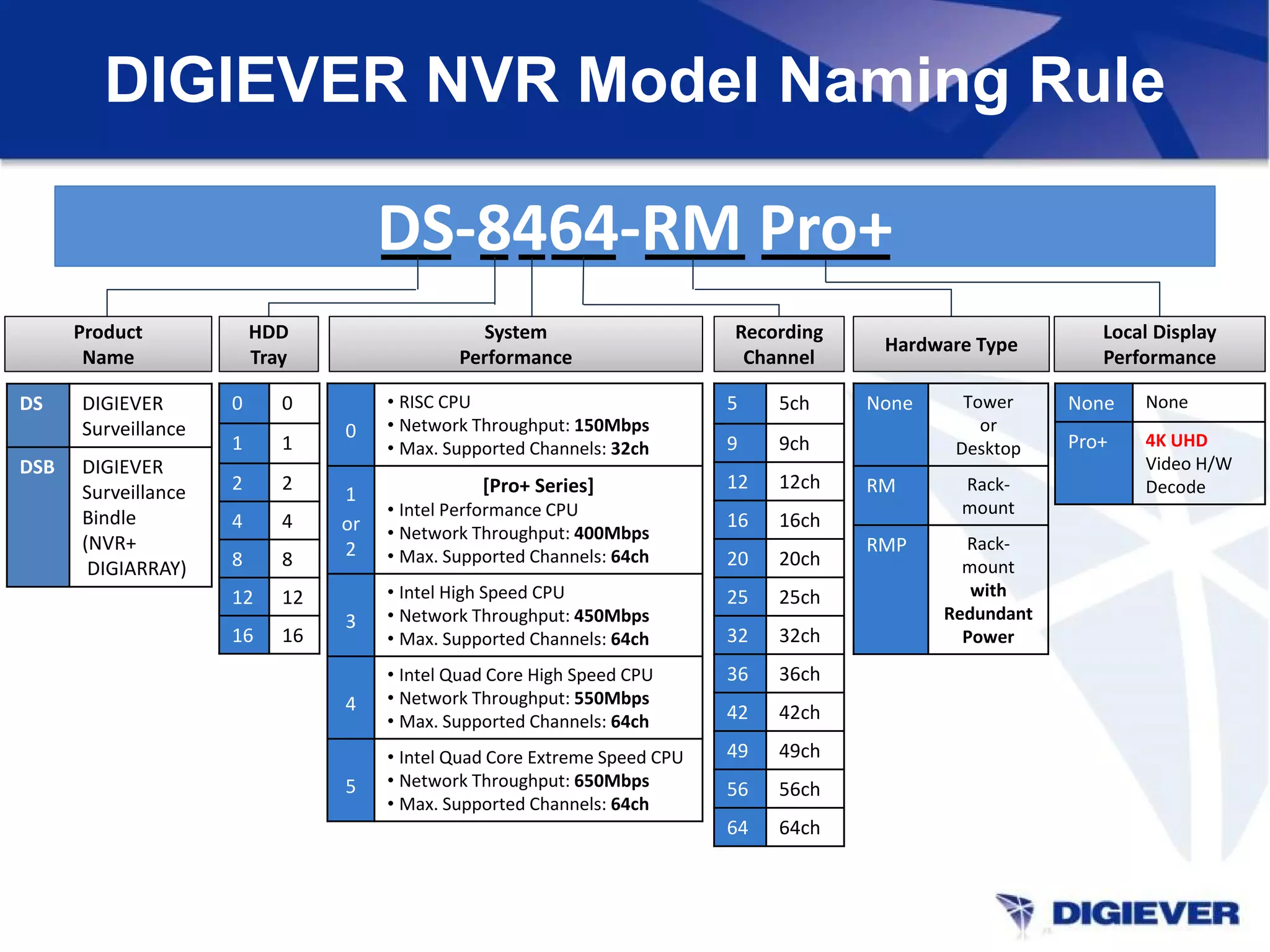

DIGIEVER NVR Model Naming Rule
DS-8464-RM Pro+DS-8464-RM Pro+
Product
Name
HDD
Tray
System
Performance
Recording
Channel
Hardware Type
Local Display
Performance
0 0
1 1
2 2
4 4
8 8
12 12
16 16
0
• RISC CPU
• Network Throughput: 150Mbps
• Max. Supported Channels: 32ch
1
or
2
[Pro+ Series]
• Intel Performance CPU
3
• Intel High Speed CPU
4
• Intel Quad Core High Speed CPU
5
• Intel Quad Core Extreme Speed CPU
5 5ch
9 9ch
12 12ch
16 16ch
20 20ch
25 25ch
32 32ch
36 36ch
42 42ch
49 49ch
56 56ch
64 64ch
None Tower
or
Desktop
RM Rack-
mount
RMP Rack-
mount
with
Redundant
Power
None None
Pro+ 4K UHD
Video H/W
Decode
DS DIGIEVER
Surveillance
DSB DIGIEVER
Surveillance
Bindle
(NVR+
DIGIARRAY)

Series HDD
Tray
CPU Local Display Max. Channels
Rec/ Local Display
Network
Throughput

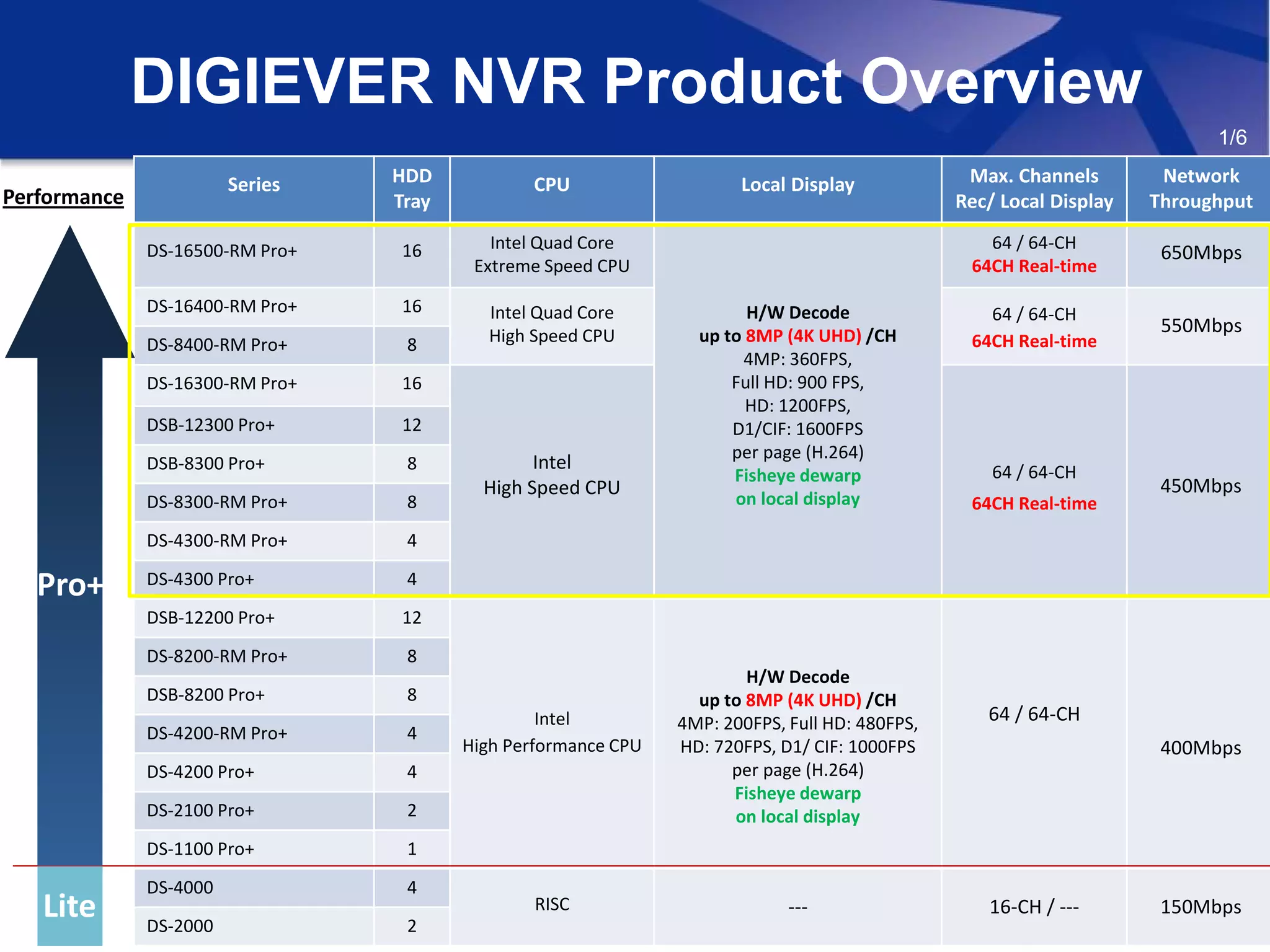

DS-16500-RM Pro+ 16 Intel Quad Core
Extreme Speed CPU
H/W Decode
up to 8MP (4K UHD) /CH
4MP: 360FPS,
Full HD: 900 FPS,
HD: 1200FPS,
D1/CIF: 1600FPS
per page (H.264)
Fisheye dewarp
on local display
64 / 64-CH
64CH Real-time
650Mbps
DS-16400-RM Pro+ 16 Intel Quad Core
High Speed CPU
64 / 64-CH
64CH Real-time
550Mbps
DS-8400-RM Pro+ 8
DS-16300-RM Pro+ 16
Intel
High Speed CPU
64 / 64-CH
64CH Real-time
450Mbps
DSB-12300 Pro+ 12
DSB-8300 Pro+ 8
DS-8300-RM Pro+ 8
DS-4300-RM Pro+ 4
DS-4300 Pro+ 4
DSB-12200 Pro+ 12
Intel
High Performance CPU
H/W Decode
up to 8MP (4K UHD) /CH
4MP: 200FPS, Full HD: 480FPS,
HD: 720FPS, D1/ CIF: 1000FPS
per page (H.264)
Fisheye dewarp
on local display
64 / 64-CH
400Mbps
DS-8200-RM Pro+ 8
DSB-8200 Pro+ 8
DS-4200-RM Pro+ 4
DS-4200 Pro+ 4
DS-2100 Pro+ 2
DS-1100 Pro+ 1
DS-4000 4
RISC --- 16-CH / --- 150Mbps
DS-2000 2
Pro
Lite
Pro+
Performance
1/6

Pro+ V & IV Series Lite Series

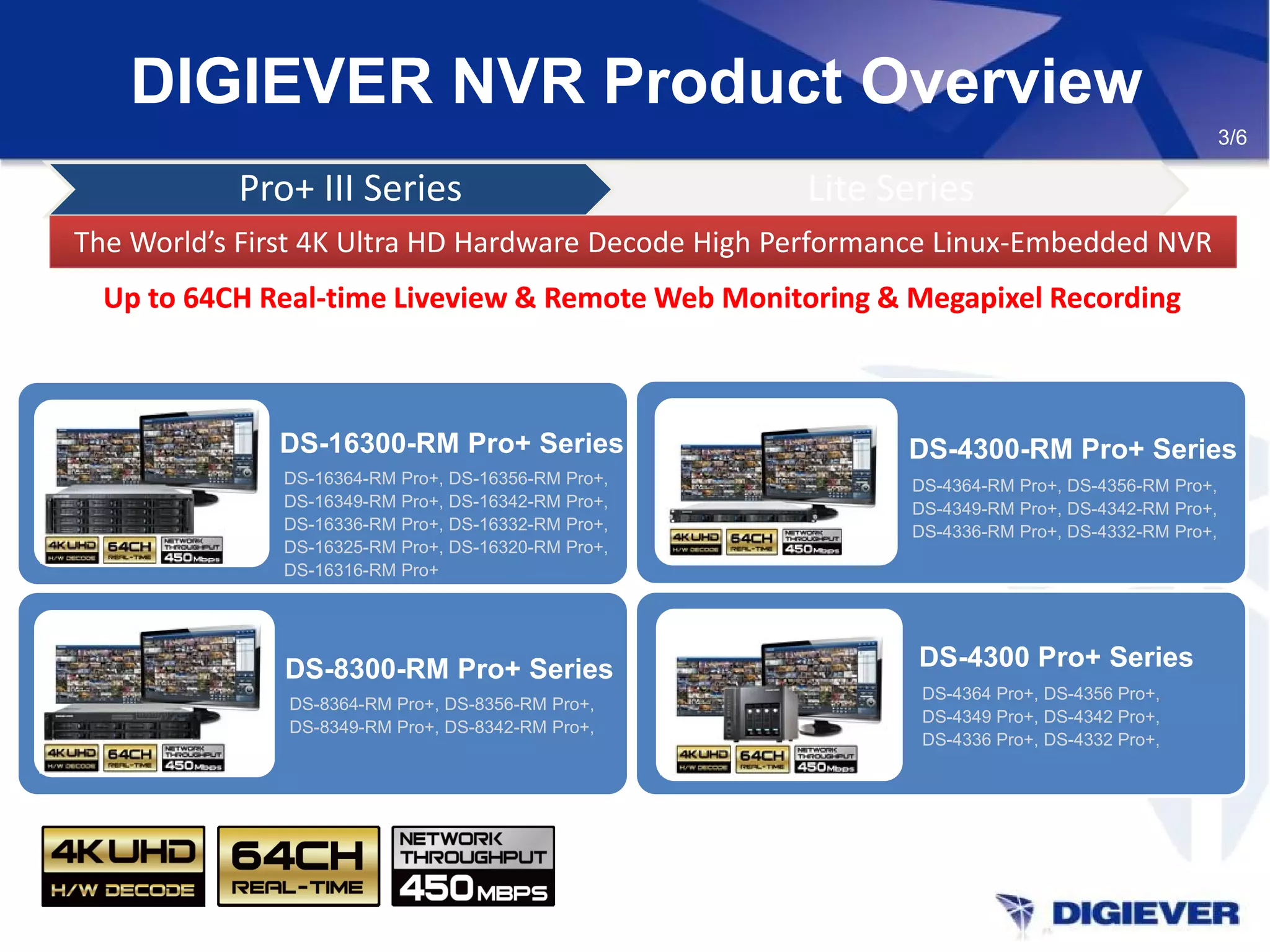

The World’s First 4K Ultra HD Hardware Decode High Performance Linux-Embedded NVRThe World’s First 4K Ultra HD Hardware Decode High Performance Linux-Embedded NVR
2/6
Up to 64CH Real-time Liveview & Remote Web Monitoring & Megapixel RecordingUp to 64CH Real-time Liveview & Remote Web Monitoring & Megapixel Recording
DS-8400-RM Pro+ Series
DS-8464-RM Pro+, DS-8456-RM Pro+,

Pro+ III Series Lite Series
3/6
DS-4300 Pro+ Series
DS-4364 Pro+, DS-4356 Pro+,
DS-4349 Pro+, DS-4342 Pro+,
DS-4336 Pro+, DS-4332 Pro+,
DS-16316-RM Pro+
Up to 64CH Real-time Liveview & Remote Web Monitoring & Megapixel RecordingUp to 64CH Real-time Liveview & Remote Web Monitoring & Megapixel Recording

Pro+ Series Lite Series
DS-4209-RM Pro+
DS-4200 Pro+ Series
DS-4264 Pro+, DS-4256 Pro+, DS-4249 Pro+,
DS-4212 Pro+, DS-4209 Pro+, DS-4205 Pro+
DS-8209-RM Pro+
DS-2100 Pro+ Series
DS-1100 Pro+ Series
DS-1164 Pro+, DS-1156 Pro+, DS-1149Pro+,
4/6

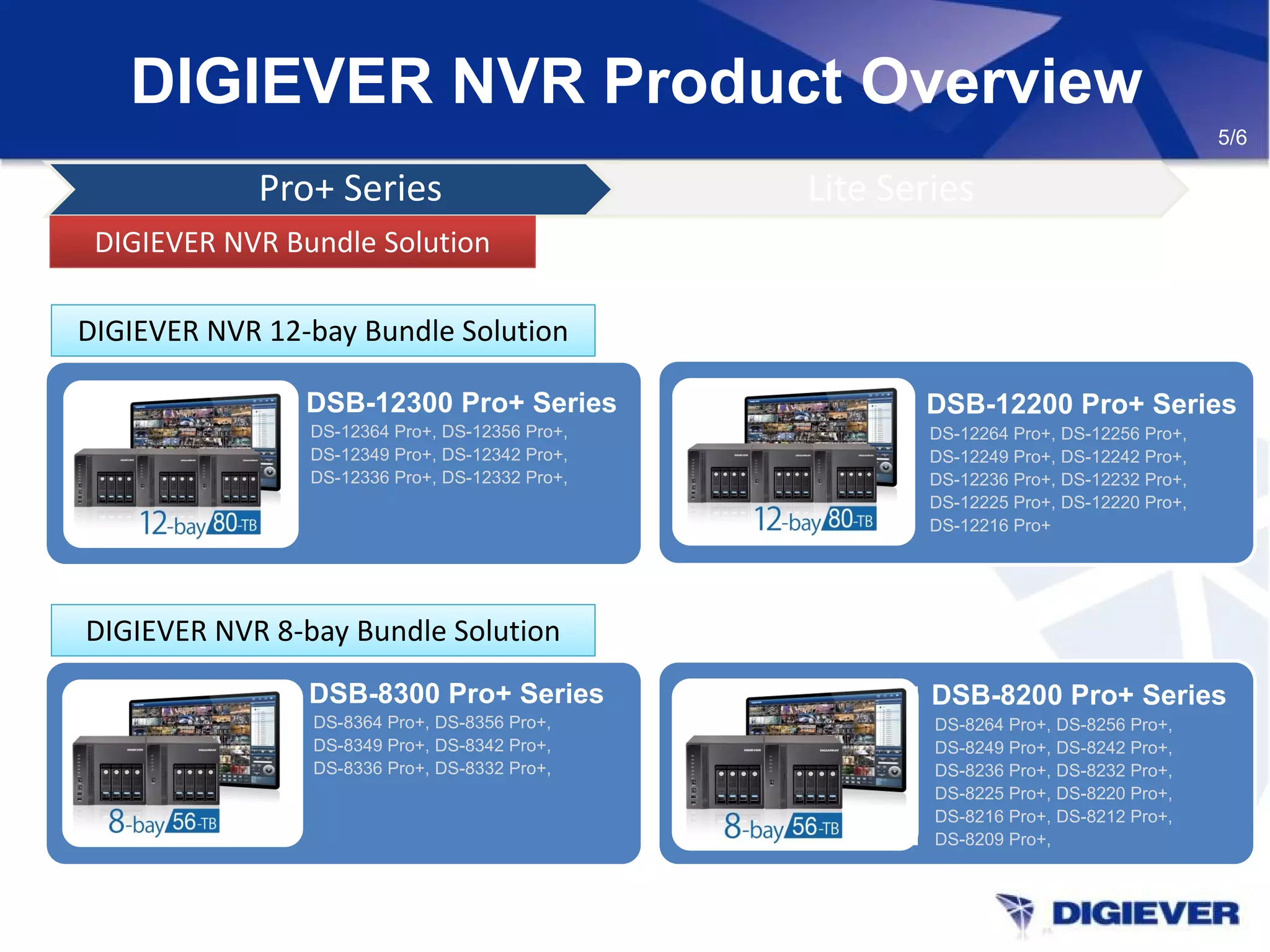

DIGIEVER NVR Bundle SolutionDIGIEVER NVR Bundle Solution
5/6
DSB-12200 Pro+ Series
DS-12264 Pro+, DS-12256 Pro+,
DS-12249 Pro+, DS-12242 Pro+,
DS-12236 Pro+, DS-12232 Pro+,
DS-12225 Pro+, DS-12220 Pro+,
DS-12216 Pro+
DS-8364 Pro+, DS-8356 Pro+,
DS-8349 Pro+, DS-8342 Pro+,
DS-8336 Pro+, DS-8332 Pro+,
DS-8264 Pro+, DS-8256 Pro+,
DS-8249 Pro+, DS-8242 Pro+,
DS-8236 Pro+, DS-8232 Pro+,
DS-8225 Pro+, DS-8220 Pro+,
DS-8216 Pro+, DS-8212 Pro+,
DS-8209 Pro+,
DS-12364 Pro+, DS-12356 Pro+,
DS-12349 Pro+, DS-12342 Pro+,
DS-12336 Pro+, DS-12332 Pro+,
DIGIEVER NVR 12-bay Bundle SolutionDIGIEVER NVR 12-bay Bundle Solution
DIGIEVER NVR 8-bay Bundle SolutionDIGIEVER NVR 8-bay Bundle Solution

DS-4000 Series
DS-4016, DS-4012, DS-4009, DS-4005
DS-2000 Series
DS-2016,DS-2012, DS-2009, DS-2005
6/6

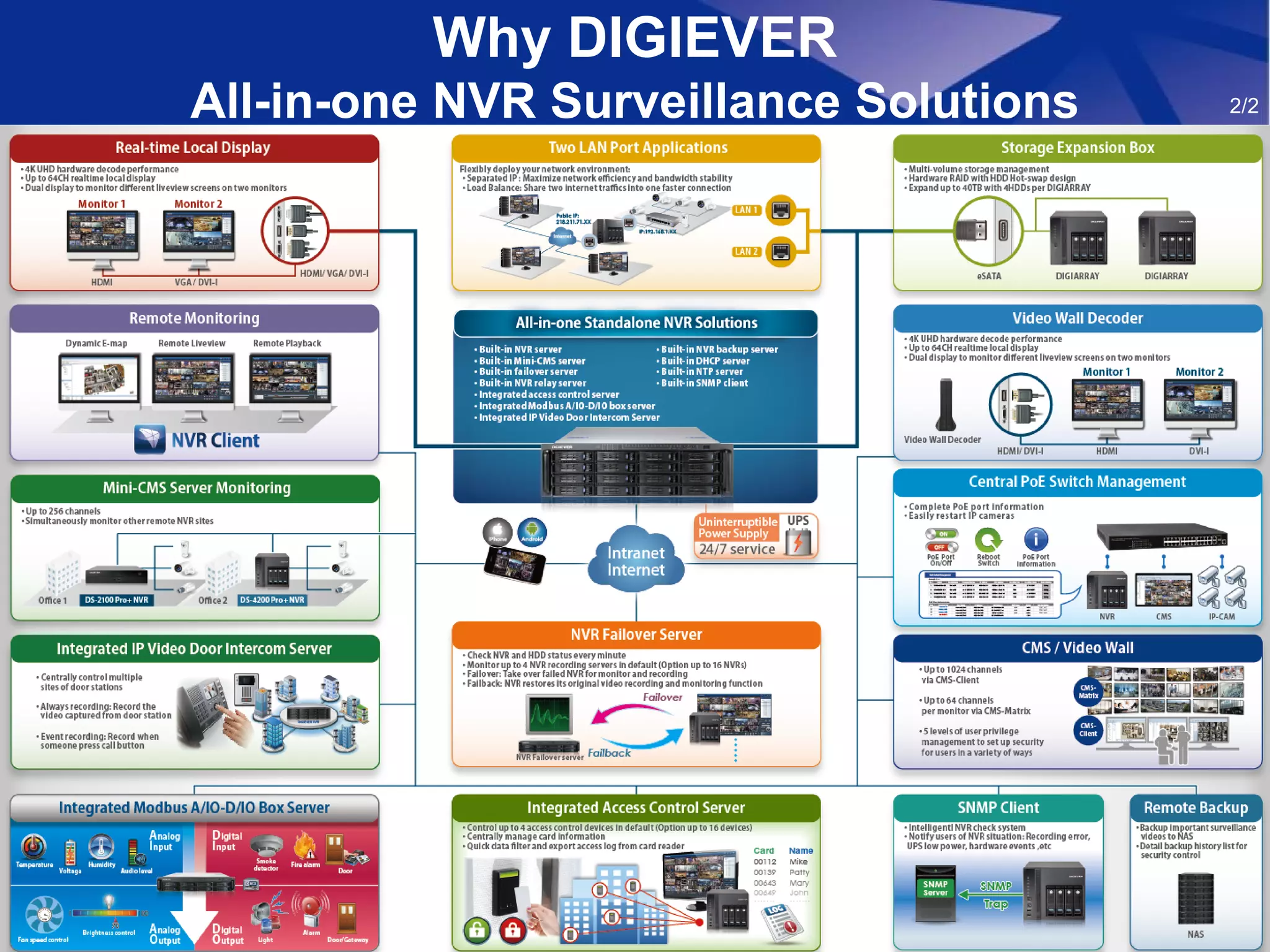

All-in-one Features of
DIGIEVER NVR

All-in-one Features of DIGIEVER NVR
• Brilliant 4K Ultra HD Local Display
• Numerous Image Patterns
• Superior Hardware Design
• UPS Support
• Quick Configuration
• Same UI for Remote and Local
• Real-time Remote Monitoring

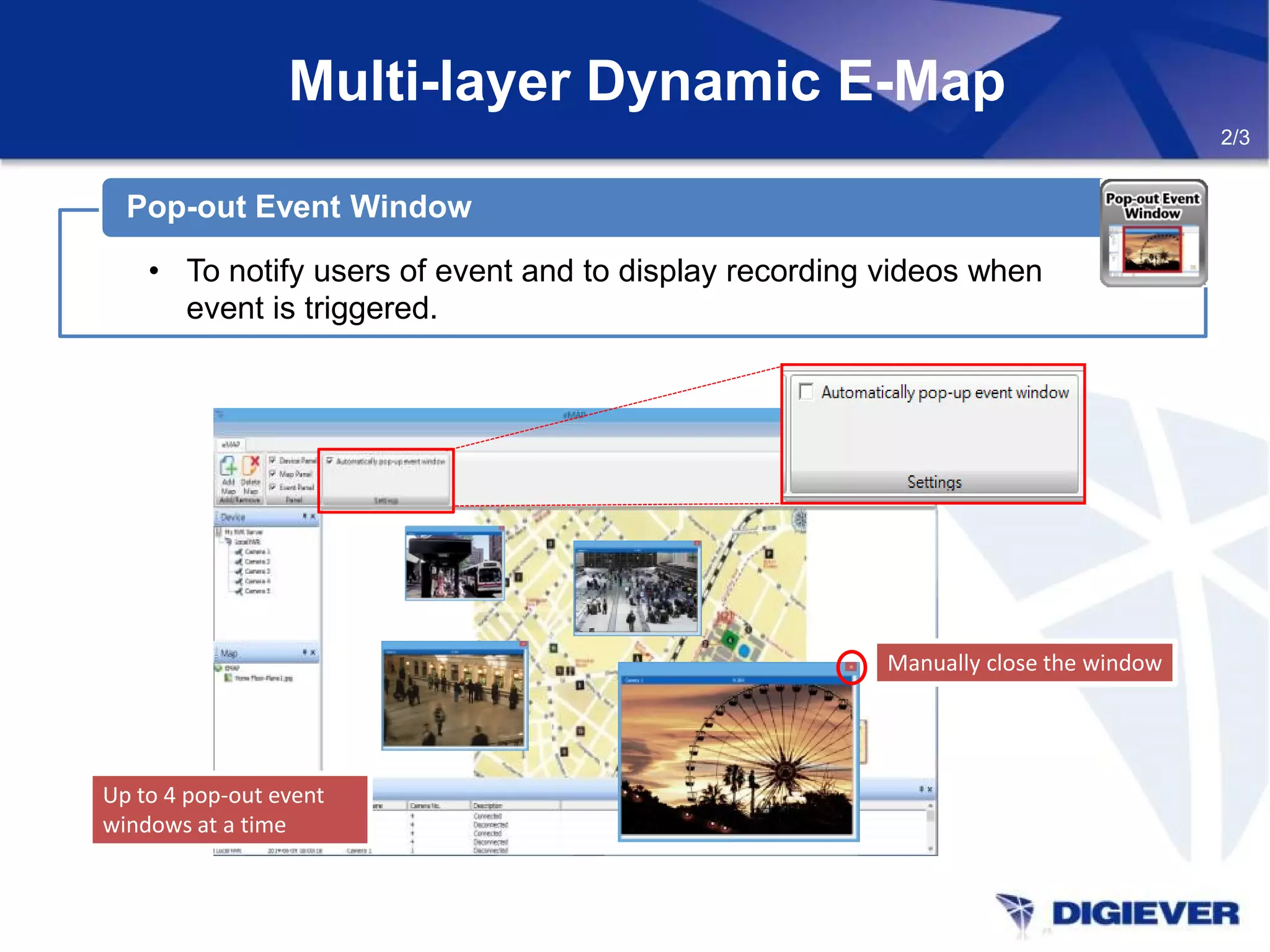

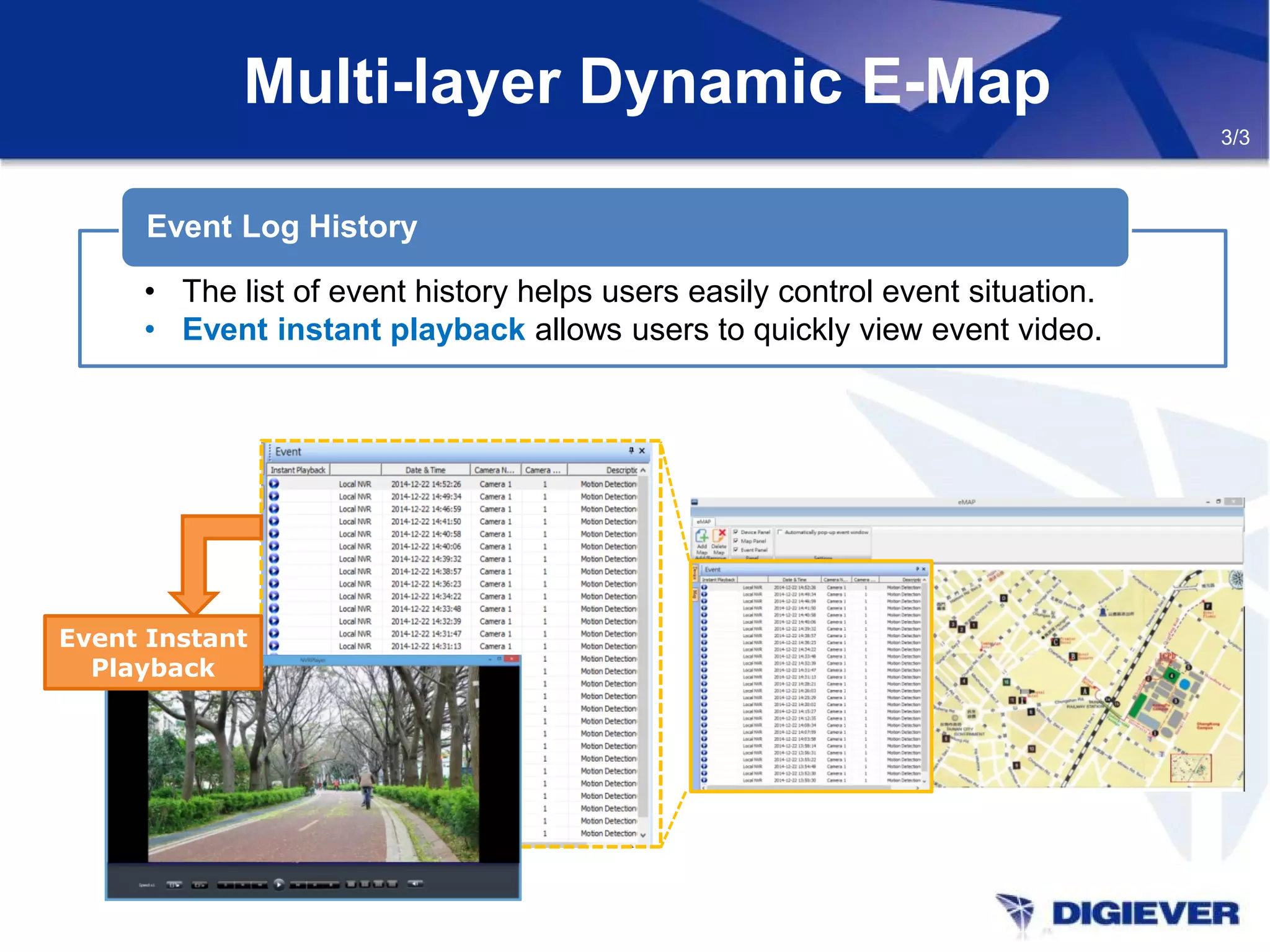

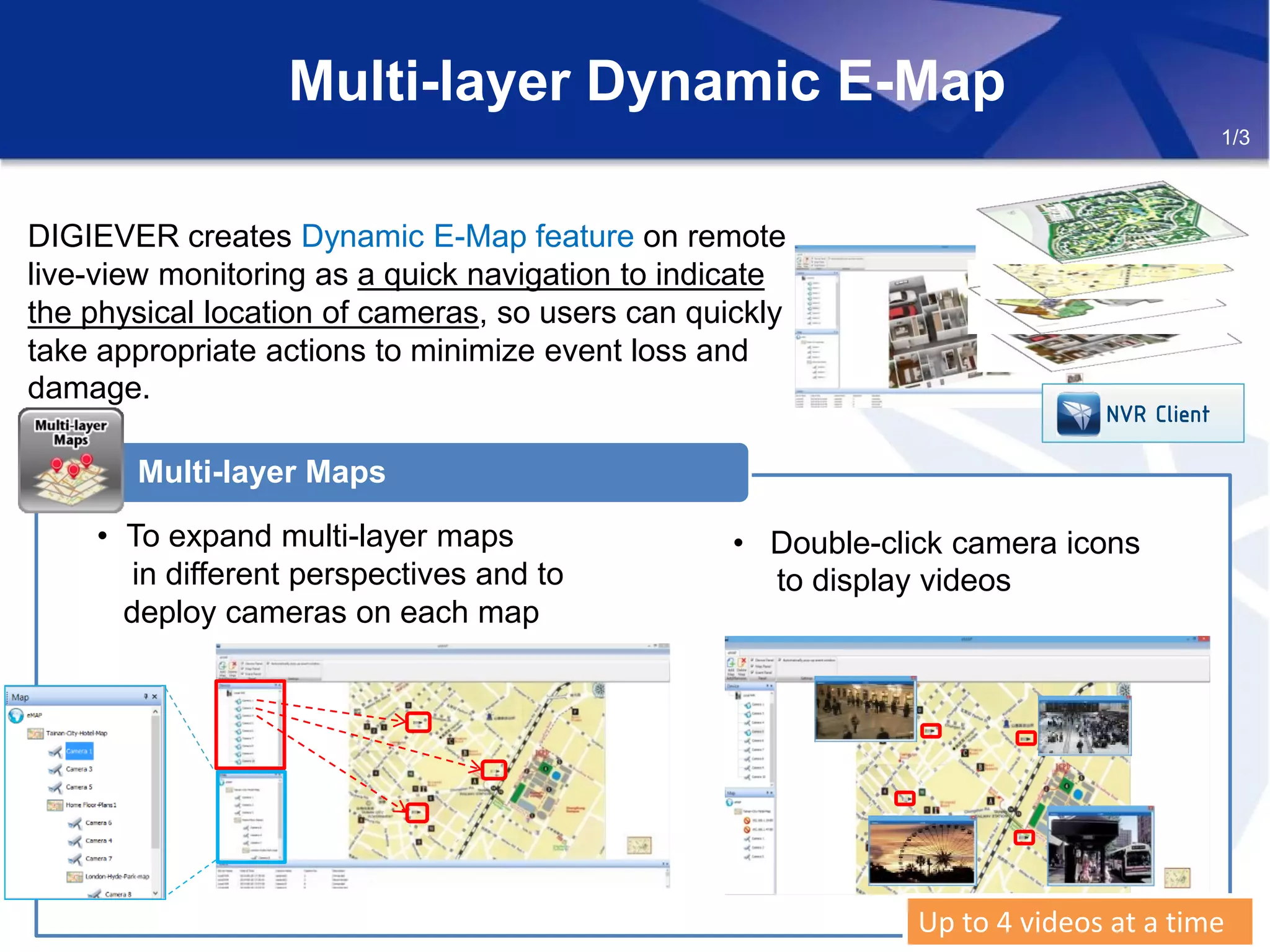

• Multi-layer Dynamic E-Map

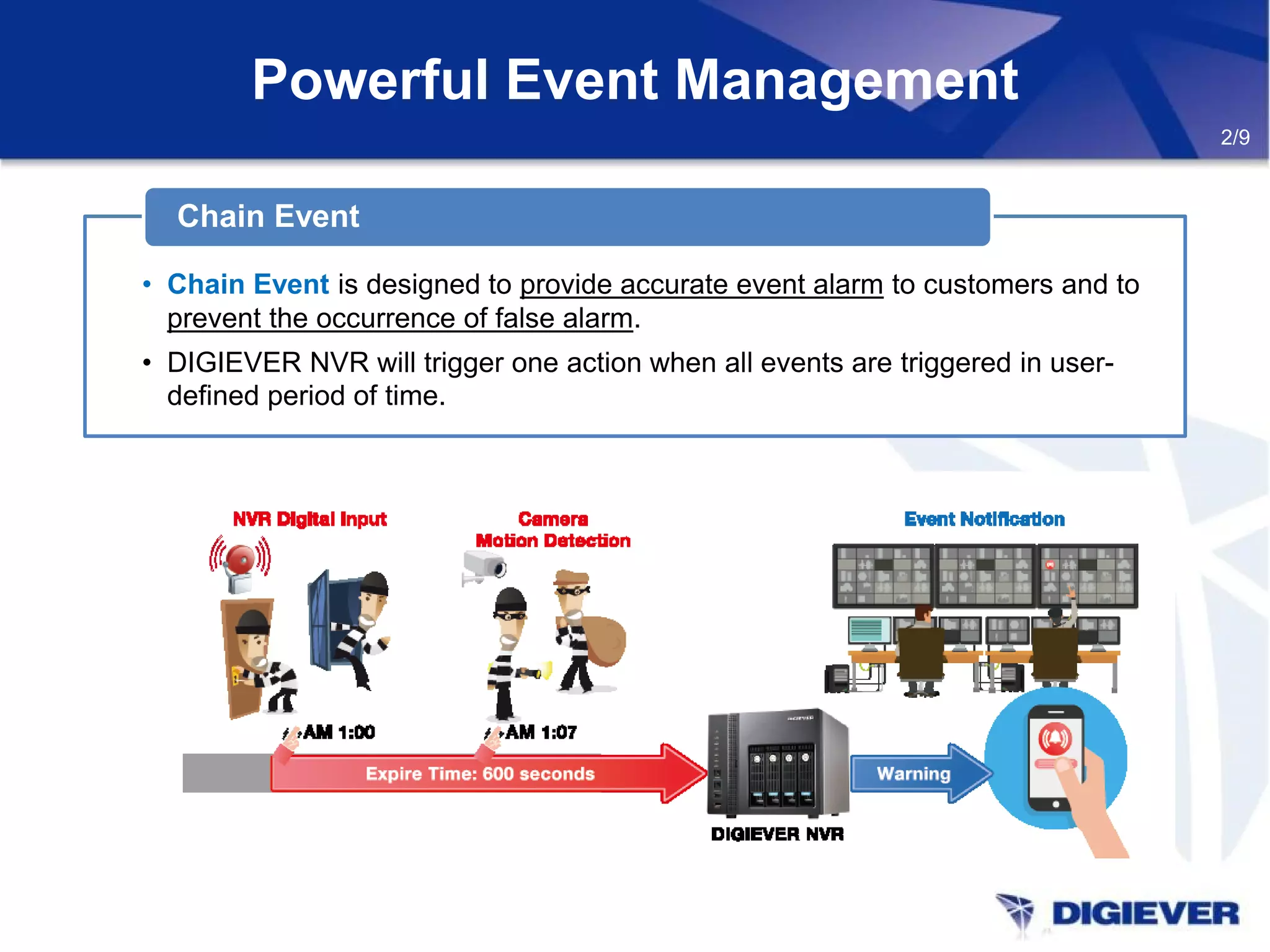

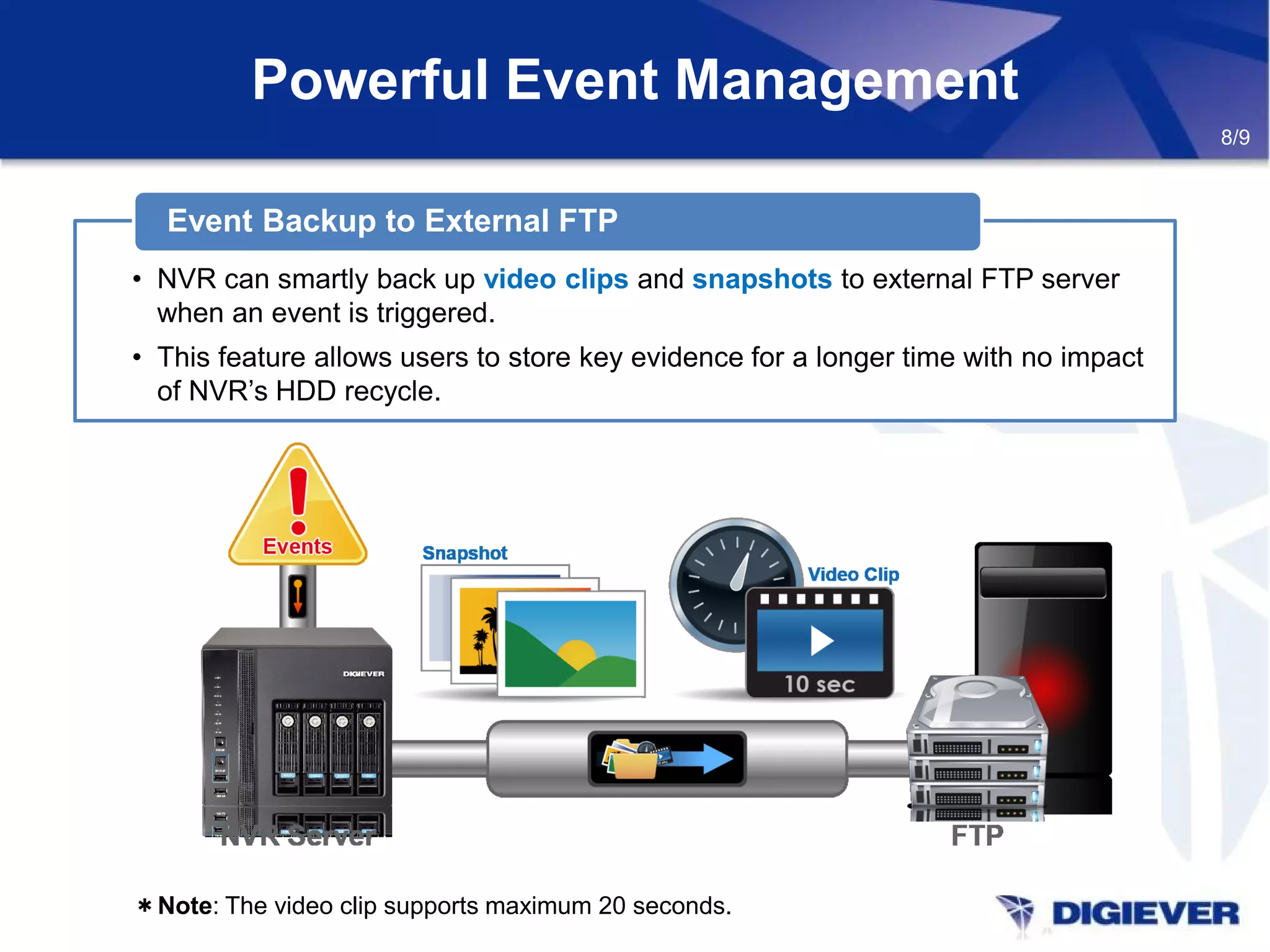

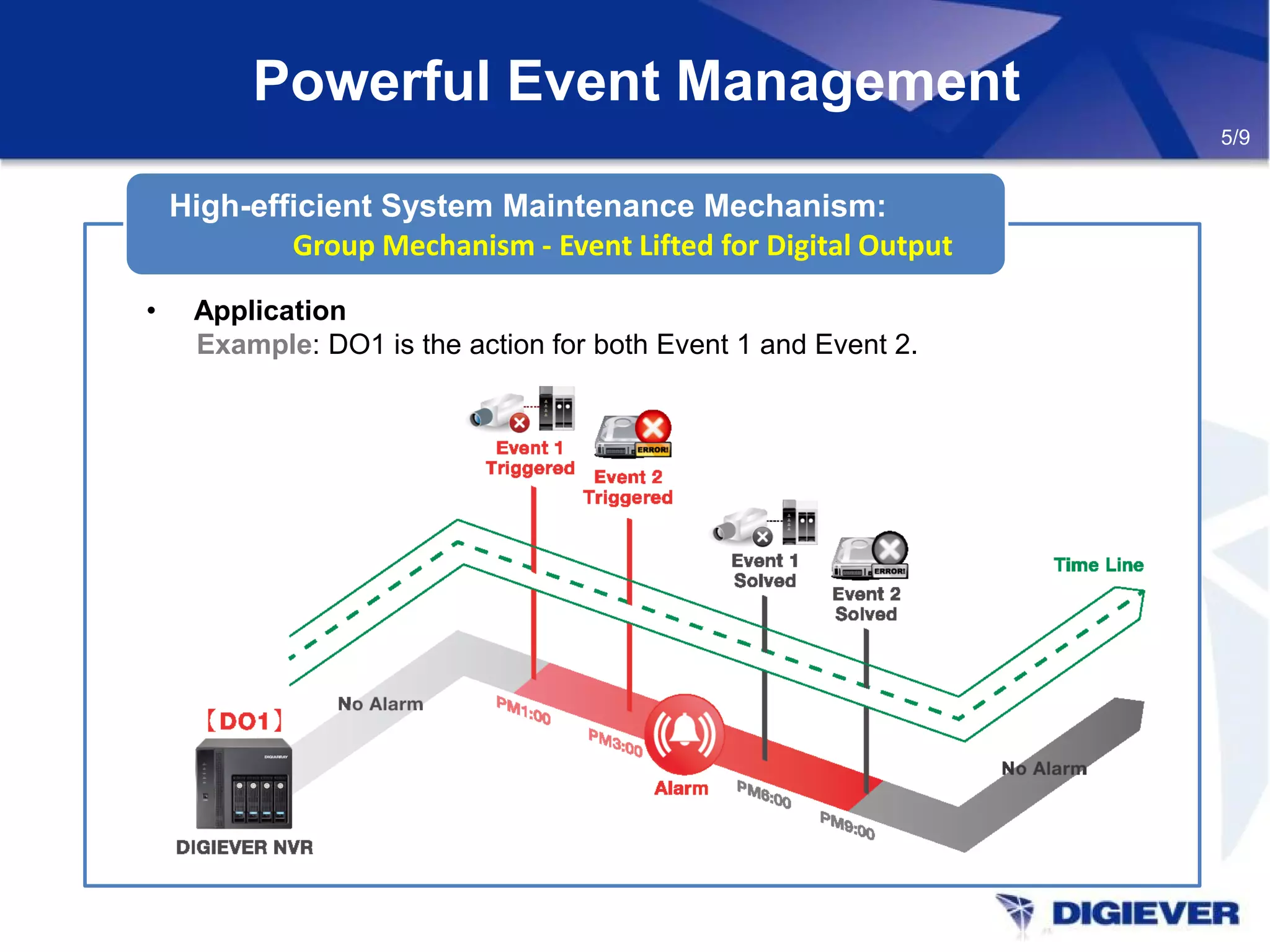

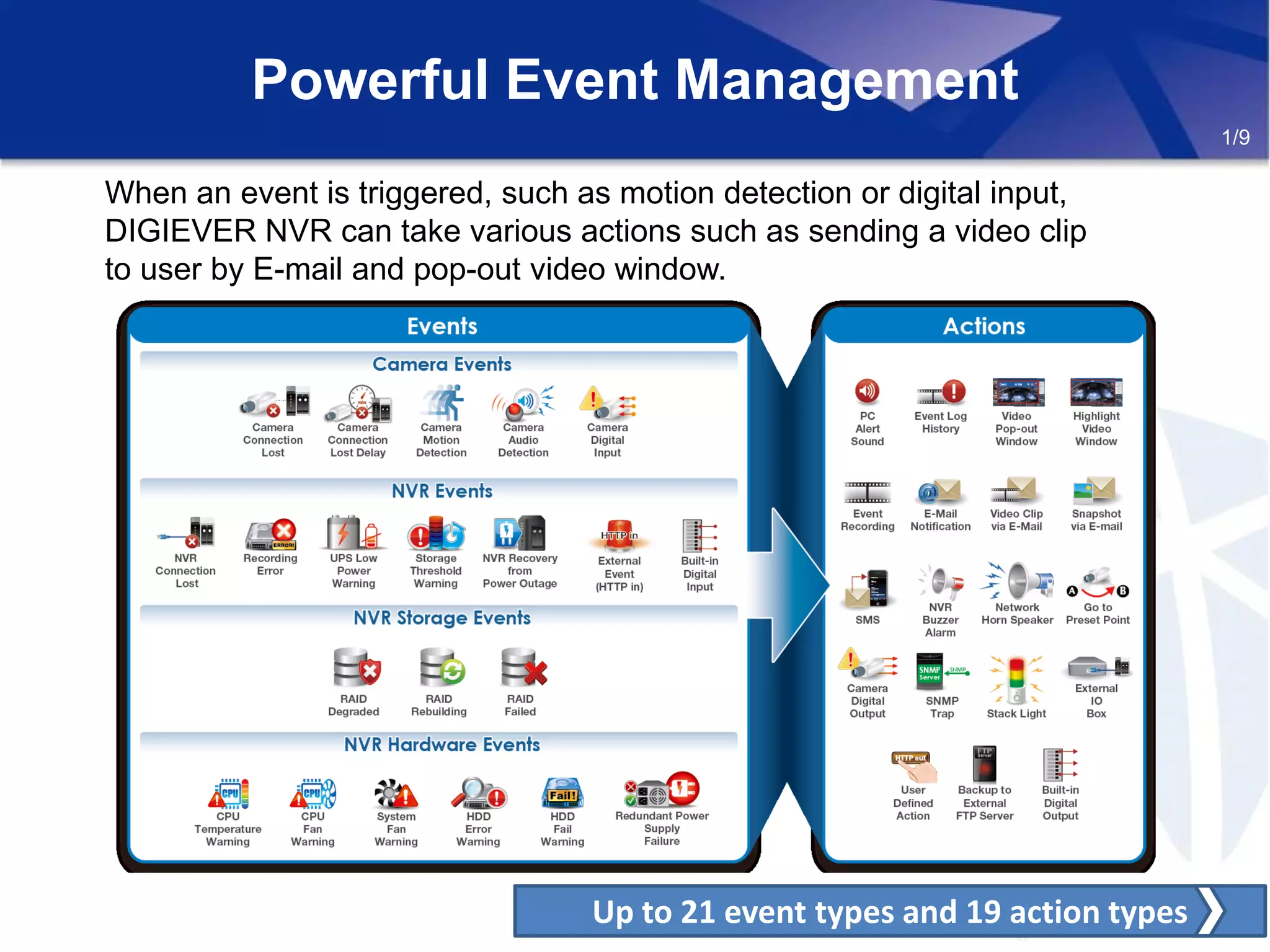

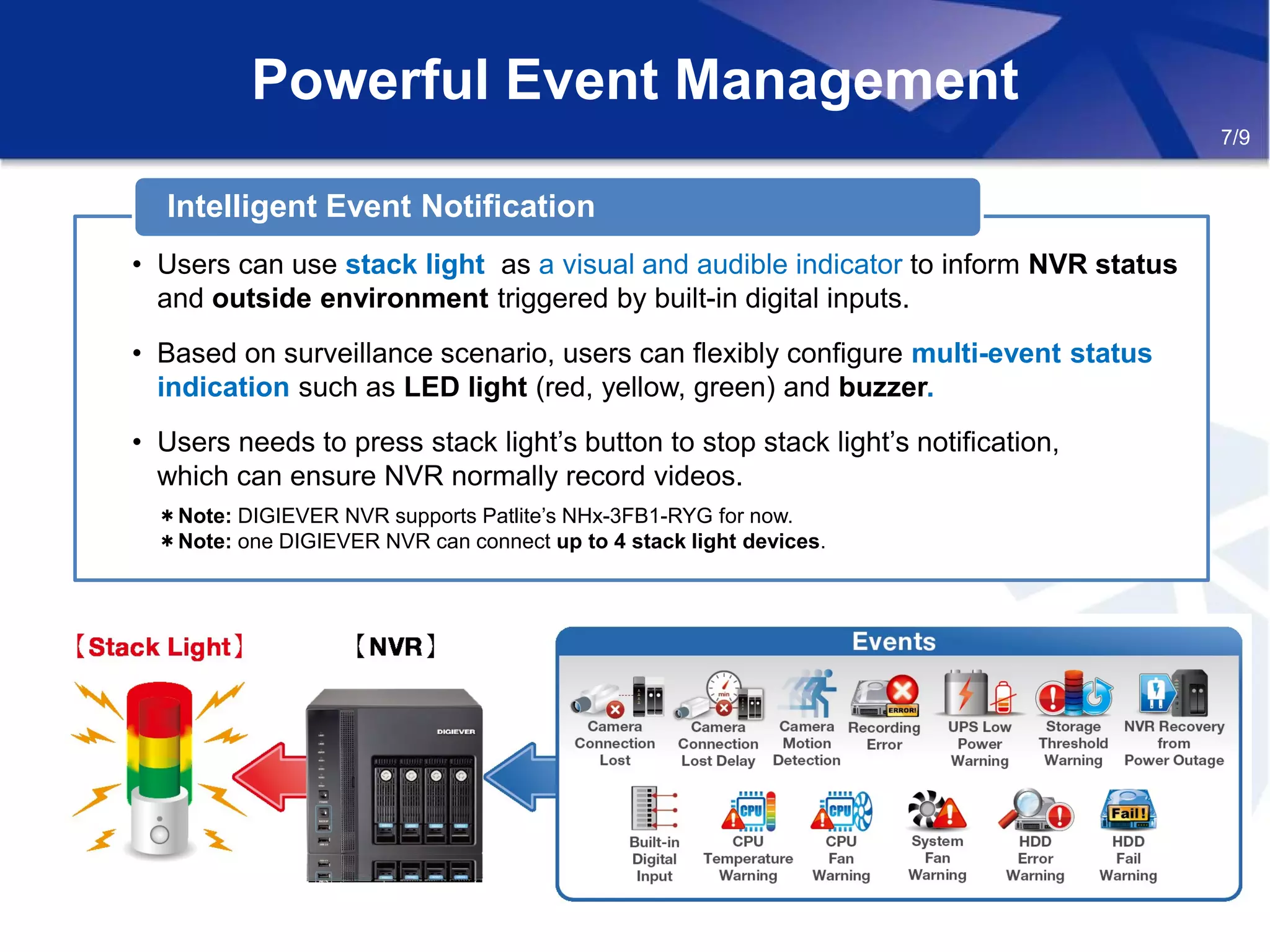

• Powerful Event Management

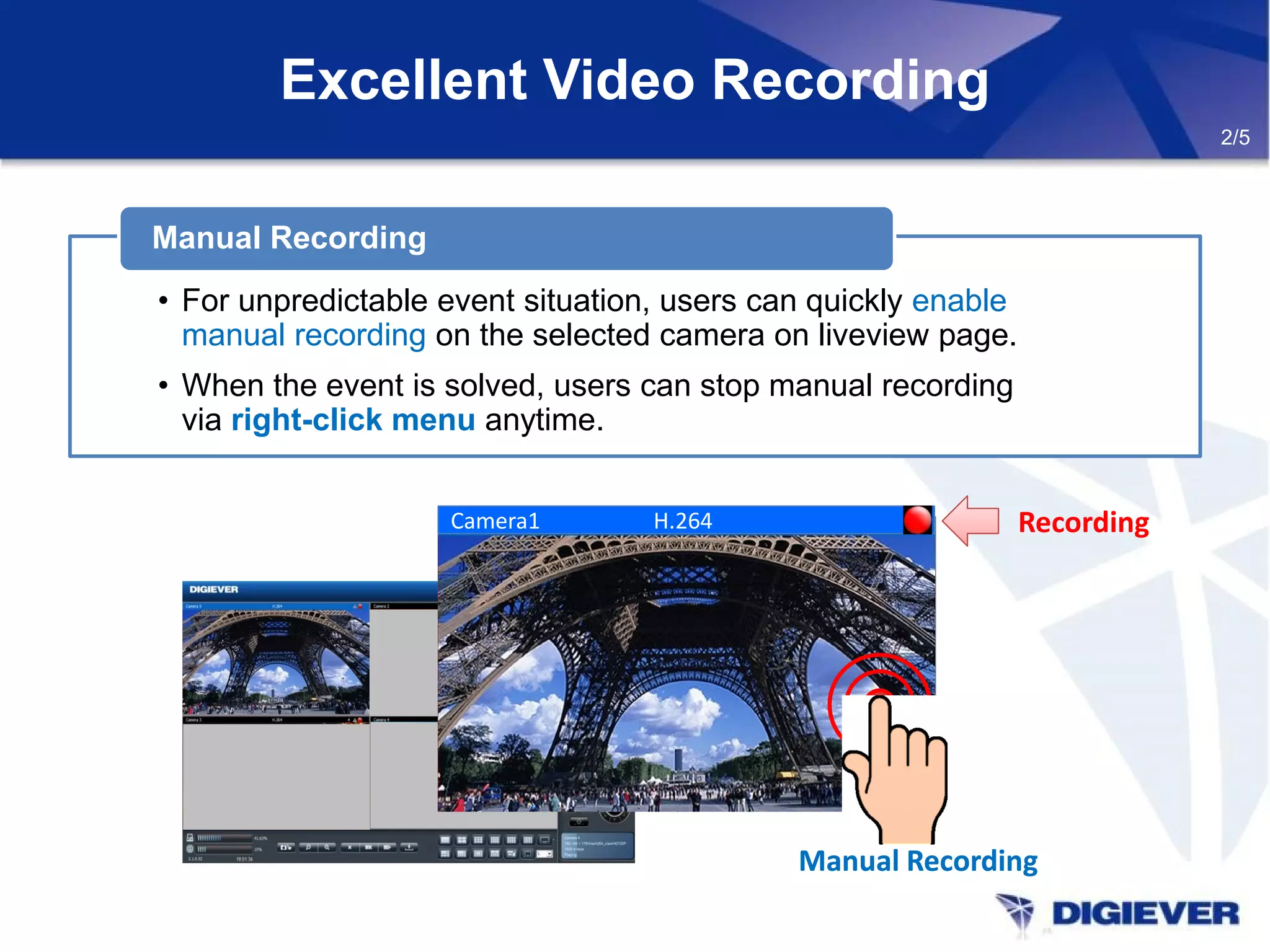

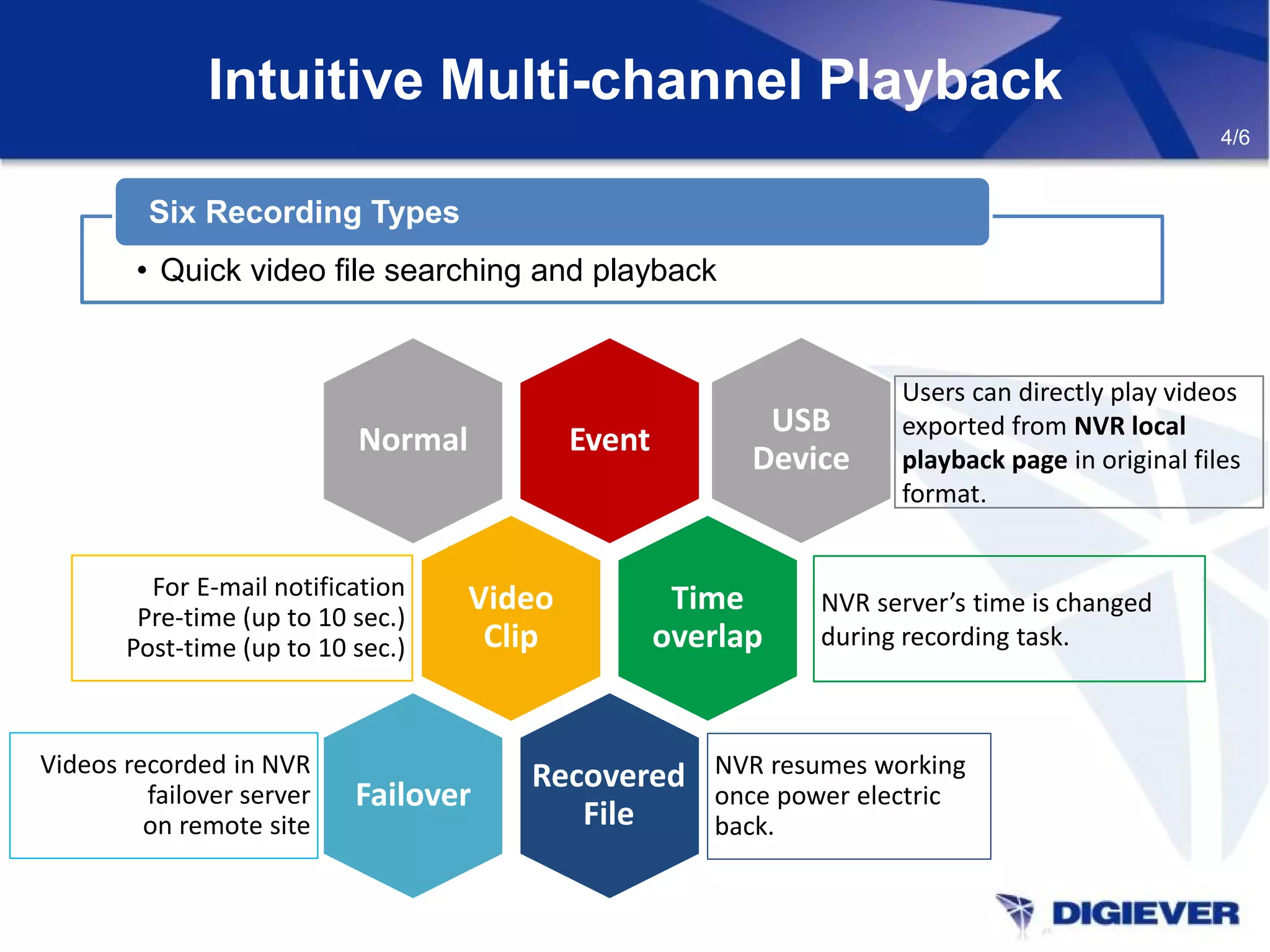

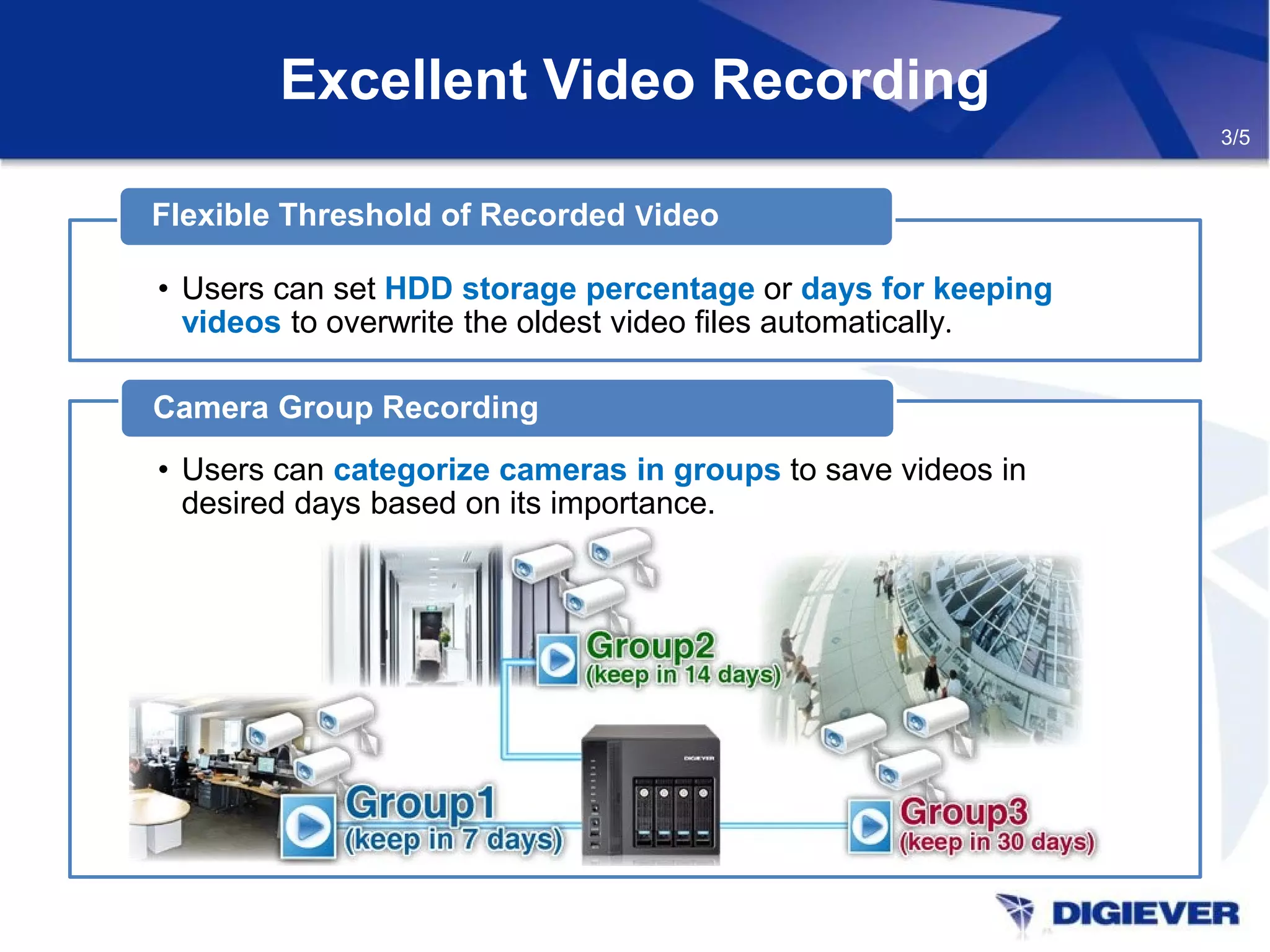

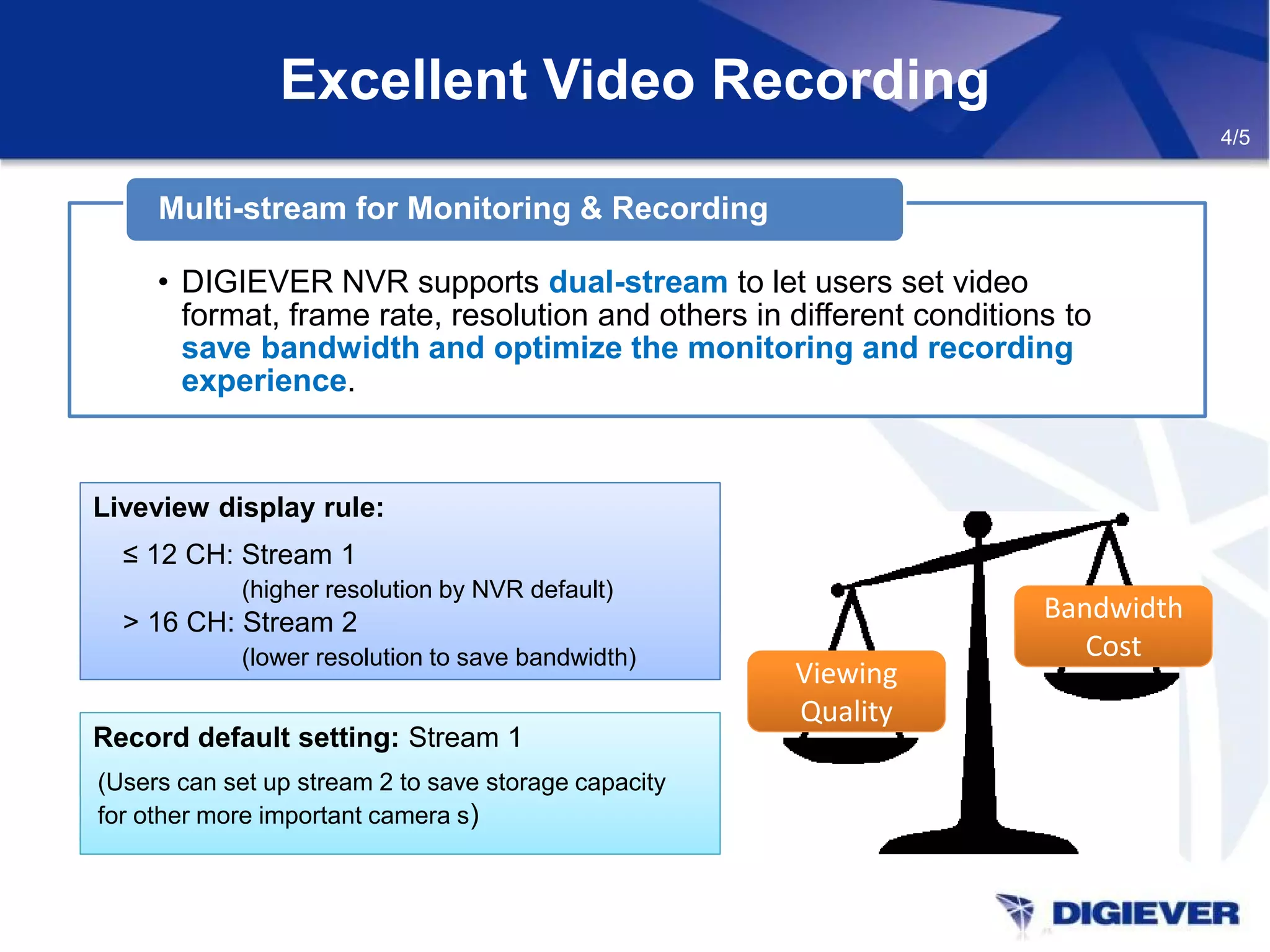

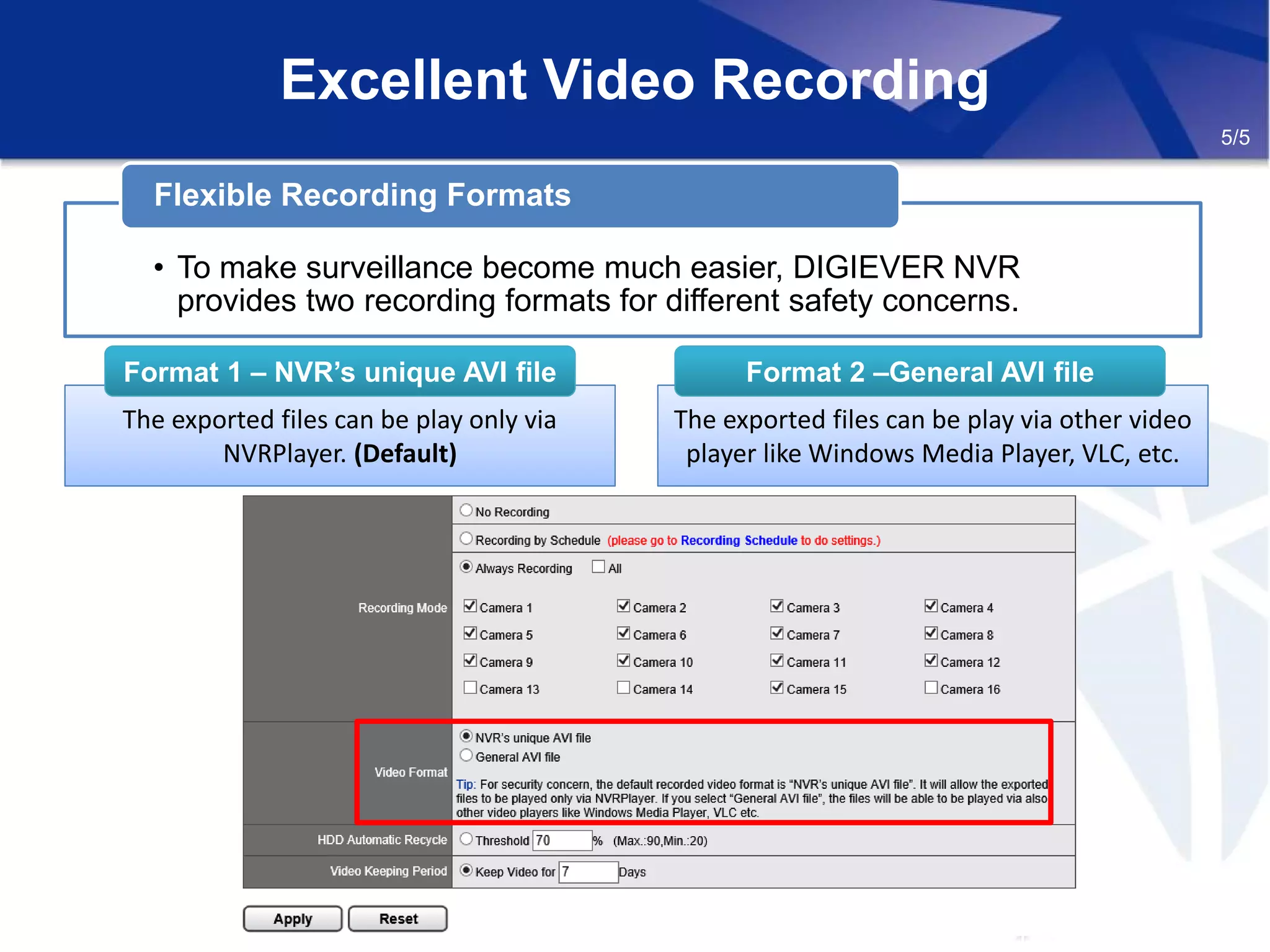

• Excellent Video Recording

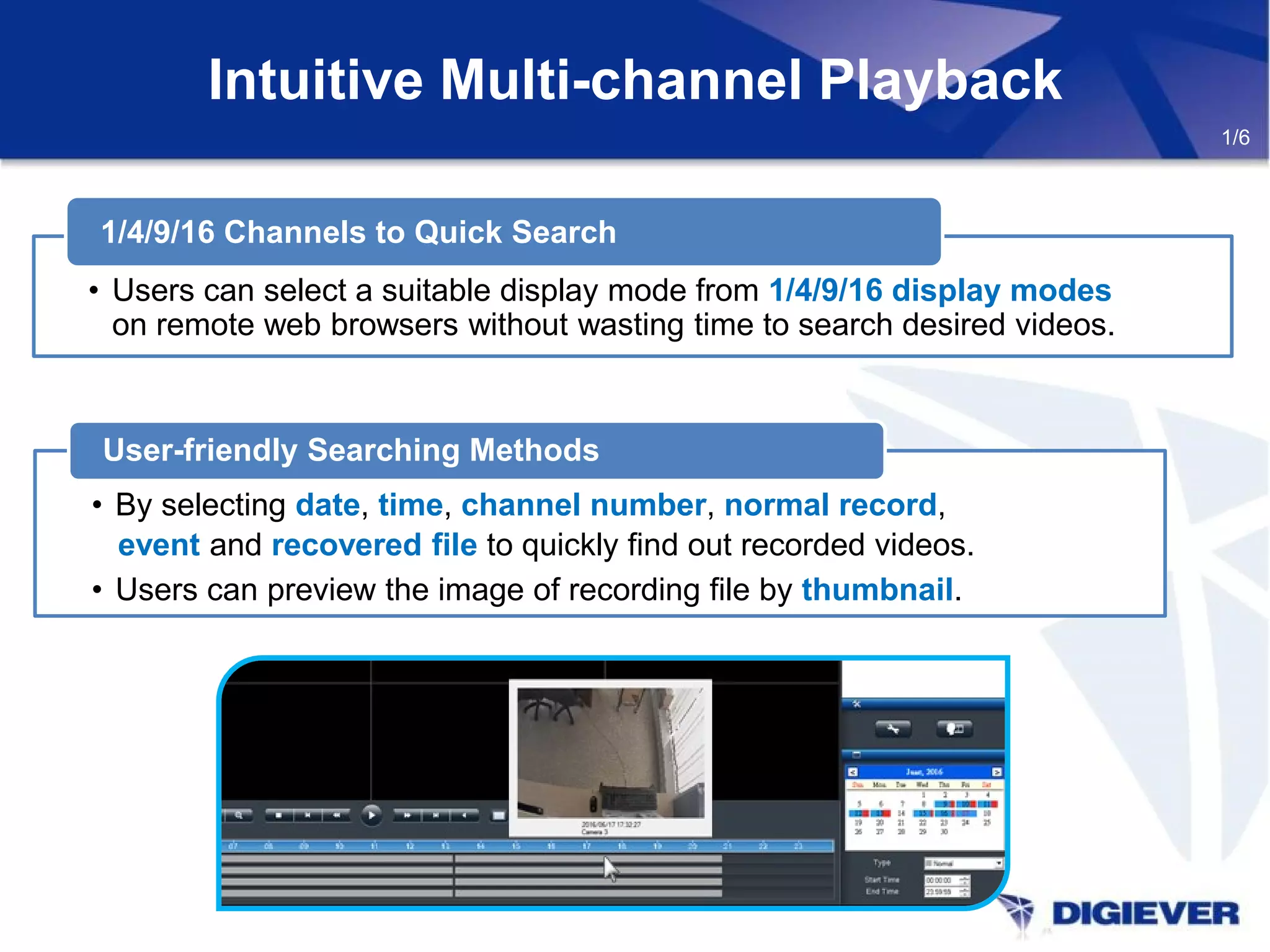

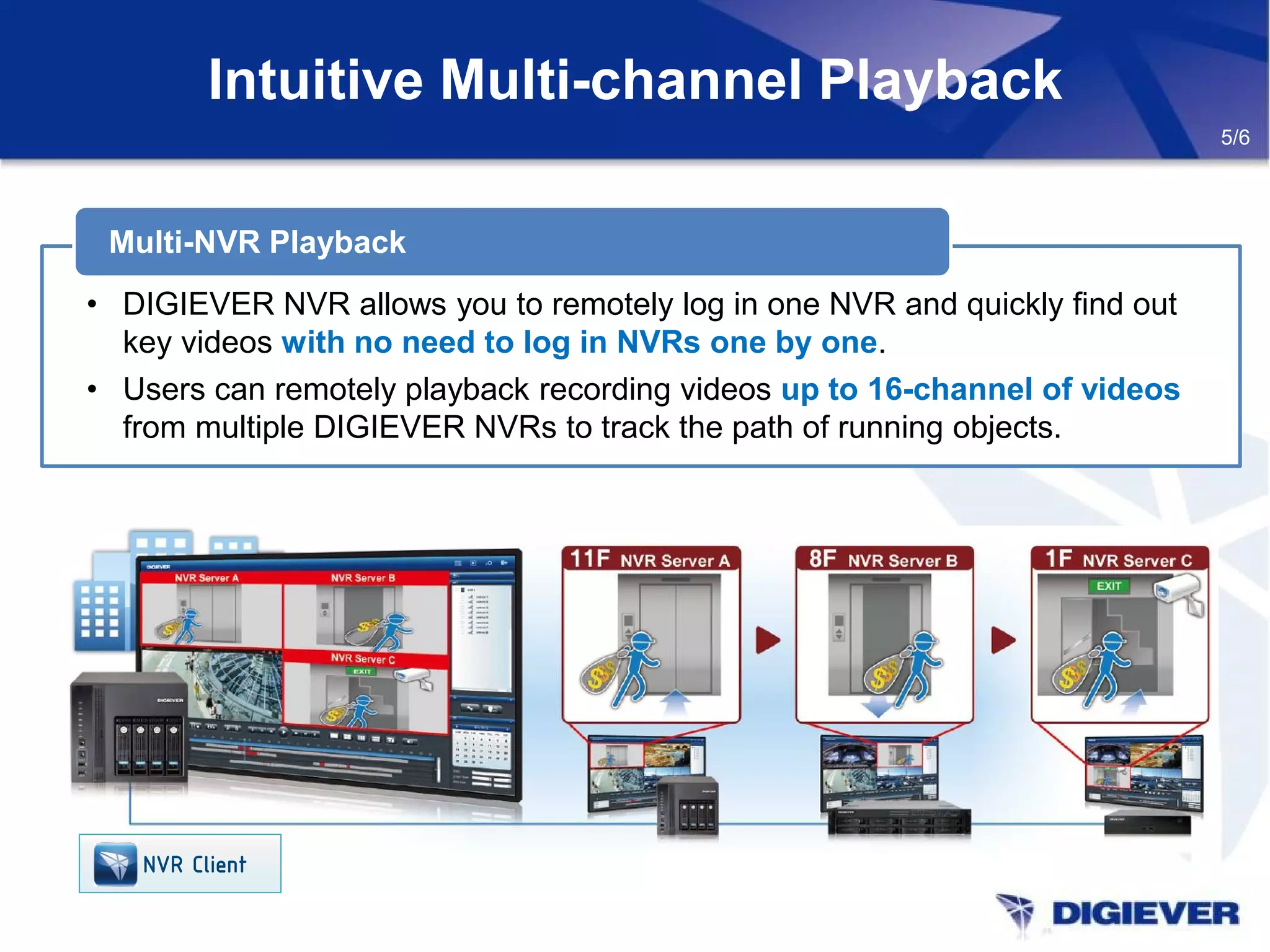

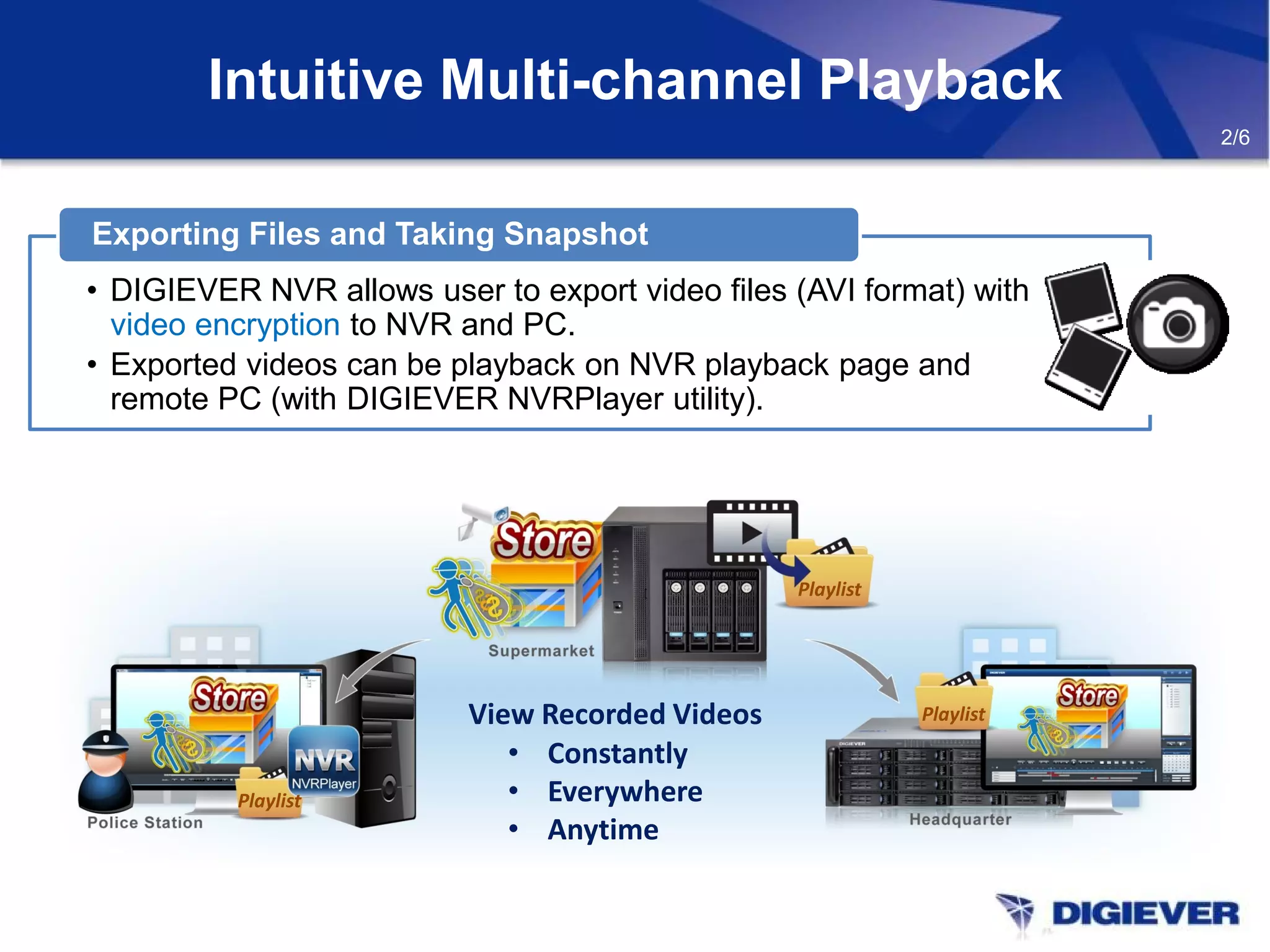

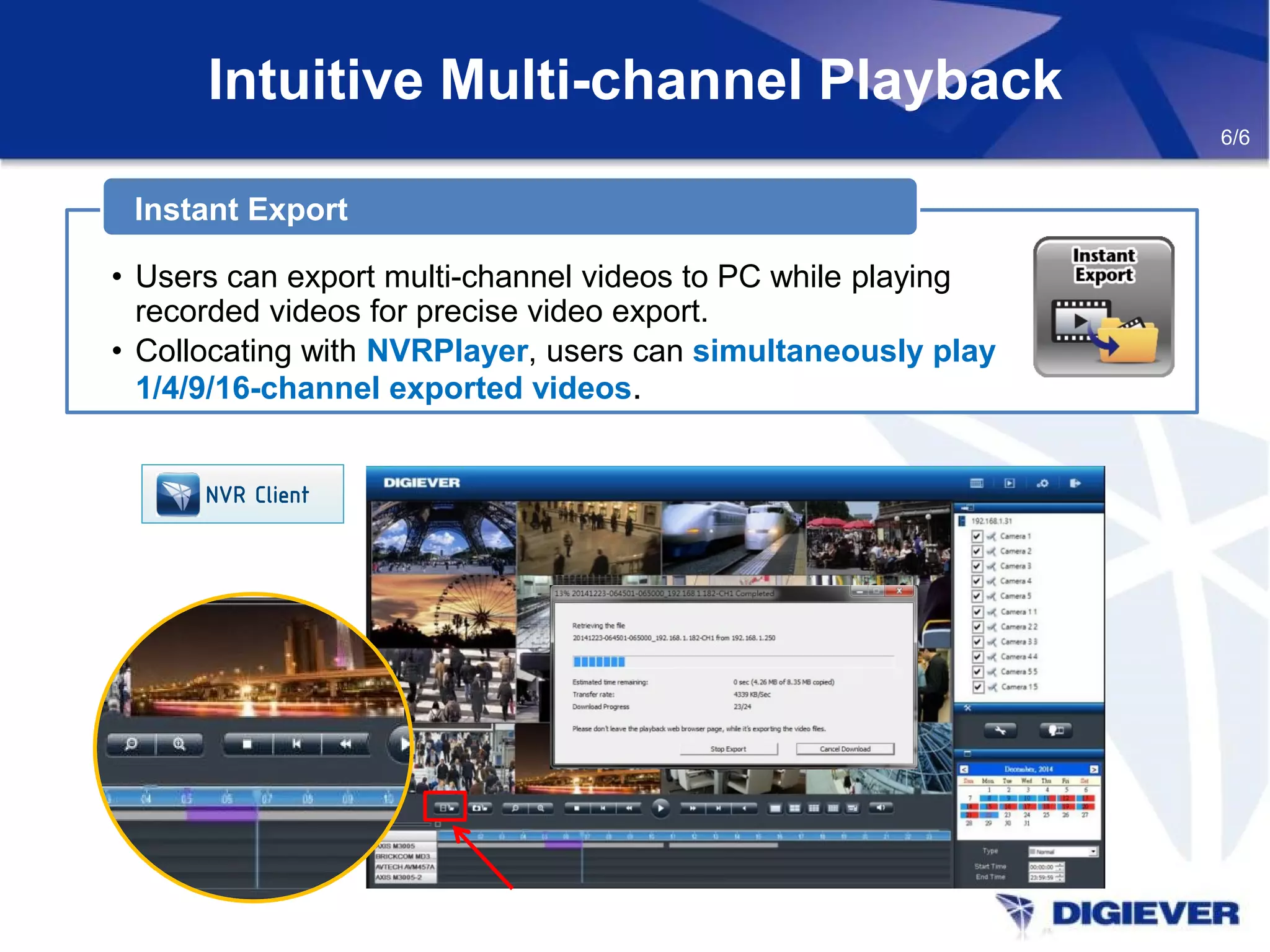

• Intuitive Multi-channel Playback

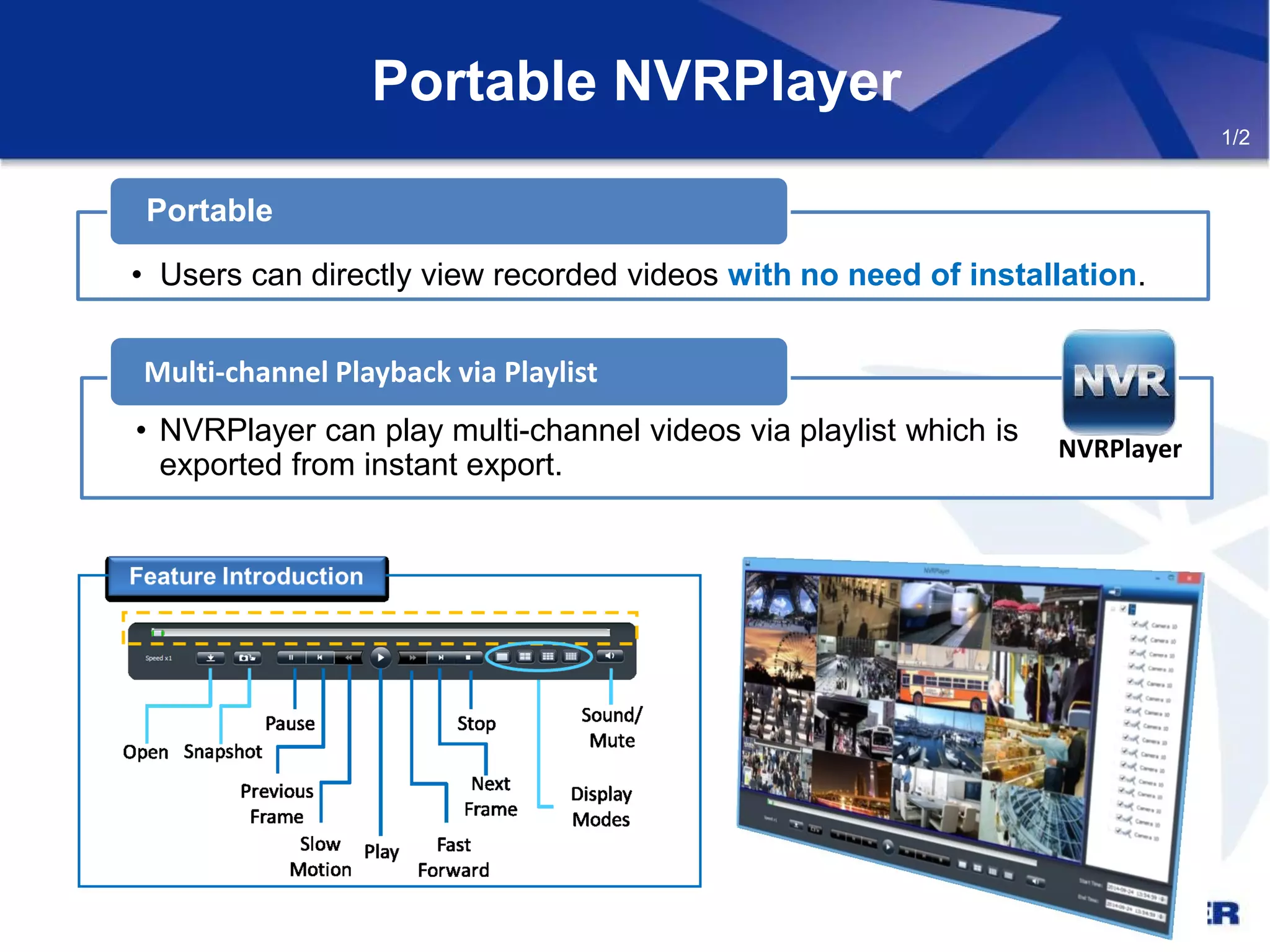

• Portable NVRPlayer

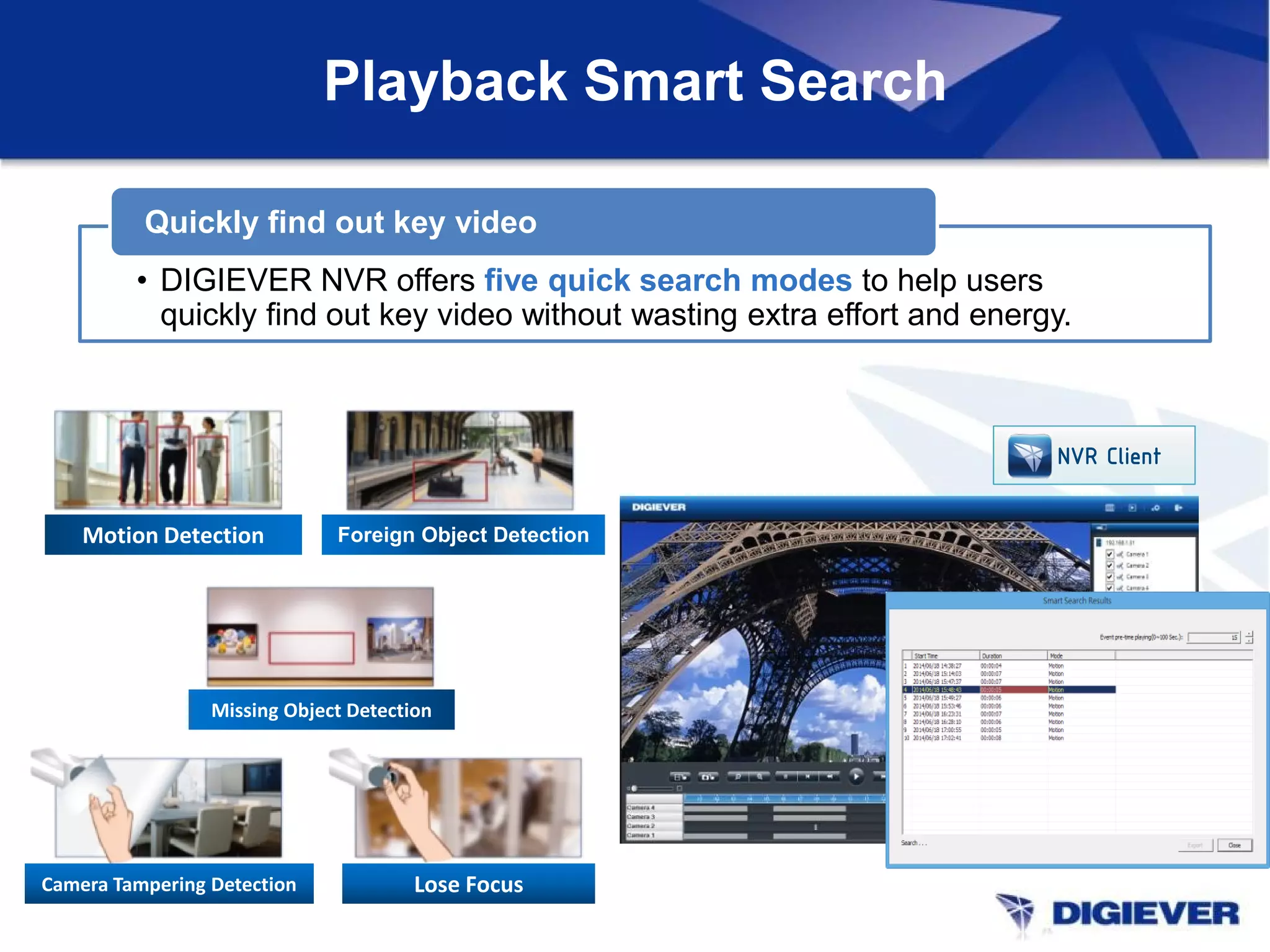

• Playback Smart Search

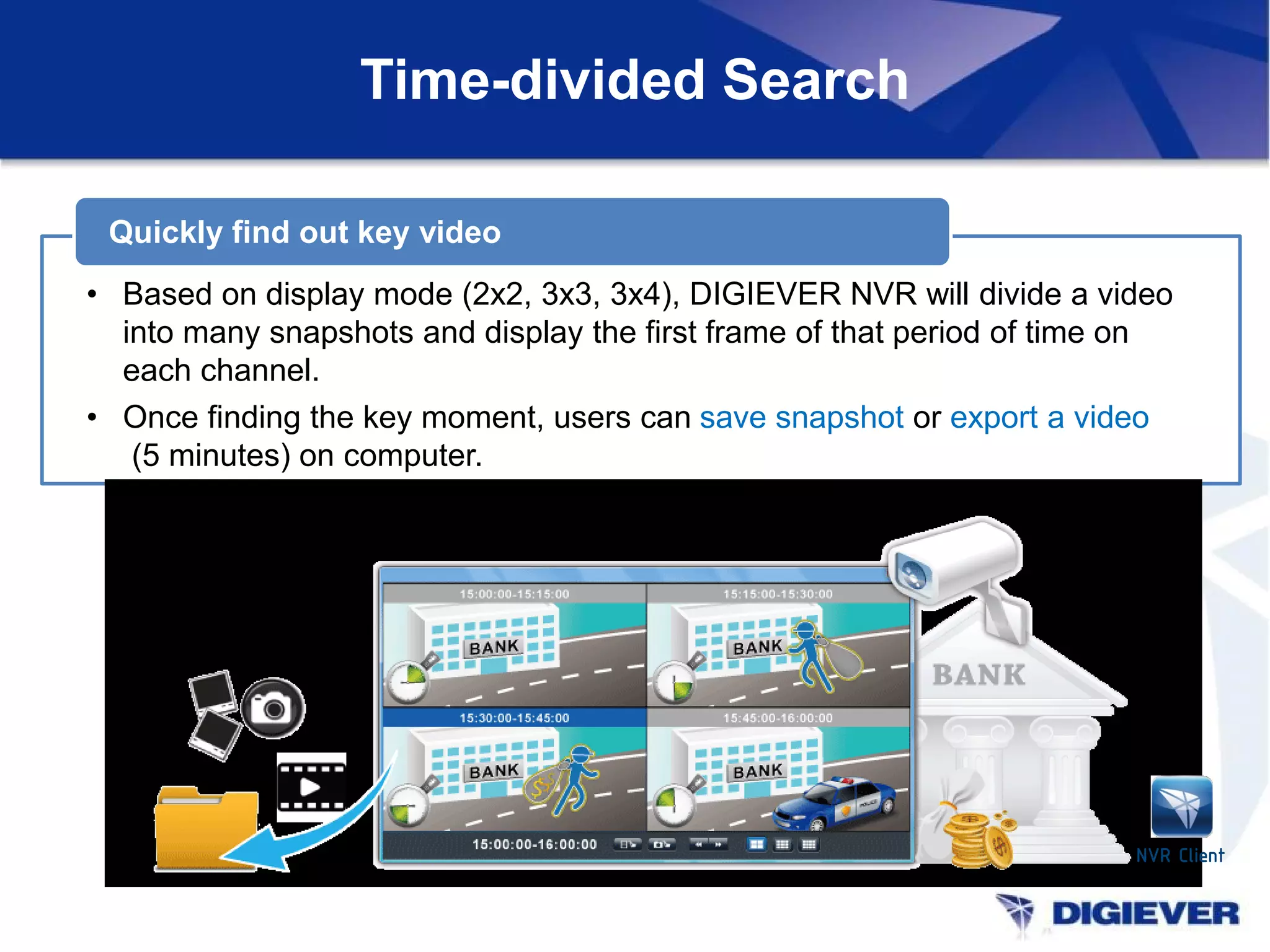

• Time-divided Search

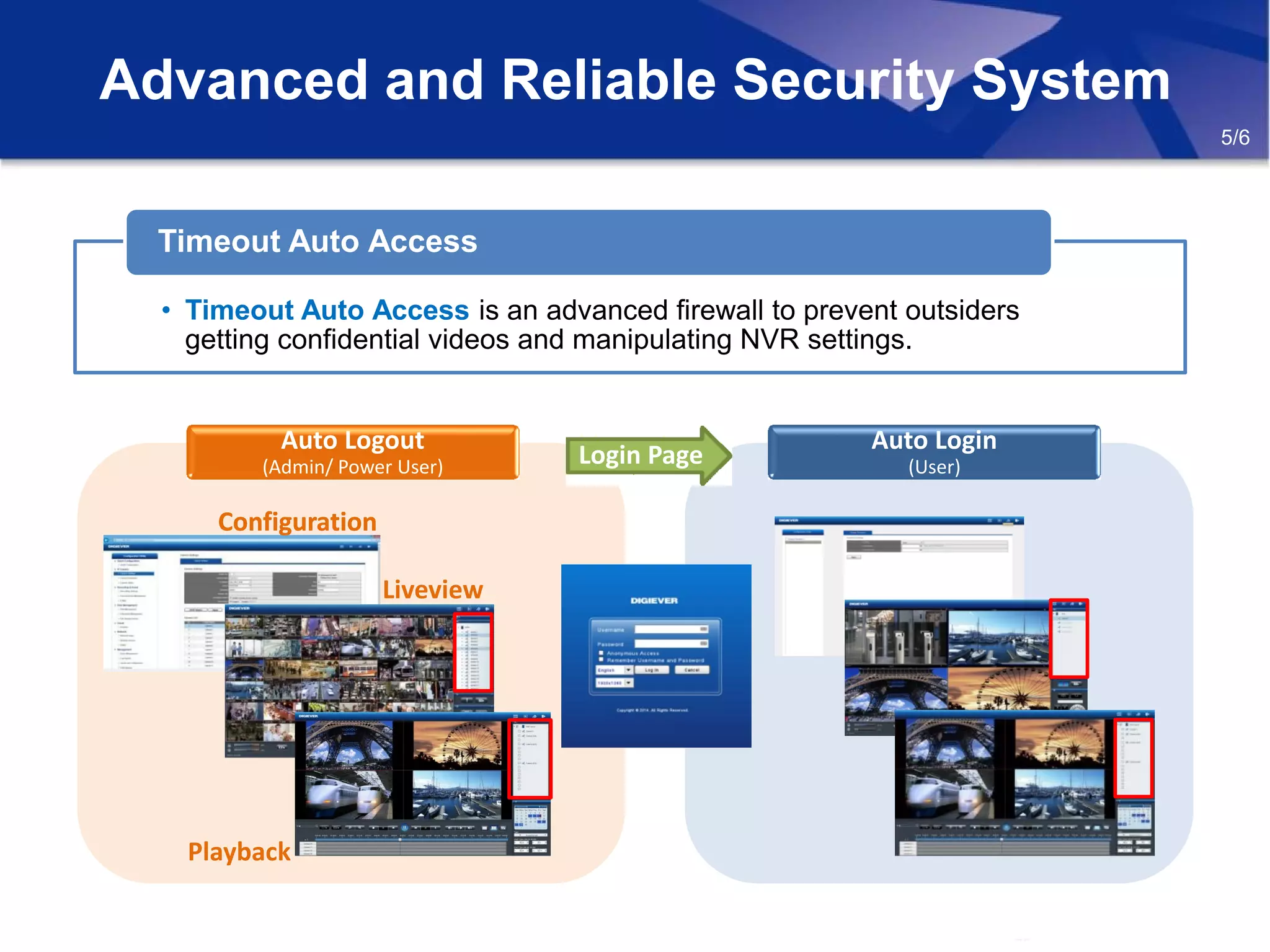

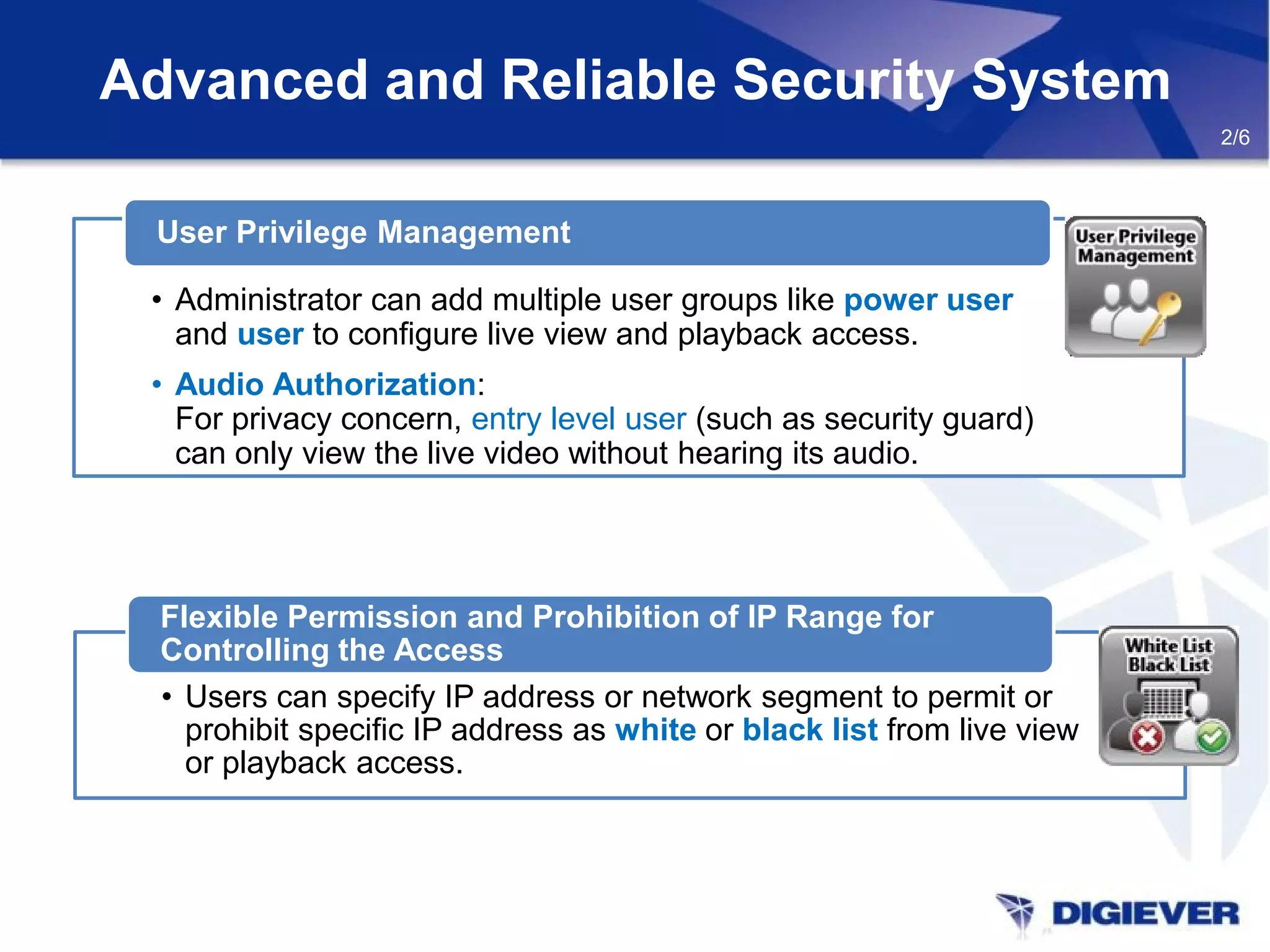

• Advanced & Reliable Security System

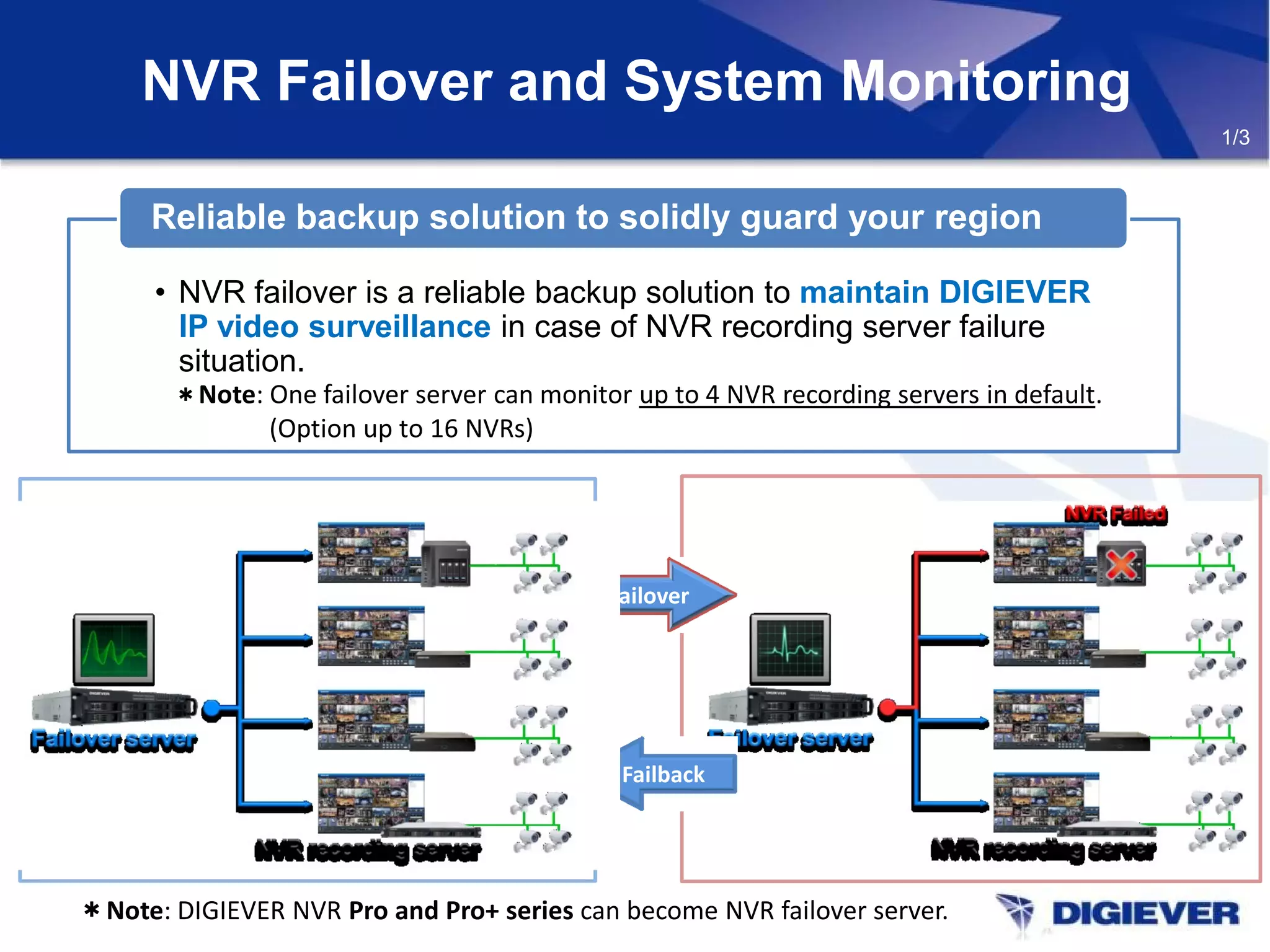

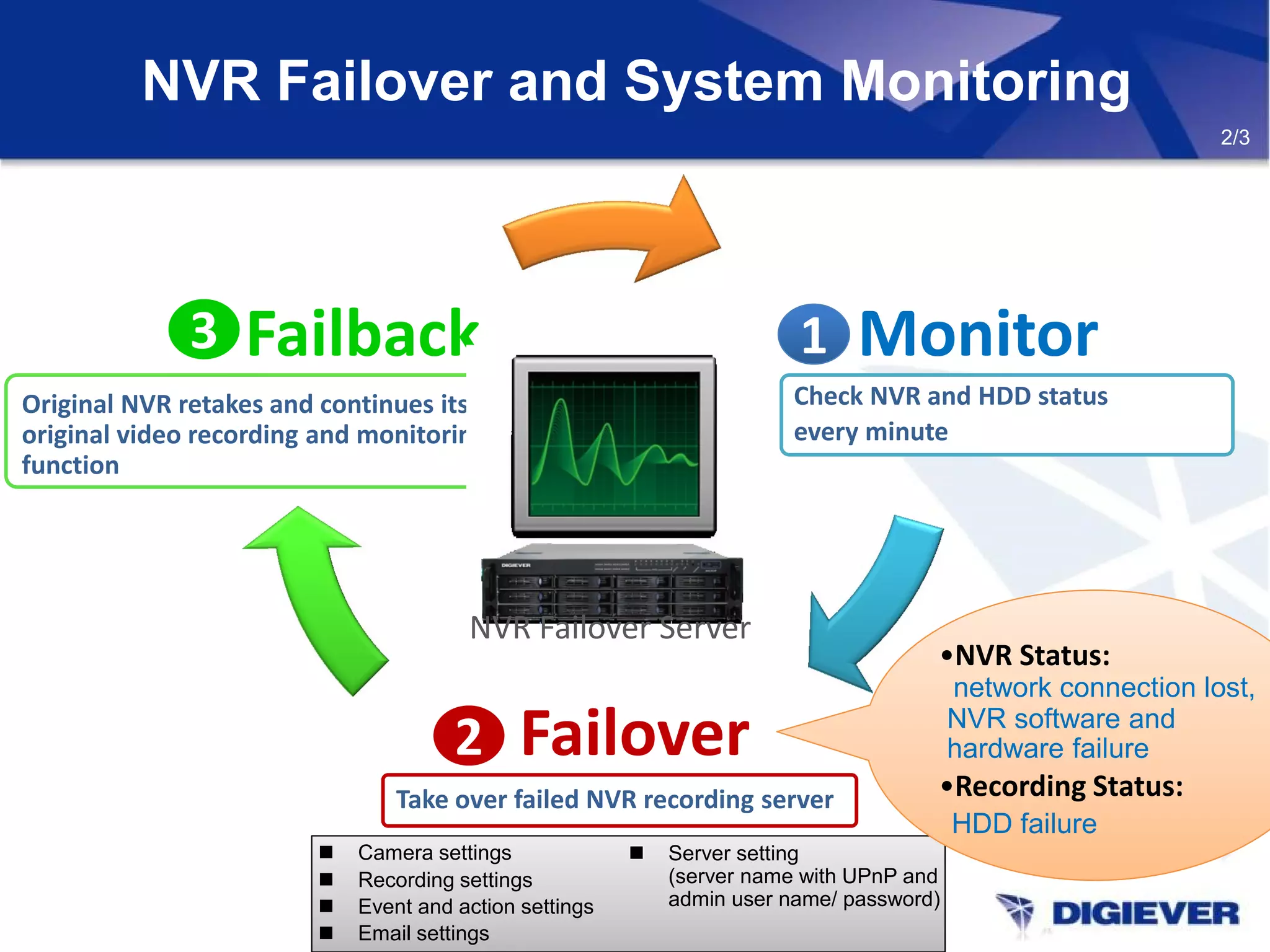

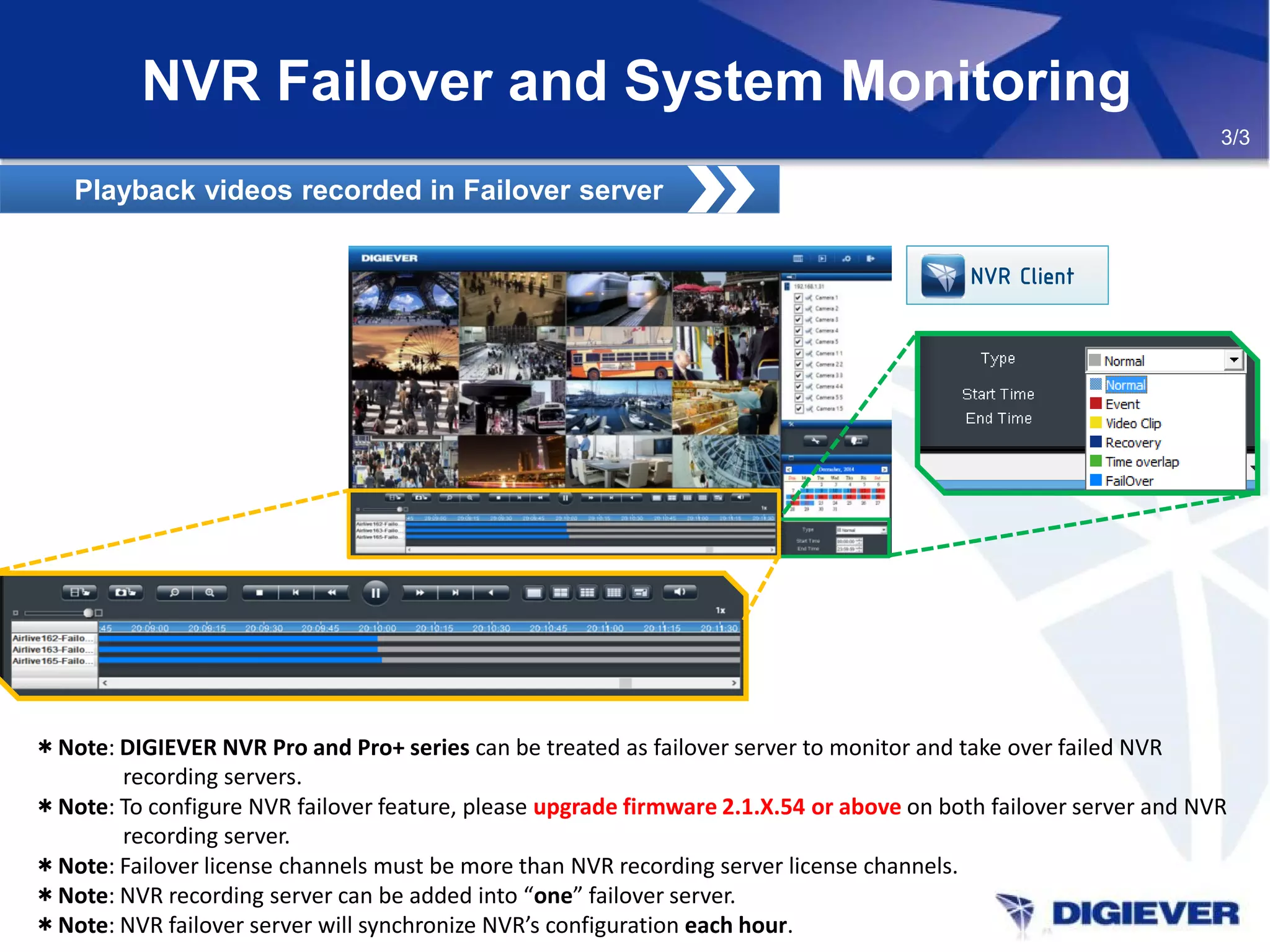

• NVR Failover and System Monitoring

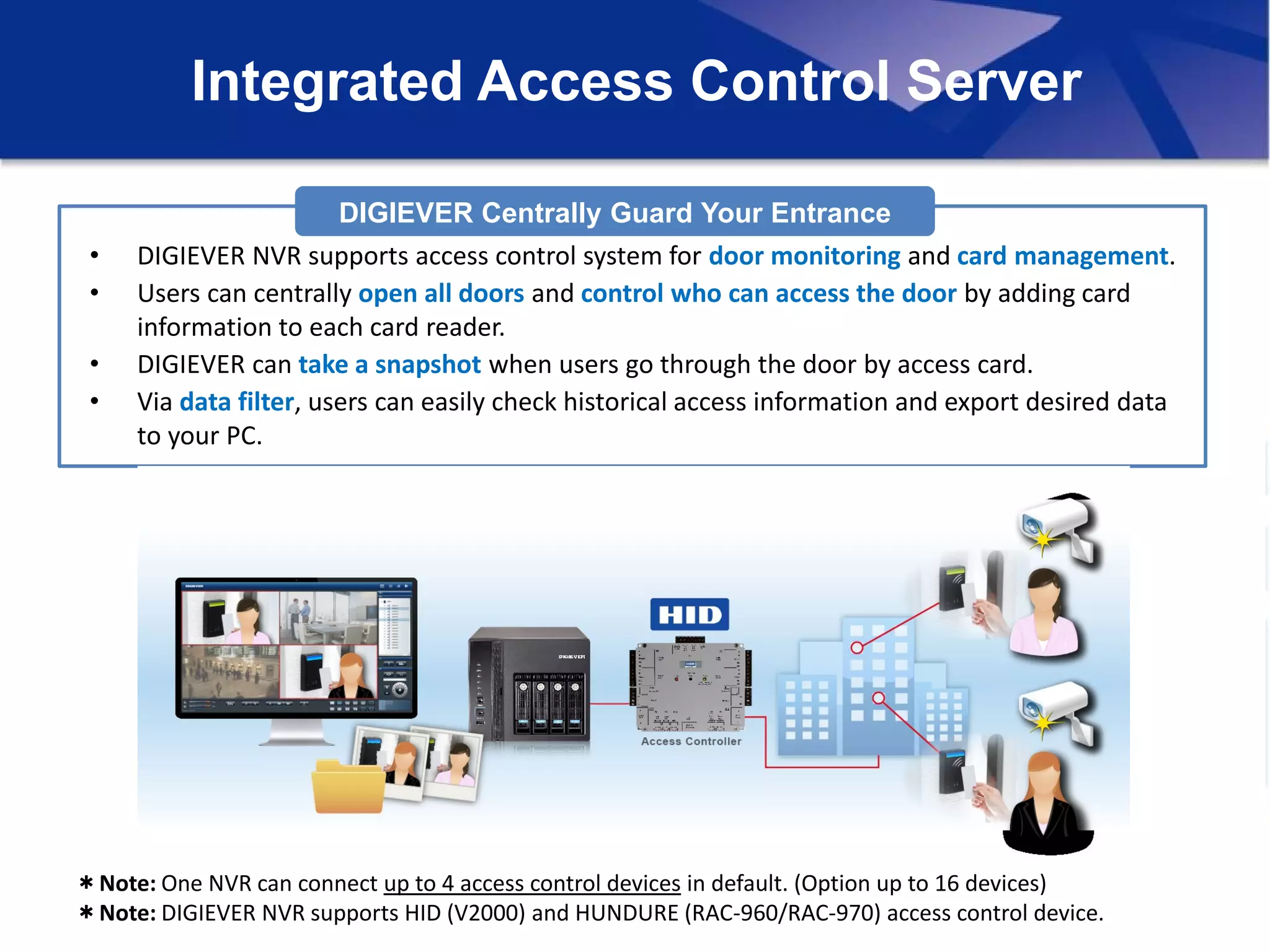

• Integrated Access Control Server

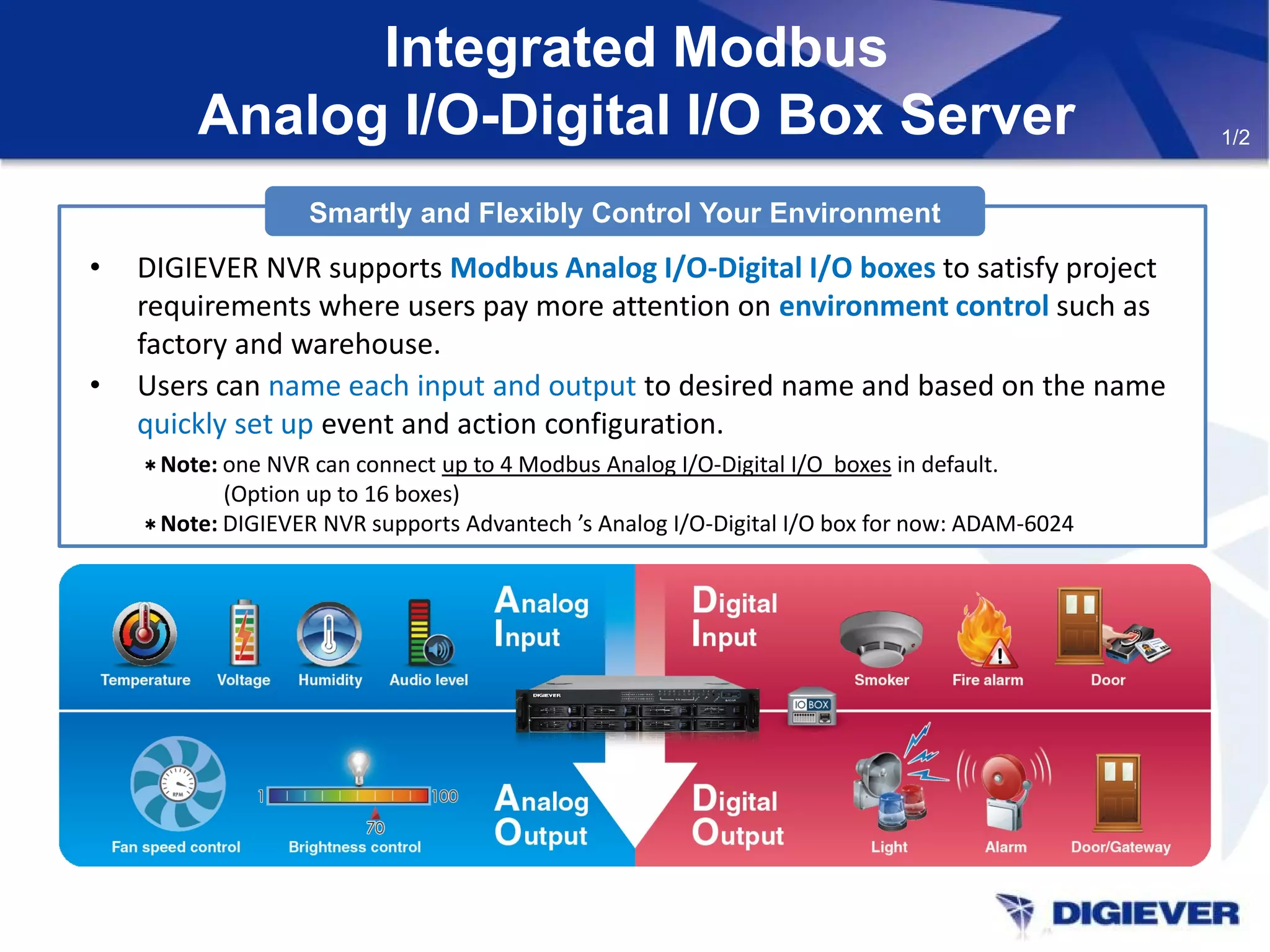

• Integrated Modbus Analog I/O-Digital I/O

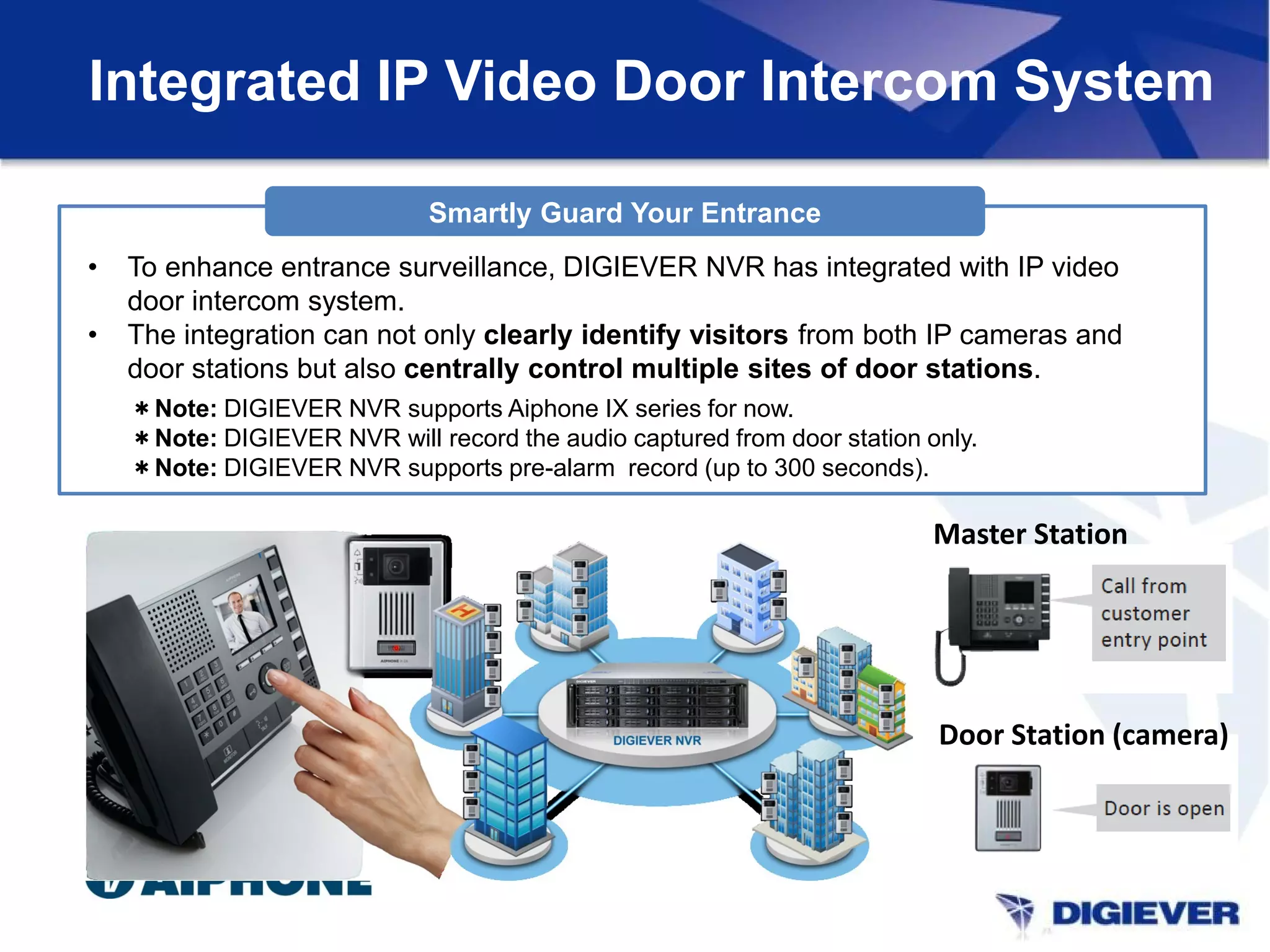

• Integrated IP Video Door Intercom System

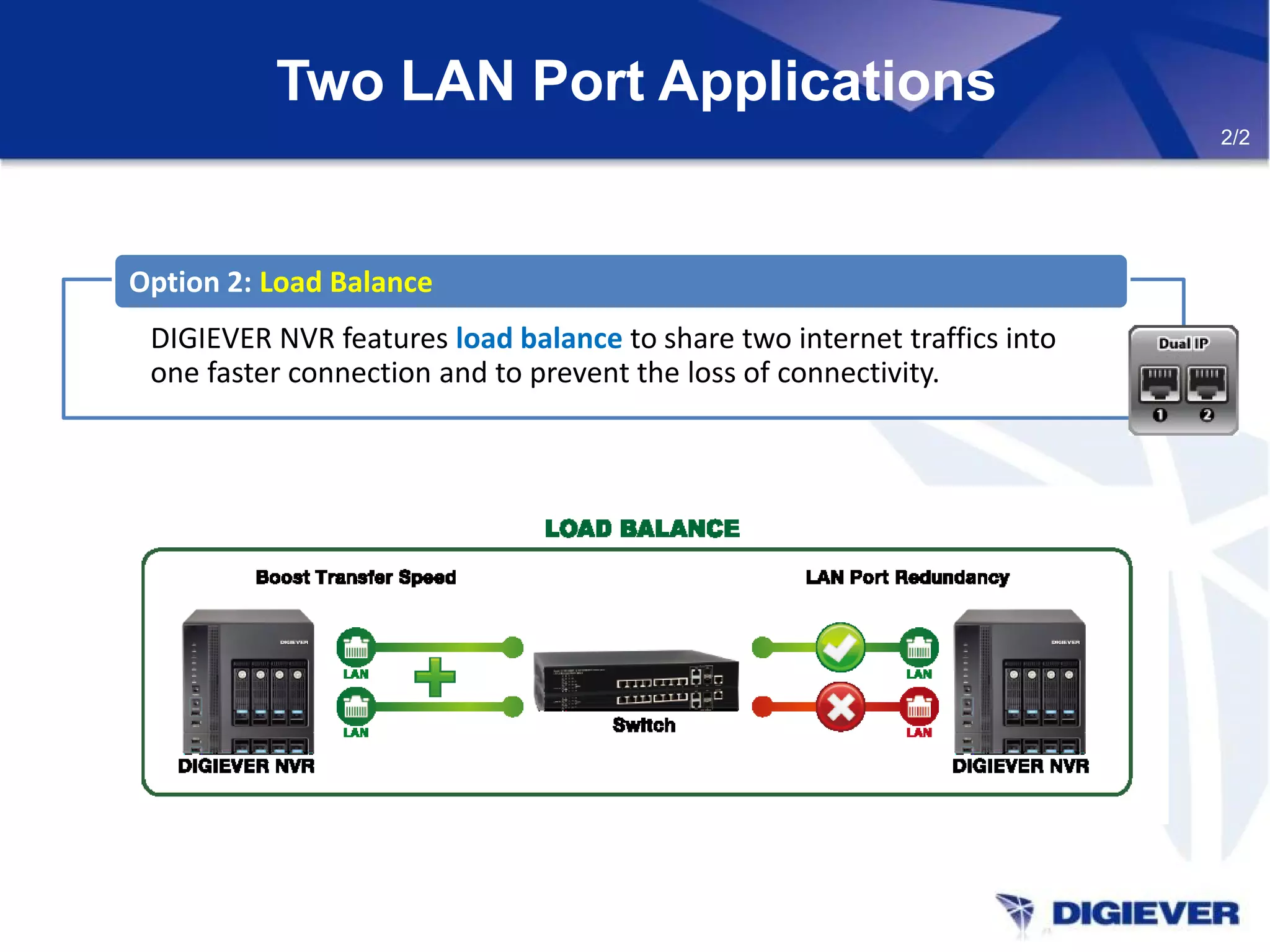

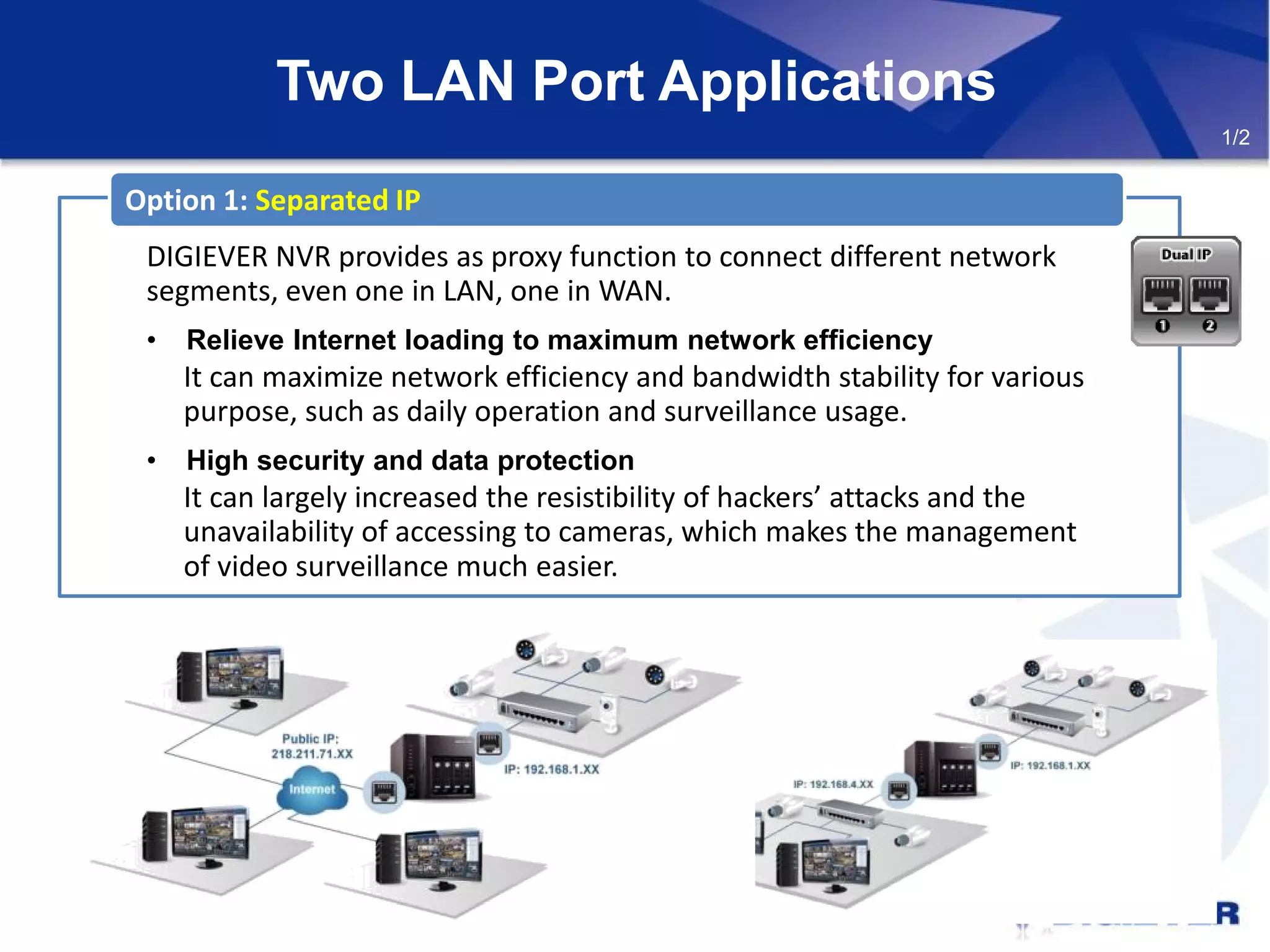

• Two LAN Port Applications

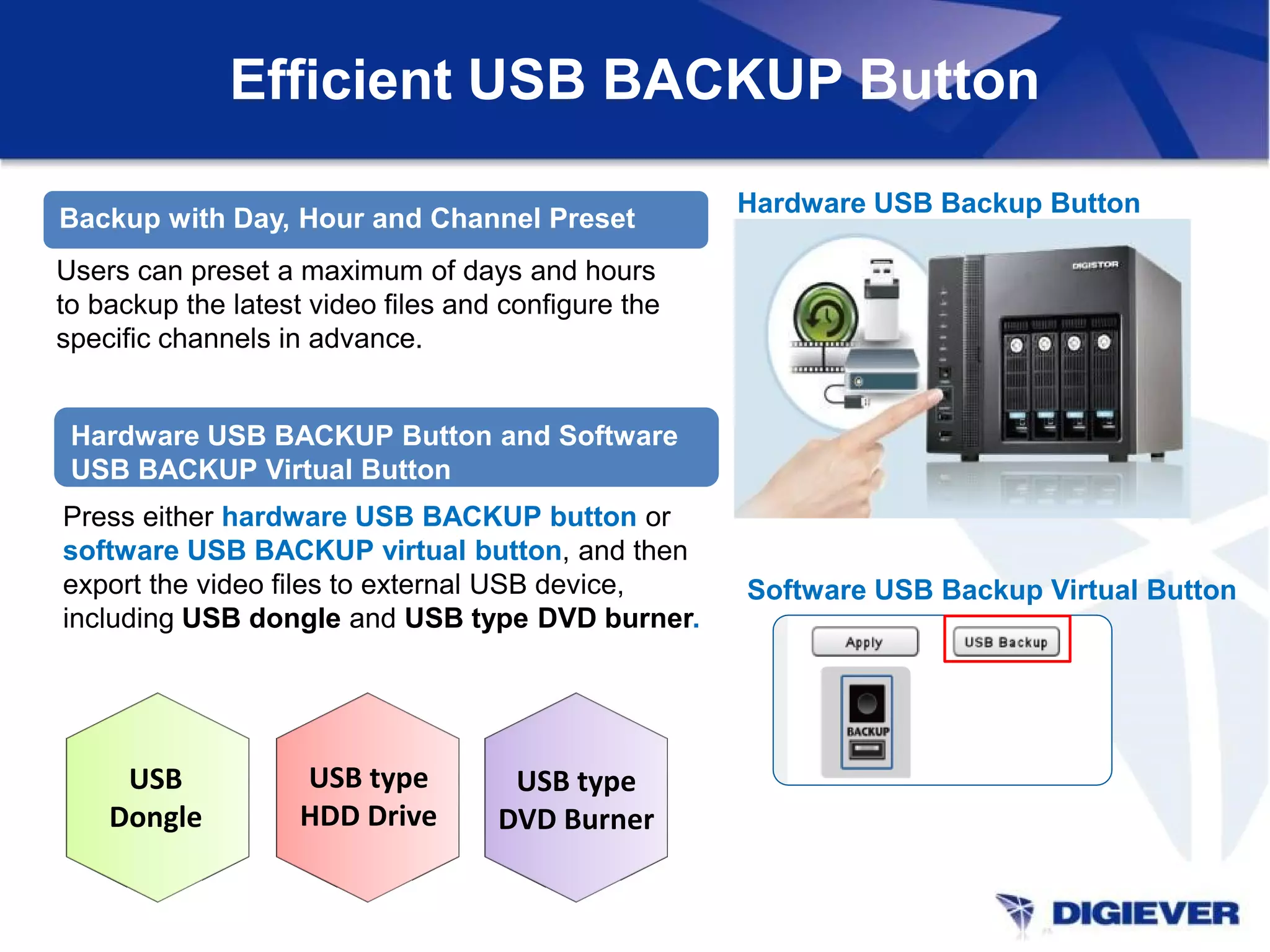

• Efficient USB BACKUP Button

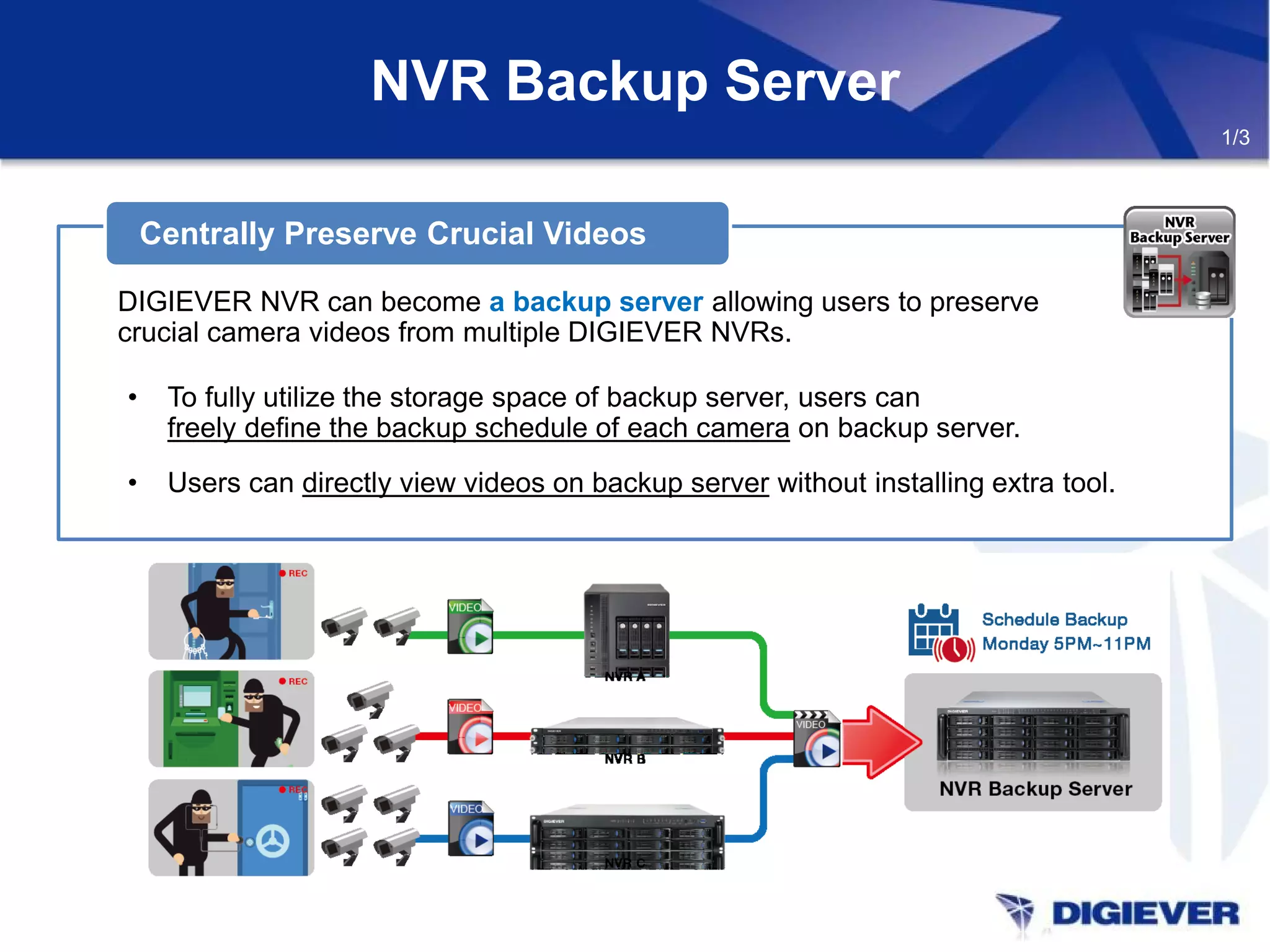

• NVR Backup Server

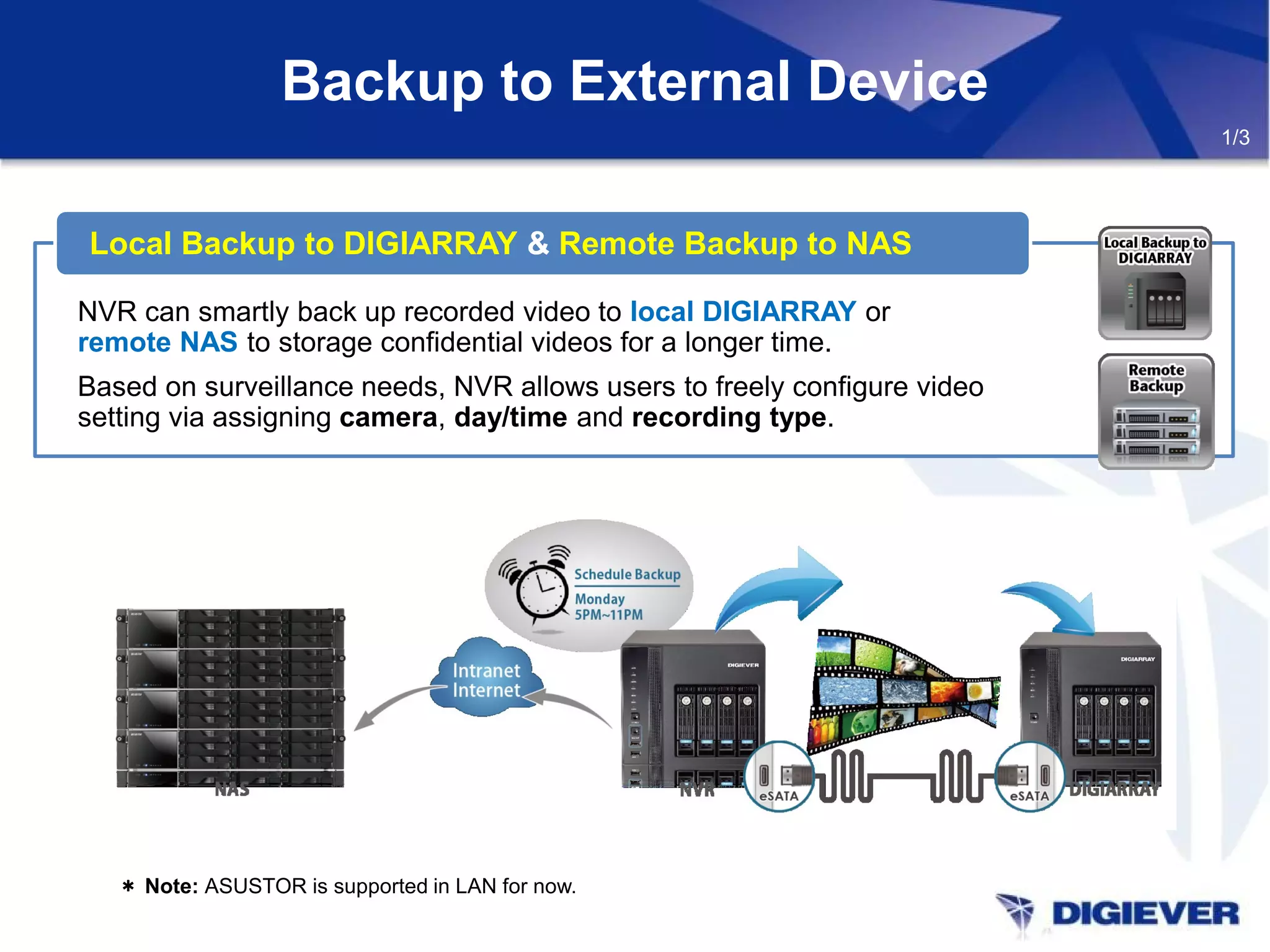

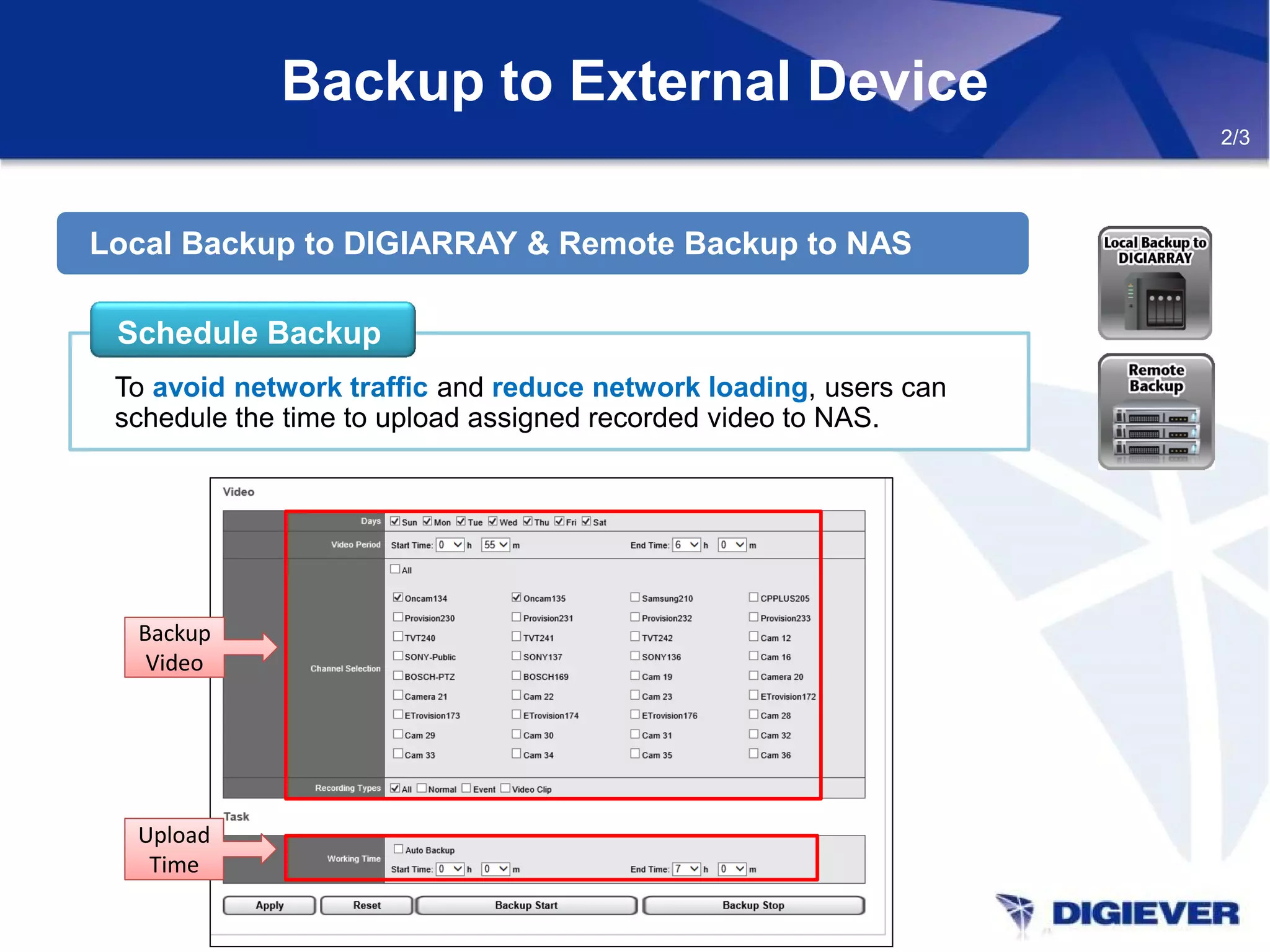

• Backup to External Device (DIGIARRAY/ NAS)
• NVR Edge Backup

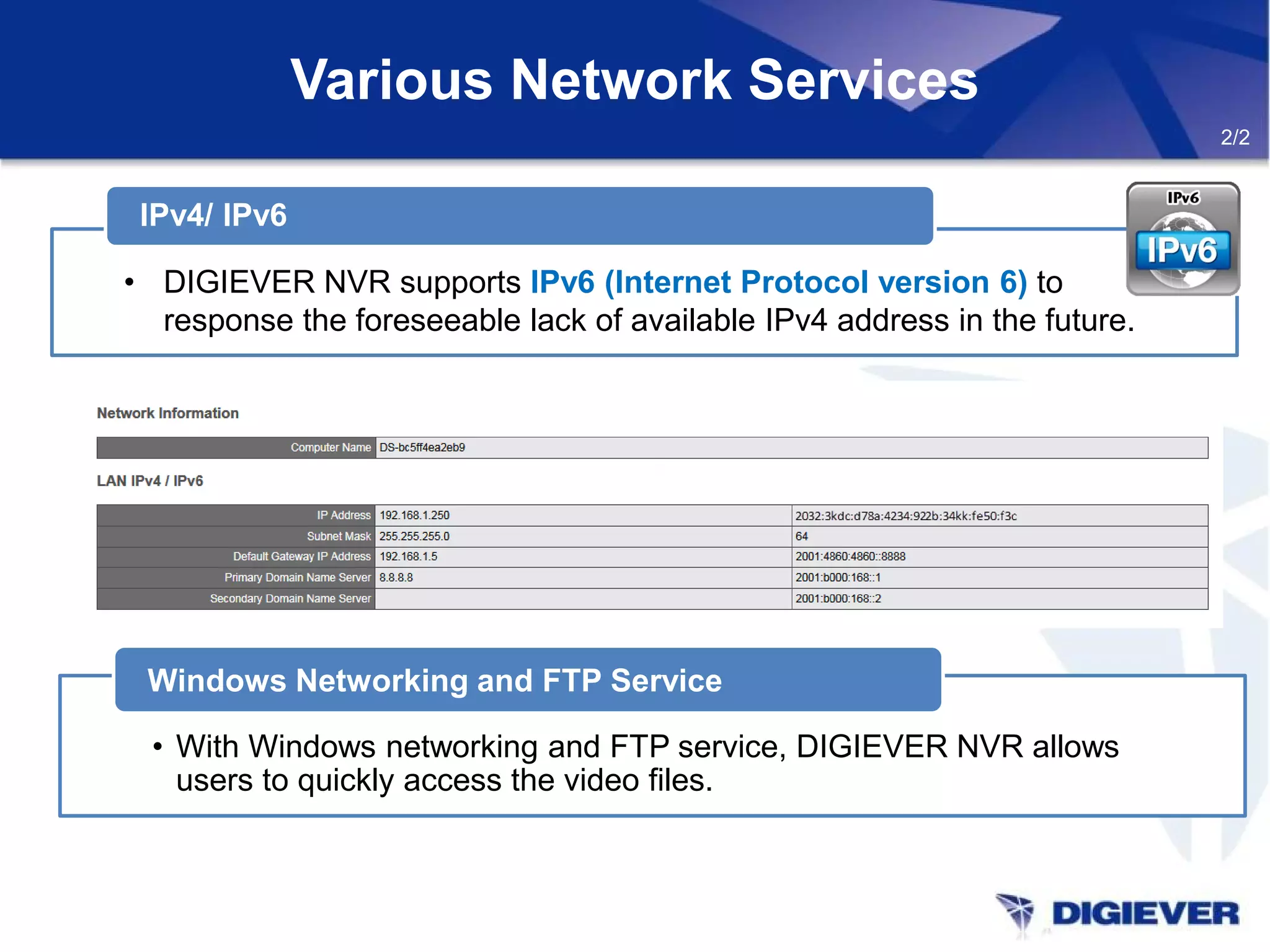

• Various Network Services

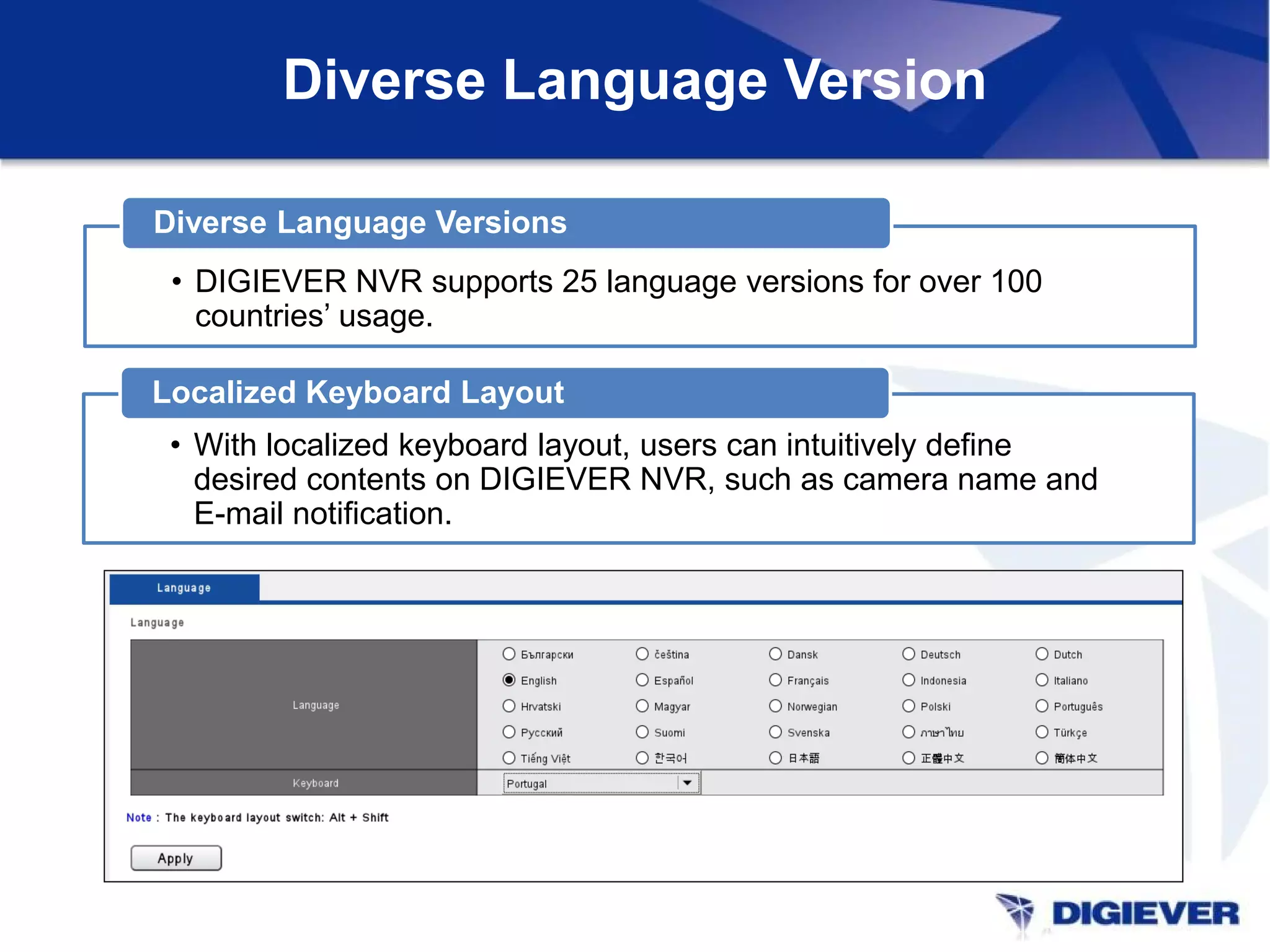

• Diverse Language Versions

Brilliant 4K Ultra HD Local Display
1/4

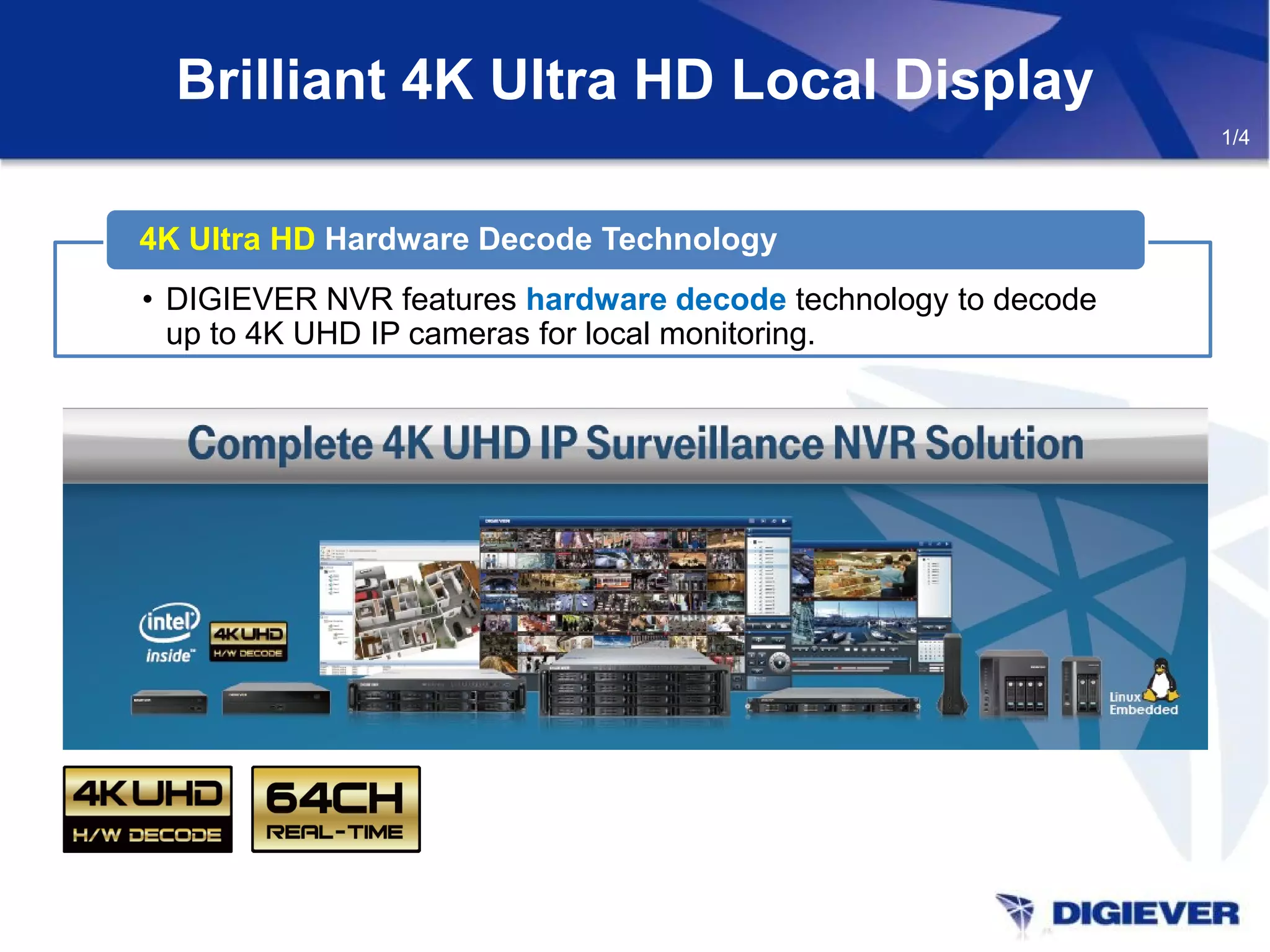

• DIGIEVER NVR features hardware decode technology to decode
up to 4K UHD IP cameras for local monitoring.
4K Ultra HD Hardware Decode Technology

2/4

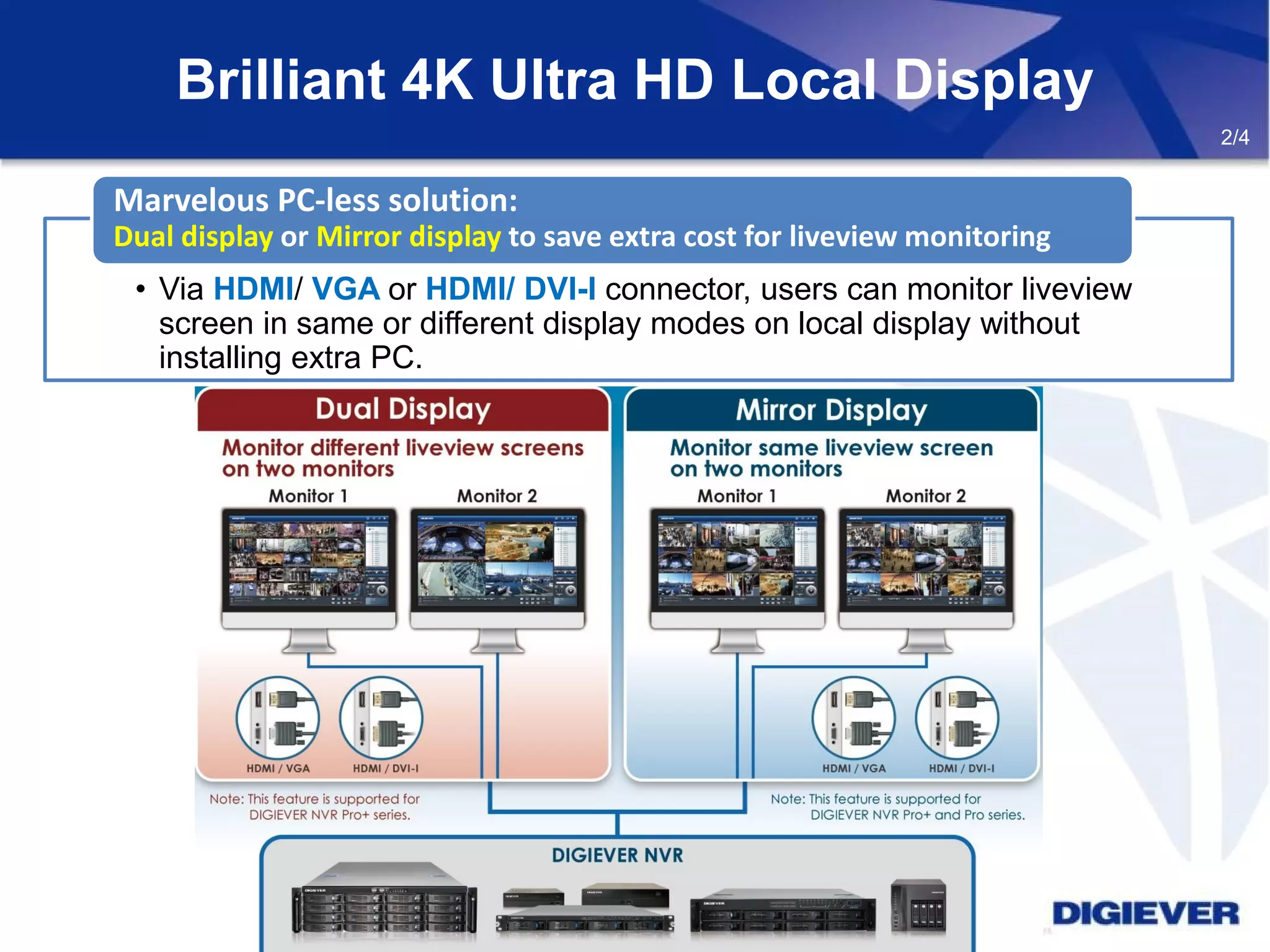

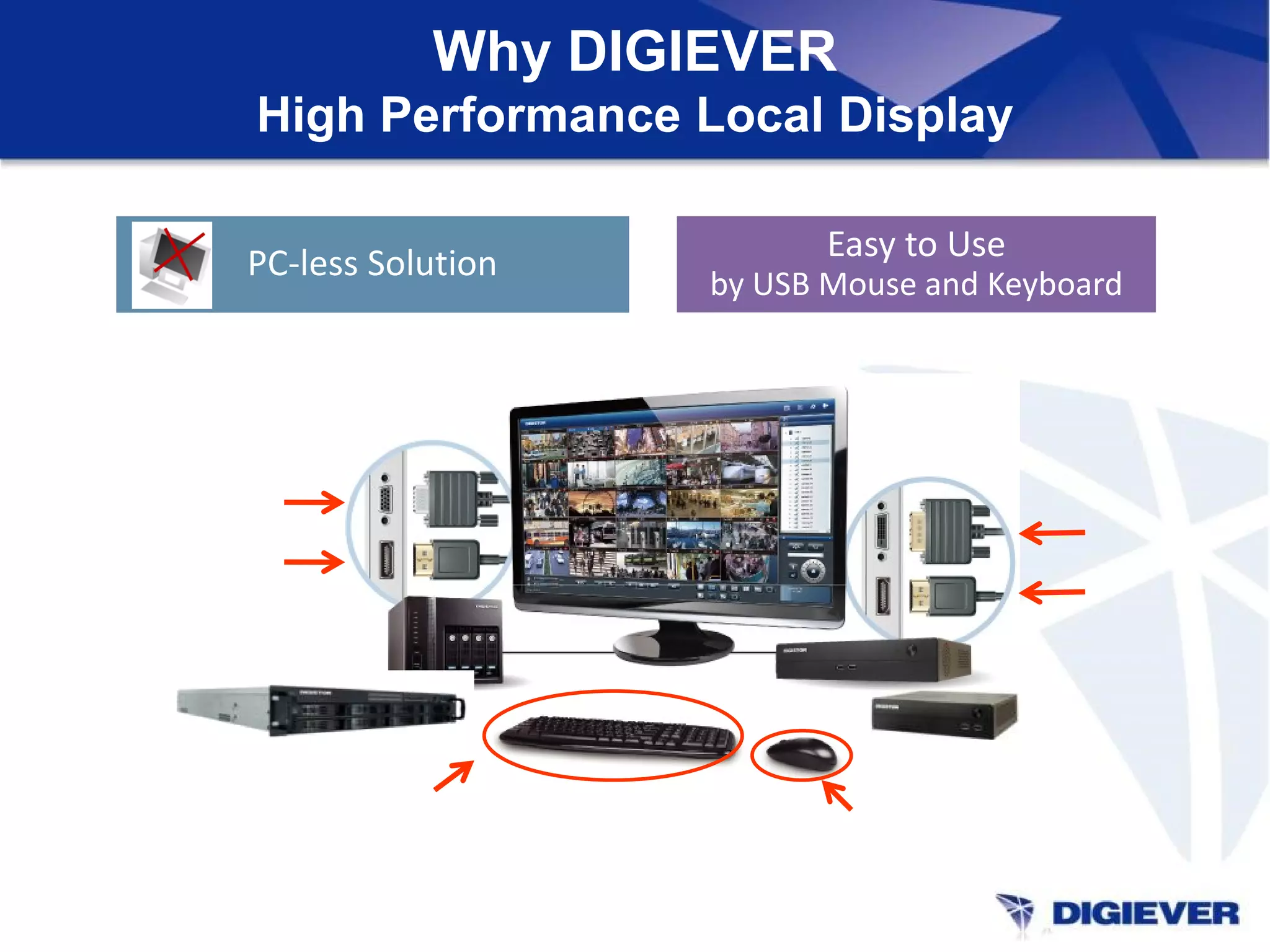

• Via HDMI/ VGA or HDMI/ DVI-I connector, users can monitor liveview
screen in same or different display modes on local display without
installing extra PC.
Marvelous PC-less solution:
Dual display or Mirror display to save extra cost for liveview monitoring

3/4

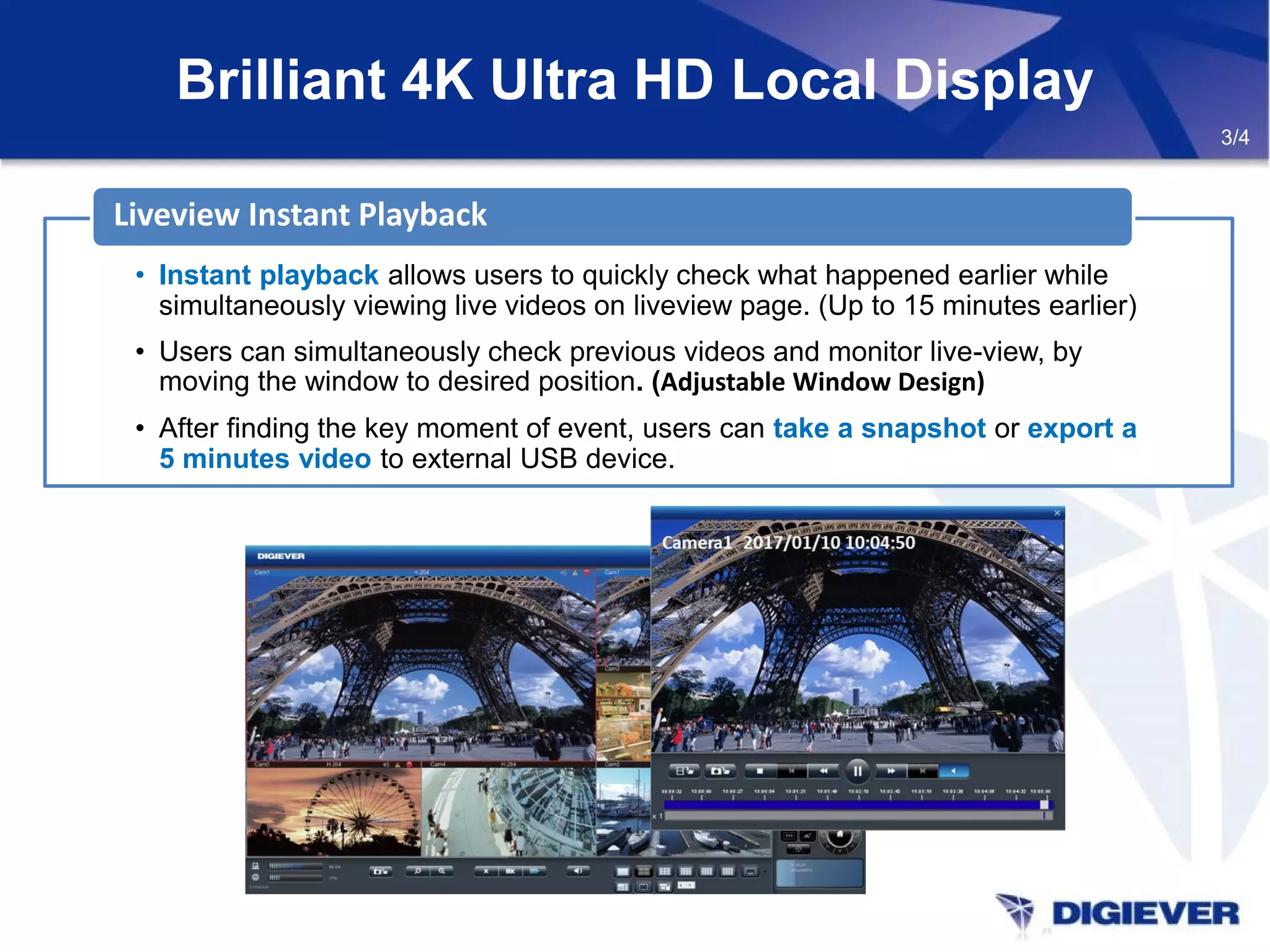

• Instant playback allows users to quickly check what happened earlier while
simultaneously viewing live videos on liveview page. (Up to 15 minutes earlier)
• Users can simultaneously check previous videos and monitor live-view, by
moving the window to desired position. (Adjustable Window Design)
• After finding the key moment of event, users can take a snapshot or export a
5 minutes video to external USB device.
Liveview Instant Playback

• To capture images at any moment as a vital proof when encountering
accidental events such as theft and car accidents.
• More detailed information can be viewed
in live-view and more rapid actions can be
recorded in playback.

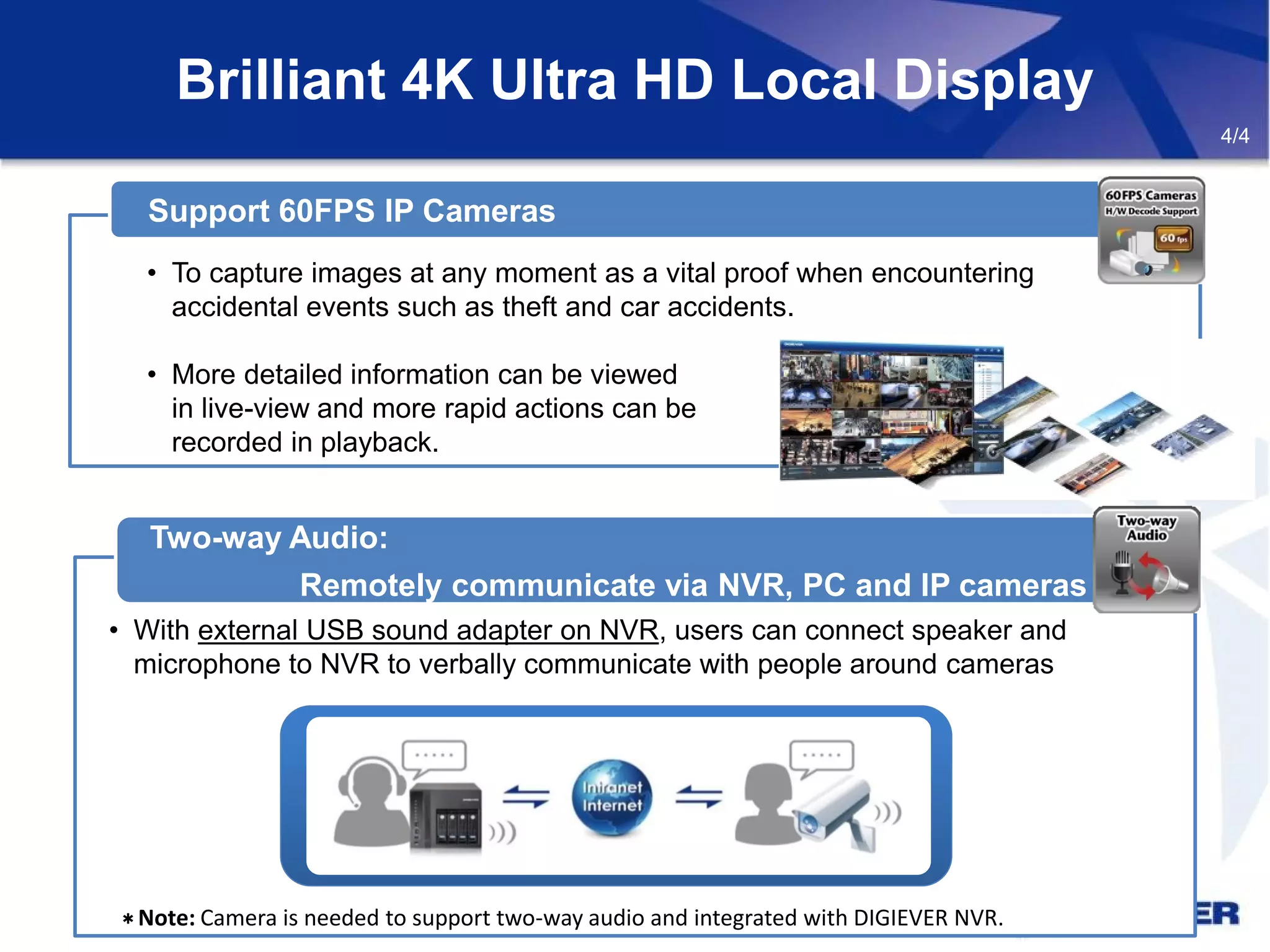

Support 60FPS IP Cameras
Two-way Audio:
Remotely communicate via NVR, PC and IP cameras
• With external USB sound adapter on NVR, users can connect speaker and
microphone to NVR to verbally communicate with people around cameras
4/4
＊Note: Camera is needed to support two-way audio and integrated with DIGIEVER NVR.

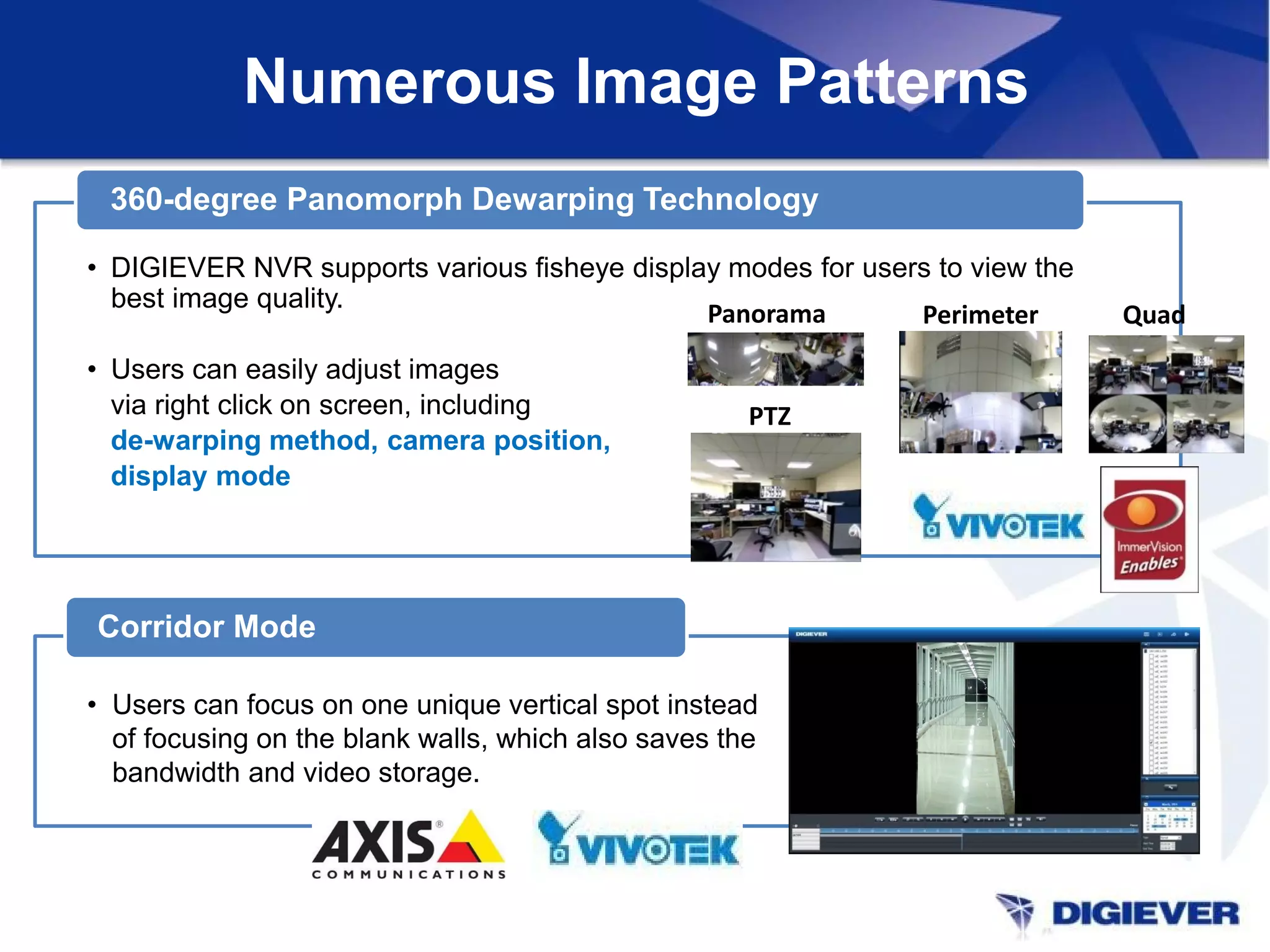

Numerous Image Patterns
• DIGIEVER NVR supports various fisheye display modes for users to view the
best image quality.
• Users can easily adjust images
via right click on screen, including
de-warping method, camera position,
display mode
360-degree Panomorph Dewarping Technology
• Users can focus on one unique vertical spot instead
of focusing on the blank walls, which also saves the
bandwidth and video storage.
Corridor Mode
PTZ
Panorama Perimeter Quad

Superior Hardware Design
1/4

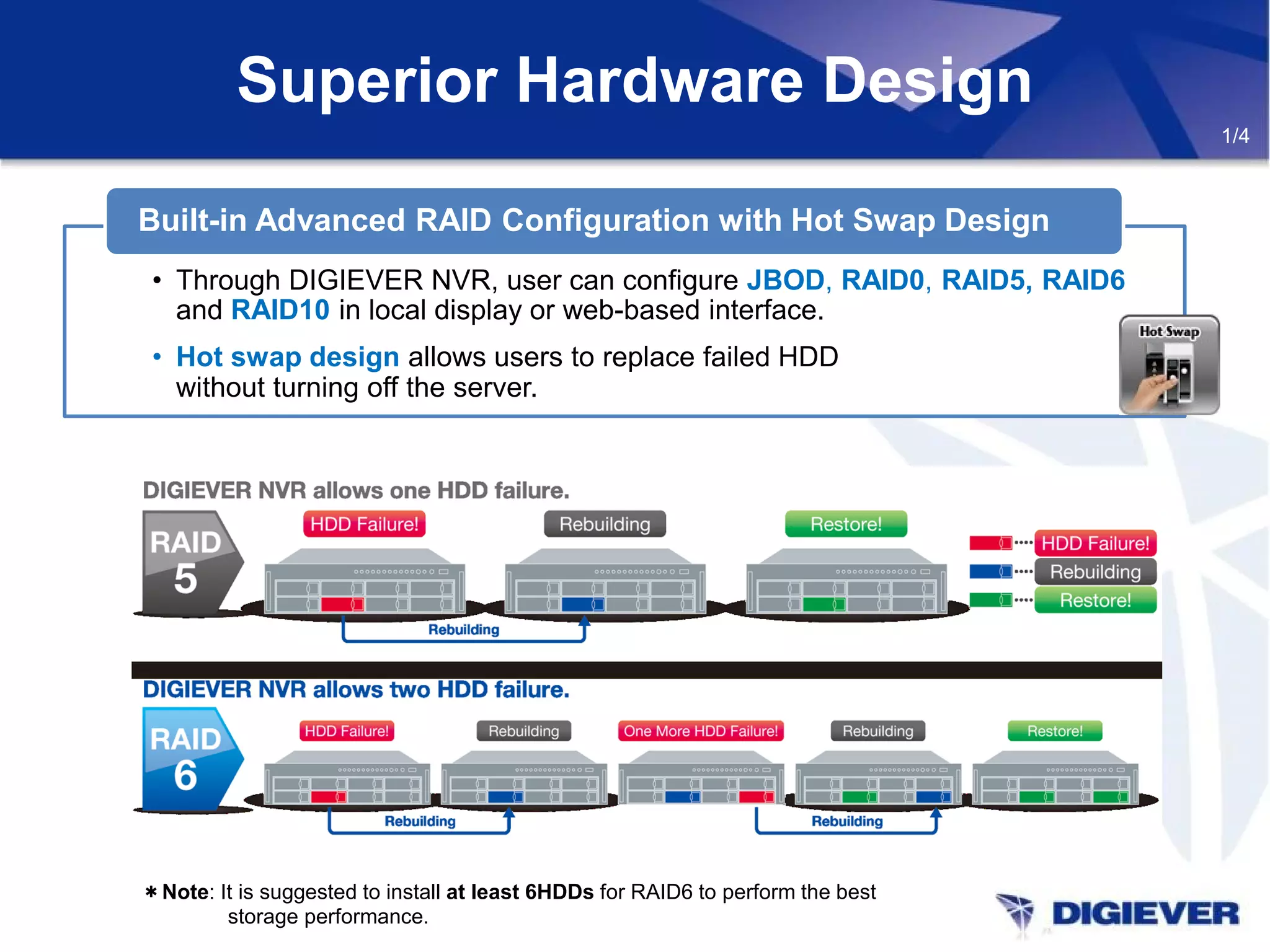

• Through DIGIEVER NVR, user can configure JBOD, RAID0, RAID5, RAID6
and RAID10 in local display or web-based interface.
• Hot swap design allows users to replace failed HDD
without turning off the server.
Built-in Advanced RAID Configuration with Hot Swap Design
＊Note: It is suggested to install at least 6HDDs for RAID6 to perform the best
storage performance.

2/4
• DIGIEVER NVR supports each hard disk drive up to 10TB.
Up to 10TB Storage Capacity
• DIGIEVER NVR provides network throughput up to 650Mbps
for high megapixel recording.
High Network Throughput for High Megapixel Recording

3/4
• DIGIEVER NVR supports built-in General Purpose I/O for
both choices of setting digital input and output.
Built-in Digital input and Digital output: 4 in 2 out

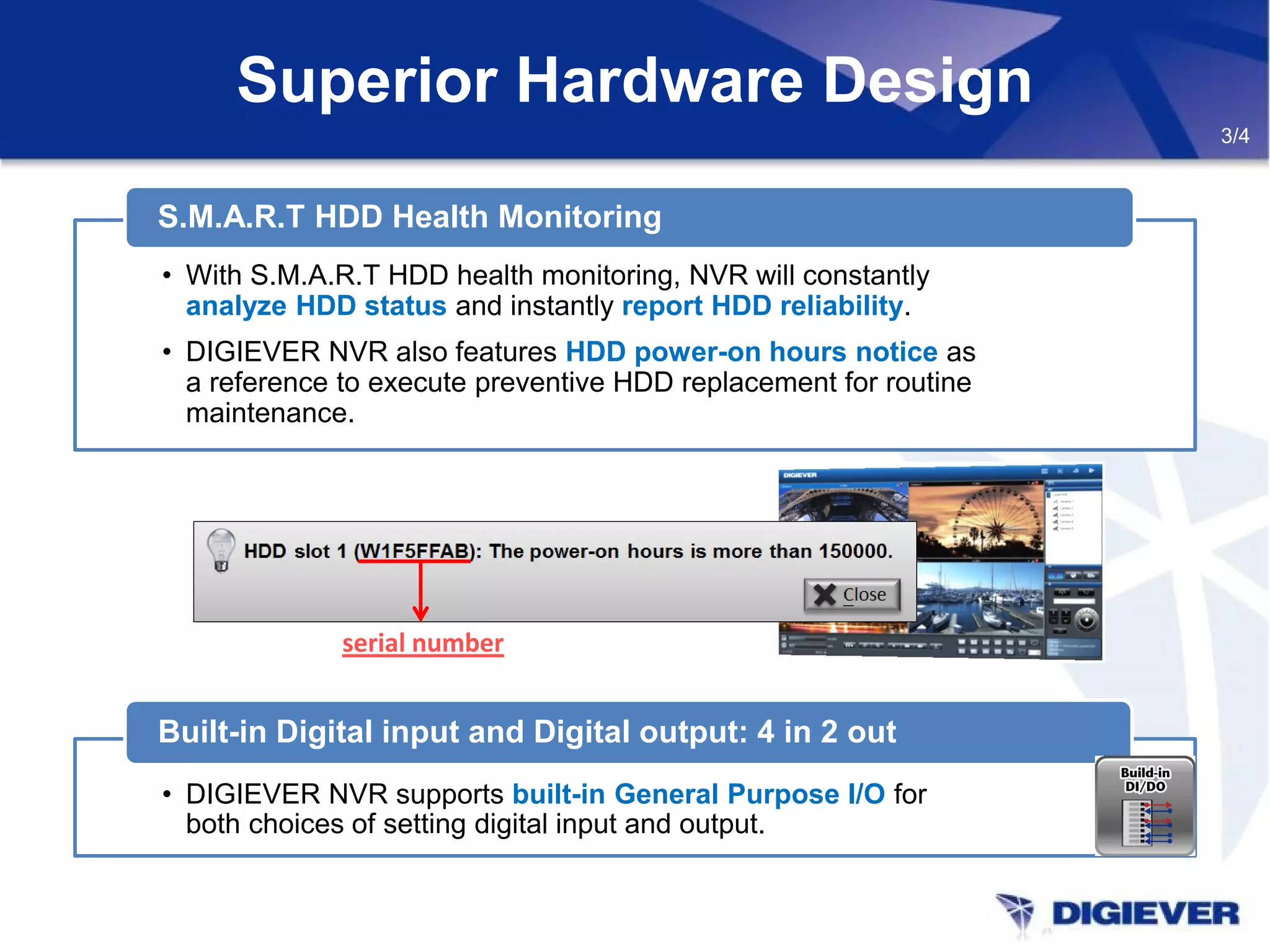

• With S.M.A.R.T HDD health monitoring, NVR will constantly
analyze HDD status and instantly report HDD reliability.
• DIGIEVER NVR also features HDD power-on hours notice as
a reference to execute preventive HDD replacement for routine
maintenance.
S.M.A.R.T HDD Health Monitoring
serial number

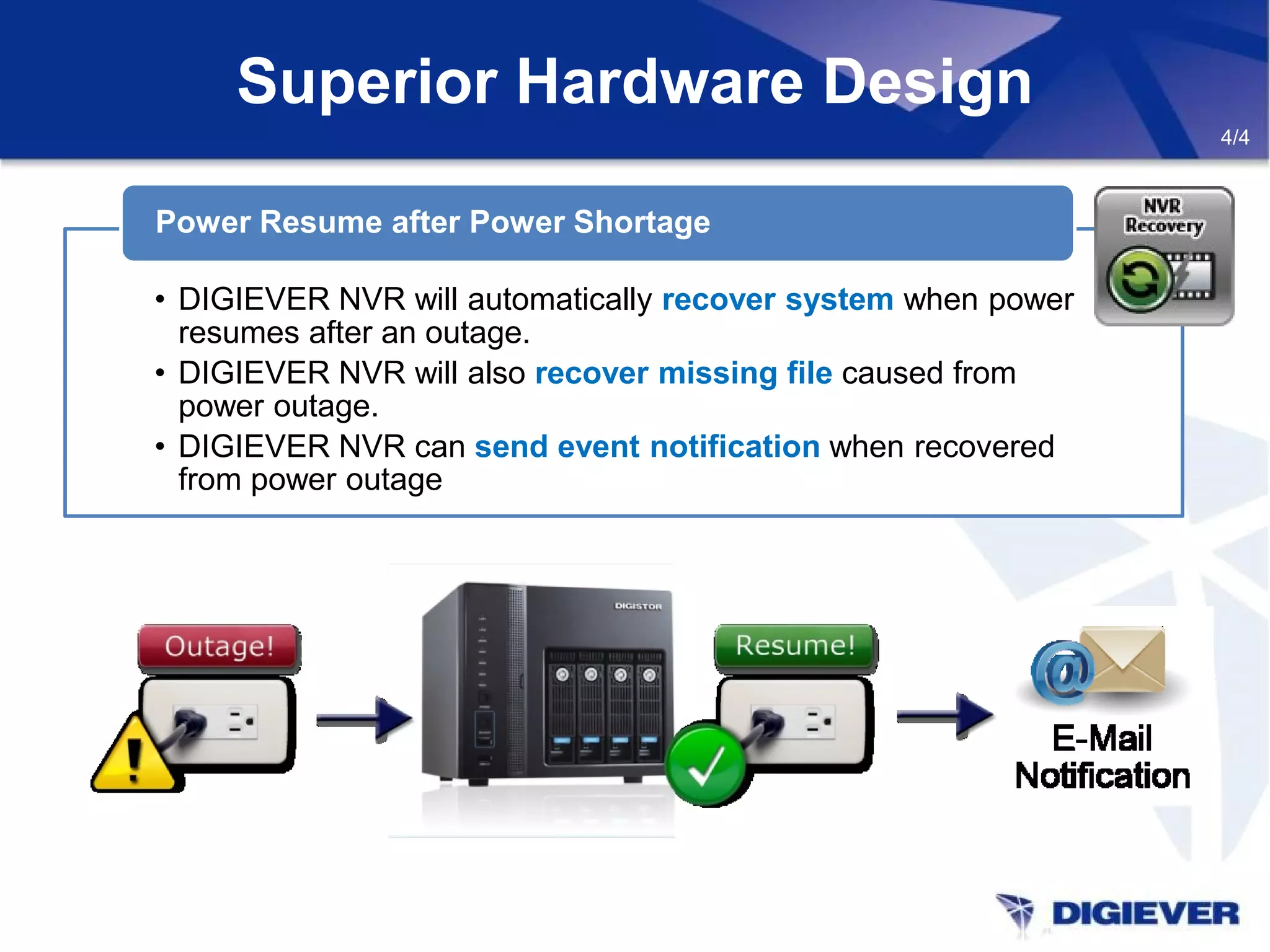

• DIGIEVER NVR will automatically recover system when power
resumes after an outage.
• DIGIEVER NVR will also recover missing file caused from
power outage.
• DIGIEVER NVR can send event notification when recovered
from power outage
Power Resume after Power Shortage
4/4

UPS Support

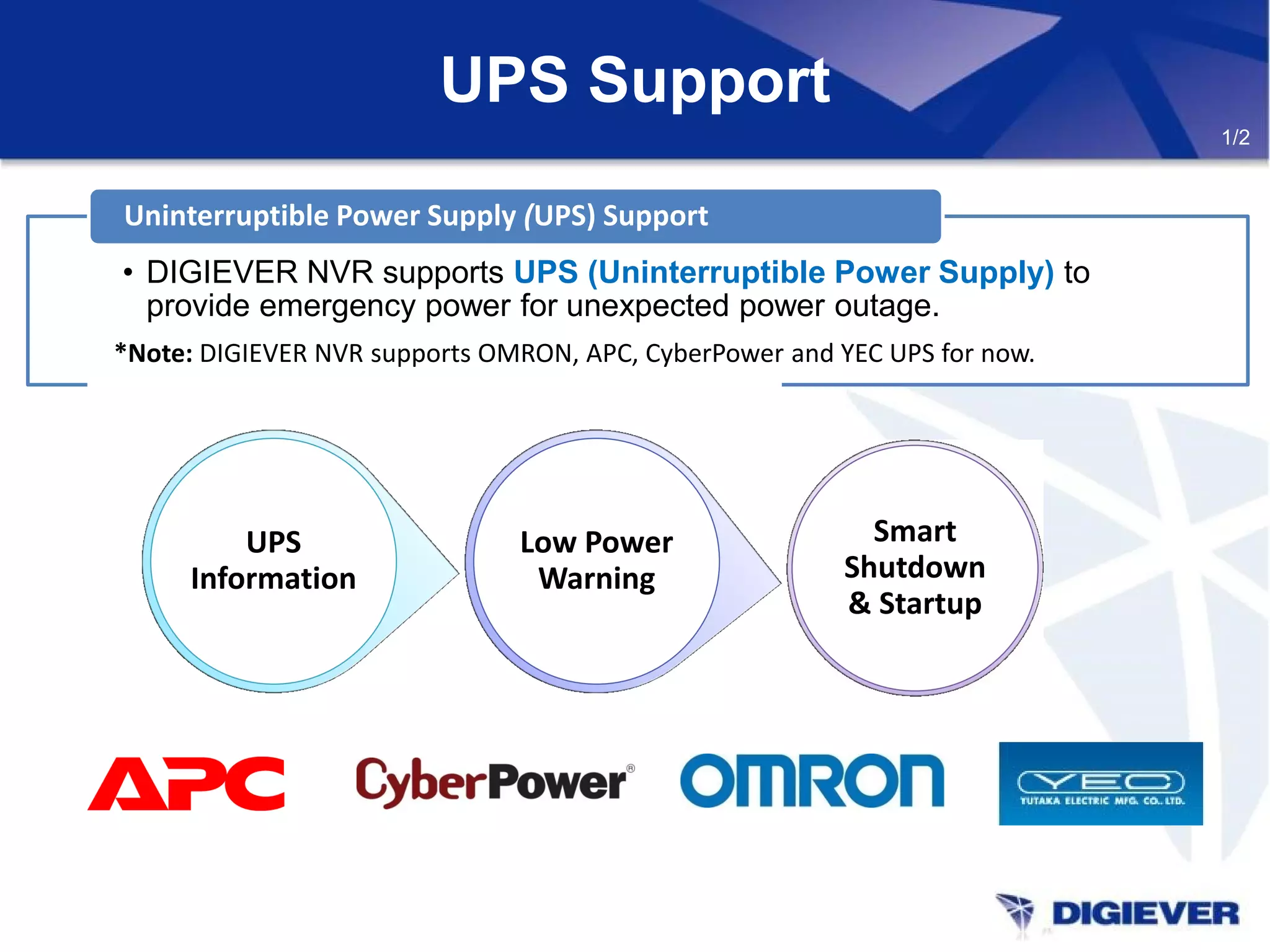

• DIGIEVER NVR supports UPS (Uninterruptible Power Supply) to
provide emergency power for unexpected power outage.
Uninterruptible Power Supply (UPS) Support
Smart
Shutdown
& Startup
Low Power
Warning
UPS
Information
*Note: DIGIEVER NVR supports OMRON, APC, CyberPower and YEC UPS for now.
1/2

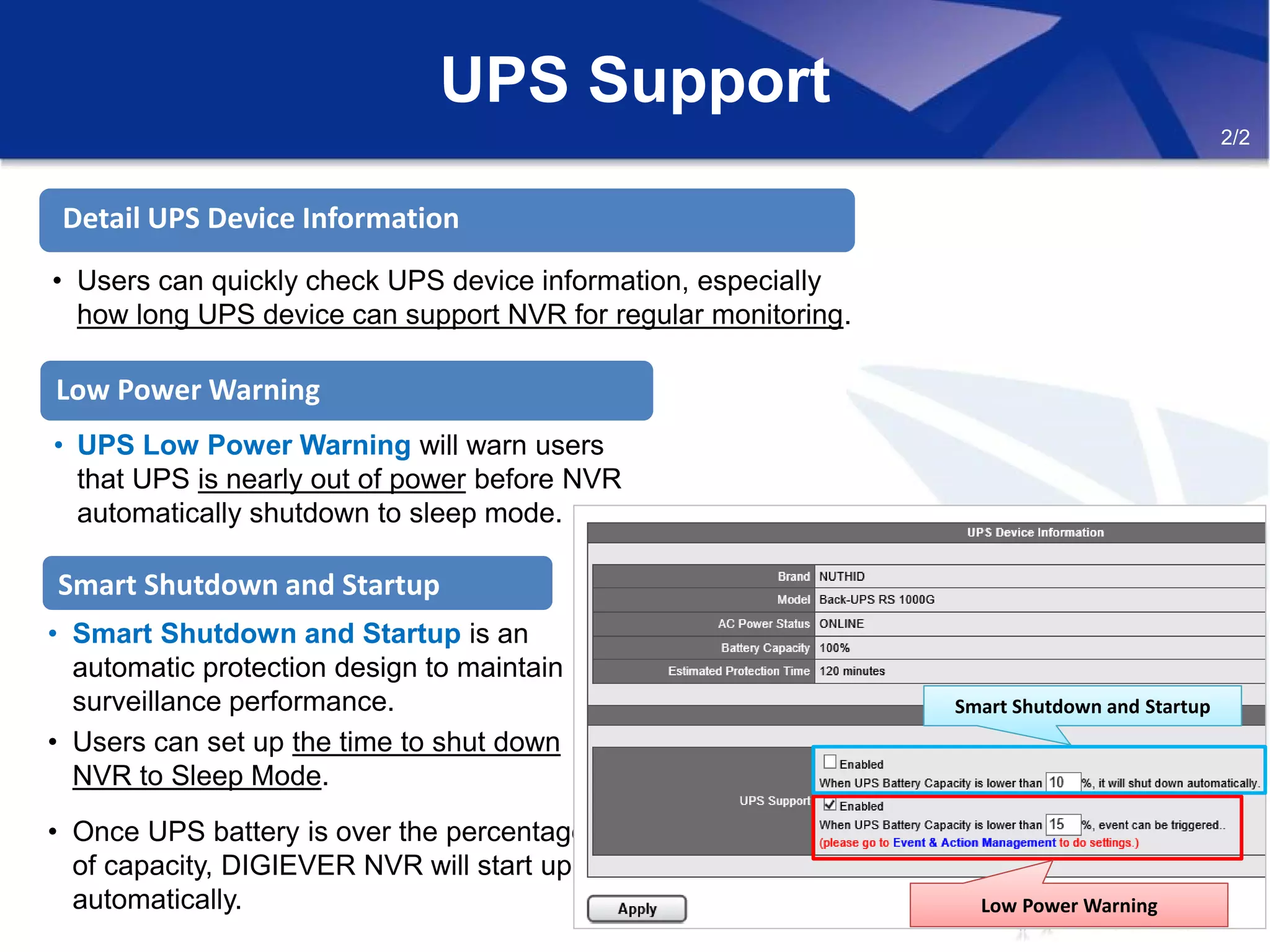

• Users can quickly check UPS device information, especially
how long UPS device can support NVR for regular monitoring.
Detail UPS Device Information
Smart Shutdown and Startup
• Smart Shutdown and Startup is an
automatic protection design to maintain
surveillance performance.
• Users can set up the time to shut down
NVR to Sleep Mode.
• Once UPS battery is over the percentage
of capacity, DIGIEVER NVR will start up
automatically.
UPS Support
Low Power Warning
• UPS Low Power Warning will warn users
that UPS is nearly out of power before NVR
automatically shutdown to sleep mode.
Smart Shutdown and StartupSmart Shutdown and Startup
Low Power WarningLow Power Warning
2/2

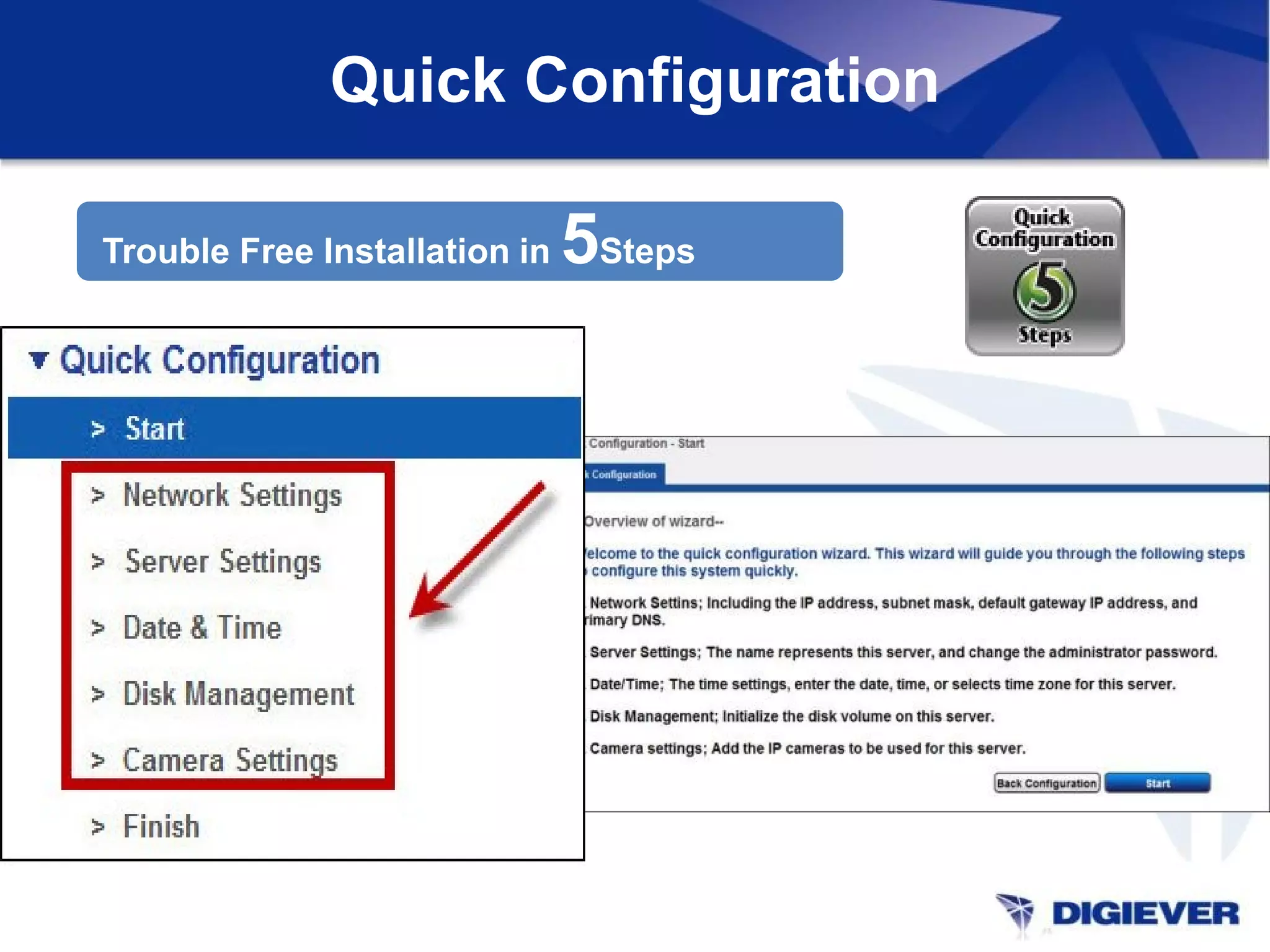

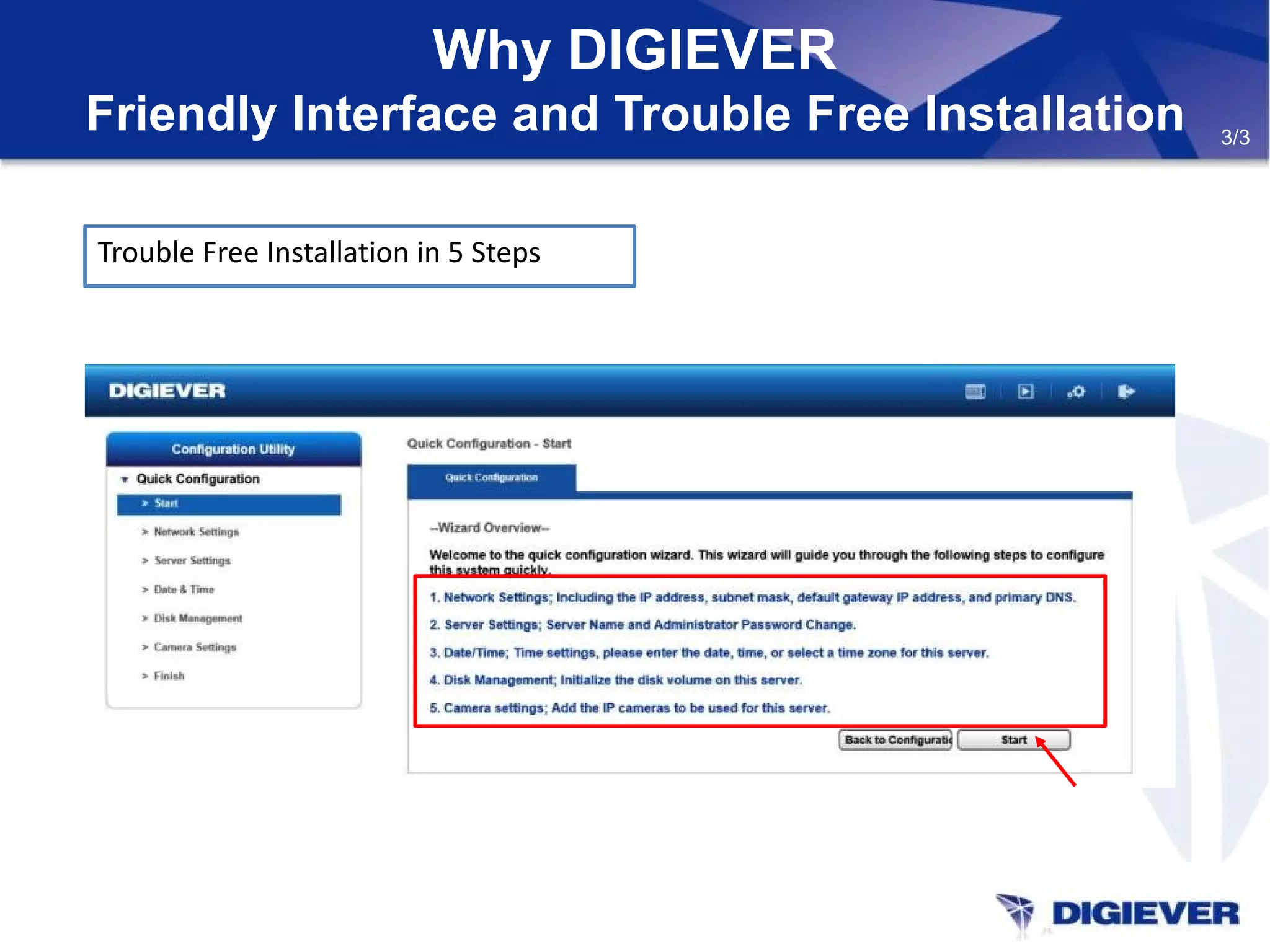

Trouble Free Installation in 5Steps
Quick Configuration

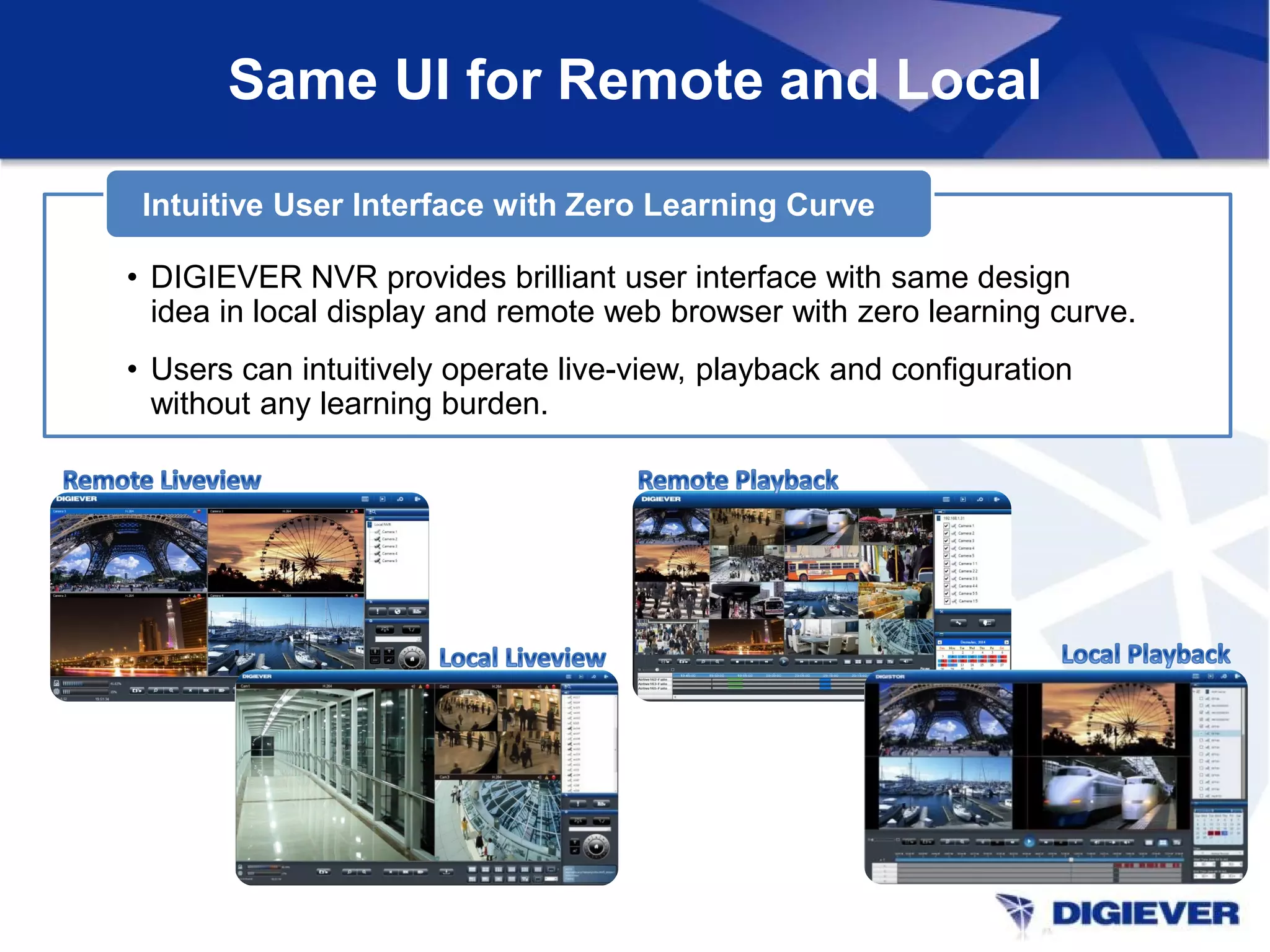

• DIGIEVER NVR provides brilliant user interface with same design
idea in local display and remote web browser with zero learning curve.
• Users can intuitively operate live-view, playback and configuration
without any learning burden.

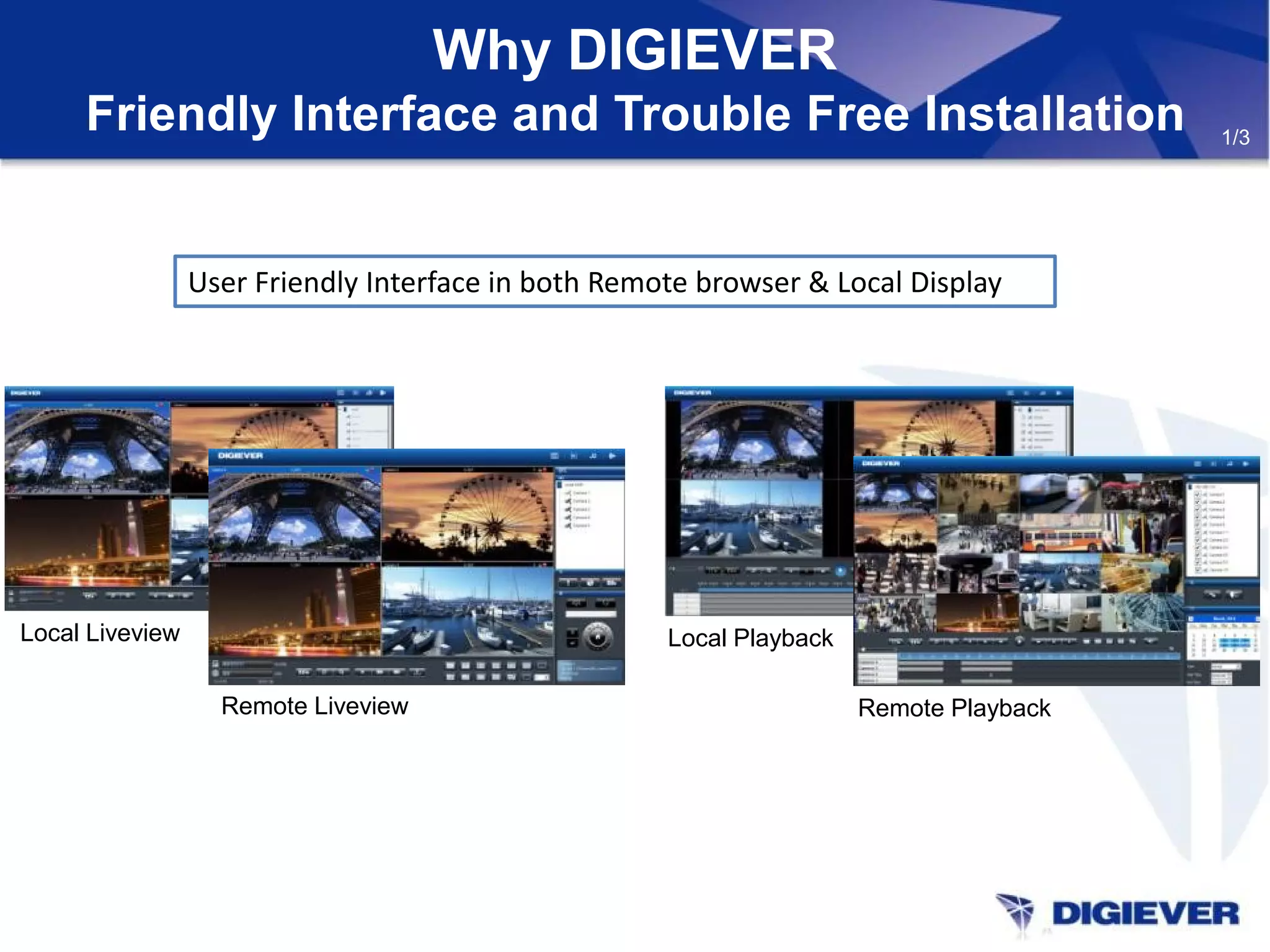

Intuitive User Interface with Zero Learning Curve
Same UI for Remote and Local

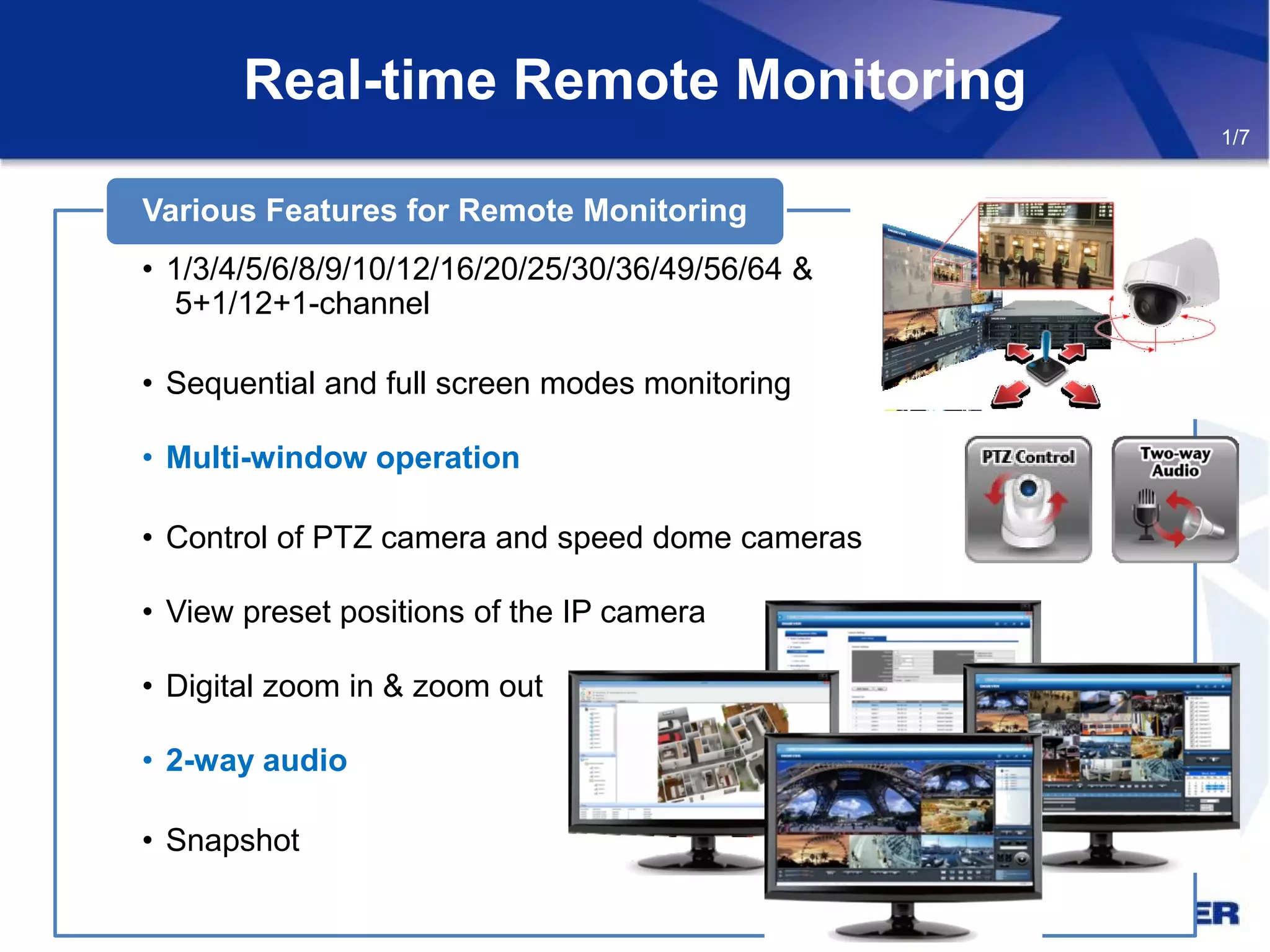

• 1/3/4/5/6/8/9/10/12/16/20/25/30/36/49/56/64 &
5+1/12+1-channel
• Sequential and full screen modes monitoring
• Multi-window operation
• Control of PTZ camera and speed dome cameras
• View preset positions of the IP camera
• Digital zoom in & zoom out
• 2-way audio
• Snapshot
Various Features for Remote Monitoring
Real-time Remote Monitoring
1/7

2/7

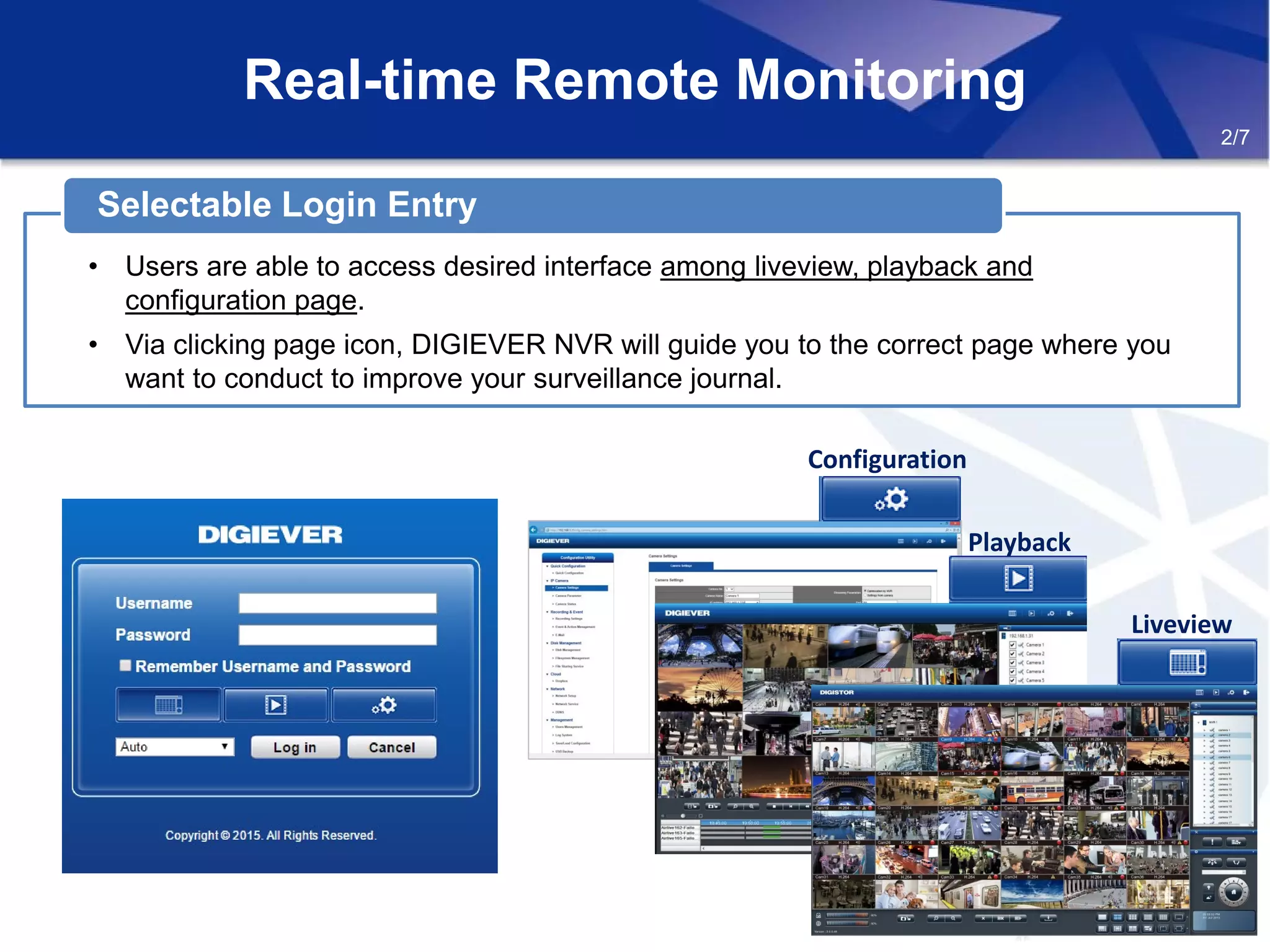

• Users are able to access desired interface among liveview, playback and
configuration page.
• Via clicking page icon, DIGIEVER NVR will guide you to the correct page where you
want to conduct to improve your surveillance journal.
Selectable Login Entry
Configuration
Playback
Liveview

※ User is advised to use the following version of each browser to ensure the best quality and stability:
IE 10.0 or above, Chrome 56.0.29 or above, Firefox 51.0.1 or above, Opera 43.0.2 or above
Above mentioned browsers support on Windows.
3/7

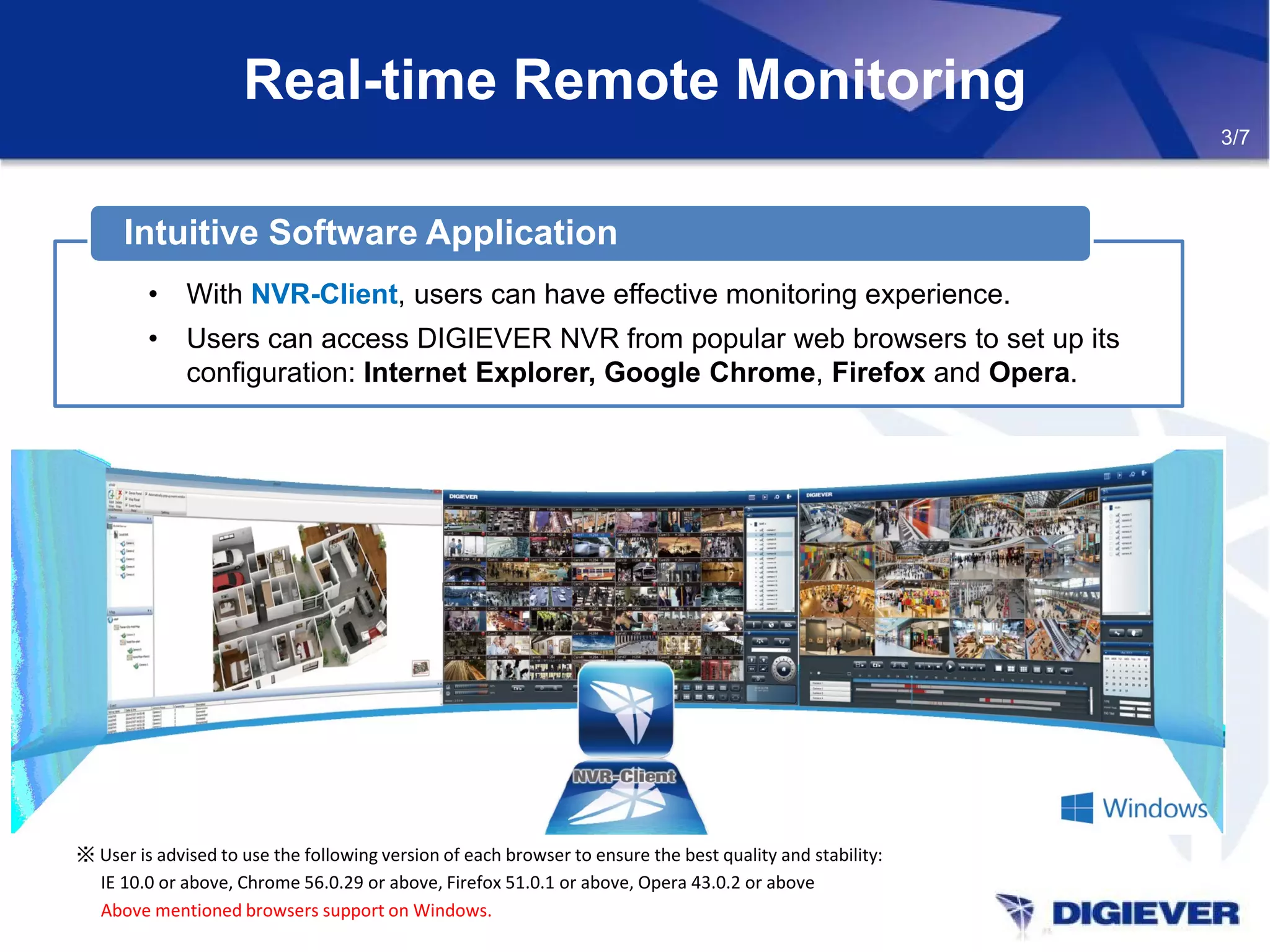

• With NVR-Client, users can have effective monitoring experience.
• Users can access DIGIEVER NVR from popular web browsers to set up its
configuration: Internet Explorer, Google Chrome, Firefox and Opera.
Intuitive Software Application

• DIGIEVER NVR can be a mini-CMS server to connect other
DIGIEVER NVR and select a maximum of 256 channels.
• Simultaneously live monitoring other remote NVR sites without
installing any extra CMS software.
Mini-CMS Server Monitoring
4/7

• ROI allows users to focus on multiple regional images from one camera,
especially for high-resolution cameras (such as 4K UHD).
• On liveview and playback page, users can define 5 or 7 regions on one camera
and move and zoom-in the focused areas.
• On liveview page, DIGIEVER NVR can smartly memorize ROI setting for each
camera to optimize users’ ROI surveillance experience.
Region of Interest (ROI)
5/7

6/7
• Instant playback allows users to quickly check what happened earlier while
simultaneously viewing live videos on liveview page. (Up to 15 minutes earlier)
• Users can configure image ratio/ full screen, execute panomorph dewarp
and ROI via its right-click menu.
＊ Note: The resolution of instant playback is based on NVR’s recording settings.
Liveview Instant Playback
Factory1/ Camera 1/ GMT+9
2017/01/10 15:34:04

• DIGIEVER NVR can be a relay server to minimize the influence
of camera limitation and to satisfy multiple clients simultaneous
monitoring needs.
＊ Note: NVR supports 12 clients for one channel simultaneously.
＊ Note: The total number of stream from NVR relay is 144.
＊ Note: Support NVR plus series only
Built-in NVR Relay Server
7/7
Stream from NVR relay

Multi-layer Dynamic E-Map
• To expand multi-layer maps
in different perspectives and to
deploy cameras on each map
Multi-layer Maps
DIGIEVER creates Dynamic E-Map feature on remote
live-view monitoring as a quick navigation to indicate
the physical location of cameras, so users can quickly
take appropriate actions to minimize event loss and
damage.
• Double-click camera icons
to display videos
Up to 4 videos at a timeUp to 4 videos at a time
1/3
NVR Client

• To notify users of event and to display recording videos when
event is triggered.
Pop-out Event Window
Manually close the windowManually close the window
Up to 4 pop-out event
windows at a time
Up to 4 pop-out event
windows at a time
2/3

• The list of event history helps users easily control event situation.
• Event instant playback allows users to quickly view event video.
Event Log History
3/3
Event Instant
Playback

When an event is triggered, such as motion detection or digital input,
DIGIEVER NVR can take various actions such as sending a video clip
to user by E-mail and pop-out video window.
Powerful Event Management
1/9
Up to 21 event types and 19 action types

• Chain Event is designed to provide accurate event alarm to customers and to
prevent the occurrence of false alarm.
• DIGIEVER NVR will trigger one action when all events are triggered in user-
defined period of time.
Chain Event
2/9

Chain Event Supported List
3/9
• Up to 6 event types and 10 action types

• Event Group Mechanism is a high-efficient method to maintain DIGIEVER IP
video system.
• Users will get continuous alarm from NVR’s built-in digital output until all
events are solved.
• It can make sure all videos are well-saved in DIGIEVER NVR via NVR’s built-
in digital output.
High-efficient System Maintenance Mechanism
4/9
High-efficient System Maintenance Mechanism:
Group Mechanism - Event Lifted for Digital Output
＊Note: This feature is available for DS-16X00-RM(P) Pro+, DS-8X00-RM(P) Pro+,
DS-4X00-RM(P) Pro+, DS-4X00 Pro+, DS-2000 and DS-4000 series.

• Application
Example: DO1 is the action for both Event 1 and Event 2.
High-efficient System Maintenance Mechanism:
Group Mechanism - Event Lifted for Digital Output
5/9

• Users can configure SNMP Trap to inform users of NVR situation via
SNMP (Simple Network Management Protocol)
• This feature can largely save your labor cost and time for routine NVR
maintenance.
* Note: SNMP Trap is supported in Pro+ and Pro series.
Intelligent NVR Check System
6/9

• Users can use stack light as a visual and audible indicator to inform NVR status
and outside environment triggered by built-in digital inputs.
• Based on surveillance scenario, users can flexibly configure multi-event status
indication such as LED light (red, yellow, green) and buzzer.
• Users needs to press stack light’s button to stop stack light’s notification,
which can ensure NVR normally record videos.
＊Note: DIGIEVER NVR supports Patlite’s NHx-3FB1-RYG for now.
＊Note: one DIGIEVER NVR can connect up to 4 stack light devices.
Intelligent Event Notification
7/9

• NVR can smartly back up video clips and snapshots to external FTP server
when an event is triggered.
• This feature allows users to store key evidence for a longer time with no impact
of NVR’s HDD recycle.
Event Backup to External FTP
8/9
＊Note: The video clip supports maximum 20 seconds.

• DIGIEVER NVR supports Axis Network I/O Audio Module to enhance
surveillance application.
• With this application, users can set more corresponding actions when an
event is triggered.
* Note: Currently, DIGIEVER NVR supports Axis IO box: P8221
Network GPIO Box Support: Axis IO Box
9/9

Turn Off
(White speaker)
Turn On
(Blue speaker)
• DIGIEVER NVR supports AXIS network horn speaker to centrally and
remotely address people and deter unwanted activity.
• Users can assign pre-recorded audios for diverse event situations, such as
address announcements at school, warn the theft at jewelry stop.
＊Note: DIGIEVER NVR supports AXIS C3003-E for now.
AXIS Network Horn Speaker (C3003-E)
7/7
＊Note: Please go to camera setting on configuration page and click “Apply” button for network
horn speaker again, when you add new pre-recorded audios to network horn speaker.

• DIGIEVER NVR gives users high performance megapixel
recording and supports MJPEG, MPEG-4, H.264, MxPEG
and Axis’ Zipstream(H.264) formats.
Compression Formats
• Users can set different recording schedules for each camera in
high megapixel recording.
Various Recording Modes
Audio
Recording
Excellent Video Recording
1/5
Event
Recording
Schedule
Recording
Always
Recording

2/5
• For unpredictable event situation, users can quickly enable
manual recording on the selected camera on liveview page.
• When the event is solved, users can stop manual recording
via right-click menu anytime.
Manual Recording
H.264Camera1
Manual RecordingManual Recording
Recording

• Users can set HDD storage percentage or days for keeping
videos to overwrite the oldest video files automatically.
Flexible Threshold of Recorded Video
• Users can categorize cameras in groups to save videos in
desired days based on its importance.
Camera Group Recording
3/5

• DIGIEVER NVR supports dual-stream to let users set video
format, frame rate, resolution and others in different conditions to
save bandwidth and optimize the monitoring and recording
experience.
Multi-stream for Monitoring & Recording
4/5
Bandwidth
Cost
Bandwidth
Cost
Viewing
Quality
Viewing
Quality
Liveview display rule:
≤ 12 CH: Stream 1
(higher resolution by NVR default)
> 16 CH: Stream 2
(lower resolution to save bandwidth)
Record default setting: Stream 1
(Users can set up stream 2 to save storage capacity
for other more important camera s)

• To make surveillance become much easier, DIGIEVER NVR
provides two recording formats for different safety concerns.
Flexible Recording Formats
5/5
The exported files can be play only via
NVRPlayer. (Default)
The exported files can be play only via
NVRPlayer. (Default)
Format 1 – NVR’s unique AVI fileFormat 1 – NVR’s unique AVI file
The exported files can be play via other video
player like Windows Media Player, VLC, etc.
The exported files can be play via other video
player like Windows Media Player, VLC, etc.
Format 2 –General AVI fileFormat 2 –General AVI file

Intuitive Multi-channel Playback
• By selecting date, time, channel number, normal record,
event and recovered file to quickly find out recorded videos.
• Users can preview the image of recording file by thumbnail.
User-friendly Searching Methods
• Users can select a suitable display mode from 1/4/9/16 display modes
on remote web browsers without wasting time to search desired videos.
1/4/9/16 Channels to Quick Search
1/6

• DIGIEVER NVR allows user to export video files (AVI format) with
video encryption to NVR and PC.
• Exported videos can be playback on NVR playback page and
remote PC (with DIGIEVER NVRPlayer utility).
Exporting Files and Taking Snapshot
2/6
View Recorded Videos
• Constantly
• Everywhere
• Anytime
Playlist
Playlist
Playlist

• Users can intuitively export videos from remote PC by
1. Define export path
2. Combine all (5 minutes) videos to a camera file
Export Cross-day Videos in a File
3/6
1. Export videos within 2 day’s range (Local & Remote Supported)
2. Freely define export path on PC
3. Combine all (5 minutes) videos into a camera file on PC
1. Export videos within 2 day’s range (Local & Remote Supported)
2. Freely define export path on PC
3. Combine all (5 minutes) videos into a camera file on PC

4/6
• Quick video file searching and playback
Six Recording Types
EventNormal
Video
Clip
For E-mail notification
Pre-time (up to 10 sec.)
Post-time (up to 10 sec.)
Time
overlap
Recovered
File
Videos recorded in NVR
failover server
on remote site
Failover
NVR resumes working
once power electric
back.
Users can directly play videos
exported from NVR local
playback page in original files
format.
USB
Device
NVR server’s time is changed
during recording task.

5/6
• DIGIEVER NVR allows you to remotely log in one NVR and quickly find out
key videos with no need to log in NVRs one by one.
• Users can remotely playback recording videos up to 16-channel of videos
from multiple DIGIEVER NVRs to track the path of running objects.
Multi-NVR Playback
NVR Client

Instant Export
• Users can export multi-channel videos to PC while playing
recorded videos for precise video export.
• Collocating with NVRPlayer, users can simultaneously play
1/4/9/16-channel exported videos.
6/6
NVR Client

Portable NVRPlayer
• NVRPlayer can play multi-channel videos via playlist which is
exported from instant export.
Multi-channel Playback via Playlist
Portable
NVRPlayer
• Users can directly view recorded videos with no need of installation.
1/2

Portable NVRPlayer
360-degree ImmerVision Dewarp Engine
• On NVRPlayer, users directly dewarp 360-degree images to any viewing
modes such as 180° panoramic/perimeter view and quad view.
 Quad
 Perimeter
 PTZ
NVRPlayer
2/2

Playback Smart Search
• DIGIEVER NVR offers five quick search modes to help users
quickly find out key video without wasting extra effort and energy.
Quickly find out key video
Motion Detection Foreign Object Detection
Missing Object Detection
Camera Tampering Detection Lose Focus
NVR Client

Time-divided Search
• Based on display mode (2x2, 3x3, 3x4), DIGIEVER NVR will divide a video
into many snapshots and display the first frame of that period of time on
each channel.
• Once finding the key moment, users can save snapshot or export a video
(5 minutes) on computer.
Quickly find out key video
NVR Client

Advanced and Reliable Security System
1/6
• DIGIEVER NVR is a Linux-embedded operating system so it is
efficient to avoid virus attack & hacker intrusion.
• Compared with PC, Linux-embedded system offers more green
and power saving.
Stable and Secure Standalone Linux-embedded System

• Users can specify IP address or network segment to permit or
prohibit specific IP address as white or black list from live view
or playback access.
Flexible Permission and Prohibition of IP Range for
Controlling the Access
2/6
• Administrator can add multiple user groups like power user
and user to configure live view and playback access.
• Audio Authorization:
For privacy concern, entry level user (such as security guard)
can only view the live video without hearing its audio.
User Privilege Management

• With over six clear log systems, users can do quick trouble
shooting and security control of DIGIEVER NVR.
Powerful Log System for Trouble Shooting
3/6

4/6
• DIGIEVER NVR will automatically log into liveview page with previous
user account when it reboots.
• For unstable power supply environment, users can unceasingly execute
monitoring without entering username and password.
Reboot Auto Access

• Timeout Auto Access is an advanced firewall to prevent outsiders
getting confidential videos and manipulating NVR settings.
Timeout Auto Access
5/6
ConfigurationConfigurationConfiguration
Auto Logout
(Admin/ Power User) Login Page
Auto Login
(User)
Liveview
Playback

6/6
Routine Notice
• Routine notice is designed to remind users of IP video
surveillance’s equipment maintenance.
• DIGIEVER NVR will routinely pop out user-defined messages
on liveview page.

NVR Failover and System Monitoring
1/3
Failover
Failback
＊Note: DIGIEVER NVR Pro and Pro+ series can become NVR failover server.
• NVR failover is a reliable backup solution to maintain DIGIEVER
IP video surveillance in case of NVR recording server failure
situation.
Reliable backup solution to solidly guard your region
＊Note: One failover server can monitor up to 4 NVR recording servers in default.
(Option up to 16 NVRs)

 Camera settings
 Recording settings
 Event and action settings
 Email settings
 Server setting
(server name with UPnP and
admin user name/ password)
 Camera settings
 Recording settings
 Event and action settings
 Email settings
 Server setting
(server name with UPnP and
admin user name/ password)
Check NVR and HDD status
every minute
11 MonitorFailback33
Take over failed NVR recording server
Original NVR retakes and continues its
original video recording and monitoring
function
•NVR Status:
network connection lost,
NVR software and
hardware failure
•Recording Status:
HDD failure
•NVR Status:
network connection lost,
NVR software and
hardware failure
•Recording Status:
HDD failure
Failover22
2/3
NVR Failover Server

3/3
＊Note: DIGIEVER NVR Pro and Pro+ series can be treated as failover server to monitor and take over failed NVR
recording servers.
＊Note: To configure NVR failover feature, please upgrade firmware 2.1.X.54 or above on both failover server and NVR
recording server.
＊Note: Failover license channels must be more than NVR recording server license channels.
＊Note: NVR recording server can be added into “one” failover server.
＊Note: NVR failover server will synchronize NVR’s configuration each hour.
Playback videos recorded in Failover serverPlayback videos recorded in Failover server
NVR Client

Integrated Access Control Server
DIGIEVER Centrally Guard Your Entrance
• DIGIEVER NVR supports access control system for door monitoring and card management.
• Users can centrally open all doors and control who can access the door by adding card
information to each card reader.
• DIGIEVER can take a snapshot when users go through the door by access card.
• Via data filter, users can easily check historical access information and export desired data
to your PC.
＊Note: One NVR can connect up to 4 access control devices in default. (Option up to 16 devices)
＊Note: DIGIEVER NVR supports HID (V2000) and HUNDURE (RAC-960/RAC-970) access control device.

Integrated Modbus
Analog I/O-Digital I/O Box Server
Smartly and Flexibly Control Your Environment
• DIGIEVER NVR supports Modbus Analog I/O-Digital I/O boxes to satisfy project
requirements where users pay more attention on environment control such as
factory and warehouse.
• Users can name each input and output to desired name and based on the name
quickly set up event and action configuration.
＊Note: one NVR can connect up to 4 Modbus Analog I/O-Digital I/O boxes in default.
(Option up to 16 boxes)
＊Note: DIGIEVER NVR supports Advantech ’s Analog I/O-Digital I/O box for now: ADAM-6024
1/2

Integrated Modbus
Analog I/O-Digital I/O Box Server
Modbus I/O Box Status on Liveview
• Users can easily and instantly obtain all I/O boxes’ information and status on one
chart without entering configuration page.
FilterFilter
SortingSorting
Intuitive I/O
Alias Name
Intuitive I/O
Alias Name
Event
Pusher
Event
Pusher
2/2
NVR Client

Integrated IP Video Door Intercom System
Smartly Guard Your Entrance
• To enhance entrance surveillance, DIGIEVER NVR has integrated with IP video
door intercom system.
• The integration can not only clearly identify visitors from both IP cameras and
door stations but also centrally control multiple sites of door stations.
Master Station
Door Station (camera)
＊Note: DIGIEVER NVR supports Aiphone IX series for now.
＊Note: DIGIEVER NVR will record the audio captured from door station only.
＊Note: DIGIEVER NVR supports pre-alarm record (up to 300 seconds).

Two LAN Port Applications
DIGIEVER NVR provides as proxy function to connect different network
segments, even one in LAN, one in WAN.
• Relieve Internet loading to maximum network efficiency
It can maximize network efficiency and bandwidth stability for various
purpose, such as daily operation and surveillance usage.
• High security and data protection
It can largely increased the resistibility of hackers’ attacks and the
unavailability of accessing to cameras, which makes the management
of video surveillance much easier.
Option 1: Separated IP
1/2

Two LAN Port Applications
DIGIEVER NVR features load balance to share two internet traffics into
one faster connection and to prevent the loss of connectivity.
Option 2: Load Balance
2/2

Users can preset a maximum of days and hours
to backup the latest video files and configure the
specific channels in advance.
Backup with Day, Hour and Channel Preset
Hardware USB BACKUP Button and Software
USB BACKUP Virtual Button
Press either hardware USB BACKUP button or
software USB BACKUP virtual button, and then
export the video files to external USB device,
including USB dongle and USB type DVD burner.
Efficient USB BACKUP Button
Hardware USB Backup Button
Software USB Backup Virtual Button
USB
Dongle
USB type
HDD Drive
USB type
DVD Burner

NVR Backup Server
DIGIEVER NVR can become a backup server allowing users to preserve
crucial camera videos from multiple DIGIEVER NVRs.
1/3
Centrally Preserve Crucial Videos
• To fully utilize the storage space of backup server, users can
freely define the backup schedule of each camera on backup server.
• Users can directly view videos on backup server without installing extra tool.

Backup to External Device
NVR can smartly back up recorded video to local DIGIARRAY or
remote NAS to storage confidential videos for a longer time.
Based on surveillance needs, NVR allows users to freely configure video
setting via assigning camera, day/time and recording type.
1/3
＊ Note: ASUSTOR is supported in LAN for now.
Local Backup to DIGIARRAY & Remote Backup to NAS

2/3
Backup
Video
Backup
Video
Upload
Time
Upload
Time
To avoid network traffic and reduce network loading, users can
schedule the time to upload assigned recorded video to NAS.
Schedule Backup

NVR will record backup history to let users check backup
status and video backup information.
3/3
Backup History

NVR Edge Backup
Simultaneous Recording & Mutual Backup Solution
• Edge backup is an advanced feature designed to ensure important camera videos
are firmly saved in another NVR for future viewing purpose.
• If Edge NVR loses any camera videos, Edge NVR will start checking all types of
camera videos with those of Host NVR and get the lost videos from Host NVR.
＊Note: Host NVR is the NVR enabled edge backup function.
1/2

NVR Edge Backup
Simultaneous Recording & Mutual Backup Solution
• Via enabling edge backup on two NVRs, DIGIEVER NVR can offer
"simultaneous recording and mutual backup" solution to let recorded
videos firmly saved in two NVRs.
2/2

Various Network Services
• DIGIEVER NVR supports NTP (Network Time Protocol) by selecting
time zone to synchronize correct date and time.
• By selecting “Automatically Sync”, DIGIEVER NVR will
automatically synchronize with external NTP sever to ensure time
accuracy.
• Based on users’ preference, DIGIEVER NVR provides three
selections to automatically synchronize with external NTP server:
Monthly, Weekly or Daily.
Built-in NTP Server
Auto NTP SynchronizeAuto NTP Synchronize
1/2
• With no need of router connection, DIGIEVER NVR supports built-in
DHCP server to assign local IP addresses to other device in a local
area network (LAN), which makes installation become much easier.
Built-in DHCP Server

1/2
• Users can set either static IP or DHCP on DIGIEVER NVR.
• With UPnP search, users can easily and quickly add camera in LAN.
Static IP , DHCP & UPnP Search
• Users can register a domain name from a dynamic DNS (DDNS)
provider and enable DDNS in DIGIEVER NVR.
DDNS Service
HTTP/HTTPS
• For different security concerns, users can select
either HTTP or HTTPS to remotely log in DIGIEVR NVR.

• With Windows networking and FTP service, DIGIEVER NVR allows
users to quickly access the video files.
Windows Networking and FTP Service
2/2
IPv4/ IPv6
• DIGIEVER NVR supports IPv6 (Internet Protocol version 6) to
response the foreseeable lack of available IPv4 address in the future.

Diverse Language Version
• DIGIEVER NVR supports 25 language versions for over 100
countries’ usage.
Diverse Language Versions
• With localized keyboard layout, users can intuitively define
desired contents on DIGIEVER NVR, such as camera name and
E-mail notification.
Localized Keyboard Layout

DIGIEVER NVR
Extension Solutions

DIGIEVER NVR Extension Solutions
DIGIMobileV2
Video Wall
Decoder
DIGIARRAY
DIGIEVER CMS
DIGIEVER NVR
Mobile NVR
Industrial Layer
2+ PoE Switch

DIGIEVER CMS
CMS-Client + CMS-Matrix
• Manage up to 1024 channels via NVR
• Monitor up to 64 channels per page
• Multi-task monitoring on multi-monitor
– Multi-layer dynamic E-map navigation
– Multi-channel playback and smart search
– Manage and configure video wall
• Ideal for control room monitoring
• User-defined display mode
• Flexible monitor scalability based on the
numbers of display card
CMS-Client
Central Management Software
CMS-Matrix
Video Wall Software
CMS-Client (Central Management Software) CMS-Matrix (Video Wall Software)
E-Map Liveview Playback

In-vehicle
Wide-range Temperature Mobile NVR
• Up to 36 channels real-time local display
• Support 4K UHD (8M) IP camera
• Up to 300Mbps network throughput
• Dual display via HDMI/VGA connector
to monitor different liveview screens on two
monitors (no extra PC for video monitoring)
• Support 60FPS and ImmerVision Panomorph camera
Excellent Display Performance
• Wide-range temperature (-20 ~ 70° C / -4 ~ 158°F )
for tough environments
• Up to 2TB storage capacity per HDD
• Built-in 4 LAN ports with optional PoE power module
• Support optional Wi-Fi/3G/4G and GPS/G-sensor
Superb Hardware Design
• Support Third Party VMS Integration
via DIGIEVER SDK
High Integration Ability
MN-1100 Pro+ MN-2100 Pro+
The World’s First Linux-embedded
Wide-range Temperature
4K H/W Decode Mobile NVR
The World’s First Linux-embedded
Wide-range Temperature
4K H/W Decode Mobile NVR
Optional package

Video Wall Decoder
The World’s First 4K Ultra HD Hardware Decode Linux-Embedded Video DecoderThe World’s First 4K Ultra HD Hardware Decode Linux-Embedded Video Decoder
Dual or Mirror display via HDMI/DVI-I output
1/3
• Support 8M(4K UHD) IP camera
• Up to 64-CH real-time liveview performance
• Marvelous PC-less solution: Dual/Mirror display
• Support ImmerVision panomorph dewarp
• Liveview optimization: Smart dual stream switch
Superb Liveview Video Quality
User-friendly Design
• Quick configuration in 4 steps
• Save/Load configuration file via USB dongle/ PC
• Smart group adding: Quickly add NVR or camera
• Convenient remote controller (Optional)

Video Wall Decoder
• 4-channel simultaneous playback from NVRs
• Speed control to shorten video tracking time
• Intuitive thumbnail preview
Multi-channel Playback
• Support 100+ brands and 4200+ IP cameras
• Support ONVIF Profile / Generic RTSP&MJPEG
Comprehensive Compatible Ability
2/3

Video Wall Decoder
Various Applications
3/3

1.Robust scalability up to 40 TB (10TB per HDD)
2.Multi-volume storage management
• Extend storage size with no impact of NVR performance
• Flexible RAID rebuilding type in NVR and DIGIARRAY
3.Rock-solid hardware RAID
• Various hardware RAID types: JBOD(Linear),
RAID 0,1,5,10
• Safe, reliable and high speed
• Quick RAID Setting
Flexible Storage Expansion
DIGIARRAY DA-4000E
4. Easy deployment with plug-and-play design
• Hot swap design in case of failure
• Storage portable design
to move all HDDS to another DIGIARRAY
5. Easy expansion via eSATA interface
• Quickly connect to DIGIEVER NVR
• Fast and efficient video transmission
8TB 16TB 32TB
48TB 56TB
64TB 90TB 92TB
144TB
240TB
0
100
200
300
1-bay 2-bay 4-bay 5-bay 6-bay 8-bay 10-bay 12-bay 16-bay 24-bay
Maximum Total Storage Capacity (NVR+DIGIARRAY)
Total Storage Capacity (TB)
1/2

2/2
Flexible Storage Expansion
DIGIARRAY DA-4000E

Industrial PoE Switch:
Layer 2+ Full Management (FM) Series, Web Smart (WS) Series
New Products
DIGIEVER PoE Switch Models
FM Series
(Full Management)
WS Series
(Web Smart)
SW-2421FM-250
SW-1621FM-250
SW-0821FM-250
SW-2440WS-430
SW-1640WS-250
SW-0820WS-120

New Products
Industrial Layer 2+ Full Management / Web Smart Gigabit PoE Switch
SW-2421FM-430SW-2421FM-430
Product
Name
10/100/1000M
RJ45 PoE Ports
SFP/RJ45
combo Ports
Command
Line Port
Performance
Max. Power
Budget
08 8 ports
16 16 ports
24 24 ports
2 2 ports
4 4 ports
0 0 ports
1 1 ports
WS Web Smart
FM Full Management
120 120W
250 250W
430 430W
SW DIGIEVER
PoE Switch

New Products
Industrial Layer 2+ Full Management PoE Switch
• QoS (CoS/ Rate Limitation/ Priority Queue)
• Up to 4K of VLAN group numbers
• SNMP (v1/ v2c/ v3)
• Sampled Flow
• Authorization on Radius/ TACACS+
• IEEE 802.3ad-Link Aggregation Control
• Storm Control (Broadcast/ Multi-cast/ Unknown
Unicast)
• Spanning Tree (STP/ RSTP/ MSTP)
• Snooping (IGMP/ IPv6 MLD)
• 802.3x Flow Control )
Reliable and Easy-to-use Surveillance Ability
• Support QoS to prioritize video streaming in network traffic
• Ultra-high backplane capacity for data transmission
• Remotely restart network devices from PoE port
management
• Up to 30W per port to power PTZ cameras
• Create large numbers of VLANs for network efficiency
• Built-in SFP cages with optional SFP transceivers
for large-scale surveillance environment
• Generate network topology diagram to easily organize
the network architecture
• Support dual firmware image to ensure stable operation
Layer 2+ Full Management Series

New Products
Professional PoE Management
• High scalability with diverse selection of PoE ports:
8, 16 and 24
• Up to 430W high PoE power budget
• IEEE 802.3 af/at standard compatible
• Adjustable voltage PoE (Max. 30W per port)
• Support power device detection for easy deployment
• Enable/Disable PoE port separately
Central Switch Management on DIGIEVER NVR
• Compatible to DIGIEVER NVR with simple installation
• Intuitive web-based configuration:
Quickly search and name switches on DIGIEVER NVR
• Configure switch’s IP address and restart switch on
DIGIEVER NVR
• Intuitive configuration to monitor PoE power consumption
• On/off PoE port to restart PoE network devices from NVR
• Complete port overview to display camera’s IP address
Web Smart Series

Remote Monitoring Anywhere
DIGIMobile V2
Liveview
*Access multiple phones at the same time
*Dual stream auto switch
*ImmerVision panomorph dewarp in single-mode
*Display mode:
1/4/6 and sequential mode
*PTZ control
*Pinch to zoom
*Audio
Playback
* Event and continuous playback
* Fast forward and slow motion
* Frame by frame playback and rewind
* Time bar
* Pinch-to-zoom
* Audio
• No matter where you are, you can monitor through iOS and
Android mobile applications.
Monitoring Everywhere via iOS& Android Mobile System
1/2

Remote Monitoring Anywhere
DIGIMobile V2
Others
* Quickly add NVR in LAN via EZ Search
* Directly control NVR liveview on local display
* Quick event sorting method
* Multi-languages support
* Event push notification
* Quick monitoring from favorites
＊Note: It is suggested to use together with DIGIEVER NVR firmware version 2.1.x.52 or above.
• No matter where you are, you can monitor through iOS and
Android mobile applications.
Monitoring Everywhere via iPhone & Android Operating System
2/2

Why DIGIEVER
Complete NVR Surveillance Solutions 1/2

2/2
Why DIGIEVER
All-in-one NVR Surveillance Solutions

Why DIGIEVER
High Performance Local Display
4K Ultra HD (8MP) Camera
Hardware Decode
Dual/ Mirror Display
(via HDMI/ VGA/ DVI-I Connectors)

Why DIGIEVER
High Performance Local Display
PC-less Solution Easy to Use
by USB Mouse and Keyboard

Why DIGIEVER
Superior Hardware & Software Design
Advanced RAID
configuration
Hardware
Decode for
Real-time Local
Display
Built-in
4 Digital In and
2 Digital Out
650Mbps
network
throughput
High
performance
megapixel
recording
Hot-swap
design

• Connect other DIGIEVER NVR and select a maximum of 256
channels.
• Simultaneously live monitoring other remote NVR sites without
installing any extra CMS software.
Mini-CMS Server Monitoring
Why DIGIEVER
Built-in Mini CMS Server

Why DIGIEVER
Reliable Security Control
• Detailed log information for trouble shooting and security control

Why DIGIEVER
The Best and Completed Bundle Solution
+5 IP
cam
+9 IP
cam
+12 IP
cam
+16 IP
cam
+20 IP
cam
+25 IP
cam
+32 IP
cam
+36 IP
cam
+42 IP
cam
+49 IP
cam
+56 IP
cam
+64 IP
cam

Why DIGIEVER
Camera Compatibility List
Integrated with 120+ camera brands and 5500+ modelsIntegrated with 120+ camera brands and 5500+ models

Why DIGIEVER
Technical Alliance Partners

Why DIGIEVER
Friendly Interface and Trouble Free Installation
User Friendly Interface in both Remote browser & Local Display
Local Liveview
Remote Liveview
Local Playback
Remote Playback
1/3

Why DIGIEVER
Easy to Use
Installation CD & EZ Search
2/3

Why DIGIEVER
Trouble Free Installation in 5 Steps
3/3

Useful Product Links
• Compatibility List (Camera + HDD + NAS+ UPS)
http://www.digiever.com/support/compatibility.php
• DIGIEVER Account Login & Download Center
http://www.digiever.com/account/login.php
• DIGIEVER NVR Storage Calculator
http://www.digiever.com/support/calculator.php
• DIGIEVER FAQ
http://www.digiever.com/support/faq.php

Digiever standalone nvr_general_2017_technosystems_4_k_live

More Related Content

What's hot

Similar to Digiever standalone nvr_general_2017_technosystems_4_k_live

More from Ali Shoaee

Recently uploaded

Digiever standalone nvr_general_2017_technosystems_4_k_live
