1. QNAP NAS is suitable for small-scale projects with 4-16 cameras using AXIS Camera Companion software. 2. QNAP NVR provides a turnkey video management system for small to mid-size projects with 4-64 cameras. It allows for local monitoring and management without a PC. 3. Large scale projects with over 1,000 cameras require a QNAP NVR combined with a central management system to scale across multiple sites.

1. Leading IP Video
Surveillance Solution

2. NAS or NVR?
NAS
Storage for Video
 Local Display
 Camera Licenses
 Software
 Max Channels
*Axis Camera Companion
NVR
VMS on Storage
• n/a
• Axis ACC*
• Axis ACC*
• 16
• HDMI
• Built-in
• Built-in
• 64

3. How to Choose the Right Solution
A. Requirements
B. Choose Solution
C. Decide Required Capacity
AXIS Camera Companion +
QNAP NAS
4-16 Ch Camera
QNAP NAS:
2-bay or 4-bay; Up to 16TB
QNAP NVR
1.
QNAP NVR:
2-bay or 4-bay; Up to 16TB
QNAP NVR
QNAP NVR:
6 to 12-bay; Up to 48TB
or
2.
3.
16- 64Ch Camera
1000+ Ch Cameras
QNAP NVR + CMS
QNAP NVR + CMS
3

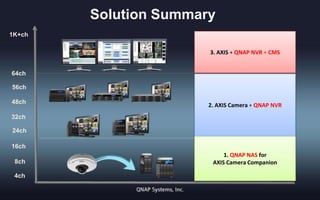

4. Solution Summary
1K+ch
3. AXIS + QNAP NVR + CMS
64ch
56ch
48ch
2. AXIS Camera + QNAP NVR
32ch
24ch
16ch
8ch
4ch
1. QNAP NAS for
AXIS Camera Companion

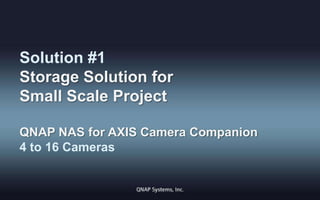

5. Solution #1
Storage Solution for
Small Scale Project
QNAP NAS for AXIS Camera Companion
4 to 16 Cameras

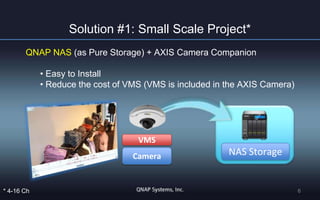

6. Solution #1: Small Scale Project*
QNAP NAS (as Pure Storage) + AXIS Camera Companion
• Easy to Install
• Reduce the cost of VMS (VMS is included in the AXIS Camera)
VMS
Camera
* 4-16 Ch
NAS Storage
6

7. Solution #1: Small Scale Project
Why QNAP Turbo NAS for AXIS Camera Companion?
*4-16 Ch
7

8. Solution #1: Small Scale Project
TS-470 Pro
TS-670 Pro
TS-269 Pro TS-469 Pro TS-569 Pro TS-669 Pro
TS-870 Pro
TS-869 Pro
 Intel i3 Dual Core 3.3GHz
 2GB DDR3. SATA 6G, USB
3.0
 10 GbE (optional)
 Intel Dual Core Atom 2.13GHz
 1GB DDR3 (expandable to
3GB)
 SATA 6G, USB 3.0
 LCD, HDD Tray Key Lock
 Marvell 2.0GHz
 1GB DDR3
 USB 3.0
TS-221
2-bay
8TB
TS-421
4-bay
16TB
5-bay
20TB
6-bay
24TB
8-bay
32TB
Max Raw
Capacity
8

9. Solution #1: Small Scale Project

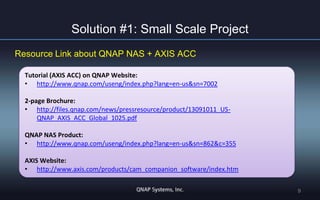

Resource Link about QNAP NAS + AXIS ACC
Tutorial (AXIS ACC) on QNAP Website:
• http://www.qnap.com/useng/index.php?lang=en-us&sn=7002
2-page Brochure:
• http://files.qnap.com/news/pressresource/product/13091011_USQNAP_AXIS_ACC_Global_1025.pdf
QNAP NAS Product:
• http://www.qnap.com/useng/index.php?lang=en-us&sn=862&c=355
AXIS Website:
• http://www.axis.com/products/cam_companion_software/index.htm
9

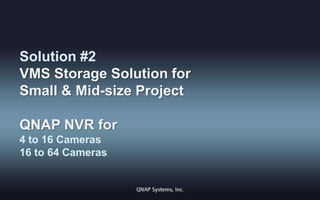

10. Solution #2
VMS Storage Solution for
Small & Mid-size Project
QNAP NVR for
4 to 16 Cameras
16 to 64 Cameras

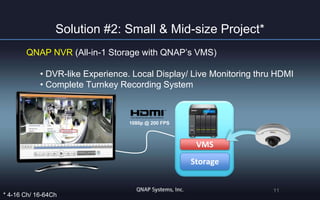

11. Solution #2: Small & Mid-size Project*
QNAP NVR (All-in-1 Storage with QNAP’s VMS)
• DVR-like Experience. Local Display/ Live Monitoring thru HDMI
• Complete Turnkey Recording System
1080p @ 200 FPS
VMS
Storage
* 4-16 Ch/ 16-64Ch
11

12. Solution #2: Small & Mid-size Project

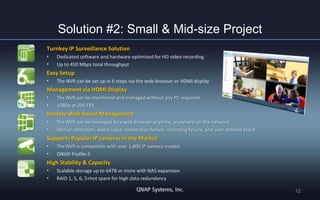

Turnkey IP Surveillance Solution
•
•
Dedicated software and hardware optimized for HD video recording
Up to 450 Mbps total throughput
Easy Setup
•
The NVR can be set up in 6 steps via the web-browser or HDMI display
Management via HDMI Display
•
•
The NVR can be monitored and managed without any PC required
1080p at 200 FPS
Remote Web-based Management
•
•
The NVR can be managed by a web browser anytime, anywhere on the network
Motion detection, alarm input, connection failure, recording failure, and user-defined event
Supports Popular IP cameras in the Market
•
•
The NVR is compatible with over 1,800 IP camera models
ONVIF Profile-S
High Stability & Capacity
•
•
Scalable storage up to 64TB or more with NAS expansion
RAID 1, 5, 6, 5+hot spare for high data redundancy
12

13. Solution #2: Small & Mid-size Project
 24-48Ch
64 Ch
VS-8100U-RP Pro+
 12-20Ch
VS-6100 Pro+
16 Ch
 40-64Ch
VS-12100U-RP Pro+
 24-48Ch
VS-8100 Pro+
 8-16ch
VS-4100U-RP Pro+
 4-12ch
VS-2100 Pro+
 8-16ch
Max Raw
Capacity
VS-4100 Pro+
2-bay
4-bay
6-bay
8-bay
12-bay
8TB
16TB
24TB
32TB
48TB
13

14. Solution #3
VMS & Storage for
Large Scale Project
QNAP NVR + Central Monitoring System (CMS)
Multi-sites
1,000+ Cameras

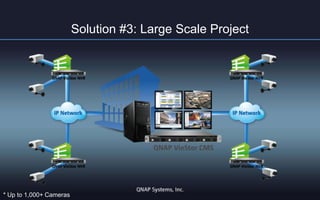

15. Solution #3: Large Scale Project
* Up to 1,000+ Cameras

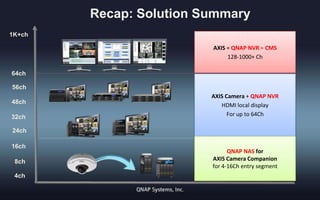

16. Recap: Solution Summary
1K+ch
AXIS + QNAP NVR + CMS
128-1000+ Ch
64ch
56ch
48ch
32ch
AXIS Camera + QNAP NVR
HDMI local display
For up to 64Ch
24ch
16ch
8ch
4ch
QNAP NAS for
AXIS Camera Companion
for 4-16Ch entry segment

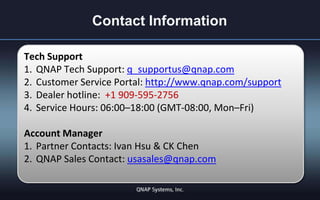

17. Contact Information
Tech Support
1. QNAP Tech Support: q_supportus@qnap.com
2. Customer Service Portal: http://www.qnap.com/support
3. Dealer hotline: +1 909-595-2756
4. Service Hours: 06:00–18:00 (GMT-08:00, Mon–Fri)
Account Manager
1. Partner Contacts: Ivan Hsu & CK Chen
2. QNAP Sales Contact: usasales@qnap.com

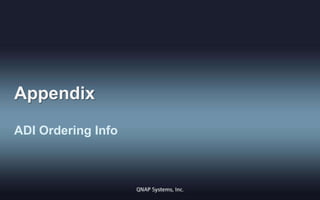

18. Appendix
ADI Ordering Info

19. Smaller Scale Project (4-16 Ch)
Solution #1: QNAP NAS
Compatible NAS Models for AXIS Camera Companion:
QNAP NAS
Series
Platform/ Performance
Model
Raw Capacity up to: (w/
4TB HDD populated)
TS-x21
2.0Ghz SoC CPU;
For up to 8Ch
TS-221, 2-bay NAS
TS-421, 4-bay NAS
8TB
16TB
Intel Dual Core Atom CPU;
For up to 16 Ch
TS-269 Pro, 2-bay NAS
TS-469 Pro, 4-bay NAS
TS-569 Pro, 5-bay NAS
TS-669 Pro, 6-bay NAS
TS-869 Pro, 8-bay NAS
8TB
16TB
20TB
24TB
32TB
Intel i3 Dual Core CPU;
For up to 16 Ch, ultra high
performance
TS-470 Pro, 4-bay NAS
TS-670 Pro, 6-bay NAS
TS-870 Pro, 8-bay NAS
16TB
24TB
32TB
FW 4.0.5 & 4.1
TS-x69 Pro
FW 4.0.2
TS-x70 Pro
FW 4.0.2
19

20. Small & Mid-size Project (4-16 Ch/ 16-64Ch)
Solution #2: QNAP NVR

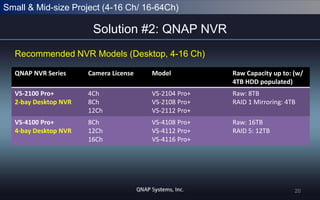

Recommended NVR Models (Desktop, 4-16 Ch)
QNAP NVR Series
Camera License
Model
Raw Capacity up to: (w/
4TB HDD populated)
VS-2100 Pro+
2-bay Desktop NVR
4Ch
8Ch
12Ch
VS-2104 Pro+
VS-2108 Pro+
VS-2112 Pro+
Raw: 8TB
RAID 1 Mirroring: 4TB
VS-4100 Pro+
4-bay Desktop NVR
8Ch
12Ch
16Ch
VS-4108 Pro+
VS-4112 Pro+
VS-4116 Pro+
Raw: 16TB
RAID 5: 12TB
20

21. Small & Mid-size Project (4-16 Ch/ 16-64Ch)
Solution #2: QNAP NVR

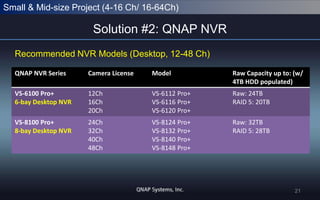

Recommended NVR Models (Desktop, 12-48 Ch)
