1. DIGISTOR Linux Standalone NVR
Integrated IP Video Surveillance Solutions
Kimi Wu, Sales & Marketing Division
April, 2012 Kimi.wu@digiever.com

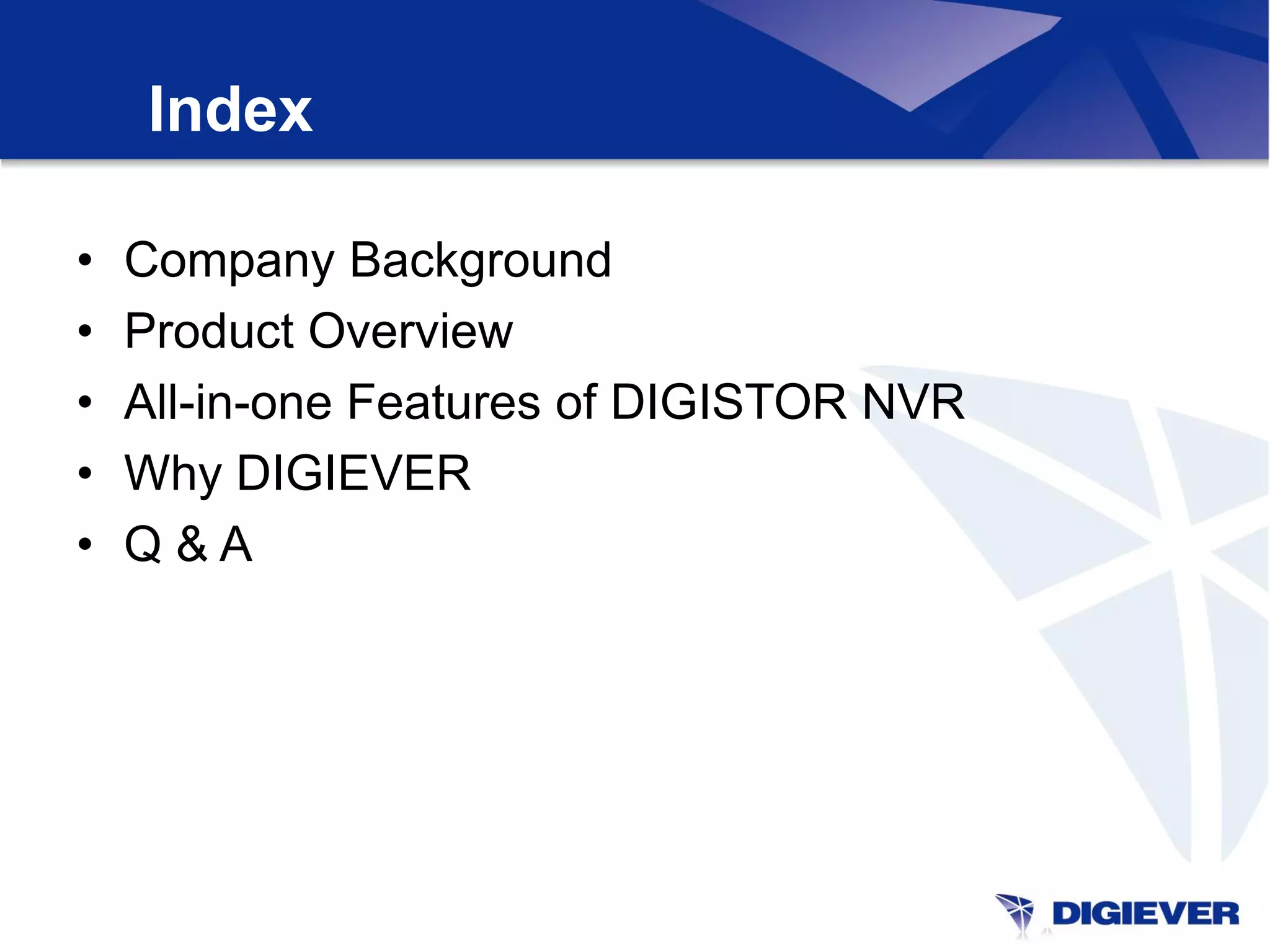

2. Index
• Company Background
• Product Overview
• All-in-one Features of DIGISTOR NVR
• Why DIGIEVER
• Q&A
• Products comparison

3. Company Background

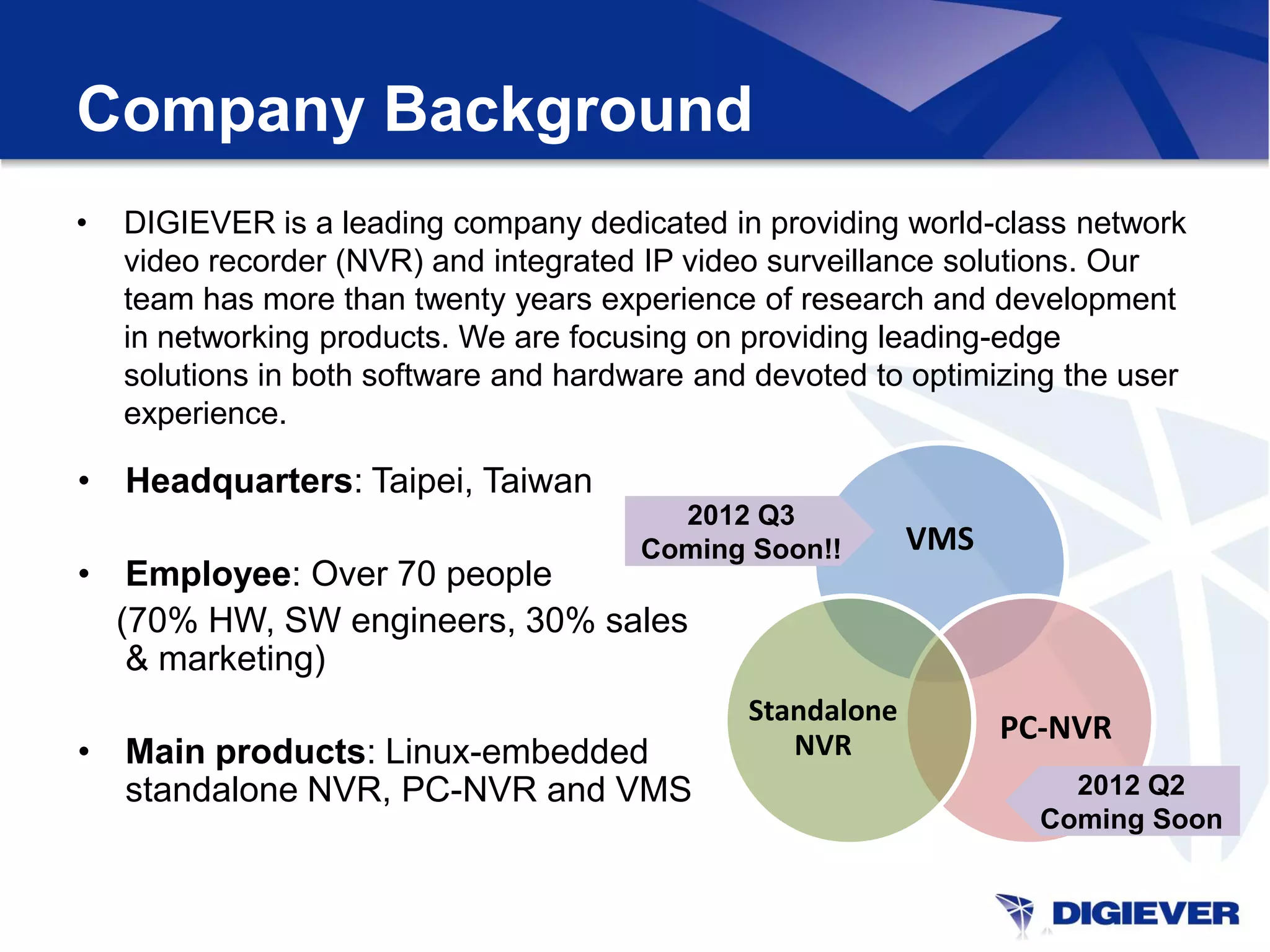

4. Company Background
• DIGIEVER is a leading company dedicated in providing world-class network
video recorder (NVR) and integrated IP video surveillance solutions. Our
team has more than twenty years experience of research and development
in networking products. We are focusing on providing leading-edge
solutions in both software and hardware and devoted to optimizing the user
experience.
• Headquarters: Taipei, Taiwan
2012 Q3
Coming Soon!! VMS
• Employee: Over 70 people
(70% HW, SW engineers, 30% sales
& marketing)
Standalone
NVR
PC-NVR
• Main products: Linux-embedded
standalone NVR, PC-NVR and VMS 2012 Q2
Coming Soon

5. Product Overview

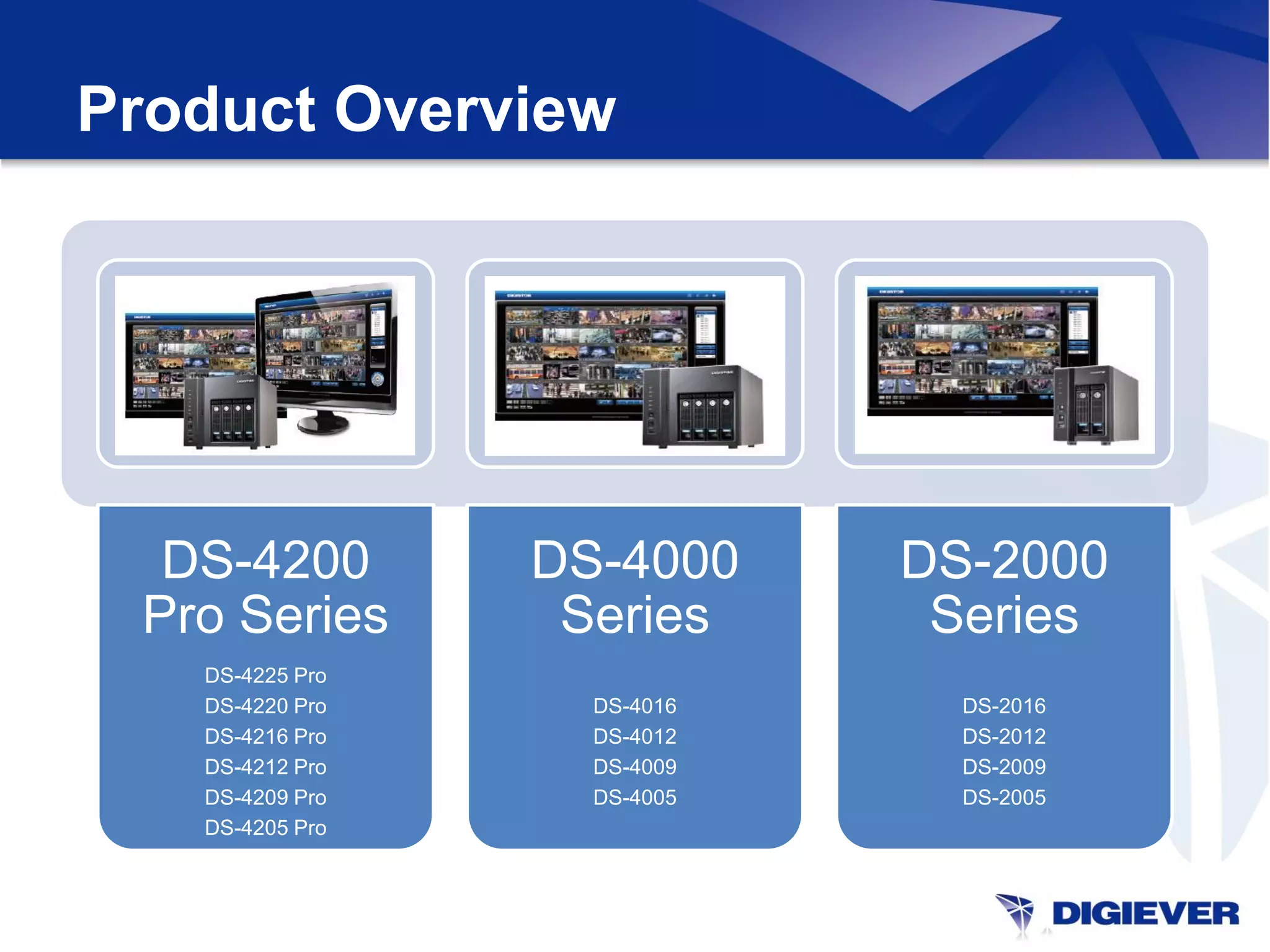

6. Product Overview
DS-4200 DS-4000 DS-2000
Pro Series Series Series
DS-4225 Pro
DS-4220 Pro DS-4016 DS-2016
DS-4216 Pro DS-4012 DS-2012
DS-4212 Pro DS-4009 DS-2009
DS-4209 Pro DS-4005 DS-2005
DS-4205 Pro

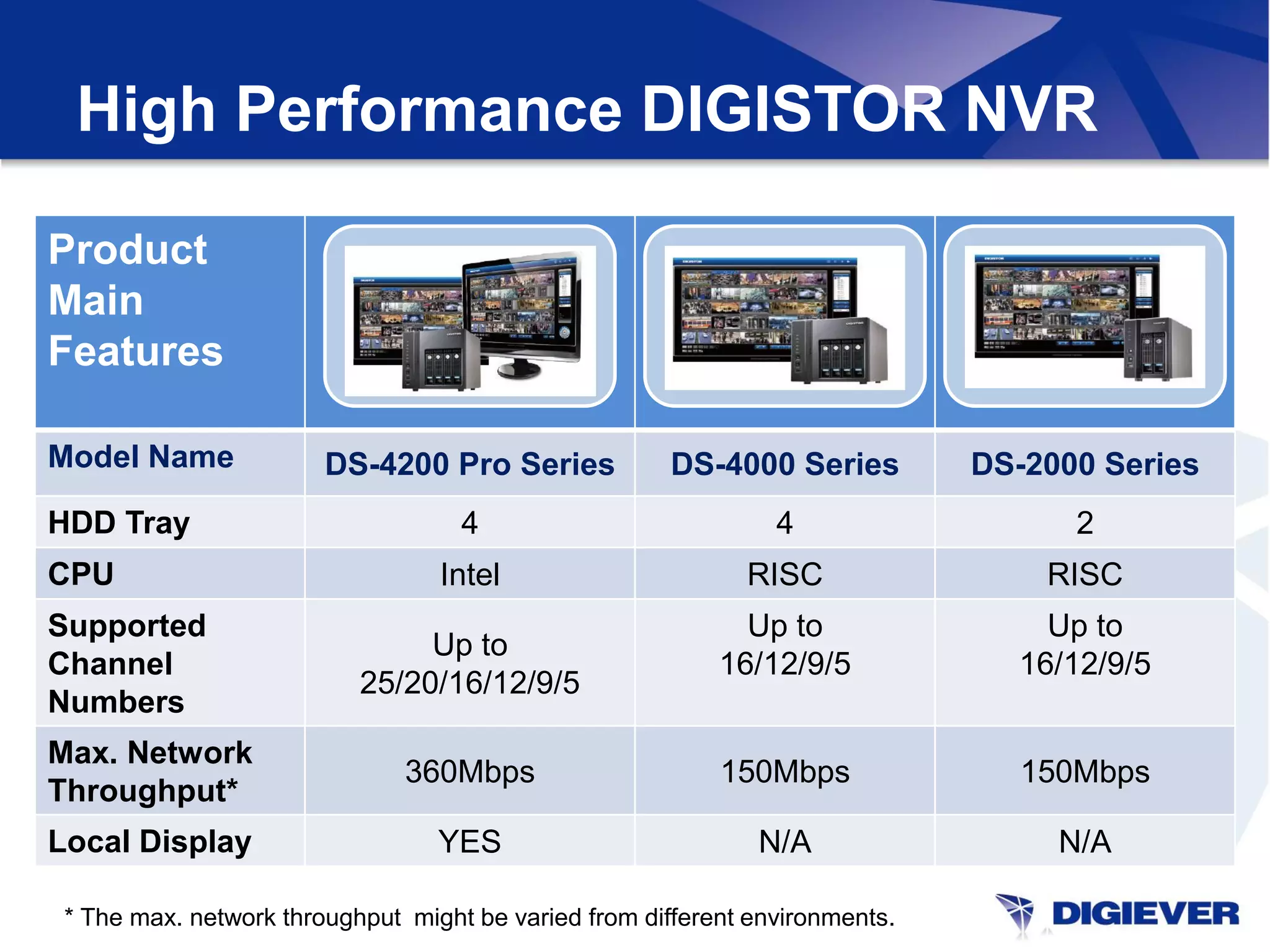

7. High Performance DIGISTOR NVR
Product
Main
Features
Model Name DS-4200 Pro Series DS-4000 Series DS-2000 Series
HDD Tray 4 4 2
CPU Intel RISC RISC
Supported Up to Up to
Up to
Channel 16/12/9/5 16/12/9/5
25/20/16/12/9/5
Numbers
Max. Network
360Mbps 150Mbps 150Mbps
Throughput*
Local Display YES N/A N/A
* The max. network throughput might be varied from different environments.

8. All-in-one Features of
DIGISTOR NVR

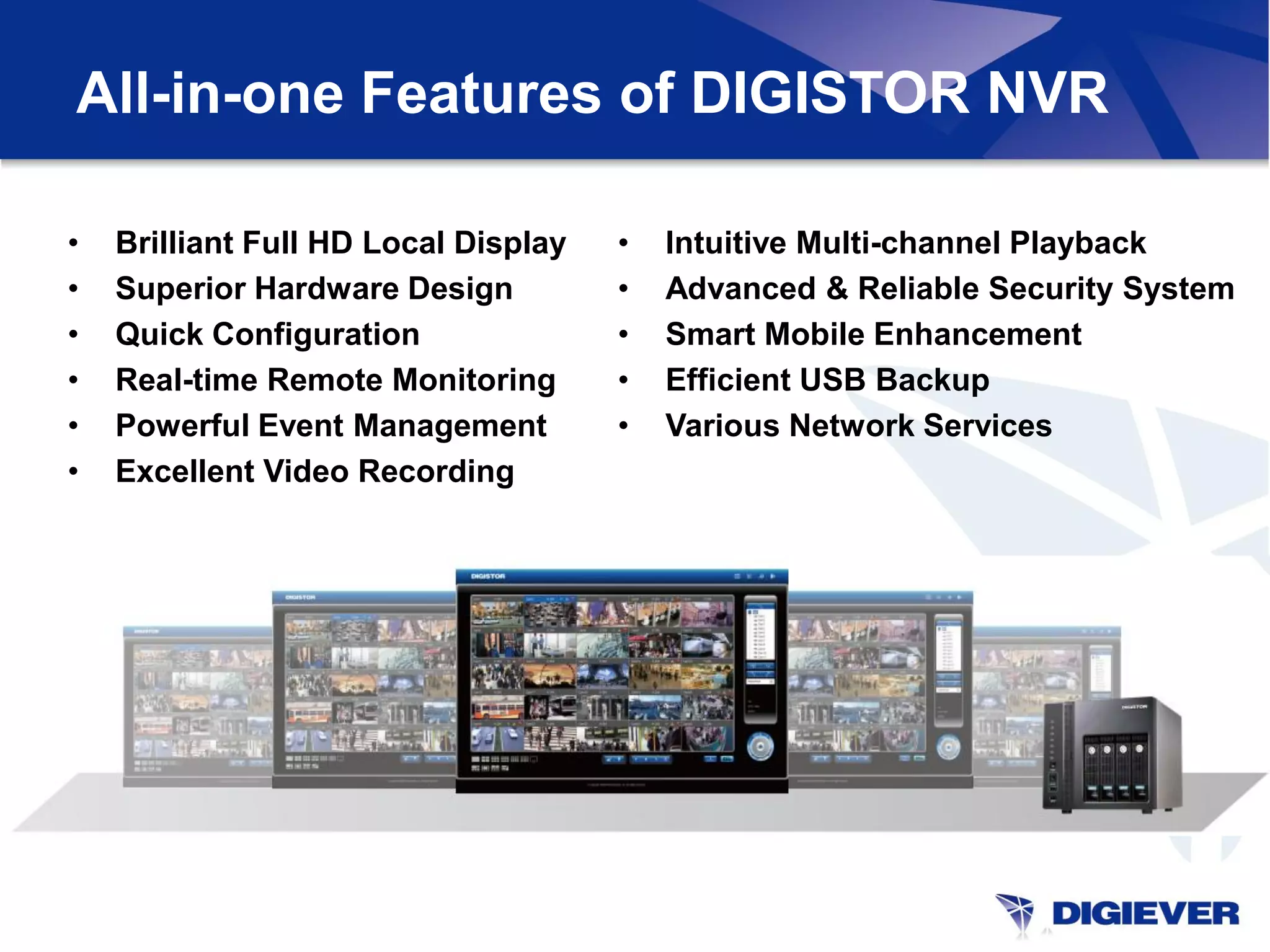

9. All-in-one Features of DIGISTOR NVR
• Brilliant Full HD Local Display • Intuitive Multi-channel Playback
• Superior Hardware Design • Advanced & Reliable Security System
• Quick Configuration • Smart Mobile Enhancement
• Real-time Remote Monitoring • Efficient USB Backup
• Powerful Event Management • Various Network Services
• Excellent Video Recording

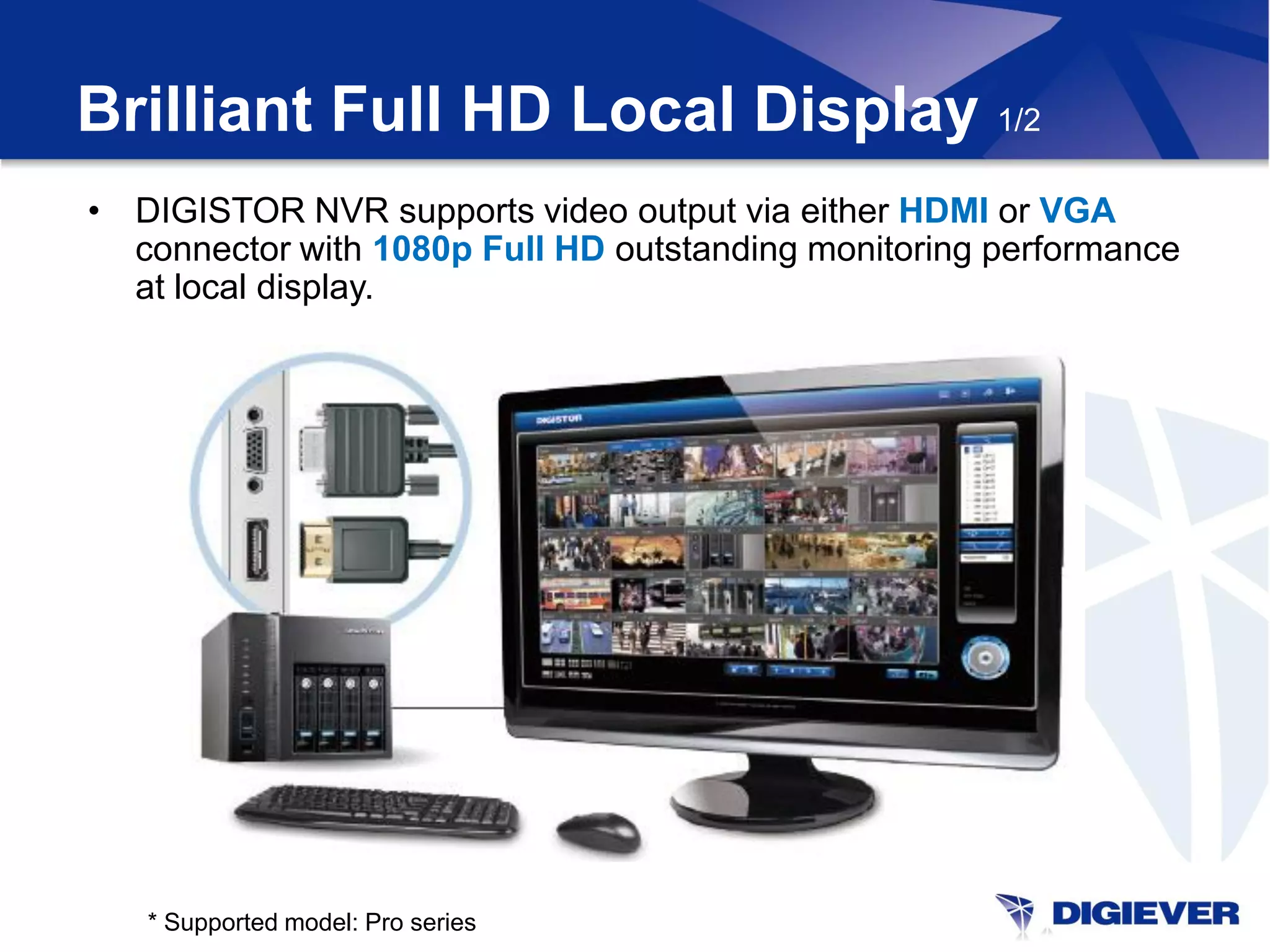

10. Brilliant Full HD Local Display 1/2
• DIGISTOR NVR supports video output via either HDMI or VGA
connector with 1080p Full HD outstanding monitoring performance
at local display.
* Supported model: Pro series

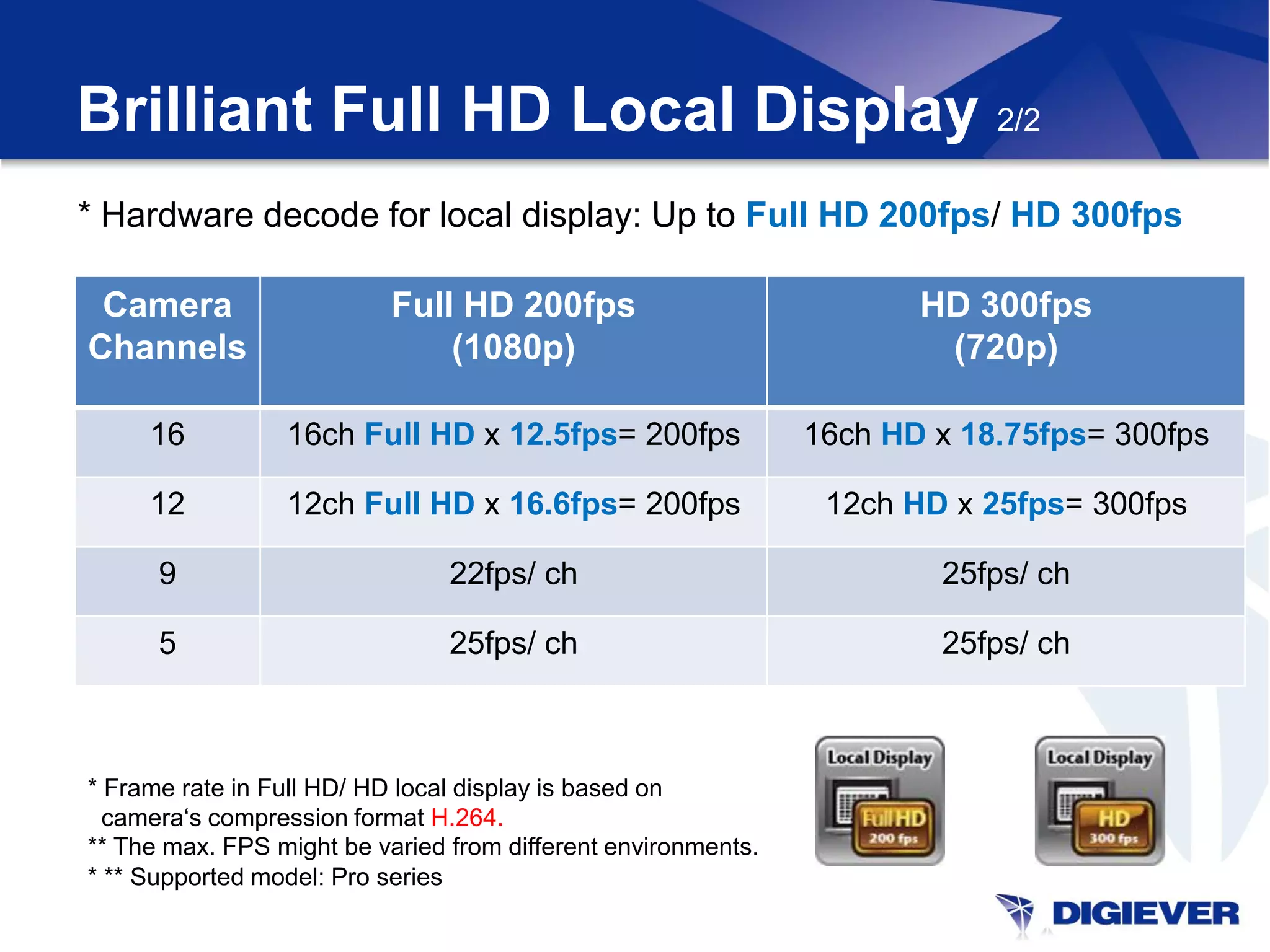

11. Brilliant Full HD Local Display 2/2
* Hardware decode for local display: Up to Full HD 200fps/ HD 300fps
Camera Full HD 200fps HD 300fps
Channels (1080p) (720p)
16 16ch Full HD x 12.5fps= 200fps 16ch HD x 18.75fps= 300fps
12 12ch Full HD x 16.6fps= 200fps 12ch HD x 25fps= 300fps
9 22fps/ ch 25fps/ ch
5 25fps/ ch 25fps/ ch
* Frame rate in Full HD/ HD local display is based on
camera‘s compression format H.264.
** The max. FPS might be varied from different environments.
* ** Supported model: Pro series

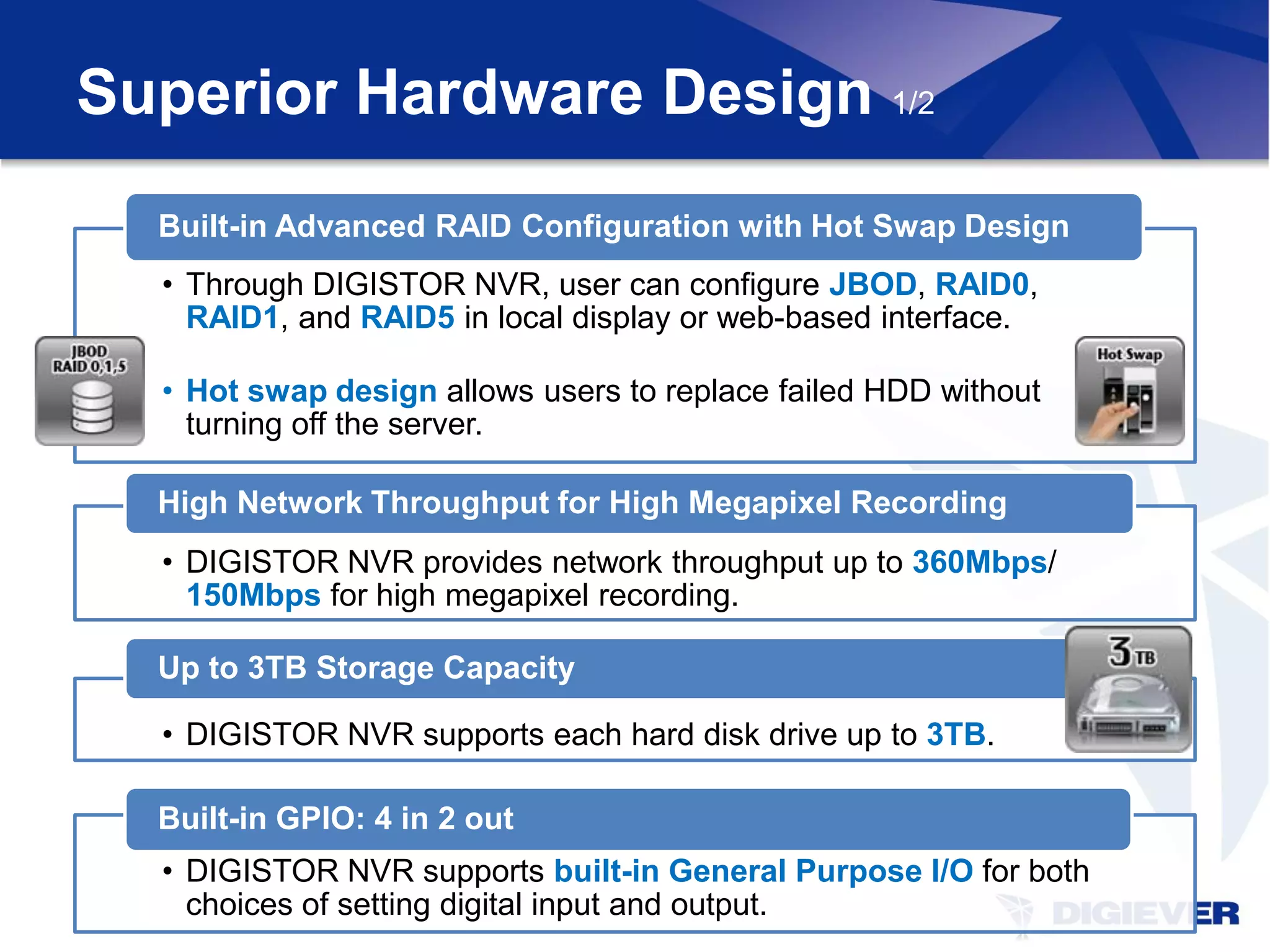

12. Superior Hardware Design 1/2
Built-in Advanced RAID Configuration with Hot Swap Design
• Through DIGISTOR NVR, user can configure JBOD, RAID0,
RAID1, and RAID5 in local display or web-based interface.
• Hot swap design allows users to replace failed HDD without
turning off the server.
High Network Throughput for High Megapixel Recording
• DIGISTOR NVR provides network throughput up to 360Mbps/
150Mbps for high megapixel recording.
Up to 3TB Storage Capacity
• DIGISTOR NVR supports each hard disk drive up to 3TB.
Built-in GPIO: 4 in 2 out
• DIGISTOR NVR supports built-in General Purpose I/O for both
choices of setting digital input and output.

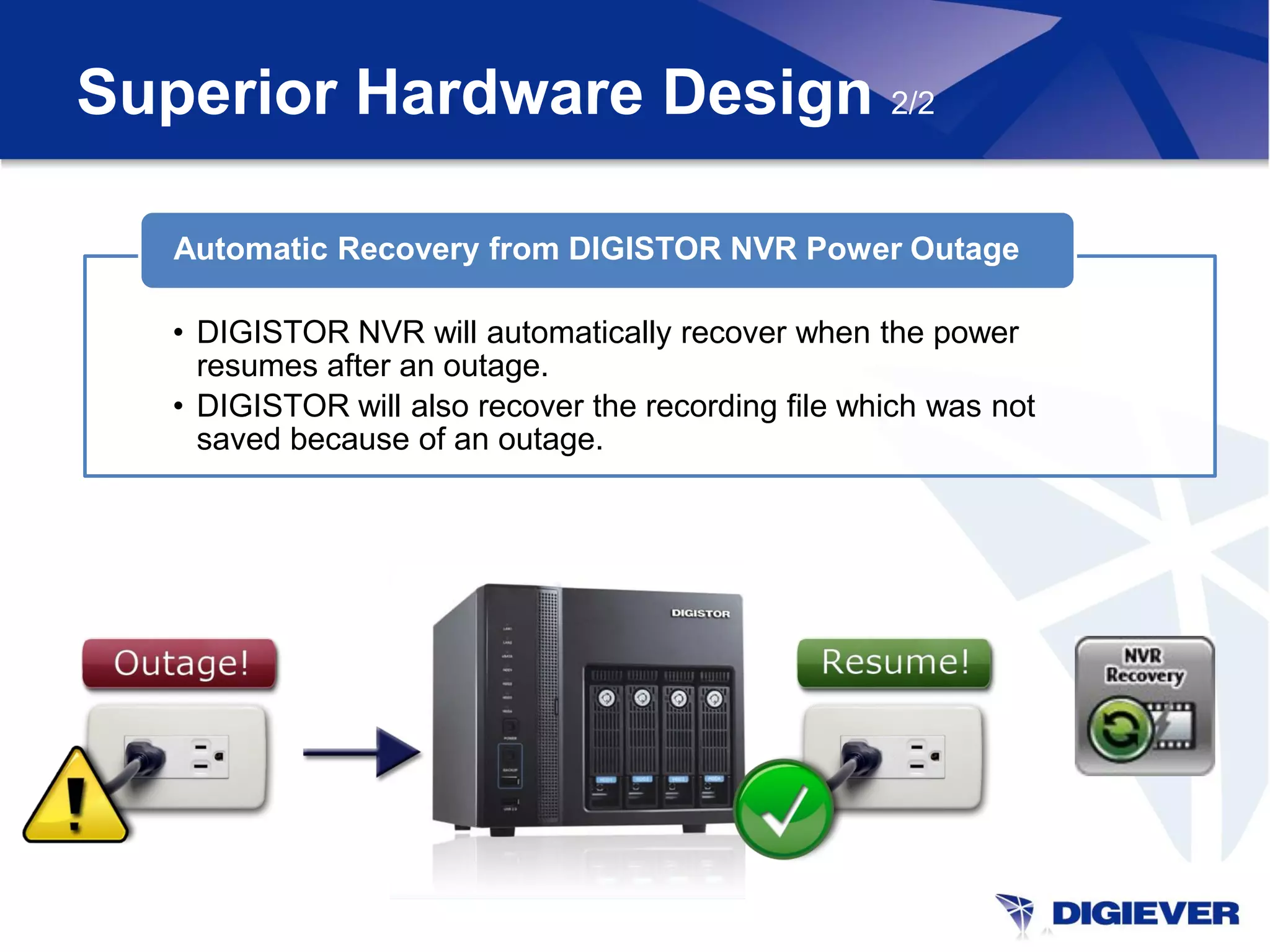

13. Superior Hardware Design 2/2
Automatic Recovery from DIGISTOR NVR Power Outage
• DIGISTOR NVR will automatically recover when the power
resumes after an outage.
• DIGISTOR will also recover the recording file which was not
saved because of an outage.

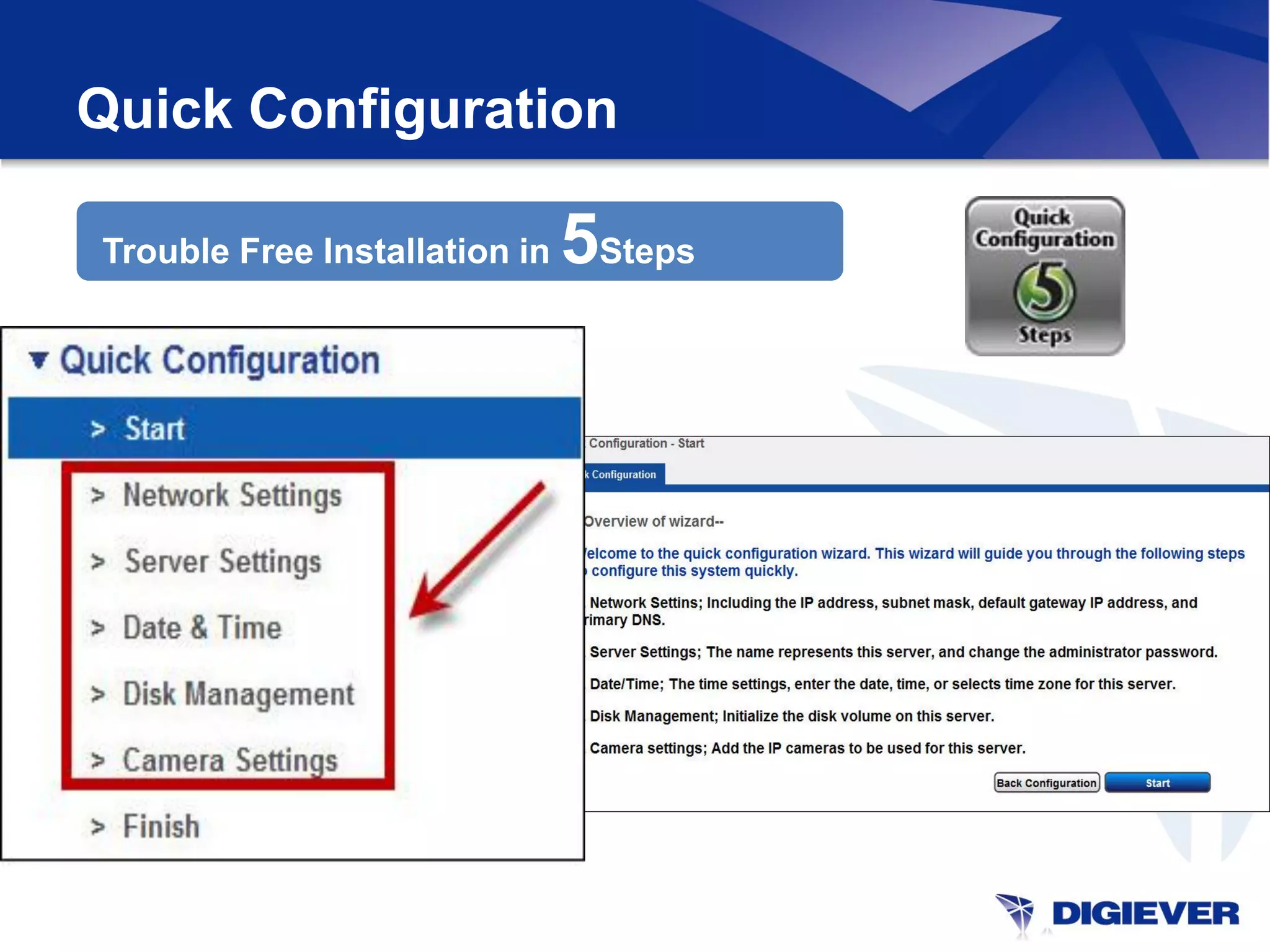

14. Quick Configuration
Trouble Free Installation in 5Steps

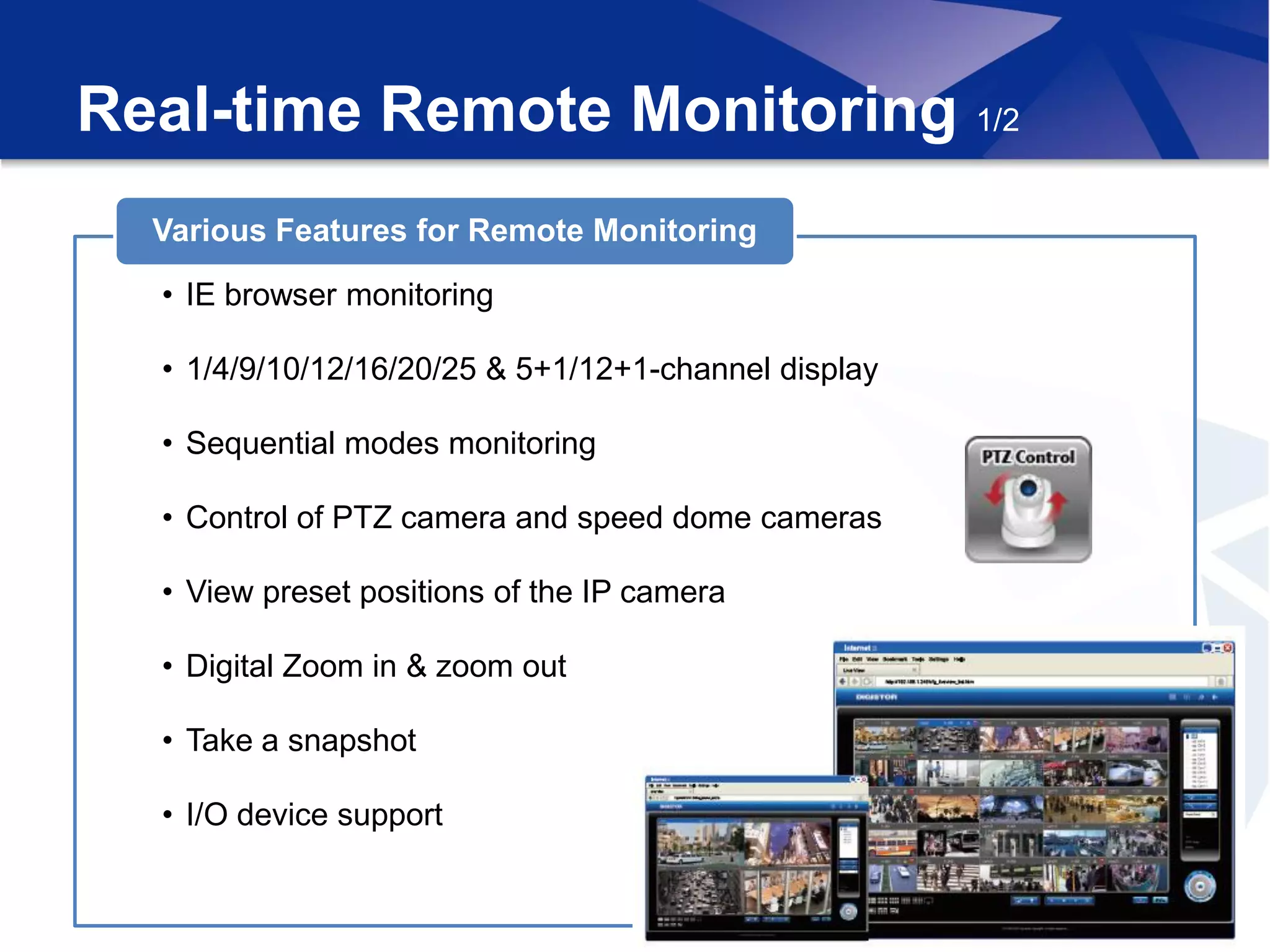

15. Real-time Remote Monitoring 1/2
Various Features for Remote Monitoring
• IE browser monitoring
• 1/4/9/10/12/16/20/25 & 5+1/12+1-channel display
• Sequential modes monitoring
• Control of PTZ camera and speed dome cameras
• View preset positions of the IP camera
• Digital Zoom in & zoom out
• Take a snapshot
• I/O device support

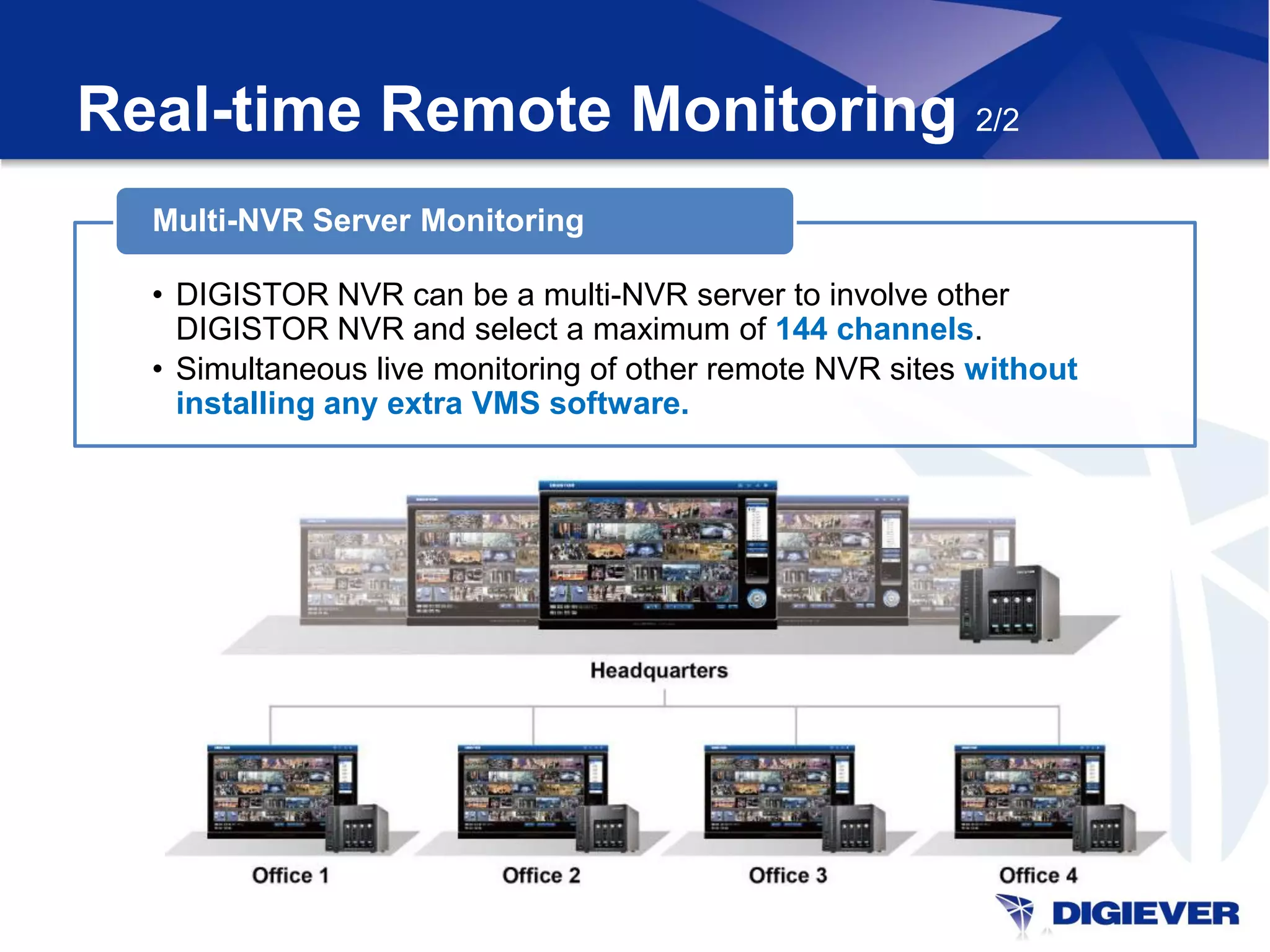

16. Real-time Remote Monitoring 2/2
Multi-NVR Server Monitoring
• DIGISTOR NVR can be a multi-NVR server to involve other
DIGISTOR NVR and select a maximum of 144 channels.
• Simultaneous live monitoring of other remote NVR sites without
installing any extra VMS software.

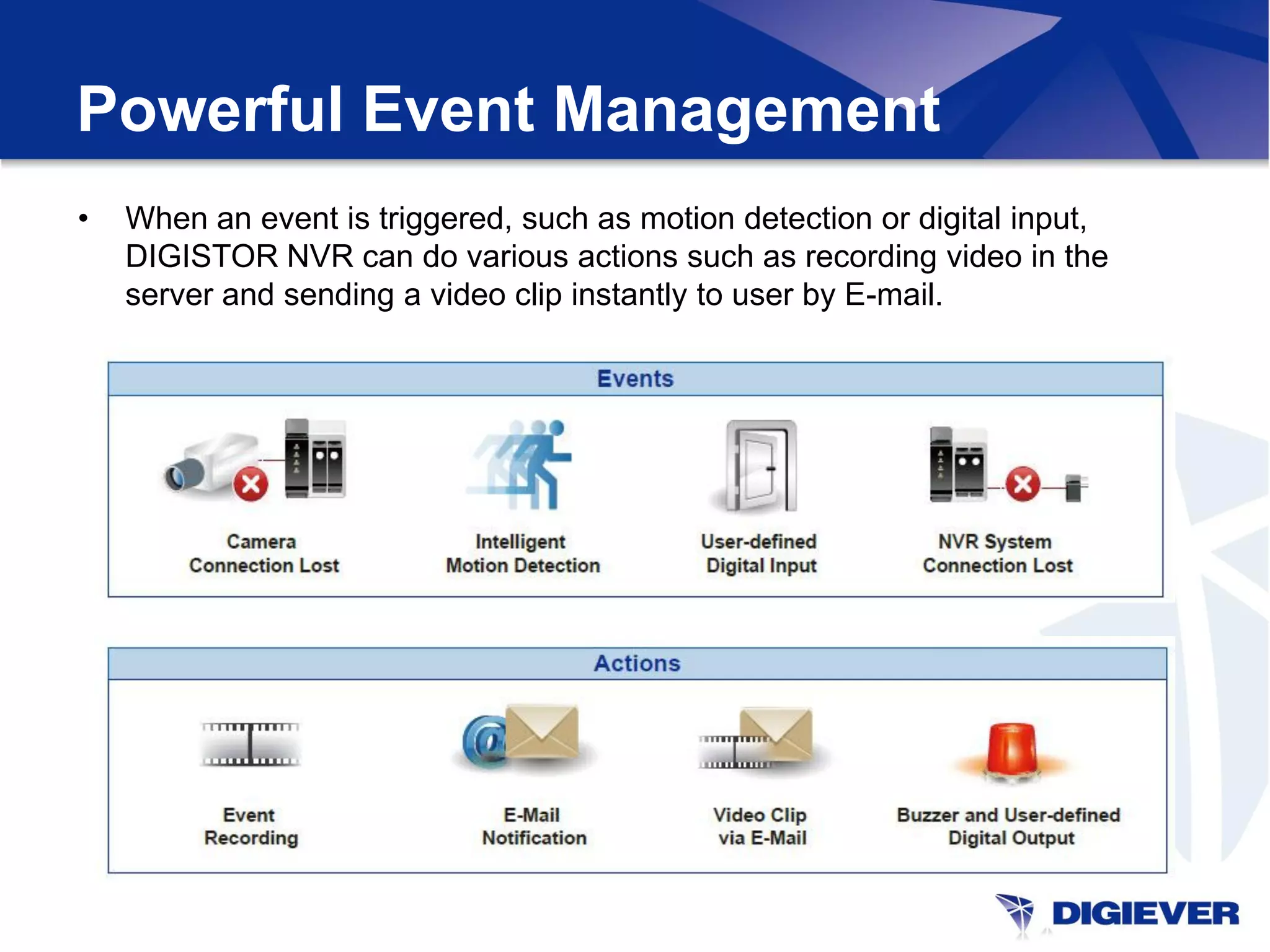

17. Powerful Event Management
• When an event is triggered, such as motion detection or digital input,
DIGISTOR NVR can do various actions such as recording video in the
server and sending a video clip instantly to user by E-mail.

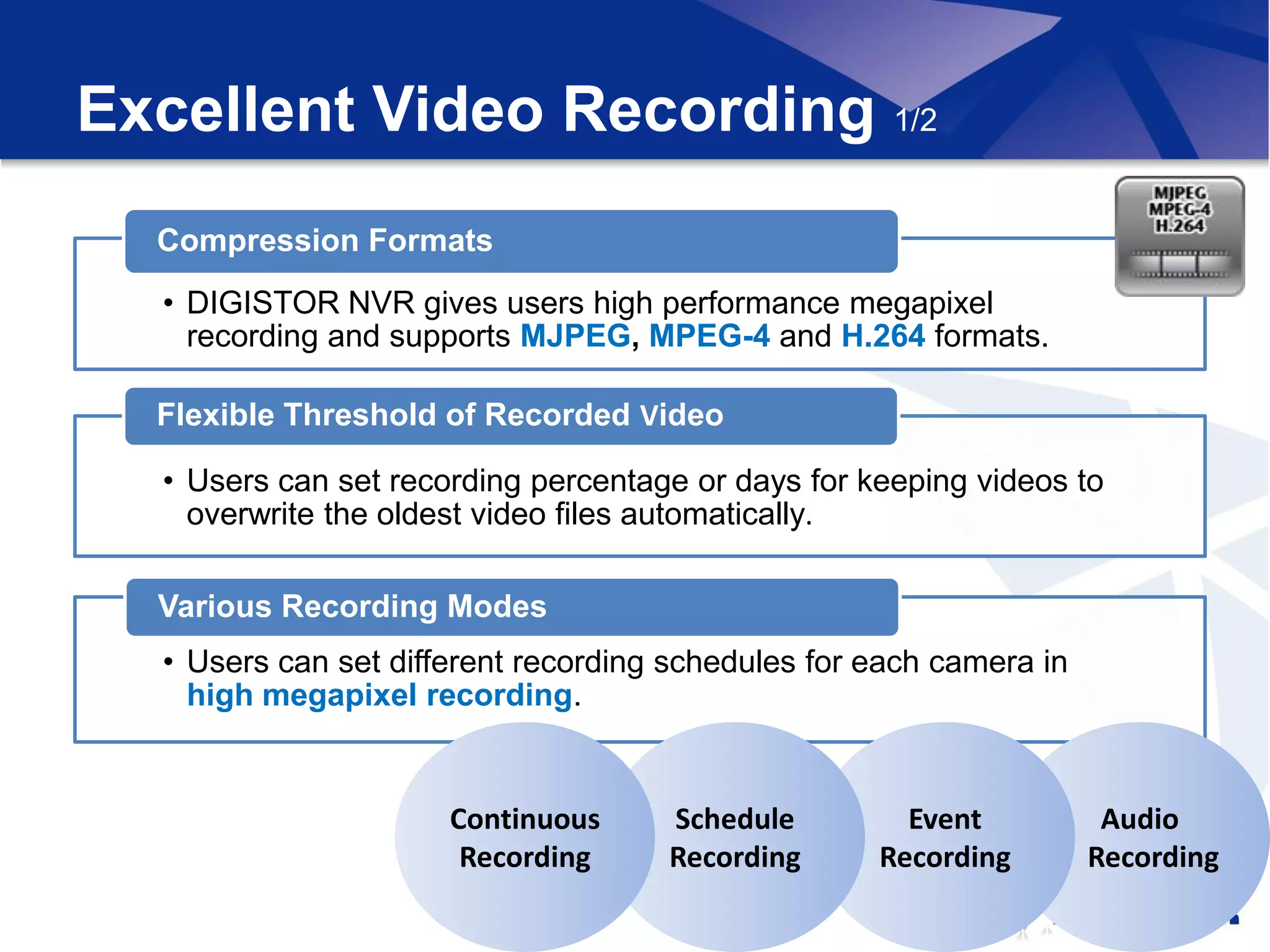

18. Excellent Video Recording 1/2
Compression Formats
• DIGISTOR NVR gives users high performance megapixel
recording and supports MJPEG, MPEG-4 and H.264 formats.
Flexible Threshold of Recorded Video
• Users can set recording percentage or days for keeping videos to
overwrite the oldest video files automatically.
Various Recording Modes
• Users can set different recording schedules for each camera in
high megapixel recording.
Continuous Schedule Event Audio
Recording Recording Recording Recording

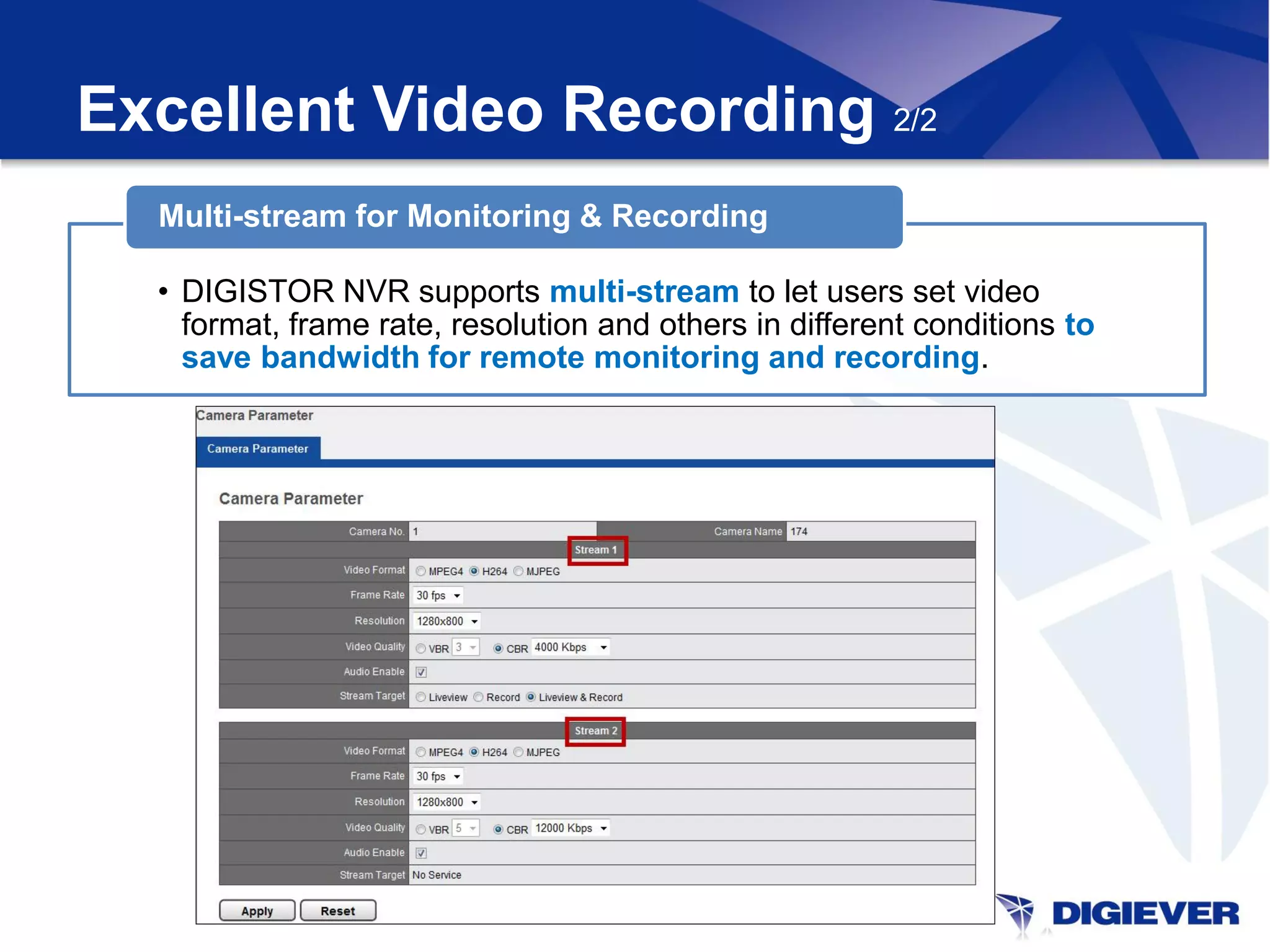

19. Excellent Video Recording 2/2
Multi-stream for Monitoring & Recording
• DIGISTOR NVR supports multi-stream to let users set video
format, frame rate, resolution and others in different conditions to
save bandwidth for remote monitoring and recording.

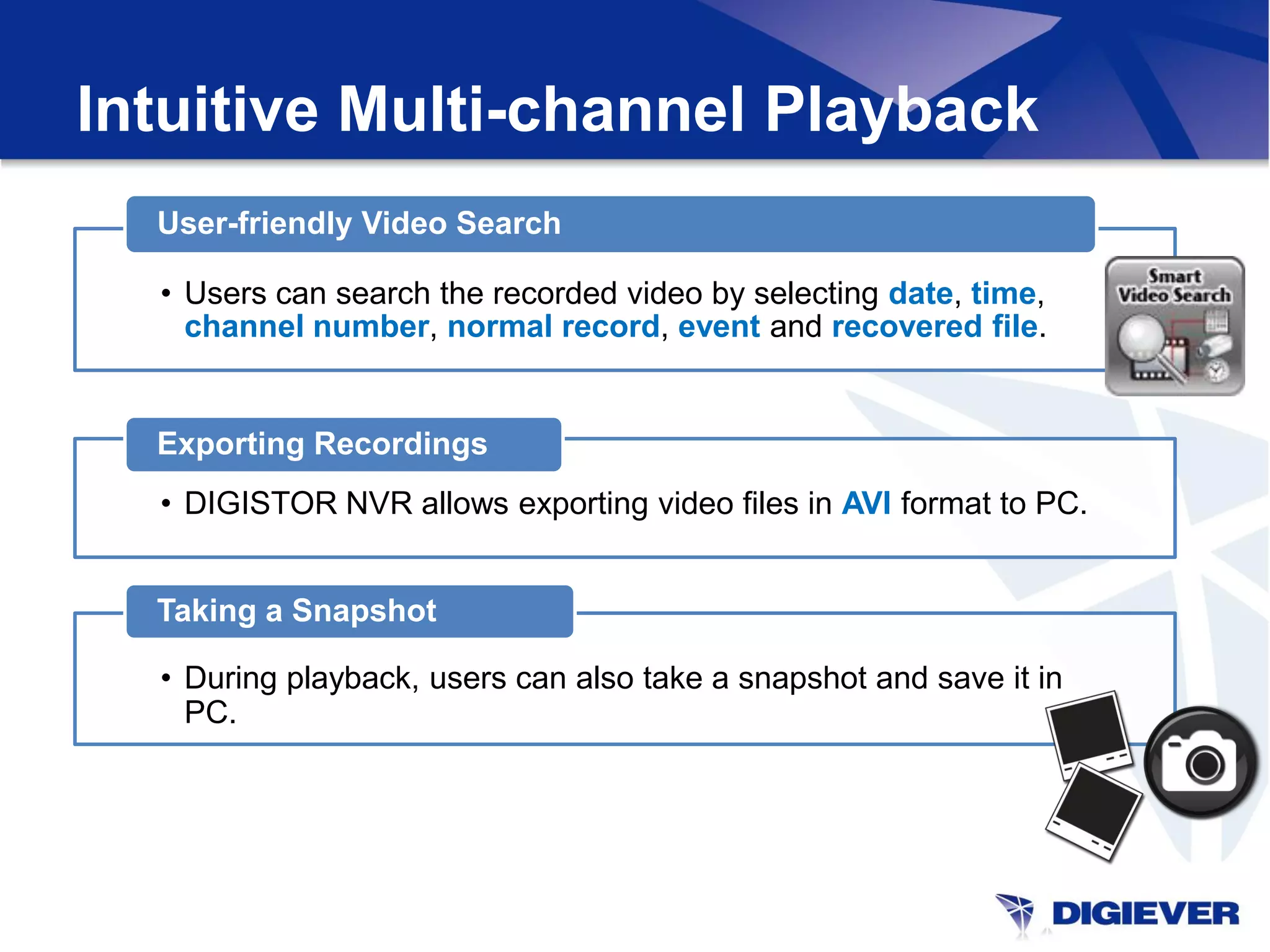

20. Intuitive Multi-channel Playback
User-friendly Video Search
• Users can search the recorded video by selecting date, time,
channel number, normal record, event and recovered file.
Exporting Recordings
• DIGISTOR NVR allows exporting video files in AVI format to PC.
Taking a Snapshot
• During playback, users can also take a snapshot and save it in
PC.

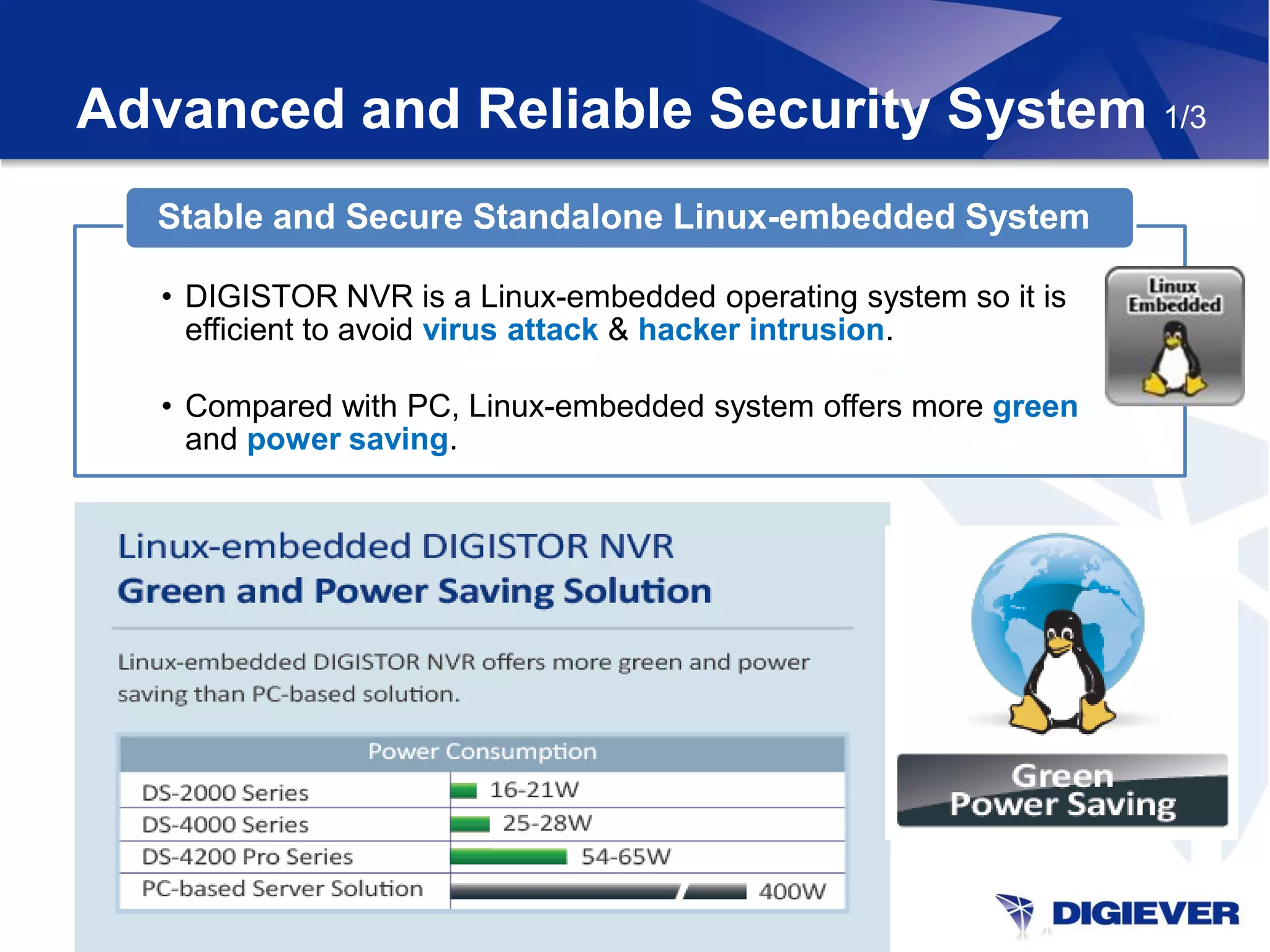

21. Advanced and Reliable Security System 1/3
Stable and Secure Standalone Linux-embedded System
• DIGISTOR NVR is a Linux-embedded operating system so it is
efficient to avoid virus attack & hacker intrusion.
• Compared with PC, Linux-embedded system offers more green
and power saving.

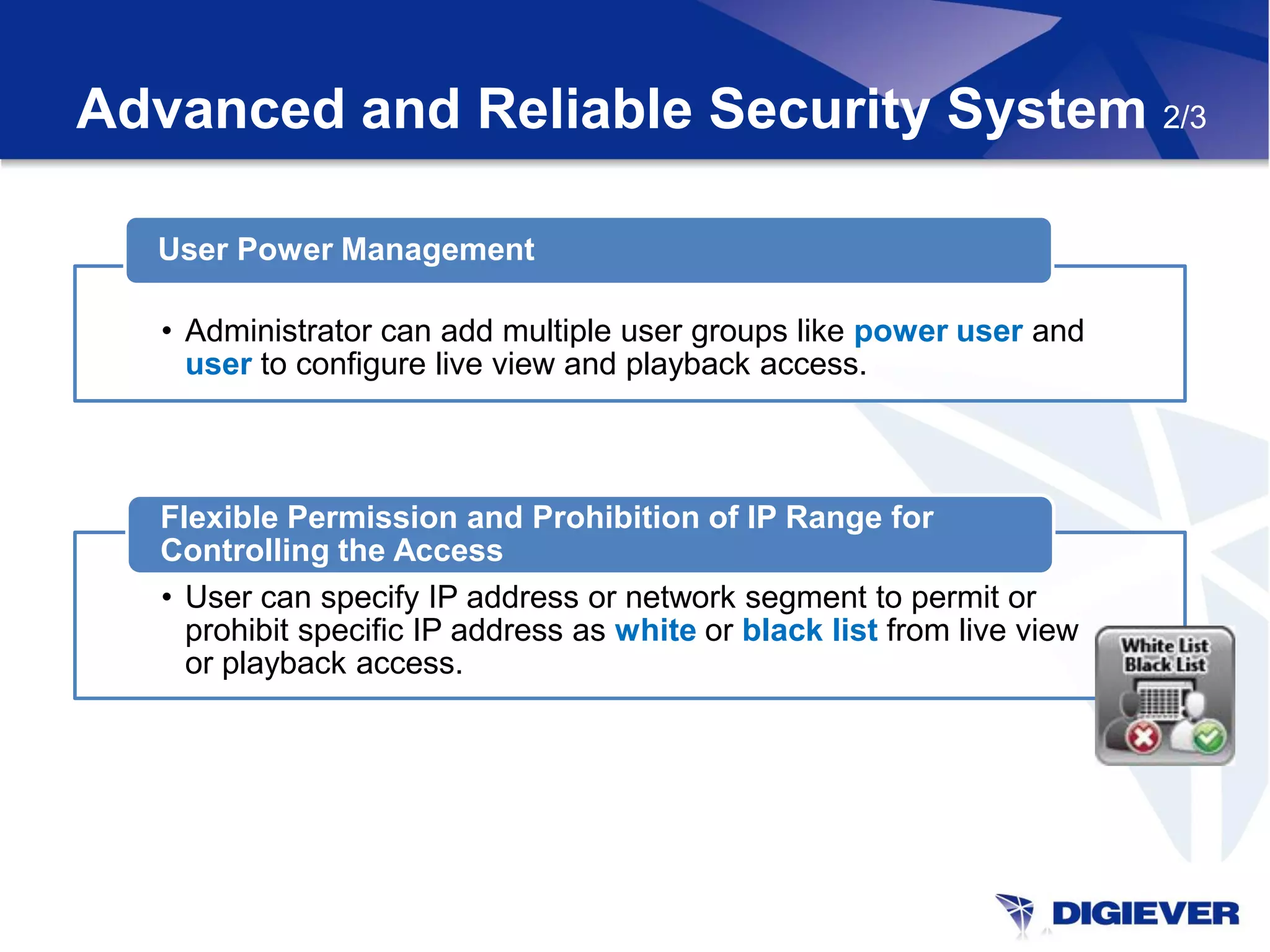

22. Advanced and Reliable Security System 2/3
User Power Management
• Administrator can add multiple user groups like power user and
user to configure live view and playback access.
Flexible Permission and Prohibition of IP Range for
Controlling the Access
• User can specify IP address or network segment to permit or
prohibit specific IP address as white or black list from live view
or playback access.

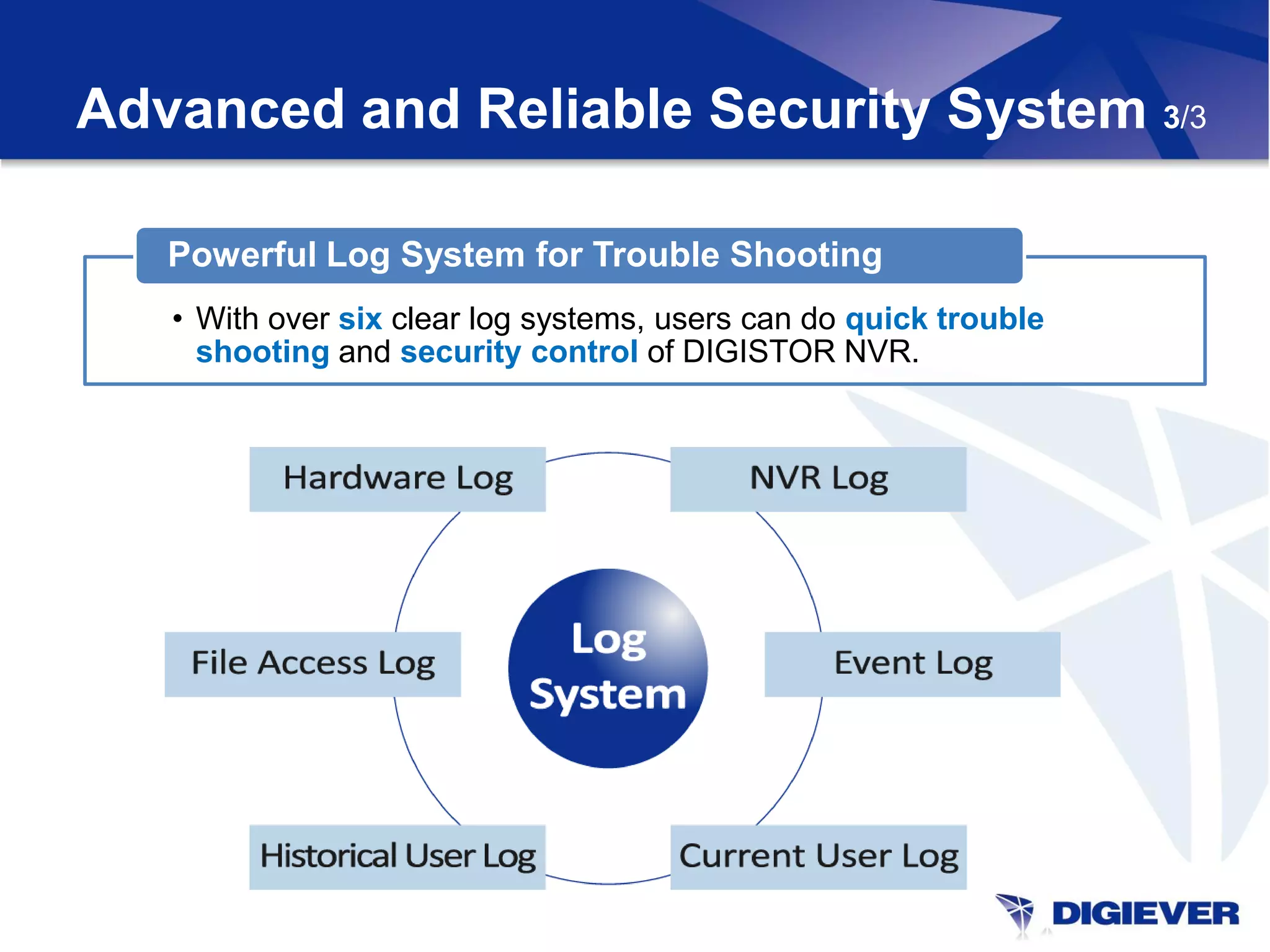

23. Advanced and Reliable Security System 3/3
Powerful Log System for Trouble Shooting
• With over six clear log systems, users can do quick trouble
shooting and security control of DIGISTOR NVR.

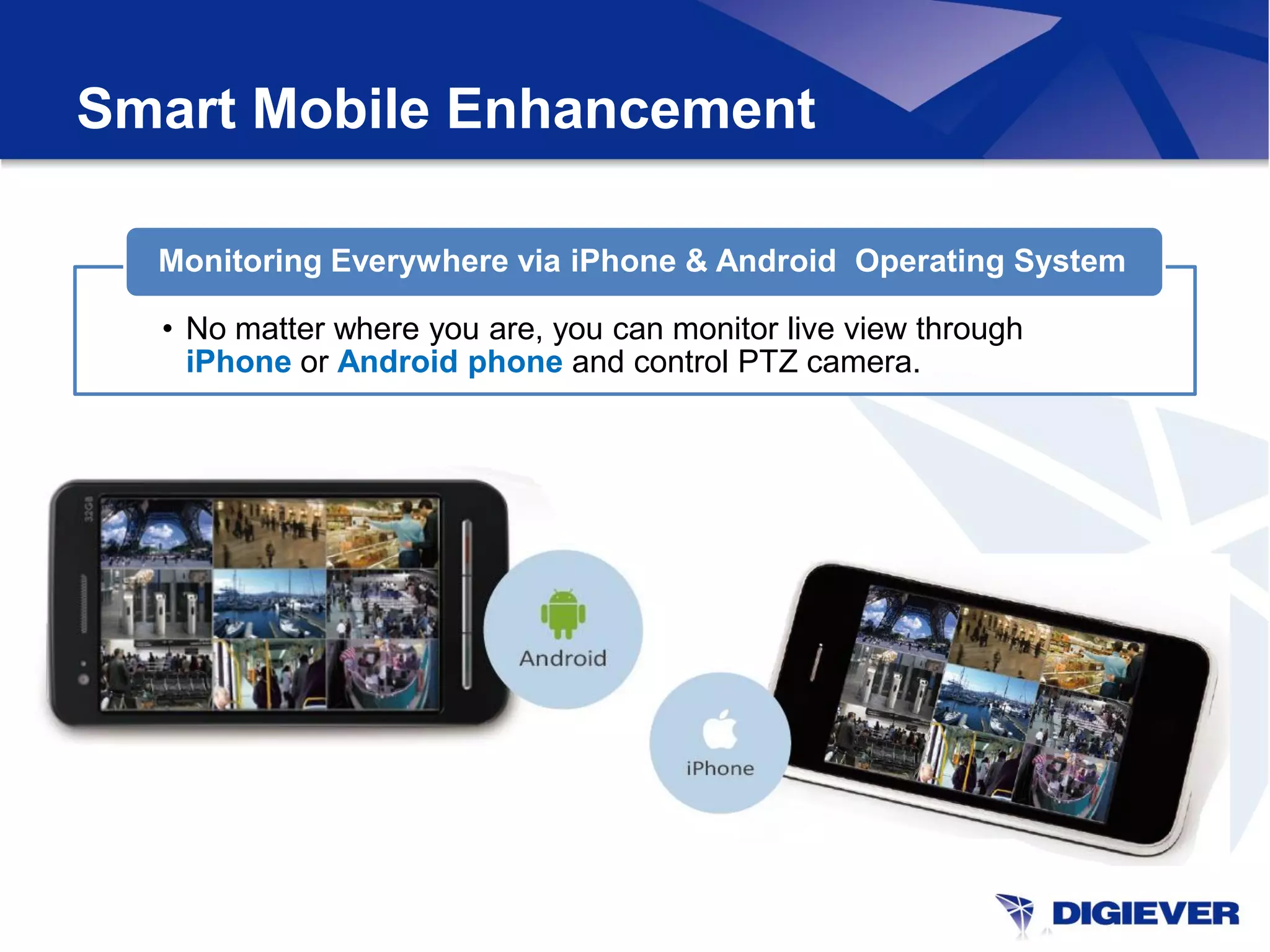

24. Smart Mobile Enhancement
Monitoring Everywhere via iPhone & Android Operating System
• No matter where you are, you can monitor live view through
iPhone or Android phone and control PTZ camera.

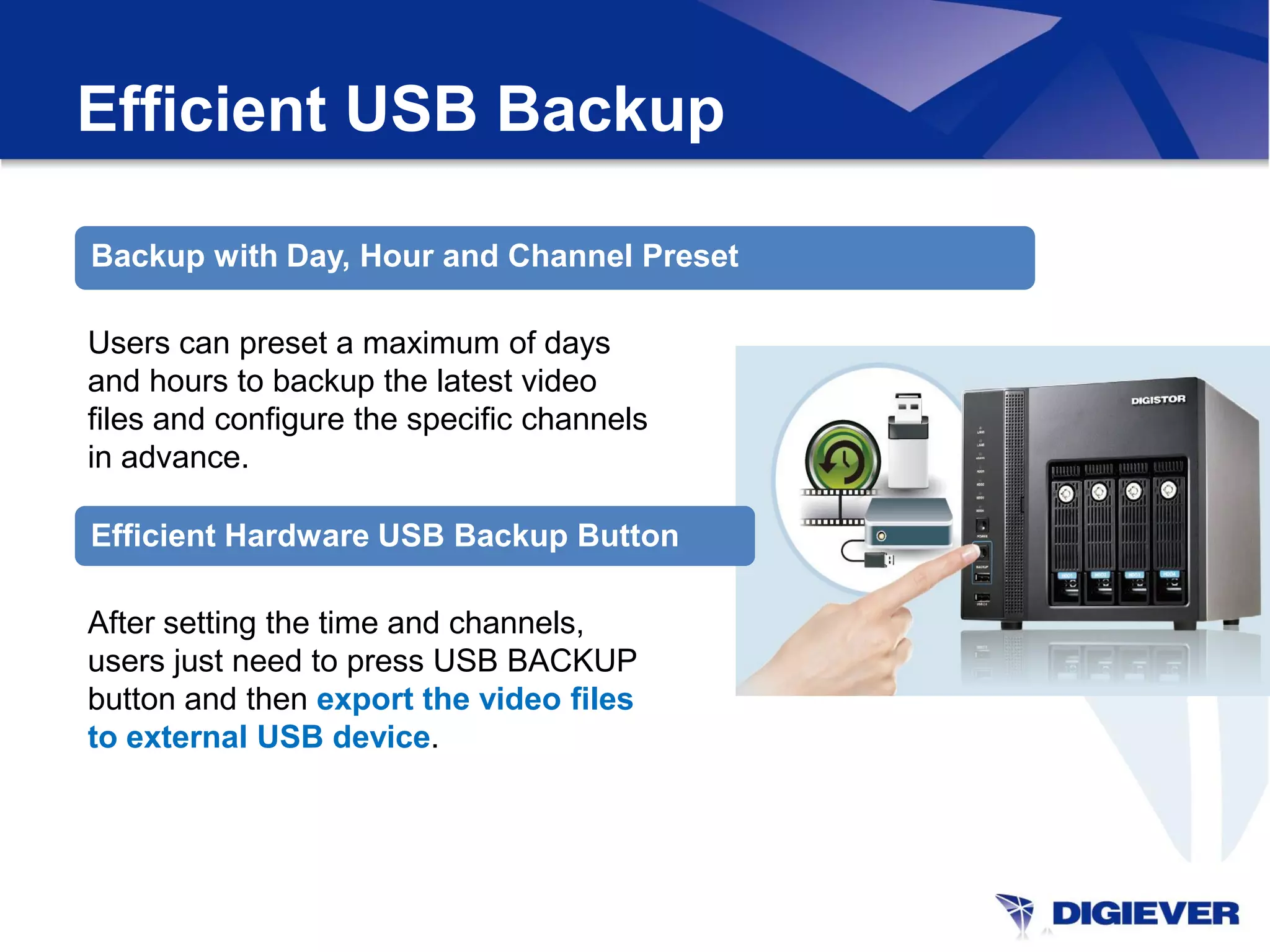

25. Efficient USB Backup
Backup with Day, Hour and Channel Preset
Users can preset a maximum of days
and hours to backup the latest video
files and configure the specific channels
in advance.
Efficient Hardware USB Backup Button
After setting the time and channels,
users just need to press USB BACKUP
button and then export the video files
to external USB device.

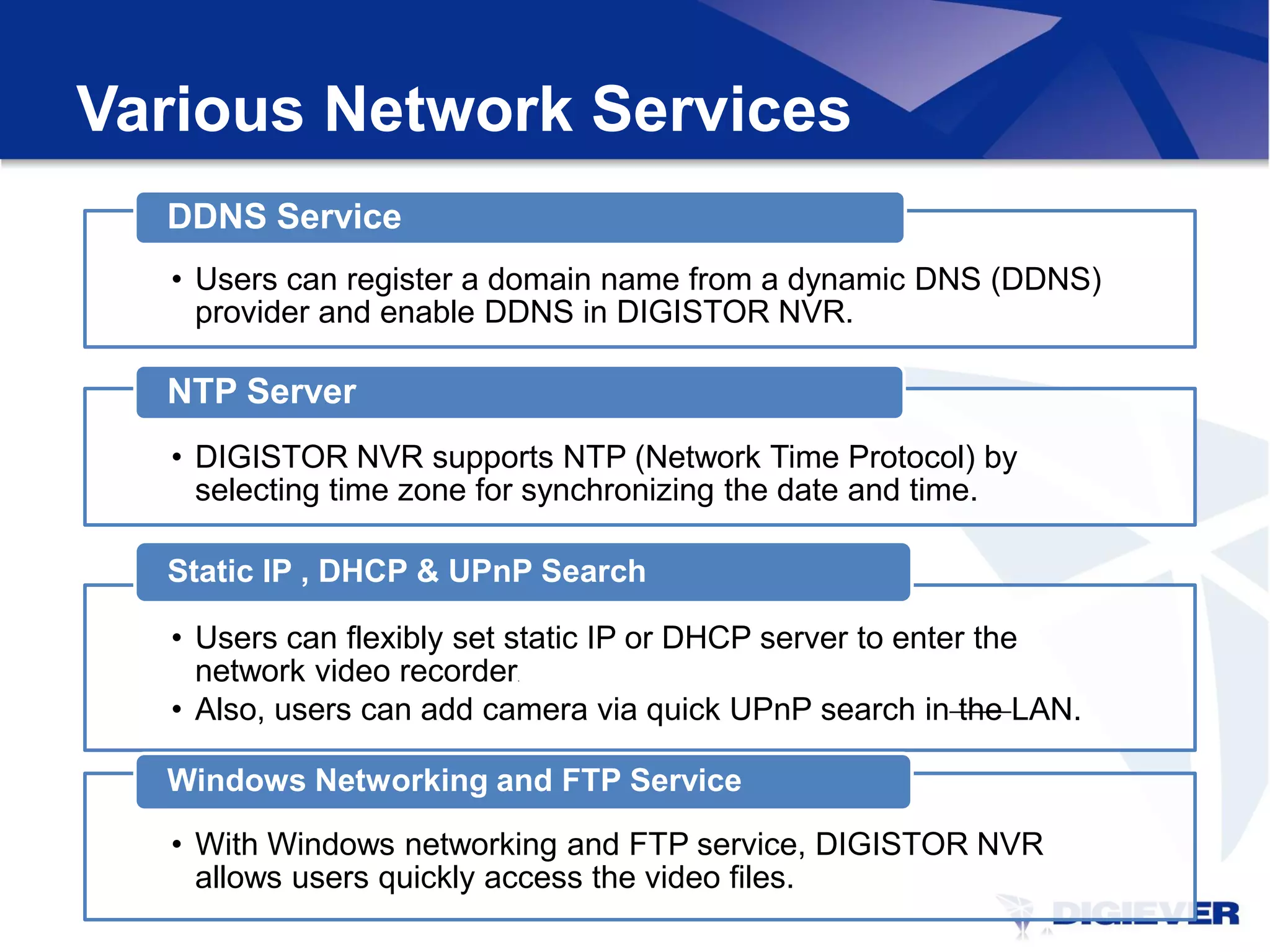

26. Various Network Services
DDNS Service
• Users can register a domain name from a dynamic DNS (DDNS)
provider and enable DDNS in DIGISTOR NVR.
NTP Server
• DIGISTOR NVR supports NTP (Network Time Protocol) by
selecting time zone for synchronizing the date and time.
Static IP , DHCP & UPnP Search
• Users can flexibly set static IP or DHCP server to enter the
network video recorder
.
• Also, users can add camera via quick UPnP search in the LAN.
Windows Networking and FTP Service
• With Windows networking and FTP service, DIGISTOR NVR
allows users quickly access the video files.

27. Why DIGIEVER

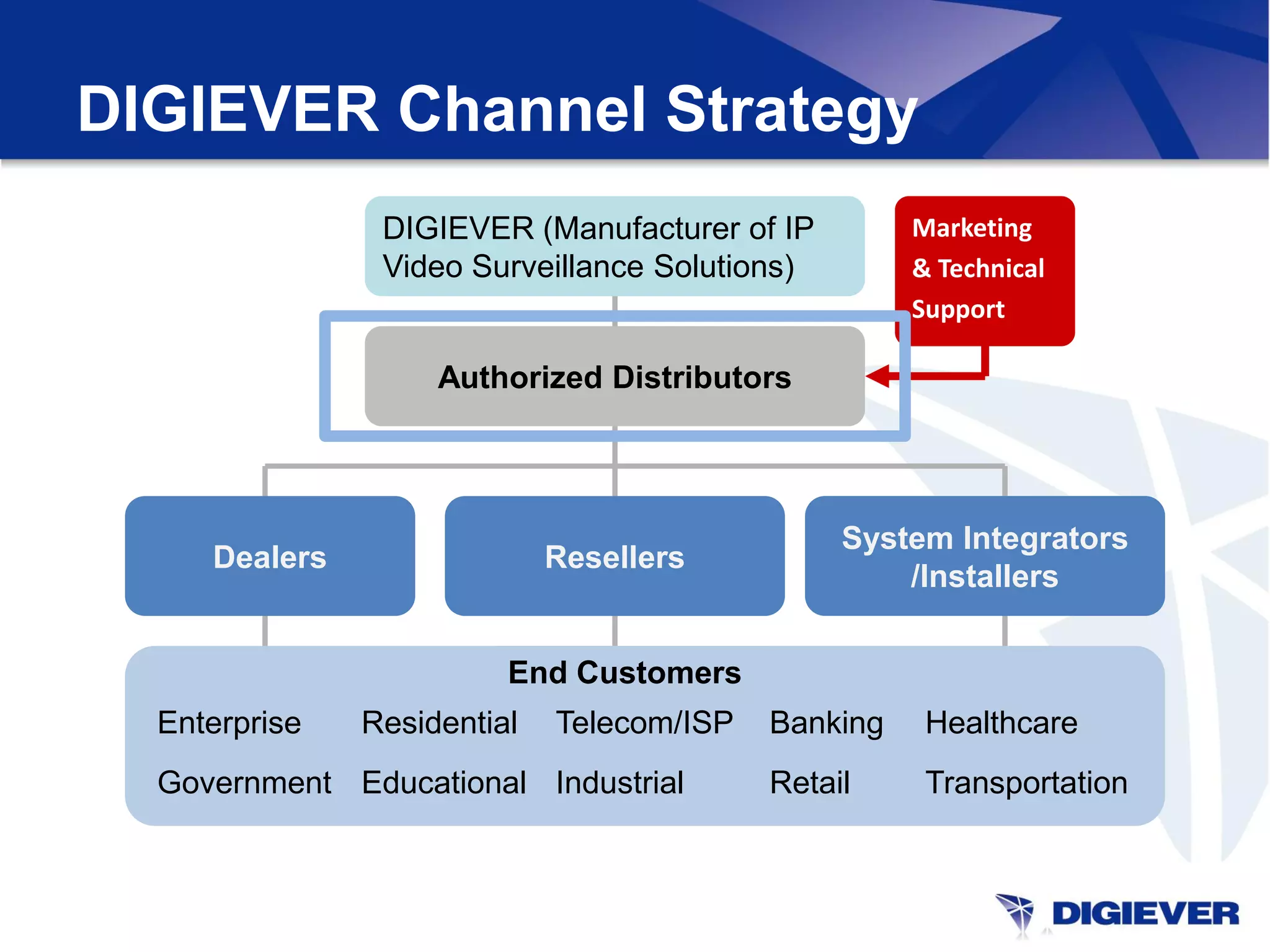

28. DIGIEVER Channel Strategy
DIGIEVER (Manufacturer of IP Marketing
Video Surveillance Solutions) & Technical
Support
Authorized Distributors
System Integrators
Dealers Resellers
/Installers
End Customers
Enterprise Residential Telecom/ISP Banking Healthcare
Government Educational Industrial Retail Transportation

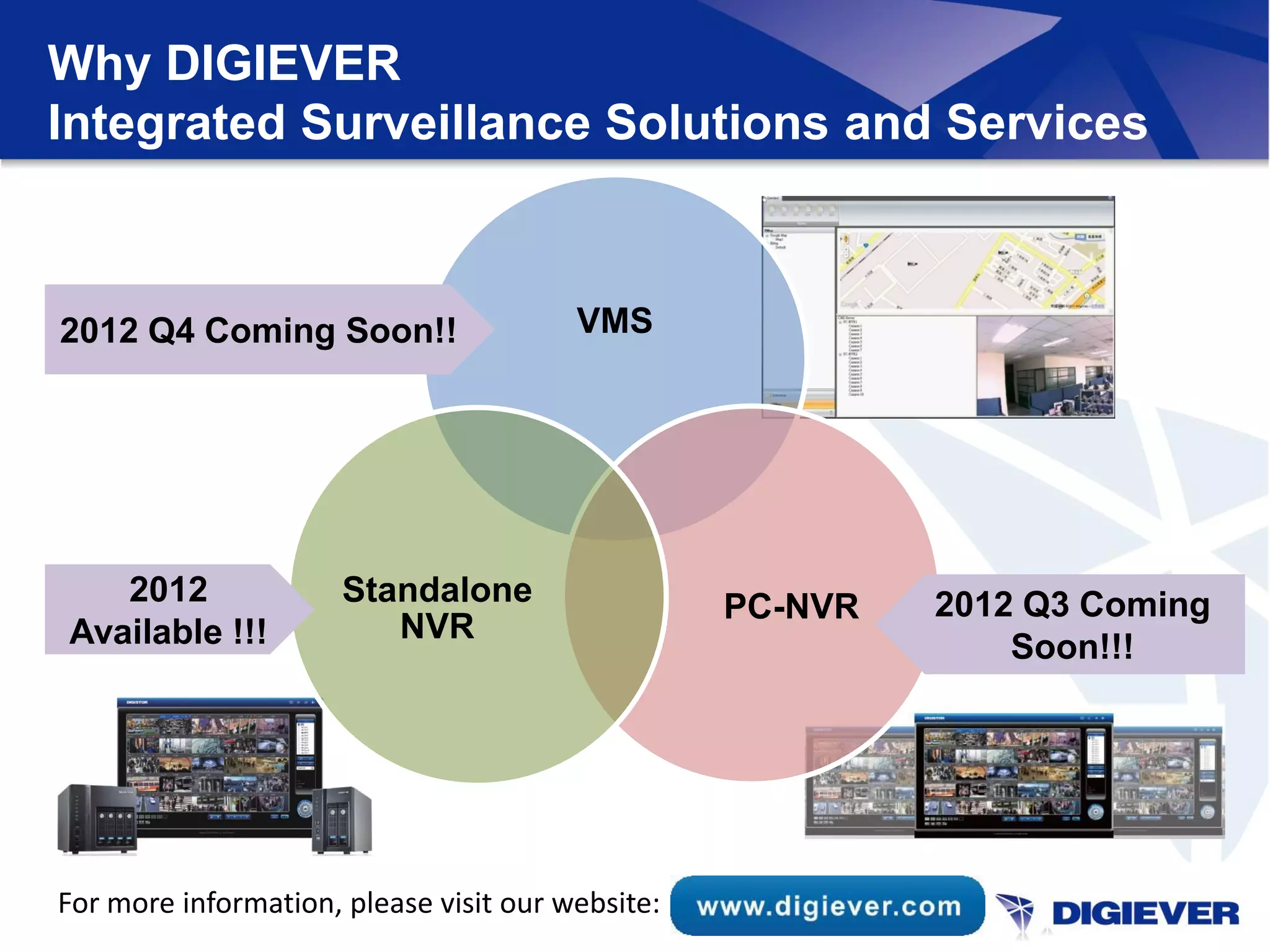

29. Why DIGIEVER
Integrated Surveillance Solutions and Services
2012 Q4 Coming Soon!! VMS
2012 Standalone PC-NVR 2012 Q3 Coming
Available !!! NVR
Soon!!!
For more information, please visit our website:

30. Q&A
Thank you !
