Scati is a security company that provides comprehensive CCTV solutions. It has evolved from initially focusing on banking security to expanding globally and working on large-scale projects. Scati offers recording systems, cameras, networks, control centers and integrations. Notable capabilities include designing solutions for various industries, proprietary video management software, and developing customized solutions for large projects.

1. © SCATI 2014 – PGS v.20012014 1

2. Entry into the large-scale CCTV project market
© SCATI 2014 – SIM v.06022014
Kraken launch: Ultra-big recording projects
COMPANY
2
EVOLUTION
Founding
Bankingsector
Globalactivities
Large-scaleprojects
BigDataVideo
Founding and start of global activities. First successes in
Banking Security market.
Entry into the Transportation market consolidates expansion
Railwaysector
Entry into the Tryo Group. 2 successive years with 60% growth
Transportationsector

3. COMPANY
© SCATI 2014 – SRC v.04022014 3
CAPABILITIES
Design and manufacture of digital
recording systems for security
Comprehensive solutions for the control and protection of
resources in: Banking, Industry, Transport, Public Sector, etc.
Highly innovative proprietary
technology
Platform open to third-party
integrations
Specialists in large-scale projects managed
from control centres
Commitment to Quality:
ISO 9.001 / UNE 166.002
CMMi v.2
24h service : personalized consulting,
training and technical support
Global presence,
local pre-sales & post-sales support
Collaboration,
customized solutions

4. © SCATI 2014 – SRC v.04022014 4
COMPANY
PEOPLE

5. © SCATI 2014 – SRC v.04022014 5
COMPANY
PEOPLE

6. COMPANY
© SCATI 2014 – SEF v.09012014 6

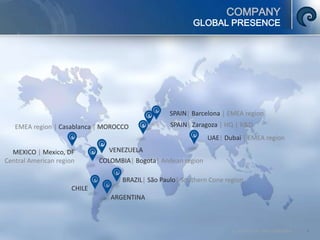

GLOBAL PRESENCE
SPAIN| Zaragoza | HQ | R&D
SPAIN| Barcelona | EMEA region
ARGENTINA
BRAZIL| São Paulo| Southern Cone region
COLOMBIA| Bogota| Andean region
MEXICO | Mexico, DF
Central American region
VENEZUELA
CHILE
UAE| Dubai | EMEA region
EMEA region | Casablanca | MOROCCO

7. COMPANY
© SCATI 2014 – SRC v.04022014 7
TEAM FORCE
Video
Management
Systems
Integrated
communications
+
video
solutions
TETRA/LTE
profesional
CeCoCo

8. © SCATI 2014 – PGS v.20012014 8
MULTI-SITE
• DISTRIBUTED SITES
• VARIED EQUIPMENT
• CENTRALISED MANAGEMENT
• THIRD-PARTY INTEGRATION
LPR
• RELIABLE RECOGNITION
• ON-BOARD ENVIRONMENTS
• WHITE LIST, BLACK LIST
MANAGEMENT
• AUTOMATED ACTIONS
PROJECTS
• MANAGEMENT 000’s CAMERAS
• COMPLEX NETWORKS
• HIGH AVAILABILITY
• THIRD-PARTY INTEGRATION
STRATEGIC MARKETS

9. © SCATI 2014 – SRC v.04022014 9
KEY DIFFERENTIATORS
COMPLETE CCTV SOLUTIONS
Open platform enables comprehensive security management
CHANGE MANAGEMENT
Scalable solution + commitment to overcome future challenges
DEVELOPMENT OF CUSTOMIZED SOLUTIONS
In-house R&D for project-specific developments

10. © SCATI 2014 – IMS v.17012014 10

11. INDEX
© SCATI 2014 – SRC v.04022014 11
REFERENCE PROJECTS
KEY CCTV ELEMENTS
RECORDERS
SPECIAL APPLICATIONS
CAMERAS
NETWORK
CONTROL CENTRE
INTEGRATION
SCATI SOLUTION
RECORDERS
SPECIAL APPLICATINS
CAMERAS
NETWORK
CONTROL CENTRE
INTEGRATION
DIFFERENTIATION

12. © SCATI 2014 – SRC v.04022014 12
KEY CCTV ELEMENTS
RECORDERS
SPECIAL APPLICATIONS
CAMERAS
NETWORK
CONTROL CENTRE
INTEGRATION

13. KEY CCTV ELEMENTS
© SCATI 2014 – PGS v.20012014 13
INTEGRATION
RECORDERS
CONTROL
CENTRE
NETWORK
CAMERAS
SPECIAL
APPLICATIONS
KEY
ELEMENTS

14. © SCATI 2014 – SRC v.04022014 14
RECORDERS
• Multiple hardware formats
 Different sizes
 Analogue, IP and hybrid technologies
• Pentaplex software:
Recording, local & remote playback,
configuration and back-up
 High-quality recording
 Compression for transmission over narrow-
band networks
 Event transmission
• High-availability systems
 Self-testing features
 Software upgrades
• Integration with other security
systems

15. © SCATI 2014 – SRC v.04022014 15
SPECIAL APPLICATIONS
LPR
• High recognition accuracy
 Multiple license plates per image
 Multi-country
 Perspective correction
• Environments
 On fixed cameras
 On-board (vehicle) scenarios
• Centralized management of multiple
geographically disperse points
• Alarms and events
 White list / black list management
 Automated action management
• Adaptation to regulatory or other
changes

16. © SCATI 2014 – SRC v.04022014 16
CAMERAS
• Multiple camera formats for different
types of sites
 Box, bullet, mini-dome
 Pinhole
 Dome
 Special: thermal, 360º…
 Intelligent
• Key aspects
 Image quality on low-light conditions
 PoE
 High-quality compression
 Standards (ONVIF)
• Advanced features
 VCA (counting, face detection…)
 Auto-focus
 AOI (higher quality in a specific area)

17. © SCATI 2014 – SRC v.04022014 17
NETWORK
• Private, public (Internet) or
combined network
• Shared or dedicated network
Video only vs. Data + Video
• Single or mixed network
 Cabled
Ethernet, Fibre Optic
100/1,000/10,000/… Mbps
 Wireless
Technology: WiFi, WiMax, LTE, etc.
 Mixed
Both cabled & wireless segments

18. © SCATI 2014 – SRC v.04022014 18

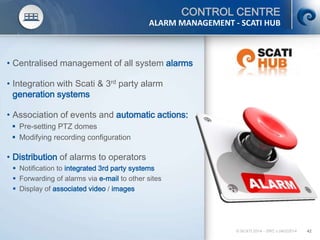

CONTROL CENTRE
• Network management in centralised locations
 Remote operation of all system features
 Monitoring integrated with alarm management
 Bandwidth management
 Automatic back-ups
 Reception and management of alarms and incidents
 Automated maintenance of the video recorder plant
• Capability to adapt to changes
• Management of large amounts of data
• Advanced display elements

19. © SCATI 2014 – SRC v.04022014 19
INTEGRATION
• Physical or software integration with
other security systems:
 Access control
 Alarm panel
 Perimeters
 Lifts
 Existing hardware elements
• Integration with the monitored
production process:
 PoS
 ATM data port
 Code Reader System, etc
• Specialized software
 Casinos

20. © SCATI 2014 – SRC v.04022014 20
SCATI SOLUTION
RECORDERS
SPECIAL APPLICATIONS
CAMERAS
NETWORK
CONTROL CENTRE
INTEGRATION

21. SCATI SOLUTION
© SCATI 2014 – PGS v.20012014 21
INTEGRATION
RECORDERS
CONTROL
CENTRE
NETWORK
CAMERAS
SPECIAL
APPLICATIONS

22. RECORDERS
© SCATI 2014 – PGS v.20012014 22
COMPACT EQUIPMENT
SCATI VISION ANALOGUE & HYBRID
FANLESS SERIES
• Up to 4 cameras
• Storage: up to 2 TB HDD
• Compact size
• H.264 compression
• 12V DC power supply
• Configurable recording
• 1 VGA + 1 DVI
• Extra robust
• Fanless system
• Complete Scati Suite functionality
SCATI VISION ANALOGUE, HYBRID & IP
MINI COMPACT SERIES
• Up to 16 cameras
• Storage: up to 3 TB HDD
• Compact size
• H.264 compression
• 12V DC power supply
• Configurable recording
• 1 VGA + 1 HDMI
• Complete Scati Suite functionality

23. RECORDERS
© SCATI 2014 – PGS v.20012014 23
STANDARD EQUIPMENT
SCATI VISION
19’’ 4U RACK UNIT
• Up to 32 cameras
• Storage: up to 3 x 3 TB HDD: total 9 TB
• 24x7 Video Surveillance Drives
• Embedded OS on SSD
• GigaEthernet card
• Video outputs: 1 VGA + 1 DVI + 1 HDMI
• 2 models: basic or advanced CPU
SCATI VISION
COMPACT UNIT
• Up to 16 cameras
• Storage: 1 x 3 TB HDD
• 24x7 Video Surveillance Drives
• Embedded OS on SSD
• GigaEthernet card
• Video outputs: 1 VGA + 1 DVI + 1 HDMI
• Intel Pentium III Xeon Processor

24. RECORDERS
© SCATI 2014 – PGS v.20012014 24
HIGH-PERFORMANCE EQUIPMENT
SCATI VISION
19’’ 2U RACK UNIT
• Up to 32 cameras
• Storage: 8 x 4 TB HDD
bays: 32 TB raw
• 24x7 Enterprise Class HDD
• Hot swap disks
• RAID 6 configuration,
24 TB usable storage
• Redundant power supply
• Redundant GigaE card
SCATI VISION
19’’ 2U RACK UNIT
• Up to 32 cameras
• Storage: 12 x 4 TB HDD
bays: 48 TB raw
• 24x7 Enterprise Class HDD
• Hot swap disks
• RAID 6 configuration,
40 TB usable storage
• Redundant power supply
• Redundant GigaE card
SCATI VISION
19’’ 4U RACK UNIT
• Up to 32 cameras
• Storage: 24 x 4 TB HDD
bays: 96 TB raw
• 24x7 Enterprise Class HDD
• Hot swap disks
• RAID 6 configuration,
88 TB usable storage
• Redundant power supply
• Redundant GigaE card

25. © SCATI 2014 – SRC v.04022014 25
RECORDERS
MASSIVE RECORDING

26. © SCATI 2014 – SIM v.06022014 26
Platform capable of recording and storing
video from any number of cameras
 Groups of recording servers with up to 512
cameras per server
 Scalable storage of large amounts of
information
• Replicable architecture based on storage
chassis
• Stackable chassis
– 4U 19” rack
– Up to 96 TB per chassis
 Pentaplex software
 Recording, local and remote playback,
configuration and back-up
 High availability
• Server failover
• Database redundancy
RECORDERS
MASSIVE RECORDING: KRAKEN

27. © SCATI 2014 – LPR v.14012014 27
SPECIAL APPLICATIONS
LPR
• Cameras, lenses & illuminators
specially adapted to LPR
• Compatible with vehicle-mounted
environments
• Scati Plate Reader
 30-ms processing time
 License plate and individual
character accuracy measurements
 Multiple license plate readings /
 Multi-country
 Perspective correction
• Scati Plate Web
 Remote management
 Black/white list, zone management,
alarm transmission, report
generation, etc.

28. SEC-4900N-X/P
SEM-3411NVR1-FEY
SEC-3401N-EXB
© SCATI 2014 – SRC v.04022014 28
CAMERAS
• Extensive portfolio of Scati Eye cameras
 Wide range of formats: box, compact, PTZ, dome,
mini-dome, cube, 360º…
 High image quality, even in scenes with backlight:
WDR
 Image compression without sacrificing quality:
H.264 standard
 Easy installation: PoE standard
 Simultaneous video transmission to multiple
recorders: dual stream
 Maximum durability: vandal-proof and IP66
formats
 ONVIF compliant
• Scati’s platform integrates ONVIF cameras

29. 29
CAMERAS
• Special cameras designed for advanced
requirements:
 Domes
 Intelligent cameras
• Facial detection
• Intelligent focus
• Advanced filters
 Thermal Cameras
 Special cameras
• Counting cameras
• Features:
 AOI: higher quality recording in a
specific zone
 ABF: automatic focusing
 Tri-stream
 Corridor mode
 High sensitivity in low-light conditions
 Smart IR
 60 FPS
SPECIAL CAMERAS
© SCATI 2014 – SRC v.04022014

30. CAMERAS
© SCATI 2014 – PGS v.20012014 30
SPECIAL CAMERAS
SCATI EYE
360º CAMERAS
• Continuous panoramic-view recording
• 3MP or 6MP
• Up to 2048 x 2048, 30 FPS
• Infra-red with up to 15m range
• SD/SDHC card support
• Vandal-proof
SCATI EYE
PTZ CAMERAS WITH AUTO-TRACKING
• PTZ cameras with auto-tracking
• Tracking of people in movement
• Automatic tracking of objects in the
predetermined area
• Supports manual object selection

31. CAMERAS
© SCATI 2014 – PGS v.20012014 31

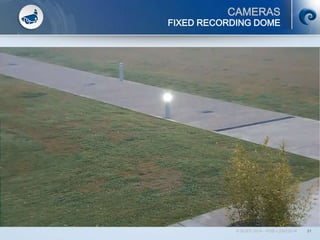

FIXED RECORDING DOME

32. CAMERAS
© SCATI 2014 – SRC v.04022014 32
SPECIAL CAMERAS
SCATI EYE
THERMAL CAMERAS
• Recognition of people at up to 250m
• Recognition of vehicles at up to 700m
• Very low false-alarm rate

33. CAMERAS
33
THERMAL CAMERAS
© SCATI 2014 – SRC v.04022014

34. CAMERAS
© SCATI 2014 – SRC v.04022014 34
SPECIAL CAMERAS
SCATI EYE
THERMAL CAMERAS
• Recognition of people at up to 250m
• Recognition of vehicles at up to 700m
• Very low false-alarm rate
SCATI EYE
INTELLIGENT CAMERAS
• Perimeter violation
• People counting
• Video quality diagnostics
• Image stabilization
• Defog

35. CAMERAS
© SCATI 2014 – SRC v.04022014 35
PERIMETER VIOLATION

36. CAMERAS
© SCATI 2014 – PGS v.20012014 36
LPR CAMERAS
IP RECONOGNITION CAMERA
SEC-3401N-EX
• High resolution: 1.3 – 2 MP
• WDR
• Automatic day/night mode
switching
• Configurable shutter speed
HIGH-SPEED
RECONOGNITION CAMERA
• Up to 40.7 FPS
• CCD sensor, for changeable
illumination conditions
• Avoids motion blurring: high
shutter speed
ON-BOARD
RECONOGNITION CAMERA
• Maximum sensitivity: Ultra
HDR CMOS
• High resolution (10 MP)
• Up to 87 FPS
• Ease of use via USB port

37. 37
NETWORK
• Distributed cameras in a
complex network architecture:
 Optimization of bandwidth
usage
 Choice of network elements,
servers and storage
 Power supply requirements
(PoE + redundancy)
 Uninterrupted connectivity:
Hw redundancy with failover
 Security in the network
• Scati advises on the design
and supply of all network
elements
© SCATI 2014 – SRC v.04022014
CCTV PROJECT
REQUIREMENTS
NUMBER
AND TYPE OF
CAMERAS
BANDWIDTH
REQUIREMENTS
POWER SUPPLY
REQUIREMENTS
SERVERS
STORAGE
SWITCHES
POE / POE+
vs
DIRECT CONNECTION

38. CONTROL CENTRE
© SCATI 2014 – PGS v.20012014 38
CENTRALIZED
SYSTEM
MANAGEMENT
MAINTENANCE
MONITORING
OPERATION
VIDEO DISTRIBUTION ALARM MANAGEMENT

39. © SCATI 2014 – SRC v.04022014 39
• Interface deigned for professional security
operators
• Display of real-time and recorded video
• Video export
• Reception and management of events and
alarms, by groups and timetables
• Remote configuration of recorders
• Monitoring of video matrixes
• Map management
• Creation of groups of cameras and
recorders
• User management
CONTROL CENTRE
OPERATION - SCATI WATCHER

40. © SCATI 2014 – SRC v.04022014 40
CONTROL CENTRE
• Real-time monitoring of any number of
cameras connected to Scati recorders
 Basic controller can display digital matrixes of 128
cameras
 Scalability: stacking of any number of controllers
MONITORING - SCATI WALL
• Basic functionality:
 Scenario management with associated
keyboard shortcuts
 Camera sequence creation
 Event and alarm video reception with
associated screens and sounds
 Digital zoom for identification
 Integration of telemetry protocols: PTZ control

41. © SCATI 2014 – SRC v.04022014 41
CONTROL CENTRE
• Efficient management of the available
bandwidth for groups of devices
• Receives, processes and accumulates
client requests for real-time and stored
video from the recorders
• Groups these requests and sends only
one to each recorder, thereby optimising
network bandwidth
• Any number of video requests from
different clients can be made to a single
recorder without collapsing the network
• Planned video back-up when the
recorder is located in a suitable network
VIDEO DISTRIBUTION - SCATI LINKER

42. © SCATI 2014 – SRC v.04022014 42
CONTROL CENTRE
• Centralised management of all system alarms
• Integration with Scati & 3rd party alarm
generation systems
• Association of events and automatic actions:
 Pre-setting PTZ domes
 Modifying recording configuration
• Distribution of alarms to operators
 Notification to integrated 3rd party systems
 Forwarding of alarms via e-mail to other sites
 Display of associated video / images
ALARM MANAGEMENT - SCATI HUB

43. © SCATI 2014 – SRC v.04022014 43
CONTROL CENTRE
• Preventative maintenance management
 Remote problem diagnostics
 Continuous visibility of equipment status
• Plant-wide remote recorder software /
configuration upgrades
• Recorder task execution
 Time-of-day synchronization
 Automatic bulk downloads
• Recorder data collection
 Location, HW, SW, faults…
• Web interface
 Searches and statistics
 Report generation
MANTENANCE - SCATI ROUND

44. © SCATI 2014 – SRC v.04022014 44
CONTROL CENTRE
• Integration of video in the Control Centre
• Fixed and on-board camera integration
• Alarm reception with immediate association
with real-time video
• Viewing of recorded video of previous
incidents
• On receiving a geo-referenced call, access
to recorded and real-time video from the
scene
• Transmission of video recorded by cameras
to on-board devices
CECOCO

45. CONTROL CENTRE
ARCHITECTURE
REMOTE SITES
Scati Watcher
Operation
Third-party
Software
Scati Wall
Monitoring
Scati Hub
Alarm management
© SCATI 2014 – SRC v.04022014 45
NETWORK CONTROL CENTRE
Camera
Recorder
1
2
3
...
N
Scati Linker
Video distribution
The camera captures video and sends it to the
recorder
The recorder analyses the video and, if
necessary, generates an alarm
The recorder sends the alarm to the control
centre
Scati Hub manages the alarm and notifies the
subscribed operators
The operators request video through Scati Linker
Scati Linker sends the video over the broadband
network to the operators who had requested it
The recorders transmit the requested video only
to Scati Linker, using just 1 connection
Scati Linker prioritizes and groups requests,
optimizing bandwidth

46. © SCATI 2014 – SRC v.04022014 46
CONTROL CENTRE
• Ultra-Slim TFT-LCD monitor
 Perfect alignment
 Optimum cooling
 Long-term operation
• External controllers
 Management of 4 TFT-LCD monitors
 Remote control via RS-232, LAN & IR
• Redundant power supply
• Video Wall System
 Precise alignment assembly
• Video Wall processor
 Video signal processing
 Unlimited application display
DISPLAY HARDWARE

47. 47© SCATI 2014 – PGS v.20012014
CONTROL CENTRE
DISPLAY HARDWARE

48. © SCATI 2014 – SRC v.04022014 48
INTEGRATION
• SDK for 3rd party integrations
• ActiveX for accessing real-time and recorded
video, downloads, telemetry, etc. from 3rd party
tools
• XML event and alarm management via Scati
Hub
• External sensor and relay connection
 ATM signals
 Alarm panel
 Others
• Event marking in recording to facilitate visual
alarm verification

49. © SCATI 2014 – SRC v.04022014 49
REFERENCE PROJECTS

50. SANTANDER BANK
© SCATI 2014 – SRC v.04022014 50

51. BBVA BANK
© SCATI 2014 – SRC v.04022014 51

52. TELEFONICA
© SCATI 2014 – SRC v.04022014 52

53. BANKIA TOWER
© SCATI 2014 – SRC v.04022014 53

54. EGYPTIAN PYRAMIDS
© SCATI 2014 – SRC v.04022014 54

55. © SCATI 2014 – SRC v.04022014 55
DIFFERENTIATION

56. © SCATI 2014 – SRC v.04022014 56
DIFFERENTIATION

57. © SCATI 2014 – SRC v.04022014 57
KEY DIFFERENTIATORS
COMPLETE CCTV SOLUTIONS
Open platform enables comprehensive security management
CHANGE MANAGEMENT
Scalable solution + commitment to overcome future challenges
DEVELOPMENT OF CUSTOMIZED SOLUTIONS
In-house R&D for project-specific developments

58. © SCATI 2014 – PGS v.20012014 58
