HTML5 Offline Web Application
This document discusses how to create offline web applications using HTML5 application cache manifest files. It covers HTTP response headers, caching strategies, manifest file structure and directives, updating the cache, checking online/offline status, and the application cache API. The manifest file lists application assets to cache and supports caching, network, and fallback rules. Updates require modifying cache busting values or the manifest file itself.
More Related Content
Similar to HTML5 Offline Web Application
HTML5 Offline Web Application
- 1.

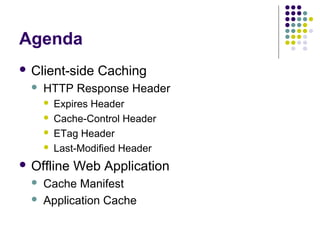

- 2. Agenda Client-side HTTP ResponseHeader Expires Header Cache-Control Header ETag Header Last-Modified Header Offline Caching Web Application Cache Manifest Application Cache

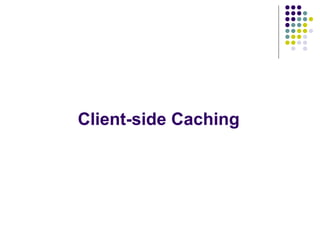

- 3.
- 4. HTTP Response Header Expires Header Gives the date/time after which the response is considered stale Example Expires: Thu, 01 Dec 1994 16:00:00 GMT

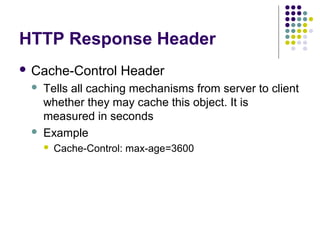

- 5. HTTP Response Header Cache-Control Header Tells all caching mechanisms from server to client whether they may cache this object. It is measured in seconds Example Cache-Control: max-age=3600

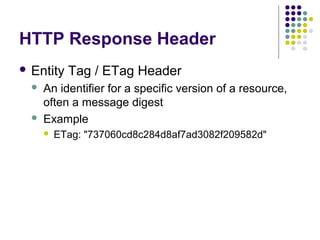

- 6. HTTP Response Header Entity Tag / ETag Header An identifier for a specific version of a resource, often a message digest Example ETag: "737060cd8c284d8af7ad3082f209582d"

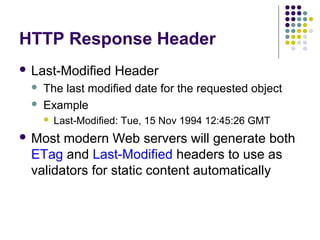

- 7. HTTP Response Header Last-Modified Header The last modified date for the requested object Example Last-Modified: Tue, 15 Nov 1994 12:45:26 GMT Most modern Web servers will generate both ETag and Last-Modified headers to use as validators for static content automatically
- 8.

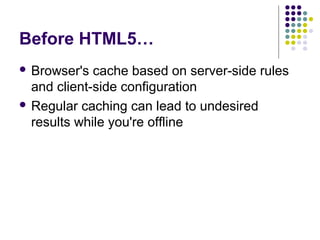

- 9. Before HTML5… Browser's cachebased on server-side rules and client-side configuration Regular caching can lead to undesired results while you're offline

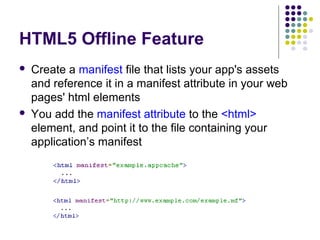

- 10. HTML5 Offline Feature Createa manifest file that lists your app's assets and reference it in a manifest attribute in your web pages' html elements You add the manifest attribute to the <html> element, and point it to the file containing your application’s manifest

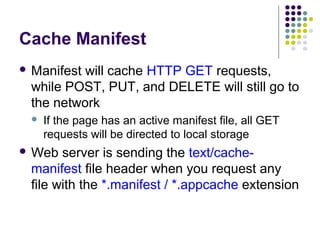

- 11. Cache Manifest Manifest willcache HTTP GET requests, while POST, PUT, and DELETE will still go to the network If the page has an active manifest file, all GET requests will be directed to local storage Web server is sending the text/cachemanifest file header when you request any file with the *.manifest / *.appcache extension

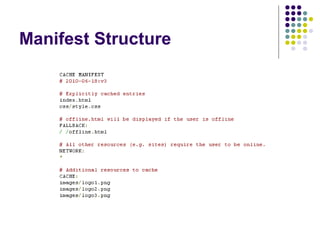

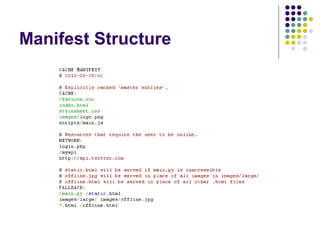

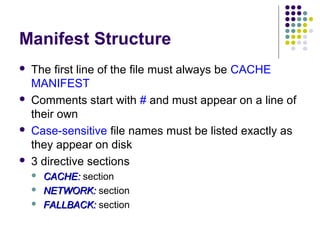

- 12. Manifest Structure The firstline of the file must always be CACHE MANIFEST Comments start with # and must appear on a line of their own Case-sensitive file names must be listed exactly as they appear on disk 3 directive sections CACHE: section NETWORK: section FALLBACK: section

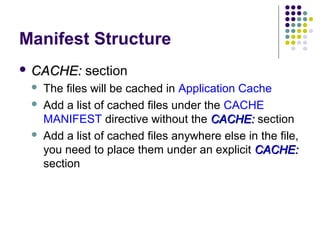

- 13. Manifest Structure CACHE: section Thefiles will be cached in Application Cache Add a list of cached files under the CACHE MANIFEST directive without the CACHE: section Add a list of cached files anywhere else in the file, you need to place them under an explicit CACHE: section
- 14. Manifest Structure CACHE: sectionrules Only one file name per line A full file name is required, no wildcards * allowed File names can contain path information or even an absolute URL File names can't include fragment identifiers, e.g. comment #

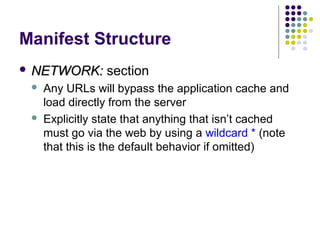

- 15. Manifest Structure NETWORK: section AnyURLs will bypass the application cache and load directly from the server Explicitly state that anything that isn’t cached must go via the web by using a wildcard * (note that this is the default behavior if omitted)

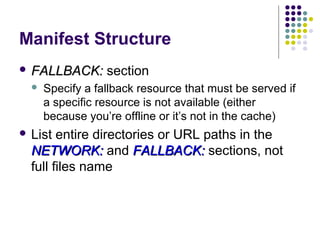

- 16. Manifest Structure FALLBACK: section Specifya fallback resource that must be served if a specific resource is not available (either because you’re offline or it’s not in the cache) List entire directories or URL paths in the NETWORK: and FALLBACK: sections, not full files name
- 17.
- 18.

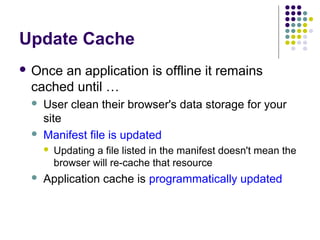

- 19. Update Cache Once anapplication is offline it remains cached until … User clean their browser's data storage for your site Manifest file is updated Updating a file listed in the manifest doesn't mean the browser will re-cache that resource Application cache is programmatically updated

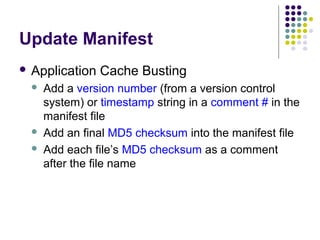

- 20. Update Manifest Application CacheBusting Add a version number (from a version control system) or timestamp string in a comment # in the manifest file Add an final MD5 checksum into the manifest file Add each file’s MD5 checksum as a comment after the file name

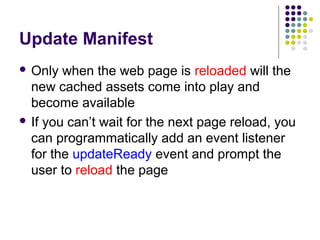

- 21. Update Manifest Only whenthe web page is reloaded will the new cached assets come into play and become available If you can’t wait for the next page reload, you can programmatically add an event listener for the updateReady event and prompt the user to reload the page

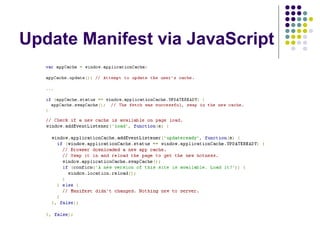

- 22. Update Manifest viaJavaScript
- 23. Checking Status Checking forBrowser Support Compatibility Tables if (window.applicationCache) { // this browser supports offline web apps } Checking Online / Offline Check the property navigator.online whether the browser is online or not Pull in a piece of JavaScript and check online / offline status via FALLBACK rule

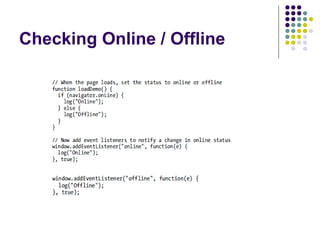

- 24. Checking Online /Offline

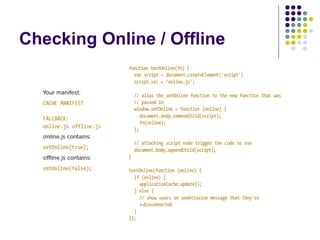

- 25. Checking Online /Offline
- 26.
- 27.

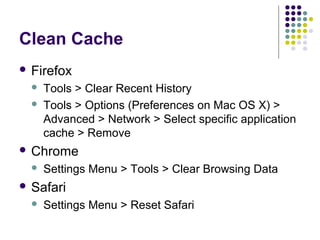

- 28. Clean Cache Firefox Tools> Clear Recent History Tools > Options (Preferences on Mac OS X) > Advanced > Network > Select specific application cache > Remove Chrome Settings Menu > Tools > Clear Browsing Data Safari Settings Menu > Reset Safari
- 29. Debug Manifest Challenge Include missing files in the manifest When the manifest is updated and the browser does not reflect the update until the web page is loaded If the manifest has a cache control header set on it, the browser may not check for a new version of the manifest Manifest is not cached by the browser, or if it is cached it is done only via an ETag.

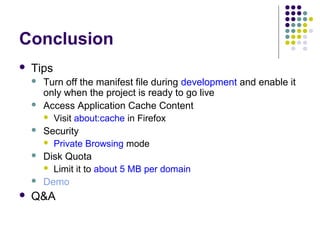

- 30. Conclusion Tips Turn off themanifest file during development and enable it only when the project is ready to go live Access Application Cache Content Visit about:cache in Firefox Security Private Browsing mode Disk Quota Limit it to about 5 MB per domain Demo Q&A
