1. Taking Your “Web” App
To places you never expected
Garth Williams
@williamsgarth
IAEA
International Atomic Energy Agency

2. IAEA
Introduction
IAEA Headquarters in Vienna
http://iaea.org

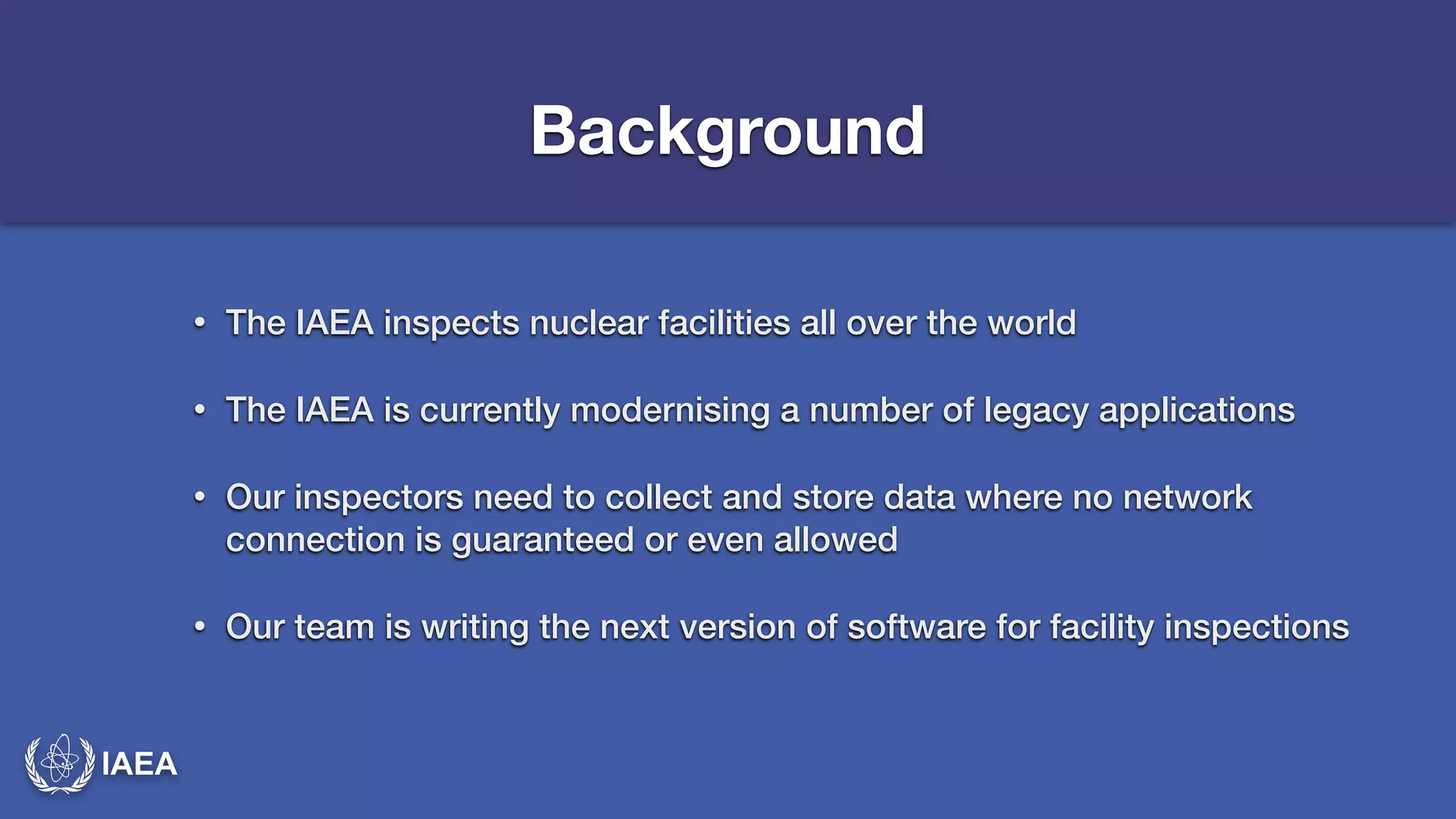

3. IAEA
Background
• The IAEA inspects nuclear facilities all over the world
• The IAEA is currently modernising a number of legacy applications
• Our inspectors need to collect and store data where no network
connection is guaranteed or even allowed
• Our team is writing the next version of software for facility inspections

4. IAEA

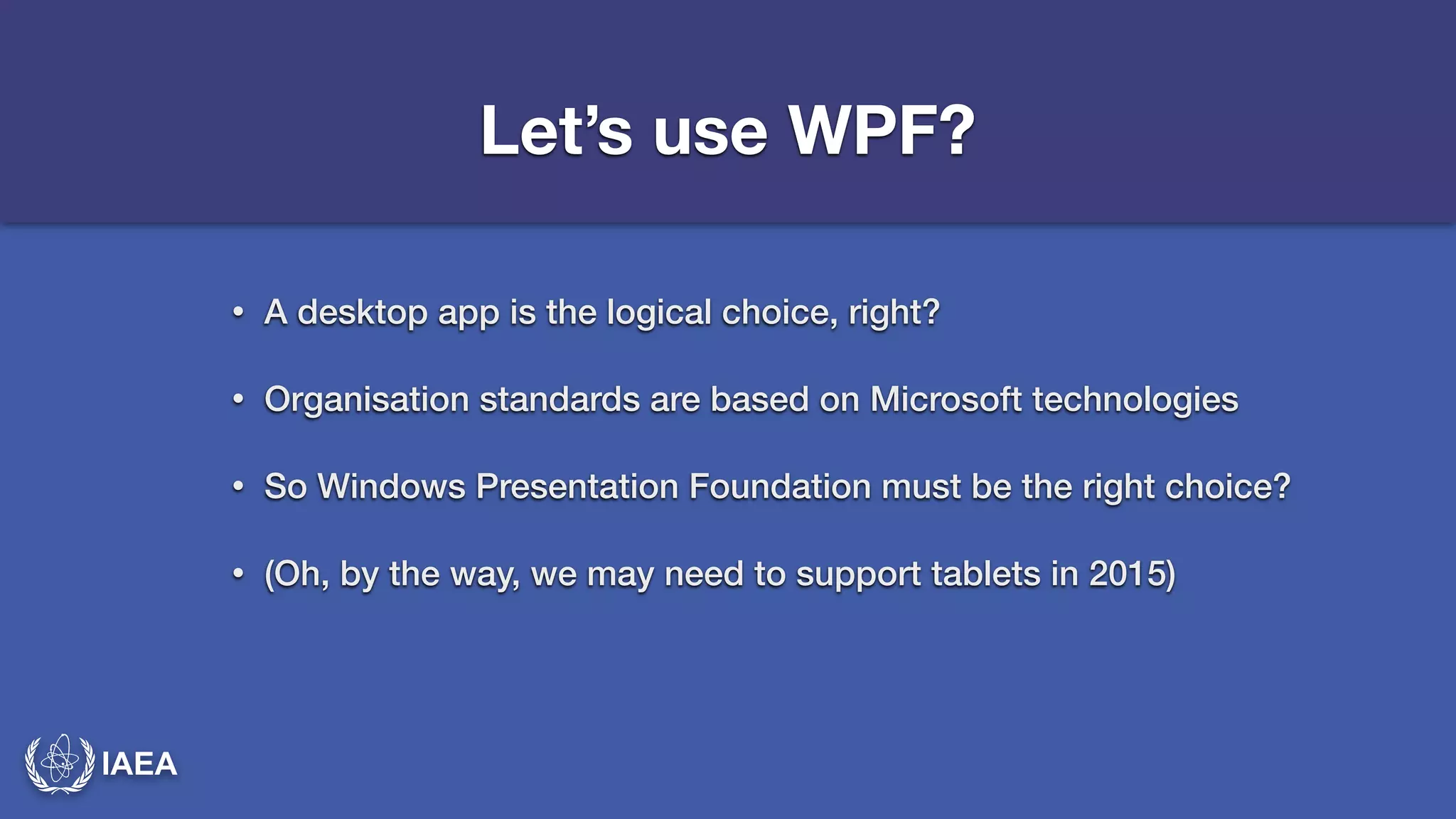

Let’s use WPF?
• A desktop app is the logical choice, right?
• Organisation standards are based on Microsoft technologies
• So Windows Presentation Foundation must be the right choice?
• (Oh, by the way, we may need to support tablets in 2015)

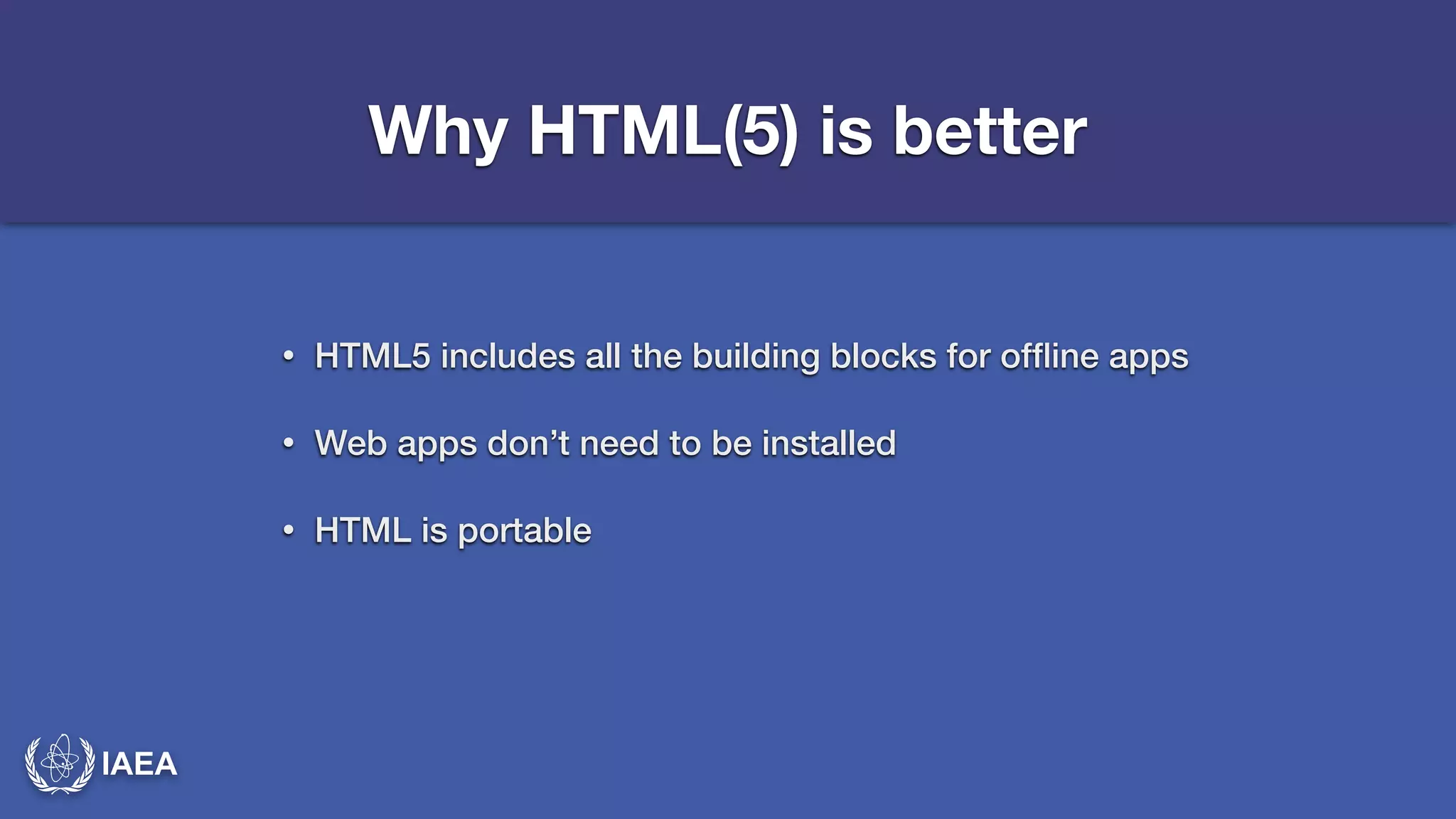

5. IAEA
Why HTML(5) is better
• HTML5 includes all the building blocks for offline apps
• Web apps don’t need to be installed
• HTML is portable

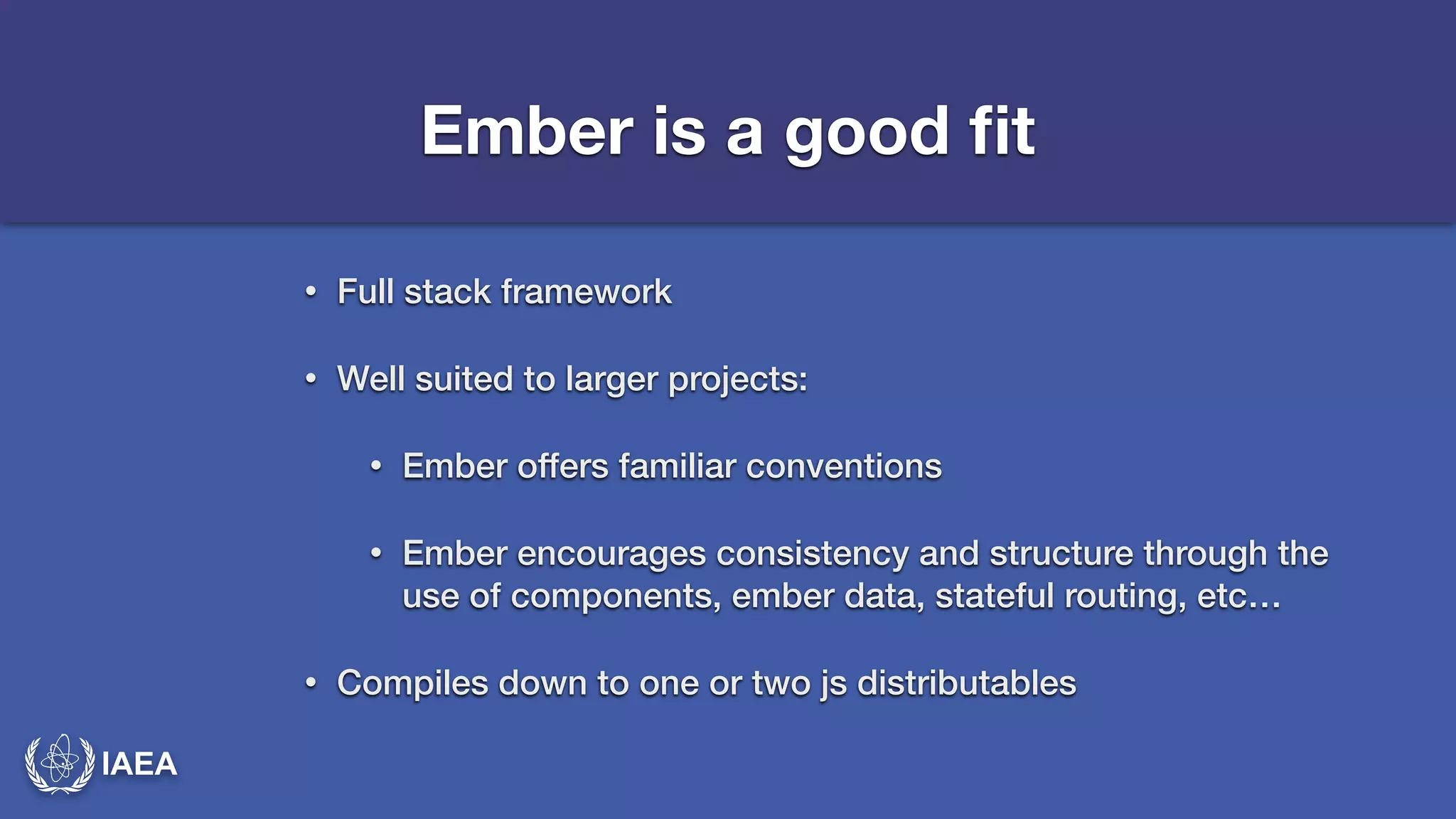

6. IAEA
Ember is a good fit
• Full stack framework
• Well suited to larger projects:
• Ember offers familiar conventions
• Ember encourages consistency and structure through the
use of components, ember data, stateful routing, etc…
• Compiles down to one or two js distributables

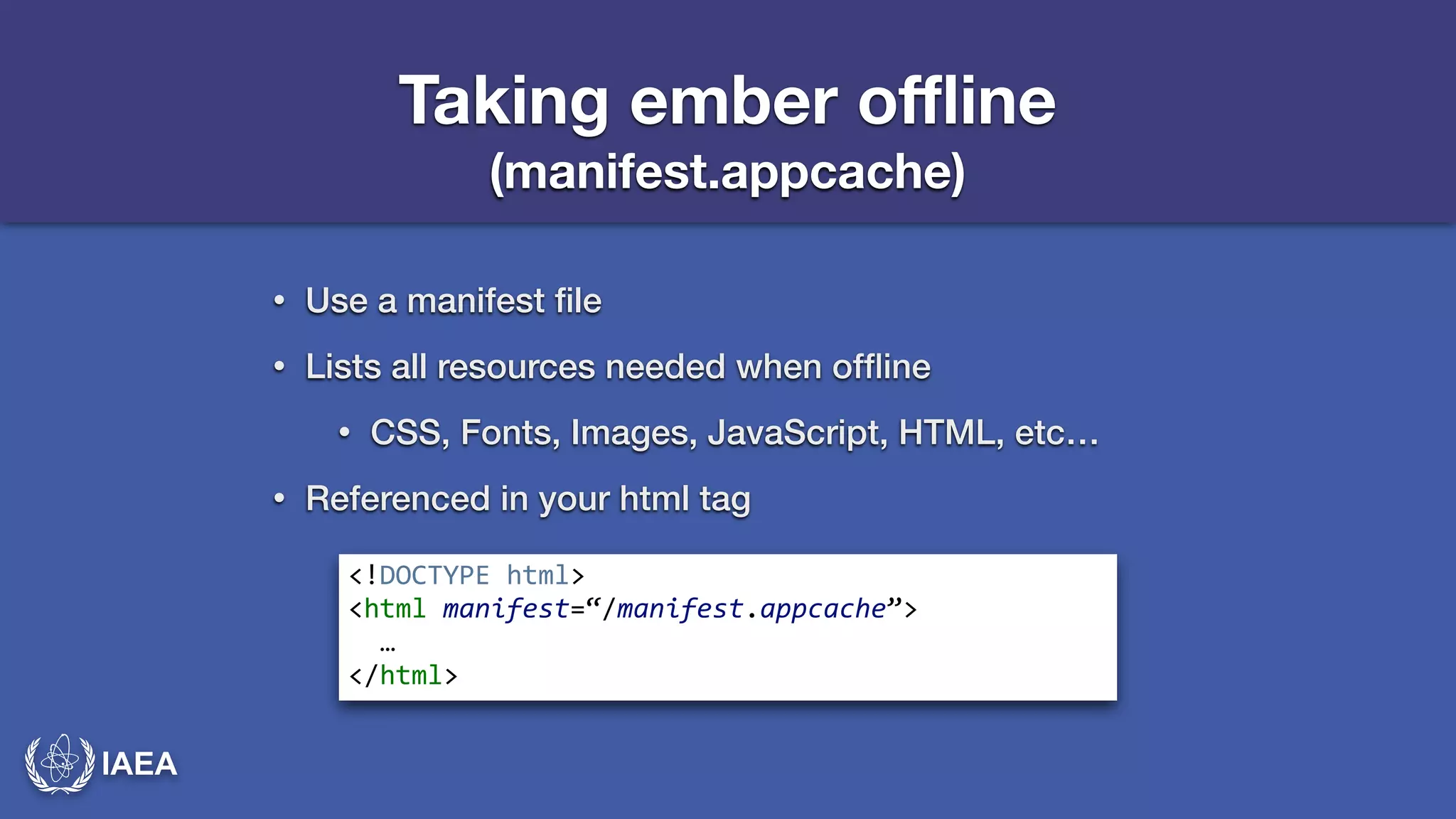

7. IAEA
Taking ember offline
(manifest.appcache)
• Use a manifest file
• Lists all resources needed when offline
• CSS, Fonts, Images, JavaScript, HTML, etc…
• Referenced in your html tag
<!DOCTYPE*html>*
<html*manifest=“/manifest.appcache”>*
**…*
</html>

8. IAEA

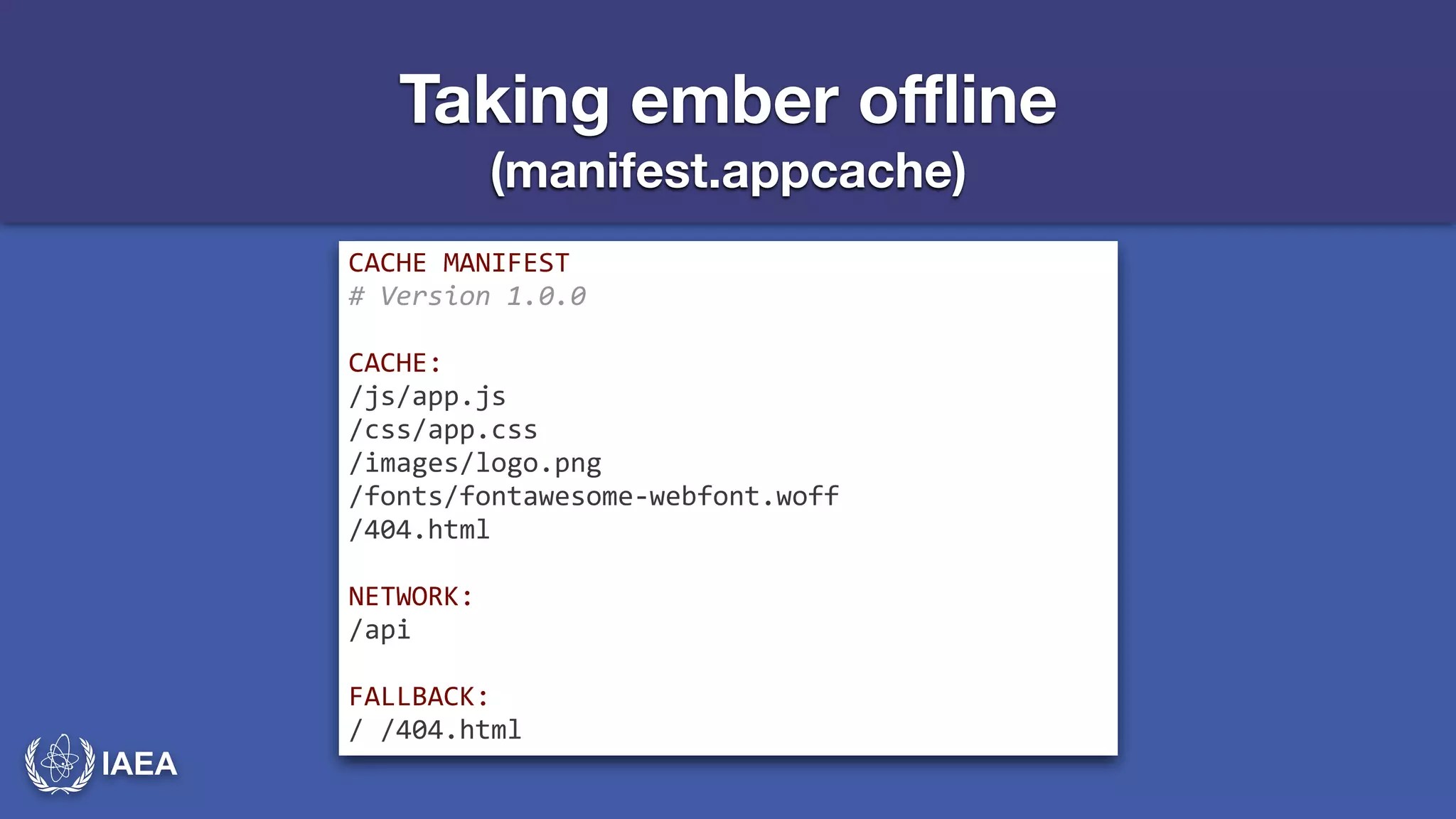

Taking ember offline
(manifest.appcache)
CACHE*MANIFEST*
#-Version-1.0.0-
!
CACHE:*
/js/app.js*
/css/app.css*
/images/logo.png*
/fonts/fontawesomeJwebfont.woff*
/404.html*
!
NETWORK:*
/api*
!
FALLBACK:*
/*/404.html

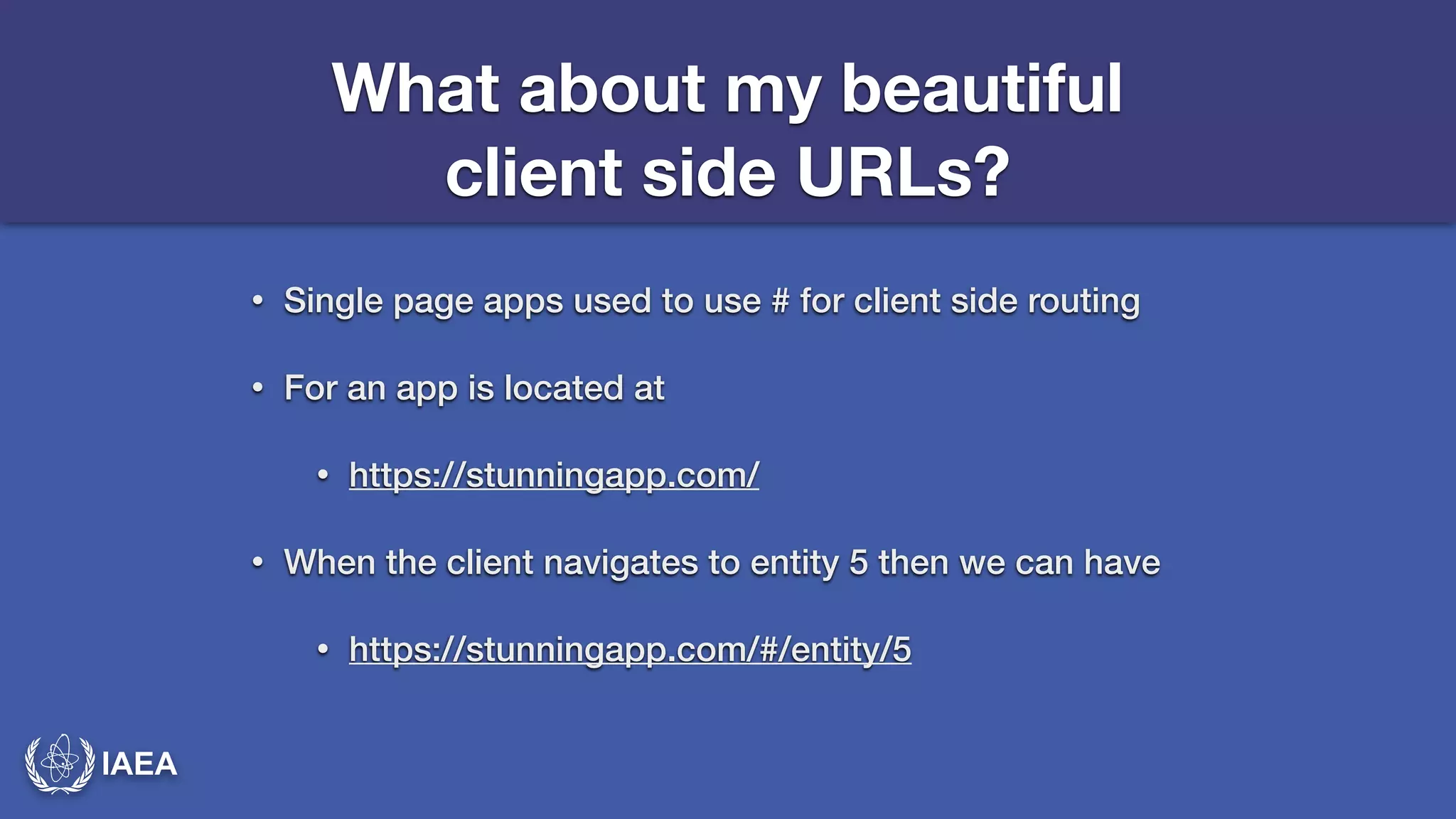

9. IAEA
What about my beautiful
client side URLs?
• Single page apps used to use # for client side routing
• For an app is located at
• https://stunningapp.com/
• When the client navigates to entity 5 then we can have
• https://stunningapp.com/#/entity/5

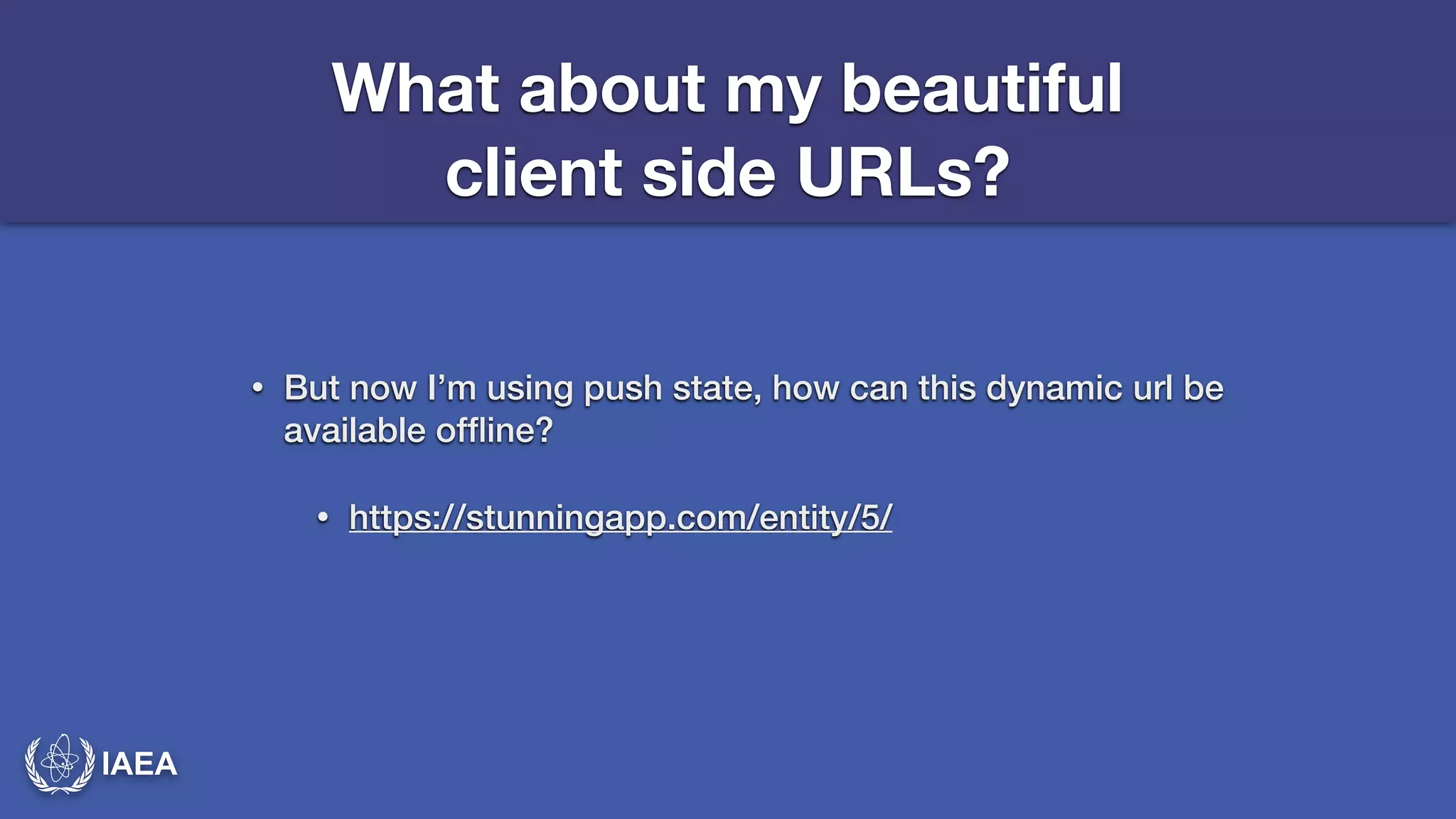

10. IAEA
What about my beautiful
client side URLs?
• But now I’m using push state, how can this dynamic url be
available offline?
• https://stunningapp.com/entity/5/

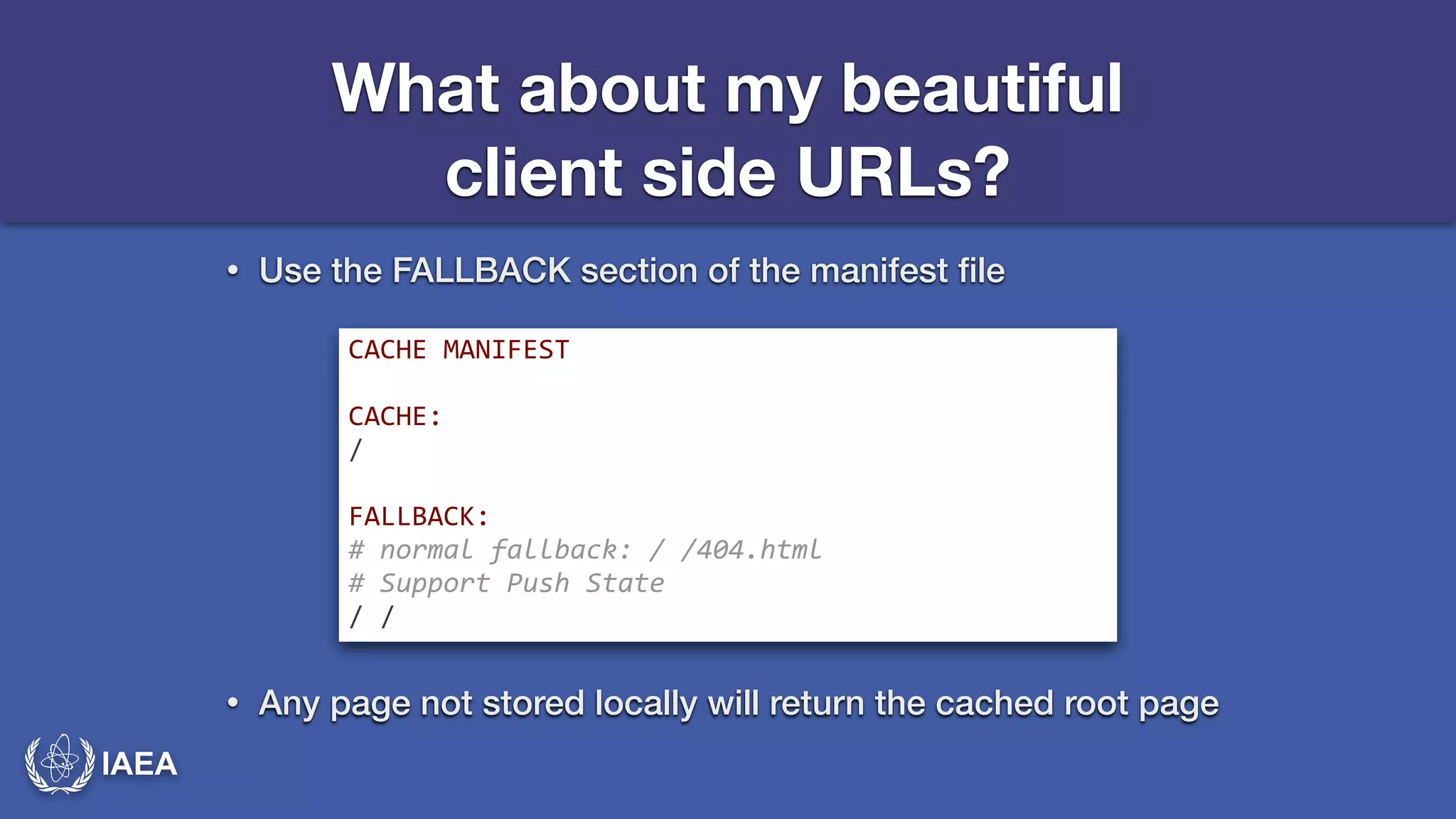

11. IAEA
What about my beautiful
client side URLs?
• Use the FALLBACK section of the manifest file
CACHE*MANIFEST*
!
CACHE:*
/*
!
FALLBACK:*
#-normal-fallback:-/-/404.html-
#-Support-Push-State-
/*/
• Any page not stored locally will return the cached root page

12. IAEA
Caching hell
& double reloads
• First time a browser visits your app:
1. HTML is downloaded
2. Manifest is detected and downloaded
3. Resources listed in manifest are downloaded and stored

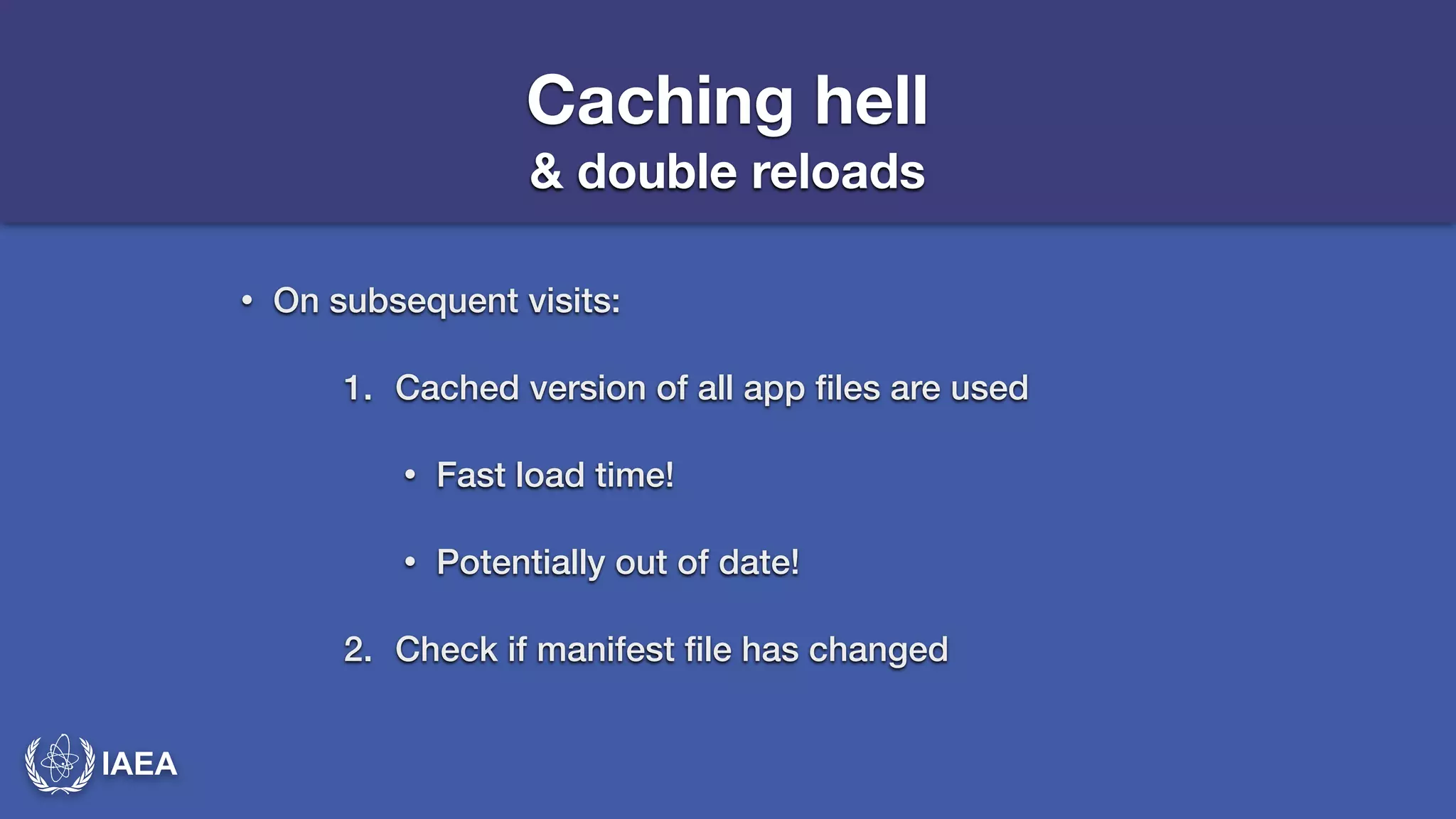

13. IAEA
Caching hell
& double reloads
• On subsequent visits:
1. Cached version of all app files are used
• Fast load time!
• Potentially out of date!
2. Check if manifest file has changed

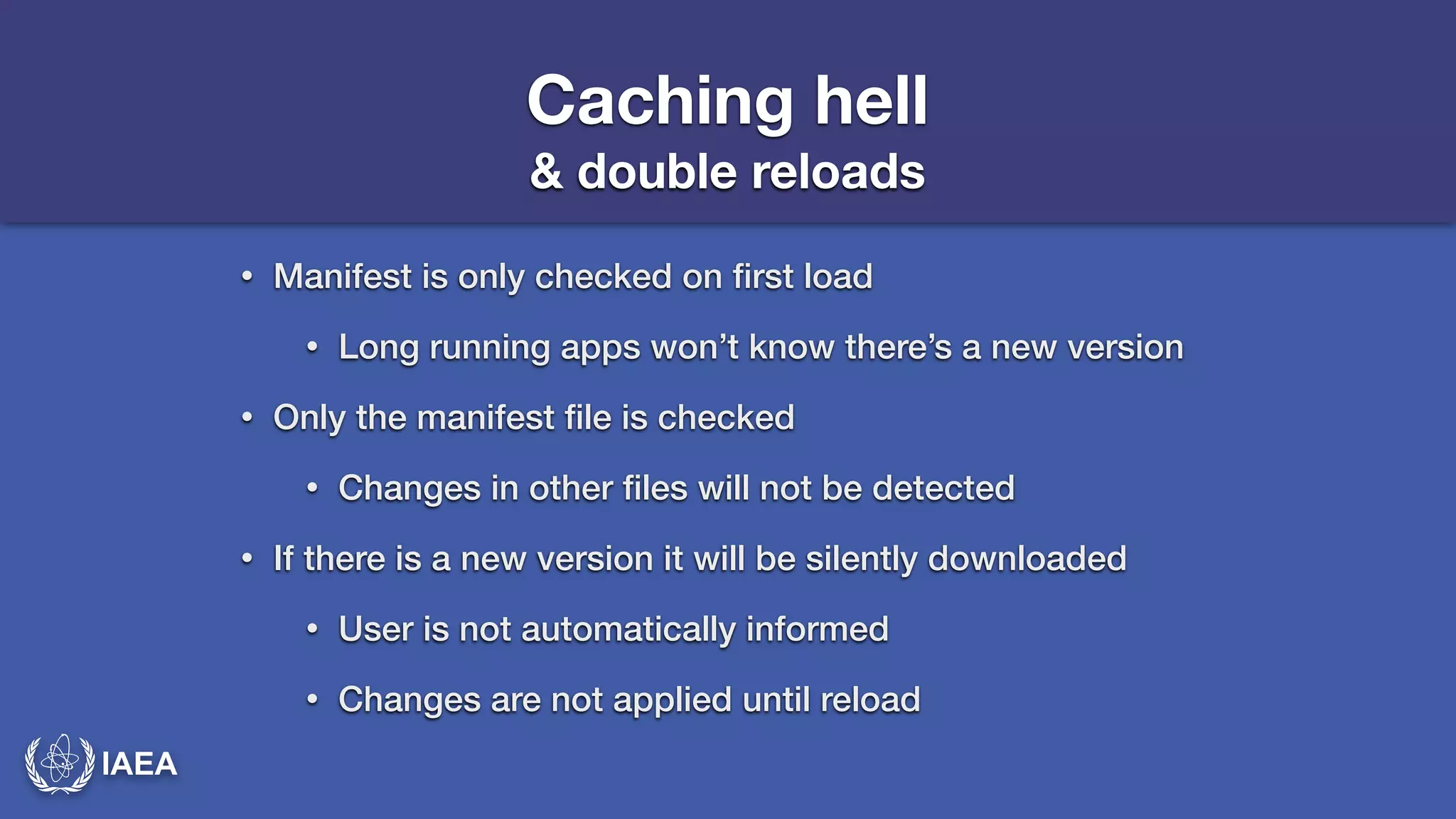

14. IAEA
Caching hell
& double reloads
• Manifest is only checked on first load
• Long running apps won’t know there’s a new version
• Only the manifest file is checked
• Changes in other files will not be detected
• If there is a new version it will be silently downloaded
• User is not automatically informed
• Changes are not applied until reload

15. IAEA
Caching hell
& double reloads
• Mitigation:
1. Auto-generate the manifest
• Put a content hash of cached files in a comment
CACHE*MANIFEST*
!
CACHE:*
#-app.js-hash:-1921ec2e922f7f11c73c870e908b1c50-
/js/app.js

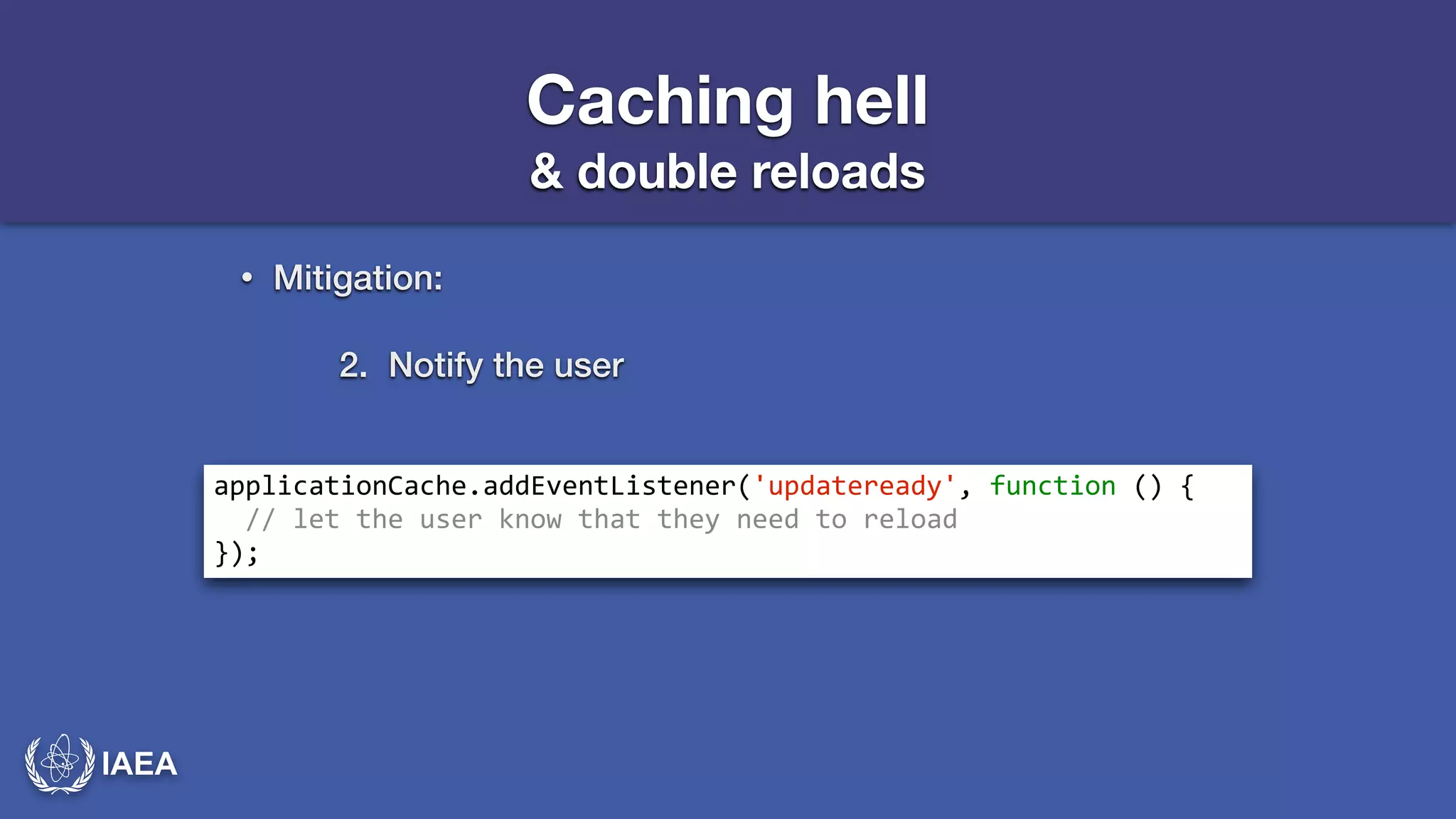

16. IAEA
Caching hell
& double reloads
• Mitigation:
2. Notify the user
applicationCache.addEventListener('updateready',*function*()*{*
**//*let*the*user*know*that*they*need*to*reload*
});

17. IAEA

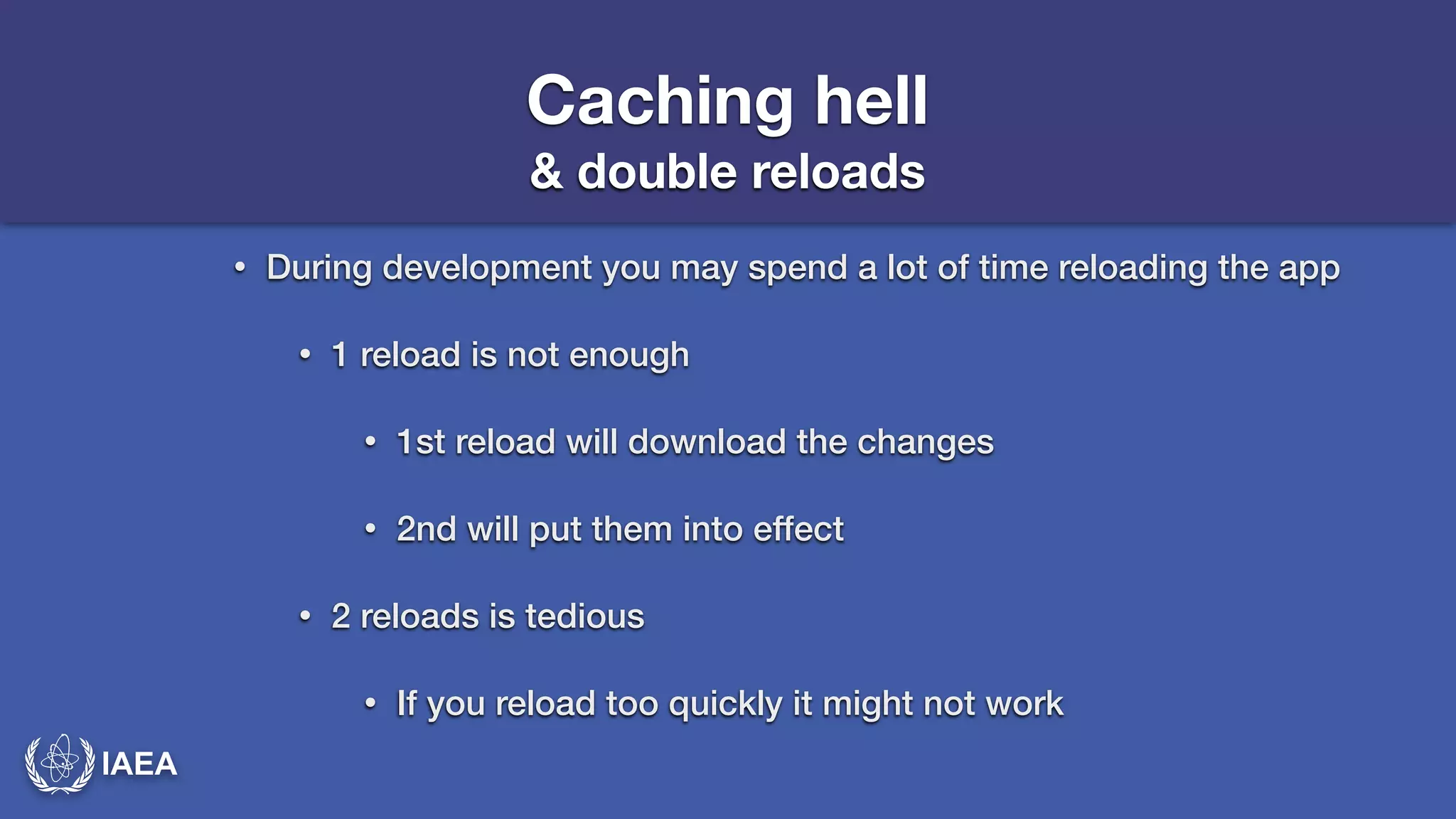

Caching hell
& double reloads
• During development you may spend a lot of time reloading the app
• 1 reload is not enough
• 1st reload will download the changes
• 2nd will put them into effect
• 2 reloads is tedious
• If you reload too quickly it might not work

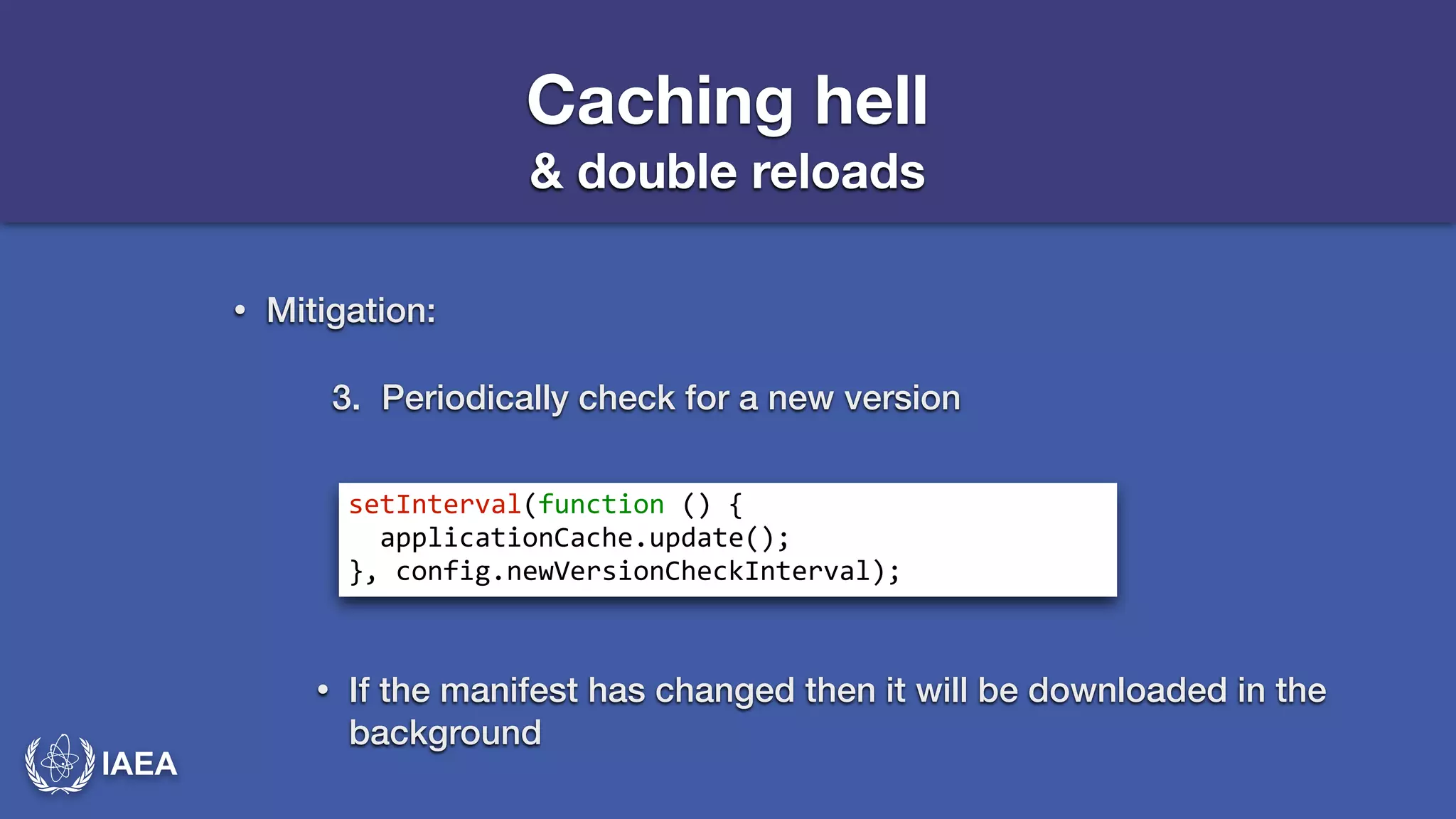

18. IAEA
Caching hell
& double reloads
• Mitigation:
3. Periodically check for a new version
setInterval(function*()*{*
**applicationCache.update();*
},*config.newVersionCheckInterval);
• If the manifest has changed then it will be downloaded in the
background

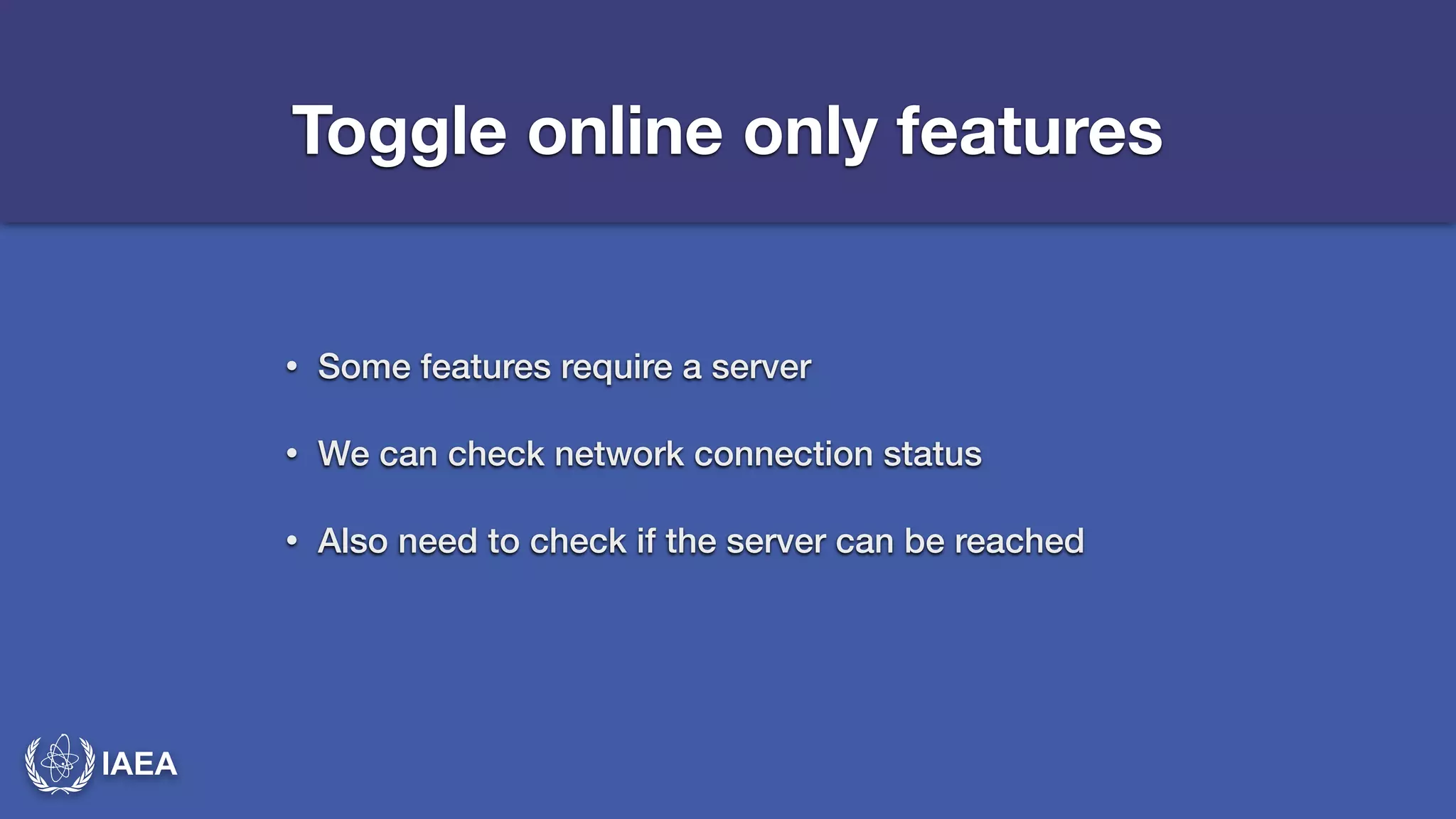

19. IAEA
Toggle online only features
• Some features require a server
• We can check network connection status
• Also need to check if the server can be reached

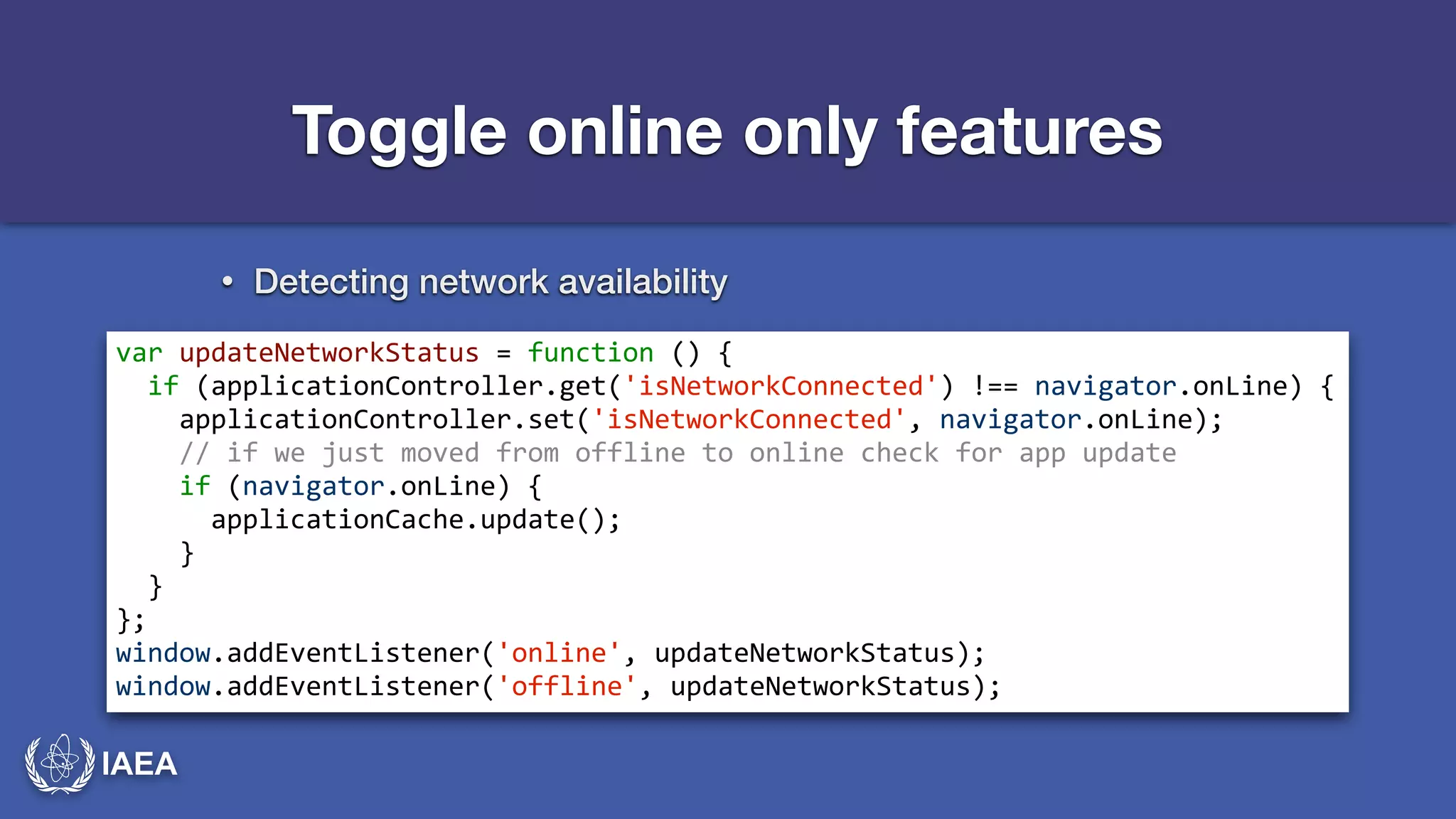

20. IAEA
Toggle online only features
• Detecting network availability
var*updateNetworkStatus*=*function*()*{*
**if*(applicationController.get('isNetworkConnected')*!==*navigator.onLine)*{*
****applicationController.set('isNetworkConnected',*navigator.onLine);*
****//*if*we*just*moved*from*offline*to*online*check*for*app*update*
****if*(navigator.onLine)*{*
******applicationCache.update();*
****}*
**}*
};*
window.addEventListener('online',*updateNetworkStatus);*
window.addEventListener('offline',*updateNetworkStatus);

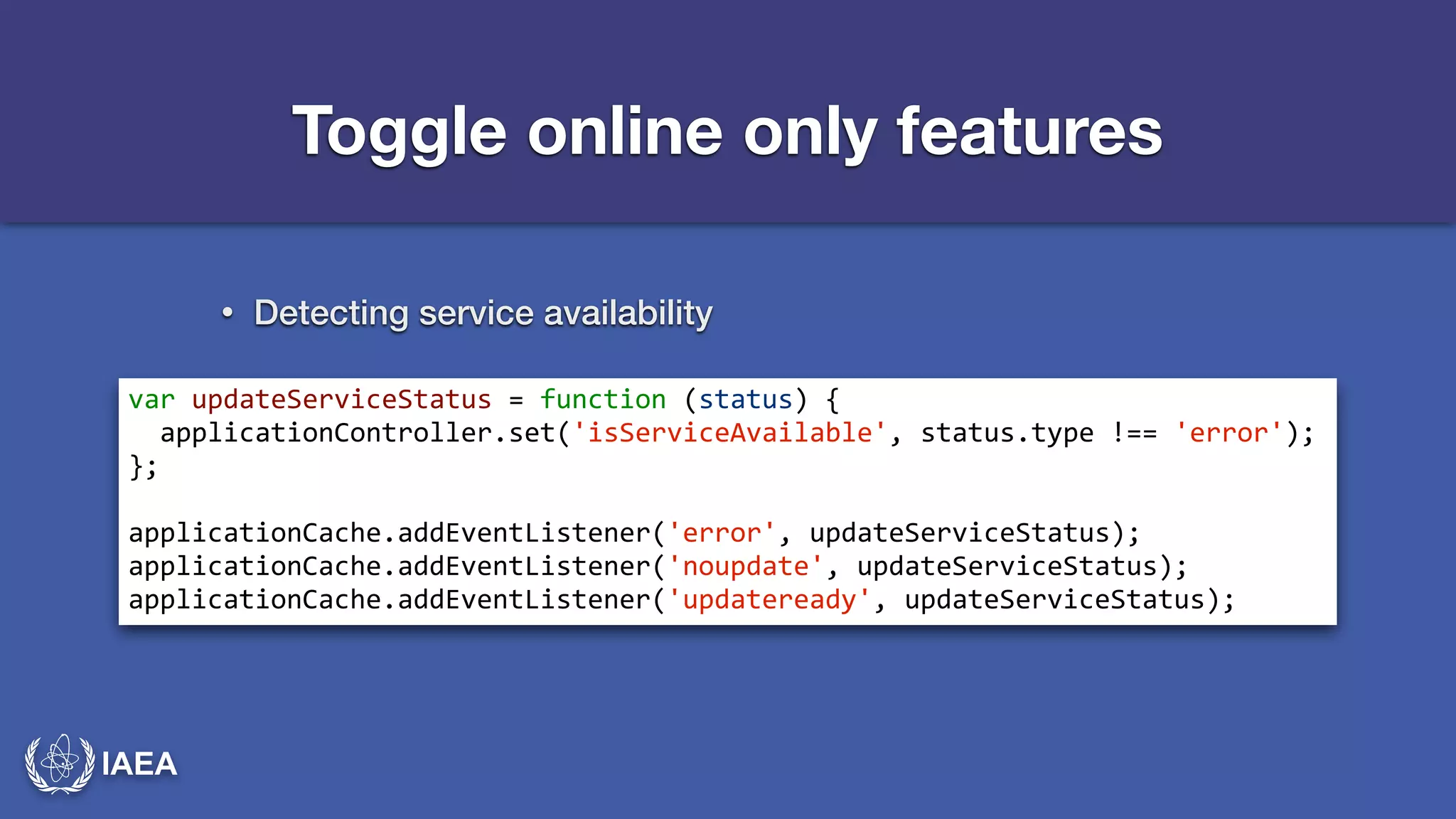

21. IAEA
Toggle online only features
• Detecting service availability
var*updateServiceStatus*=*function*(status)*{*
**applicationController.set('isServiceAvailable',*status.type*!==*'error');*
};*
!
applicationCache.addEventListener('error',*updateServiceStatus);*
applicationCache.addEventListener('noupdate',*updateServiceStatus);*
applicationCache.addEventListener('updateready',*updateServiceStatus);

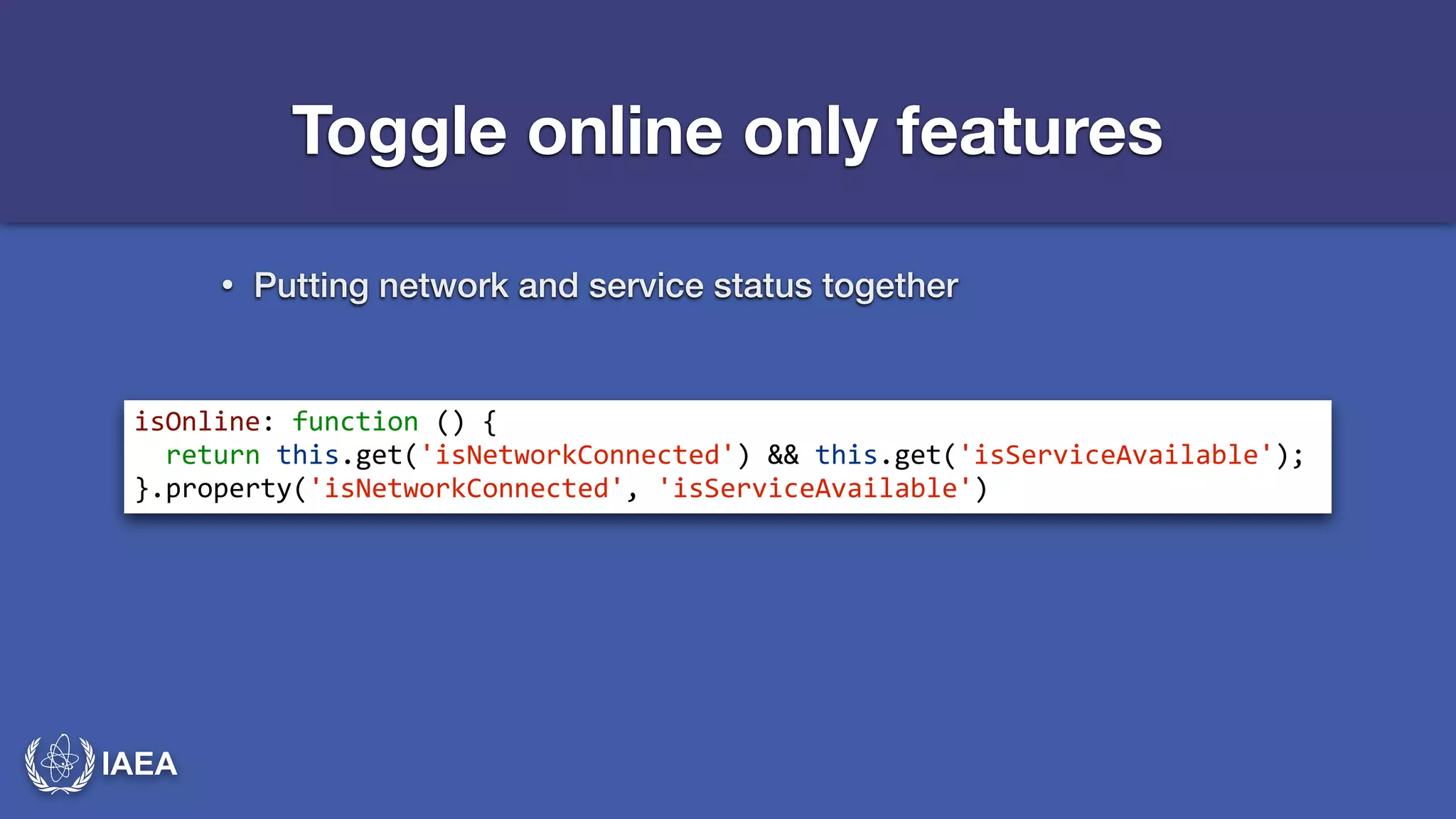

22. IAEA
Toggle online only features
• Putting network and service status together
isOnline:*function*()*{*
**return*this.get('isNetworkConnected')*&&*this.get('isServiceAvailable');*
}.property('isNetworkConnected',*'isServiceAvailable')

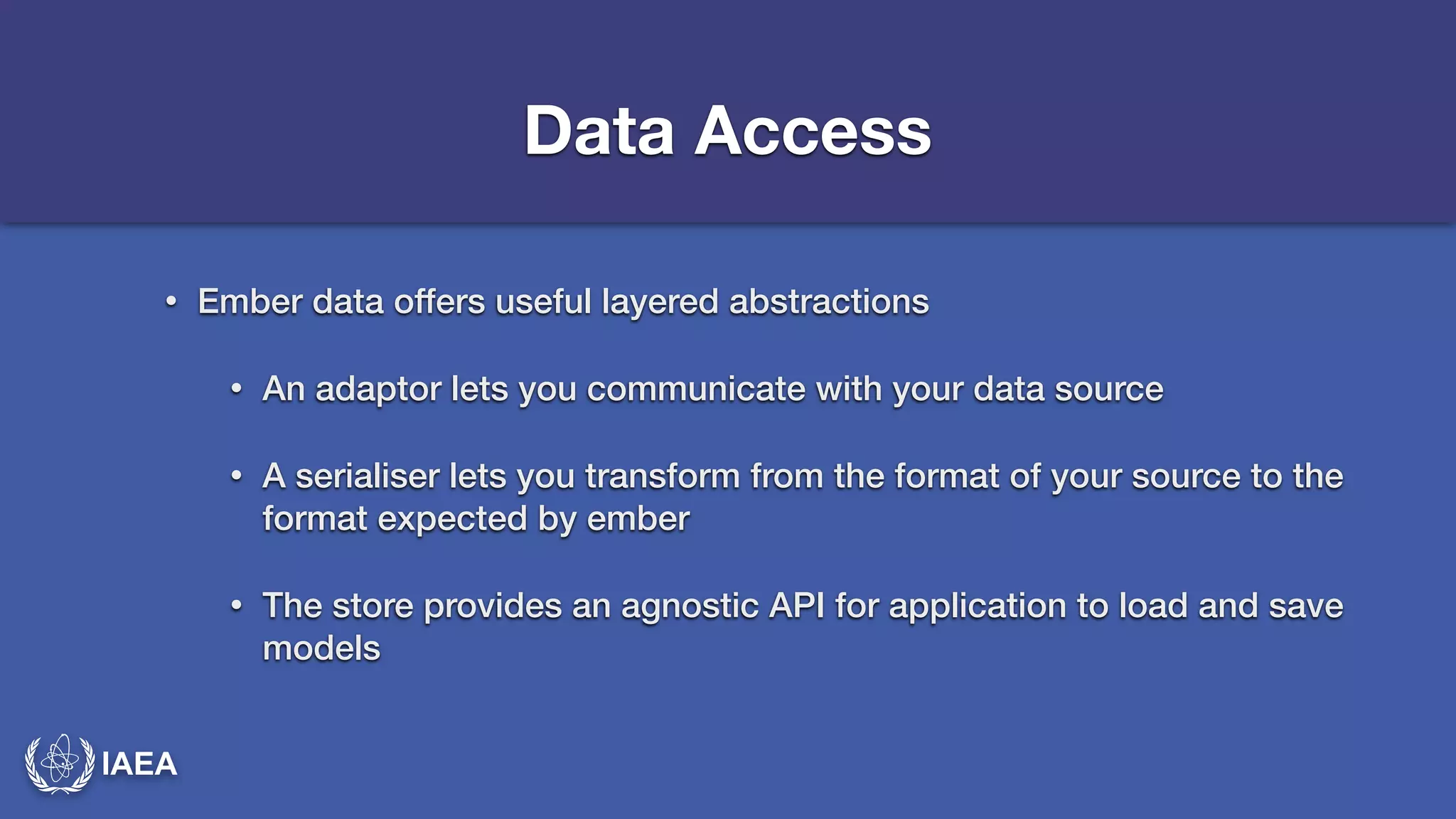

23. IAEA
Data Access
• Ember data offers useful layered abstractions
• An adaptor lets you communicate with your data source
• A serialiser lets you transform from the format of your source to the
format expected by ember
• The store provides an agnostic API for application to load and save
models

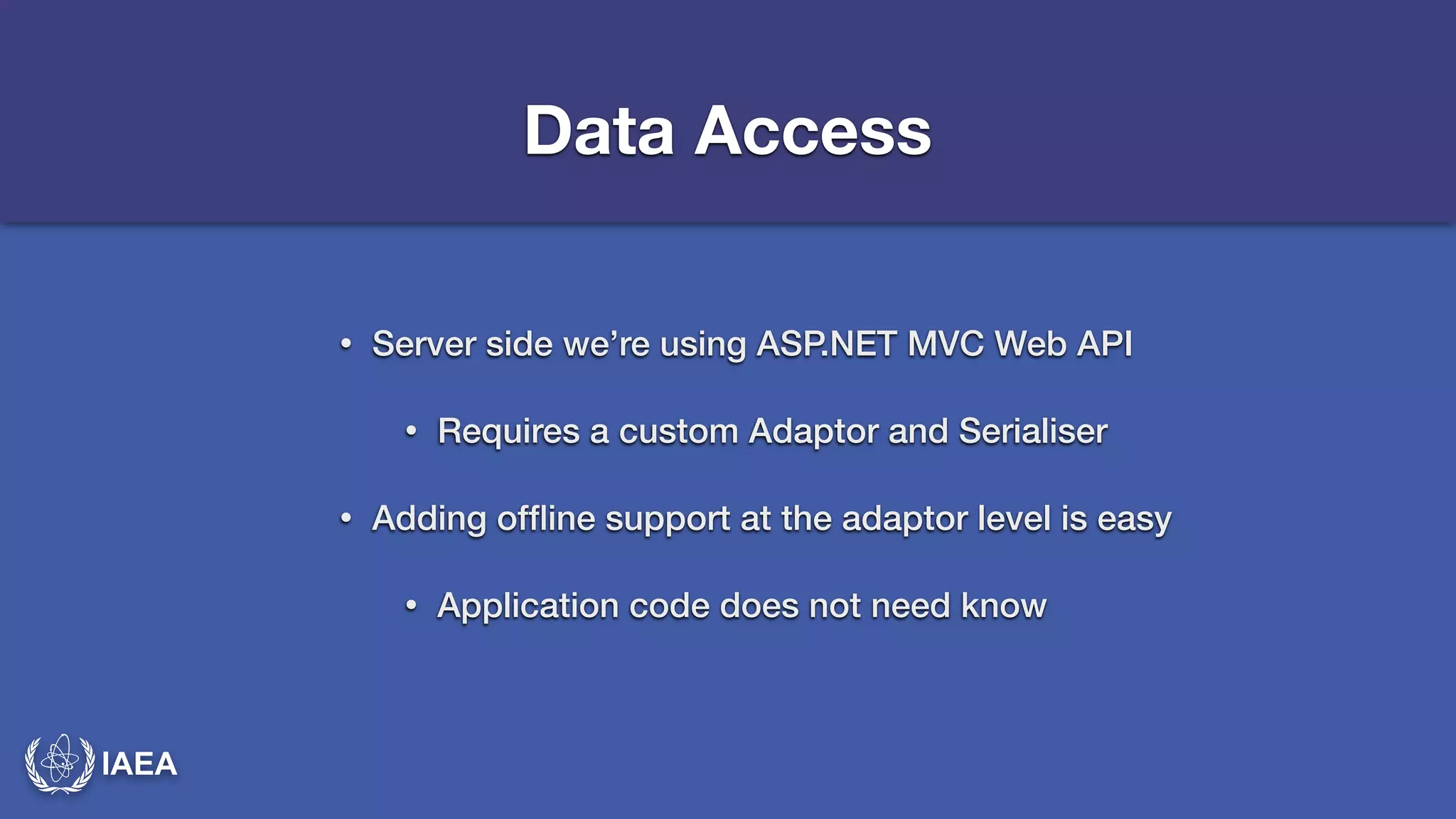

24. IAEA
Data Access
• Server side we’re using ASP.NET MVC Web API
• Requires a custom Adaptor and Serialiser
• Adding offline support at the adaptor level is easy
• Application code does not need know

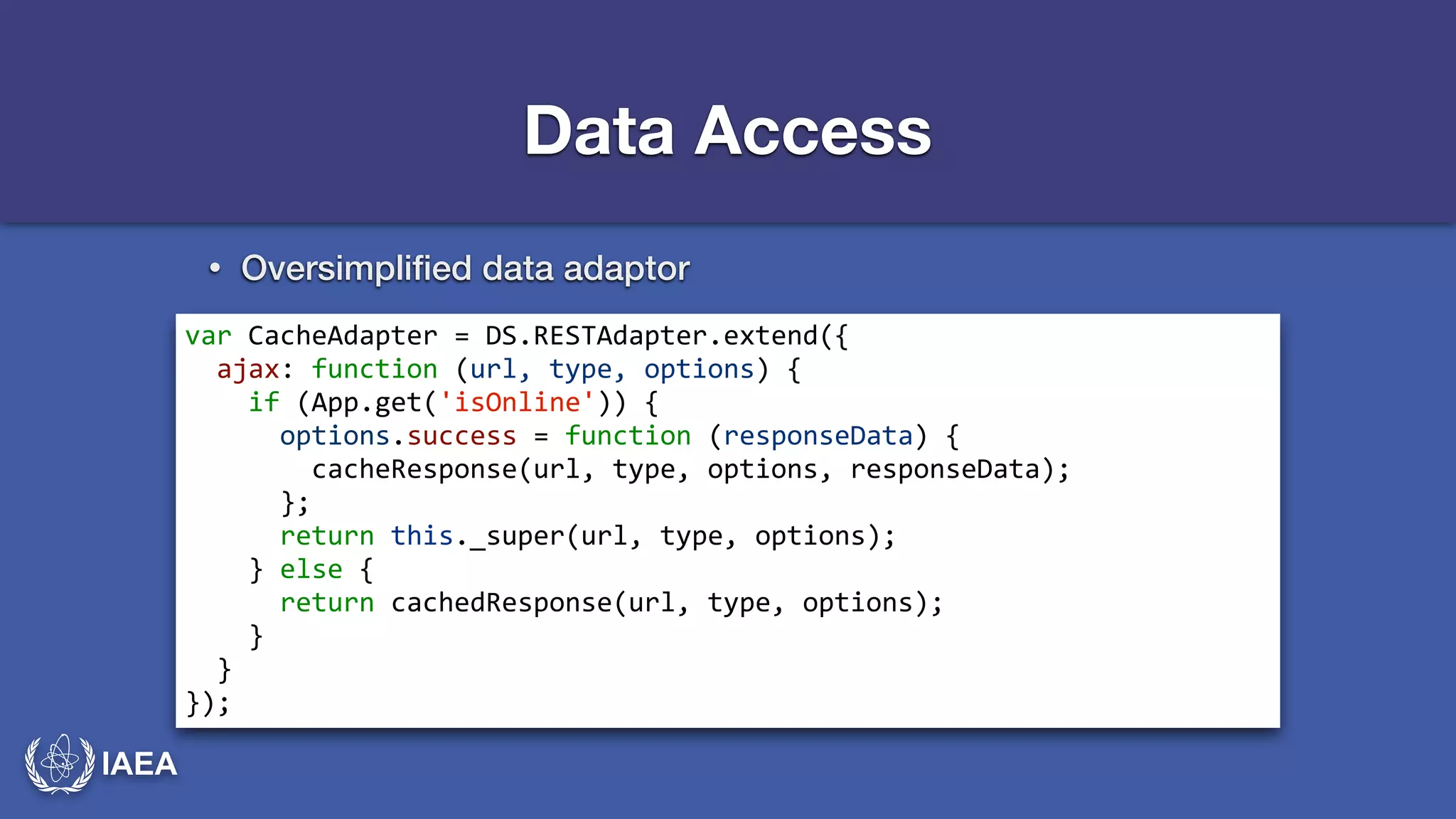

25. IAEA
Data Access
• Oversimplified data adaptor
var*CacheAdapter*=*DS.RESTAdapter.extend({*
**ajax:*function*(url,*type,*options)*{*
****if*(App.get('isOnline'))*{*
******options.success*=*function*(responseData)*{*
********cacheResponse(url,*type,*options,*responseData);*
******};*
******return*this._super(url,*type,*options);*
****}*else*{*
******return*cachedResponse(url,*type,*options);*
****}*
**}*
});

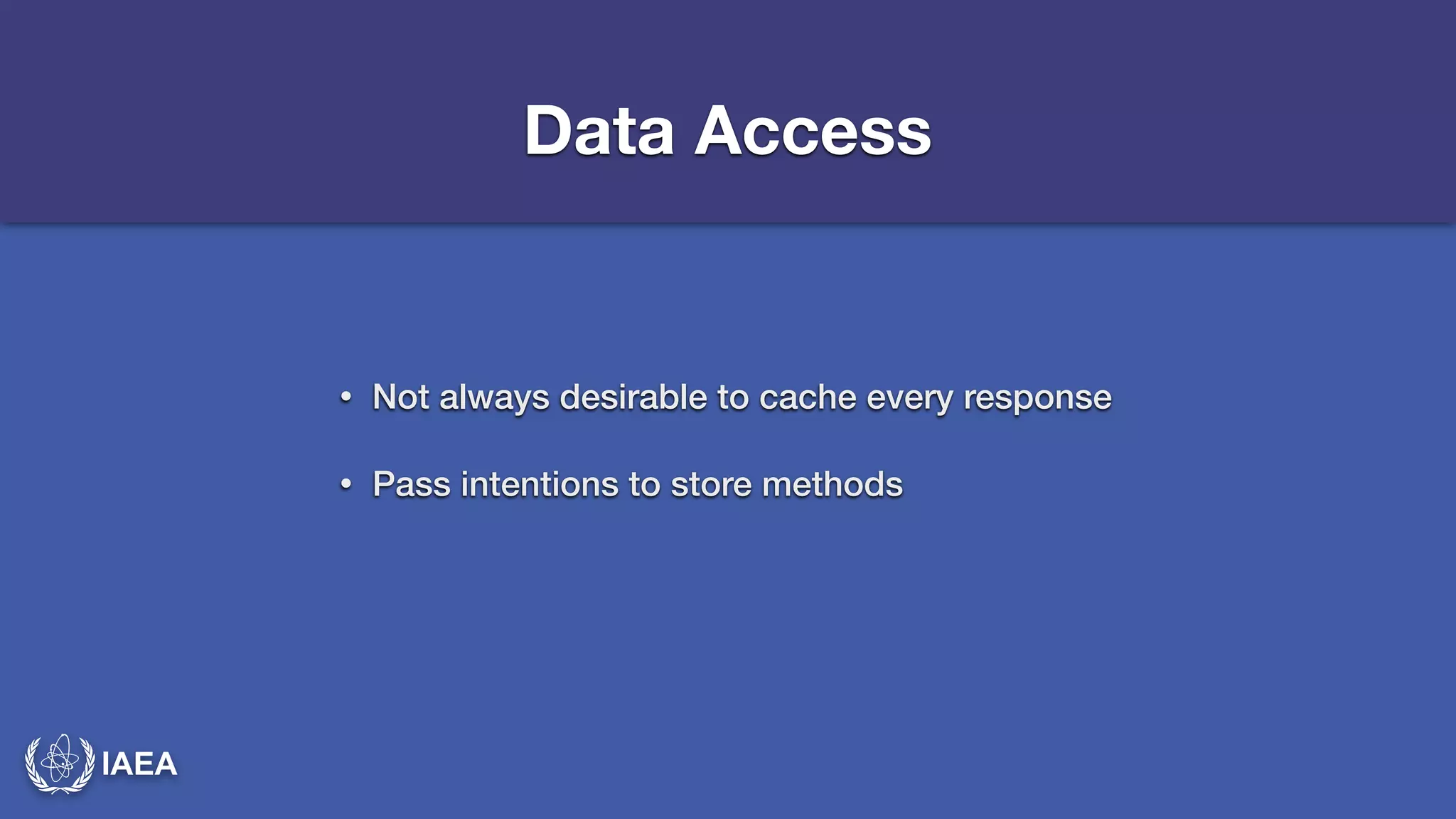

26. IAEA
Data Access
• Not always desirable to cache every response
• Pass intentions to store methods

27. IAEA

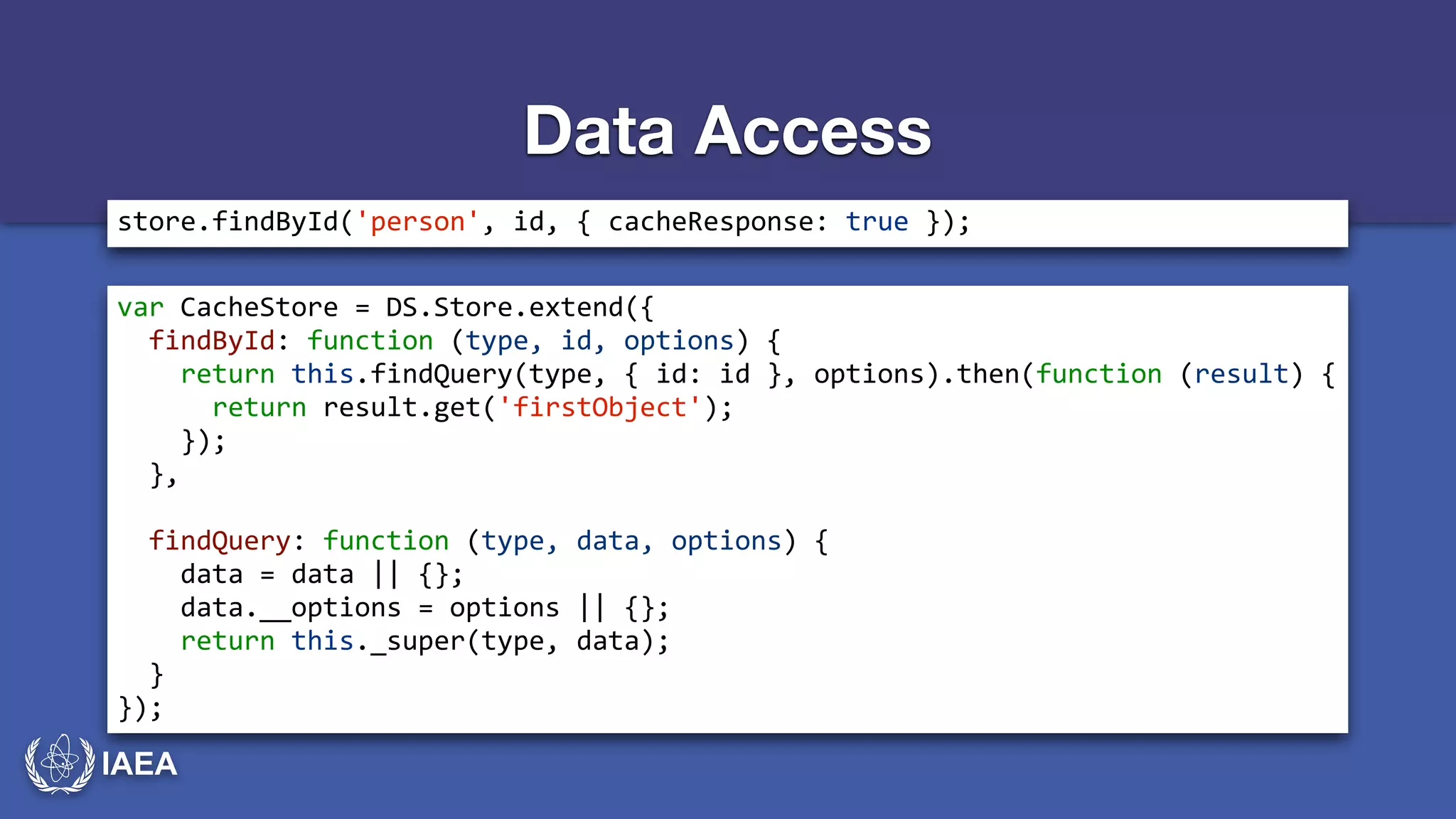

Data Access
store.findById('person',*id,*{*cacheResponse:*true*});
var*CacheStore*=*DS.Store.extend({*
**findById:*function*(type,*id,*options)*{*
****return*this.findQuery(type,*{*id:*id*},*options).then(function*(result)*{*
******return*result.get('firstObject');*
****});*
**},*
!
**findQuery:*function*(type,*data,*options)*{*
****data*=*data*||*{};*
****data.__options*=*options*||*{};*
****return*this._super(type,*data);*
**}*
});

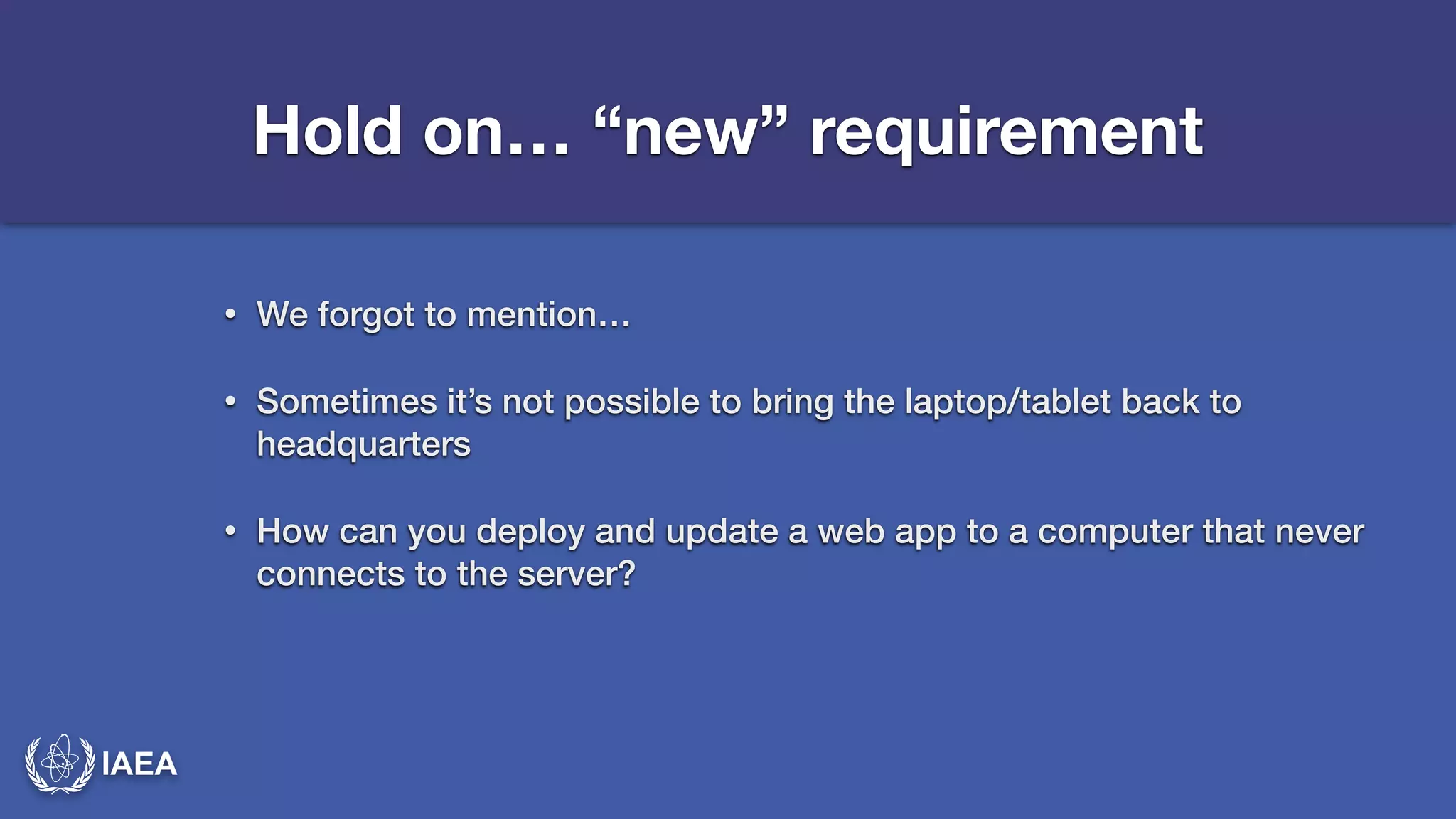

28. IAEA
Hold on… “new” requirement
• We forgot to mention…
• Sometimes it’s not possible to bring the laptop/tablet back to
headquarters
• How can you deploy and update a web app to a computer that never
connects to the server?

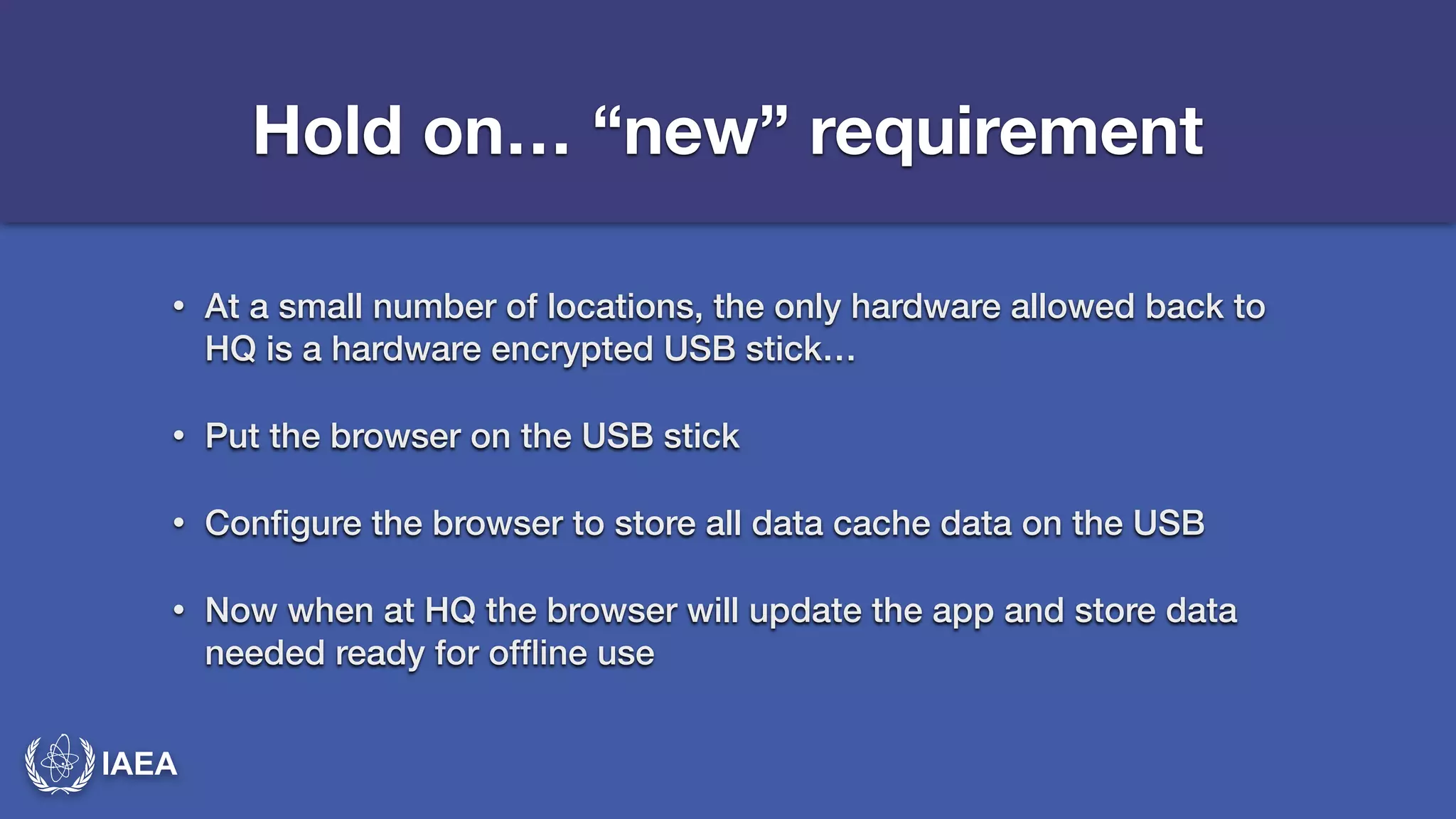

29. IAEA
Hold on… “new” requirement
• At a small number of locations, the only hardware allowed back to
HQ is a hardware encrypted USB stick…
• Put the browser on the USB stick
• Configure the browser to store all data cache data on the USB
• Now when at HQ the browser will update the app and store data
needed ready for offline use

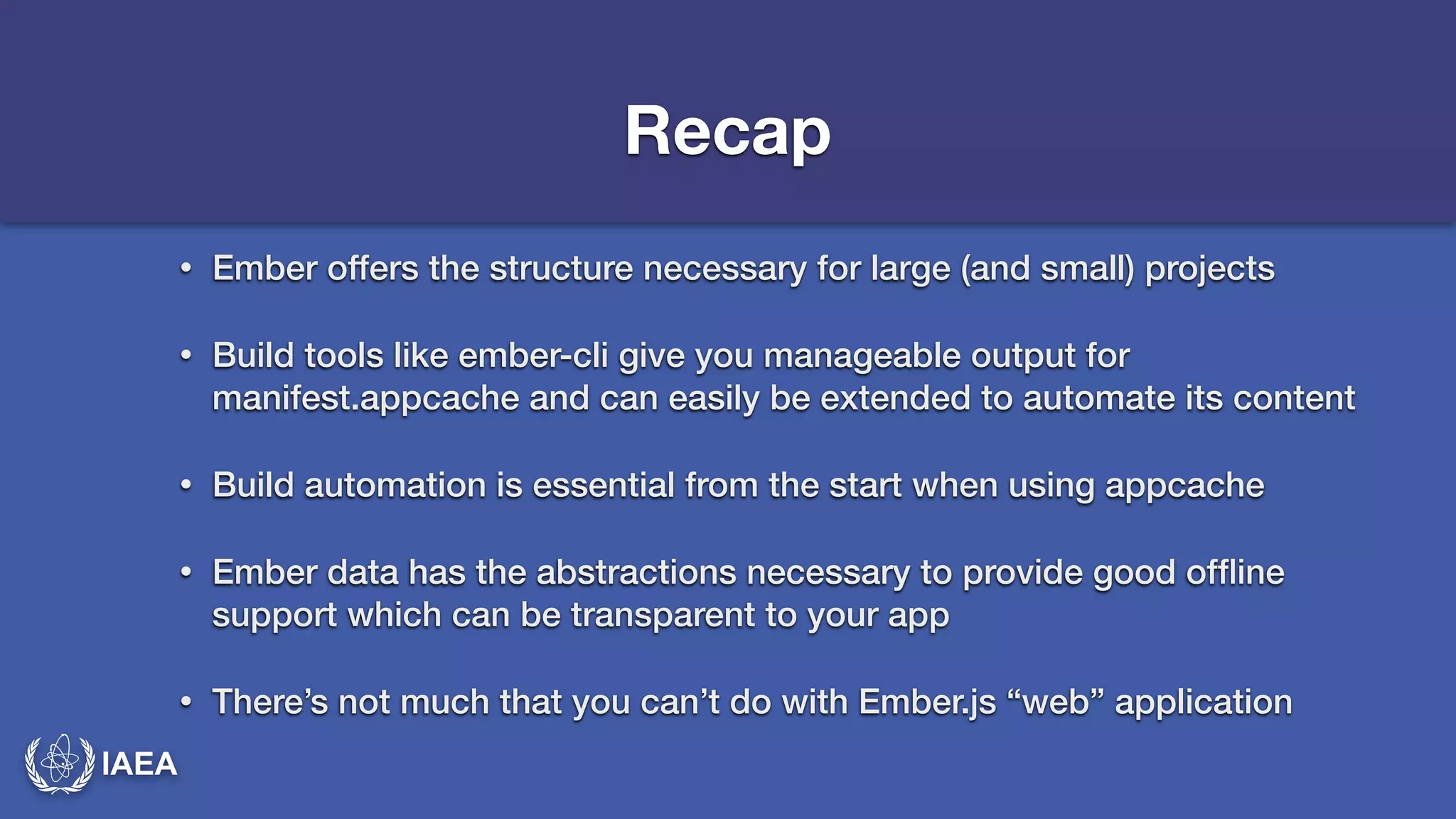

30. IAEA
Recap
• Ember offers the structure necessary for large (and small) projects
• Build tools like ember-cli give you manageable output for
manifest.appcache and can easily be extended to automate its content
• Build automation is essential from the start when using appcache
• Ember data has the abstractions necessary to provide good offline
support which can be transparent to your app
• There’s not much that you can’t do with Ember.js “web” application

31. IAEA
Questions?
