Cache is
  King
stevesouders.com/docs/html5dev-cacheisking-20121015.pptx
Disclaimer: This content does not necessarily reflect the opinions of my employer.
Cache is King
Cache is King
Cache is King
Cache
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Cache is King
Network
JavaScript
Cache

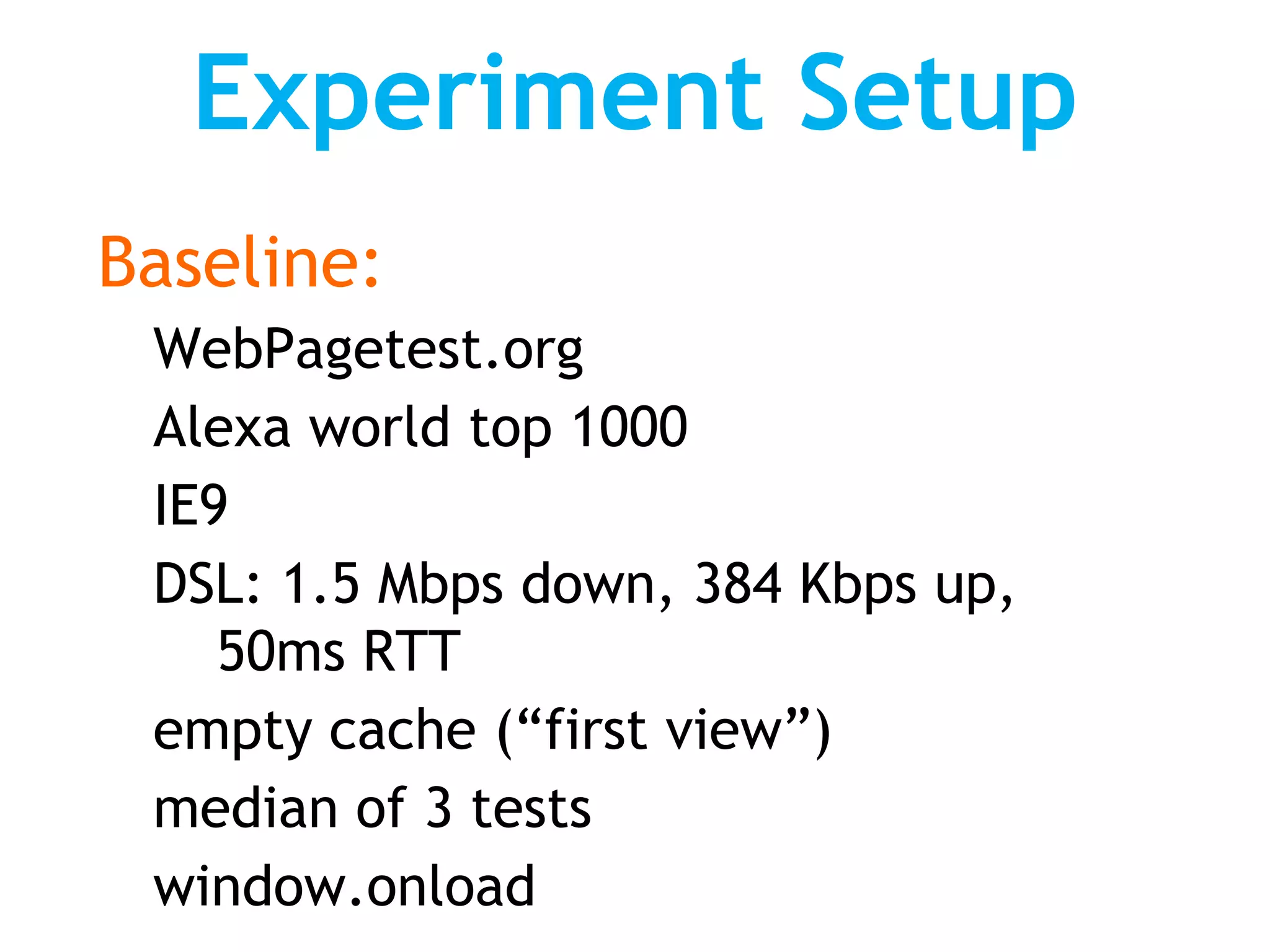

Experiment Setup
Baseline:
 WebPagetest.org
 Alexa world top 1000
 IE9
 DSL: 1.5 Mbps down, 384 Kbps up,
    50ms RTT
 empty cache (“first view”)
 median of 3 tests
 window.onload

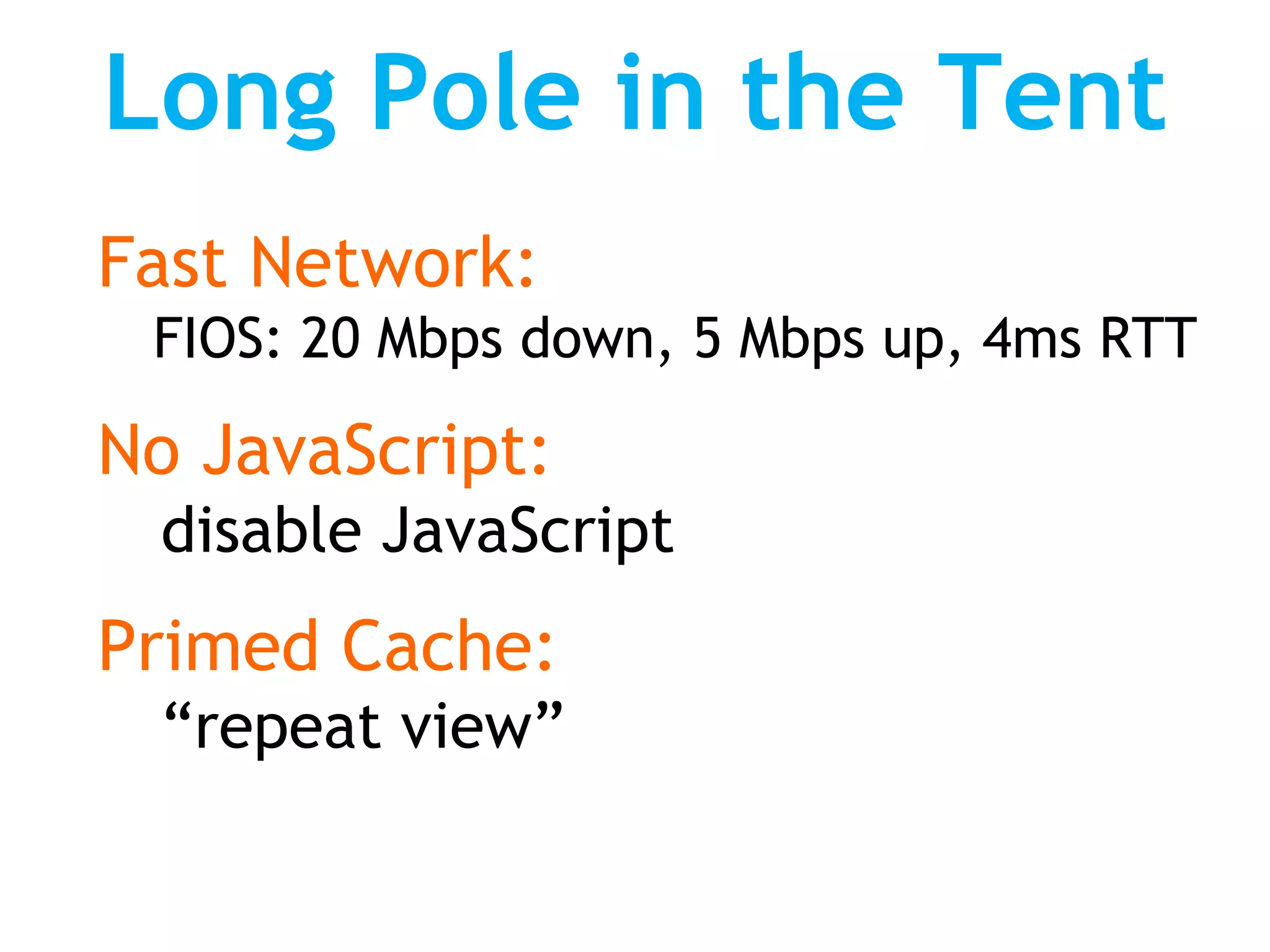

Long Pole in the Tent
Fast Network:
 FIOS: 20 Mbps down, 5 Mbps up, 4ms RTT

No JavaScript:
 disable JavaScript
Primed Cache:
 “repeat view”

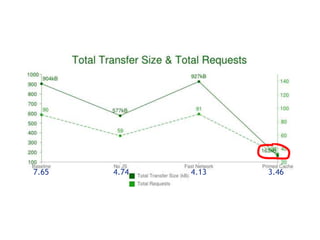

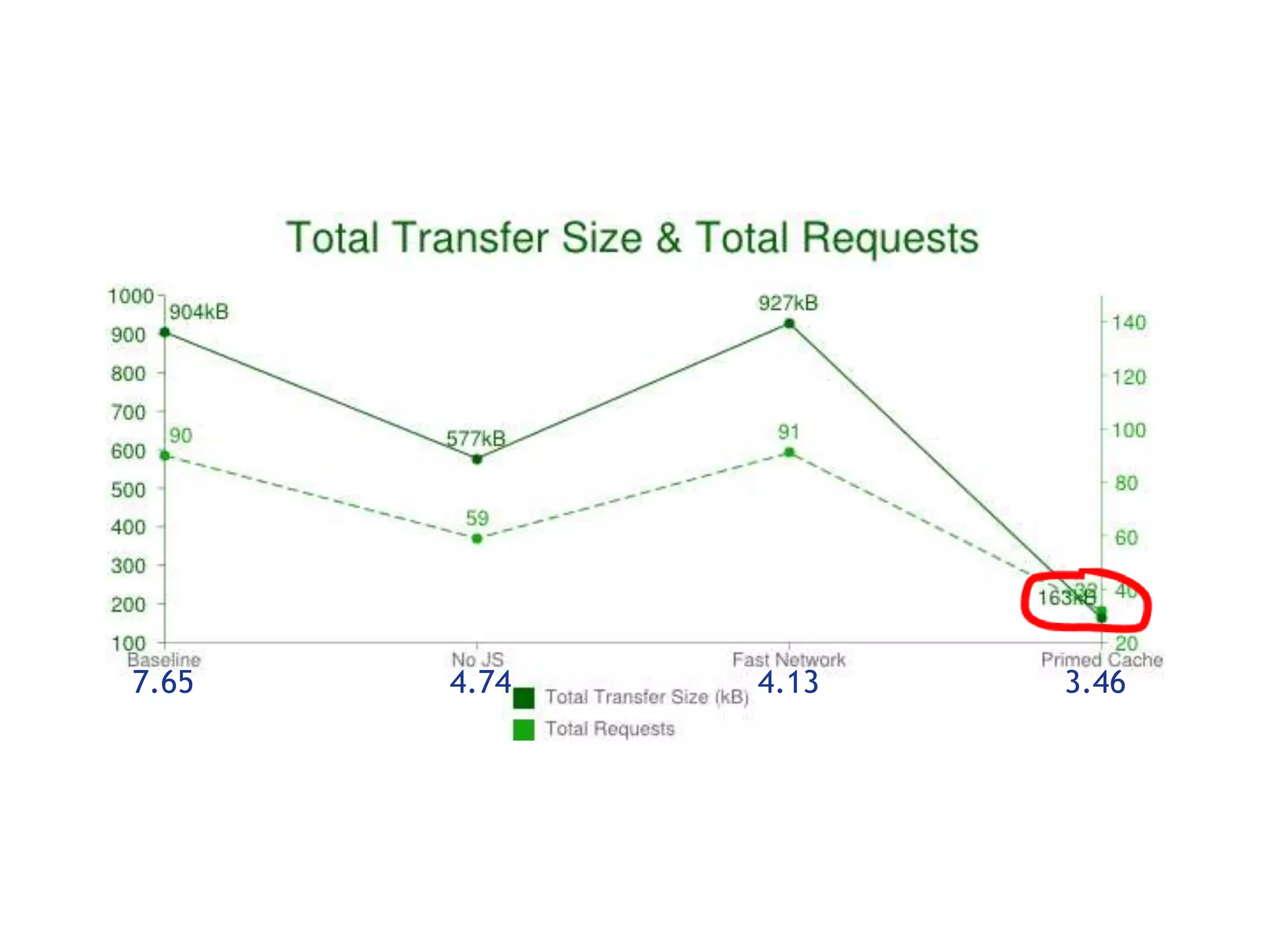

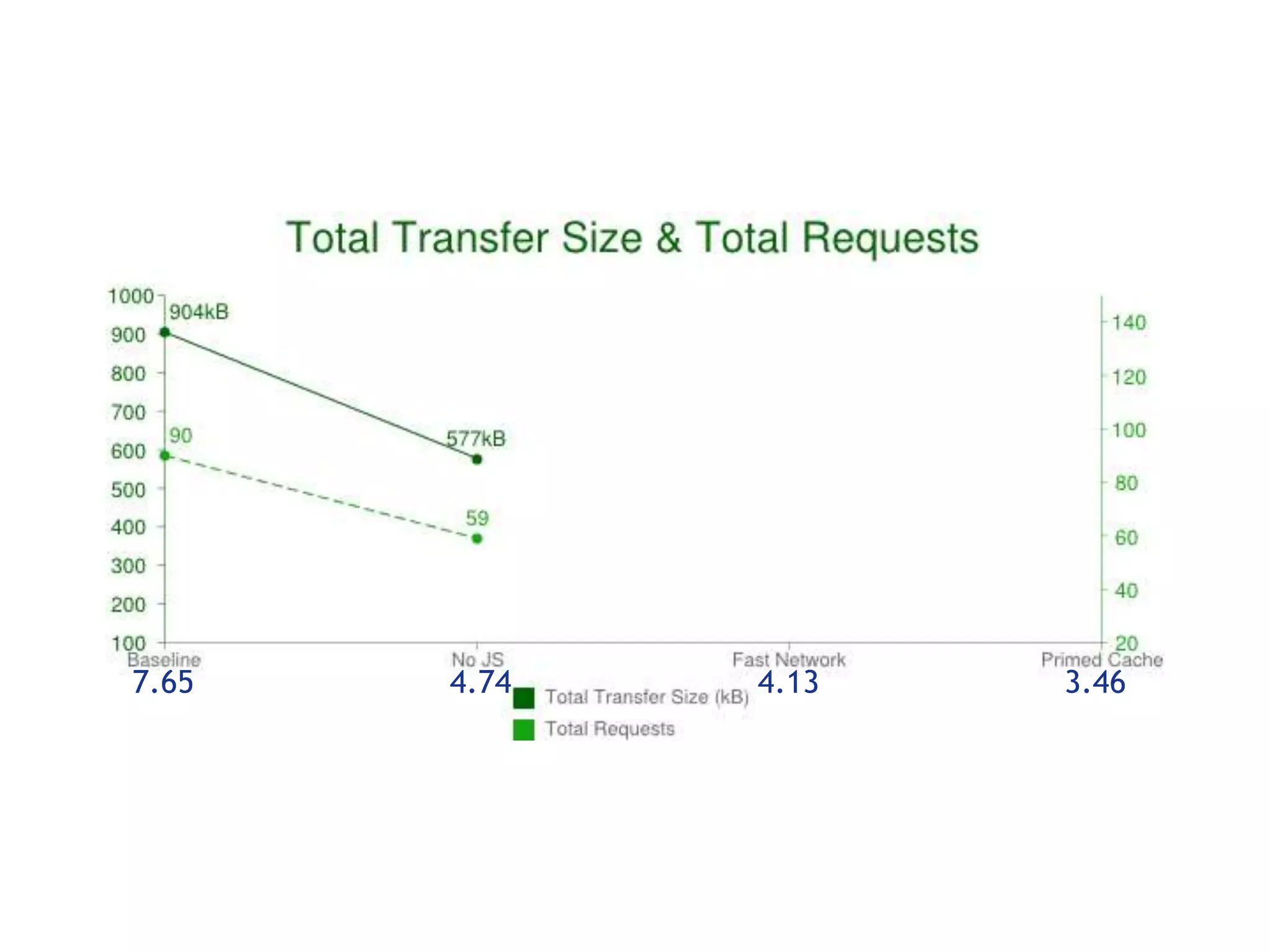

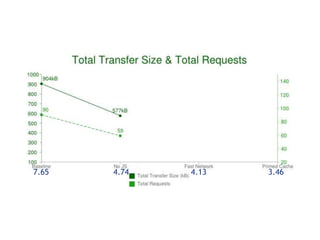

Cache is King

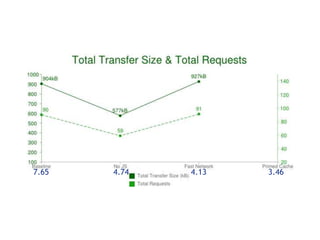

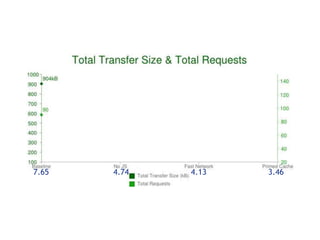

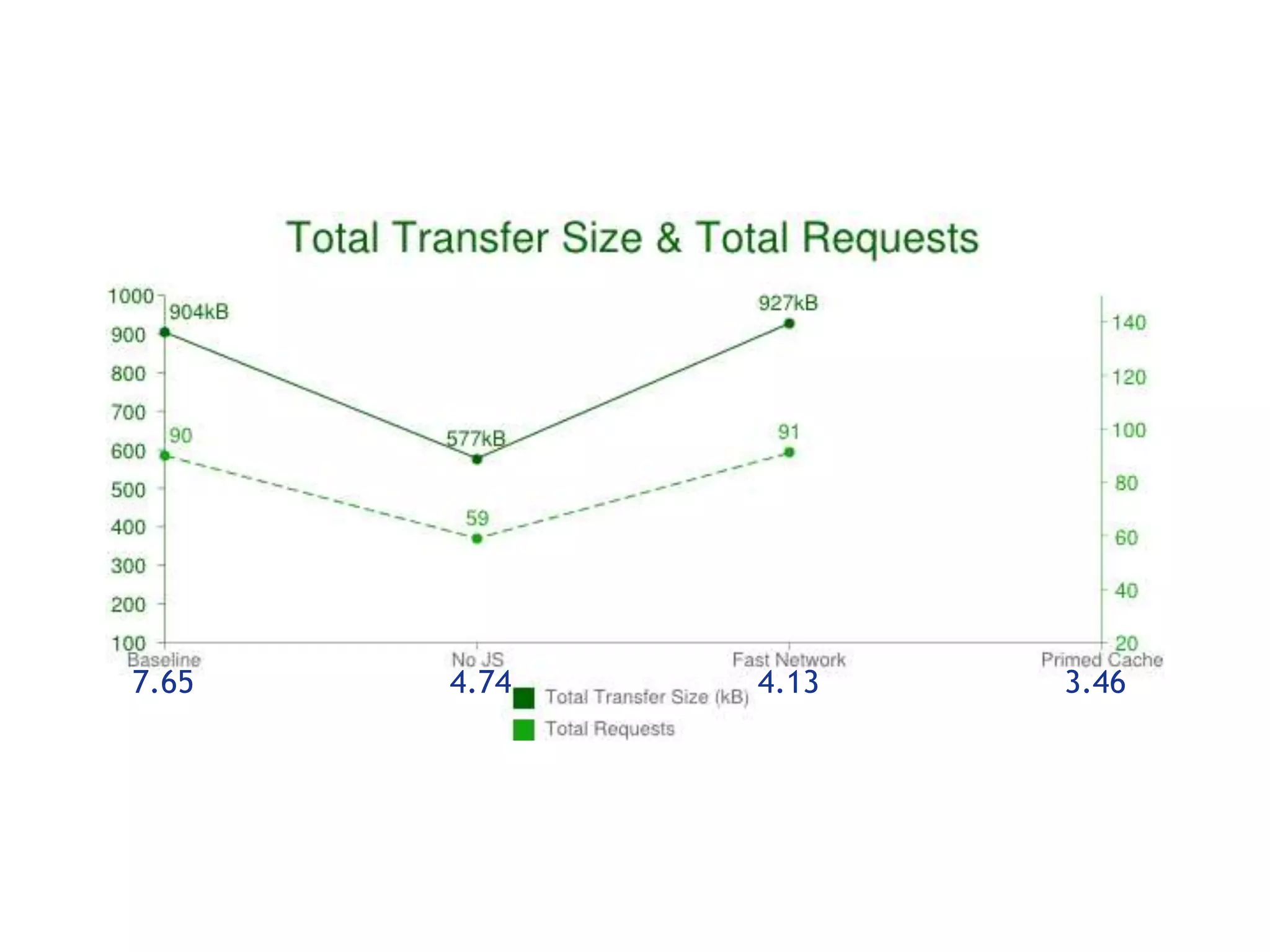

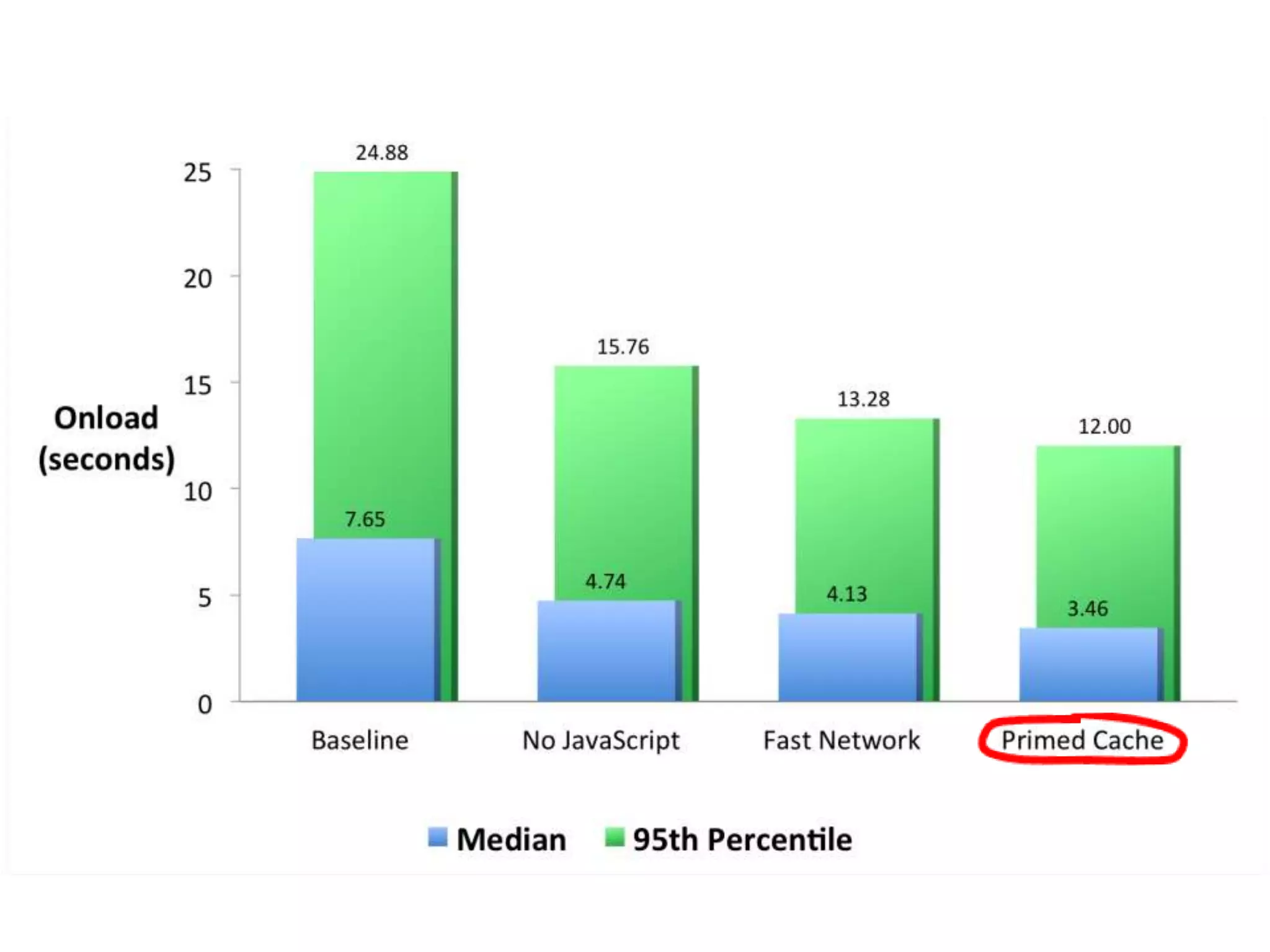

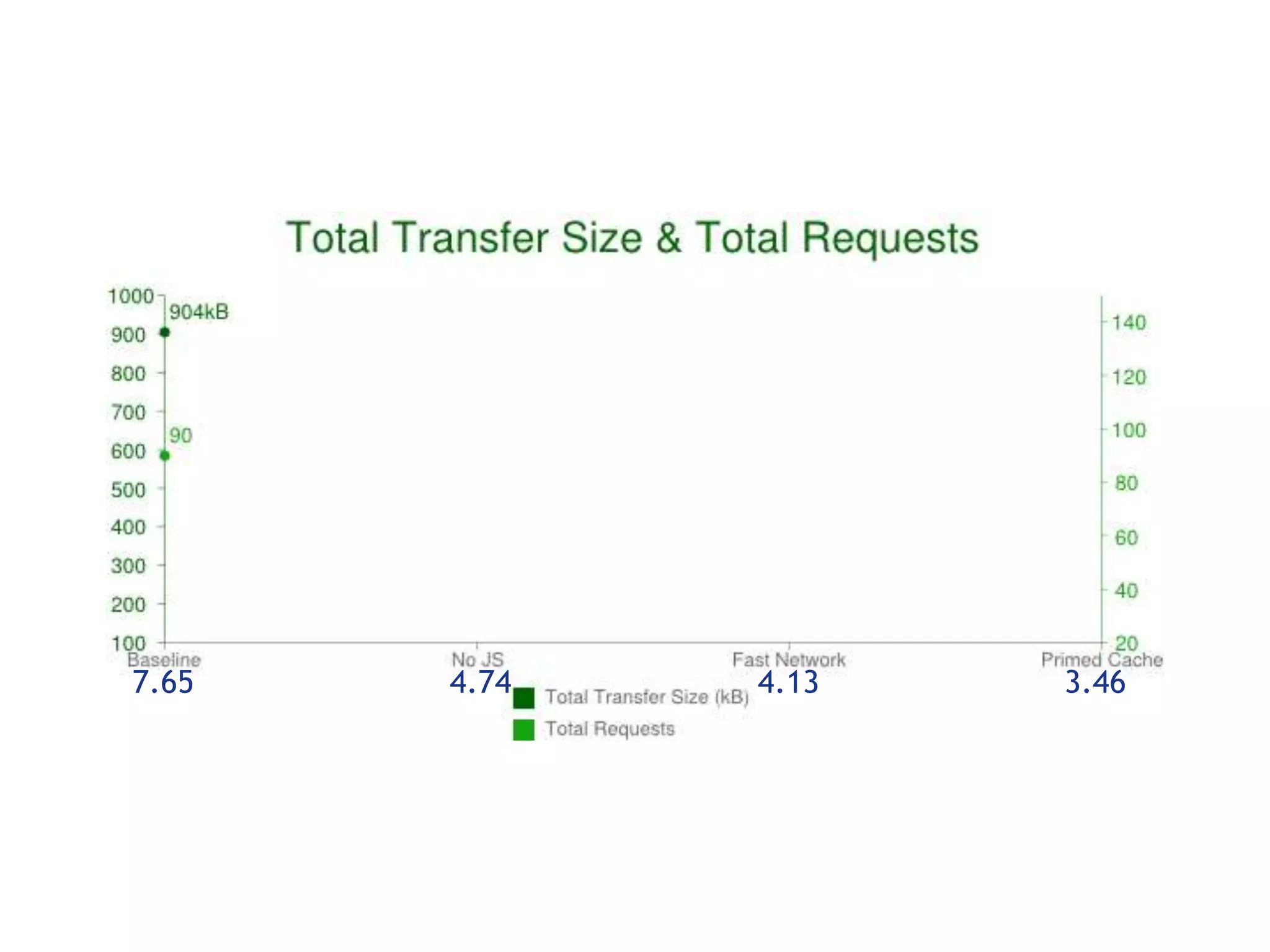

7.65   4.74   4.13   3.46
7.65   4.74   4.13   3.46
7.65   4.74   4.13   3.46
7.65   4.74   4.13   3.46

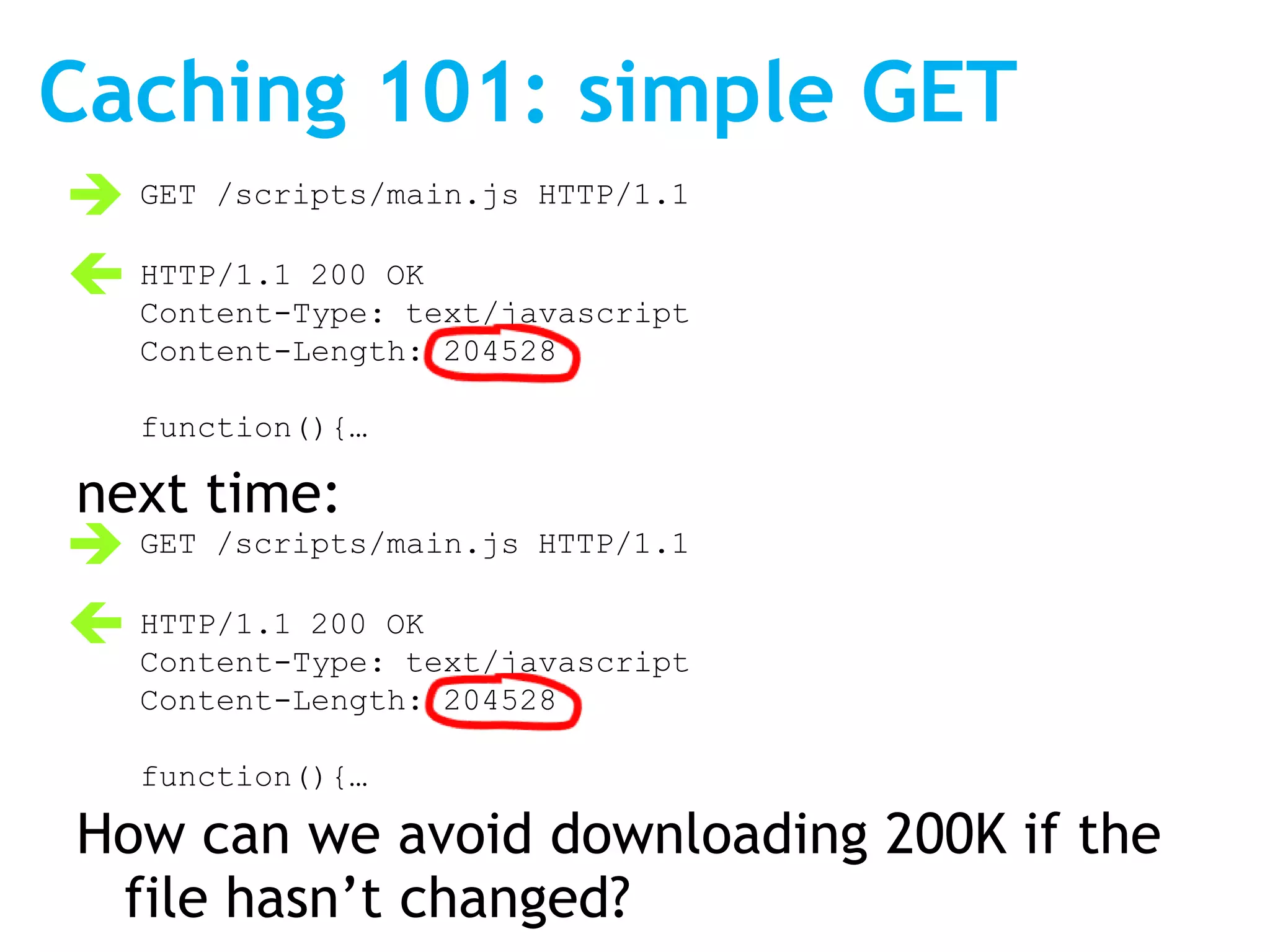

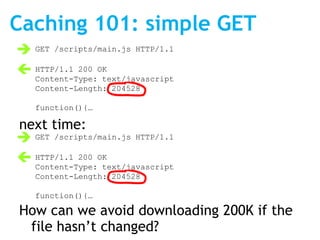

Caching 101: simple GET
 GET /scripts/main.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 204528

   function(){…

next time:
 GET /scripts/main.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 204528

   function(){…

How can we avoid downloading 200K if the
 file hasn’t changed?

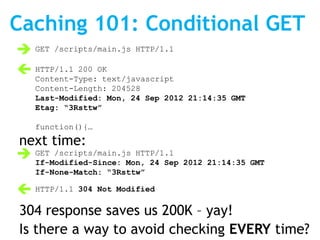

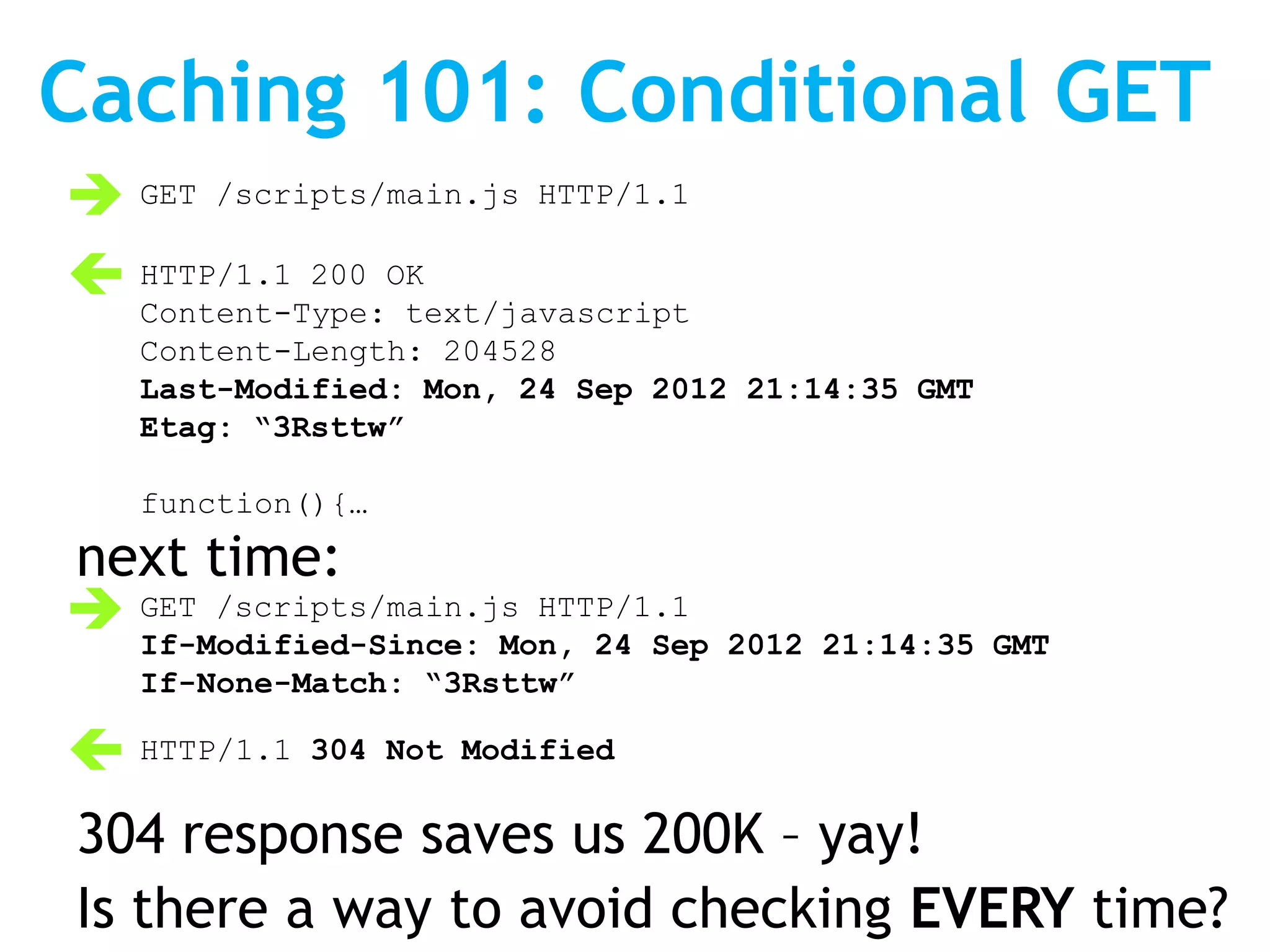

Caching 101: Conditional GET
 GET /scripts/main.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 204528
   Last-Modified: Mon, 24 Sep 2012 21:14:35 GMT
   Etag: “3Rsttw”

   function(){…
next time:
 GET /scripts/main.js HTTP/1.1
  If-Modified-Since: Mon, 24 Sep   2012 21:14:35 GMT
   If-None-Match: “3Rsttw”

 HTTP/1.1 304 Not Modified
304 response saves us 200K – yay!
Is there a way to avoid checking EVERY time?

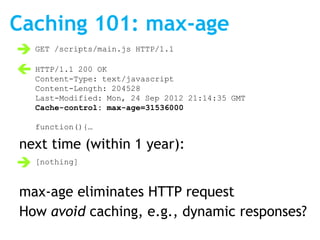

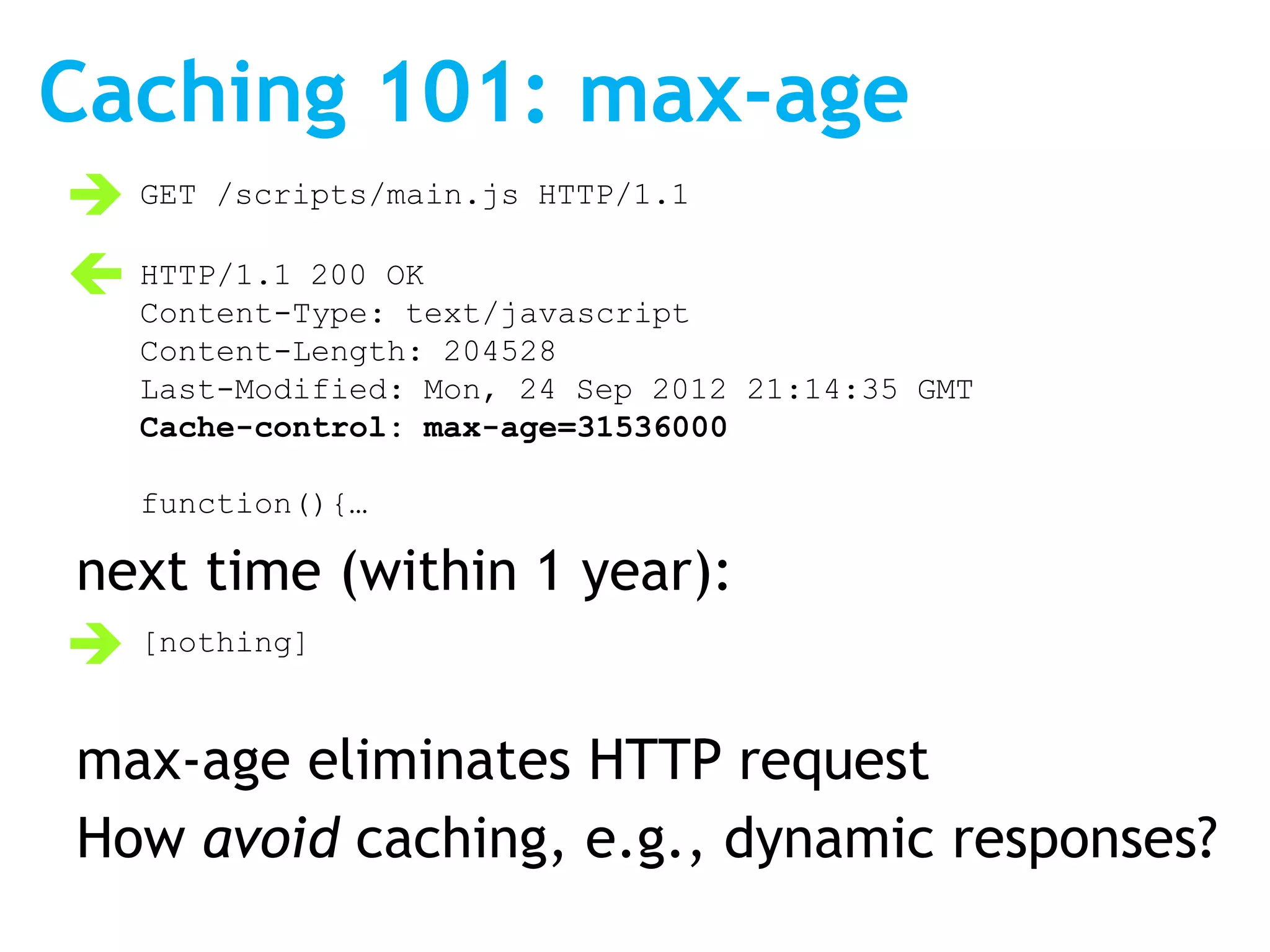

Caching 101: max-age
 GET /scripts/main.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 204528
   Last-Modified: Mon, 24 Sep 2012 21:14:35 GMT
   Cache-control: max-age=31536000

   function(){…

next time (within 1 year):
 [nothing]

max-age eliminates HTTP request
How avoid caching, e.g., dynamic responses?

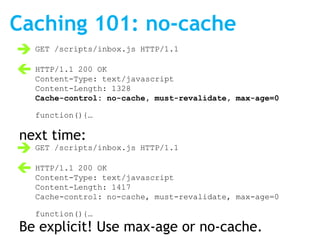

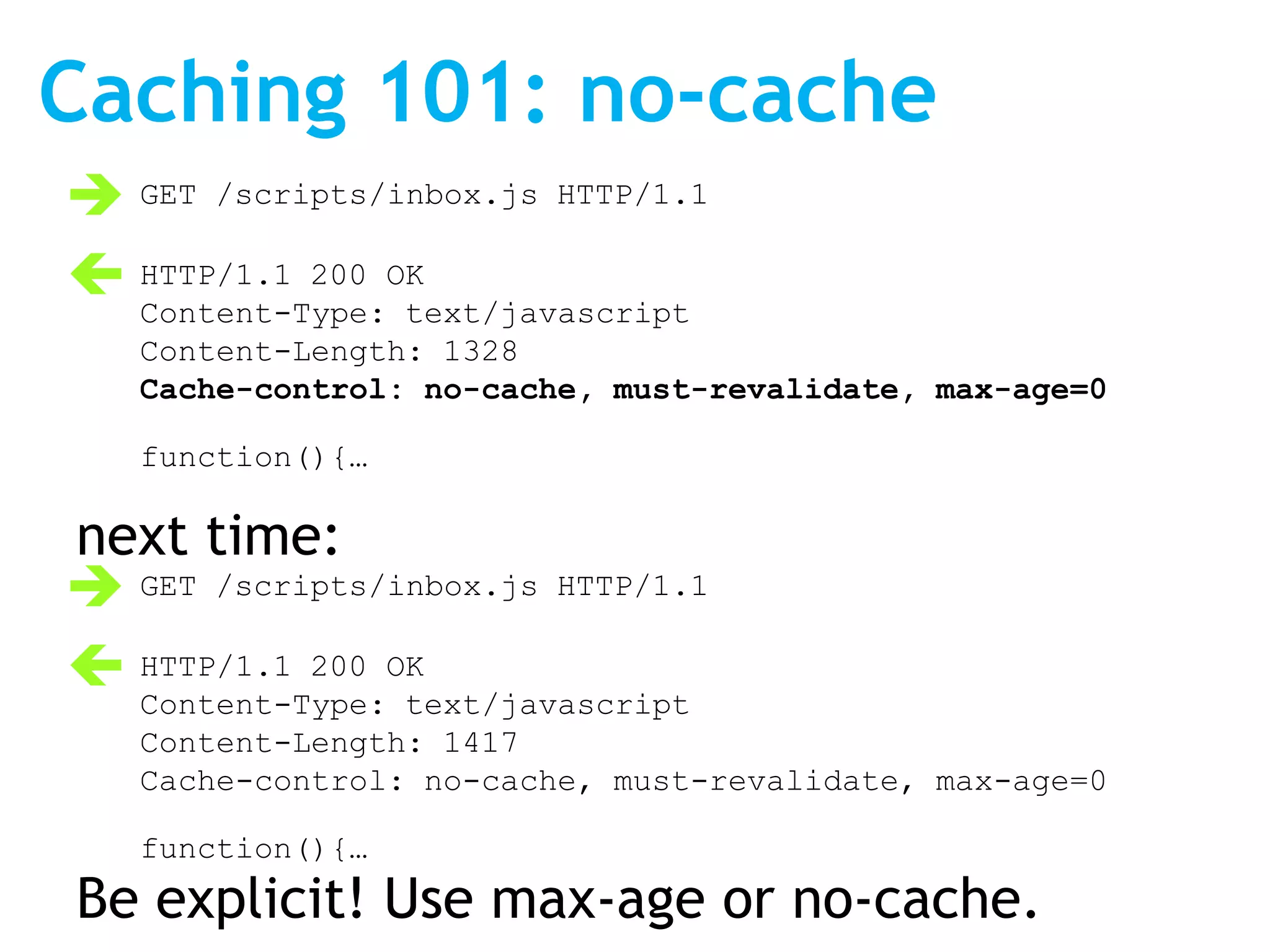

Caching 101: no-cache
 GET /scripts/inbox.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 1328
   Cache-control: no-cache, must-revalidate, max-age=0

   function(){…

next time:
 GET /scripts/inbox.js HTTP/1.1
 HTTP/1.1 200 OK
  Content-Type: text/javascript
   Content-Length: 1417
   Cache-control: no-cache, must-revalidate, max-age=0

   function(){…
Be explicit! Use max-age or no-cache.

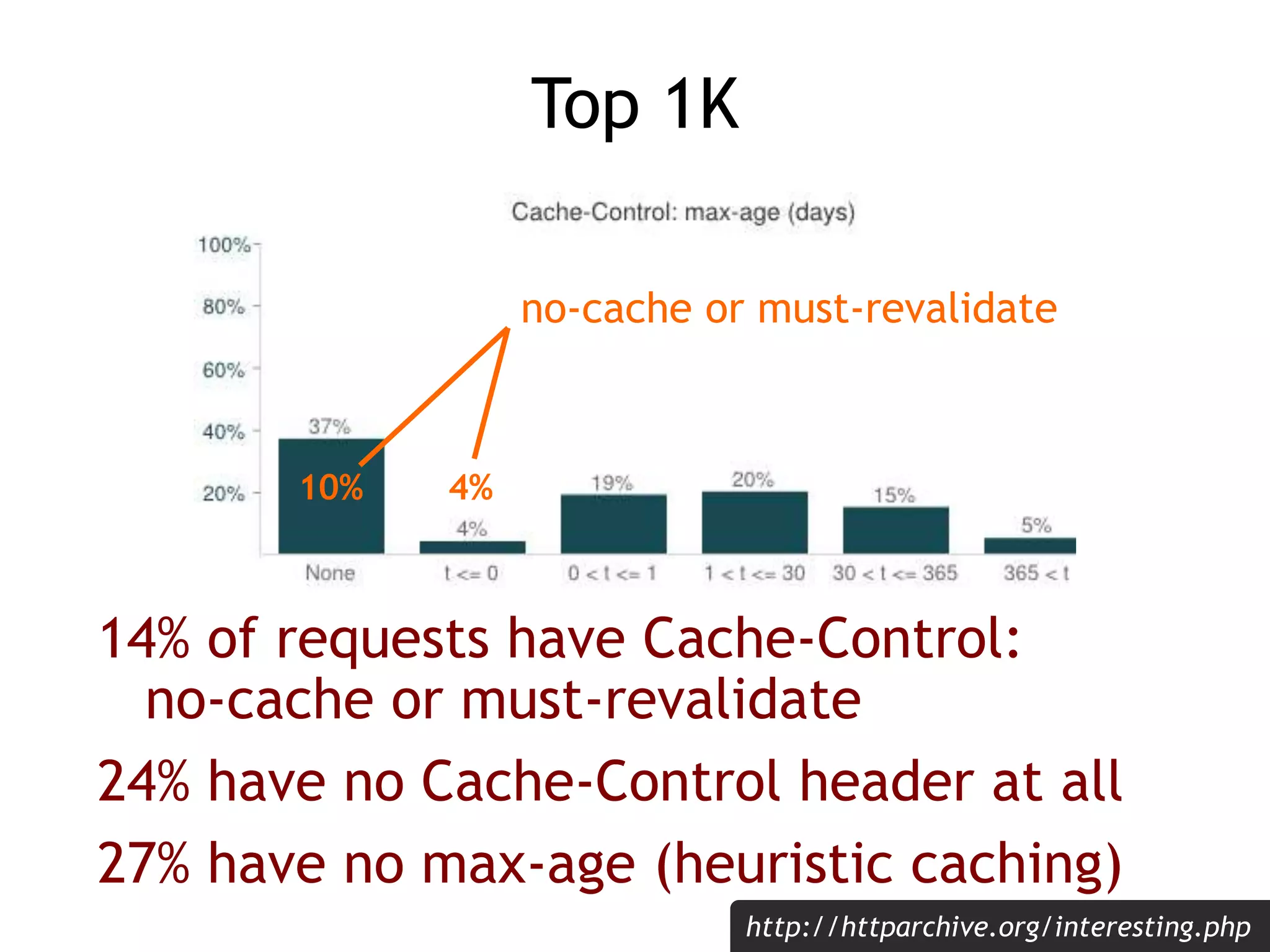

Top 1K

                  no-cache or must-revalidate



       10%   4%



14% of requests have Cache-Control:
  no-cache or must-revalidate
24% have no Cache-Control header at all
27% have no max-age (heuristic caching)
                             http://httparchive.org/interesting.php

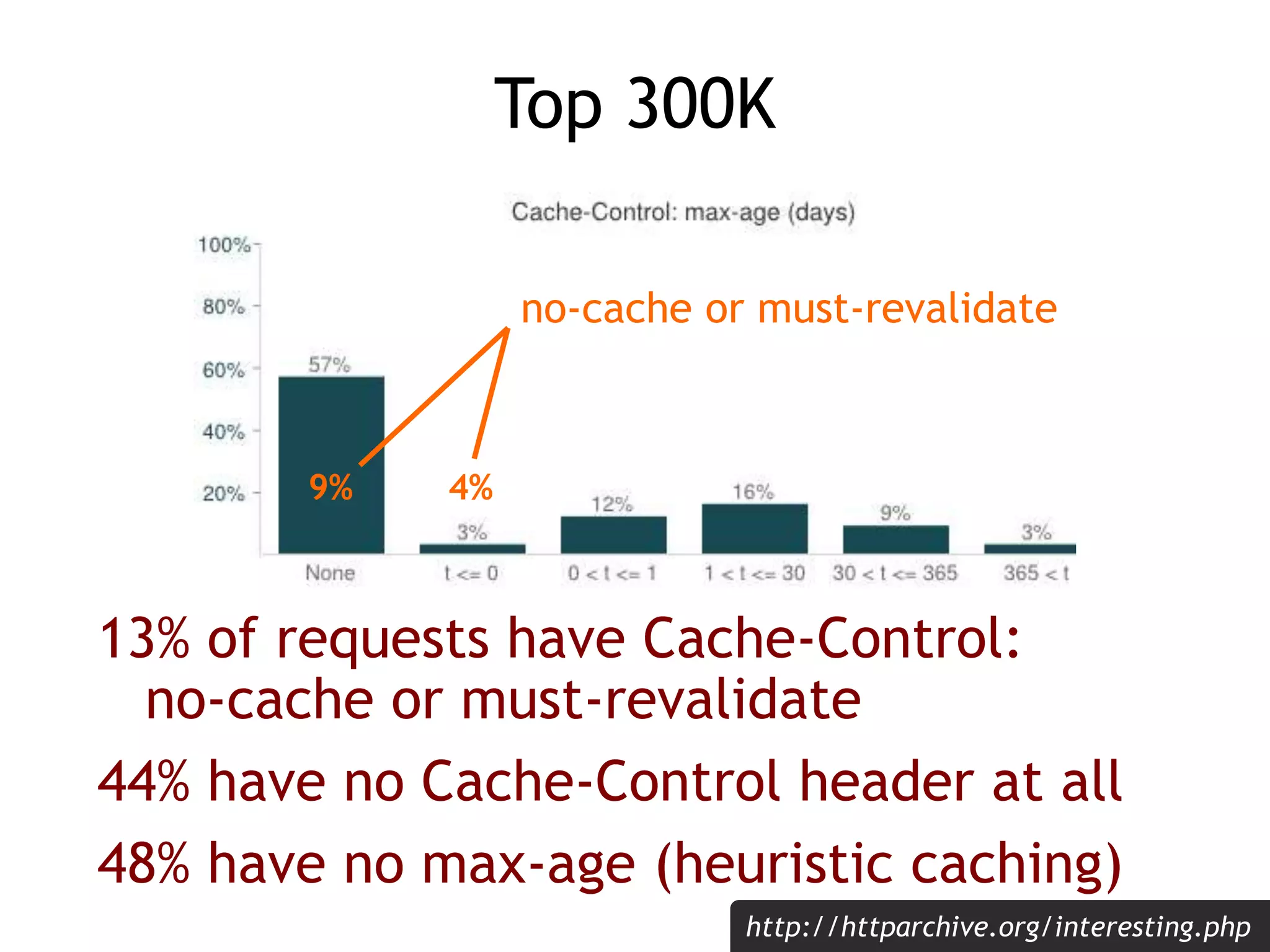

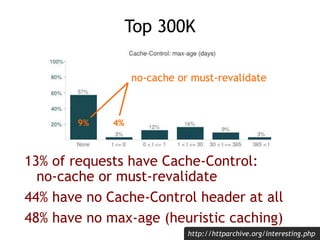

Top 300K

                  no-cache or must-revalidate



        9%   4%



13% of requests have Cache-Control:
  no-cache or must-revalidate
44% have no Cache-Control header at all
48% have no max-age (heuristic caching)
                             http://httparchive.org/interesting.php

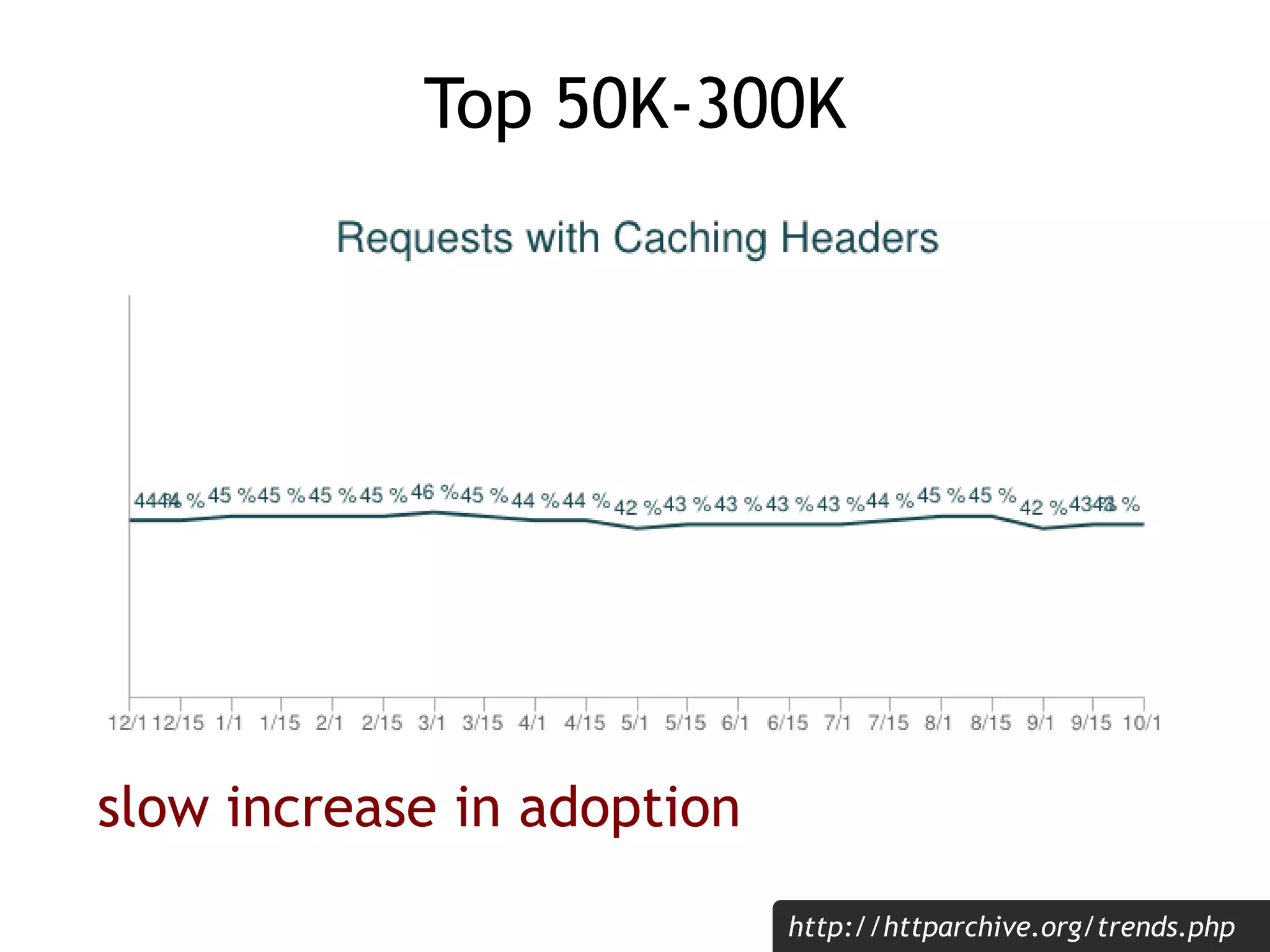

Top 50K-300K




slow increase in adoption
                            http://httparchive.org/trends.php

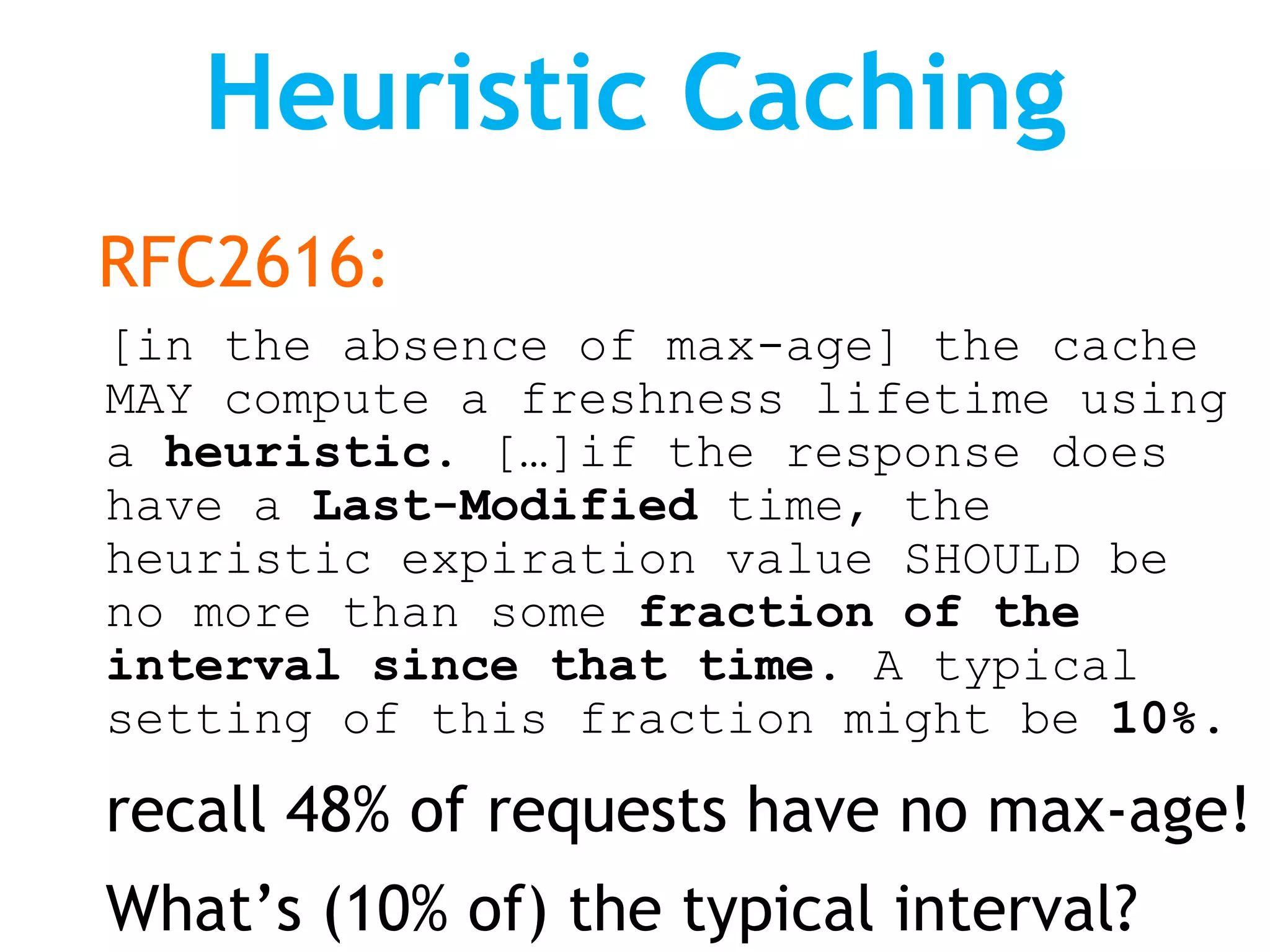

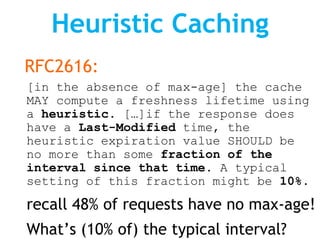

Heuristic Caching
RFC2616:
[in the absence of max-age] the cache
MAY compute a freshness lifetime using
a heuristic. […]if the response does
have a Last-Modified time, the
heuristic expiration value SHOULD be
no more than some fraction of the
interval since that time. A typical
setting of this fraction might be 10%.

recall 48% of requests have no max-age!

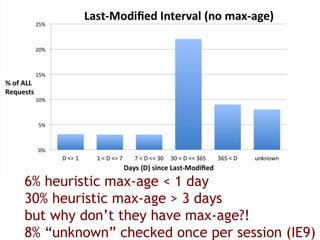

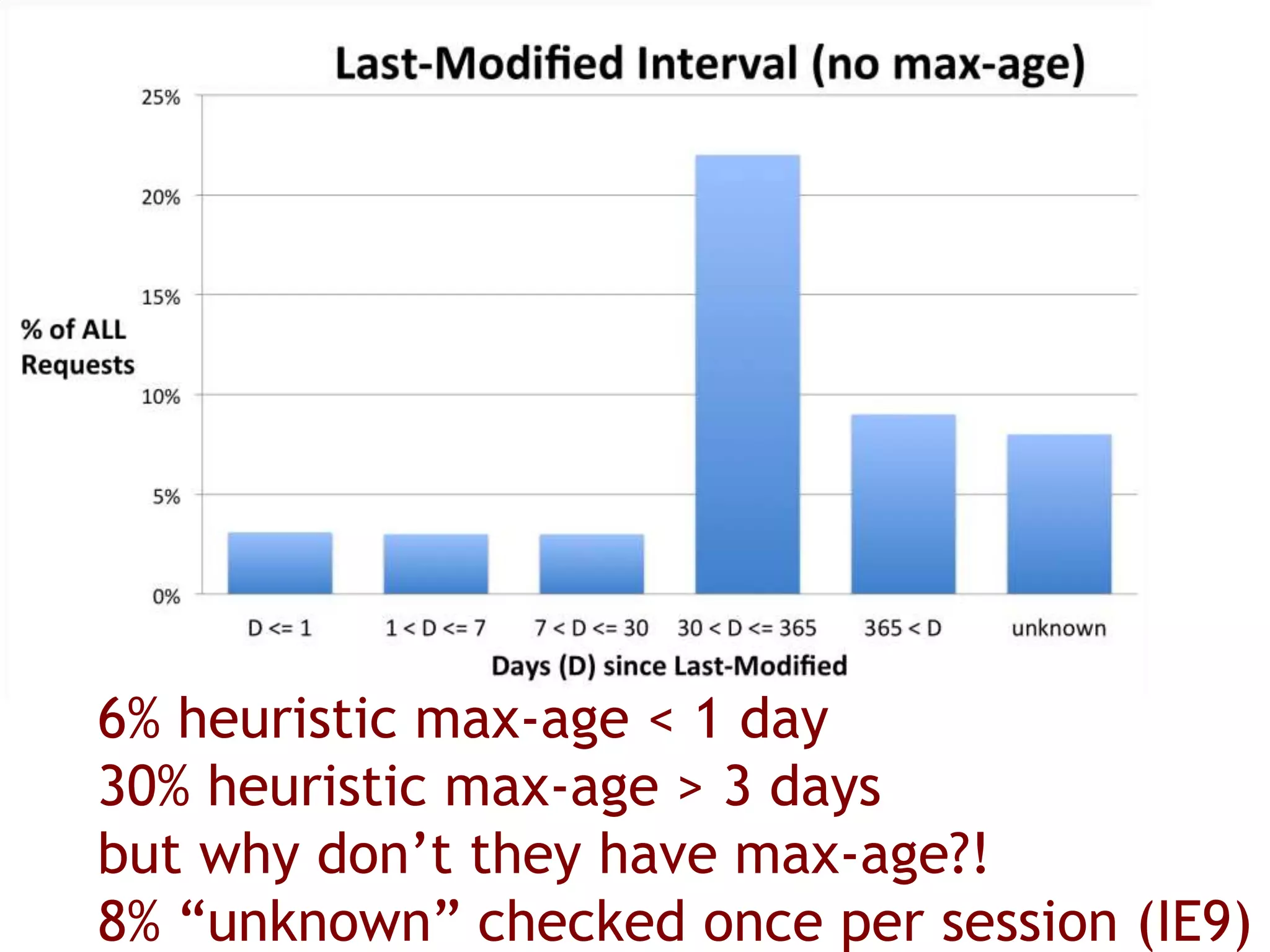

What’s (10% of) the typical interval?
6% heuristic max-age < 1 day
30% heuristic max-age > 3 days
but why don’t they have max-age?!
8% “unknown” checked once per session (IE9)
Cache is King

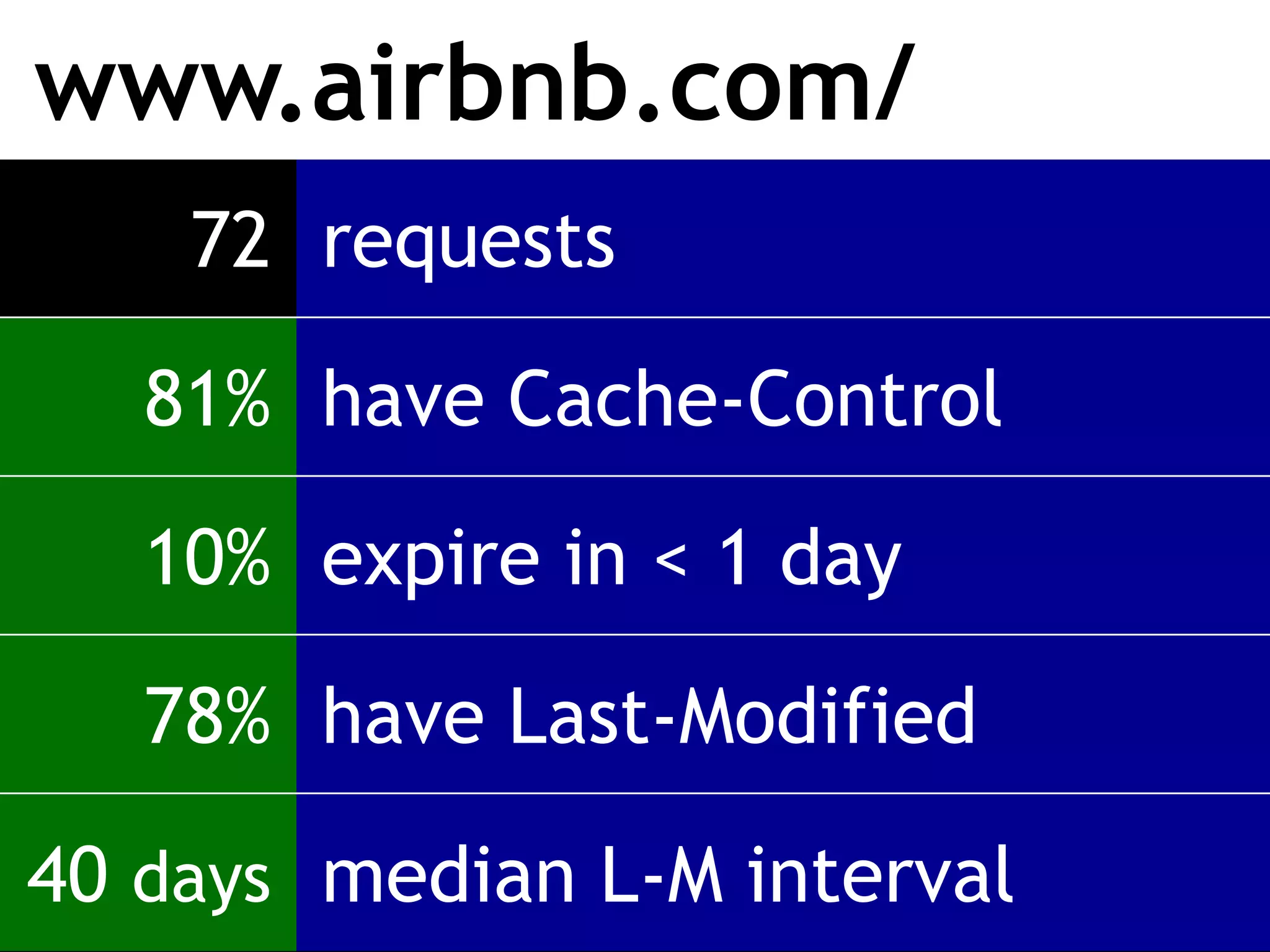

www.airbnb.com/
    72 requests

   81% have Cache-Control

   10% expire in < 1 day

   78% have Last-Modified

40 days median L-M interval

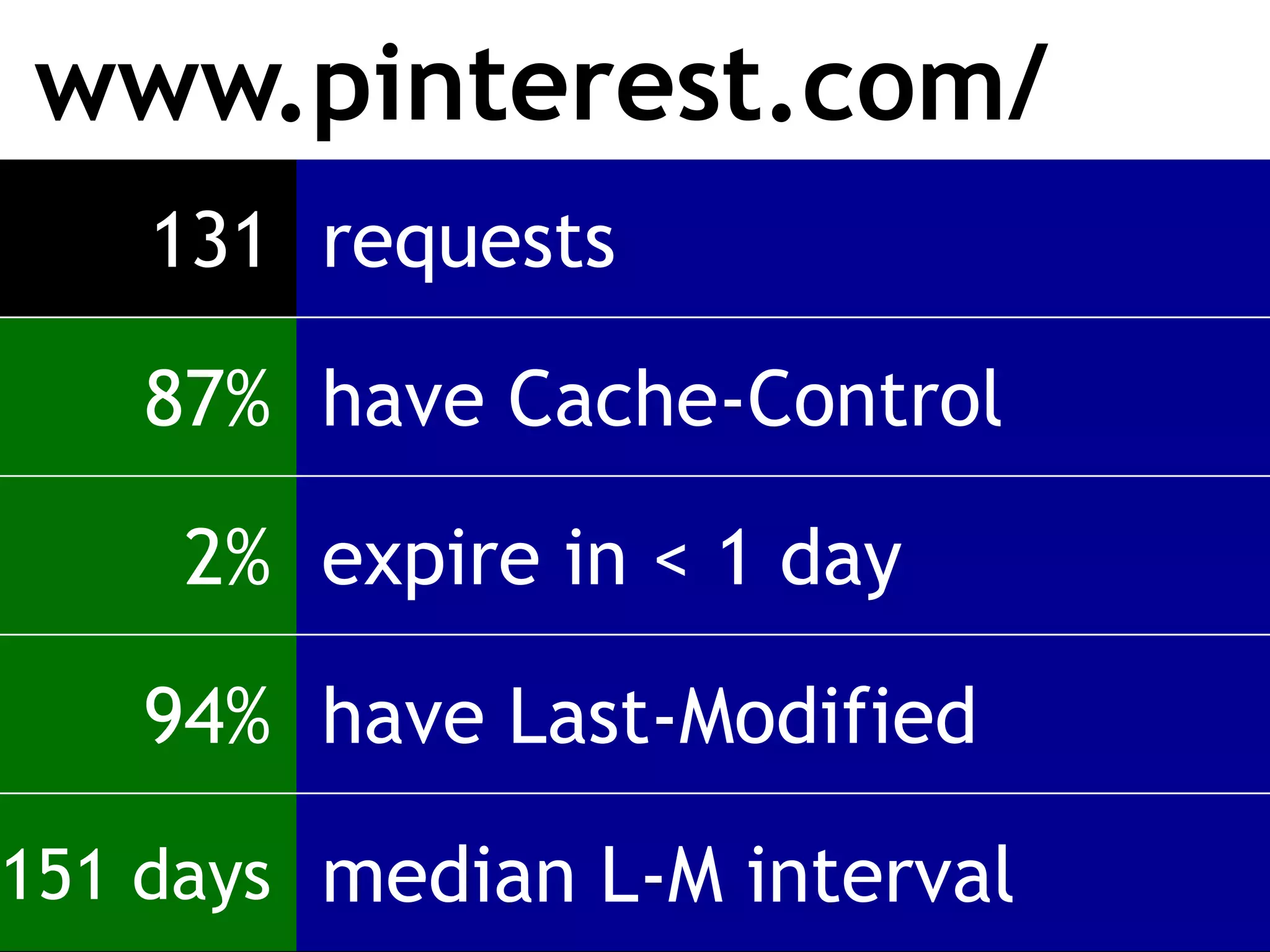

www.pinterest.com/
    131 requests

   87% have Cache-Control

     2% expire in < 1 day

   94% have Last-Modified

151 days median L-M interval

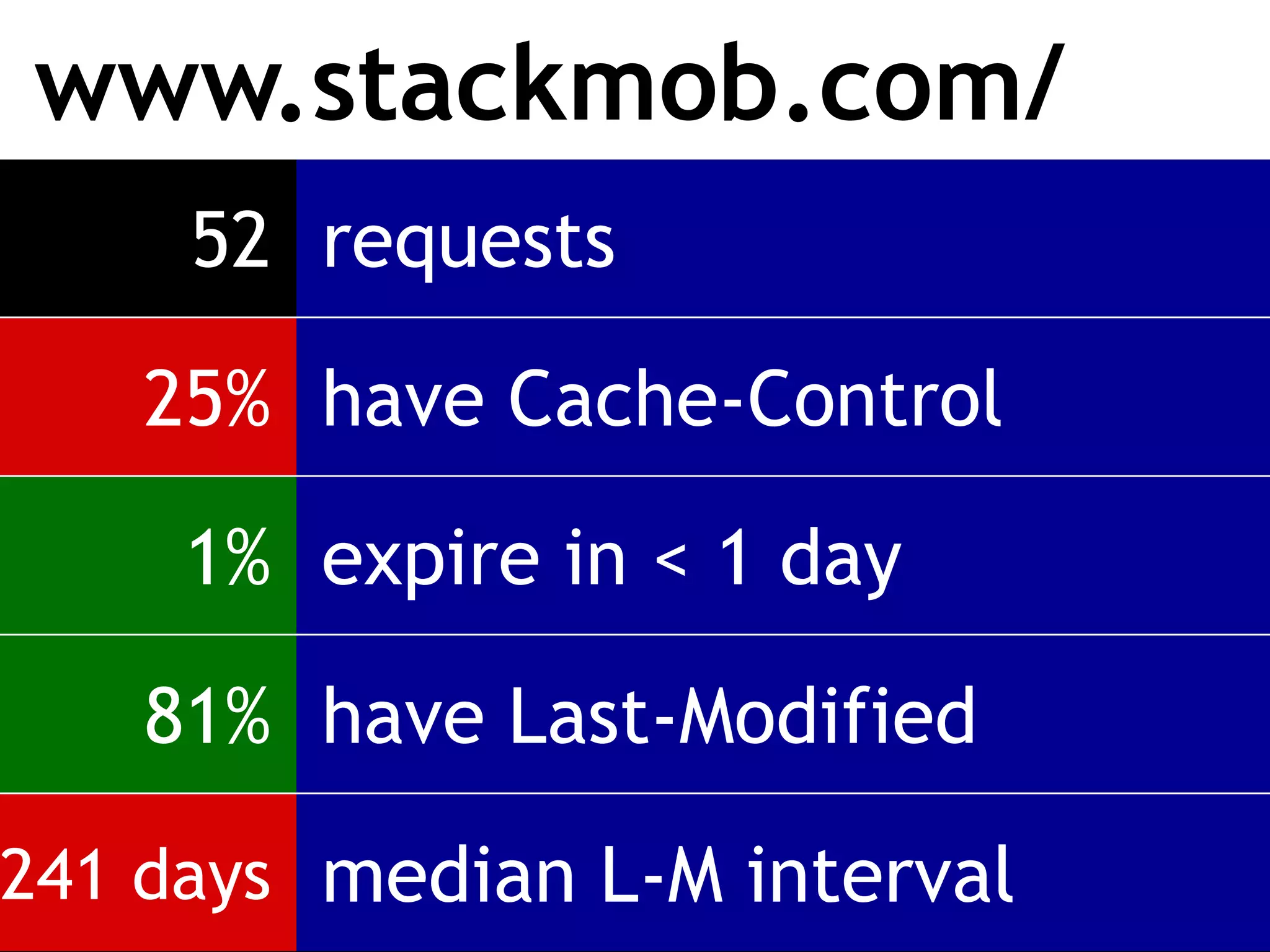

www.stackmob.com/
     52 requests

   25% have Cache-Control

     1% expire in < 1 day

   81% have Last-Modified

241 days median L-M interval

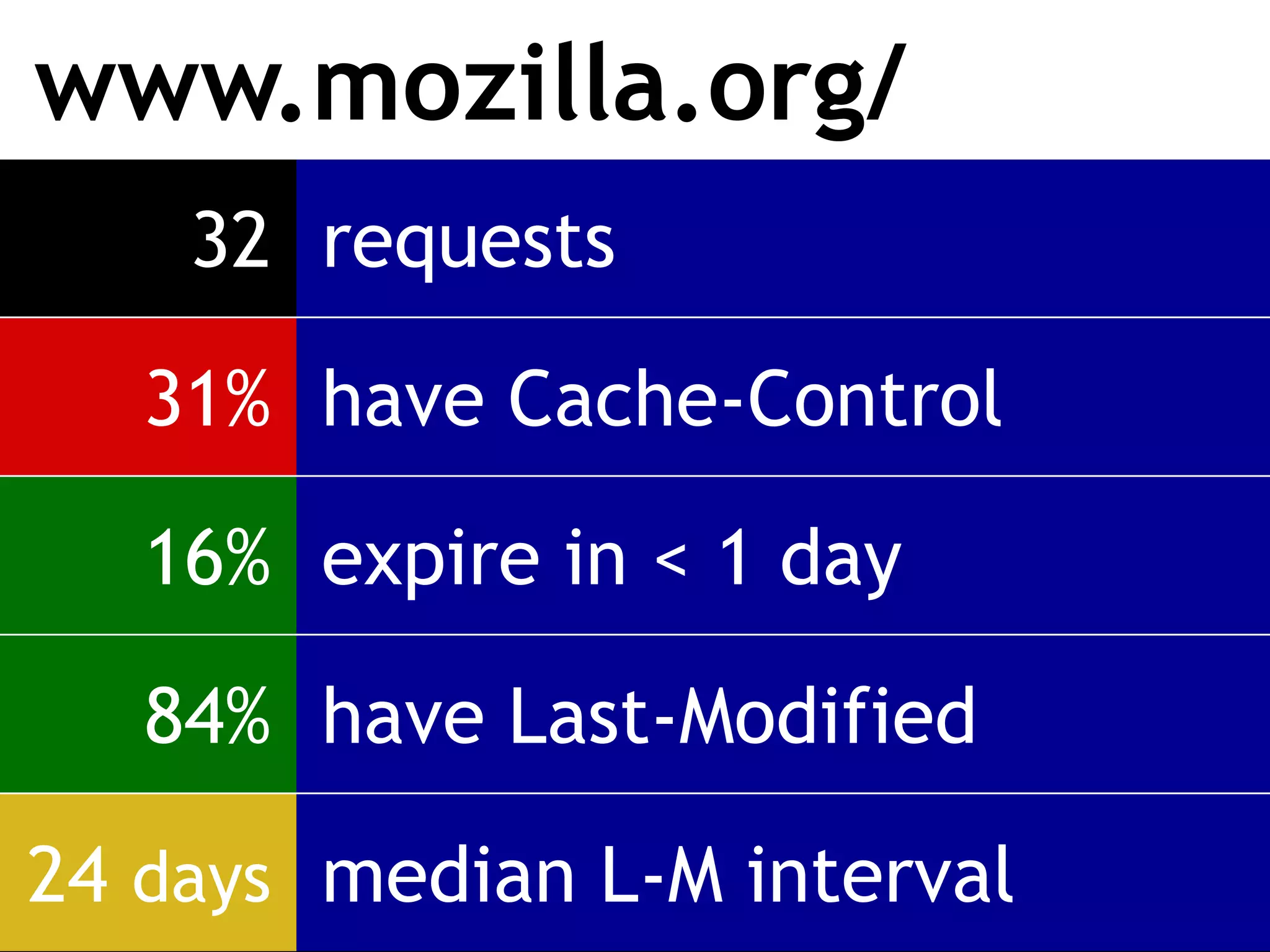

www.mozilla.org/
    32 requests

   31% have Cache-Control

   16% expire in < 1 day

   84% have Last-Modified

24 days median L-M interval

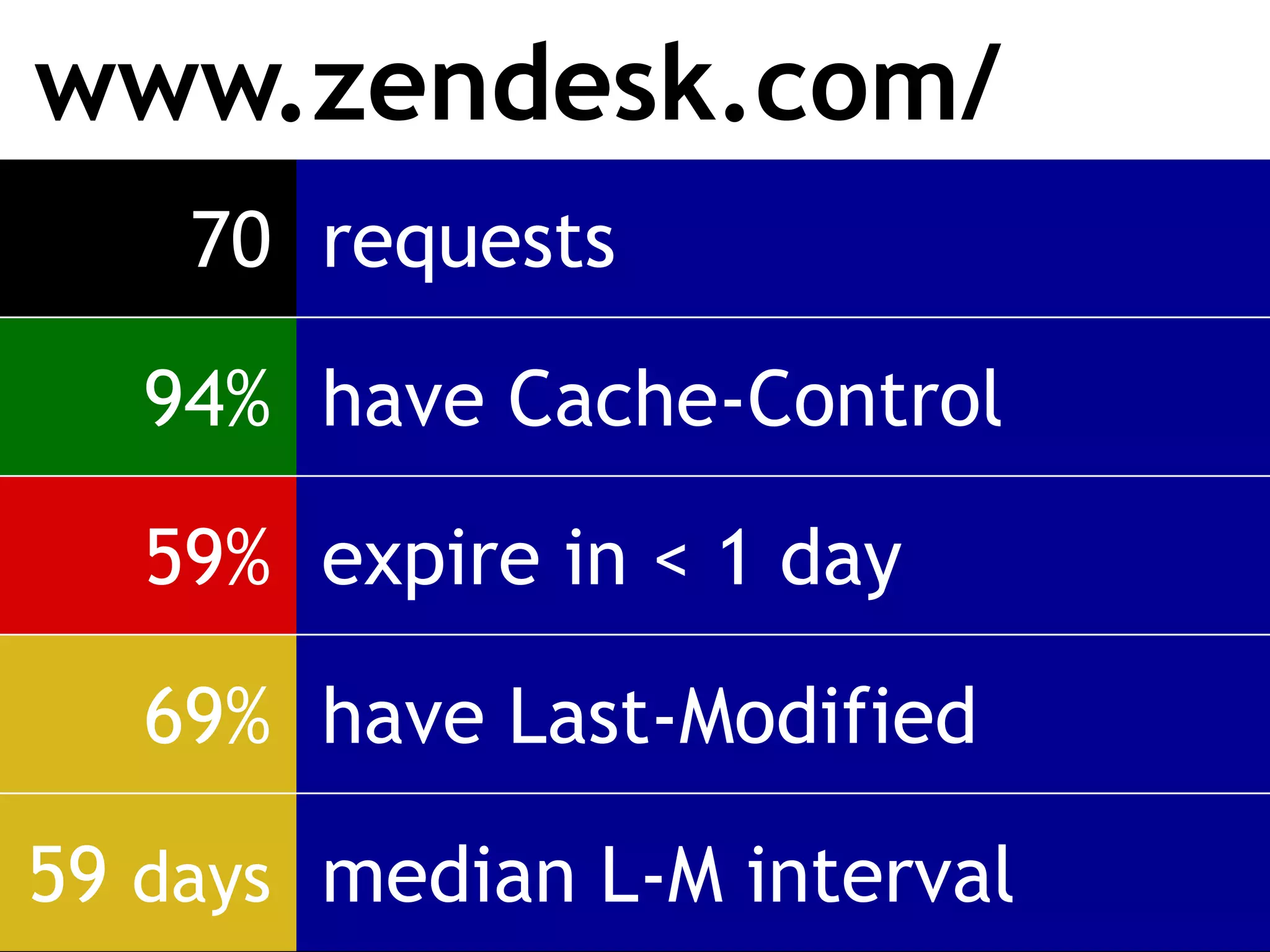

www.zendesk.com/
    70 requests

   94% have Cache-Control

   59% expire in < 1 day

   69% have Last-Modified

59 days median L-M interval

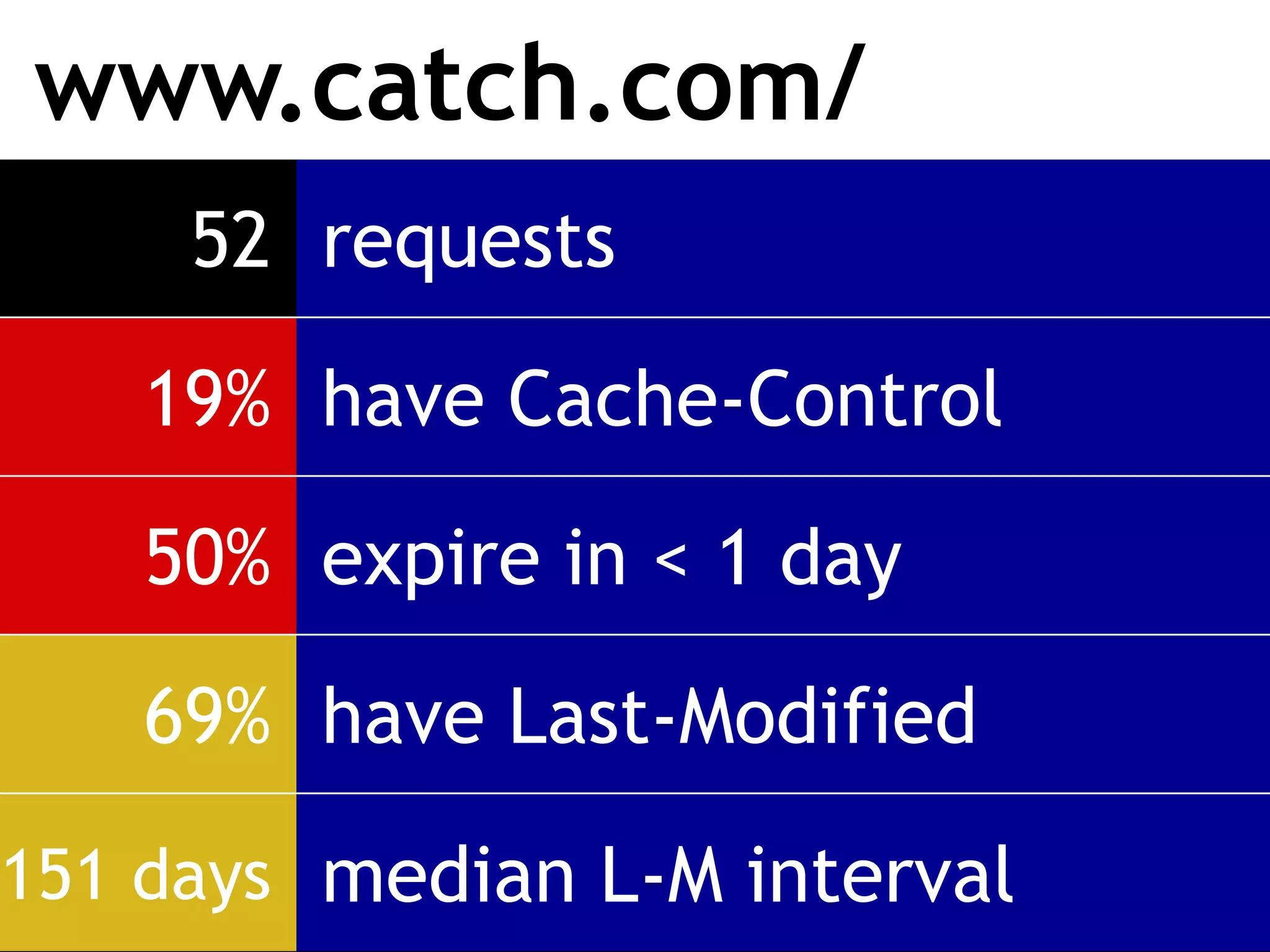

www.catch.com/
     52 requests

   19% have Cache-Control

   50% expire in < 1 day

   69% have Last-Modified

151 days median L-M interval

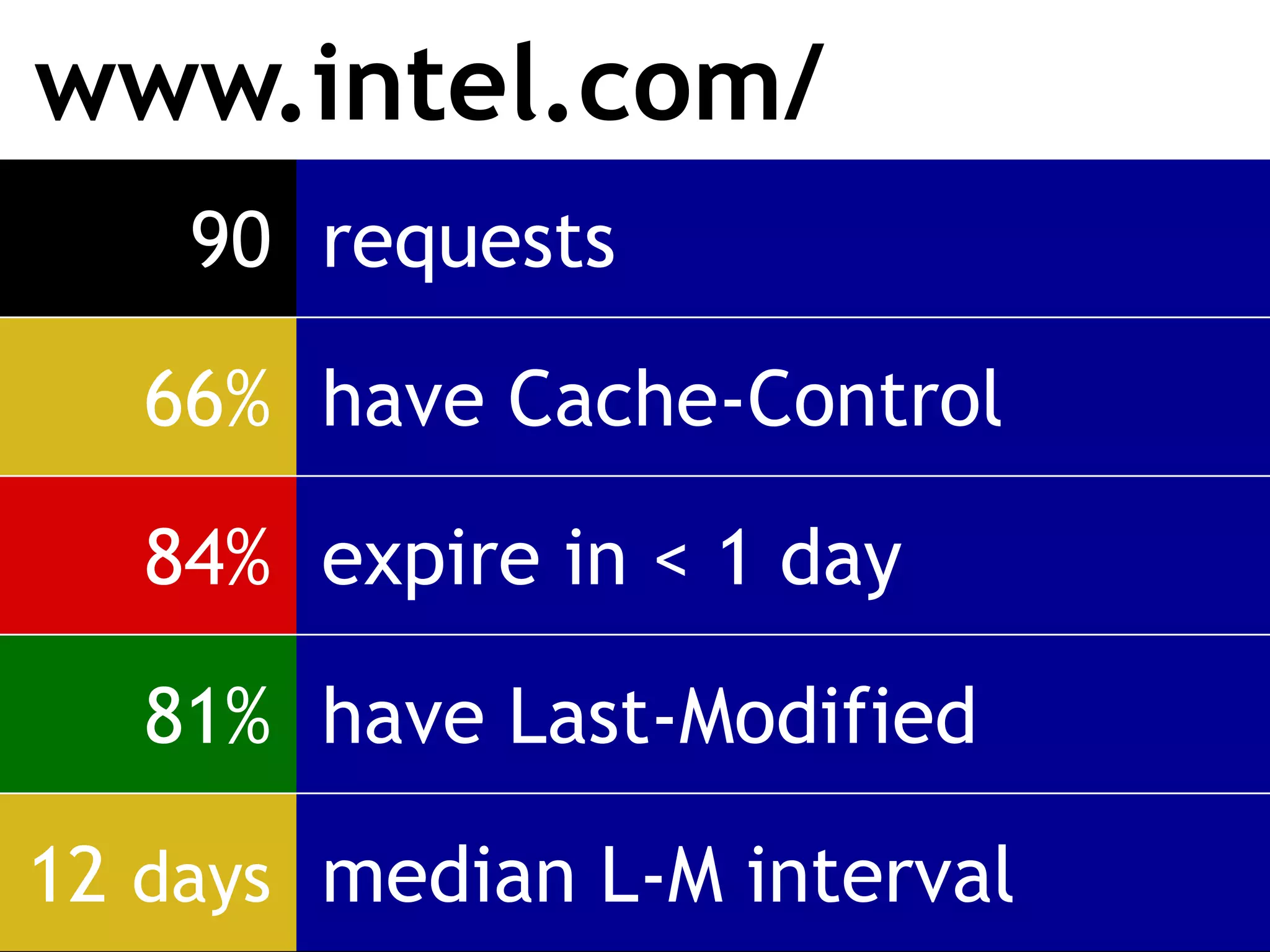

www.intel.com/
    90 requests

   66% have Cache-Control

   84% expire in < 1 day

   81% have Last-Modified

12 days median L-M interval
Cache is King

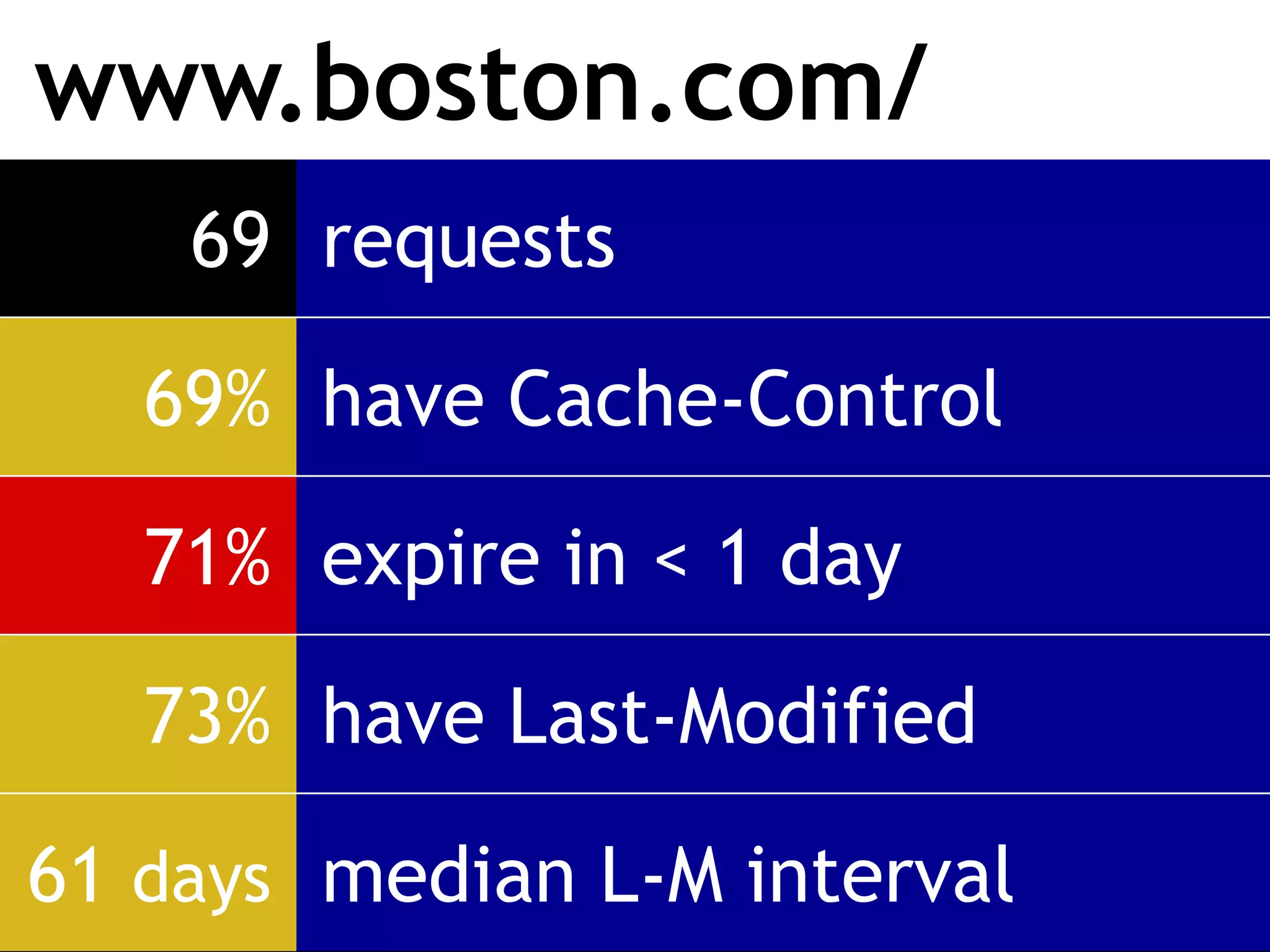

www.boston.com/
    69 requests

   69% have Cache-Control

   71% expire in < 1 day

   73% have Last-Modified

61 days median L-M interval

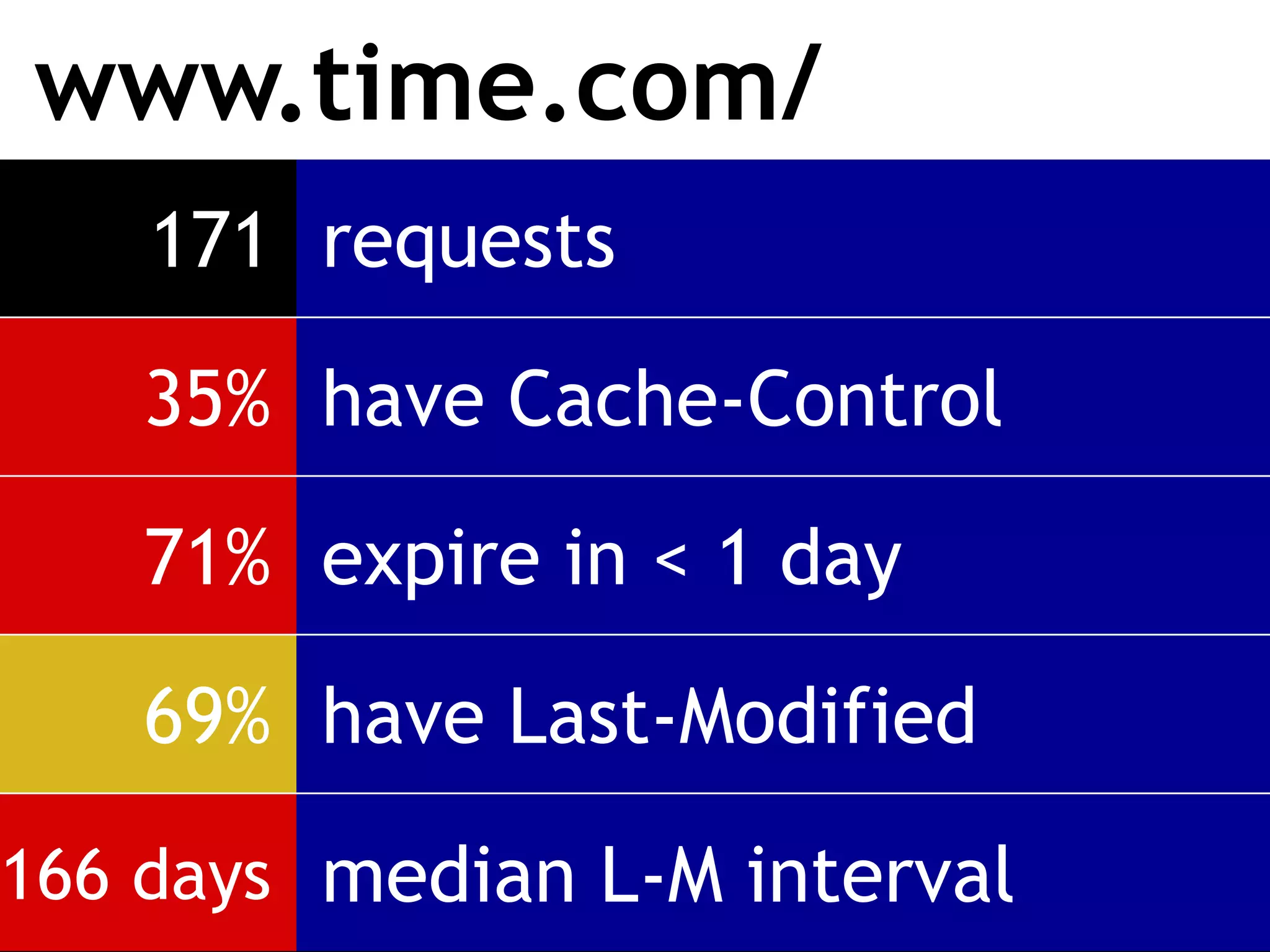

www.time.com/
    171 requests

   35% have Cache-Control

   71% expire in < 1 day

   69% have Last-Modified

166 days median L-M interval

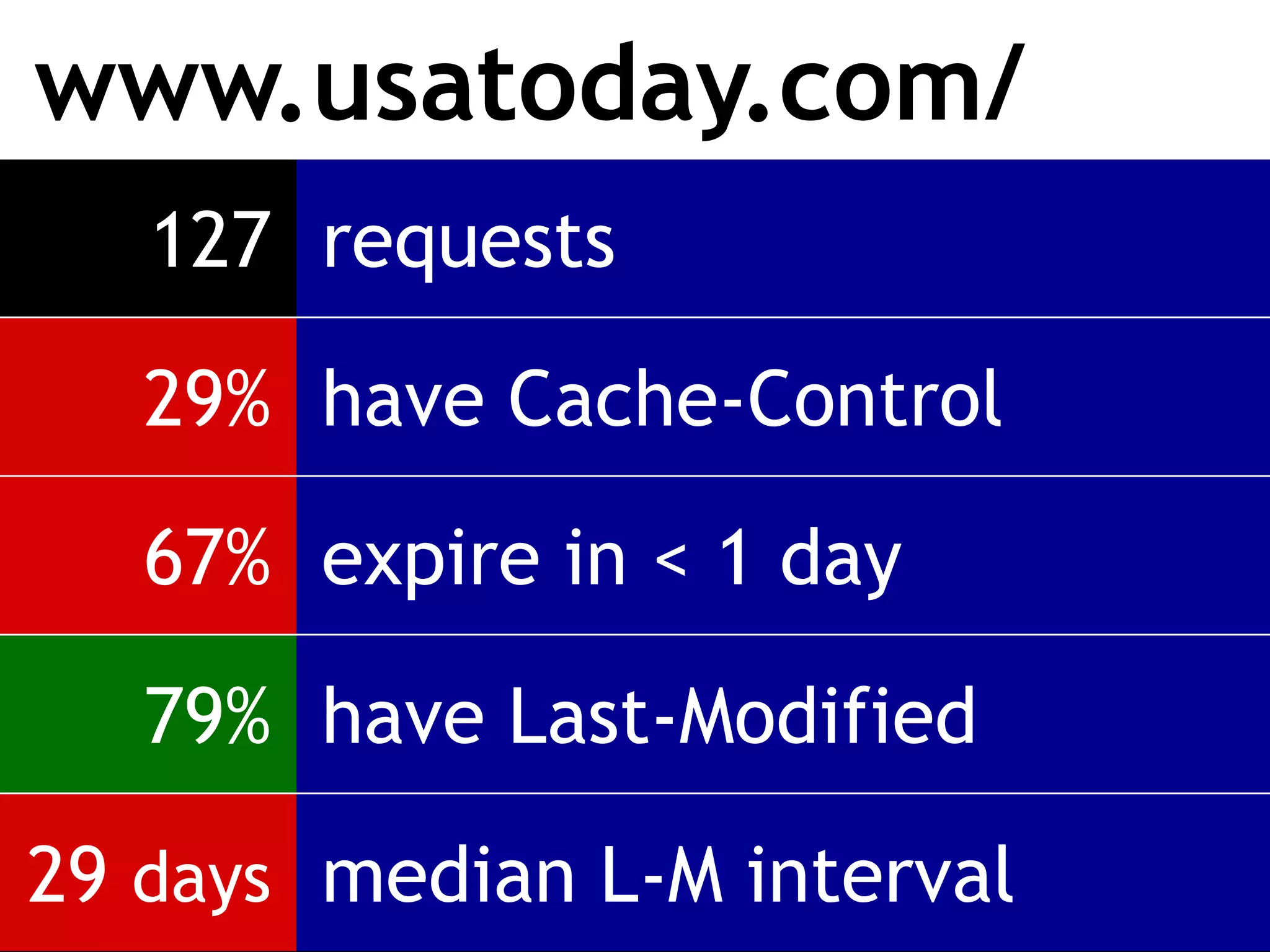

www.usatoday.com/
   127 requests

   29% have Cache-Control

   67% expire in < 1 day

   79% have Last-Modified

29 days median L-M interval

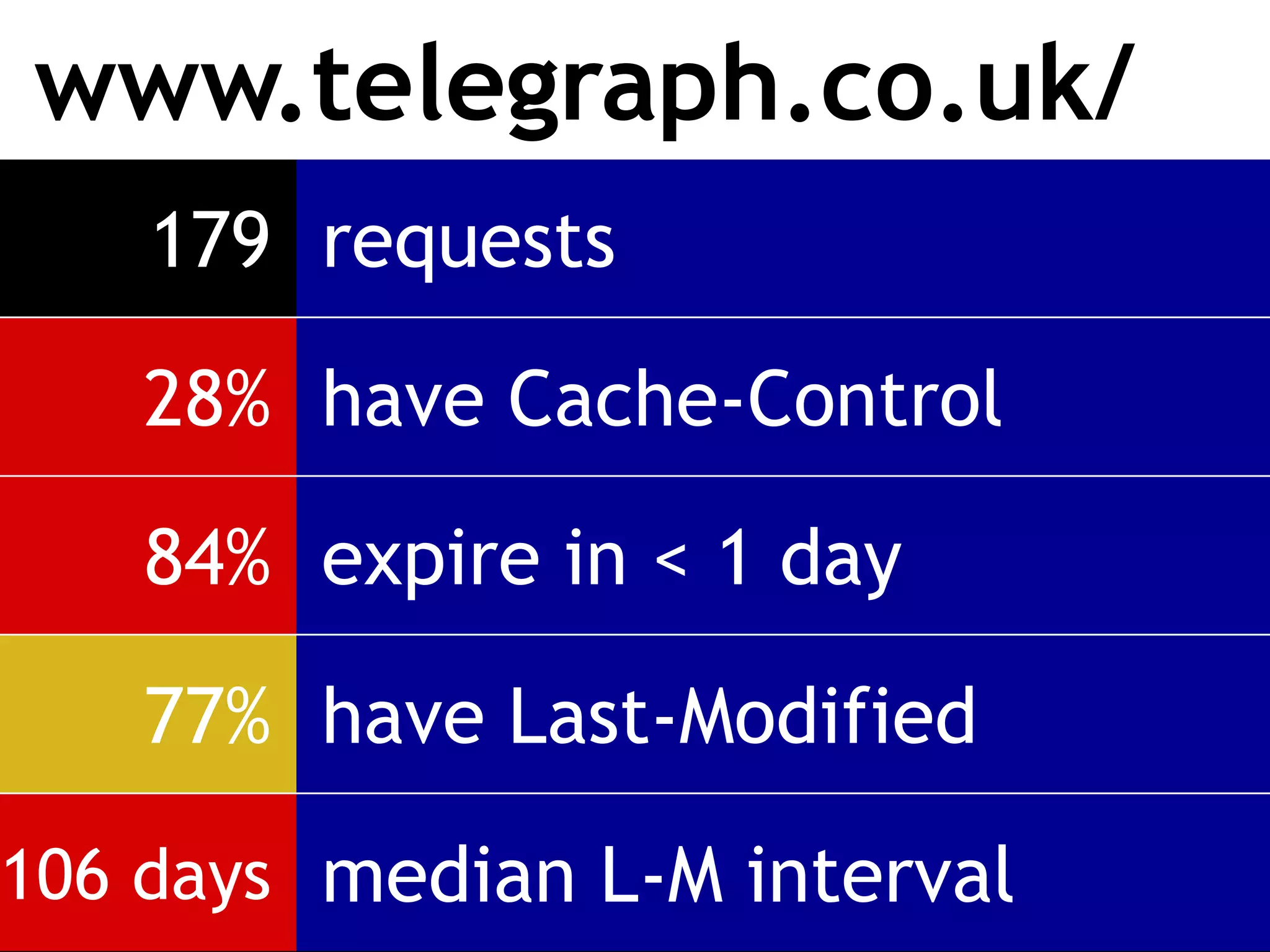

www.telegraph.co.uk/
    179 requests

   28% have Cache-Control

   84% expire in < 1 day

   77% have Last-Modified

106 days median L-M interval

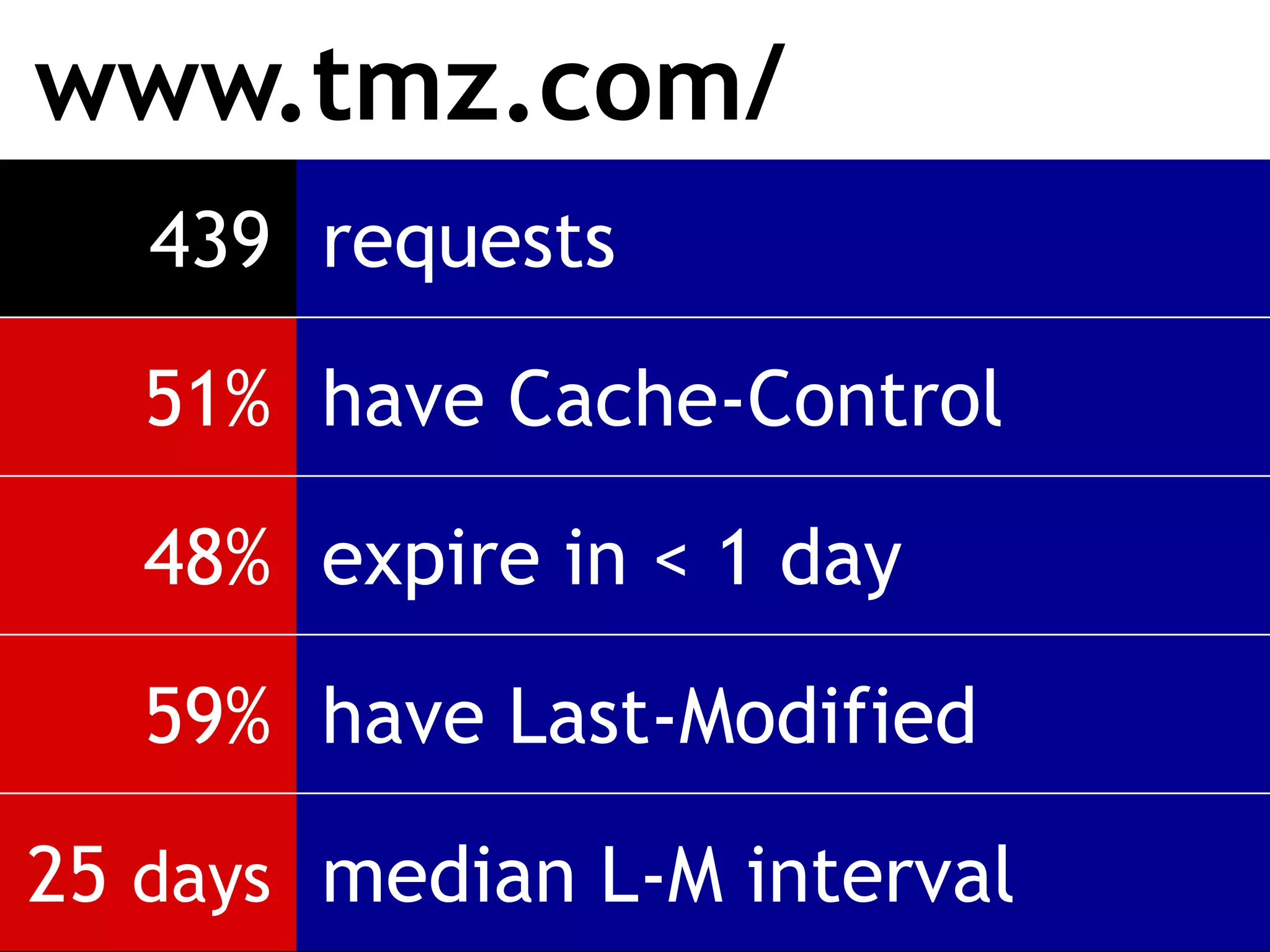

www.tmz.com/
   439 requests

   51% have Cache-Control

   48% expire in < 1 day

   59% have Last-Modified

25 days median L-M interval
be explicit


always specify Cache-Control:
max-age OR no-cache

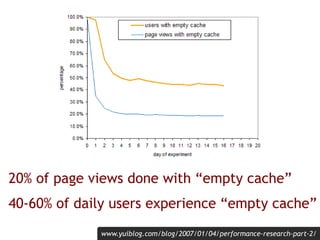

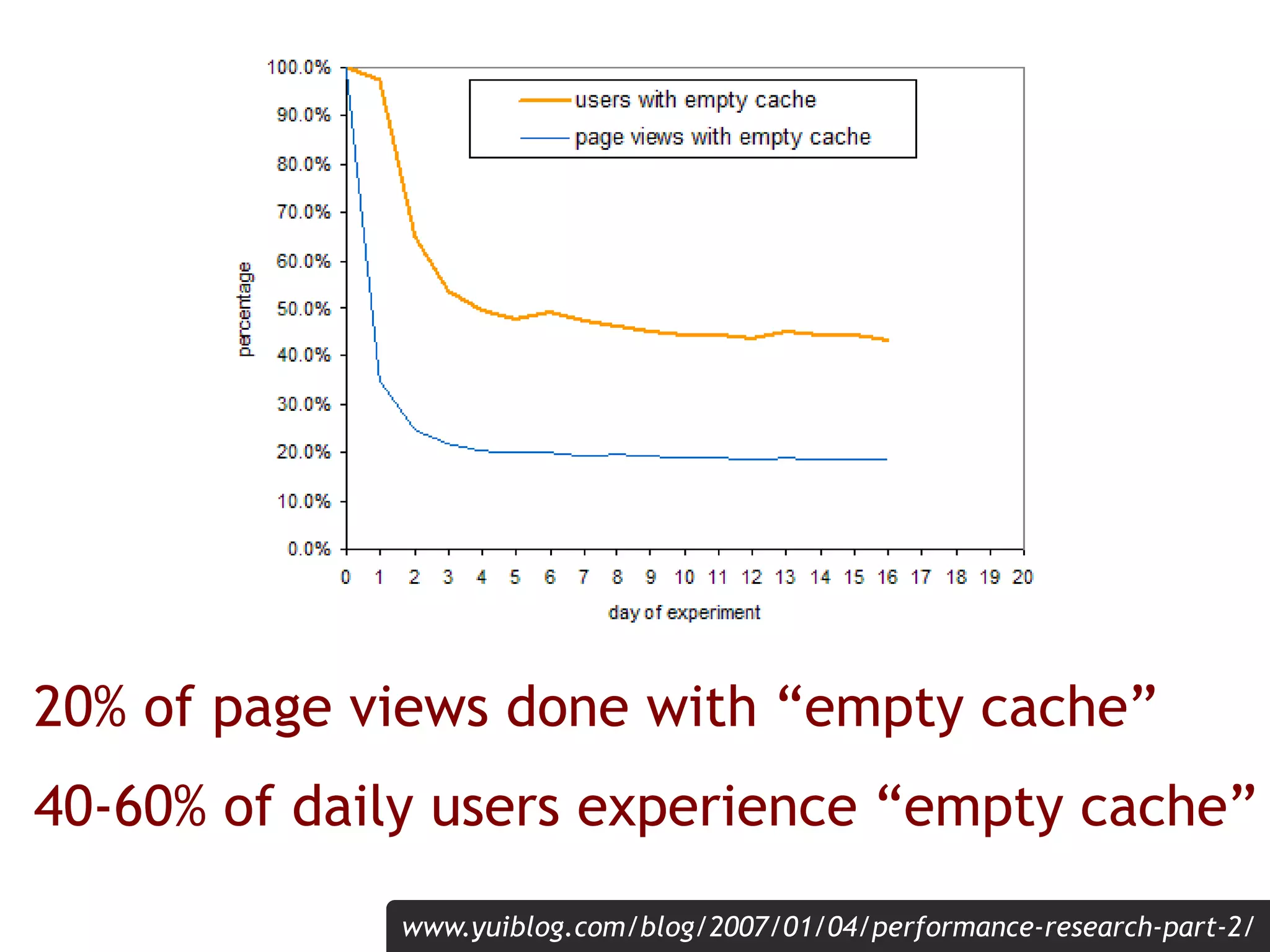

20% of page views done with “empty cache”
40-60% of daily users experience “empty cache”
             www.yuiblog.com/blog/2007/01/04/performance-research-part-2/

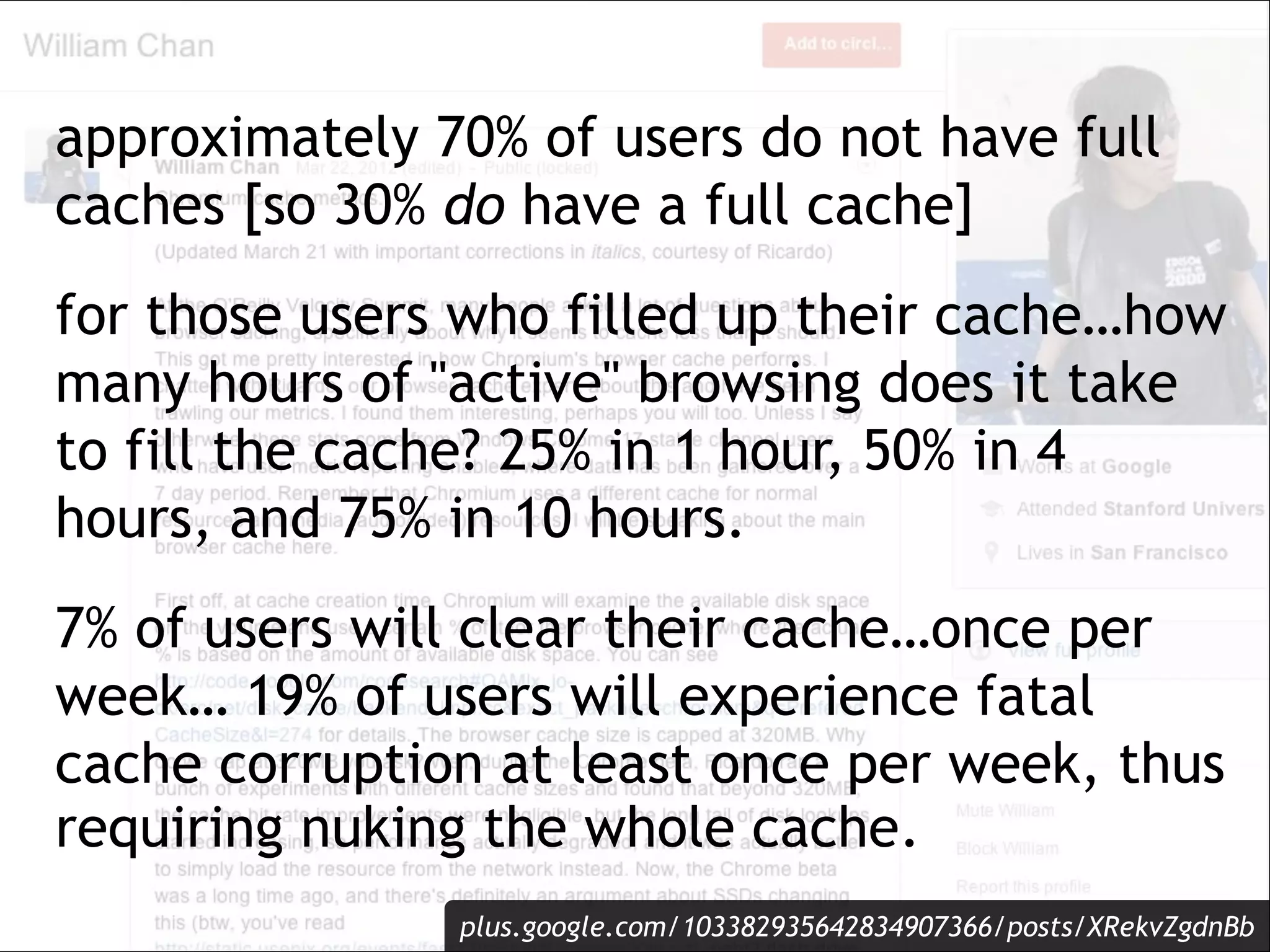

approximately 70% of users do not have full
caches [so 30% do have a full cache]
for those users who filled up their cache…how
many hours of "active" browsing does it take
to fill the cache? 25% in 1 hour, 50% in 4
hours, and 75% in 10 hours.
7% of users will clear their cache…once per
week… 19% of users will experience fatal
cache corruption at least once per week, thus
requiring nuking the whole cache.
               plus.google.com/103382935642834907366/posts/XRekvZgdnBb

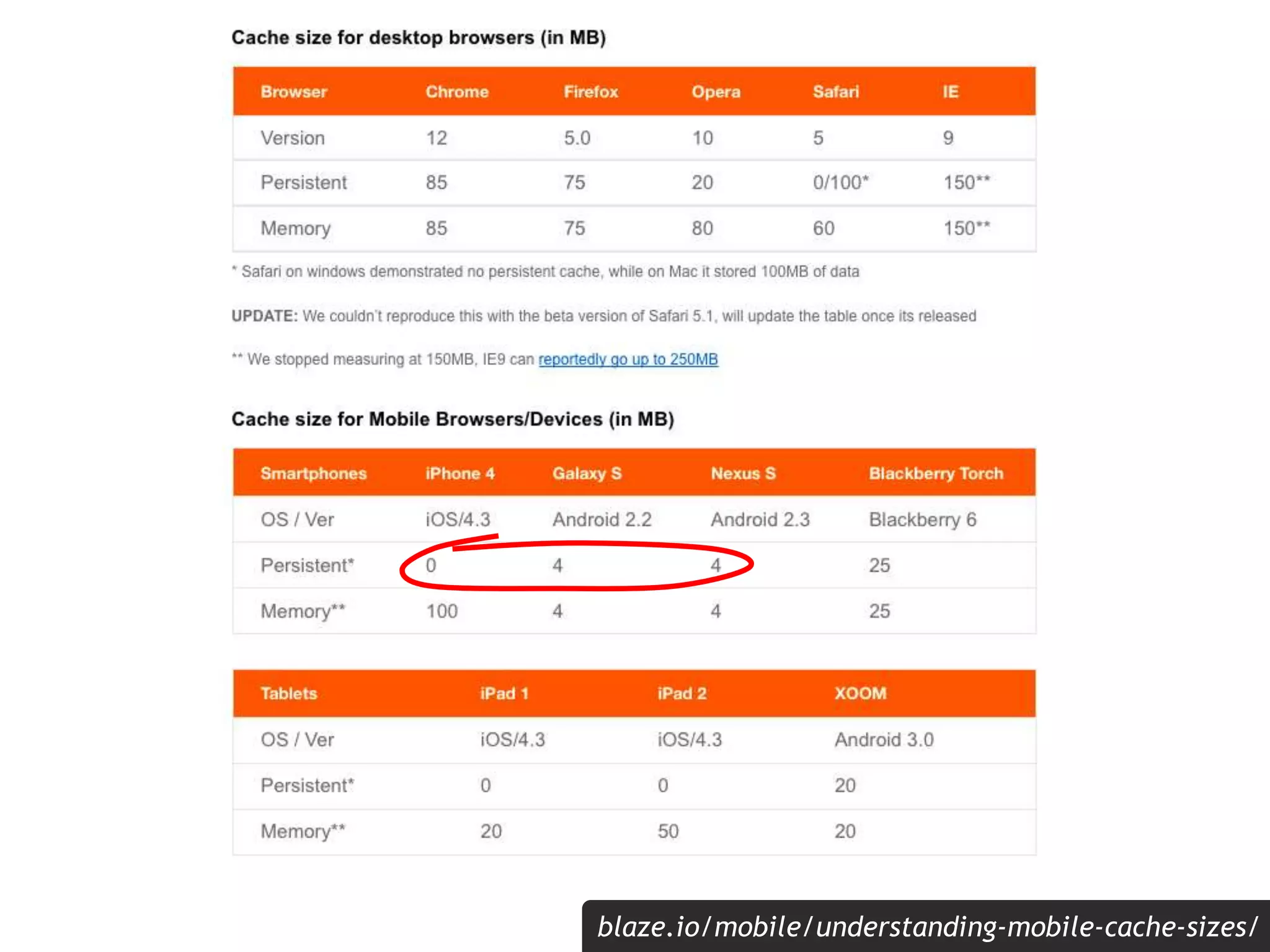

blaze.io/mobile/understanding-mobile-cache-sizes/

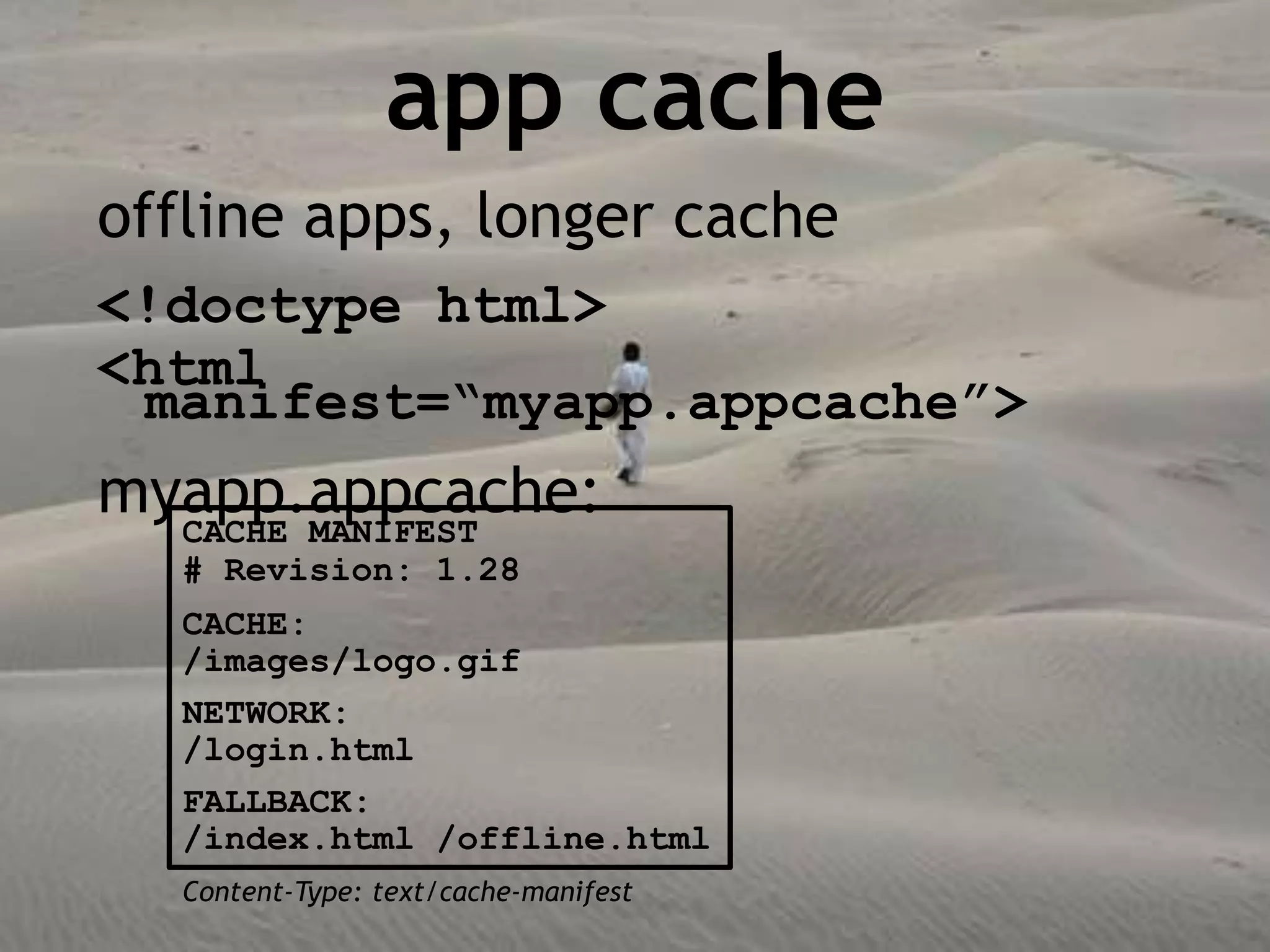

app cache
offline apps, longer cache
<!doctype html>
<html
 manifest=“myapp.appcache”>
myapp.appcache:
  CACHE MANIFEST
  # Revision: 1.28
  CACHE:
  /images/logo.gif
  NETWORK:
  /login.html
  FALLBACK:
  /index.html /offline.html
  Content-Type: text/cache-manifest

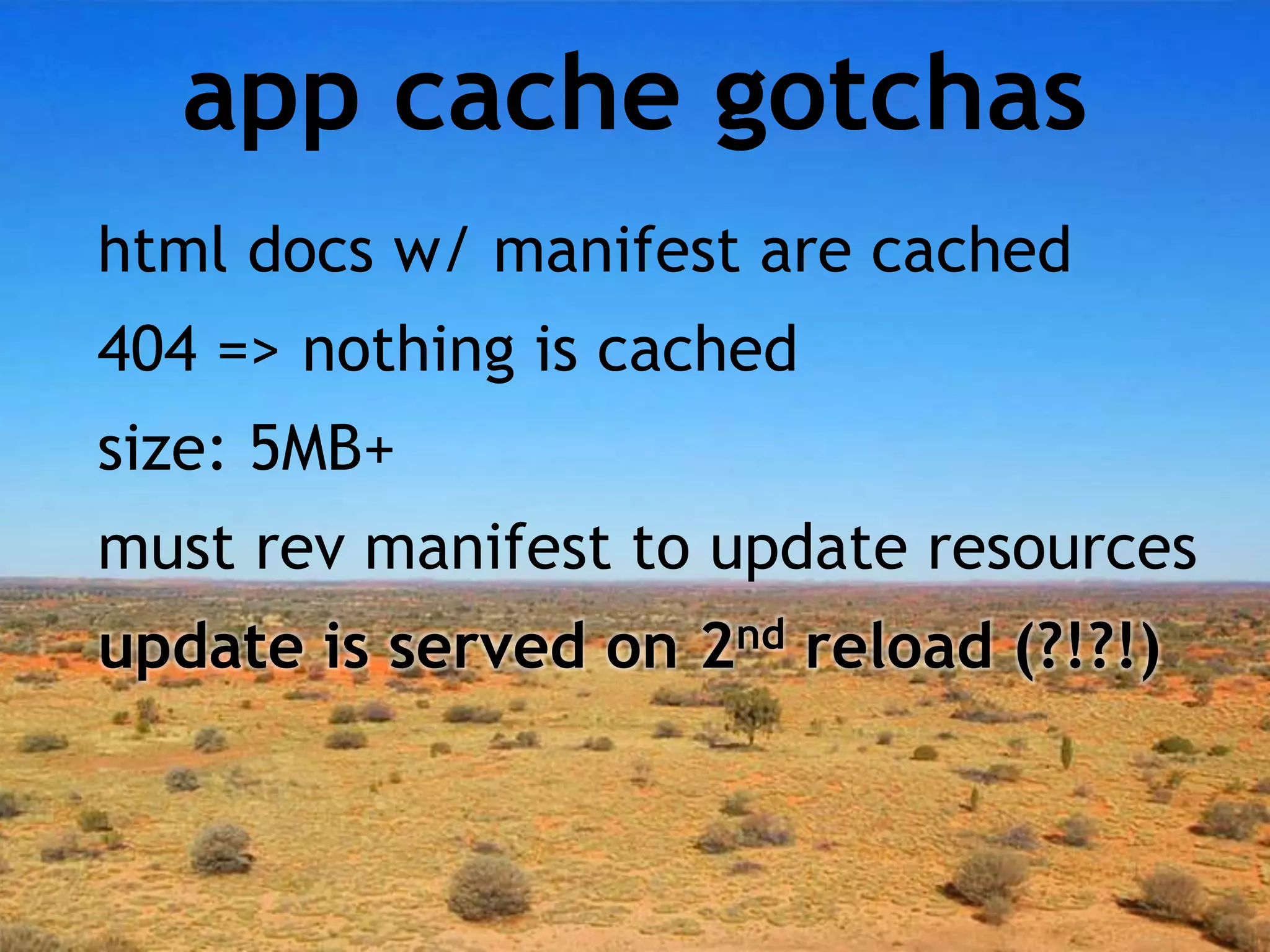

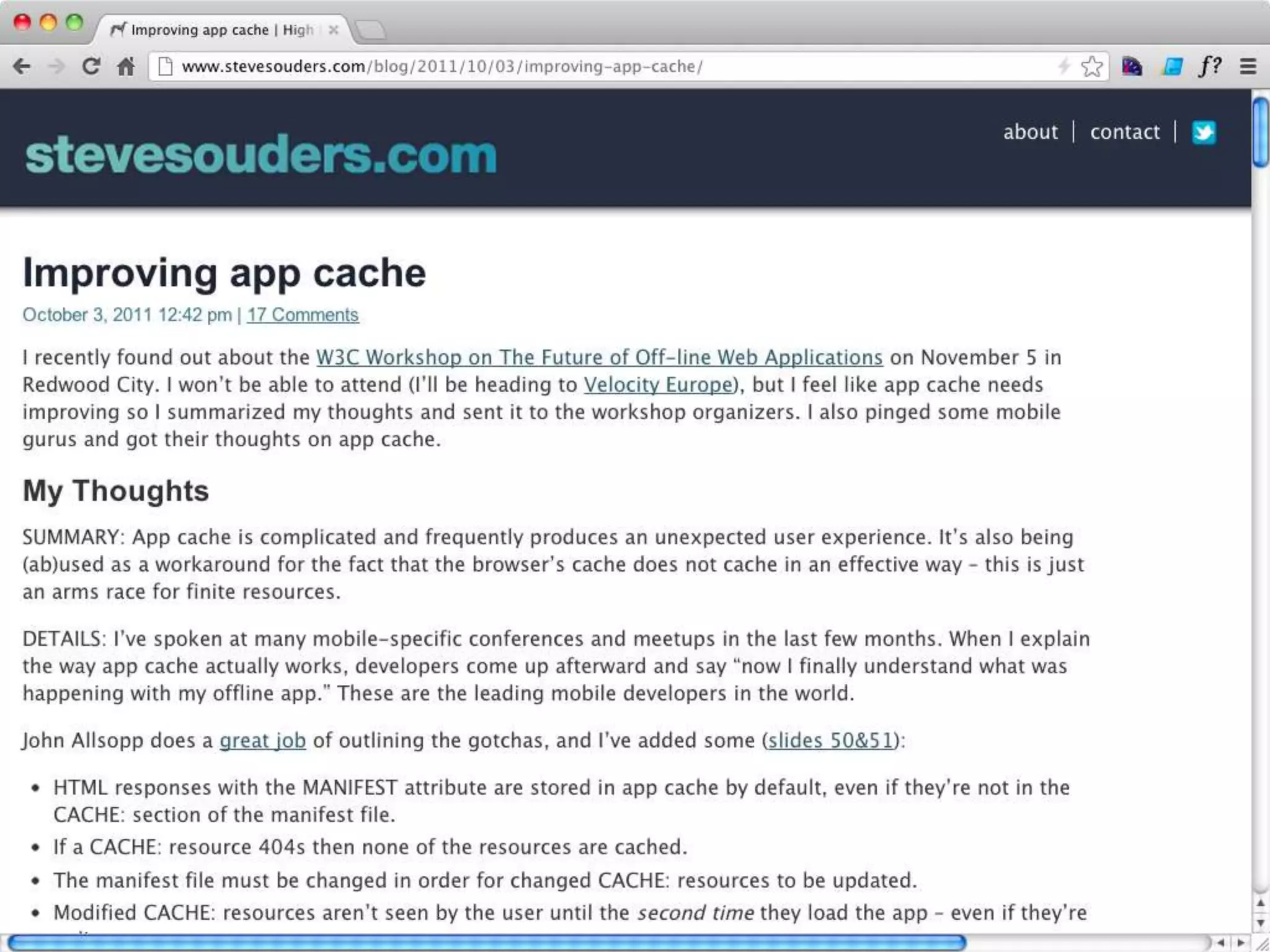

app cache gotchas
html docs w/ manifest are cached
404 => nothing is cached
size: 5MB+
must rev manifest to update resources
update is served on 2nd reload (?!?!)

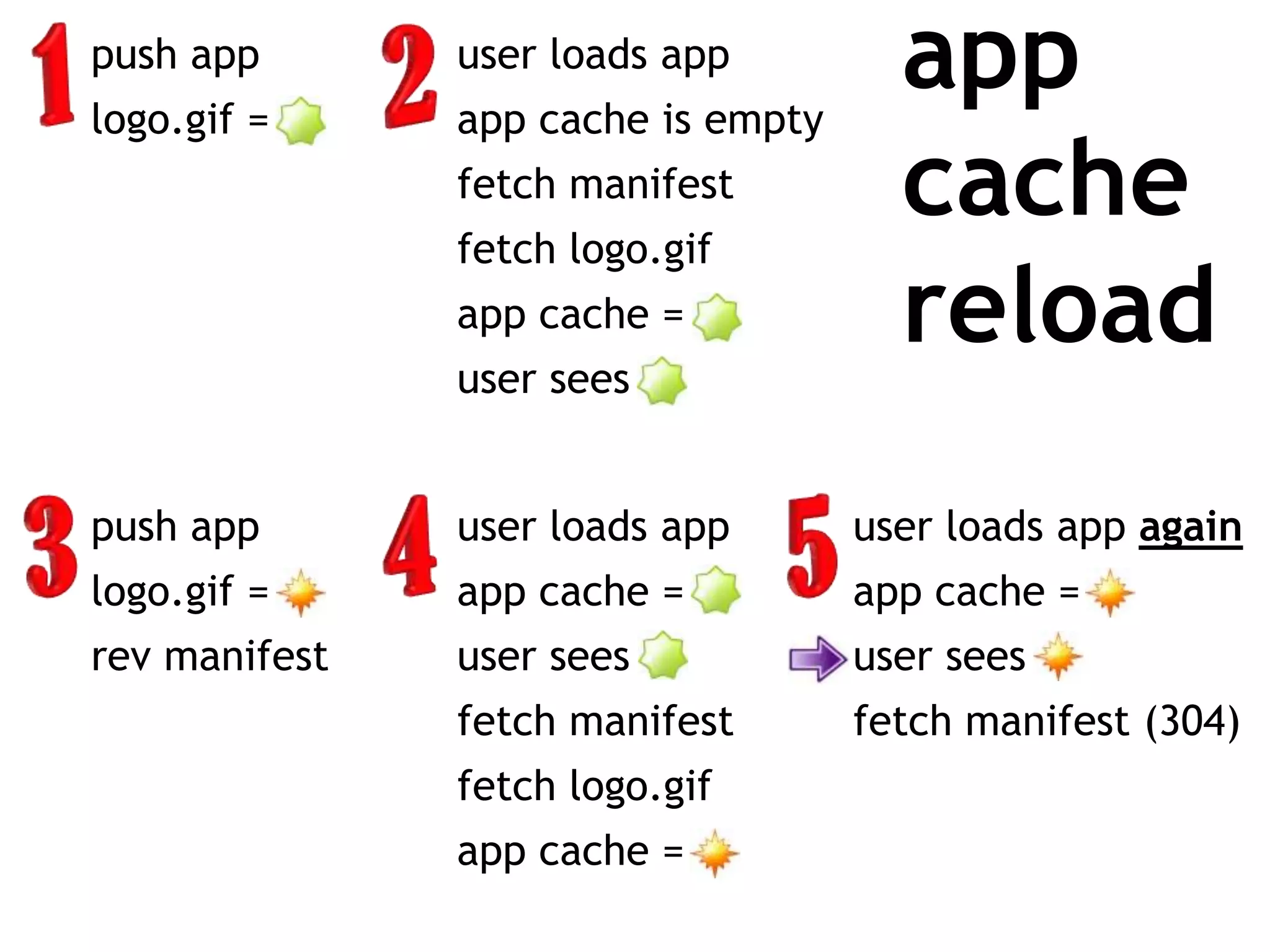

push app
logo.gif =
               user loads app
               app cache is empty
                                      app
               fetch manifest
               fetch logo.gif
                                      cache
               app cache =
               user sees
                                      reload
push app       user loads app       user loads app again
logo.gif =     app cache =          app cache =
rev manifest   user sees            user sees
               fetch manifest       fetch manifest (304)
               fetch logo.gif
               app cache =

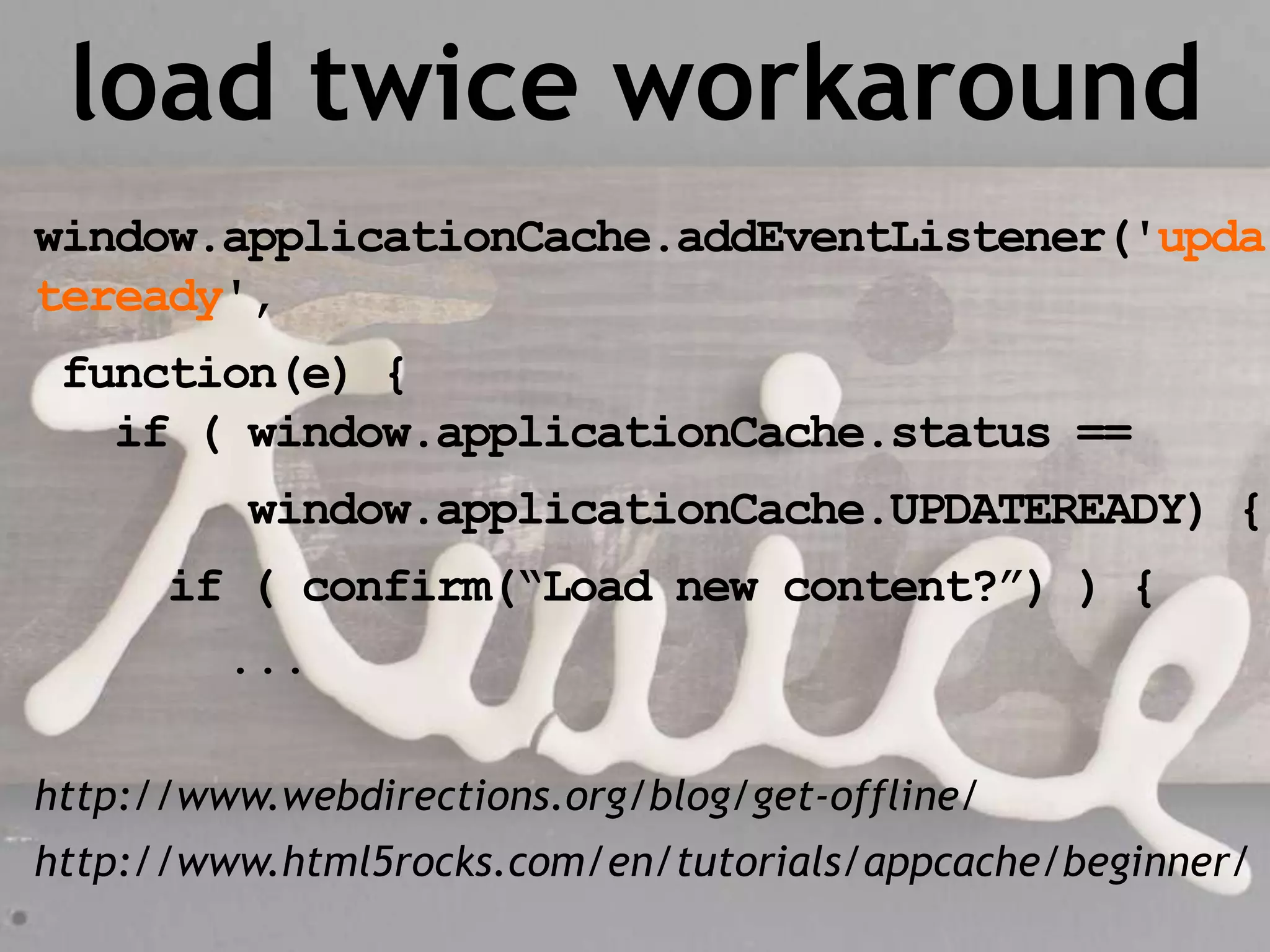

load twice workaround
window.applicationCache.addEventListener('upda
teready',
 function(e) {
   if ( window.applicationCache.status ==
          window.applicationCache.UPDATEREADY) {
      if ( confirm(“Load new content?”) ) {
         ...

http://www.webdirections.org/blog/get-offline/
http://www.html5rocks.com/en/tutorials/appcache/beginner/

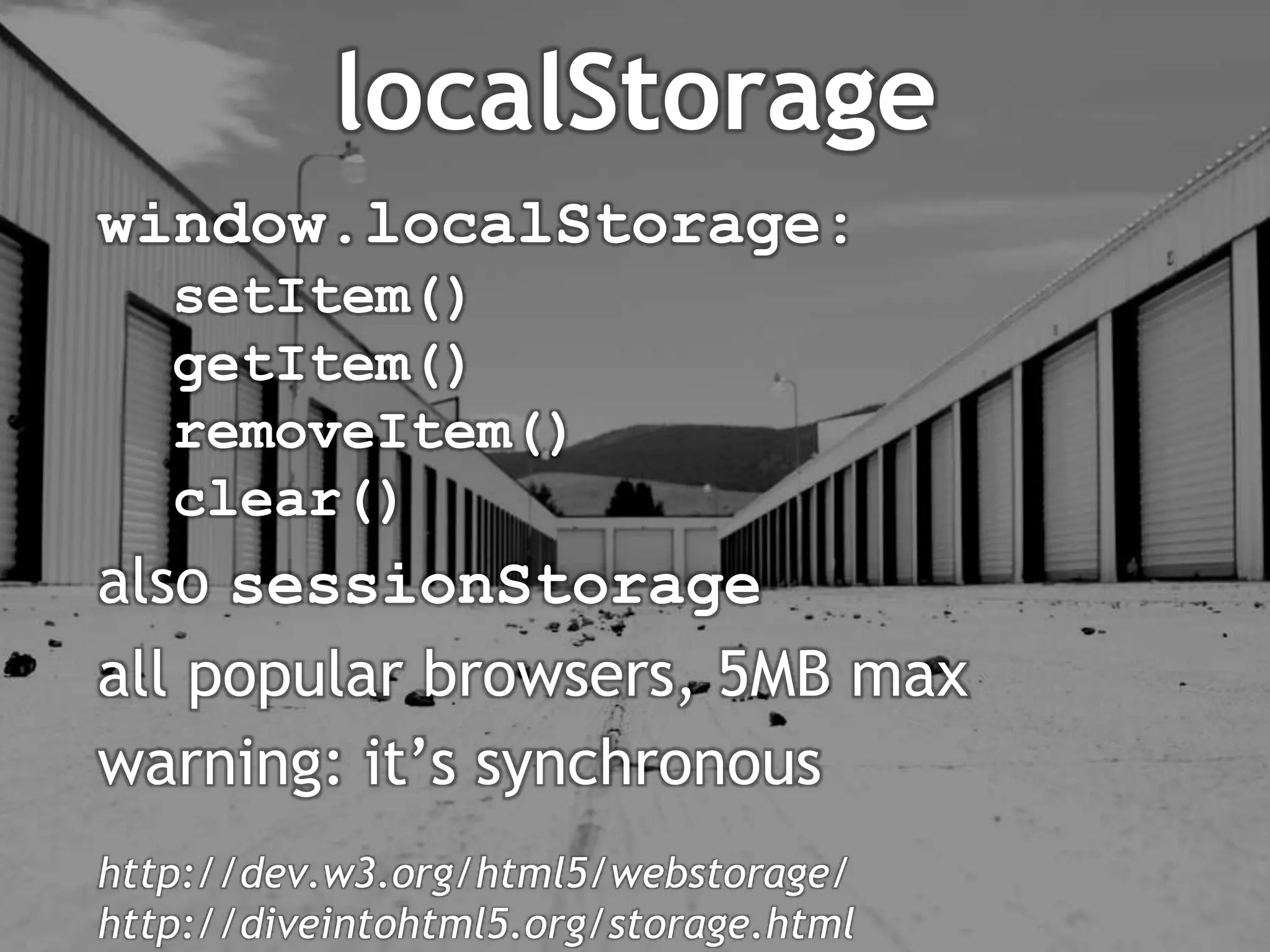

localStorage
window.localStorage:
   setItem()
   getItem()
   removeItem()
   clear()
also sessionStorage
all popular browsers, 5MB max
warning: it’s synchronous
http://dev.w3.org/html5/webstorage/
http://diveintohtml5.org/storage.html

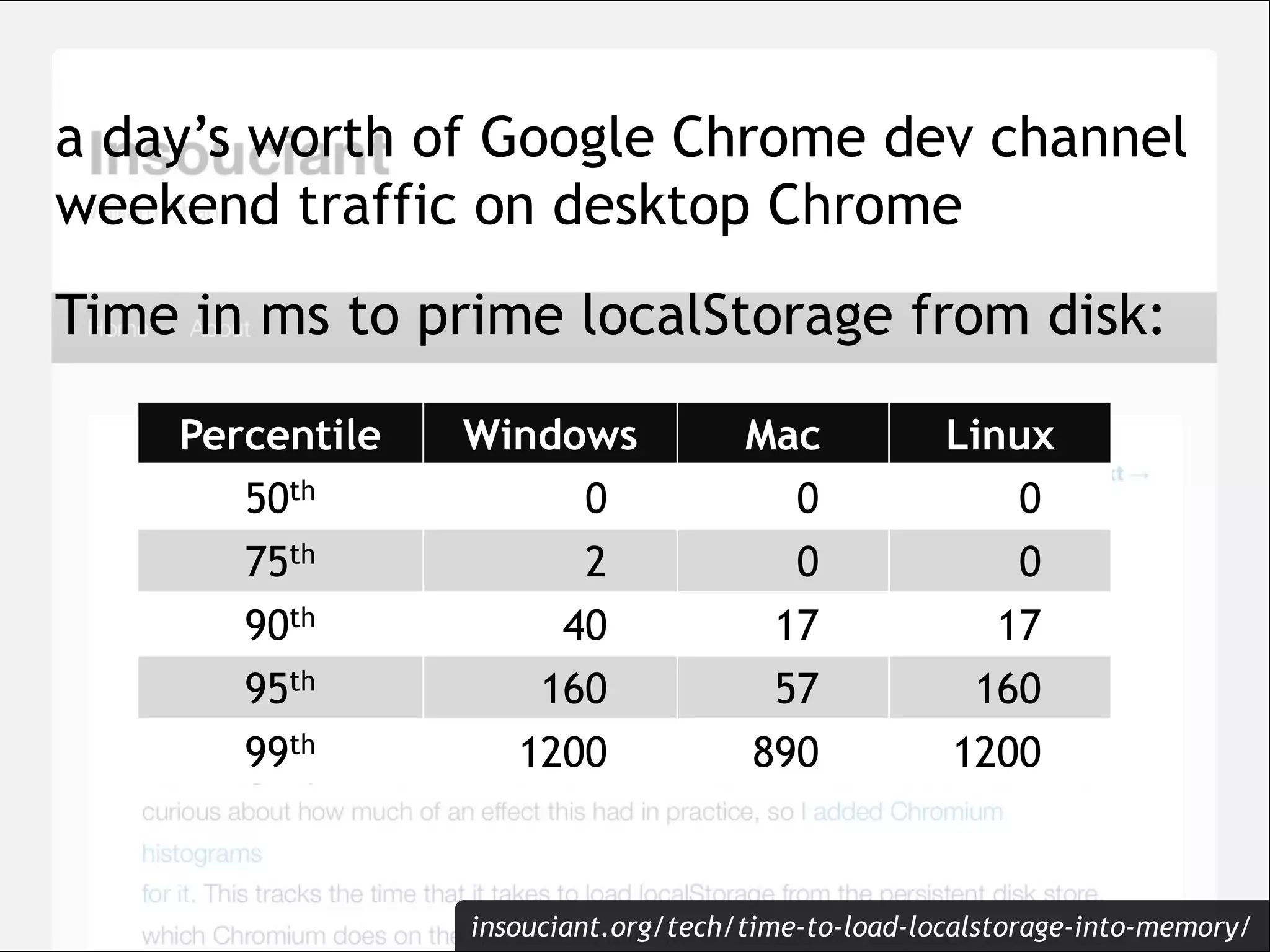

a day’s worth of Google Chrome dev channel
weekend traffic on desktop Chrome
Time in ms to prime localStorage from disk:

    Percentile   Windows             Mac            Linux
       50th           0                0               0
       75th             2               0               0
       90th            40              17              17
       95th           160              57             160
       99th         1200             890            1200



                 insouciant.org/tech/time-to-load-localstorage-into-memory/

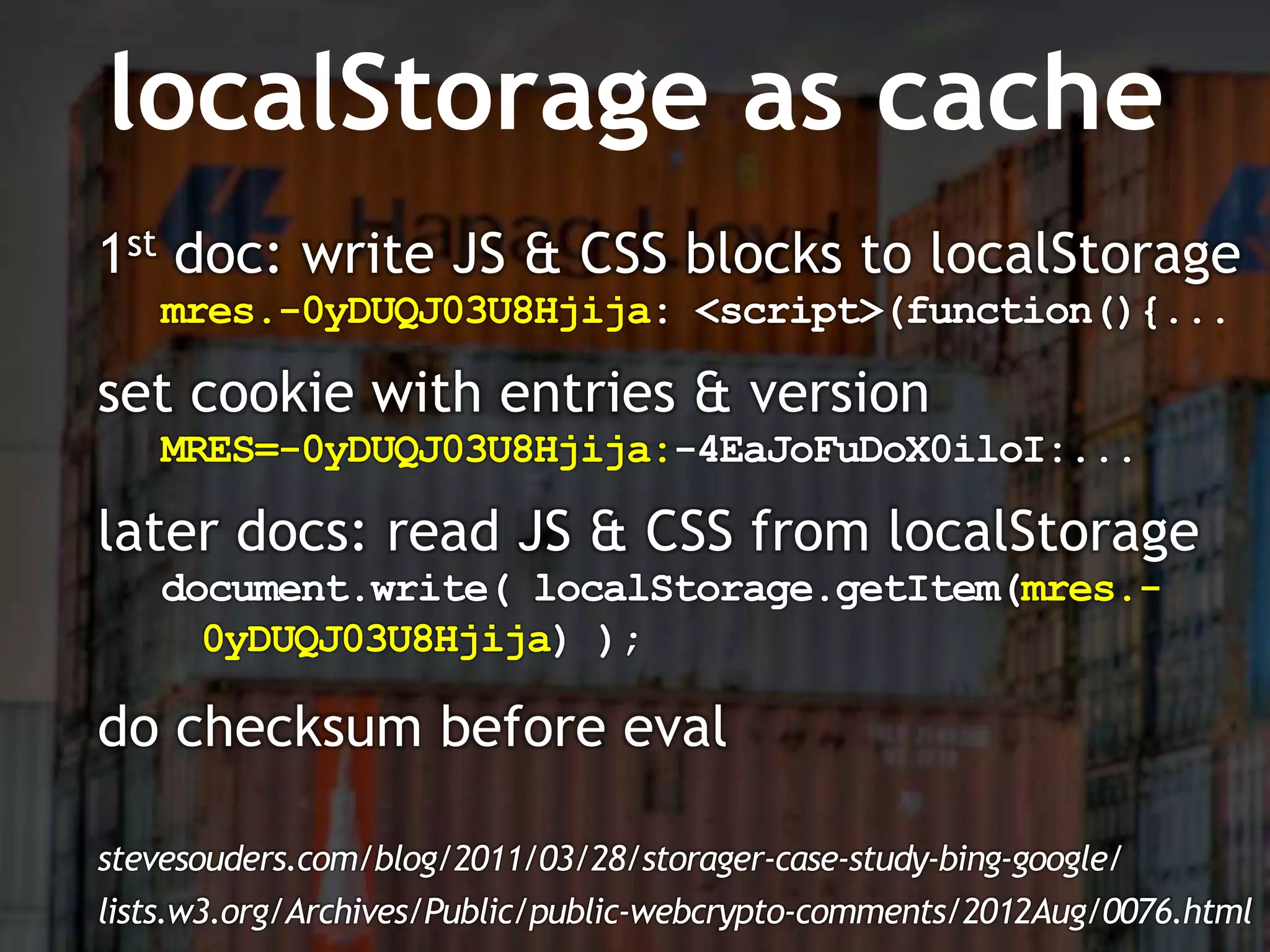

localStorage as cache
1st doc: write JS & CSS blocks to localStorage
   mres.-0yDUQJ03U8Hjija: <script>(function(){...

set cookie with entries & version
   MRES=-0yDUQJ03U8Hjija:-4EaJoFuDoX0iloI:...

later docs: read JS & CSS from localStorage
   document.write( localStorage.getItem(mres.-
     0yDUQJ03U8Hjija) );

do checksum before eval

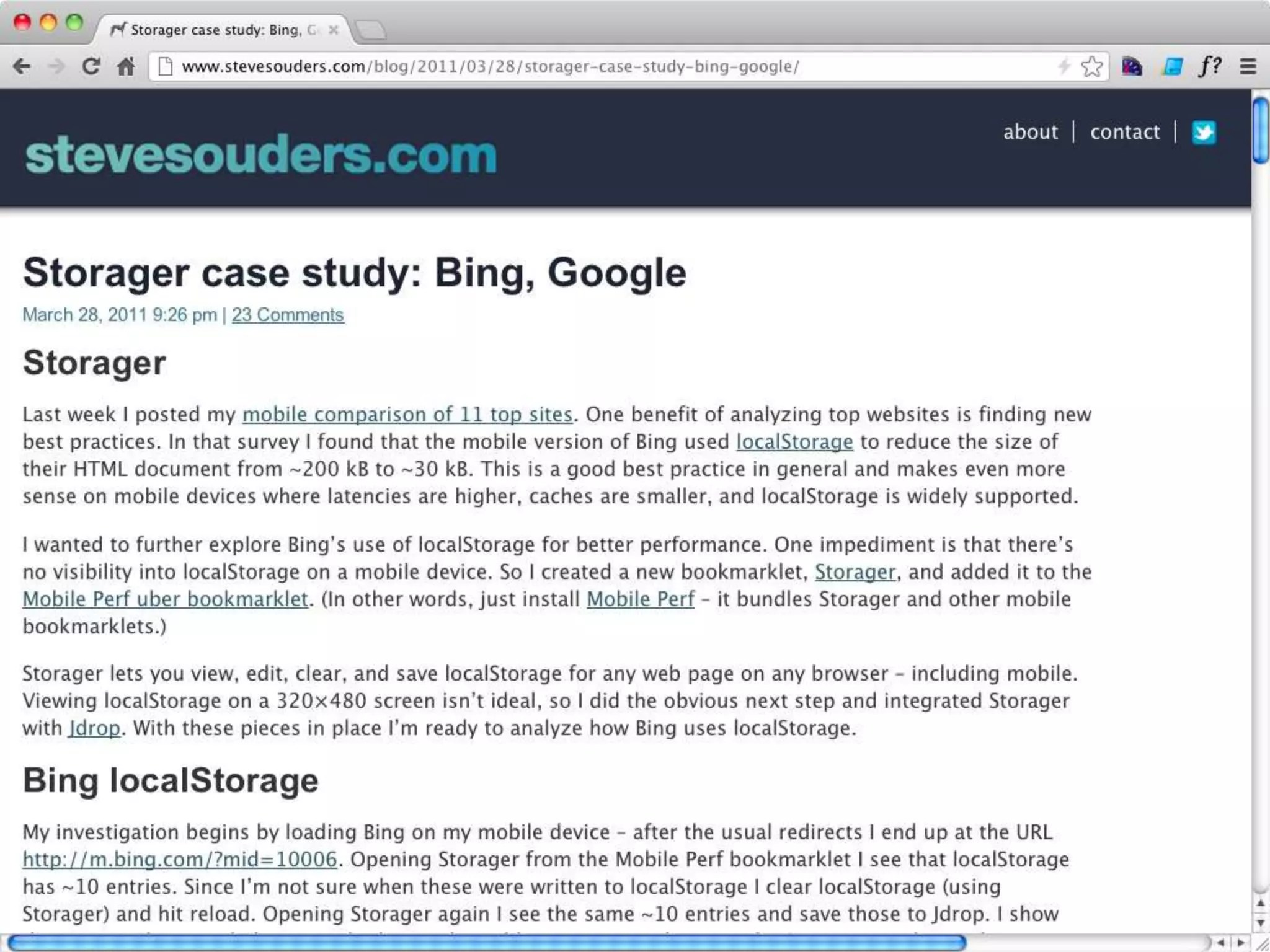

stevesouders.com/blog/2011/03/28/storager-case-study-bing-google/
lists.w3.org/Archives/Public/public-webcrypto-comments/2012Aug/0076.html
smarter browsers
bigger cache
smarter purging
prioritized websites

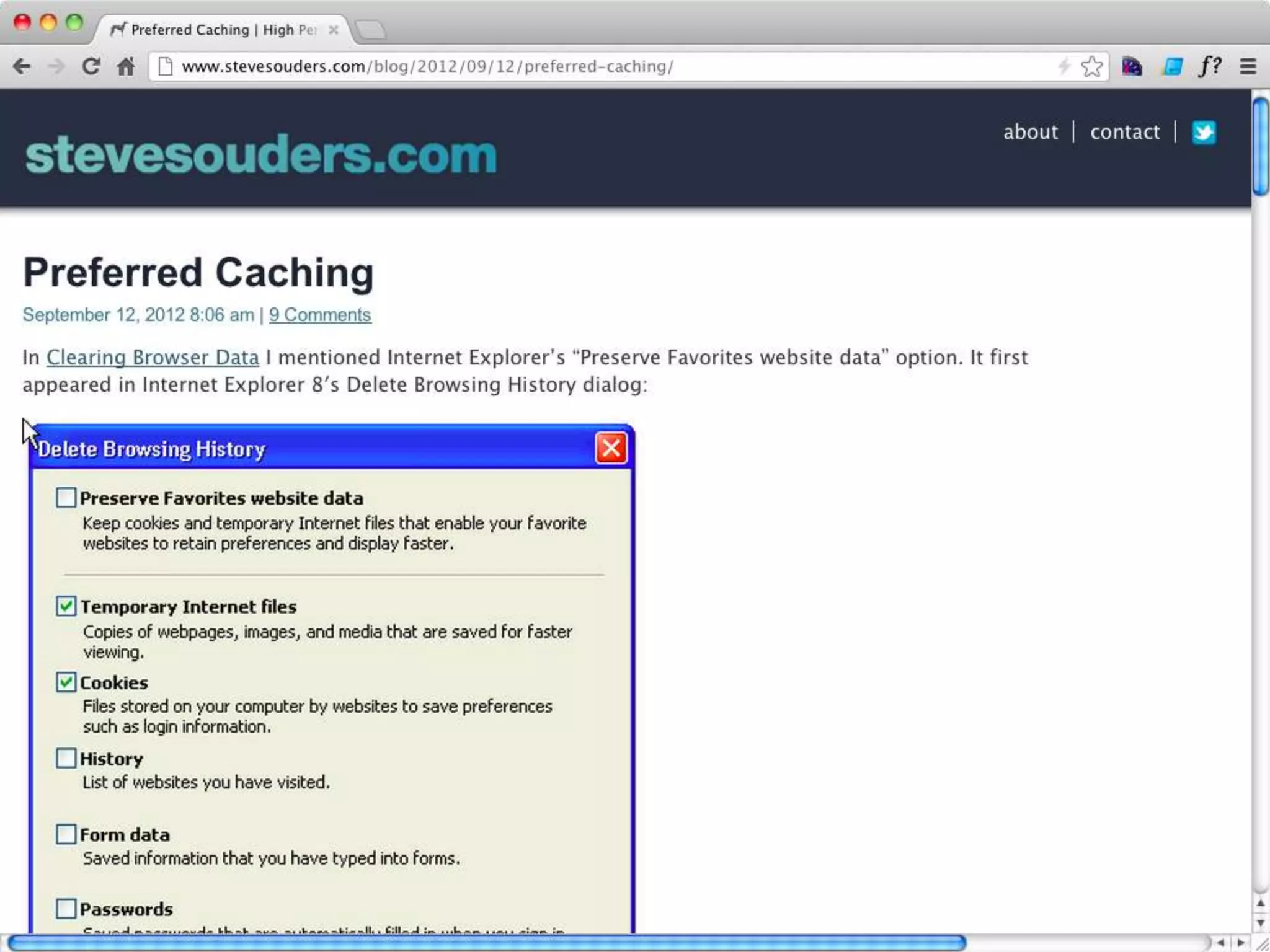

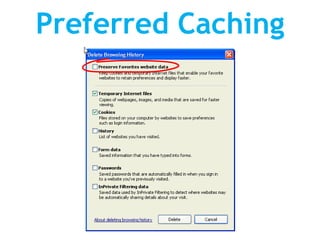

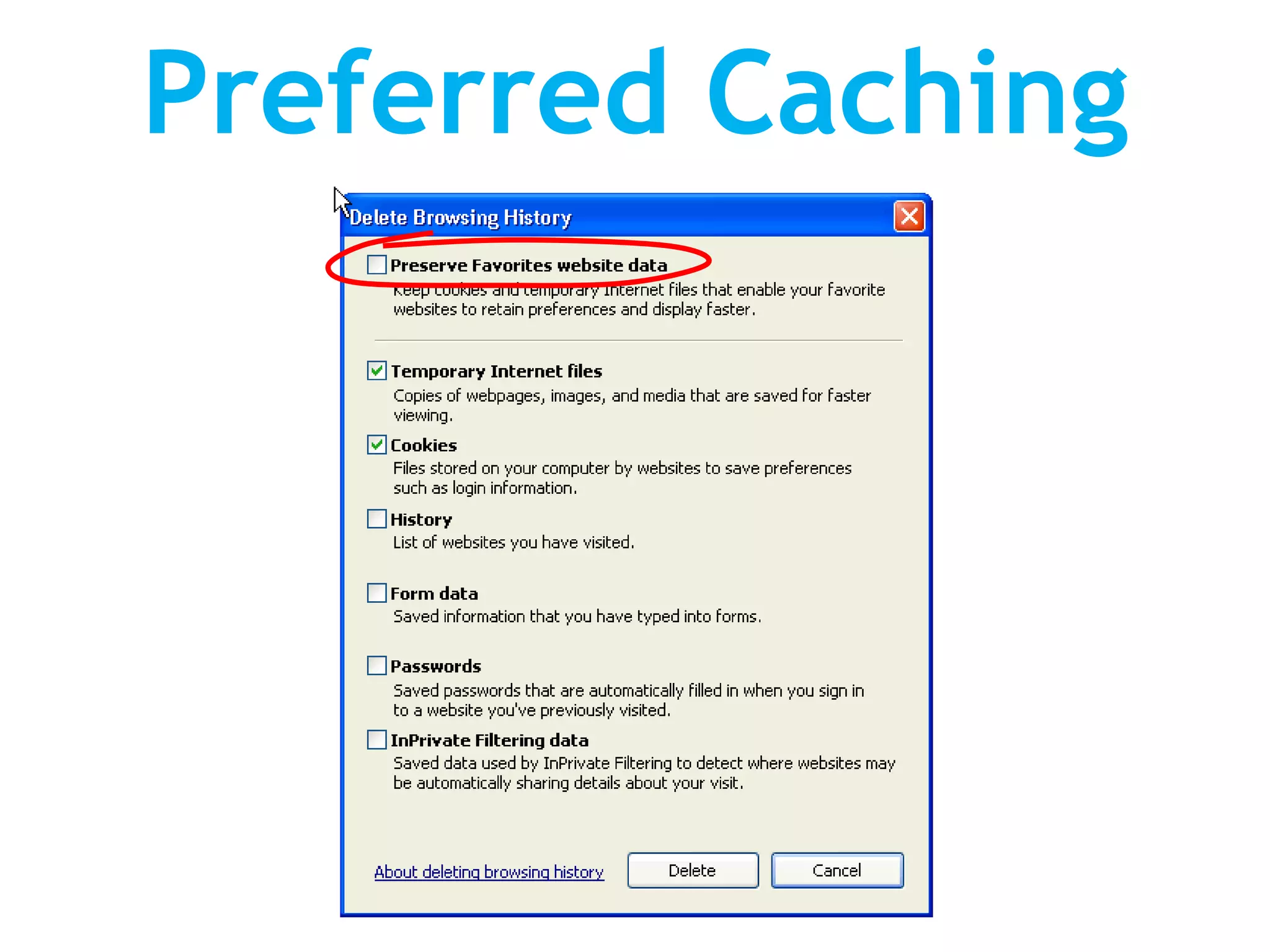

Preferred Caching

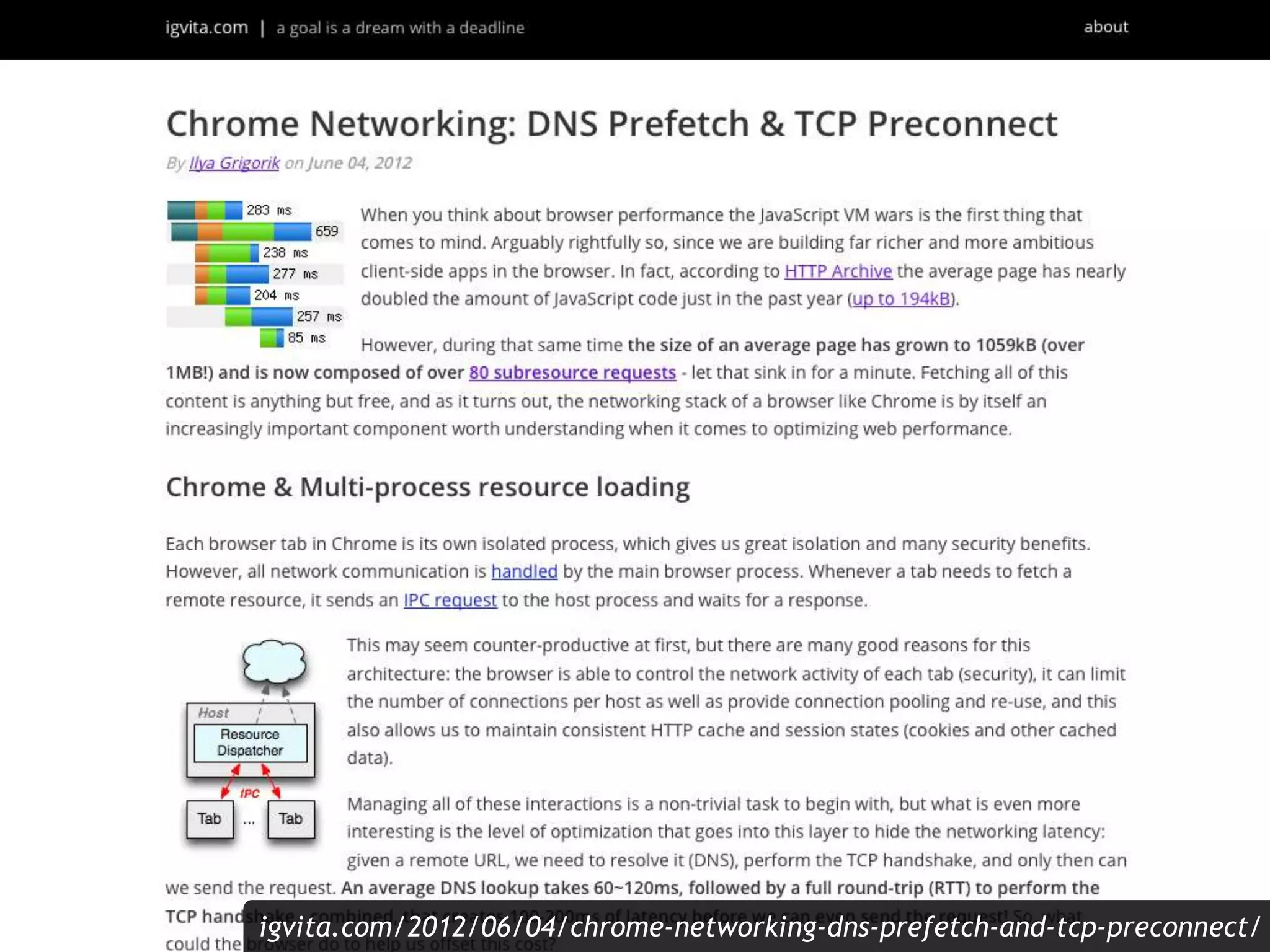

igvita.com/2012/06/04/chrome-networking-dns-prefetch-and-tcp-preconnect/
personalized
  browsing
takeaways
gather more cache stats for
 your users
be explicit! use max-age or
 no-cache
augment with localStorage &
 appcache
lobby browser vendors

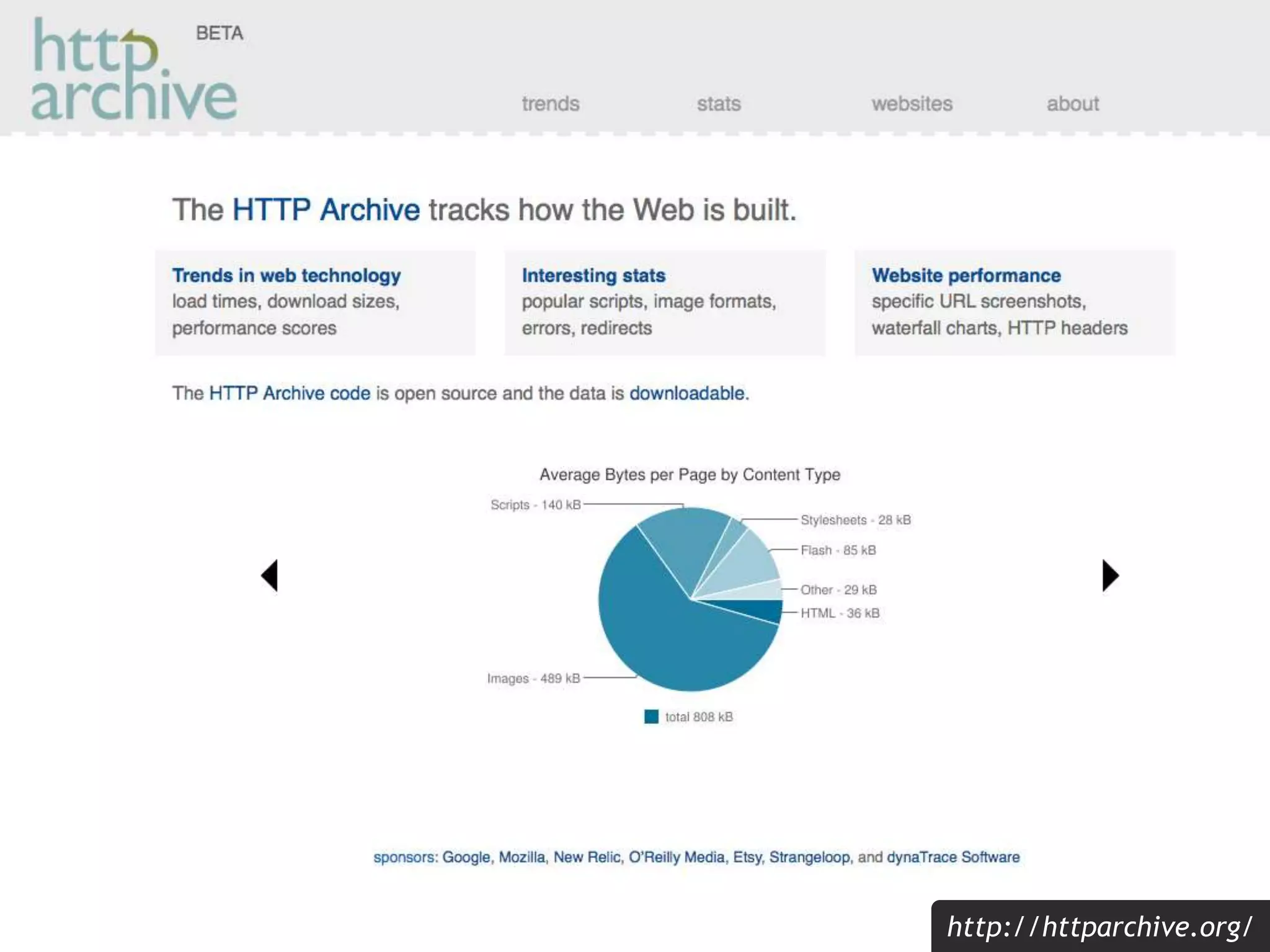

http://httparchive.org/
Steve Souders
                                             @souders
stevesouders.com/docs/html5dev-cacheisking-20121015.pptx

More Related Content

What's hot

Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)
Nicholas Zakas

High Performance JavaScript (CapitolJS 2011)
High Performance JavaScript (CapitolJS 2011)High Performance JavaScript (CapitolJS 2011)
High Performance JavaScript (CapitolJS 2011)
Nicholas Zakas

Cross-browser testing in the real world
Cross-browser testing in the real worldCross-browser testing in the real world
Cross-browser testing in the real world
Martin Kleppmann

Browser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom MenaceBrowser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom Menace
Nicholas Zakas

Node.js vs Play Framework
Node.js vs Play FrameworkNode.js vs Play Framework
Node.js vs Play Framework
Yevgeniy Brikman

Don't make me wait! or Building High-Performance Web Applications
Don't make me wait! or Building High-Performance Web ApplicationsDon't make me wait! or Building High-Performance Web Applications
Don't make me wait! or Building High-Performance Web Applications
Stoyan Stefanov

Performance on the Yahoo! Homepage
Performance on the Yahoo! HomepagePerformance on the Yahoo! Homepage
Performance on the Yahoo! Homepage
Nicholas Zakas

High Performance JavaScript 2011
High Performance JavaScript 2011High Performance JavaScript 2011
High Performance JavaScript 2011
Nicholas Zakas

Responsive interfaces
Responsive interfacesResponsive interfaces
Responsive interfaces
Nicholas Zakas

How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...
How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...
How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...
David Kaneda

High Performance JavaScript - WebDirections USA 2010
High Performance JavaScript - WebDirections USA 2010High Performance JavaScript - WebDirections USA 2010
High Performance JavaScript - WebDirections USA 2010
Nicholas Zakas

High Performance JavaScript (YUIConf 2010)
High Performance JavaScript (YUIConf 2010)High Performance JavaScript (YUIConf 2010)
High Performance JavaScript (YUIConf 2010)
Nicholas Zakas

The Play Framework at LinkedIn
The Play Framework at LinkedInThe Play Framework at LinkedIn
The Play Framework at LinkedIn
Yevgeniy Brikman

How to investigate and recover from a security breach in WordPress
How to investigate and recover from a security breach in WordPressHow to investigate and recover from a security breach in WordPress
How to investigate and recover from a security breach in WordPress
Otto Kekäläinen

JavaScript Timers, Power Consumption, and Performance
JavaScript Timers, Power Consumption, and PerformanceJavaScript Timers, Power Consumption, and Performance
JavaScript Timers, Power Consumption, and Performance
Nicholas Zakas

Java REST API Framework Comparison - PWX 2021
Java REST API Framework Comparison - PWX 2021Java REST API Framework Comparison - PWX 2021
Java REST API Framework Comparison - PWX 2021
Matt Raible

Clojure Web Development
Clojure Web DevelopmentClojure Web Development
Clojure Web Development
Hong Jiang

Mobile Web Speed Bumps
Mobile Web Speed BumpsMobile Web Speed Bumps
Mobile Web Speed Bumps
Nicholas Zakas

implement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflowimplement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflow
WordPress

AD113 Speed Up Your Applications w/ Nginx and PageSpeed
AD113  Speed Up Your Applications w/ Nginx and PageSpeedAD113  Speed Up Your Applications w/ Nginx and PageSpeed
AD113 Speed Up Your Applications w/ Nginx and PageSpeed
edm00se


What's hot (20)

Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)Progressive Enhancement 2.0 (Conference Agnostic)
Progressive Enhancement 2.0 (Conference Agnostic)

High Performance JavaScript (CapitolJS 2011)
High Performance JavaScript (CapitolJS 2011)High Performance JavaScript (CapitolJS 2011)
High Performance JavaScript (CapitolJS 2011)

Cross-browser testing in the real world
Cross-browser testing in the real worldCross-browser testing in the real world
Cross-browser testing in the real world

Browser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom MenaceBrowser Wars Episode 1: The Phantom Menace
Browser Wars Episode 1: The Phantom Menace

Node.js vs Play Framework
Node.js vs Play FrameworkNode.js vs Play Framework
Node.js vs Play Framework

Don't make me wait! or Building High-Performance Web Applications
Don't make me wait! or Building High-Performance Web ApplicationsDon't make me wait! or Building High-Performance Web Applications
Don't make me wait! or Building High-Performance Web Applications

Performance on the Yahoo! Homepage
Performance on the Yahoo! HomepagePerformance on the Yahoo! Homepage
Performance on the Yahoo! Homepage

High Performance JavaScript 2011
High Performance JavaScript 2011High Performance JavaScript 2011
High Performance JavaScript 2011

Responsive interfaces
Responsive interfacesResponsive interfaces
Responsive interfaces

How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...
How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...
How to Develop a Rich, Native-quality User Experience for Mobile Using Web St...

High Performance JavaScript - WebDirections USA 2010
High Performance JavaScript - WebDirections USA 2010High Performance JavaScript - WebDirections USA 2010
High Performance JavaScript - WebDirections USA 2010

High Performance JavaScript (YUIConf 2010)
High Performance JavaScript (YUIConf 2010)High Performance JavaScript (YUIConf 2010)
High Performance JavaScript (YUIConf 2010)

The Play Framework at LinkedIn
The Play Framework at LinkedInThe Play Framework at LinkedIn
The Play Framework at LinkedIn

How to investigate and recover from a security breach in WordPress
How to investigate and recover from a security breach in WordPressHow to investigate and recover from a security breach in WordPress
How to investigate and recover from a security breach in WordPress

JavaScript Timers, Power Consumption, and Performance
JavaScript Timers, Power Consumption, and PerformanceJavaScript Timers, Power Consumption, and Performance
JavaScript Timers, Power Consumption, and Performance

Java REST API Framework Comparison - PWX 2021
Java REST API Framework Comparison - PWX 2021Java REST API Framework Comparison - PWX 2021
Java REST API Framework Comparison - PWX 2021

Clojure Web Development
Clojure Web DevelopmentClojure Web Development
Clojure Web Development

Mobile Web Speed Bumps
Mobile Web Speed BumpsMobile Web Speed Bumps
Mobile Web Speed Bumps

implement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflowimplement lighthouse-ci with your web development workflow
implement lighthouse-ci with your web development workflow

AD113 Speed Up Your Applications w/ Nginx and PageSpeed
AD113  Speed Up Your Applications w/ Nginx and PageSpeedAD113  Speed Up Your Applications w/ Nginx and PageSpeed
AD113 Speed Up Your Applications w/ Nginx and PageSpeed


Similar to Cache is King

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站
areyouok

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站
topgeek

Csdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer YahooCsdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer Yahoo
guestb1b95b

Changhao jiang facebook
Changhao jiang facebookChanghao jiang facebook
Changhao jiang facebook
zipeng zhang

Persistent mobile JavaScript
Persistent mobile JavaScriptPersistent mobile JavaScript
Persistent mobile JavaScript
Yorick Phoenix

cache concepts and varnish-cache
cache concepts and varnish-cachecache concepts and varnish-cache
cache concepts and varnish-cache
Marc Cortinas Val

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站
George Ang

Mobile App Performance: Getting the Most from APIs (MBL203) | AWS re:Invent ...
Mobile App Performance:  Getting the Most from APIs (MBL203) | AWS re:Invent ...Mobile App Performance:  Getting the Most from APIs (MBL203) | AWS re:Invent ...
Mobile App Performance: Getting the Most from APIs (MBL203) | AWS re:Invent ...
Amazon Web Services

Developing High Performance and Scalable ColdFusion Application Using Terraco...
Developing High Performance and Scalable ColdFusion Application Using Terraco...Developing High Performance and Scalable ColdFusion Application Using Terraco...
Developing High Performance and Scalable ColdFusion Application Using Terraco...
ColdFusionConference

Developing High Performance and Scalable ColdFusion Applications Using Terrac...
Developing High Performance and Scalable ColdFusion Applications Using Terrac...Developing High Performance and Scalable ColdFusion Applications Using Terrac...
Developing High Performance and Scalable ColdFusion Applications Using Terrac...
Shailendra Prasad

Plop
PlopPlop
Plop
oakleaf

High Performance Web Sites
High Performance Web SitesHigh Performance Web Sites
High Performance Web Sites
Páris Neto

High Performance Websites By Souders Steve
High Performance Websites By Souders SteveHigh Performance Websites By Souders Steve
High Performance Websites By Souders Steve
w3guru

Dave Orchard - Offline Web Apps with HTML5
Dave Orchard - Offline Web Apps with HTML5Dave Orchard - Offline Web Apps with HTML5
Dave Orchard - Offline Web Apps with HTML5
Web Directions

Ehcache Architecture, Features And Usage Patterns
Ehcache Architecture, Features And Usage PatternsEhcache Architecture, Features And Usage Patterns
Ehcache Architecture, Features And Usage Patterns
Eduardo Pelegri-Llopart

Altitude SF 2017: The power of the network
Altitude SF 2017: The power of the networkAltitude SF 2017: The power of the network
Altitude SF 2017: The power of the network
Fastly

Drupal Performance - SerBenfiquista.com Case Study
Drupal Performance - SerBenfiquista.com Case StudyDrupal Performance - SerBenfiquista.com Case Study
Drupal Performance - SerBenfiquista.com Case Study
hernanibf

HTML5와 모바일
HTML5와 모바일HTML5와 모바일
HTML5와 모바일
ACCESS

Building low latency java applications with ehcache
Building low latency java applications with ehcacheBuilding low latency java applications with ehcache
Building low latency java applications with ehcache
Chris Westin

Nginx Scalable Stack
Nginx Scalable StackNginx Scalable Stack
Nginx Scalable Stack
Bruno Paiuca


Similar to Cache is King (20)

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站

Csdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer YahooCsdn Drdobbs Tenni Theurer Yahoo
Csdn Drdobbs Tenni Theurer Yahoo

Changhao jiang facebook
Changhao jiang facebookChanghao jiang facebook
Changhao jiang facebook

Persistent mobile JavaScript
Persistent mobile JavaScriptPersistent mobile JavaScript
Persistent mobile JavaScript

cache concepts and varnish-cache
cache concepts and varnish-cachecache concepts and varnish-cache
cache concepts and varnish-cache

腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站腾讯大讲堂09 如何建设高性能网站
腾讯大讲堂09 如何建设高性能网站

Mobile App Performance: Getting the Most from APIs (MBL203) | AWS re:Invent ...
Mobile App Performance:  Getting the Most from APIs (MBL203) | AWS re:Invent ...Mobile App Performance:  Getting the Most from APIs (MBL203) | AWS re:Invent ...
Mobile App Performance: Getting the Most from APIs (MBL203) | AWS re:Invent ...

Developing High Performance and Scalable ColdFusion Application Using Terraco...
Developing High Performance and Scalable ColdFusion Application Using Terraco...Developing High Performance and Scalable ColdFusion Application Using Terraco...
Developing High Performance and Scalable ColdFusion Application Using Terraco...

Developing High Performance and Scalable ColdFusion Applications Using Terrac...
Developing High Performance and Scalable ColdFusion Applications Using Terrac...Developing High Performance and Scalable ColdFusion Applications Using Terrac...
Developing High Performance and Scalable ColdFusion Applications Using Terrac...

Plop
PlopPlop
Plop

High Performance Web Sites
High Performance Web SitesHigh Performance Web Sites
High Performance Web Sites

High Performance Websites By Souders Steve
High Performance Websites By Souders SteveHigh Performance Websites By Souders Steve
High Performance Websites By Souders Steve

Dave Orchard - Offline Web Apps with HTML5
Dave Orchard - Offline Web Apps with HTML5Dave Orchard - Offline Web Apps with HTML5
Dave Orchard - Offline Web Apps with HTML5

Ehcache Architecture, Features And Usage Patterns
Ehcache Architecture, Features And Usage PatternsEhcache Architecture, Features And Usage Patterns
Ehcache Architecture, Features And Usage Patterns

Altitude SF 2017: The power of the network
Altitude SF 2017: The power of the networkAltitude SF 2017: The power of the network
Altitude SF 2017: The power of the network

Drupal Performance - SerBenfiquista.com Case Study
Drupal Performance - SerBenfiquista.com Case StudyDrupal Performance - SerBenfiquista.com Case Study
Drupal Performance - SerBenfiquista.com Case Study

HTML5와 모바일
HTML5와 모바일HTML5와 모바일
HTML5와 모바일

Building low latency java applications with ehcache
Building low latency java applications with ehcacheBuilding low latency java applications with ehcache
Building low latency java applications with ehcache

Nginx Scalable Stack
Nginx Scalable StackNginx Scalable Stack
Nginx Scalable Stack


More from Steve Souders

Make JavaScript Faster
Make JavaScript FasterMake JavaScript Faster
Make JavaScript Faster
Steve Souders

Metrics of Joy
Metrics of JoyMetrics of Joy
Metrics of Joy
Steve Souders

Design+Performance
Design+PerformanceDesign+Performance
Design+Performance
Steve Souders

Design+Performance Velocity 2015
Design+Performance Velocity 2015Design+Performance Velocity 2015
Design+Performance Velocity 2015
Steve Souders

do u webview?
do u webview?do u webview?
do u webview?
Steve Souders

High Performance Web Components
High Performance Web ComponentsHigh Performance Web Components
High Performance Web Components
Steve Souders

The Perception of Speed
The Perception of SpeedThe Perception of Speed
The Perception of Speed
Steve Souders

High Performance Web Components
High Performance Web ComponentsHigh Performance Web Components
High Performance Web Components
Steve Souders

Prebrowsing - Velocity NY 2013
Prebrowsing - Velocity NY 2013Prebrowsing - Velocity NY 2013
Prebrowsing - Velocity NY 2013
Steve Souders

How fast are we going now?
How fast are we going now?How fast are we going now?
How fast are we going now?
Steve Souders

JavaScript Performance (at SFJS)
JavaScript Performance (at SFJS)JavaScript Performance (at SFJS)
JavaScript Performance (at SFJS)
Steve Souders

High Performance Mobile (SF/SV Web Perf)
High Performance Mobile (SF/SV Web Perf)High Performance Mobile (SF/SV Web Perf)
High Performance Mobile (SF/SV Web Perf)
Steve Souders

High Performance HTML5 (SF HTML5 UG)
High Performance HTML5 (SF HTML5 UG)High Performance HTML5 (SF HTML5 UG)
High Performance HTML5 (SF HTML5 UG)
Steve Souders

Web Directions South - Even Faster Web Sites
Web Directions South - Even Faster Web SitesWeb Directions South - Even Faster Web Sites
Web Directions South - Even Faster Web Sites
Steve Souders

@media - Even Faster Web Sites
@media - Even Faster Web Sites@media - Even Faster Web Sites
@media - Even Faster Web Sites
Steve Souders

Souders WPO Web 2.0 Expo
Souders WPO Web 2.0 ExpoSouders WPO Web 2.0 Expo
Souders WPO Web 2.0 Expo
Steve Souders

JSConf US 2010
JSConf US 2010JSConf US 2010
JSConf US 2010
Steve Souders

CouchDB Google
CouchDB GoogleCouchDB Google
CouchDB Google
Steve Souders

Even Faster Web Sites at jQuery Conference '09
Even Faster Web Sites at jQuery Conference '09Even Faster Web Sites at jQuery Conference '09
Even Faster Web Sites at jQuery Conference '09
Steve Souders

Browserscope Launch at TAE
Browserscope Launch at TAEBrowserscope Launch at TAE
Browserscope Launch at TAE
Steve Souders


More from Steve Souders (20)

Make JavaScript Faster
Make JavaScript FasterMake JavaScript Faster
Make JavaScript Faster

Metrics of Joy
Metrics of JoyMetrics of Joy
Metrics of Joy

Design+Performance
Design+PerformanceDesign+Performance
Design+Performance

Design+Performance Velocity 2015
Design+Performance Velocity 2015Design+Performance Velocity 2015
Design+Performance Velocity 2015

do u webview?
do u webview?do u webview?
do u webview?

High Performance Web Components
High Performance Web ComponentsHigh Performance Web Components
High Performance Web Components

The Perception of Speed
The Perception of SpeedThe Perception of Speed
The Perception of Speed

High Performance Web Components
High Performance Web ComponentsHigh Performance Web Components
High Performance Web Components

Prebrowsing - Velocity NY 2013
Prebrowsing - Velocity NY 2013Prebrowsing - Velocity NY 2013
Prebrowsing - Velocity NY 2013

How fast are we going now?
How fast are we going now?How fast are we going now?
How fast are we going now?

JavaScript Performance (at SFJS)
JavaScript Performance (at SFJS)JavaScript Performance (at SFJS)
JavaScript Performance (at SFJS)

High Performance Mobile (SF/SV Web Perf)
High Performance Mobile (SF/SV Web Perf)High Performance Mobile (SF/SV Web Perf)
High Performance Mobile (SF/SV Web Perf)

High Performance HTML5 (SF HTML5 UG)
High Performance HTML5 (SF HTML5 UG)High Performance HTML5 (SF HTML5 UG)
High Performance HTML5 (SF HTML5 UG)

Web Directions South - Even Faster Web Sites
Web Directions South - Even Faster Web SitesWeb Directions South - Even Faster Web Sites
Web Directions South - Even Faster Web Sites

@media - Even Faster Web Sites
@media - Even Faster Web Sites@media - Even Faster Web Sites
@media - Even Faster Web Sites

Souders WPO Web 2.0 Expo
Souders WPO Web 2.0 ExpoSouders WPO Web 2.0 Expo
Souders WPO Web 2.0 Expo

JSConf US 2010
JSConf US 2010JSConf US 2010
JSConf US 2010

CouchDB Google
CouchDB GoogleCouchDB Google
CouchDB Google

Even Faster Web Sites at jQuery Conference '09
Even Faster Web Sites at jQuery Conference '09Even Faster Web Sites at jQuery Conference '09
Even Faster Web Sites at jQuery Conference '09

Browserscope Launch at TAE
Browserscope Launch at TAEBrowserscope Launch at TAE
Browserscope Launch at TAE


Cache is King

  • 1. Cache is King stevesouders.com/docs/html5dev-cacheisking-20121015.pptx Disclaimer: This content does not necessarily reflect the opinions of my employer.
  • 23. Experiment Setup Baseline: WebPagetest.org Alexa world top 1000 IE9 DSL: 1.5 Mbps down, 384 Kbps up, 50ms RTT empty cache (“first view”) median of 3 tests window.onload
  • 24. Long Pole in the Tent Fast Network: FIOS: 20 Mbps down, 5 Mbps up, 4ms RTT No JavaScript: disable JavaScript Primed Cache: “repeat view”
  • 26. 7.65 4.74 4.13 3.46
  • 27. 7.65 4.74 4.13 3.46
  • 28. 7.65 4.74 4.13 3.46
  • 29. 7.65 4.74 4.13 3.46
  • 30. Caching 101: simple GET  GET /scripts/main.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 204528 function(){… next time:  GET /scripts/main.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 204528 function(){… How can we avoid downloading 200K if the file hasn’t changed?
  • 31. Caching 101: Conditional GET  GET /scripts/main.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 204528 Last-Modified: Mon, 24 Sep 2012 21:14:35 GMT Etag: “3Rsttw” function(){… next time:  GET /scripts/main.js HTTP/1.1 If-Modified-Since: Mon, 24 Sep 2012 21:14:35 GMT If-None-Match: “3Rsttw”  HTTP/1.1 304 Not Modified 304 response saves us 200K – yay! Is there a way to avoid checking EVERY time?
  • 32. Caching 101: max-age  GET /scripts/main.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 204528 Last-Modified: Mon, 24 Sep 2012 21:14:35 GMT Cache-control: max-age=31536000 function(){… next time (within 1 year):  [nothing] max-age eliminates HTTP request How avoid caching, e.g., dynamic responses?
  • 33. Caching 101: no-cache  GET /scripts/inbox.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 1328 Cache-control: no-cache, must-revalidate, max-age=0 function(){… next time:  GET /scripts/inbox.js HTTP/1.1  HTTP/1.1 200 OK Content-Type: text/javascript Content-Length: 1417 Cache-control: no-cache, must-revalidate, max-age=0 function(){… Be explicit! Use max-age or no-cache.
  • 34. Top 1K no-cache or must-revalidate 10% 4% 14% of requests have Cache-Control: no-cache or must-revalidate 24% have no Cache-Control header at all 27% have no max-age (heuristic caching) http://httparchive.org/interesting.php
  • 35. Top 300K no-cache or must-revalidate 9% 4% 13% of requests have Cache-Control: no-cache or must-revalidate 44% have no Cache-Control header at all 48% have no max-age (heuristic caching) http://httparchive.org/interesting.php
  • 36. Top 50K-300K slow increase in adoption http://httparchive.org/trends.php
  • 37. Heuristic Caching RFC2616: [in the absence of max-age] the cache MAY compute a freshness lifetime using a heuristic. […]if the response does have a Last-Modified time, the heuristic expiration value SHOULD be no more than some fraction of the interval since that time. A typical setting of this fraction might be 10%. recall 48% of requests have no max-age! What’s (10% of) the typical interval?
  • 38. 6% heuristic max-age < 1 day 30% heuristic max-age > 3 days but why don’t they have max-age?! 8% “unknown” checked once per session (IE9)
  • 40. www.airbnb.com/ 72 requests 81% have Cache-Control 10% expire in < 1 day 78% have Last-Modified 40 days median L-M interval
  • 41. www.pinterest.com/ 131 requests 87% have Cache-Control 2% expire in < 1 day 94% have Last-Modified 151 days median L-M interval
  • 42. www.stackmob.com/ 52 requests 25% have Cache-Control 1% expire in < 1 day 81% have Last-Modified 241 days median L-M interval
  • 43. www.mozilla.org/ 32 requests 31% have Cache-Control 16% expire in < 1 day 84% have Last-Modified 24 days median L-M interval
  • 44. www.zendesk.com/ 70 requests 94% have Cache-Control 59% expire in < 1 day 69% have Last-Modified 59 days median L-M interval
  • 45. www.catch.com/ 52 requests 19% have Cache-Control 50% expire in < 1 day 69% have Last-Modified 151 days median L-M interval
  • 46. www.intel.com/ 90 requests 66% have Cache-Control 84% expire in < 1 day 81% have Last-Modified 12 days median L-M interval
  • 48. www.boston.com/ 69 requests 69% have Cache-Control 71% expire in < 1 day 73% have Last-Modified 61 days median L-M interval
  • 49. www.time.com/ 171 requests 35% have Cache-Control 71% expire in < 1 day 69% have Last-Modified 166 days median L-M interval
  • 50. www.usatoday.com/ 127 requests 29% have Cache-Control 67% expire in < 1 day 79% have Last-Modified 29 days median L-M interval
  • 51. www.telegraph.co.uk/ 179 requests 28% have Cache-Control 84% expire in < 1 day 77% have Last-Modified 106 days median L-M interval
  • 52. www.tmz.com/ 439 requests 51% have Cache-Control 48% expire in < 1 day 59% have Last-Modified 25 days median L-M interval
  • 53. be explicit always specify Cache-Control: max-age OR no-cache
  • 54. 20% of page views done with “empty cache” 40-60% of daily users experience “empty cache” www.yuiblog.com/blog/2007/01/04/performance-research-part-2/
  • 55. approximately 70% of users do not have full caches [so 30% do have a full cache] for those users who filled up their cache…how many hours of "active" browsing does it take to fill the cache? 25% in 1 hour, 50% in 4 hours, and 75% in 10 hours. 7% of users will clear their cache…once per week… 19% of users will experience fatal cache corruption at least once per week, thus requiring nuking the whole cache. plus.google.com/103382935642834907366/posts/XRekvZgdnBb
  • 57. app cache offline apps, longer cache <!doctype html> <html manifest=“myapp.appcache”> myapp.appcache: CACHE MANIFEST # Revision: 1.28 CACHE: /images/logo.gif NETWORK: /login.html FALLBACK: /index.html /offline.html Content-Type: text/cache-manifest
  • 58. app cache gotchas html docs w/ manifest are cached 404 => nothing is cached size: 5MB+ must rev manifest to update resources update is served on 2nd reload (?!?!)
  • 59. push app logo.gif = user loads app app cache is empty app fetch manifest fetch logo.gif cache app cache = user sees reload push app user loads app user loads app again logo.gif = app cache = app cache = rev manifest user sees user sees fetch manifest fetch manifest (304) fetch logo.gif app cache =
  • 60. load twice workaround window.applicationCache.addEventListener('upda teready', function(e) { if ( window.applicationCache.status == window.applicationCache.UPDATEREADY) { if ( confirm(“Load new content?”) ) { ... http://www.webdirections.org/blog/get-offline/ http://www.html5rocks.com/en/tutorials/appcache/beginner/
  • 61. localStorage window.localStorage: setItem() getItem() removeItem() clear() also sessionStorage all popular browsers, 5MB max warning: it’s synchronous http://dev.w3.org/html5/webstorage/ http://diveintohtml5.org/storage.html
  • 62. a day’s worth of Google Chrome dev channel weekend traffic on desktop Chrome Time in ms to prime localStorage from disk: Percentile Windows Mac Linux 50th 0 0 0 75th 2 0 0 90th 40 17 17 95th 160 57 160 99th 1200 890 1200 insouciant.org/tech/time-to-load-localstorage-into-memory/
  • 63. localStorage as cache 1st doc: write JS & CSS blocks to localStorage mres.-0yDUQJ03U8Hjija: <script>(function(){... set cookie with entries & version MRES=-0yDUQJ03U8Hjija:-4EaJoFuDoX0iloI:... later docs: read JS & CSS from localStorage document.write( localStorage.getItem(mres.- 0yDUQJ03U8Hjija) ); do checksum before eval stevesouders.com/blog/2011/03/28/storager-case-study-bing-google/ lists.w3.org/Archives/Public/public-webcrypto-comments/2012Aug/0076.html
  • 64. smarter browsers bigger cache smarter purging prioritized websites
  • 68. takeaways gather more cache stats for your users be explicit! use max-age or no-cache augment with localStorage & appcache lobby browser vendors
  • 70. Steve Souders @souders stevesouders.com/docs/html5dev-cacheisking-20121015.pptx

Editor's Notes

  1. http://www.flickr.com/photos/athrasher/2823255013/
  2. http://www.flickr.com/photos/madeforglorysigns/4311427541/used with permission from Golden West Sign Arts
  3. http://www.flickr.com/photos/59937401@N07/5857449830/
  4. http://www.flickr.com/photos/drewish/106431464/
  5. http://www.flickr.com/photos/thomasfisherlibrary/5912522676/Creator: Tyrrell, Joseph Burr, 1858-1957Title: An Indian cache near Aishihik [Yukon, Canada]Notes: Title transcribed from caption. From an album of Joseph Tyrrell’s photographs of the Klondike, 1898-1899Date: 1898
  6. http://www.flickr.com/photos/michaelcr/773201918/
  7. http://chart.apis.google.com/chart?chd=t:-1|90,0,0,0|-1|904,0,0,0&amp;chxl=0:|Baseline|No%20JS|Fast%20Network|Primed%20Cache&amp;chxt=x,y,r&amp;chs=600x300&amp;cht=lxy&amp;chco=15A50E,006600&amp;chm=N,15A50E,0,-1,12,,h::8|N**kB,006600,1,-1,12,,h::8|o,15A50E,0,-1,6|o,006600,1,-1,6&amp;chds=9,99,20,150,9,99,100,1000&amp;chts=006600,24&amp;chtt=Total+Transfer+Size+%26+Total+Requests&amp;chma=5,5,5,25&amp;chls=1,6,3|1&amp;chxr=1,100,1000,100|2,20,150,20&amp;chxs=1,006600,11.5,-0.5,lt,006600,006600|2,15A50E,11.5,-0.5,lt,15A50E,15A50E&amp;chxtc=0,4|1,4&amp;chxp=0&amp;chdl=Total+Requests|Total+Transfer+Size+%28kB%29&amp;chdlp=bv|r
  8. lessblockingmuchfewerrequestshttp://chart.apis.google.com/chart?chd=t:-1|90,59,0,0|-1|904,577,0,0&amp;chxl=0:|Baseline|No%20JS|Fast%20Network|Primed%20Cache&amp;chxt=x,y,r&amp;chs=600x300&amp;cht=lxy&amp;chco=15A50E,006600&amp;chm=N,15A50E,0,-1,12,,h::8|N**kB,006600,1,-1,12,,h::8|o,15A50E,0,-1,6|o,006600,1,-1,6&amp;chds=9,99,20,150,9,99,100,1000&amp;chts=006600,24&amp;chtt=Total+Transfer+Size+%26+Total+Requests&amp;chma=5,5,5,25&amp;chls=1,6,3|1&amp;chxr=1,100,1000,100|2,20,150,20&amp;chxs=1,006600,11.5,-0.5,lt,006600,006600|2,15A50E,11.5,-0.5,lt,15A50E,15A50E&amp;chxtc=0,4|1,4&amp;chxp=0&amp;chdl=Total+Requests|Total+Transfer+Size+%28kB%29&amp;chdlp=bv|r
  9. same # ofrequests &amp; sizeasbaseline10x fasterconnectionimaginechallengesfor mobilehttp://chart.apis.google.com/chart?chd=t:-1|90,59,91,0|-1|904,577,927,0&amp;chxl=0:|Baseline|No%20JS|Fast%20Network|Primed%20Cache&amp;chxt=x,y,r&amp;chs=600x300&amp;cht=lxy&amp;chco=15A50E,006600&amp;chm=N,15A50E,0,-1,12,,h::8|N**kB,006600,1,-1,12,,h::8|o,15A50E,0,-1,6|o,006600,1,-1,6&amp;chds=9,99,20,150,9,99,100,1000&amp;chts=006600,24&amp;chtt=Total+Transfer+Size+%26+Total+Requests&amp;chma=5,5,5,25&amp;chls=1,6,3|1&amp;chxr=1,100,1000,100|2,20,150,20&amp;chxs=1,006600,11.5,-0.5,lt,006600,006600|2,15A50E,11.5,-0.5,lt,15A50E,15A50E&amp;chxtc=0,4|1,4&amp;chxp=0&amp;chdl=Total+Requests|Total+Transfer+Size+%28kB%29&amp;chdlp=bv|r
  10. 32requests, 163 kBimmediately after so even 10 min cache time helpshttp://chart.apis.google.com/chart?chd=t:-1|90,59,91,32|-1|904,577,927,163&amp;chxl=0:|Baseline|No%20JS|Fast%20Network|Primed%20Cache&amp;chxt=x,y,r&amp;chs=600x300&amp;cht=lxy&amp;chco=15A50E,006600&amp;chm=N,15A50E,0,-1,12,,h::8|N**kB,006600,1,-1,12,,h::8|o,15A50E,0,-1,6|o,006600,1,-1,6&amp;chds=9,99,20,150,9,99,100,1000&amp;chts=006600,24&amp;chtt=Total+Transfer+Size+%26+Total+Requests&amp;chma=5,5,5,25&amp;chls=1,6,3|1&amp;chxr=1,100,1000,100|2,20,150,20&amp;chxs=1,006600,11.5,-0.5,lt,006600,006600|2,15A50E,11.5,-0.5,lt,15A50E,15A50E&amp;chxtc=0,4|1,4&amp;chxp=0&amp;chdl=Total+Requests|Total+Transfer+Size+%28kB%29&amp;chdlp=bv|r
  11. nit: you do NOT need to send Cache-Control on 204 responses
  12. Alexa Top 1000
  13. Alexa Top 1000
  14. http://www.flickr.com/photos/auntiep/5547038689/
  15. Many other speaker website’s were nearly as good (and uninteresting): Adobe, The Onion, Groupon, EventBrite, Nokia
  16. Sidney Maestre
  17. Christian
  18. Mikito
  19. http://www.flickr.com/photos/marlon-bunday-mmx/4988354238/
  20. http://www.flickr.com/photos/gedankenstuecke/2749387908/
  21. flickr.com/photos/india-nepal-iran/203982474/
  22. flickr.com/photos/97657657@N00/1918688483/
  23. flickr.com/photos/presley_m/5152304885/
  24. flickr.com/photos/bryanpearson/564703455/
  25. flickr.com/photos/nelsoncruz/431244400/
  26. http://www.flickr.com/photos/hugovk/216375074/
  27. resolve 10 most visited sites at startuppreconnect to preferred search engine when focus on omnibarresolve and preconnect to subresource domains
  28. http://www.flickr.com/photos/bymeeni/4779608045/link prefetch is for ALL users – not necessarily where I navigatethe pattern learning has to occur on the clientbased on past behavior and present context, preload the content relevant to where I’ll go in the future
  29. http://www.flickr.com/photos/scottlynchnyc/7040609039/
