Html xhtml tag-sheet

Roger Lipera 011/12 v5 Interactive Media Center
rlipera@albany.edu http://library.albany.edu/imc/
This and other free handouts are available on our Web site.
1
Interactive Media Center
http://library.albany.edu/imc/

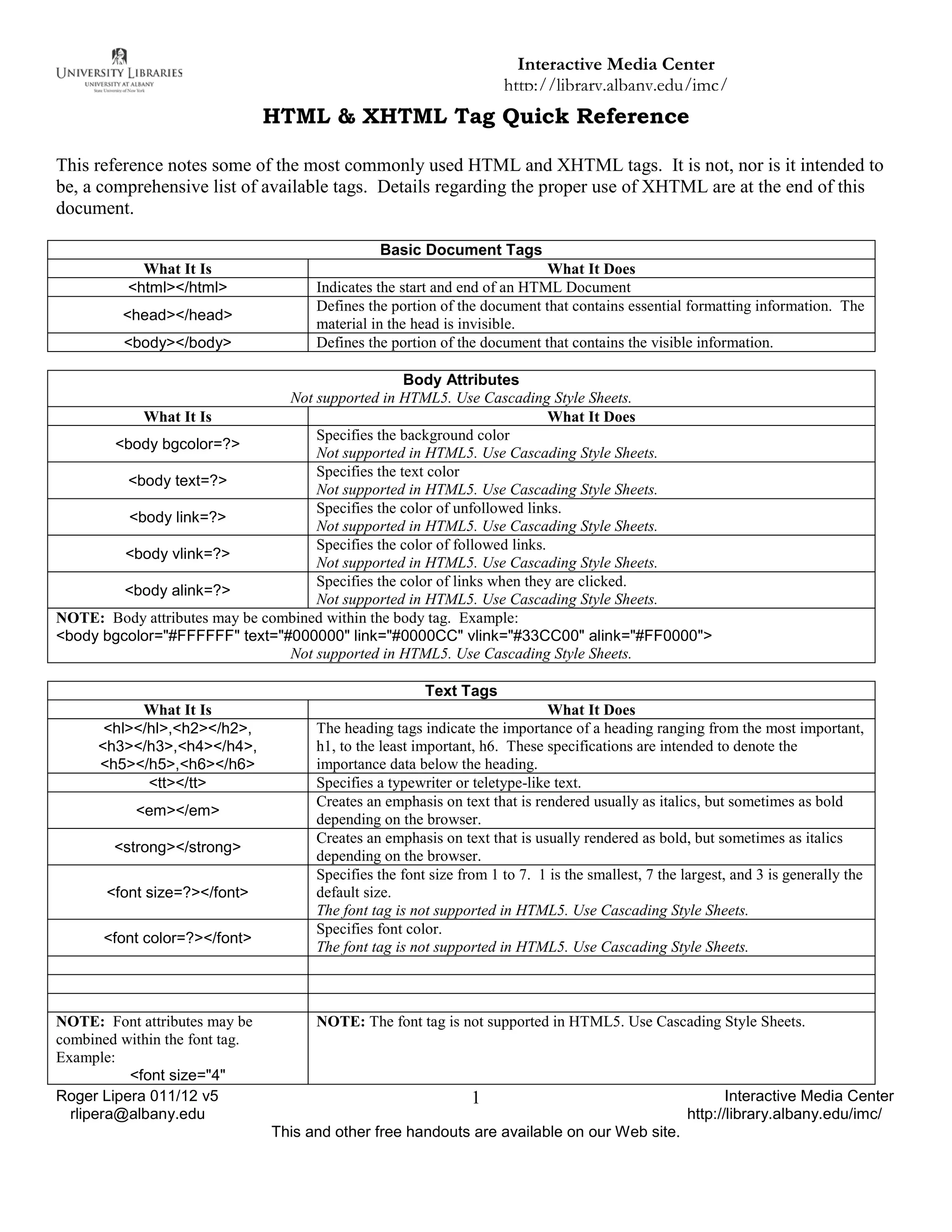

HTML & XHTML Tag Quick Reference
This reference notes some of the most commonly used HTML and XHTML tags. It is not, nor is it intended to
be, a comprehensive list of available tags. Details regarding the proper use of XHTML are at the end of this
document.
Basic Document Tags
What It Is What It Does
<html></html> Indicates the start and end of an HTML Document
<head></head>
Defines the portion of the document that contains essential formatting information. The
material in the head is invisible.
<body></body> Defines the portion of the document that contains the visible information.
Body Attributes
Not supported in HTML5. Use Cascading Style Sheets.
<body bgcolor=?>
Specifies the background color
<body text=?>
Specifies the text color
<body link=?>
Specifies the color of unfollowed links.
<body vlink=?>
Specifies the color of followed links.
<body alink=?>
Specifies the color of links when they are clicked.
NOTE: Body attributes may be combined within the body tag. Example:
<body bgcolor="#FFFFFF" text="#000000" link="#0000CC" vlink="#33CC00" alink="#FF0000">
Text Tags
<hl></hl>,<h2></h2>,
<h3></h3>,<h4></h4>,
<h5></h5>,<h6></h6>
The heading tags indicate the importance of a heading ranging from the most important,
h1, to the least important, h6. These specifications are intended to denote the
importance data below the heading.
<tt></tt> Specifies a typewriter or teletype-like text.
<em></em>
Creates an emphasis on text that is rendered usually as italics, but sometimes as bold
depending on the browser.
<strong></strong>
Creates an emphasis on text that is usually rendered as bold, but sometimes as italics
depending on the browser.
<font size=?></font>
Specifies the font size from 1 to 7. 1 is the smallest, 7 the largest, and 3 is generally the
default size.
The font tag is not supported in HTML5. Use Cascading Style Sheets.
<font color=?></font>
Specifies font color.
The font tag is not supported in HTML5. Use Cascading Style Sheets.
NOTE: Font attributes may be
combined within the font tag.
Example:
<font size="4"
NOTE: The font tag is not supported in HTML5. Use Cascading Style Sheets.

2
color="#33FF00">Example of
combined font attributes. </font>
Common Formatting Tags
What It Is
(HTML 4.0 & Earlier)
What It Is
(XHTML & HTML5)
What It Does
<p></p> Same Defines a paragraph.
<p align=?> Same Defines paragraph alignment left, right, or center.
<br> Same Inserts a line break.
<blockquote></blockquote>
Same Defines a block quote and indents text from both
sides. Usually with some extra space above and
below.
<ol></ol> Same Defines the beginning and end of an ordered list.
<ul></ul> Same Defines the beginning and end of an unordered list.
<li></li>
Same Defines the beginning and end of a line within a list.
Start a line with a number in an ordered list, and with
a bullet in an unordered list.
Image Tags
What It Is (HTML) What It Is (XHTML) What It Does
<img src="name"> <img src="name" /> Places and image.
<img src="name" align=?> <img src="name" align=? />
Specifies the alignment of an image; left, right, center;
bottom, top, middle
<img src="name" border=?>
<img src="name" border=?
/>
Specifies a border around and image.
<img src”=name” alt=”name”>
<img src”=name” alt=”name”
/>
Specifies the alternative label for an image. This is
especially important for use nongraphical browsers.
NOTE: Attributes within the img tag may be combined.
Example in HTML:
<img src="images/fisherman.jpg" width="209" height="214" alt="Our Founder">
Example in XHTML:
<img src="images/fisherman.jpg" width="209" height="214" alt="Our Founder" />
Horizontal Rule Tags
What It Is (HTML) What It Is (XHTML) What It Does
<hr> <hr /> Specifies the start of a horizontal rule.
<hr size=?> <hr size=? /> Specifies the height of a horizontal rule.
<hr noshade> <hr noshade />
States that the horizontal rule should have no shade.
NOTE: Attributes within the horizontal rule tag may be combined.
Example in HTML: <hr noshade width="75%" size="4">
Example in XHTML: <hr noshade width="75%" size="4" />

3
Table Tags
<table></table> Specifies the beginning and end of a table.
<tr></tr> Specifies the beginning and end of a table row.
<td></td> Specifies the beginning and end of a table cell.
<th></th> Defines a table header. A normal cell with text that is bold and
centered.
<table border=#> Specifies the size of the border around a table and cells within the
table.
<table cellspacing=#> Specifies the space between cells.
<table cellpadding=#> Specifies the amount of space between the border of a cell and the
items within the cell.
<table width=”?”> Specifies the width of a table in either pixels or percent.
<tr align=?> Specifies the alignment of contents in a row of cells as either left,
right, or center.
<td align=?> Specifies the alignment of contents in a cell as either left, right, or
center.
<tr valign=?> Specifies the vertical alignment of contents in a row of cells as either
top, bottom, or middle.
<td valign=?> Specifies the vertical alignment of contents in cell as either top,
bottom, or middle.
<td colspan=#> Specifies the number of columns a cell will span.
<td rowspan=#> Specifies the number of rows a cell will span.
<td nowrap> Stops text from automatically line wrapping.
XHTML can be thought of as an upgraded and stricter version of HTML 4.01, while HTML 5 is an expansion
and clarification of the markup language for the Web. Neither XHTML nor HTML 5 is particularly difficult to
write. However, there are some important techniques to writing properly formed code. There are some simple
rules that must be followed. The most important rules are:
• Tags must all be in lower case.
• Elements must be nested correctly.
• Tag elements must be closed.
• Documents must be well-formed
Examples of lower case rule:
<STRONG>This is incorrect.</STRONG>
<strong>This is correct.</strong>

4
Examples of the nesting rule:
<strong><em>This is incorrect nesting.</strong><em>
<strong><em>This is correct nesting.</em></strong>
Examples of the closed tag rule:
This horizontal rule tag is not closed- <hr>
This horizontal rule tag is closed- <hr />
This image tag is not closed- <img source=”/images/picture.jpg” alt=”Cows in a pasture”>
This image tag is properly closed- <img source=”/images/picture.jpg” alt=”Cows in a pasture” />
Examples of the well-formed document rule:
XHTML documents must have the proper structure. This means all components must be within the
opening and closing HTML tags, <html></html>. Internal elements must be correctly nested and
located properly. The basic components and structure of an XHTML document are-
<html>
<head>
</head>
<body>
</body>
</html>

5
XHTML/HTML 5 Syntax Rules
XHTML and HTML 5 require that some basic rules of syntax be followed. As with the tag rules noted above,
XHTML and HTML 5 syntax is not much more difficult that correctly formed HTML 4.0. These rules are,
however, much stricter and must not be violated. These rules follow.
• Attributes must be quoted.
• The Name attribute is replaced by the ID attribute
• Attribute shorthand must not be used.
• DOCTYPE statement must be used. (The DOCTYPE statement is part of Document Type Definition,
DTD, and is used to specify which syntax is used in the Web page.)
Examples of the quoted attribute rule:
This is incorrect- <table width=75% bgcolor=ff0000>
This is correct- <table width-“75” bgcolor=”ff0000”>
Examples of the Name attribute replacement rule:
This is incorrect- <img src=”/images/cows.jpg” name=”photo12” />
This is the correct substitution- <img src=”/images/cows.jpg” id=”photo12” />
Examples of the no shorthand rule:
This is an example of improper shorthand- <input checked>
This is the same tag correctly written without shorthand- <input checked=”checked”
Examples of DOCTYPE statements:
Invalid “old-style” DOCTYPE statement:
<html>
<head>
<title>This is a page without a statement</title>
</head>
<body>
</body>
</html>

6
XHTML DOCTYPE statement:
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html>
<head>
<title>Example of a page with a DOCTYPE statement</title>
</head>
<body>
</body>
</html>
HTML 5 DOCTYPE statement:
<!DOCTYPE HTML>
<html>
<head>
<title>Example of a page with a DOCTYPE statement</title>
</head>
<body>
</body>
</html>
Note that the DOCTYPE statement goes ahead of the opening HTML tag, <html>. The statement is not part of
the HTML document and does not have a closing tag. It is used to tell a browser how to render the document.
There are three XHTML DOCTYPE statements.
Statement used to create clutter-free pages that must follow rules exactly when Cascading Style Sheets are used:
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
Statement used when HTML presentational features are present and when it is desirable to support older
browsers that do not fully understand Cascading Style Sheets:
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

7
Statement used when frames are incorporated into the design of the page (note that frames are an obsolete
design technique and are not used in modern page designs):
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Frameset//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-frameset.dtd">
HTML5 has only the one DOCTYPE statement noted above.
About HTML 5
At the time of this writing, HTML 5 remains in a non-official state. Many Web page builders are starting to
incorporate elements of HTML 5 into their projects. All current browsers support some HTML 5 components,
but no browser supports everything outlined in the HTML 5 rules. One primary reason for this is that the HTML
5 rules are being constantly updated as problems are worked out.
HTML 5 has many new tags. It is necessary to understand that the purpose of HTML is to specify what
something is. For instance, HTML identifies a page element as a link, a list, a paragraph, or some other sort of
object. Presentation is controlled by Cascading Style Sheets. In other words, HTML specifies that an object is,
for instance, a link, but not what color the link is.
HTML 5 expands the list of tags by providing more options for identification. It is now possible to identify
headers, footers, sections, audio, video, and much more. The expansion of HTML tags and the ability of
browsers to understand these new tags will improve the usability of the World Wide Web and result in new
methods of presentation with better results. It also means that we can expect less variation in the appearance and
operation of Web pages when viewed with different browsers and operating systems.
