How to use an aed
- 1. How to Usean AED Automated External Defibrillator First Response Training, LLC www.gotcpr.us

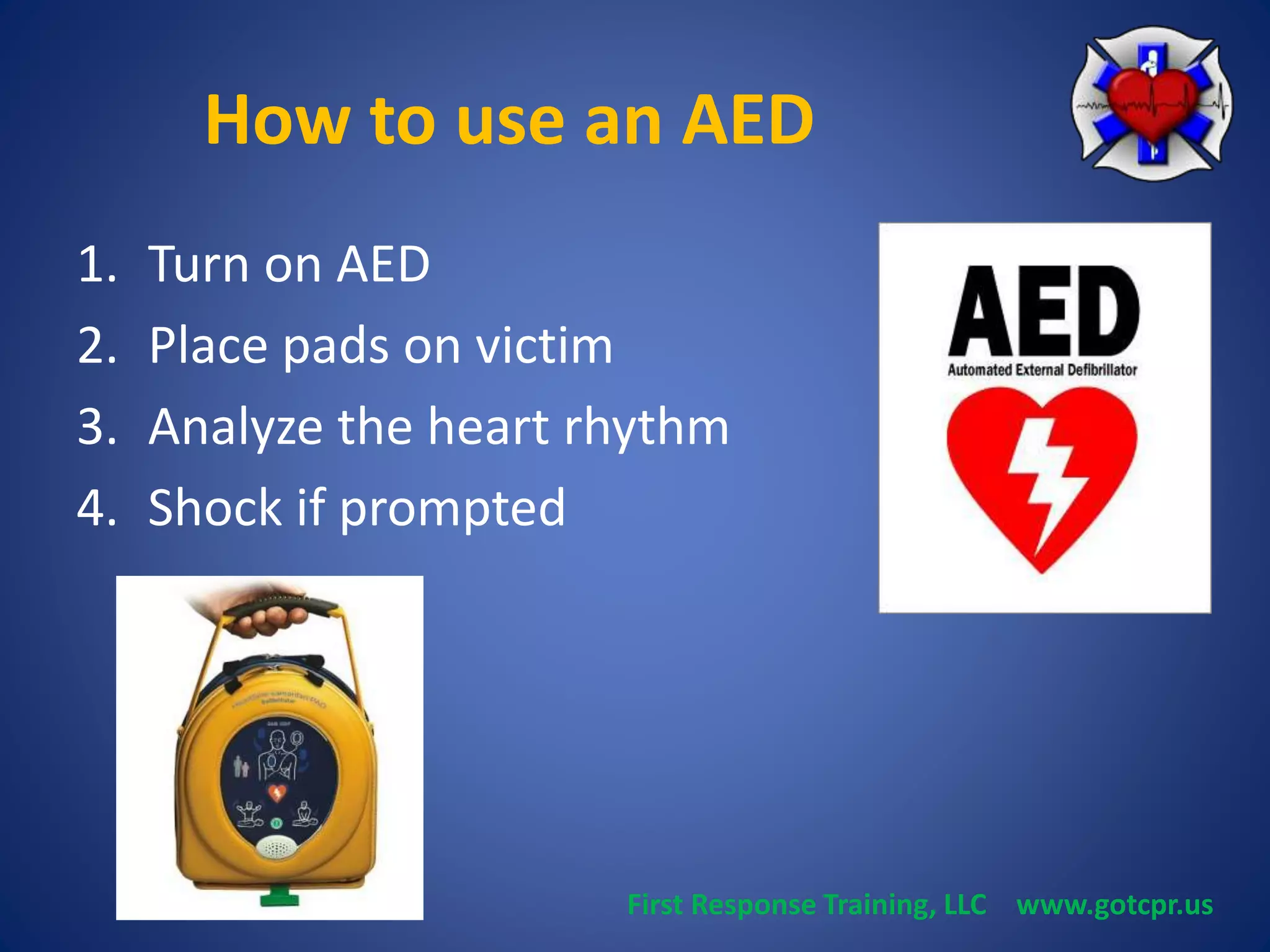

- 2. How to usean AED 1. Turn on AED 2. Place pads on victim 3. Analyze the heart rhythm 4. Shock if prompted First Response Training, LLC www.gotcpr.us

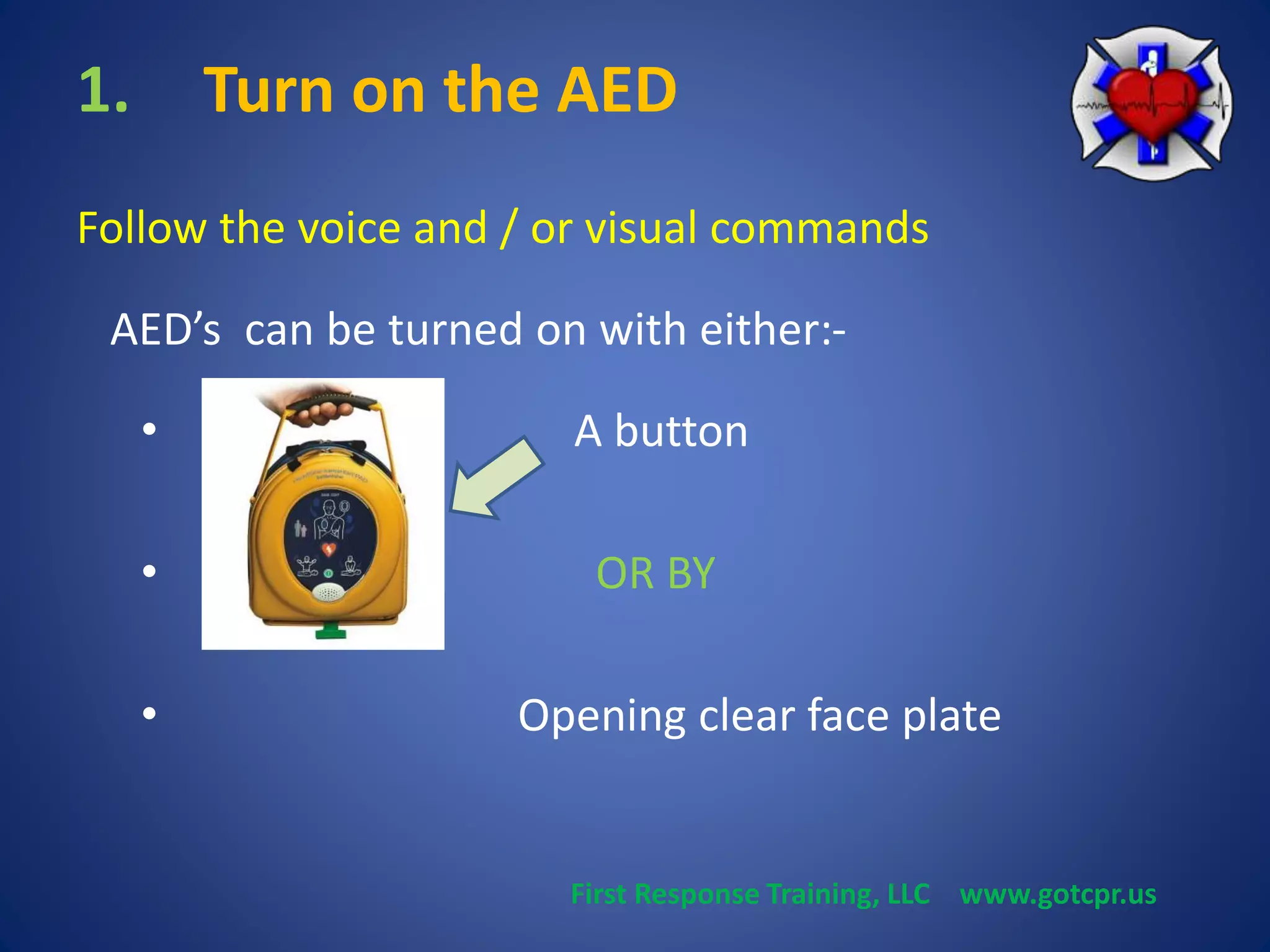

- 3. 1. Turn onthe AED Follow the voice and / or visual commands AED’s can be turned on with either:- • A button • OR BY • Opening clear face plate First Response Training, LLC www.gotcpr.us

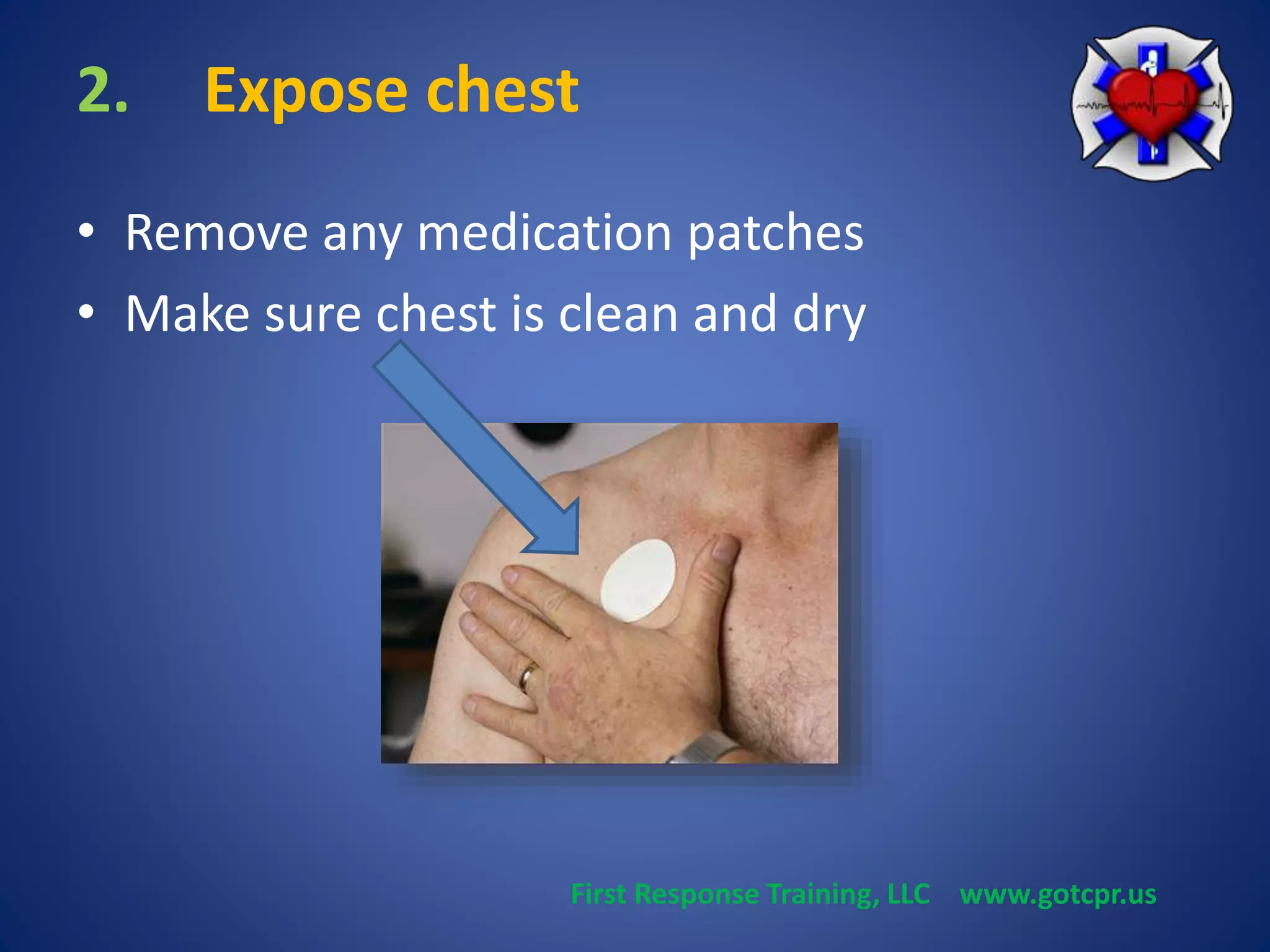

- 4. 2. Expose chest • Remove any medication patches • Make sure chest is clean and dry First Response Training, LLC www.gotcpr.us

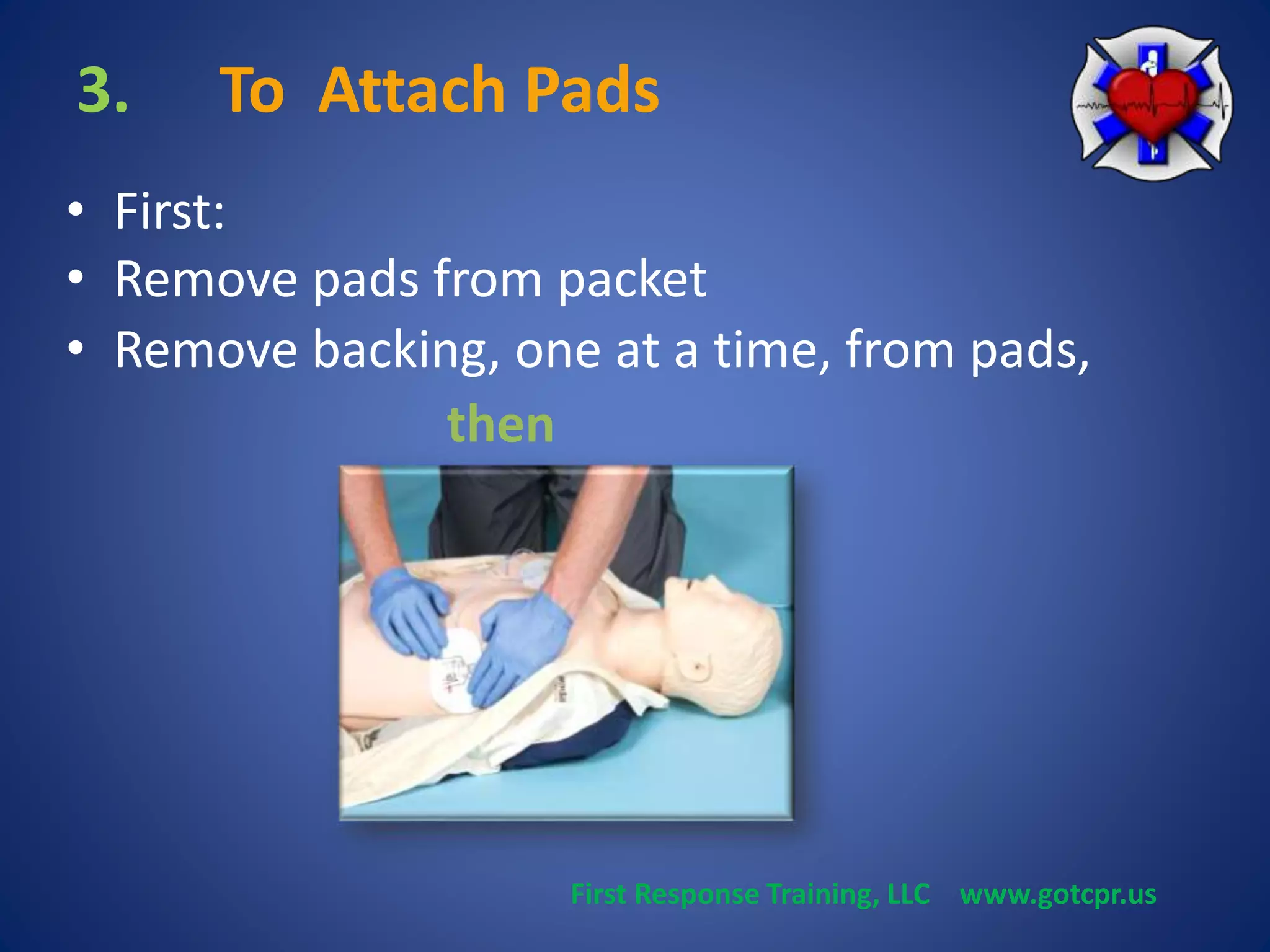

- 5. 3. To AttachPads • First: • Remove pads from packet • Remove backing, one at a time, from pads, then First Response Training, LLC www.gotcpr.us

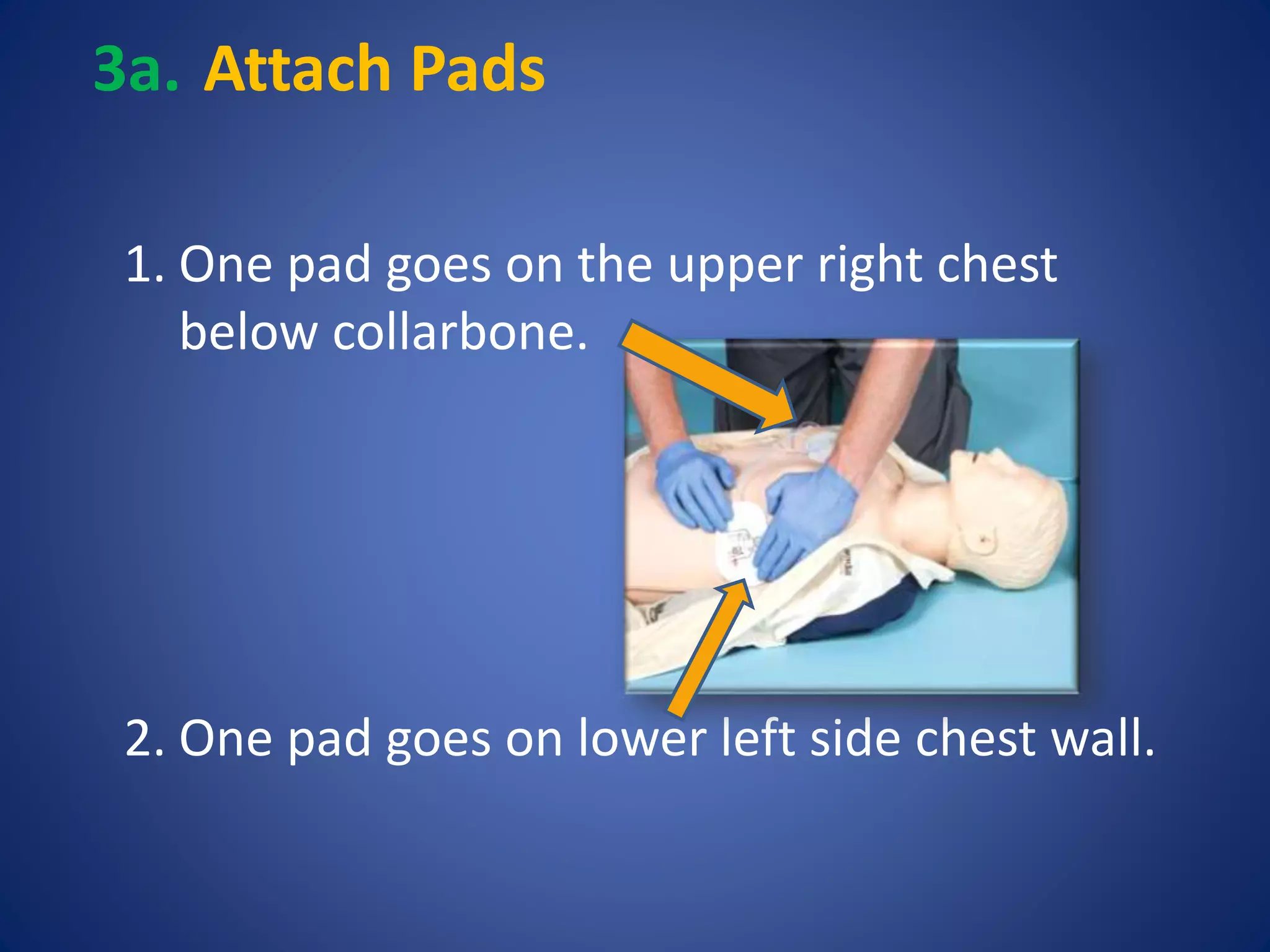

- 6. 3a. Attach Pads 1. One pad goes on the upper right chest below collarbone. 2. One pad goes on lower left side chest wall.

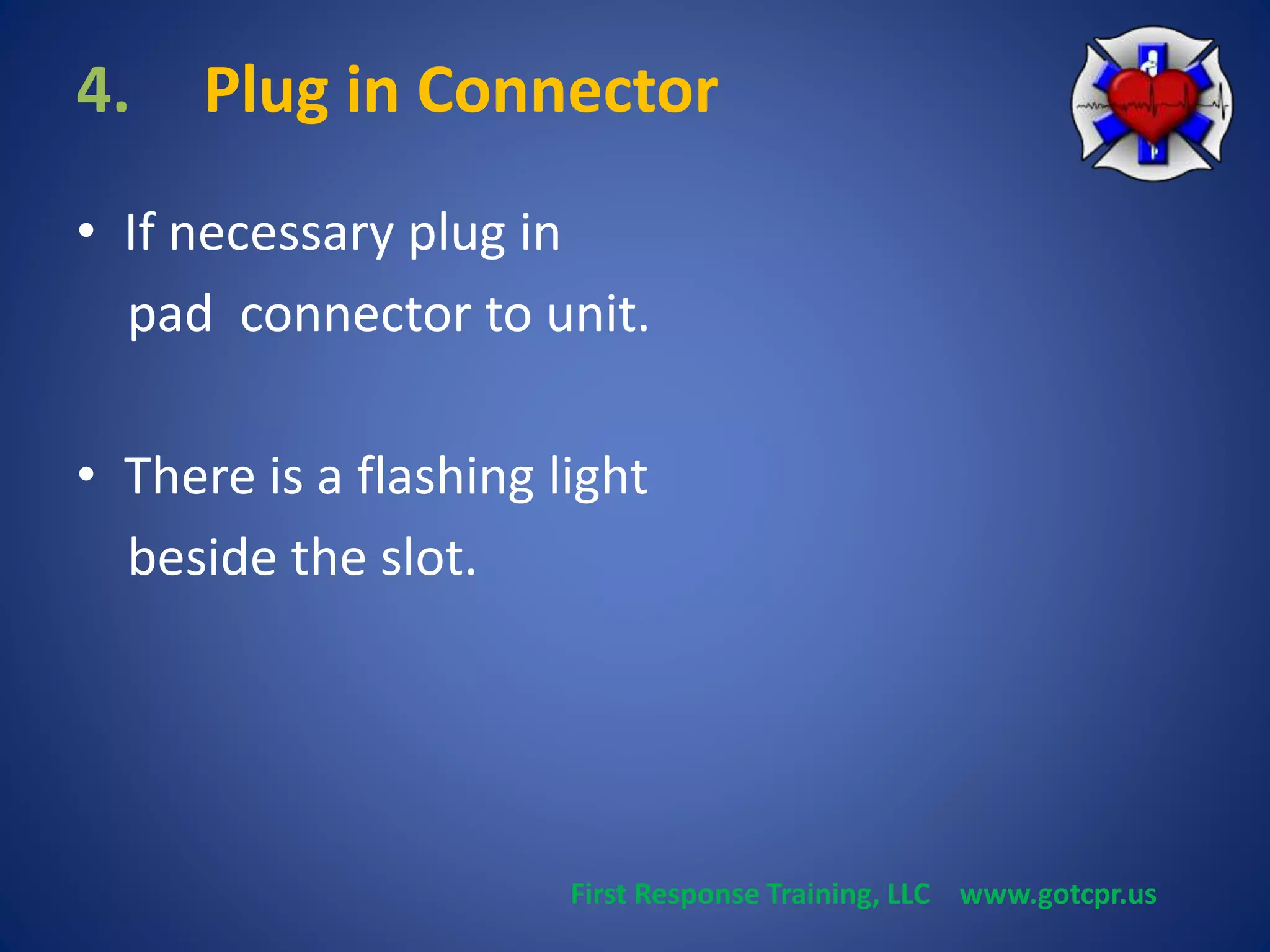

- 7. 4. Plug inConnector • If necessary plug in pad connector to unit. • There is a flashing light beside the slot. First Response Training, LLC www.gotcpr.us

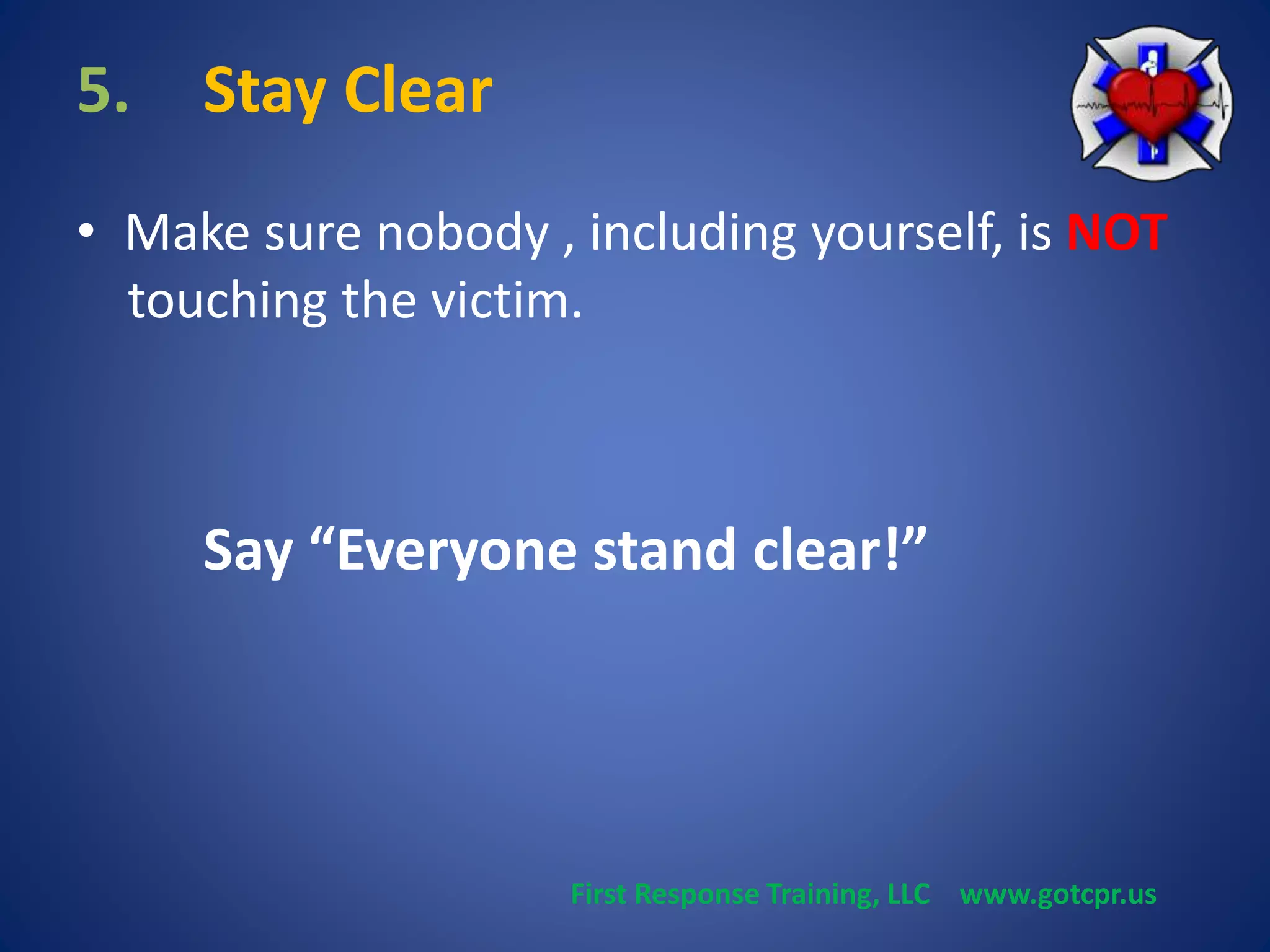

- 8. 5. Stay Clear • Make sure nobody , including yourself, is NOT touching the victim. Say “Everyone stand clear!” First Response Training, LLC www.gotcpr.us

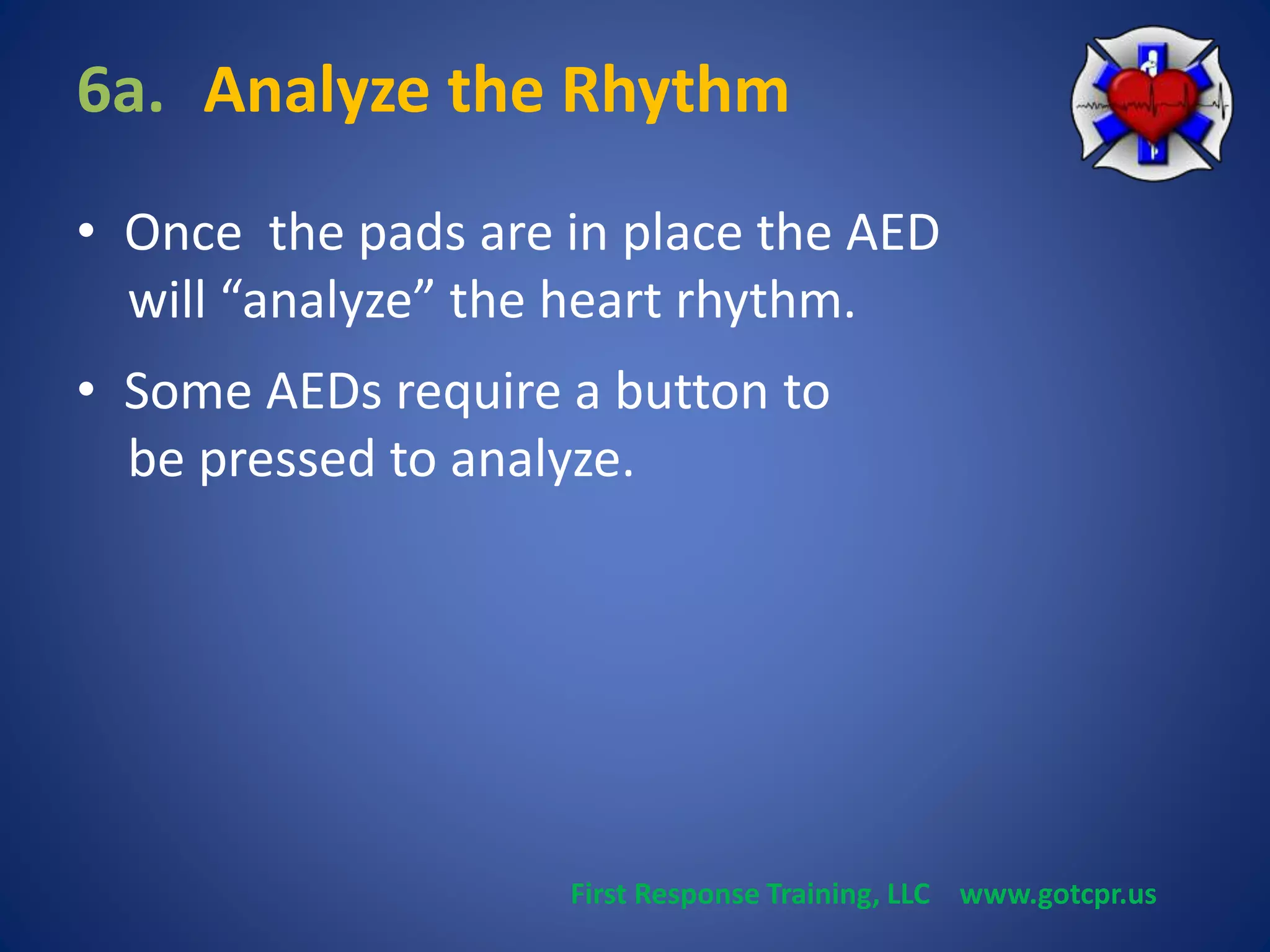

- 9. 6a. Analyze theRhythm • Once the pads are in place the AED will “analyze” the heart rhythm. • Some AEDs require a button to be pressed to analyze. First Response Training, LLC www.gotcpr.us

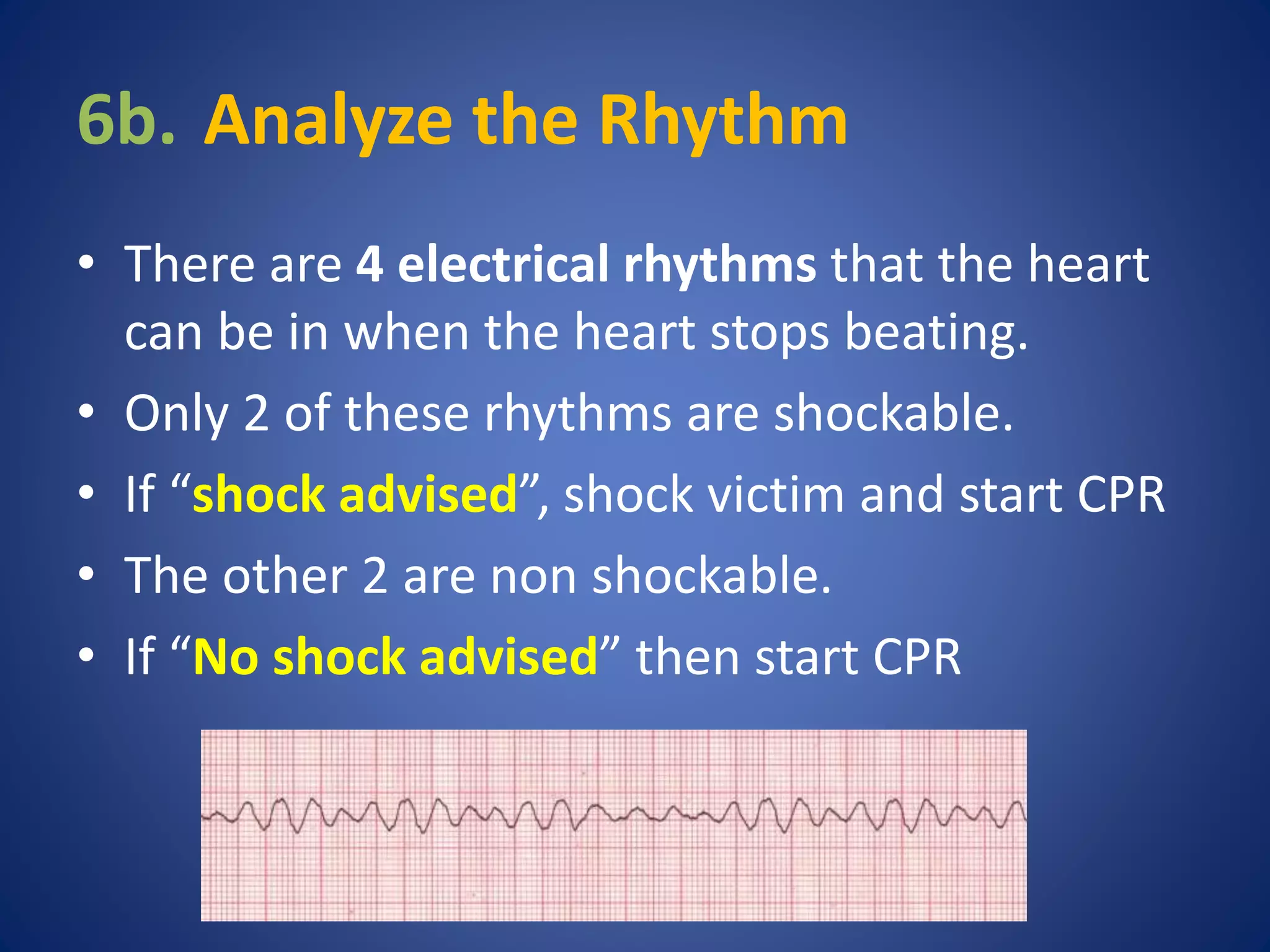

- 10. 6b. Analyze theRhythm • There are 4 electrical rhythms that the heart can be in when the heart stops beating. • Only 2 of these rhythms are shockable. • If “shock advised”, shock victim and start CPR • The other 2 are non shockable. • If “No shock advised” then start CPR

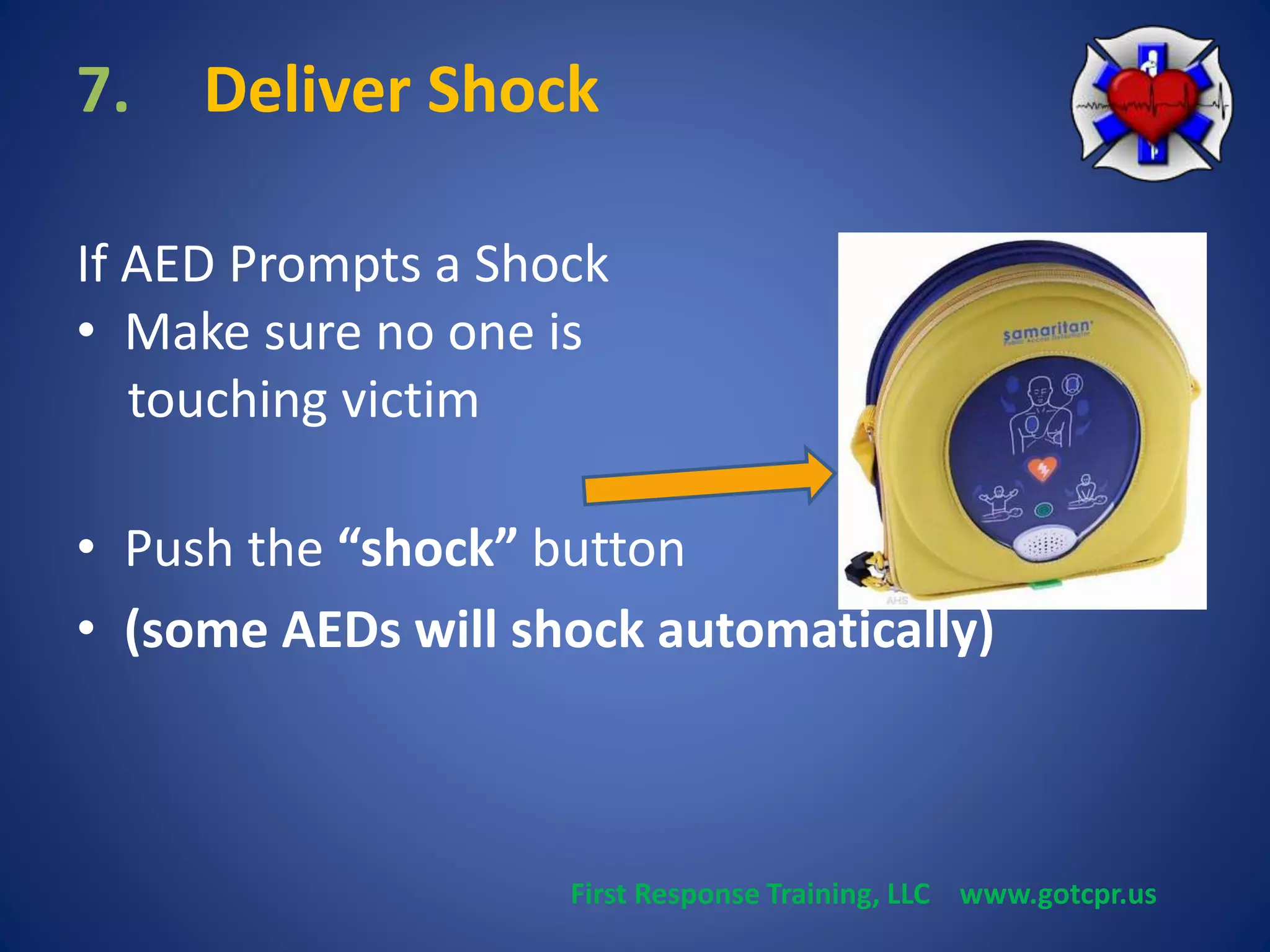

- 11. 7. Deliver Shock If AED Prompts a Shock • Make sure no one is touching victim • Push the “shock” button • (some AEDs will shock automatically) First Response Training, LLC www.gotcpr.us

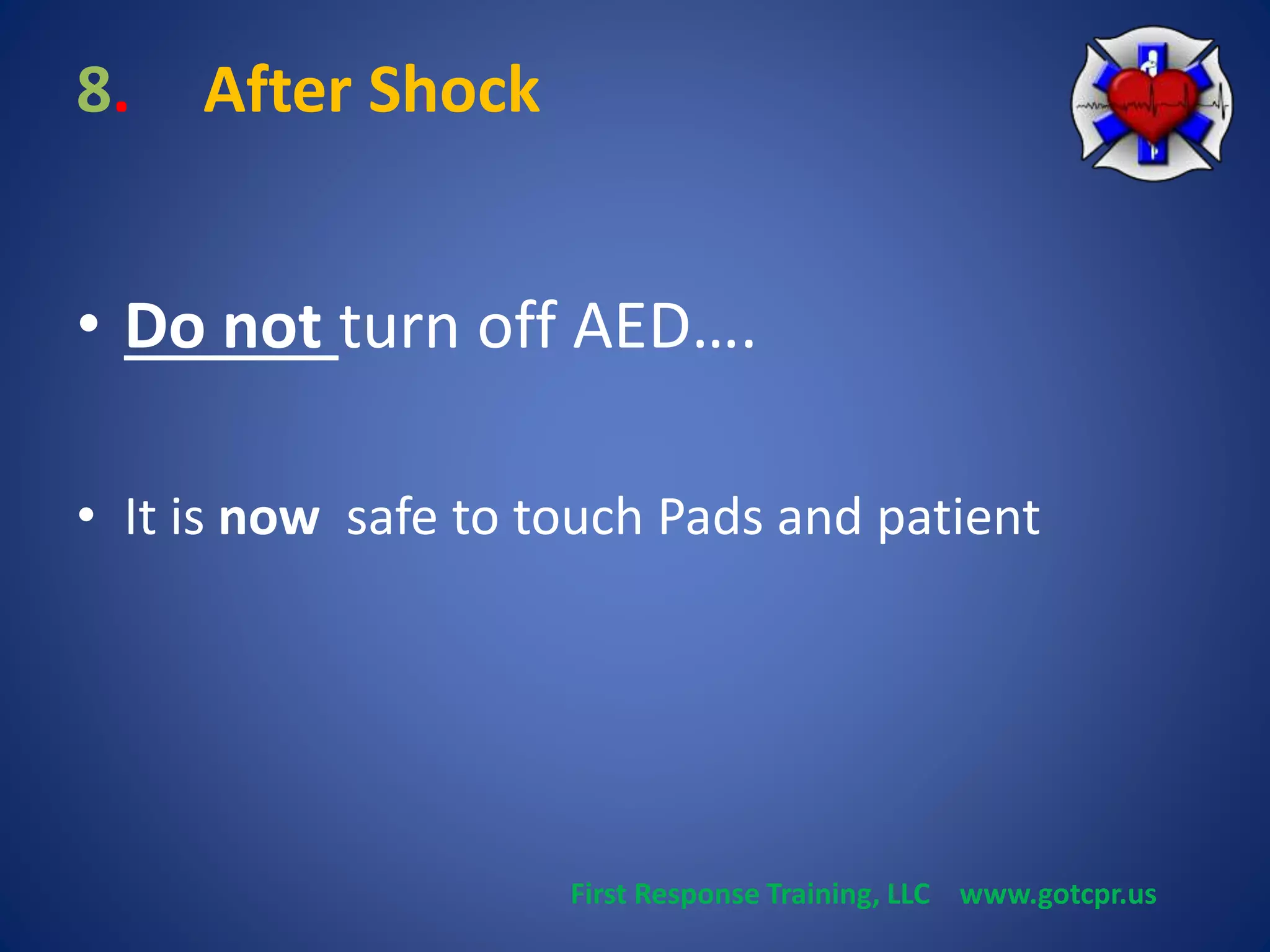

- 12. 8. After Shock • Do not turn off AED…. • It is now safe to touch Pads and patient First Response Training, LLC www.gotcpr.us

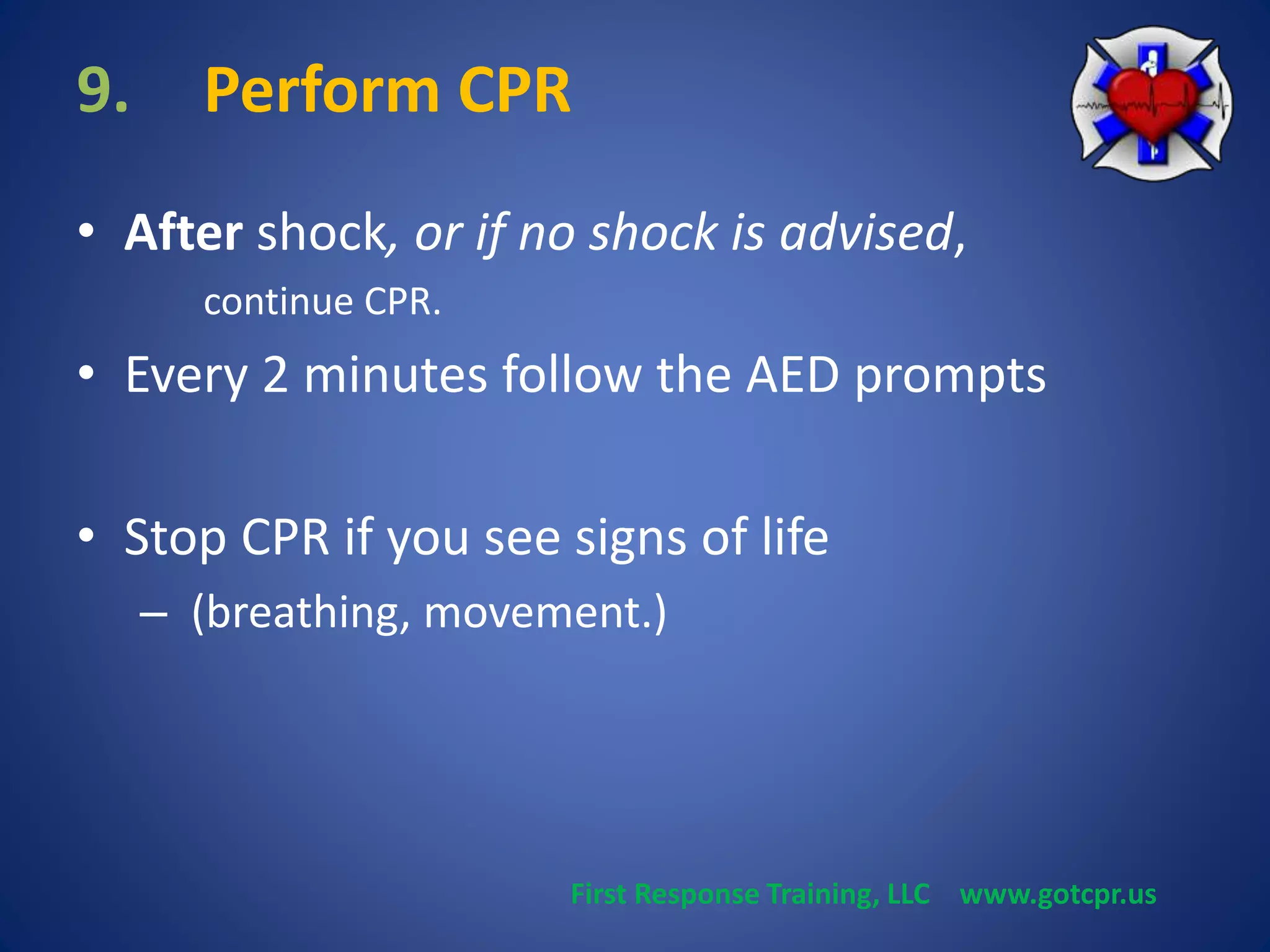

- 13. 9. Perform CPR • After shock, or if no shock is advised, continue CPR. • Every 2 minutes follow the AED prompts • Stop CPR if you see signs of life – (breathing, movement.) First Response Training, LLC www.gotcpr.us

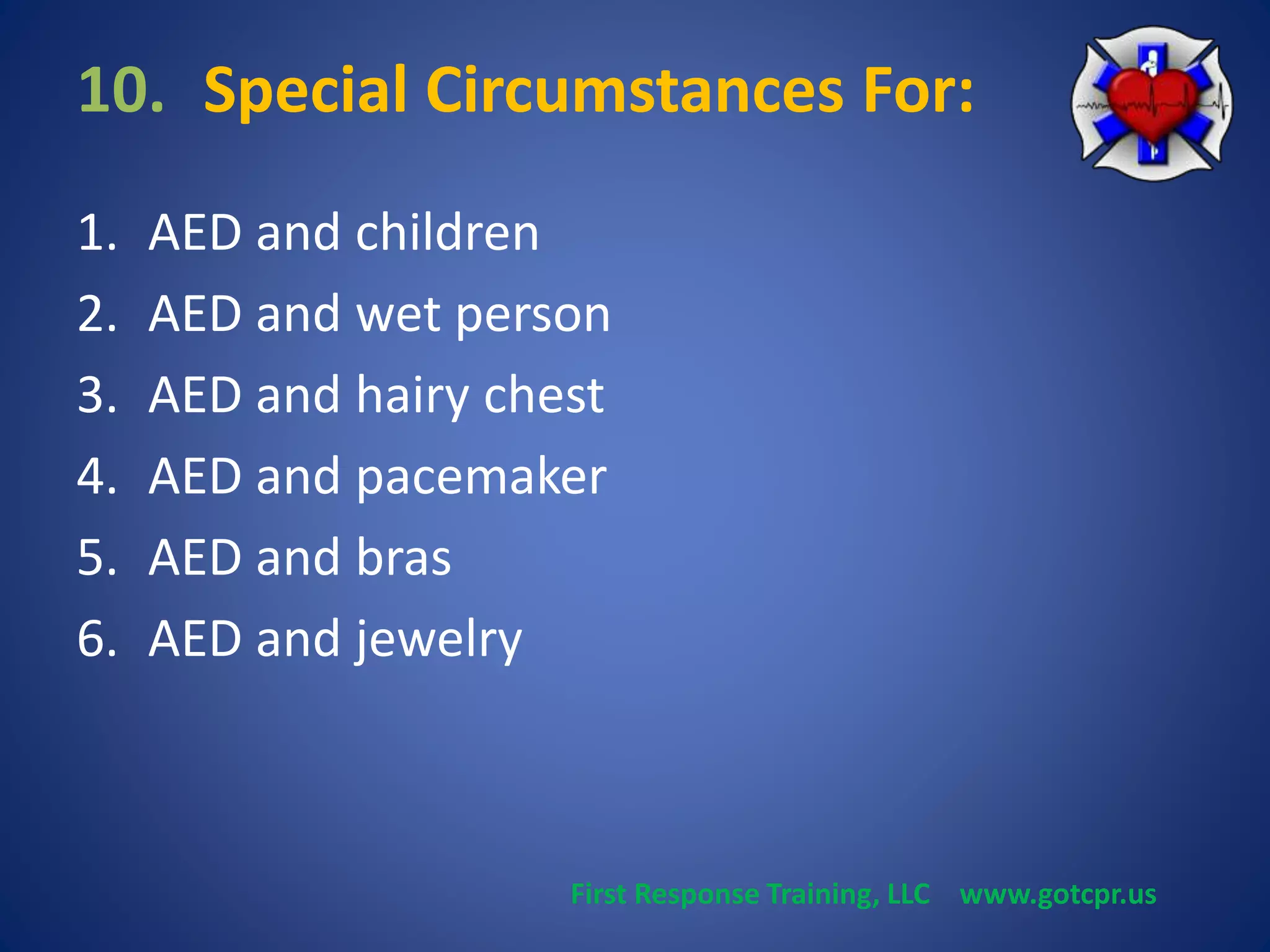

- 14. 10. Special CircumstancesFor: 1. AED and children 2. AED and wet person 3. AED and hairy chest 4. AED and pacemaker 5. AED and bras 6. AED and jewelry First Response Training, LLC www.gotcpr.us

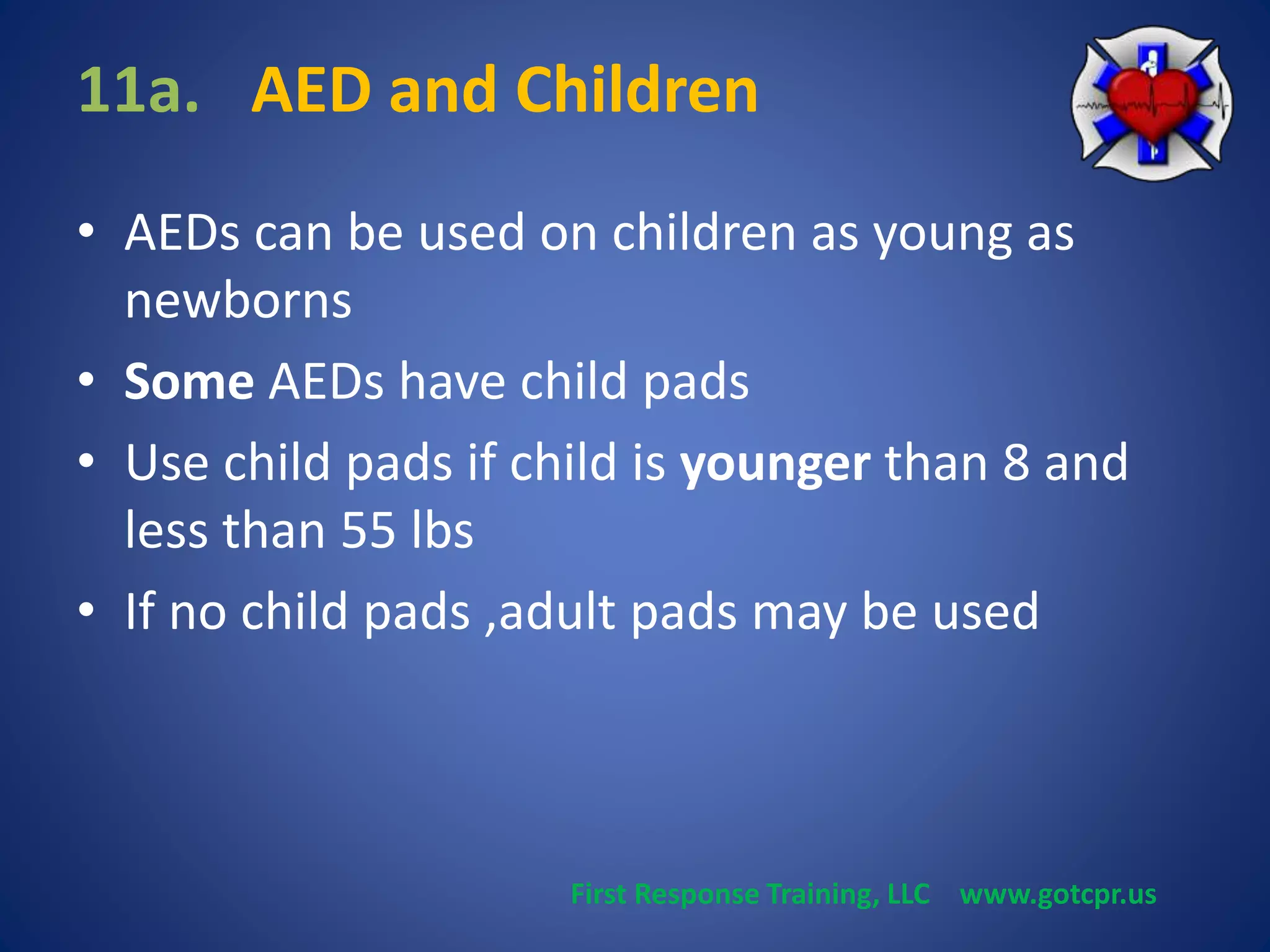

- 15. 11a. AED andChildren • AEDs can be used on children as young as newborns • Some AEDs have child pads • Use child pads if child is younger than 8 and less than 55 lbs • If no child pads ,adult pads may be used First Response Training, LLC www.gotcpr.us

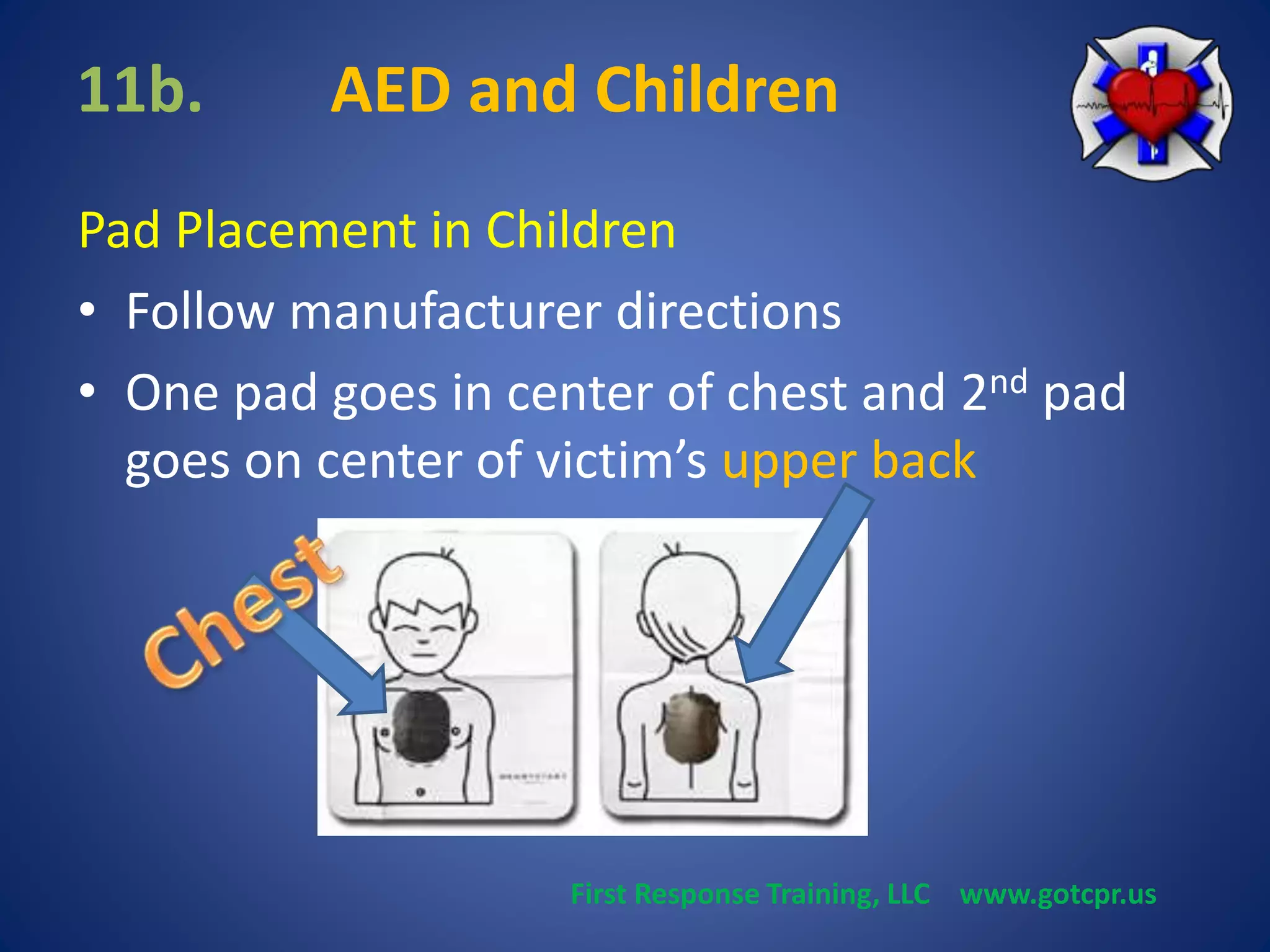

- 16. 11b. AED andChildren Pad Placement in Children • Follow manufacturer directions • One pad goes in center of chest and 2nd pad goes on center of victim’s upper back First Response Training, LLC www.gotcpr.us

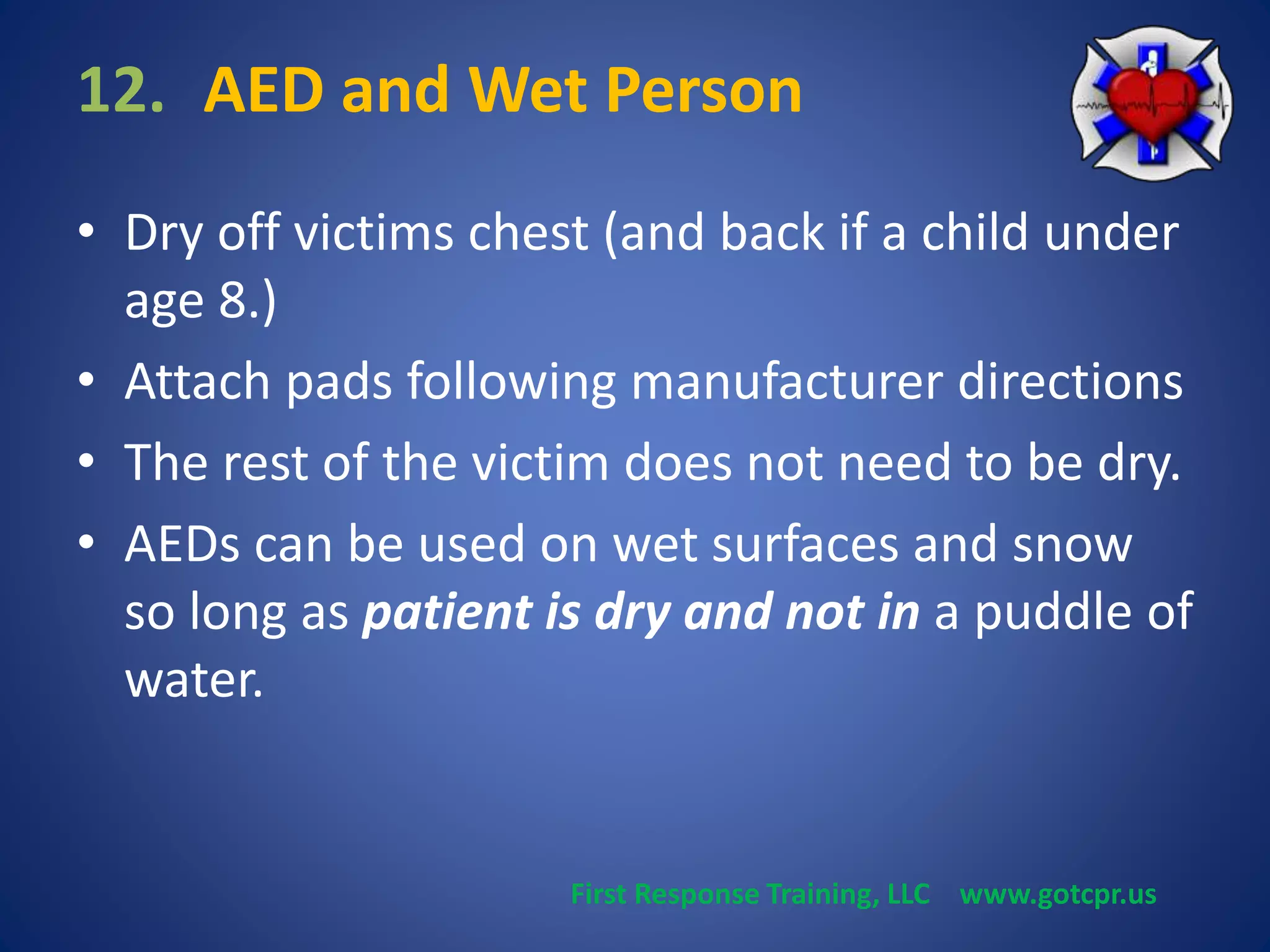

- 17. 12. AED andWet Person • Dry off victims chest (and back if a child under age 8.) • Attach pads following manufacturer directions • The rest of the victim does not need to be dry. • AEDs can be used on wet surfaces and snow so long as patient is dry and not in a puddle of water. First Response Training, LLC www.gotcpr.us

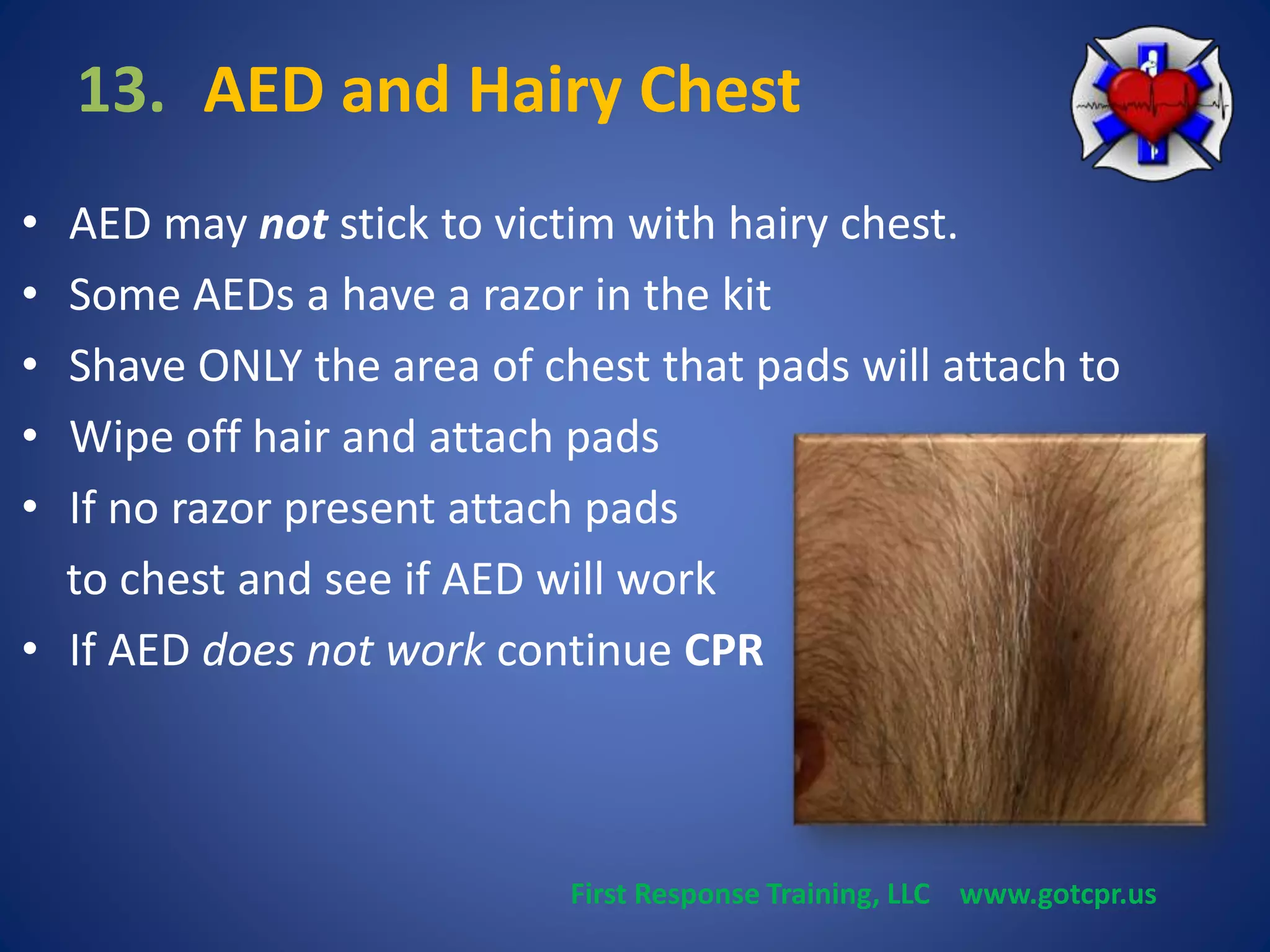

- 18. 13. AED andHairy Chest • AED may not stick to victim with hairy chest. • Some AEDs a have a razor in the kit • Shave ONLY the area of chest that pads will attach to • Wipe off hair and attach pads • If no razor present attach pads to chest and see if AED will work • If AED does not work continue CPR First Response Training, LLC www.gotcpr.us

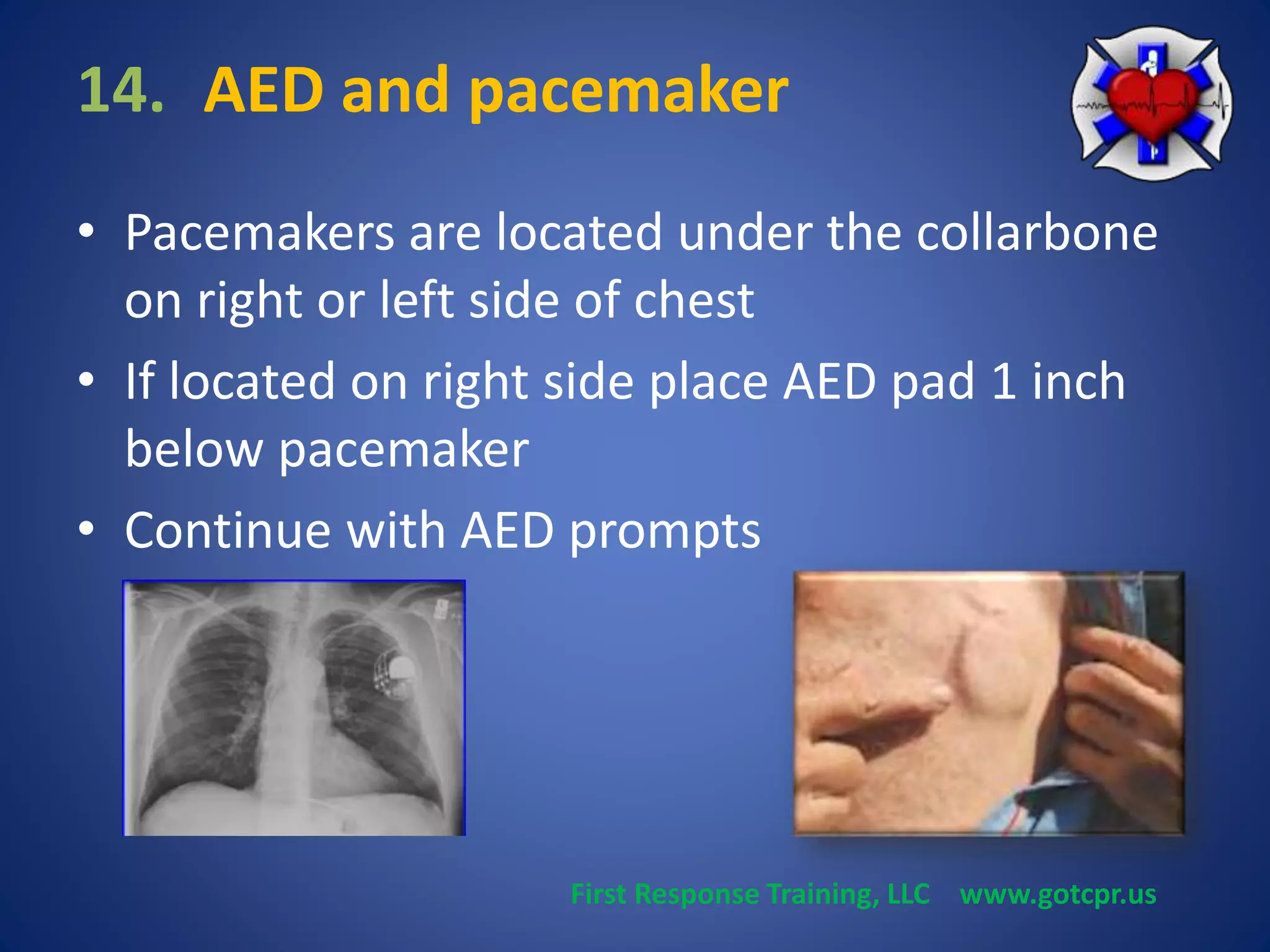

- 19. 14. AED andpacemaker • Pacemakers are located under the collarbone on right or left side of chest • If located on right side place AED pad 1 inch below pacemaker • Continue with AED prompts First Response Training, LLC www.gotcpr.us

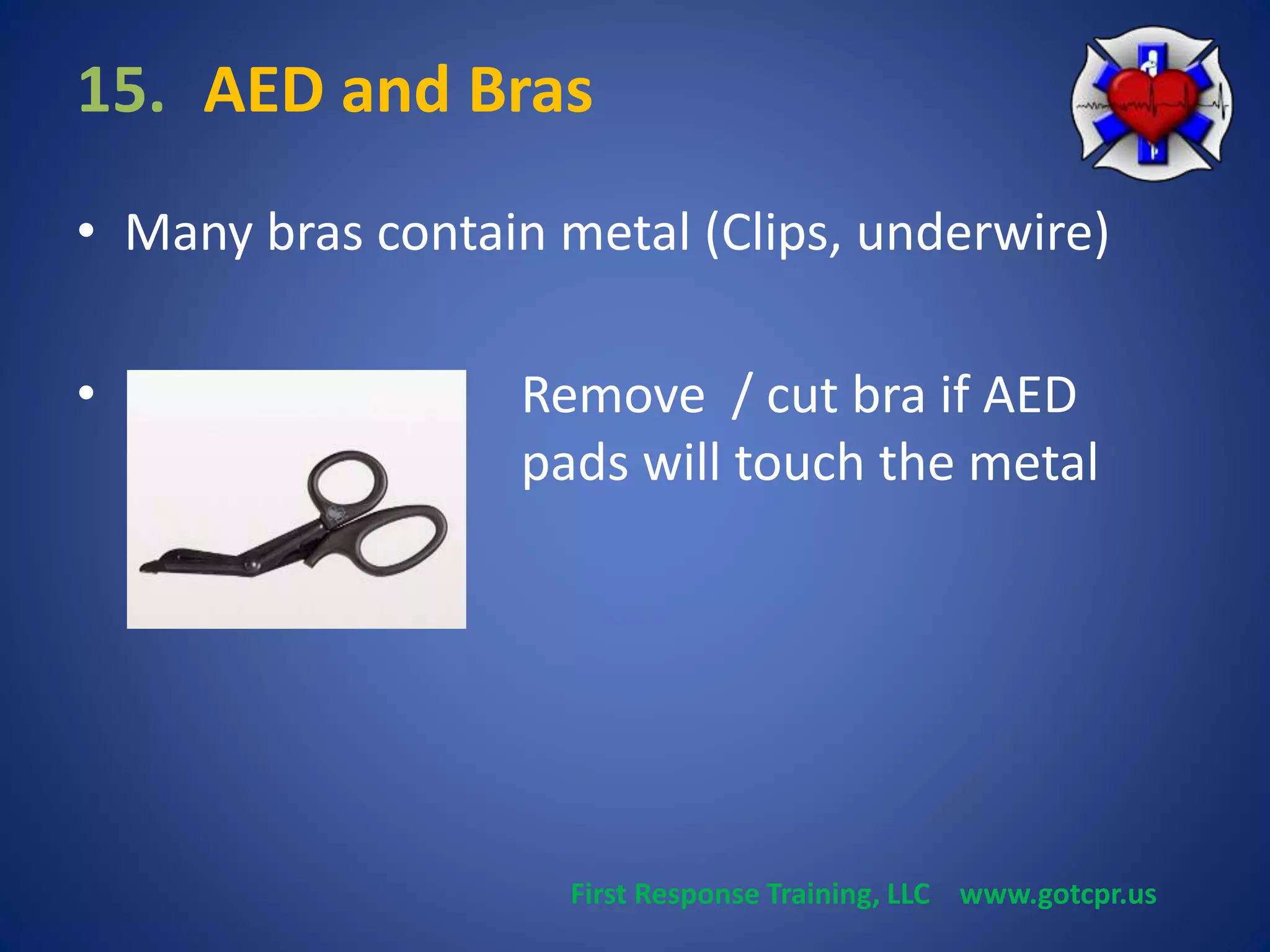

- 20. 15. AED andBras • Many bras contain metal (Clips, underwire) • Remove / cut bra if AED pads will touch the metal First Response Training, LLC www.gotcpr.us

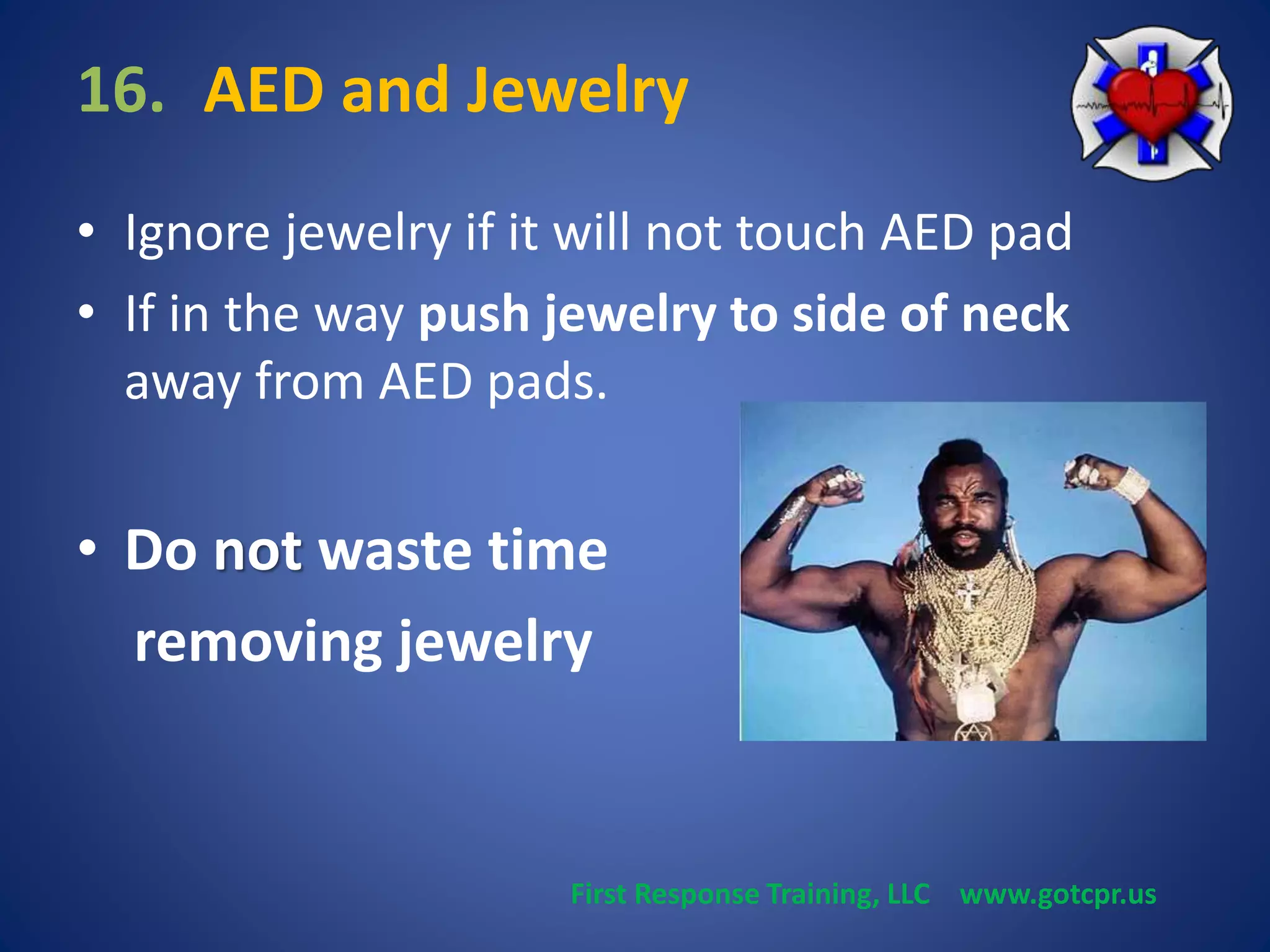

- 21. 16. AED andJewelry • Ignore jewelry if it will not touch AED pad • If in the way push jewelry to side of neck away from AED pads. • Do not waste time removing jewelry First Response Training, LLC www.gotcpr.us
- 22. First Response Training,LLC • First Response Training, LLC is a privately owned business that teaches CPR, First Aid and other medical courses for the medical and non medical communities. • Please visit us on the web at www.gotcpr.us Conor Devery owner
