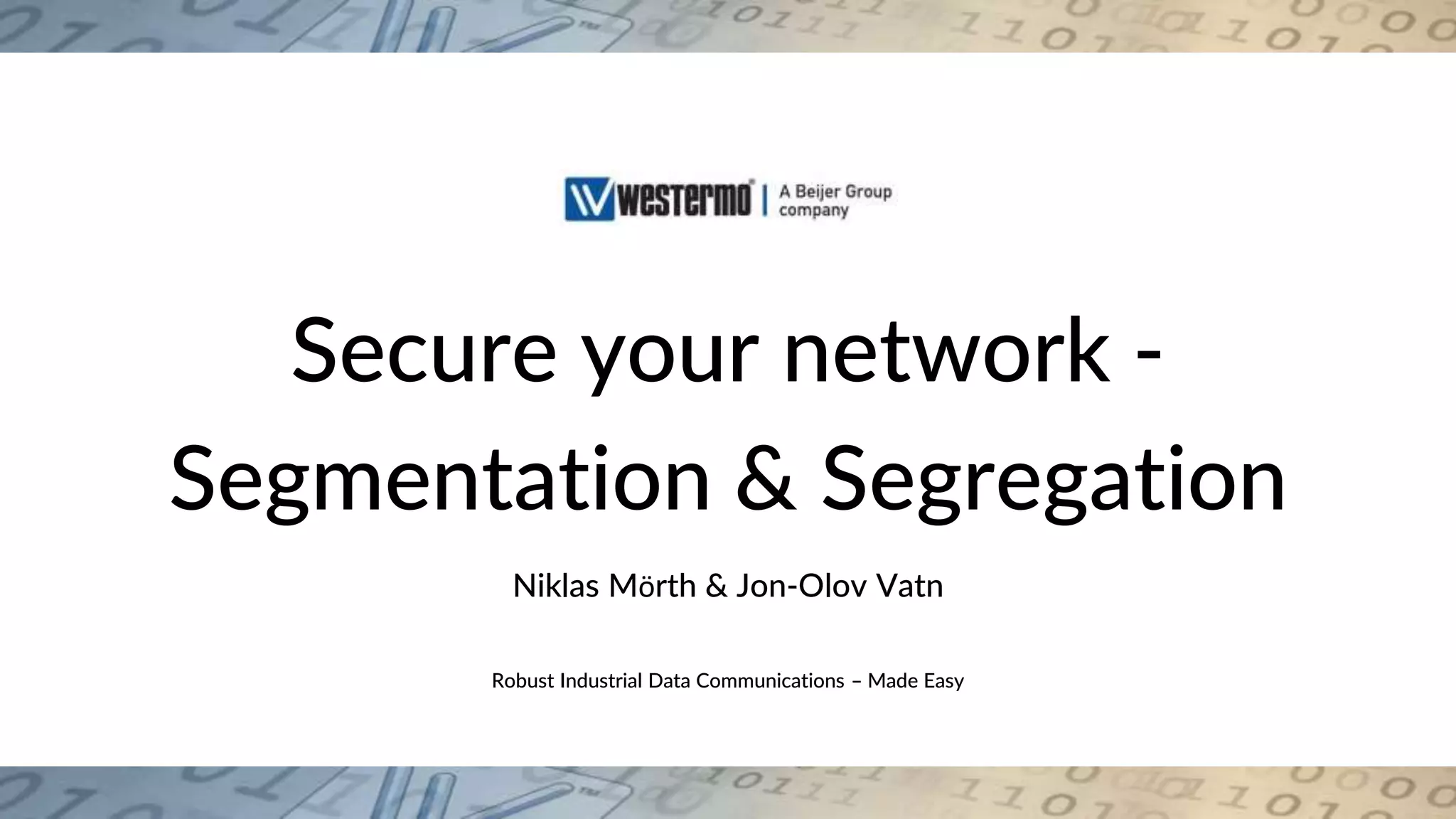

This presentation by Westermo’s Cyber Security Product Manager Niklas Mörth and Network Applications Expert Dr. Jon-Olov Vatn is an integral part of the Westermo cybersecurity webinar on Network segmentation and segregation: https://www.westermo.com/news-and-events/webinars/cybersecurity-fundamentals-network-segmentation The defense in depth value of segmenting your network into different security zones is widely recognized and should be a part of every company’s security strategy. A properly segmented network will reduce the attack surface, limit an attacker’s potential to move laterally in the network, and strongly limiting the potential damage of a cyber-attack. However, segmenting your network is a major project and will change how you are managing your network.

1. Robust Industrial Data Communications – Made Easy
Secure your network -
Segmentation & Segregation
Niklas Mörth & Jon-Olov Vatn

2. 2

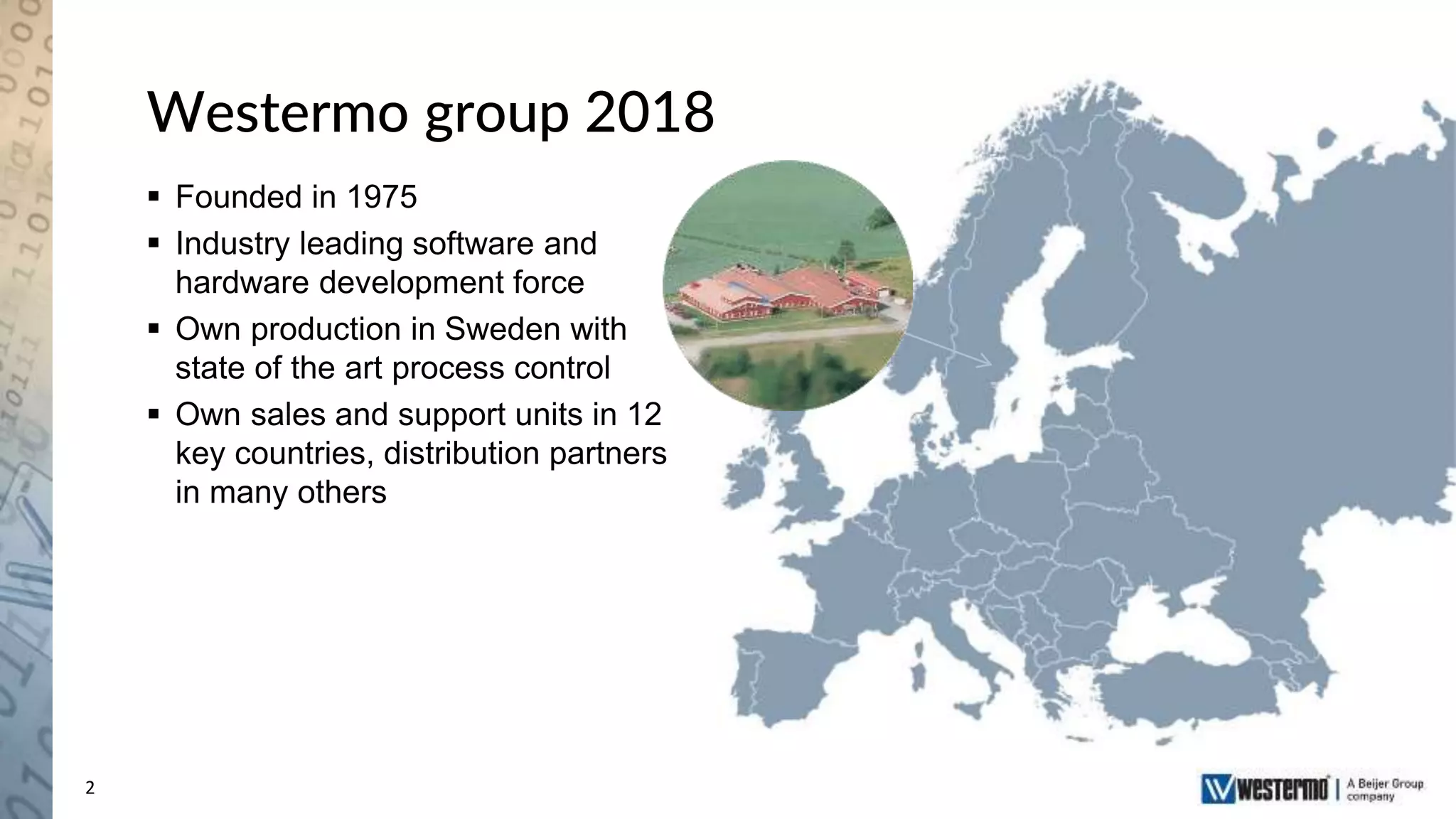

Westermo group 2018
 Founded in 1975
 Industry leading software and
hardware development force
 Own production in Sweden with
state of the art process control
 Own sales and support units in 12
key countries, distribution partners
in many others

3. 3
Presenters
Niklas Mörth
Product manager,
Cybersecurity
Dr. Jon-Olov Vatn
Network applications expert
Topic:
Network segmentation and
segregation
Run-time:
45 minutes
A webinar recording will be
provided after the session is
completed.

4. 4
Questions
 Ask questions in the chat window
 Ask question to ”Host”
 Questions will be answered in the end of
the presentation

5. 5
Agenda
 The Threat Landscape
 Your Security Posture
 The Why
 The What and How
 Summary

6. 6
Agenda
 The Threat Landscape
 Your Security Posture
 The Why
 The What and How
 Summary
Protect
Detect
Respond
Security
Posture

7. 7
Agenda
 The Threat Landscape
 Your Security Posture
 The Why
 The What and How
 Summary

8. 8
Agenda
 The Threat Landscape
 Your Security Posture
 The Why
 The What and How
 Summary

9. 9
Agenda
 The Threat Landscape
 Your Security Posture
 The Why
 The What and How
 Summary

10. Robust Industrial Data Communications – Made Easy
The Threat Landscape

11. 11
The Threat Landscape
Verizon Data Breach Investigation Report 2018

12. Robust Industrial Data Communications – Made Easy
Your Security Posture

13. 13
Wikipedia definition
“Cybersecurity is the
protection of computer
systems from theft or
damage to their hardware,
software or electronic data,
as well as from disruption
or misdirection of the
services they provide.”
What is Cybersecurity?

14. 14
Your Security Posture
Protect
Detect
Respond
Security
Posture

15. 15
Your Security Posture
Protect
Detect
Respond
Firewall
Anti-virus
Authentication & Authorization
Cryptography
Network Segmentation
Etc.
Security
Posture

16. 16
Your Security Posture
Protect
Detect
Respond
Firewall
Anti-virus
Authentication & Authorization
Cryptography
Network Segmentation
Etc.
Network Monitoring (NMS)
Intrusion Detection (IDS)
Security Incidents (SIEM)
Threat Hunting
Etc.
Security
Posture

17. 17
Your Security Posture
Protect
Detect
Respond
Firewall
Anti-virus
Authentication & Authorization
Cryptography
Network Segmentation
Etc.
Network Monitoring (NMS)
Intrusion Detection (IDS)
Security Incidents (SIEM)
Threat Hunting
Etc.
Incident Response Plan
Breach containment
Security Incident Response Team
Etc. Security
Posture

18. Robust Industrial Data Communications – Made Easy
The Why!

19. 19
The Why!
CONTROL NETWORK
OFFICE NETWORK

20. 20
The Why!
CONTROL NETWORK
OFFICE NETWORK

21. 21
The Why!
CONTROL NETWORK
OFFICE NETWORK

22. 22
The Why!
 Avoid single point of failure
CONTROL NETWORK
OFFICE NETWORK

23. 23
The Why!
 Avoid single point of failure
CONTROL NETWORK
OFFICE NETWORK

24. 24
The Why!
 Avoid single point of failure
CONTROL NETWORK
OFFICE NETWORK

25. 25
The Why!
 Avoid single point of failure
 Policy of least privilege
CONTROL NETWORK
OFFICE NETWORK

26. 26
The Why!
 Avoid single point of failure
 Policy of least privilege
CONTROL NETWORK
OFFICE NETWORK

27. 27
The Why!
 Avoid single point of failure
 Policy of least privilege
CONTROL NETWORK
OFFICE NETWORK

28. 28
The Why!
 Avoid single point of failure
 Policy of least privilege
 Slowing down attackers
CONTROL NETWORK
OFFICE NETWORK

29. 29
The Why!
 Avoid single point of failure
 Policy of least privilege
 Slowing down attackers
CONTROL NETWORK
OFFICE NETWORK
SENSITIVE
DATA

30. 30
The Why!
 Avoid single point of failure
 Policy of least privilege
 Slowing down attackers
CONTROL NETWORK
OFFICE NETWORK
SENSITIVE
DATA

31. 31
The Why!
 Avoid single point of failure
 Policy of least privilege
 Slowing down attackers
 Reduce damage of succeful
breaches
CONTROL NETWORK
OFFICE NETWORK
SENSITIVE
DATA

32. 32
The Why!
 Avoid single point of failure
 Policy of least privilege
 Slowing down attackers
 Reduce damage of succeful
breaches
CONTROL NETWORK
OFFICE NETWORK

33. Robust Industrial Data Communications – Made Easy
The What and How!

34. 34
Start: A plant network in need of organizing
 Mix of units with different
purposes and criticality
 Single, flat network (switched)
 Or multiple networks, each with
mix of units
 Little or no control of traffic
patterns within the Intranet
FW/
RouterIntranet
Internet (WAN)
Office PCs
Management
Clients
PLCs & Process
Equipment
Servers
Switched
Network

35. 35
Goal: A network with proper segmentation
 Group units based their purpose
 Segment network accordingly
(zones)
 Connect via router/firewall capable
of segregating traffic flows
 May use multiple firewalls
 Possibly from different vendors
 Can have external FW managed by
IT department (IT FW)
 The internal FW can be dedicated to
operations (OT FW)
FW/
RouterIntranet
Internet (WAN)
Office Net
Supervisory Net
Control Net A
Control Net B
FW/
Router

36. 36
Goal: A network with proper segmentation
 Group units based their purpose
 Segment network accordingly
(zones)
 Connect via router/firewall capable
of segregating traffic flows
 May use multiple firewalls
 Possibly from different vendors
 Can have external FW managed by
IT department (IT FW)
 The internal FW can be dedicated to
operations (OT FW)
FW/
RouterIntranet
Internet (WAN)
Office Net
Supervisory Net
Control Net A
Control Net B
FW/
Router

37. 37
Segmentation: Local Area Networks
 What is a LAN?
 LAN – Local Area Network
 Sometimes it means ”your local
network”, i.e., your whole Intranet
 Here we use LAN when referring to a
broadcast network, typically using IEEE
802.3/Ethernet technology.
 Form star topology by using a
switch/hub/bridge to connect Ethernet
equipment.
 Switches can be connected together to
extend the LAN (tree topology).
 Connecting switches in a ring improves
robustness (requires RSTP, FRNT, ...)
Connecting units to LAN via a switch (Star Topology)
Using multiple switches to extend the LAN (Tree Topology)

38. 38
Segmentation: Virtual Local Area Networks
 What is a VLAN?
 VLAN - Virtual LAN
 Your LAN equipment is split into logical,
isolated LANs (isolated broadcast
domains)
 Sharing a single switch
 Port based VLAN
 Split a single switch
 Extend VLAN over multiple switches
 VLAN trunk cables
 ”VLAN tag” added
 Holds multiplex info (VLAN ID)
VLAN 10 VLAN 20
VLAN 10 VLAN 20 VLAN 10 VLAN 20
VLAN trunk: VLAN 10 & 20
VLANs to share switch (Port based VLAN)
VLANs spanning multiple switches (Port based VLAN and VLAN tagging)

39. 39
Using VLANs to segment our network
 Configure VLANs on the (OT)
Firewall/Router
 Creates one zone for each network
 Within each zone there are
additional switches (not shown)
FW/Router
VLAN 50Intranet
Internet (WAN)
VLAN 10
Office Net
VLAN 20
Supervisory Net
VLAN 30
Control Net A
VLAN 40:
Control Net B
FW/Router
1
2
3
4
5

40. 40
Assigning IP addresses/subnets
 IP addresses: Identifies a unit and its
location
 Logically assigned
 Network part and Host part
 Assign one subnet per VLAN, e.g.,
 10.0.10.0/24: Office Net
 10.0.20.0/24: Supervisory Net
 10.0.30.0/24: Control Net A
 10.0.40.0/24: Control Net B
 10.0.50.0/24: Upstream Net
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1
Example IP address with ”prefix length” 24
(netmask 255.255.255.0):
10.0.40.1
Network ID Host ID

41. 41
Configuring IP address
 Example, configuring IP address for
interface ”vlan40” on (OT) Firewall
 Address: 10.0.40.1/24
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1

42. 42
Segmentation Done
 Segmentation using (V)LANs
 Units devided into groups based on role
 Each group in separate segment (zone)
 Within segment, communication
typically switched
 Across segments, routed via
Firewall/Router
 ”Default gateway” setting adds route
towards Internet
 Firewall not enabled
 All units can still communicate
 Security not (yet) enhanced
 Next step: Traffic segregation!
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1

43. 43
Traffic Segregation using Firewall
 Block all traffic by default
 ”Default forward policy”: Deny
 No traffic will be routed between LANs!
 Add ”packet filter allow” rules for legal traffic flows
 Whitelisting
 Need to learn your traffic patterns
 Example:
 Office network gets access towards Internet
(perhaps only HTTPS and DNS)
 No communication between Control Networks
 Supervisory Network can access Control
Networks
 Limit to specific sources/destinations and protocols
 Complements to Firewall packet filters
 Stateful Inspection
 Deep inspection firewall
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1

44. 44
Firewall filter rules in WeOS
 Default ”Forward Policy”: Drop
 Add ”Filter allow” rules for whitelisting allowed traffic
patterns
 Match traffic based on
 Network Interface (in/out)
 IP address (src/dst)
 IP payload protocol (TCP, UDP, ICMP, ...)
 TCP or UDP Port number
 Stop at first match (action: allow or deny/drop)
 Input or Forward chain?
 Input chain: Rules without ”Out Interface” and
”Destination address”
 Forward chain: Rules with ”Out Interface” and/or
”Destination address”
 Stateful firewall
 Logging possible
 Note: Does not apply to switched traffic

45. 45
Firewall filter configuration example
 Add ability for management station in supervision
network to control a unit in control network A via
SNMP.
 Here we limit to specific IP addresses of
management station (10.0.20.5) and the controlled
unit (10.0.30.33).
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1

46. 46
Segmentation and Segregation Recap
 Segmentation using (V)LANs
 IP address and subnet assignment and
routing for connectivity
 Traffic segregation using firewall rules
Done!
FW/Router
VLAN 50
10.0.50.0/24Intranet
Internet (WAN)
VLAN 10
Office Net
10.0.10.0/24
VLAN 20
Supervisory Net
10.0.20.0/24
VLAN 30
Control Net A
10.0.30.0/24
FW/Router
.2
VLAN 40
Control Net B
10.0.40.0/24
.1 .1
.1.1
.1

47. 47
More complex networks
 Intermediate Communication
Network between your zones
 Internal to plant
 Remote locations
 Use of VPNs (Conduits)
 Multiple (OT) Firewalls
 Redundancy within LANs
 Within Zones
 Intermediate Communication
Networks
 Ring Topologies
Intranet
Internet (WAN)
Office Net
Supervisory Net
Control Net A
Control Net B
FW/
Router
FW/
Router
FW/
Router
FW/
Router
FW/
Router

48. Robust Industrial Data Communications – Made Easy
Summary

49. 49
Summary
 The threat is real, keep your Security Posture updated!
 Why you should segment and segregate your network:
 Avoid single point of failure
 Policy of least privilege
 Slow down the attacker
 Reduce the damage of a successful breach

50. 50
Fundamentals of
 Network-to-Network protection
Recording available at Westermo.com
 Best practices for using VPNs for easy network-to-network
protection
 Network segregation
Recording available at Westermo.com in short
 Use WeOS switching routers to create security zones in your
network
 Perimeter protection and spoofing protection
April 17th 09.00 and 15.00 CET
 Protect your industrial network from unsolicited requests

51. 51
Thank you for attending!
 An email will be sent to you including
 Playback link to Webinar recording
 Contact information to your local Westermo dealer
 Information on how to register for next webinar
Next webinar: April 17th, 2019
Perimeter protection and spoofing protection

52. 52
Robust Industrial Data
Communications – Made Easy
