Redundant and Resilient Networks with Microsegmentation

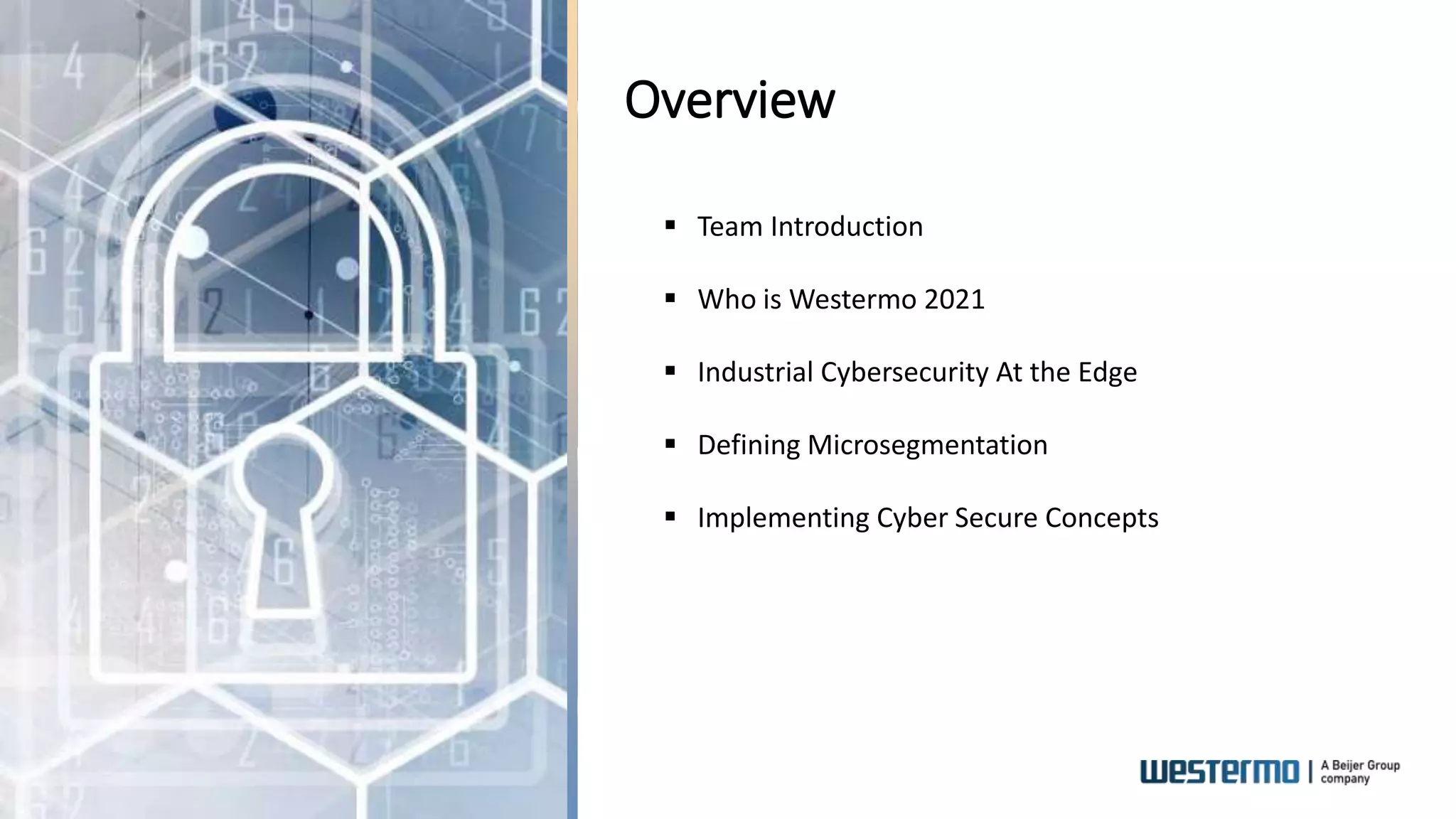

Overview
 Team Introduction
 Who is Westermo 2021
 Industrial Cybersecurity At the Edge
 Defining Microsegmentation
 Implementing Cyber Secure Concepts
3
Team Introduction
John Pavlos
Managing Director
john.pavlos@westermo.com
847-453-3898
Benjamin Campbell
Technical Support Engineer
benjamin.campbell@westermo.com
847.453.3896
Dakota Diehl
Technical Director
dakota.diehl@westermo.com
847.453.3896
4
Who is Westermo 2021
 Founded in 1975
 No. of employees: 250
 14% R&D
 Extensive IPR portfolio for key
technologies
 Recent Aquistions:
 Neratec Solutions AG – June 2019
 Virtual Access – November 2019
 Eltec – April 2021
 Flexible production with state of the
art process control
 Sales and support units in 12
countries, distributors in another 36
 Member of the Beijer Electronics
Group
www.westermo.us
Industrial Cybersecurity at the
Edge
6
Edge Networks are a Threatened Environment
 The largest number of
vulnerabilities affect Industrial
Control Systems:
 Energy Sector (178)
 Manufacturing (164)
 Water Supply (97)
 Transportation (74)
Employee errors, unintentional
actions and disgruntled employees
were responsible for 52% of
incidents affecting Operation
Technology (OT) and Industrial
Control Systems (ICS) networks in
the past year. Source: KL ICS CERT Report FY2017 H2
Source: computerweekly.com
7
 Cybersecurity becomes less effective when it is an
afterthought.
 Design the strategy as part of the system from the start.
 Understand the threat and the threat level.
 Cybersecurity is top-down AND a bottom-up process.
 Cybersecurity is not set and forget, it requires
maintenance.
 80% of the protection comes from 20% of the setup.
 Vendor sourcing is an avenue of attack, so trust with
partners is imperative.
Cyber Secure Concepts
Defining Microsegmentation
9
What is Microsegmentation?
 The first rule of Cyber Security is to assume the attack will
happen eventually. Reducing the surface area of the attack
will limit the impact.
 Micro-segementation is about reducing the surface area of
an attack to the smallest possible zone – so an attack on
one server will not propagate to another server’s functions.
 By implementing security policies to individual work zones,
it becomes harder for malicious traffic to move between
the network, limiting the aforementioned surface area.
10
Applying Microsegmentation to a Network
 Starting from a flat, solid network.
 No VLANs or Subnets are configured, so everything in the
network can see any other node.
 0 Cybersecurity in place, and no segmentation.
11
Applying Microsegmentation to a Network
 By dividing the network into VLANs and using subnets, we
are adding the first layer of segmentation.
VLAN 10
VLAN 20
10.10.0.0/16
192.168.2.0/24
12
Applying Microsegmentation to a Network
 We can add further VLANs to the network and divide those
VLANS with Firewalls to limit all communications to strictly
necessary traffic.
VLAN 10
VLAN 20
10.10.0.0/16
192.168.2.0/24
VLAN 11
VLAN 12
13
Applying Microsegmentation to a Network
 We can also add data conduits in the form of a VPN to
networks, preventing data from being accessed while it is
on route to a destination.
VLAN 10
VLAN 20
10.10.0.0/16
192.168.2.0/24
VLAN 11
VLAN 12
14
 IEC-62443 has updated with terminology known as “Data Conduits”
 Such as links between zones i.e., Fiber backbone between different processes or buildings.
 Direct connections over a large distance can be prohibitively expensive. In this case, a VPN
can be considered a “Data Conduit.”
 VPNs can secure traffic through unsecure media (such as the Internet).
 They can secure traffic over long-distance media links that are susceptible to interception.
 Can connect two remote networks together regardless of distance.
 Allow access to devices behind an NAT interface.
IEC-62443
A Note on Data Conduits
15
Applying Microsegmentation to a Network
 Adding further VLANs and VPNs brings the network to
being completely microsegmented. Traffic cannot travel
from one zone to another without going through a firewall.
VLAN 20
VLAN 10
10.10.0.0/16
192.168.2.0/24
VLAN 11
VLAN 12
VLAN 13
Applying Cyber Secure Concepts
17
Beyond Microsegmentation
 Just because a network is completely
microsegmented, does not make it cyber
secure.
 Microsegementation is about reducing
attack surface area, mitigating damage
done.
 Consider other ways to increase cyber
security such as adding redundancy and
authentication.
VLAN 10
10.10.0.0/16
192.168.2.0/24
VLAN 11
VLAN 12
VLAN 13
18
Beyond Microsegmentation
 An example of a
microsegmented
network.
 Each end device is
segmented, and
firewalls provide
Data Conduits.
 Only defined traffic
can travel around
the ring.
 The backhaul ring
offers further
redundancy.
Backhaul
L2 ring topology 20-30ms
re-convergence time
L3 routing and FW at each
node creates a Zone
Dynamic routing protocol (OSPF) used to advertise
location of subnets only, not used for re-convergence
19
Some Layer 2 and Layer 3 Protocols
How Do You Add Redundancy?
 RSTP is a common Layer 2 Protocol to
add redundancy.
 You cannot have Layer 2 devices
connected in a ring without a
redundancy protocol, would cause a data
storm.
 Protocols such as RSTP or FRNT detect
redundant links and shut them off until
they are needed.
 Usually require some additional
bandwidth to maintain the “heartbeat”.
 VRRP stands for Virtual Router
Redundancy Protocol, a Layer 3 protocol.
 Two or more routers become one
“Virtual” router, and that virtual router is
the Default Gateway for one or more
hosts.
 If the current Primary/Active router fails
or cannot be reached, a secondary router
takes over.
 Limited to one virtual router per subnet.
20
Beyond Microsegmentation
 We can add redundant links
within the ring via a VPN
 The VPN adds security to
connection, and redundant
links decrease chances of
communication loss.
 Efficient routing means that
all communications only
enter and leave the
backbone once and are
filtered through a firewall.
Backhaul
X
Backup Primary
VRRP
SSL VPN
Primary
routes via
VPN
Backup
routes via
VPN
21
Beyond Microsegmentation
 By adding an Authentication
server such as RADIUS or
TACACS+ one can get control of
the assets.
 Instead of using default
user/pass to access the network,
or maintaining a large user
database on each device, one
central server manages it.
 Password management is key in
cybersecurity.
Authentication
server
22
Beyond Microsegmentation
 Cybersecurity is not a “Fire and Forget” implementation.
 New threats must be evaluated, and the system must be reviewed.
 Patches and updates must be maintained across the network.
 By building a secure network from the outset, much of the work is done later.
 Microsegmentation is only one tool in a cyber secure network.
Further Learning
24
 Introduction to IP
 Introduction to WeOS
 Certified Engineer Switching
 Certified Engineer Routing
 Also Available Customer Tailored Training
https://www.westermo.us/support/academy
25
Future Webinars
 Accessing The Last Mile
 Presentation this September
 Accessing remote networks through remote media such as
cellular or VPNs.
 Zero Touch Deployment and other tools to make remote setup
possible.
 We look forward to seeing you there!
