Hope, fear, and the data center time machine
- 1. The path toagility in an app-centric world Hope, Fear, and the Data Center Time Machine… Wes Toman | Systems Engineer wetoman@cisco.com December, 2016

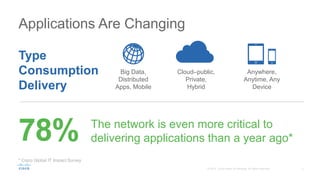

- 2. * Cisco GlobalIT Impact Survey Applications Are Changing Type Consumption Delivery 78% The network is even more critical to delivering applications than a year ago* Big Data, Distributed Apps, Mobile Cloud–public, Private, Hybrid Anywhere, Anytime, Any Device

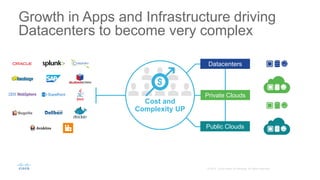

- 3. Cost and Complexity UP Growthin Apps and Infrastructure driving Datacenters to become very complex Private Clouds Datacenters Public Clouds

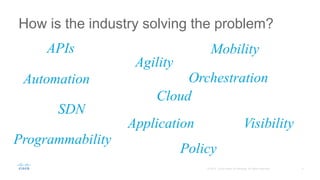

- 4. How is theindustry solving the problem? Application Policy Visibility SDN Programmability APIs Automation Mobility Agility Orchestration Cloud
- 5.

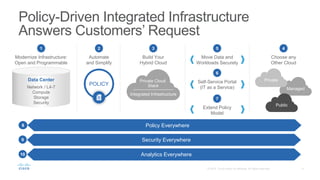

- 6. Security Everywhere9 Analytics Everywhere10 8Policy Everywhere Policy-Driven Integrated Infrastructure Answers Customers’ Request 1 Modernize Infrastructure: Open and Programmable Network / L4-7 Compute Storage Security Data Center 5 Move Data and Workloads Securely 6 Self-Service Portal (IT as a Service) 7 Extend Policy Model 2 Automate and Simplify POLICY 3 Build Your Hybrid Cloud Private Cloud Stack Integrated Infrastructure 4 Choose any Other Cloud Managed Public Private

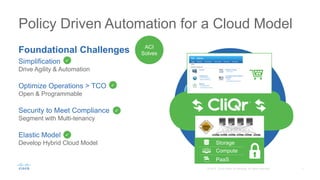

- 7. IT as aService IaaS | PaaS | SaaS | XaaS Flexible Consumption Models Foundational Challenges Simplification Drive Agility & Automation Optimize Operations > TCO Open & Programmable Security to Meet Compliance Segment with Multi-tenancy Elastic Model Develop Hybrid Cloud Model Policy Driven Automation for a Cloud Model Foundation Orchestration Self Service ACI Solves Storage Compute PaaS
- 8. Enhancing Bi-Modal ITwith ACI and UCS Tenant 1 = Mode 1 Tenant 2 = Mode 2 Common Infrastructure, and Management With Secure, Stable Separation Manufacturing IT Department Recently Acquired Company Marketing Department
- 9. Enhancing Bi-Modal ITwith ACI and CliQr ACI, UCS, UCSD = Mode 1 Public Cloud = Mode 2 Stability With on Premises Model 1. Agility with Public Model 2. Manufacturing IT Department Recent Acquired Company Marketing Department
- 10. Bare Metal, Virtualizedand Containers VM Density and Converged/Hyperconverged Storage 10/25/40/50/100G Ethernet Transition Hybrid-Cloud Over 54% Enterprises Moving to Hybrid Cloud Big Data and Analytics: Foundational for Next Gen DC 25% CAGR IP Traffic Growth1 1. Cisco Global Cloud Index Forecast (2013-2017)

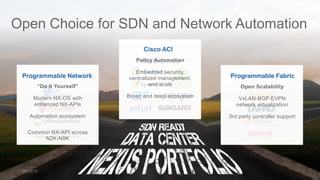

- 11. Open Choice forSDN and Network Automation Large Social Networking Service Programmable Network Cisco ACI Programmable FabricProgrammable Network “Do It Yourself” Modern NX-OS with enhanced NX-APIs Automation ecosystem Common NX-API across N2K-N9K Cisco ACI Policy Automation Embedded security, centralized management, and scale Broad and deep ecosystem Programmable Fabric Open Scalability VxLAN-BGP EVPN network virtualization 3rd party controller support
- 12.

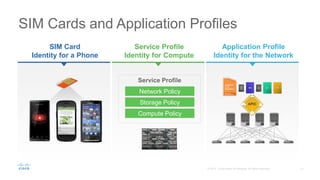

- 13. Service Profile Network Policy StoragePolicy Compute Policy SIM Cards and Application Profiles SIM Card Identity for a Phone Service Profile Identity for Compute Application Profile Identity for the Network

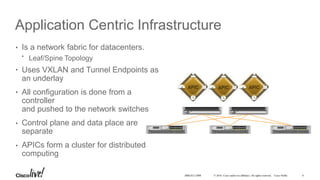

- 14. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public Application Centric Infrastructure • • • • • Is a network fabric for datacenters. • Leaf/Spine Topology Uses VXLAN and Tunnel Endpoints as an underlay All configuration is done from a controller and pushed to the network switches Control plane and data place are separate APICs form a cluster for distributed computing 8BRKACI-2008

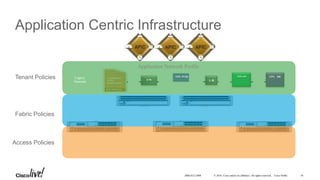

- 15. © 2016 Ciscoand/or its affiliates. All rights reserved. Cisco Public 10BRKACI-2008 L/B EPGAPP EPG DB F/W EPG WEB Application Network Profile Legacy Network Fabric Policies Access Policies Tenant Policies Application Centric Infrastructure

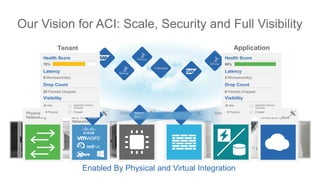

- 16. Our Vision forACI: Scale, Security and Full Visibility Physical Networking Compute L4–L7 Services StorageHypervisors and Virtual Networking Multi DC WAN and Cloud Enabled By Physical and Virtual Integration Tenant Application Health Score Latency Drop Count Visibility 78% 5 Microsecond(s) 25 Packets Dropped 16 VMs 8 Physical Application Delivery Controller Firewall Health Score Latency Drop Count Visibility 96% 2 Microsecond(s) 0 Packets Dropped 16 VMs 8 Physical Application Delivery Controller Firewall

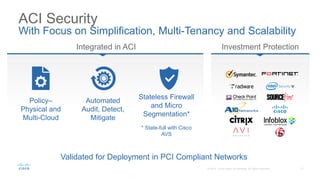

- 17. ACI Security With Focuson Simplification, Multi-Tenancy and Scalability Automated Audit, Detect, Mitigate Policy– Physical and Multi-Cloud Stateless Firewall and Micro Segmentation* * State-full with Cisco AVS Integrated in ACI Investment Protection Validated for Deployment in PCI Compliant Networks
- 18. Matt Chamley “ACI becamethe new construct that not only provided a simplified environment where we can drop our firewalls down to 16 and take 5M+ firewall rules down to thousands...It also gave us the ability, through policies and automation, to significantly reduce our costs.”
- 19.

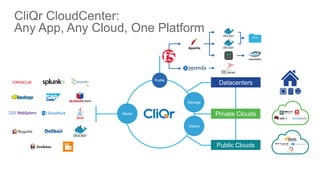

- 20. CliQr CloudCenter: Any App,Any Cloud, One Platform Private Clouds Datacenters Public Clouds Model Manage Deploy Profile NFS
- 21. Working Together: End-to-EndOrchestration Business (ITSM) Prime Service Catalog, ServiceNow, Custom Development (DevOps) CliQr, Jenkins Application-Centric Lifecycle Management Model Benchmark Deploy Manage Application Profiles UCS Director ACI Nexus Switching StorageUCS Datacenter Private Cloud Public CloudProfileProfile Hyper-V
- 22.

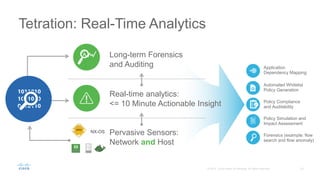

- 23. Tetration: Real-Time Analytics Long-termForensics and Auditing Application Dependency Mapping Automated Whitelist Policy Generation Policy Compliance and Auditability Policy Simulation and Impact Assessment Forensics (example: flow search and flow anomaly) Real-time analytics: <= 10 Minute Actionable Insight Pervasive Sensors: Network and Host NX-OS

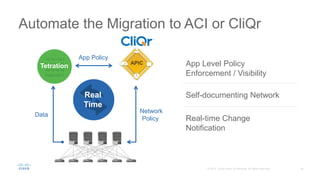

- 24. Automate the Migrationto ACI or CliQr App Level Policy Enforcement / Visibility Self-documenting Network Real-time Change Notification Real Time Data Network Policy App Policy Tetration
- 25. Major Healthcare Corporation “TetrationAnalytics revolutionizes how we could start doing our data center management across every domain: fault, performance, configuration, change management, predictive analytics. This is visibility we have never had before.”
- 26.

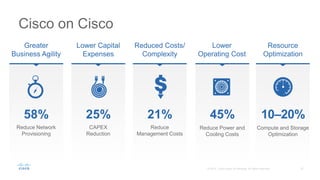

- 27. Greater Business Agility Lower Capital Expenses ReducedCosts/ Complexity Lower Operating Cost Resource Optimization Cisco on Cisco 58% 25% 21% 45% 10–20% Reduce Network Provisioning CAPEX Reduction Reduce Management Costs Reduce Power and Cooling Costs Compute and Storage Optimization

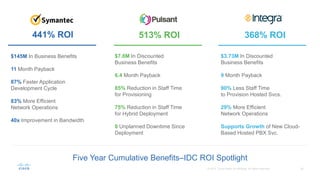

- 28. 368% ROI441% ROI513% ROI $145M In Business Benefits 11 Month Payback 87% Faster Application Development Cycle 83% More Efficient Network Operations 40x Improvement in Bandwidth $7.8M In Discounted Business Benefits 6.4 Month Payback 85% Reduction in Staff Time for Provisioning 75% Reduction in Staff Time for Hybrid Deployment 0 Unplanned Downtime Since Deployment $3.73M In Discounted Business Benefits 9 Month Payback 90% Less Staff Time to Provision Hosted Svcs. 29% More Efficient Network Operations Supports Growth of New Cloud- Based Hosted PBX Svc. Five Year Cumulative Benefits–IDC ROI Spotlight
